Midterm

[x] post a system diagram for your project
[x] list the tasks to be completed
[x] make a schedule for doing them
[ ] schedule a meeting with your instructors for a graded review of these and your weekly assignments

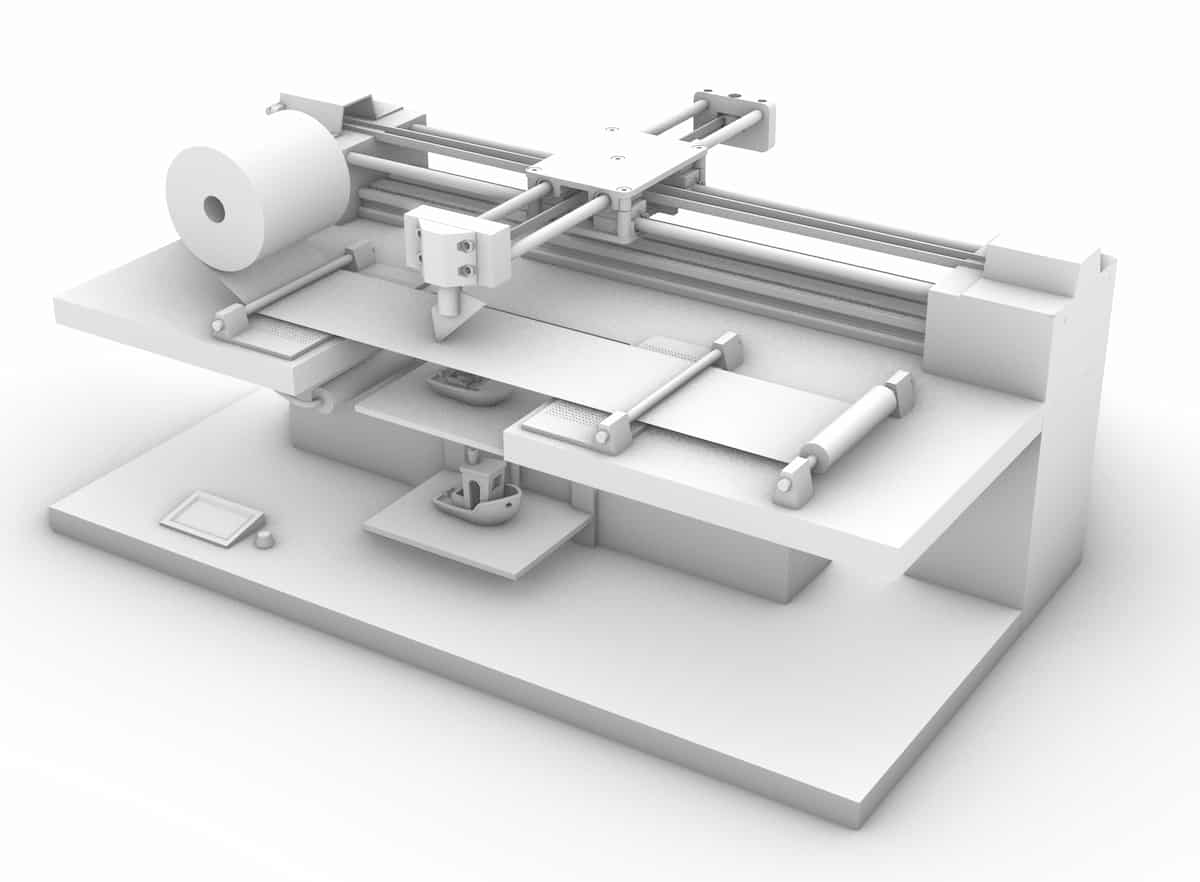

Project Mock-Up

Final Project, 3D Paper Printer. See initial ideas page (idea # 1).

Project Development

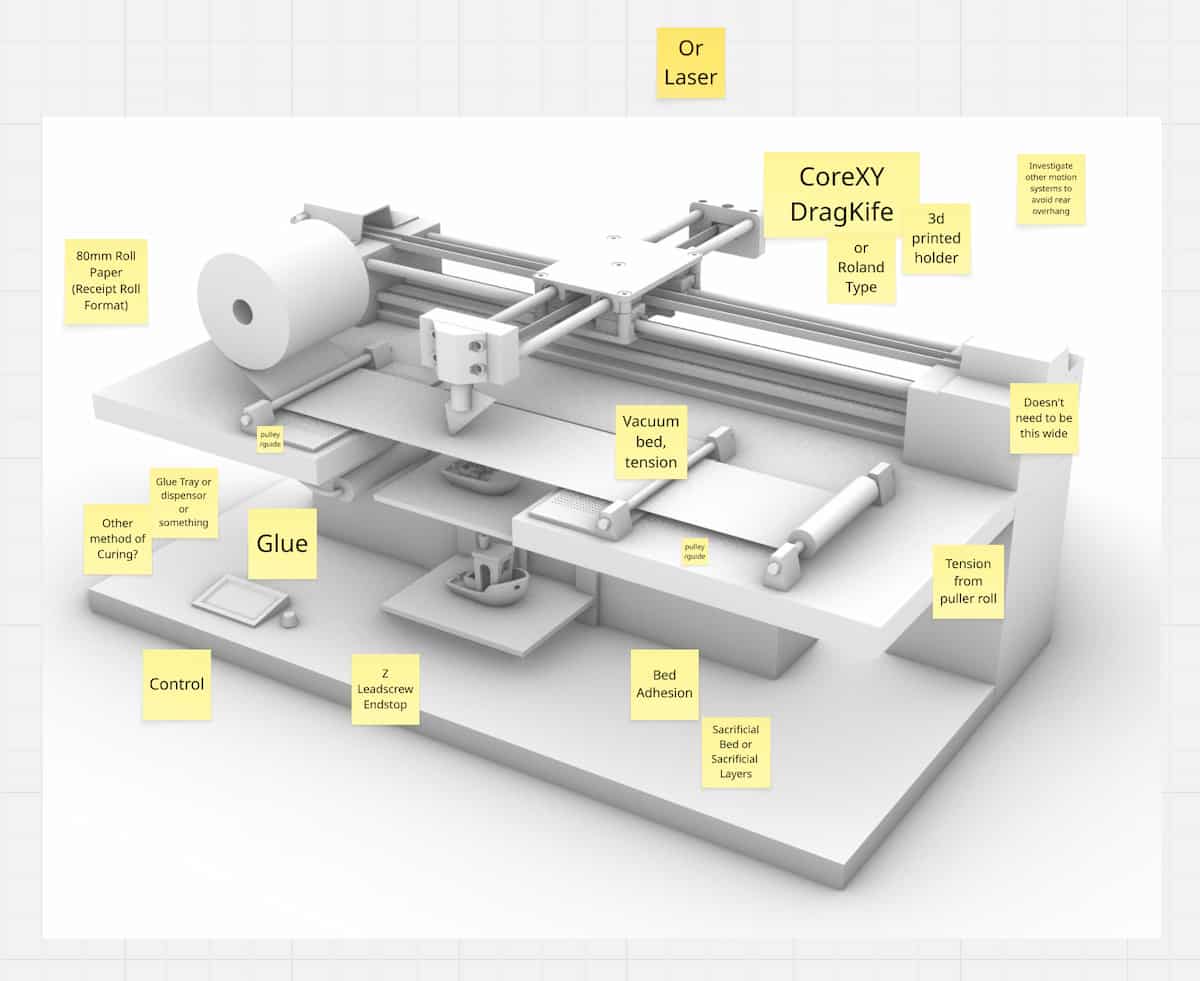

This model is a sketch version of all the features from the initial concept. I used Miro to go from 3d mockup to a list.

Sticky Notes

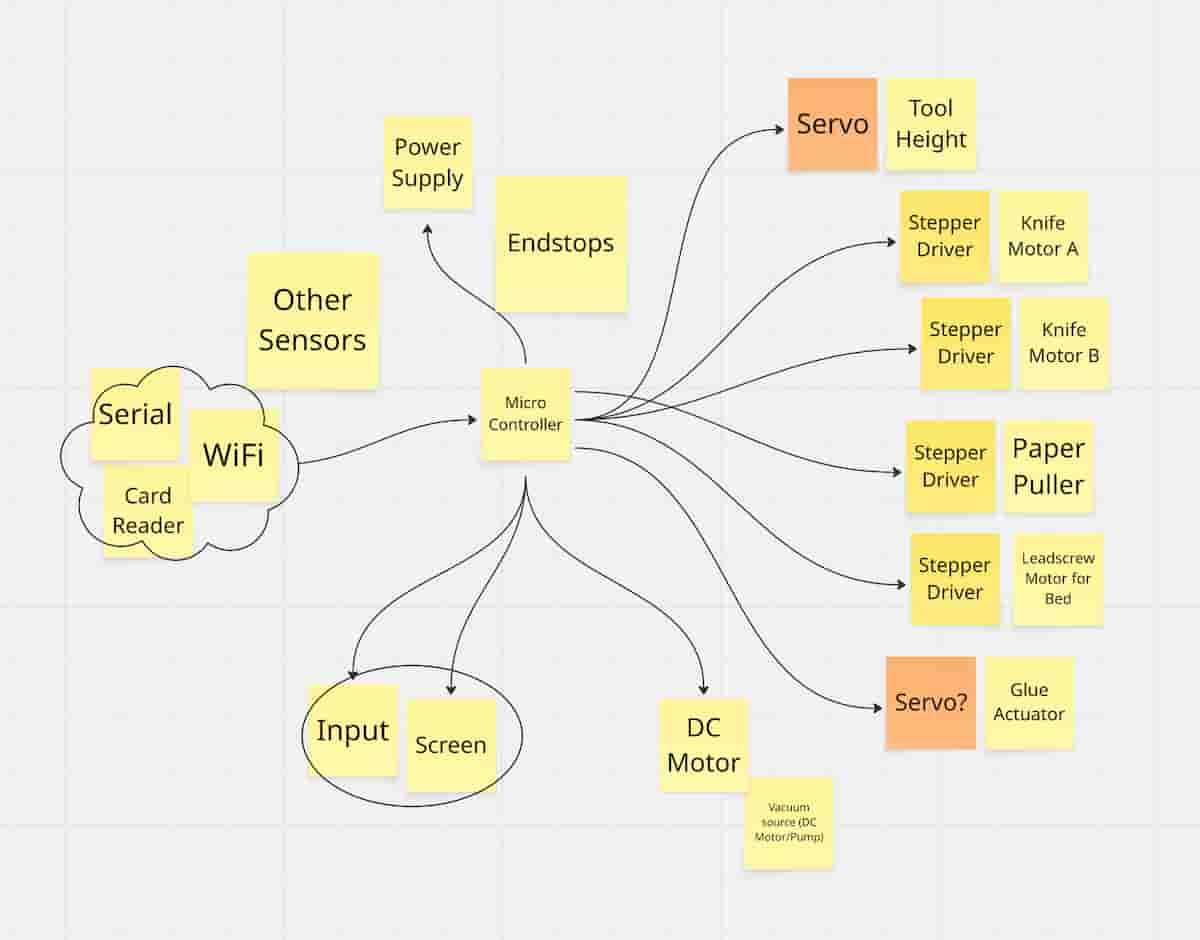

Did a Spider Diagram, of electronic system.

Spider Diagram

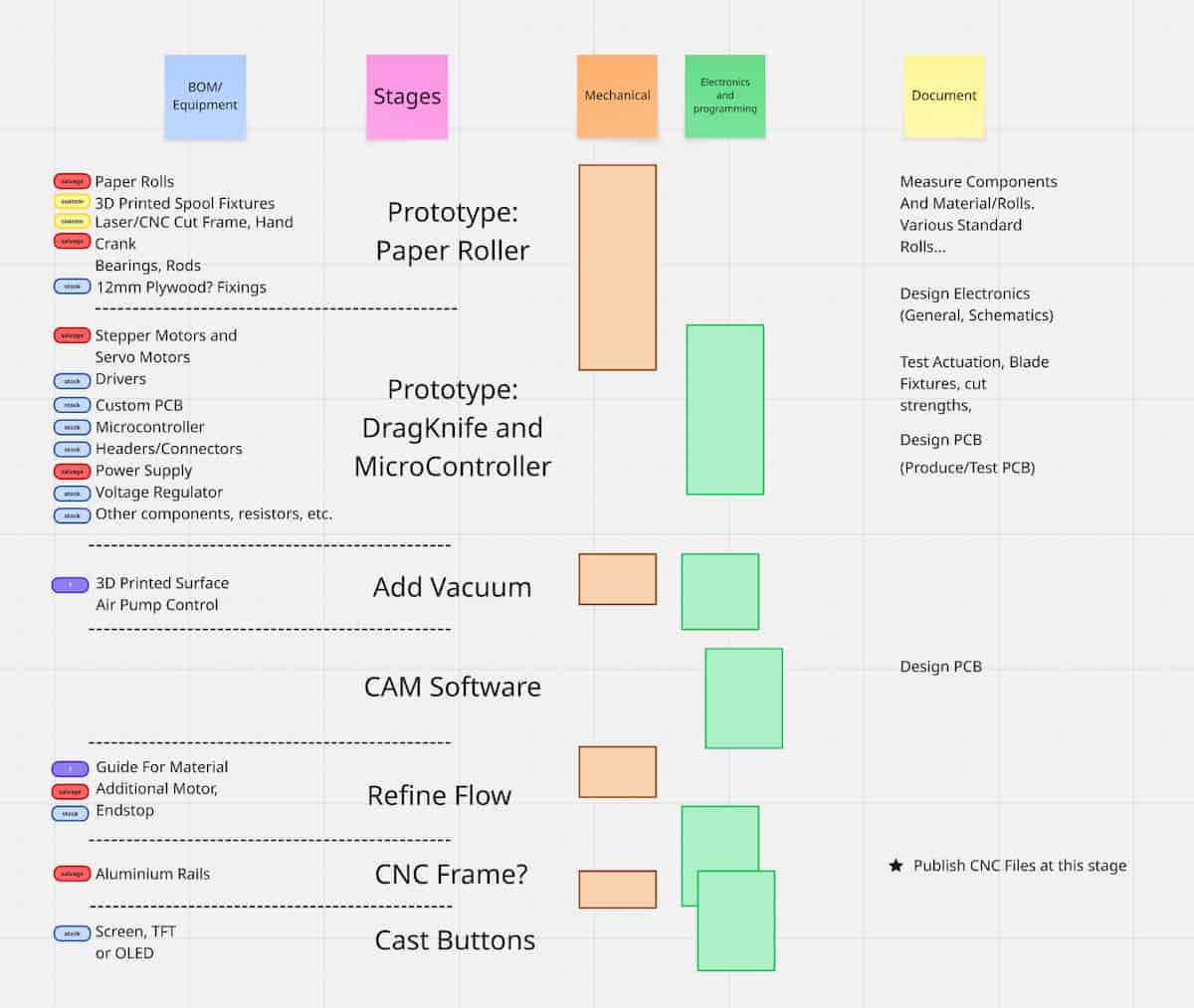

Try to refine into list and into Bill of Material,

List

		Lead Time	Estimated Time
v0.1	Grasshopper + Laser Cutter + Manual Paper Stacker, + Glue roller		1.5 days
v0.2	+ Paper Stacker, and Glue Machine		2-3 days
v0.3	+ Actuated Drag Knife		5-8 days
v0.4	+ Paper Roller	0 days	2-3 days
v0.5	+ Little Vacuum Bed		3 days
v0.6	+ Remote Connection		4 days
v0.8	+ Software		5 days
v0.9	+ Improved CNC Frame		2 days
v0.10	+ Cast Buttons		2 days

Icons

(These are icons I drew from my notebook sketches for the listed features above).

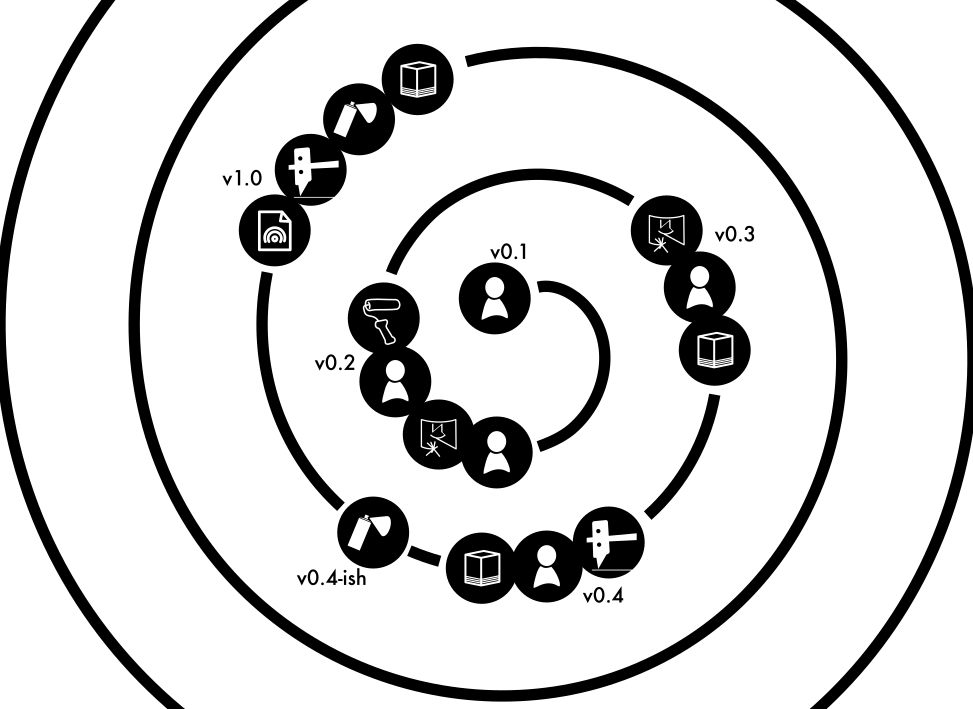

Spiral

Schedule

May

Mon	Tue	Wed	Thu	Fri	Sat	Sun
				1	2 FP: 4hrs	3
4 FP:6hrs	5 WA:2hrs FP:1hrs	6 CLASS FP:2.5hrs	7 FP:4.5hrs	8 FP:6hrs	9 FP:4hrs	10
11 FP:2hrs	12	13 WA:2hrs FP:2hrs	14 FP:2hrs FP:2hrs	15 WA:2hrs FP:2hrs	16 FP:2hrs	17 WA:2hrs
18 FP:2hrs	19 FP:2hrs WA:2hrs	20 Register Presentation FP:2hrs	21 WA:2hrs	22 WA:2hrs FP:2hrs	23 FP:2hrs FP:2hrs	24 WA:2hrs FP:2hrs
25	26 WA:2hrs FP:2hrs	27 WA:2hrs FP:2hrs	28	29 WA:2hrs FP:2hrs	30 WA:2hrs FP:2hrs	31 WA:2hrs FP:2hrs

June

Mon	Tue	Wed	Thu	Fri	Sat	Sun
1 WA:2hrs FP:2hrs	2 WA:2hrs FP:2hrs	3 WA:2hrs FP:2hrs	4 WA:2hrs FP:2hrs	5 WA:2hrs FP:2hrs	6 WA:2hrs FP:2hrs	7 WA:2hrs FP:2hrs
8 Presentations	9 Presentations	10 Presentations	11 Presentations	12 Presentations	13	14
15	16	17	18	19	20	21
22	23	24 Local to Global Deadline	25	26	27	28
29	30

WA: Weekly Assignment; total 00 hrs
FP: Final Project; total 00 hrs
