Week 16 System Integration

Individual assignment

System Integration — Lucky Bot

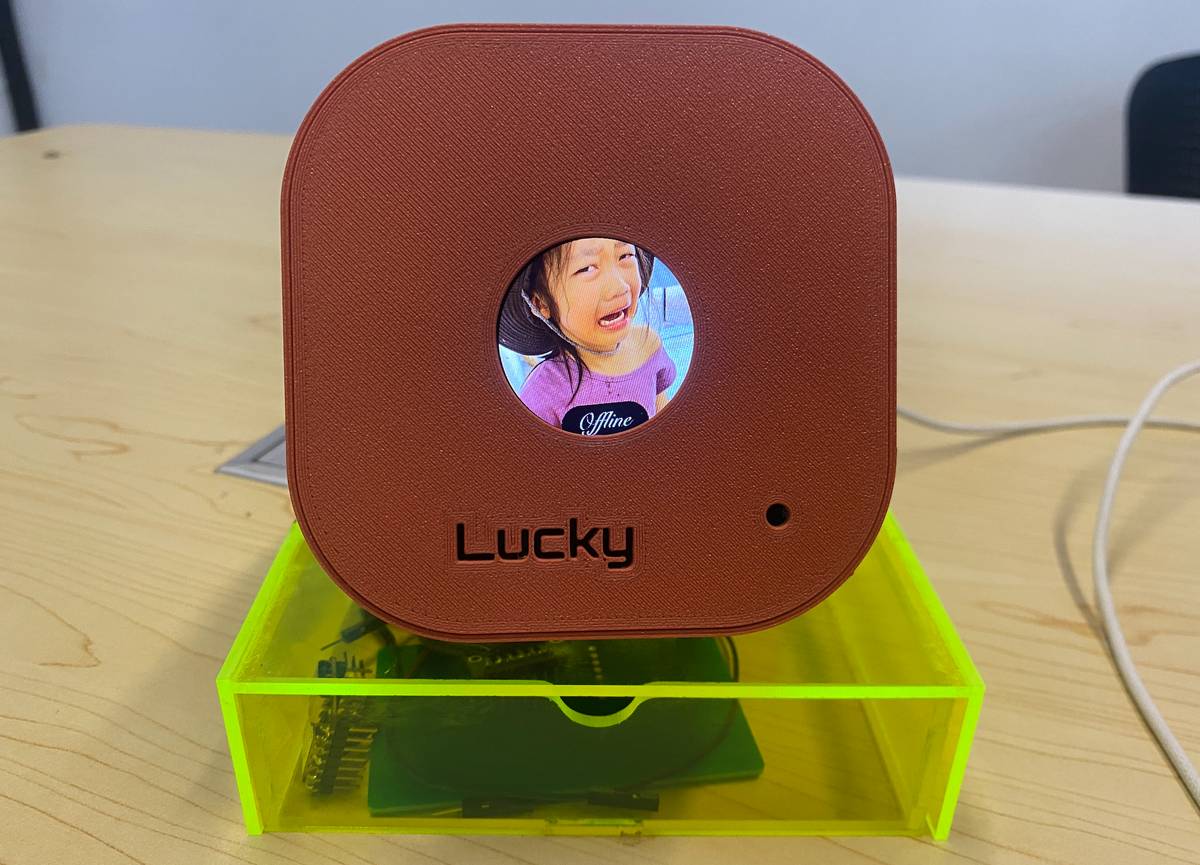

What is Lucky Bot?

Lucky Bot is an AI voice interactive bot. Why is it called Lucky? I will clone the voice of my child, so I can talk with him everywhere.

How does it work?

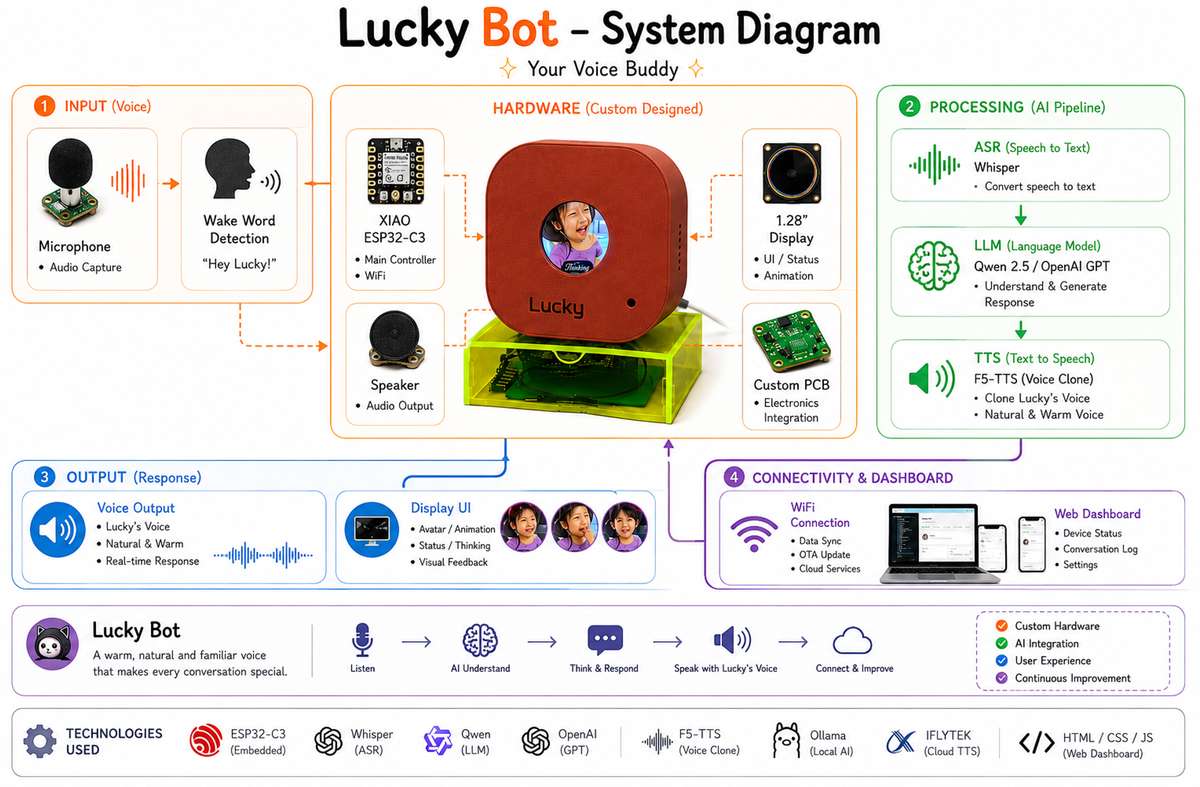

Input (voice) ---> AI processing (ASR, LLM, TTS, clone the voice) ---> Output (voice, display UI, web UI)

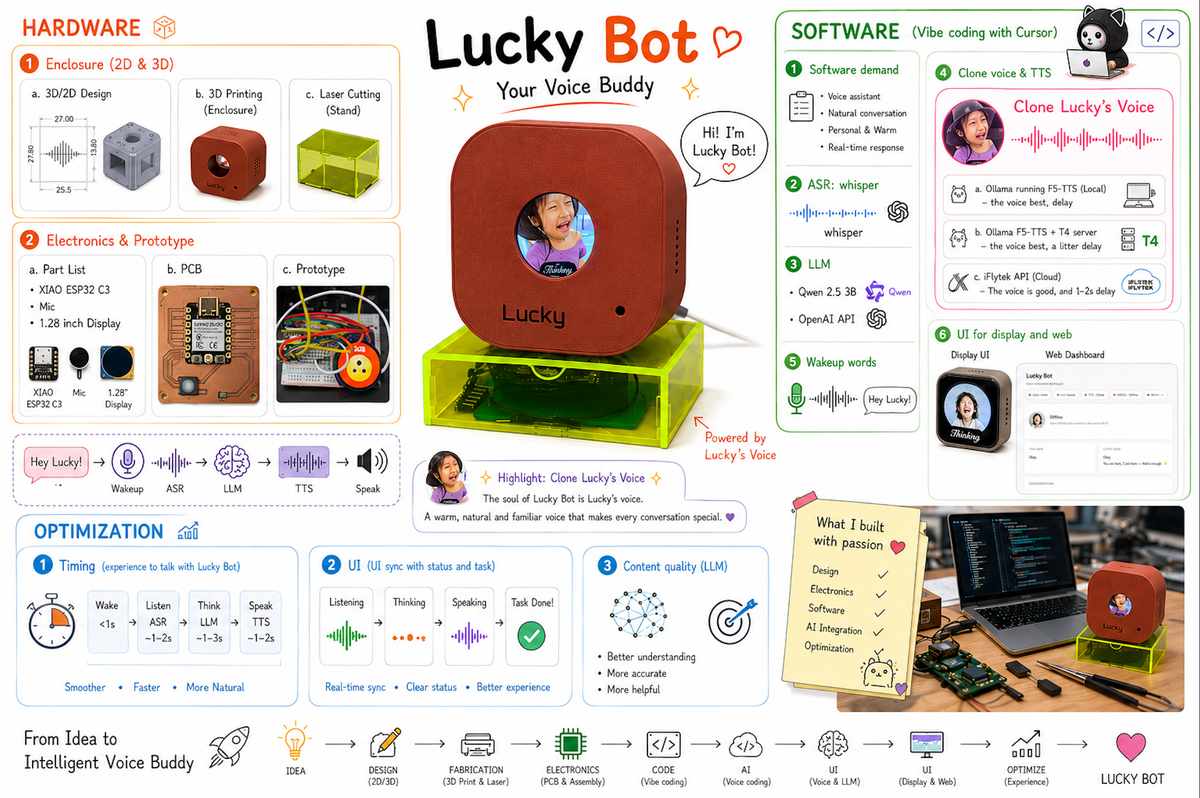

System integration

Hardware

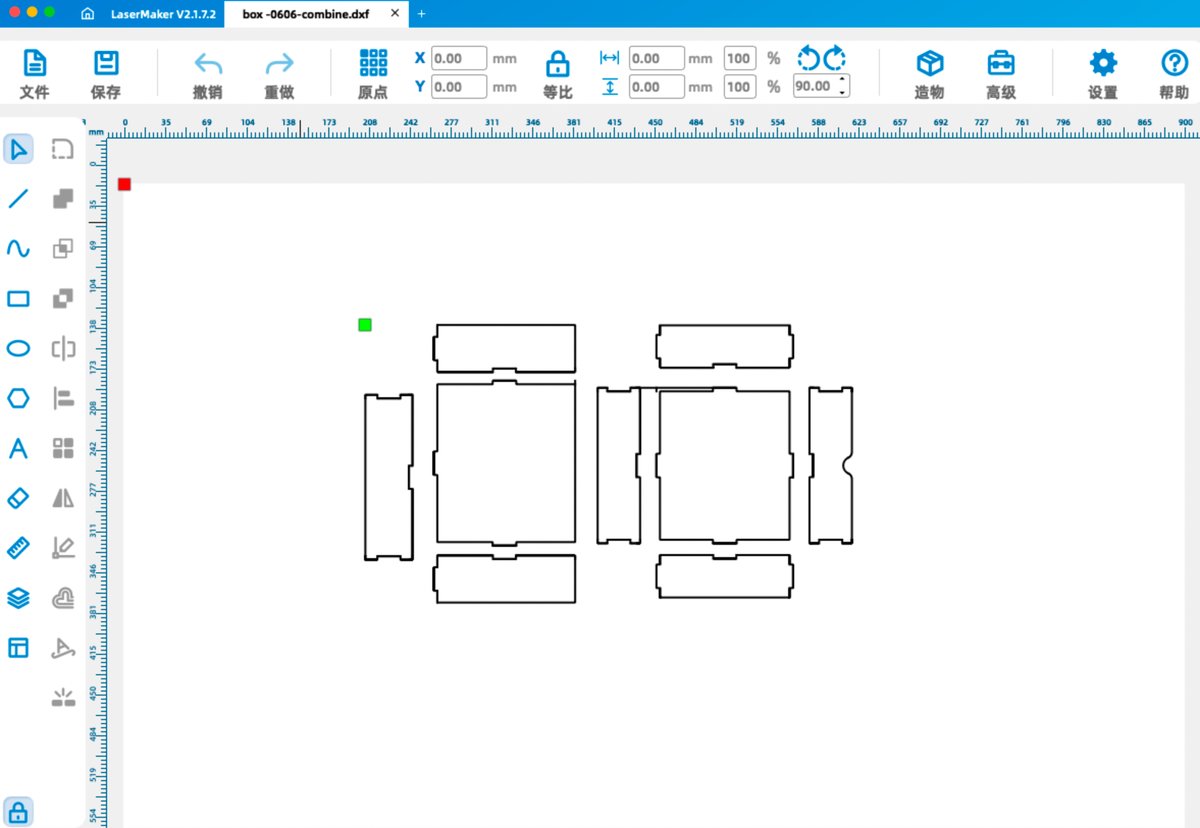

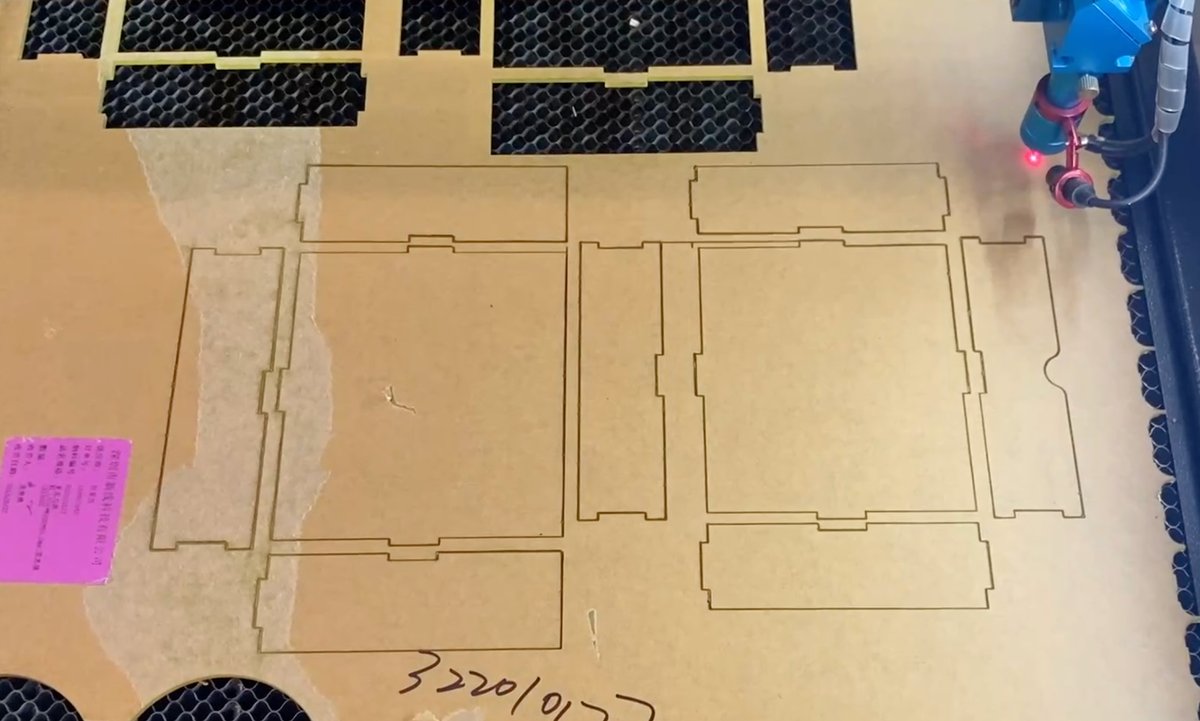

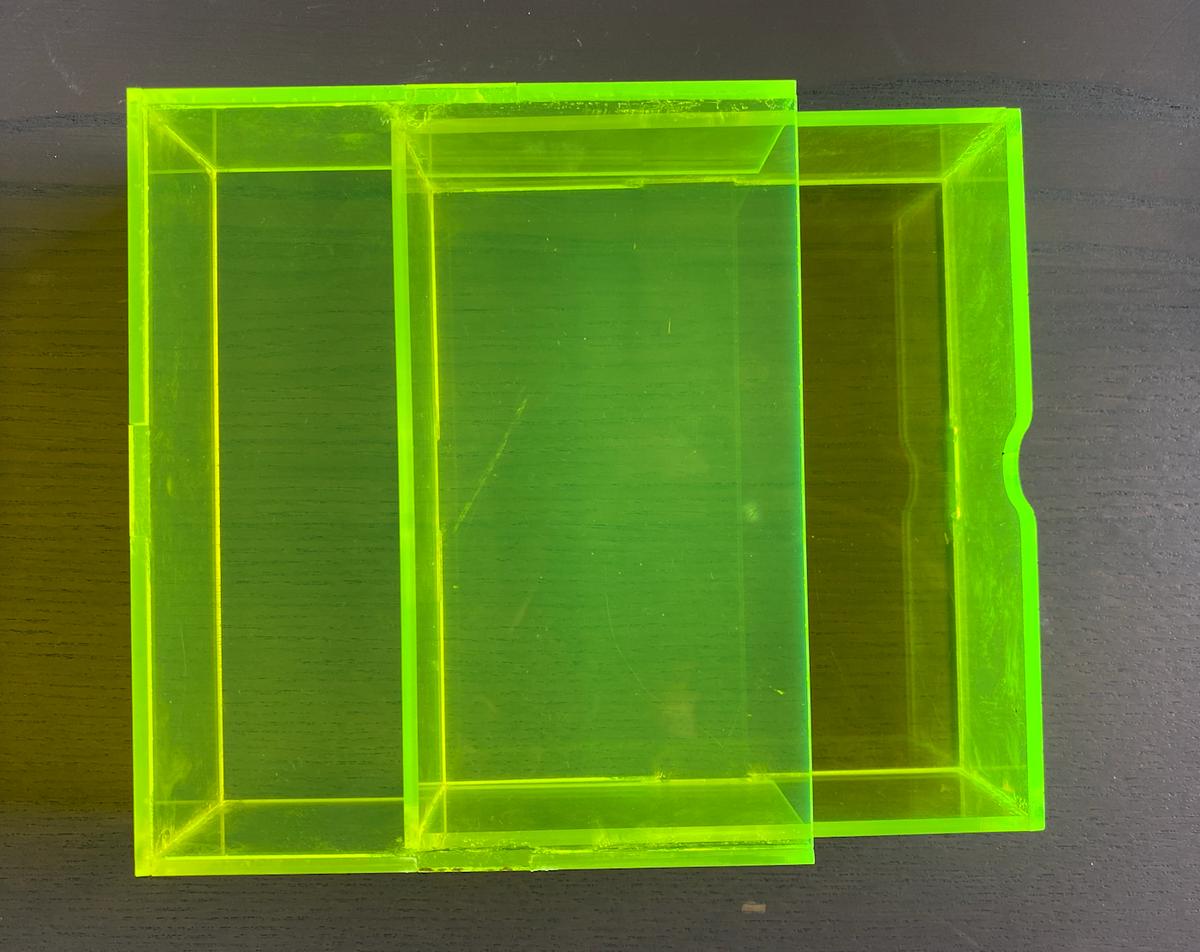

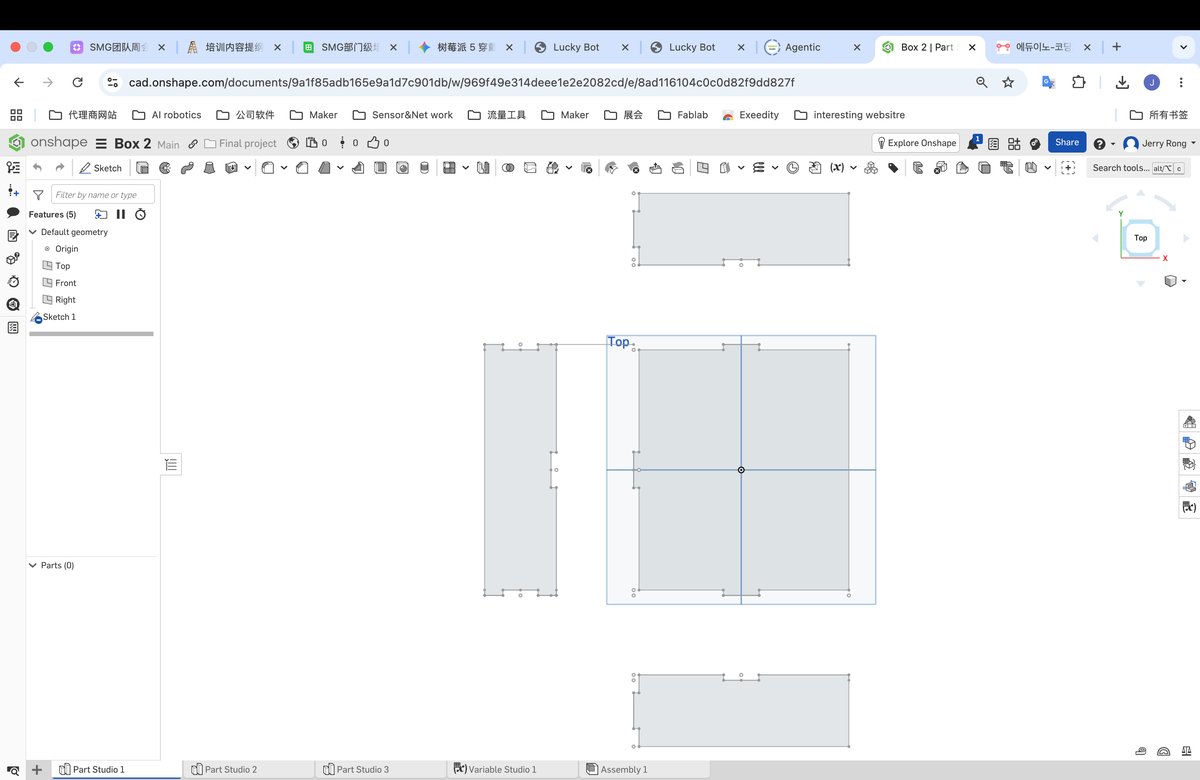

• 2D — green stand & storage box & laser cutting

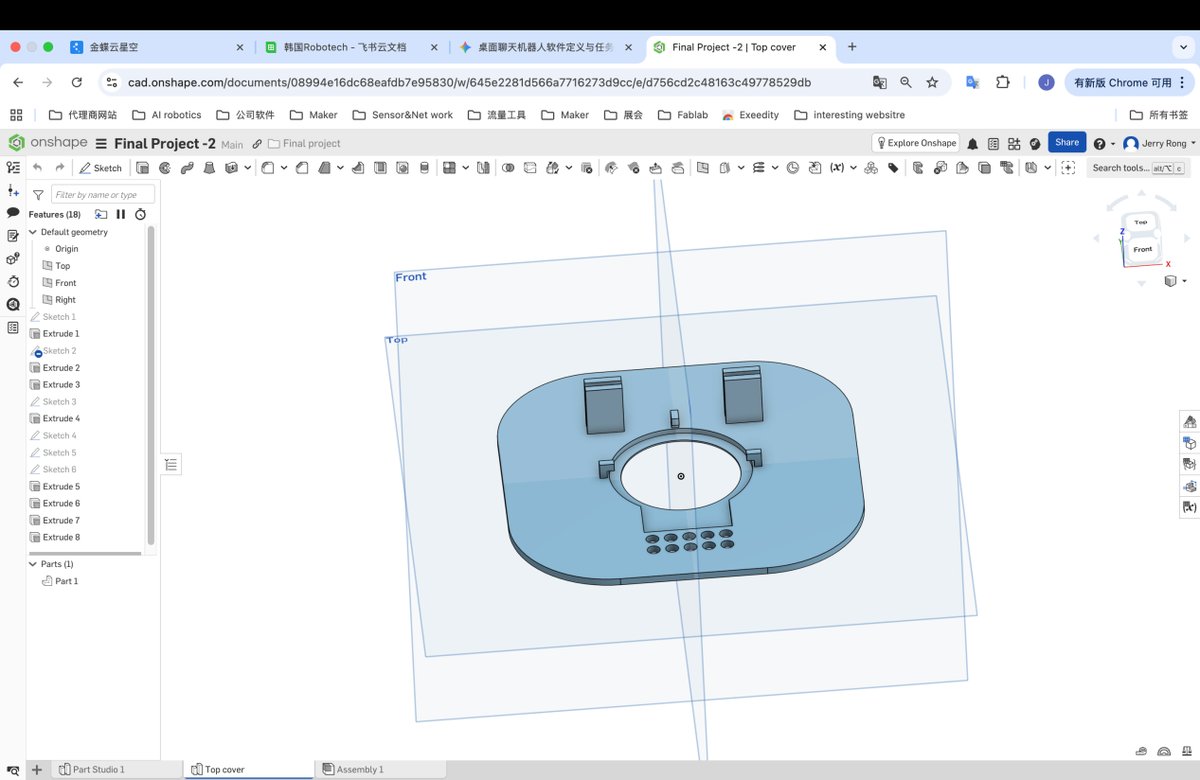

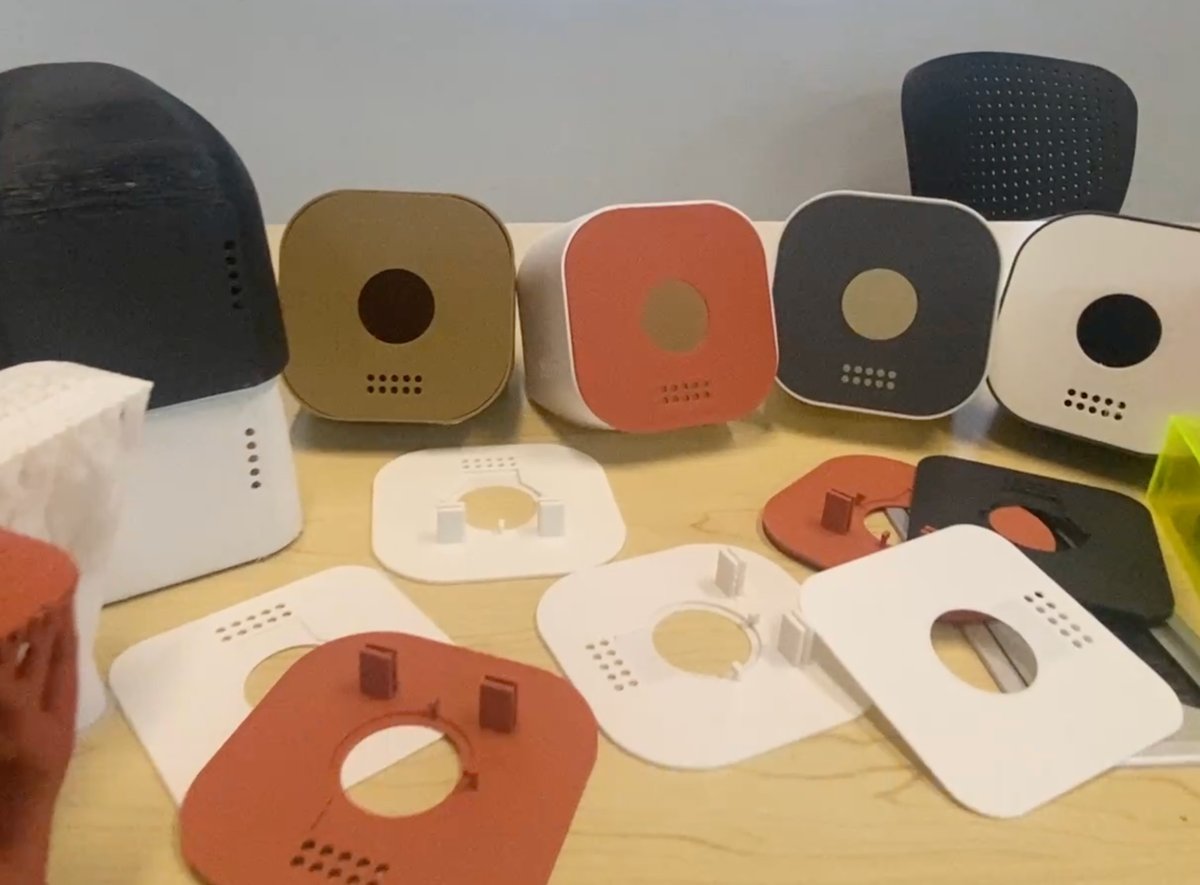

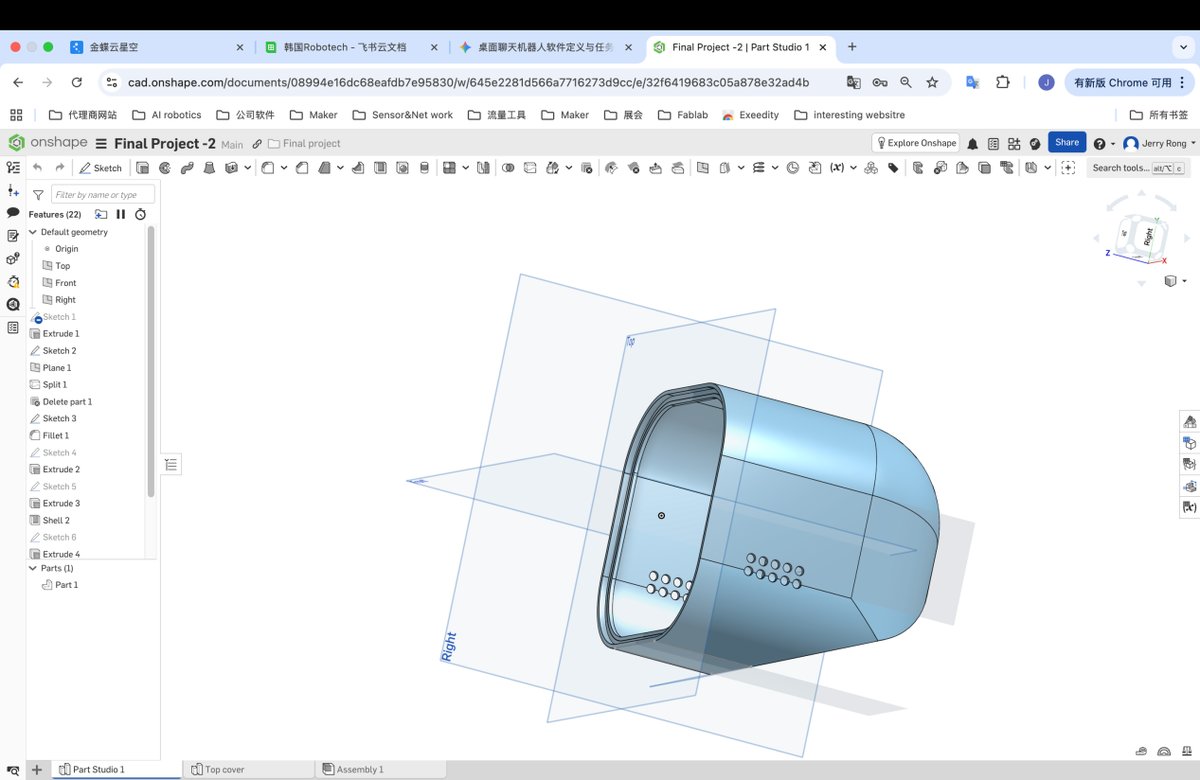

• 3D — enclosure & 3D printing

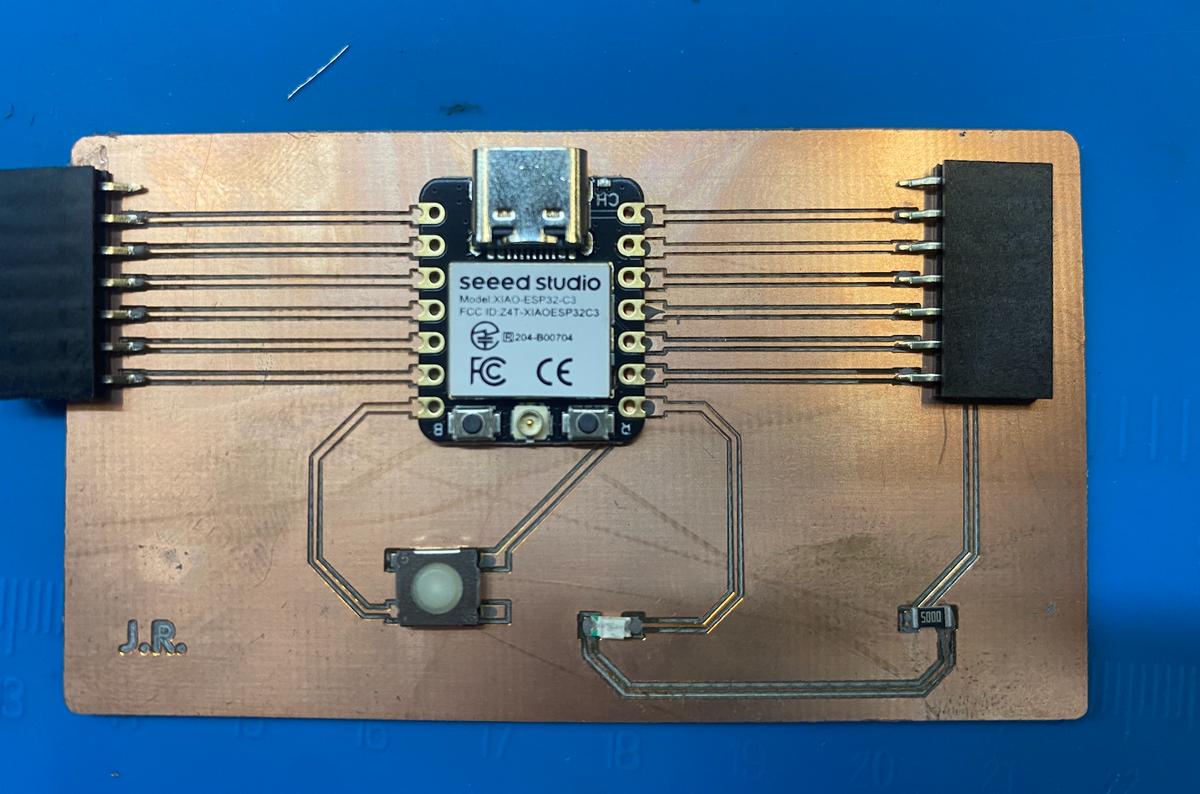

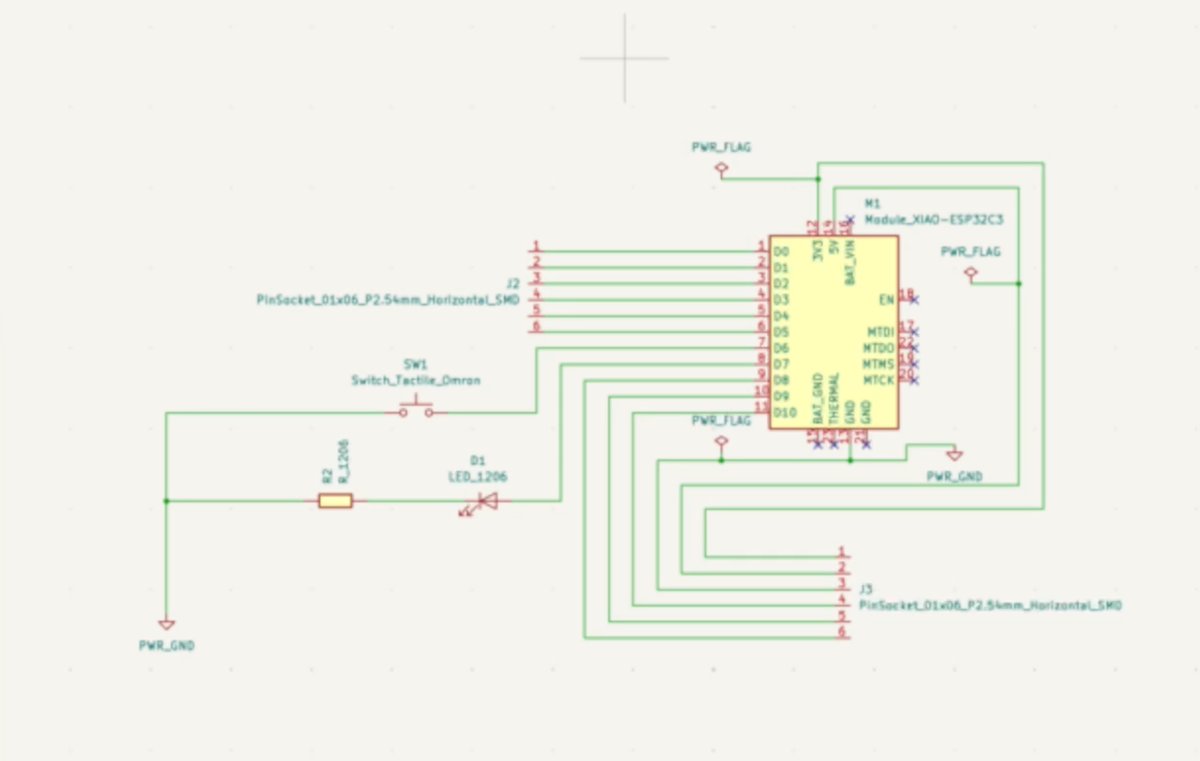

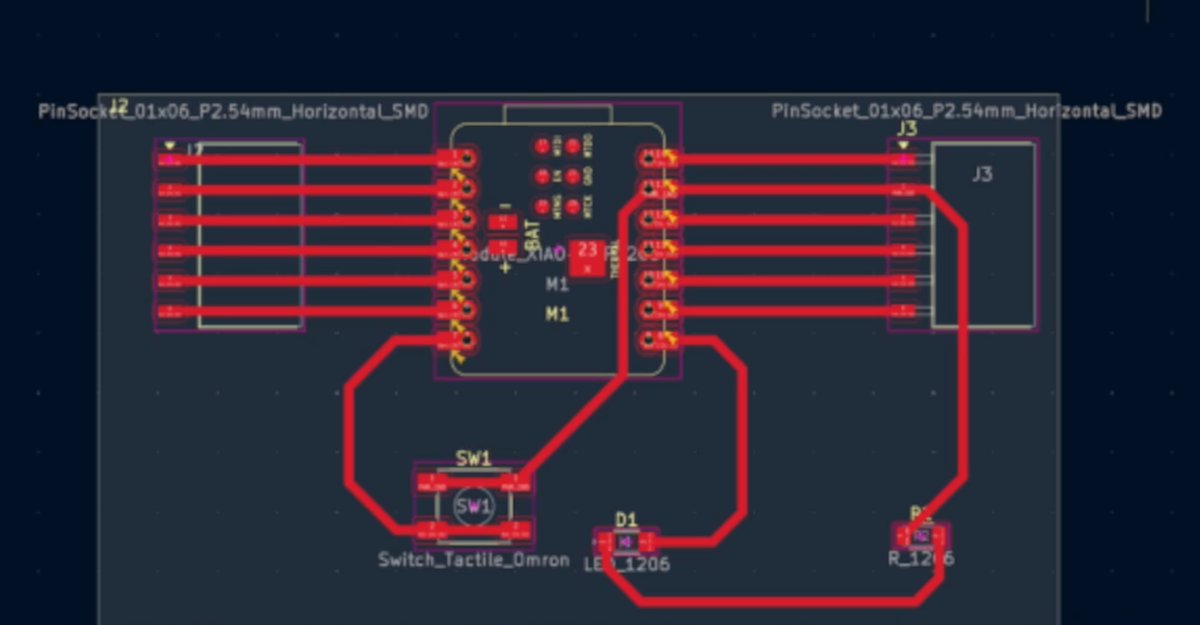

• PCB — schematic & small CNC & PCBA

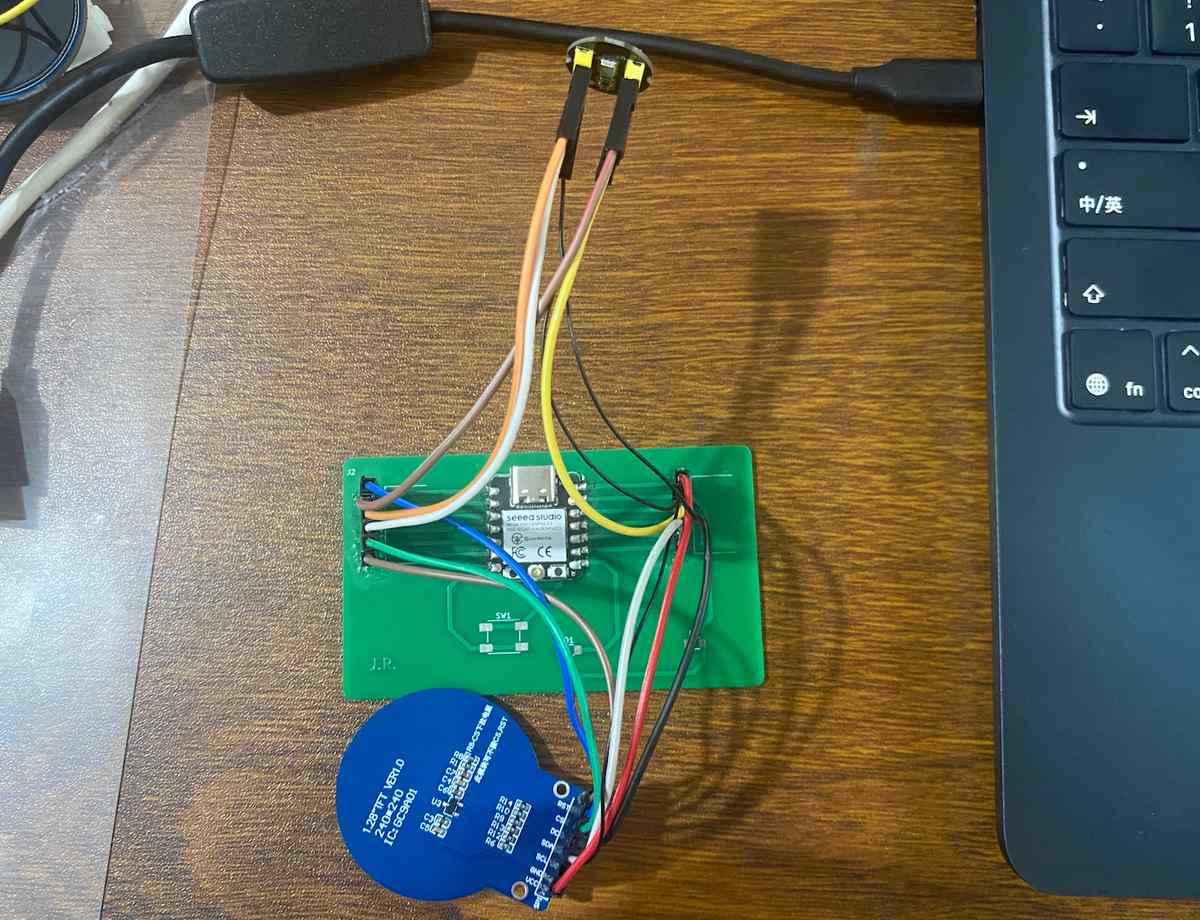

• Electronics — XIAO ESP32 C3, mic & 1.28 inch display

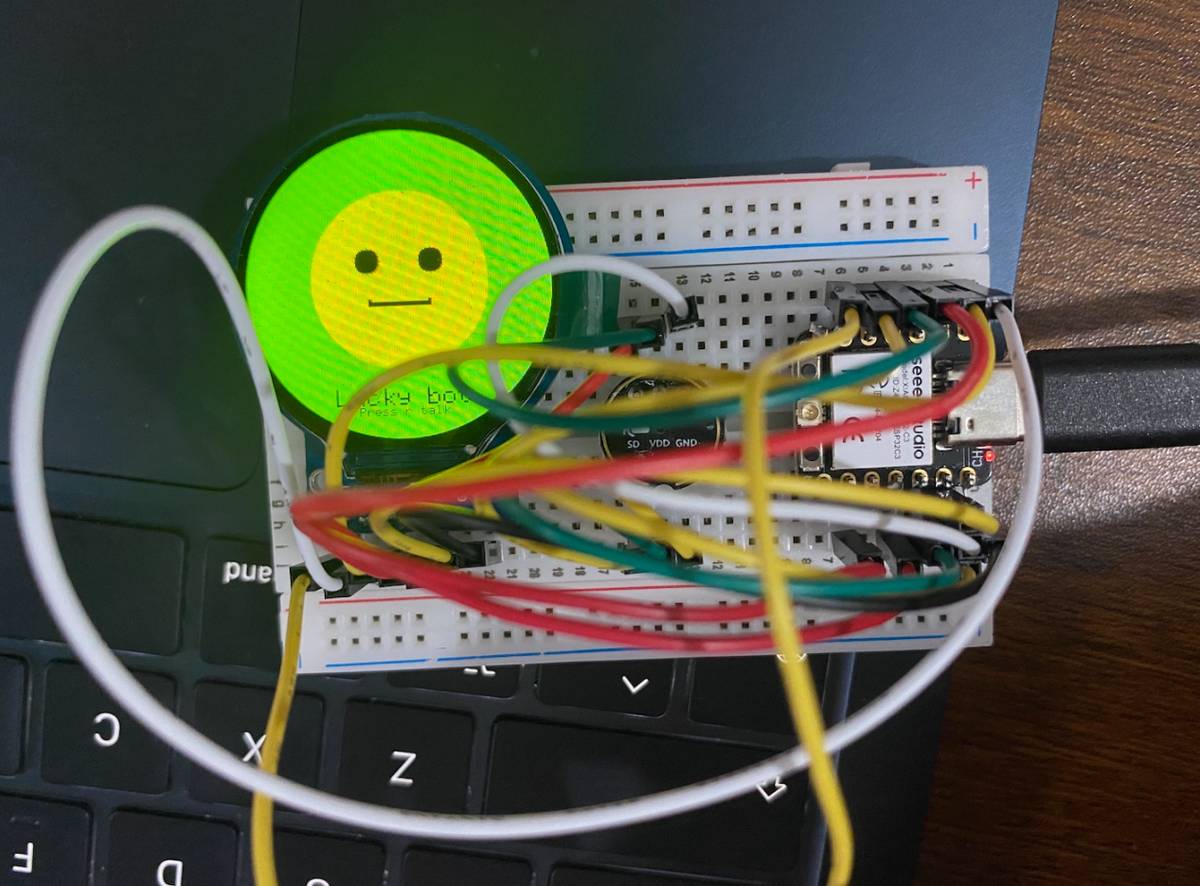

• Prototyping & debug

Software

• ASR — Whisper
• LLM — local Qwen 2.5 3B; GPT API
• Clone voice — F5 TTS; Iflytek
• TTS — Iflytek
• Wakeup word
• Optimization

Demo video

Lucky Bot system integration demo:
