5. 3D Scanning and printing

Group assignment:

  • Test the design rules for your 3D printer(s)

👉 To see our complete group assignment documentation, click here.

Summary of the Group Tests & Printer Characterization

At our lab (Fablab INP-HB), our group characterized our 3D printer: the Original Prusa i3 MK3S+ (FDM technology). We printed a standard 3D printer torture test to understand the machine's physical limits and establish our digital fabrication design rules:

Design Rule / Feature Test Description Observed Limit / Result Recommendation for Design
Overhangs Angled overhangs from 20° to 70° Clean printing up to 45°–50° without support. Beyond 50°, sagging and looping occur. Use supports whenever overhang angles exceed 45°.
Bridging Horizontal spans without support from 5 mm to 25 mm Excellent bridging up to 15 mm; slight droop observed on spans > 20 mm. Keep bridges under 15 mm, or add support structures.
Clearance / Tolerance Concentric moving parts with clearances from 0.1 mm to 0.5 mm Clearances below 0.3 mm fused together. 0.4 mm and 0.5 mm separated cleanly and moved freely. Design a minimum gap of 0.4 mm for interlocking or moving print-in-place parts.
Fine Walls / Thickness Wall thickness tests from 0.4 mm to 2 mm A single extrusion wall (0.4 mm, matching the nozzle) prints but is fragile; solid walls require at least 0.8 mm (2 perimeters). Use minimum 0.8 mm (2–3 perimeters) for structural strength.
Dimensional Accuracy Cube dimensions (X, Y, Z axes) X and Y axes are accurate within ±0.08 mm; Z axis within ±0.05 mm. Account for shrinkage and press-fit tolerances of ~0.1 mm.

Individual Reflection on Group Work

Through the group characterization, I developed a deeper understanding of additive manufacturing constraints and slicing parameters:

  1. Overhang limitations vs. Support strategies: The tests clearly proved that any overhang steeper than 45° requires support to prevent material drooping. Since my individual project (the Möbius strip) features continuous twisted loops with severe overhangs in multiple directions, supports were indispensable.
  2. Support type choice: Because conventional zigzag supports would be difficult to detach from the narrow cavities of the Möbius ring without damaging the part, I chose Organic / Tree supports in PrusaSlicer. They branch around the geometry, require less filament, and snap off easily.
  3. Layer height selection: The tests showed that smaller layer heights (0.12 mm – 0.16 mm instead of 0.20 mm) significantly improve the surface finish of shallow slopes and curved overhangs, which is critical for the continuous curved surface of a Möbius strip.
  4. Thermal stability: Using standard PLA with a nozzle temperature of 215 °C and a heated bed temperature of 60 °C on the PEI spring steel sheet prevented any warping or bed detachment.

Individual assignment:

  • Design and 3D print an object (small, few cm3, limited by printer time) that could not be made subtractively

  • 3D scan an object (and optionally print it)

Prelude

For the 3D design of our part, we used Autodesk Fusion 360 software and chose to model a Möbius strip.


The unique feature of this part lies in its geometry: it is a strip that rotates 180° around itself before closing, thus creating a continuous surface with a single side. This complex geometry cannot be achieved by simple extrusion or conventional material removal.

The modeling was therefore carried out using a sweep function along a circular trajectory, applying a gradual rotation to the section to generate the characteristic twist.

Given the continuity of the surface and the internal torsion of the part, certain traditional manufacturing methods (subtractive machining or simple molding) would be difficult or costly to implement.

Additive manufacturing (3D printing) is therefore the most suitable solution for producing this part, as it allows complex geometric shapes to be easily created without the need for specific tooling.

3D design

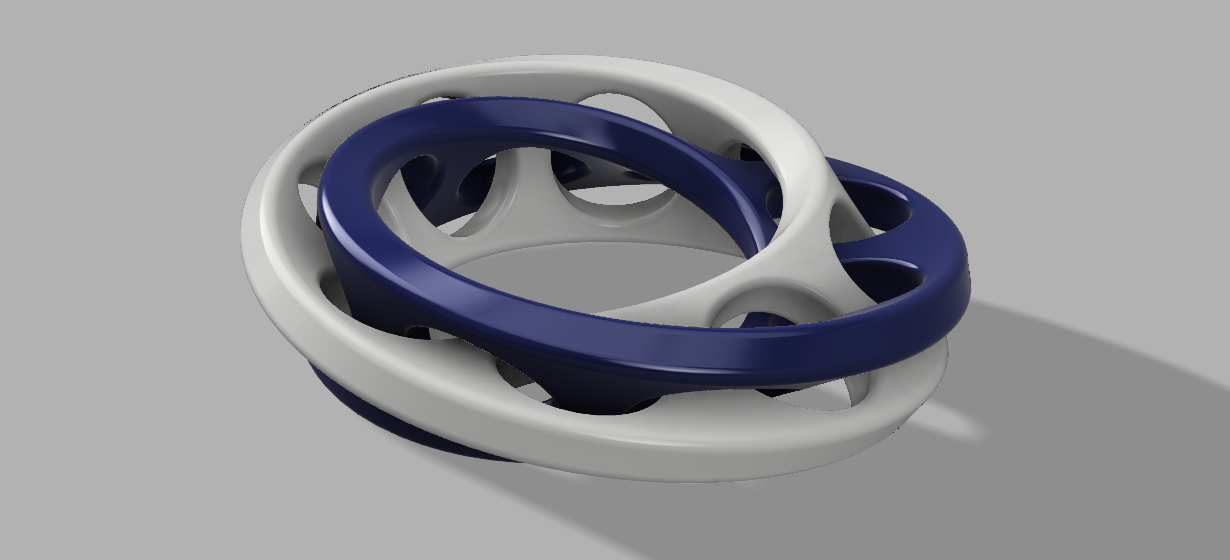

We used Autodesk Fusion 360 software to design our part in 3D. This parametric modeling software will enable us to design our Möbius strip, a geometric structure characterized by a single surface obtained by rotating a strip 180° around itself before closing it.


Steps to create a Möbius strip in Fusion 360

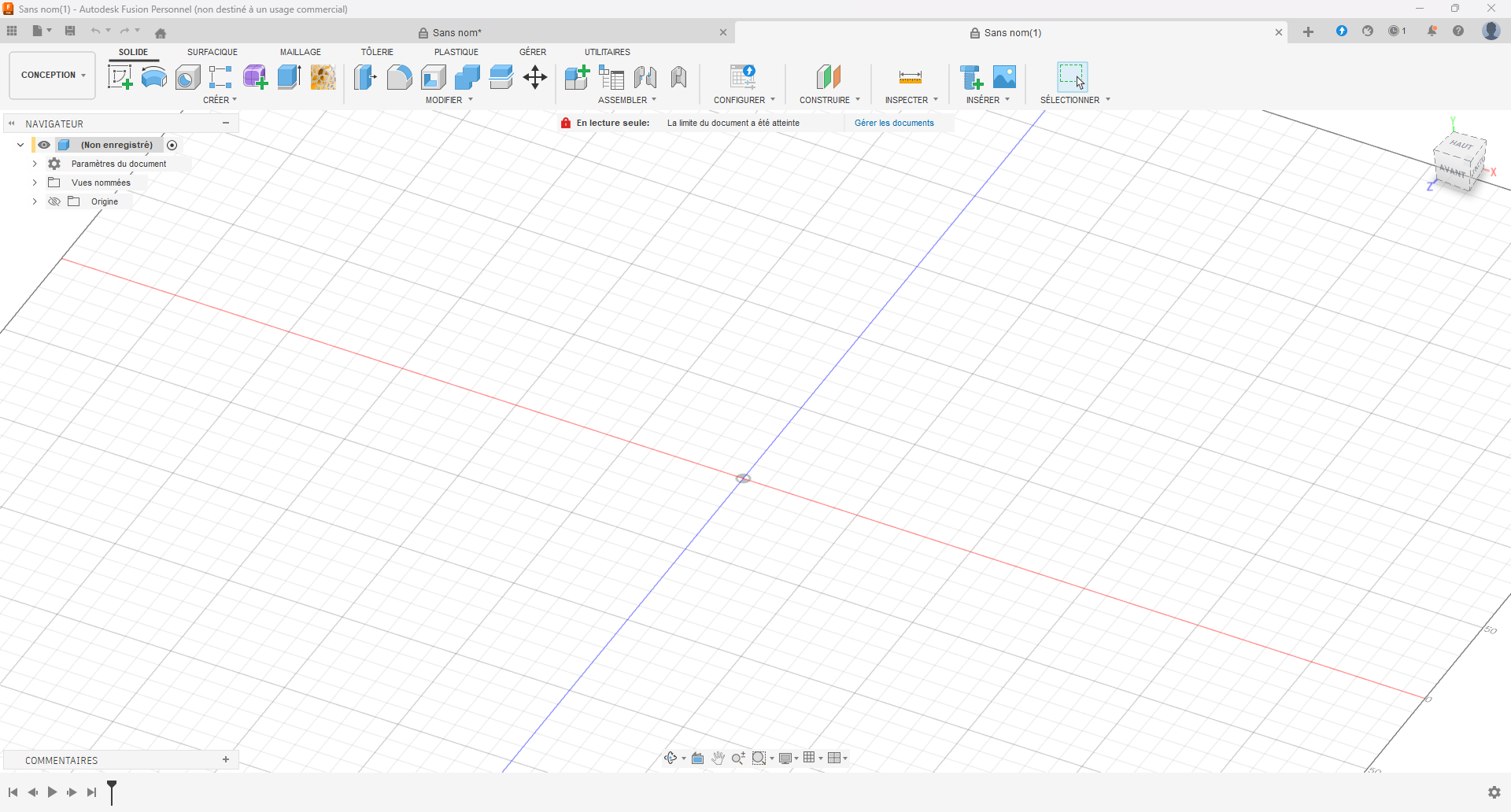

Create a new file

  • Open Fusion 360.

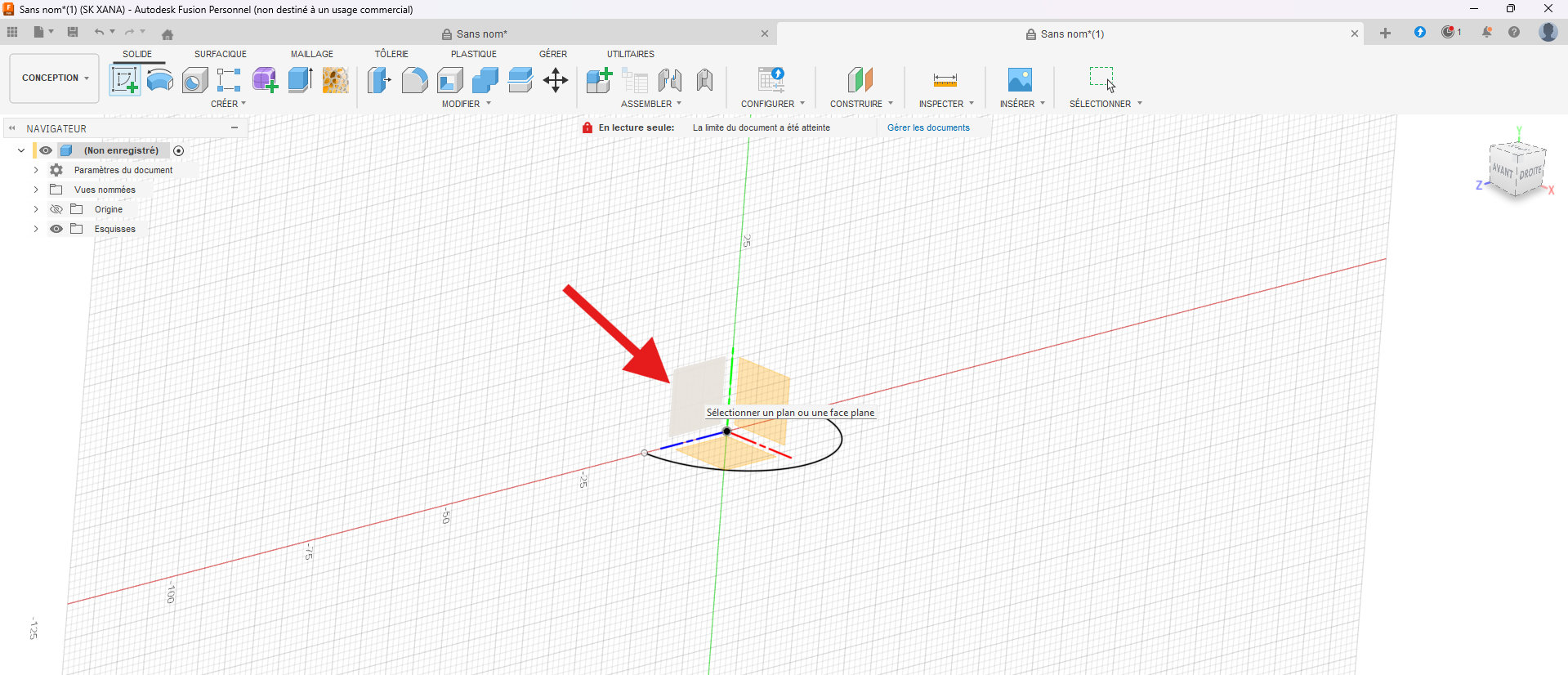

  • Create a new design File > New Design.


Sketch the base curve

  • Create a sketch on a face plane (e.g., Front Plane).

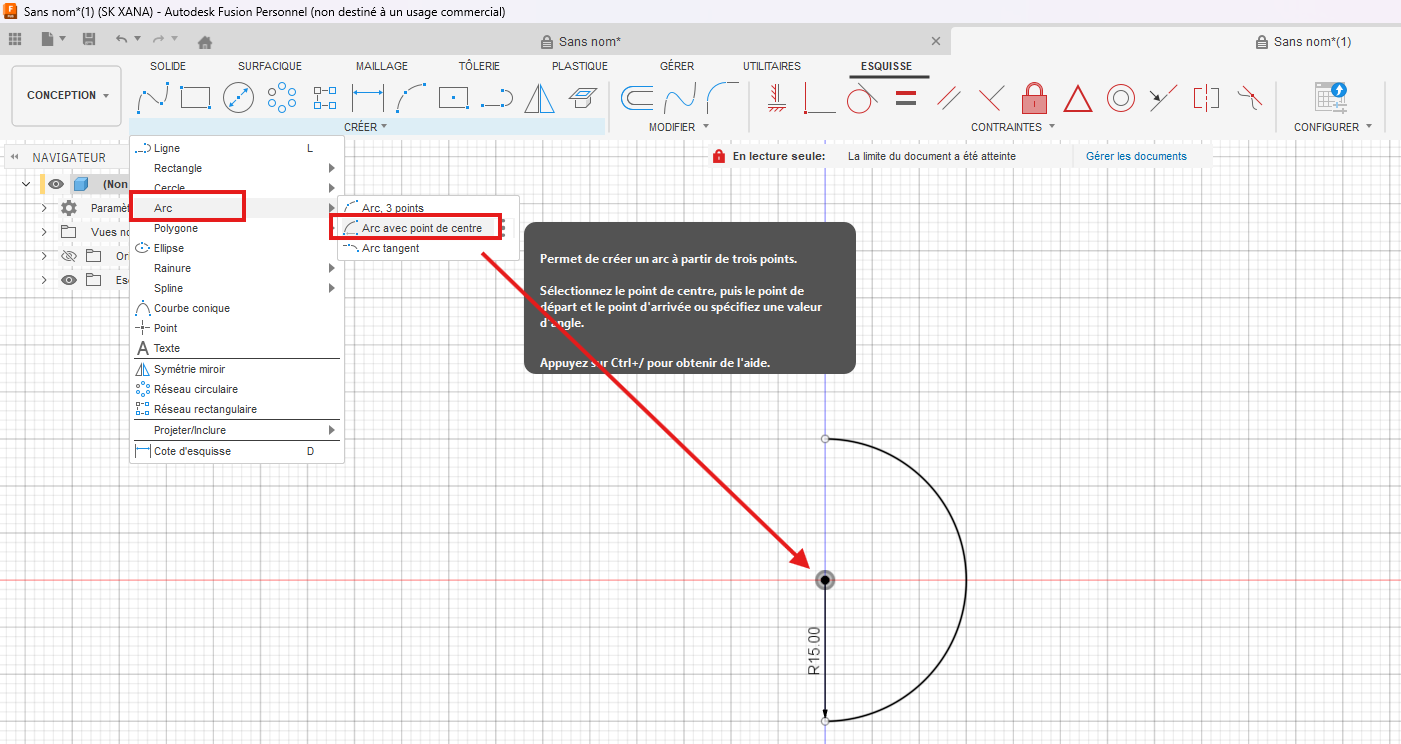

  • Draw a curved strip using the tool (Create > Arc > Arc with Center Point) with a radius of R=10 mm, which will represent the trajectory of your strip.

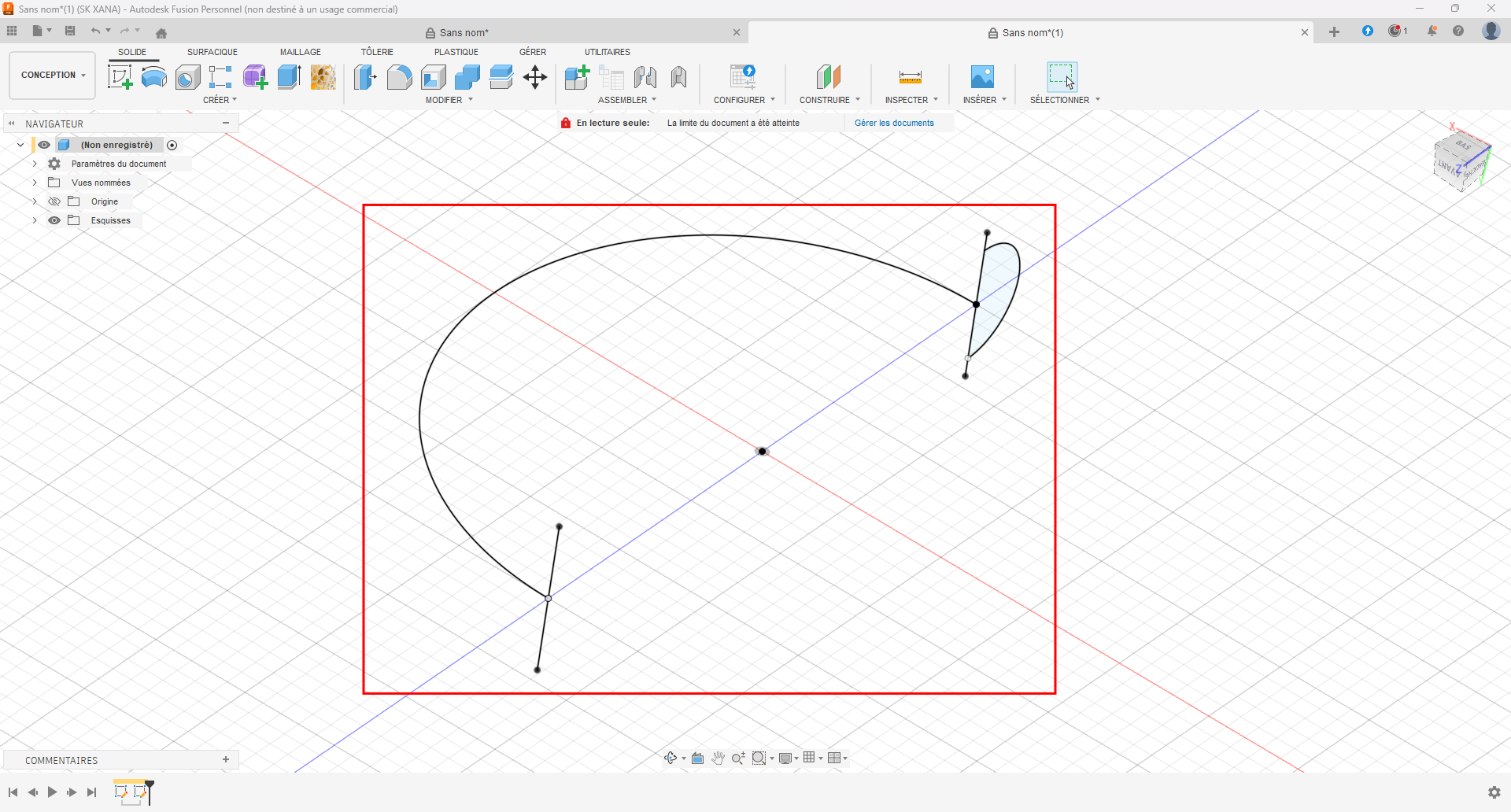

Create a new profile, preferably the one pointed to by the arrow.

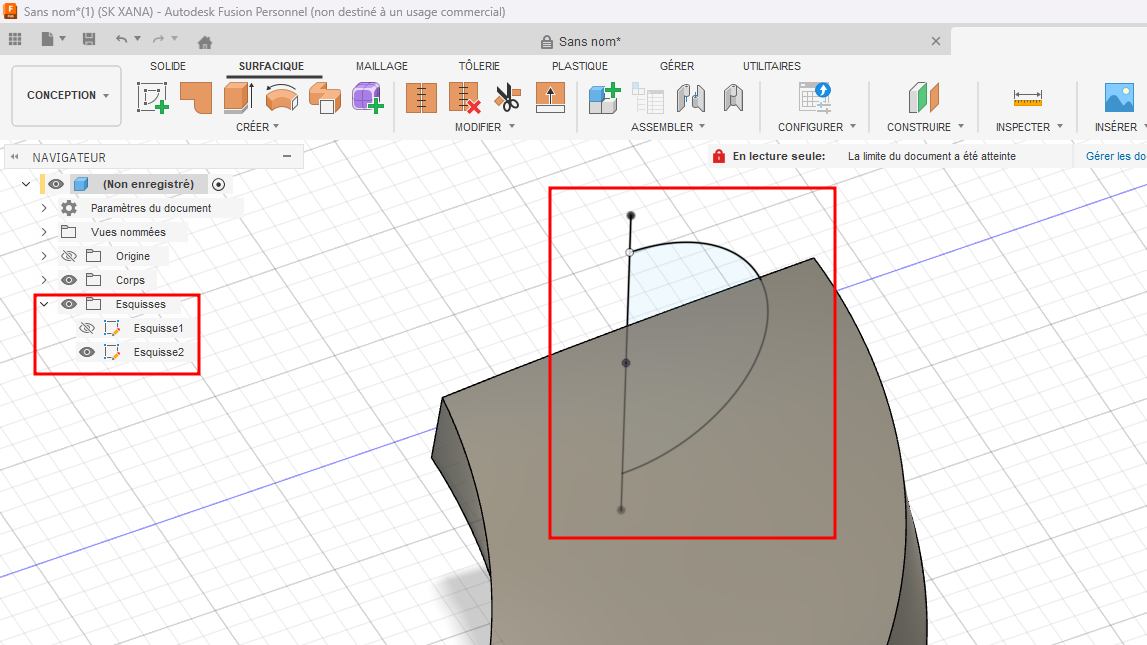

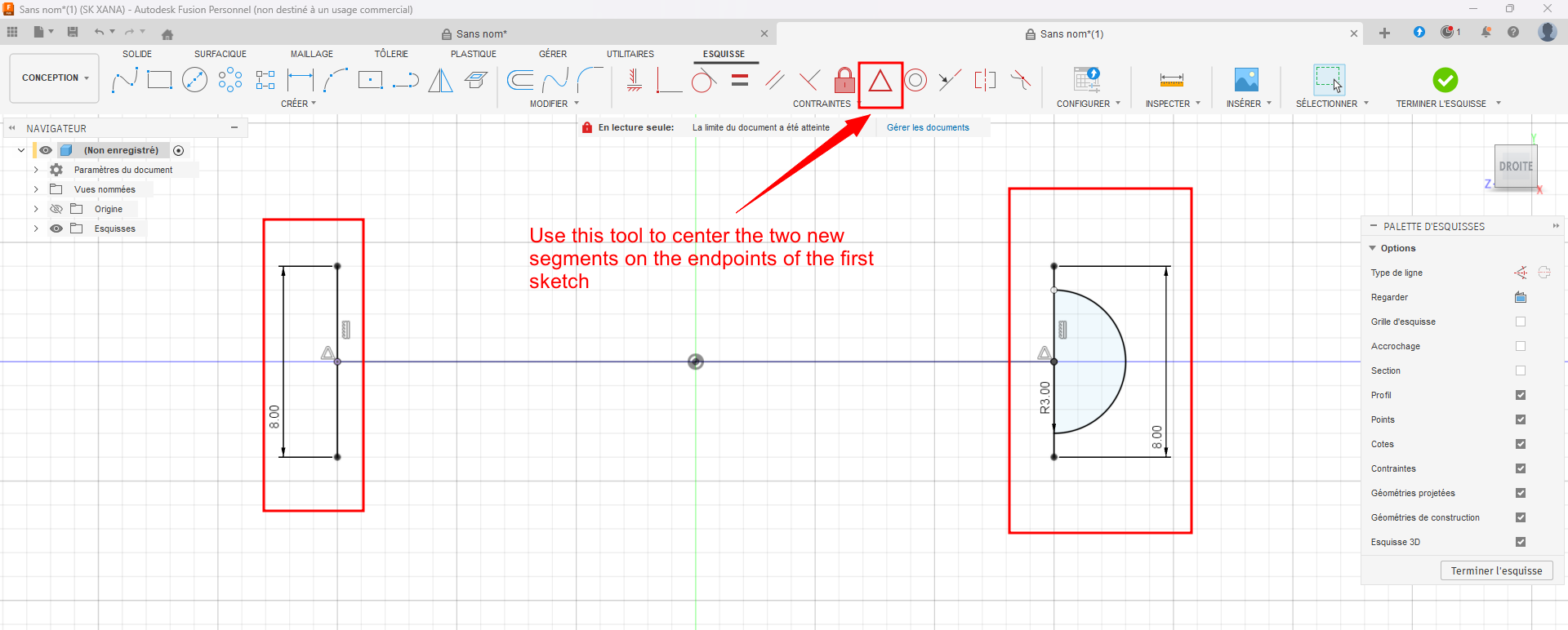

Open a new sketch on the perpendicular plane. We will now draw the frame that will serve as a guide for our shape: Guide segments: Draw two segments with a length of L = 8 mm positioned at the ends of your previous sketch. The cutout profile: At the end of the right segment, draw a circular arc with a radius of R = 3 mm. This arc will be the signature of the shape that we will extrude later.


The idea is to achieve the following:

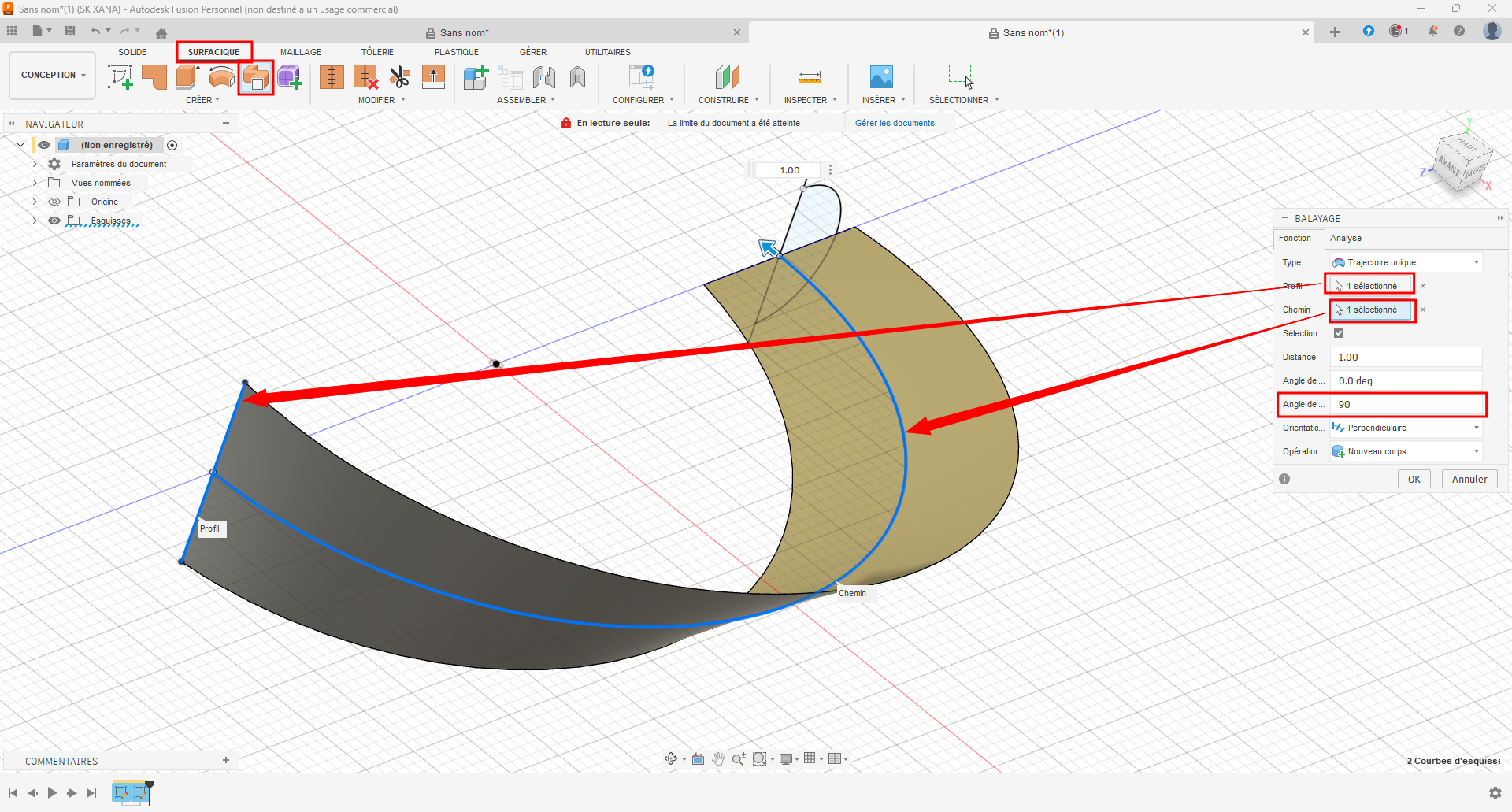

Go to the Surface > Sweep tab, select the profile and path, and enter a twist angle value of 90°. Refer to the image below for assistance.

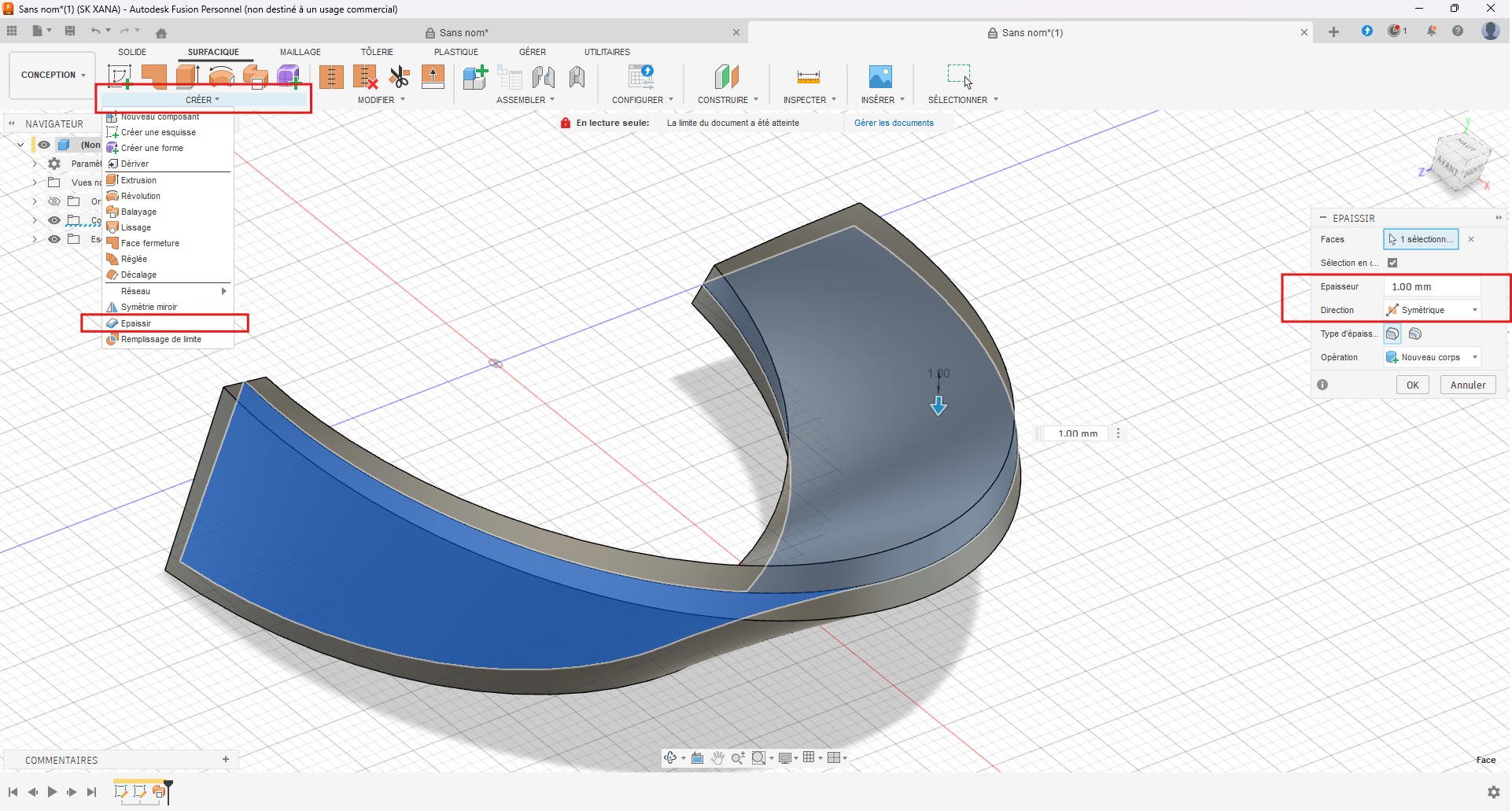

Go back to the Solid tab, select Create > Thicken.


Look at the red box; it will allow you to make your sketches visible. The one we are interested in is the one still framed in red in the workspace.

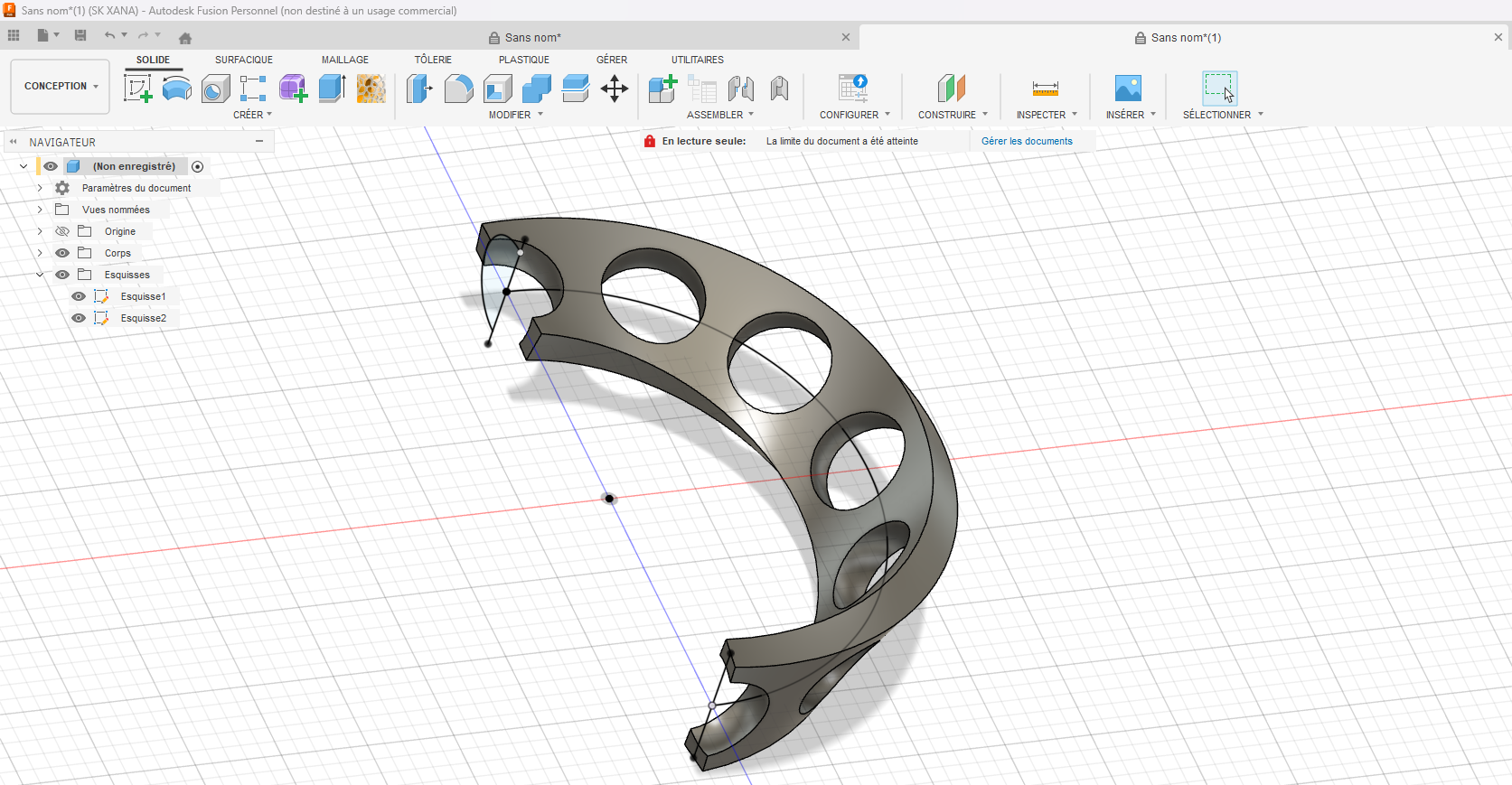

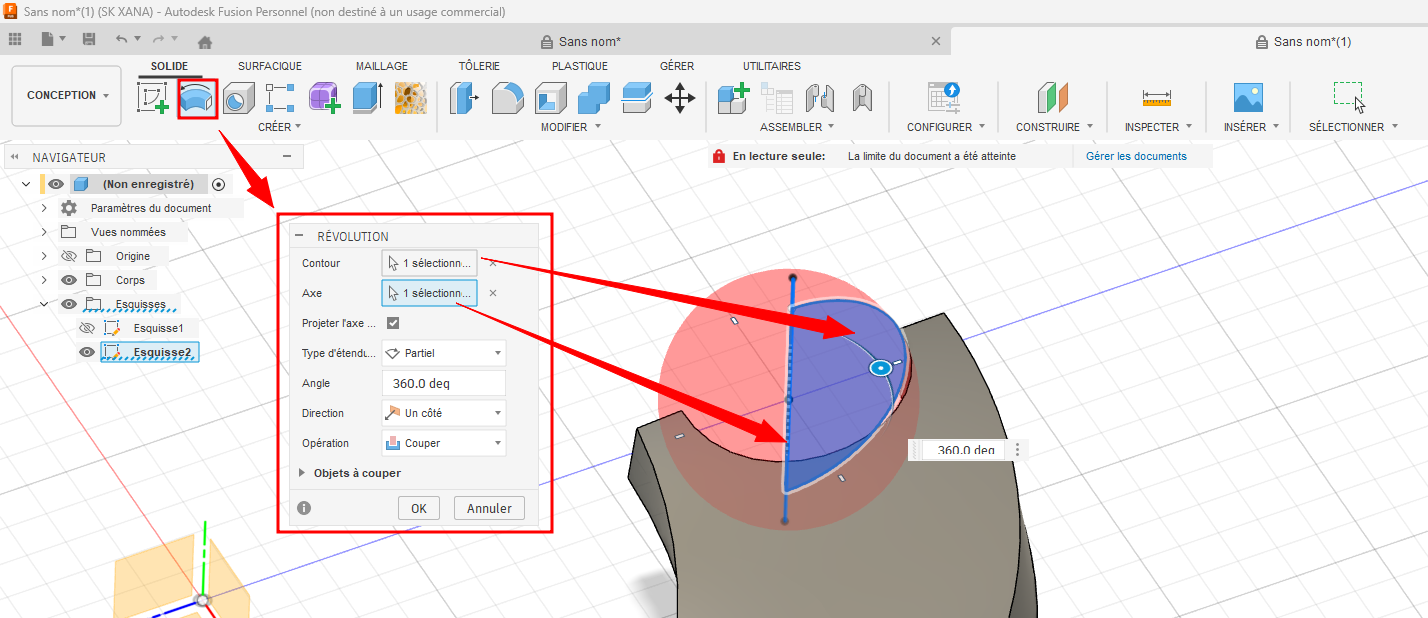

Use the revolution tool to cut material

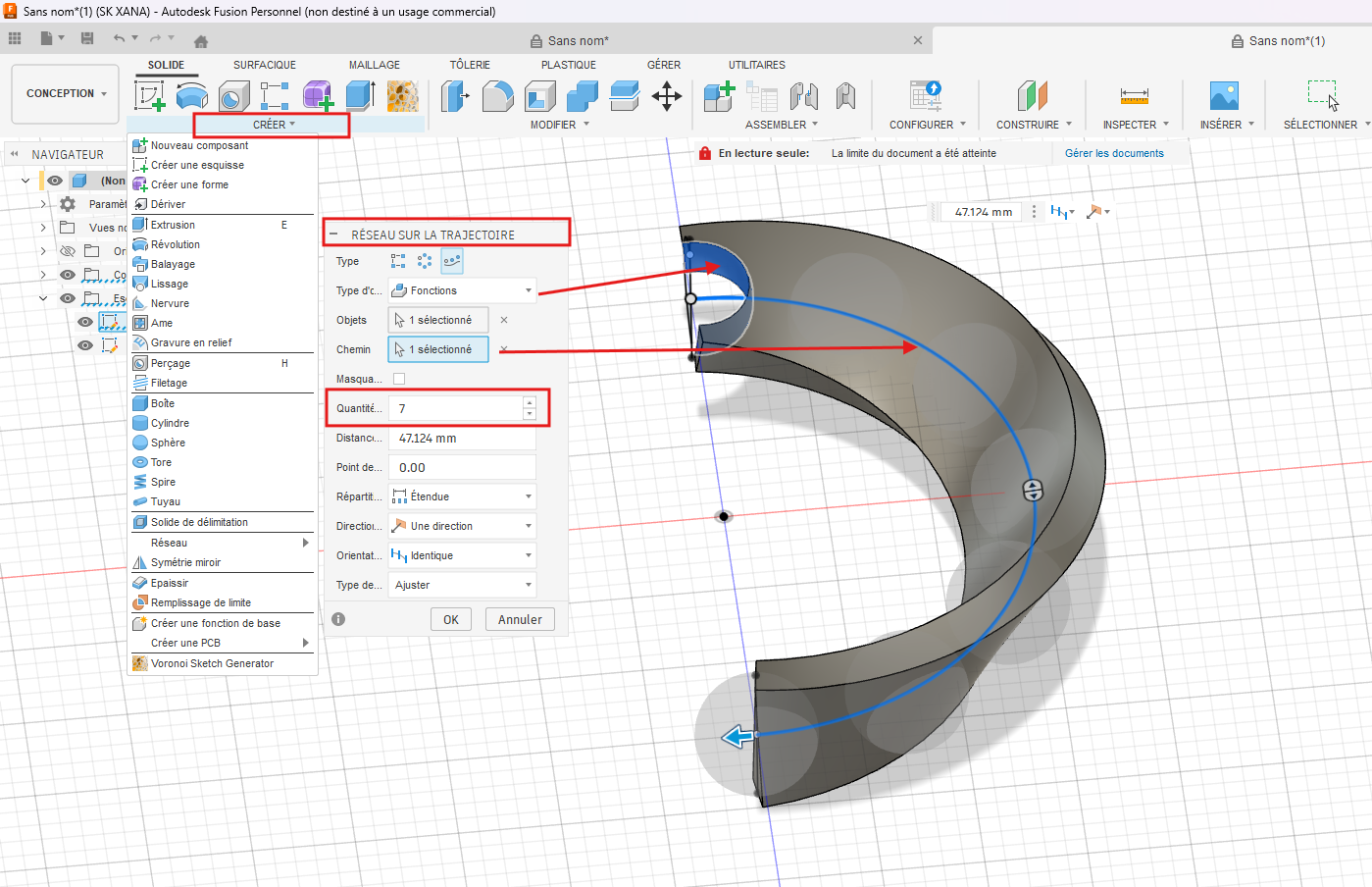

Now that we have successfully made our first bite into the material, we are not going to bother doing it again by hand all the way around the ring. We are going to use a powerful tool: Pattern on Path. Create > Pattern >.

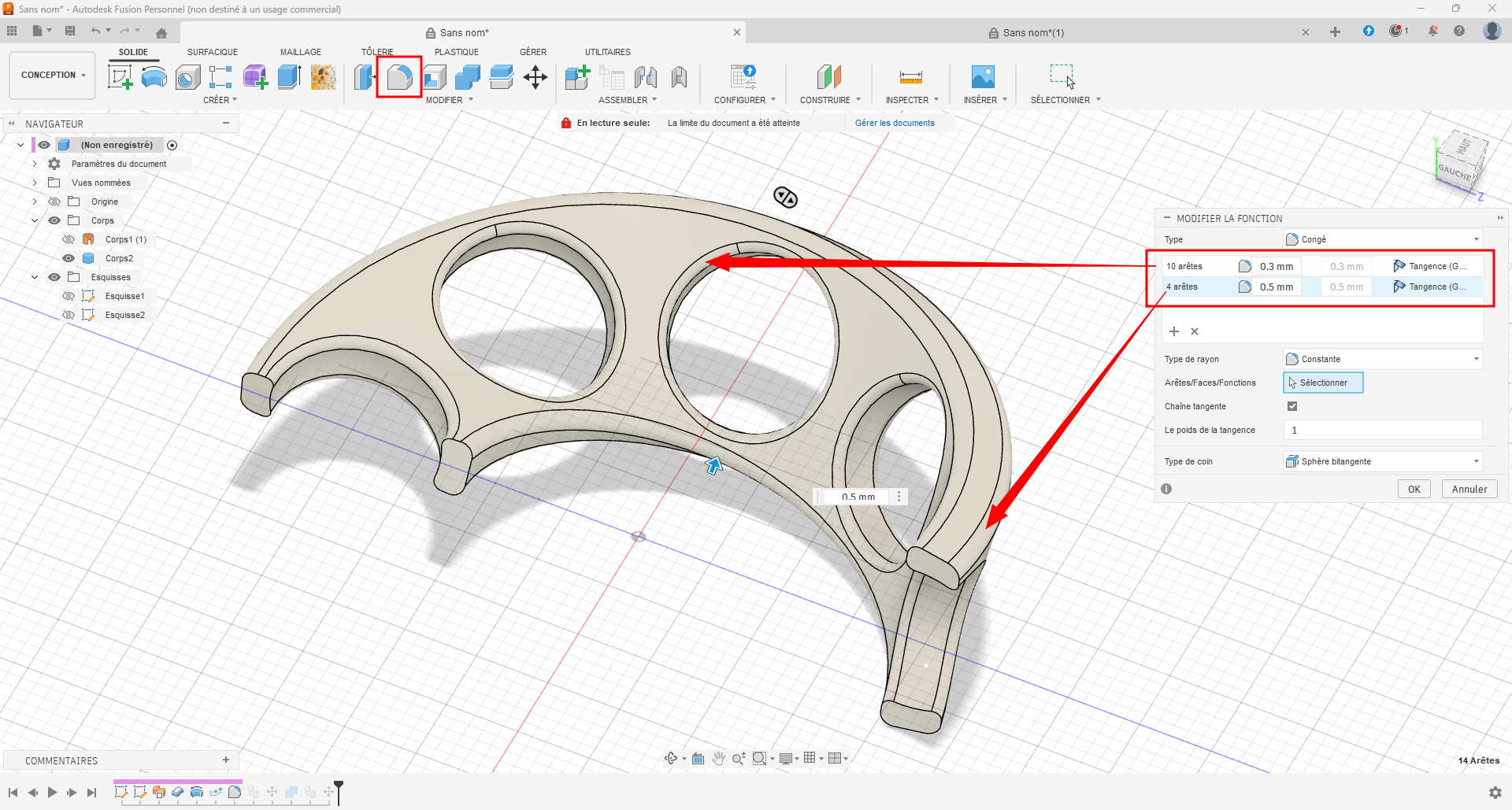

Use the Bevel tool to soften the edges of your ring to improve its appearance.


🚨​🚨​🚨​ NOTE
Next, we recommend a series of tutorial videos to guide you through completing the Möbius strip project.

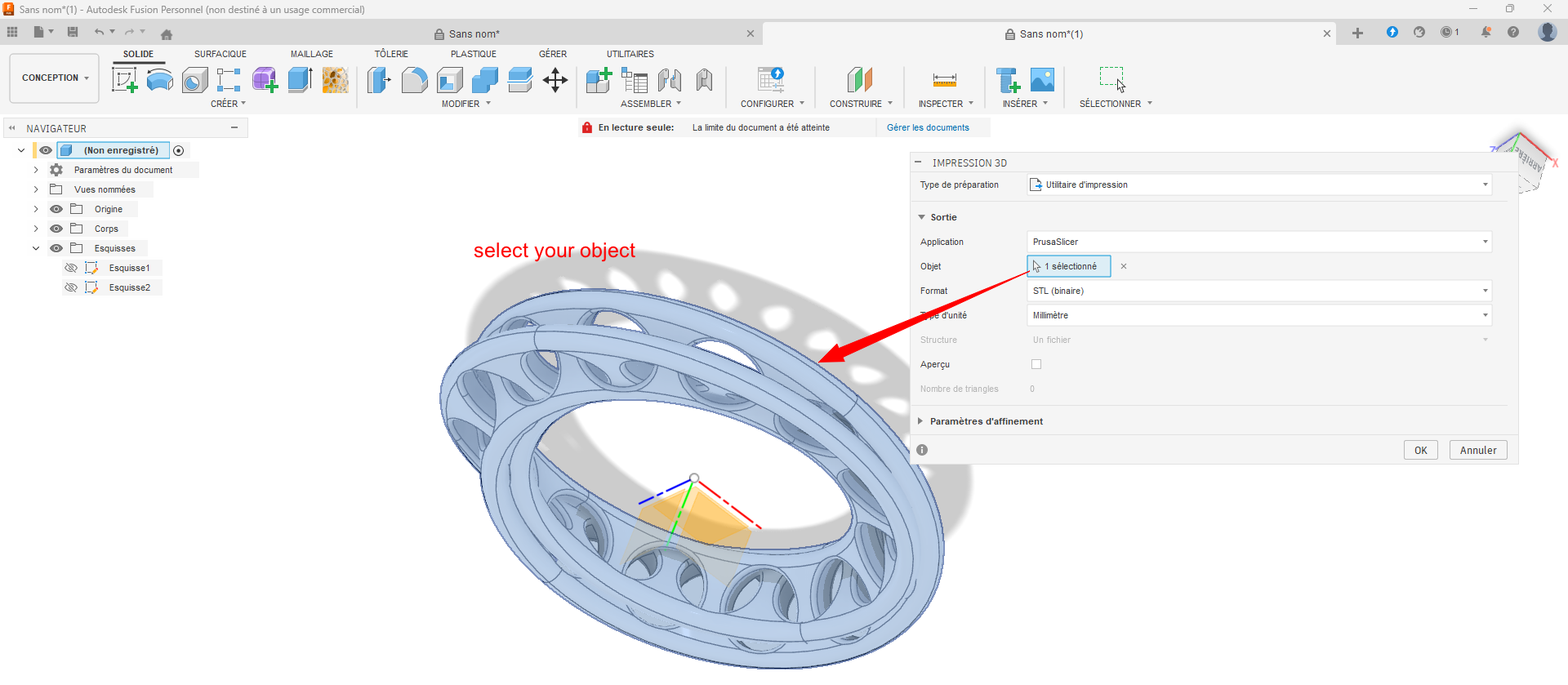

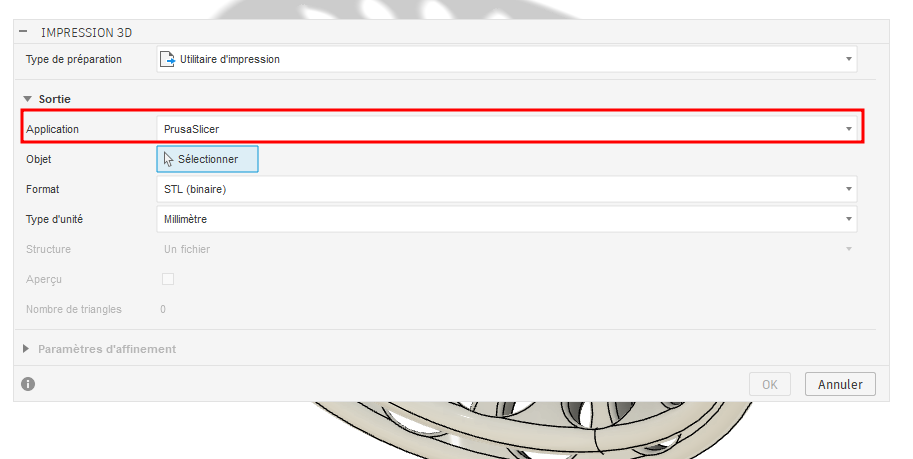

In this latest video, you will see how to open your 3D model directly in your slicer. Go to File > 3D Printing. As the application we use: PrusaSlicer. Install it and select it from the drop-down list.




Generating the 3D print file

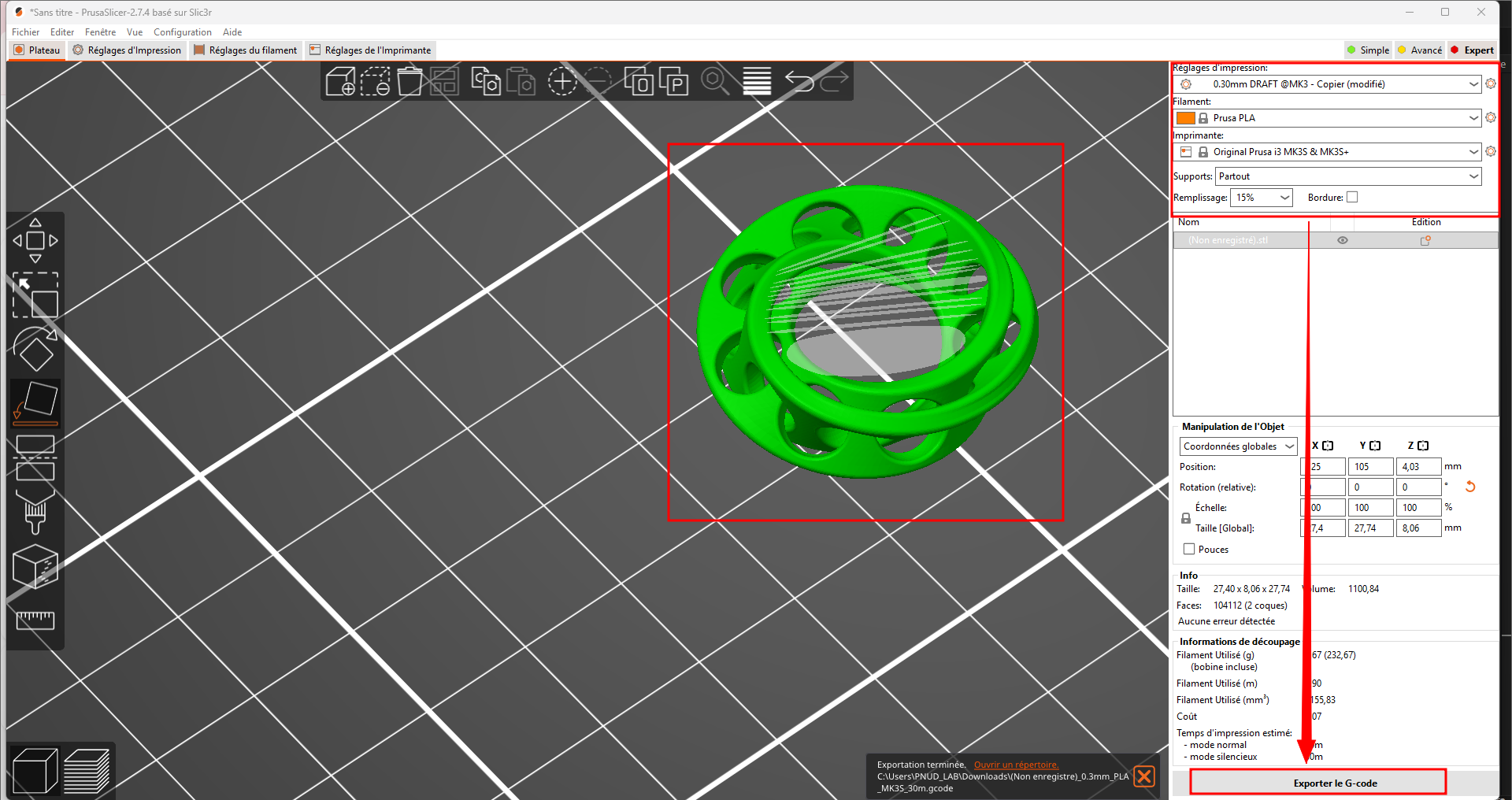

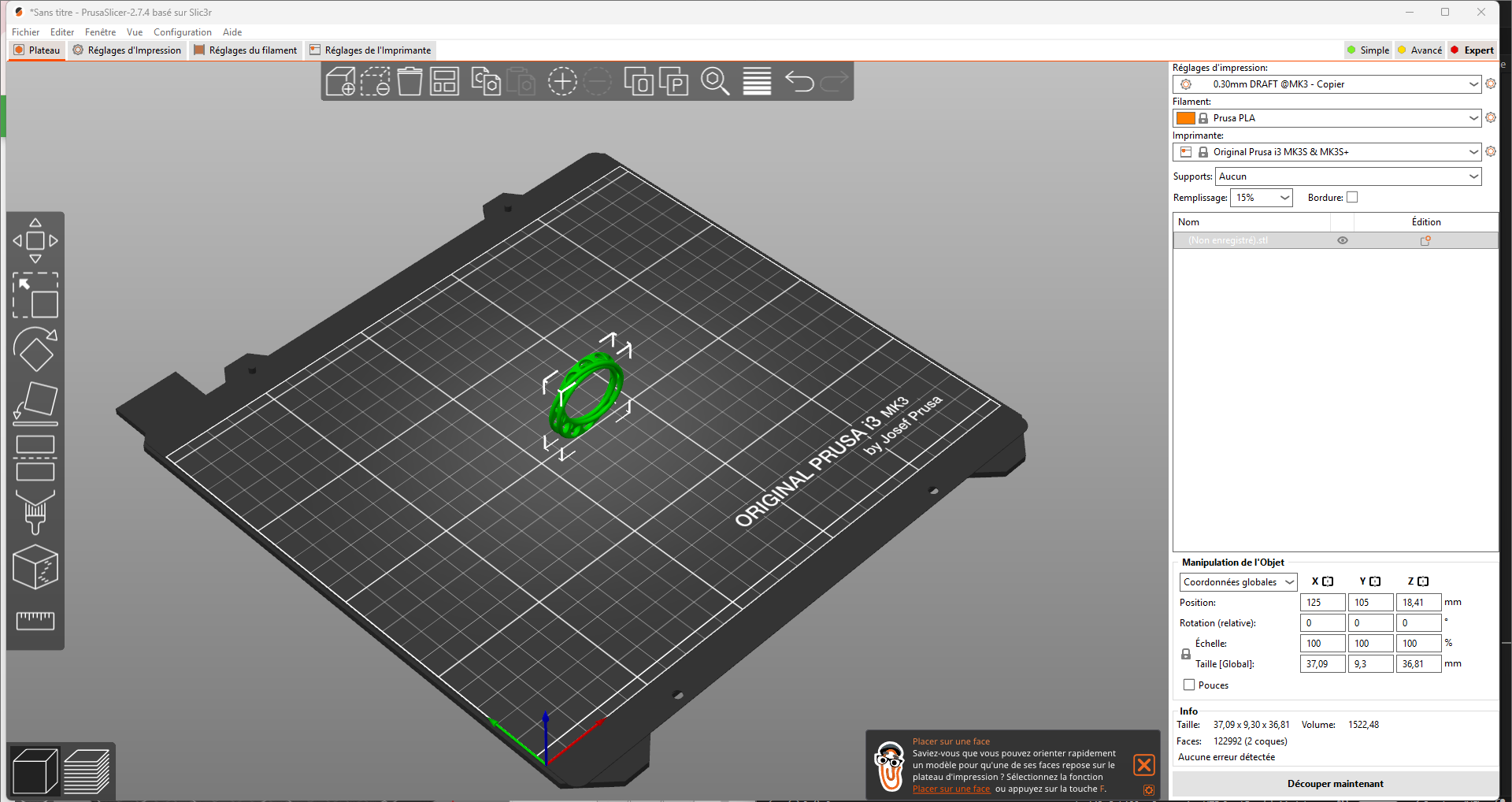

Once you confirm with OK, your Slicer will open automatically with the object already positioned on the tray. you will see the following image with your object on the simulation tray.


🚨​🚨​🚨​ Be careful with overhangs
Since your Möbius strip is an airy structure with recesses, don't forget to activate Supports (choose Tree mode for easier removal without damaging the internal details).

Here we are! Your model is now on the virtual plate of your Slicer. This is where you will define the manufacturing recipe that the printer will follow.

Configuring the settings

  • For this object with complex geometries (Möbius), precision is key. Refer to the values circled in red in the image below to configure your print profile:

  • Layer height: Ideally 0.12 mm or 0.16 mm to ensure the curves of the ring are smooth.

  • Infill: A rate of 15% to 20% with a “Gyroid” pattern is recommended for its multidirectional strength.

  • Supports: Essential! Activate the supports as they fit better into the cavities of your object without leaving too many marks.


Generating the G-Code

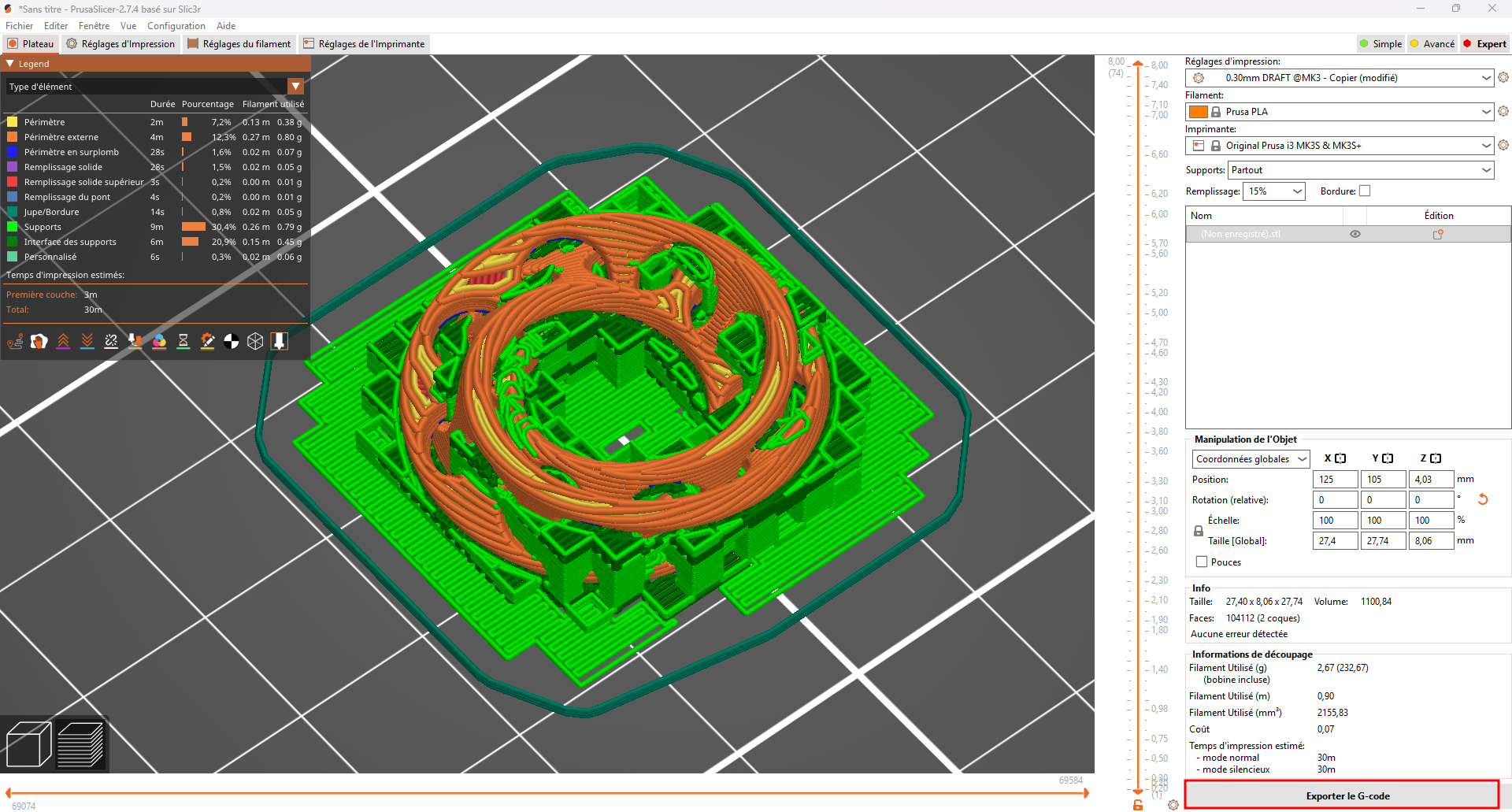

Once all the fields have been filled in as shown in the image:

  • Check the position of the object on the plate one last time.
  • Click on the Slice Now button.

The software will then calculate each movement of the nozzle, layer by layer. You will see an estimate of the printing time and the amount of plastic required.


3D printing

Machine & Material Specifications

For this assignment, we operated an Original Prusa i3 MK3S+ 3D printer:

  • 3D Printer: Original Prusa i3 MK3S+ (FDM / FFF - Fused Deposition Modeling)
  • Print Technology: Direct-drive extruder with 0.4 mm brass nozzle
  • Filament Material: PLA (Polylactic Acid), 1.75 mm diameter
  • Nozzle Temperature: 215 °C
  • Heated Bed Temperature: 60 °C (smooth PEI spring steel sheet)
  • Print Profile: 0.16 mm Optimal / Quality with Organic (Tree) supports and 20% Gyroid infill
  1. Turn on the 3D printer using the power switch on the power supply unit.
  2. Insert the SD card containing the sliced G-code file into the slot on the left side of the LCD control module.

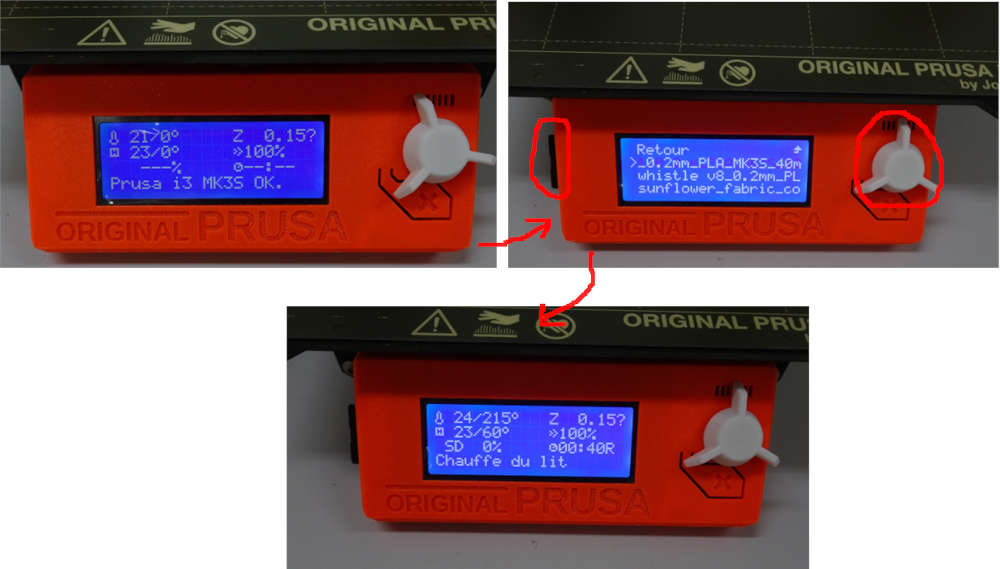

  3. Turn the rotary selection knob to navigate the menu, highlight your G-code file (e.g., _0.2mm_PLA_MK3S_...), and press the knob once to confirm and start printing.
  4. The printer will run automatic 9-point mesh bed leveling, preheat the heated bed to 60 °C and the nozzle to 215 °C, and begin extruding layer by layer.

Original Prusa i3 MK3S+ LCD control and file selection

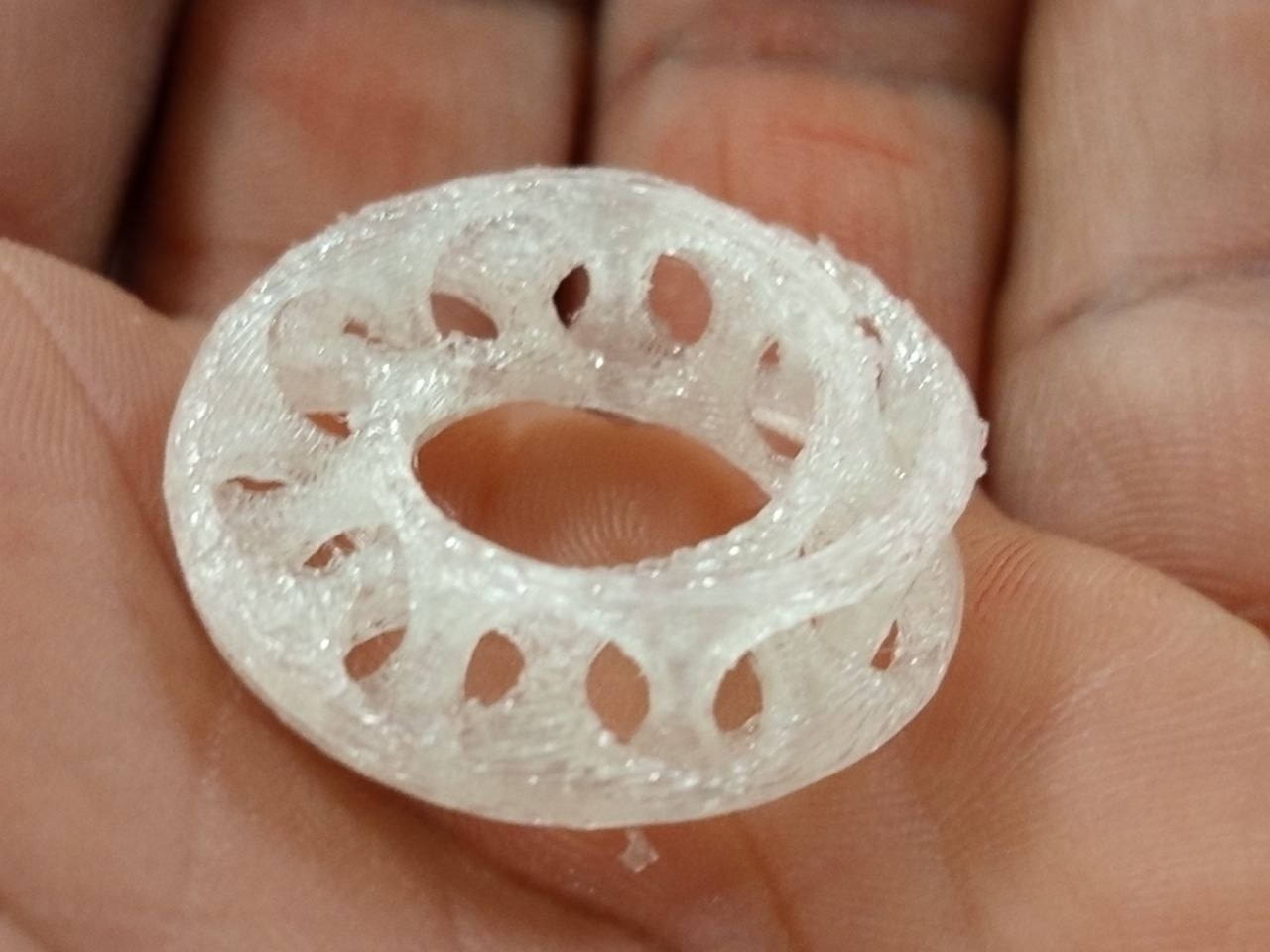

The end result is our physical Möbius strip. Due to its single continuous twisted surface, internal cavities, and undercut geometry, this shape could only be produced additively:


🔔 Download the 3D Möbius strip STL file.


3D Scanning

3D scanning is a digital capture technology that records the three-dimensional geometric coordinates and surface appearance (color and texture) of a real-world physical object to create a digital polygon mesh representation.

While subtractive manufacturing removes material and additive manufacturing builds layer-by-layer, 3D scanning bridges physical objects back into the digital CAD/mesh ecosystem for inspection, reverse engineering, or digital preservation.

KIRI Engine (Photogrammetry)

KIRI Engine is a mobile and cloud-based photogrammetry and 3D scanning platform. Unlike laser or structured-light scanners, photogrammetry reconstructs 3D geometry from a series of overlapping 2D photographs captured from multiple angles around the subject:

  1. Feature Extraction: Key visual features and contrast points are detected across multiple photos.
  2. Structure from Motion (SfM): The software calculates camera positions, angles, and produces a sparse point cloud.
  3. Dense Point Cloud & Meshing: A dense point cloud is generated, followed by surface triangulation into a 3D polygon mesh (OBJ/PLY/STL).
  4. Texture Mapping: High-resolution color photos are projected onto the 3D mesh surface to create realistic UV texture maps.

3D Scanning Process

  • Download and install the KIRI Engine application on your smartphone.

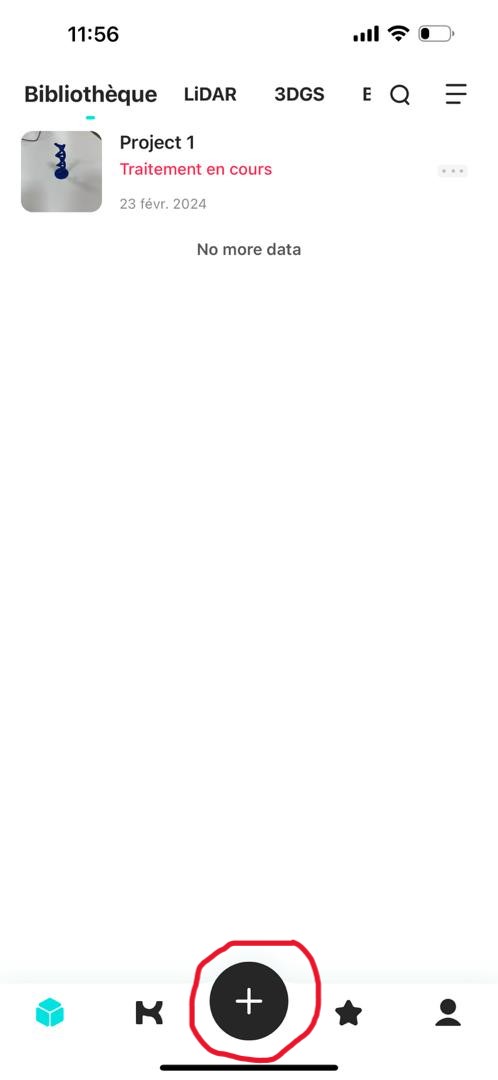

  • Open the application and tap the central capture button.

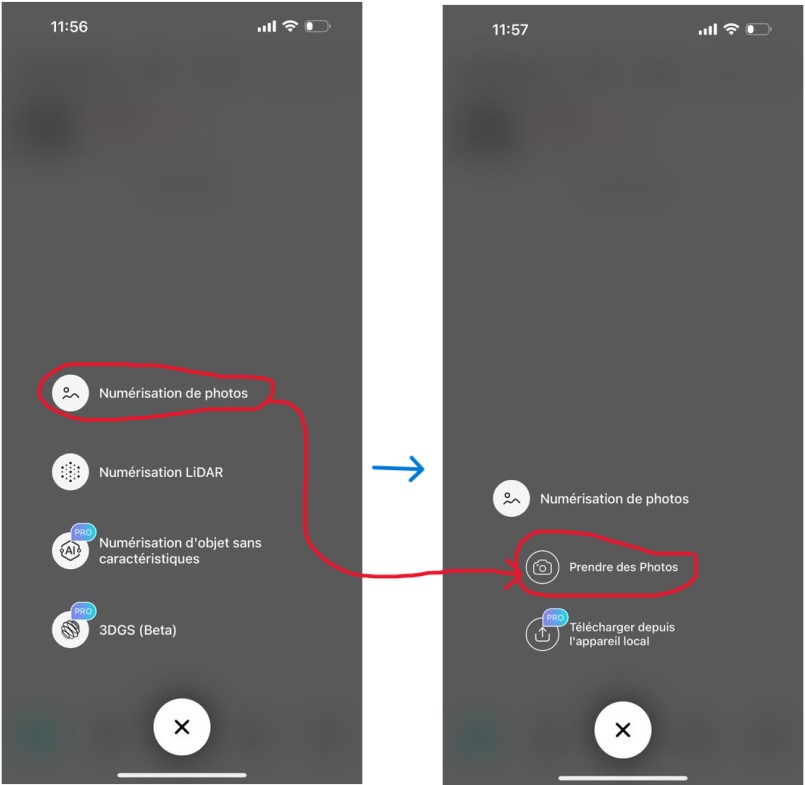

  • Select Picture capture > Take pictures.

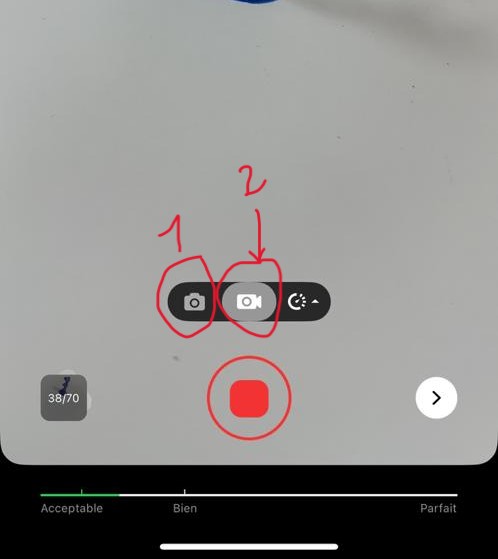

  • As illustrated below, photogrammetry capture offers two main workflows:
Mode 1: Keep the object stationary and move the camera around it (360° at multiple elevation angles).
Mode 2: Use a turntable with uniform lighting, or flip the object if both sides need scanning.


🚨​ NOTE: Subject Selection & Capture Protocol
For this 3D scanning assignment, I chose a 9V battery ("HW Hi-Watt 9V Battery"). Its rectangular prismatic geometry and printed graphic labels provide identifiable feature points for the photogrammetry algorithm.
  • Place the object on a neutral, matte surface under uniform, diffuse ambient lighting (avoid harsh directional shadows or reflections).
  • Walk or orbit around the object, capturing 70 to 106 photos at 3 different elevation levels:
  • Low angle (looking slightly upwards towards the base)
  • Eye level / Horizontal angle
  • High angle (looking downwards to capture the top terminals and connections)
  • Maintain at least 60% to 70% overlap between consecutive shots to enable reliable feature matching.

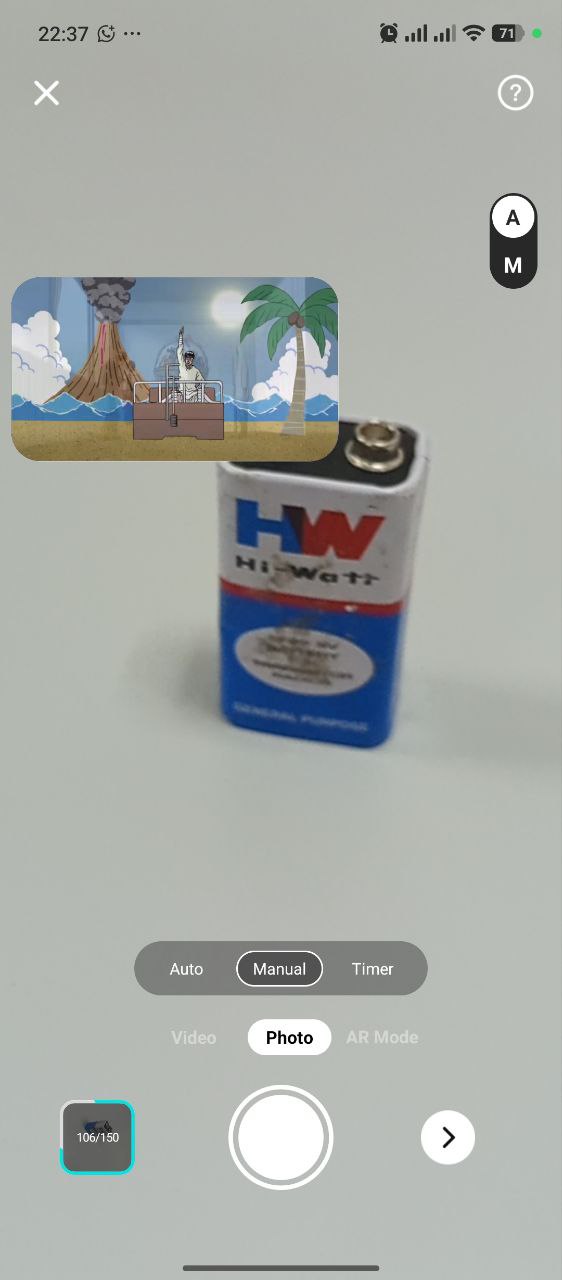

Capturing photos of the 9V battery in KIRI Engine


3D Reconstruction & Mesh Result

Once photo acquisition was complete, the photo dataset was uploaded to KIRI Engine's cloud server for photogrammetry processing. The pipeline performed feature matching, point cloud densification, and polygonal surface meshing.

KIRI Engine 3D Mesh Result Figure: 3D polygonal mesh generated by KIRI Engine from the photo set.


Mesh Quality Assessment

Evaluating the digital 3D model generated by KIRI Engine:

  • Overall Geometric Accuracy: The global rectangular shape and dimensions of the 9V battery were accurately captured. The vertical faces are flat and upright, and the curved corners match the physical battery well.
  • Surface Texture & Details: The colorful printed branding on the jacket (HW Hi-Watt, blue and red banners, safety warnings) was sharply mapped onto the 3D surface, demonstrating strong photometric alignment.
  • Limitations and Artifacts:
  • Metallic terminals: The top metal contacts (positive snap connector and negative terminal) produced some surface noise and slight mesh irregularity. This is a known photogrammetry challenge: shiny or reflective surfaces reflect light inconsistently from different angles, confusing the algorithm's feature point triangulator.
  • Base boundary: The very bottom surface where the battery sat on the desk required cropping, as photogrammetry merges the bottom boundary with the underlying surface.
  • Conclusion & Usability: The scan was successful for visualization, asset rendering, and general packaging volume checks. For high-precision engineering tolerances or 3D printing an exact replacement casing, the raw mesh would benefit from minor cleanup (hole filling and mesh decimation) in Blender or MeshLab, or serving as a dimensional reference inside Fusion 360.
