SYSTEM INTEGRATION

MECHANICAL DESIGN OF THE SYSTEM

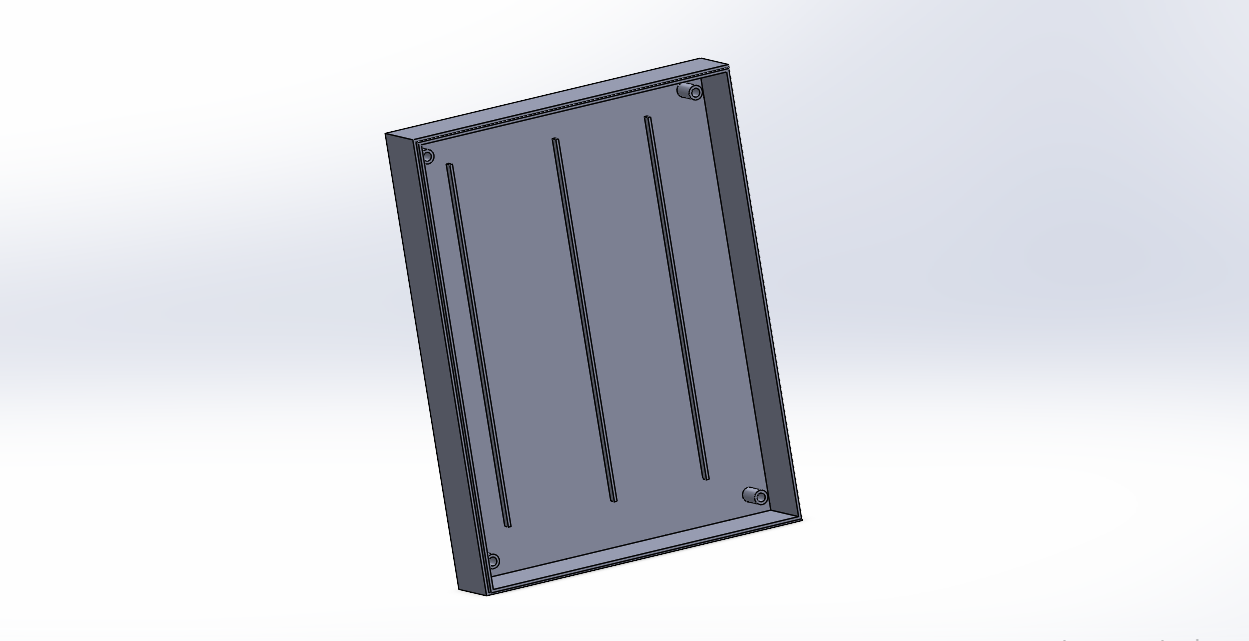

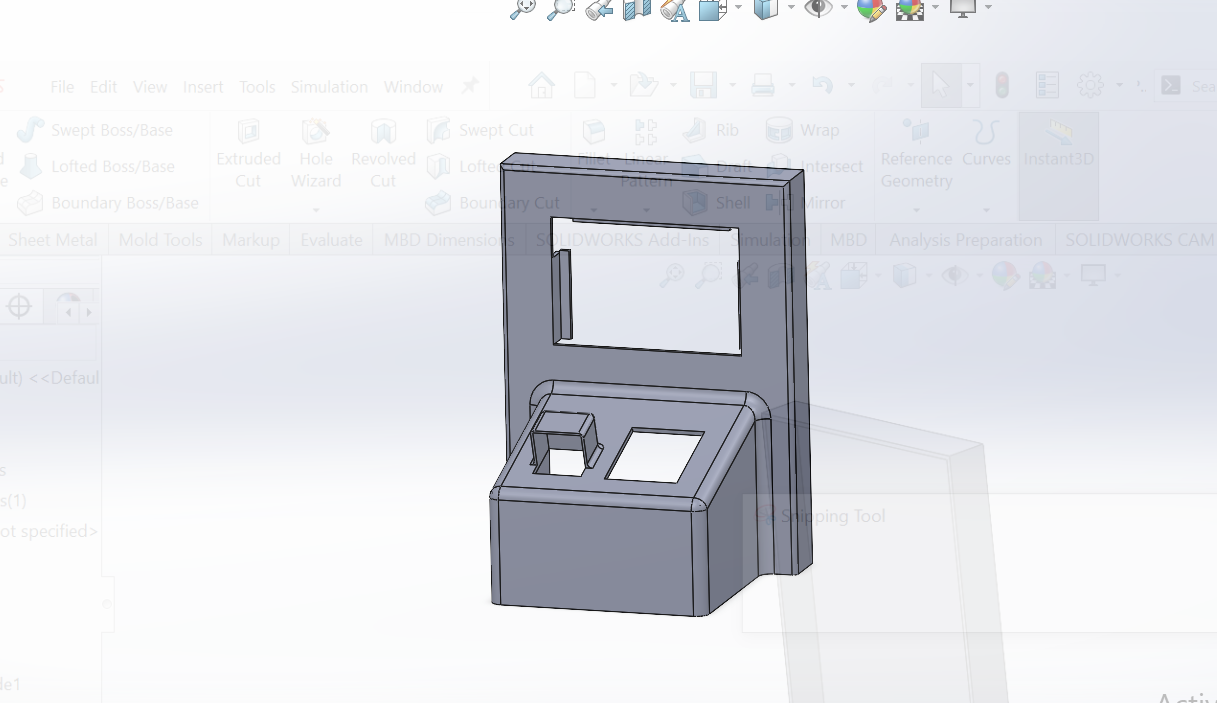

My system is composed of a circuit enclosure/case which is shown below. It has two sides, which is the back and front. This are will be used to cover or protected the electronic componetnts as well as provide project aesthetics.

projectcase projectcase

ELECTRONIC COMPONENTS USED

The following are components to use for my project.

  • 2.8INCH RPi DISPLAY
  • RFID-RC522
  • FINGER PRINT SCANNER
  • ESP-WROOM-02

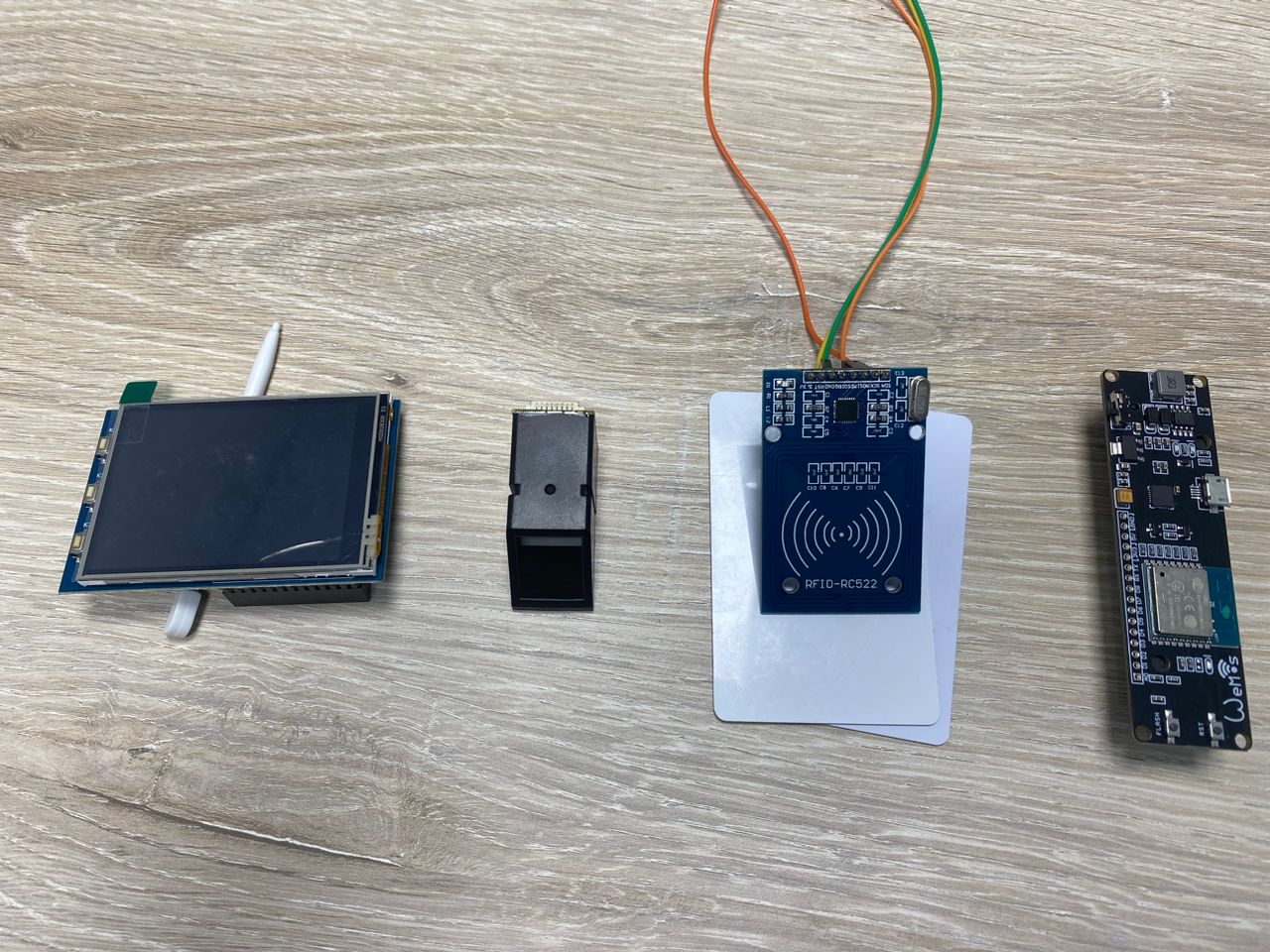

components

ELECTRONIC CIRCUIT DESIGN

I re-used the design previously made (using KICAD) in machine design for my final project.

FILES

  • CODE
