I’ve put together an errand about [光彩-KOSAI-].

What does it do?

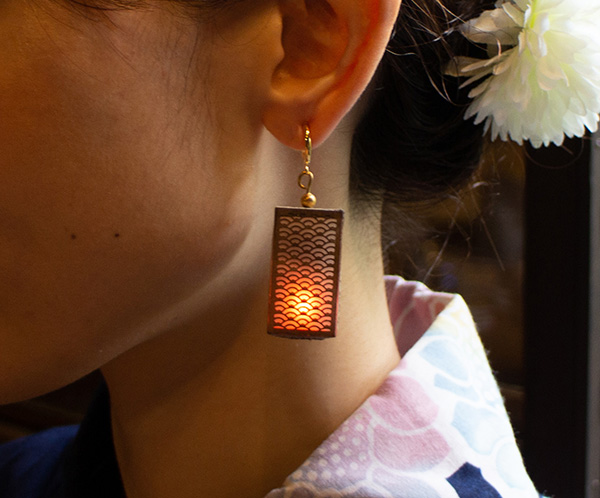

KOSAI-KOSAI-] is an IoT accessory based on the motif of the Japanese traditional lighting equipment, the “Andon”. In Japan, there are many opportunities to wear a kimono or yukata, which are traditional costumes, on a daily basis. This IoT accessory was produced on the assumption that a woman wearing a kimono or yukata would wear it. On the accessory side, [ATtiny85] and [Neopixel] are built in, and we set the color and brightness of [Neopixel]. The glow of the accessories is controlled by [Obi-Dome], and there is a board with [ESP32] as the main component. The obi clasp controls multiple input devices, and the accessories light up based on the analog data each device receives. We’ve also written a program that allows you to control the color of the [Neopixel] through your smartphone.

Who’s done what beforehand?

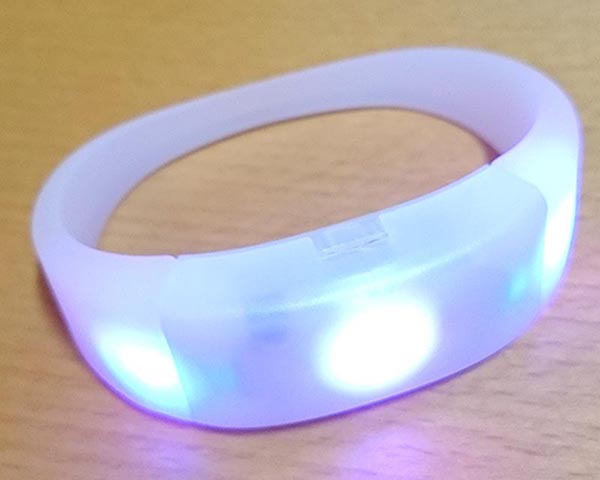

I based the production of the project on several reference examples. The first example I used as a reference was a [wristband] developed by PIXMOB that was used in a live performance by [Taylor Swift]. The wristband is a receiver that controls an infrared irradiator with DMX, and the wristband understands the signal and can buy colors and emit light. It came with [LED] [infrared receiver LED] [button battery] as a use part. I used this product as a reference to figure out how [KOSAI] works.

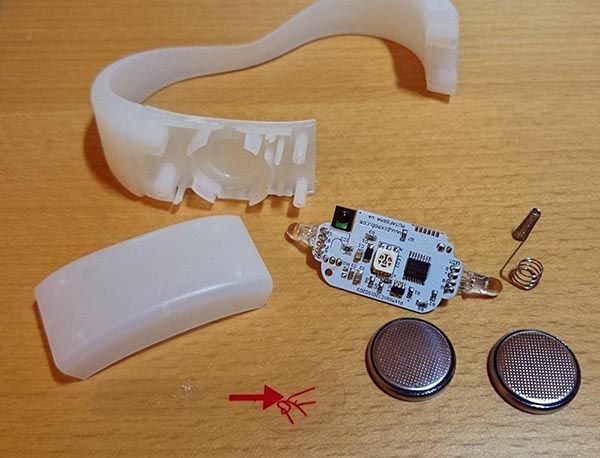

Product Appearance Inside the product

We also needed to be cautious about [size] and [weight] in producing the accessories. So we used the example of charliestar, which controls [Neopixel] in [ATtiny9]. I’ve also made my own wearable board to fit this accessory as small as possible in both [size] and [weight].

What did you design?

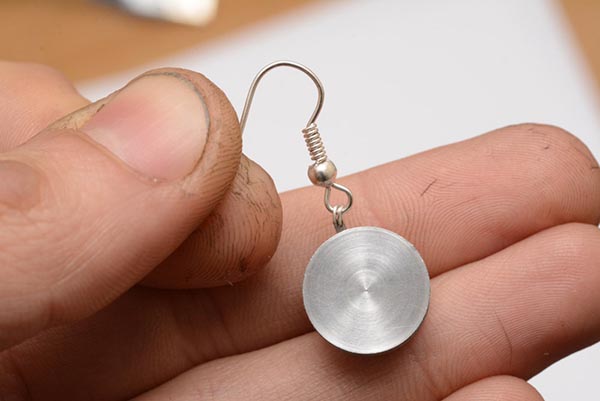

Earring

The earring will be ATtiny85 to control the lighting of the Neopixel.
We plan to use 2 x 2 pairs of neopixels for a total of 4.
Two 1.5V button batteries are used to power each accessory.
An infrared receiver (PIC79603) will be installed at the bottom of the accessory to receive the signals from the ESP32.

Obi Clasp

Inside the obi clasp is a circuit that uses the ESP32 and a 1000mAh rechargeable lithium battery.
The ESP32 also controls an infrared transmitter to read input from the sound sensor, light sensor, accelerometer, and potentiometer and send the information to the side of the earring.
The battery is designed for up to three hours of use.
We have also decided to incorporate a charging circuit to make this a rechargeable device.

What materials and components were used?

Earring electronic component

component vender cost(JPY) quanitity total notes
ATtiny85 Akitsukidenshi ¥250 2 ¥500 shop link
Neopixel_WS2813 Akitsukidenshi ¥30 2 ¥60 shop link
Infrared receiver_PIC79603 Akitsukidenshi ¥120 2 ¥240 shop link
Alkaline Button Battery LR44 (Golden Power) Akitsukidenshi ¥100 1 ¥10 shop link
Battery board attachment holder (metal frame) for LR44 Akitsukidenshi ¥20 2 ¥40 shop link
33kΩ FabLab Kamakura Stock ¥500 1 ¥0.2 shop link
0.1μF FabLab Kamakura Stock ¥120 1 ¥24 shop link

Outer material for earrings

component vender cost(JPY) quanitity total notes
tracing paper(75g/㎡) Shimamori Bookstore ¥1150 1 ¥23 shop link
woodpaper Amazon ¥1100 1 ¥220 shop link
Hoop Earrings Parts Amazon ¥599 1 ¥60 shop link
T pin Amazon ¥108 1 ¥1 shop link
Metal beads Amazon ¥548 1 ¥1 shop link

Obi Clasp electronic component

component vender cost(JPY) quanitity total notes
Wi-Fi module ESP-WROOM-32 Akitsukidenshi ¥550 1 ¥550 shop link
tact switch Akitsukidenshi ¥20 2 ¥40 shop link
Low Loss Surface Mount Type Three Terminal Regulator 3.3V800mA NJM2845DL1-33 Akitsukidenshi ¥50 1 ¥50 shop link
Red Chip LED [1608] OSHR1608 Akitsukidenshi ¥200 1 ¥10 shop link
Rechargeable lithium battery(1000mAh) MakerFocus(Amazon) $22.99 1 $22.99 shop link
5mm Infrared LED 940nm OSI5LA5453B Akitsukidenshi ¥200 2 ¥20 shop link
Chip transistor 2SC2712-GR 50V150mA (40 pcs.) Akitsukidenshi ¥200 2 ¥10 shop link
Electret Condenser Microphone (ECM) WM-61A or equivalent with lead pin Akitsukidenshi ¥50 1 ¥50 shop link
Phototransistor 3mm round type 940nm L-31ROPT1C Akitsukidenshi ¥200 1 ¥20 shop link
Accelerometer_ADXL345 & 6 pin header Amazon ¥720 1 set ¥360 shop link
Power switch_SS12D01G4 Akitsukidenshi ¥25 1 ¥25 shop link
Lithium Ion Charging Module_TP4056 Amazon ¥680 1 ¥680 shop link
Slide switch for boards SS-12D00-G5 Akitsukidenshi ¥20 1 ¥20 shop list
4 pin header Akitsukidenshi ¥35 4 ¥4 shop link
400Ω FabLab Kamakura Stock ¥500 2 ¥0.4 shop link
100Ω FabLab Kamakura Stock ¥500 4 ¥0.8 shop link
49.9Ω FabLab Kamakura Stock ¥500 1 ¥0.2 shop link
33kΩ FabLab Kamakura Stock ¥500 2 ¥0.4 shop link
10kΩ FabLab Kamakura Stock ¥500 3 ¥0.6 shop link
1MΩ FabLab Kamakura Stock ¥500 1 ¥0.2 shop link
4.7kΩ FabLab Kamakura Stock ¥500 1 ¥0.2 shop link
2.2kΩ FabLab Kamakura Stock ¥500 2 ¥0.4 shop link
1kΩ FabLab Kamakura Stock ¥500 1 ¥0.2 shop link
10μF FabLab Kamakura Stock ¥120 4 ¥96 shop link
1μF FabLab Kamakura Stock ¥120 2 ¥48 shop link
0.1μF FabLab Kamakura Stock ¥120 3 ¥72 shop link

Outer material for obi clasp

component vender cost(JPY) quanitity total notes
Japanese Pattern Handkerchief Kamakura huiro ¥350 1 ¥50 shop link
ABS required for the hausing Amazon ¥6000 60g ¥100 shop link

Where did they come from?

How much did they cost?

Earring

This is the total cost of the parts used.

[¥875] x [2] = [¥1750]

This is the total amount of materials used.

[¥305] x [2] = [¥610]

The cost of making earrings is [2360 yen].

Obi clasp

This is the total cost of the parts used.

[¥4350]

This is the total amount of materials used.

[¥150]

The cost to make an obidome is [¥4500].

What parts and systems were made?

The earring and the obi clasp communicate with each other by infrared light. There is an infrared receiver built into the earring, and an infrared transmitter built into the obi clasp.

Earring side

Obi clasp side

What processes were used?

  • 2D design
  • 3D design
  • Laser cutting
  • 3D printing
  • Erectronics design
  • Erectronics Production
  • Programming
  • Networking & Communications

What questions were answered?

  • The program description of the LED lighting pattern is very long, but is there a more concise way to describe it?
  • Can the sound sensor program express the LED lighting pattern as “flickering flame”?
  • How much can I simplify the production process for a workshop kit?

What worked? What didn’t?

  • Use existing infrared remote control module for debugging
  • Infrared communications are working fine.
  • Each input device is working fine.
  • Output the body of an obi-dome with a 3D printer

not worked

  • Button battery voltage was low and Neopixel did not work properly.
  • Installation of the board stored in the bandage was a little lax.
  • Waterproofing of Earrings
  • The earring hardware is not biting down hard enough.

How was it evaluated?

The clerk at the kimono rental shop I rented when I filmed the video for this final project told me, “If we could, we’d love to use your product as a rental product for the company. This project was made with a concept that made it easy for women to get interested in the [Fab] world, and I believe it was well received by the target audience.

What are the implications?

This project is not intended to be a product to be sold in the world, but to be developed as a “workshop kit” that will be used to teach programming and digital fabrication to women. In Japan, there are still very few people who know about digital fabrication. I think that’s because our activities are not well known to the female demographic. In order to promote [digital fabrication] activities in Japan, I think that if I hold the final project I created as an introductory course for [digital fabrication], more people will join our activities.

Special Thanks

FabLab Kamakura Instructors

Youka Kawahara
Osamu Yamamoto
Yosuke Tsuchiya
Rico
