Output Devices

// Pin map
const int ledRed = 0;   // D0 -> GPIO0
const int ledGreen = 1; // D1 -> GPIO1

void setup() {
  // Outputs
  pinMode(ledRed, OUTPUT);
  pinMode(ledGreen, OUTPUT);

  Serial.begin(115200);

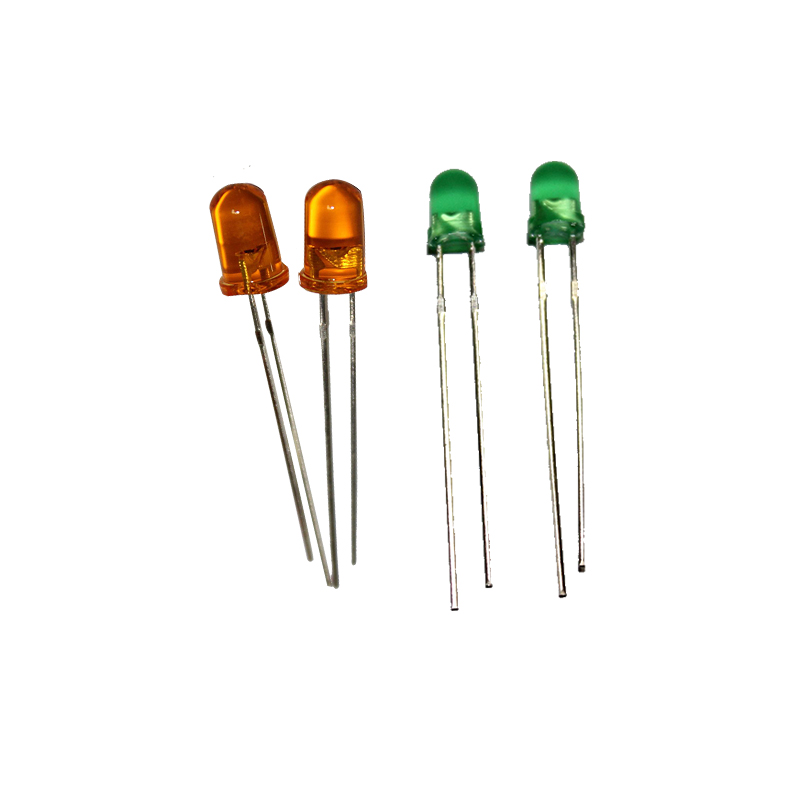

  Serial.println("C3 LED test: D0 (red), D1 (green)");
}

void loop() {
  // Red on, green off
  digitalWrite(ledRed, HIGH);
  digitalWrite(ledGreen, LOW);
  Serial.println("Red on");
  delay(500); // 500 ms

  // Red off, green on
  digitalWrite(ledRed, LOW);
  digitalWrite(ledGreen, HIGH);
  Serial.println("Green on");
  delay(500);
}

#include <ESP32Servo.h>

// Servo instance
Servo myServo;

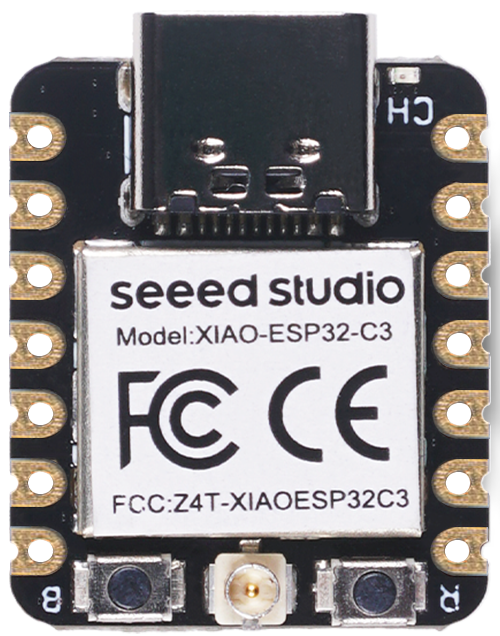

// XIAO ESP32-C3 pin
const int servoPin = 1; // D0 on the XIAO

void setup() {
  Serial.begin(115200);

  // Hardware timer
  ESP32PWM::allocateTimer(0);

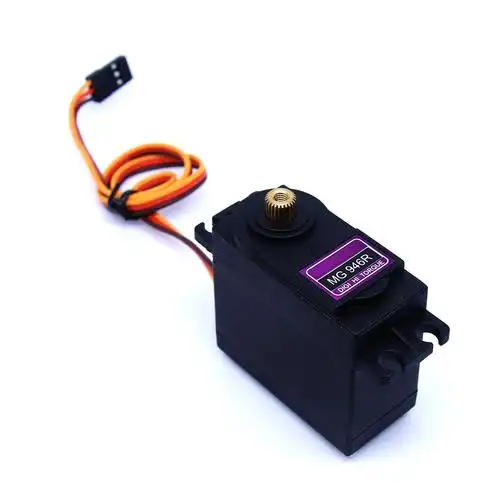

  myServo.setPeriodHertz(50);           // MG996R: 50 Hz
  myServo.attach(servoPin, 500, 2400);  // pulse: 500 us (0 deg) .. 2400 us (180 deg)

  Serial.println("--- Servo test ready ---");
  Serial.println("Enter angle 0-180 in Serial Monitor, then press Enter:");
}

void loop() {
  // Serial input
  if (Serial.available() > 0) {
    // Read integer
    int targetAngle = Serial.parseInt();

    // Reject invalid values (parseInt may return 0 if no digits)
    if (targetAngle >= 0 && targetAngle <= 180) {
      Serial.print("Moving to: ");
      Serial.print(targetAngle);
      Serial.println(" deg");

      myServo.write(targetAngle);
    }

    // Flush leftover bytes (e.g. newline)
    while(Serial.available() > 0) Serial.read();
  }
}
