13. Moulding and Casting

This week we focused on making moulds

Group work

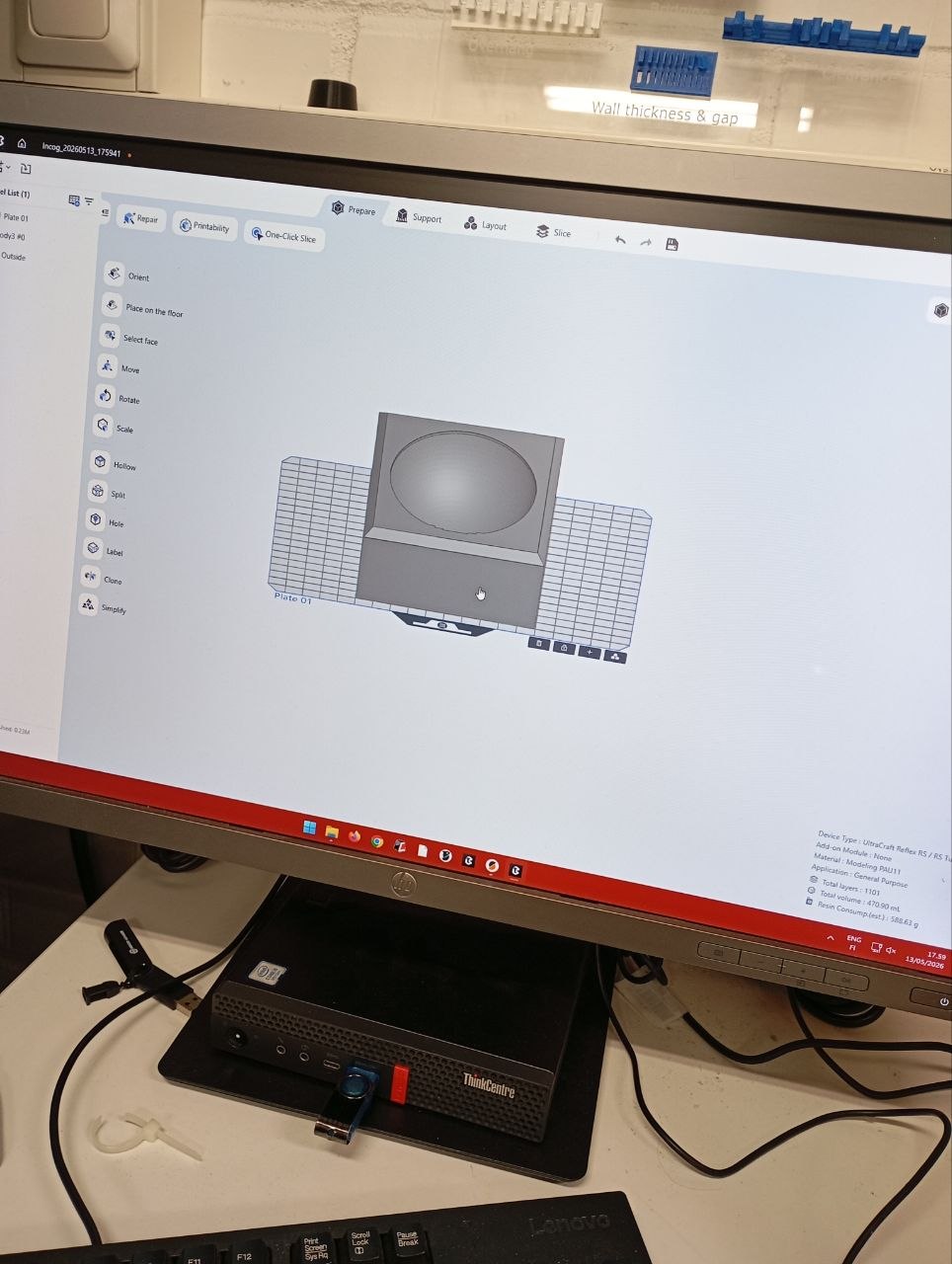

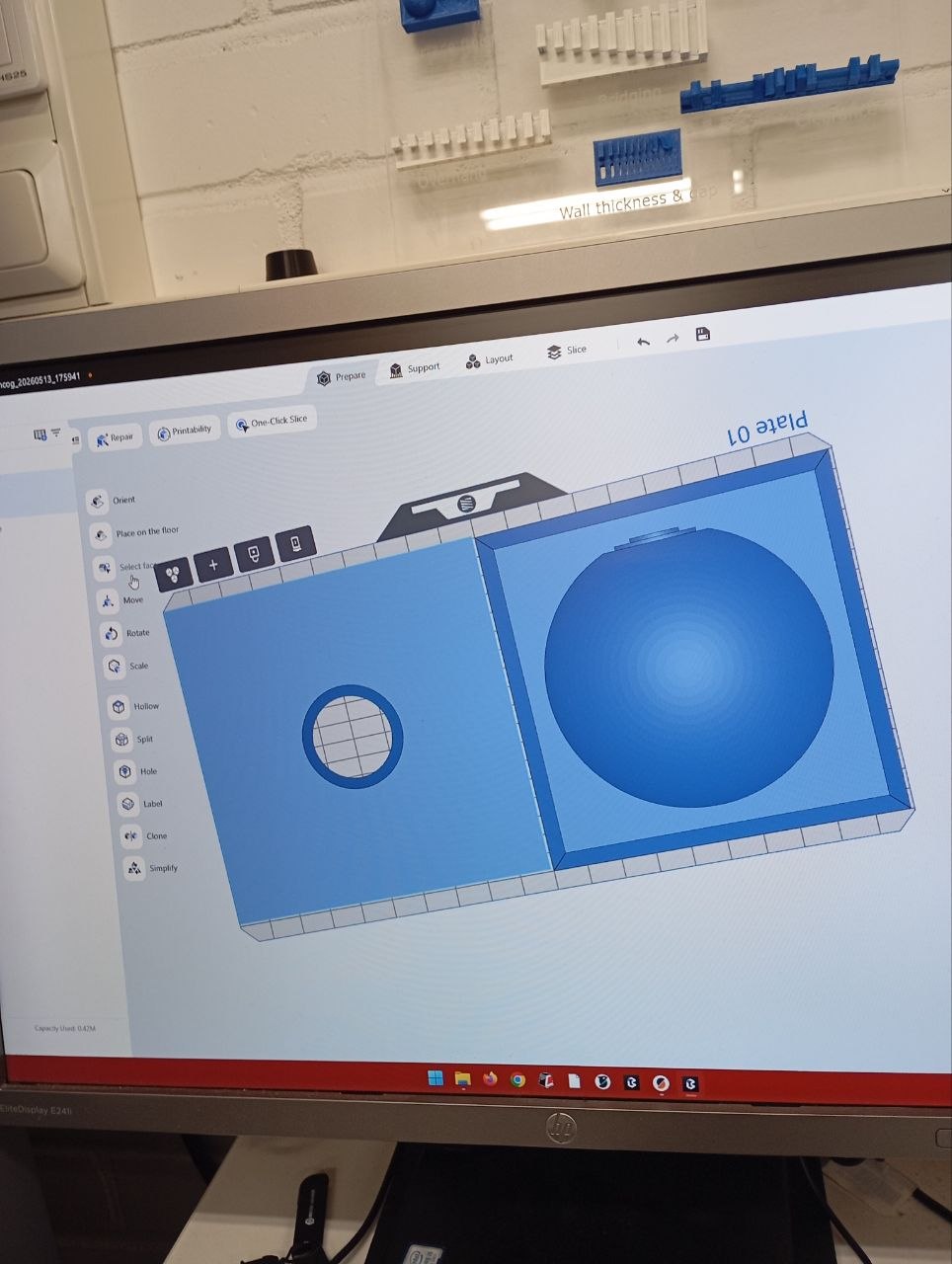

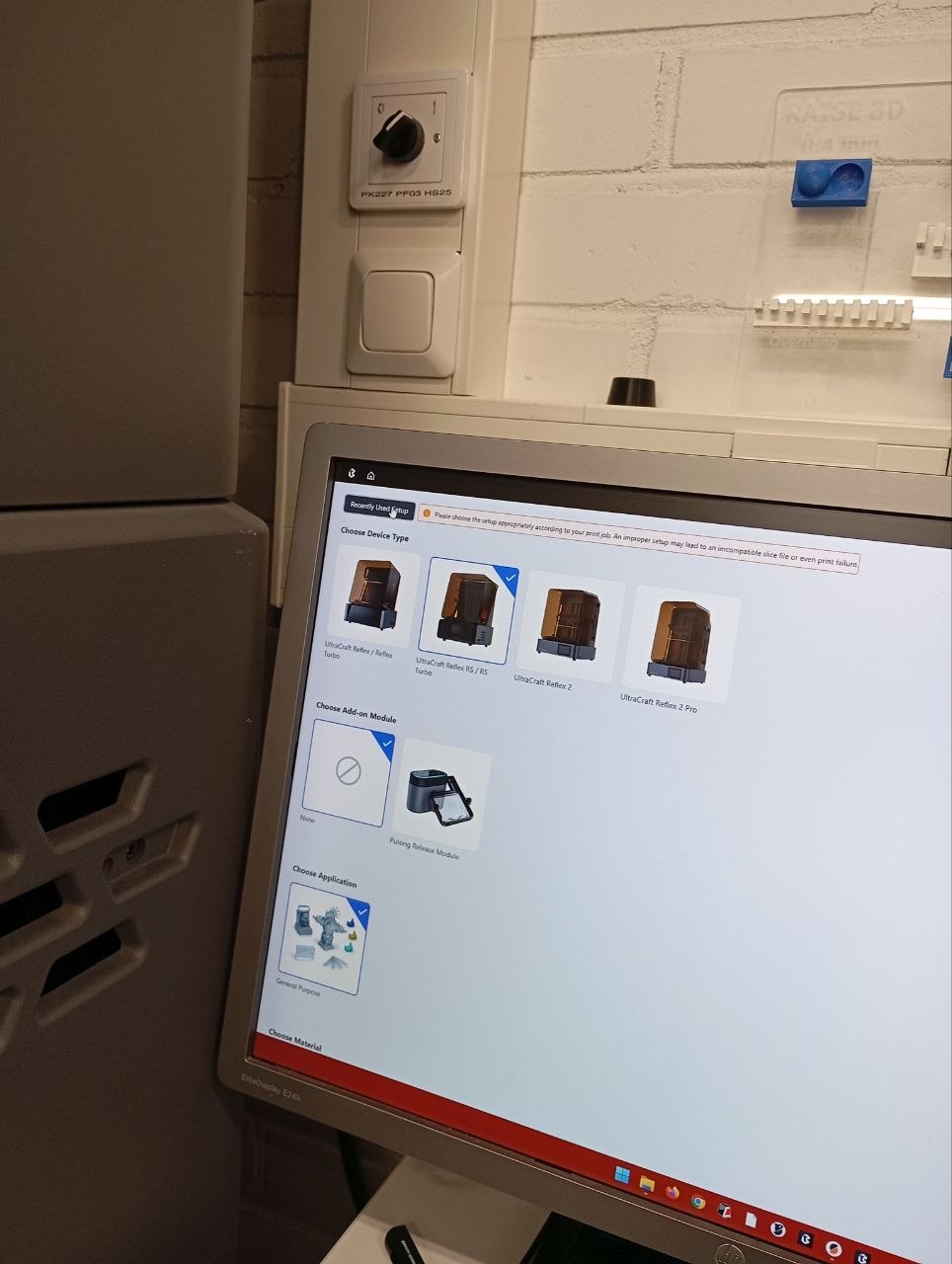

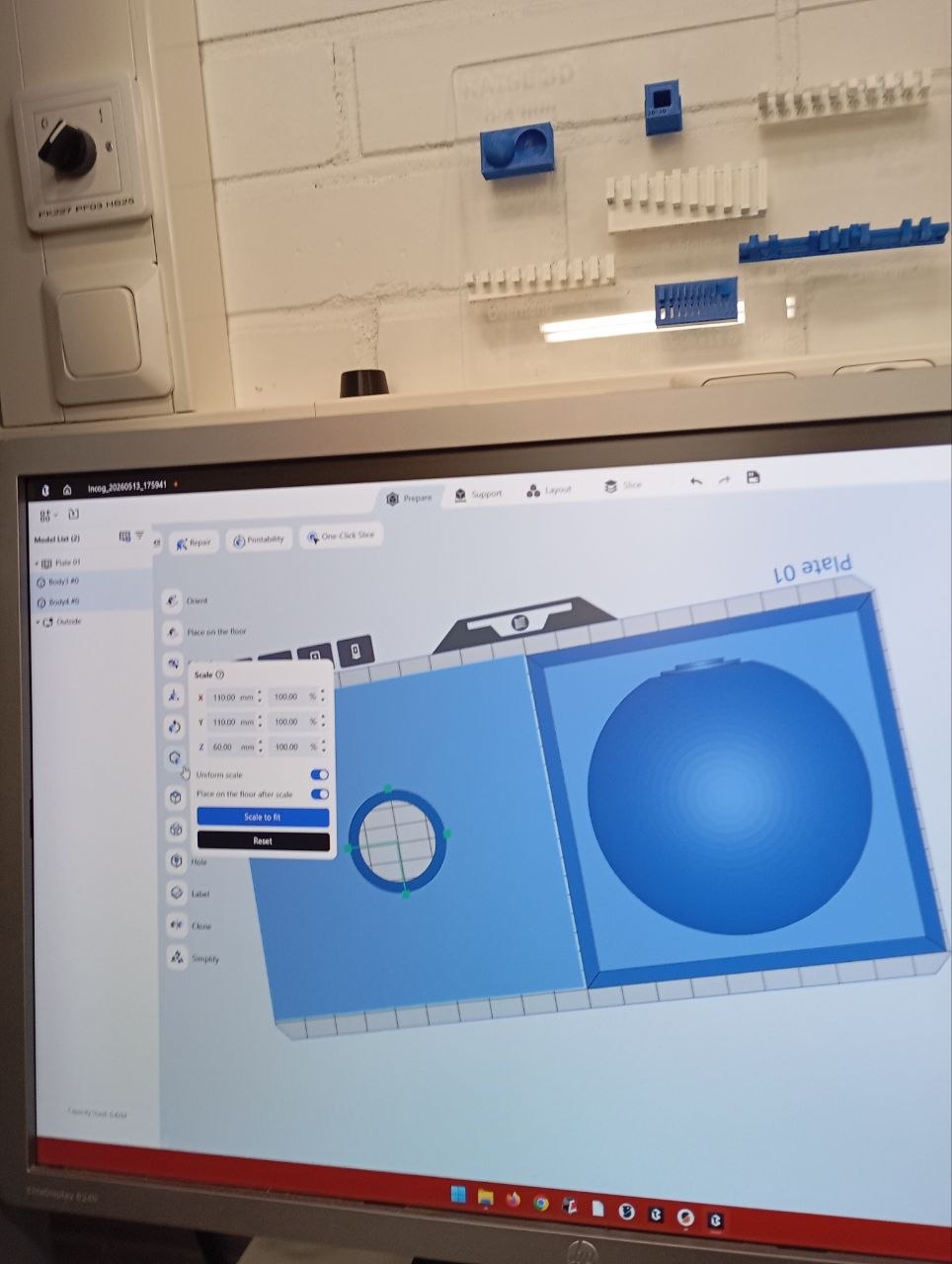

In the group work we reviewed the safety procedures, made and compared test casts. I learned how to

Individual assignment

Compare mould making processes.

Making the mould I first made what I wanted to mould.

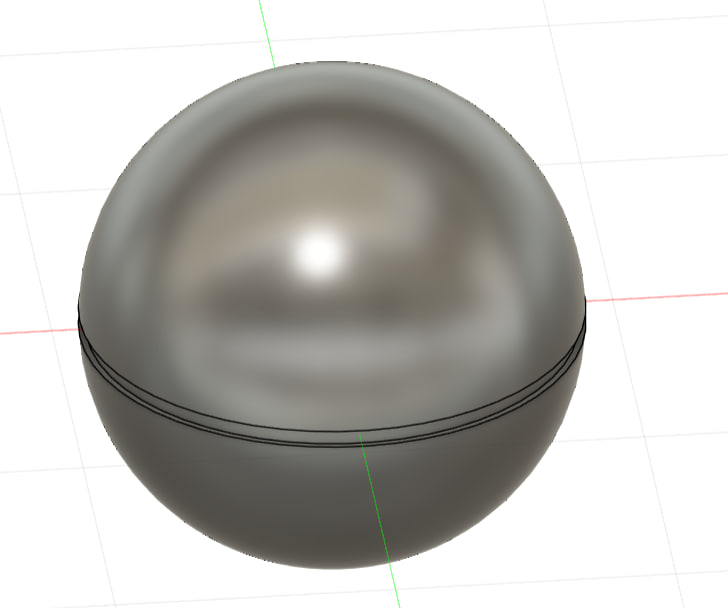

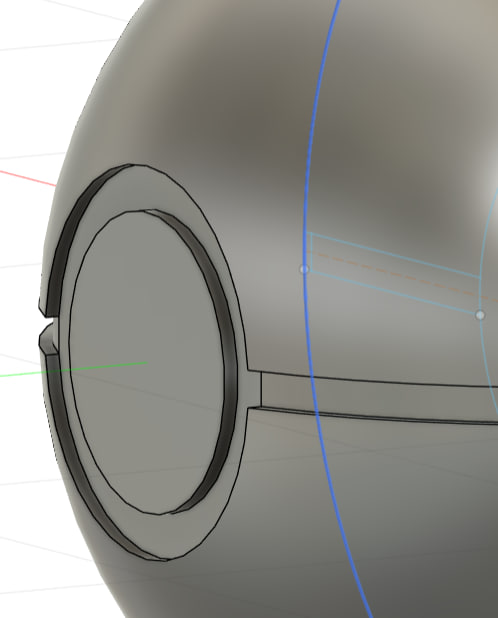

So here i made the pokeball general shape. alt text

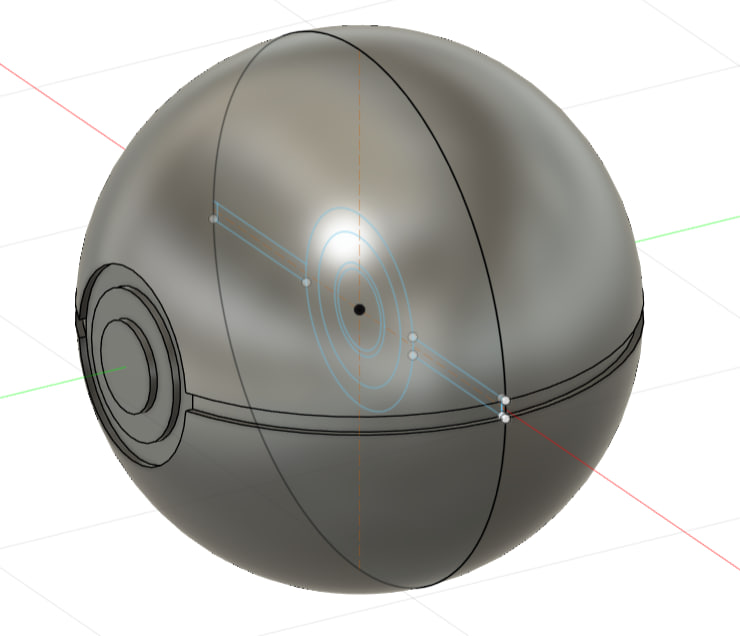

Added a front piece

alt text

alt text

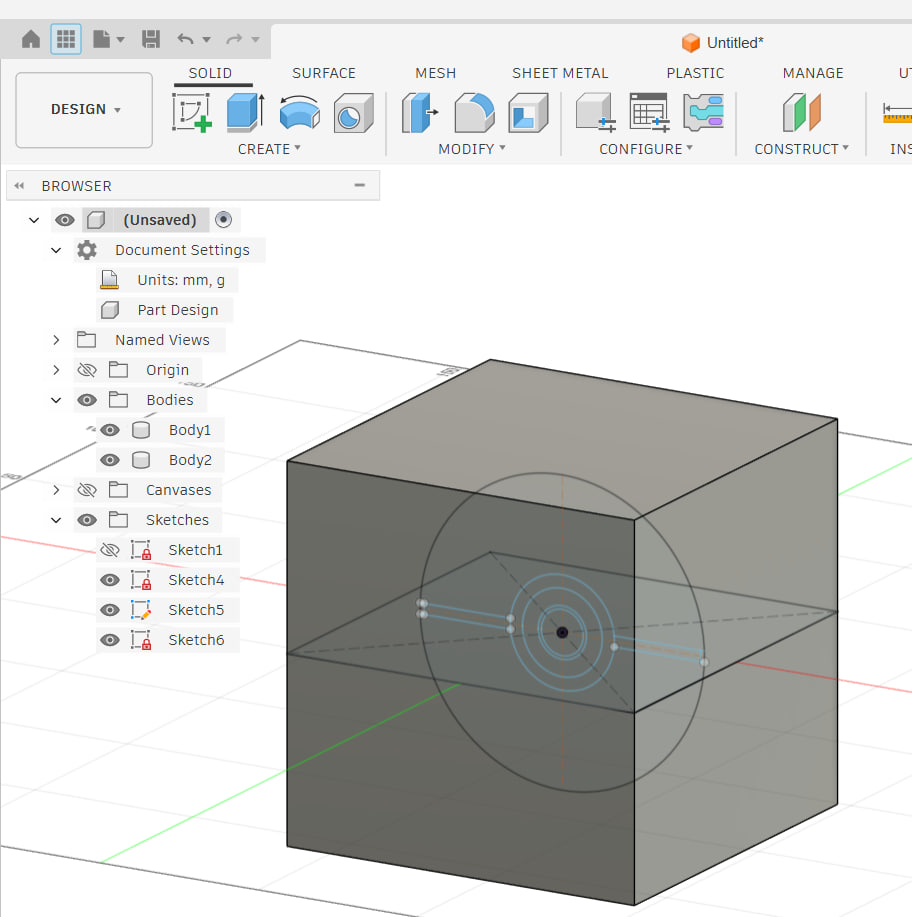

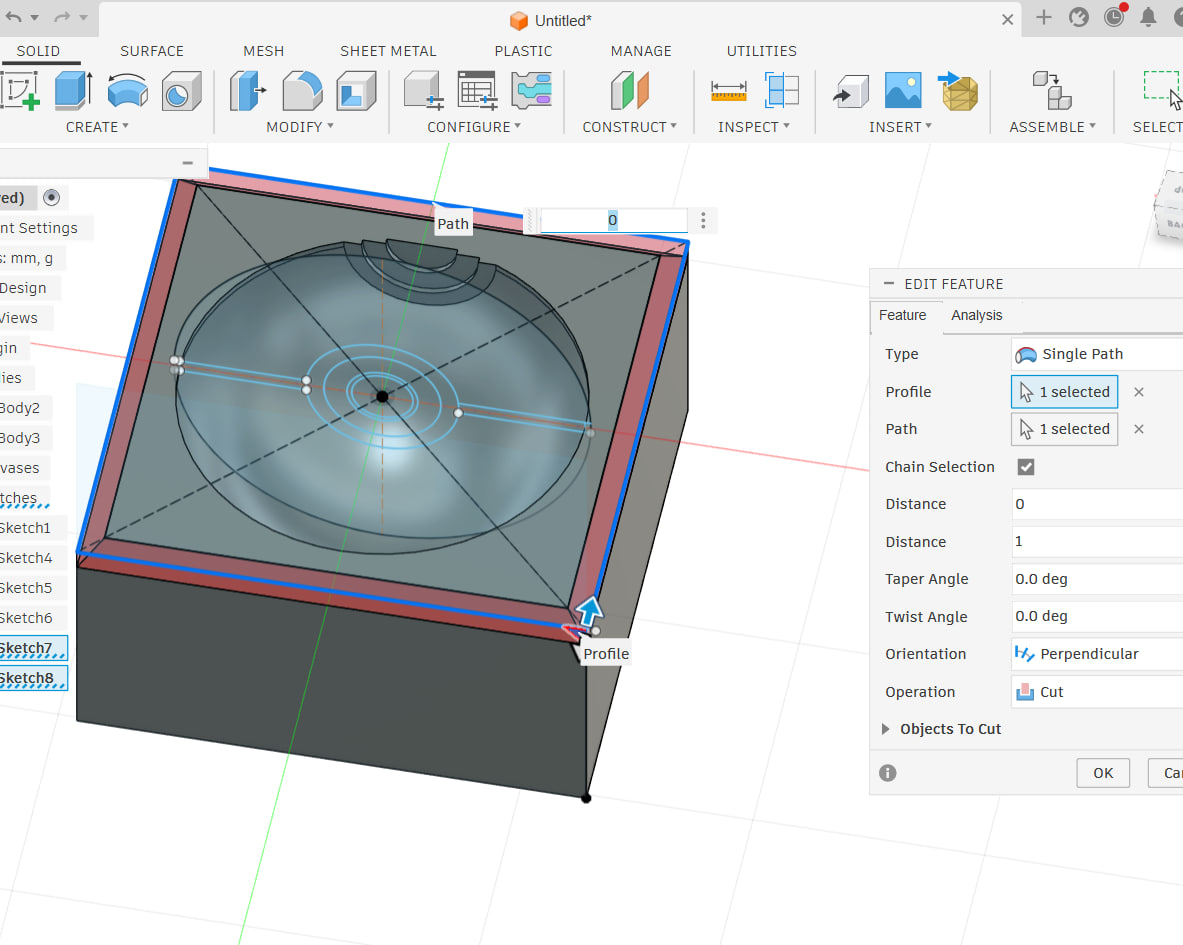

Put it in a square alt text

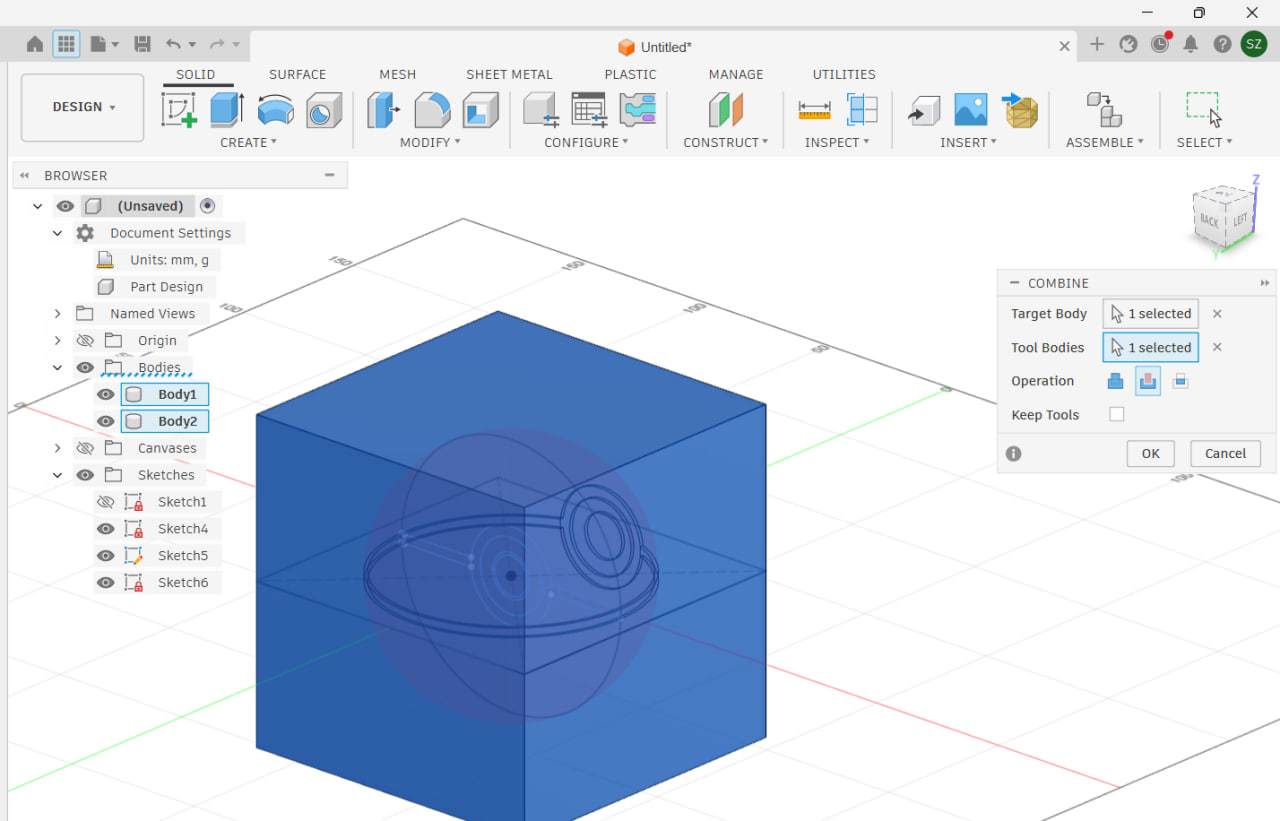

Cutting it out of the square

alt text

Adding the ridges so that it will sit well on eachother without moving when molding

alt text

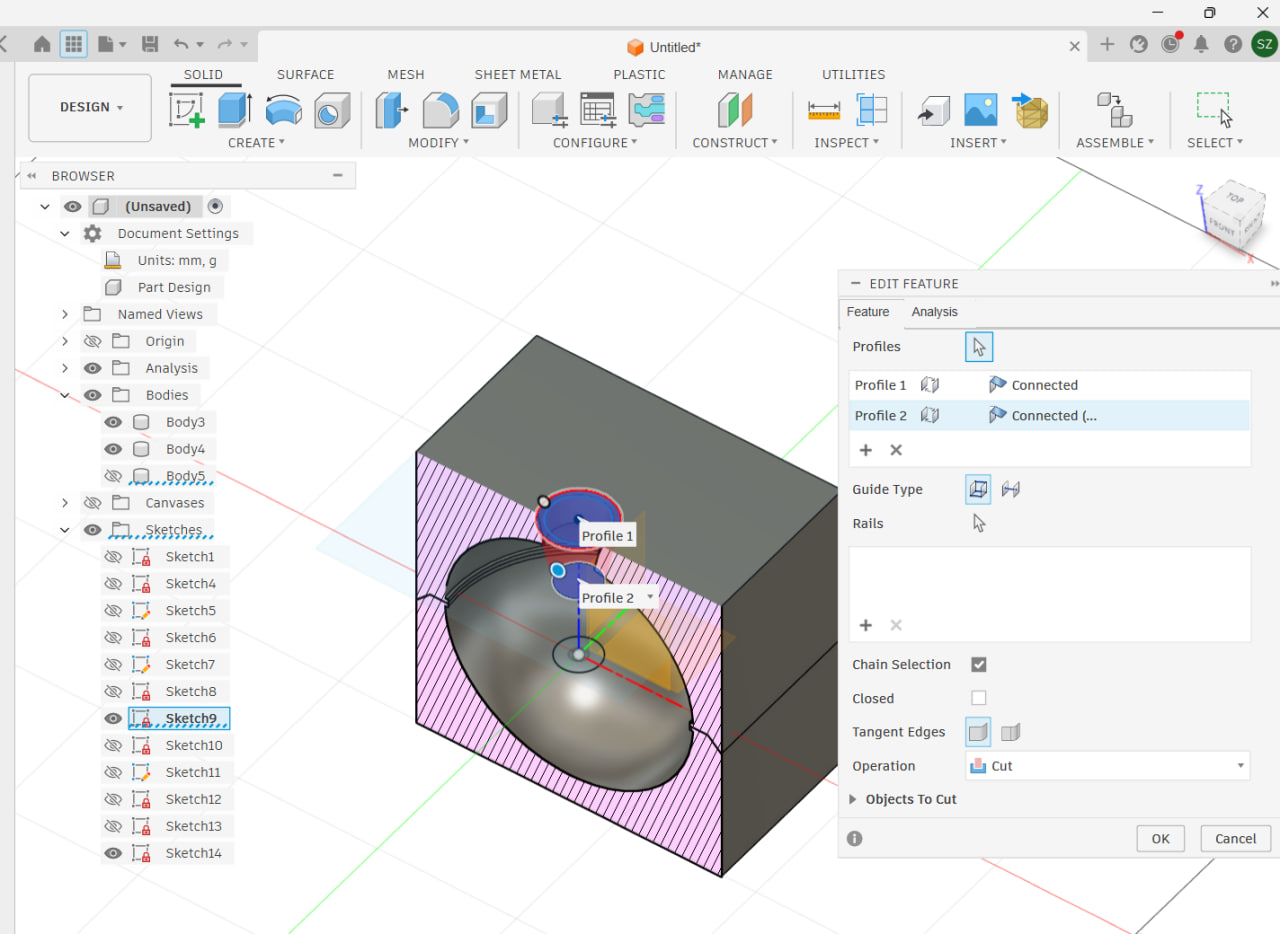

Adding a slot for pour the material. alt text

Now we go to the milling machine and put a block of wax into it. alt text

Glue it to the bottom

alt text

Modela player is a good tool for making toolpaths so we open the program and drag out workfiles there. alt text

we need to make 3 processes in total

Surfacing

Roughing

Finish

alt text

In surface mount we always select top

alt text

In the cutting params we need to select the drill bit which was 3 mm in my case

alt text

And limiting the area always in all 3 processes so that it doesnt cut deeper than needed. alt text

Then we go to the milling app to mill it.

In the position use the arrows to go to the center then press the x y button to make it the center. Then we lower the drill bit and adjust it with the screw driver so that it falls down then we fix it in place to get the 0 origin once we press the z button. alt text

Then we press cut and put in our milling files one by one

First Surfacing then Roughing and last Finish

after the milling is done we have our milled block and we remove the residue that was left and cut out the blocks to put them together

alt text

Then we go to the fun part

In the molding and casting room.

We take component A and B of silicone and mix them together, we have only 6 minutes to mix and pour them before they start solidifying. Its equal parts so it must be 1 to 1 . We use a scale to first put 1 part part A and then same ammount of part B.

alt text

Now pour it into the mold

alt text

Wait a few hours and violla allegedly a pokeball complete

HERO SHOT

alt text

Files

Mold F3d
