Electronics & Firmware

The control system centers on a Seeed XIAO ESP32-C3, TCS34725 color sensor (I²C), and two SG90 servos — Servo1 feeds the turntable, Servo2 directs sorted beads. Firmware evolved from serial sensor tests (Week 9) to full sorting with optional Wi-Fi web control (Week 11).

Core components

Controller: XIAO ESP32-C3 — main MCU (USB-C, Wi-Fi, I²C)

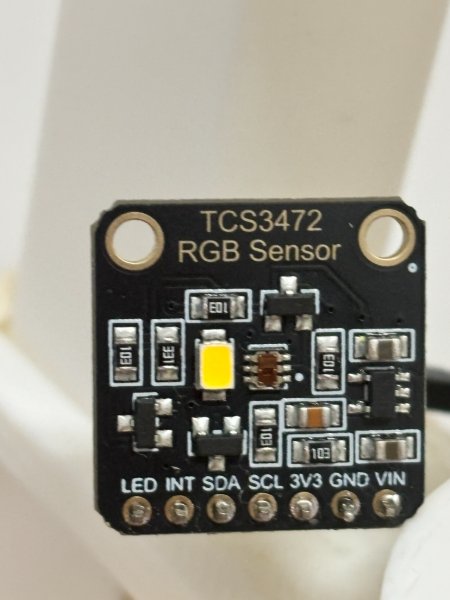

Input-TCS34725 — RGB color sensor (SDA GPIO6, SCL GPIO7)
Output Device: SG90 Servo1 (GPIO2) — turntable feed: 0° → 180° → 0°
Output Device: SG90 Servo2 (GPIO3) — sort chute: RED 30°, GREEN 60°, YELLOW 90°

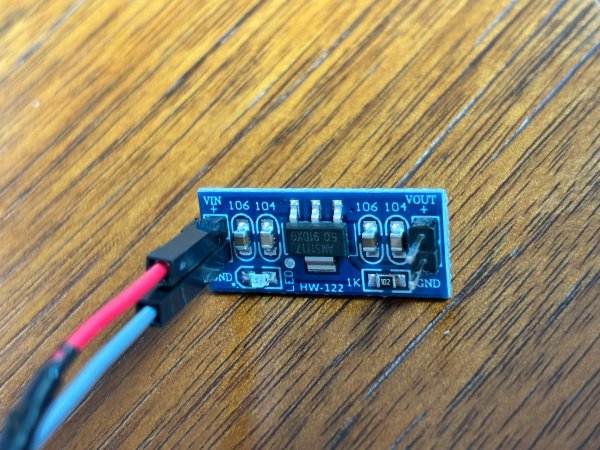

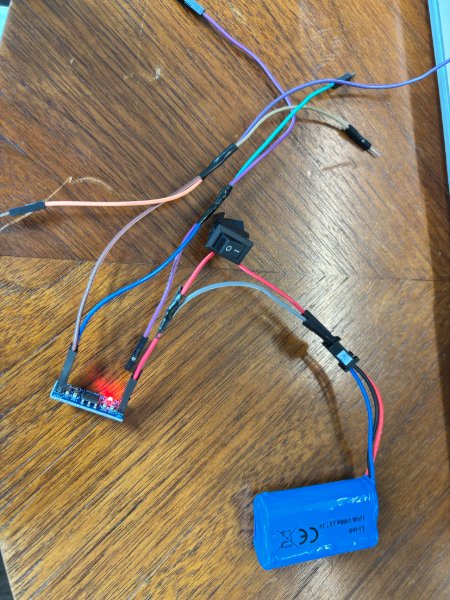

Power Supply: 5 V external supply for servos (common ground with MCU)

Custom PCB

Designed in KiCad to break out XIAO, sensor header, servo connectors, and power.

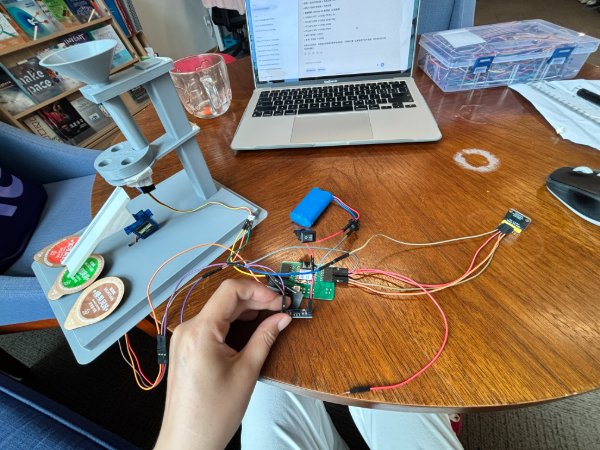

System integration logic

State flow: idle → read color → set Servo2 angle → feed bead with Servo1 → repeat. A machineRunning boolean gates automatic cycles when enabled from the web UI.

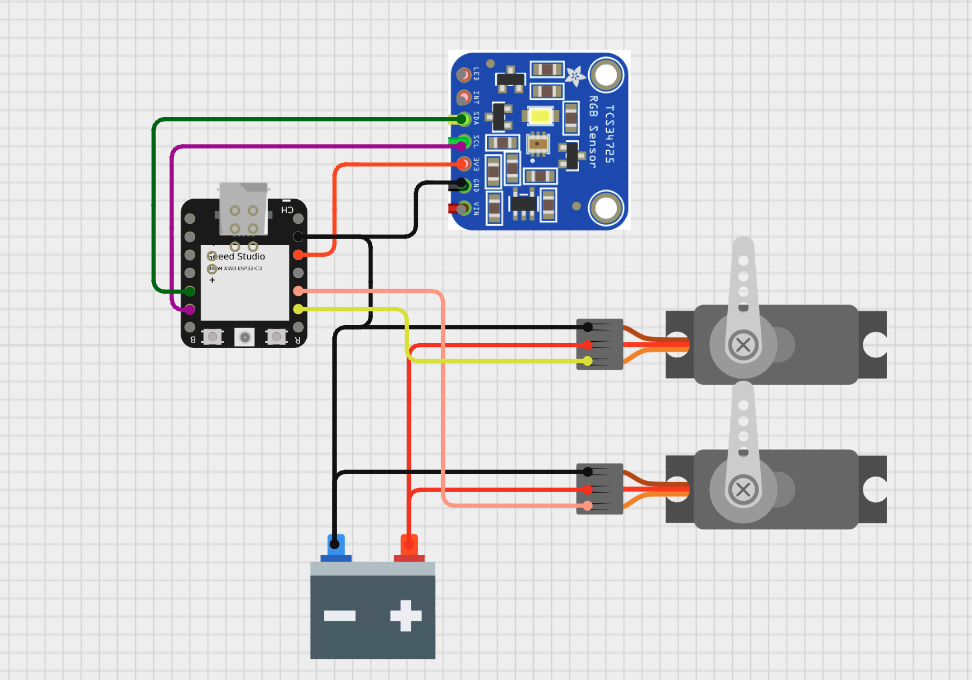

Circuit simulation

The circuit simulation was done in Cirkit designer IDE.

Firmware — color detection & sorting (excerpt)，all the code is in the repository

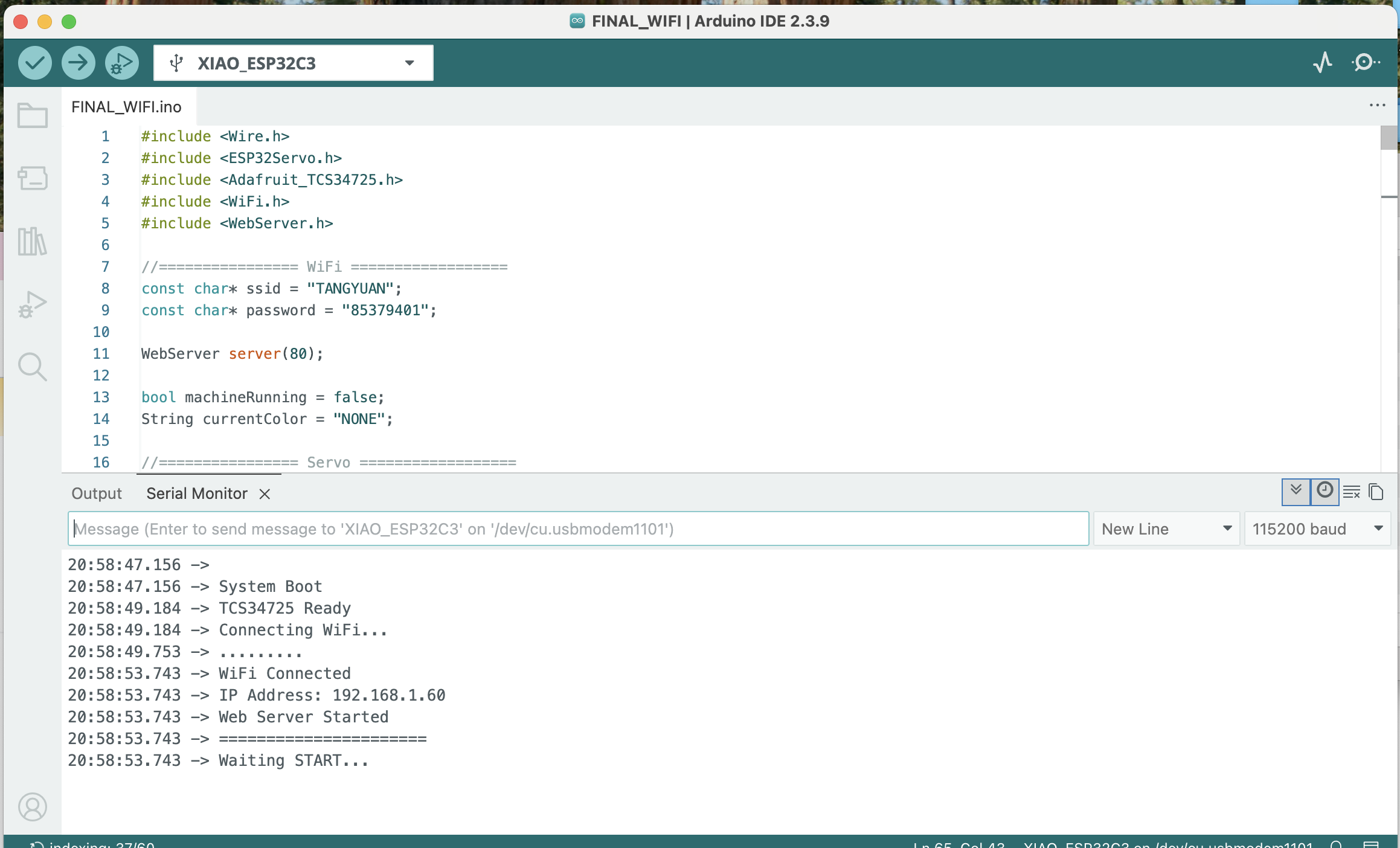

From Week 11 Wi-Fi + servo control sketch:

bool machineRunning = false;
String currentColor = "NONE";

String detectColor() {
  uint16_t r, g, b, c;
  tcs.getRawData(&r, &g, &b, &c);
  if (c < 100) return "NONE";
  float rf = (float)r / c, gf = (float)g / c, bf = (float)b / c;
  if (rf > 0.45 && rf > gf && rf > bf) return "RED";
  if (gf > 0.40 && gf > rf && gf > bf) return "GREEN";
  if (rf > 0.30 && gf > 0.30 && bf < 0.20) return "YELLOW";
  return "UNKNOWN";
}

void sortBean(String color) {
  if (color == "RED") servo2.write(30);
  else if (color == "GREEN") servo2.write(60);
  else if (color == "YELLOW") servo2.write(90);
  else return;
  delay(500);
}

Source files in repository

Wi-Fi control code — ESP32 embedded Wi-Fi to control the machine
ESP32_motor.ino — motor / servo tests
DeviceControl_week15.ino — device control experiments
Full machineRunning + WebServer code — Week 11 documentation
Integration state machine — Week 16 documentation

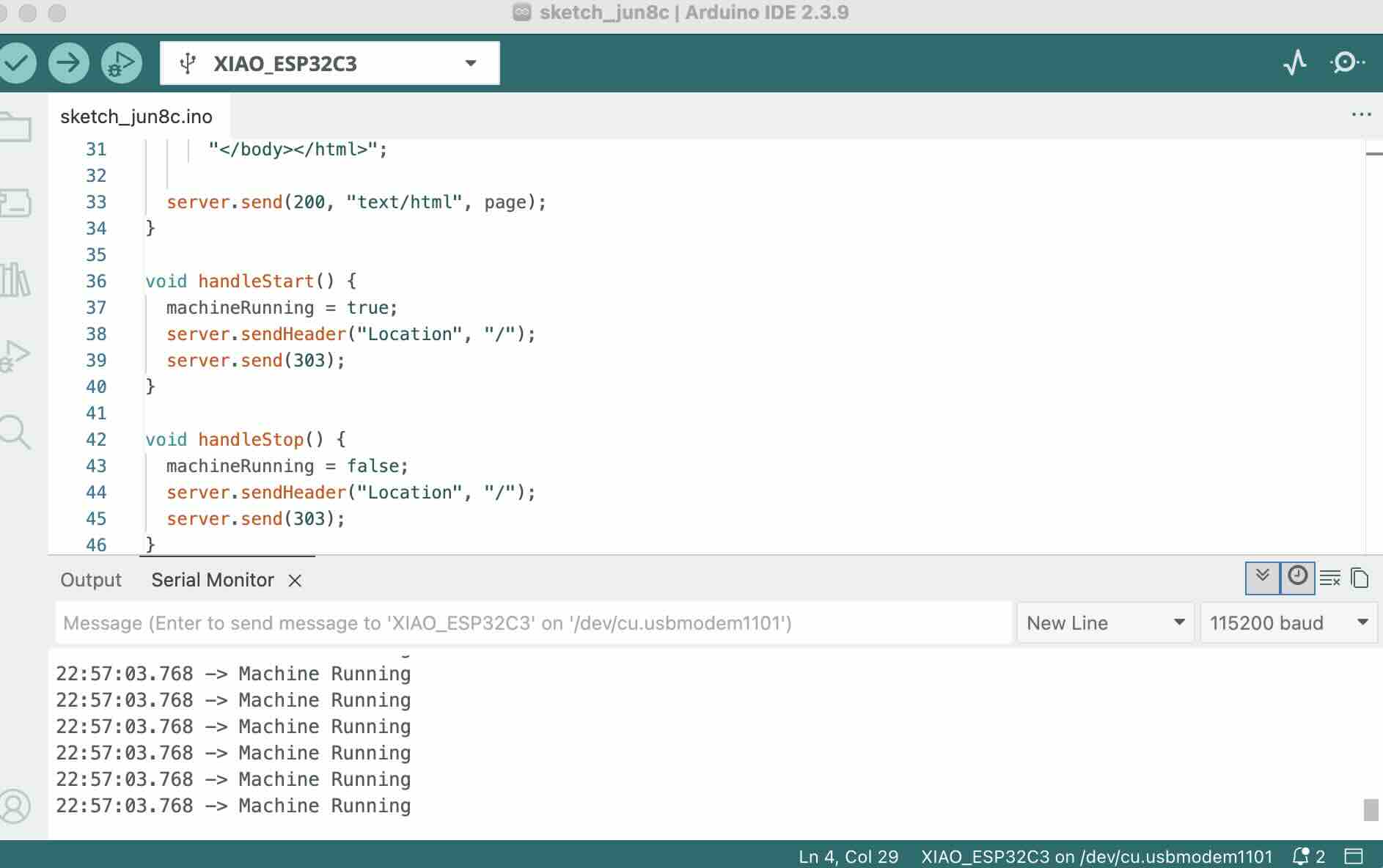

Wi-Fi web control demo

Wiring notes

I²C: TCS34725 VCC → 5 V, GND → GND, SDA/SCL → GPIO6/GPIO7
Do not power servos from the XIAO 3.3 V pin — use 5 V supply with shared ground
Keep sensor cable short; shield from direct ambient light with printed shroud
