Interface and application programming¶

Group assignment:¶

• Compare as many tool options as possible.

🎯 Objective¶

The goal of this group work is to compare different tools for building an interface/application able to communicate with an electronic board (typically via the serial port), in order to identify the advantages, drawbacks, and typical use cases of each approach.

To cover as many tools as possible, we first put together a general overview of existing solutions, then tested two tools in depth as a group: Python and JavaScript (Node.js / Web Serial API).

🗺️ General overview of existing tools¶

This table is not meant to be exhaustive, but it gives an overview of the diversity of possible approaches: general-purpose languages, dedicated visual tools, no-code, or performance-oriented frameworks.

🧪 Detailed group tests¶

The group chose to test two tools in depth, representative of two different philosophies: a locally installed general-purpose language (Python) and a cross-platform web ecosystem (JavaScript).

In both cases, the test consists of reading data sent by a board (ESP32) over the serial port and displaying it in a simple interface.

🐍 Python (Tkinter + PySerial + matplotlib)¶

Installation:

pip install pyserial matplotlib

Code example — serial reading + display in a Tkinter window:

import serial
import tkinter as tk
from tkinter import Label

# Adjust according to the port used (e.g. "COM5" on Windows, "/dev/ttyUSB0" on Linux)
PORT = "COM5"
BAUDRATE = 115200

ser = serial.Serial(PORT, BAUDRATE, timeout=1)

root = tk.Tk()
root.title("Lecture serie - Python")
root.geometry("300x150")

label = Label(root, text="En attente de donnees...", font=("Arial", 14))
label.pack(pady=20)

def read_serial():
    if ser.in_waiting > 0:
        line = ser.readline().decode("utf-8", errors="ignore").strip()
        if line:
            label.config(text=line)
    root.after(100, read_serial)  # relit toutes les 100 ms

read_serial()
root.mainloop()

Example with matplotlib (real-time chart):

import serial
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

PORT = "COM5"
BAUDRATE = 115200
ser = serial.Serial(PORT, BAUDRATE, timeout=1)

data = []
fig, ax = plt.subplots()

def update(frame):
    if ser.in_waiting > 0:
        try:
            value = float(ser.readline().decode("utf-8", errors="ignore").strip())
            data.append(value)
            data[:] = data[-50:]  # keeps the last 50 values
            ax.clear()
            ax.plot(data)
            ax.set_title("Donnees recues en temps reel")
        except ValueError:
            pass

ani = FuncAnimation(fig, update, interval=200)
plt.show()

Observed advantages: - Fast to set up, very little code needed for a working result. - matplotlib is extremely convenient for visualizing numerical data (curves, charts). - Good documentation and large community (PySerial widely used in the maker context).

Observed drawbacks: - The graphical interface (Tkinter) is visually limited and quickly feels dated, not well suited to "modern" interfaces. - Requires every user to install Python plus the libraries to run the application (no simple link to share). - Serial port handling can sometimes be sensitive to access permissions depending on the OS (especially on Linux).

(Insert here a screenshot of the Python interface running)

🌐 JavaScript (Node.js + serialport / Web Serial API)¶

Two approaches are possible in JavaScript: a Node.js application (using the serialport module), or directly in the browser thanks to the Web Serial API (no installation needed on the user's side, but only compatible with Chromium-based browsers: Chrome, Edge).

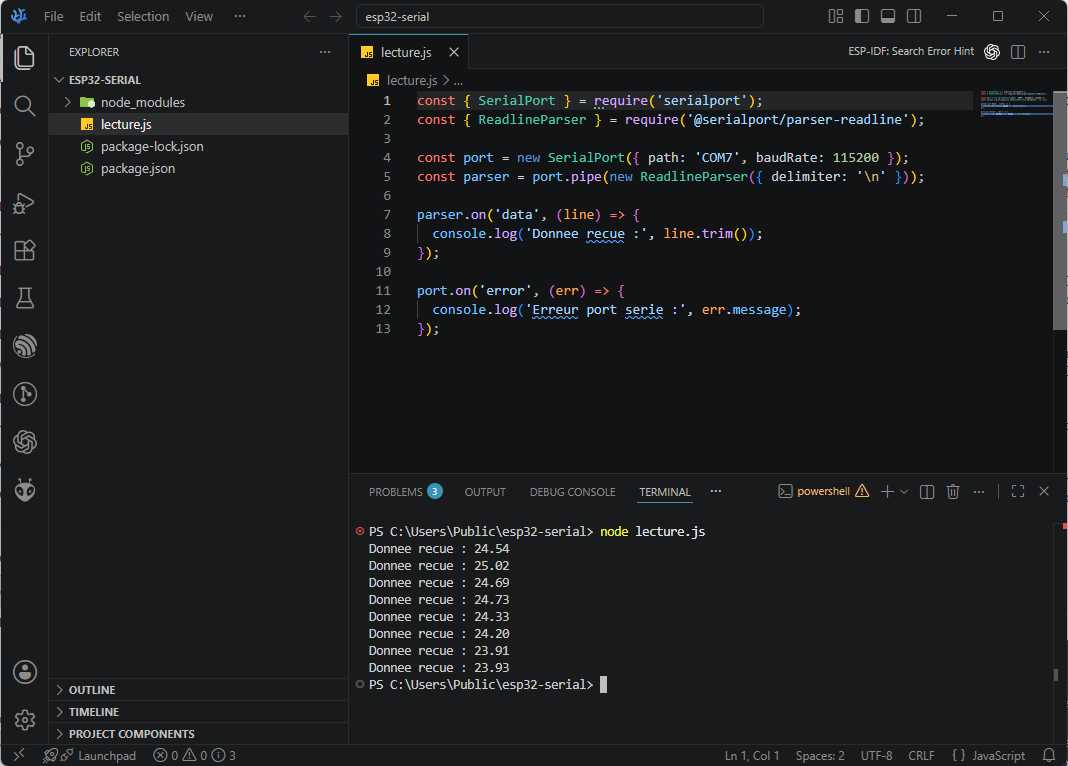

Option A — Node.js + serialport¶

Installation:

npm install serialport @serialport/parser-readline

Code example:

const { SerialPort } = require('serialport');
const { ReadlineParser } = require('@serialport/parser-readline');

const port = new SerialPort({ path: '/dev/ttyUSB0', baudRate: 115200 });
const parser = port.pipe(new ReadlineParser({ delimiter: '\n' }));

parser.on('data', (line) => {
  console.log('Donnee recue :', line.trim());
});

port.on('error', (err) => {
  console.log('Erreur port serie :', err.message);
});

Option B — Web Serial API (in the browser, no installation)¶

Code example (HTML + JS):

<button id="connectBtn">Se connecter au port serie</button>
<p id="output">En attente de donnees...</p>

<script>
document.getElementById('connectBtn').addEventListener('click', async () => {
  const port = await navigator.serial.requestPort();
  await port.open({ baudRate: 115200 });

  const reader = port.readable.getReader();
  const decoder = new TextDecoder();

  while (true) {
    const { value, done } = await reader.read();
    if (done) break;
    if (value) {
      document.getElementById('output').innerText = decoder.decode(value);
    }
  }
});
</script>

Observed advantages: - The Web Serial API requires no installation on the user's side: just opening a web page in Chrome/Edge is enough. - Very rich JavaScript ecosystem for building modern, responsive interfaces (dashboards, visualizations with D3.js, Chart.js, p5.js...). - Easy to share: the application can be hosted online and accessed from any machine with a compatible browser.

Observed drawbacks: - The Web Serial API is not supported by all browsers (no support on Firefox or Safari as of today), which limits its universality. - The Node.js approach requires, like Python, a local installation (Node.js + npm dependencies). - Slightly steeper learning curve if starting from scratch with asynchronous JavaScript (Promises, async/await).

(Insert here a screenshot of the web interface running)

📊 Summary table¶

✅ Conclusion¶

Each tool has its own relevance depending on the project context: - Python is ideal for rapid prototyping and data analysis/visualization (sensors, measurements), thanks to its simplicity and matplotlib. - JavaScript with Node.js is well suited when building a more complete application, potentially connected to other services. - The Web Serial API is the best option when an interface needs to be accessible without any installation, at the cost of limited compatibility to Chromium-based browsers.

The final choice therefore depends on the target audience of the interface: an internal/technical use case works very well with Python, while an interface meant to be easily shared with other users benefits more from the web approach.
