Computer controlled machining¶

Group assignment:¶

• Complete your lab's safety training

• Test runout, alignment, fixturing, speeds, feeds, materials and toolpaths for your machine

Safety Protocols¶

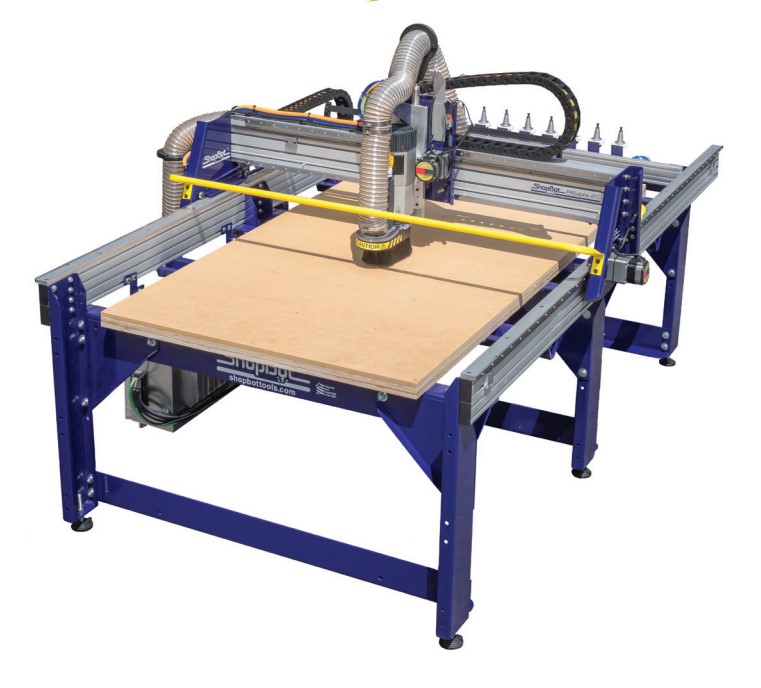

The ShopBot Alpha is an industrial-grade CNC router designed for high-speed cutting, engraving, and machining of a wide variety of rigid materials (wood, plywood, MDF, plastics, aluminum).

Before operating the large CNC router, we established a strict safety routine. Working with a high-power spindle cutting thick wood panels generates high-frequency noise, fine dust, and high-velocity debris.

• Eye Protection: Safety glasses are mandatory to protect against flying wood chips.

• Hearing Protection: Ear defenders or earplugs are required during the entire machining process due to spindle and vacuum noise.

• Respiratory Protection: Dust masks protect our lungs from fine MDF or plywood airborne particles.

• Dress Code: No loose clothing, no jewelry, and long hair must be tied back securely to prevent entanglement in the rotating spindle.

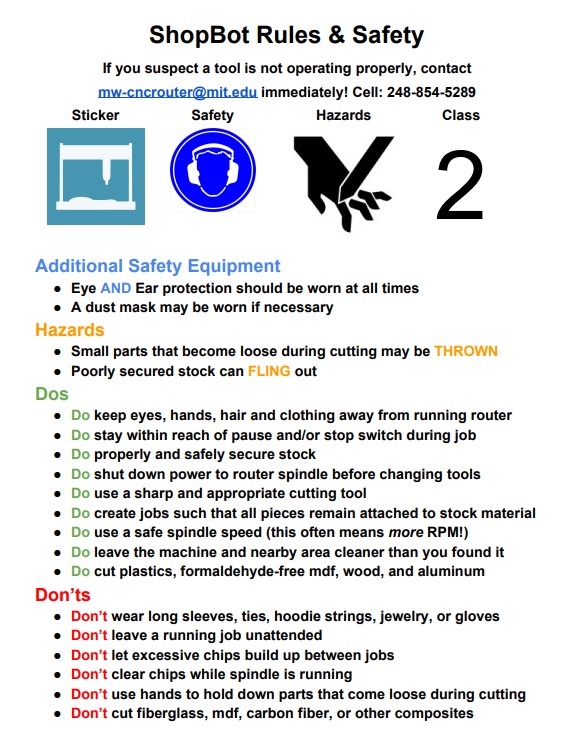

The image below provides a set of additional rules :

Before accessing the ShopBot, it is essential to strictly follow all safety instructions.

Always wear the appropriate personal protective equipment (PPE), including:

- Safety helmet
- Safety shoes
- Protective gloves

Users must also comply with all operational rules and procedures related to the ShopBot and its associated equipment.

Failure to follow these instructions may:

- Endanger your own safety
- Put others at risk
- Disrupt workshop operations

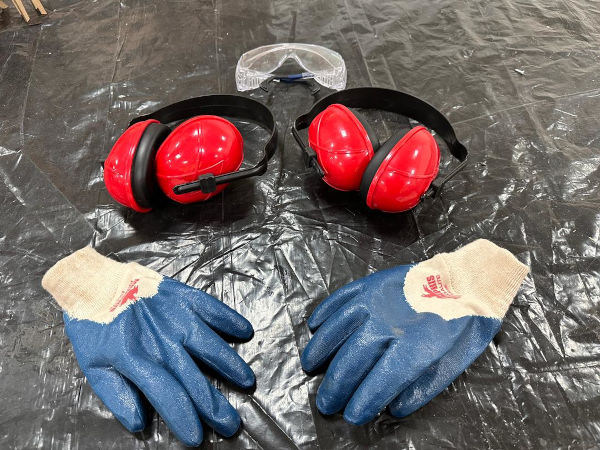

Protective Equipment Used¶

• 🔴 Red circle: Protective aprons against wood chips
• 🔵 Blue circle: Protective gloves
• 🟡 Yellow circle: Anti-fog safety helmets

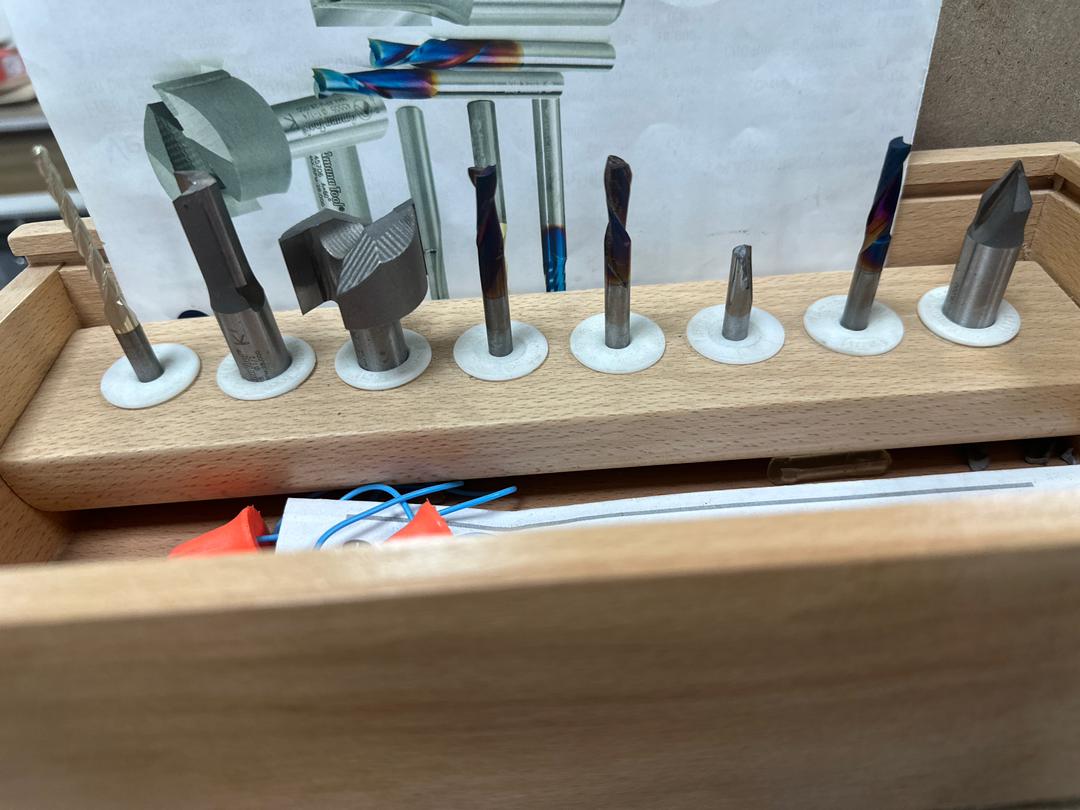

Tooling and End Mills Identification¶

We inspected the available tooling at the lab to understand their specific geometries and applications. Selecting the right end mill determines the quality of the surface finish and the life expectancy of the tool.

Stock Material Alignment and Fixing¶

To guarantee that the cuts align exactly with the digital CAD model, we tested the physical alignment of our plywood board on the CNC bed.

• Parallels Verification: We aligned the stock panel against the known linear axes of the machine bed.

• Travel Test: We manually jogged the spindle along the X and Y axes while measuring the distance to the edge of the board to make sure it remained perfectly constant over the full length.

• Fixing: The panel was securely screwed into the MDF spoilboard outside the designated cutting paths to prevent any lifting or shifting caused by lateral cutting forces.

Feeds & Speeds Characterization¶

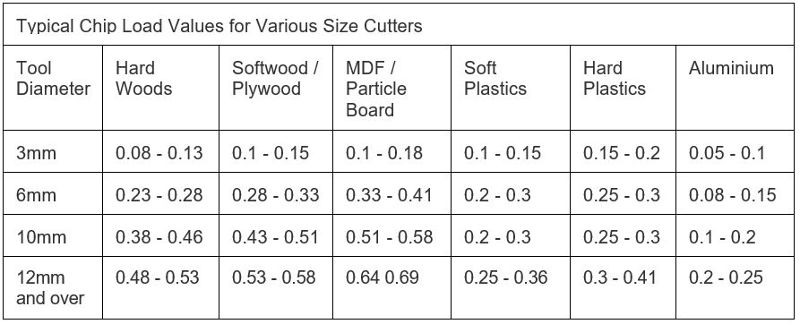

A critical part of our test was understanding Chip Load (the actual thickness of the wood chip cut by each tooth). If the chip load is too low, the bit creates fine dust, creates friction, and burns the wood. If it is too high, the bit experiences excessive stress and snaps.

We always aim to produce clean wood chips rather than fine dust.

This approach helps to:

• Naturally evacuate heat away from the cutting tool
• Improve cutting efficiency
• Extend tool lifespan
• Prevent overheating and burning of the material

To determine the correct machining parameters, the standard CNC machining formula is used:

Feed Rate (V)= N × cpt × RPM

Where:

Test piece: dimensional accuracy, toolpath and runout verification¶

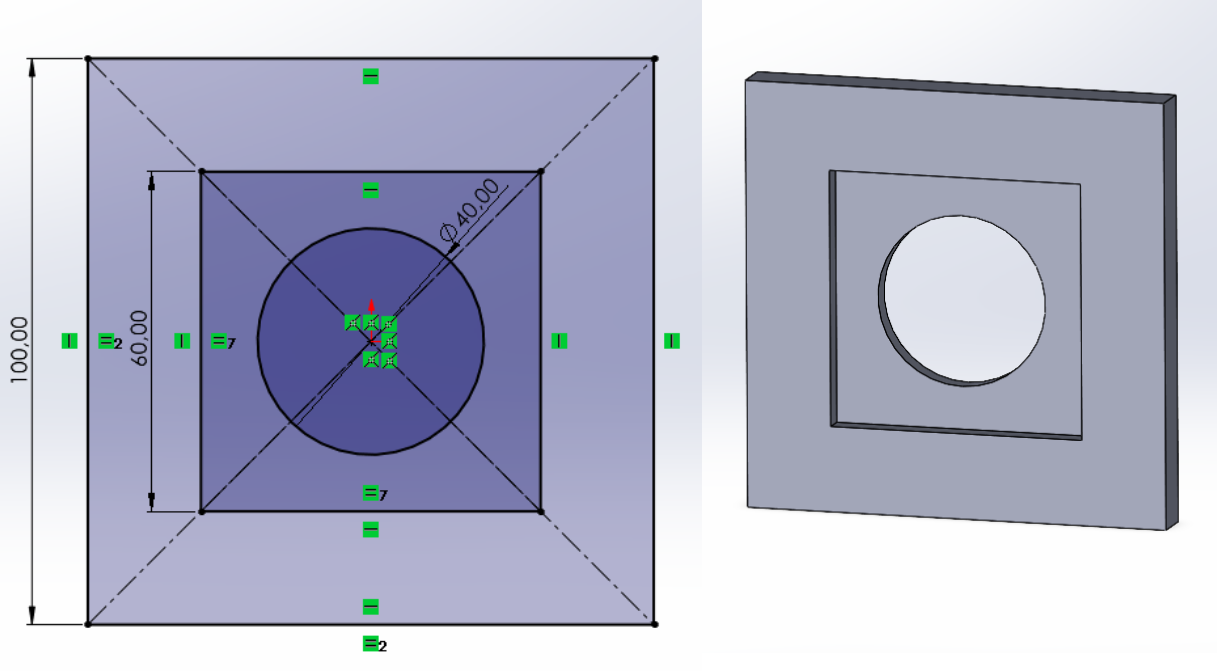

To simultaneously test the dimensional accuracy, several toolpath strategies, and the spindle runout of the ShopBot Alpha, we designed a single test piece combining three machining operations: an outer square profile cut with a standard 2D profile toolpath (contour), an inner square pocket cut with a pocketing toolpath, and a central circular hole cut with a circular/drilling toolpath.

Nominal dimensions (CAD):

• Outer square: 100 mm x 100 mm

• Inner pocket (square): 60 mm x 60 mm

• Circle diameter: 40 mm

• Material thickness: 15 mm

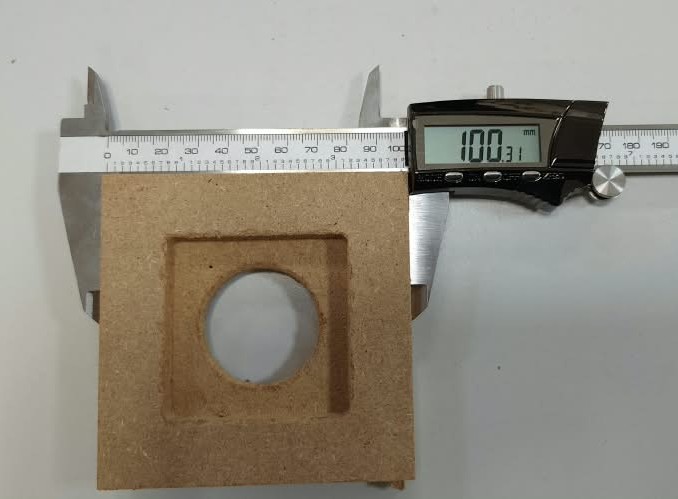

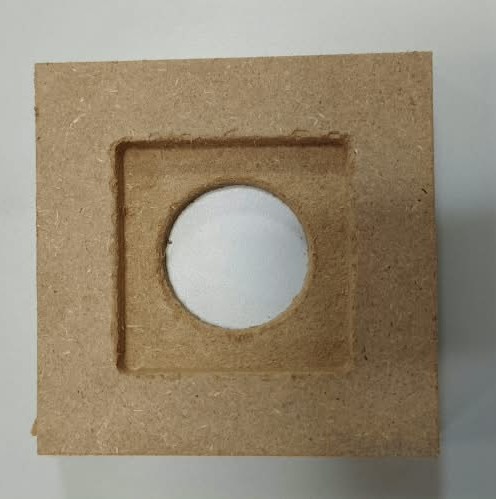

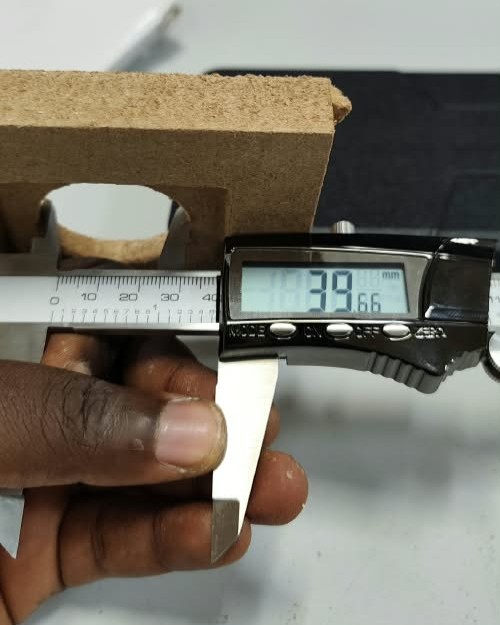

We machined this piece in MDF on the ShopBot Alpha 96. After machining, we measured the actual dimensions with a caliper and compared them to the nominal CAD values:

This deviation gives a direct indication of the machine's runout: any systematic offset between the nominal and measured hole diameter reflects the combined effect of tool deflection, spindle wobble, and the tool's actual cutting diameter versus its nominal diameter.
