Programming ATtiny412 & Microcontroller Networking¶
Full conversation transcript with Claude — April 2026
Table of Contents¶
- TX/RX vs GPIO Pins
- Software Serial — GPIO as TX/RX
- I2C vs UART
- Wireless Communication
- SDA — Bidirectional Data
- Arduino Libraries for UART
- Request/Response Pattern
- Basic UART Code — XIAO + ATtiny
- I2C Network — ESP32-C6 + ATtiny412 + XIAO RP2040
- How to Load a Program onto ATtiny412
- Programming Setup — XIAO ESP32-C6 as Programmer
- ATtiny412 Node Code — LDR + Hall Effect
- Troubleshooting Upload Errors

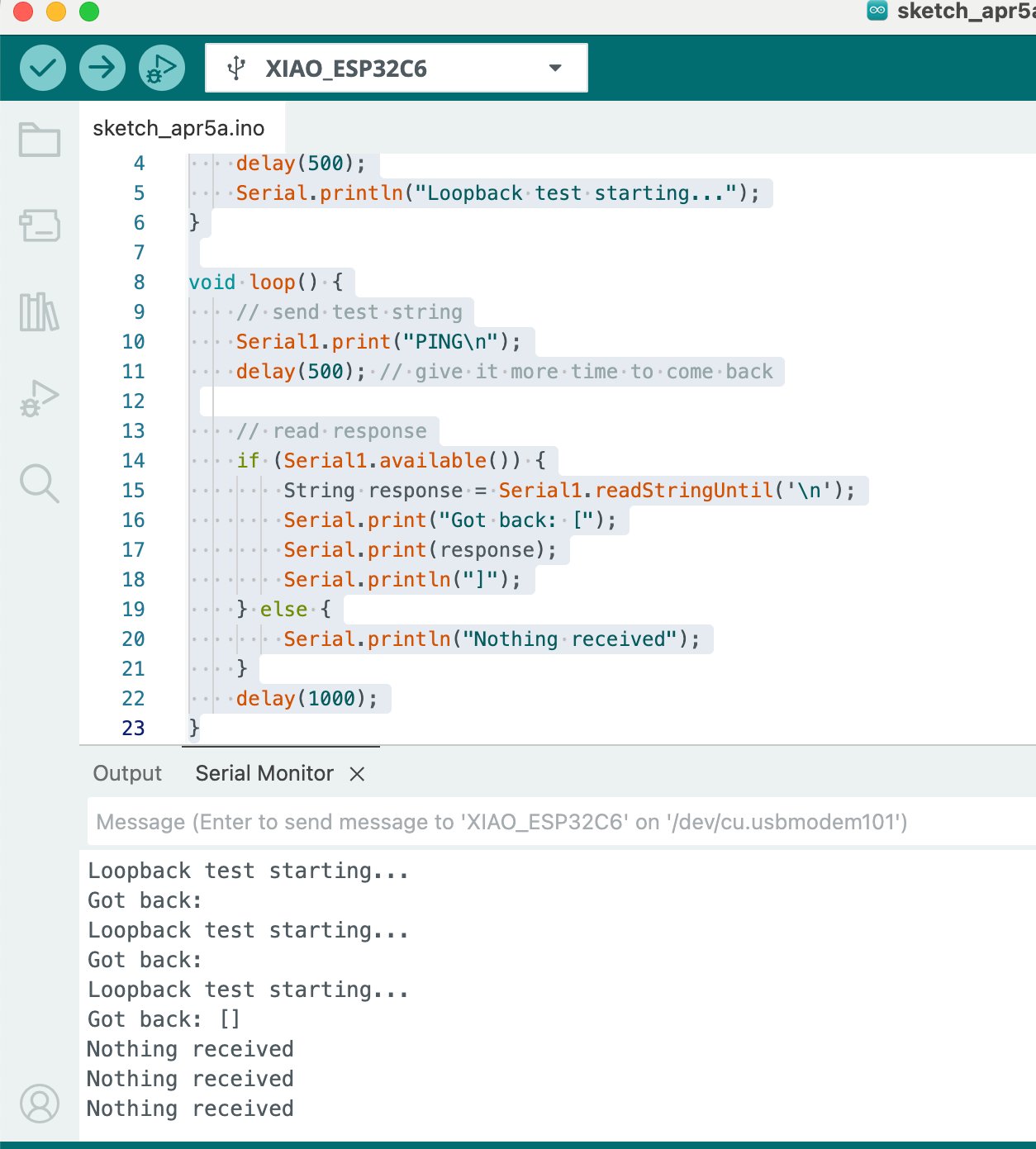

- Loopback Test — Confirming XIAO Serial Pins
- ATtiny412 Pin Names in Code

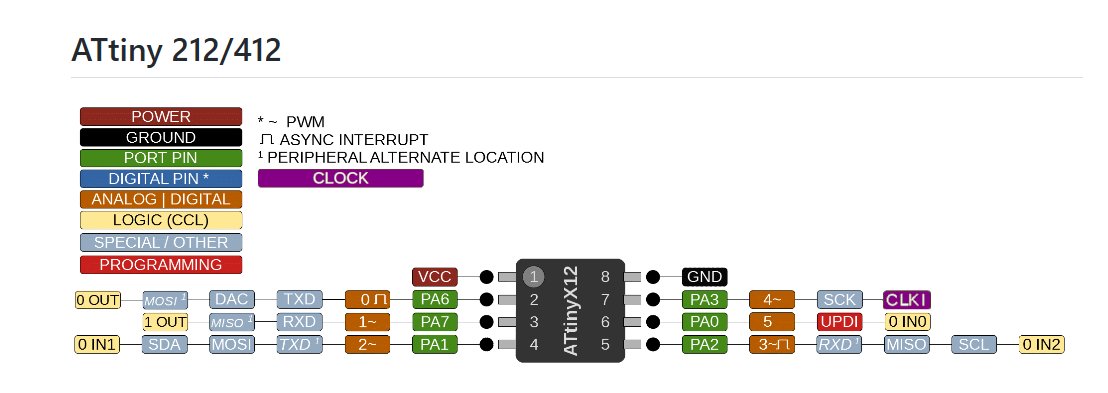

- Corrected ATtiny412 Pinout
- Diagnosing a Damaged Chip
1. TX/RX vs GPIO Pins¶
User: how does a TX and RX pin differ from an IO pin?
Claude: GPIO pins are bidirectional — you configure them in software as either INPUT or OUTPUT. TX and RX are dedicated hardware serial pins — part of a UART peripheral baked into the microcontroller silicon.
| GPIO | TX / RX | |
|---|---|---|
| Direction | Configurable IN or OUT | TX = out only, RX = in only |
| Hardware | Simple latch/buffer | Dedicated UART peripheral with FIFO buffer |
| Protocol | None — raw high/low | UART framing (start, data, stop bits) |
| Timing | You control it in software | Hardware clocks bits at exact baud rate |
| CPU involvement | Every transition needs code | Hardware handles it autonomously |
// GPIO
pinMode(5, OUTPUT);
digitalWrite(5, HIGH);
pinMode(6, INPUT);
int val = digitalRead(6);
// Hardware UART
Serial1.begin(115200);
Serial1.println("hello");
char c = Serial1.read();
A GPIO pin is a dumb wire you toggle manually. A TX/RX pin is a smart pipe — the silicon handles framing, buffering, and timing for you, freeing the CPU for other work.
2. Software Serial — GPIO as TX/RX¶
User: can i turn a GPIO into a TX/RX? is that done with an attiny?
Claude: Yes! This is called SoftwareSerial or bit-banging UART.
#include <SoftwareSerial.h>
SoftwareSerial mySerial(2, 3); // RX=pin2, TX=pin3
void setup() {
mySerial.begin(9600);
}
void loop() {
mySerial.println("hello");
}
| ATtiny chip | Hardware UART? | Solution |
|---|---|---|
| ATtiny85 | ❌ None | SoftwareSerial / USI |
| ATtiny84 | ❌ None | SoftwareSerial |
| ATtiny2313 | ✅ Yes | Real UART available |
| ATtiny1614/1616 | ✅ Yes (modern) | Real UART available |
The classic ATtiny85 has no hardware UART at all — bit-banging GPIO is the only option. Keep baud rate at 9600 for reliability.
Yes, any GPIO can become a software TX/RX. ATtiny made this famous because classic chips had no choice.
3. I2C vs UART¶
User: how is I2C related to UART?
Claude: They're both serial communication protocols — both send data one bit at a time over a wire. But they solve the problem differently.
Serial Communication
├── Asynchronous (no shared clock)
│ └── UART ──► TX/RX, baud rate agreement, point-to-point
└── Synchronous (shared clock wire)
├── I2C ──► SDA + SCL, addressed bus, multi-device
└── SPI ──► MOSI + MISO + SCK + CS, fast, full-duplex
| UART | I2C | |
|---|---|---|
| Wires | 2 (TX + RX) | 2 (SDA + SCL) |
| Clock | ❌ No shared clock | ✅ SCL is a shared clock wire |
| Devices | Point-to-point (1 to 1) | Bus — 1 master, up to 127 devices |
| Addressing | None | 7-bit address per device |
UART is a private conversation between two devices. I2C is a party line where one master addresses many devices over a shared, clocked bus.
4. Wireless Communication¶
User: what about wireless communication?
Claude: Wireless is the same serial protocols — but the wire is replaced by radio waves.
Wireless Communication
├── Short Range (cm) ──► NFC / RFID
├── Medium Range (meters) ──► BLE, Bluetooth, Zigbee, Z-Wave
├── Local Range (100m) ──► WiFi, LoRa
└── Long Range (km) ──► LoRaWAN, Cellular, Sigfox
| Protocol | Range | Speed | Power | Best For |
|---|---|---|---|---|
| BLE | ~10m | 1Mbps | Very low | Sensors, wearables |
| WiFi | ~50m | 100Mbps+ | High | Internet, data-heavy |
| LoRa | ~5km | ~5kbps | Very low | Remote sensors |
| LoRaWAN | ~15km | ~5kbps | Very low | City-scale IoT |
Seeed XIAO Wireless Options:
XIAO ESP32-C6 ──► WiFi 6 + BLE 5.0 + Zigbee + Thread (built in)
XIAO ESP32-S3 ──► WiFi + BLE 5.0 (built in)
XIAO nRF52840 ──► BLE 5.0 (ultra low power)
XIAO SAMD21 ──► none built in
Wireless is not a different kind of communication — the radio just replaces the wire.
5. SDA — Bidirectional Data¶
User: does SDA send and receive data?
Claude: Yes — SDA both sends and receives on the same single wire using an open-drain bus with pull-up resistors.
Phase 1 — Master controls SDA: sends 7-bit address + R/W bit
Phase 2 — Slave controls SDA: pulls LOW = ACK, leaves HIGH = NACK
Phase 3 — WRITE: Master drives SDA
READ: Slave drives SDA, master ACKs each byte
The ACK bit is the clearest moment where control of SDA hands off between master and slave.
SDA is truly bidirectional — one wire, both directions, shared by every device. This is why I2C only needs 2 wires to talk to 127 devices.
6. Arduino Libraries for UART¶
User: what library do i include in arduino ide to use tx and rx?
Claude: No library needed for hardware UART — it's built into the Arduino core.
void setup() {
Serial.begin(9600); // no #include needed
}
void loop() {
Serial.println("hello");
if (Serial.available()) {
char c = Serial.read();
}
}
Only include a library for SoftwareSerial (bit-banged GPIO):
#include <SoftwareSerial.h> // only for GPIO-as-serial
| Situation | Library needed? |
|---|---|
| Hardware TX/RX pins | ❌ No |
| Multiple hardware UARTs (Serial1, Serial2) | ❌ No |
| GPIO bit-banged serial | ✅ Yes — SoftwareSerial.h |
7. Request/Response Pattern¶
User: can i call to a node, and get a detailed reading back?
Claude: Yes — this is the fundamental pattern of embedded networking.
Over I2C:
Wire.requestFrom(0x08, 6); // request 6 bytes from node 0x08
int temp = Wire.read() << 8 | Wire.read();
int humidity = Wire.read() << 8 | Wire.read();
int battery = Wire.read() << 8 | Wire.read();
Over WiFi:
Master calls: http://192.168.1.42/read
Node returns: {"temp":23.4,"humidity":61,"pressure":1013,"battery":87}
8. Basic UART Code — XIAO + ATtiny¶
User: show me a basic code for that (UART, XIAO + ATtiny)
Wiring:
XIAO ESP32 ATtiny85
D7 (RX) ◄───────── PB1 (pin 6) = SoftSerial TX
D6 (TX) ──────────► PB0 (pin 5) = SoftSerial RX
GND ─────────── GND
ATtiny85 Code (Node):
#include <SoftwareSerial.h>
SoftwareSerial serial(PB0, PB1);
void setup() { serial.begin(9600); }
void loop() {
if (serial.available()) {
String cmd = serial.readStringUntil('\n');
cmd.trim();
if (cmd == "READ") {
serial.print(readTemp()); serial.print(",");
serial.print(readBattery()); serial.print(",");
serial.println(readLight());
}
}
}
XIAO Code (Master):
void setup() {
Serial.begin(115200);
Serial1.begin(9600, SERIAL_8N1, 7, 6); // RX=D7, TX=D6
}
void loop() {
Serial1.println("READ");
delay(200);
if (Serial1.available()) {
String response = Serial1.readStringUntil('\n');
// parse CSV: "23.4,850,512"
}
delay(3000);
}
9. I2C Network — ESP32-C6 + ATtiny412 + XIAO RP2040¶
User: show me the same program with i2c. have esp32-c6 as the master, and attiny412 and xiao rp2040 as nodes
Wiring:
ESP32-C6 ATtiny412 XIAO RP2040
SDA (D4) ──┬───── SDA (PA1, pin 4) ── SDA (D4/GP6)
SCL (D5) ──┼───── SCL (PA2, pin 5) ── SCL (D5/GP7)
3.3V ──┼───── VCC (pin 1) ── 3.3V
GND ──┴───── GND (pin 8) ── GND
Pull-ups: SDA ──[4.7kΩ]── 3.3V / SCL ──[4.7kΩ]── 3.3V
I2C Addresses:
ESP32-C6 ──► Master (no address)
ATtiny412 ──► Slave 0x08
XIAO RP2040 ──► Slave 0x09
ATtiny412 Code (Node 0x08):
#include <Wire.h>
#define I2C_ADDRESS 0x08
#define LDR_PIN PIN_PA6
#define HALL_PIN PIN_PA7
void setup() {
Wire.begin(I2C_ADDRESS);
Wire.onRequest(sendData);
}
void sendData() {
int ldrValue = analogRead(LDR_PIN);
bool magnet = !digitalRead(HALL_PIN);
Wire.write(ldrValue >> 8);
Wire.write(ldrValue & 0xFF);
Wire.write(magnet ? 1 : 0);
Wire.write(0x00);
}
void loop() { }
ESP32-C6 Master Code:
#include <Wire.h>
#define ATTINY_ADDR 0x08
#define RP2040_ADDR 0x09
void loop() {
// request from ATtiny412
Wire.beginTransmission(ATTINY_ADDR);
Wire.write("READ");
Wire.endTransmission();
delay(100);
Wire.requestFrom(ATTINY_ADDR, 4);
if (Wire.available() == 4) {
int ldr = Wire.read() << 8 | Wire.read();
bool magnet = Wire.read();
Wire.read(); // reserved
Serial.print("LDR: "); Serial.println(ldr);
Serial.print("Magnet: "); Serial.println(magnet ? "YES" : "NO");
}
delay(3000);
}
10. How to Load a Program onto ATtiny412¶
User: how do i load a program onto an attiny412?
Claude: The ATtiny412 uses UPDI — a single-wire programming protocol. Not USB, not ISP.
Old ATtiny (85, 84): ISP programming — 6 wires
New ATtiny (412, 816): UPDI programming — 1 wire (+ VCC and GND)
Install megaTinyCore — add to Arduino IDE → Preferences → Additional Board Manager URLs:
http://drazzy.com/package_drazzy.com_index.json
Then install megaTinyCore by Spence Konde.
Arduino IDE Settings:
Tools ──► Board ──► megaTinyCore ──► ATtiny412
Tools ──► Clock ──► 8MHz internal

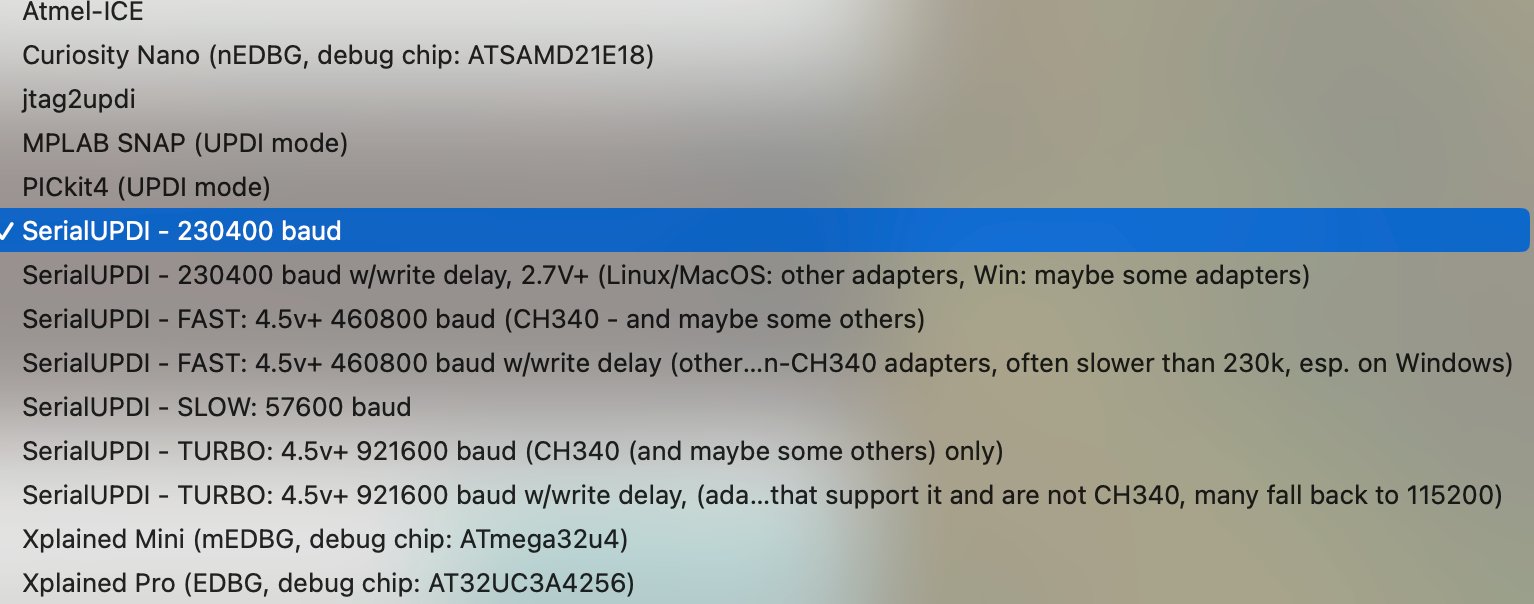

Tools ──► Programmer ──► SerialUPDI - SLOW: 57600 baud
Tools ──► Port ──► your programmer port
Upload: Cmd+Shift+U (Upload Using Programmer — NOT regular upload)
11. Programming Setup — XIAO ESP32-C6 as Programmer¶

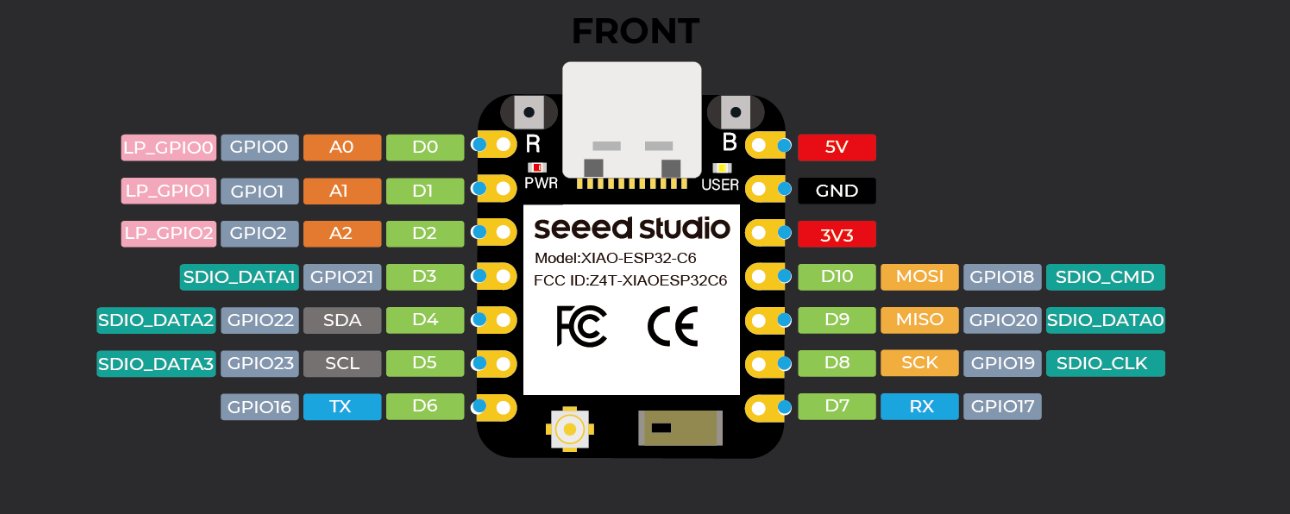

User: (uploaded XIAO ESP32-C6 pinout) TX is on D6 and RX is on D7
Claude: Corrected UPDI wiring:
XIAO ESP32-C6 ATtiny412 Breakout
D6 (TX) ──[1kΩ]──┬───── PA0 / UPDI (physical pin 6)
D7 (RX) ──────────┘
3.3V ────────────── VCC (pin 1)
GND ────────────── GND (pin 8)
⚠️ 1kΩ resistor between D6 and junction
⚠️ D7 and UPDI wire both connect to same point after resistor

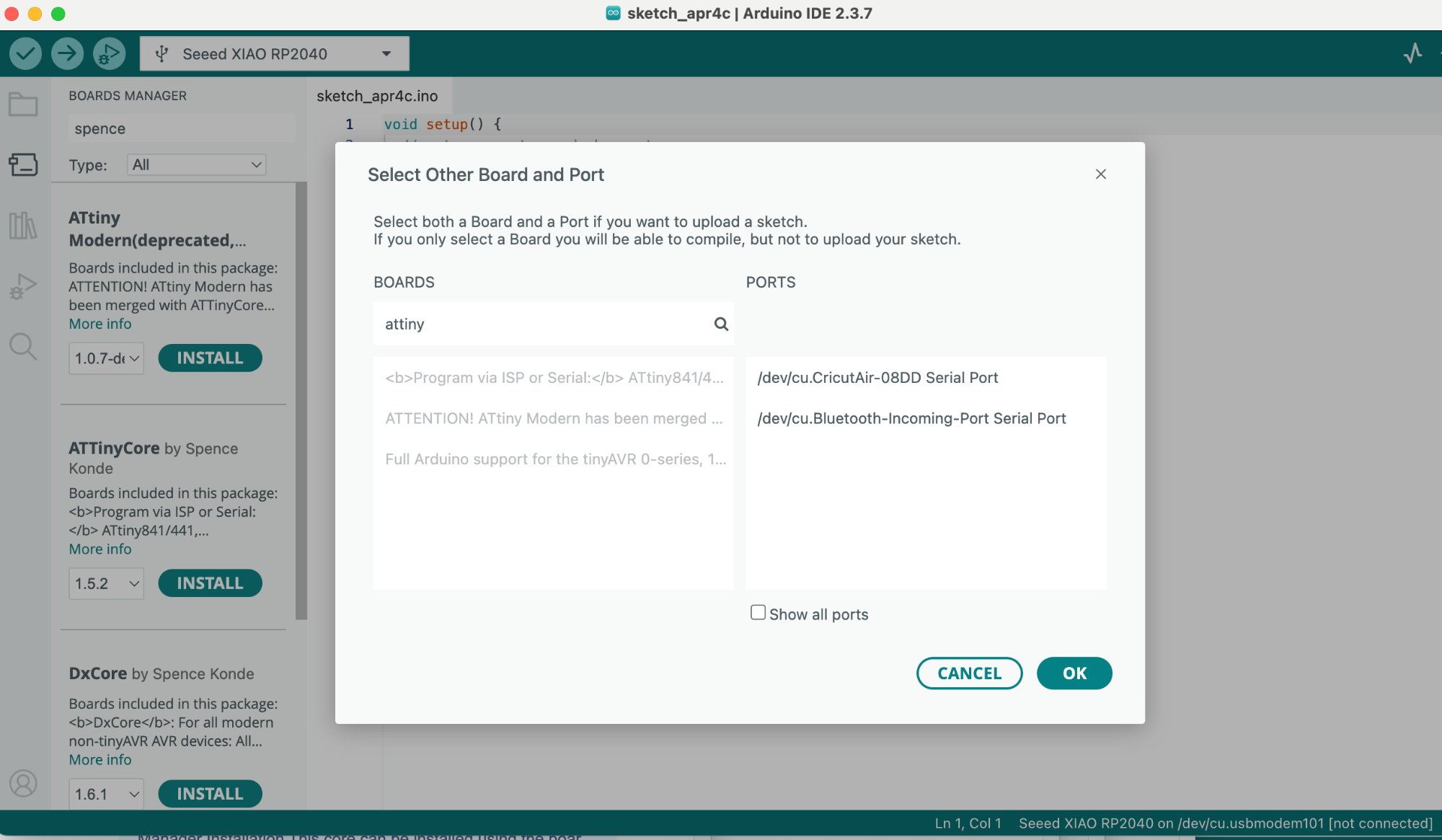

User: (uploaded Boards Manager screenshot)

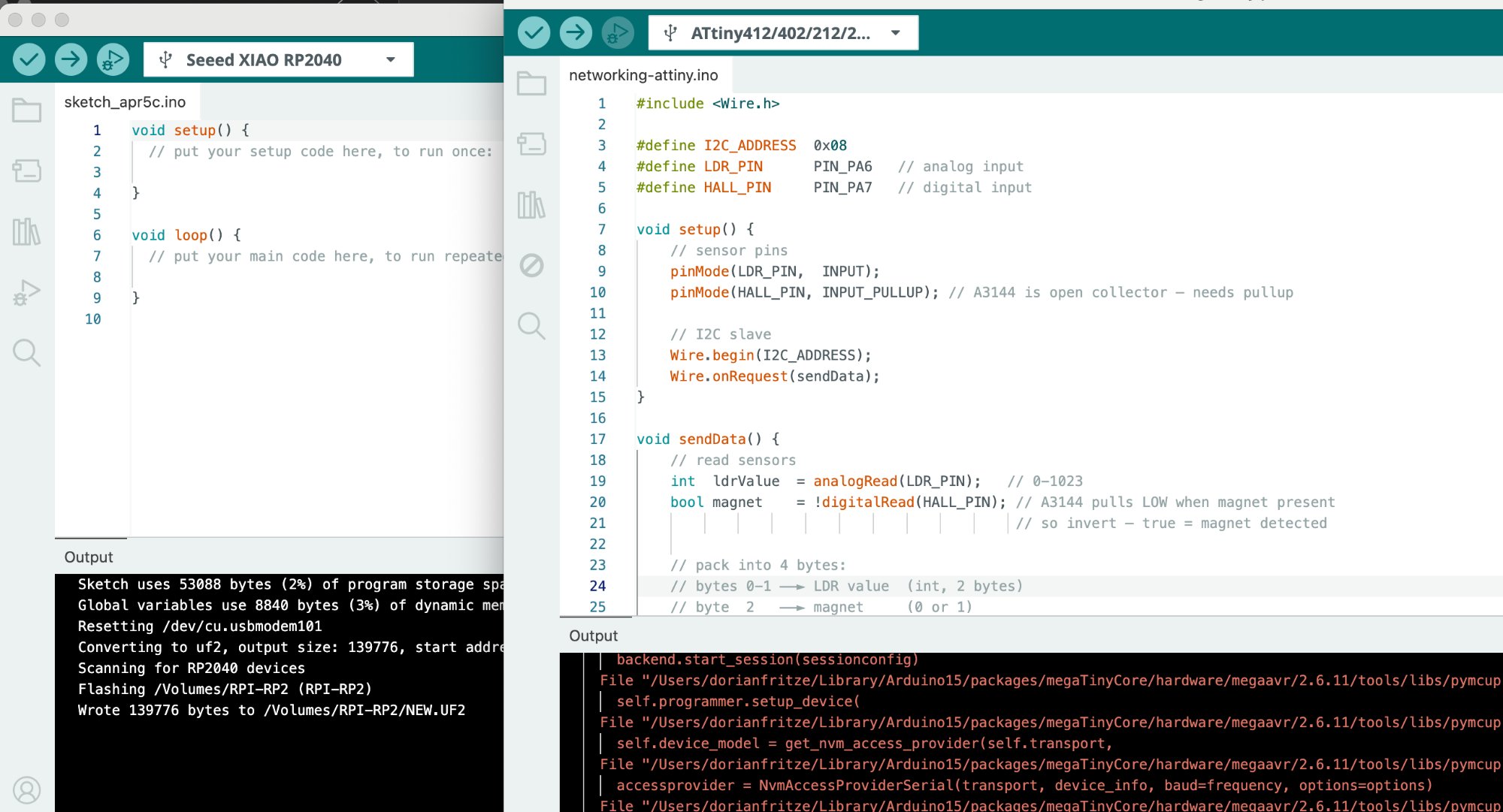

Claude: You have ATTinyCore (for old chips like ATtiny85) but need megaTinyCore (for ATtiny412). Also the XIAO is not showing as connected — no port visible except Bluetooth and Cricut.
12. ATtiny412 Node Code — LDR + Hall Effect Sensor¶
User: Real sensors — LDR photoresistor and A3144 hall effect (digital). Not sure which pins to use.
Claude: Best pins given UPDI (pin 6), SDA (pin 4), SCL (pin 5) are reserved:
PA6 (physical pin 2) ──► LDR photoresistor (analog)
PA7 (physical pin 3) ──► A3144 Hall effect (digital)
Wiring:
LDR:
3.3V ──[LDR]──┬── PA6 (pin 2)
[10kΩ]
│
GND
A3144:
PA7 (pin 3) ──[10kΩ]── 3.3V (pull-up — open collector)
VCC ─────────────────── 3.3V
GND ─────────────────── GND
OUT ─────────────────── PA7
ATtiny412 Sketch:
#include <Wire.h>
#define I2C_ADDRESS 0x08
#define LDR_PIN PIN_PA6
#define HALL_PIN PIN_PA7
void setup() {
pinMode(LDR_PIN, INPUT);
pinMode(HALL_PIN, INPUT_PULLUP);
Wire.begin(I2C_ADDRESS);
Wire.onRequest(sendData);
}
void sendData() {
int ldrValue = analogRead(LDR_PIN);
bool magnet = !digitalRead(HALL_PIN);
Wire.write(ldrValue >> 8);
Wire.write(ldrValue & 0xFF);
Wire.write(magnet ? 1 : 0);
Wire.write(0x00);
}
void loop() { }
13. Troubleshooting Upload Errors¶
Port Busy Error¶

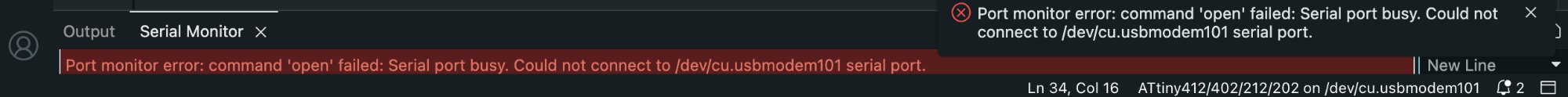

User: (uploaded port busy screenshot)

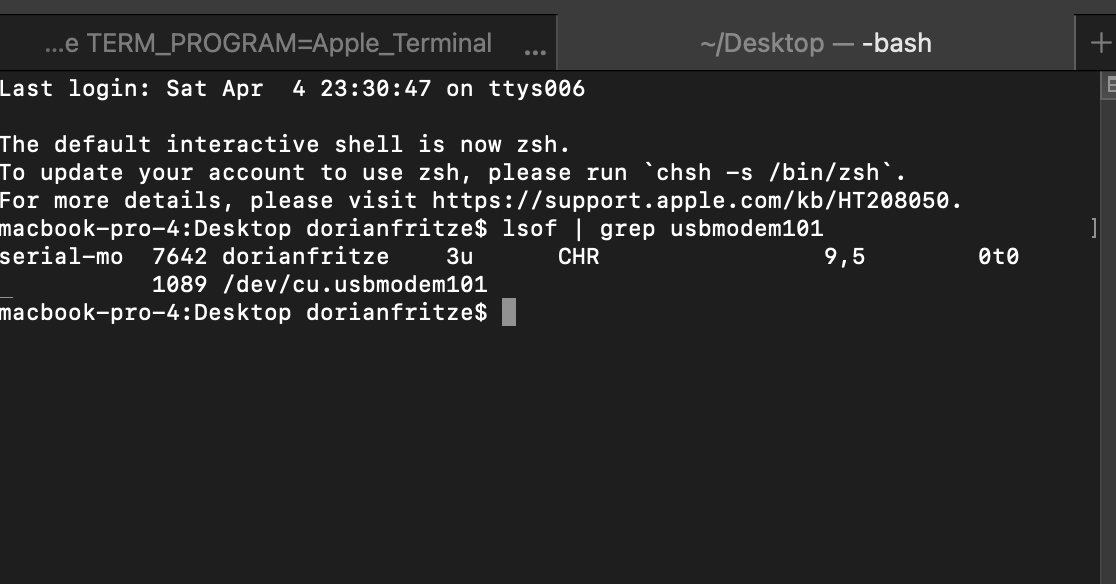

Claude: Serial Monitor is holding the port. Close it and retry Cmd+Shift+U. Kill the process if needed:
lsof | grep usbmodem101
kill <PID>

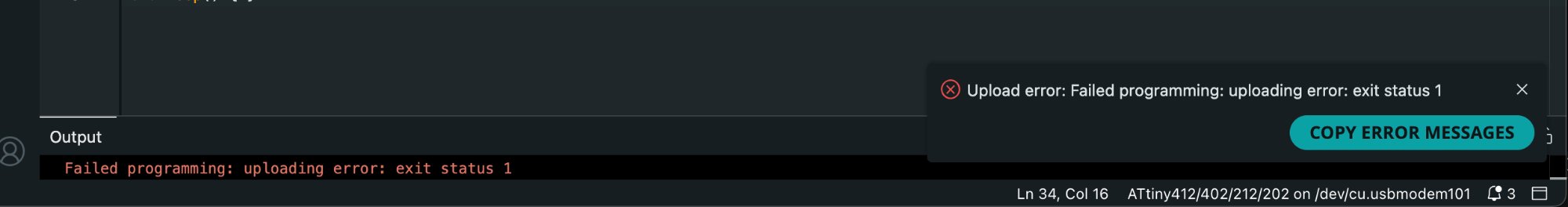

User: (uploaded failed programming screenshot)

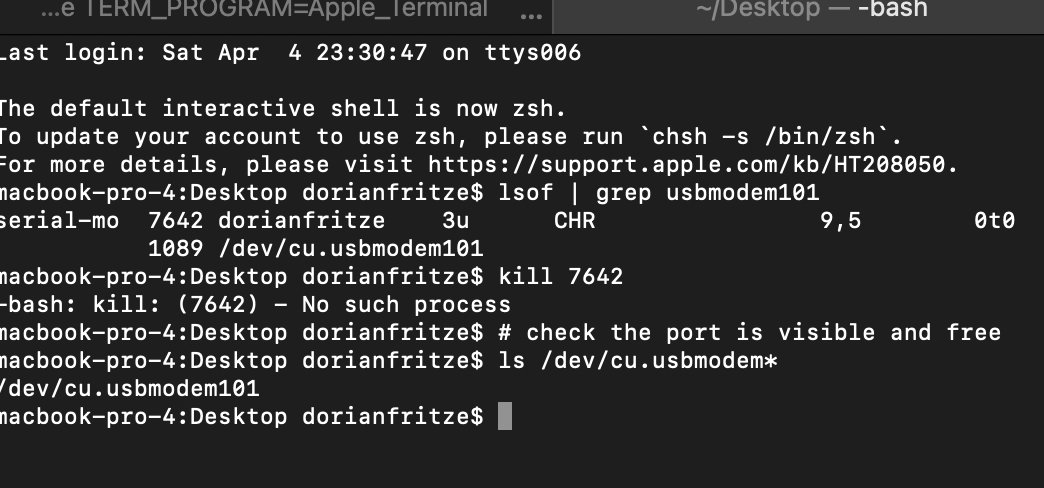

User: (uploaded Terminal showing process 7642)
Claude: serial-mo 7642 is Serial Monitor holding the port. Run kill 7642.

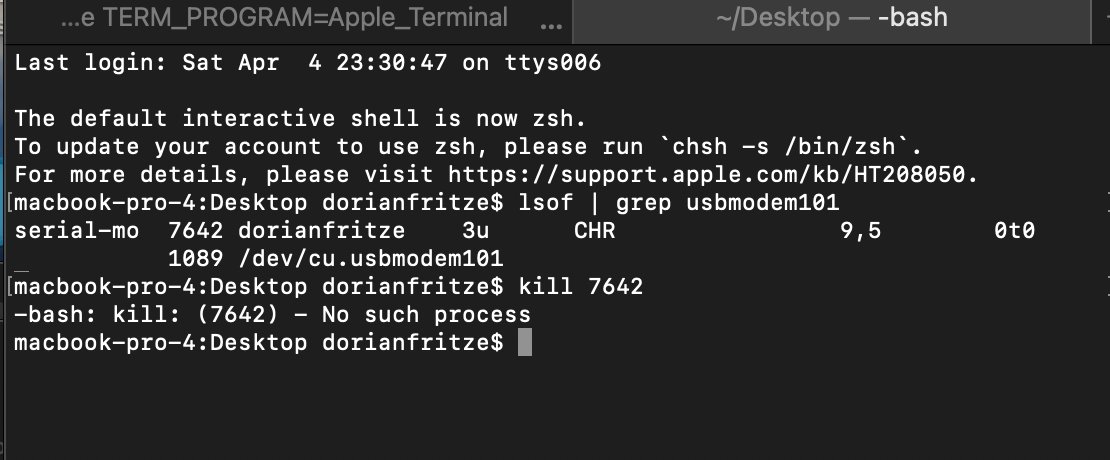

User: (uploaded Terminal showing "No such process")
Claude: Process already died — upload immediately now.
User: (uploaded Terminal port check)

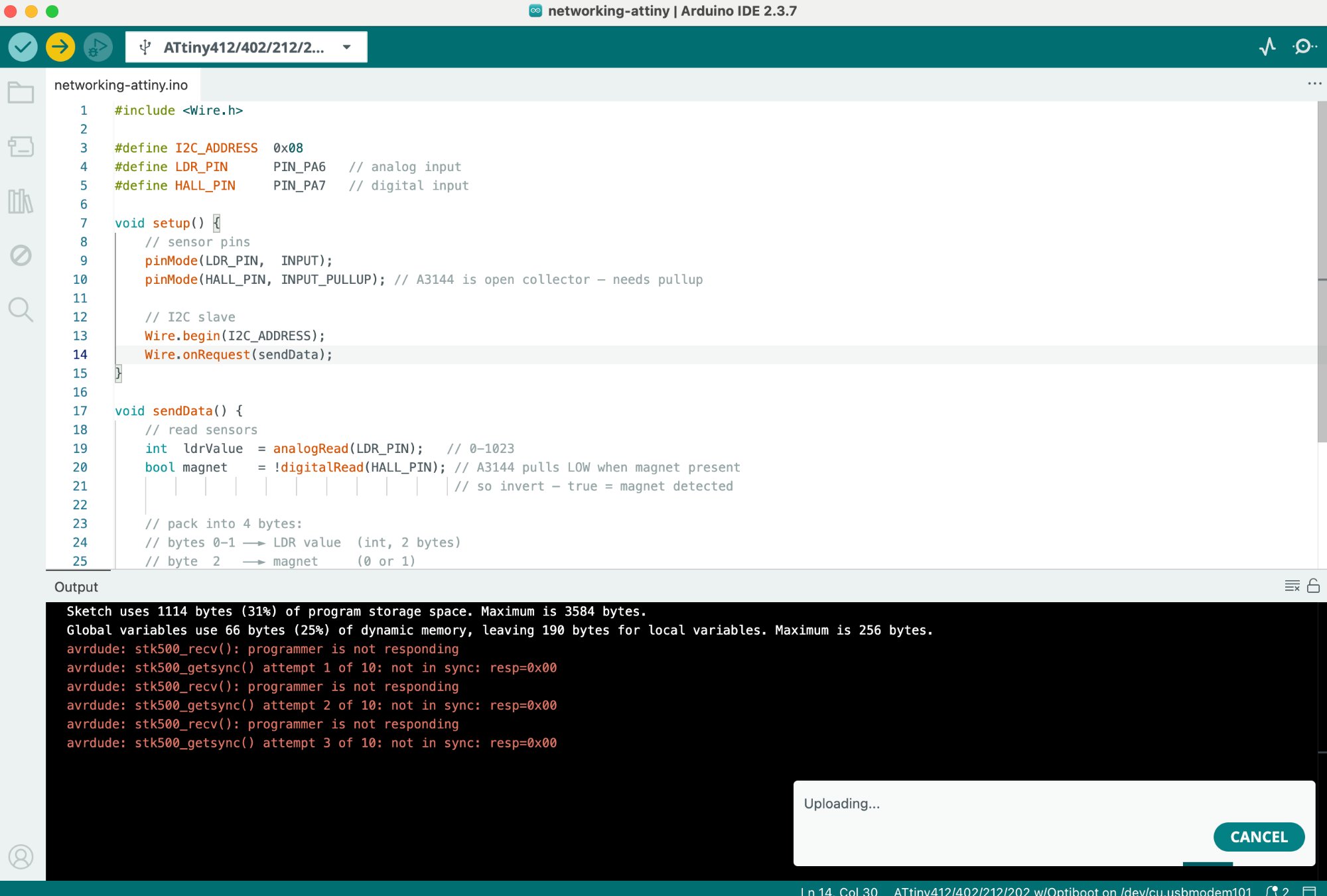

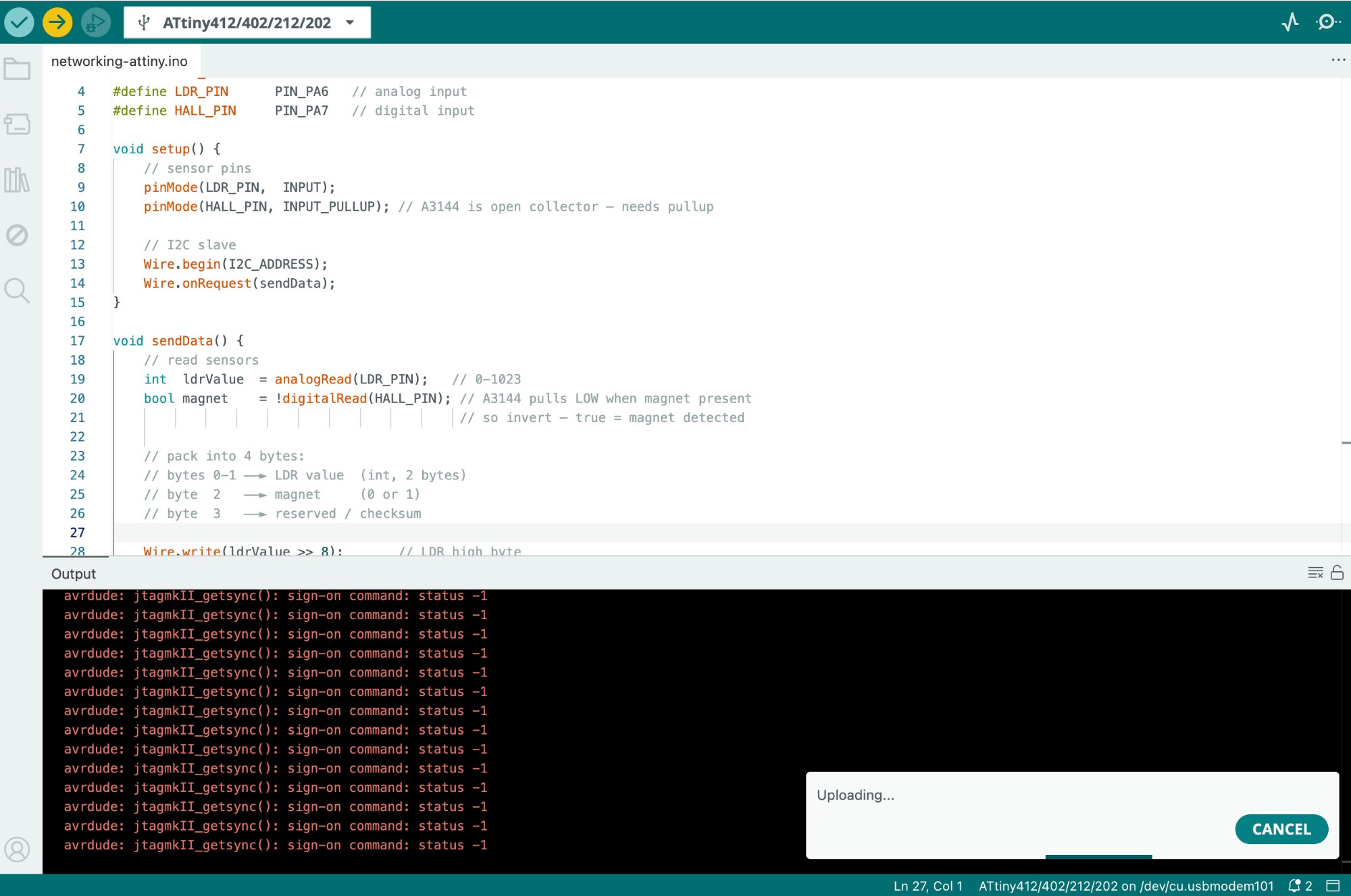

IndexError: list index out of range¶
sib_info['NVM'] = nvm.split(':')[1]
IndexError: list index out of range
Programmer reached ATtiny but got garbage back — UPDI signal corrupted. Checklist:
✅ 1kΩ resistor between D6(TX) and UPDI junction
✅ D7(RX) at same junction after resistor
✅ UPDI wire to physical pin 6 (PA0)
✅ VCC pin 1, GND pin 8
✅ No sensors connected during programming
User: (uploaded breadboard photo)

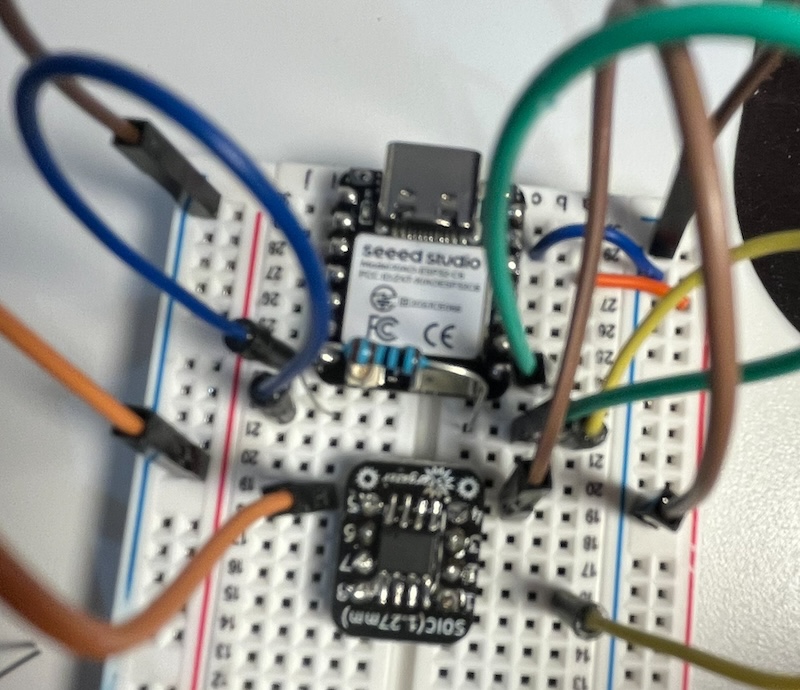

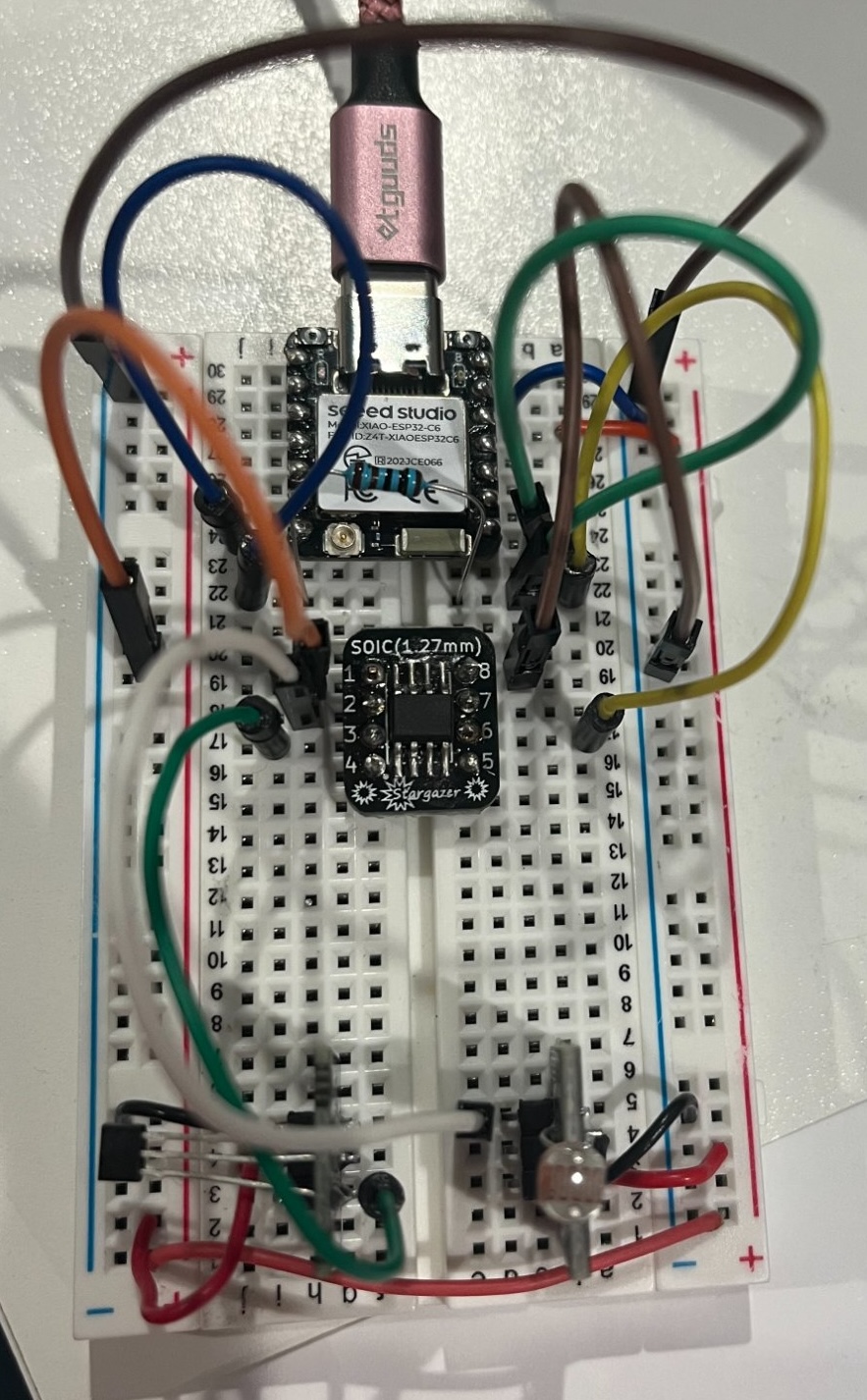

User: esp pinD6, blue on row 24 goes to row 22, joins 1K resistor. The resistor bridges the breadboard gap. Green wire (D7/RX) and yellow wire (UPDI) both connect on the right side of row 22.
Claude: That wiring logic is correct — the resistor spanning the center gap creates two separate nodes. The issue was that the UPDI wire was going to the wrong pin on the ATtiny breakout (pin labeled "5" instead of physical pin 6).
User: (uploaded ATtiny breakout photo)
User: the attiny pinout has the updi pin on D6, so i didn't have anything in D5
Claude: The breakout's label "D6" and XIAO's "D6" are completely different things. The breakout label just means PA6 (an analog input), not UPDI. Move UPDI wire to breakout pin 6 (PA0/UPDI).
Failed to Connect to ESP32-C6¶

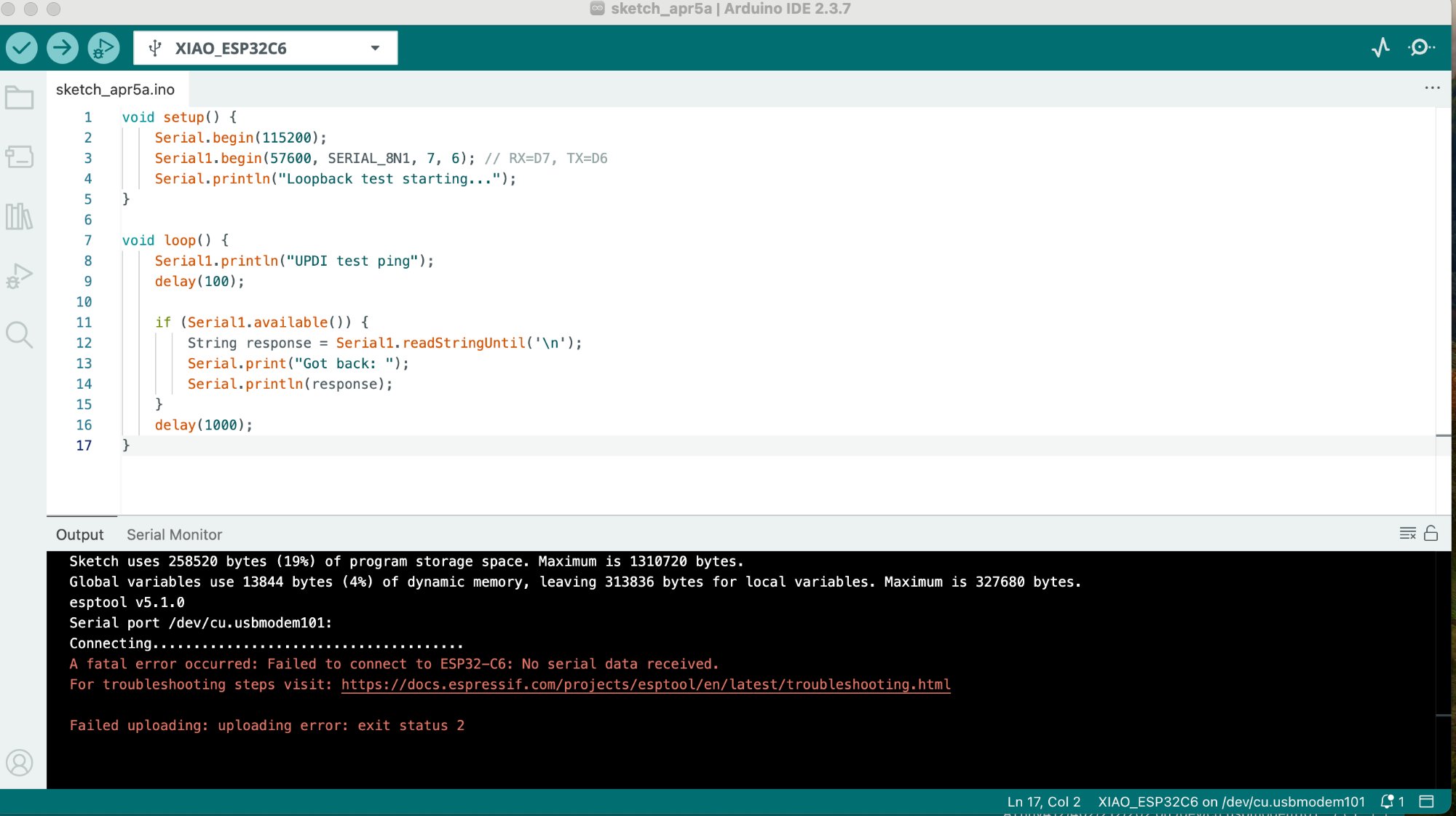

A fatal error occurred: Failed to connect to ESP32-C6: No serial data received.
Fix — Force bootloader mode:
Step 1 ──► Hold BOOT button (B)
Step 2 ──► Press and release RESET (R) while holding BOOT
Step 3 ──► Release BOOT
Step 4 ──► Click Upload immediately
User: (uploaded programmer options screenshot)
Claude: Use SerialUPDI - SLOW: 57600 baud.
User: (uploaded upload success screenshot)
Claude: XIAO uploaded successfully. Now test the loopback.
14. Loopback Test — Confirming XIAO Serial Pins¶
User: (uploaded loopback test results showing partial output)
Claude: The XIAO ESP32-C6 requires GPIO numbers not D numbers in Serial1.begin():
// WRONG — using D-pin numbers
Serial1.begin(57600, SERIAL_8N1, 7, 6);
// CORRECT — using GPIO numbers
Serial1.begin(57600, SERIAL_8N1, 17, 16); // RX=GPIO17(D7), TX=GPIO16(D6)
User: Got back: [PING] — repeating correctly.
Claude: D6/D7 hardware confirmed working. GPIO16=TX, GPIO17=RX. Problem is 100% in the physical wiring to the ATtiny.
15. ATtiny412 Pin Names in Code¶
User: what are the pins on the breakout board for attiny called when programming?
Claude: Use the ATtiny412's own pin names — not breakout labels.
| Physical Pin | Port Name | Arduino # | Analog | Function |
|---|---|---|---|---|
| 1 | VCC | — | — | Power |
| 2 | PA6 | 6 | A6 | GPIO / ADC |
| 3 | PA7 | 7 | A7 | GPIO / ADC |
| 4 | PA1 | 1 | — | SDA / I2C |
| 5 | PA2 | 2 | — | SCL / I2C |
| 6 | PA0 | 0 | — | UPDI |
| 7 | PA3 | 3 | A3 | GPIO / ADC |
| 8 | GND | — | — | Ground |
pinMode(PIN_PA6, INPUT); // PA port name — recommended
pinMode(6, INPUT); // Arduino number — same pin
int val = analogRead(A6); // Analog number — same pin
The breakout labels match physical pin numbers exactly — PIN_PA6 = breakout label 2, etc.
16. Corrected ATtiny412 Pinout¶
User: (uploaded ATtiny412 pinout diagram) the pinout says UPDI is on physical pin 6, PA0
Claude: You're right — I had pins 5 and 6 swapped. That was the upload problem all along.
Corrected pinout:
┌───┬───┐
VCC ───┤1 8├─── GND
PA6 ───┤2 7├─── PA3
PA7 ───┤3 6├─── PA0 / UPDI ◄── programmer goes HERE
PA1 ───┤4 5├─── PA2 / SCL
(SDA)
└───────┘
XIAO D6 (TX/GPIO16) ──[1kΩ]──┬──── ATtiny pin 6 (PA0/UPDI)
XIAO D7 (RX/GPIO17) ──────────┘
XIAO 3.3V ────────────── ATtiny pin 1 (VCC)
XIAO GND ────────────── ATtiny pin 8 (GND)
User: (uploaded jtag2updi error screenshot)
avrdude: stk500_recv(): programmer is not responding
Claude: Wrong programmer — using stk500/Optiboot. Also board variant shows "w/Optiboot". Fix:
Tools ──► Board ──► ATtiny412 (NOT "w/Optiboot")
Tools ──► Programmer ──► SerialUPDI - SLOW: 57600 baud
User: (uploaded two IDE windows)
Claude: RP2040 blank sketch uploaded successfully. ATtiny412 sketch ready. Select port in ATtiny window and run Cmd+Shift+U.
User: (uploaded stk500 error again)
Claude: Still showing "w/Optiboot" at bottom of screen. Fix both board variant AND programmer.
17. Diagnosing a Damaged Chip¶
After trying both ESP32-C6 and RP2040 as programmers across all baud rates, all returning the same errors, we moved to hardware diagnosis.
Error Summary¶
ESP32-C6 ──► IndexError: list index out of range (garbage response)
RP2040 ──► UPDI initialisation failed (no response at all)
pymcuprog direct from Terminal ──► same UPDI initialisation failed
Multimeter Tests¶
User: test 1: 3.28, test 2: 0v, test 3: 3.27v, test 4: 920
Claude:
Test 1 (VCC pin 1): 3.28V ✅ solid power
Test 2 (GND pin 8): 0V ✅ solid ground
Test 3 (UPDI pin 6): 3.27V ✅ idling HIGH — chip powered, UPDI live
Test 4 (1kΩ resistor): 920Ω ✅ correct value
All hardware confirmed good. The ESP32-C6 uses USB-Serial/JTAG (software USB) which adds timing jitter that breaks UPDI's strict timing requirements.
Switching to RP2040¶
ESP32-C6 ──► USB-Serial/JTAG (software) ──► timing jitter ❌
RP2040 ──► hardware UART ──► clean signal ✅
RP2040 still failed. Continuity check on chip found:
User: no beeping, only pin 7-8 had a reading of 676
Claude: Pin 7 (SDA) to pin 8 (GND) at 676Ω — should be open circuit. This is a partial solder bridge. Test unpowered to confirm.
User: i fixed the solder, and there is no reading on the continuity test.
Still failed after solder fix.
All Pins Reading Low¶
User: vcc and ground are correct, all others are less than 3v
Claude: All IO pins should float near VCC (~3.3V) with nothing connected. Reading below 3V everywhere with correct VCC means the chip is not behaving normally.
User: the updi pin is only reading .89 at rest
Claude: Critical finding:
Expected UPDI at rest: ~3.3V ✅
Actual UPDI at rest: 0.89V ❌
Test — disconnect everything from pin 6:
User: (tested — all pins still reading less than 3V)
Verdict — Chip Damaged¶
Two programmers tried ──► both fail ❌
All IO pins reading below 3V ──► not normal ❌
UPDI at 0.89V at rest ──► not normal ❌ (should be 3.3V)
Hardware connections confirmed ──► all good ✅
Power confirmed ──► all good ✅
Most likely cause: The solder bridge between pin 7 (SDA) and pin 8 (GND) that existed earlier shorted SDA to GND while the chip was powered, damaging internal IO circuitry.
The ATtiny412 chip needs to be replaced.
Next Steps¶
Option A ──► Replace ATtiny412 chip
──► resolder new chip onto breakout board
──► same wiring, should upload first try
Option B ──► Order CH340 USB-Serial adapter ($3-5)
──► dedicated programmer, most reliable long term
──► no BOOT+RESET needed, plug straight in
──► worth having for all future ATtiny work
Key Reference — ATtiny412 Correct Pinout¶
┌───┬───┐
VCC ───┤1 8├─── GND
PA6 ───┤2 7├─── PA3 (SCK)
PA7 ───┤3 6├─── PA0 UPDI ◄── programmer connects HERE
PA1 ───┤4 5├─── PA2 SCL
(SDA)
└───────┘
Pin 2 (PA6) ──► LDR analog input
Pin 3 (PA7) ──► A3144 Hall effect digital input
Pin 4 (PA1) ──► SDA / I2C
Pin 5 (PA2) ──► SCL / I2C
Pin 6 (PA0) ──► UPDI programmer ← physical pin 6, NOT pin 5
Pin 7 (PA3) ──► available GPIO
Key Reference — XIAO ESP32-C6 Serial Pins¶
D6 = TX = GPIO16
D7 = RX = GPIO17
⚠️ Always use GPIO numbers in code, not D numbers:
Serial1.begin(57600, SERIAL_8N1, 17, 16); // RX=GPIO17, TX=GPIO16
Quick Terminal Commands¶
# Check what's holding serial port
lsof | grep usbmodem101
# Kill process by PID
kill <PID>
kill -9 <PID>
# One-liner: find and kill
lsof | grep usbmodem101 | awk '{print $2}' | xargs kill -9
# Check port is free
ls /dev/cu.usbmodem*
# Ping ATtiny412 directly
pymcuprog -t uart -u /dev/cu.usbmodem101 -b 57600 -d attiny412 ping
Session — April 4–5, 2026
