3. 3D Design - Hinge

Design and 3D print of a non-substractive object. I discovered that the hinge binder mechanism is a common household item.

3.1. Design a non-substractive object -Hinge binder

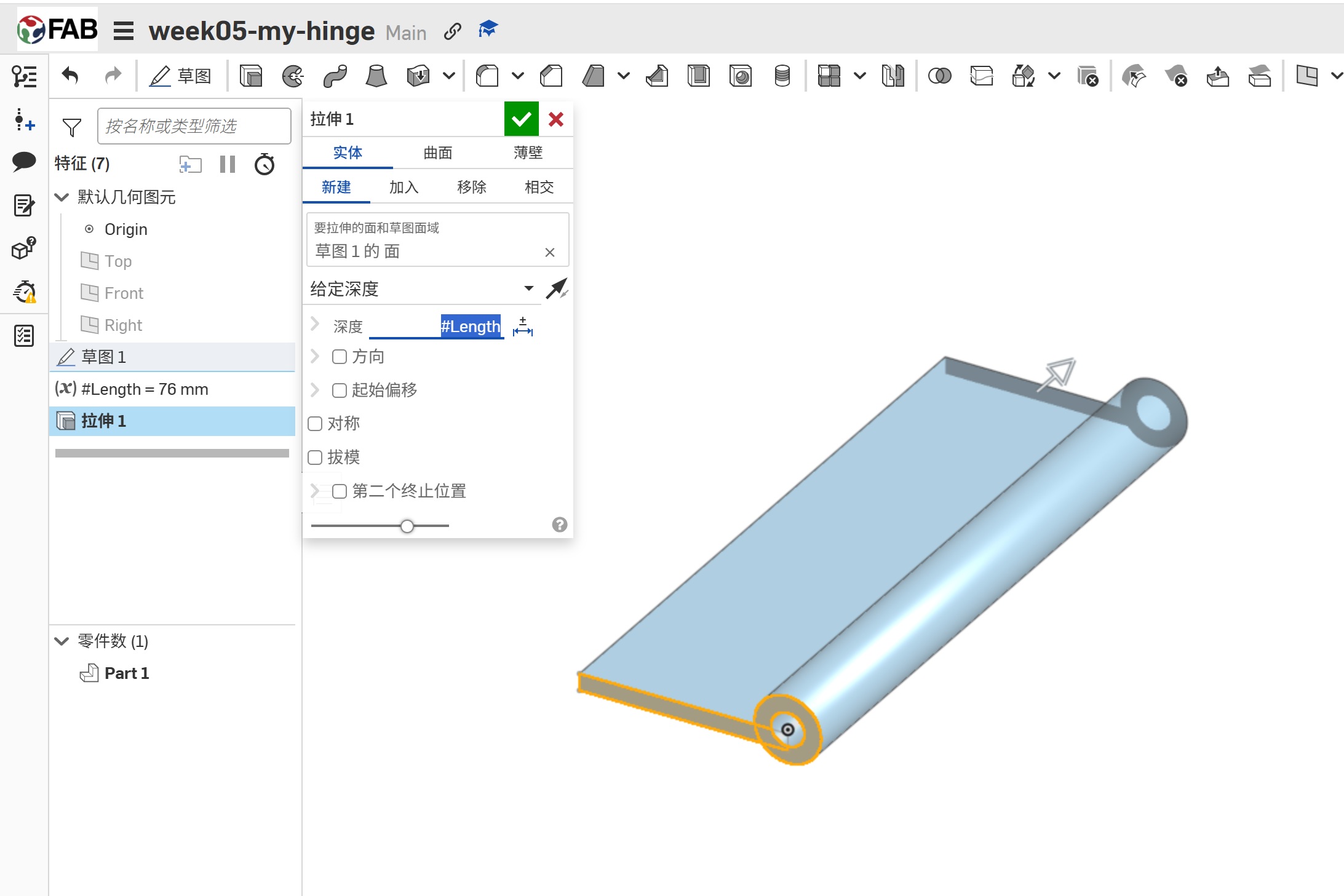

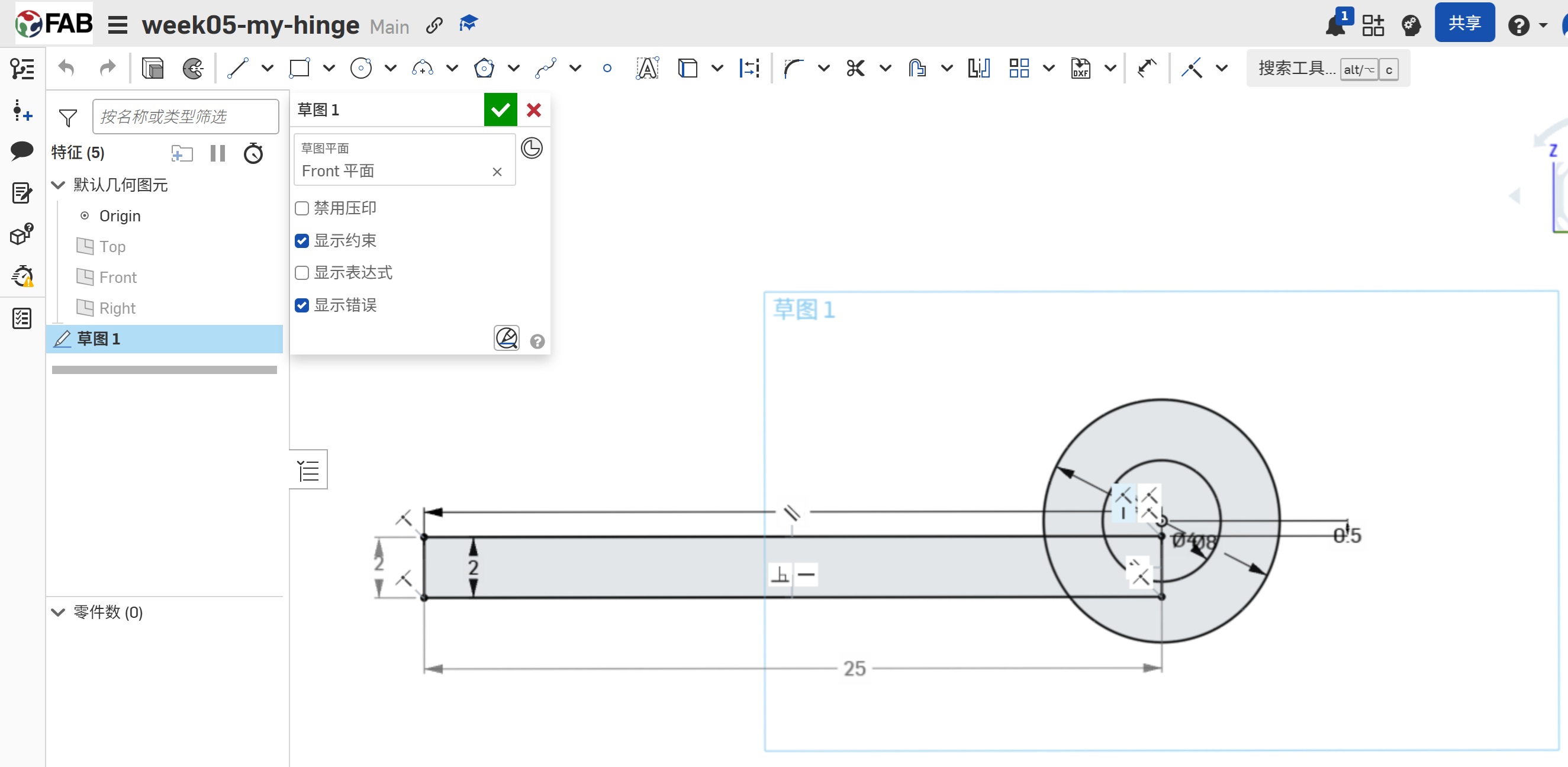

3.1.1 Design Hinge leaves

First, I designed the Leaves of the Hinge.

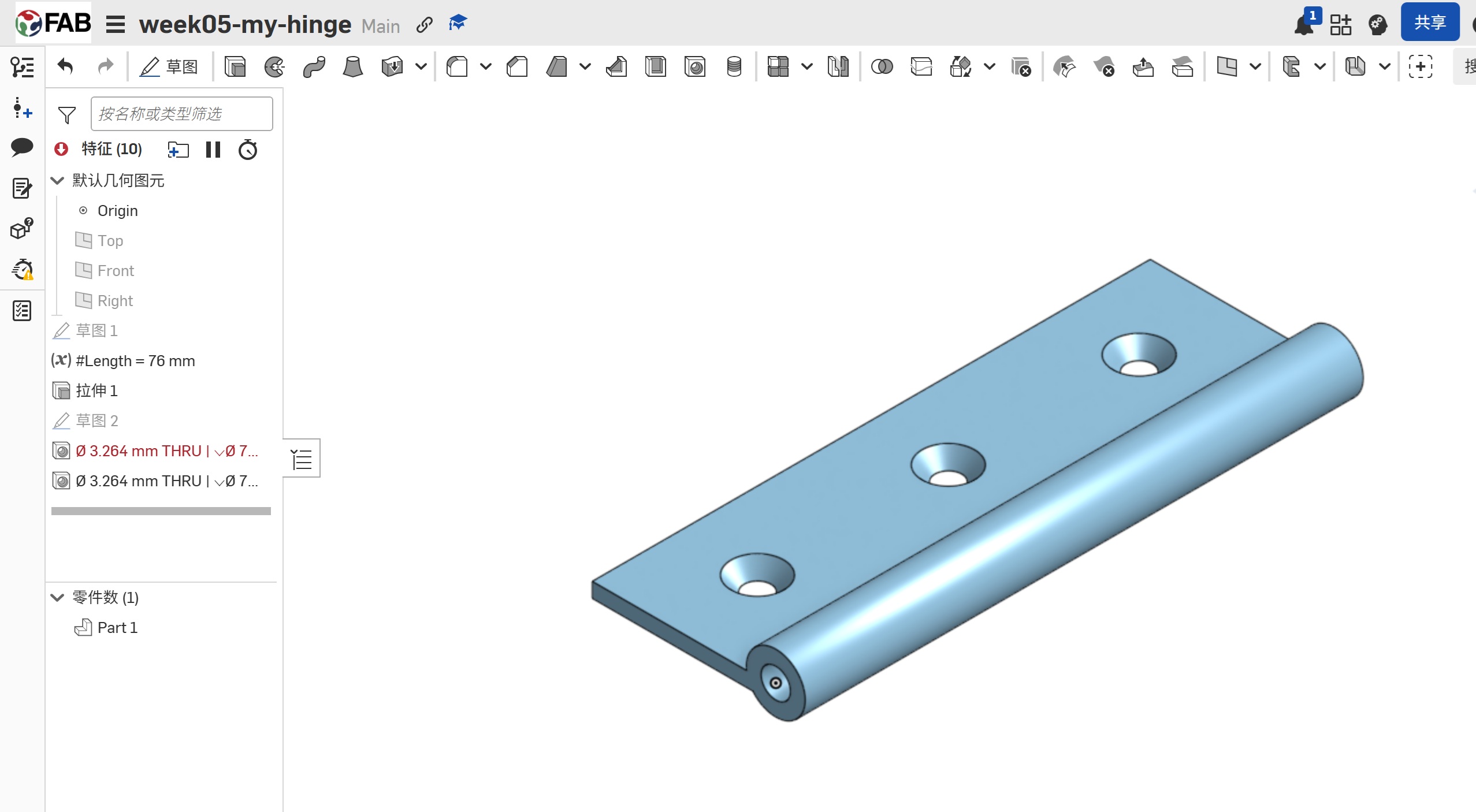

3.1.2 Design the holes

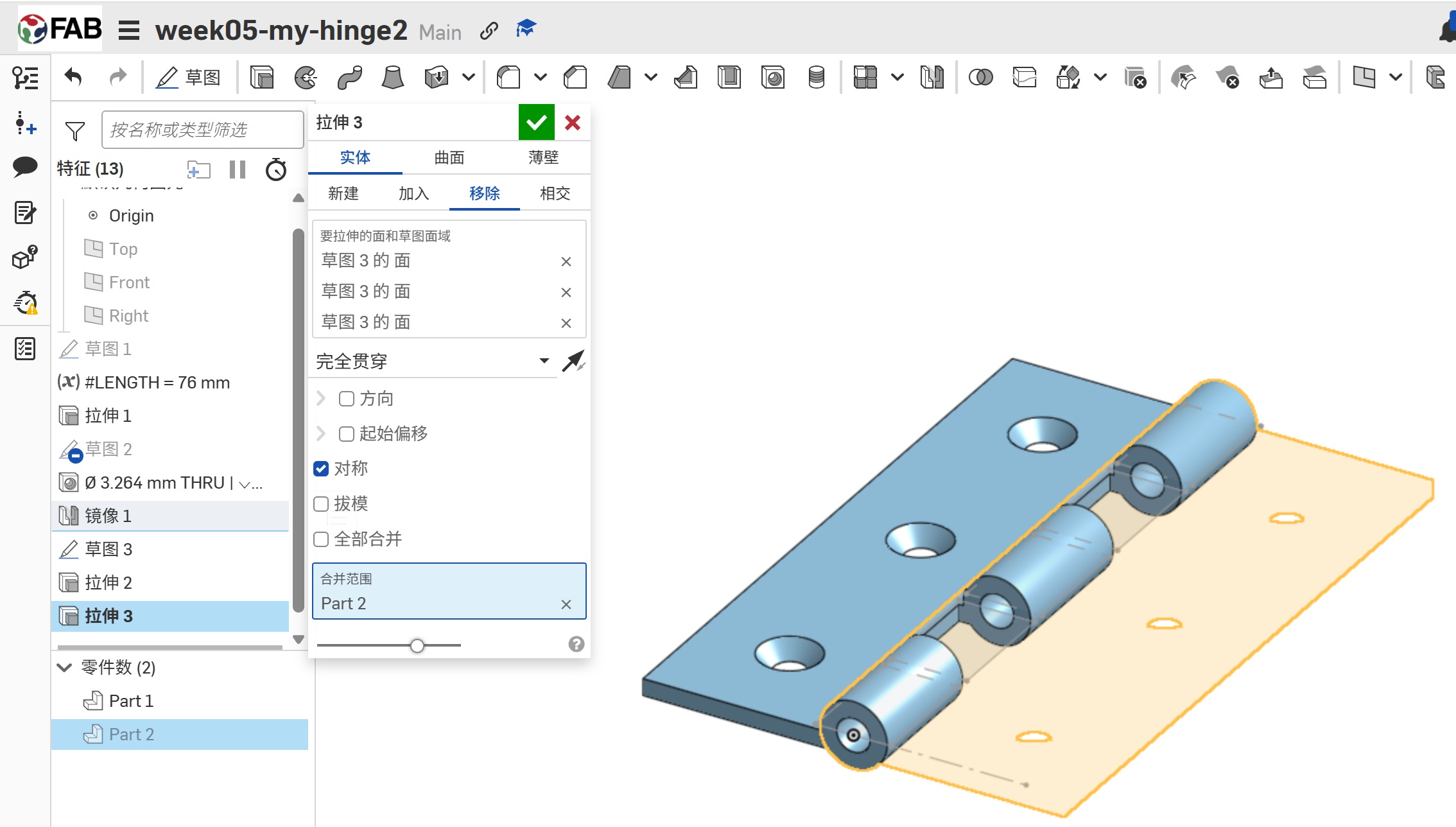

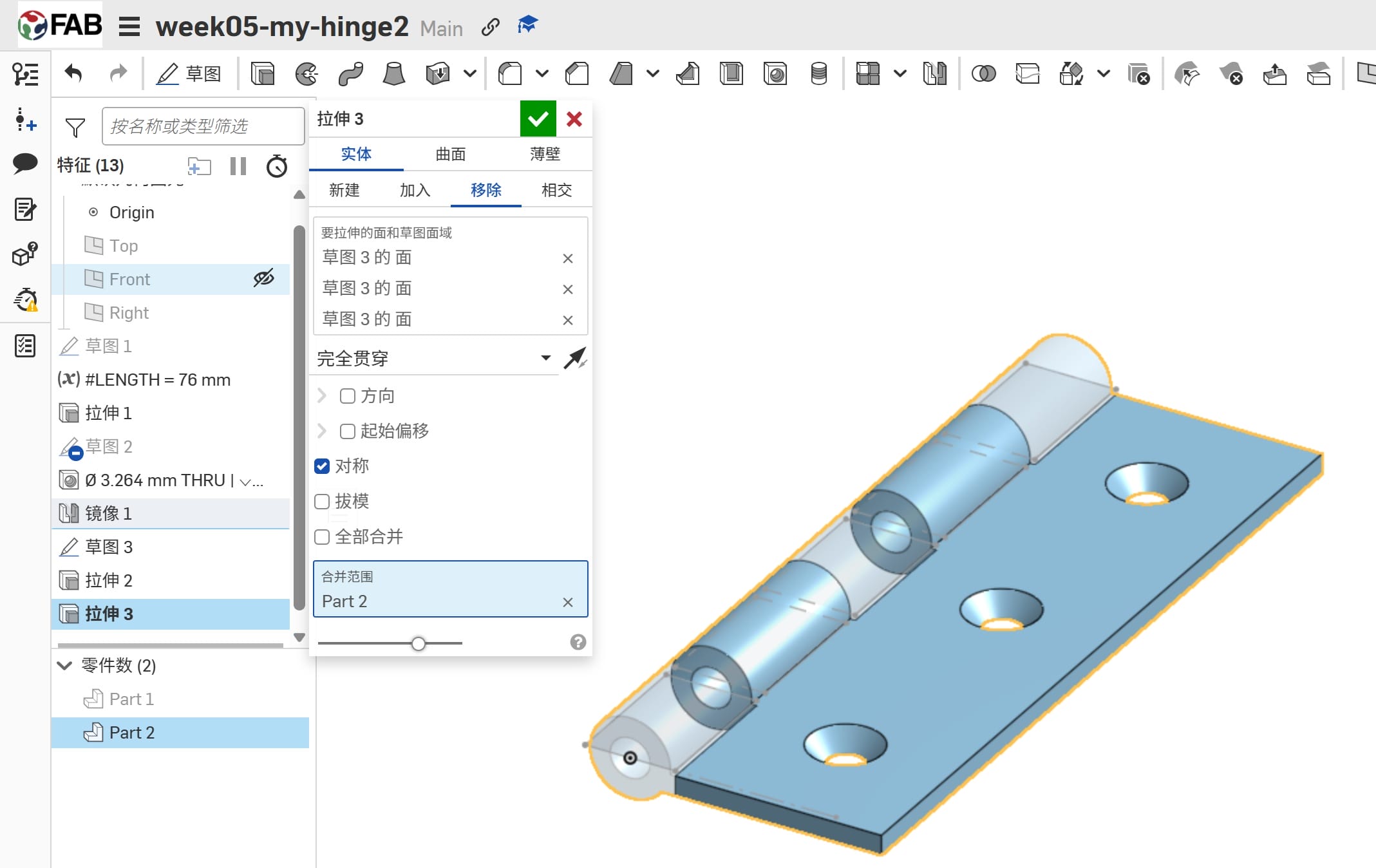

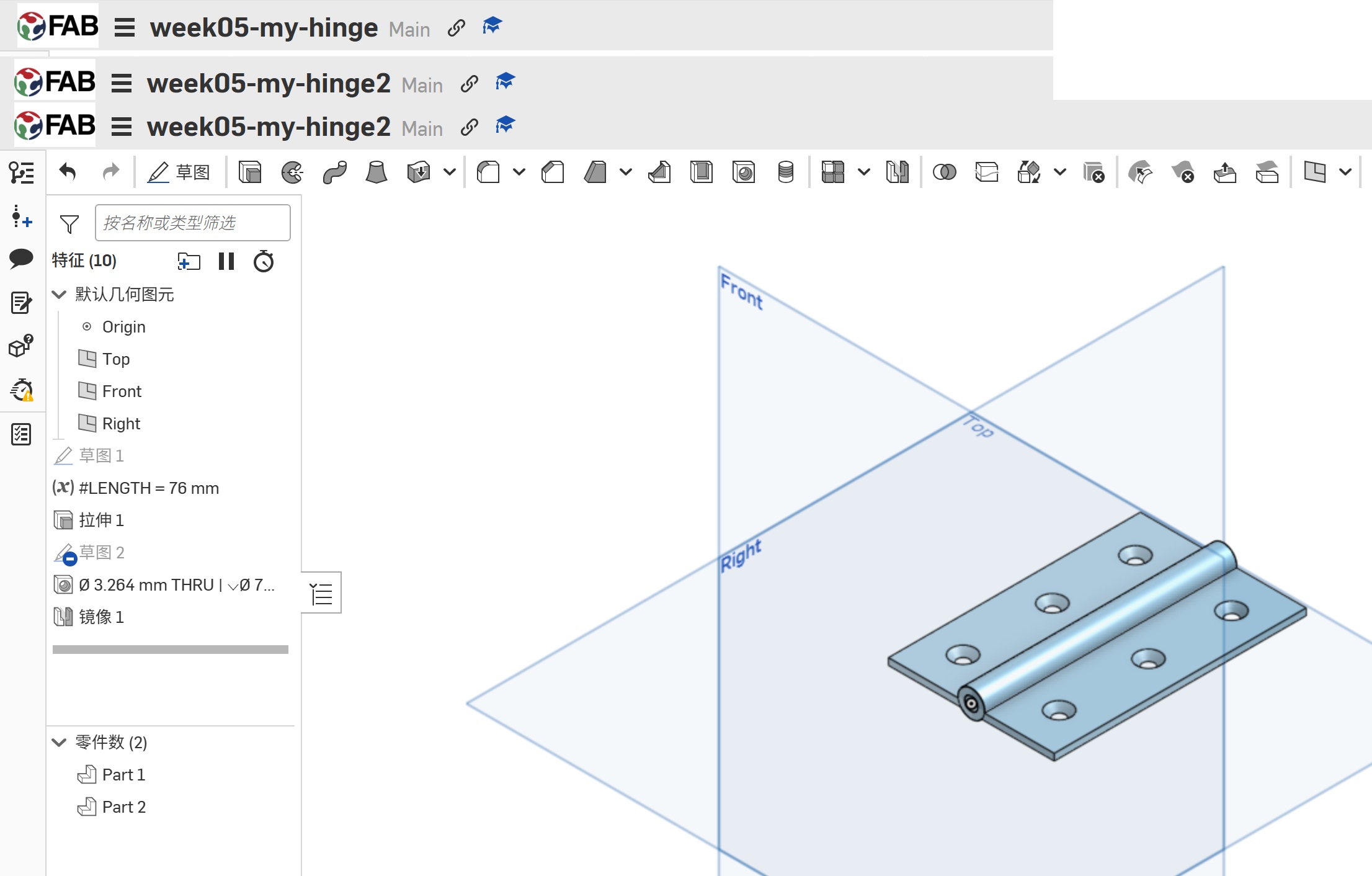

Then, I designed the mounting holes. And I duplicated the leave to another leave.

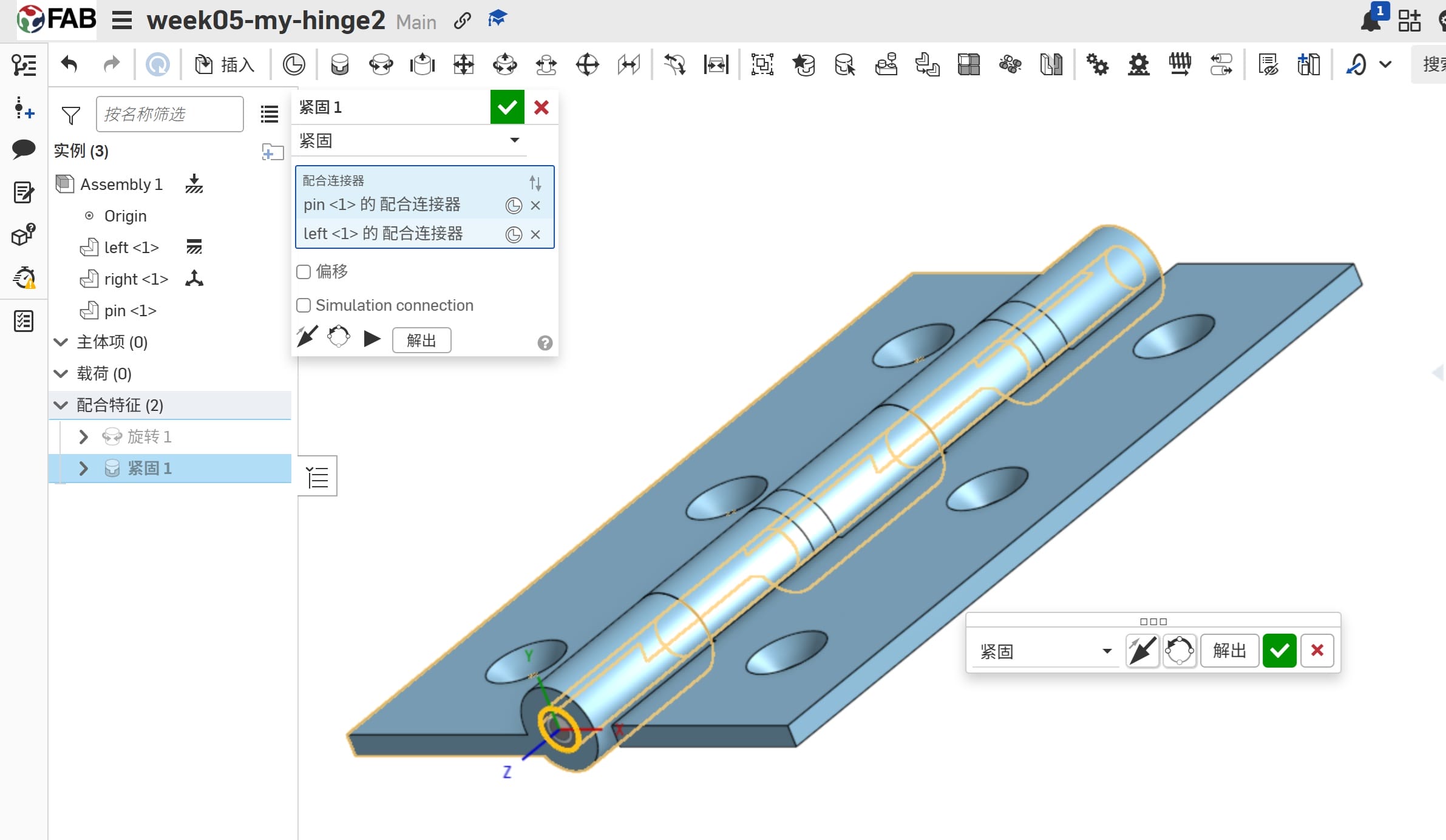

3.1.3 Design the Pin

Then ,I design the Hinge Pin,

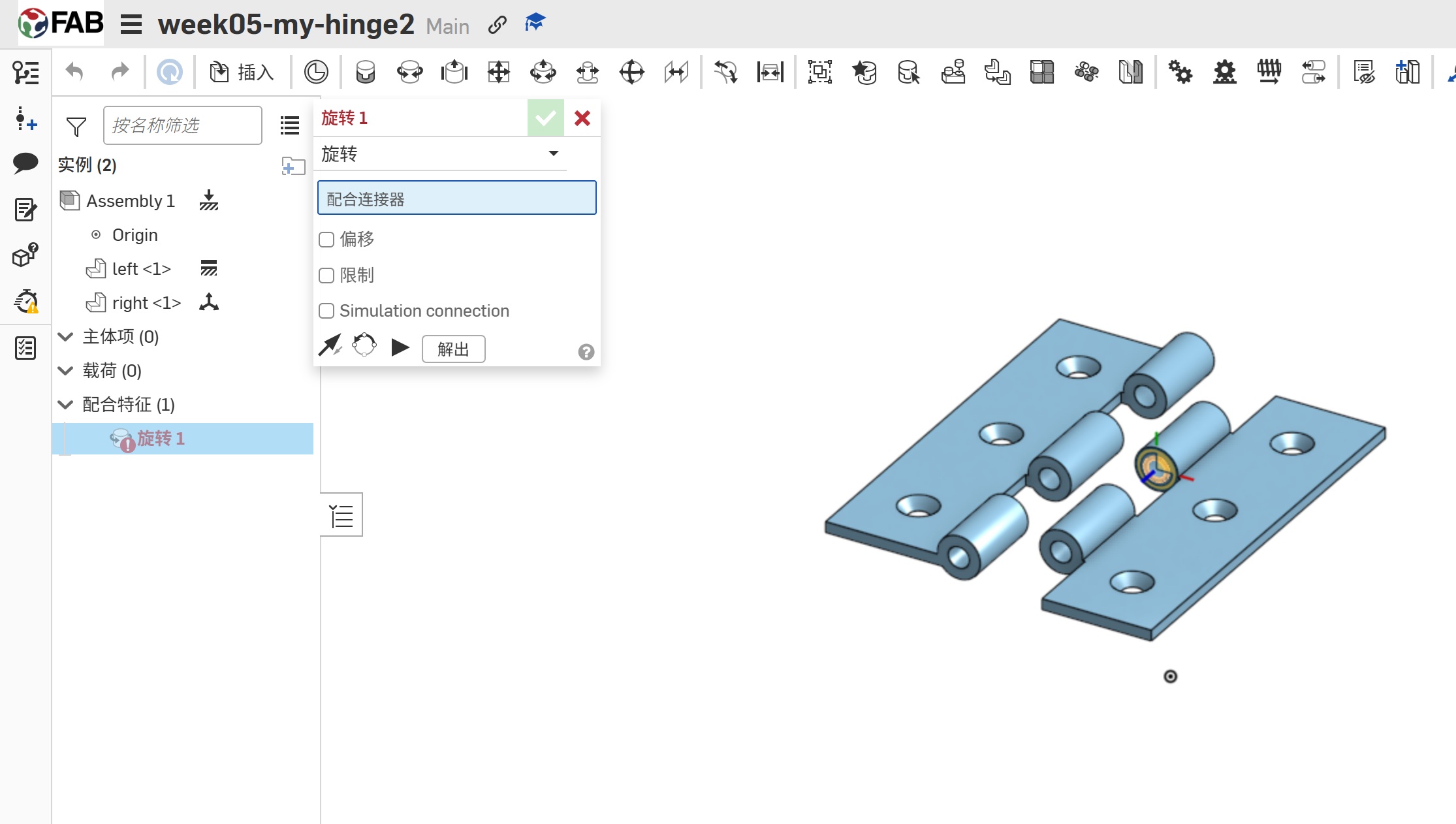

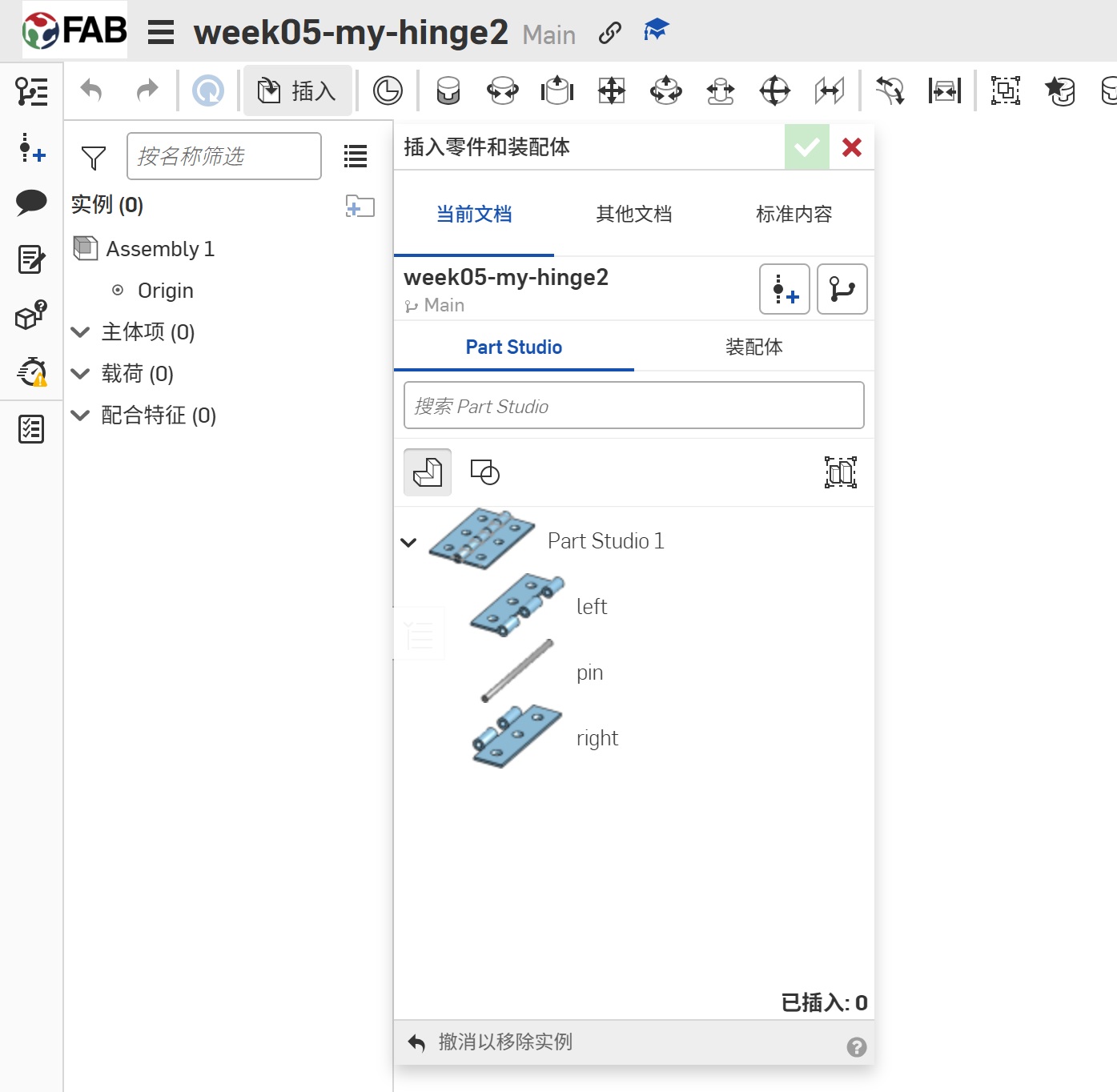

3.1.4 Hinge Assembly

Then, I Assemb the Leaves and the Pin.

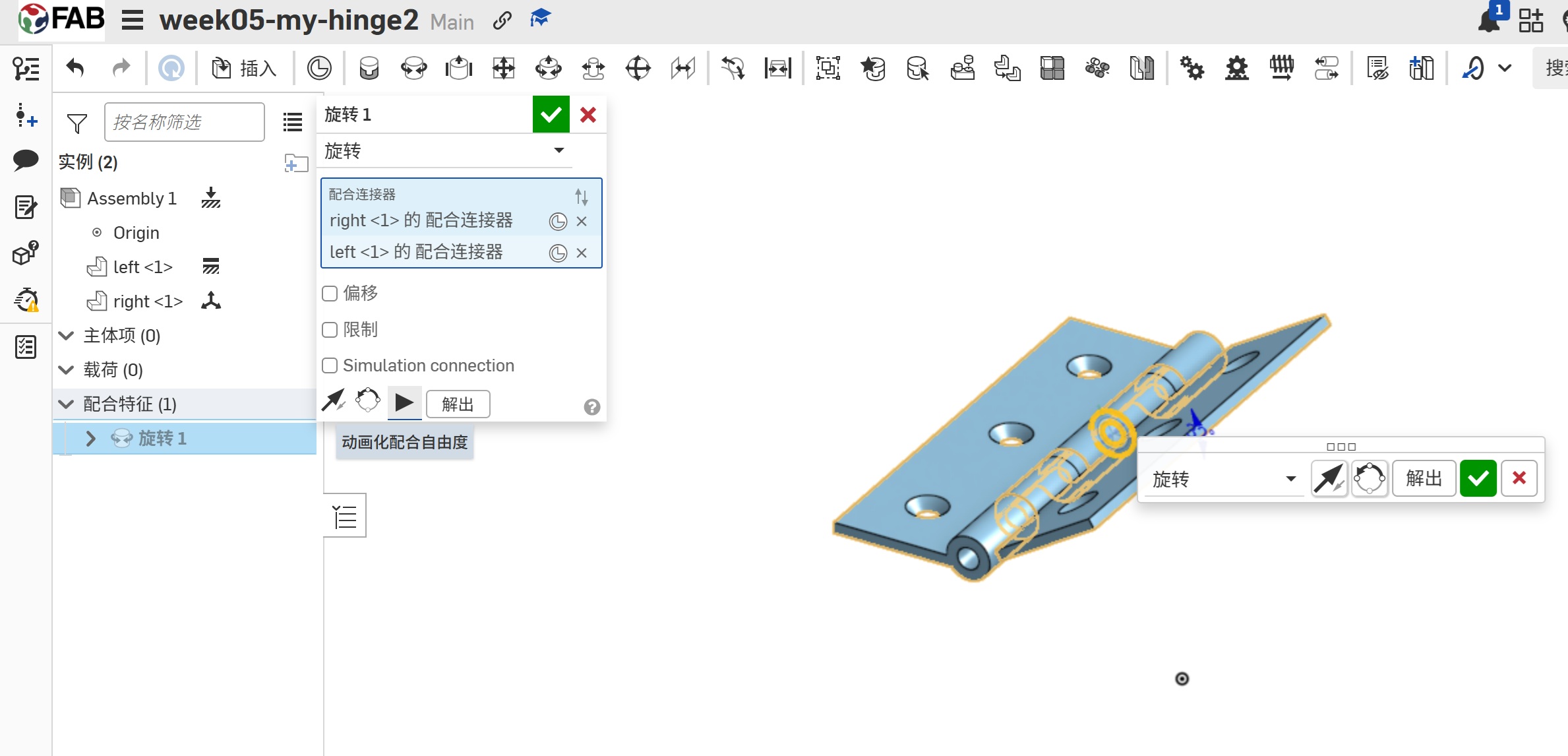

3.1.5 Hinge Animation

I use the Animation to test the Hinge.

I use the following Hinge model at the MakerWorld website.

• The Hinge model in MakerWorld

3.1.6. After print

I printed the model using the Bambu A1 mini 3D printer.

4. Resources

Here is the Hinge stl
