4. 3D Design
I would like to design a zodiac book. I use 3D design to design a horse , and laser cut to make a book box
4.1 voronoi pattern box

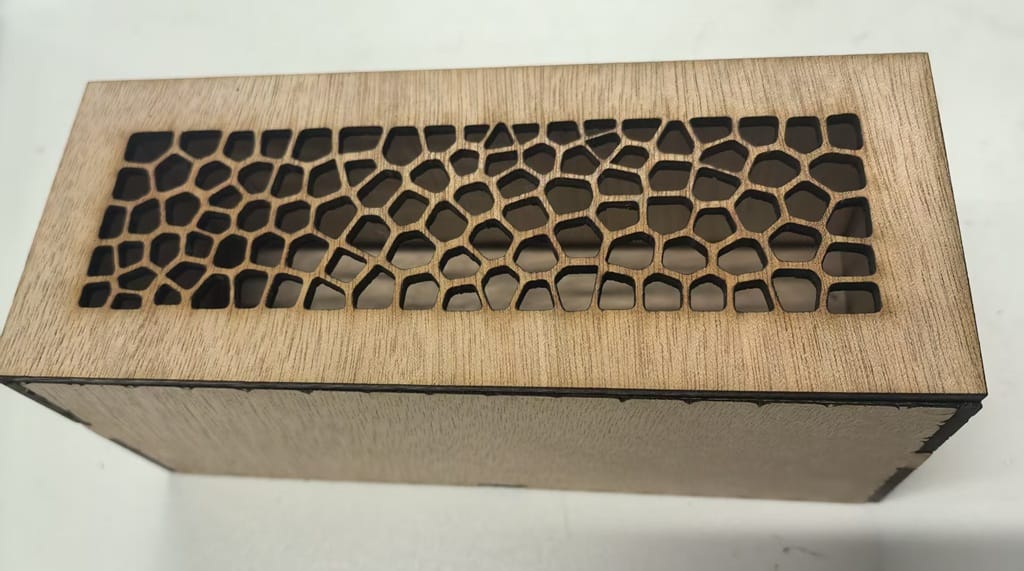

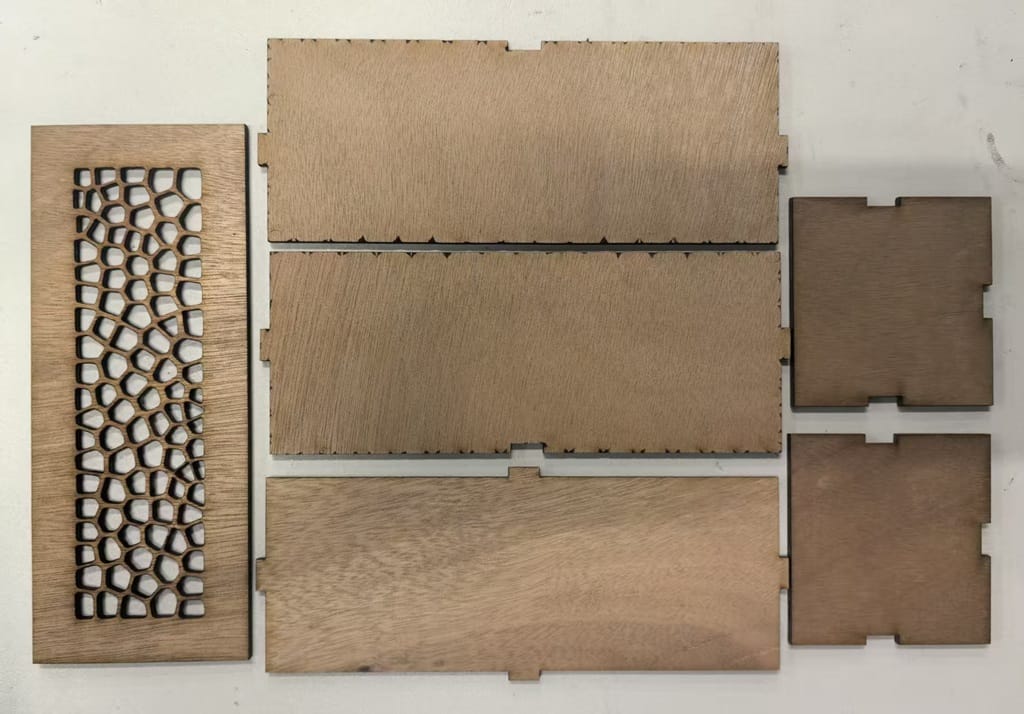

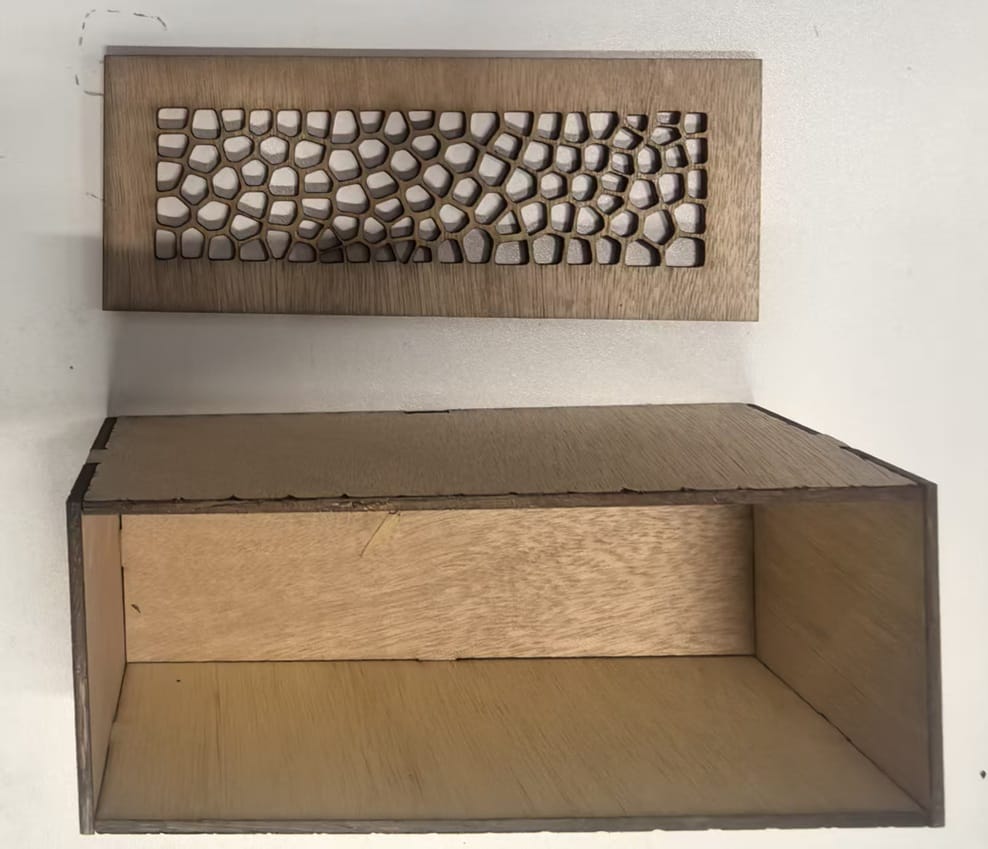

As I want to make a Zodiac Book in my final project ,I hope the book face dispaly a voronoi pattern. I design a 3D box with voronoi pattern,and export dxf file every face. I use lasercutter to cut the dxf file , and validate the result.
 |  |
|---|
4.2 design book shell

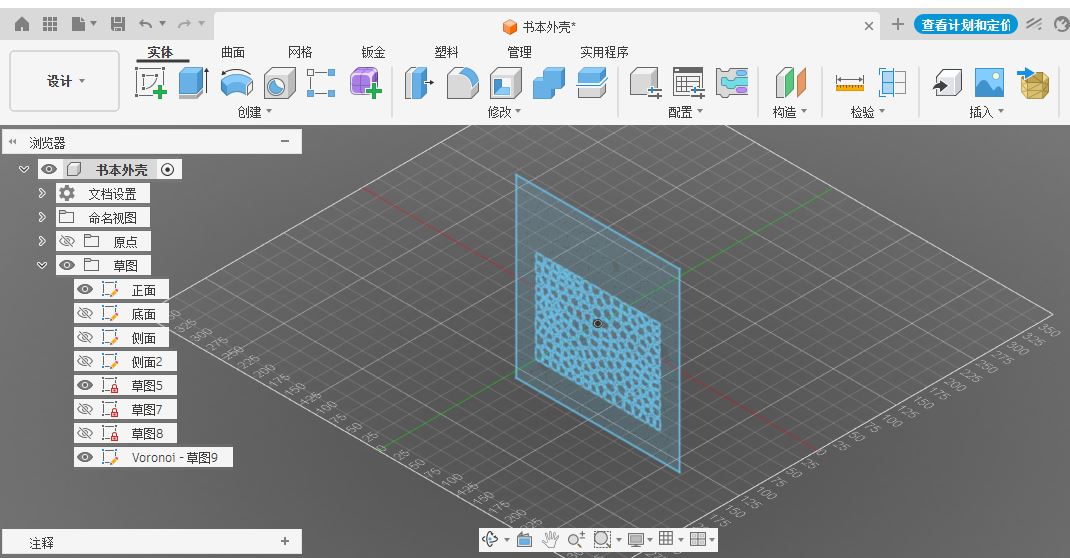

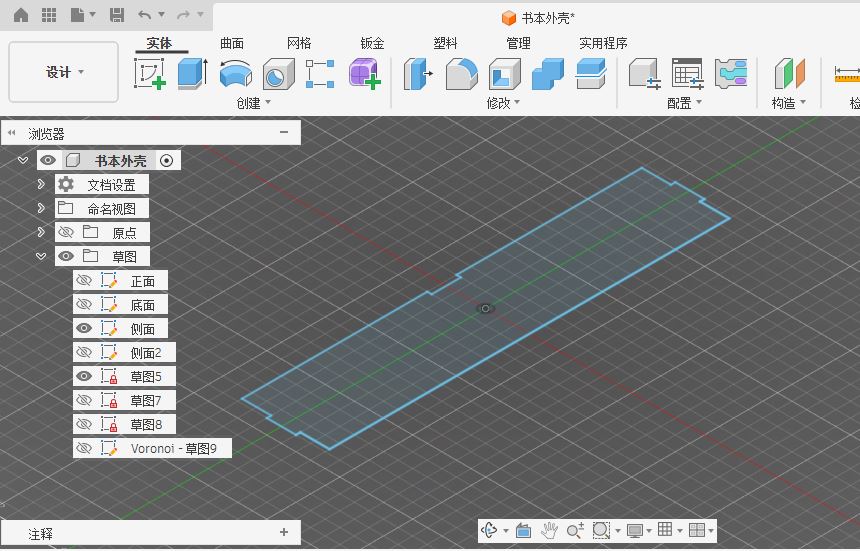

I use fusion 360 design a laser cut book box .
 |  |
|---|

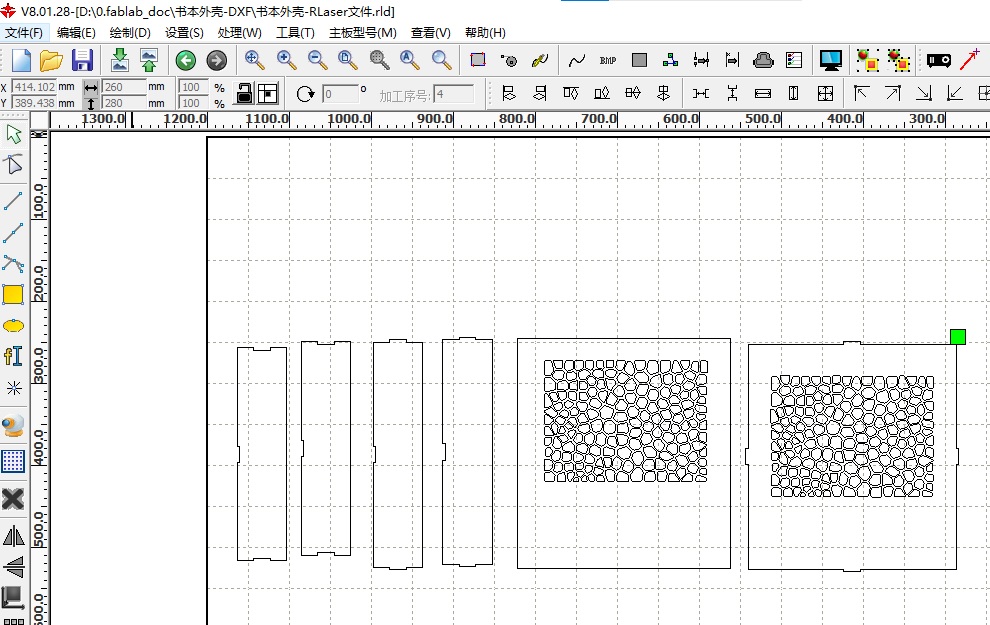

After export dxf file:

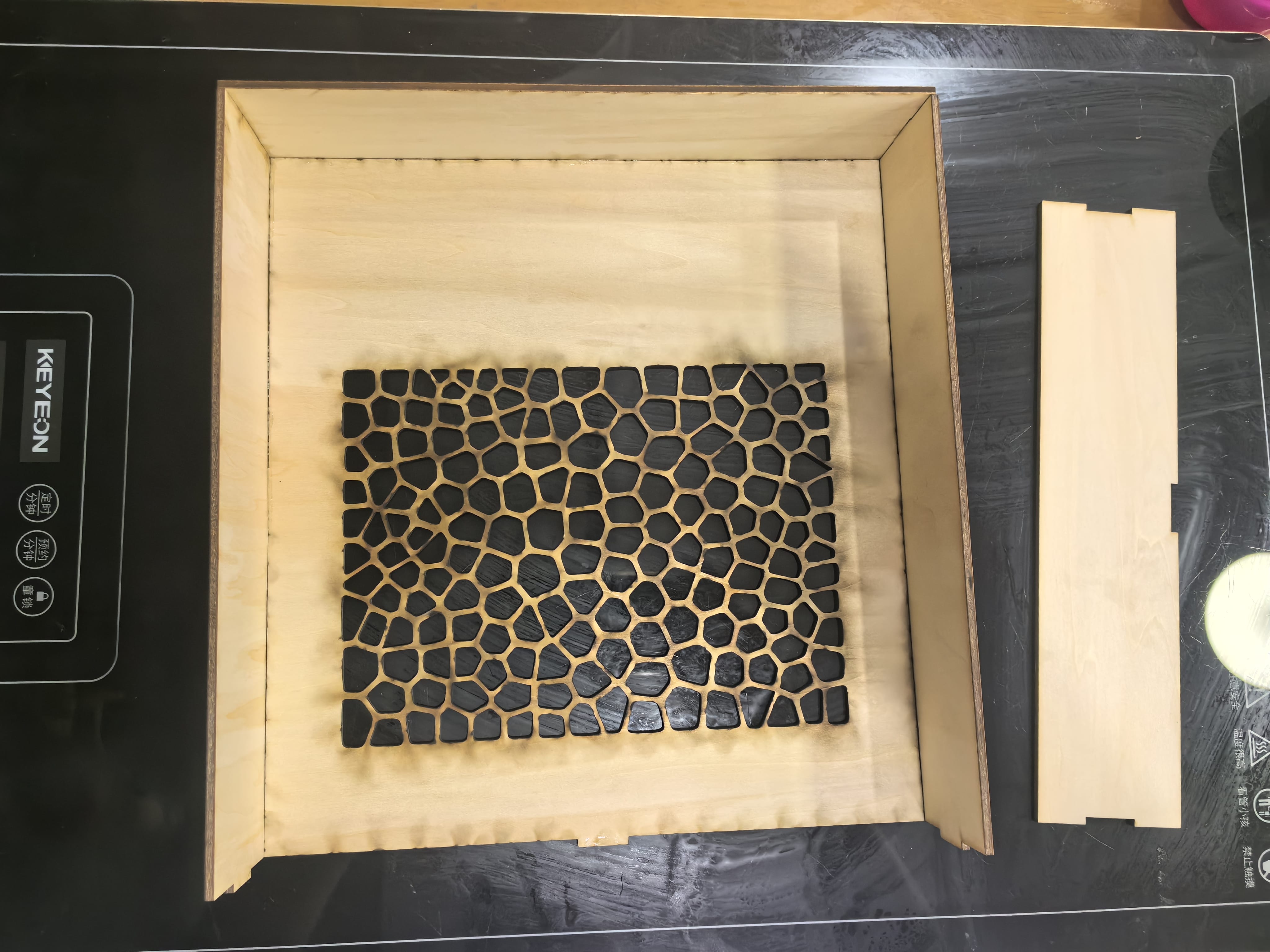

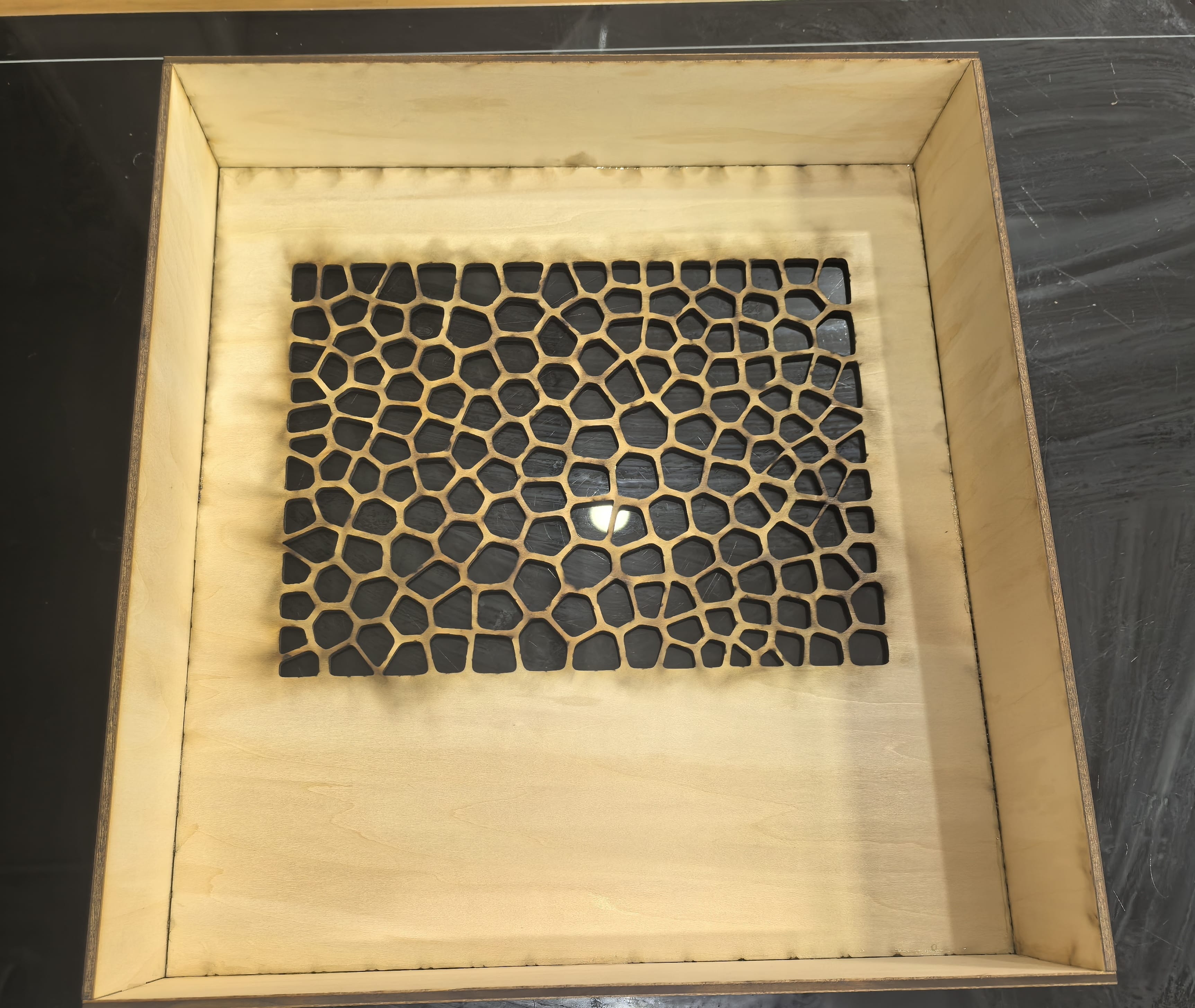

After laser cut：
 |  |
|---|
4.3 horse body
 |  |
|---|
I chose an N20 worm gear motor and modified the 3D printed model of a 19‑tooth gear, allowing it to be securely connected to the motor’s output shaft.
 |  |
|---|

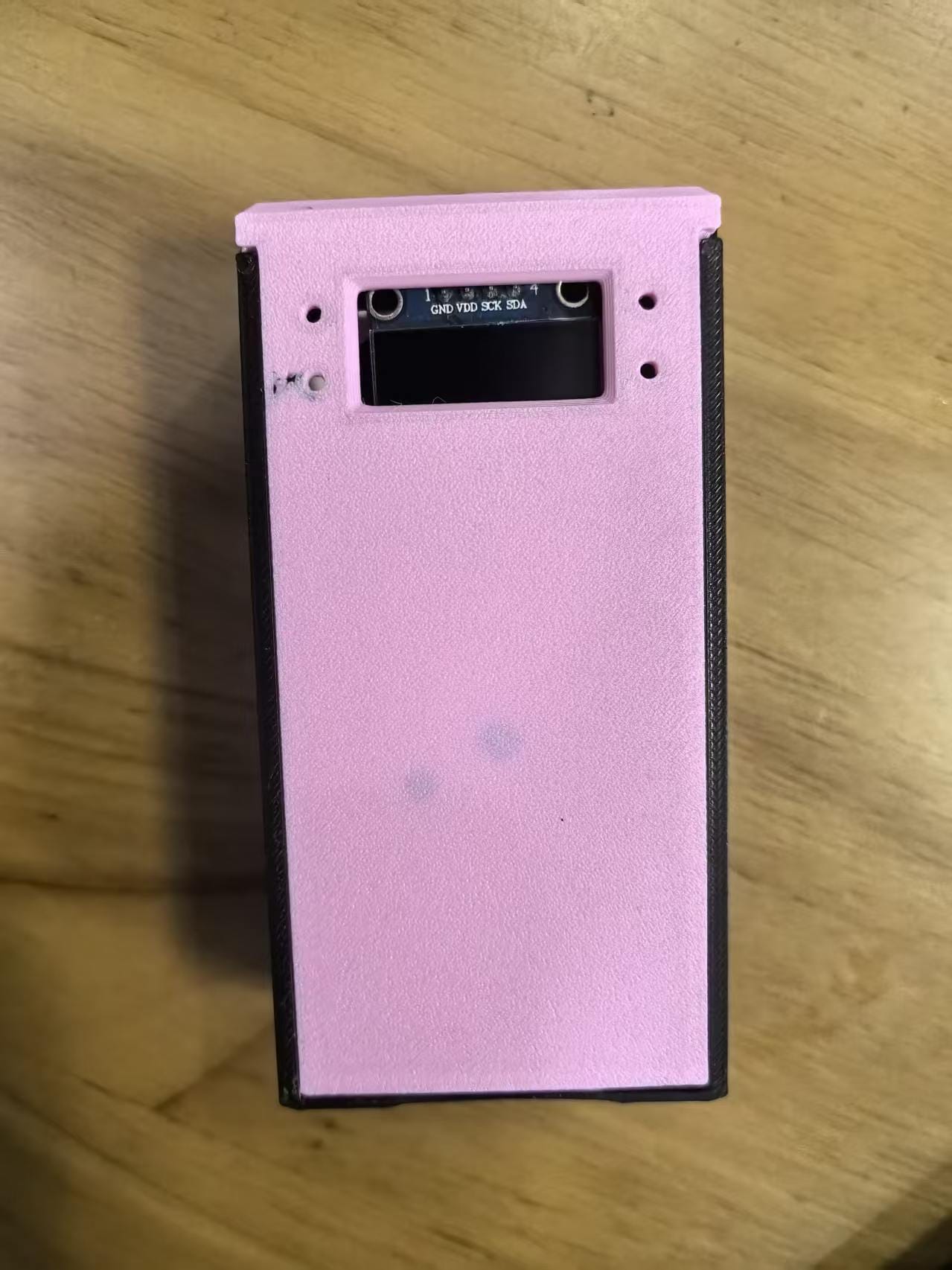

I also use another PCB Board to control the movement of the horse. When I click the button, the board will send BLE signals to the horse.
4.4 AI Voice Module

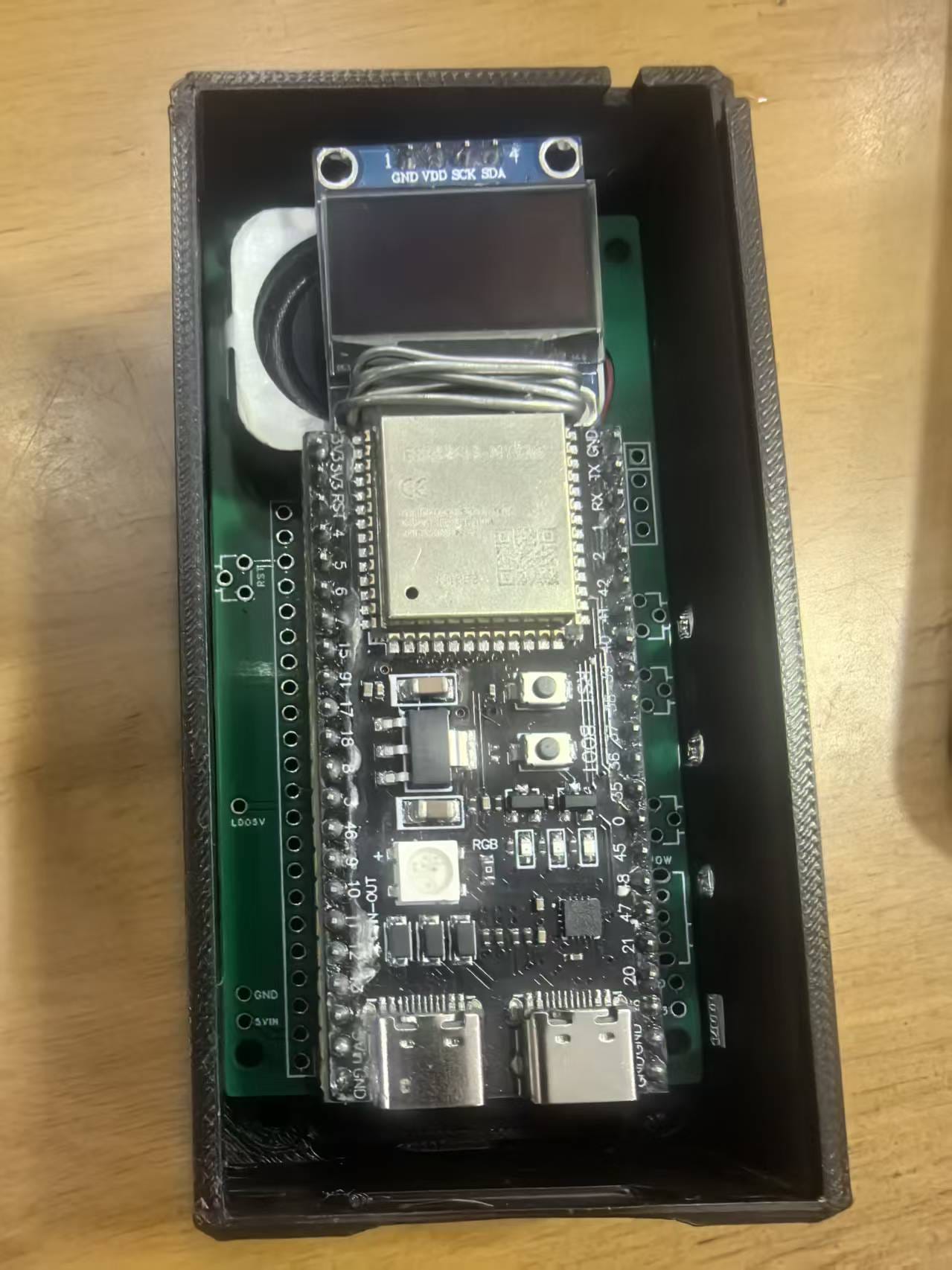

XiaoZhi Voice Module: Handles wake-word detection, audio capture, cloud-based ASR, and LLM semantic understanding, then publishes parsed commands to the MQTT Broker
 |  |
|---|
4.5 horse book

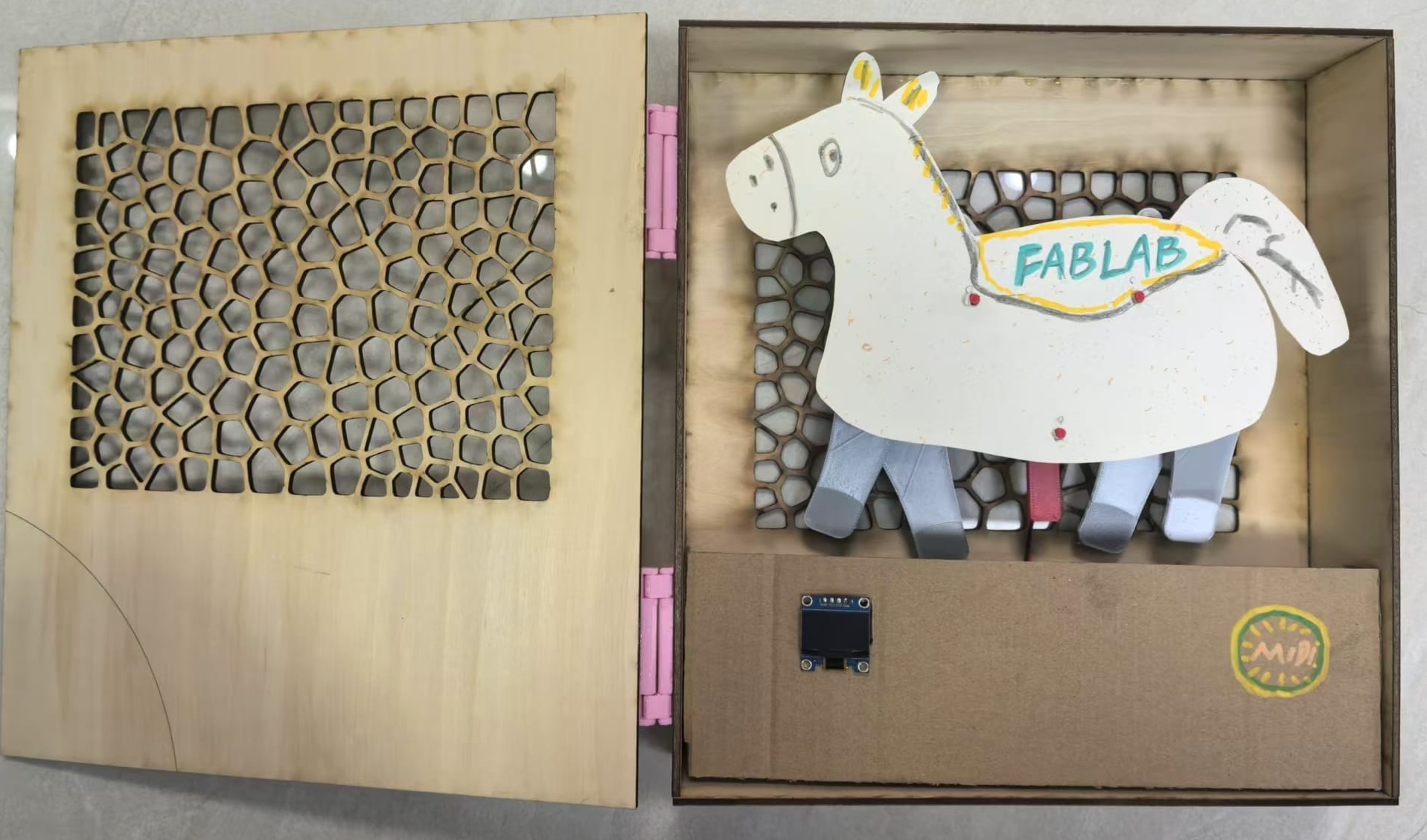

AI horse book:
