1. Group Assignment
This week group assignment focuses on use electronic measurement tools. These include the multimeter, oscilloscope, and logic analyzer. Understanding how to use these tools is essential for anyone working with electronic circuits.
1.1 Multimeter

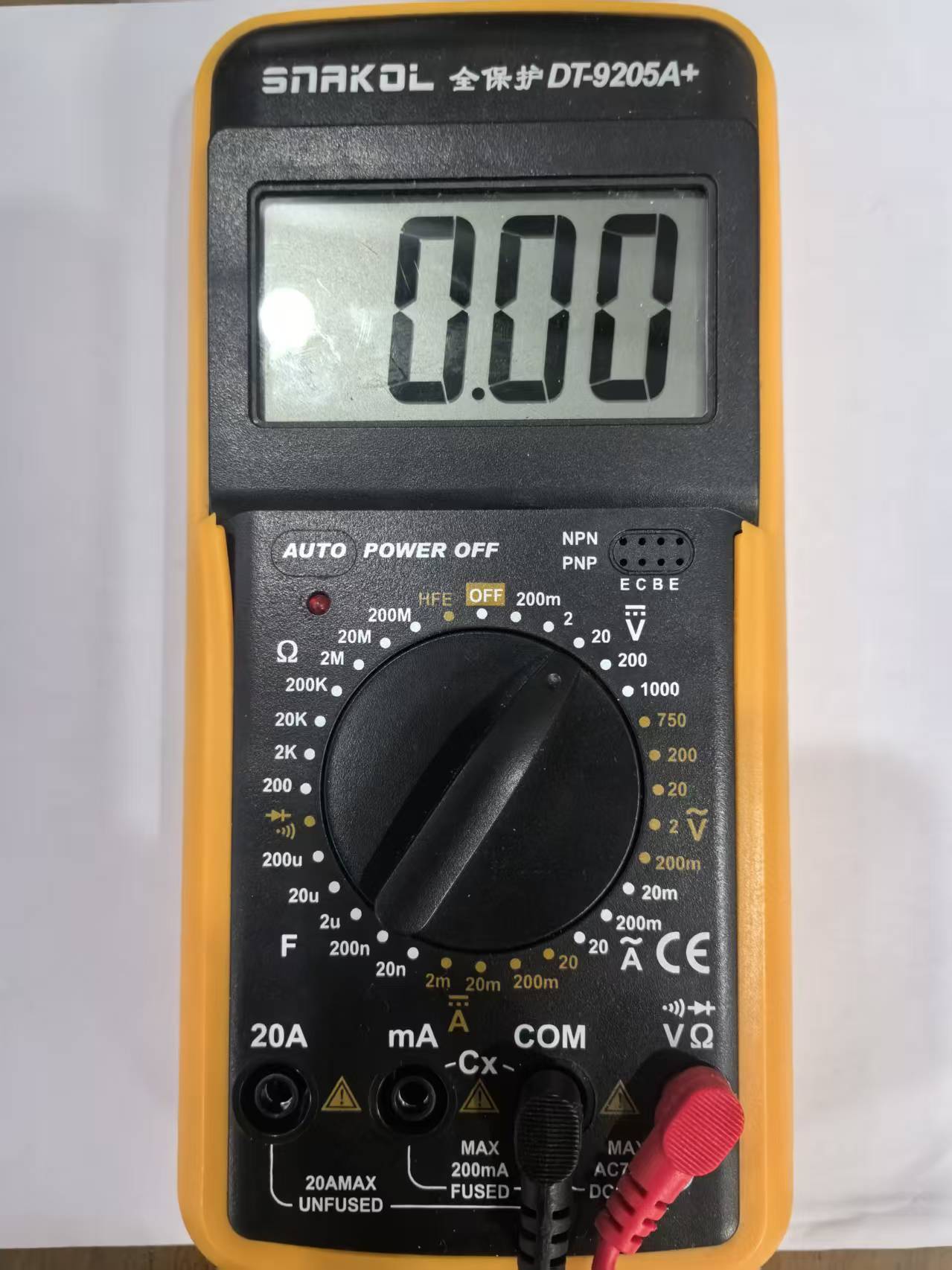

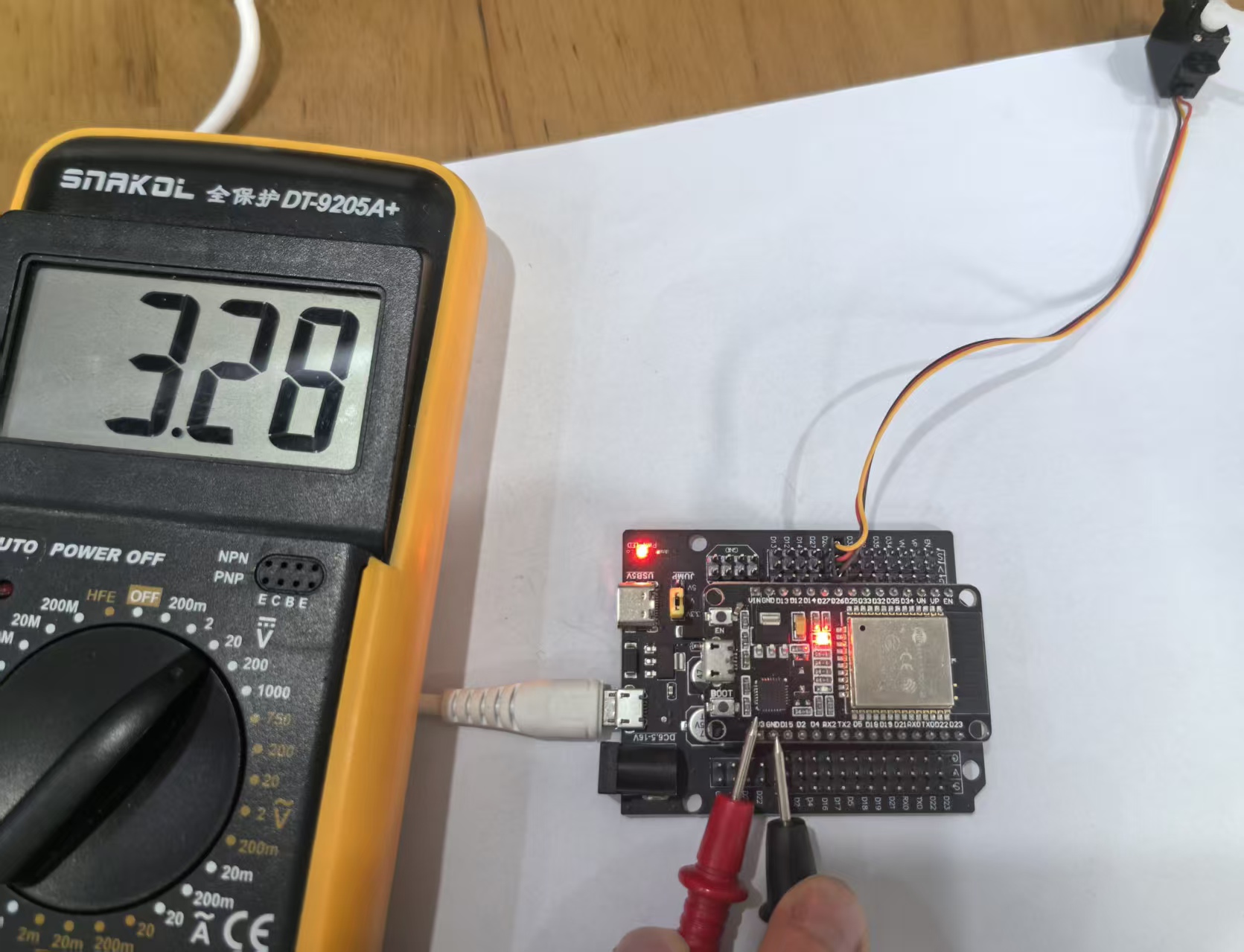

The multimeter is a versatile tool used to measure various electrical quantities, including voltage, current, and resistance.
| multimeter | voltage |
|---|---|
 |  |
0.2 Logic Analyzer
The logic analyzer captures and analyzes digital signals in a circuit. It is commonly used for debugging communication protocols like I2C, SPI, and UART.
0.3 Oscilloscope
The oscilloscope is used to capture and visualize electrical signals over time. It helps in analyzing signal behavior, identifying noise, and debugging timing issues in circuits.
