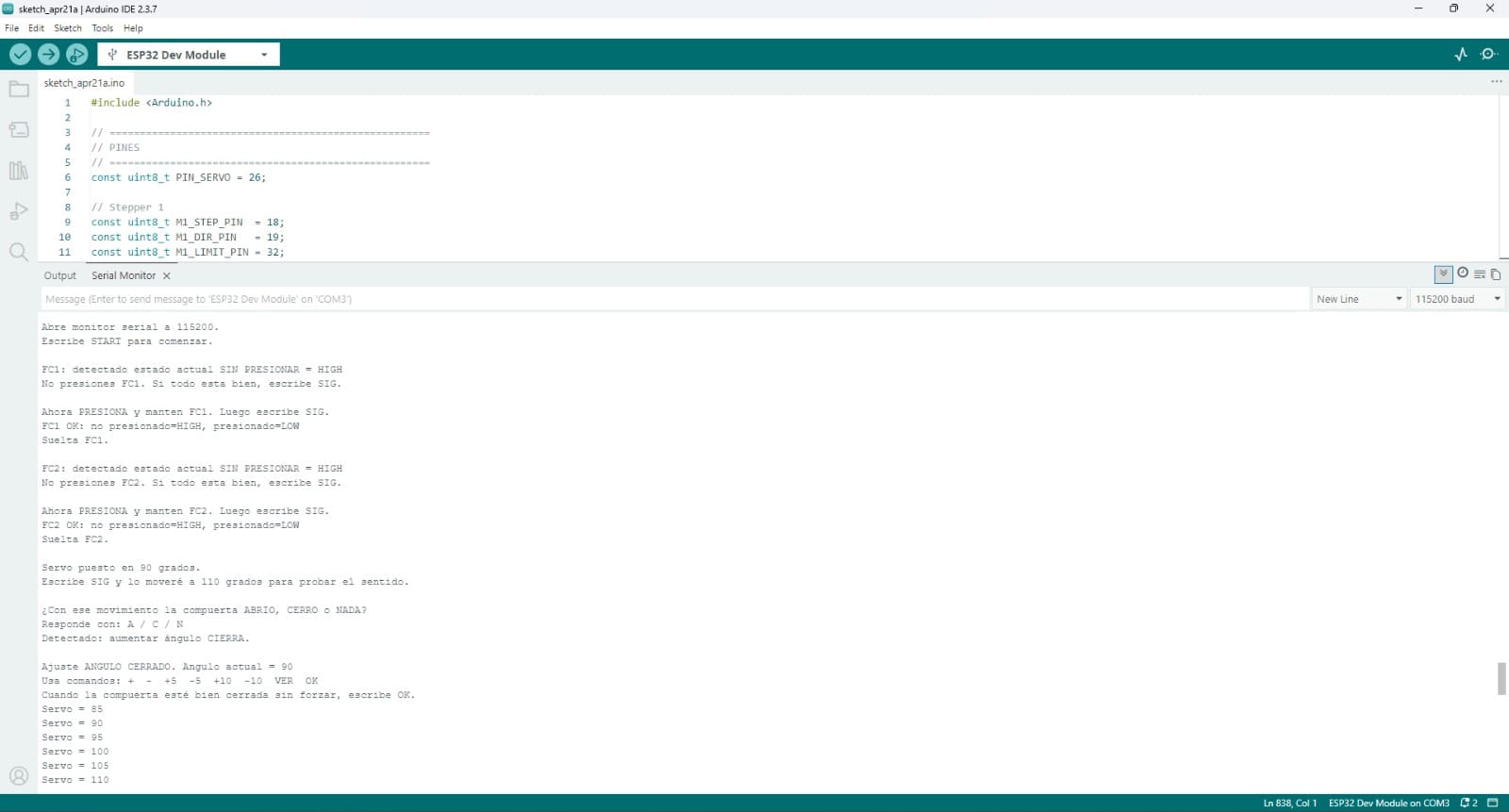

The control logic was programmed using Arduino IDE for the ESP32. The code manages the safety door, material selection, motor speed, iris mechanism, shredding time, container movement and status messages sent to the Nextion HMI.



    Copy code



#include
#include

// =====================================================
// PROTOCOLO NEXTION / ESP32
// =====================================================
// Nextion -> ESP32
//   \n
//      motorPct: 0..100
//      dir: 0 = CRUSH, 1 = REVERSE
//      irisPct: 0..100
//
//   \n   -> REMOVE CUP (pulso/evento)
//   \n   -> RETURN CUP (pulso/evento)
//
// ESP32 -> Nextion
//   SOLO comandos válidos de Nextion ASCII + 0xFF 0xFF 0xFF
//   Ejemplo mínimo:
//      vaDoor.val=0   -> puerta cerrada
//      vaDoor.val=1   -> puerta abierta

// =====================================================
// PINES
// =====================================================

// --- Motor DC con IBT-2 ---
const uint8_t PIN_RPWM = 13;
const uint8_t PIN_LPWM = 14;

// --- Sensor de puerta ---
const uint8_t PIN_PUERTA = 27;
const bool PUERTA_CERRADA_NIVEL = LOW;

// --- Servo compuerta / iris ---
const uint8_t PIN_SERVO = 26;

// --- Stepper 1 (DRV8825) ---
// Eje Z (recorrido corto, final de carrera 1)
const uint8_t M1_STEP_PIN  = 18;
const uint8_t M1_DIR_PIN   = 19;
const uint8_t M1_LIMIT_PIN = 32;

// --- Stepper 2 (DRV8825) ---
// Eje Y (recorrido largo, final de carrera 2)
const uint8_t M2_STEP_PIN  = 21;
const uint8_t M2_DIR_PIN   = 22;
const uint8_t M2_LIMIT_PIN = 33;

// --- Nextion UART ---
const uint8_t NEXTION_RX_PIN = 23;   // ESP32 RX <- TX Nextion
const uint8_t NEXTION_TX_PIN = 25;   // ESP32 TX -> RX Nextion
const uint32_t NEXTION_BAUD  = 9600;

// UART2 para Nextion
HardwareSerial NextionSerial(2);

// =====================================================
// CALIBRACION FINAL
// =====================================================
bool SERVO_AUMENTAR_ANGULO_ABRE = false;
int  SERVO_ANGULO_CERRADO = 180;
int  SERVO_ANGULO_ABIERTO = 0;

const bool LIMIT1_ACTIVE_LEVEL = LOW;
const bool LIMIT2_ACTIVE_LEVEL = LOW;

int8_t M1_HOME_DIR = 1;
int8_t M2_HOME_DIR = 1;

// =====================================================
// MICROSTEPPING 1/16
// =====================================================
const long MICROSTEP_FACTOR = 16;

// Valores calibrados originalmente en paso completo
const long M1_RANGE_STEPS_FULL_BASE         = 700;
const long M2_RANGE_STEPS_FULL_BASE         = 3600;
const long M2_RETURN_CUP_Y_STEPS_FULL_BASE  = 300;

// Escalados
long M1_RANGE_STEPS = M1_RANGE_STEPS_FULL_BASE * MICROSTEP_FACTOR; // 11200
long M2_RANGE_STEPS = M2_RANGE_STEPS_FULL_BASE * MICROSTEP_FACTOR; // 57600
long M2_RETURN_CUP_Y_STEPS = M2_RETURN_CUP_Y_STEPS_FULL_BASE * MICROSTEP_FACTOR; // 5760

// =====================================================
// CONFIG PWM MOTOR DC
// =====================================================
const uint32_t PWM_FREQ_MOTOR = 20000;
const uint8_t  PWM_RES_MOTOR  = 8;
const uint16_t PWM_MAX_MOTOR  = (1 << PWM_RES_MOTOR) - 1;

// =====================================================
// CONFIG PWM SERVO
// =====================================================
const uint32_t PWM_FREQ_SERVO = 50;
const uint8_t  PWM_RES_SERVO  = 16;
const uint32_t PWM_MAX_SERVO  = (1UL << PWM_RES_SERVO) - 1;
const uint32_t SERVO_PERIODO_US = 20000;

int SERVO_MIN_US = 500;
int SERVO_MAX_US = 2500;

// Servo un poco más rápido que antes, pero aún suave
unsigned long INTERVALO_SERVO_MS = 25;
int PASO_SERVO = 1;

// =====================================================
// MOTOR DC / PUERTA
// =====================================================
unsigned long TIEMPO_CAMBIO_SENTIDO_MS = 1000;
unsigned long INTERVALO_RAMPA_MS       = 20;
uint8_t       PASO_RAMPA               = 2;

unsigned long DEBOUNCE_PUERTA_MS       = 60;
unsigned long INTERVALO_REPORTE_MS     = 1000;

// =====================================================
// CONFIG STEPPERS CON ACCELSTEPPER
// MÁS LENTO PARA EVITAR PÉRDIDA DE PASOS
// =====================================================
const float M1_MAX_SPEED = 400.0f * MICROSTEP_FACTOR;   // 6400
const float M2_MAX_SPEED = 400.0f * MICROSTEP_FACTOR;   // 6400

const float M1_ACCEL = 700.0f * MICROSTEP_FACTOR;       // 11200
const float M2_ACCEL = 700.0f * MICROSTEP_FACTOR;       // 11200

// Homing normal
const float M1_HOME_FAST_SPEED = 120.0f * MICROSTEP_FACTOR;  // 1920
const float M2_HOME_FAST_SPEED = 120.0f * MICROSTEP_FACTOR;  // 1920
const float M1_HOME_SLOW_SPEED = 40.0f  * MICROSTEP_FACTOR;  // 640
const float M2_HOME_SLOW_SPEED = 40.0f  * MICROSTEP_FACTOR;  // 640
const float M1_HOME_BACKOFF_SPEED = 80.0f * MICROSTEP_FACTOR; // 1280
const float M2_HOME_BACKOFF_SPEED = 80.0f * MICROSTEP_FACTOR; // 1280

// Homing de arranque aún más silencioso
const float STARTUP_HOME_FAST_SPEED   = 90.0f  * MICROSTEP_FACTOR; // 1440
const float STARTUP_HOME_SLOW_SPEED   = 30.0f  * MICROSTEP_FACTOR; // 480
const float STARTUP_HOME_BACKOFF_SPEED = 60.0f * MICROSTEP_FACTOR; // 960

const long HOME_SEARCH_STEPS = 200000L;
const long HOME_RELEASE_MAX_STEPS = 5000L;

// Si inviertes esto, recalibra homeDir
bool M1_INVERT_DIR = false;
bool M2_INVERT_DIR = false;

// =====================================================
// NEXTION RX BUFFER
// =====================================================
char nextionRxBuf[80];
uint8_t nextionRxIdx = 0;

// =====================================================
// SERIAL USB BUFFER
// =====================================================
char bufferRx[40];
uint8_t idxRx = 0;

// =====================================================
// SOLICITUDES Y ESTADOS APLICADOS (HMI / CONTROL)
// =====================================================
uint8_t requestedMotorPct = 0;
uint8_t requestedDir      = 0;   // 0=CRUSH, 1=REVERSE
uint8_t requestedIrisPct  = 0;

uint8_t appliedMotorPct   = 0;
uint8_t appliedDir        = 0;
uint8_t appliedIrisPct    = 0;

bool cupRemovePulse = false;
bool cupReturnPulse = false;

uint8_t lastIssuedMotorPct = 255;
uint8_t lastIssuedDir      = 255;
uint8_t lastIssuedIrisPct  = 255;

// feedback Nextion
int lastDoorFeedbackSent = -1;
unsigned long tNextionFeedback = 0;
unsigned long INTERVALO_NEXTION_FEEDBACK_MS = 250;

// =====================================================
// ESTADOS MOTOR DC
// =====================================================
enum Direccion {
  DIR_STOP = 0,
  DIR_D,
  DIR_I
};

Direccion dirActual = DIR_STOP;
uint8_t velocidadActual = 0;
uint8_t velocidadObjetivo = 0;

Direccion dirPendiente = DIR_STOP;
uint8_t velocidadPendiente = 0;
bool inversionEnProceso = false;
bool esperandoPausaInversion = false;

Direccion dirUsuario = DIR_STOP;
uint8_t velocidadUsuario = 0;

unsigned long tRampa = 0;
unsigned long tEsperaInversion = 0;

// =====================================================
// ESTADO PUERTA
// =====================================================
bool puertaCerradaRaw = false;
bool puertaCerradaRawAnterior = false;
bool puertaCerradaEstable = false;

unsigned long tCambioPuerta = 0;
unsigned long tReporte = 0;

// =====================================================
// ESTADO SERVO
// =====================================================
int servoAnguloActual = 0;
int servoAnguloObjetivo = 0;
unsigned long tServo = 0;

// =====================================================
// STEPPERS
// =====================================================
AccelStepper stepper1(AccelStepper::DRIVER, M1_STEP_PIN, M1_DIR_PIN);
AccelStepper stepper2(AccelStepper::DRIVER, M2_STEP_PIN, M2_DIR_PIN);

enum HomePhase {
  HOME_IDLE = 0,
  HOME_RELEASE,
  HOME_SEEK_FAST,
  HOME_BACKOFF,
  HOME_SEEK_SLOW
};

struct StepperAxis {
  AccelStepper* stepper;

  uint8_t stepPin;
  uint8_t dirPin;
  uint8_t limitPin;
  bool limitActiveLevel;

  bool invertDir;
  int8_t homeDir;     // +1 significa que DIR lógico positivo va hacia home
  long rangeSteps;    // 0..range en coordenada máquina

  bool jogMode = false;
  bool homed = false;

  long targetMachinePos = 0;

  float maxSpeed = 1000.0f;
  float accel = 1000.0f;

  // homing silencioso
  HomePhase homePhase = HOME_IDLE;
  float homeFastSpeed = 1000.0f;
  float homeSlowSpeed = 300.0f;
  float homeBackoffSpeed = 600.0f;
  long homePhaseStartPos = 0;
};

StepperAxis axis1;
StepperAxis axis2;

// =====================================================
// SECUENCIAS AUTOMATICAS
// =====================================================
enum AutoSequenceState {
  AUTOSEQ_NONE = 0,
  AUTOSEQ_STARTUP_HOME_Z,
  AUTOSEQ_STARTUP_HOME_Y,
  AUTOSEQ_REMOVE_HOME_Z,
  AUTOSEQ_REMOVE_HOME_Y,
  AUTOSEQ_REMOVE_MOVE_Y_MAX,
  AUTOSEQ_RETURN_HOME_Z,
  AUTOSEQ_RETURN_MOVE_Y_NEAR_HOME,
  AUTOSEQ_RETURN_MOVE_Z_MAX
};

AutoSequenceState autoSeqState = AUTOSEQ_STARTUP_HOME_Z;
bool autoSeqStepStarted = false;
bool startupHomingDone = false;

// =====================================================
// UTILS
// =====================================================
uint8_t minU8(uint8_t a, uint8_t b) {
  return (a < b) ? a : b;
}

int clampInt(int x, int lo, int hi) {
  if (x < lo) return lo;
  if (x > hi) return hi;
  return x;
}

long clampLong(long x, long lo, long hi) {
  if (x < lo) return lo;
  if (x > hi) return hi;
  return x;
}

const char* textoDireccion(Direccion d) {
  switch (d) {
    case DIR_D:    return "D";
    case DIR_I:    return "I";
    case DIR_STOP: return "STOP";
    default:       return "?";
  }
}

bool esSentidoValido(Direccion d) {
  return (d == DIR_D || d == DIR_I);
}

void toUpperInPlace(char* s) {
  for (size_t i = 0; s[i] != '\0'; i++) {
    s[i] = (char)toupper((unsigned char)s[i]);
  }
}

long mapLongClamped(long x, long in_min, long in_max, long out_min, long out_max) {
  if (in_max == in_min) return out_min;

  if (in_min < in_max) {
    if (x < in_min) x = in_min;
    if (x > in_max) x = in_max;
  } else {
    if (x > in_min) x = in_min;
    if (x < in_max) x = in_max;
  }

  return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min;
}

bool autoSequenceActive() {
  return autoSeqState != AUTOSEQ_NONE;
}

// =====================================================
// NEXTION HELPERS
// =====================================================
void sendNextionCommand(const String &cmd) {
  NextionSerial.print(cmd);
  NextionSerial.write(0xFF);
  NextionSerial.write(0xFF);
  NextionSerial.write(0xFF);
}

void updateHmiFeedback() {
  unsigned long ahora = millis();
  if (ahora - tNextionFeedback < INTERVALO_NEXTION_FEEDBACK_MS) return;
  tNextionFeedback = ahora;

  int doorVal = puertaCerradaEstable ? 0 : 1;

  if (doorVal != lastDoorFeedbackSent) {
    sendNextionCommand(String("vaDoor.val=") + String(doorVal));
    lastDoorFeedbackSent = doorVal;
  }
}

// =====================================================
// PARSER NEXTION
// =====================================================
void processHmiFrame(const String &msg) {
  if (msg.length() < 3) return;

  if (msg.startsWith("", &motorPct, &dir, &irisPct) == 3) {
      motorPct = clampInt(motorPct, 0, 100);
      dir      = clampInt(dir, 0, 1);
      irisPct  = clampInt(irisPct, 0, 100);

      requestedMotorPct = (uint8_t)motorPct;
      requestedDir      = (uint8_t)dir;
      requestedIrisPct  = (uint8_t)irisPct;

      Serial.printf("[HMI] H motor=%u dir=%u iris=%u\n",
                    requestedMotorPct, requestedDir, requestedIrisPct);
    } else {
      Serial.printf("[HMI] Frame H invalido: %s\n", msg.c_str());
    }
    return;
  }

  if (msg.startsWith("", &evt) == 1) {
      if (evt == 1) {
        cupRemovePulse = true;
        Serial.println("[HMI] Evento REMOVE CUP");
      } else if (evt == 2) {
        cupReturnPulse = true;
        Serial.println("[HMI] Evento RETURN CUP");
      } else {
        Serial.printf("[HMI] Evento C desconocido: %d\n", evt);
      }
    } else {
      Serial.printf("[HMI] Frame C invalido: %s\n", msg.c_str());
    }
    return;
  }

  Serial.printf("[HMI] Frame ignorado: %s\n", msg.c_str());
}

void readNextionFrames() {
  while (NextionSerial.available() > 0) {
    char ch = (char)NextionSerial.read();

    if (ch == '\r') continue;

    if (ch == '\n') {
      if (nextionRxIdx > 0) {
        nextionRxBuf[nextionRxIdx] = '\0';
        processHmiFrame(String(nextionRxBuf));
        nextionRxIdx = 0;
      }
    } else {
      if (nextionRxIdx < sizeof(nextionRxBuf) - 1) {
        nextionRxBuf[nextionRxIdx++] = ch;
      } else {
        nextionRxIdx = 0;
      }
    }
  }
}

// =====================================================
// MOTOR DC
// =====================================================
uint16_t porcentajeADuty(uint8_t porcentaje) {
  if (porcentaje > 100) porcentaje = 100;
  return (uint16_t)((porcentaje * PWM_MAX_MOTOR) / 100);
}

void escribirPuente(Direccion dir, uint8_t velPercent) {
  uint16_t duty = porcentajeADuty(velPercent);

  switch (dir) {
    case DIR_D:
      ledcWrite(PIN_RPWM, duty);
      ledcWrite(PIN_LPWM, 0);
      break;

    case DIR_I:
      ledcWrite(PIN_RPWM, 0);
      ledcWrite(PIN_LPWM, duty);
      break;

    case DIR_STOP:
    default:
      ledcWrite(PIN_RPWM, 0);
      ledcWrite(PIN_LPWM, 0);
      break;
  }
}

void apagarMotorPorSeguridad() {
  inversionEnProceso = false;
  esperandoPausaInversion = false;

  dirPendiente = DIR_STOP;
  velocidadPendiente = 0;

  dirActual = DIR_STOP;
  velocidadActual = 0;
  velocidadObjetivo = 0;

  escribirPuente(DIR_STOP, 0);
}

void detenerMotorNormal() {
  inversionEnProceso = false;
  esperandoPausaInversion = false;

  dirPendiente = DIR_STOP;
  velocidadPendiente = 0;

  velocidadObjetivo = 0;
}

void iniciarInversion(Direccion nuevaDir, uint8_t nuevaVel) {
  dirPendiente = nuevaDir;
  velocidadPendiente = nuevaVel;

  inversionEnProceso = true;
  esperandoPausaInversion = false;
  velocidadObjetivo = 0;

  Serial.printf("Inversion solicitada. Frenando a 0 y esperando %lu ms.\n",
                TIEMPO_CAMBIO_SENTIDO_MS);
}

void procesarSolicitudMotor(Direccion nuevaDir, uint8_t nuevaVel) {
  if (nuevaVel > 100) {
    Serial.println("Error: velocidad fuera de rango (0-100)");
    return;
  }

  if (nuevaVel == 0) {
    dirUsuario = DIR_STOP;
    velocidadUsuario = 0;
  } else {
    dirUsuario = nuevaDir;
    velocidadUsuario = nuevaVel;
  }

  if (!puertaCerradaEstable) {
    apagarMotorPorSeguridad();

    if (nuevaVel == 0) {
      Serial.println("Puerta abierta. Motor detenido y configuracion en STOP.");
    } else {
      Serial.printf("Puerta abierta. Configuracion guardada para reanudar luego: %s%u\n",
                    textoDireccion(dirUsuario), velocidadUsuario);
    }
    return;
  }

  if (nuevaVel == 0) {
    Serial.println("Parada solicitada.");
    detenerMotorNormal();
    return;
  }

  if (dirActual == DIR_STOP && velocidadActual == 0 && !inversionEnProceso) {
    dirActual = nuevaDir;
    velocidadObjetivo = nuevaVel;
    Serial.printf("Arranque: %s%u\n", textoDireccion(nuevaDir), nuevaVel);
    return;
  }

  if (!inversionEnProceso && dirActual == nuevaDir) {
    velocidadObjetivo = nuevaVel;
    Serial.printf("Nueva velocidad: %s%u\n", textoDireccion(nuevaDir), nuevaVel);
    return;
  }

  if (!inversionEnProceso && esSentidoValido(dirActual) && nuevaDir != dirActual) {
    iniciarInversion(nuevaDir, nuevaVel);
    return;
  }

  if (inversionEnProceso) {
    dirPendiente = nuevaDir;
    velocidadPendiente = nuevaVel;
    Serial.printf("Destino pendiente actualizado: %s%u\n",
                  textoDireccion(nuevaDir), nuevaVel);
  }
}

void actualizarRampaMotor() {
  if (!puertaCerradaEstable) return;

  unsigned long ahora = millis();
  if (ahora - tRampa < INTERVALO_RAMPA_MS) return;
  tRampa = ahora;

  if (inversionEnProceso && !esperandoPausaInversion) {
    if (velocidadActual > velocidadObjetivo) {
      uint8_t diferencia = (uint8_t)(velocidadActual - velocidadObjetivo);
      uint8_t delta = minU8(PASO_RAMPA, diferencia);
      velocidadActual -= delta;
      escribirPuente(dirActual, velocidadActual);
    }

    if (velocidadActual == 0) {
      escribirPuente(DIR_STOP, 0);
      dirActual = DIR_STOP;
      esperandoPausaInversion = true;
      tEsperaInversion = millis();
      Serial.println("Motor en 0. Iniciando pausa de inversion...");
    }
    return;
  }

  if (inversionEnProceso && esperandoPausaInversion) {
    if (millis() - tEsperaInversion >= TIEMPO_CAMBIO_SENTIDO_MS) {
      dirActual = dirPendiente;
      velocidadObjetivo = velocidadPendiente;

      inversionEnProceso = false;
      esperandoPausaInversion = false;

      Serial.printf("Inversion completada. Nuevo objetivo: %s%u\n",
                    textoDireccion(dirActual), velocidadObjetivo);
    }
    return;
  }

  if (velocidadActual < velocidadObjetivo) {
    uint8_t faltante = (uint8_t)(velocidadObjetivo - velocidadActual);
    uint8_t delta = minU8(PASO_RAMPA, faltante);
    velocidadActual += delta;
    escribirPuente(dirActual, velocidadActual);
  }
  else if (velocidadActual > velocidadObjetivo) {
    uint8_t diferencia = (uint8_t)(velocidadActual - velocidadObjetivo);
    uint8_t delta = minU8(PASO_RAMPA, diferencia);
    velocidadActual -= delta;

    if (velocidadActual == 0 && velocidadObjetivo == 0) {
      escribirPuente(DIR_STOP, 0);
      dirActual = DIR_STOP;
    } else {
      escribirPuente(dirActual, velocidadActual);
    }
  }

  appliedMotorPct = velocidadActual;
  appliedDir = (dirActual == DIR_I) ? 1 : 0;
}

// =====================================================
// SERVO / IRIS
// =====================================================
uint32_t servoPulseUsToDuty(uint32_t pulseUs) {
  return (pulseUs * PWM_MAX_SERVO) / SERVO_PERIODO_US;
}

void escribirServoAngulo(int angulo) {
  angulo = clampInt(angulo, 0, 180);
  long pulseUs = mapLongClamped(angulo, 0, 180, SERVO_MIN_US, SERVO_MAX_US);
  uint32_t duty = servoPulseUsToDuty((uint32_t)pulseUs);
  ledcWrite(PIN_SERVO, duty);
}

void moverServoA(int angulo) {
  servoAnguloObjetivo = clampInt(angulo, 0, 180);
  Serial.printf("Servo objetivo -> %d grados\n", servoAnguloObjetivo);
}

int irisPctToServoAngle(uint8_t pct) {
  return (int)mapLongClamped((long)pct, 0, 100, SERVO_ANGULO_CERRADO, SERVO_ANGULO_ABIERTO);
}

uint8_t servoAngleToIrisPct(int angle) {
  return (uint8_t)clampLong(
    mapLongClamped((long)angle, SERVO_ANGULO_CERRADO, SERVO_ANGULO_ABIERTO, 0, 100),
    0, 100
  );
}

void abrirCompuerta() {
  requestedIrisPct = 100;
  moverServoA(SERVO_ANGULO_ABIERTO);
  Serial.printf("Compuerta ABRIR -> %d grados\n", SERVO_ANGULO_ABIERTO);
}

void cerrarCompuerta() {
  requestedIrisPct = 0;
  moverServoA(SERVO_ANGULO_CERRADO);
  Serial.printf("Compuerta CERRAR -> %d grados\n", SERVO_ANGULO_CERRADO);
}

void actualizarServo() {
  unsigned long ahora = millis();
  if (ahora - tServo < INTERVALO_SERVO_MS) return;
  tServo = ahora;

  if (servoAnguloActual < servoAnguloObjetivo) {
    servoAnguloActual += PASO_SERVO;
    if (servoAnguloActual > servoAnguloObjetivo) servoAnguloActual = servoAnguloObjetivo;
    escribirServoAngulo(servoAnguloActual);
  }
  else if (servoAnguloActual > servoAnguloObjetivo) {
    servoAnguloActual -= PASO_SERVO;
    if (servoAnguloActual < servoAnguloObjetivo) servoAnguloActual = servoAnguloObjetivo;
    escribirServoAngulo(servoAnguloActual);
  }

  appliedIrisPct = servoAngleToIrisPct(servoAnguloActual);
}

// =====================================================
// PUERTA
// =====================================================
bool leerPuertaCrudaCerrada() {
  return (digitalRead(PIN_PUERTA) == PUERTA_CERRADA_NIVEL);
}

void reanudarUltimaConfiguracion() {
  if (!puertaCerradaEstable) return;

  if (!esSentidoValido(dirUsuario) || velocidadUsuario == 0) {
    Serial.println("Puerta cerrada. No hay configuracion previa para reanudar.");
    return;
  }

  dirActual = dirUsuario;
  velocidadObjetivo = velocidadUsuario;

  Serial.printf("Puerta cerrada. Reanudando ultima configuracion: %s%u\n",
                textoDireccion(dirUsuario), velocidadUsuario);
}

void manejarEventoPuertaAbierta() {
  Serial.println("EVENTO: PUERTA ABIERTA -> APAGADO FORZADO");
  apagarMotorPorSeguridad();
}

void manejarEventoPuertaCerrada() {
  Serial.println("EVENTO: PUERTA CERRADA");
  reanudarUltimaConfiguracion();
}

void actualizarPuerta() {
  bool lecturaActual = leerPuertaCrudaCerrada();

  if (lecturaActual != puertaCerradaRawAnterior) {
    puertaCerradaRawAnterior = lecturaActual;
    tCambioPuerta = millis();
  }

  if (millis() - tCambioPuerta >= DEBOUNCE_PUERTA_MS) {
    puertaCerradaRaw = lecturaActual;

    if (puertaCerradaEstable != puertaCerradaRaw) {
      puertaCerradaEstable = puertaCerradaRaw;

      if (puertaCerradaEstable) {
        manejarEventoPuertaCerrada();
      } else {
        manejarEventoPuertaAbierta();
      }
    }
  }
}

// =====================================================
// APLICACION DE SOLICITUDES HMI
// =====================================================
void applyCrusherMotor() {
  Direccion reqDir = (requestedDir == 0) ? DIR_D : DIR_I;
  procesarSolicitudMotor(reqDir, requestedMotorPct);
}

void applyIris() {
  int targetAngle = irisPctToServoAngle(requestedIrisPct);
  moverServoA(targetAngle);
}

void applyRequestedStateIfChanged() {
  if (requestedMotorPct != lastIssuedMotorPct || requestedDir != lastIssuedDir) {
    applyCrusherMotor();
    lastIssuedMotorPct = requestedMotorPct;
    lastIssuedDir = requestedDir;
  }

  if (requestedIrisPct != lastIssuedIrisPct) {
    applyIris();
    lastIssuedIrisPct = requestedIrisPct;
  }
}

// =====================================================
// STEPPERS CON ACCELSTEPPER
// =====================================================
bool axisLimitActive(StepperAxis &ax) {
  return digitalRead(ax.limitPin) == ax.limitActiveLevel;
}

// Convierte posición máquina (0=home, positivo alejándose)
// a posición lógica de AccelStepper.
long axisLogicalFromMachine(const StepperAxis &ax, long machinePos) {
  return (ax.homeDir == 1) ? -machinePos : machinePos;
}

// Convierte posición lógica de AccelStepper a posición máquina.
long axisMachineFromLogical(const StepperAxis &ax, long logicalPos) {
  return (ax.homeDir == 1) ? -logicalPos : logicalPos;
}

long axisMachinePosition(const StepperAxis &ax) {
  return axisMachineFromLogical(ax, ax.stepper->currentPosition());
}

bool axisIsBusy(const StepperAxis &ax) {
  return (ax.homePhase != HOME_IDLE) || ax.jogMode || (ax.stepper->distanceToGo() != 0);
}

float axisLogicalSpeedTowardHome(const StepperAxis &ax, float speedAbs) {
  return (ax.homeDir == 1) ? +fabs(speedAbs) : -fabs(speedAbs);
}

float axisLogicalSpeedAwayFromHome(const StepperAxis &ax, float speedAbs) {
  return -axisLogicalSpeedTowardHome(ax, speedAbs);
}

void axisConfigureMove(StepperAxis &ax, float maxSpeed, float accel) {
  ax.stepper->setMaxSpeed(maxSpeed);
  ax.stepper->setAcceleration(accel);
}

void axisStopImmediate(StepperAxis &ax) {
  long pos = ax.stepper->currentPosition();
  ax.stepper->moveTo(pos);
  ax.homePhase = HOME_IDLE;
  ax.jogMode = false;
  ax.targetMachinePos = axisMachinePosition(ax);
}

void axisSetAtHome(StepperAxis &ax) {
  ax.stepper->setCurrentPosition(0);
  ax.stepper->moveTo(0);
  ax.homePhase = HOME_IDLE;
  ax.jogMode = false;
  ax.homed = true;
  ax.targetMachinePos = 0;
}

void axisStartQuietHome(StepperAxis &ax, const char* nombre,
                        float fastSpeed, float slowSpeed, float backoffSpeed) {
  ax.homeFastSpeed = fastSpeed;
  ax.homeSlowSpeed = slowSpeed;
  ax.homeBackoffSpeed = backoffSpeed;
  ax.jogMode = false;
  ax.homed = false;

  // durante homing usamos runSpeed(), no movimiento acelerado
  ax.stepper->moveTo(ax.stepper->currentPosition());

  if (axisLimitActive(ax)) {
    ax.homePhase = HOME_RELEASE;
    ax.stepper->setSpeed(axisLogicalSpeedAwayFromHome(ax, ax.homeBackoffSpeed));
    ax.homePhaseStartPos = ax.stepper->currentPosition();
    Serial.printf("%s -> HOME silencioso: liberando switch...\n", nombre);
  } else {
    ax.homePhase = HOME_SEEK_FAST;
    ax.stepper->setSpeed(axisLogicalSpeedTowardHome(ax, ax.homeFastSpeed));
    ax.homePhaseStartPos = ax.stepper->currentPosition();
    Serial.printf("%s -> HOME silencioso: búsqueda rápida...\n", nombre);
  }
}

void axisStartHome(StepperAxis &ax, const char* nombre) {
  axisStartQuietHome(ax, nombre, ax.homeFastSpeed, ax.homeSlowSpeed, ax.homeBackoffSpeed);
}

void axisStartAbsolute(StepperAxis &ax, const char* nombre, long machineTarget) {
  if (!ax.homed) {
    Serial.printf("%s -> primero haz HOME\n", nombre);
    return;
  }

  machineTarget = clampLong(machineTarget, 0, ax.rangeSteps);
  long logicalTarget = axisLogicalFromMachine(ax, machineTarget);

  axisConfigureMove(ax, ax.maxSpeed, ax.accel);
  ax.stepper->moveTo(logicalTarget);
  ax.targetMachinePos = machineTarget;
  ax.homePhase = HOME_IDLE;
  ax.jogMode = false;

  Serial.printf("%s -> movimiento absoluto a %ld\n", nombre, machineTarget);
}

void axisStartRelative(StepperAxis &ax, const char* nombre, long delta) {
  if (!ax.homed) {
    Serial.printf("%s -> primero haz HOME\n", nombre);
    return;
  }

  long currentMachine = axisMachinePosition(ax);
  long targetMachine = clampLong(currentMachine + delta, 0, ax.rangeSteps);

  if (targetMachine == currentMachine) {
    Serial.printf("%s -> ya esta en el limite permitido\n", nombre);
    return;
  }

  axisStartAbsolute(ax, nombre, targetMachine);
}

void axisStartJog(StepperAxis &ax, const char* nombre, int8_t coordDir) {
  if (!ax.homed) {
    Serial.printf("%s -> primero haz HOME\n", nombre);
    return;
  }

  axisConfigureMove(ax, ax.maxSpeed, ax.accel);

  long farTarget = (coordDir > 0) ? ax.rangeSteps : 0;
  long logicalTarget = axisLogicalFromMachine(ax, farTarget);

  ax.stepper->moveTo(logicalTarget);
  ax.targetMachinePos = farTarget;
  ax.homePhase = HOME_IDLE;
  ax.jogMode = true;

  Serial.printf("%s -> JOG %s\n", nombre, (coordDir > 0 ? "+" : "-"));
}

void axisUpdateHomeQuiet(StepperAxis &ax, const char* nombre) {
  switch (ax.homePhase) {
    case HOME_IDLE:
      return;

    case HOME_RELEASE:
      ax.stepper->runSpeed();
      if (!axisLimitActive(ax)) {
        ax.homePhase = HOME_SEEK_FAST;
        ax.stepper->setSpeed(axisLogicalSpeedTowardHome(ax, ax.homeFastSpeed));
        ax.homePhaseStartPos = ax.stepper->currentPosition();
        Serial.printf("%s -> switch liberado, búsqueda rápida.\n", nombre);
      } else {
        long delta = labs(ax.stepper->currentPosition() - ax.homePhaseStartPos);
        if (delta > HOME_RELEASE_MAX_STEPS) {
          ax.homePhase = HOME_IDLE;
          Serial.printf("%s -> ERROR liberando switch.\n", nombre);
        }
      }
      return;

    case HOME_SEEK_FAST:
      ax.stepper->runSpeed();
      if (axisLimitActive(ax)) {
        ax.homePhase = HOME_BACKOFF;
        ax.stepper->setSpeed(axisLogicalSpeedAwayFromHome(ax, ax.homeBackoffSpeed));
        ax.homePhaseStartPos = ax.stepper->currentPosition();
        Serial.printf("%s -> switch tocado, retroceso.\n", nombre);
      } else {
        long delta = labs(ax.stepper->currentPosition() - ax.homePhaseStartPos);
        if (delta > HOME_SEARCH_STEPS) {
          ax.homePhase = HOME_IDLE;
          Serial.printf("%s -> ERROR no encontró home.\n", nombre);
        }
      }
      return;

    case HOME_BACKOFF:
      ax.stepper->runSpeed();
      if (!axisLimitActive(ax)) {
        ax.homePhase = HOME_SEEK_SLOW;
        ax.stepper->setSpeed(axisLogicalSpeedTowardHome(ax, ax.homeSlowSpeed));
        ax.homePhaseStartPos = ax.stepper->currentPosition();
        Serial.printf("%s -> búsqueda lenta final.\n", nombre);
      } else {
        long delta = labs(ax.stepper->currentPosition() - ax.homePhaseStartPos);
        if (delta > HOME_RELEASE_MAX_STEPS) {
          ax.homePhase = HOME_IDLE;
          Serial.printf("%s -> ERROR en backoff.\n", nombre);
        }
      }
      return;

    case HOME_SEEK_SLOW:
      ax.stepper->runSpeed();
      if (axisLimitActive(ax)) {
        axisSetAtHome(ax);
        Serial.printf("%s -> HOME completo, posición = 0\n", nombre);
      } else {
        long delta = labs(ax.stepper->currentPosition() - ax.homePhaseStartPos);
        if (delta > HOME_RELEASE_MAX_STEPS) {
          ax.homePhase = HOME_IDLE;
          Serial.printf("%s -> ERROR en búsqueda lenta.\n", nombre);
        }
      }
      return;
  }
}

void axisUpdate(StepperAxis &ax, const char* nombre) {
  if (ax.homePhase != HOME_IDLE) {
    axisUpdateHomeQuiet(ax, nombre);
    return;
  }

  long currentMachine = axisMachinePosition(ax);

  if (currentMachine < 0) {
    ax.stepper->setCurrentPosition(axisLogicalFromMachine(ax, 0));
    ax.stepper->moveTo(axisLogicalFromMachine(ax, 0));
    currentMachine = 0;
  }

  if (currentMachine > ax.rangeSteps) {
    ax.stepper->setCurrentPosition(axisLogicalFromMachine(ax, ax.rangeSteps));
    ax.stepper->moveTo(axisLogicalFromMachine(ax, ax.rangeSteps));
    currentMachine = ax.rangeSteps;
  }

  ax.stepper->run();

  if (ax.jogMode) {
    long p = axisMachinePosition(ax);

    if (p <= 0 && ax.targetMachinePos == 0) {
      ax.stepper->setCurrentPosition(axisLogicalFromMachine(ax, 0));
      ax.stepper->moveTo(axisLogicalFromMachine(ax, 0));
      ax.jogMode = false;
      Serial.printf("%s -> jog detenido en home\n", nombre);
      return;
    }

    if (p >= ax.rangeSteps && ax.targetMachinePos == ax.rangeSteps) {
      ax.stepper->setCurrentPosition(axisLogicalFromMachine(ax, ax.rangeSteps));
      ax.stepper->moveTo(axisLogicalFromMachine(ax, ax.rangeSteps));
      ax.jogMode = false;
      Serial.printf("%s -> jog detenido en maximo\n", nombre);
      return;
    }
  }
}

// =====================================================
// SECUENCIAS AUTOMATICAS
// =====================================================
void startRemoveCupSequence() {
  if (autoSequenceActive()) return;
  autoSeqState = AUTOSEQ_REMOVE_HOME_Z;
  autoSeqStepStarted = false;
  Serial.println("[AUTO] Iniciando REMOVE CUP");
}

void startReturnCupSequence() {
  if (autoSequenceActive()) return;
  autoSeqState = AUTOSEQ_RETURN_HOME_Z;
  autoSeqStepStarted = false;
  Serial.println("[AUTO] Iniciando RETURN CUP");
}

void updateAutoSequence() {
  switch (autoSeqState) {
    case AUTOSEQ_NONE:
      break;

    case AUTOSEQ_STARTUP_HOME_Z:
      if (!autoSeqStepStarted) {
        Serial.println("[AUTO] Startup: seteo suave eje Z");
        axisStartQuietHome(axis1, "Z/M1",
                           STARTUP_HOME_FAST_SPEED,
                           STARTUP_HOME_SLOW_SPEED,
                           STARTUP_HOME_BACKOFF_SPEED);
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis1)) {
        if (!axis1.homed) {
          Serial.println("[AUTO] ERROR: home startup Z falló.");
          autoSeqState = AUTOSEQ_NONE;
        } else {
          autoSeqState = AUTOSEQ_STARTUP_HOME_Y;
          autoSeqStepStarted = false;
        }
      }
      break;

    case AUTOSEQ_STARTUP_HOME_Y:
      if (!autoSeqStepStarted) {
        Serial.println("[AUTO] Startup: seteo suave eje Y");
        axisStartQuietHome(axis2, "Y/M2",
                           STARTUP_HOME_FAST_SPEED,
                           STARTUP_HOME_SLOW_SPEED,
                           STARTUP_HOME_BACKOFF_SPEED);
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis2)) {
        if (!axis2.homed) {
          Serial.println("[AUTO] ERROR: home startup Y falló.");
          autoSeqState = AUTOSEQ_NONE;
        } else {
          startupHomingDone = true;
          autoSeqState = AUTOSEQ_NONE;
          autoSeqStepStarted = false;
          Serial.println("[AUTO] Startup completo. Ambos ejes en origen.");
        }
      }
      break;

    case AUTOSEQ_REMOVE_HOME_Z:
      if (!autoSeqStepStarted) {
        axisStartHome(axis1, "Z/M1");
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis1)) {
        if (!axis1.homed) {
          Serial.println("[AUTO] ERROR: home Z en REMOVE CUP falló.");
          autoSeqState = AUTOSEQ_NONE;
        } else {
          autoSeqState = AUTOSEQ_REMOVE_HOME_Y;
          autoSeqStepStarted = false;
        }
      }
      break;

    case AUTOSEQ_REMOVE_HOME_Y:
      if (!autoSeqStepStarted) {
        axisStartHome(axis2, "Y/M2");
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis2)) {
        if (!axis2.homed) {
          Serial.println("[AUTO] ERROR: home Y en REMOVE CUP falló.");
          autoSeqState = AUTOSEQ_NONE;
        } else {
          autoSeqState = AUTOSEQ_REMOVE_MOVE_Y_MAX;
          autoSeqStepStarted = false;
        }
      }
      break;

    case AUTOSEQ_REMOVE_MOVE_Y_MAX:
      if (!autoSeqStepStarted) {
        axisStartAbsolute(axis2, "Y/M2", axis2.rangeSteps);
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis2)) {
        autoSeqState = AUTOSEQ_NONE;
        autoSeqStepStarted = false;
        Serial.println("[AUTO] REMOVE CUP completado.");
      }
      break;

    case AUTOSEQ_RETURN_HOME_Z:
      if (!autoSeqStepStarted) {
        axisStartHome(axis1, "Z/M1");
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis1)) {
        if (!axis1.homed) {
          Serial.println("[AUTO] ERROR: home Z en RETURN CUP falló.");
          autoSeqState = AUTOSEQ_NONE;
        } else {
          autoSeqState = AUTOSEQ_RETURN_MOVE_Y_NEAR_HOME;
          autoSeqStepStarted = false;
        }
      }
      break;

    case AUTOSEQ_RETURN_MOVE_Y_NEAR_HOME:
      if (!autoSeqStepStarted) {
        axisStartAbsolute(axis2, "Y/M2", M2_RETURN_CUP_Y_STEPS);
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis2)) {
        autoSeqState = AUTOSEQ_RETURN_MOVE_Z_MAX;
        autoSeqStepStarted = false;
      }
      break;

    case AUTOSEQ_RETURN_MOVE_Z_MAX:
      if (!autoSeqStepStarted) {
        // aquí Z se aleja del final y sube al máximo
        axisStartAbsolute(axis1, "Z/M1", axis1.rangeSteps);
        autoSeqStepStarted = true;
      }
      if (!axisIsBusy(axis1)) {
        autoSeqState = AUTOSEQ_NONE;
        autoSeqStepStarted = false;
        Serial.println("[AUTO] RETURN CUP completado.");
      }
      break;
  }
}

// =====================================================
// CUP EVENTS
// =====================================================
void handleCupRemove() {
  if (!cupRemovePulse) return;
  if (!startupHomingDone) return;
  if (autoSequenceActive()) return;

  cupRemovePulse = false;
  startRemoveCupSequence();
}

void handleCupReturn() {
  if (!cupReturnPulse) return;
  if (!startupHomingDone) return;
  if (autoSequenceActive()) return;

  cupReturnPulse = false;
  startReturnCupSequence();
}

// =====================================================
// REPORTE GENERAL
// =====================================================
void reportarEstadoSistema() {
  if (millis() - tReporte < INTERVALO_REPORTE_MS) return;
  tReporte = millis();

  long pos1 = axisMachinePosition(axis1);
  long pos2 = axisMachinePosition(axis2);

  Serial.printf(
    "PUERTA:%s | REQ_MOTOR:%u/%u | APP_MOTOR:%u/%u | REQ_IRIS:%u | APP_IRIS:%u | SERVO:%d/%d | "
    "FC1:%s POS1:%ld/%ld HOMED1:%d BUSY1:%d | "
    "FC2:%s POS2:%ld/%ld HOMED2:%d BUSY2:%d | AUTOSEQ:%d\n",
    puertaCerradaEstable ? "CERRADA" : "ABIERTA",
    requestedMotorPct, requestedDir,
    appliedMotorPct, appliedDir,
    requestedIrisPct, appliedIrisPct,
    servoAnguloActual, servoAnguloObjetivo,
    axisLimitActive(axis1) ? "ACT" : "LIB",
    pos1, axis1.rangeSteps, axis1.homed ? 1 : 0, axisIsBusy(axis1) ? 1 : 0,
    axisLimitActive(axis2) ? "ACT" : "LIB",
    pos2, axis2.rangeSteps, axis2.homed ? 1 : 0, axisIsBusy(axis2) ? 1 : 0,
    (int)autoSeqState
  );
}

// =====================================================
// COMANDOS SERIAL DEBUG
// =====================================================
void imprimirAyuda() {
  Serial.println("===== COMANDOS =====");
  Serial.println("Motor DC:");
  Serial.println("  D100");
  Serial.println("  I50");
  Serial.println("  D0");
  Serial.println("");
  Serial.println("Servo:");
  Serial.println("  ABRIR");
  Serial.println("  CERRAR");
  Serial.println("  ANG90");
  Serial.println("  IRIS60");
  Serial.println("");
  Serial.println("Steppers:");
  Serial.println("  HOME1");
  Serial.println("  HOME2");
  Serial.println("  P1+1000");
  Serial.println("  P1-500");
  Serial.println("  P2+1000");
  Serial.println("  P2-500");
  Serial.println("  J1+ / J1-");
  Serial.println("  J2+ / J2-");
  Serial.println("  STOP1");
  Serial.println("  STOP2");
  Serial.println("");
  Serial.println("Secuencias:");
  Serial.println("  REMOVECUP");
  Serial.println("  RETURNCUP");
  Serial.println("");
  Serial.println("General:");
  Serial.println("  ESTADO");
  Serial.println("  AYUDA");
}

void imprimirEstadoUnaVez() {
  long pos1 = axisMachinePosition(axis1);
  long pos2 = axisMachinePosition(axis2);

  Serial.printf(
    "PUERTA:%s | REQ_MOTOR:%u/%u | APP_MOTOR:%u/%u | REQ_IRIS:%u | APP_IRIS:%u | SERVO:%d/%d | "
    "FC1:%s POS1:%ld/%ld HOMED1:%d BUSY1:%d | "
    "FC2:%s POS2:%ld/%ld HOMED2:%d BUSY2:%d | AUTOSEQ:%d\n",
    puertaCerradaEstable ? "CERRADA" : "ABIERTA",
    requestedMotorPct, requestedDir,
    appliedMotorPct, appliedDir,
    requestedIrisPct, appliedIrisPct,
    servoAnguloActual, servoAnguloObjetivo,
    axisLimitActive(axis1) ? "ACT" : "LIB",
    pos1, axis1.rangeSteps, axis1.homed ? 1 : 0, axisIsBusy(axis1) ? 1 : 0,
    axisLimitActive(axis2) ? "ACT" : "LIB",
    pos2, axis2.rangeSteps, axis2.homed ? 1 : 0, axisIsBusy(axis2) ? 1 : 0,
    (int)autoSeqState
  );
}

void procesarComando(const char* cmdOriginal) {
  if (cmdOriginal == nullptr || cmdOriginal[0] == '\0') return;

  char cmd[40];
  strncpy(cmd, cmdOriginal, sizeof(cmd) - 1);
  cmd[sizeof(cmd) - 1] = '\0';
  toUpperInPlace(cmd);

  if (strcmp(cmd, "ABRIR") == 0) {
    abrirCompuerta();
    return;
  }

  if (strcmp(cmd, "CERRAR") == 0) {
    cerrarCompuerta();
    return;
  }

  if (strcmp(cmd, "REMOVECUP") == 0) {
    cupRemovePulse = true;
    return;
  }

  if (strcmp(cmd, "RETURNCUP") == 0) {
    cupReturnPulse = true;
    return;
  }

  if (strncmp(cmd, "IRIS", 4) == 0) {
    char* endPtr = nullptr;
    long pct = strtol(cmd + 4, &endPtr, 10);

    if (endPtr == cmd + 4 || *endPtr != '\0') {
      Serial.println("Formato invalido. Usa IRIS60");
      return;
    }

    pct = clampLong(pct, 0, 100);
    requestedIrisPct = (uint8_t)pct;
    applyIris();
    lastIssuedIrisPct = requestedIrisPct;
    return;
  }

  if (strncmp(cmd, "ANG", 3) == 0) {
    char* endPtr = nullptr;
    long ang = strtol(cmd + 3, &endPtr, 10);

    if (endPtr == cmd + 3 || *endPtr != '\0') {
      Serial.println("Formato invalido. Usa ANG90");
      return;
    }

    if (ang < 0 || ang > 180) {
      Serial.println("Angulo invalido. 0 a 180.");
      return;
    }

    moverServoA((int)ang);
    return;
  }

  if (autoSequenceActive()) {
    if (strcmp(cmd, "HOME1") == 0 || strcmp(cmd, "HOME2") == 0 ||
        strcmp(cmd, "J1+") == 0 || strcmp(cmd, "J1-") == 0 ||
        strcmp(cmd, "J2+") == 0 || strcmp(cmd, "J2-") == 0 ||
        strcmp(cmd, "STOP1") == 0 || strcmp(cmd, "STOP2") == 0 ||
        strncmp(cmd, "P1", 2) == 0 || strncmp(cmd, "P2", 2) == 0) {
      Serial.println("Secuencia automática activa. Espera a que termine.");
      return;
    }
  }

  if (strcmp(cmd, "HOME1") == 0) {
    axisStartHome(axis1, "M1");
    return;
  }

  if (strcmp(cmd, "HOME2") == 0) {
    axisStartHome(axis2, "M2");
    return;
  }

  if (strcmp(cmd, "J1+") == 0) {
    axisStartJog(axis1, "M1", +1);
    return;
  }

  if (strcmp(cmd, "J1-") == 0) {
    axisStartJog(axis1, "M1", -1);
    return;
  }

  if (strcmp(cmd, "J2+") == 0) {
    axisStartJog(axis2, "M2", +1);
    return;
  }

  if (strcmp(cmd, "J2-") == 0) {
    axisStartJog(axis2, "M2", -1);
    return;
  }

  if (strcmp(cmd, "STOP1") == 0) {
    axisStopImmediate(axis1);
    Serial.println("M1 detenido");
    return;
  }

  if (strcmp(cmd, "STOP2") == 0) {
    axisStopImmediate(axis2);
    Serial.println("M2 detenido");
    return;
  }

  if (strncmp(cmd, "P1", 2) == 0) {
    char* endPtr = nullptr;
    long delta = strtol(cmd + 2, &endPtr, 10);

    if (endPtr == cmd + 2 || *endPtr != '\0') {
      Serial.println("Formato invalido. Usa P1+1000 o P1-500");
      return;
    }

    axisStartRelative(axis1, "M1", delta);
    return;
  }

  if (strncmp(cmd, "P2", 2) == 0) {
    char* endPtr = nullptr;
    long delta = strtol(cmd + 2, &endPtr, 10);

    if (endPtr == cmd + 2 || *endPtr != '\0') {
      Serial.println("Formato invalido. Usa P2+1000 o P2-500");
      return;
    }

    axisStartRelative(axis2, "M2", delta);
    return;
  }

  if (cmd[0] == 'D' || cmd[0] == 'I') {
    char* endPtr = nullptr;
    long valor = strtol(cmd + 1, &endPtr, 10);

    if (endPtr == cmd + 1 || *endPtr != '\0') {
      Serial.println("Formato invalido. Ejemplos: D50, I100, D0");
      return;
    }

    if (valor < 0 || valor > 100) {
      Serial.println("Valor invalido. Debe estar entre 0 y 100");
      return;
    }

    requestedMotorPct = (uint8_t)valor;
    requestedDir      = (cmd[0] == 'D') ? 0 : 1;
    applyCrusherMotor();
    lastIssuedMotorPct = requestedMotorPct;
    lastIssuedDir = requestedDir;
    return;
  }

  if (strcmp(cmd, "ESTADO") == 0) {
    imprimirEstadoUnaVez();
    return;
  }

  if (strcmp(cmd, "AYUDA") == 0) {
    imprimirAyuda();
    return;
  }

  Serial.println("Comando no reconocido. Escribe AYUDA.");
}

void leerSerialNoBloqueante() {
  while (Serial.available() > 0) {
    char ch = Serial.read();

    if (ch == '\n' || ch == '\r') {
      if (idxRx > 0) {
        bufferRx[idxRx] = '\0';
        procesarComando(bufferRx);
        idxRx = 0;
      }
    } else if (ch == ' ' || ch == '\t') {
      // ignorar
    } else {
      if (idxRx < sizeof(bufferRx) - 1) {
        bufferRx[idxRx++] = ch;
      } else {
        idxRx = 0;
        Serial.println("Comando demasiado largo");
      }
    }
  }
}

// =====================================================
// SETUP AXIS
// =====================================================
void setupAxis(
  StepperAxis &ax,
  AccelStepper* stepperObj,
  uint8_t stepPin,
  uint8_t dirPin,
  uint8_t limitPin,
  bool limitActiveLevel,
  bool invertDir,
  int8_t homeDir,
  float runSpeed,
  float runAccel,
  long rangeSteps,
  float homeFast,
  float homeSlow,
  float homeBackoff
) {
  ax.stepper = stepperObj;
  ax.stepPin = stepPin;
  ax.dirPin = dirPin;
  ax.limitPin = limitPin;
  ax.limitActiveLevel = limitActiveLevel;
  ax.invertDir = invertDir;
  ax.homeDir = homeDir;
  ax.maxSpeed = runSpeed;
  ax.accel = runAccel;
  ax.rangeSteps = rangeSteps;
  ax.homeFastSpeed = homeFast;
  ax.homeSlowSpeed = homeSlow;
  ax.homeBackoffSpeed = homeBackoff;

  pinMode(ax.limitPin, INPUT);

  ax.stepper->setPinsInverted(ax.invertDir, false, false);
  ax.stepper->setMaxSpeed(ax.maxSpeed);
  ax.stepper->setAcceleration(ax.accel);
  ax.stepper->setMinPulseWidth(4);
  ax.stepper->setCurrentPosition(0);
  ax.targetMachinePos = 0;
  ax.homePhase = HOME_IDLE;
}

// =====================================================
// SETUP / LOOP
// =====================================================
void setup() {
  Serial.begin(115200);

  NextionSerial.begin(NEXTION_BAUD, SERIAL_8N1, NEXTION_RX_PIN, NEXTION_TX_PIN);

  bool ok1 = ledcAttach(PIN_RPWM, PWM_FREQ_MOTOR, PWM_RES_MOTOR);
  bool ok2 = ledcAttach(PIN_LPWM, PWM_FREQ_MOTOR, PWM_RES_MOTOR);
  bool ok3 = ledcAttach(PIN_SERVO, PWM_FREQ_SERVO, PWM_RES_SERVO);

  if (!ok1 || !ok2 || !ok3) {
    Serial.println("Error configurando PWM LEDC");
    while (true) {}
  }

  pinMode(PIN_PUERTA, INPUT_PULLUP);

  bool estadoInicialPuerta = leerPuertaCrudaCerrada();
  puertaCerradaRaw = estadoInicialPuerta;
  puertaCerradaRawAnterior = estadoInicialPuerta;
  puertaCerradaEstable = estadoInicialPuerta;

  setupAxis(axis1, &stepper1, M1_STEP_PIN, M1_DIR_PIN, M1_LIMIT_PIN,
            LIMIT1_ACTIVE_LEVEL, M1_INVERT_DIR, M1_HOME_DIR,
            M1_MAX_SPEED, M1_ACCEL, M1_RANGE_STEPS,
            M1_HOME_FAST_SPEED, M1_HOME_SLOW_SPEED, M1_HOME_BACKOFF_SPEED);

  setupAxis(axis2, &stepper2, M2_STEP_PIN, M2_DIR_PIN, M2_LIMIT_PIN,
            LIMIT2_ACTIVE_LEVEL, M2_INVERT_DIR, M2_HOME_DIR,
            M2_MAX_SPEED, M2_ACCEL, M2_RANGE_STEPS,
            M2_HOME_FAST_SPEED, M2_HOME_SLOW_SPEED, M2_HOME_BACKOFF_SPEED);

  tCambioPuerta = millis();
  tReporte = 0;
  tRampa = millis();
  tServo = millis();
  tNextionFeedback = 0;

  servoAnguloActual = clampInt(SERVO_ANGULO_CERRADO, 0, 180);
  servoAnguloObjetivo = servoAnguloActual;
  escribirServoAngulo(servoAnguloActual);

  requestedIrisPct = 0;
  appliedIrisPct = 0;

  apagarMotorPorSeguridad();

  lastDoorFeedbackSent = -1;

  autoSeqState = AUTOSEQ_STARTUP_HOME_Z;
  autoSeqStepStarted = false;
  startupHomingDone = false;

  Serial.println("Sistema listo.");
  Serial.println("UART Nextion lista en GPIO23(RX) y GPIO25(TX)");
  Serial.println("Steppers con AccelStepper.");
  Serial.println("Home silencioso con runSpeed(): liberar -> buscar -> retroceder -> buscar lento.");
  Serial.println("Microstepping 1/16 aplicado a ambos ejes.");
  imprimirAyuda();
  Serial.printf("Estado inicial puerta: %s\n",
                puertaCerradaEstable ? "CERRADA" : "ABIERTA");
  Serial.printf("Servo inicial: %d grados\n", servoAnguloActual);
  Serial.printf("M1_RANGE_STEPS = %ld\n", M1_RANGE_STEPS);
  Serial.printf("M2_RANGE_STEPS = %ld\n", M2_RANGE_STEPS);
  Serial.printf("M2_RETURN_CUP_Y_STEPS = %ld\n", M2_RETURN_CUP_Y_STEPS);
}

void loop() {
  leerSerialNoBloqueante();
  readNextionFrames();
  actualizarPuerta();
  updateAutoSequence();
  applyRequestedStateIfChanged();
  actualizarRampaMotor();
  actualizarServo();
  handleCupRemove();
  handleCupReturn();
  axisUpdate(axis1, "M1");
  axisUpdate(axis2, "M2");
  updateHmiFeedback();
  reportarEstadoSistema();
