Week 15

Week 15: System Integration

Packaging TrailNAV as a system

I worked on the enclosure for TrailNAV, including the display opening, solar-panel fit and wire preparation. The purpose of integration is to make the parts work together inside a usable assembly: components need support, connections need access, and the cover needs to close without trapping wires.

The photographs document the enclosure and fitting work. The final PCB arrangement, complete power circuit and navigation operation are still under development. The overall project is described on my final project page.

Enclosure design and component locations

I designed the front around the screen so that its active area remains visible and the surrounding structure supports the module. I also allowed space for the solar panel. These interfaces need to follow the actual component dimensions rather than only the visual layout of a presentation.

The main integration questions are where the controller and battery will be secured, how the display and panel wires will pass through the enclosure, and how the device can be opened for repair. The present record shows the external fit; the dedicated internal mounting arrangement still needs to be documented.

TrailNAV enclosure design
TrailNAV enclosure design

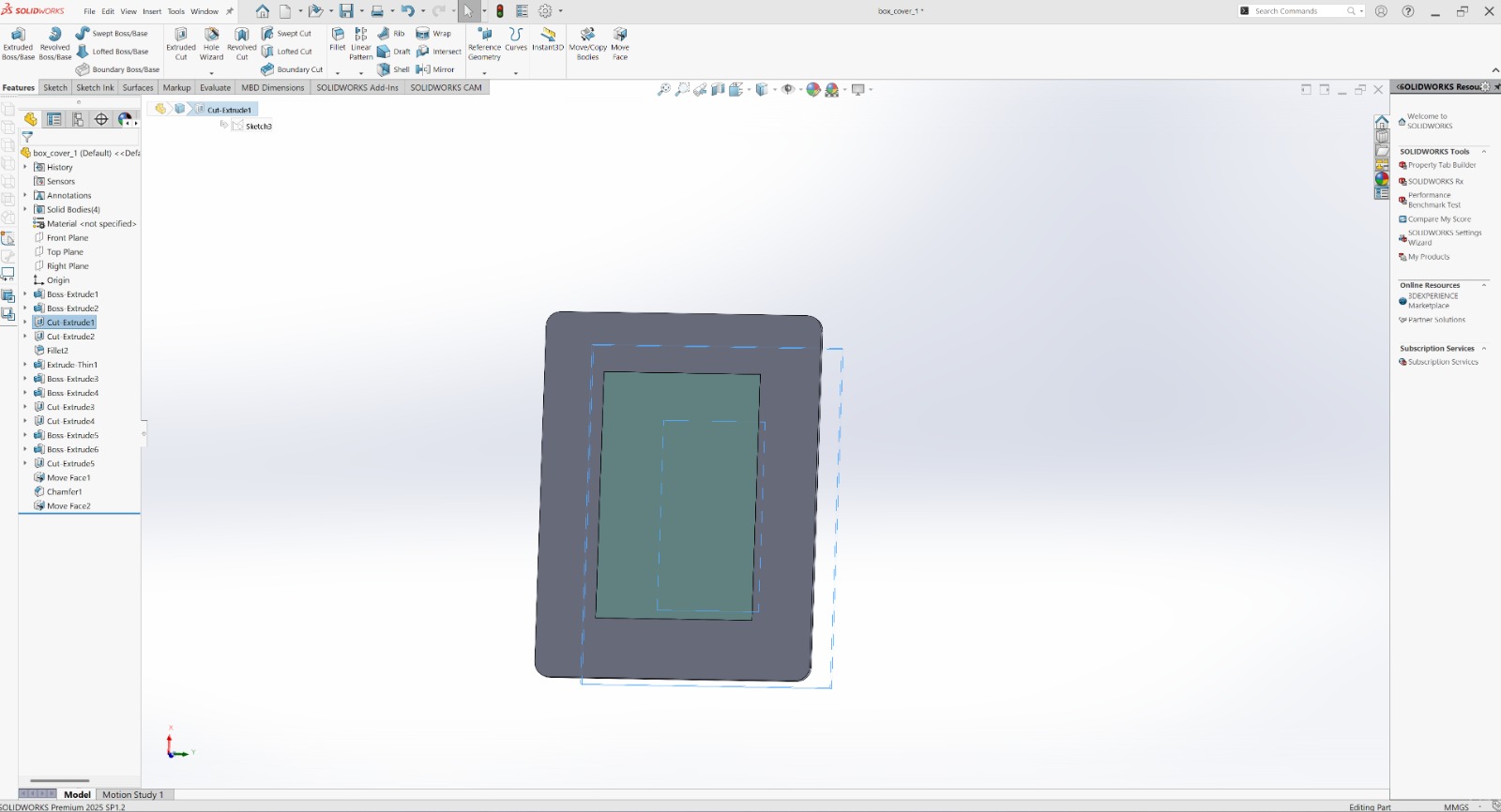

The front display opening
The front display opening

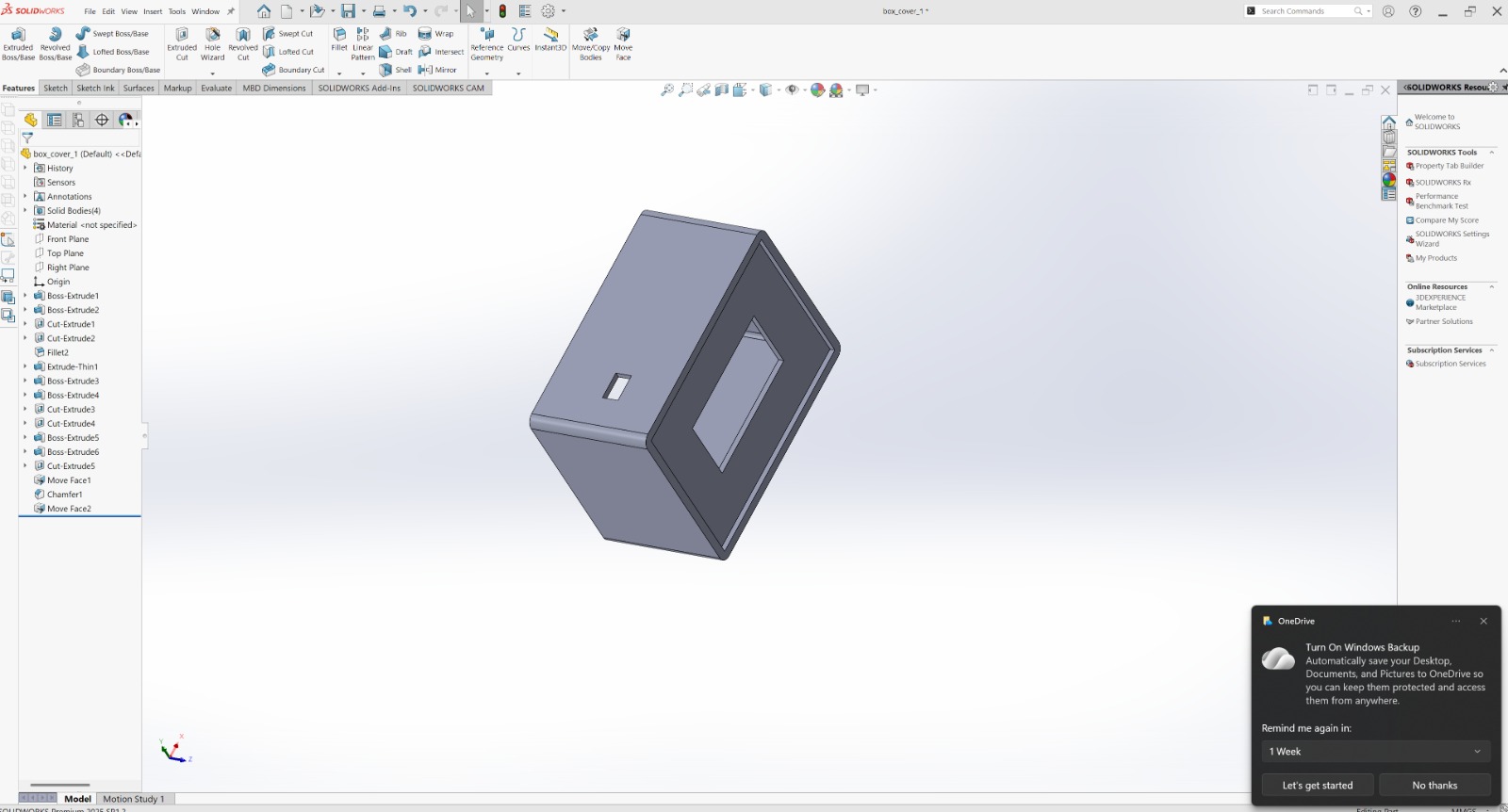

The solar-panel support feature
The solar-panel support feature

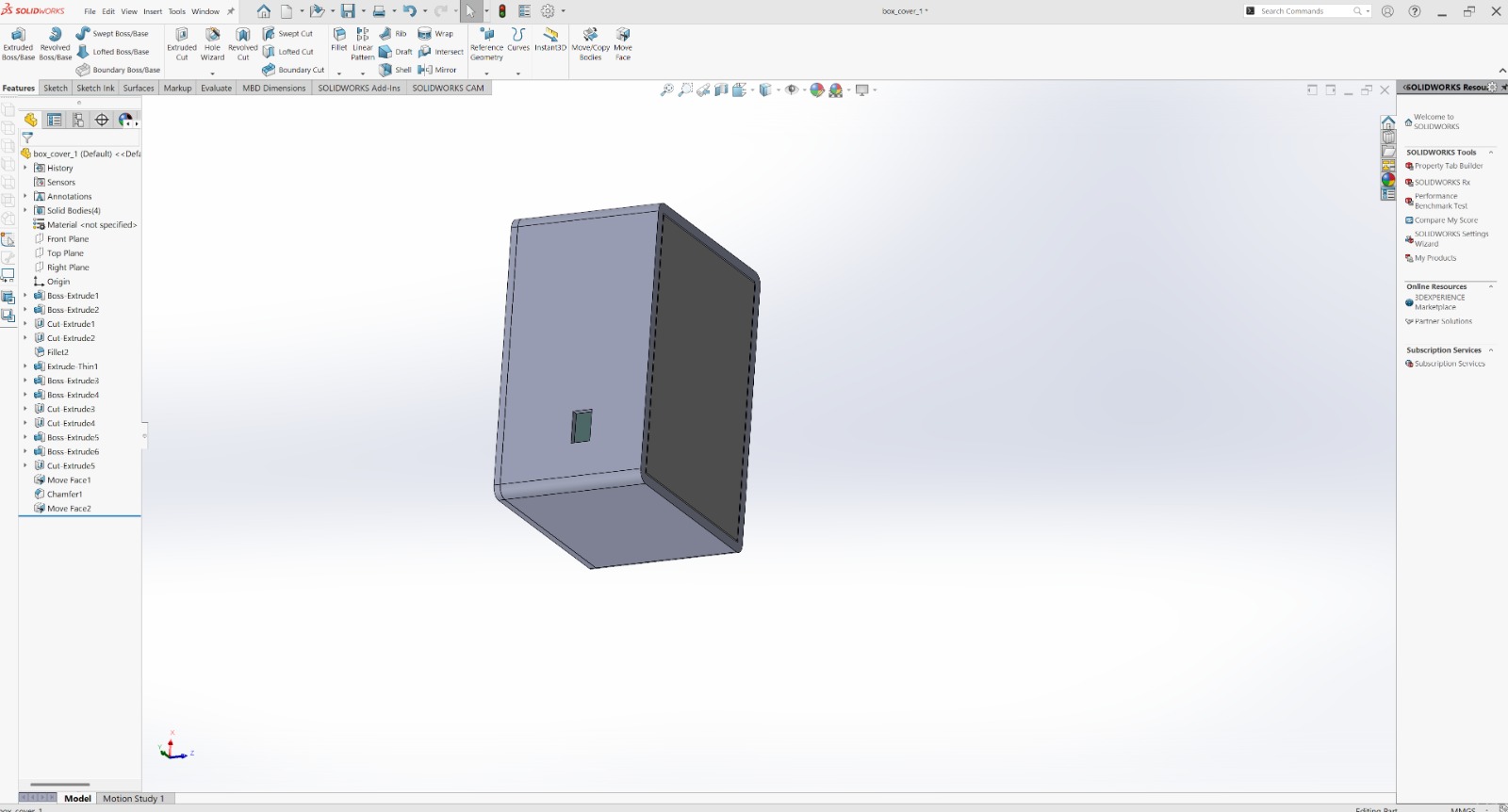

Positioning the solar panel
Positioning the solar panel

Slicing and printing the parts

I prepared the enclosure parts in the slicer and printed them. Printing separate pieces let me check the front and cover interfaces before bringing the assembly together. The process photographs show the parts in the slicer and on the printer.

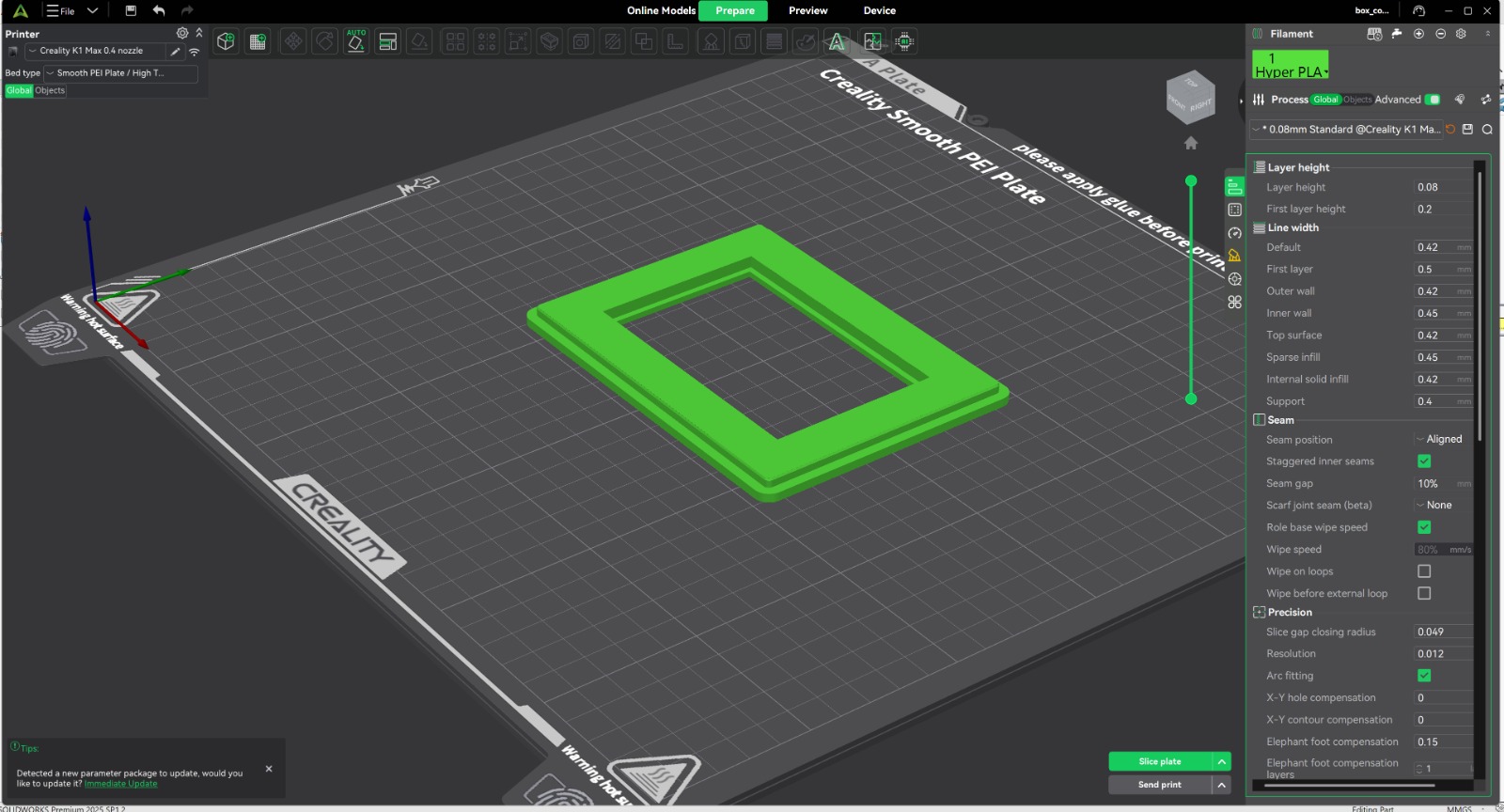

Slicing an enclosure part
Slicing an enclosure part

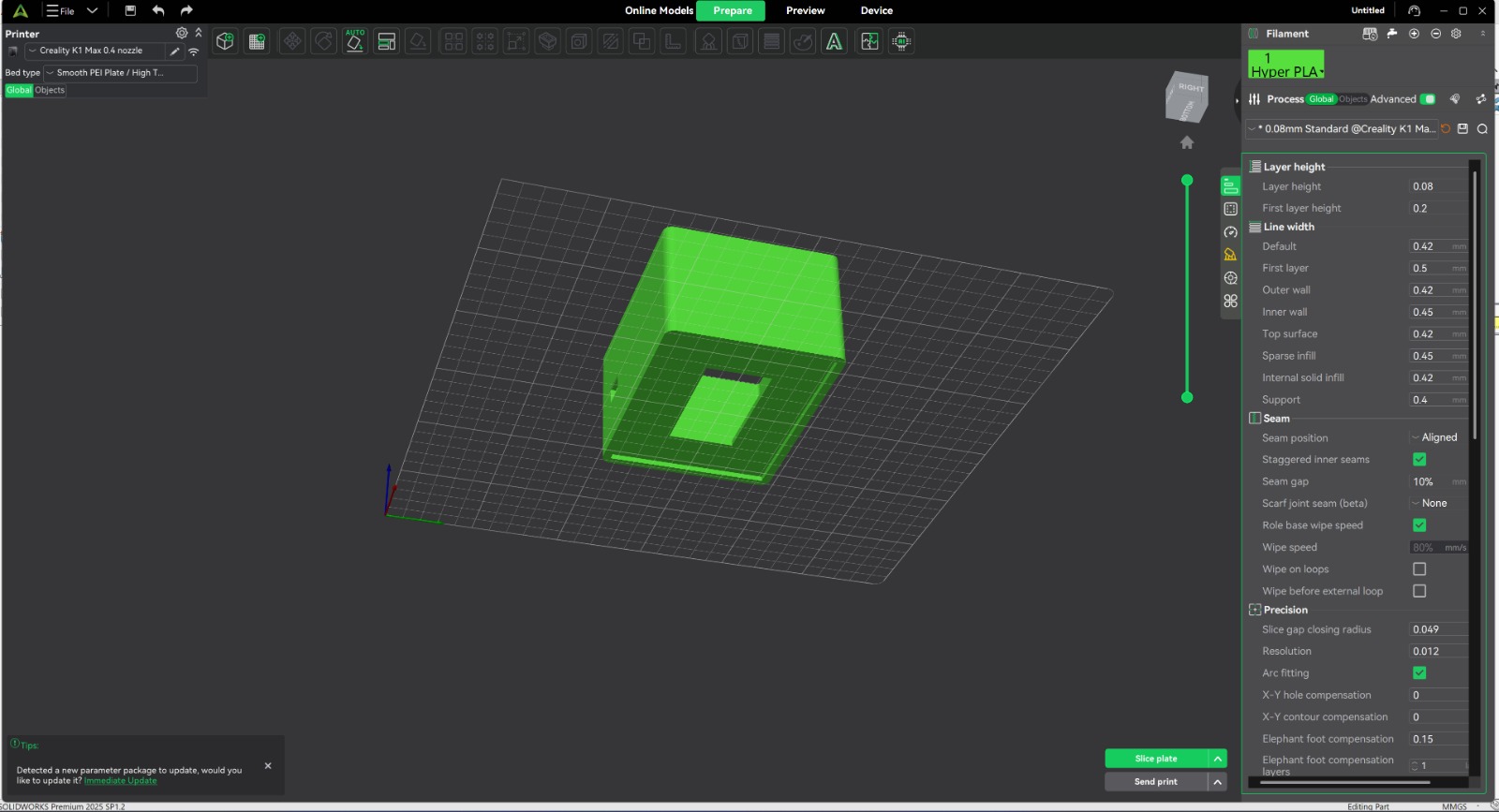

Slicing the second enclosure part
Slicing the second enclosure part

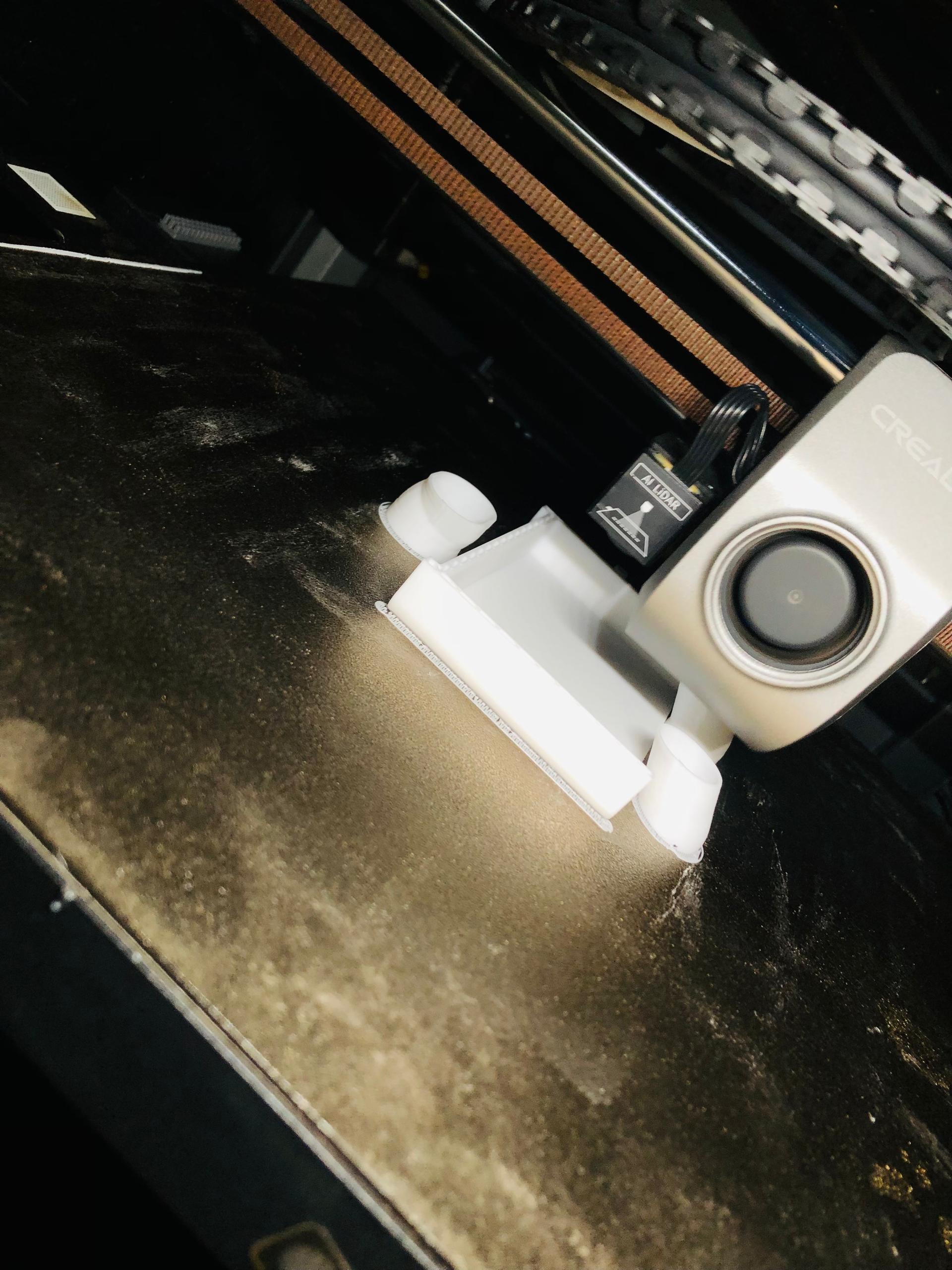

Printing the enclosure
Printing the enclosure

The editable CAD, exported part files and saved slicer settings still need to be archived with this build. I have not assigned nozzle or bed settings here without that record.

Screen and solar-panel fitting

After printing, I placed the screen and solar panel into their openings and brought the covers together. This checks alignment and the available space around the components. Fitting the panel is a mechanical step; charging performance depends on the separate electrical power circuit.

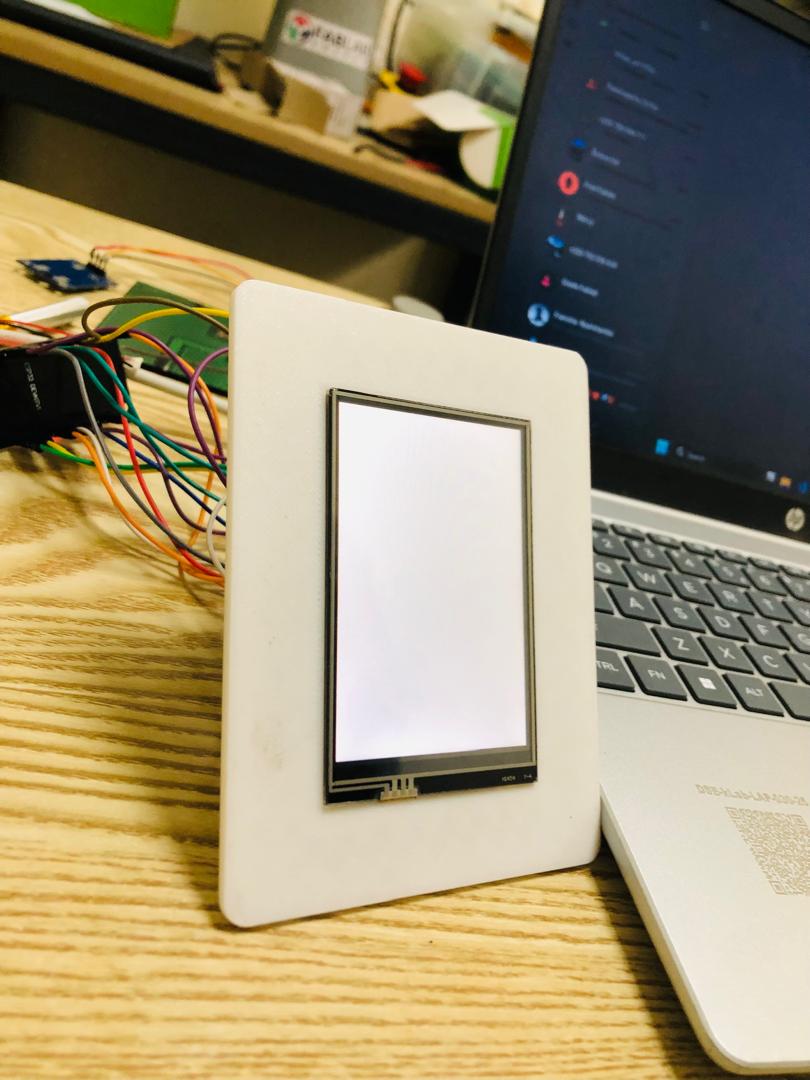

Fitting the display
Fitting the display

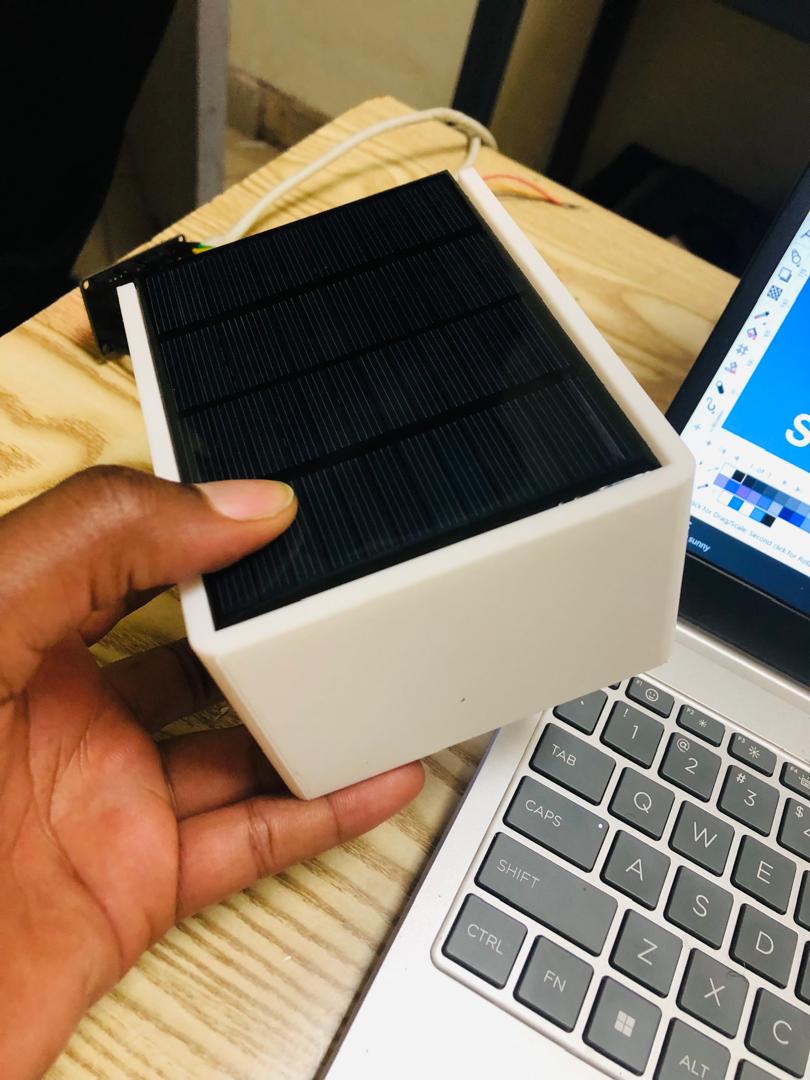

Fitting the solar panel
Fitting the solar panel

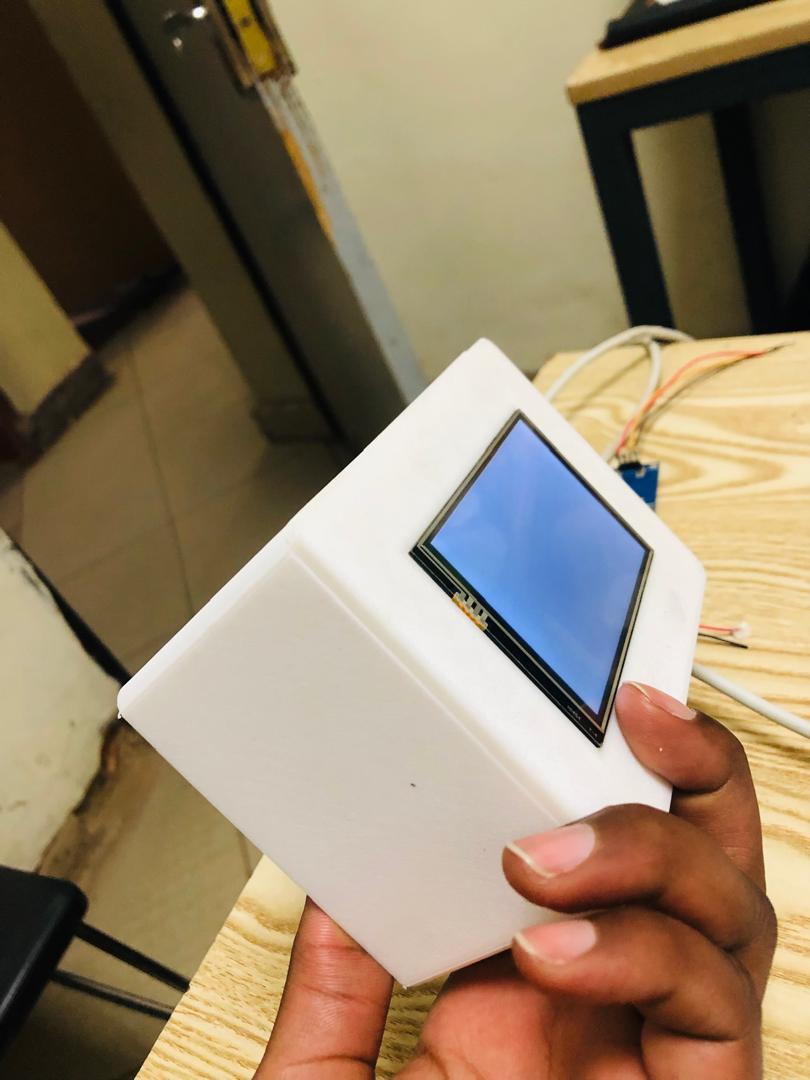

Bringing the covers together
Bringing the covers together

Wire preparation and electrical interfaces

I soldered wires for later connection to the electronics. The final arrangement needs a pin map covering the GPS, compass, display, controls and power, tied to the actual controller and display being used. The solar panel also needs an appropriate charging and regulation path to the battery and load; panel wires alone do not establish that circuit.

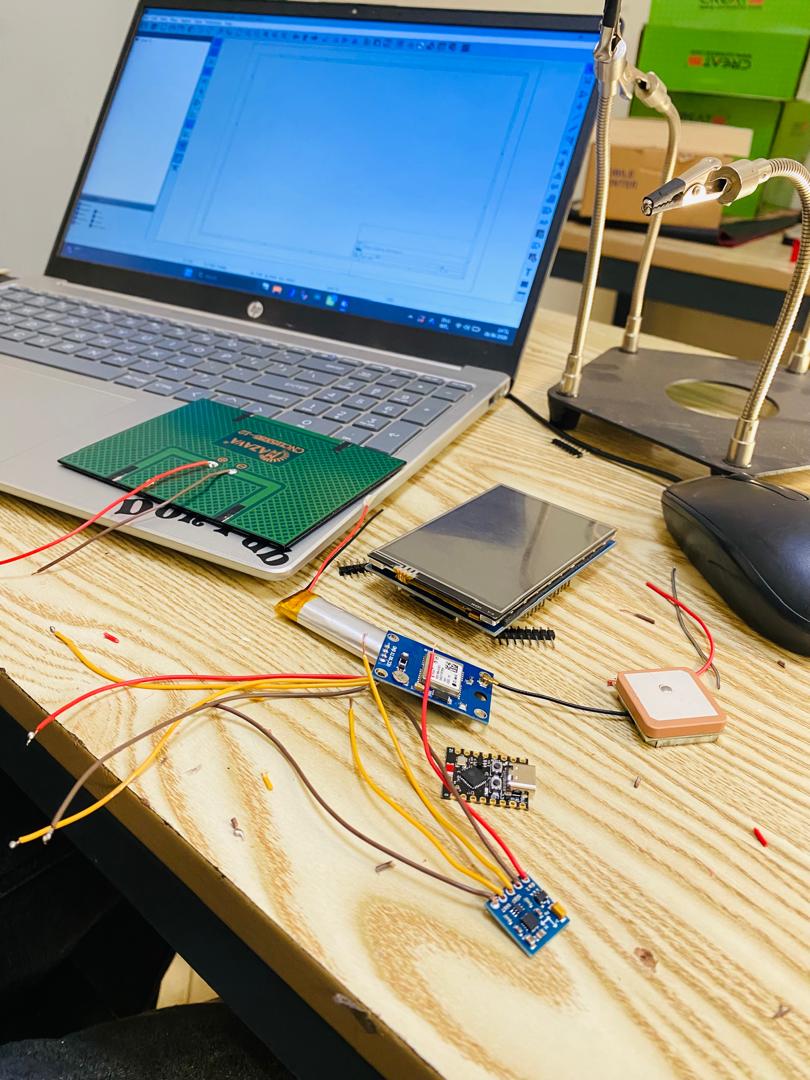

Soldering the integration wires
Soldering the integration wires
Preparing another wire connection
Preparing another wire connection

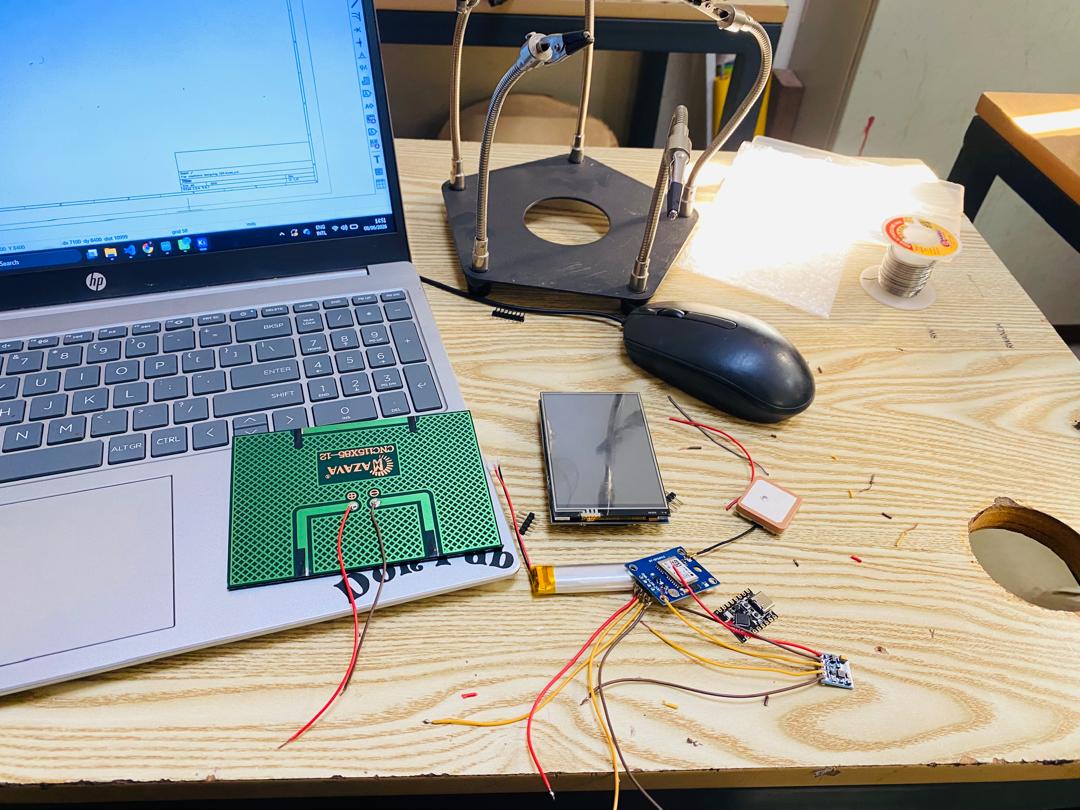

The soldered wires before integration
The soldered wires before integration

For the next assembly, I will route the wires with enough clearance for the cover and provide strain relief at the connections. Connector placement should allow the main parts to be removed without undoing unrelated solder joints.

Internal layout for the 1.3-inch OLED revision

I prepared a new Fusion enclosure for the smaller display, with Codex assistance. The corner bosses support a removable faceplate, and a printed tray lifts the electronics above a reference battery space. Cable-tie slots let me adjust the module positions, and a notch leaves space behind the save button. A separate OLED backing frame can be changed without redesigning the whole base.

Fusion interior capture of the OLED revision, showing the removable tray and cable-tie slots
My proposed internal layout. This CAD view does not show installed or tested electronics.

The side opening is service access, not a verified alignment with the controller USB socket. I still need to measure the actual GPS, OLED, battery, switch and charging board, position the final PCB, and provide the battery restraint and connector strain relief. The model is a starting assembly for those checks; it does not establish a sealed or weatherproof enclosure.

The new OLED source package and 3D viewer include the native Fusion model, faceplate DXF, printed-part STLs and first navigation firmware. I will first check the modules on USB power, then fit them and repeat the checks with the cover closed. The earlier printing and panel-fitting photographs above belong to the earlier enclosure.

Integration sequence and reflection

I plan to verify each subsystem on its own, secure it in the enclosure, then repeat its test in the assembled device. The final check needs to run with the cover closed and the intended power source, because loose bench wiring can conceal problems with access, mounting or power.

This work showed me that enclosure design is part of the functional system. A good external fit is useful progress, but the internal supports, wire routing, power arrangement and operating test determine whether the prototype can be handled as one device.
