The assignment for this week was to design, build, and connect wired or wireless nodes with network or bus addresses, as well as a local input and/or output device.

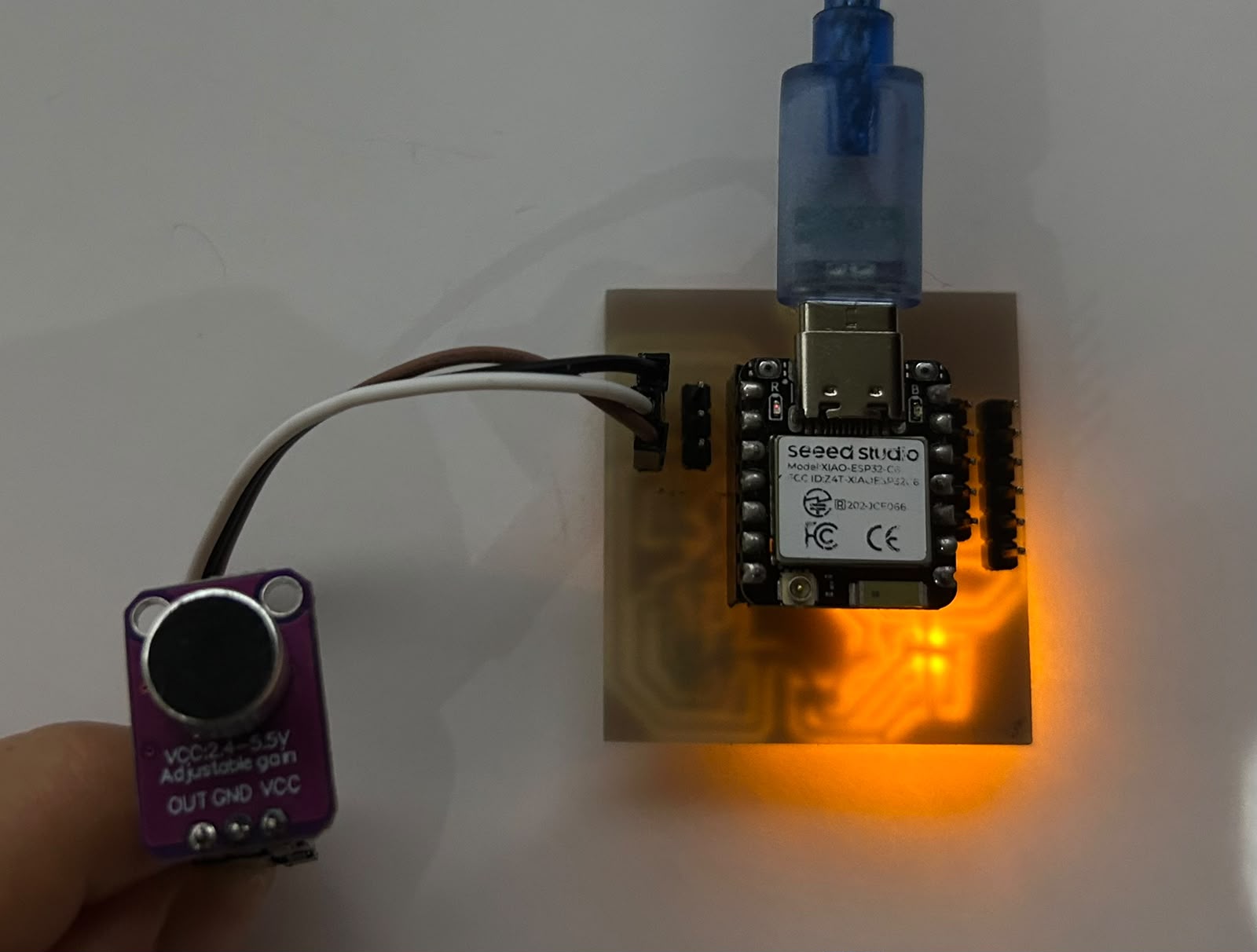

For this week, I used an IoT communication system that connects a XIAO ESP32-C6 to an HTML interface through the MQTT protocol. I reused the PCB that I designed in Week 8, only replacing the XIAO model with the ESP32-C6 version to gain access to Wi-Fi and Bluetooth connectivity.
Check here the group assignment for this week for more information about networking and communications.
MQTT (Message Queuing Telemetry Transport) is a lightweight messaging protocol designed for IoT devices. It allows different devices to exchange information efficiently over a network while using very little bandwidth and power.
The broker acts as the central server of the system. It receives messages from devices and distributes them to all clients subscribed to the corresponding topics.
A publisher is any device that sends information to the broker.
A subscriber is a device or application that receives information from the broker.
A topic is a communication channel used to organize messages.
Devices can publish or subscribe to specific topics depending on the information they need.
A message is the data being transmitted between devices.
Any device connected to the MQTT network is considered a client.
MQTT uses a small amount of bandwidth and system resources, making it ideal for embedded and IoT devices.
Messages are delivered quickly between devices through the broker, enabling near real-time communication.
MQTT is designed to minimize network traffic, helping battery-powered devices operate for longer periods.
Its lightweight architecture makes MQTT one of the most widely used communication protocols in IoT systems.
Devices can continuously send and receive information, allowing real-time monitoring and control.
MQTT remains reliable even when network conditions are unstable or bandwidth is limited.
The project is based on three elements that communicate with each other through the internet using the MQTT protocol and the HiveMQ public broker.

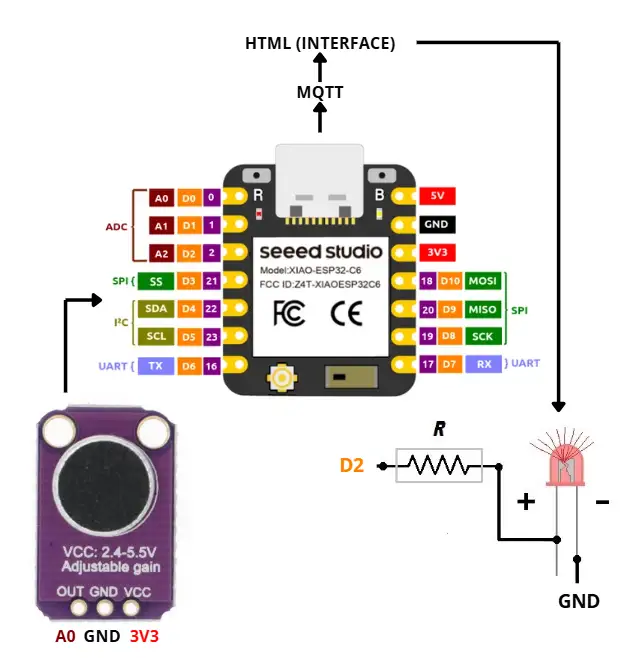

The ESP32-C6 as a data source, the microcontroller constantly reads the sound level from the microphone connected to pin A0. Instead of taking a single reading, it averages 100 samples to get a stable value, then converts it to a 0–100 scale and sends it to the broker every 300ms under the topic selene/microfono. At the same time, it listens for incoming commands on selene/led_onoff to turn the LED on pin D2 on or off.
// Include the libraries required for Wi-Fi and MQTT communication
#include <WiFi.h>
#include <PubSubClient.h>
// Wi-Fi credentials used to connect the ESP32-C6 to the internet
const char* ssid = "INFINITUM2B53_2.4";
const char* password = "DxNHa3fZ4t";
// MQTT broker address and communication topics
const char* mqtt_server = "broker.hivemq.com";
const char* topic_mic = "selene/microfono";
const char* topic_led = "selene/led_onoff";
// Pin definitions
#define MIC_PIN A0 // Analog microphone input
#define LED_PIN D2 // LED output
// Audio processing parameters
#define SAMPLES 100 // Number of samples used to calculate RMS
#define SEND_EVERY 300 // Time between MQTT messages (ms)
#define THRESHOLD 50 // Threshold used to classify sound level
// Create Wi-Fi and MQTT client objects
WiFiClient espClient;
PubSubClient client(espClient);
unsigned long lastSend = 0;
// Connect the ESP32-C6 to the local Wi-Fi network
void setup_wifi() {
Serial.print("Connecting to WiFi");
WiFi.begin(ssid, password);
// Wait until the connection is established
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
// Display the assigned IP address
Serial.println("\nWiFi Connected");
Serial.println(WiFi.localIP());
}
// Function executed whenever a message is received from MQTT
void callback(char* topic, byte* payload, unsigned int length) {
// Convert the received payload into a string
String msg = "";
for (unsigned int i = 0; i < length; i++) {
msg += (char)payload[i];
}
// Turn the LED on or off according to the received command
if (msg == "ON") {
digitalWrite(LED_PIN, HIGH);
}
if (msg == "OFF") {
digitalWrite(LED_PIN, LOW);
}
}
// Calculate the sound level using the RMS method
int readMicLevel() {
// Configure ADC resolution
analogReadResolution(12);
// Calculate the DC offset of the microphone signal
long sum = 0;
for (int i = 0; i < SAMPLES; i++) {
sum += analogRead(MIC_PIN);
}
int dcOffset = sum / SAMPLES;
// Calculate the RMS value
double sumSq = 0;
for (int i = 0; i < SAMPLES; i++) {
float centered = analogRead(MIC_PIN) - dcOffset;
sumSq += centered * centered;
}
int rms = sqrt(sumSq / SAMPLES);
// Convert the RMS value into a 0–100 scale
int level = map(rms, 0, 600, 0, 100);
return constrain(level, 0, 100);
}
// Main program loop
void loop() {
// Reconnect if MQTT connection is lost
if (!client.connected()) {
reconnect();
}
client.loop();
// Send microphone data periodically
if (millis() - lastSend >= SEND_EVERY) {
lastSend = millis();
// Read sound level from the microphone
int level = readMicLevel();
// Publish the value through MQTT
char buf[8];
itoa(level, buf, 10);
client.publish(topic_mic, buf);
}
}
<!DOCTYPE html>
<html lang="en">
<head>
<!-- Character encoding -->
<meta charset="UTF-8"/>
<!-- Responsive design for mobile devices -->
<meta name="viewport" content="width=device-width, initial-scale=1.0"/>
<!-- Page title -->
<title>Interface — Selene Román</title>
<!-- MQTT JavaScript library -->
<script src="https://cdnjs.cloudflare.com/ajax/libs/mqtt/4.3.7/mqtt.min.js"></script>
<!-- External stylesheet -->
<link rel="stylesheet" href="../style.css"/>
</head>
<body>
<!-- Main container -->
<main style="max-width: 700px; margin: 40px auto; padding: 0 20px;">
<!-- Page title -->

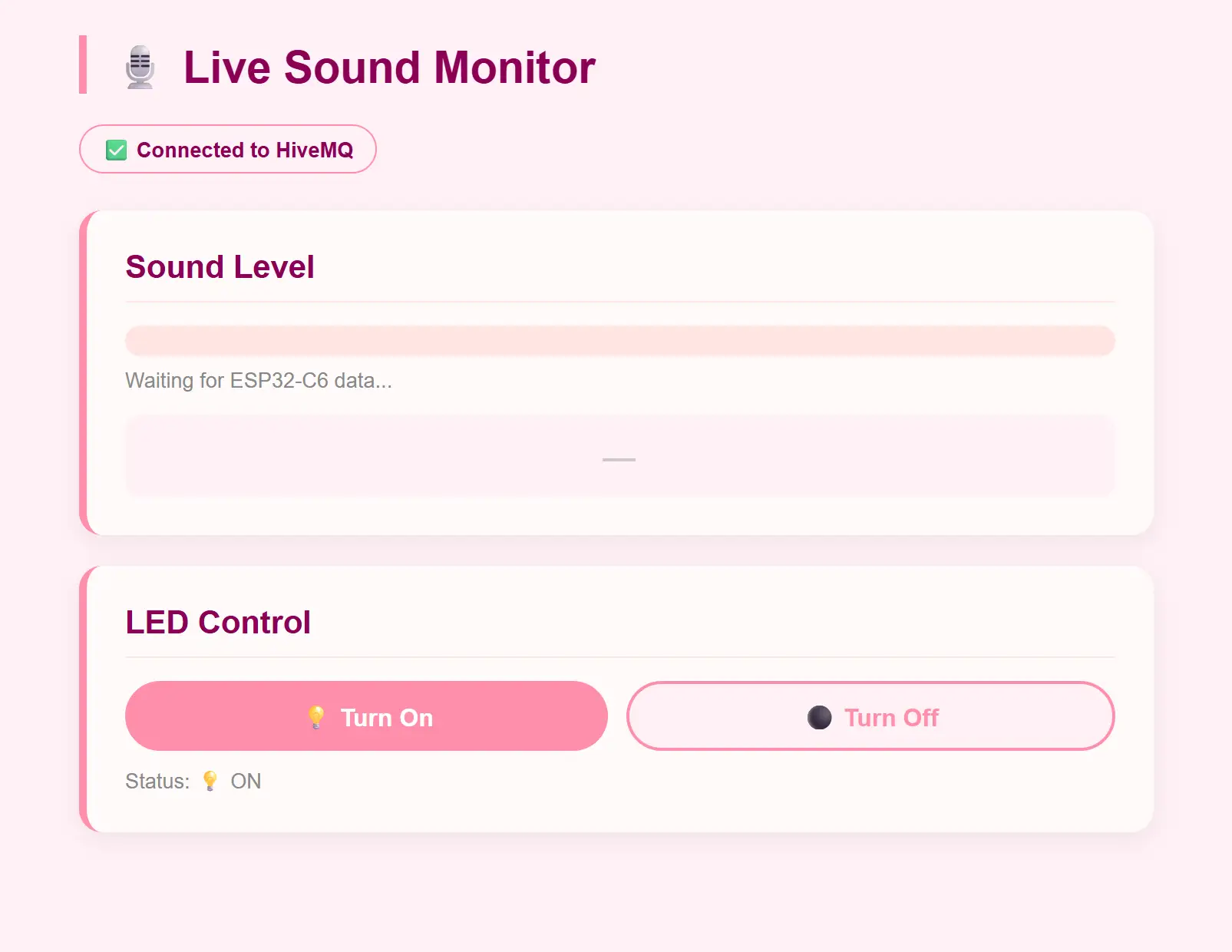

<h1 class="doc-section-title">🎙️ Live Sound Monitor</h1>
<!-- MQTT connection status -->
<div id="estado-conn">
Connecting to MQTT...
</div>
<!-- Sound Level Section -->
<div class="monitor-seccion">
<h2>Sound Level</h2>
<div class="barra-fondo">
<!-- Dynamic sound level bar -->
<div id="barra-nivel"></div>
</div>
<!-- Numeric sound level value -->
<div id="nivel-texto">
Waiting for ESP32-C6 data...
</div>
<!-- Close/Far sound indicator -->
<div id="prox-mensaje">—</div>
</div>
<!-- LED Control Section -->
<div class="monitor-seccion">
<h2>LED Control</h2>
<div class="monitor-btn-fila">
<!-- Button to turn the LED on -->
<button class="nav-btn"
onclick="sendLED('ON')">
💡 Turn On
</button>
<!-- Button to turn the LED off -->
<button class="nav-btn apagar"
onclick="sendLED('OFF')">
⚫ Turn Off
</button>
</div>
<!-- Current LED status -->
<div id="led-estado">
Status: unknown
</div>
</div>
</main>
<script>
// MQTT broker address
const BROKER = 'wss://broker.hivemq.com:8884/mqtt';
// Topic used to receive microphone data
const TOPIC_MIC = 'selene/microfono';
// Topic used to control the LED
const TOPIC_LED = 'selene/led_onoff';
// Threshold used to determine whether the sound is close or far
const THRESHOLD = 50;
// MQTT client object
let client;
// Function used to connect to the MQTT broker
function connect() {
client = mqtt.connect(BROKER, {
// Generate a random client ID
clientId: 'web_selene_' +
Math.random().toString(16).slice(2, 8),
clean: true,
// Automatically reconnect every 3 seconds
reconnectPeriod: 3000,
});
// Executed when the connection is successful
client.on('connect', () => {
document.getElementById('estado-conn').textContent =
'✅ Connected to HiveMQ';
// Subscribe to microphone topic
client.subscribe(TOPIC_MIC);
// Subscribe to LED topic
client.subscribe(TOPIC_LED);
});
}
</script>
</body>
</html>
