Week 11

Networking and Communications

🐕

ASSIGNMENT

This week's assignment focuses on generating communication between two custom PCBs.

TOOLS

XIAO ESP32-C6

XIAO RP2350

MPU-6050

OLED SSD1306

Personal and Group Assignment

This week's personal assignment was to design two custom PCBs that communicate with each other, document the process, and demonstrate a working protocol between them.

Group Assignment

Here's the link to our group assignment of this week.

What is UART?

Universal Asynchronous Receiver-Transmitter

UART is one of the oldest and most widely used serial communication protocols in embedded systems. Unlike I2C or SPI, it is asynchronous — there is no shared clock line. Both devices must agree on the same baud rate beforehand, and data is framed with start and stop bits.

It requires only two data lines: TX (transmit) and RX (receive), plus a shared GND reference. Communication is full-duplex — both devices can send and receive simultaneously.

TX Line

Transmit

Data flows out of this pin. The TX of one device must connect to the RX of the other — this cross-connection is essential for UART to work.

RX Line

Receive

Data enters through this pin. Each byte is framed with a start bit (LOW), 8 data bits, and a stop bit (HIGH). Baud rate on both sides must match — we use 9600 bps.

Why UART for Krypto's wearable?

The XIAO ESP32-C6 only supports BLE (Bluetooth Low Energy), not Bluetooth Classic — so the HC-05 module (which uses Bluetooth Classic) is not compatible. UART over cable is the simplest and most reliable solution for this project: no pairing, no latency, no configuration. The wearable sends status strings directly to the display board every second.

Hardware

Components

Two custom PCBs were designed and fabricated for this project. The wearable board was milled on a CNC machine, and the display board housing was fabricated using 3D printing.

Component	Model	Role	UART Pins
Wearable Microcontroller	`XIAO ESP32-C6`	Reads MPU-6050 → sends status via UART	TX: D6 / RX: D7
Display Microcontroller	`XIAO RP2350`	Receives status → shows on OLED	TX: D6 / RX: D7
Accelerometer / IMU	`MPU-6050 (GY-521)`	Detects movement, impact, rest	I2C: SDA D4 / SCL D5
Display	`OLED SSD1306 128×64`	Shows Krypto's status alerts	I2C: SDA D4 / SCL D5

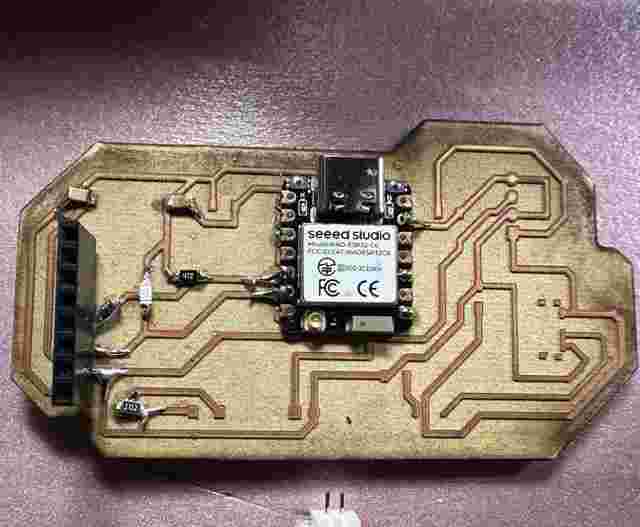

Wearable PCB — XIAO ESP32-C6

This board was designed from scratch in KiCad 9. It includes the XIAO ESP32-C6 soldered directly (SMD), a GY-521 MPU-6050 module on headers, a TP4056 LiPo charging module, a BAT54 protection diode, pull-up resistors for I2C, decoupling capacitors, an LED indicator, and an on/off switch. The board was fabricated on a CNC milling machine.

The ESP32-C6 reads the MPU-6050 over I2C and classifies Krypto's movement into three states: REPOSO (resting), MOVIMIENTO (moving), and IMPACTO (impact detected). It then transmits the status string over UART every second.

🖨️ 3D Printed Enclosure

Display Board — XIAO RP2350

The display board features the XIAO RP2350 connected to an OLED SSD1306 128×64 screen over I2C. The board receives UART data from the wearable and renders the appropriate alert on screen. This board was fabricated using 3D printing and made the circuit possible with conductive tape over the 3d printed tracks.

Wiring

Physical Connection Scheme

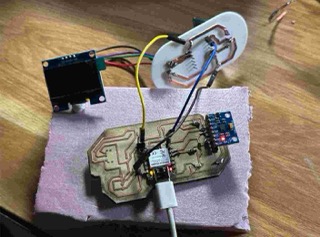

Only 3 wires connect the two boards. The TX/RX lines are crossed — the transmitter of one board connects to the receiver of the other. Both boards share the same GND reference.

From	Pin	To	Pin	Signal
XIAO ESP32-C6	`D6 (TX)`	XIAO RP2350	`D7 (RX)`	UART TX→RX
XIAO ESP32-C6	`D7 (RX)`	XIAO RP2350	`D6 (TX)`	UART RX←TX
XIAO ESP32-C6	`GND`	XIAO RP2350	`GND`	Common GND
MPU-6050 (GY-521)	`SDA`	XIAO ESP32-C6	`D4`	I2C SDA
MPU-6050 (GY-521)	`SCL`	XIAO ESP32-C6	`D5`	I2C SCL
OLED SSD1306	`SDA`	XIAO RP2350	`D4`	I2C SDA
OLED SSD1306	`SCL`	XIAO RP2350	`D5`	I2C SCL

Code

🐕 XIAO ESP32-C6 — Wearable Sender (Arduino)

Wearable Logic

The ESP32-C6 reads the MPU-6050 accelerometer over I2C and computes the total acceleration magnitude. Based on thresholds, it classifies Krypto's state and sends a status string over UART every second. The Serial Monitor also prints the state for debugging.

// XIAO ESP32-C6 — wearable_krypto.ino (Arduino)

#include <Wire.h>
#include <MPU6050.h>

MPU6050 mpu;

void setup() {
  Serial.begin(115200);
  Serial1.begin(9600, SERIAL_8N1, 20, 21); // RX=D7, TX=D6
  Wire.begin();
  mpu.initialize();
  Serial.println("Krypto Wearable iniciado");
}

void loop() {
  int16_t ax, ay, az, gx, gy, gz;
  mpu.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);

  // Compute total acceleration in g
  float accel = sqrt((float)ax*ax + (float)ay*ay + (float)az*az) / 16384.0;

  if (accel > 2.0) {
    Serial1.println("IMPACTO");
    Serial.println("Enviando: IMPACTO");
  } else if (accel > 1.2) {
    Serial1.println("MOVIMIENTO");
    Serial.println("Enviando: MOVIMIENTO");
  } else {
    Serial1.println("REPOSO");
    Serial.println("Enviando: REPOSO");
  }

  delay(1000);
}

📺 XIAO RP2350 — Display Receiver (Arduino)

Display Logic

The RP2350 listens on Serial1 for incoming UART strings from the wearable. When a message arrives, it updates the OLED screen with the appropriate alert for Krypto's current state using the U8g2 library.

// XIAO RP2350 — display_krypto.ino (Arduino)

#include <Wire.h>
#include <U8g2lib.h>

U8G2_SSD1306_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

String mensaje = "Esperando...";

void setup() {
  Serial.begin(115200);
  Serial1.begin(9600); // RX=D7, TX=D6

  u8g2.begin();
  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_ncenB08_tr);
  u8g2.drawStr(0, 20, "Krypto Monitor");
  u8g2.sendBuffer();
  delay(2000);
}

void loop() {
  if (Serial1.available()) {
    mensaje = Serial1.readStringUntil('\n');
    mensaje.trim();
    Serial.println("Recibido: " + mensaje);
  }

  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_ncenB08_tr);
  u8g2.drawStr(0, 15, "Krypto:");

  if (mensaje == "IMPACTO") {
    u8g2.setFont(u8g2_font_ncenB10_tr);
    u8g2.drawStr(0, 35, "! IMPACTO !");
    u8g2.drawStr(0, 55, "detectado");
  } else if (mensaje == "MOVIMIENTO") {
    u8g2.setFont(u8g2_font_ncenB10_tr);
    u8g2.drawStr(0, 35, "En movimiento");
  } else if (mensaje == "REPOSO") {
    u8g2.setFont(u8g2_font_ncenB10_tr);
    u8g2.drawStr(0, 35, "En reposo");
  } else {
    u8g2.drawStr(0, 35, mensaje.c_str());
  }

  u8g2.sendBuffer();
  delay(100);
}

Communication Flow

Step-by-step protocol walkthrough

Here is exactly what happens every second between the wearable and the display board:

1 The ESP32-C6 reads raw acceleration data from the MPU-6050 over I2C (address 0x68).
2 It computes the total acceleration magnitude: √(ax² + ay² + az²) / 16384.0
3 Based on thresholds, it classifies the state: REPOSO (<1.2g), MOVIMIENTO (1.2–2.0g), or IMPACTO (>2.0g).
4 The status string is sent over UART at 9600 bps via Serial1.println() from pin D6 (TX).
5 The RP2350 receives the string on pin D7 (RX) via Serial1.readStringUntil('\n').
6 The U8g2 library renders the corresponding alert on the OLED screen in real time.

Krypto está en movimiento

This message appears on the OLED every time the MPU-6050
detects movement above 1.2g on Krypto's wearable

Protocol Details

Typical UART Frame

Each byte is transmitted asynchronously with this structure:

SStart bit — line pulled LOW
8 bitsData byte (LSB first)
PStop bit — line returns HIGH

Protocol Advantages

2 wires

Only TX and RX needed for full-duplex communication

9600 bps

Reliable baud rate for short cable distances

No pairing

No handshake or addressing needed — plug and play

String based

Human-readable messages easy to debug via Serial Monitor
