Step 1 – Choosing Computer-Aided Design software

I'm a huge Fusion 360 fan, but my laptop struggles to support the latest version. I also need software I can access from anywhere, so I decided to use Onshape for 3D modeling in this program.

I’m still not sure how I’m going to fabricate my final project, but I wanted to start with the look and feel. My final project idea is box-shaped similar to a tv with a screen at the front.

Step 2 – Designing 3D and 2D

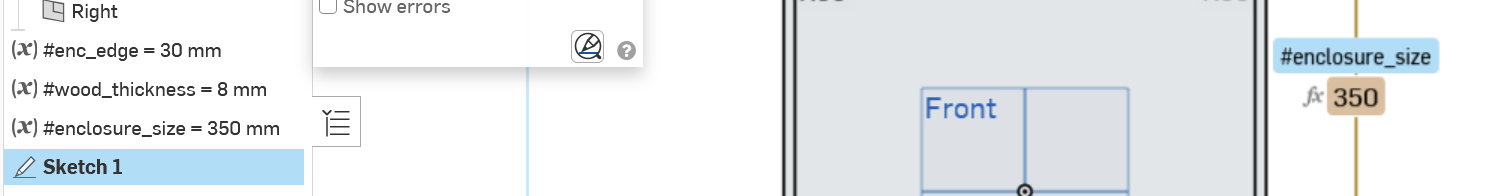

I will start with variables so I can edit them later once I know which materials are available and the machines sizes. You can use the search bar at the top right to search for any tool, very useful.

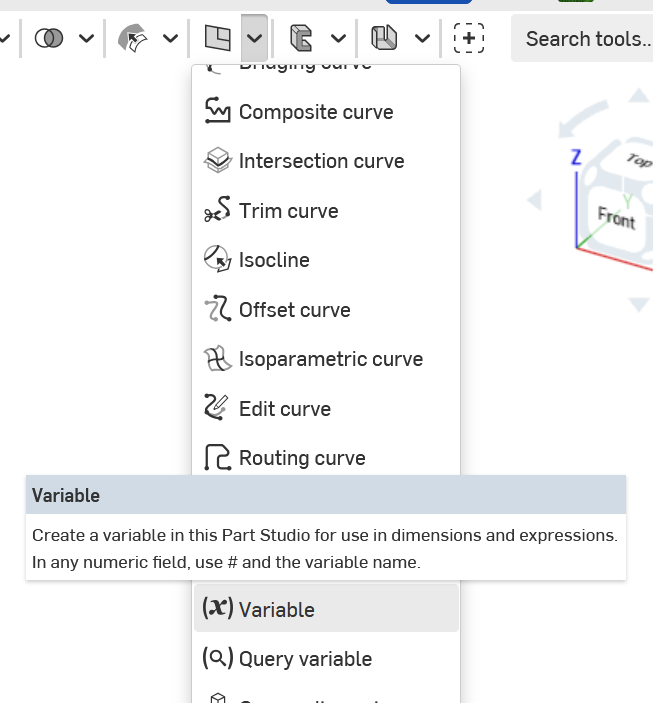

After you define your variables, type # and choose your variable from the dropped down list. Make sure your variables are defined before the sketch to be able to refer to them, I like to have all my variables at the top of the list.


I need to create a groove to hold the screen. First I created a plane perpendicular to the side face of the enclosure, then I created a fully constrained sketch on the new plane


I used the sweep tool to make the groove

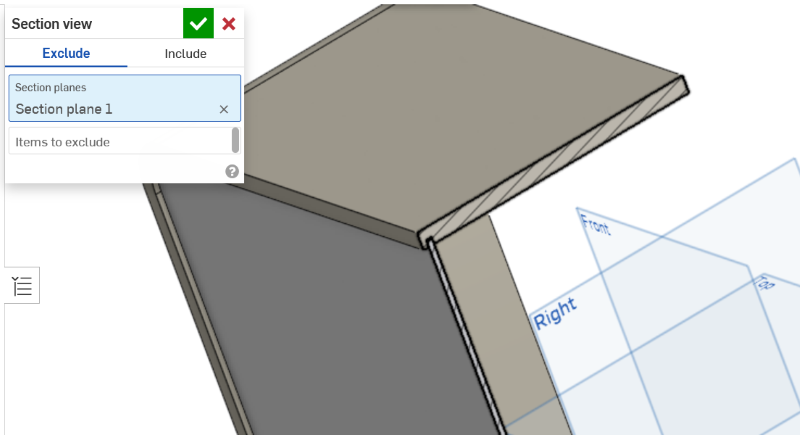

I created the screen by projecting the groove’s path into a new sketch, then extruded the screen with the variable #screen_thickness This is how it looks like from a cross sectional view

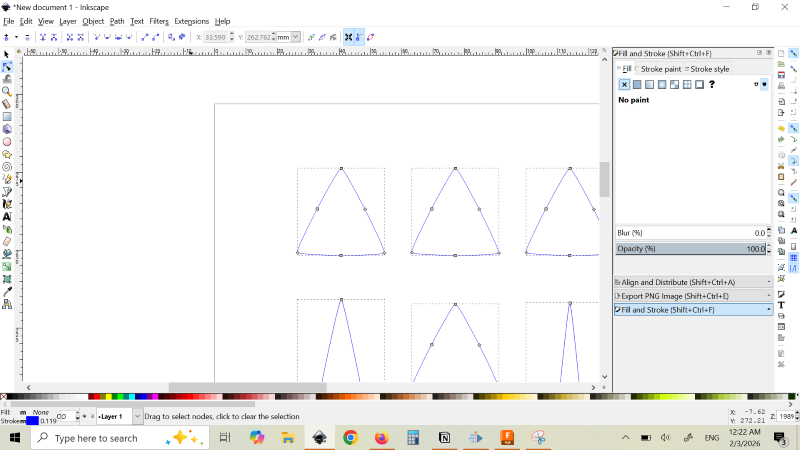

  • I use Inkscape to design some patterns for the final project

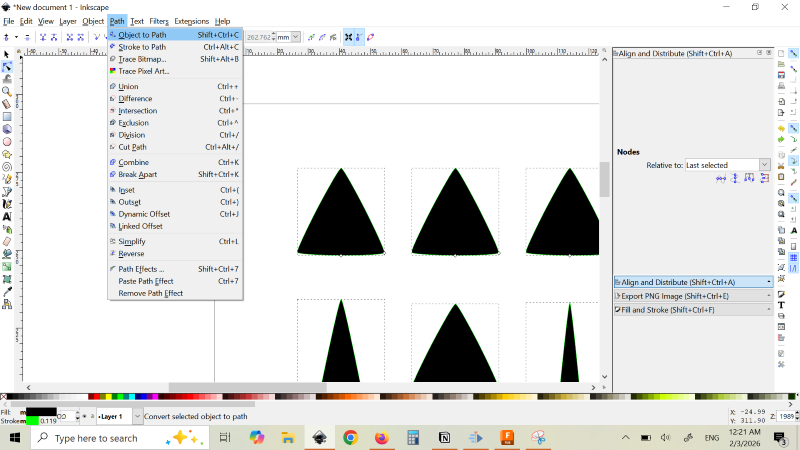

After converting to path and removing the fill to see the lines clearly


Onshape accepts only dxf or dwg file formats to be imported as a sketch.

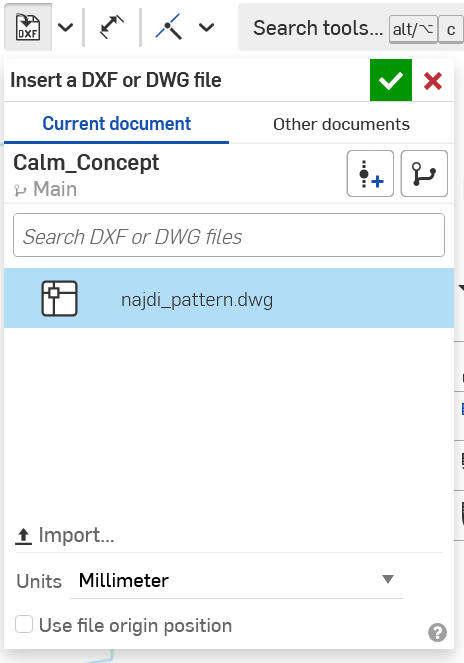

Start a sketch on the side, import the pattern file then insert with green check mark


Use the Transform tool to move or resize your imported sketch.

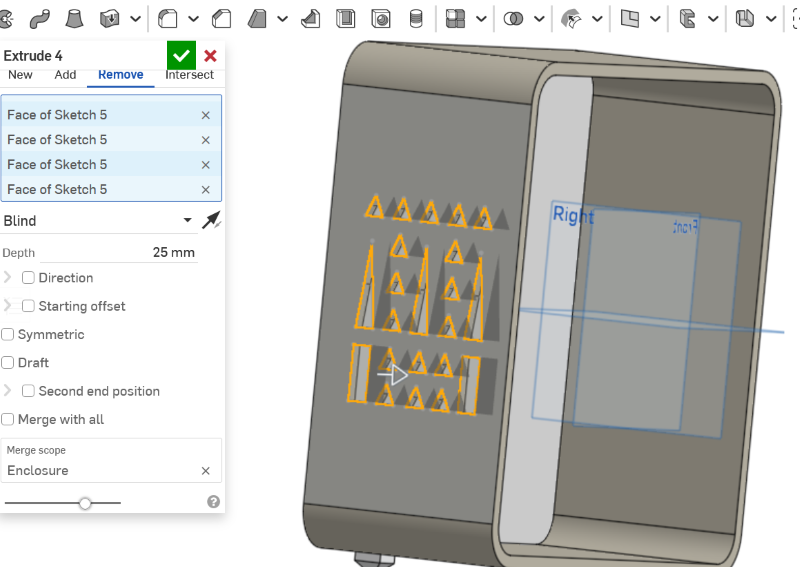

Close the sketch and extrude it with “remove” selected, and merge scope as the enclosure.

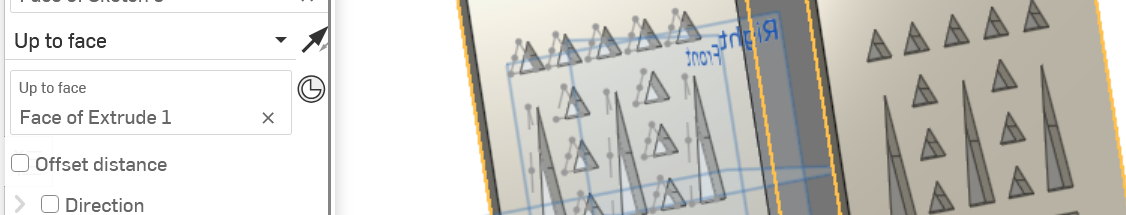

Instead of mirroring the sketch on the other side I will extrude all the way to the opposite face. Select “Up to face” instead of “blind”, then select the opposite face.

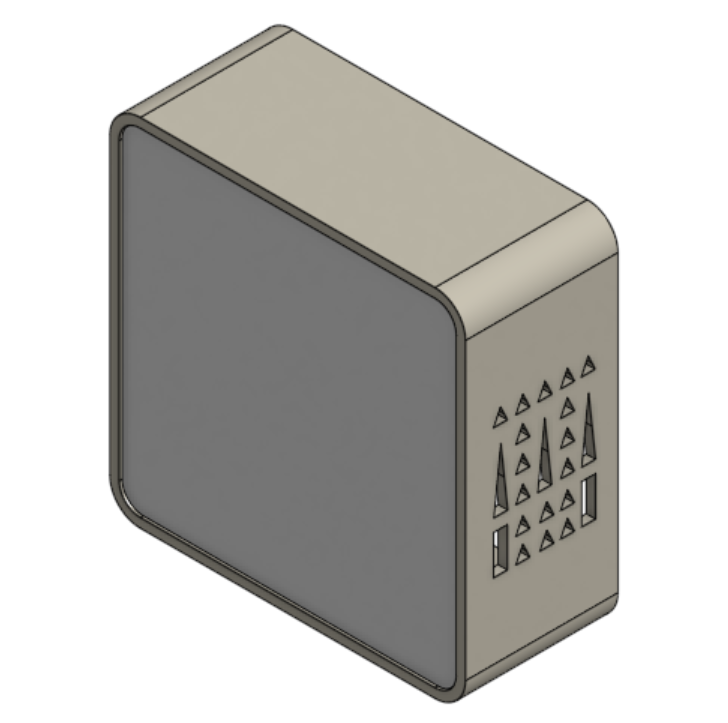

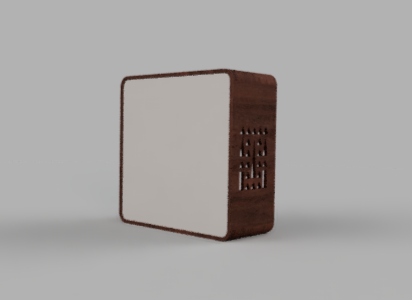

Final look.

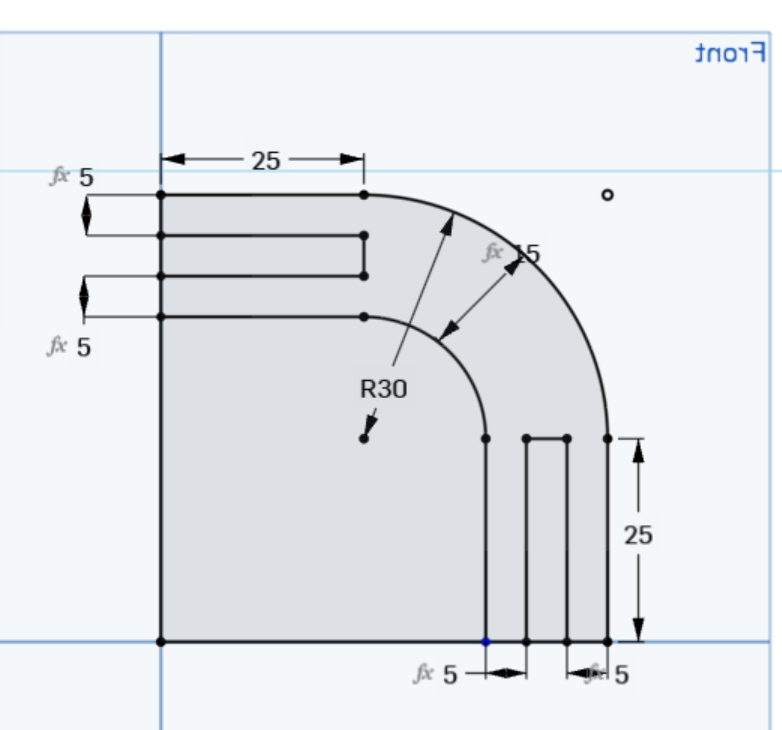

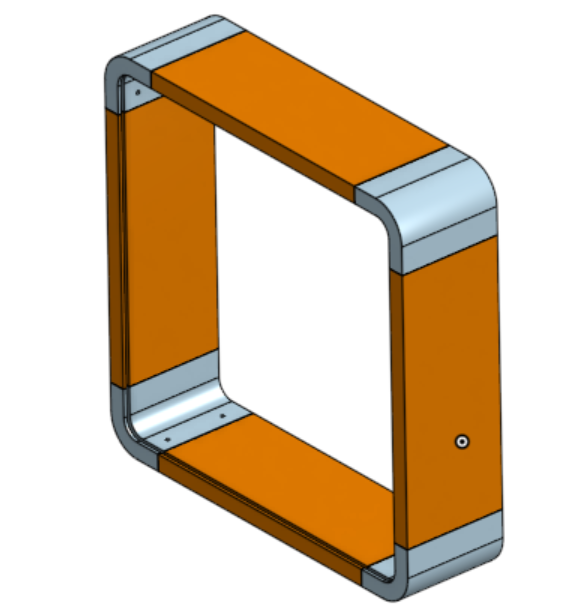

For the rounded corners I want to experiment with 3D printing, where wooden side panels can attach to 3D printed corners. Sketching the corners.

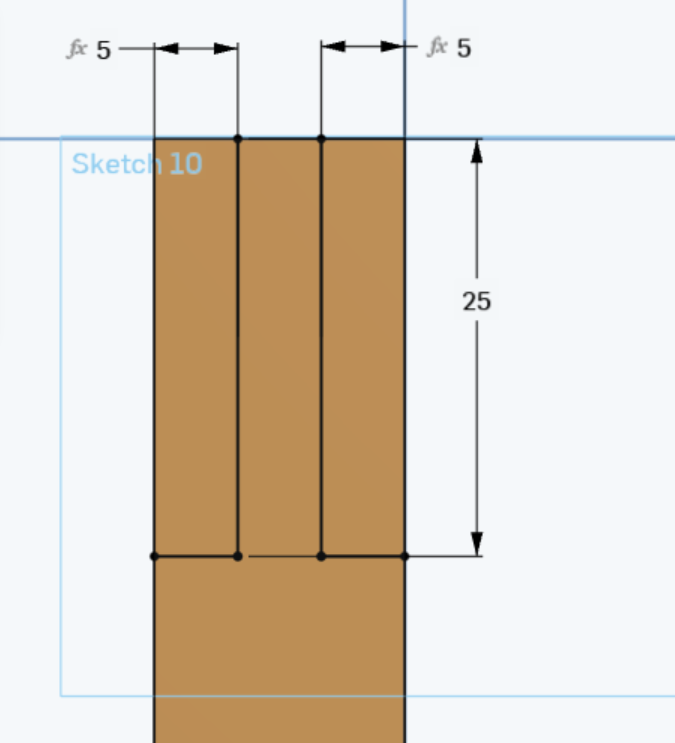

Now create the side panels with lip to insert into the corner.


Step 3 – Assembly

Tried assembly features (video)

Step 4 – Rendering

Still needs some work


⚠️ Problems & Solutions

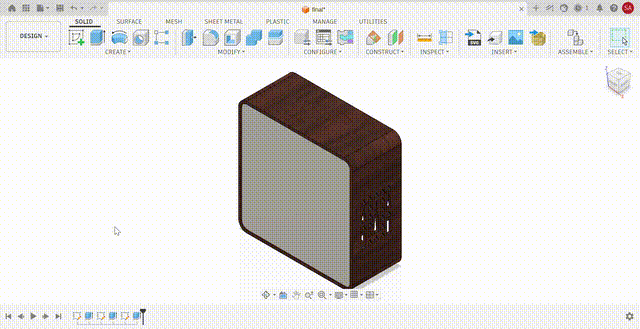

When I started designing with onshape I didn’t realize that rendering wasn’t included. But I will use fusion 360 for rendering if needed and keep designing on onshape
