This week focused on designing a PCB, by organizing the electronic schematic, verifying it with the ERC, and transitioning to the PCB layout.

Electronic Design

Electronic Design Automation (EDA) software is used to design, analyze, and manufacture electronic circuits and printed circuit boards (PCBs).
These tools allow engineers to:

Electrical diagrams
Assign real-world components
Design PCB layouts
Simulate circuits
Perform design rule checks
Generate manufacturing files
Manage multi-layer, high-speed, and complex designs

Two of the most recognized professional PCB design tools are:

For further information about this topic and the laboratory materials, please consult this week’s group page.

Feature	Altium Designer	KiCad
Type	Commercial, industry-grade EDA	Open-source EDA
License	Paid (high cost)	Free
Target Users	Professional engineers, companies	Students, hobbyists, startups, professionals
Schematic Capture	Advanced, highly integrated	Powerful and fully capable
PCB Layout	Industry-level tools for complex designs	Professional-grade, constantly improving
Multi-layer Boards	Full support (high-speed, HDI, impedance control)	Full multi-layer support
High-Speed Design Tools	Advanced signal integrity tools built-in	Basic to intermediate (external tools may be needed)
Simulation	Integrated (SPICE, signal analysis)	Basic SPICE support
Component Management	Enterprise-level library and lifecycle management	Manual or community-based libraries
3D Visualization	Advanced real-time 3D with MCAD integration	Integrated 3D viewer
Collaboration	Cloud collaboration and version control tools	Git-compatible, manual collaboration workflows
Manufacturing Output	Full professional manufacturing pipeline	Full Gerber, BOM, pick-and-place export
Learning Curve	Steep	Moderate
Industry Adoption	Widely used in professional hardware companies	Increasingly adopted in startups and open hardware

In this case, we will focus on designing the board in KiCad, since it offers several advantages over Altium Designer for a shortcut keypad project like this one. Since this project does not require advanced high-speed signal integrity tools, enterprise component lifecycle management, or large team collaboration features, KiCad becomes a practical and efficient choice. It allows rapid prototyping and iteration without the overhead of enterprise-level software.
The circuit consists of the following main elements:

4 push buttons for user input
1 resistor
The main controller: a Seeed Studio XIAO RP2040, which acts as the processing core
A Wurth Elektronik 629105136821 (Micro USB socket), used to supply 5V from the computer to power the system
A AMS1117 voltage regulator (5V to 3.3V), ensuring proper logic-level operation
2 WS2812B RGB LEDs, individually addressable for lighting effects
4 SMD capacitors, used for voltage stabilization and noise filtering
1 2N2222A transistor, acting as a switching device for external loads
1 1N4007 diode, used as a flyback diode for motor protection
Pin headers, allowing external components (such as a vibration motor) to be connected

Kicad

KiCad main interface

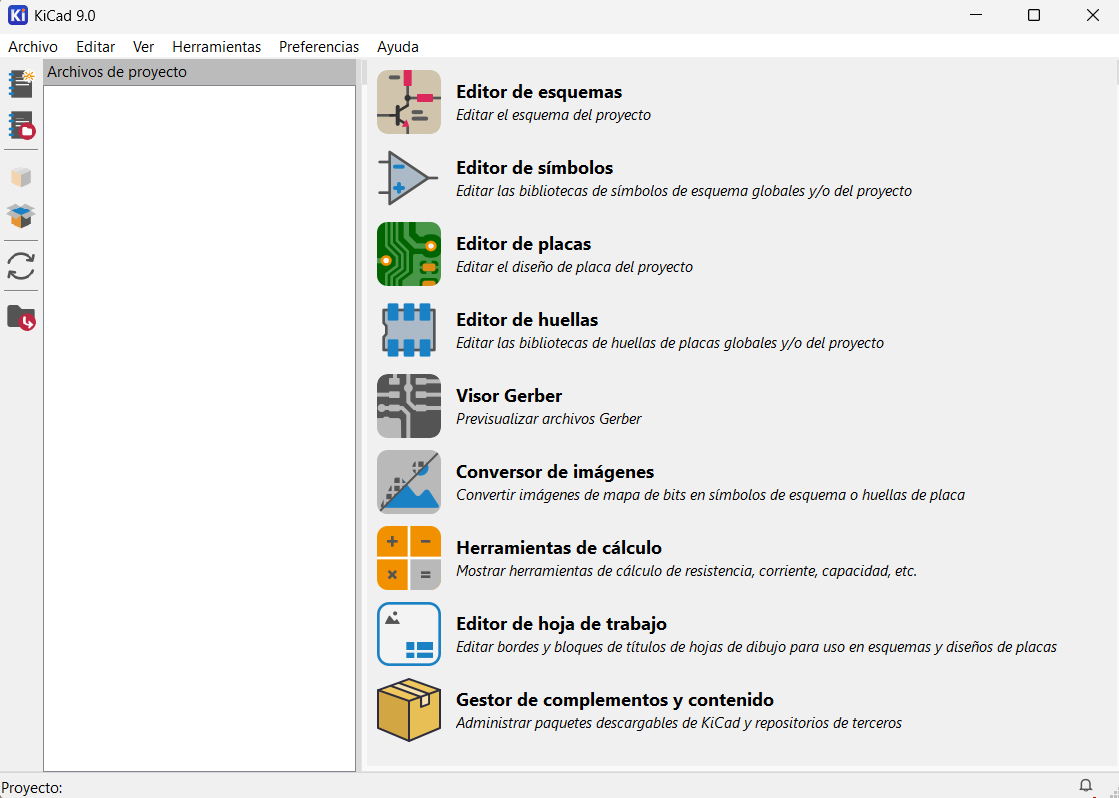

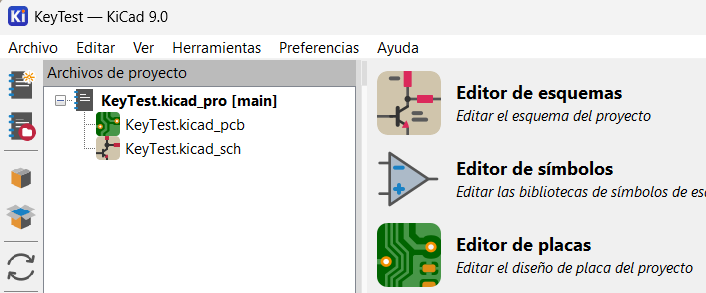

From this central project manager window, you can access the core tools:

Schematic Editor – Used to create and edit the electrical schematic of the project.
Symbol Editor – Used to create or modify schematic symbols.
PCB Editor – Used to design and route the printed circuit board layout.
Footprint Editor – Used to create or modify PCB footprints
Gerber Viewer – Used to preview manufacturing Gerber files.
Image Converter – Converts bitmap images into schematic symbols or PCB footprints.
Calculator Tools – Provides electrical calculation utilities (resistors, trace width, etc.).
Worksheet Editor – Used to edit drawing frames and title blocks.
Plugin and Content Manager – Used to install additional libraries and third-party packages.

Creating a new project

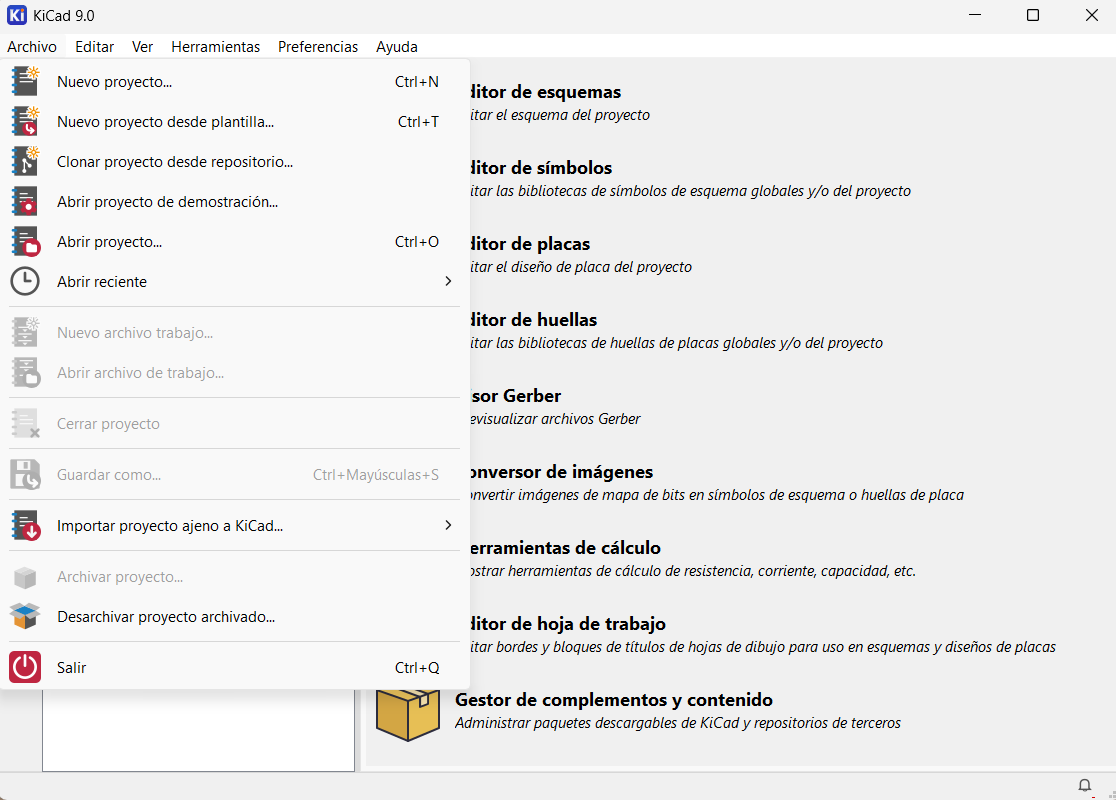

To create a new project, you can Press Ctrl + N or go to the top menu -> File -> New Project, then choose the project name and save location. KiCad will automatically generate:

A project file (.kicad_pro)
A schematic file (.kicad_sch)
A PCB file (.kicad_pcb)

Adding a Library

You can download the FAB library by clicking on the dancing shrimp and:

Place the downloaded files in a chosen folder.

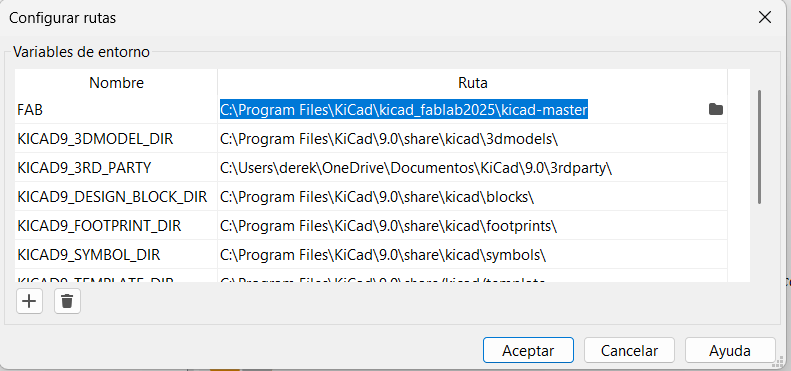

Go to: Preferences -> Configure Paths

Importing Footprints

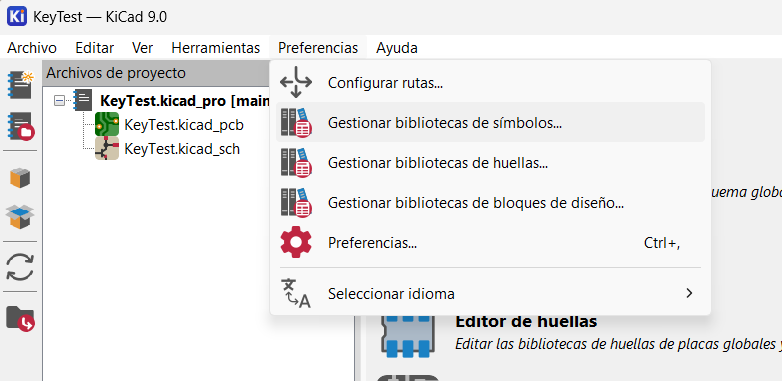

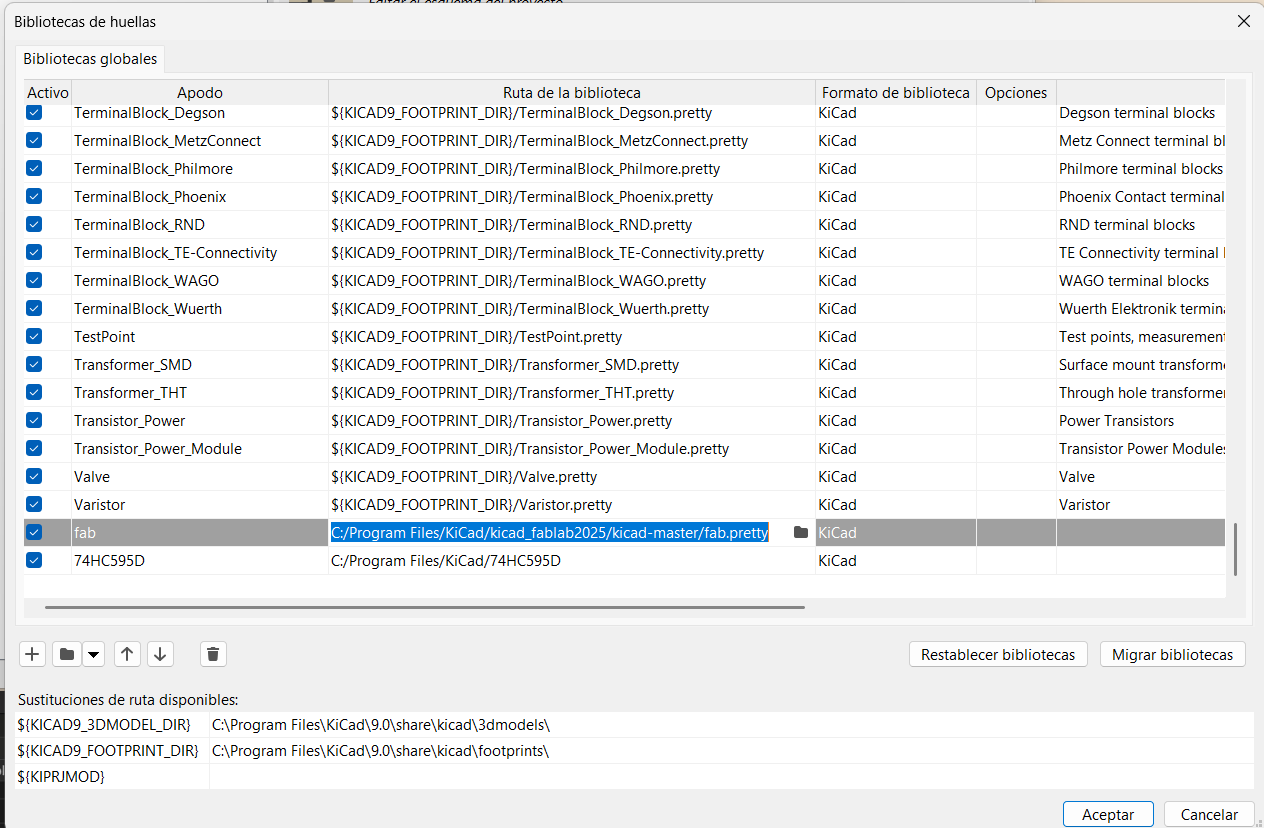

- Go to: Preferences -> Manage Footprint Libraries
- Click “Add Existing Library”
- Select the folder containing the file .pretty and choose a name for the library.

Workspace

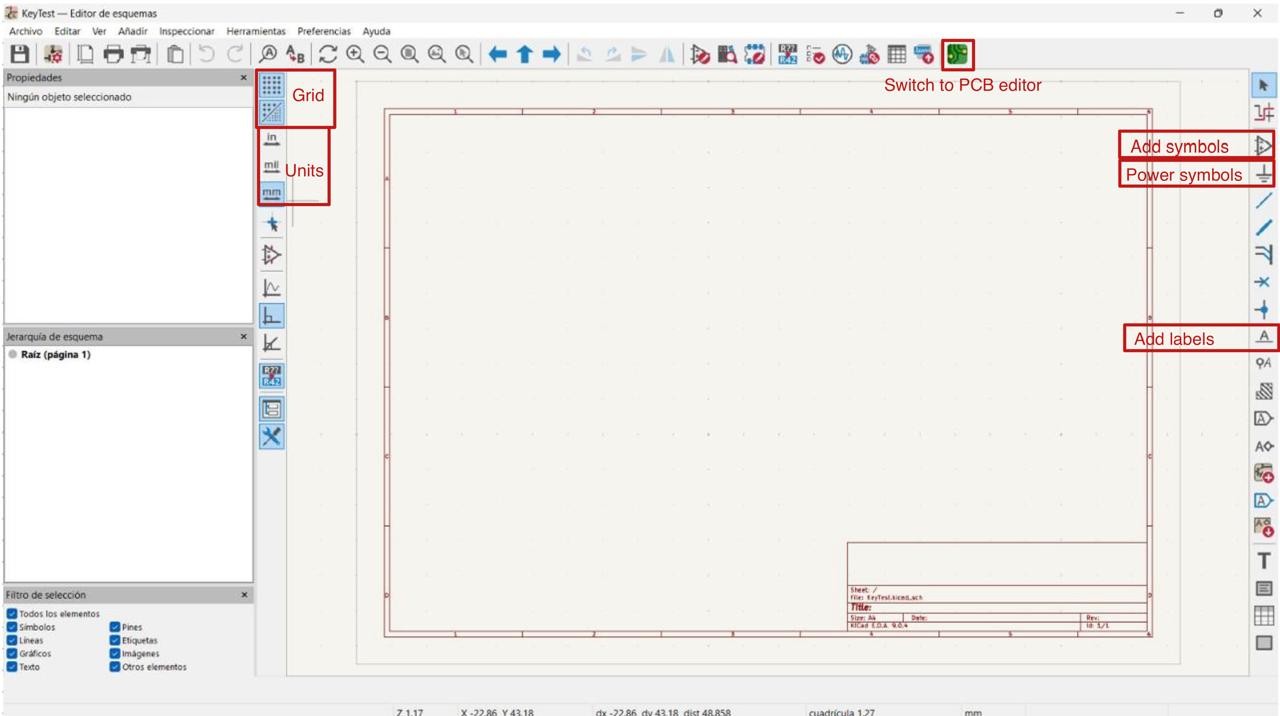

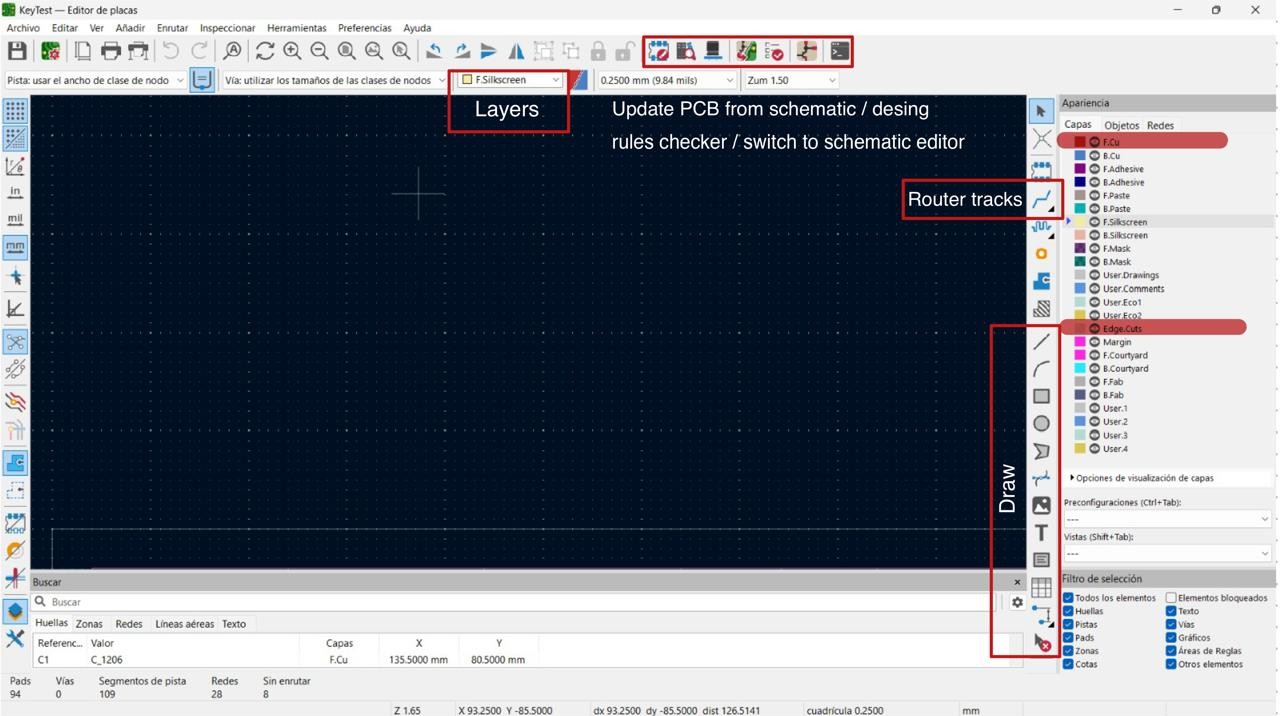

When we open the project in the Schematic Editor, we will find an interface with a main menu and several toolbars surrounding the workspace. This section is where electronic components are placed and connected using schematic symbols. The most important icons are highlighted below.

To move from the Schematic Editor to the PCB Editor, once the schematic has been verified and is free of electrical errors, the next step is to click on PCB Editor, where the physical board design is carried out.

Add a component

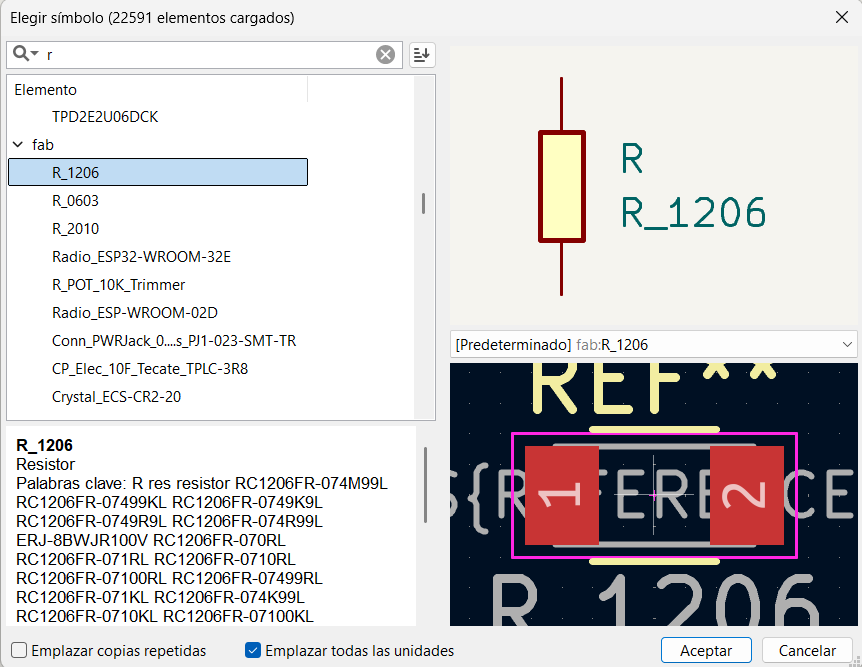

A shortcut to access the components menu is the "a" key. Once there, we search for the component and choose our preferred size, in this case 1206.

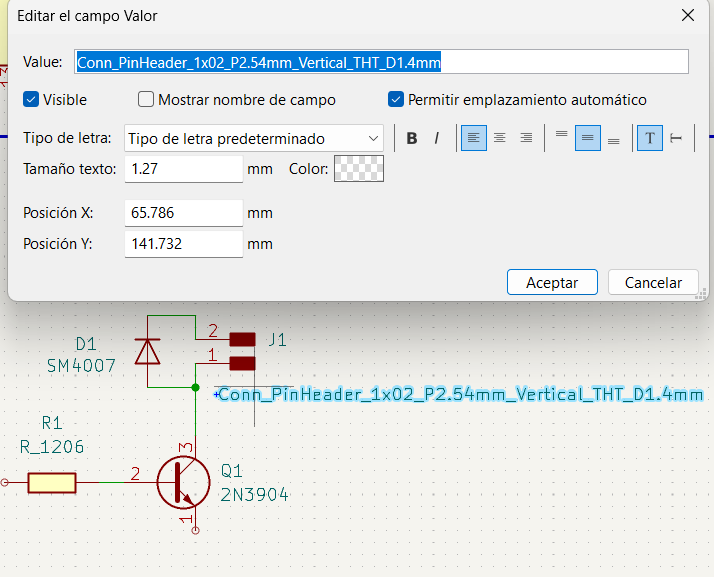

To modify its name and other parameters, double-click on it.

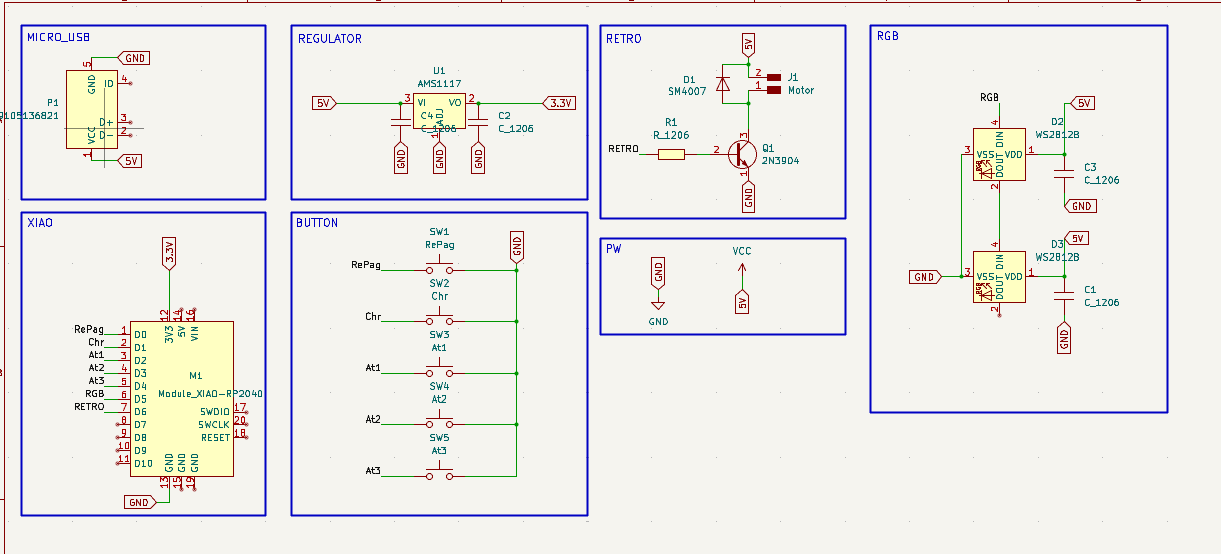

After organizing the workspace using net labels and clearly defining functional sections, the schematic should look structured and easy to read.
The ultimate objective is to design a PCB that will eventually serve as the core (the “brain”) of a compact macro keypad. Therefore, the next stage involves shaping and defining the physical layout of the PCB.

Electrical Rules Checker

Before switching to the PCB Editor, it is necessary to go to Inspect -> Electrical Rules Checker (ERC).
Running the ERC allows us to verify the logical integrity of the schematic before generating the board layout. In this case, the ERC reports 23 errors. These correspond to intentionally unconnected pins within the design. Although classified as errors, we understand why these pins are not connected and therefore they can be consciously ignored in this specific context.

If the editing of the schematic has finished, we can go to the "PCB editor", remembering that we can always return to the schematic to make changes.

PCB editor

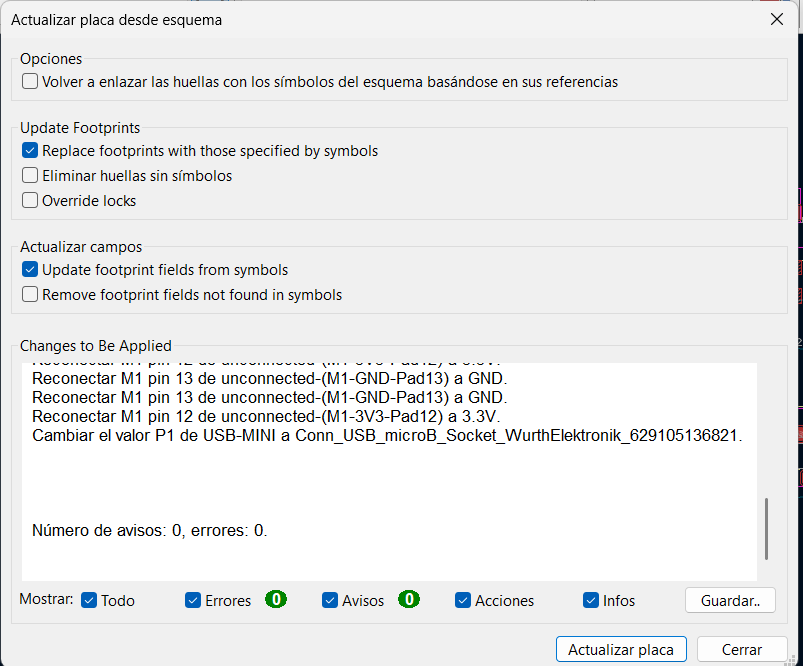

Once we are in the "PCB Editor", it is necessary to select "Update PCB from Schematic", which will open a new window where it shows us all the schematic elements that are going to be imported.

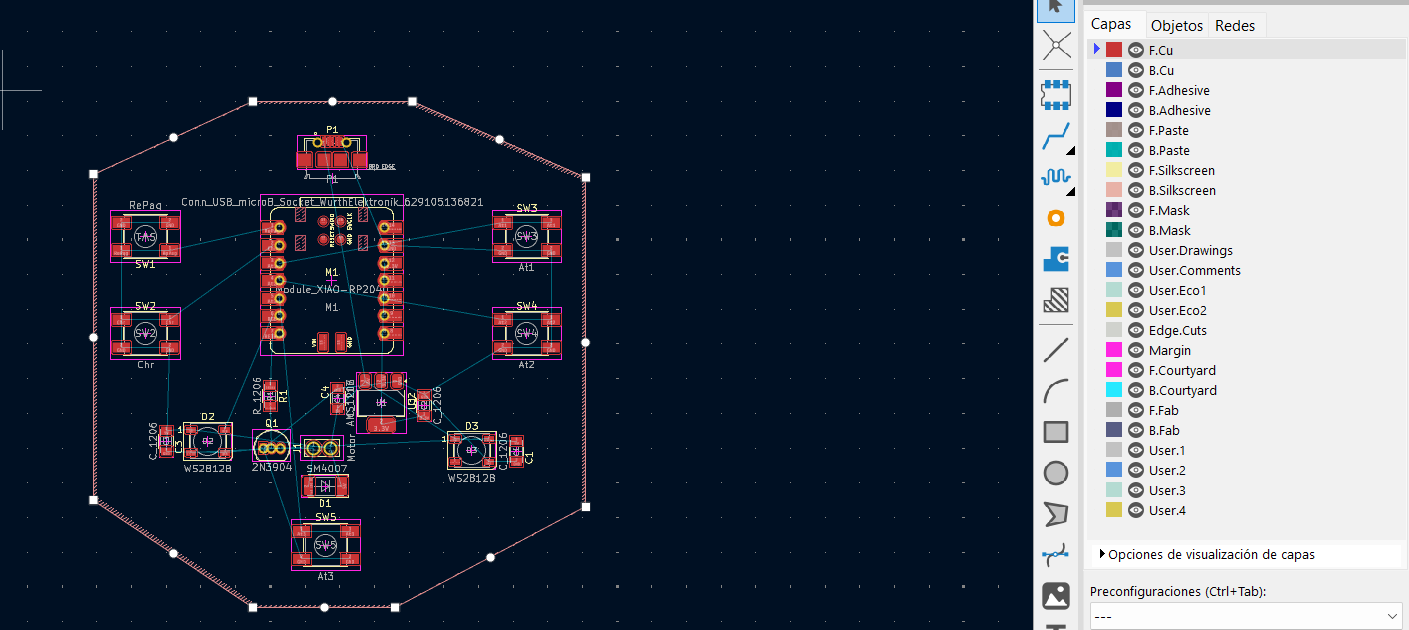

By pressing "OK" in the previous step, we place all the components but in an unordered way.

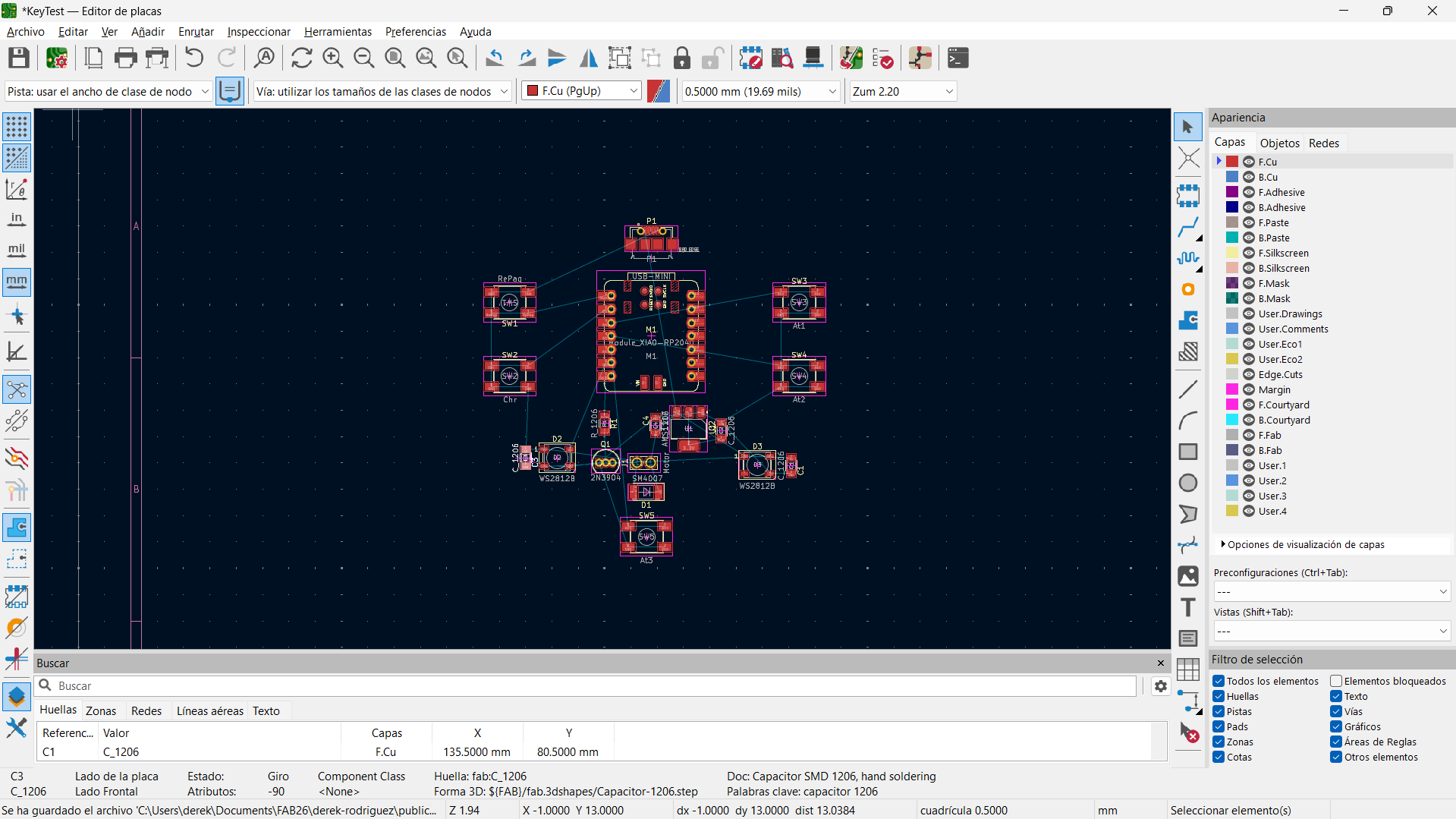

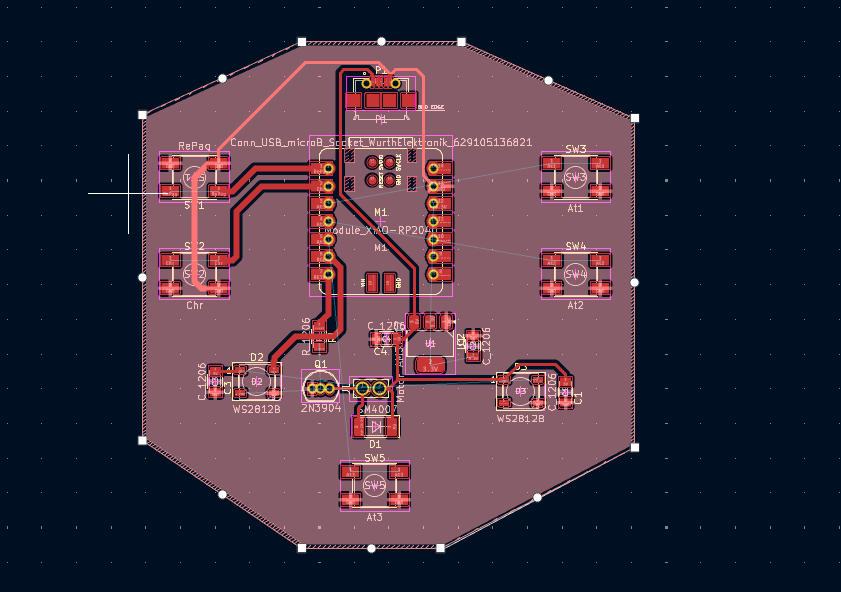

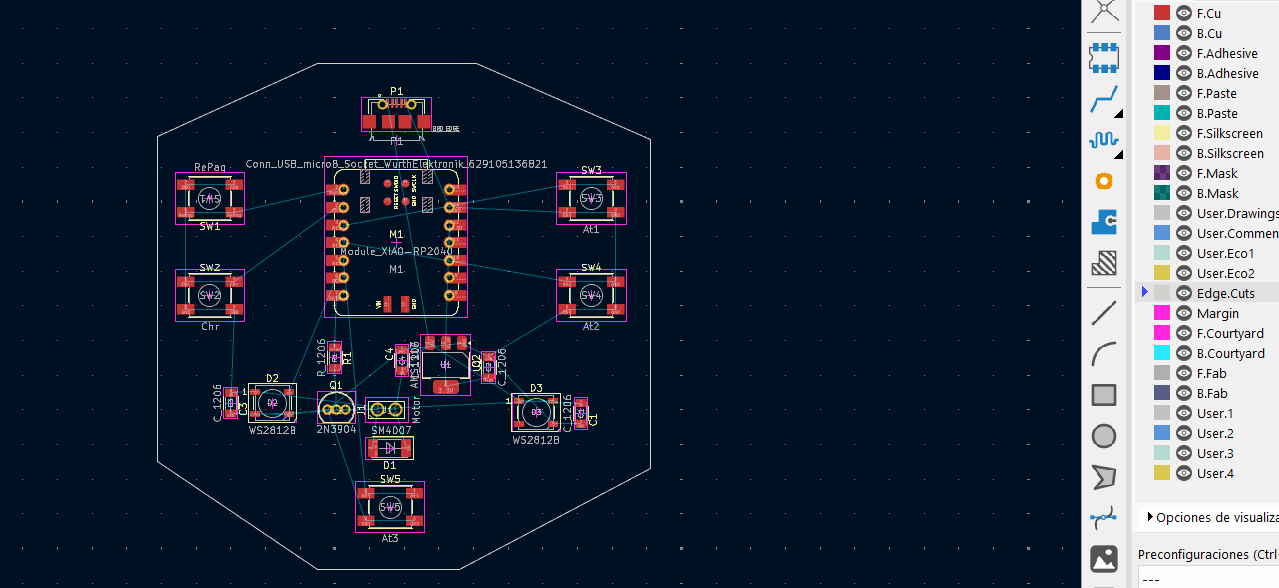

We must order all the components according to our requirements, as well as the position of the inputs and outputs of the board. Below is the distribution with which our board was designed.

Important

We can always return to the "Schematic" to make changes to the design or add new components. Whenever changes are made, it is important to select again in the "PCB Editor" "Update PCB from Schematic" to import the new components.

Edge.Cuts

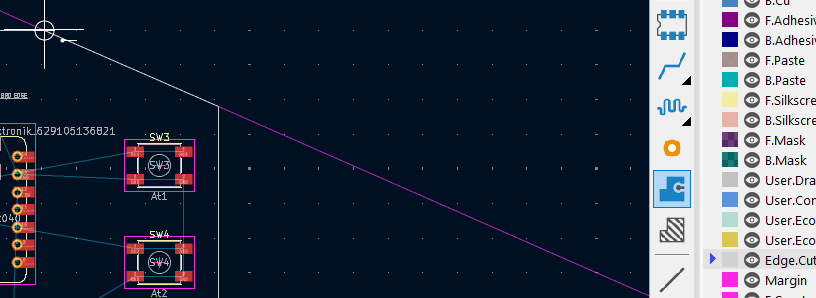

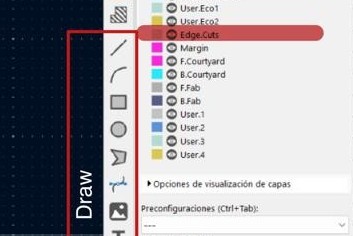

If the distribution of the components is correct, we can place a cutting edge, which is done by selecting "Edge.Cuts" and a type of stroke.

Copper pour

For greater efficiency and electrical reliability, a copper pour (also known as a copper fill or copper zone) is added to the PCB.
A copper pour consists of filling a defined area of the board with copper connected to a specific net, typically GND. This serves multiple important purposes:

It improves electrical grounding by creating a low-impedance ground plane.
It reduces electrical noise and electromagnetic interference.
It enhances heat dissipation by spreading thermal energy across a larger surface.
It reduces the amount of routed traces required, simplifying layout.
It optimizes manufacturing by balancing copper distribution on the board.

In this particular design, the copper pour was assigned to the GND net, allowing all ground connections of the components to be automatically connected through the plane. This significantly reduces routing time and results in a cleaner layout.

How to add a copper pour

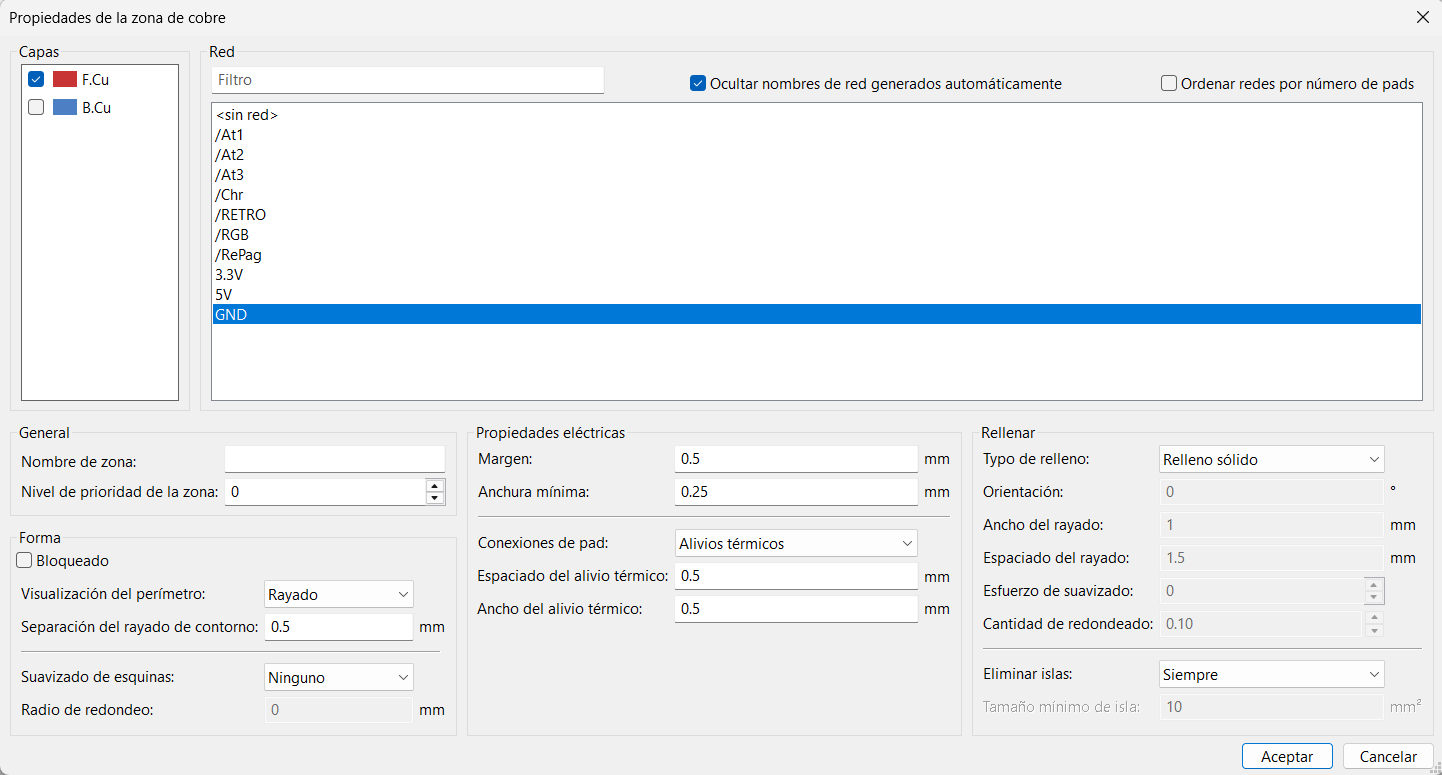

Click on the “Add Filled Zone” icon in the right-side toolbar.
Select the desired copper layer (for example, F.Cu for the top layer or B.Cu for the bottom layer).

Assign the zone to the GND net (or the desired net).

Draw the polygon by outlining the board area, typically following the Edge.Cuts boundary.
Close the polygon shape.

Press the B key to fill (or refill) the copper zone.

Important

Every time changes are made to the PCB like adding new traces or removing or moving components or modifying routing, you must press the B key again to refill and update the copper zone.

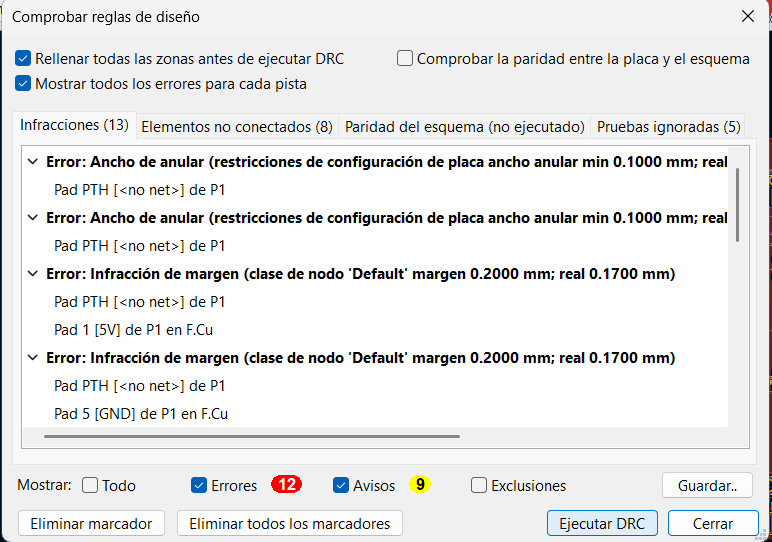

After press the "DRC" icon; This will opens a new window, and we press "OK".

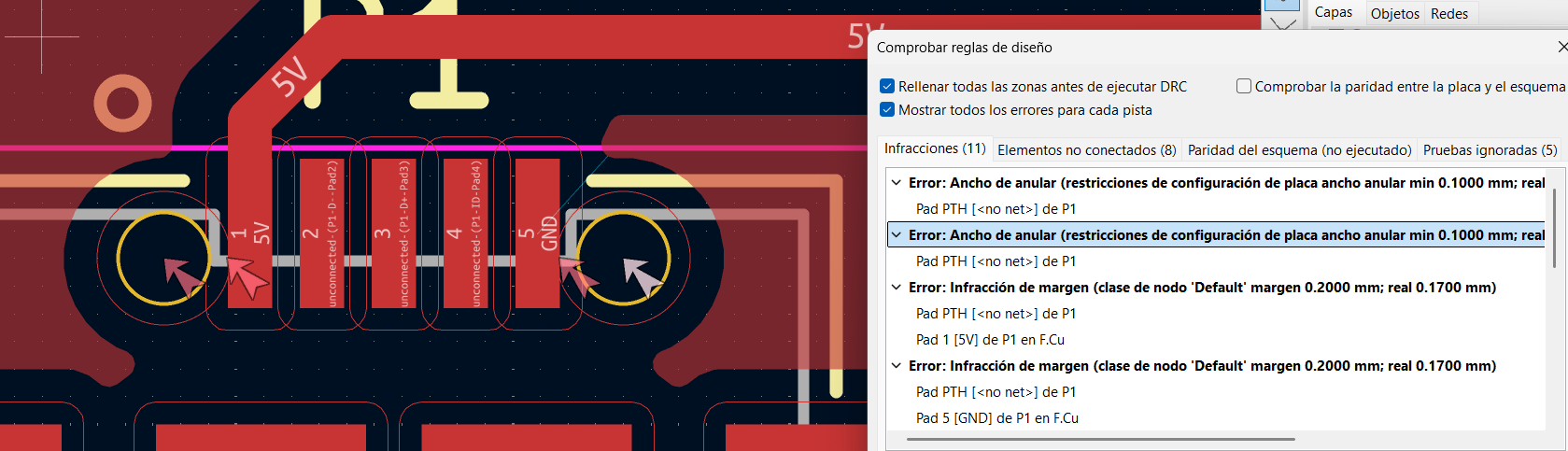

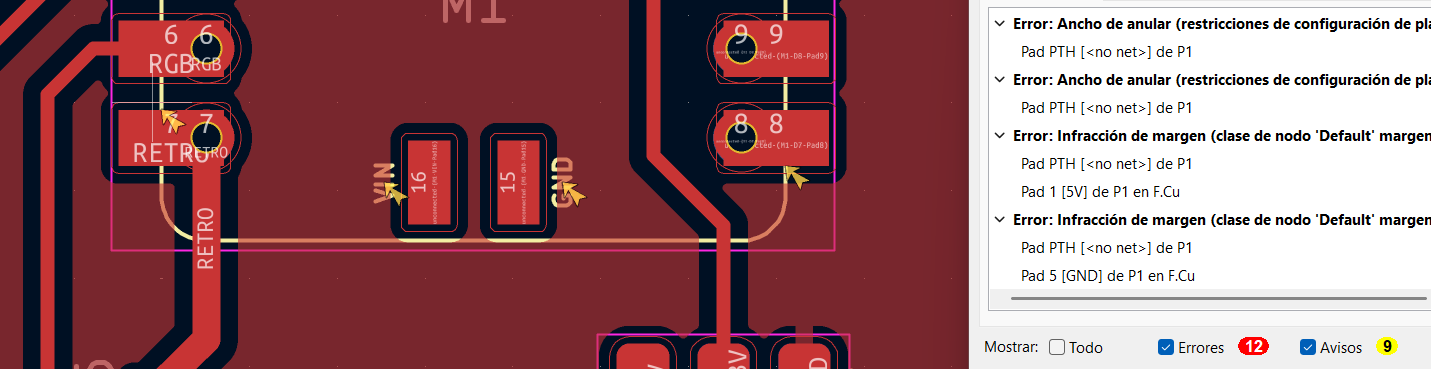

When we do this, the design rules compare our design and show us all the violations and errors that exist, when we click on each error, it marks the place in the "Layout", where the error is located, so that the correction can be made. There are errors that we can omit under our consideration and based on knowledge of electronics.

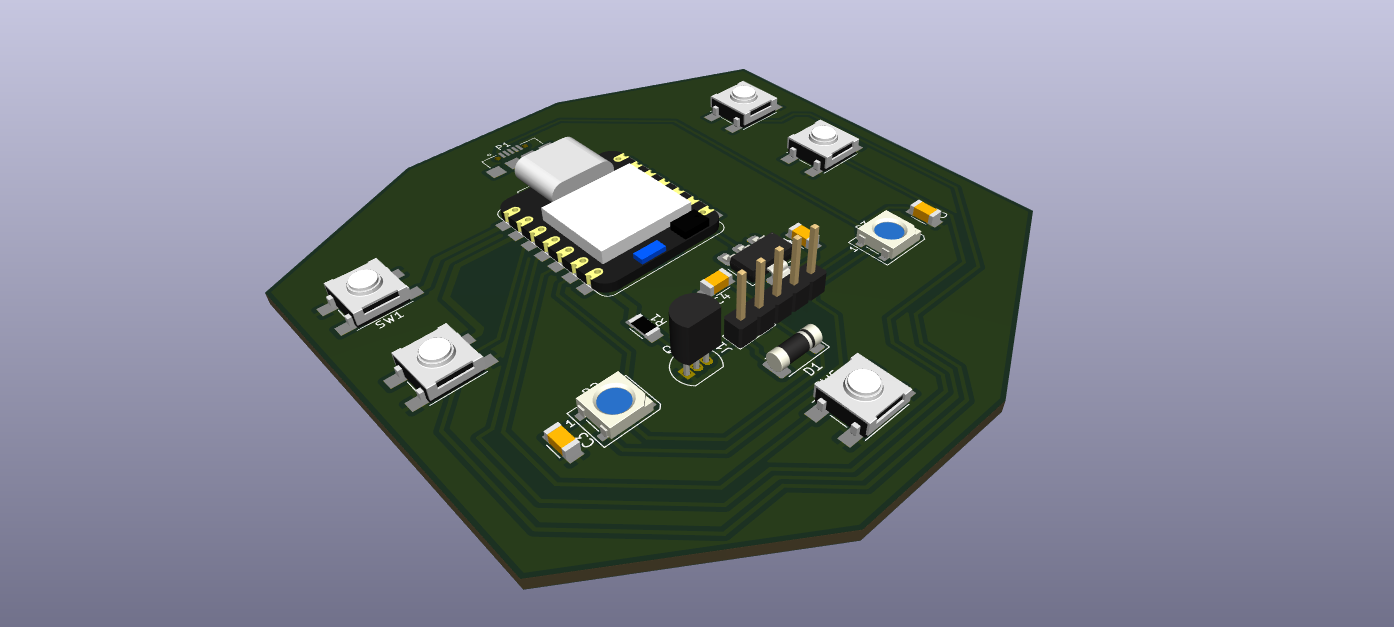

To visualize what the PCB would look like, we go to the "View - 3D Viewer" menu.

Results

Kicad
