Week 15: Interface and Application Programming

Individual Assignment:

Write an application that interfaces a user with an input &/or output device that you made.

Group Assignment:

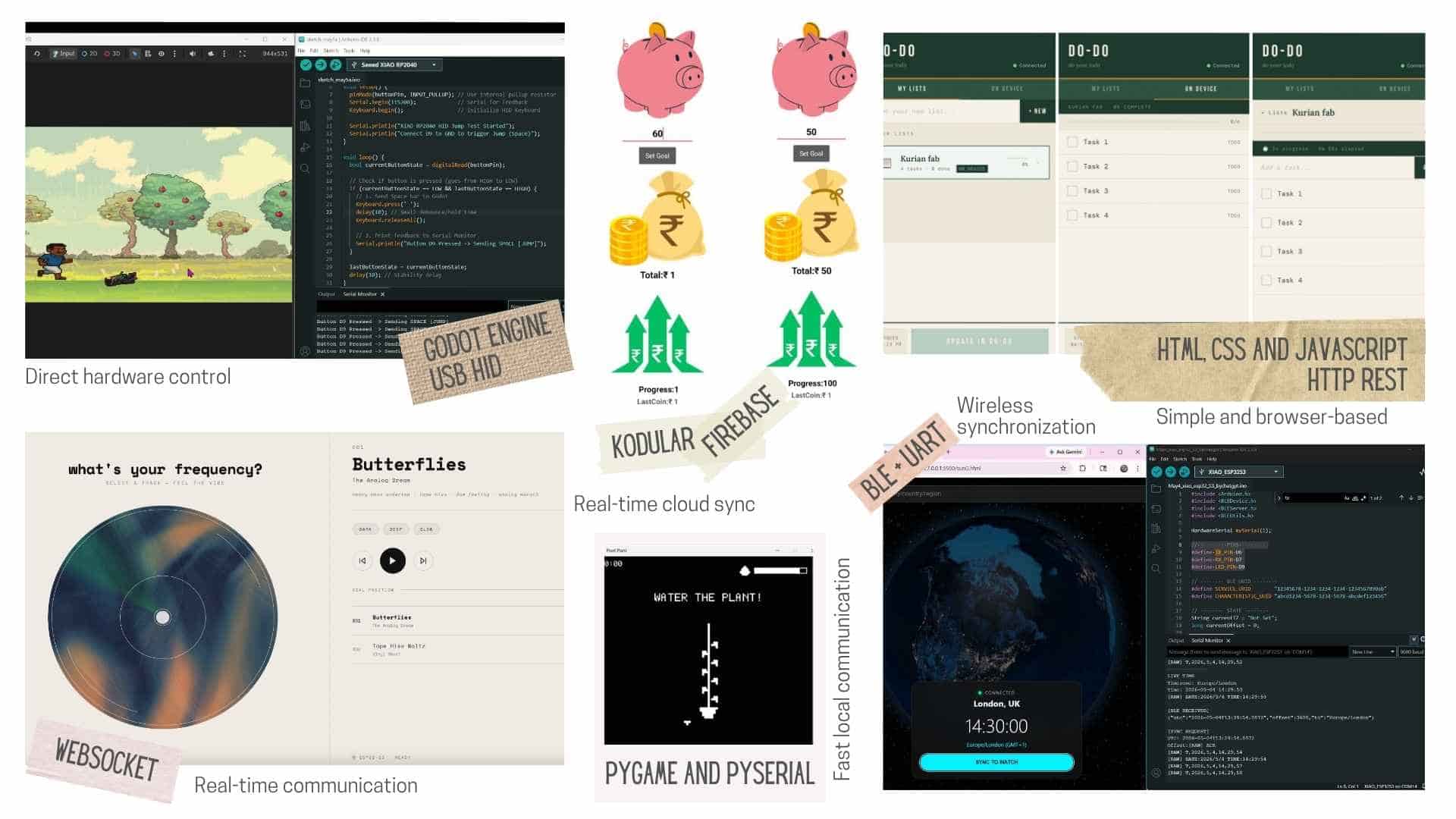

Compare as many tool options as possible.

---

Starting Point: What I Thought I Was Building

At the beginning of this week, the task sounded quite simple: build a parent-facing app for my smart piggy bank.

The idea in my head was very direct:

Parent sets a savings goal

Kid adds money through the piggy bank

App shows how much has been saved

It felt like a straightforward “app problem”.

---

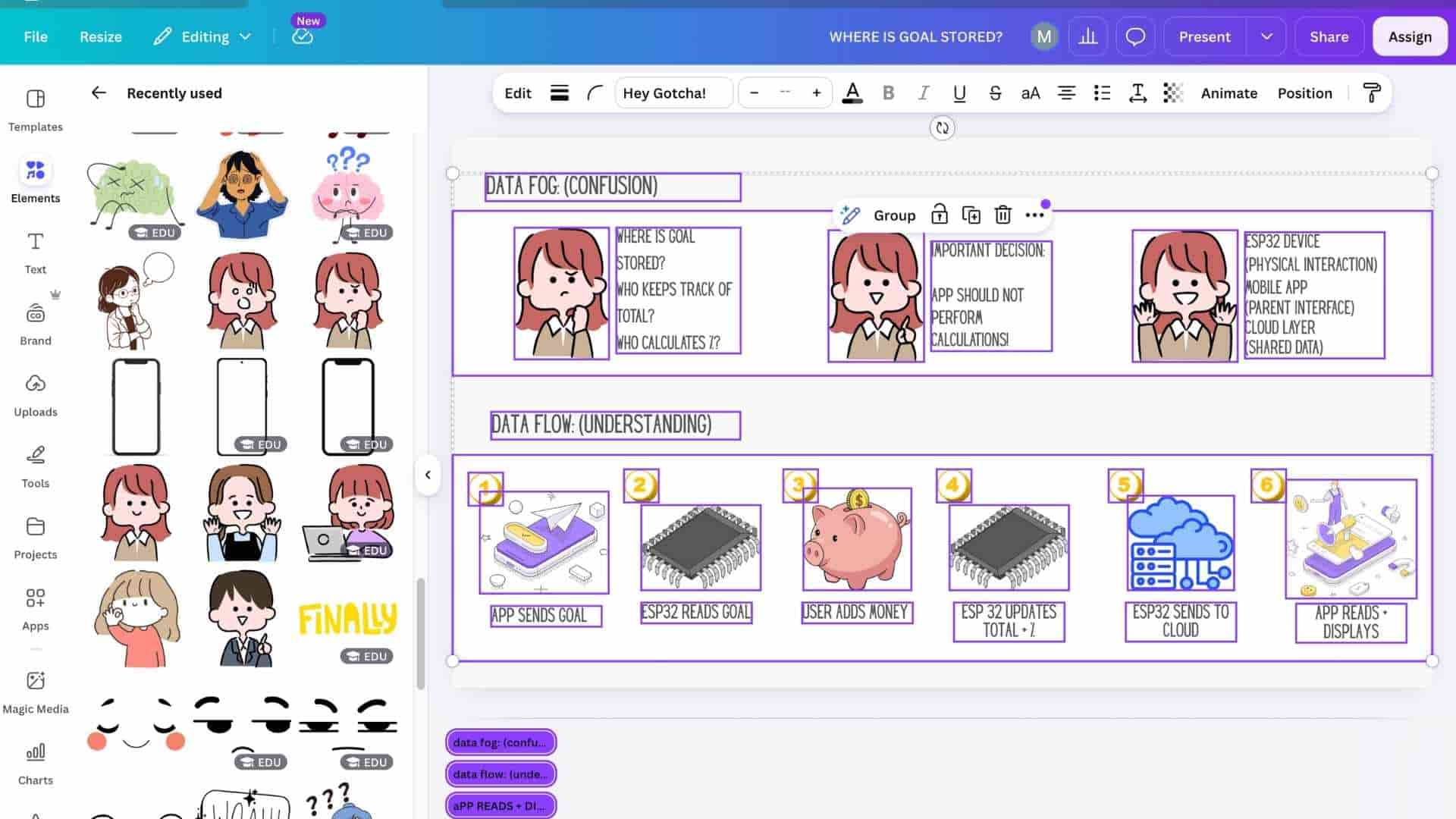

Where Things Started Getting Unclear

As soon as I tried to think about implementation, things started breaking apart.

I realized I didn’t actually know how the system was supposed to behave behind the scenes:

Where is the goal stored?

Who keeps track of the total amount?

Who calculates the percentage?

How does the app and device even communicate?

At this point, everything existed as one blurred system rather than clearly defined parts.

---

Breaking It Down (First Real Step)

To get some clarity, I split the system into three components:

ESP32 (device) → handles physical interaction

Mobile App (Kodular) → interface for the parent

Cloud layer (later Firebase) → shared data between both

This was the first moment the project started to feel like a system instead of just an app.

---

Important Design Decision

One decision that shaped everything after this:

The app should not perform any calculations.

So the responsibility became:

ESP32

calculate total

calculate percentage

handle logic

App

display values

send goal

This made the architecture cleaner, but it also meant the ESP32 had to do more than I initially expected.

---

Rough Data Flow (At That Time)

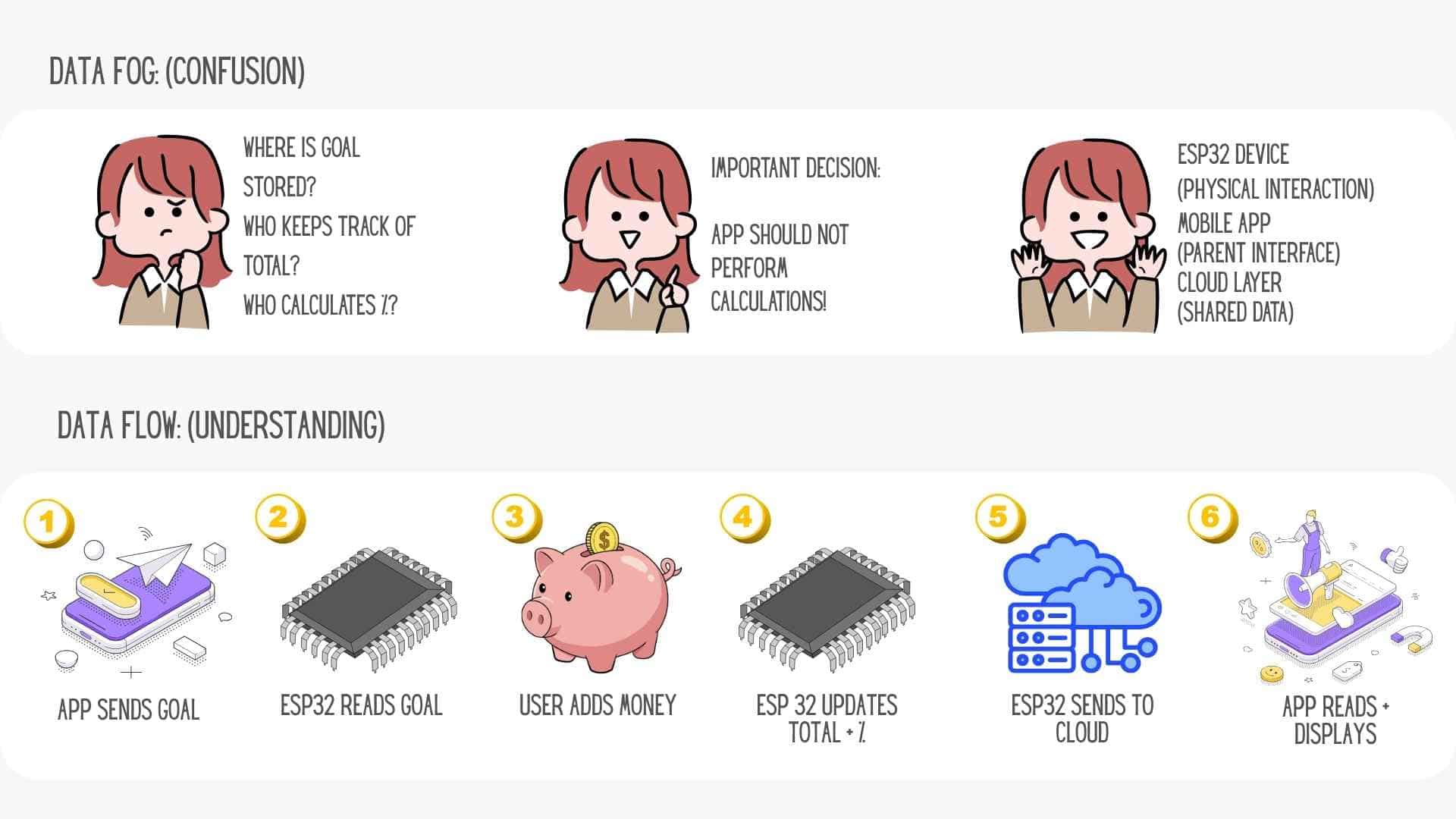

This is how I imagined things would work:

App → sends goal
ESP32 → reads goal
User input → adds money
ESP32 → updates total + percentage
ESP32 → sends data to cloud
App → reads and displays

At this stage, this was just a conceptual flow — nothing was implemented yet.

---

Ground Reality

Right now, I had:

no working app

no database

no communication between anything

Only a rough idea of how things should work.

So instead of jumping into everything at once, I decided to start from the most controlled part of the system:

→ the button input on the ESP32

---

Transition

Before anything could go to Firebase or the app, I needed one thing to work perfectly:

a reliable way to convert physical interaction into meaningful input.

---

Button Logic - Starting from What I Already Had

After mapping out the system, I still didn’t have anything functional. So instead of trying to build everything at once, I went back to something I had already made.

Starting Point: My Previous PCB

In the PCB production week, I had designed a board with:

XIAO ESP32-C6

Push button

LED

At that time, I had already experimented with:

button input

LED feedback

Serial output

That setup was stable and something I understood.

So instead of reinventing everything, I decided to reuse that logic.

---

The Shift in Thinking

At this point, the idea clicked:

treat the button as a coin input system.

So I mapped interactions like this:

Single press → ₹1 → LED blinks once

Double press → ₹2 → LED blinks twice

Long press → ₹5 → LED stays on briefly

And every interaction should:

print to Serial

update a running total

---

Building on Existing Logic

I didn’t start from scratch. I reused parts of my earlier working code and extended it to:

detect press types (single, double, long)

maintain a running total

print clean outputs only when an action happens

This made the system much more stable from the beginning.

---

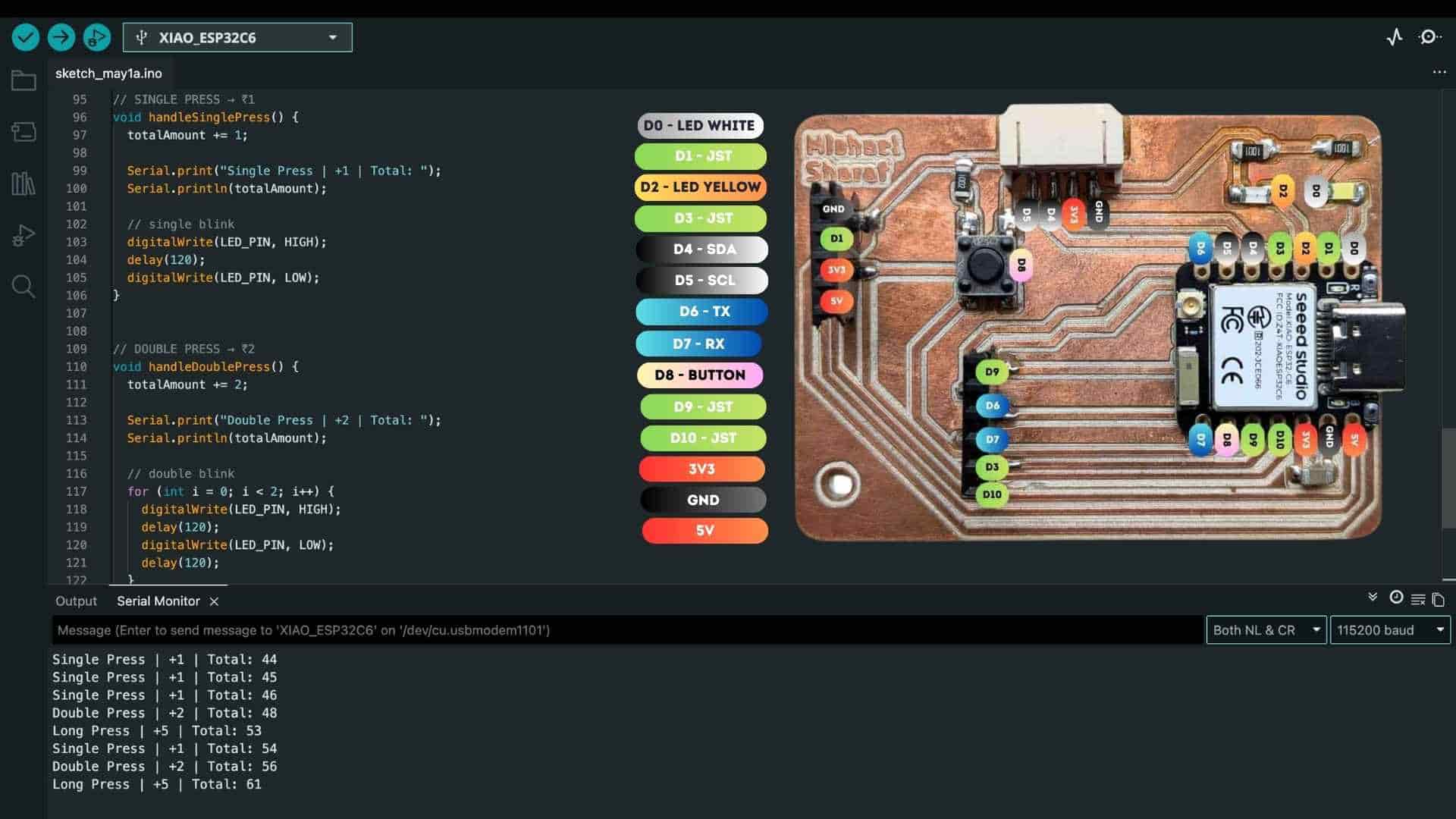

First Working Behavior

At this stage:

input was reliable

feedback was clear (LED + Serial)

total was updating correctly

This was the first time I had actual data being generated by the system.

Prompt used on Chatgpt

I am working with a XIAO ESP32C6 board and I want to build on a button interaction system similar to the simple edge-detection
code I previously used successfully (where a button press toggled LED behavior reliably). Using that as a reference for stable
button handling, I now want to extend the logic. The hardware setup is: a push button connected to pin D8 and a yellow LED connected
to pin D2. I want to use the button to simulate coin inputs with three types of interactions: a single press should represent 1 rupee
and trigger a single LED blink, a double press should represent 2 rupees and trigger a double blink, and a long press (around 1 second
or more) should represent 5 rupees and trigger a longer LED glow. The system should use proper edge detection instead of continuous
reading, include basic debounce handling, and use timing logic (millis) to distinguish between single, double, and long presses without
conflicts (for example, a long press should not also register as a single press). The code should maintain a running total and print
updates to the Serial Monitor only when an interaction occurs.

Code

// -------- PIN SETUP --------
#define BUTTON_PIN D8     // button input
#define LED_PIN D2        // yellow LED (active LOW or HIGH — we'll handle)


// -------- TIMING CONFIG --------
const unsigned long debounceDelay = 50;     // debounce time
const unsigned long longPressTime = 1000;   // long press threshold
const unsigned long doublePressGap = 400;   // max gap for double press


// -------- STATE VARIABLES --------
bool buttonState = LOW;          // current stable state
bool lastButtonReading = LOW;    // last raw reading

unsigned long lastDebounceTime = 0;

unsigned long pressStartTime = 0;
unsigned long lastReleaseTime = 0;

int pressCount = 0;

int totalAmount = 0;


// -------- SETUP --------
void setup() {
  Serial.begin(115200);

  pinMode(BUTTON_PIN, INPUT_PULLDOWN); // using your proven setup
  pinMode(LED_PIN, OUTPUT);

  digitalWrite(LED_PIN, LOW); // LED OFF initially
}


// -------- LOOP --------
void loop() {

  int reading = digitalRead(BUTTON_PIN);

  // -------- DEBOUNCE --------
  if (reading != lastButtonReading) {
    lastDebounceTime = millis(); // reset debounce timer
  }

  if ((millis() - lastDebounceTime) > debounceDelay) {

    if (reading != buttonState) {
      buttonState = reading;

      // -------- BUTTON PRESSED --------
      if (buttonState == HIGH) {
        pressStartTime = millis(); // start timing
      }

      // -------- BUTTON RELEASED --------
      else {
        unsigned long pressDuration = millis() - pressStartTime;

        // -------- LONG PRESS --------
        if (pressDuration >= longPressTime) {

          handleLongPress();  // ₹5
          pressCount = 0;     // reset count (important)

        } else {
          // short press → count for single/double
          pressCount++;
          lastReleaseTime = millis();
        }
      }
    }
  }

  // -------- SINGLE / DOUBLE DECISION --------
  if (pressCount > 0 && (millis() - lastReleaseTime) > doublePressGap) {

    if (pressCount == 1) {
      handleSinglePress();   // ₹1
    }
    else if (pressCount == 2) {
      handleDoublePress();   // ₹2
    }

    pressCount = 0; // reset after handling
  }

  lastButtonReading = reading;
}


// -------- ACTIONS --------

// SINGLE PRESS → ₹1
void handleSinglePress() {
  totalAmount += 1;

  Serial.print("Single Press | +1 | Total: ");
  Serial.println(totalAmount);

  // single blink
  digitalWrite(LED_PIN, HIGH);
  delay(120);
  digitalWrite(LED_PIN, LOW);
}


// DOUBLE PRESS → ₹2
void handleDoublePress() {
  totalAmount += 2;

  Serial.print("Double Press | +2 | Total: ");
  Serial.println(totalAmount);

  // double blink
  for (int i = 0; i < 2; i++) {
    digitalWrite(LED_PIN, HIGH);
    delay(120);
    digitalWrite(LED_PIN, LOW);
    delay(120);
  }
}


// LONG PRESS → ₹5
void handleLongPress() {
  totalAmount += 5;

  Serial.print("Long Press | +5 | Total: ");
  Serial.println(totalAmount);

  // long glow
  digitalWrite(LED_PIN, HIGH);
  delay(400);
  digitalWrite(LED_PIN, LOW);
}

---

Extending It: Introducing a Goal

Once the total was working, I added a simple constraint:

Goal = ₹100 (hardcoded for now)

From this, I calculated:

percentage = (total / goal) × 100

Now the system wasn’t just counting, it had context.

---

Adding Milestones

To make progress visible, I introduced milestone checks:

25%

50%

75%

100%

Each milestone triggered a Serial message and LED feedback.

This made the system feel more interactive and state-aware.

Prompt used on Chatgpt

Now that the single, double, and long press logic is working reliably with the button on D8 and the LED on D2, I want to build on
this same system instead of changing anything. Next, I want to introduce a goal into this flow. So the idea is that the device
keeps adding values (1, 2, or 5 rupees based on interaction), tracks a running total, and compares it to a fixed goal (for now hardcoded).
From that, it should calculate percentage progress and check for milestones at 25%, 50%, 75%, and 100%. When it reaches 100%, it should
trigger a clear feedback moment (like a slightly different LED pattern), and then reset everything back to 0 so the cycle can start again.
I want to keep the same structure and stability from the previous working code, just extend it to include this goal, percentage, milestone
tracking, and reset behavior without breaking the interaction logic.

Code

// -------- PIN SETUP --------
#define BUTTON_PIN D8     // button input (INPUT_PULLDOWN)
#define LED_PIN D2        // yellow LED

// -------- TIMING CONFIG --------
const unsigned long debounceDelay = 50;

const unsigned long longPressTime = 1000;

const unsigned long doublePressGap = 400;

// -------- SYSTEM STATE --------
int totalAmount = 0;

int goal = 100;

bool milestone25 = false;
bool milestone50 = false;
bool milestone75 = false;
bool milestone100 = false;

// -------- BUTTON STATE --------
bool buttonState = LOW;
bool lastButtonReading = LOW;

unsigned long lastDebounceTime = 0;
unsigned long pressStartTime = 0;
unsigned long lastReleaseTime = 0;

int pressCount = 0;

// -------- SETUP --------
void setup() {
Serial.begin(115200);

pinMode(BUTTON_PIN, INPUT_PULLDOWN);
pinMode(LED_PIN, OUTPUT);

digitalWrite(LED_PIN, LOW); // LED OFF initially
}

// -------- LOOP --------
void loop() {

int reading = digitalRead(BUTTON_PIN);

// -------- DEBOUNCE --------
if (reading != lastButtonReading) {
lastDebounceTime = millis();
}

if ((millis() - lastDebounceTime) > debounceDelay) {

```
if (reading != buttonState) {
  buttonState = reading;

  // -------- BUTTON PRESSED --------
  if (buttonState == HIGH) {
    pressStartTime = millis();
  }

  // -------- BUTTON RELEASED --------
  else {
    unsigned long pressDuration = millis() - pressStartTime;

    // -------- LONG PRESS --------
    if (pressDuration >= longPressTime) {
      handleLongPress();
      pressCount = 0;
    }
    else {
      pressCount++;
      lastReleaseTime = millis();
    }
  }
}
```

}

// -------- SINGLE / DOUBLE --------
if (pressCount > 0 && (millis() - lastReleaseTime) > doublePressGap) {

```
if (pressCount == 1) {
  handleSinglePress();
}
else if (pressCount == 2) {
  handleDoublePress();
}

pressCount = 0;
```

}

lastButtonReading = reading;
}

// -------- ACTIONS --------

// Single press → ₹1
void handleSinglePress() {
addAmount(1);
blinkLED(1);
}

// Double press → ₹2
void handleDoublePress() {
addAmount(2);
blinkLED(2);
}

// Long press → ₹5
void handleLongPress() {
addAmount(5);

// longer glow
digitalWrite(LED_PIN, HIGH);
delay(400);
digitalWrite(LED_PIN, LOW);
}

// -------- CORE LOGIC --------

void addAmount(int value) {

// prevent adding after goal already reached
if (milestone100) return;

totalAmount += value;

// clamp to goal
if (totalAmount > goal) {
totalAmount = goal;
}

int percentage = (totalAmount * 100) / goal;

Serial.print("Added: ");
Serial.print(value);
Serial.print(" | Total: ");
Serial.print(totalAmount);
Serial.print(" | ");
Serial.print(percentage);
Serial.println("%");

checkMilestones(percentage);
}

// -------- LED HELPER --------

void blinkLED(int times) {
for (int i = 0; i < times; i++) {
digitalWrite(LED_PIN, HIGH);
delay(120);
digitalWrite(LED_PIN, LOW);
delay(120);
}
}

// -------- RESET SYSTEM --------

void resetSystem() {

totalAmount = 0;

milestone25 = false;
milestone50 = false;
milestone75 = false;
milestone100 = false;

Serial.println("System Reset → Back to 0%");
}

// -------- MILESTONE LOGIC --------

void checkMilestones(int percentage) {

if (!milestone25 && percentage >= 25) {
milestone25 = true;
Serial.println("Milestone: 25% reached");
}

if (!milestone50 && percentage >= 50) {
milestone50 = true;
Serial.println("Milestone: 50% reached");
}

if (!milestone75 && percentage >= 75) {
milestone75 = true;
Serial.println("Milestone: 75% reached");
}

if (!milestone100 && percentage >= 100) {
milestone100 = true;

```
Serial.println("Milestone: Goal reached!");

// -------- CELEBRATION --------
for (int i = 0; i < 3; i++) {
  digitalWrite(LED_PIN, HIGH);
  delay(150);
  digitalWrite(LED_PIN, LOW);
  delay(150);
}

delay(500); // pause before reset

resetSystem(); // restart cycle
```

}
}

---

The First Real Bug

Everything seemed fine, until I crossed the goal.

Example:

Total = 96

Add ₹5 → becomes 101 → 101%

At this point, I ran into the first issue.

---

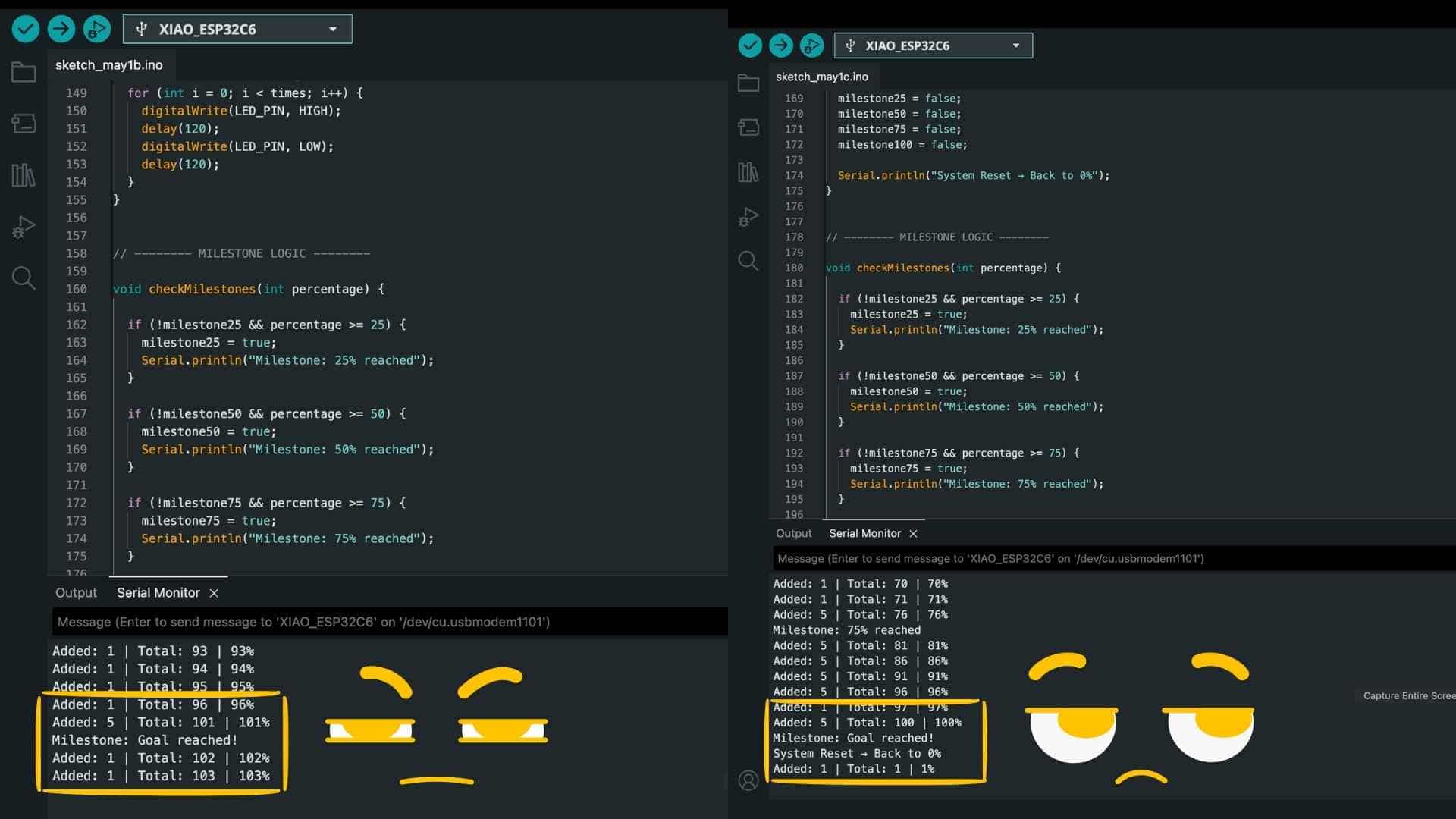

Issue 1: Overflow

The system was allowing the total to exceed the goal.

So instead of stopping at 100, it went beyond:

Total: 101 | 101%

This didn’t make sense for the system I was trying to build.

I wanted the goal to act as a hard boundary, not something that could be exceeded.

---

Fix: Clamp to Goal

I first fixed this by restricting the value:

if total > goal → set total = goal

So the system would properly stop at 100%.

---

Issue 2: Remainder Loss (More Subtle Problem)

After fixing overflow, I noticed another issue.

Total = 97

Add ₹5

Expected behavior:

100 completes the goal

remaining ₹2 should carry forward

Actual behavior:

system reset to 0

extra ₹2 was lost

So even though overflow was visually fixed, logically it was still incorrect.

---

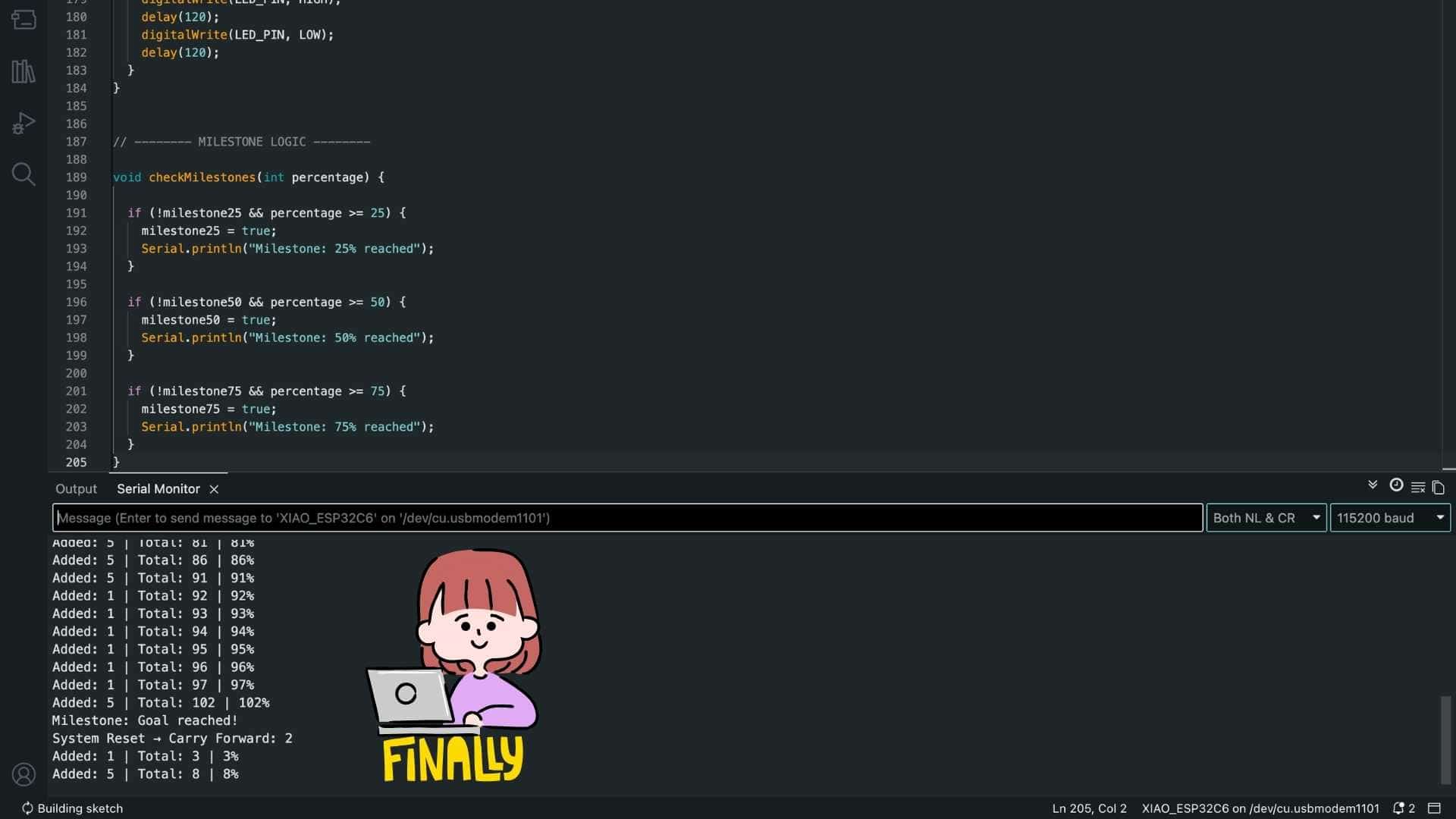

Final Fix: Carry Forward the Remainder

To solve this properly, I changed the reset logic:

calculate overflow = total − goal

after goal completion:

reset milestones

set total = overflow

So now:

102 → reset → starts next cycle at 2

This made the system behave more like a real piggy bank— no money disappears.

Prompt used on Chatgpt

Now that the interaction logic, goal tracking, and reset cycle are working properly, I noticed an issue when the total exceeds the
goal. For example, if the total is 97 and I add 5, it becomes 102, but earlier the system was resetting to 0 and losing the extra 2.
I want to fix this so that the overflow is not lost. Instead, when the goal is reached or exceeded, the system should calculate the
remainder (like 102 → 100 + 2), trigger the goal completion feedback, and then reset while carrying forward the leftover amount into
the next cycle. The rest of the logic should remain the same—single, double, and long press behavior, milestone tracking, and clean
serial output. I just want to extend the reset logic so it behaves more realistically and doesn’t discard any value.

Code

// -------- PIN SETUP --------
#define BUTTON_PIN D8     // button input (INPUT_PULLDOWN)
#define LED_PIN D2        // yellow LED


// -------- TIMING CONFIG --------
const unsigned long debounceDelay = 50;
const unsigned long longPressTime = 1000;
const unsigned long doublePressGap = 400;


// -------- SYSTEM STATE --------
int totalAmount = 0;
int goal = 100;

bool milestone25 = false;
bool milestone50 = false;
bool milestone75 = false;
bool milestone100 = false;


// -------- BUTTON STATE --------
bool buttonState = LOW;
bool lastButtonReading = LOW;

unsigned long lastDebounceTime = 0;
unsigned long pressStartTime = 0;
unsigned long lastReleaseTime = 0;

int pressCount = 0;


// -------- SETUP --------
void setup() {
  Serial.begin(115200);

  pinMode(BUTTON_PIN, INPUT_PULLDOWN);
  pinMode(LED_PIN, OUTPUT);

  digitalWrite(LED_PIN, LOW);
}


// -------- LOOP --------
void loop() {

  int reading = digitalRead(BUTTON_PIN);

  // -------- DEBOUNCE --------
  if (reading != lastButtonReading) {
    lastDebounceTime = millis();
  }

  if ((millis() - lastDebounceTime) > debounceDelay) {

    if (reading != buttonState) {
      buttonState = reading;

      // -------- BUTTON PRESSED --------
      if (buttonState == HIGH) {
        pressStartTime = millis();
      }

      // -------- BUTTON RELEASED --------
      else {
        unsigned long pressDuration = millis() - pressStartTime;

        // -------- LONG PRESS --------
        if (pressDuration >= longPressTime) {
          handleLongPress();
          pressCount = 0;
        }
        else {
          pressCount++;
          lastReleaseTime = millis();
        }
      }
    }
  }

  // -------- SINGLE / DOUBLE --------
  if (pressCount > 0 && (millis() - lastReleaseTime) > doublePressGap) {

    if (pressCount == 1) {
      handleSinglePress();
    }
    else if (pressCount == 2) {
      handleDoublePress();
    }

    pressCount = 0;
  }

  lastButtonReading = reading;
}


// -------- ACTIONS --------

// Single press → ₹1
void handleSinglePress() {
  addAmount(1);
  blinkLED(1);
}

// Double press → ₹2
void handleDoublePress() {
  addAmount(2);
  blinkLED(2);
}

// Long press → ₹5
void handleLongPress() {
  addAmount(5);

  // long glow
  digitalWrite(LED_PIN, HIGH);
  delay(400);
  digitalWrite(LED_PIN, LOW);
}


// -------- CORE LOGIC --------

void addAmount(int value) {

  totalAmount += value;

  int percentage = (totalAmount * 100) / goal;

  Serial.print("Added: ");
  Serial.print(value);
  Serial.print(" | Total: ");
  Serial.print(totalAmount);
  Serial.print(" | ");
  Serial.print(percentage);
  Serial.println("%");

  // -------- CHECK GOAL WITH REMAINDER --------
  if (totalAmount >= goal) {

    int overflow = totalAmount - goal; // calculate leftover

    Serial.println("Milestone: Goal reached!");

    // celebration pattern
    for (int i = 0; i < 3; i++) {
      digitalWrite(LED_PIN, HIGH);
      delay(150);
      digitalWrite(LED_PIN, LOW);
      delay(150);
    }

    delay(500);

    // -------- RESET WITH CARRY FORWARD --------
    totalAmount = overflow;

    milestone25 = false;
    milestone50 = false;
    milestone75 = false;
    milestone100 = false;

    Serial.print("System Reset → Carry Forward: ");
    Serial.println(totalAmount);

    return; // stop further milestone checks
  }

  // -------- NORMAL MILESTONE CHECK --------
  checkMilestones(percentage);
}


// -------- LED HELPER --------

void blinkLED(int times) {
  for (int i = 0; i < times; i++) {
    digitalWrite(LED_PIN, HIGH);
    delay(120);
    digitalWrite(LED_PIN, LOW);
    delay(120);
  }
}


// -------- MILESTONE LOGIC --------

void checkMilestones(int percentage) {

  if (!milestone25 && percentage >= 25) {
    milestone25 = true;
    Serial.println("Milestone: 25% reached");
  }

  if (!milestone50 && percentage >= 50) {
    milestone50 = true;
    Serial.println("Milestone: 50% reached");
  }

  if (!milestone75 && percentage >= 75) {
    milestone75 = true;
    Serial.println("Milestone: 75% reached");
  }
}

Why This Step Mattered

At this stage, I had:

a reliable input system

a running total

goal-based logic

proper handling of edge cases (overflow + remainder)

state transitions (milestones + reset)

Even though nothing was connected to server or the app yet, this became the core engine of the entire project.

---

Transition

Now that the device could generate structured and reliable data, the next question was:

how do I get this data out of the ESP32?

---

Connecting the System - WiFi and Firebase

Up to this point, the system could generate data reliably, but it was still confined to the ESP32.

Every interaction - button press, total update, milestone - was happening internally, visible only through the Serial Monitor.

The next step was to move that data outside the device.

---

Step 1: Getting the ESP32 Online

I started by testing a basic WiFi connection.

The goal here wasn’t complexity, it was verification:

can the board connect to a network?

does it stay connected?

can I see a valid IP address?

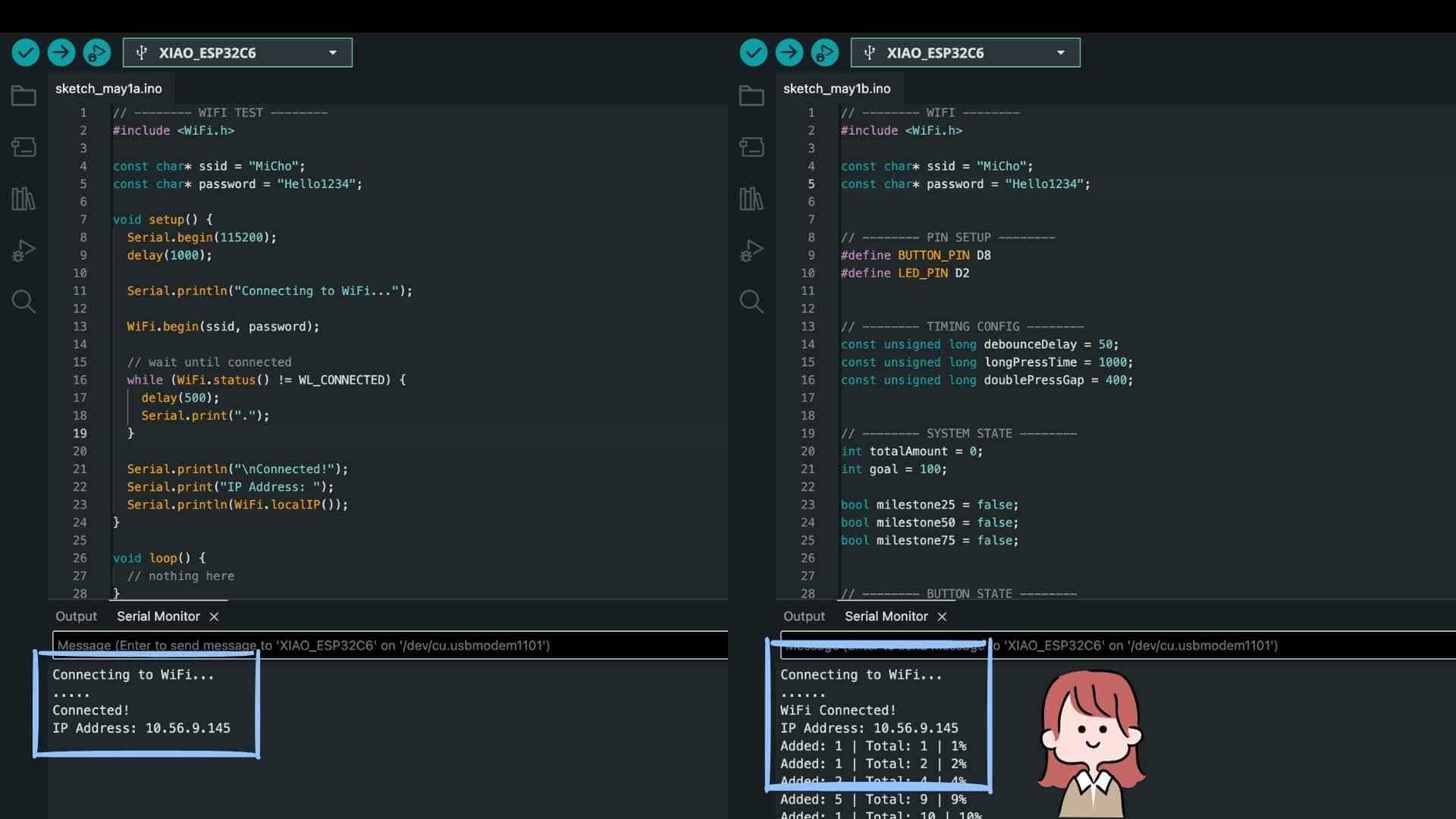

Once the Serial Monitor showed a successful connection and an IP address, it confirmed that the ESP32 was now part of a network, not just a standalone device.

Wifi Test Code

// -------- WIFI TEST --------
#include <WiFi.h>

const char* ssid = "MY SSID";
const char* password = "PASSWORD";

void setup() {
  Serial.begin(115200);
  delay(1000);

  Serial.println("Connecting to WiFi...");

  WiFi.begin(ssid, password);

  // wait until connected
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nConnected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  // nothing here
}

---

Integrating WiFi into the Existing System

After confirming WiFi worked independently, I added it into my existing button logic code.

Wifi integrated code

// -------- WIFI --------
#include <WiFi.h>

const char* ssid = "MiCho";
const char* password = "Hello1234";


// -------- PIN SETUP --------
#define BUTTON_PIN D8
#define LED_PIN D2


// -------- TIMING CONFIG --------
const unsigned long debounceDelay = 50;
const unsigned long longPressTime = 1000;
const unsigned long doublePressGap = 400;


// -------- SYSTEM STATE --------
int totalAmount = 0;
int goal = 100;

bool milestone25 = false;
bool milestone50 = false;
bool milestone75 = false;


// -------- BUTTON STATE --------
bool buttonState = LOW;
bool lastButtonReading = LOW;

unsigned long lastDebounceTime = 0;
unsigned long pressStartTime = 0;
unsigned long lastReleaseTime = 0;

int pressCount = 0;


// -------- SETUP --------
void setup() {
  Serial.begin(115200);

  pinMode(BUTTON_PIN, INPUT_PULLDOWN);
  pinMode(LED_PIN, OUTPUT);

  digitalWrite(LED_PIN, LOW);

  // -------- WIFI CONNECT --------
  Serial.println("Connecting to WiFi...");
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nWiFi Connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}


// -------- LOOP --------
void loop() {

  int reading = digitalRead(BUTTON_PIN);

  // -------- DEBOUNCE --------
  if (reading != lastButtonReading) {
    lastDebounceTime = millis();
  }

  if ((millis() - lastDebounceTime) > debounceDelay) {

    if (reading != buttonState) {
      buttonState = reading;

      if (buttonState == HIGH) {
        pressStartTime = millis();
      }
      else {
        unsigned long pressDuration = millis() - pressStartTime;

        if (pressDuration >= longPressTime) {
          handleLongPress();
          pressCount = 0;
        }
        else {
          pressCount++;
          lastReleaseTime = millis();
        }
      }
    }
  }

  if (pressCount > 0 && (millis() - lastReleaseTime) > doublePressGap) {

    if (pressCount == 1) {
      handleSinglePress();
    }
    else if (pressCount == 2) {
      handleDoublePress();
    }

    pressCount = 0;
  }

  lastButtonReading = reading;
}


// -------- ACTIONS --------

void handleSinglePress() {
  addAmount(1);
  blinkLED(1);
}

void handleDoublePress() {
  addAmount(2);
  blinkLED(2);
}

void handleLongPress() {
  addAmount(5);

  digitalWrite(LED_PIN, HIGH);
  delay(400);
  digitalWrite(LED_PIN, LOW);
}


// -------- CORE LOGIC --------

void addAmount(int value) {

  totalAmount += value;

  int percentage = (totalAmount * 100) / goal;

  Serial.print("Added: ");
  Serial.print(value);
  Serial.print(" | Total: ");
  Serial.print(totalAmount);
  Serial.print(" | ");
  Serial.print(percentage);
  Serial.println("%");

  // -------- GOAL CHECK WITH REMAINDER --------
  if (totalAmount >= goal) {

    int overflow = totalAmount - goal;

    Serial.println("Milestone: Goal reached!");

    for (int i = 0; i < 3; i++) {
      digitalWrite(LED_PIN, HIGH);
      delay(150);
      digitalWrite(LED_PIN, LOW);
      delay(150);
    }

    delay(500);

    totalAmount = overflow;

    milestone25 = false;
    milestone50 = false;
    milestone75 = false;

    Serial.print("System Reset → Carry Forward: ");
    Serial.println(totalAmount);

    return;
  }

  checkMilestones(percentage);
}


// -------- LED --------

void blinkLED(int times) {
  for (int i = 0; i < times; i++) {
    digitalWrite(LED_PIN, HIGH);
    delay(120);
    digitalWrite(LED_PIN, LOW);
    delay(120);
  }
}


// -------- MILESTONES --------

void checkMilestones(int percentage) {

  if (!milestone25 && percentage >= 25) {
    milestone25 = true;
    Serial.println("Milestone: 25% reached");
  }

  if (!milestone50 && percentage >= 50) {
    milestone50 = true;
    Serial.println("Milestone: 50% reached");
  }

  if (!milestone75 && percentage >= 75) {
    milestone75 = true;
    Serial.println("Milestone: 75% reached");
  }
}

---

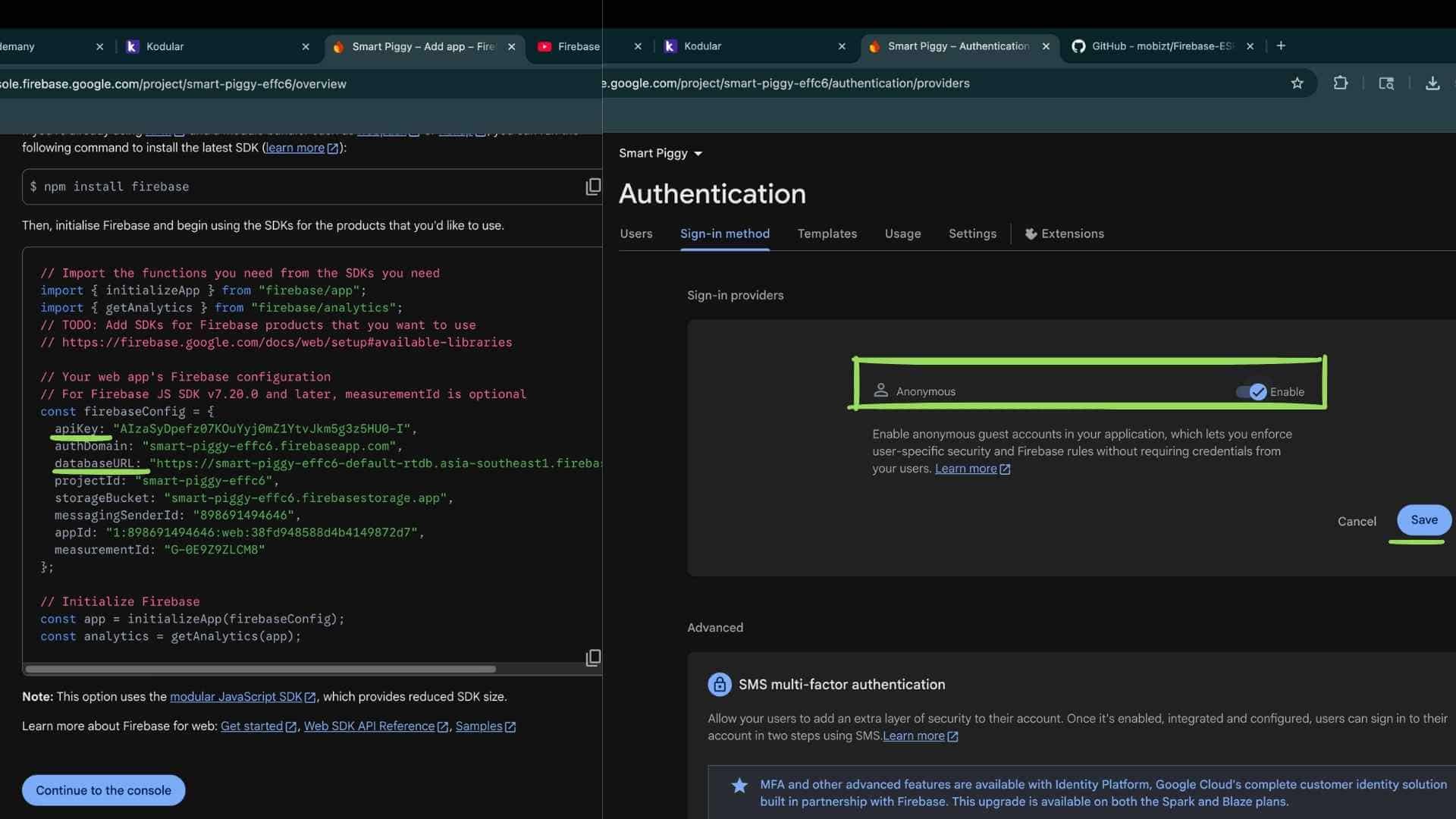

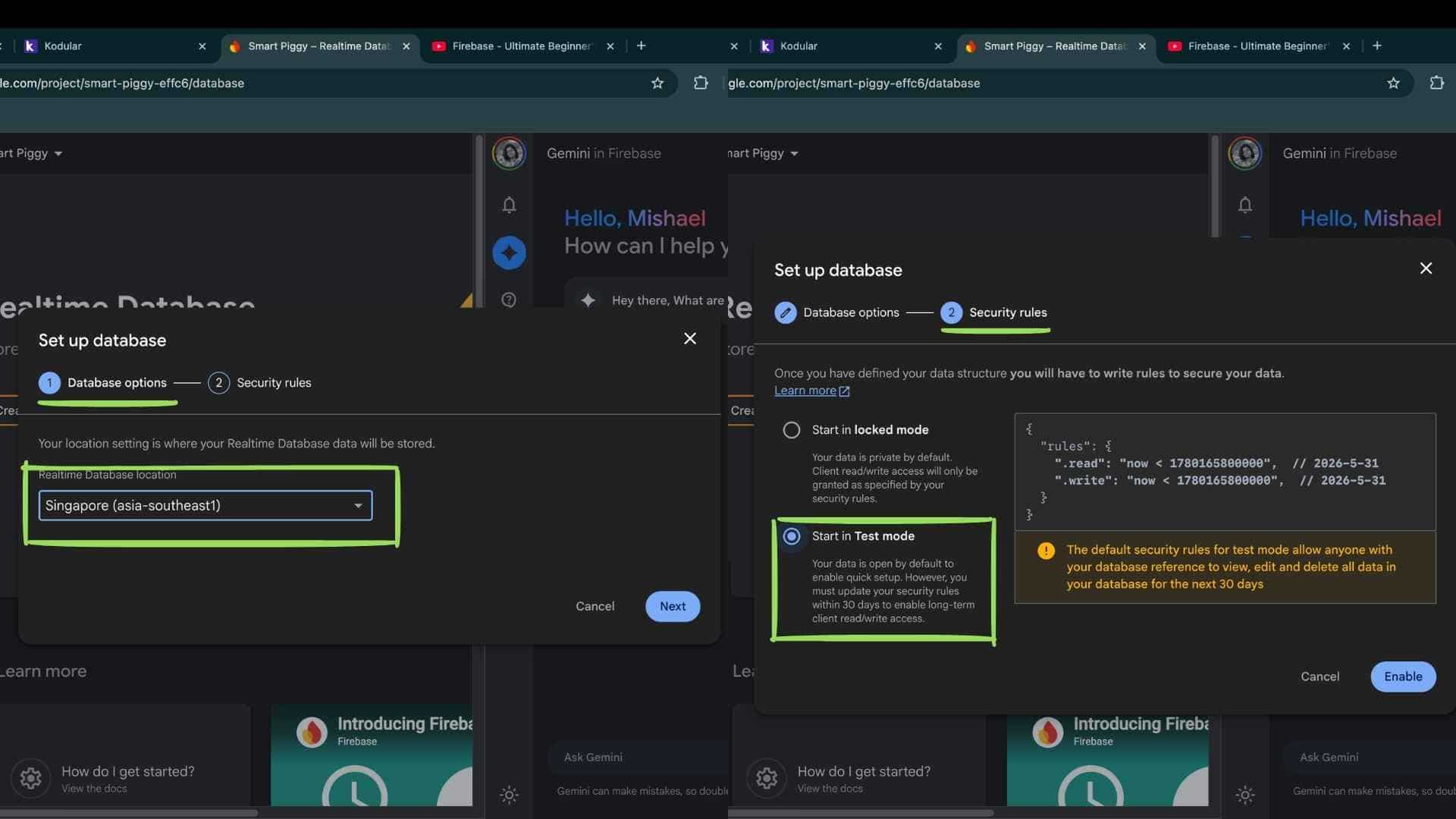

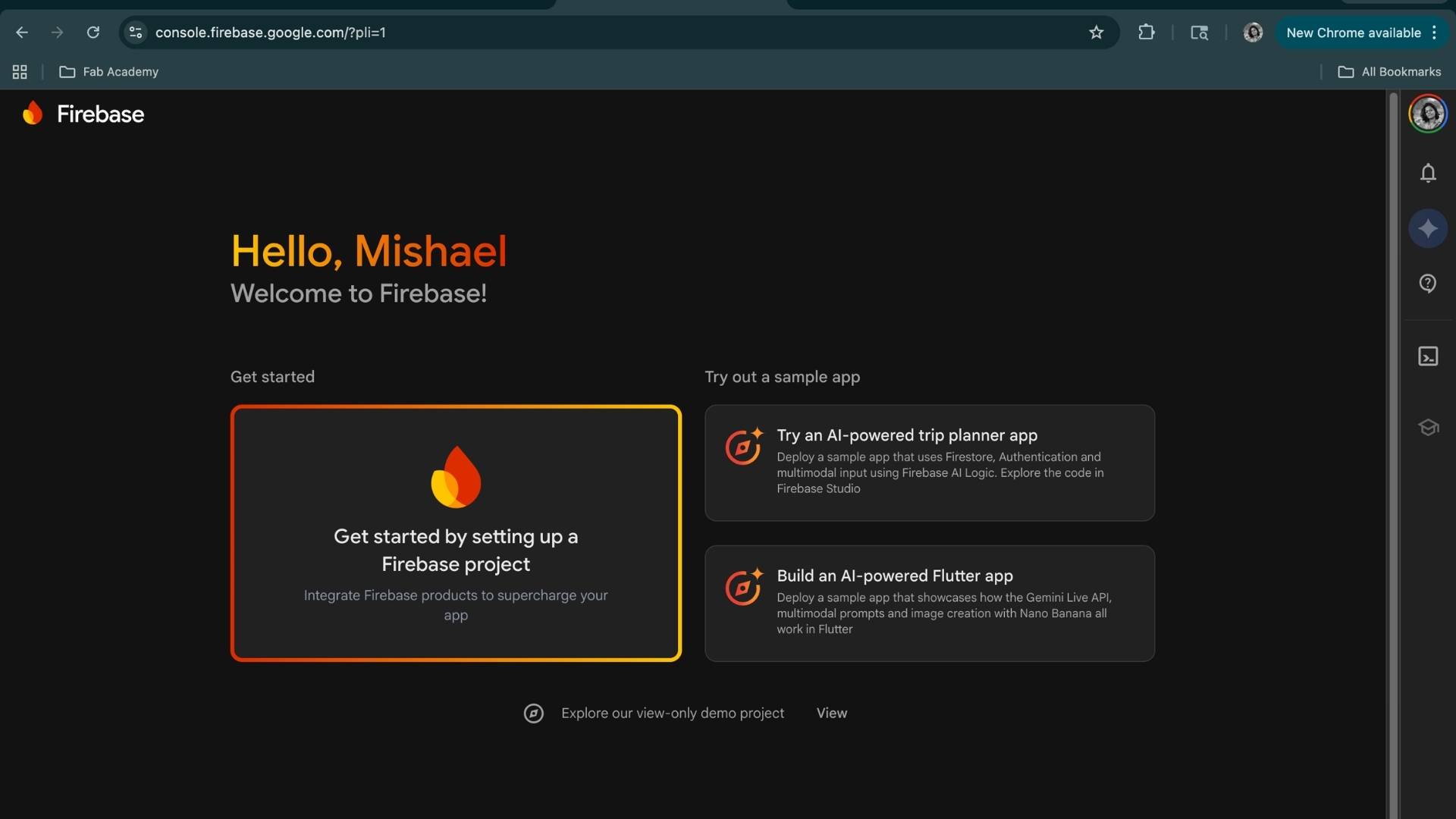

Introducing Firebase (First Time Use)

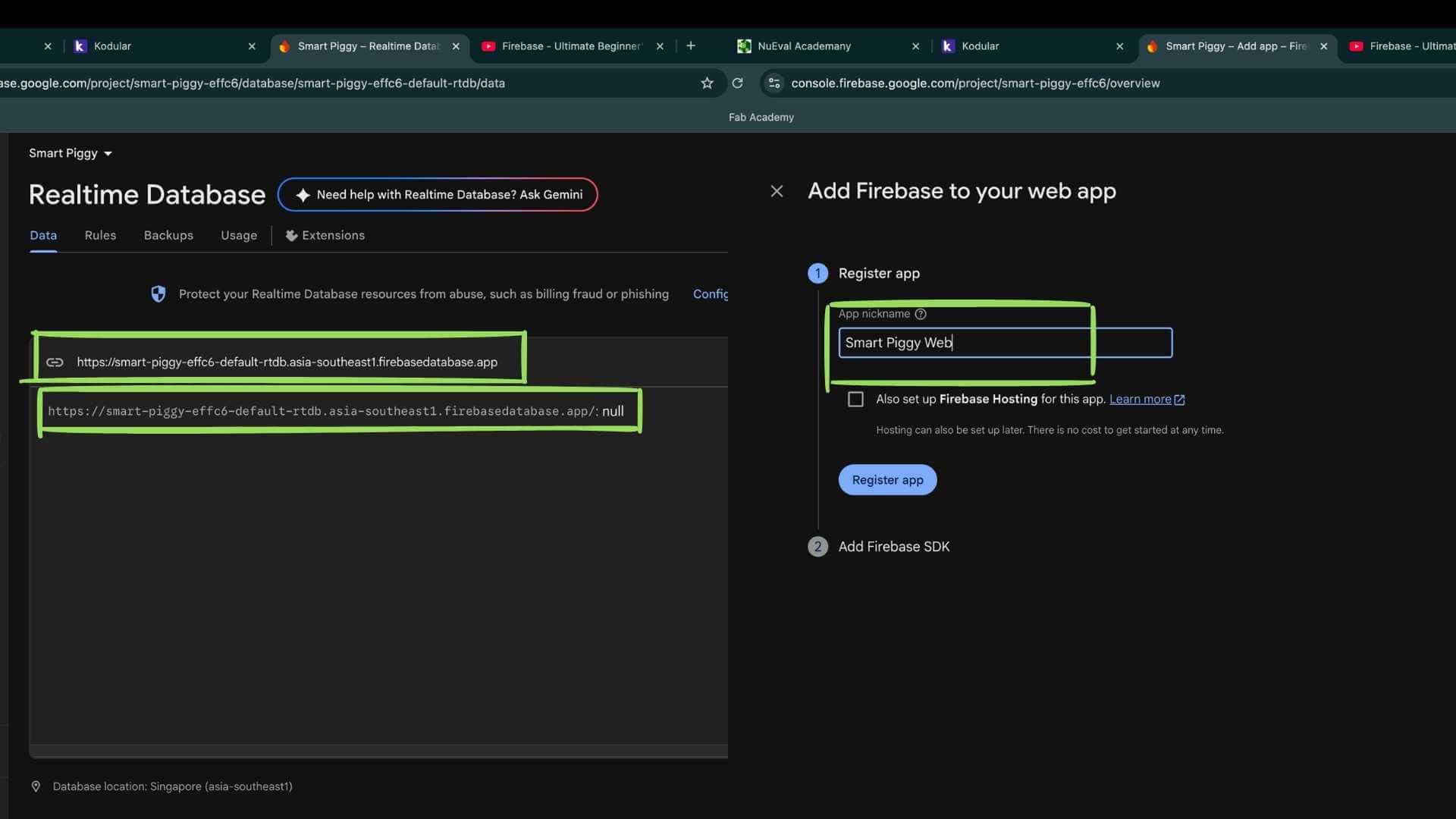

Now that the device could connect to the internet, I needed a way to store and share data.

The requirement was specific:

the ESP32 should be able to write data

the app should be able to read it

both should stay in sync

This is where Firebase came in.

---

What Firebase Is (In This Context)

Instead of treating Firebase as a generic backend, I approached it as:

a shared data layer between the device and the app

It acts like a central state that both sides can access.

In this system:

ESP32 updates values like total, percentage, and last coin

the app reads and displays those values

the app writes the goal

the ESP32 reads that goal and uses it for calculations

Everything passes through Firebase.

---

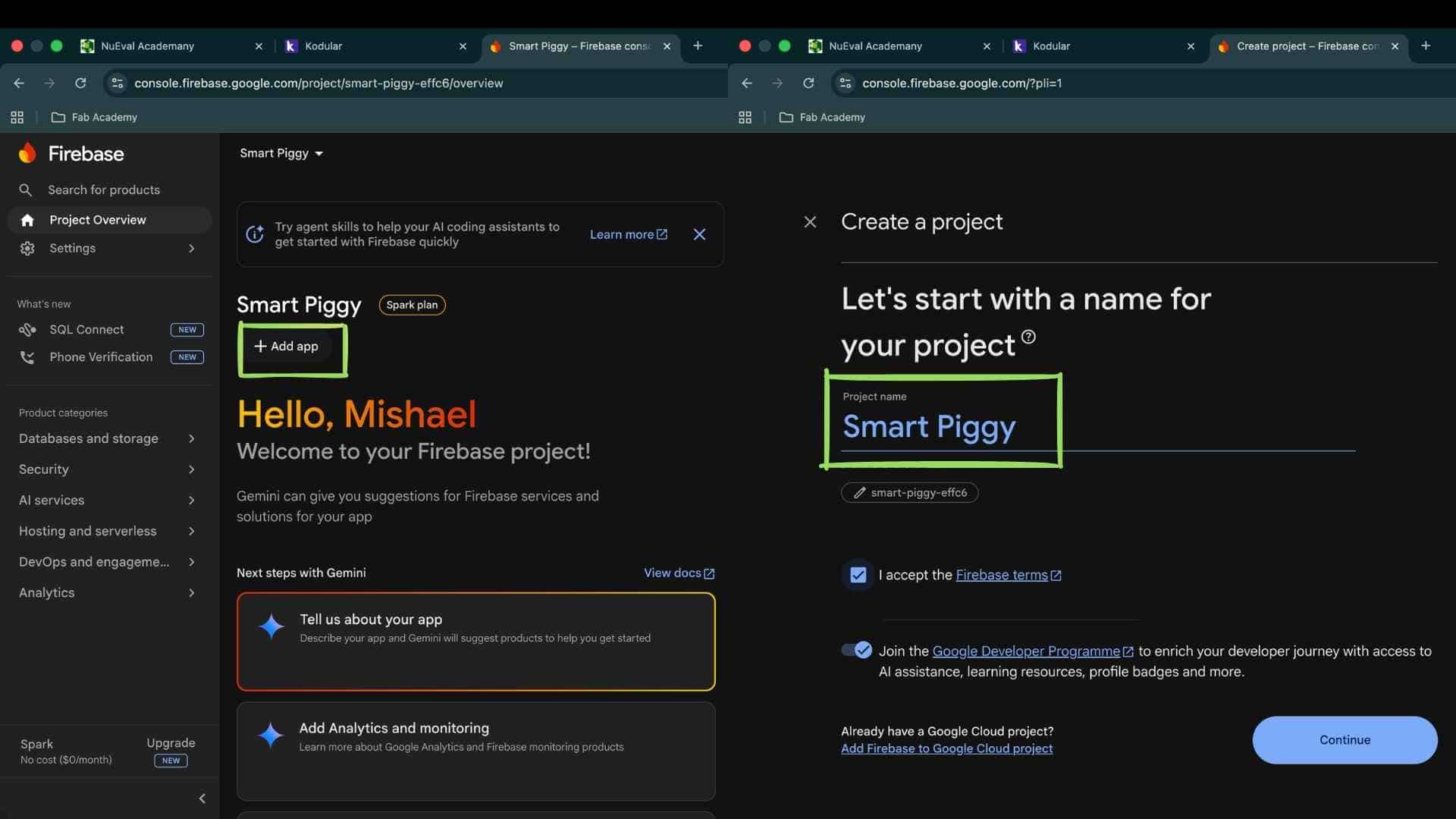

Creating the Firebase Project

I created a new Firebase project for this system.

Project name: Smart Piggy

Default setup (Spark plan)

---

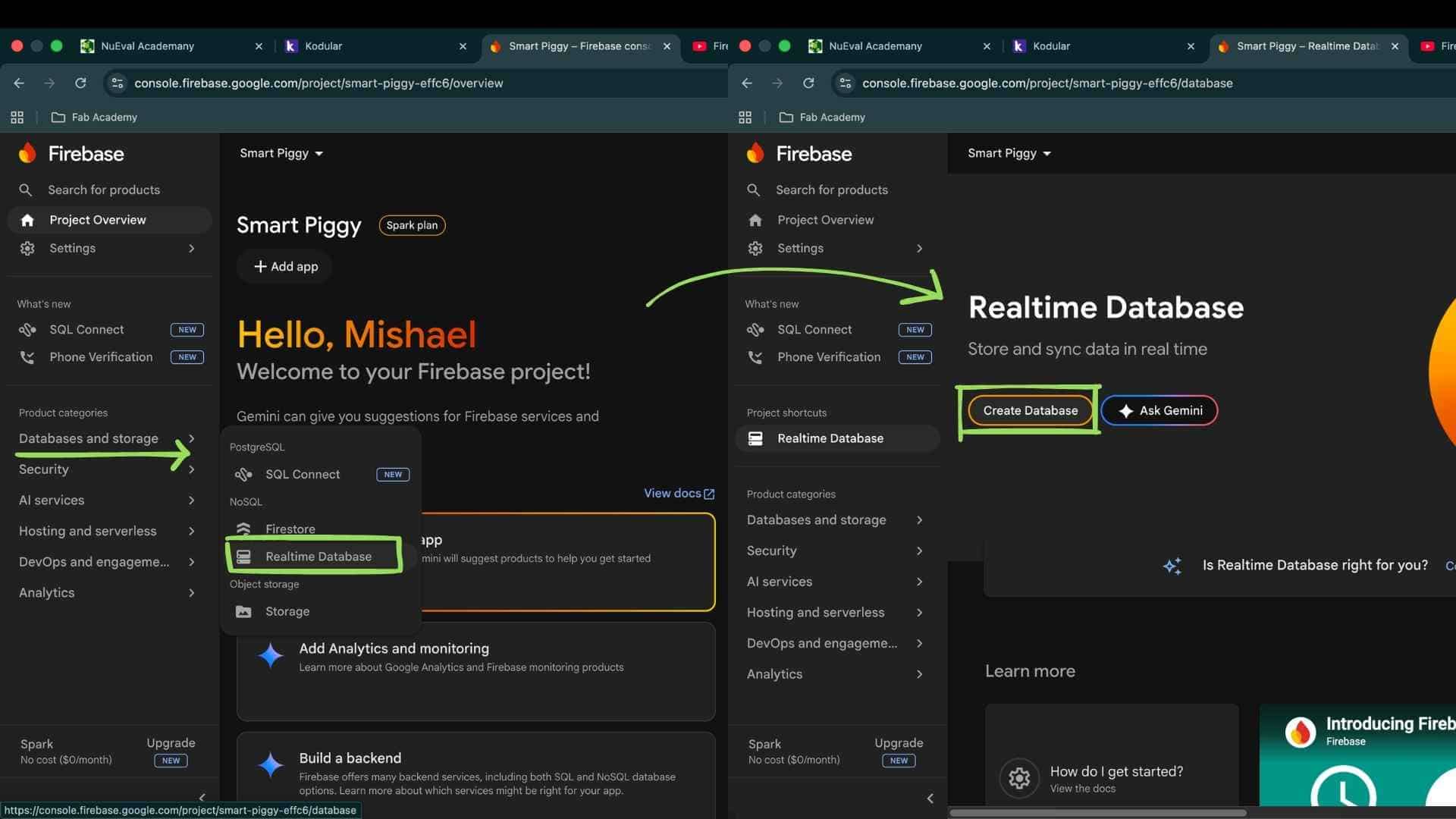

Setting Up Realtime Database

From the Firebase console, I moved to:

Build → Realtime Database

Then configured:

Region: Singapore (asia-southeast1)

Mode: Test mode

Test mode allowed open read/write access, which made initial development easier.

---

Getting Configuration Details

After setting up the database, I needed the credentials required by the ESP32:

API Key

Database URL

These come from adding an app to the Firebase project.

This configuration is what allows the ESP32 to authenticate and communicate with Firebase.

Enabling Authentication

To allow the ESP32 to connect without user login, I enabled:

Anonymous Authentication

This step was necessary for the device to perform read/write operations programmatically.

---

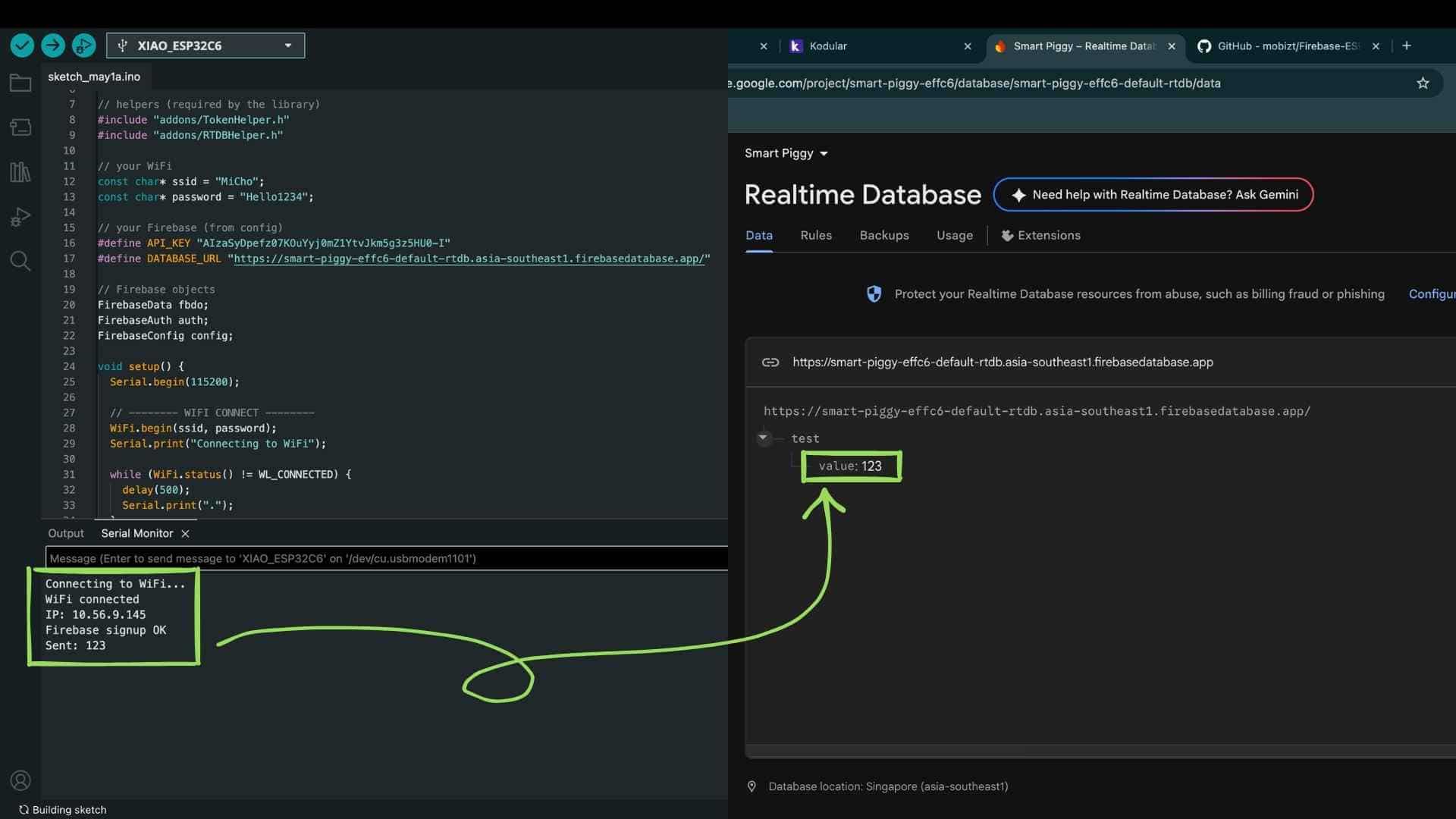

First Test - ESP32 Writes to Firebase

Before sending real system data, I tested a minimal case:

ESP32 sends a simple value (123)

Firebase receives and stores it

Firebase Connectivity Test (ESP32)

// -------- WIFI --------
#include <WiFi.h>

// -------- FIREBASE --------
#include

// helpers (required by the library)
#include "addons/TokenHelper.h"
#include "addons/RTDBHelper.h"

// your WiFi
const char* ssid = "MiCho";
const char* password = "Hello1234";

// your Firebase (from config)
#define API_KEY "AIzaSyDpefz07KOuYyj0mZ1YtvJkm5g3z5HU0-I"
#define DATABASE_URL "https://smart-piggy-effc6-default-rtdb.asia-southeast1.firebasedatabase.app/"

// Firebase objects
FirebaseData fbdo;
FirebaseAuth auth;
FirebaseConfig config;

void setup() {
  Serial.begin(115200);

  // -------- WIFI CONNECT --------
  WiFi.begin(ssid, password);
  Serial.print("Connecting to WiFi");

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nWiFi connected");
  Serial.print("IP: ");
  Serial.println(WiFi.localIP());

  // -------- FIREBASE CONFIG --------
  config.api_key = API_KEY;
  config.database_url = DATABASE_URL;

  // REQUIRED: token handling
  config.token_status_callback = tokenStatusCallback;

  // -------- SIGN UP (ANONYMOUS) --------
  if (Firebase.signUp(&config, &auth, "", "")) {
    Serial.println("Firebase signup OK");
  } else {
    Serial.printf("Signup failed: %s\n", config.signer.signupError.message.c_str());
  }

  // -------- START FIREBASE --------
  Firebase.begin(&config, &auth);
  Firebase.reconnectWiFi(true);
}

void loop() {

  // only run when Firebase is ready
  if (Firebase.ready()) {

    // send test value
    if (Firebase.RTDB.setInt(&fbdo, "/test/value", 123)) {
      Serial.println("Sent: 123");
    } else {
      Serial.print("FAILED: ");
      Serial.println(fbdo.errorReason());
    }
  }

  delay(5000);
}

---

Moving from Test Data to System Data

After confirming communication worked, I replaced the test value with actual values from the system:

total

percentage

percentage

These were sent only when a valid interaction occurred.

---

Transition

With Firebase now storing real data, the next step was:

how to build an interface that reads and displays this data

---

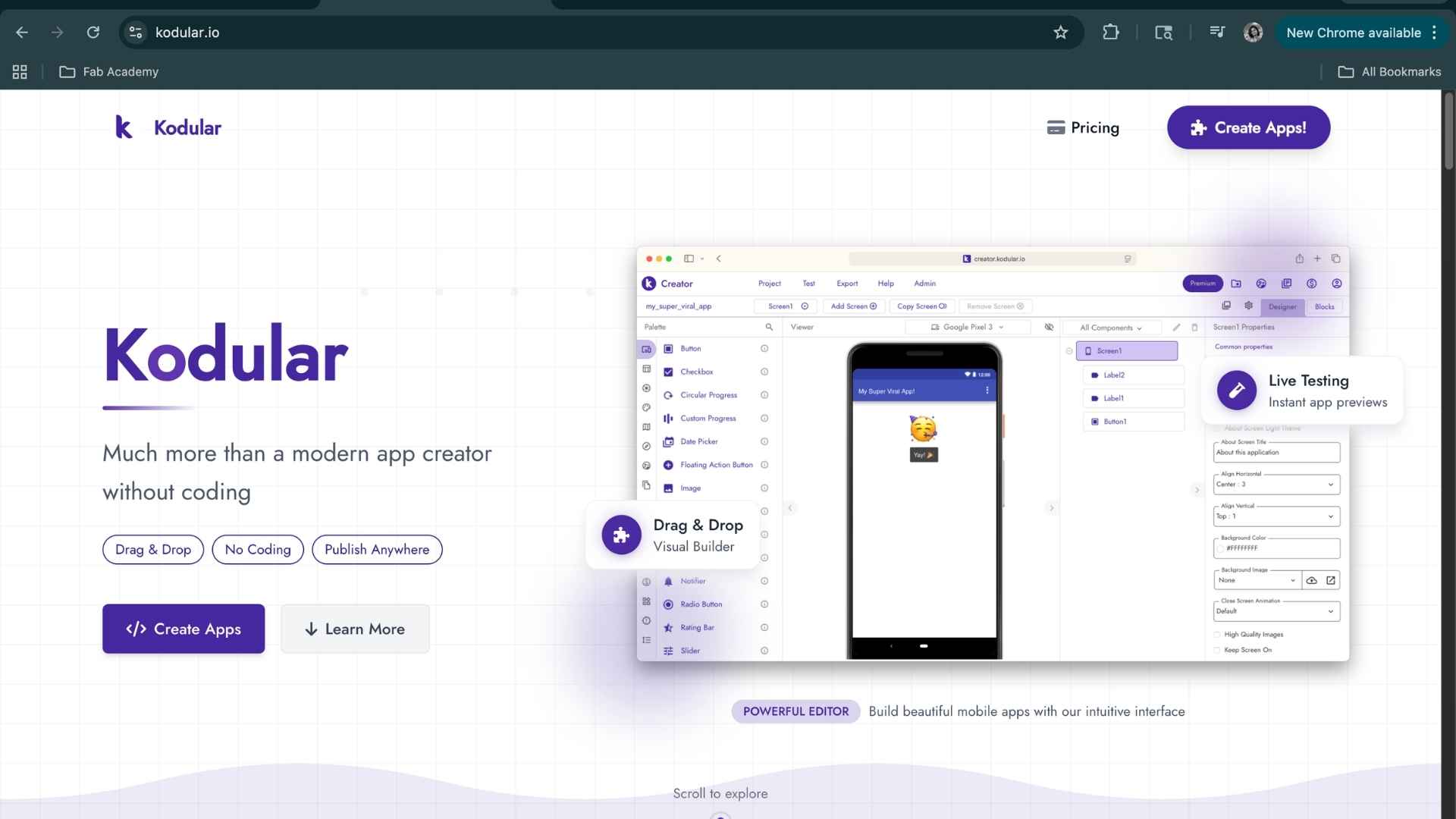

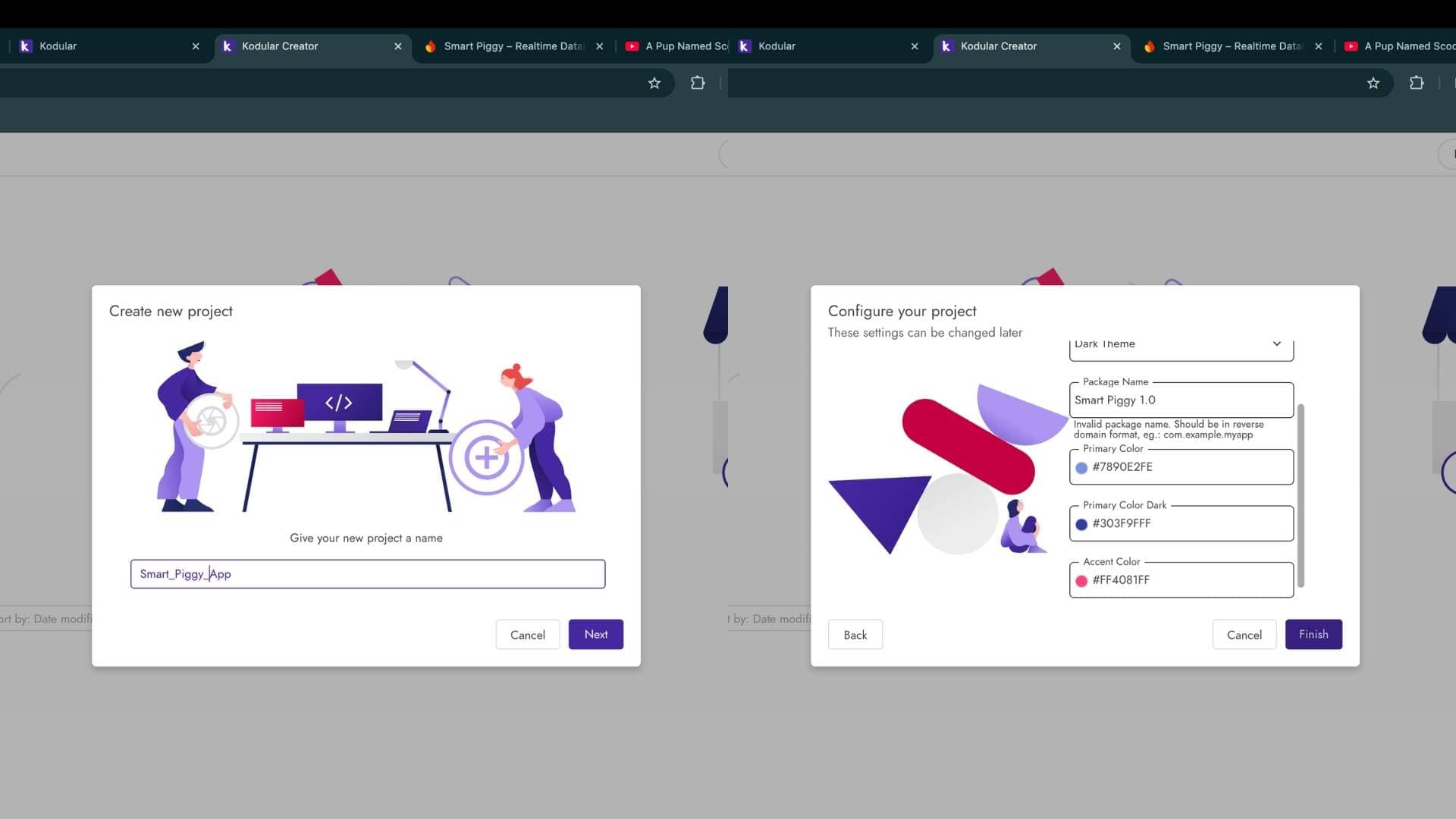

Kodular - Turning Data into an Interface

Kodular looked very simple and practical at first.

Two main sections:

Designer (felt familiar immediately.)

Blocks (… not so much.)

---

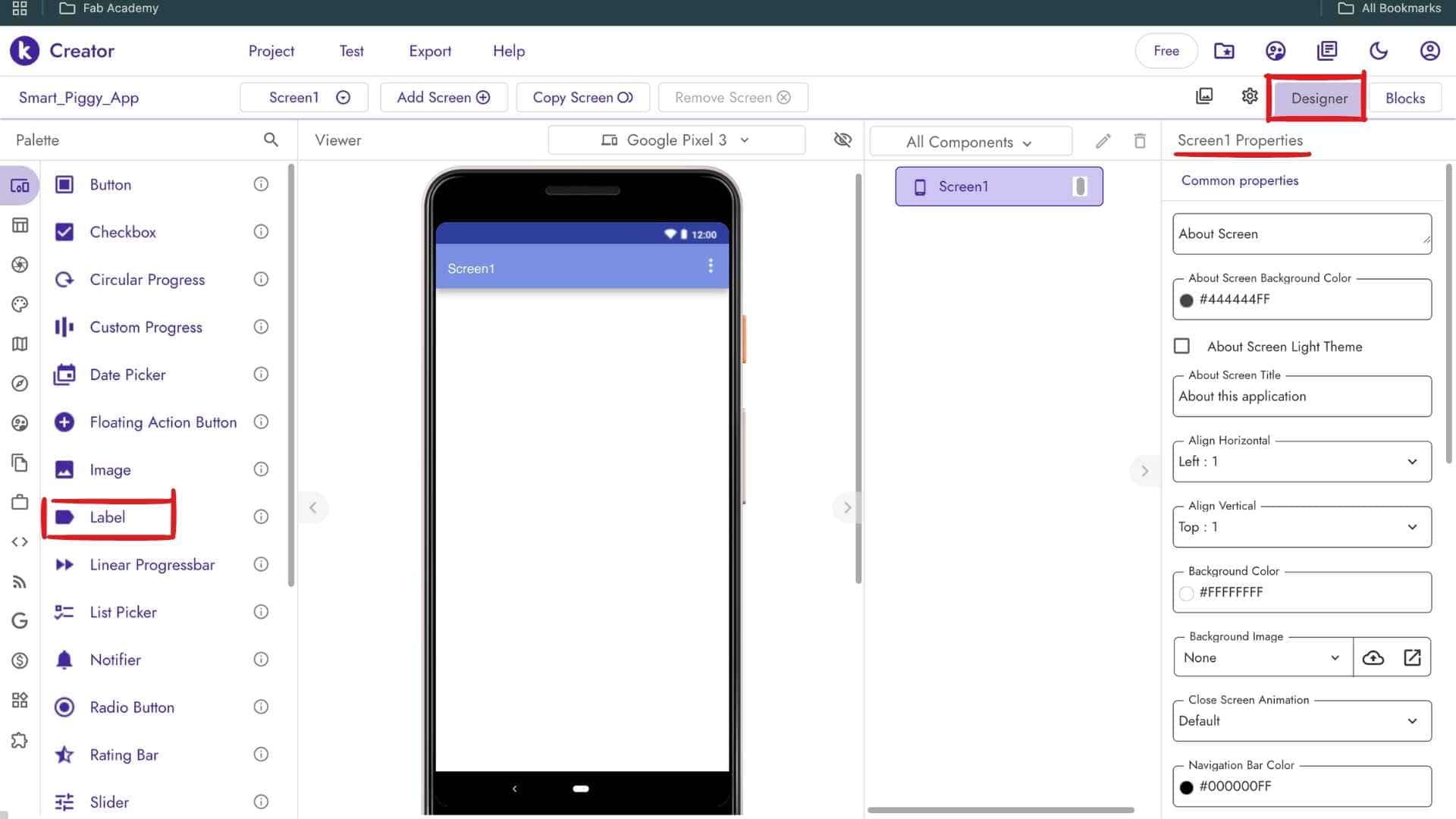

Designer - The familiar Part

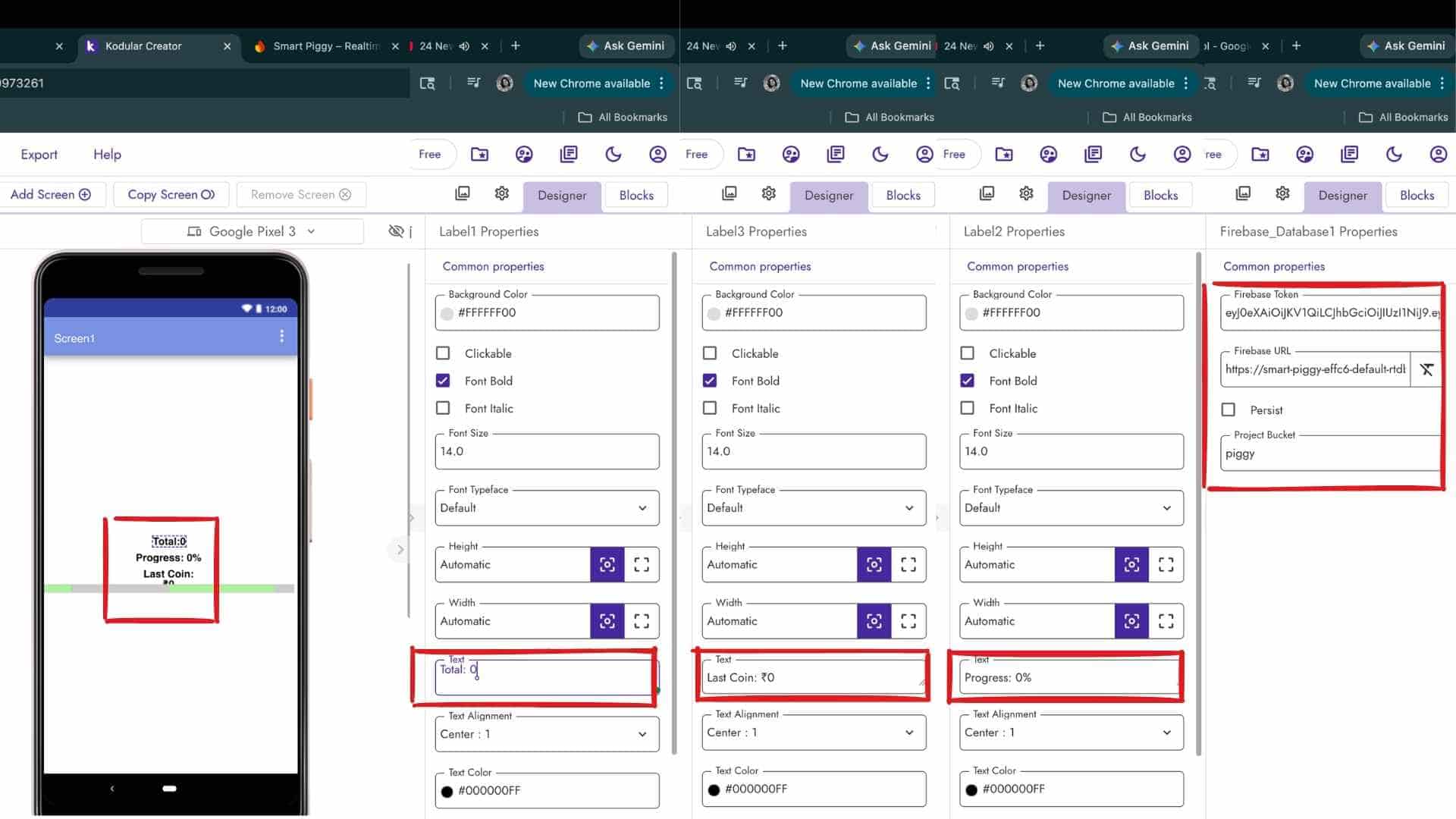

I started by placing the components I knew I would need.

3 labels:

total

percentage

last coin

a progress bar

(not exactly what I wanted visually, but enough to test)

Firebase Database component

(invisible, but important)

This part was smooth. It felt like arranging things on a canvas.

At this stage, everything looked ready, but nothing actually worked.

---

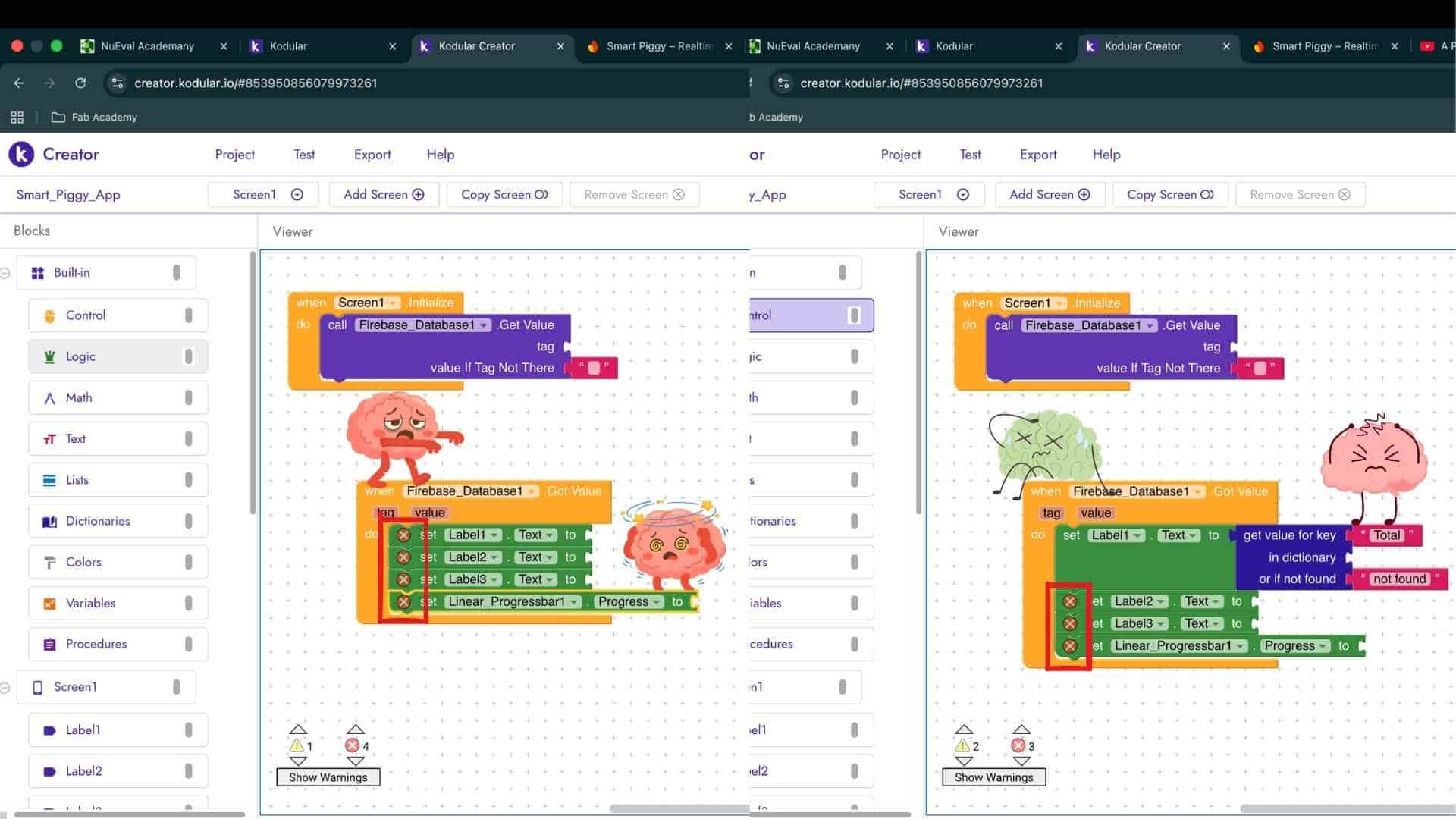

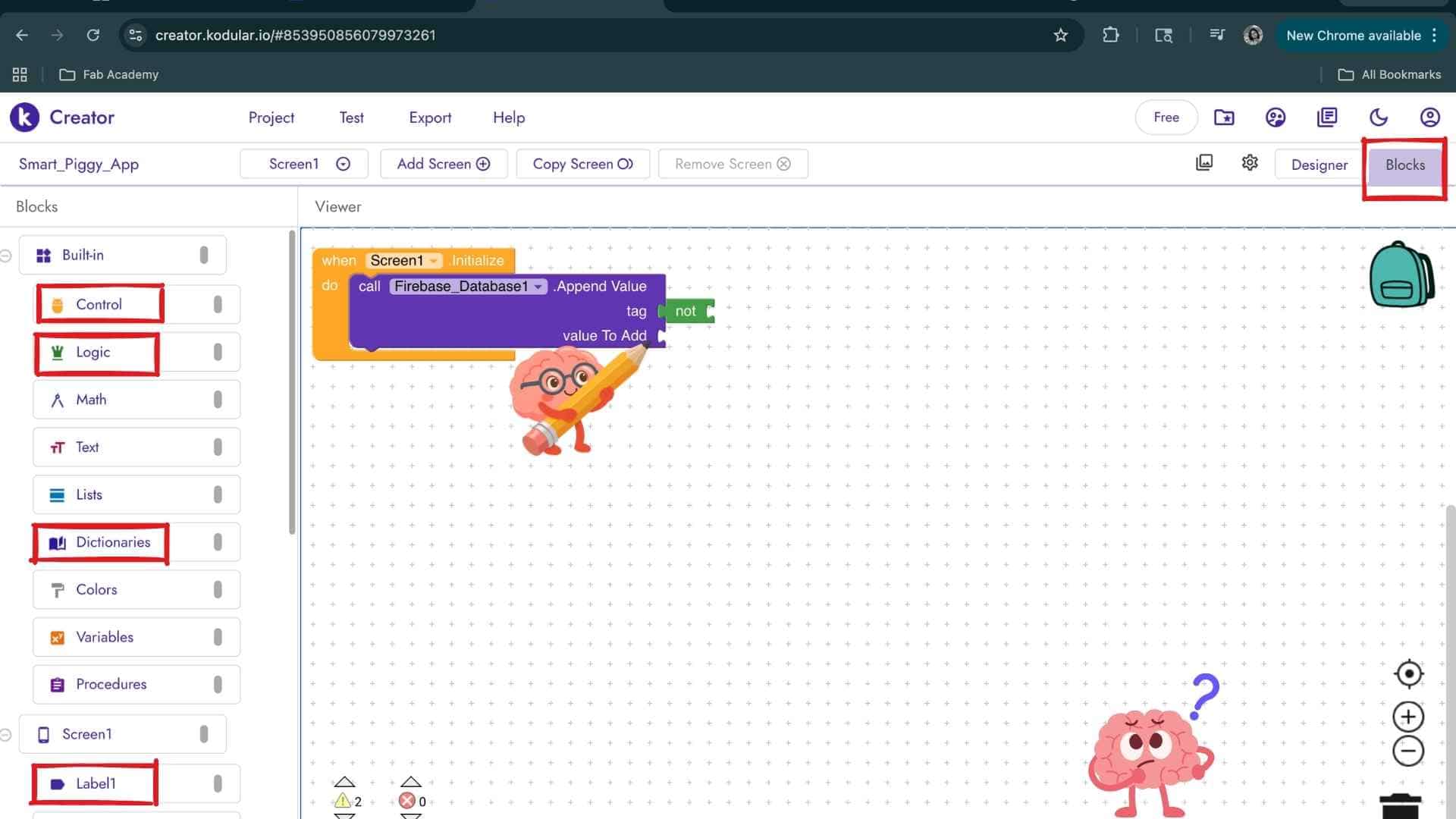

Blocks - Where Everything Changed

Then I switched to the Blocks section.

And that’s where everything stopped making sense.

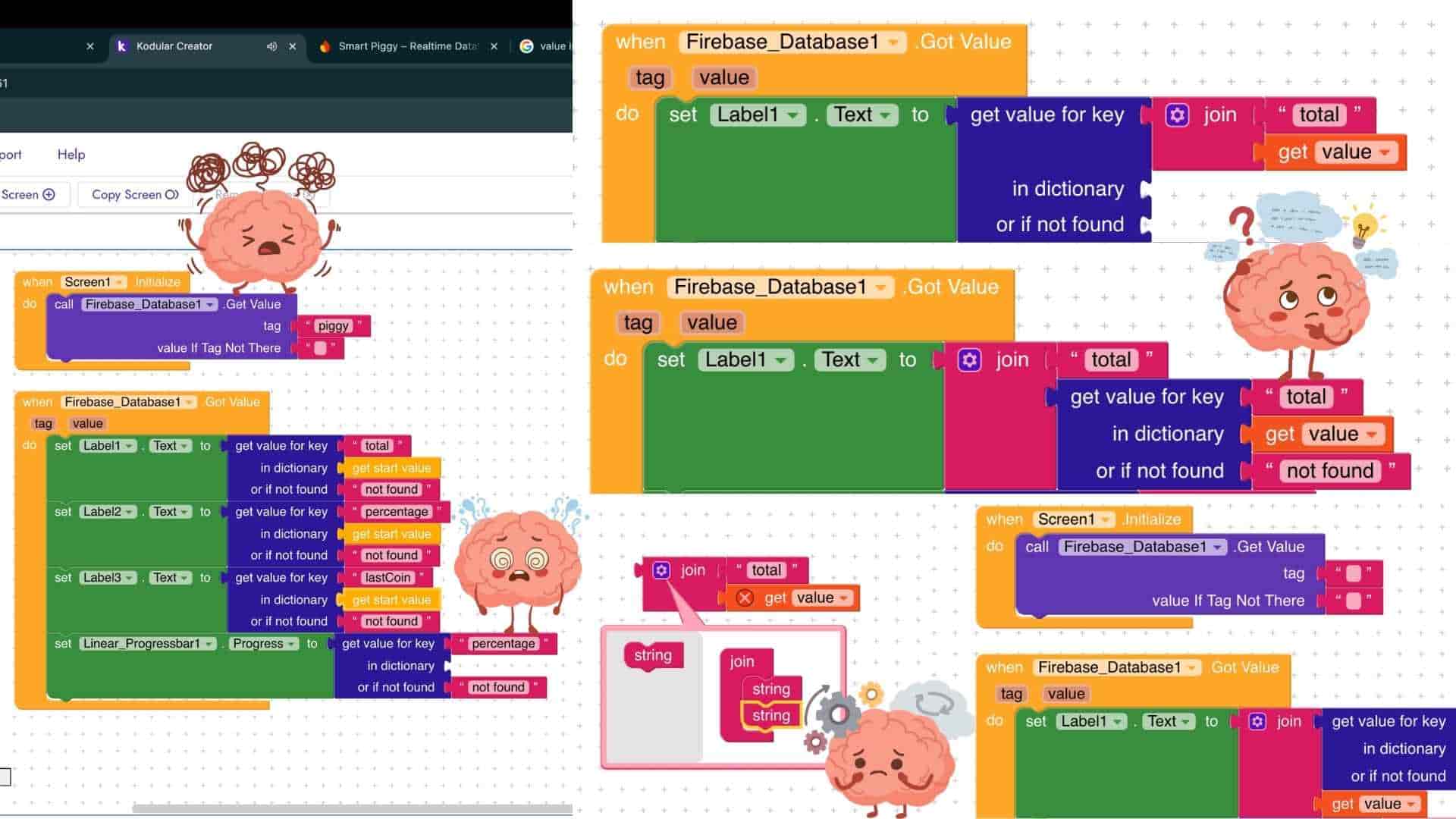

It looks like a simple grid with draggable tiles, but:

I didn’t know what to pick

I didn’t know where to place it

I didn’t know how anything connects

This is where the logic of the app lives, but there was no clear starting point.

---

What Made It Difficult

Kodular works like puzzle pieces:

each block is a piece of logic

pieces only fit in certain ways

and even if they fit, it doesn’t mean they’re correct

Sometimes, the hardest part wasn’t just logic, it was finding the right block in the first place

Sometimes I knew what I wanted to do, but:

couldn’t find the block

or found it but didn’t know how to use it

or connected it and nothing happened

---

Building the Logic (Piece by Piece)

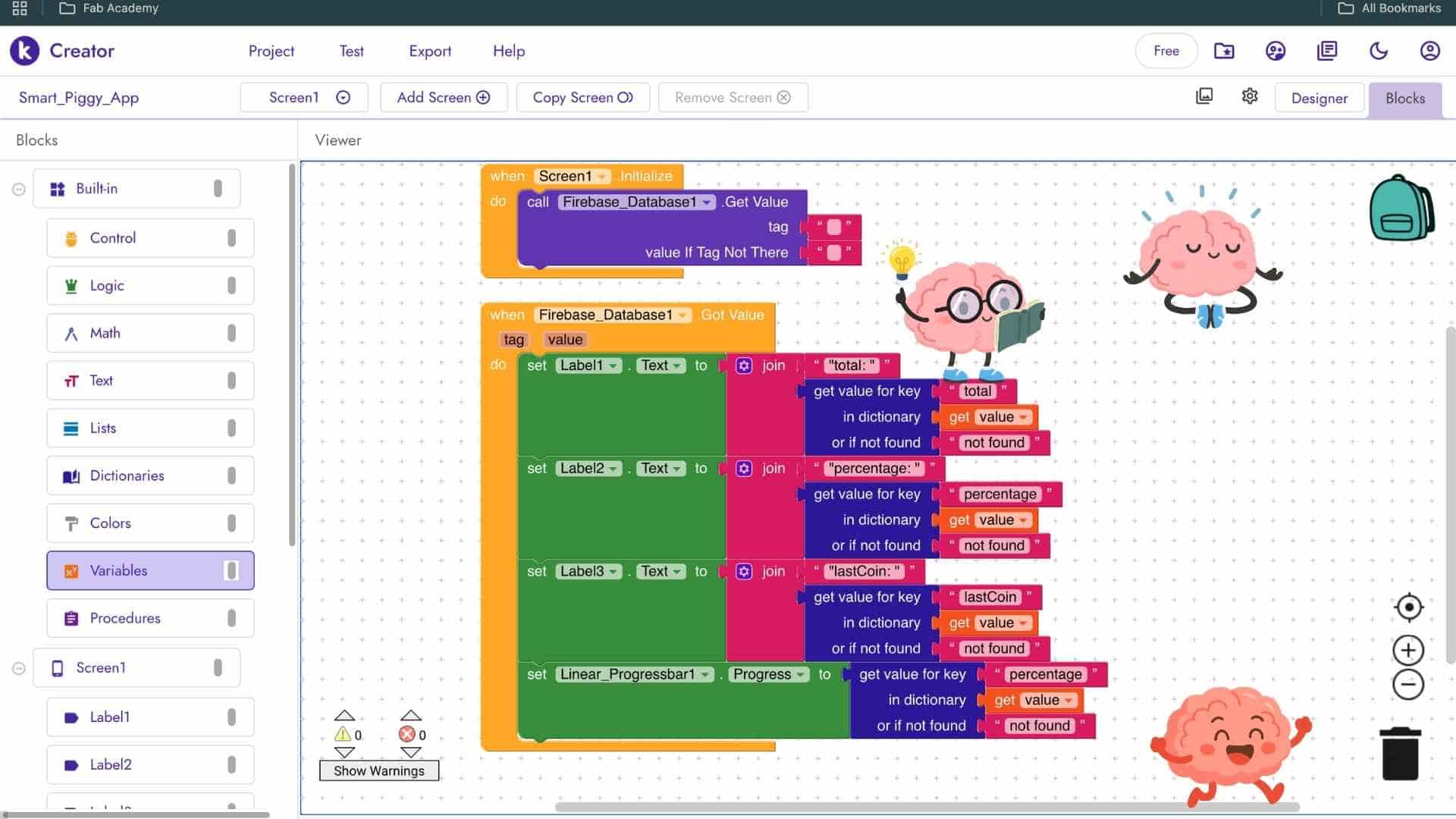

Receiving the Data

The data comes through:

Firebase.GotValue(tag, value)

At first, this part was confusing.

where does this trigger from?

what exactly is inside value?

It took time to understand that this is the point where Firebase responds.

---

Making Sense of the Data

Initially, I tried to fetch individual values.

That didn’t work well.

Then I switched to fetching everything at once.

tag = ""

This returns a full dataset.

From there:

value["total"]

value["percentage"]

value["lastCoin"]

// -------- WIFI --------
#include <WiFi.h>

// -------- FIREBASE --------
#include <Firebase_ESP_Client.h>

#include "addons/TokenHelper.h"
#include "addons/RTDBHelper.h"

// -------- WIFI --------
const char* ssid = "MiCho";
const char* password = "Hello1234";

// -------- FIREBASE CONFIG --------
#define API_KEY "AIzaSyDpefz07KOuYyj0mZ1YtvJkm5g3z5HU0-I"
#define DATABASE_URL "https://smart-piggy-effc6-default-rtdb.asia-southeast1.firebasedatabase.app/"

FirebaseData fbdo;
FirebaseAuth auth;
FirebaseConfig config;


// -------- PIN SETUP --------
#define BUTTON_PIN D8
#define LED_PIN D2


// -------- TIMING CONFIG --------
const unsigned long debounceDelay = 50;
const unsigned long longPressTime = 1000;
const unsigned long doublePressGap = 400;


// -------- SYSTEM STATE --------
int totalAmount = 0;
int goal = 100;

bool milestone25 = false;
bool milestone50 = false;
bool milestone75 = false;


// -------- BUTTON STATE --------
bool buttonState = LOW;
bool lastButtonReading = LOW;

unsigned long lastDebounceTime = 0;
unsigned long pressStartTime = 0;
unsigned long lastReleaseTime = 0;

int pressCount = 0;


// -------- SETUP --------
void setup() {
  Serial.begin(115200);

  pinMode(BUTTON_PIN, INPUT_PULLDOWN);
  pinMode(LED_PIN, OUTPUT);

  digitalWrite(LED_PIN, LOW);

  // -------- WIFI --------
  Serial.println("Connecting to WiFi...");
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nWiFi Connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());

  // -------- FIREBASE --------
  config.api_key = API_KEY;
  config.database_url = DATABASE_URL;
  config.token_status_callback = tokenStatusCallback;

  Firebase.signUp(&config, &auth, "", "");
  Firebase.begin(&config, &auth);
  Firebase.reconnectWiFi(true);

  Serial.println("Firebase ready");
}


// -------- LOOP --------
void loop() {

  int reading = digitalRead(BUTTON_PIN);

  // -------- DEBOUNCE --------
  if (reading != lastButtonReading) {
    lastDebounceTime = millis();
  }

  if ((millis() - lastDebounceTime) > debounceDelay) {

    if (reading != buttonState) {
      buttonState = reading;

      if (buttonState == HIGH) {
        pressStartTime = millis();
      }
      else {
        unsigned long pressDuration = millis() - pressStartTime;

        // LONG PRESS → ₹5
        if (pressDuration >= longPressTime) {
          handleLongPress();
          pressCount = 0;
        }
        else {
          pressCount++;
          lastReleaseTime = millis();
        }
      }
    }
  }

  // SINGLE / DOUBLE PRESS DETECTION
  if (pressCount > 0 && (millis() - lastReleaseTime) > doublePressGap) {

    if (pressCount == 1) {
      handleSinglePress();
    }
    else if (pressCount == 2) {
      handleDoublePress();
    }

    pressCount = 0;
  }

  lastButtonReading = reading;
}


// -------- ACTIONS --------

void handleSinglePress() {
  addAmount(1);
  blinkLED(1);
}

void handleDoublePress() {
  addAmount(2);
  blinkLED(2);
}

void handleLongPress() {
  addAmount(5);

  digitalWrite(LED_PIN, HIGH);
  delay(400);
  digitalWrite(LED_PIN, LOW);
}


// -------- FIREBASE (ATOMIC UPDATE) --------

void sendToFirebase(int total, int percentage, int lastCoin) {

  if (Firebase.ready()) {

    FirebaseJson json;

    json.set("total", total);
    json.set("percentage", percentage);
    json.set("lastCoin", lastCoin);

    // single atomic write
    Firebase.RTDB.setJSON(&fbdo, "/piggy", &json);

    Serial.println("Data sent to Firebase (JSON)");
  }
}


// -------- CORE LOGIC --------

void addAmount(int value) {

  totalAmount += value;

  int percentage = (totalAmount * 100) / goal;

  Serial.print("Added: ");
  Serial.print(value);
  Serial.print(" | Total: ");
  Serial.print(totalAmount);
  Serial.print(" | ");
  Serial.print(percentage);
  Serial.println("%");

  // single Firebase update
  sendToFirebase(totalAmount, percentage, value);

  // -------- GOAL LOGIC --------
  if (totalAmount >= goal) {

    int overflow = totalAmount - goal;

    Serial.println("Milestone: Goal reached!");

    for (int i = 0; i < 3; i++) {
      digitalWrite(LED_PIN, HIGH);
      delay(150);
      digitalWrite(LED_PIN, LOW);
      delay(150);
    }

    delay(500);

    totalAmount = overflow;

    milestone25 = false;
    milestone50 = false;
    milestone75 = false;

    Serial.print("System Reset → Carry Forward: ");
    Serial.println(totalAmount);

    return;
  }

  checkMilestones(percentage);
}


// -------- LED --------

void blinkLED(int times) {
  for (int i = 0; i < times; i++) {
    digitalWrite(LED_PIN, HIGH);
    delay(120);
    digitalWrite(LED_PIN, LOW);
    delay(120);
  }
}


// -------- MILESTONES --------

void checkMilestones(int percentage) {

  if (!milestone25 && percentage >= 25) {
    milestone25 = true;
    Serial.println("Milestone: 25% reached");
  }

  if (!milestone50 && percentage >= 50) {
    milestone50 = true;
    Serial.println("Milestone: 50% reached");
  }

  if (!milestone75 && percentage >= 75) {
    milestone75 = true;
    Serial.println("Milestone: 75% reached");
  }
}

Now things finally started making sense.

---

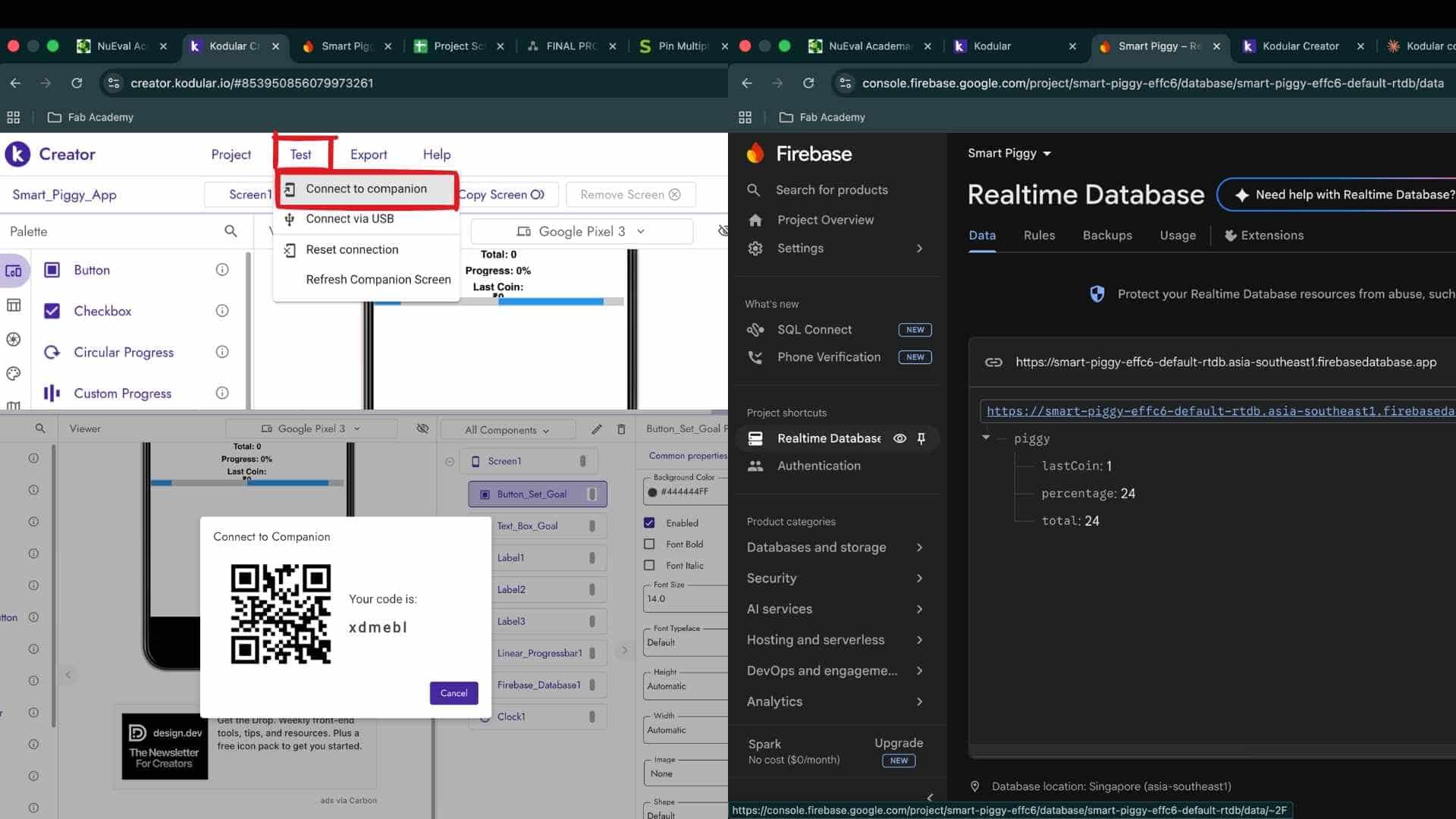

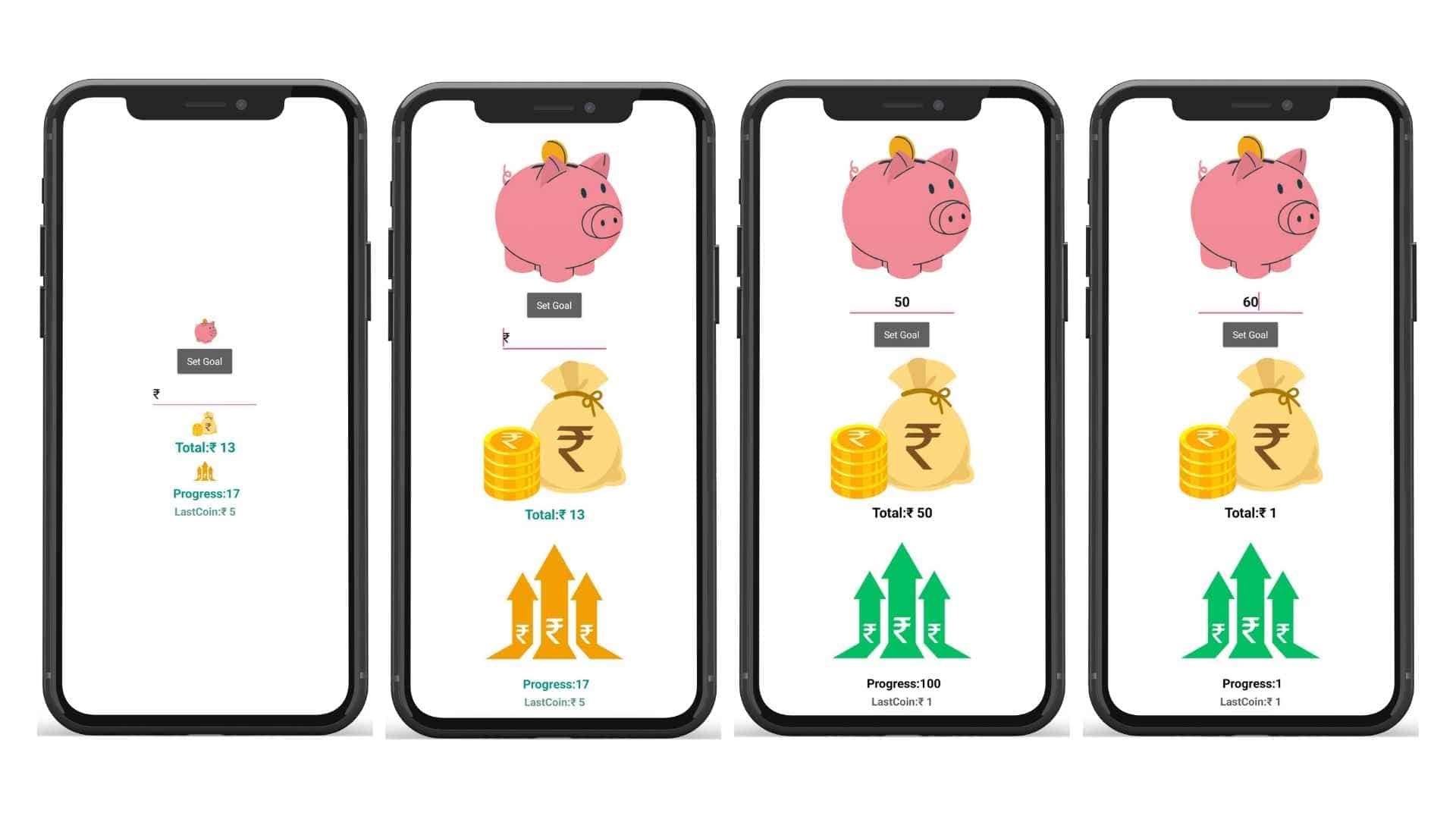

Connecting It to the UI

Once I could access the values:

labels were updated

progress bar was linked to percentage

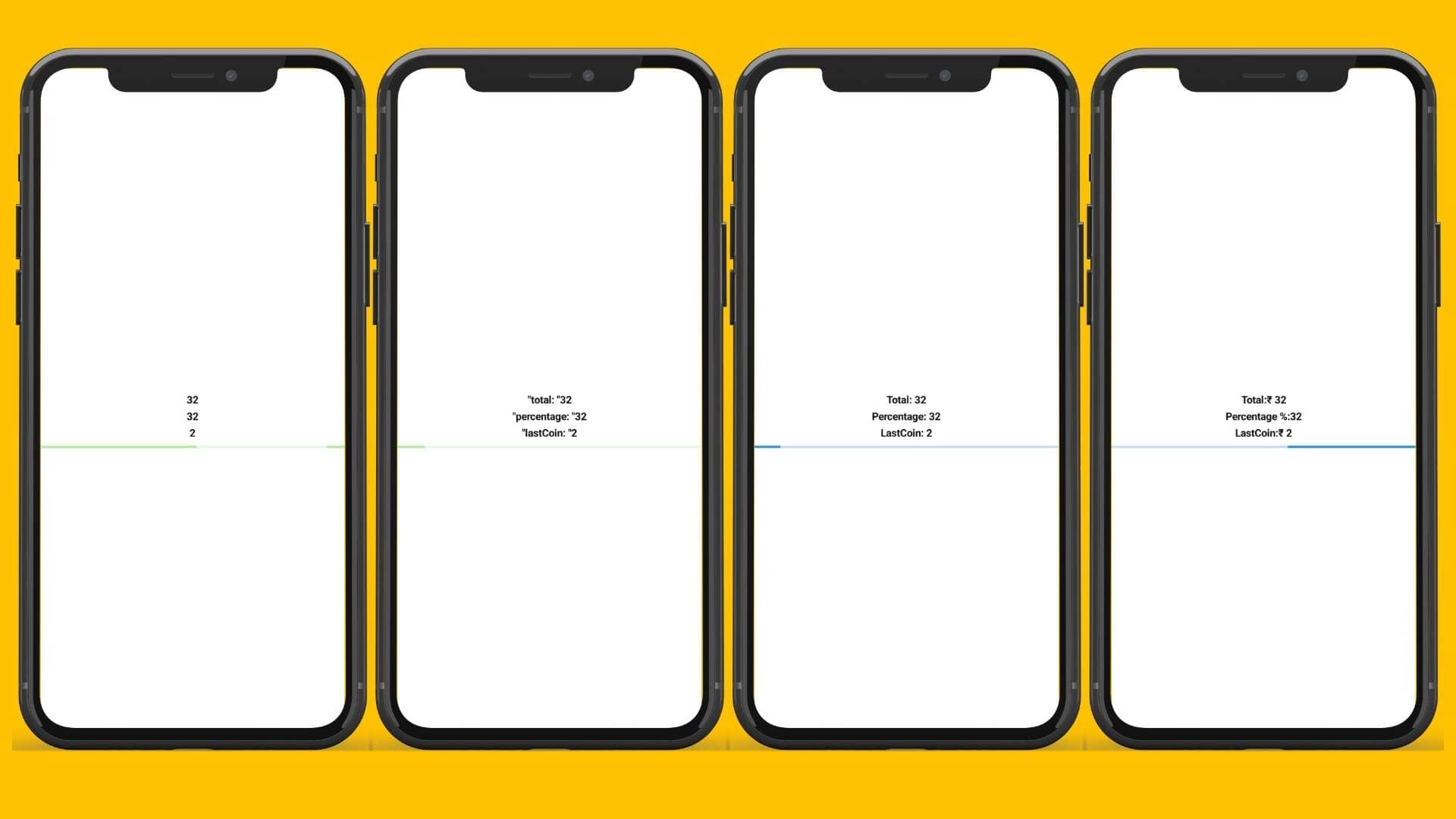

First Working State

At this point, the app showed:

total

total

last coin

And everything matched what the ESP32 was sending.

This was the first time I could see the entire system working in one place.

---

What This Phase Really Tested

figuring out a new system

being okay with not understanding things immediately

staying with it long enough for it to click

I just wanted to finish this before dinner.
I didn’t want to go to sleep thinking about Kodular blocks.

---

Transition

At this stage, the app could read and display data correctly.

That felt like a big win.

But the system was still one-directional.

The next step was to send data back from the app:

setting the goal from the interface

---

Goal Loop - When Everything Broke Again

Sending Goal from App

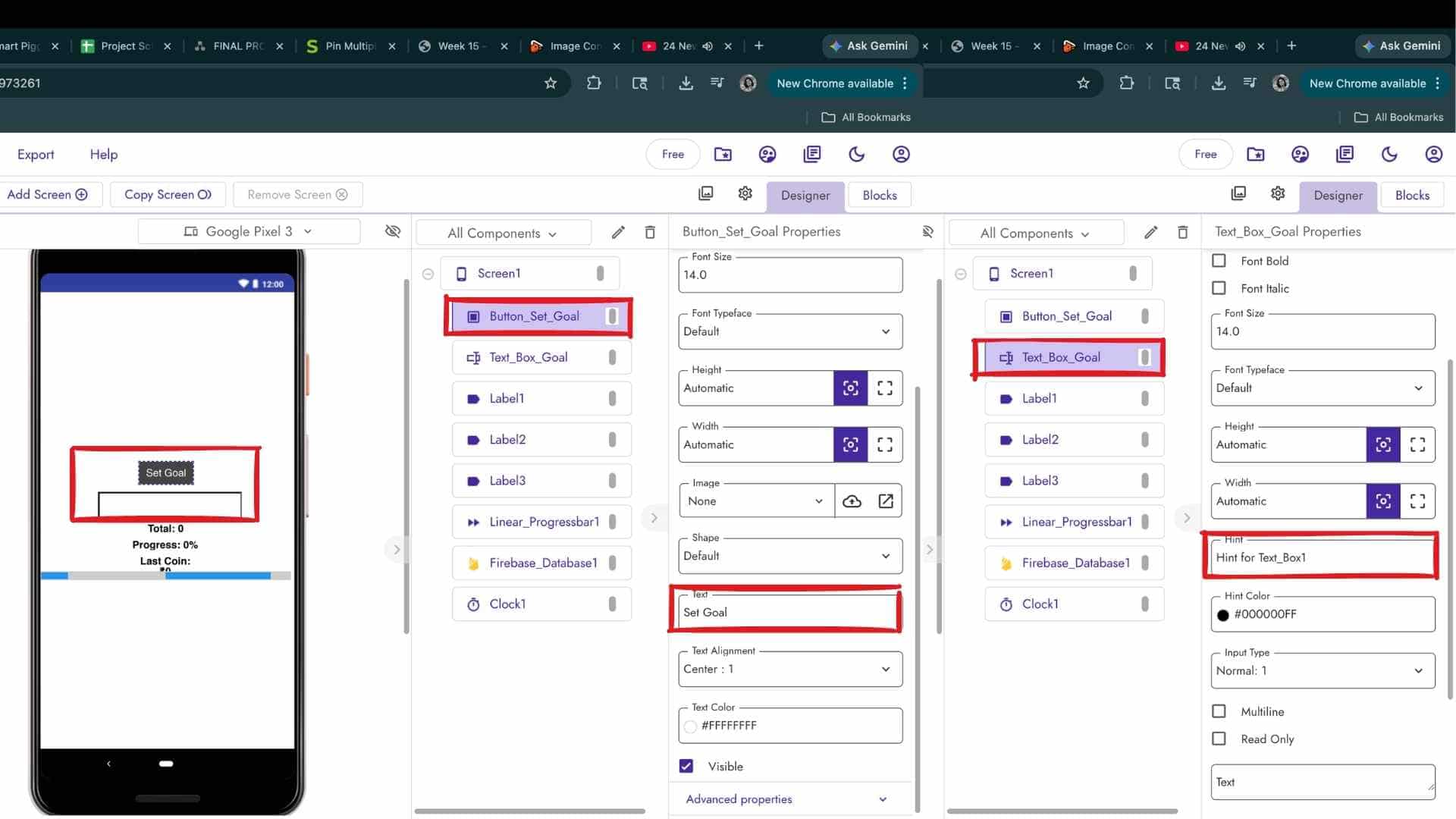

I added:

a textbox → to enter goal

a button → to send it

Logic:

take input

store in Firebase under piggy/goal

This part seemed to work.

The value showed up in Firebase.

---

The First Problem - Updates Not Consistent

Even though the goal was updating, it wasn’t consistent everywhere.

sometimes ESP32 reflected it

sometimes it didn’t

app wasn’t reliably updating

This is where I realized something was missing.

---

The Missing Piece - Clock

Up until now, the app wasn’t actively checking for updates.

So I added a Clock component.

it runs at intervals

requests data from Firebase repeatedly

This made a big difference.

Now:

goal updates were consistent

app stayed in sync

---

New Problem - Everything Else Broke

As soon as the Clock started working properly:

total stopped updating on the app

last coin stopped updating

percentage stopped updating

So fixing one thing broke three others.

---

Trying to Fix That

I started debugging:

checked Firebase values

checked block connections

adjusted logic

Some things improved.

But then:

goal stopped updating properly

or Firebase didn’t reflect changes

or values were inconsistent again

I could see the system almost working, but I couldn’t reach it.

---

What Was Actually Happening

At some point, the system started overwriting values.

multiple writes happening

inconsistent timing

data getting replaced unexpectedly

So even though everything was connected, it wasn’t coordinated.

---

Reset and Rebuild

At this point, I stopped trying to patch things.

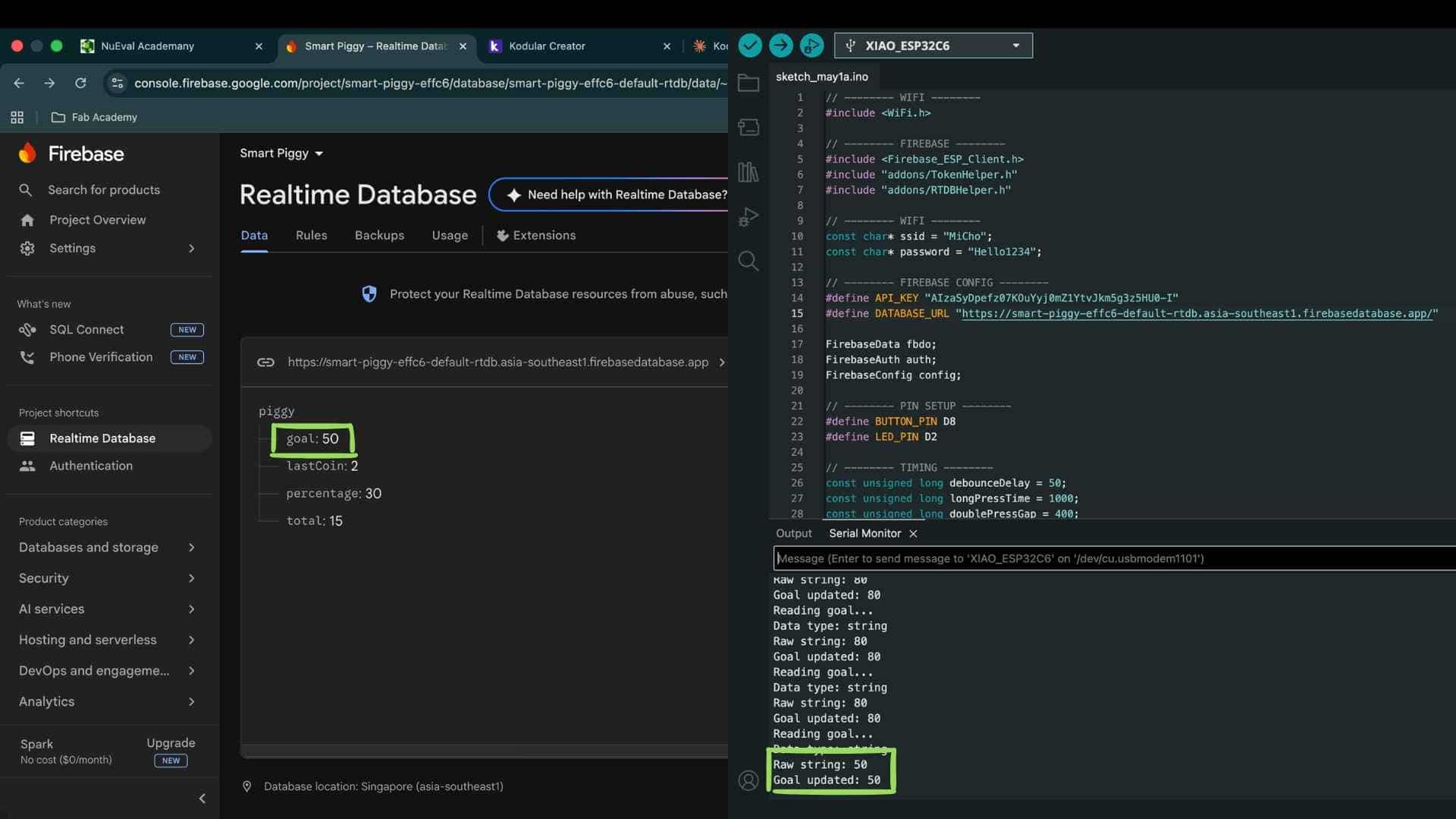

I went back to Firebase and:

deleted existing data

rebuilt the structure manually

Then I reconnected everything step-by-step.

---

Re-testing the Flow

I tested in order:

1.Set goal from app

→ reflected in Firebase

→ ESP32 reads correctly

2.Press button

→ total updates

→ percentage updates

→ last coin updates

3.App reflects everything correctly

This time, everything stayed consistent.

---

Key Fixes That Made It Work

Looking back, a few things fixed the system:

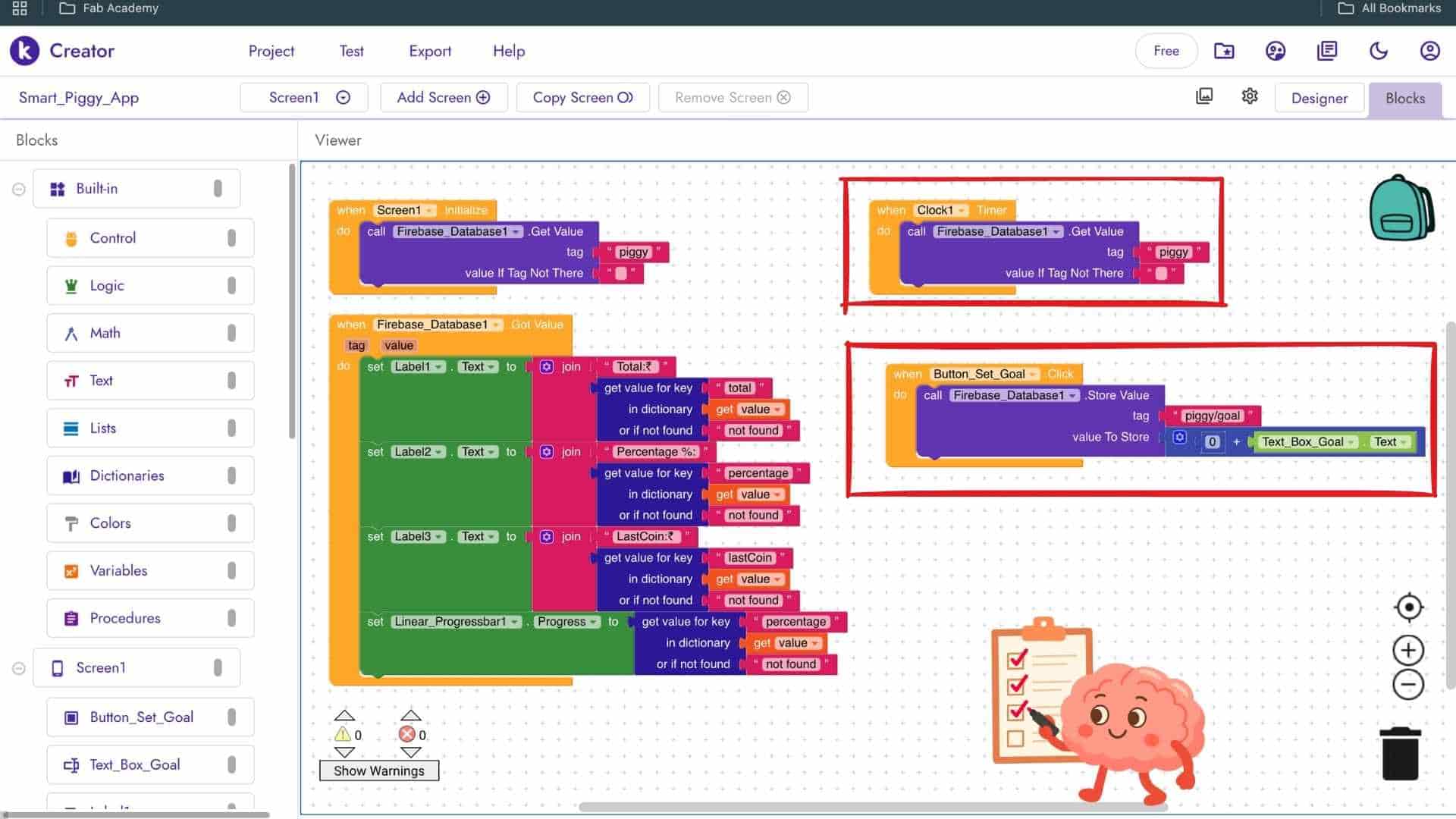

1.Clock for Controlled Updates

app actively checks for data

keeps UI in sync

2.Clean Firebase Structure

removing conflicting/old values

rebuilding from scratch

3.Avoiding Overwrites

controlled when data is written

avoided unnecessary updates

4.Event-Based Serial Feedback

ESP32 sends updates only when interaction happens

no continuous unnecessary operations

---

The Moment It Finally Worked

After all this:

goal → updates correctly

ESP32 → reads correctly

button input → updates values

Firebase → stays consistent

app → reflects everything in real time

This is where I finally reached that “end of the tunnel”.

---

Final Working Loop

App → sets goal
↓
Firebase stores goal
↓
ESP32 reads goal
↓
User interaction
↓
ESP32 updates values
↓
Firebase updated
↓
Clock triggers update
↓
App reflects new values

---

Prompt used on Chatgpt

Continue building the Smart Piggy ESP32 system from the previous stage where WiFi and Firebase are already connected and
the device sends total, percentage, and lastCoin values. Now extend the system into a stable two-way integration with a
Kodular app that sets a savings goal via Firebase.

Write complete ESP32 (Arduino) code that:

- Reads the goal value from Firebase (`/piggy/goal`) at fixed intervals using millis (non-blocking), not continuous polling
- Updates the goal variable only when it changes, and prints “Goal updated: X” to Serial only on change
- Handles Firebase data types robustly (int, float, double, string → convert to int)
- Maintains responsive button input logic with debounce:
    - Single press = +1
    - Double press = +2
    - Long press = +5
- Keeps button handling independent of Firebase calls (no blocking delays except short LED feedback)
- Calculates percentage as `(total * 100) / goal`, with a safeguard for goal = 0
- Writes data to Firebase WITHOUT overwriting the entire node:
    - Use individual writes (`setInt`) for:
        - `/piggy/total`
        - `/piggy/percentage`
        - `/piggy/lastCoin`
        - `/piggy/goal` (to keep it synced)
- Uses the Firebase ESP Client library with proper initialization (API key, database URL, anonymous sign-in)
- Includes Serial debug messages for:
    - WiFi connection
    - Firebase readiness
    - Goal updates (only when changed)
    - Amount added and percentage
    - Firebase write success
- Uses the following structure in Firebase:

    ```
    piggy/
      goal
      total
      percentage
      lastCoin
    ```

- Keeps the loop efficient and stable so that real-time button presses are never delayed by network operations

Code

// -------- WIFI --------
#include <WiFi.h>

// -------- FIREBASE --------
#include <Firebase_ESP_Client.h>
#include "addons/TokenHelper.h"
#include "addons/RTDBHelper.h"

// -------- WIFI --------
const char* ssid = "MiCho";
const char* password = "Hello1234";

// -------- FIREBASE CONFIG --------
#define API_KEY "AIzaSyDpefz07KOuYyj0mZ1YtvJkm5g3z5HU0-I"
#define DATABASE_URL "https://smart-piggy-effc6-default-rtdb.asia-southeast1.firebasedatabase.app/"

FirebaseData fbdo;
FirebaseAuth auth;
FirebaseConfig config;

// -------- PIN SETUP --------
#define BUTTON_PIN D8
#define LED_PIN D2

// -------- TIMING --------
const unsigned long debounceDelay = 50;
const unsigned long longPressTime = 1000;
const unsigned long doublePressGap = 400;

// -------- FIREBASE TIMING --------
unsigned long lastFirebaseRead = 0;
const unsigned long firebaseInterval = 2000;

// -------- STATE --------
int totalAmount = 0;
int goal = 0;
int lastGoal = -1;

// -------- BUTTON STATE --------
bool buttonState = LOW;
bool lastButtonReading = LOW;

unsigned long lastDebounceTime = 0;
unsigned long pressStartTime = 0;
unsigned long lastReleaseTime = 0;

int pressCount = 0;

// -------- SETUP --------
void setup() {
  Serial.begin(115200);

  pinMode(BUTTON_PIN, INPUT_PULLDOWN);
  pinMode(LED_PIN, OUTPUT);

  digitalWrite(LED_PIN, LOW);

  Serial.println("Connecting to WiFi...");
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nWiFi Connected!");
  Serial.println(WiFi.localIP());

  config.api_key = API_KEY;
  config.database_url = DATABASE_URL;
  config.token_status_callback = tokenStatusCallback;

  Firebase.signUp(&config, &auth, "", "");
  Firebase.begin(&config, &auth);
  Firebase.reconnectWiFi(true);

  Serial.println("Firebase ready");
}

// -------- LOOP --------
void loop() {

  // -------- READ GOAL (ONLY IF CHANGED) --------
  if (Firebase.ready() && millis() - lastFirebaseRead > firebaseInterval) {
    lastFirebaseRead = millis();

    if (Firebase.RTDB.get(&fbdo, "/piggy/goal")) {

      int newGoal = 0;
      String type = fbdo.dataType();

      if (type == "int") newGoal = fbdo.intData();
      else if (type == "float") newGoal = (int)fbdo.floatData();
      else if (type == "double") newGoal = (int)fbdo.doubleData();
      else if (type == "string") newGoal = fbdo.stringData().toInt();

      if (newGoal != lastGoal) {
        goal = newGoal;
        lastGoal = newGoal;

        Serial.print("Goal updated: ");
        Serial.println(goal);
      }
    }
  }

  // -------- BUTTON LOGIC --------
  int reading = digitalRead(BUTTON_PIN);

  if (reading != lastButtonReading) {
    lastDebounceTime = millis();
  }

  if ((millis() - lastDebounceTime) > debounceDelay) {

    if (reading != buttonState) {
      buttonState = reading;

      if (buttonState == HIGH) {
        pressStartTime = millis();
      }
      else {
        unsigned long pressDuration = millis() - pressStartTime;

        if (pressDuration >= longPressTime) {
          handleLongPress();
          pressCount = 0;
        }
        else {
          pressCount++;
          lastReleaseTime = millis();
        }
      }
    }
  }

  if (pressCount > 0 && (millis() - lastReleaseTime) > doublePressGap) {

    if (pressCount == 1) {
      handleSinglePress();
    }
    else if (pressCount == 2) {
      handleDoublePress();
    }

    pressCount = 0;
  }

  lastButtonReading = reading;
}

// -------- BUTTON ACTIONS --------

void handleSinglePress() {
  addAmount(1);
  blinkLED(1);
}

void handleDoublePress() {
  addAmount(2);
  blinkLED(2);
}

void handleLongPress() {
  addAmount(5);

  digitalWrite(LED_PIN, HIGH);
  delay(400);
  digitalWrite(LED_PIN, LOW);
}

// -------- FIREBASE WRITE (SAFE: NO OVERWRITE) --------

void sendToFirebase(int total, int percentage, int lastCoin) {

  if (Firebase.ready()) {

    Firebase.RTDB.setInt(&fbdo, "/piggy/total", total);
    Firebase.RTDB.setInt(&fbdo, "/piggy/percentage", percentage);
    Firebase.RTDB.setInt(&fbdo, "/piggy/lastCoin", lastCoin);
    Firebase.RTDB.setInt(&fbdo, "/piggy/goal", goal); // keep goal synced

    Serial.println("Data updated (safe write)");
  }
}

// -------- CORE LOGIC --------

void addAmount(int value) {

  totalAmount += value;

  int percentage = 0;

  if (goal > 0) {
    percentage = (totalAmount * 100) / goal;
  }

  Serial.print("Added: ");
  Serial.print(value);
  Serial.print(" | Total: ");
  Serial.print(totalAmount);
  Serial.print(" | ");
  Serial.print(percentage);
  Serial.println("%");

  sendToFirebase(totalAmount, percentage, value);
}

// -------- LED --------

void blinkLED(int times) {
  for (int i = 0; i < times; i++) {
    digitalWrite(LED_PIN, HIGH);
    delay(120);
    digitalWrite(LED_PIN, LOW);
    delay(120);
  }
}

---

Learnings and Insights

What helped me most was breaking the system into smaller parts and building step by step, button → logic → WiFi → Firebase → app. Making sure each stage worked before moving forward kept things manageable. Serial output was my constant checkpoint, and switching to event-based updates made the system much more stable. When Firebase started behaving inconsistently, resetting it and rebuilding cleanly turned out to be more effective than trying to fix everything.

The difficult part was understanding how Kodular works, especially the Blocks section. Nothing was intuitive, and figuring out how blocks connect and where to find them took time. The shift to event-driven thinking was also not immediate. Debugging became harder once everything was connected-when something failed, it was unclear whether the issue was in the app, Firebase, or the ESP32. Synchronization issues and value overwriting made this even more confusing.

What this project really showed me is that a system is not just about individual components working, but about how well they communicate. Real-time systems need controlled data flow, and event-driven logic behaves very differently from linear code. Also, sometimes it’s more efficient to reset and rebuild than to keep debugging a broken state.

If I were to take this further, I would improve the app interface, especially the visual feedback. The current progress bar doesn't make any sense, I need to do something about it.

---

Source Files

Press Logic Module

WiFi Test Code

WiFi Integrated Code

Goal Overflow

Goal with Remainder

Goal Control test

Firebase Integration Mock

Firebase Data Sync

Firebase Connectivity Test

Final Integrated Code
