Sweep — Automated Track Selection for Vinyl Records

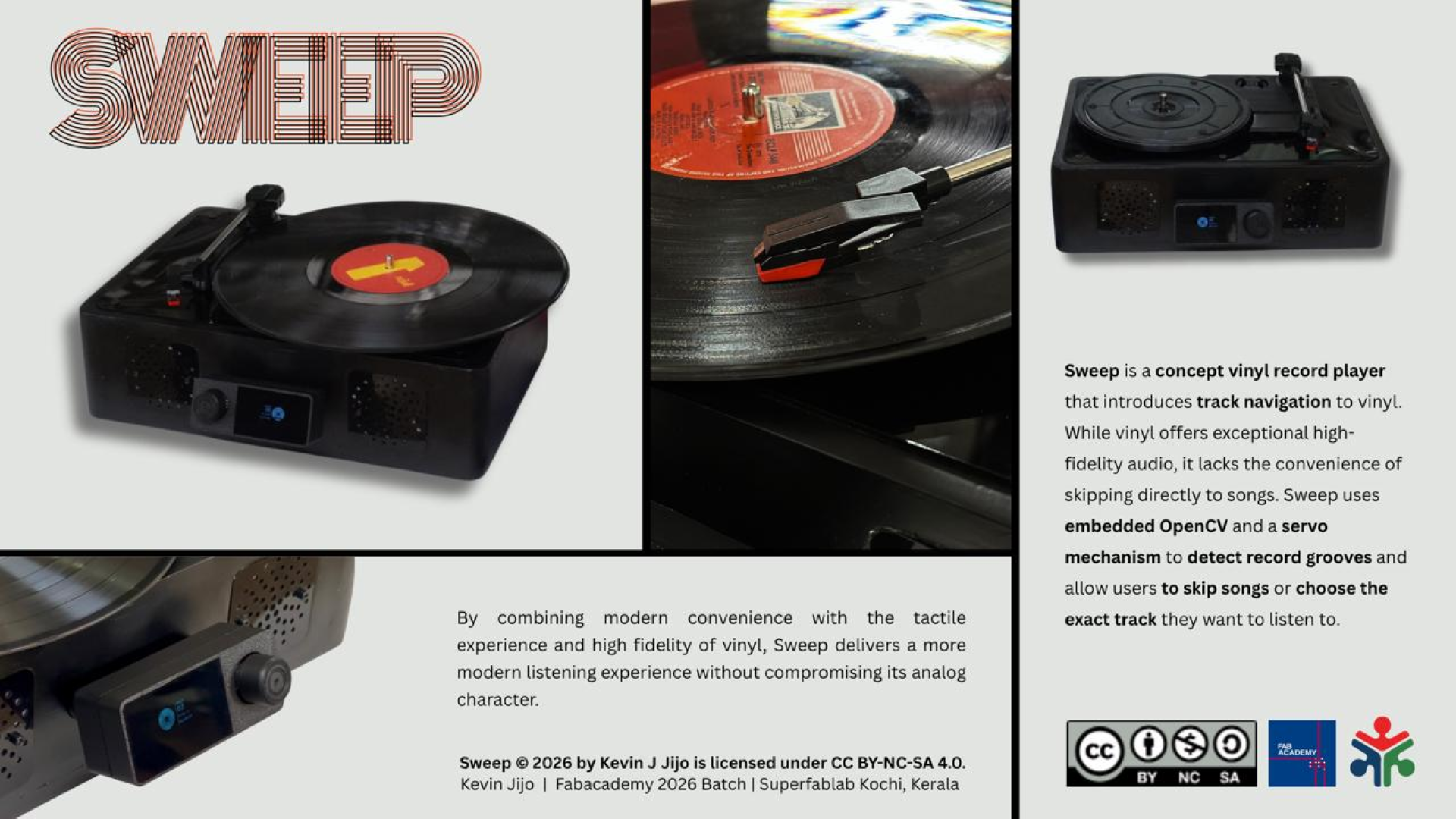

Presentation Slide

Presentation Video

About the Project

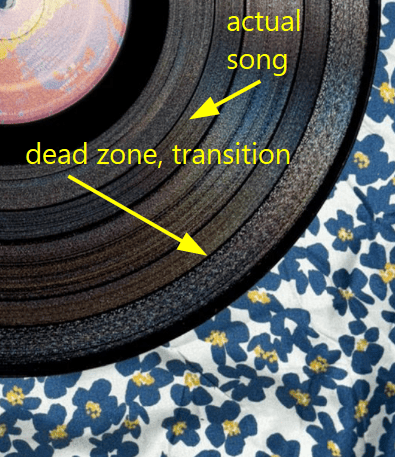

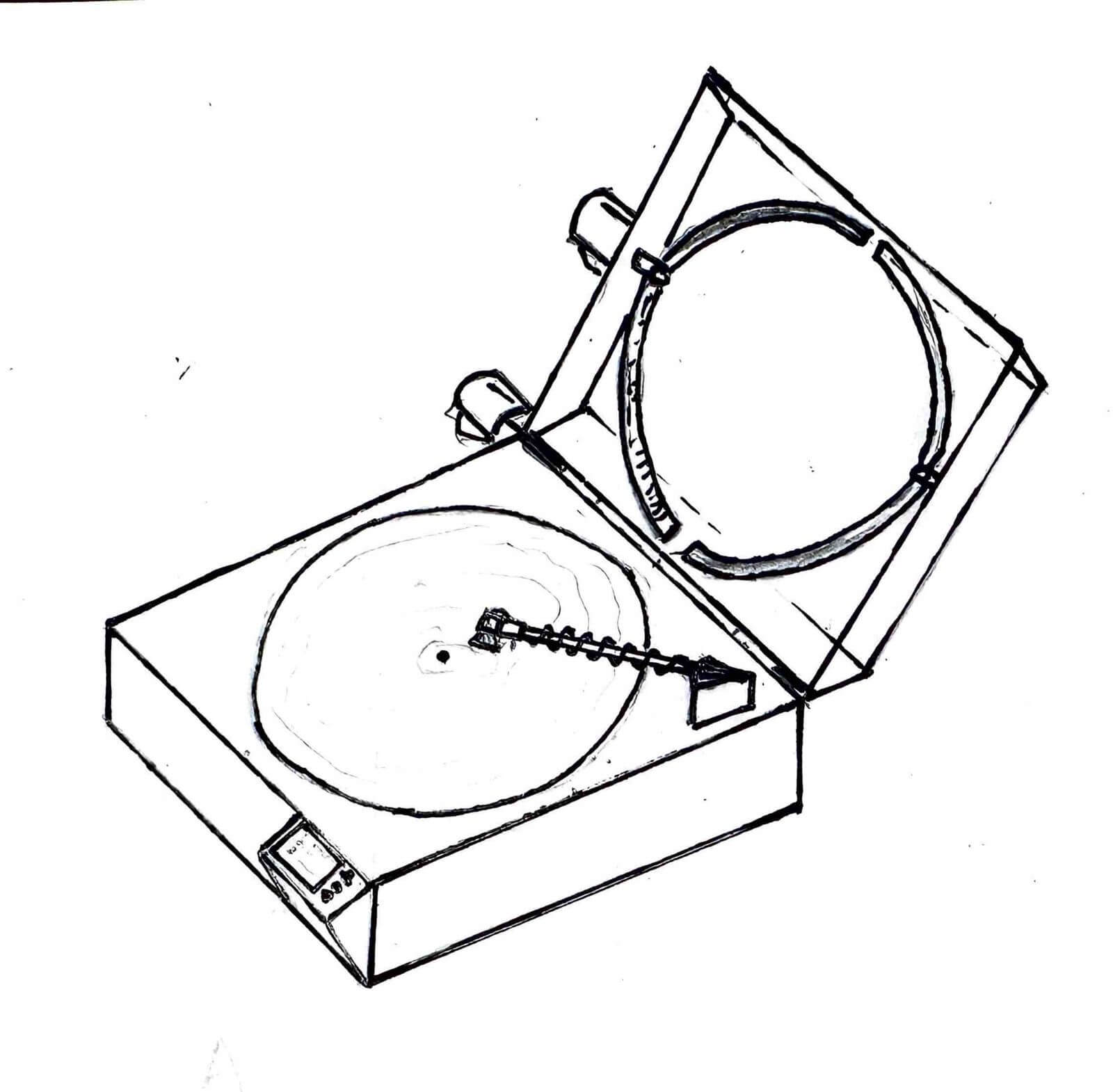

Week 1 — Initial Sketch

Early sketch of the concept before the design was refined.

View Week 1 documentation →

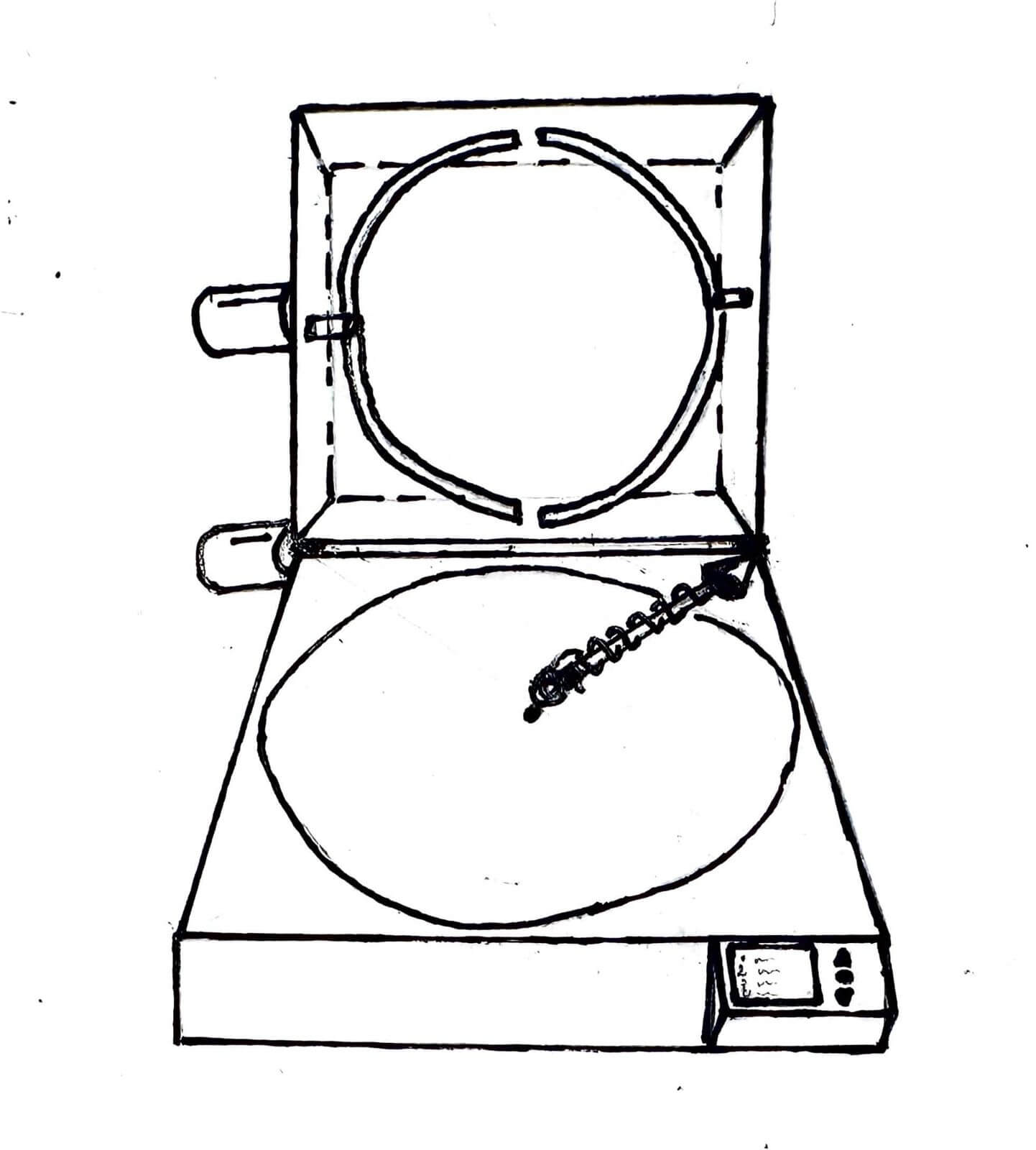

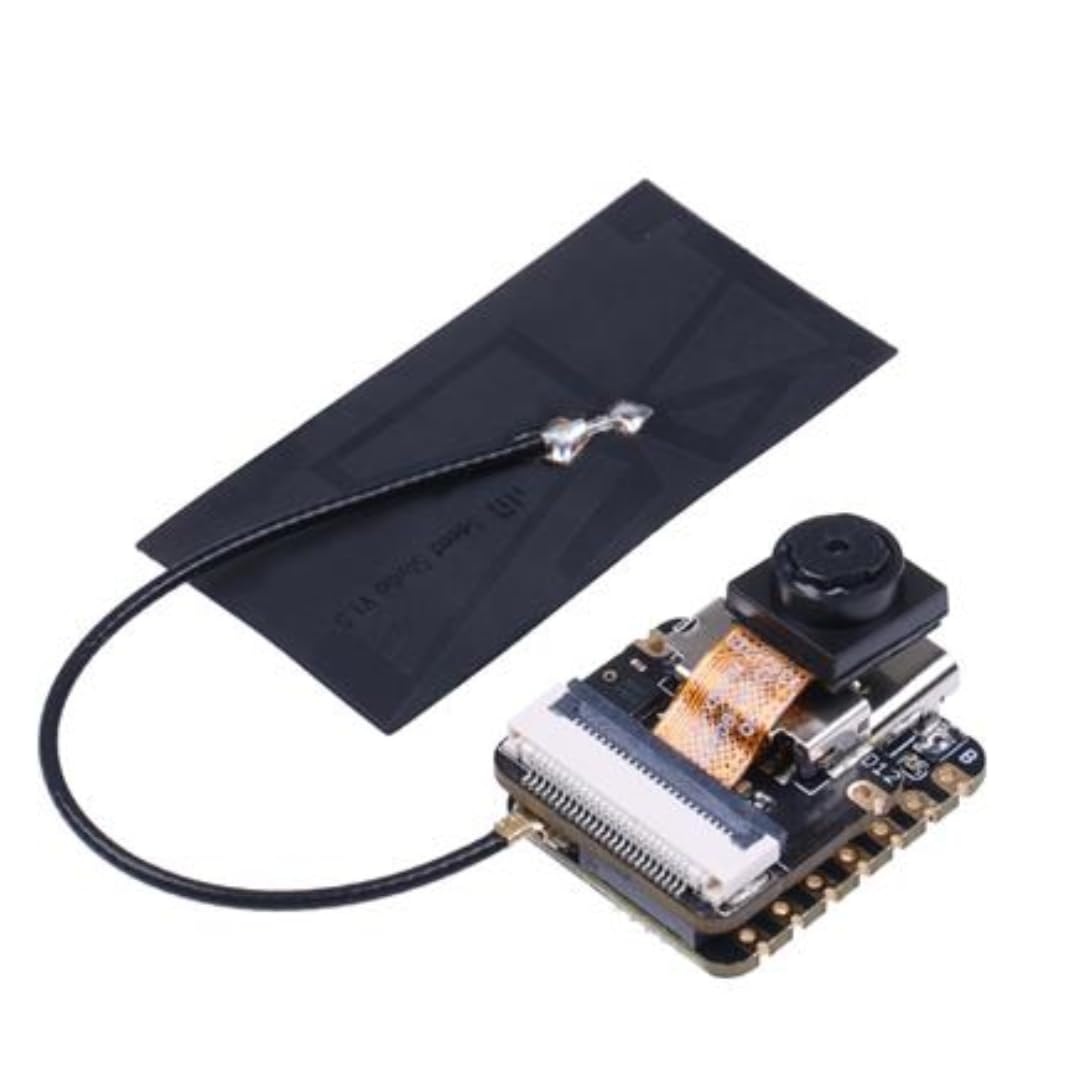

Week 2 — Possible Design

Early design direction explored during Week 2.

View Week 2 documentation →

Project Documentation

System Integration

User flow, mechanism and PCB integration, overall system architecture.
Open documentation →

Applications and Implications

Inspiration, sources, what's planned, what's done.
Open documentation →

Project Development

Design progression, electronics integration, prototyping and iterative development.
Open documentation →

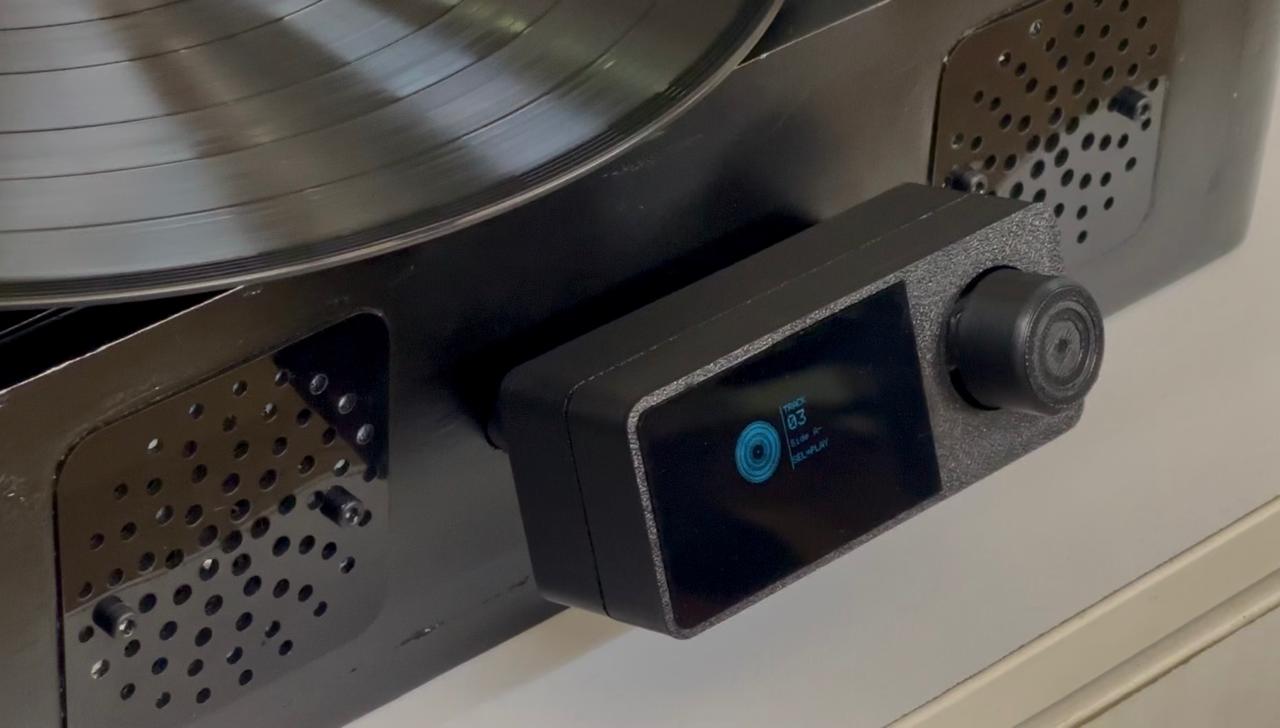

Features

PCB

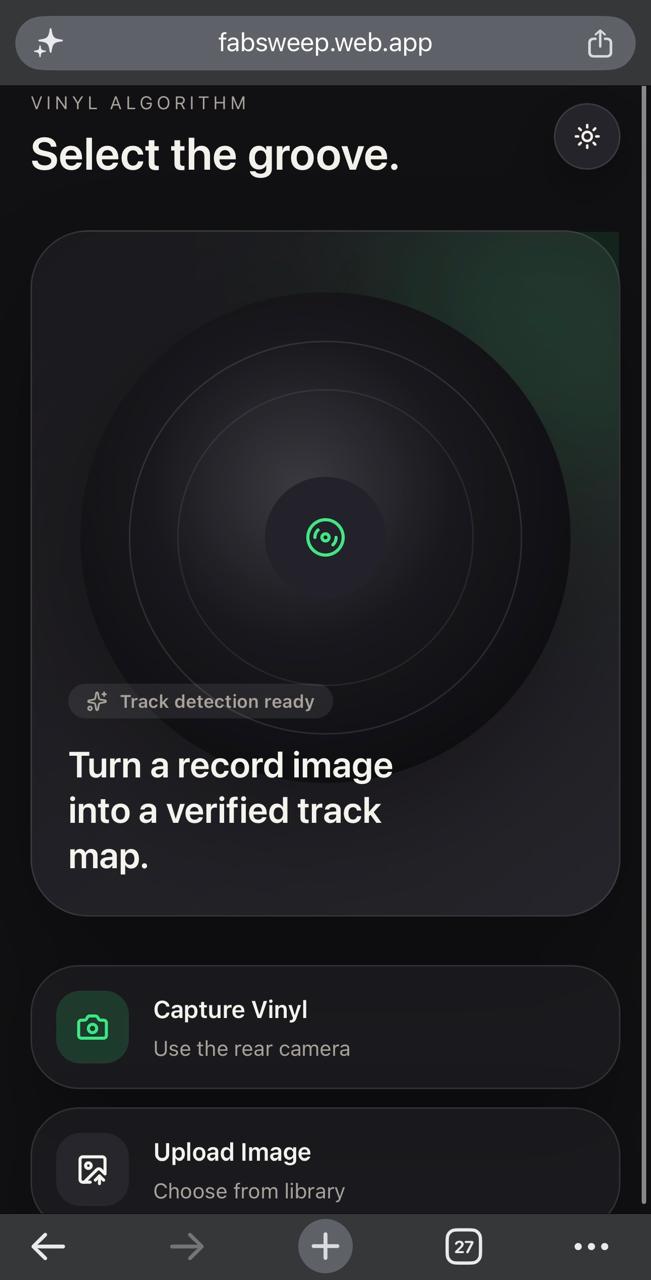

Web App Screenshot

Web app: fabsweep.web.app

Final Design Render

Final Build

Firmware

 /*
 * Vinyl Record Selector — ALL-IN-ONE
 * Seeed XIAO ESP32-C6
 *
 * Wiring:
 *   Encoder A  → D1 (GPIO1)
 *   Encoder B  → D2 (GPIO2)
 *   Encoder SW → D3 (GPIO21)
 *   OLED SDA   → D4 (GPIO22)
 *   OLED SCL   → D5 (GPIO23)
 *   Solenoid   → D6 (GPIO16)
 *   Servo Move → D7 (GPIO17)
 *   Servo Lift → D8 (GPIO19)
 *
 * Libraries needed:
 *   - Adafruit SSD1306
 *   - Adafruit GFX Library
 *   - ESP32Servo
 *
 * ENCODER: CCW = increment track
 *
 * SONG TABLE:
 *   Song 1 → 82°   Song 2 → 79°   Song 3 → 76°
 *   Song 4 → 72°   Song 5 → 68°   Song 6 → 65°
 */

#include
#include
#include
#include

// =============================================================================
// PINS
// =============================================================================
#define ENC_A        1   // D1
#define ENC_B        2   // D2
#define ENC_SW      21   // D3
// SDA = 22 (D4), SCL = 23 (D5) — handled by Wire.begin()
#define SOLENOID_PIN 16  // D6
#define SERVO_MOVE   17  // D7
#define SERVO_LIFT   19  // D8

// =============================================================================
// DISPLAY
// =============================================================================
#define SCREEN_W  128
#define SCREEN_H   64
#define OLED_RESET -1
Adafruit_SSD1306 display(SCREEN_W, SCREEN_H, &Wire, OLED_RESET);

// =============================================================================
// SERVOS
// =============================================================================
Servo servoLift;
Servo servoMove;

// =============================================================================
// MOTION LIMITS
// =============================================================================
#define LIFT_UP         135.0f
#define LIFT_DOWN       100.0f
#define MOVE_MIN         50
#define MOVE_MAX        120
#define MOVE_MIN_DEGREE  57   // arm at vinyl record start
#define MOVE_MAX_DEGREE  82   // arm at vinyl record end
#define PARK            100.0f
#define SEARCH_MIN       52
#define SERVO_MIN_US    500
#define SERVO_MAX_US   2500
#define STEP_DELAY       20

float liftPos = LIFT_DOWN;
float movePos = PARK;

// =============================================================================
// SONG TABLE — 6 songs, angle in degrees
// =============================================================================
#define NUM_TRACKS 6

const char* trackNames[NUM_TRACKS] = {
  "Side A-1",
  "Side A-2",
  "Side A-3",
  "Side B-1",
  "Side B-2",
  "Side B-3",
};

const float trackAngles[NUM_TRACKS] = { 82.0f, 79.0f, 76.0f, 72.0f, 68.0f, 65.0f };

// =============================================================================
// VINYL DISPLAY GEOMETRY
// =============================================================================
#define VX       36
#define VY       30
#define LABEL_R   8
#define OUTER_R  28
#define RING_GAP  3

// =============================================================================
// UI STATE
// =============================================================================
enum UIState { UI_IDLE, UI_CONFIRM, UI_PLAYING };
UIState  uiState     = UI_IDLE;
uint32_t confirmMs   = 0;
#define  CONFIRM_TIMEOUT 3000   // ms before confirm auto-cancels

int currentTrack = 0;
int playingTrack = -1;

// =============================================================================
// SPIN ANIMATION
// =============================================================================
float    spinAngle   = 0.0f;
float    spinSpeed   = 0.8f;
bool     isSpinning  = false;
uint32_t spinStartMs = 0;
#define  SPIN_DURATION_MS  1200
#define  SPIN_MAX_SPEED    8.0f

// =============================================================================
// ENCODER — polled, rising edge only (matches working test sketch)
// CCW = increment, CW = decrement
// Sensitivity: only act every ENC_STEP pulses to reduce over-sensitivity
// =============================================================================
int      lastEncA    = HIGH;
int      encPulses   = 0;        // accumulated pulses before registering a step
#define  ENC_STEP    2           // raise this (3,4…) if still too sensitive
uint32_t lastBtnMs   = 0;
bool     lastBtnState = HIGH;
#define  BTN_DEBOUNCE 200

// =============================================================================
// SERVO HELPERS
// =============================================================================
void writeServoFloat(Servo &s, float angle) {
  angle = constrain(angle, 0.0f, 180.0f);
  int us = map((int)(angle * 100), 0, 18000, SERVO_MIN_US, SERVO_MAX_US);
  s.writeMicroseconds(us);
}

void moveLift(bool up) {
  float target = up ? LIFT_UP : LIFT_DOWN;
  while (abs(liftPos - target) > 0.1f) {
    liftPos += (liftPos < target) ? 0.2f : -0.2f;
    servoLift.write((int)liftPos);
    delay(STEP_DELAY);
  }
  liftPos = target;
  servoLift.write((int)liftPos);
}

void moveArmRaw(float target) {
  target = constrain(target, (float)MOVE_MIN, (float)MOVE_MAX);
  while (abs(movePos - target) > 0.1f) {
    movePos += (movePos < target) ? 0.2f : -0.2f;
    writeServoFloat(servoMove, movePos);
    delay(STEP_DELAY);
  }
  movePos = target;
  writeServoFloat(servoMove, movePos);
}

// =============================================================================
// MOTION SEQUENCES
// =============================================================================
void restSequence() {
  Serial.println("REST");
  digitalWrite(SOLENOID_PIN, HIGH);
  moveArmRaw(PARK);
  digitalWrite(SOLENOID_PIN, LOW);
  Serial.println("REST DONE");
}

void searchSequence() {
  Serial.println("SEARCH START");
  digitalWrite(SOLENOID_PIN, HIGH);
  moveArmRaw(PARK);
  digitalWrite(SOLENOID_PIN, LOW);
  moveLift(true);
  moveArmRaw(SEARCH_MIN);
  moveArmRaw(PARK);
  digitalWrite(SOLENOID_PIN, LOW);
  moveLift(false);
  Serial.println("SEARCH DONE");
}

// Lift → move to groove angle → drop. Needle stays on record.
void seekToAngle(float target) {
  target = constrain(target, (float)MOVE_MIN_DEGREE, (float)MOVE_MAX_DEGREE);
  Serial.print("SEEK → "); Serial.println(target);
  moveLift(true);
  while (abs(movePos - target) > 0.1f) {
    movePos += (movePos < target) ? 0.2f : -0.2f;
    writeServoFloat(servoMove, movePos);
    delay(STEP_DELAY);
  }
  movePos = target;
  writeServoFloat(servoMove, movePos);
  delay(150);
  moveLift(false);
  Serial.println("SEEK DONE");
}

// Full play: search → settle → seek
void playTrack(int trackIndex) {
  float angle = trackAngles[trackIndex];
  Serial.printf("PLAY track %d at %.0f deg\n", trackIndex + 1, angle);
  searchSequence();
  delay(300);
  seekToAngle(angle);
  Serial.println("PLAY COMPLETE");
}

// =============================================================================
// OLED DRAW HELPERS
// =============================================================================
void drawThickCircle(int cx, int cy, int r, int thickness, uint16_t colour) {
  for (int t = 0; t < thickness; t++)
    display.drawCircle(cx, cy, r - t, colour);
}

void drawGrooveTick(int cx, int cy, float angleDeg, int r1, int r2) {
  float rad = angleDeg * PI / 180.0f;
  display.drawLine(
    cx + (int)(r1 * cos(rad)), cy + (int)(r1 * sin(rad)),
    cx + (int)(r2 * cos(rad)), cy + (int)(r2 * sin(rad)),
    SSD1306_WHITE
  );
}

void drawVinyl() {
  // Solid disc
  for (int r = OUTER_R; r >= 0; r--)
    display.drawCircle(VX, VY, r, SSD1306_WHITE);

  // Erase inner then re-draw faint grooves
  for (int r = LABEL_R + 1; r <= OUTER_R - 1; r++)
    display.drawCircle(VX, VY, r, SSD1306_BLACK);
  for (int r = LABEL_R + 2; r < OUTER_R - 1; r += 2)
    display.drawCircle(VX, VY, r, SSD1306_WHITE);

  // Track rings — highlighted ring = current selection
  for (int t = 0; t < NUM_TRACKS; t++) {
    int r = OUTER_R - t * RING_GAP;
    if (r <= LABEL_R) break;
    if (t == currentTrack) {
      drawThickCircle(VX, VY, r,     2, SSD1306_WHITE);
      drawThickCircle(VX, VY, r - 3, 2, SSD1306_WHITE);
    } else {
      display.drawCircle(VX, VY, r, SSD1306_WHITE);
    }
  }

  // Centre label
  for (int r = LABEL_R; r >= 0; r--)
    display.drawCircle(VX, VY, r, (r == LABEL_R) ? SSD1306_WHITE : SSD1306_BLACK);
  display.fillCircle(VX, VY, 1, SSD1306_WHITE);

  // Spin tick
  drawGrooveTick(VX, VY, spinAngle, LABEL_R + 1, LABEL_R + 3);
}

void drawTrackInfo() {
  display.drawFastVLine(74, 0, SCREEN_H, SSD1306_WHITE);

  // Track number
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(78, 2);
  display.print("TRACK");
  display.setTextSize(2);
  display.setCursor(80, 13);
  char buf[4];
  snprintf(buf, sizeof(buf), "%02d", currentTrack + 1);
  display.print(buf);

  // Track name (small)
  display.setTextSize(1);
  display.setCursor(78, 36);
  // Strip leading "XX  " numbering if present, clip to 7 chars
  const char* name = trackNames[currentTrack];
  char clip[8];
  strncpy(clip, name, 7);
  clip[7] = '\0';
  display.print(clip);

  // Status line (bottom)
  display.setCursor(76, 52);
  switch (uiState) {
    case UI_IDLE:
      display.print("SEL=PLAY");
      break;
    case UI_CONFIRM:
      // Blink to draw attention
      if ((millis() / 350) % 2 == 0)
        display.print("> PLAY? <");
      break;
    case UI_PLAYING:
      if ((millis() / 500) % 2 == 0)
        display.print("PLAYING ");
      else
        display.print("        ");
      break;
  }
}

// =============================================================================
// SETUP
// =============================================================================
void setup() {
  Serial.begin(115200);
  delay(500);

  // I2C for OLED
  Wire.begin(22, 23);

  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
    Serial.println("OLED not found — check wiring");
    while (true) delay(100);
  }
  display.setRotation(2);  // 180° flip
  display.clearDisplay();
  display.display();

  // Solenoid
  pinMode(SOLENOID_PIN, OUTPUT);
  digitalWrite(SOLENOID_PIN, LOW);

  // Servos
  servoLift.attach(SERVO_LIFT, SERVO_MIN_US, SERVO_MAX_US);
  servoMove.attach(SERVO_MOVE);
  servoLift.write((int)liftPos);
  writeServoFloat(servoMove, movePos);

  // Encoder — polled, no interrupt needed
  pinMode(ENC_A,  INPUT_PULLUP);
  pinMode(ENC_B,  INPUT_PULLUP);
  pinMode(ENC_SW, INPUT_PULLUP);
  lastEncA = digitalRead(ENC_A);

  Serial.println("=== VINYL SELECTOR READY ===");
  for (int i = 0; i < NUM_TRACKS; i++)
    Serial.printf("  Track %d: %s  %.0f deg\n", i+1, trackNames[i], trackAngles[i]);
}

// =============================================================================
// LOOP
// =============================================================================
void loop() {
  uint32_t now = millis();

  // ── Encoder (polled, rising edge only) ────────────────────────────────────
  int currentA = digitalRead(ENC_A);
  if (currentA != lastEncA) {
    if (currentA == HIGH) {                      // rising edge only
      if (digitalRead(ENC_B) != currentA)
        encPulses++;                             // CW pulse
      else
        encPulses--;                             // CCW pulse
    }
    lastEncA = currentA;
  }

  // Only register a track step every ENC_STEP pulses (reduces sensitivity)
  int delta = 0;
  if (encPulses >= ENC_STEP)  { delta = +1; encPulses = 0; }  // CW  = next
  if (encPulses <= -ENC_STEP) { delta = -1; encPulses = 0; }  // CCW = prev

  if (delta != 0) {
    currentTrack = (currentTrack + delta + NUM_TRACKS) % NUM_TRACKS;
    if (uiState == UI_CONFIRM) uiState = UI_IDLE;
    Serial.printf("Track %d: %s\n", currentTrack+1, trackNames[currentTrack]);
  }

  // ── Confirm timeout ────────────────────────────────────────────────────────
  if (uiState == UI_CONFIRM && (now - confirmMs) > CONFIRM_TIMEOUT) {
    uiState = UI_IDLE;
    Serial.println("Confirm timed out");
  }

  // ── Button ─────────────────────────────────────────────────────────────────
  if (digitalRead(ENC_SW) == LOW && (now - lastBtnMs) > BTN_DEBOUNCE) {
    lastBtnMs = now;

    if (uiState == UI_IDLE) {
      uiState   = UI_CONFIRM;
      confirmMs = now;
      Serial.printf("Confirm: play track %d?\n", currentTrack+1);

    } else if (uiState == UI_CONFIRM) {
      // Confirmed — run the full play sequence
      uiState      = UI_PLAYING;
      playingTrack = currentTrack;
      isSpinning   = true;
      spinStartMs  = now;

      // Redraw "PLAYING" before the blocking motion starts
      display.clearDisplay();
      drawVinyl();
      drawTrackInfo();
      display.display();

      playTrack(playingTrack);   // blocking — servos move here

      uiState = UI_IDLE;         // return to idle when done

    } else if (uiState == UI_PLAYING) {
      // Shouldn't normally be reachable (playTrack is blocking)
      // but safety fallback
      uiState = UI_IDLE;
    }
  }

  // ── Spin animation ─────────────────────────────────────────────────────────
  if (isSpinning) {
    uint32_t elapsed = now - spinStartMs;
    if (elapsed < SPIN_DURATION_MS) {
      float t   = (float)elapsed / SPIN_DURATION_MS;
      float e   = (t < 0.5f) ? 2.0f*t*t : 1.0f - 2.0f*(1.0f-t)*(1.0f-t);
      spinSpeed = SPIN_MAX_SPEED * (1.0f - e) + 0.8f;
    } else {
      isSpinning = false;
      spinSpeed  = 0.8f;
    }
  }
  spinAngle += spinSpeed;
  if (spinAngle >= 360.0f) spinAngle -= 360.0f;

  // ── Render (skipped while motion is blocking) ──────────────────────────────
  if (uiState != UI_PLAYING) {
    display.clearDisplay();
    drawVinyl();
    drawTrackInfo();
    display.display();
  }

  delay(30);
}

Download Firmware (.ino) →

Bill of Materials (BOM)

Component	Supplier	Qty	Unit Cost (₹)	Total (₹)
Seeed Studio XIAO ESP32-C6	Fab Lab Stock	1	555.00	555.00
MP1584 Buck Converter Module	Fab Lab Stock	1	41.00	41.00
100µF Electrolytic Capacitor (SMD)	Fab Lab Stock	1	0.00	0.00
MOSFET N-Channel (AO3400A Equivalent)	Fab Lab Stock	1	32.00	32.00
SS34 Schottky Diode	Fab Lab Stock	1	2.00	2.00
JST-XH 2 Pin Female Connector	Fab Lab Stock	2	0.00	0.00
JST-XH 2 Pin Male Connector	Fab Lab Stock	2	0.00	0.00
1kΩ Resistor	Fab Lab Stock	1	0.00	0.00
10kΩ 1206 Resistor	Fab Lab Stock	3	0.50	1.50
100nF Ceramic Capacitor	Fab Lab Stock	2	0.00	0.00
2×1 Male Pin Header	Fab Lab Stock	Several	0.00	0.00
Plywood Sheet	Fab Lab Stock	1	0.00	0.00
Transparent Acrylic Sheet	Fab Lab Stock	1	0.00	0.00
PLA Filament	Fab Lab Stock	Approx. 120 g	0.00	0.00

Total Project Cost

Total Estimated Cost	₹631.50

Mechanical Materials

Plywood
Used to construct the layered enclosure. Each layer is CNC machined using the ShopBot and laminated together to form the complete body.
Transparent Acrylic
Laser cut to form the top cover. The transparent surface allows the user to see the record while protecting the internal mechanism.
PLA Filament
Used to 3D print the OLED display housing, rotary encoder knob and custom mechanical parts used by the sweeping mechanism.

Design Files

Fusion 360 Files: Download Here
KiCad Files: Download Here
Firmware: Download Here
