4. Embedded Programing¶
Learning Objectives¶
- Implement programming protocols.
Schedule¶
Wednesday, Jan 21st - Global Class - Embeded Programing
Thursday, Jan 22nd: - Setup and Programing Into Password:
Friday, Jan 23rd: - Data Sheets and Specifications Password:
Assingments¶
Group assignment:
- Demonstrate and compare the toolchains and development workflows for available embedded architectures
- Document your work to the group work page and reflect on your individual page what you learned
Individual assignment:
- Browse through the datasheet for a microcontroller
- documented some information from a microcontroller’s datasheet
- Write and test a program for an embedded system using a microcontroller to interact (with local input &/or output devices) and communicate: with remote wired or wireless connections
- Programmed a board to interact and communicate
- Described the programming process(es) you used
- Included your source code
Class Content¶
General Info¶
Beginner Glossery
| Term | Simple Meaning |
|---|---|
| Microcontroller | Small computer on one chip |
| CPU (Central Processing Unit) | The brain |
| Flash | Permanent memory (stores program) |
| SRAM (Static Random Access Memory) | Temporary working memory |
| GPIO (General Purpose Input Output) | Digital input/output pins |
| ADC (Analog-to-Digital Converter) | Converts voltage into numbers |
| DAC (Digital-to-Analog Converter) | Converts numbers into voltage |
| SERCOM (Serial Communication Module) | Communication block |
| UART | Simple serial communication method |
| SPI | Fast serial communication method |
| I²C | Two-wire communication method |
| DMAC (Direct Memory Access Controller) | Moves data without CPU |
| MHz | Millions of cycles per second |
| Level shifting | Converting voltage levels safely |
Link to class content on local site
- Arduino introductory development board
- The biggest part is the micro controler. This is the part that we program.
- When you program this, your code is the only thing running. this is different from a computer which runs a million things in parallel at once
- General over and history of computers
- In general computers are computing matchines.
- With this logic, the earlies computers where human brains
- After this computers were mechanical using gears, shafts and cams. This is very difficult to change and maniplulate
- Moving from physical to digital was a big step that allow easy manipulation through code
- The corner we will be working on is: digital, bynary, general purpose

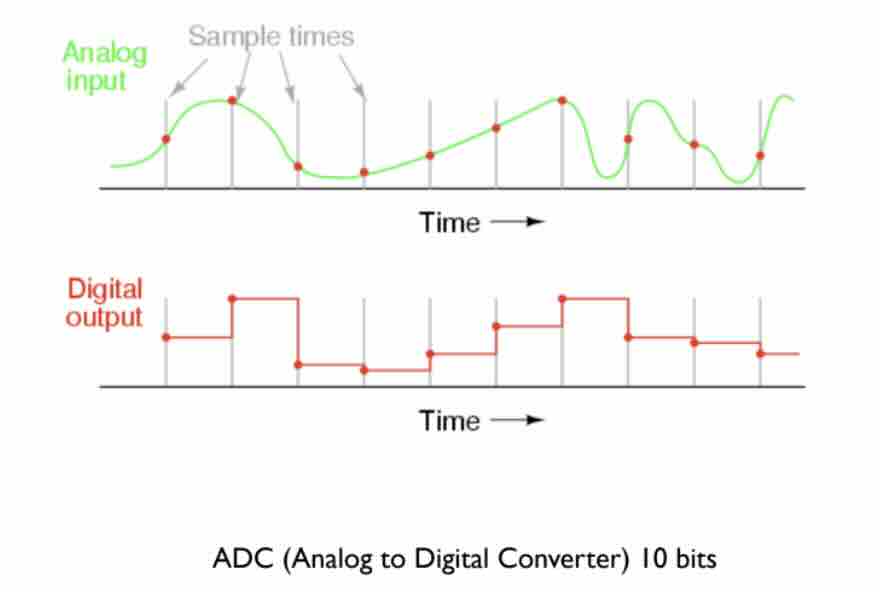

- Analog vs digital: digital is an approximation of a continous data stream
- Hardware
- pcb: printable circuite board (we will use this)
- ict: integrated cirtuit technology
- firmware vs. operating system: firmware runs directly on the hardware, an opperating system runs through another system?
- Compling
- Turning human readible language to computer readible language
Setting up arduino software¶
Arduino software is used in the tool chain to load programs to your microcontroler.
Class Notes
-
instal arduino from: https://www.arduino.cc/en/software/#ide
-
Add aditional board managers
- first copying board manager url that you want to add
- in this case we will copy from the class site
- generally you can google search using the board name and “board manager”

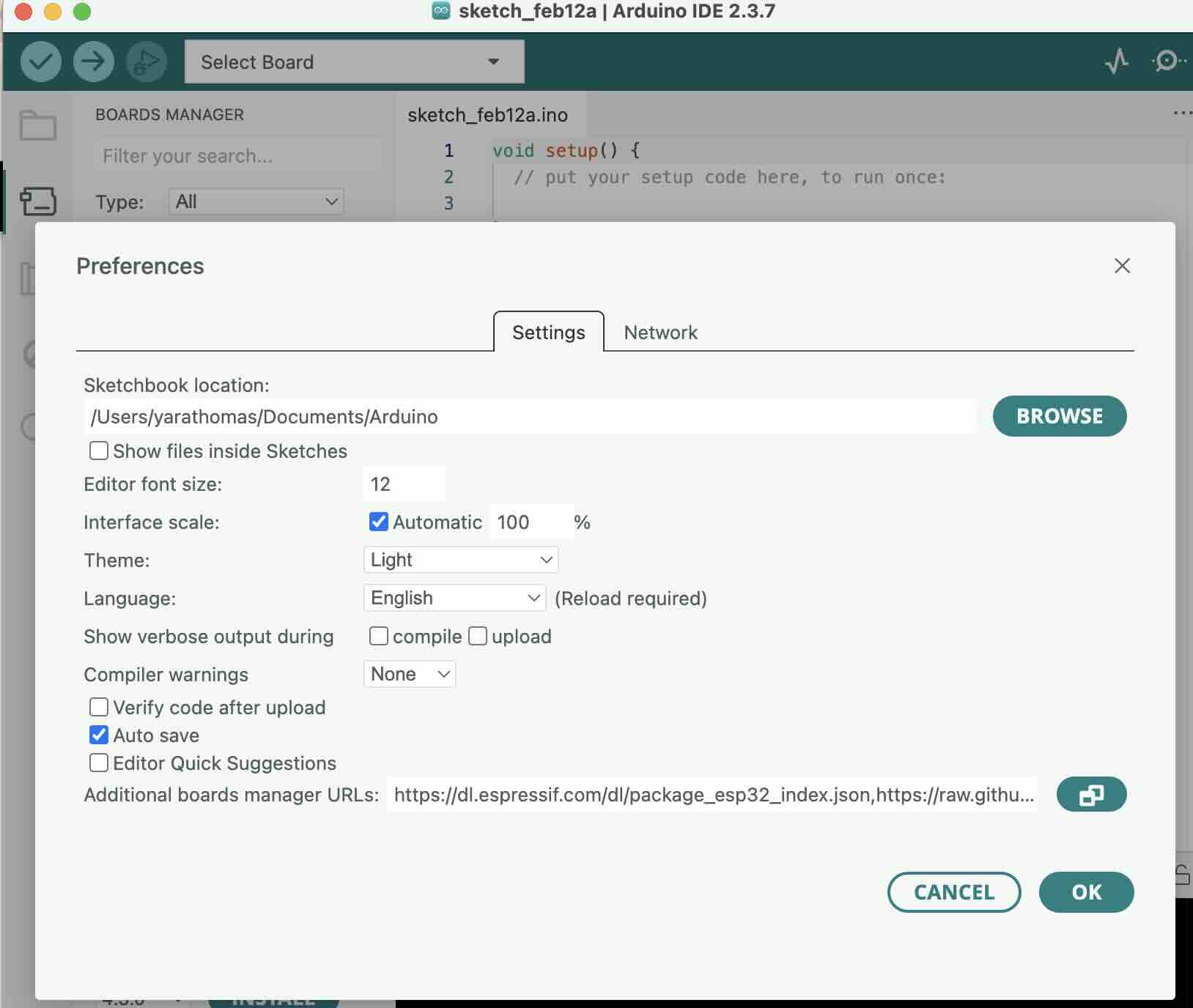

- go to Arduino IDE —> settings to open pannel below. Paste the copied addional board manager links in to the available section and click ok.

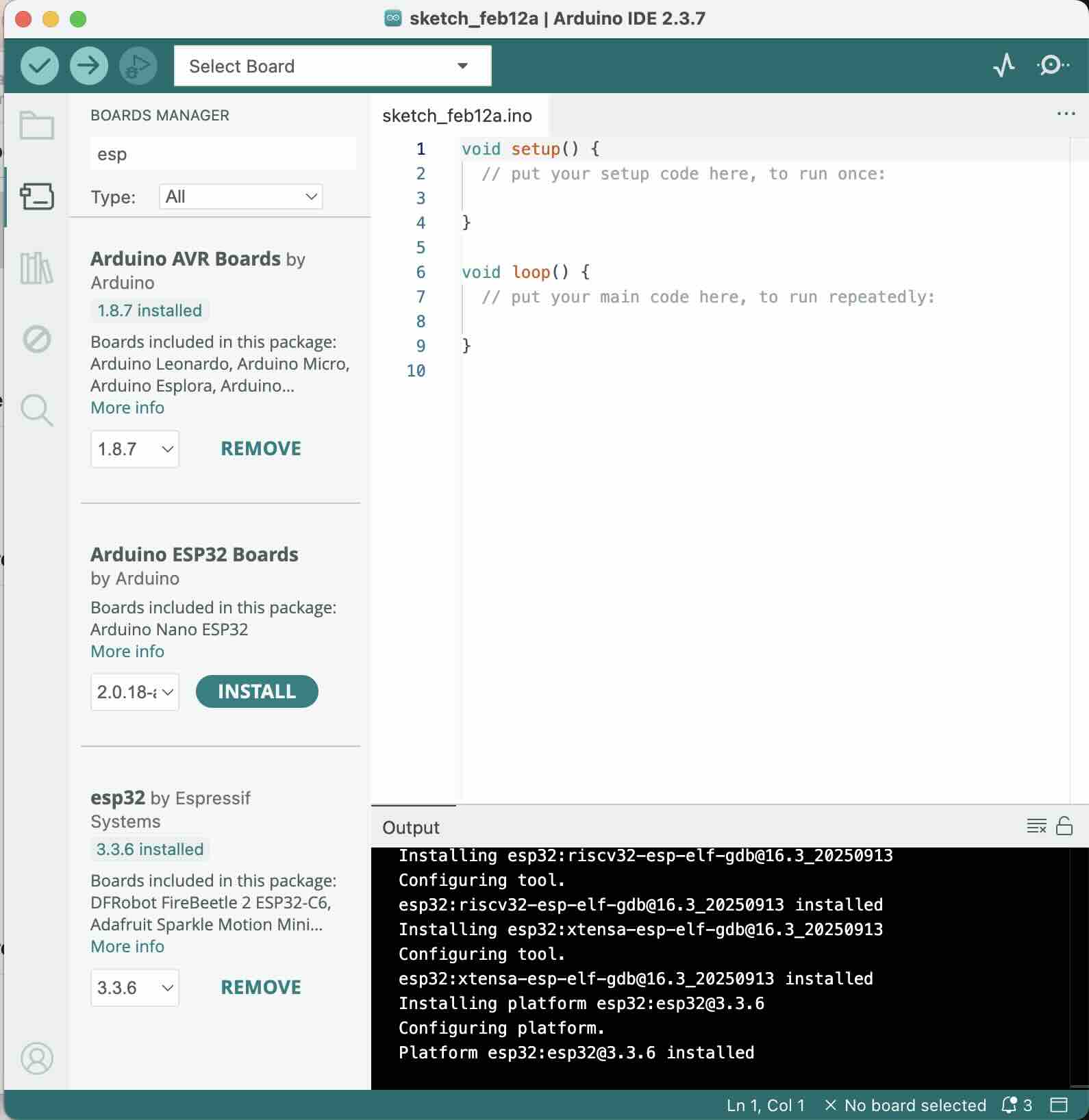

- Instal the correct board: in this case esp32 by espressif
- you can find the correct one by searching espressif
- connect board
- Select correct board from tools —> board —> ESP32S3 Dev Module
- select correct port from tools —> port …
- If board is continously connecting and disconnecting: hold down boot and click reset
- Writing code
- there is a list of offical references at: https://docs.arduino.cc/language-reference/
- Arduino specifc info from class: https://fablabbcn-projects.gitlab.io/electronics/barduino-docs/GettingStarted/pinout/
- once you run you get a prompt saying “ Hard resetting via RTS pin” this is done by physically pushing the reset button
- Syntax
- functions: lowercase
- class: first letter is uppercase

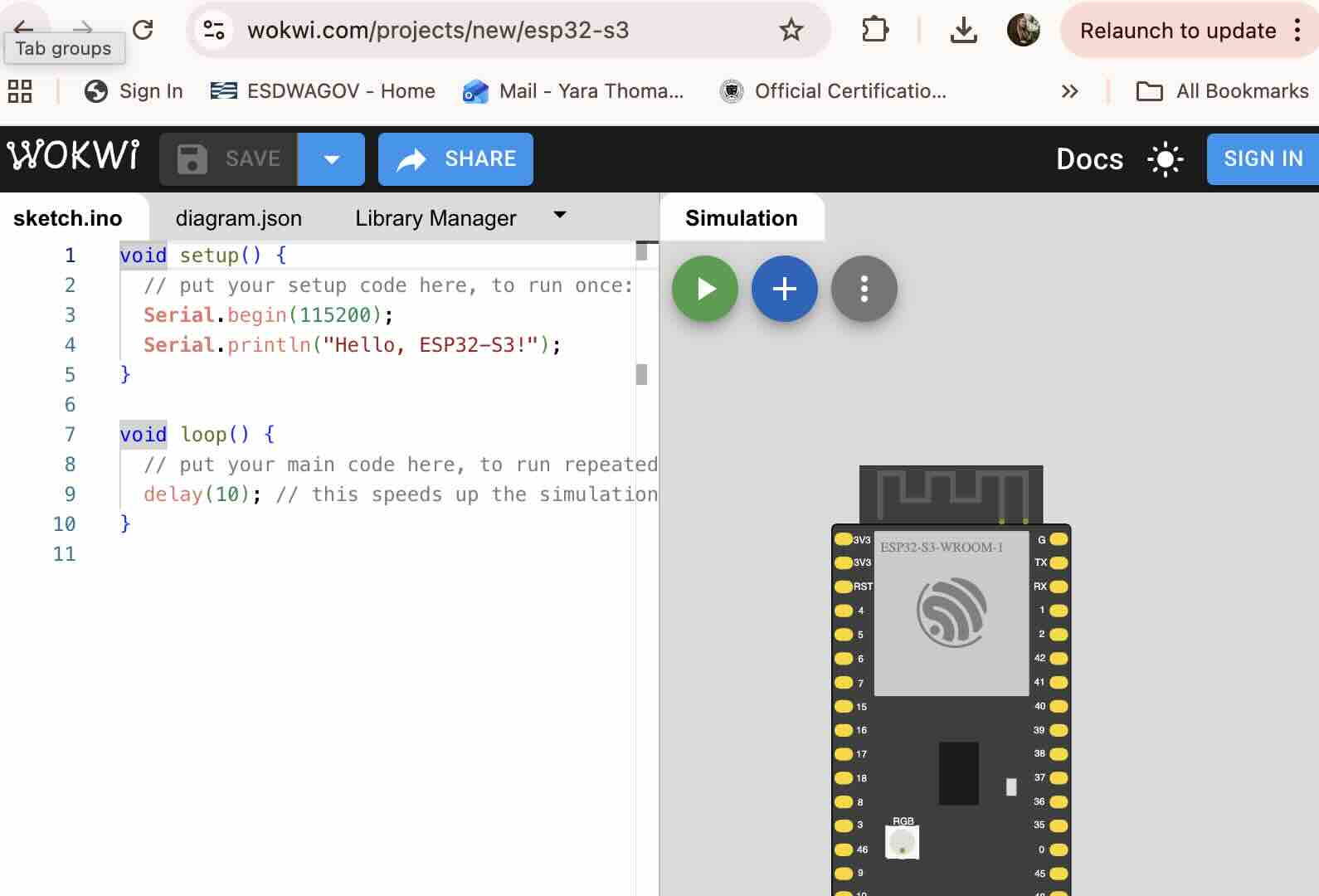

Virtual simulator¶
Link and uses
- https://wokwi.com/
- this is usefull when yo dont have the board or for debugging if errors are ocde based or hardware based
- Microcontroller Circuits
- anode: input - is denoted by the bent leg of a device
- always color code
- Input: measures the incoming voltage
- output: sends the nominal voltage of the circuit based on the prgram that runs it
- ports that specify a voltage always run a voltage (not programable)
- GP: general purpose in and out (I/O)
- in arduino software File —> Examples had very useful code examples that you can load automatically
## Exercise
Description and code

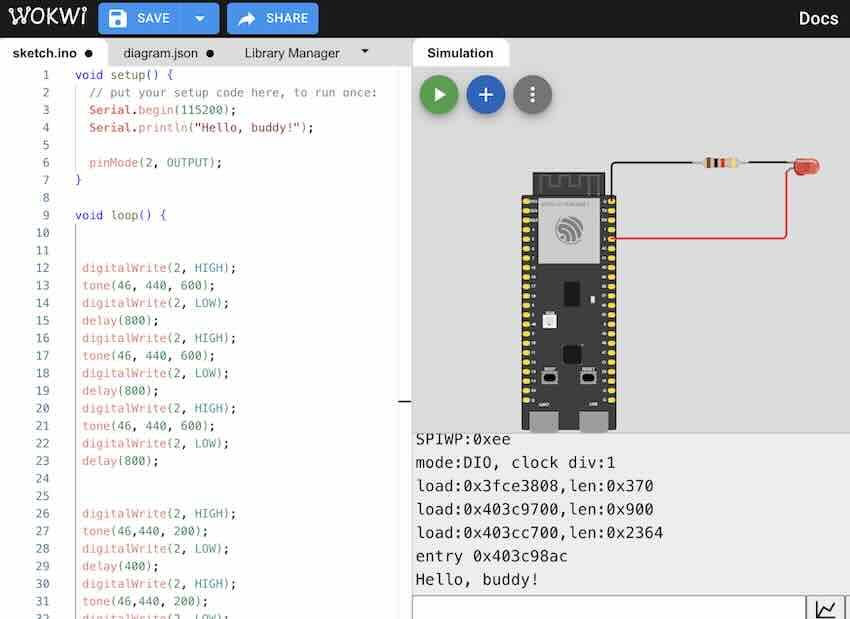

Create a program that will blink the LED in morus code SOS. We can use the blow class examples. The first beeps in morus code. the second turns on the LED.
Result
``` void setup() { // put your setup code here, to run once: Serial.begin(115200); Serial.println(“Hello, buddy!”);
pinMode(2, OUTPUT); }
void loop() {
digitalWrite(2, HIGH); tone(46, 440, 600); digitalWrite(2, LOW); delay(800); digitalWrite(2, HIGH); tone(46, 440, 600); digitalWrite(2, LOW); delay(800); digitalWrite(2, HIGH); tone(46, 440, 600); digitalWrite(2, LOW); delay(800);
digitalWrite(2, HIGH); tone(46,440, 200); digitalWrite(2, LOW); delay(400); digitalWrite(2, HIGH); tone(46,440, 200); digitalWrite(2, LOW); delay(400); digitalWrite(2, HIGH); tone(46,440, 200); digitalWrite(2, LOW); delay(400);
digitalWrite(2, HIGH); tone(46, 440, 600); digitalWrite(2, LOW); delay(800); digitalWrite(2, HIGH); tone(46, 440, 600); digitalWrite(2, LOW); delay(800); digitalWrite(2, HIGH); tone(46, 440, 600); digitalWrite(2, LOW); delay(800);
delay(1600);
} ```
Another example
this one is interesting becuase it works with an input that effects the output
Reading Data Sheets¶
Friday Notes¶
Class Notes
-
other interesting uses
- silk screens
- cutting iron on lettering for shirts
- inflatables using thermo adhesive
- copper tape for soft circut
-
What we have in the lab
- XIAO: micro controler + many other features (shofer)
- CH32 (scooter)
- ATTiny (moto)
- ATSAMD (car)
- ESP32 (luxury car)
- RP2040 (sports car) close to a mini computer
- ATTiny
- work flow for loading the program to the board is a bit tricky
- if you use these make sure to use the new ones
- Info: from data sheet
- numbers at the top refer to versions with different memory. there are also different form factors so make sure you are designing to the form factor that you have.
- CPU: speed
- I2C: internet compatabilty
- Analog to digital converstion (ADC) important for sensor conversion if you are using a sensor that does not do the conversion internally. The inverse is (DAC) digital to analog converter
- Operates at 5 volts
- Block diagram
- There is a dot in the corner that also appears on the board. This is critical becuase it is the reference for the orientation of the board
- pin SOIC
- VDD: input supply
- GND: ground
- Pinout

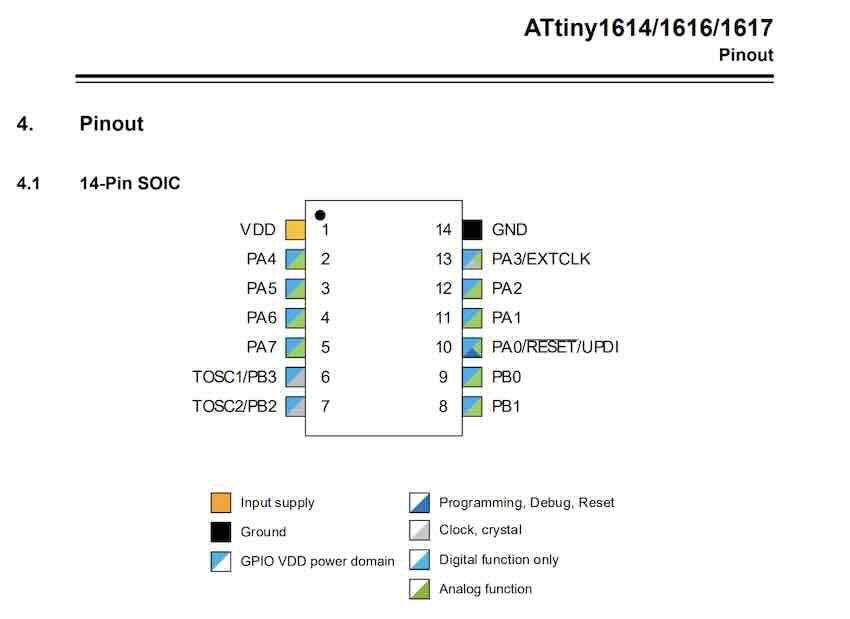

Pinout from the data sheet
- numbers on the board are not the pin names
- registers live are in the memory of the microcontroler (dont worry about it now)

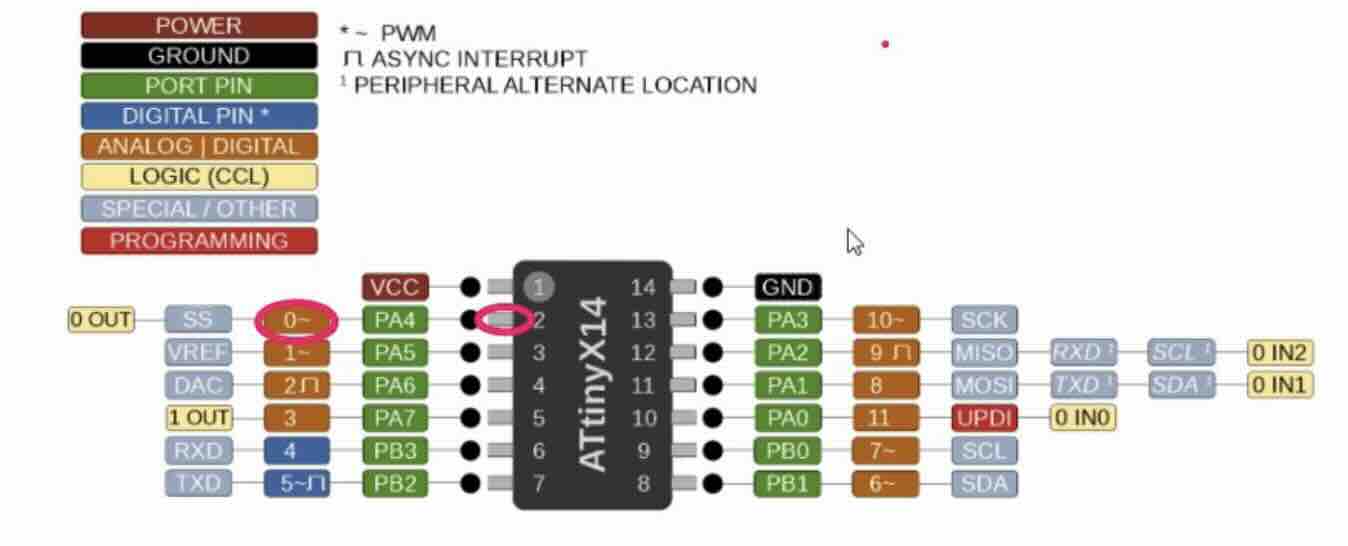

Pinout created by users to make our lives easier
reading the pinout 1. Color Coding - Green row (registers): PA 0-7 name the 8 bits, PB not used in the 8 bit version - Orange and blue (definintion of the pin): real names of the pin 2. Setting up on arduino - follow link on slides (see link above) - copy and paste same as yesterday - find MegaTinycore and instal - Check in tools: Board, Port, SerialUPdI - Then: Burn boot loader (only if it is a microcontroler with a lot of storage - you would not use this with the ATTiny420) - to upload: Sketch —> upload using programmer
SMD 1. it has USB but it is not designed to be used for programing the borad 2. pin to prgram is through SWD: four pins (ground, reset, clock, data in and out) 3. you can use these to reprogram the board to be programed through USB. You only need to do this once and then you can just use USB
Inividual Assesment of Data Sheets¶
Critical Acronyms Reference¶
| Acronym | Meaning |
|---|---|
| MCU | Microcontroller Unit |
| CPU | Central Processing Unit |
| SRAM | Static Random Access Memory |
| Flash | Non-volatile program memory |
| ADC | Analog-to-Digital Converter |
| DAC | Digital-to-Analog Converter |
| DMA | Direct Memory Access |
| RTC | Real-Time Clock |
| GPIO | General Purpose Input/Output |
| PWM | Pulse Width Modulation |
| SERCOM | Serial Communication Module |
| USART | Universal Synchronous/Asynchronous Receiver/Transmitter |
| SPI | Serial Peripheral Interface |
| I²C | Inter-Integrated Circuit |
| SWD | Serial Wire Debug |
| BOD | Brown-Out Detector |
| POR | Power-On Reset |
| TCC | Timer/Counter for Control |
| TC | Timer/Counter |
| DMAC | Direct Memory Access Controller |
Example: SAM D10 Analysis¶
STEP 1: The Description¶
From page 1:
ARM Cortex-M0+ processor, up to 48MHz, up to 16KB Flash, 4KB SRAM
Key Information¶
| Item | Why Its Important |
|---|---|
| ARM Cortex-M0+ | 32-bit processor core (modern, efficient, low power) |
| Up to 48 MHz | Maximum CPU speed |
| Up to 16KB Flash | Program memory size |
| 4KB SRAM | Working memory (very small) |
| 14–24 pins | Physical size and I/O capability |
| Low power | Good for battery applications |
Important Acronyms¶
- ARM → CPU architecture designer
- Cortex-M0+ → Low-power 32-bit processor core
- Flash → Non-volatile program memory
- SRAM → Volatile working memory
- MHz → Megahertz (millions of cycles per second)
- DMA → Direct Memory Access
STEP 2 — Features¶
This is the fast evaluation page.
From page 2:
Processor¶
- ARM Cortex-M0+ @ 48MHz
- Single-cycle hardware multiplier
Not suitable for heavy digital signal processing or complex computation.
Memory¶
- 8KB or 16KB Flash
- 4KB SRAM
This is small by modern standards best for small firmware applications.
For comparison:
| Device | Flash |
|---|---|
| Arduino Uno | 32KB |
| STM32F4 | 512KB – 2MB |
| SAM D10 | 8–16KB |
Peripherals (Critical for Selection)¶
| Peripheral | Meaning | Why Its Important |
|---|---|---|
| SERCOM (3) | Flexible communication modules | UART, SPI, I²C support |
| ADC (12-bit, 350ksps) | Analog-to-Digital Converter | Read sensors |
| DAC (10-bit) | Digital-to-Analog Converter | Output analog voltage |
| RTC | Real-Time Clock | Timekeeping |
| TCC / TC | Timers | PWM, motor control |
| DMAC | Direct Memory Access Controller | Efficient data transfers |
| PTC | Peripheral Touch Controller | Capacitive touch sensing |
STEP 3 — Configuration Summary¶
This table compares package variants.
| Package | Pins | GPIO | ADC Channels | SERCOM |
|---|---|---|---|---|
| 24-pin | 22 GPIO | 10 ADC | 3 SERCOM | |
| 20-pin | 18 GPIO | 8 ADC | 3 SERCOM | |
| 14-pin | 12 GPIO | 5 ADC | 2 SERCOM |
Common Mistakes¶
- Not enough GPIO
- Not enough ADC channels
- Not enough communication interfaces
- Wrong package size for PCB
This table prevents those errors.
STEP 4 — Operating Voltage¶
Operating Voltage: 1.62V – 3.63V
Implications:
- Not 5V tolerant
- Requires 3.3V system
- May require level shifting for 5V devices
STEP 5 — Block Diagram Overview¶
The block diagram shows:
- CPU core
- Memory
- Bus system (AHB/APB)
- Clock system
- Power management
- Debug interface (SWD)
Quick evaluation:
- No USB
- No CAN
- No Ethernet
This is a simple control-oriented microcontroller.
STEP 6 — Ordering Information¶
Example part number:
ATSAMD10D14A-SSUT
Part Number Breakdown¶
| Code | Meaning |
|---|---|
| D10 | Cortex-M0+ |
| C/D | Pin count family |
| 14 | 16KB Flash |
| SS | SOIC package |
| MUT | QFN package |
| U/N | Temperature range |
Important notes:
- 8KB and 16KB versions exist
- 14-pin version has fewer peripherals
Most Important Selection Criteria¶
When evaluating any microcontroller:
- Flash & SRAM: Can your firmware fit?
- GPIO Count: Enough pins?
- Communication Interfaces: How many - UART? SPI? I²C?
- ADC Resolution & Speed: 12-bit? Channel count? Sampling speed?
- Operating Voltage: 3.3V only? 5V tolerant?
- Package Type: Can you manufacture or solder it?
- Power Consumption: Battery-powered project?
- Clock Speed: Performance requirements?
🎓Summary of SAM D10¶
Good For:¶
- Small embedded projects
- Capacitive touch
- Low power control
- Simple sensor nodes
Not Good For:¶
- Large firmware
- USB applications
- High performance DSP
- Networking projects
Note – chatGPT Helped me with this summary. The promp used: I am learning how to read data sheets for microcontrollers and would like your help. Please help me to identify the most important information when choosing if this is the right board to use for a project. I do not have a project in mind yet but want to learn how to read the sheet so that when I do have a project I can look quickly through the sheets to gather the most relevant info. in addition, please explain the meaning of acronyms and important technical terms that appear in the first 4 pages or else where in critical information.
