Final Project

Project Brief

My final project is an interactive board game inspired by the epic Mahabharata war.

Features

Story-Based Game

  • The game is based on the Mahabharata war.

  • Players choose to play as Pandavas or Kauravas.

  • Events on the board follow the real order of the war.

Three-Level Game Board

  • The board has three circular levels (big, medium, small).

  • Players move from one level to the next by reaching special gates.

  • Each level has its own challenges and events.

  • Rotating boards

Astra Cards

  • Each player gets Astra cards (special powers).

  • Cards can be used when landing on your own side’s event.

  • Players scan the card to use its power to get strenghth.

Learn While Playing

  • The game teaches about Indian mythology and the Mahabharata.

  • It also helps players think, plan, and work as a team.

Planning

Following is the panning of the gameflow

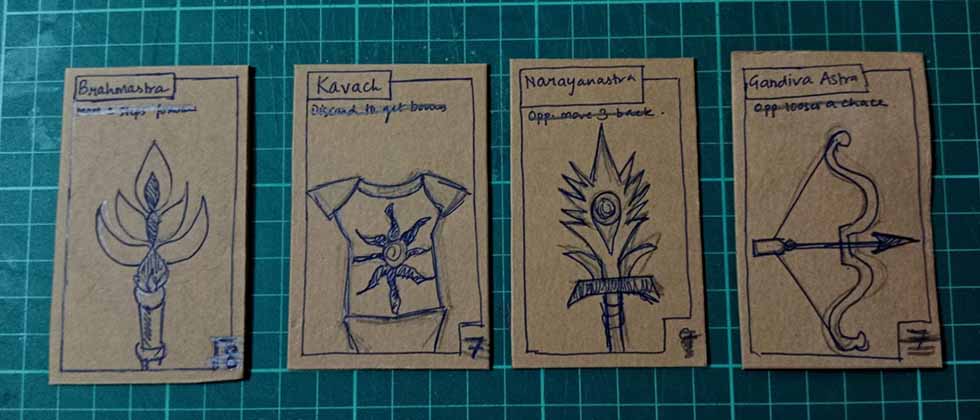

Cards ideation

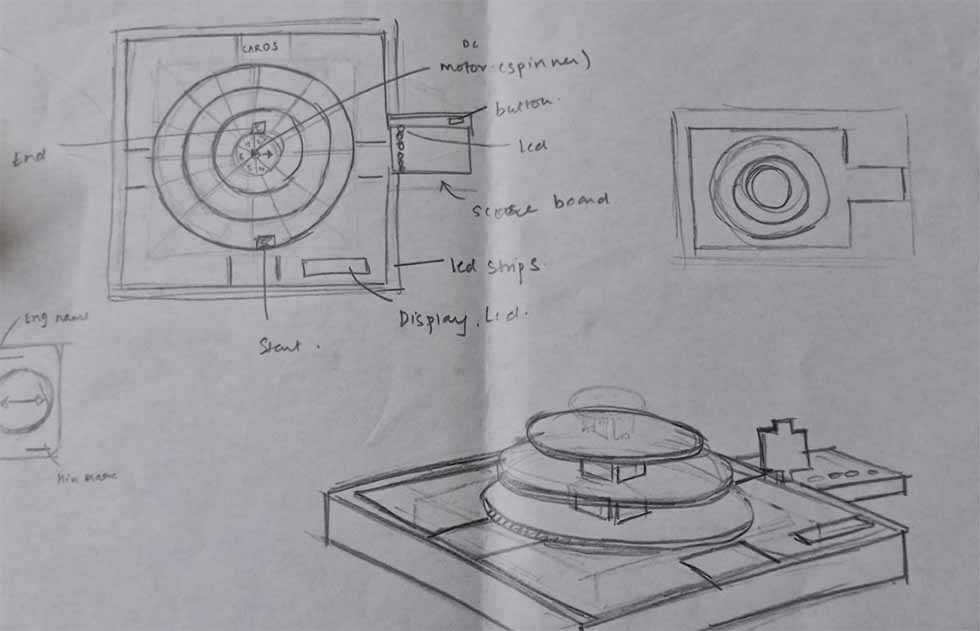

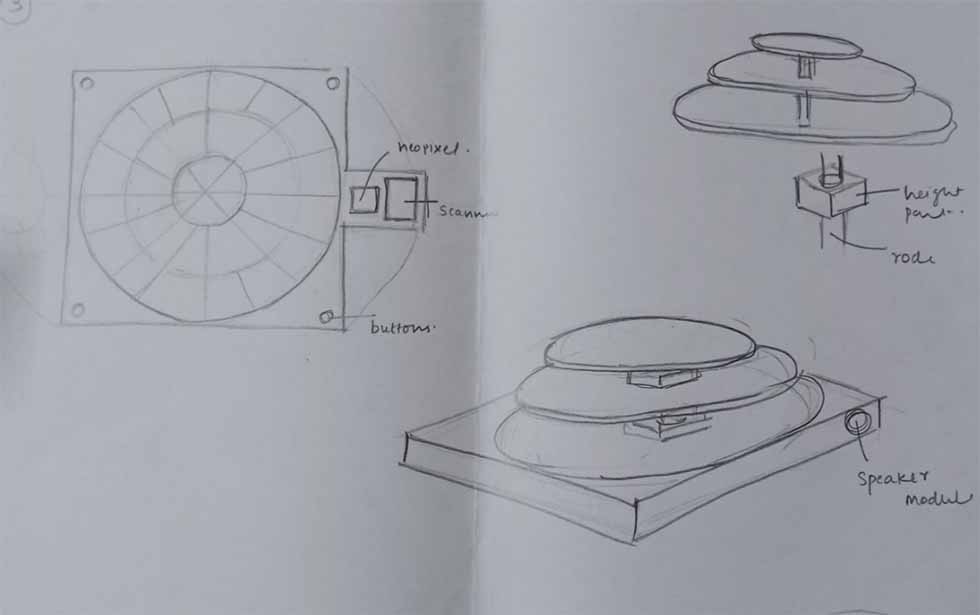

Sketches

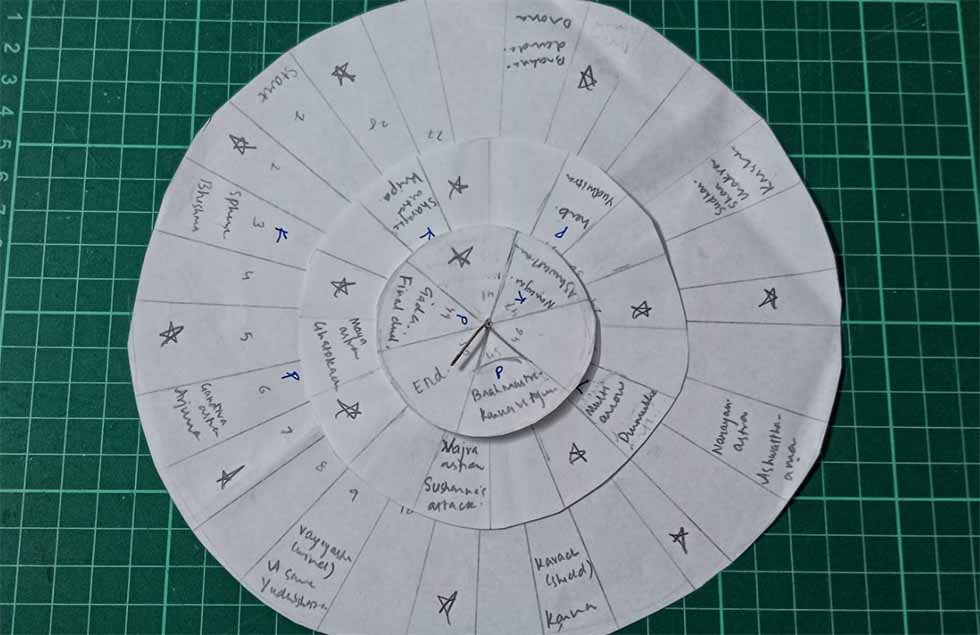

Final sketch

Prototyping

Board design. Three cicular dics stacked on top of each other.

Card design

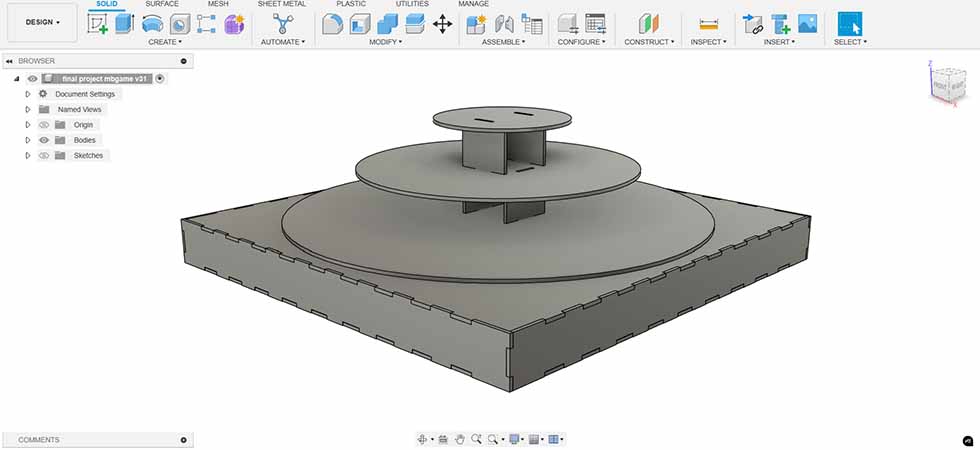

3d modelling

Earlier version of the board game setup

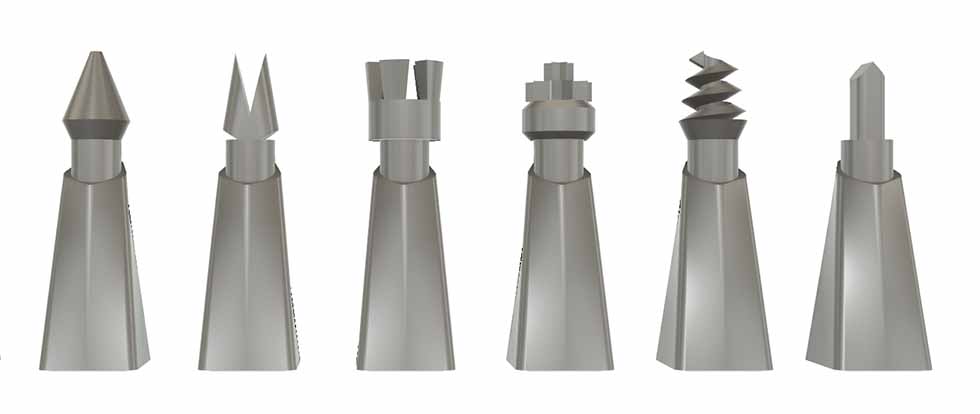

Pawns design

Element design

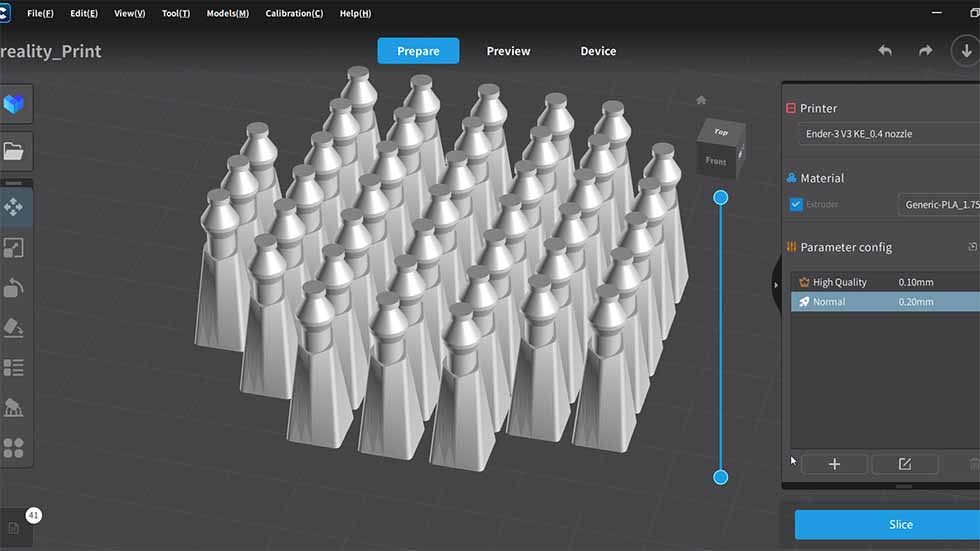

3d printing

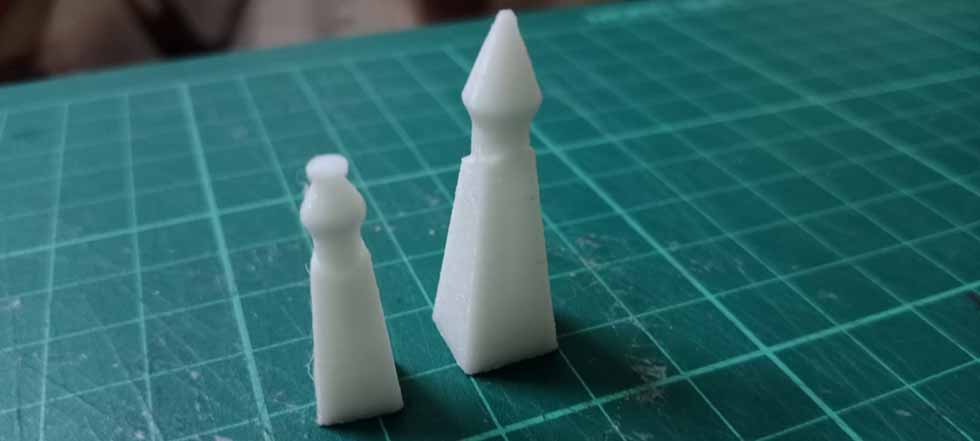

Test print

Main Framework

  • The entire board will be laser cut including the outermost packaging.
  • The pawns and the pointers will be 3d printed using PLA.

Finishing and Aesthetics

  • Painting the 3d parts with acrylics paints
  • All parts are fixed using Fevicol and Feviquick.
  • Final board and packaging print

List of Machines and tools used

Machine

  • Laser Cutter
  • 3d Printing
  • SRM Pcb milling

Electronics

Component Description
Xiao RP2040 Board Microcontroller board to control all modules
Speaker Outputs audio played by the DFPlayer Mini
MP3 Player DFPlayer Mini used to play MP3 audio files
RFID Cards 13.56 MHz cards used for identification
RFID Reader Module to scan RFID cards (e.g., RC522)
SD Card Stores audio files in MP3 format for the DFPlayer
WS2812 RGB LED Ring 8bit RGB LED ring for visual feedback
Push Button For triggering events or resetting the system

Input Devices

  • RFID Cards – Players scan these to activate events or powers
  • Push Buttons – Can be used for triggering events or confirming actions.

Output Devices

  • Speaker – Plays audio or voice narration from the cards.
  • WS2812 RGB LED Ring (8-bit) – Acts as a dice to move the player

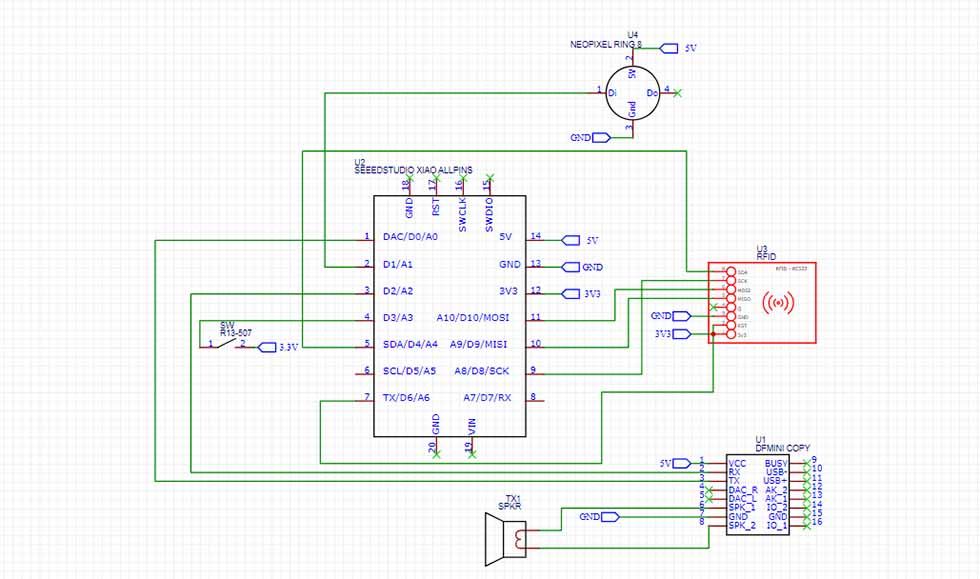

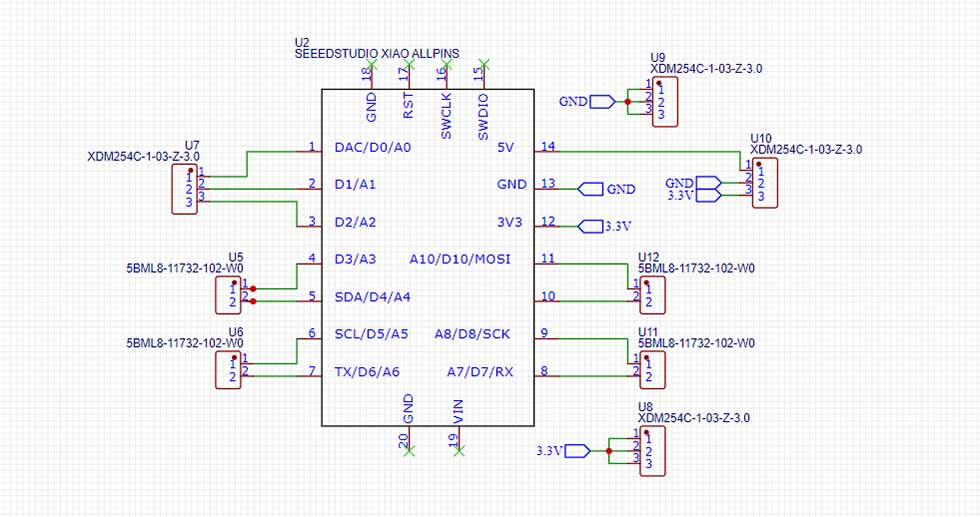

Connections

BOM

Project plan

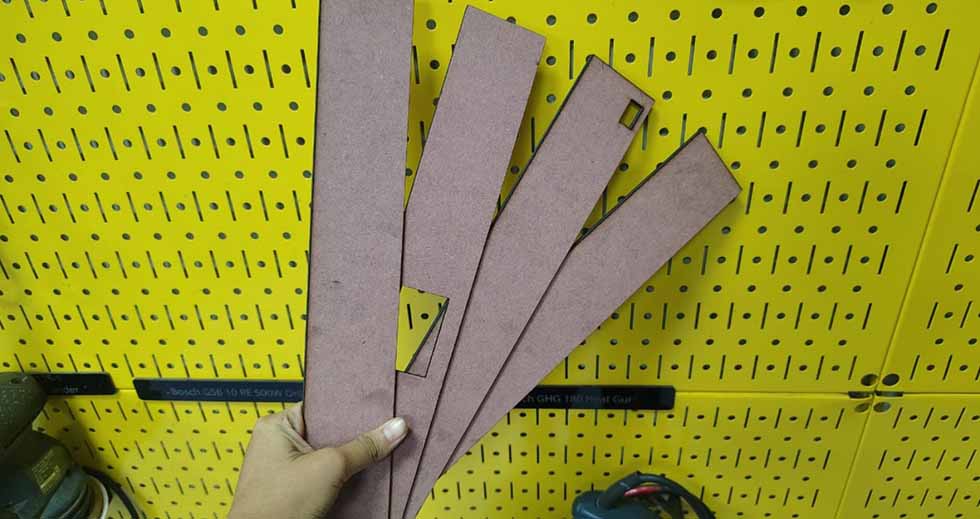

Laser cutting

I have used laser cutter to cut all the pieces like the three dics, the packaging box and the rfid holder.

3d Printing

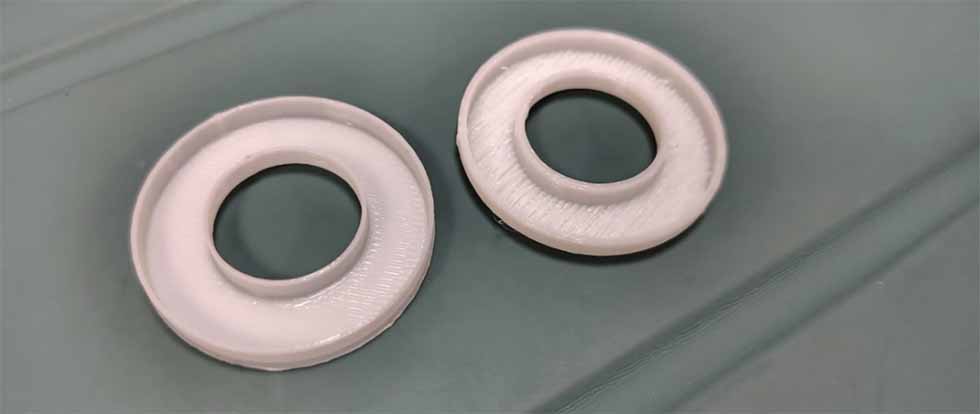

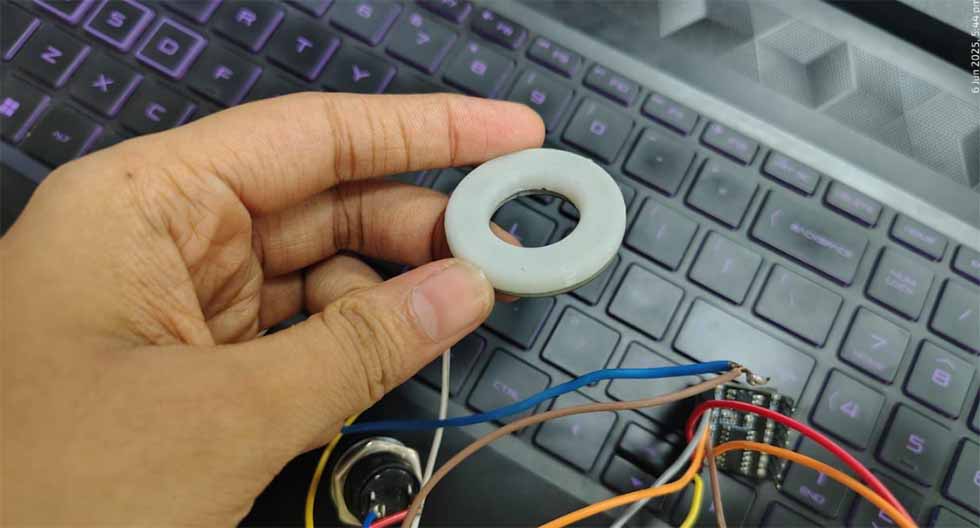

Printed two covers for the neopixel ring to check which one is perfect that it is also study and at the same time pass enough amount of light

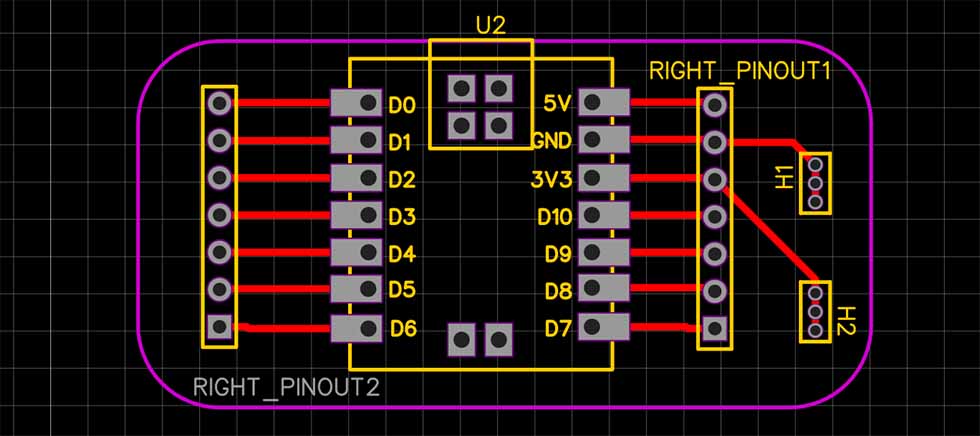

Pcb production

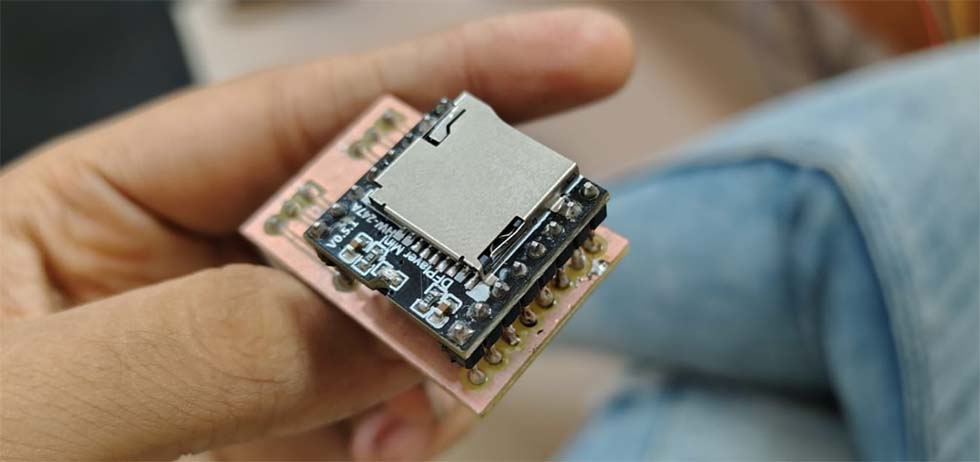

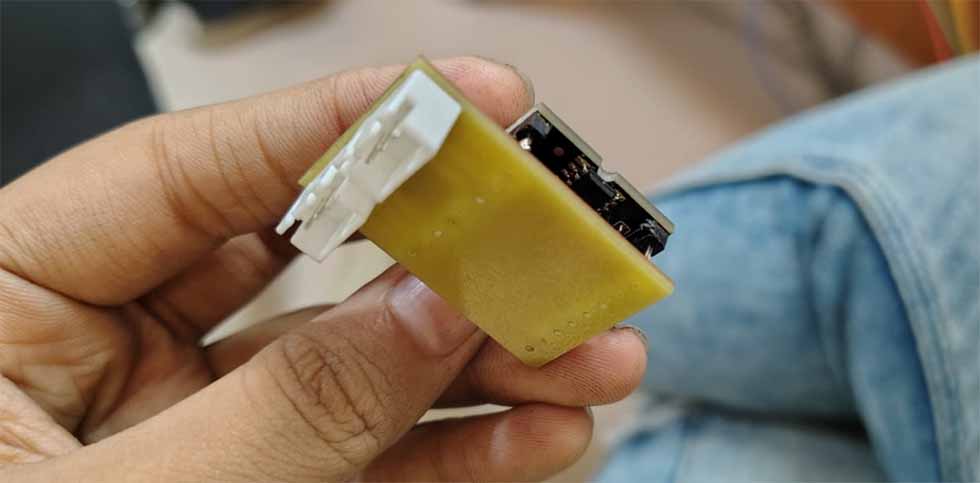

I created a dedicated PCB to securely hold and connect the DFPlayer Mini module. This custom board includes all necessary pin headers and solder points to integrate the DFMini with other components in my circuit, making the overall setup more compact and organized.

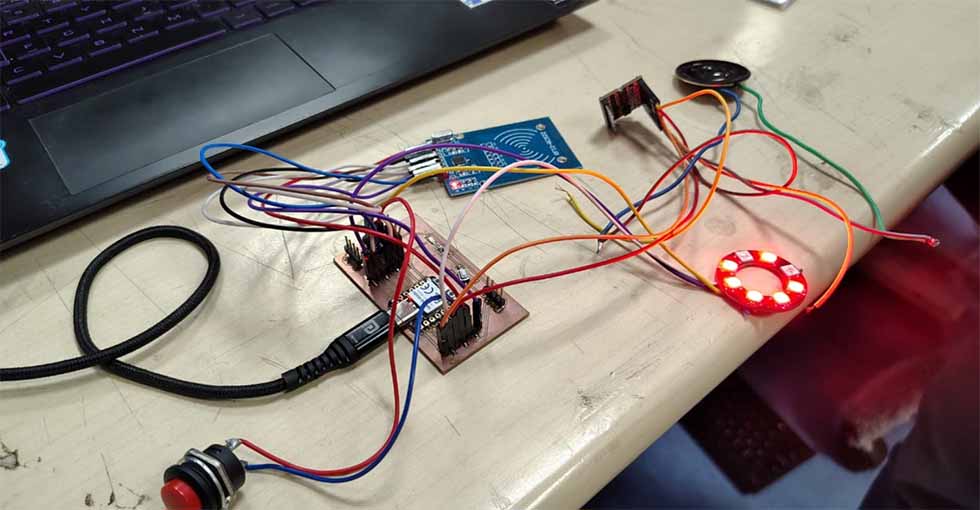

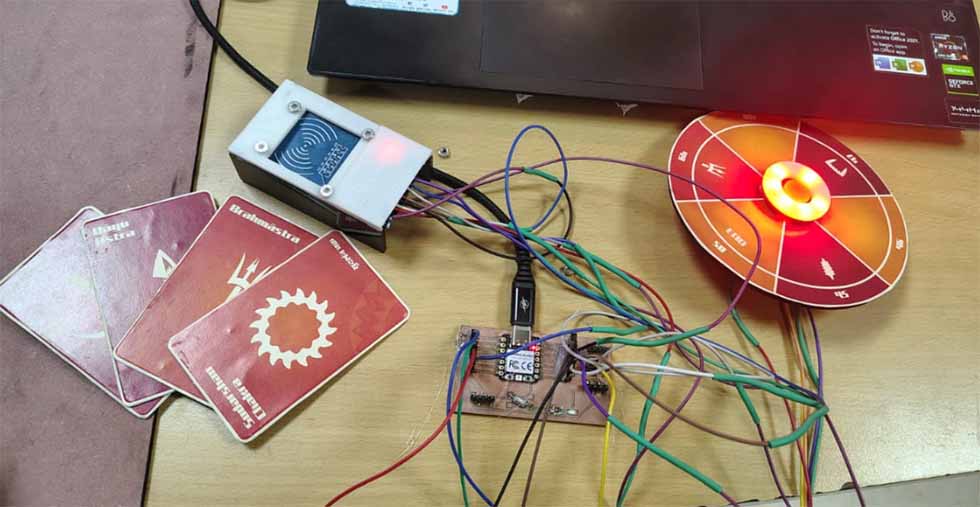

Electronics testing

I began by testing each electronic component individually to ensure proper functionality before integration. The RFID module was tested to verify that it could successfully read card UIDs and communicate with the microcontroller. The NeoPixel ring was checked separately by running basic color and animation tests to confirm proper wiring and power. Similarly, the DFPlayer Mini was tested by playing audio files from a microSD card, triggered through serial communication, and connected to a speaker for output. Once each component worked reliably on its own, I proceeded to integrate them onto a single system. This allowed me to streamline the connections, troubleshoot more effectively, and ensure that all components could interact as intended in the final setup.

Testing the Rfid

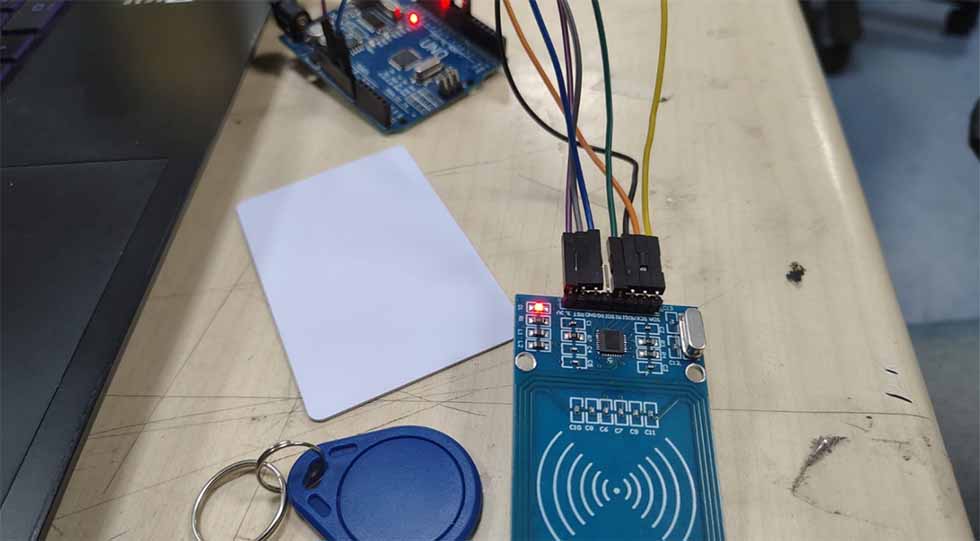

On Arduino

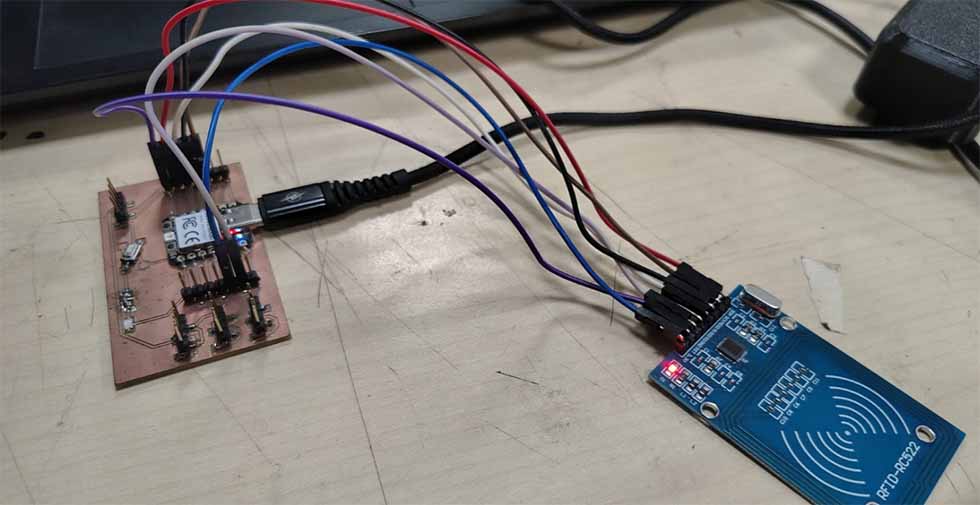

On Xiao

Testing neopixel

Testing with GPD2846A then dfminiplayer

At first, I used the GPD2846A MP3 player for sound, but it had some problems. The sound would start playing on its own as soon as the power was on, and I couldn’t control which file to play through code. It only worked with physical buttons, which didn’t suit my project where I wanted each RFID card to play a specific sound. So, I switched to the DFPlayer Mini. It lets me control everything using code—like playing a specific file, changing volume, or stopping the sound. This worked much better for my interactive setup.

GPD2846A

Dfmini player

Application and implication

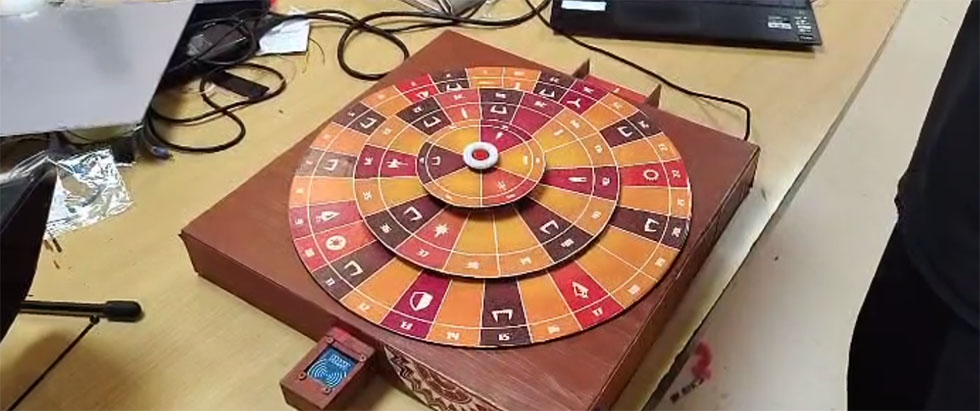

Final project

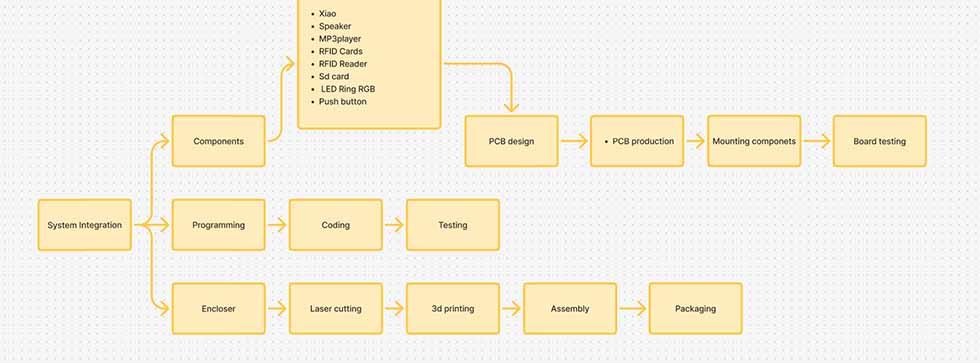

System Integration

Link to the system integration page

The integration process for the final project involved assembling multiple mechanical, electronic, and functional elements into a single, cohesive system to ensure smooth operation and user interaction.

Mechanical Integration

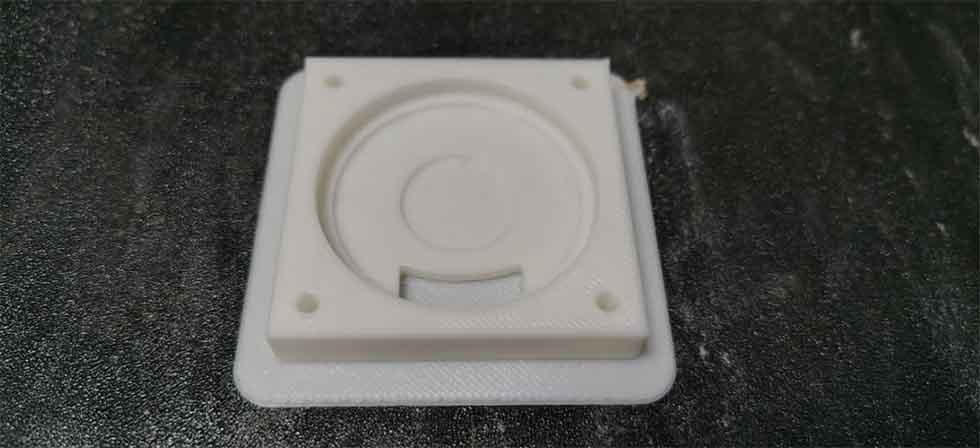

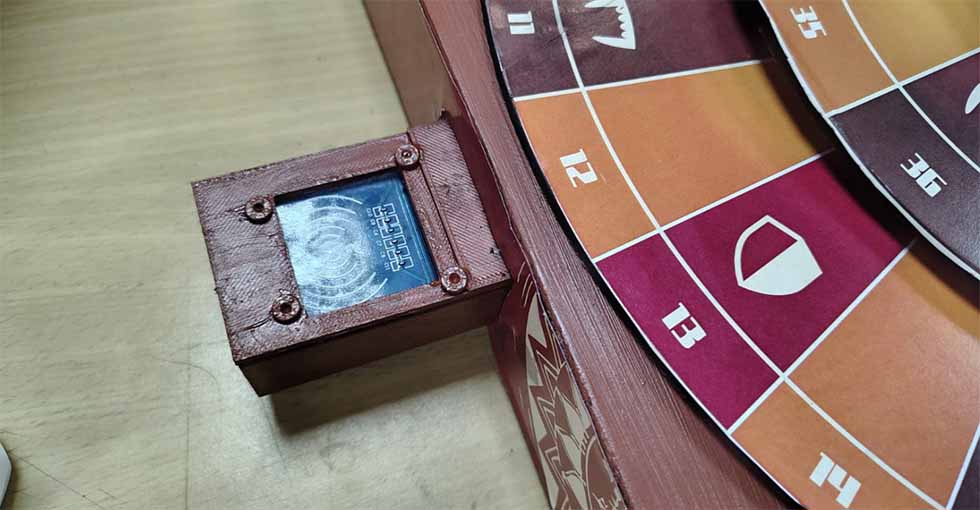

Mounting the rfid card holder

To keep the RFID reader in place so the cards can be scanned properly.

Cover for the neopixel

Neopixel was mounted on a hollow pipe and to a cover to protect the NeoPixel lights and make the light look smooth and even.

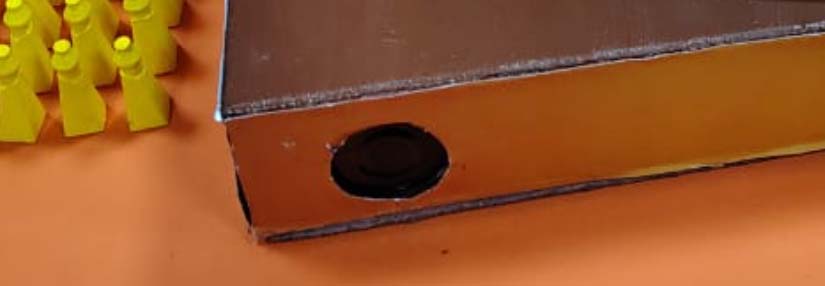

Mounting the speaker

A small holder to fix the speaker using M3 screws so it stays in place without shaking.

Electronics Integration

I connected all electronic parts according to the circuit:

  • The RFID reader, NeoPixel LEDs, speaker, and LCD screen were all wired to the microcontroller.

  • All wires were arranged properly so they don’t get loose or break.

  • I checked each part separately before putting everything together.

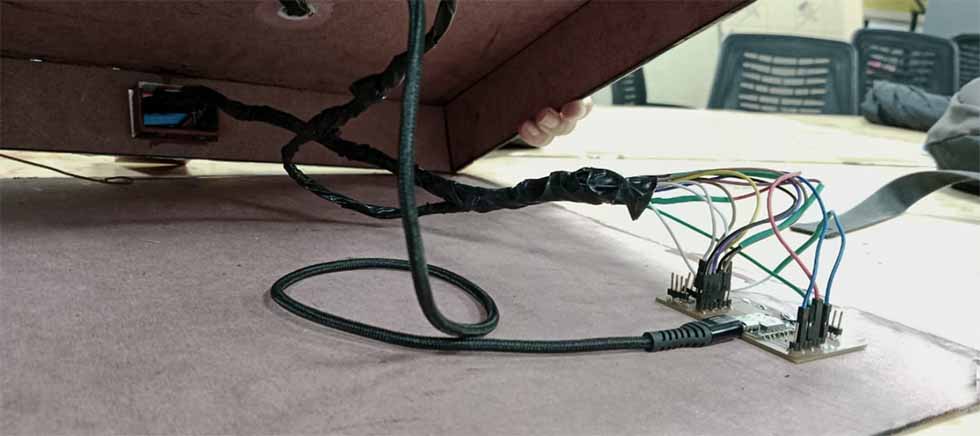

Wirings

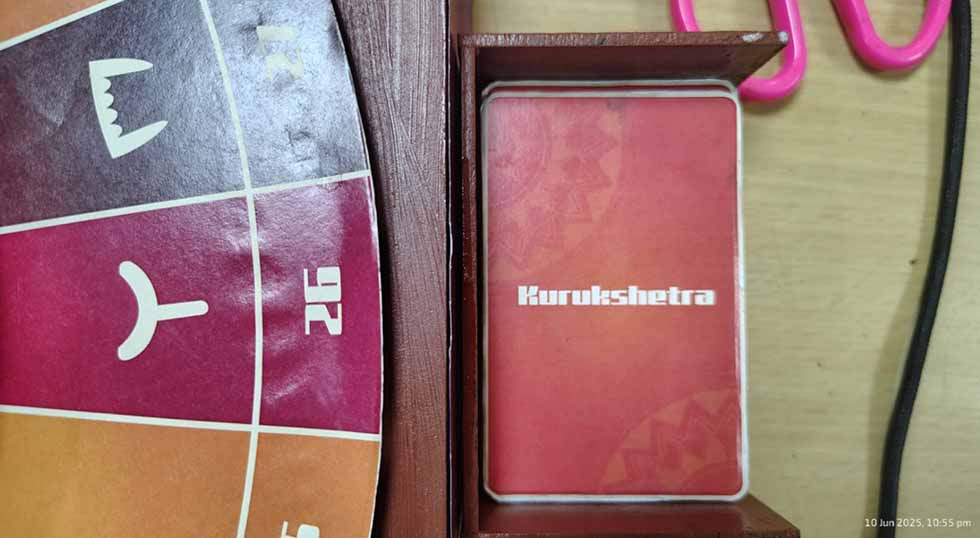

Holder for the cards

A separate holder to neatly store all the RFID cards.

Integrating the whole setup together

After assembling all the parts, I fixed the PCB in its position connected all the wires properly and integrated the whole setup together into one complete system.

Finishing

Painting

Print

I carefully stuck the printed game design on the board to make it look clean and easy to understand.

Intellectual Property Strategy

This work is licensed under a CREATIVE COMMONS ATTRIBUTION-NONCOMMERCIAL-NODERIVS 4.0 INTERNATIONAL LICENSE. This will allow you to share, reproduce or distribute the work for any purpose but must acknowledge (credit) this project while doing it.

Acknowledgments

To understand how rfid card works I have taken reference from Bianca's work and some youtube videos

Fab academy documentation

Youtube video

To understand how dfmini works I have taken reference from Koharu Takeda's work some youtube videos

Fab academy documentation

Youtube video

Exercise files

Below are the files for:

3d model: pawns

Main 3d model

2d file

Main pcb gerber file

Pcb 2 gerber file

Code:

Final code used

Rfid and neopixel

Neopixel
