Button RGB PCB
Hardware used: Carvera Desktop Mill, Prusa MK4; Software: Kicad, Mods CE, Camotics, Gerbers to fff/ Inscape, Prusa Slicers

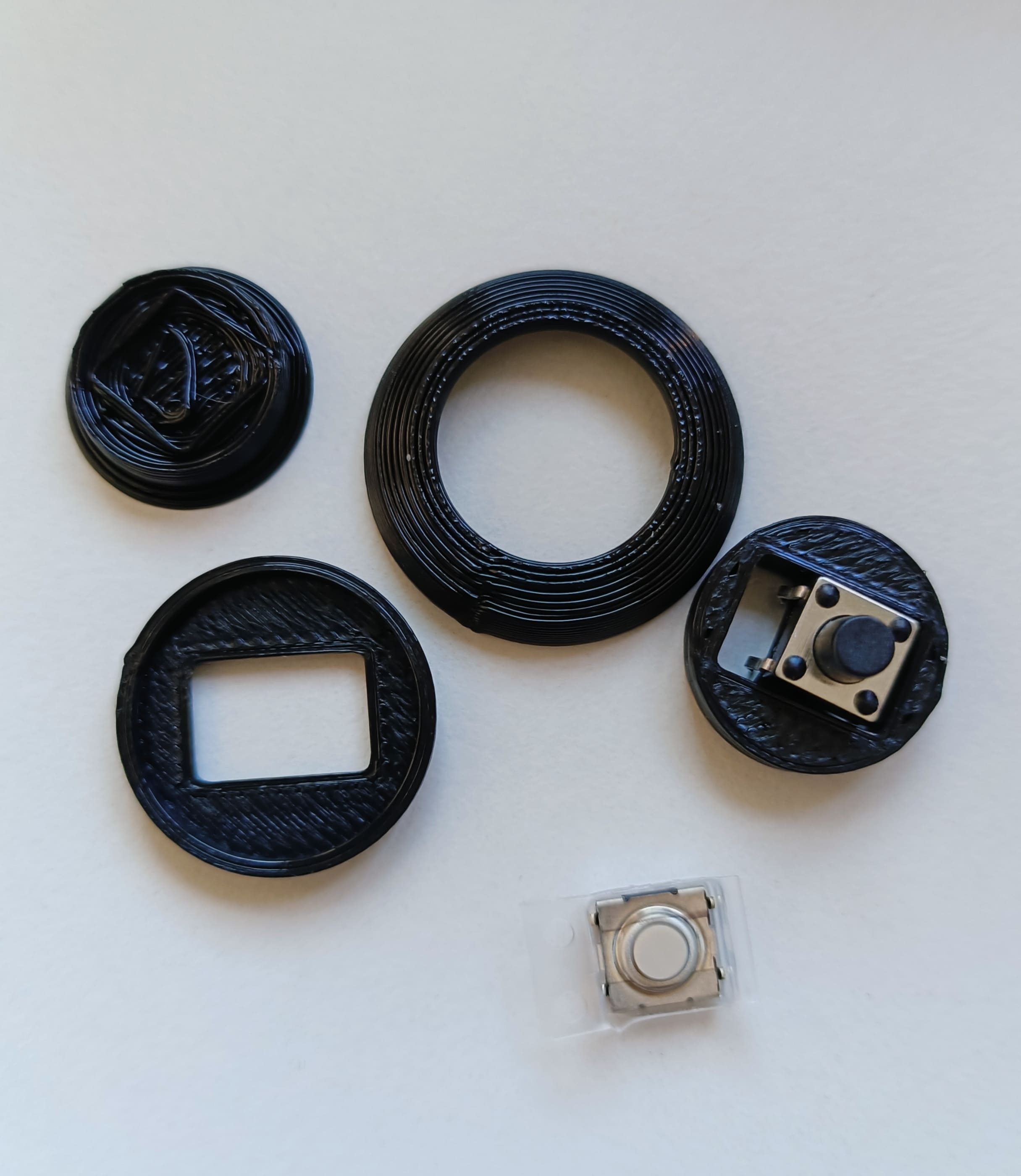

Resulting pics:
Download files:
- Download: button GCODE
- Download: button body STL
- Download: button button STL
- Download: button frame STL
- Download: button top STL
- Download: buttonRGB KICAD_PCB
- Download: buttonRGB KICAD_PRO
- Download: buttonRGB KICAD_SCH
- Download: buttonRGB NC
- Download: buttonRGB edge cut PNG
- Download: buttonRGB traces PNG
| Component name | Quantity | Description | Packaging | Link to fab inventory |
|---|---|---|---|---|
| RC1206FR-07100RL | 3 | R 100Ohm | 1206 | Link |
| 1x4 pin horizontal male | 1x (1x04) | CONN HEADER SMD R/A 36POS 2.54MM | 2.54MM | Link |
| 1x5 pin horizontal male | 1x (1x05) | CONN HEADER SMD R/A 36POS 2.54MM | 2.54MM | Link |
| B3SN-3112P | 1 | +Button | 3112P | Link |
| RGB LED | 1 | RGB LED | Through hole | We had some laying around |
Proceedings:
- Deciding that I'll be doing the PCB and did that in Kicad
- Doing schematic and PCB in Kicad
- Do PCB in kicad, plot the pngs
- Either do processing in Inscape or in gerber to pcb by kkkk fab lab
- Get the pngs into mods CE. Settings:
- dpi = 1000
- offset number 2: 4
- tool 2 diameter (mm): 1
- cut depth (mm): 0.5
- max depth 2 (mm): 1.6
- remove tabs
