Week 7: Computer-Controlled Machining

Table of Contents

This week we got introduced to CNC milling. I designed a parameterized wood installation that is mounted using press-fit joints and wire. It is to be fabricated in meter-scale in the following weeks.

This Week’s Tasks

  • Group assignment:
    • Complete your lab’s safety training
    • Test runout, alignment, fixturing, speeds, feeds, materials and toolpaths for your machine
    • Document your work to the group work page and reflect on your individual page what you learned
  • Individual project
    • Make (design+mill+assemble) something big
    • Extra credit: dont use fasterners or glue
    • Extra credit: include curved surfaces

Safety Training

At very first this week, we had a safety instruction by our local instructor. Possible incidents included fire, which was considered the most dangerous one. Connected with fire are dust explosions. Those happen if a room or a bag is filled with dust and some object catches fire. Another cause could be material (bigger parts, but chips as well) flying away. Kickback was a particular concern. This is an effect that could happen with any motorized tool. With saws and milling machines this can happen if the stock being cut gets canted. Then it can be picked up by the tool and thrown at you. Apart from that, parts could become hot due to friction and if not causing fire you could burn yourself by just touching the wrong things at the wrong time.

Coming to what to do and what not to do:

  • Wear safety glasses.
  • Do not have any loose clothes on.
  • Wear proper shoes.
  • Cover wristbands, tie up your hair.
  • Know where a first fire extinguisher and a second one was located.
  • Do not wear gloves (on any rotating machine, as they could get caught and pull in your hand).
  • Always be looking, listening, and smelling while working.
  • Remember that your hand is not a tool – never reach in.
  • Do not operate the machine when mad, tired, or sleep-deprived. If you had a terrible day, it is better not to make it worse by working under those conditions.

Introduction to CNC Milling

The lecture covered various aspects of CNC milling, including machines different machines, materials, tools, fixturing methods, and techniques for creating joints. The material we were concerned with for this week was plywood, but other materials can be milled too.

The basic process on how to operate a CNC milling machine is to have a sacrificial plate as a bed and mill it flat to be consistent with the coordinate system(s) of the machine. When putting the stock onto this bed to mill it, it must be fixated. There are different techniques for that. Based on the designed parts, a toolpath is generated. This is the path the milling head will follow for milling. There are different strategies to generate one. Before the machine is not stopped, one must be alert about what is happening. Things can go wrong even on the last centimeters.

Ferdi suggested some literature for this week, namely the assignment of one of his previous students and a series of videos on how to benchmark a CNC milling machine. This was an deep dive on exactly what we were about to measure in the group assignment.

Fixturing

When milling something out of a stock, this stock has to be fixated. There are several possibilities to do that. One option is using a vacuum table. It is fast to produce with them, but they need maintenance. Another alternative is to use screws to hold the stock down on the bed. One hint here is that there are different types of screws: Phillips and Pozidriv screws. They are different in that they need different bits for screwing them. We were advised not to use Phillips screwdrivers for unscrewing Pozidriv screws, otherwise the screws would get damaged. Then there is the possibility to clamp down the stock where different types of clamps or vises can be used. Ferdi suggested not to use those if possible. There is the danger of milling into them and messing up either the stock or the milling bit.

Another aspect of fixturing is how to make sure that two parts that get separated from each other during the milling process (because they are cut apart) do not change their relative position. The solution is to not cut away everything of the material between them, leaving either a thin layer of material at the bottom of the cut trace (known as onion-skinning) or leaving bridges of material between the parts (known as tabs). Ferdi suggested to use rectangular tabs instead of triangular ones.

During the fabrication process, be aware about possible irregularities of the material. It could be that it is bend, has varying thickness, etc. As a result, some parts could possibly not be cut properly or some flat pieces could be cut through which again could result in the stock being made unusable. One solution to the stock being bent is fixation using more screws and more tabs.

Toolpaths

A toolpath

  • CAM software

    • CAM software, or Computer-Aided Manufacturing software, is a tool that uses computer technology to control machine tools in the manufacturing process. It translates designs from CAD (Computer-Aided Design) into instructions, typically in the form of G-code, that guide machines like CNC routers and milling machines to create parts accurately and efficiently.
    • mods
    • freecad
  • step-over

    • when you mill subsequent lines, you have to move the tool one line further
    • step-over is how far you are moving (100% of size of the mill or less).
    • default is 40%. you have low forces for the spindle. not so much momentum. also, the machine itself needs not to use so much force to go through your material
    • if you are plunging, you cannot avoid milling away 100%
    • this is only accurate for flat millbits. if you have a ball-nose-millbit, you will have small circles.
  • stepdown

    • you dont want to go down 100 percent of your material thickness.
    • how far you go down each round
    • dont go too flat also. you would abnutz the tool
  • different cutting techniques

    • outside in cutting
    • climb cutting. use for finish
    • rough/finish cutting
    • instead of the tool
  • profile toolpath

    • just cuts an outline
  • there is a pocket toolpath

    • empties defined area
  • most others we wont use

  • creating toolpaths

  • using mods for basic toolpaths

  • program: alchemy: the faster you go, the wigglier it goes. reactive to sound.

  • mesh to nurbs

    • nurbs: non-uniform rational b-spline
    • alles was in fusion is is nurbs
    • alles was in blender ist ist polygone (kann auch nurbs aber das ist scheiße)
    • wenn du nen mesh hast, gibts nen trick, wie man den umwandeln kann in einen nurbs
      • was ferdi etzt sagt ist übelst viel wert und wenig leute finden das.
      • da gibts was auf github: https://github.com/wjakob/instant-meshes
      • damit kannst du deinen mesh in blender so retopologisieren dass er nur aus quadraten besteht (keine dreiecke)
      • und dann kannst du das in fusion als nurbs oder als shape importieren.
      • der vorteil ist: meshes will man nicht fräsen. die fräse will dann jedes dreieck abfahren. dafür gibts aber splines. aber die fräse hat immer eine richtung. du kannst keine konturen erkennen. bei splines ist das nicht so. du kannst so also einen schöneren gcode generieren.
      • was ferdi über fusion gesagt hat gilt auch für freecad
      • was freecad nicht hat: multiaxiales zeug. da gibts aber was.

Tooling

There are different tools that can be mounted to the spindle. The flat end mill is rectangular in its cross section. A default mill bit has a diameter of 6mm. It is available with arbitrarily many flutes. A common number of flutes is between 1 and 4. The more flutes a tool has the more stable is the core of the end mill. An advantage with a small number of flutes is that the chip load can be higher, one is allowed to have more chips during milling without errors occurring. When cutting, one wants to maximize the chip load, because then one can go faster. However, for heavier materials one needs a stiffer tool, thus more flutes thus less chip load. Considering the length of a bit one should choose a bit that is as short as possible and as long as necessary. The longer the bit is the more flexible it is which is not considered desirable. If a bit, however, is too short it could happen that the spindle eventually touches the surface of the stock heating it up.

The flutes of an endmill can be formed either so that they are pushing material down (down-cut) or so that they lift it up (up-cut). Up-cut bits lift the corner material a bit up thus leading to a rough surface finish which might need treatment afterwards. In the case of plywood, chips could be ripped from the top layer of the sheet which might not be desirable. In contrast, downcut bits push the material down leading to more nice-looking edges. However the material pushed into the grove is heated up when milling so one needs to make sure that one has a good chip extraction system when using them. There also are cross-cut or compression bits. Their flutes are formed so that material is pulled up from the bottom and pushed down from the top, extracting a bit of the chips while leading to a nicer finish. Those bits are more expensive.

End mills can also have straight flutes. Those are cheaper to produce and one is able to sharpen them yourself. If one mills an angled surface and one does that by using a toolpath that mills layered 2D contours, the angled surface would contain of steps. Using a ball-nose end mill reduces the sharpness of these steps. However, one could also generate a toolpath that mills a 3D contour both the flat end mill as well as the ball-nose end mill lead to a smooth surface. A caveat of the ball-nose end mill is that when milling a flat surface (which happens when a pocket is milled), the trace of the round end mill can be seen and the surface will not be as flat as with the flat end mill. There is also a bull-nose end mill which is as flat as the flat end mill in its cross section, but has rounded edges. Its advantage is that the edges do not break as easily as with the flat end mill. When drilling holes, drill bits are the recommended tool. They are pointy at their tip which makes them self-centering and they are faster for removing material when drilling a hole. For milling threads, there are special thread-milling bits. For rounding edges, a routing machine can be used with special bits for rounding.

As a source for good end mill sets Ferdi recommended Sorotec where one can look for the sets with the label “Uncle Phil Approved”. When they are just to be ordered for personal use and not for some company or association, one can also order cheap end mills from AliExpress.

Different types of tools. From left to right: single-flute end mill, straight-flute end mill, drill, ball-nose end mill.
End mills whose center in their cross-section has no material (left) can be used for plunging. With others (right) one has to move in a horizontal direction while moving down into the material.

Some Design Rules

  • dogbones
    • article about dogbones
      • when milling without dogbone fillets, all edges will not be sharp, but slightly rounded due to the milling process. edges never sharper than the diameter of cutting tool. this means that if you want to fit things together, you need to add the dogbone fillets.
    • for adding dogbones in freecad and fusion
    • https://fablab.ruc.dk/more-elegant-cnc-dogbones/amp/
      • there are minimal dogbone fillets
      • putting center between at some point before the corner so that the resulting circle is coincident with the corner.
    • other dogbone fillets
      • t-bone
      • put fillet center onto corner directly
    • ferdi
      • if you mill a slot, your design looks like this. your wood is gonna perfectly fit in there. in reality oyou will have a round in the edges. there is alrays a radius of some mm in there. use dogbones. there are several types of dogbones. the ones where you just drill a whole iat the corner. its the ugliest one.
      • there is the one where you just go a bit furtgher and then go up.
      • freecad: construction lines. dimension it to be 45deg from corner. just draw circle where center is one the line and one point is on the corner. its just gonna eat away very little. this is the best-looking one and easy to make. in fusion there is a plugin.
      • in freecad you do not design the dogbones, you run a dressup feature.
  • joints

Speeds & Feeds

- speeds: your cutting speed which is a compound that is a compound of rpm of your spindle,  we gonna use the preset from fusion. we are not in a hurry. in the end its a rule that neil mentioned. if the machiene sounds like it is suffering, go slower
- feed rate: moving speed of the mill. not rotational speed
- minimum speed just to get it rolling
- we will use 6mm milling bit
- in special cases you can use 4 mm milling bit
- feeds: r
  • feed rate
    • speed which the mill moves
    • lecture
    • chip load: ~ 0.001-0.010"
    • feed rate (inches per minute) / (RPM x number of flutes)
    • cut depth: ~ tool diameter
    • step-over: ~ tool diameter/2
  • take default values for machine. there is a fusion library for fusion for caveral
  • other milling machine
    • there are quite conservative settings
  • if the machine sounds as if it is suffering, go slower
  • if you have a chip that makes problem (like hotness and stuff)
    • stop, cool down, clean
    • use low rpm, low feedrate, move small bits manualyl with xy keys
    • use stepdown that is moderate
    • slowly see if it makes chips. if it doesnt iyou are already in the right direction
    • program at a bit lower than default feed rate
    • bear in mind that you can go too slow
    • if you can move it manually and it makes chips, program it manually like this, look at the chips
    • if the chips are like tiny, like powder you are creating heat, not good
    • if chips are too big, you have a different problem, not easily to solve. you will need a chip breaker bit for that.
    • dont take the chip and pull it off.
      • turn machine off, then take spanhaken for taking off.
  • again if you have too long chip:
    • chip berak routines in fusion, chip breaker
  • you start very very slowly (minimum). if something is odd with the chips (too big or to small)
    • to small chips: faster with feedrate
    • too big: faster feed rate
    • adjust feed, speed, stepdown
    • for doing the math your stepdown is irrelevant (assuming your machine is infinitely stiff). but for practice it is very relevent
    • increase feed rate -> chips get bigger
  • why would i like to go slow?
    • less heat
  • problem: rubbing. if your rpm is too high, the tool just rubs. also, the material could stick to your tool.
  • what also could happen: aufbauschneide: little pieces of aluminum could

Runout

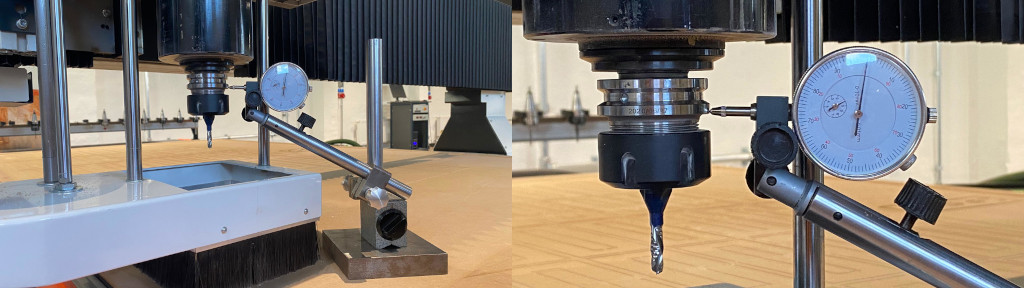

  • dial indicators
    • nogar arm

    • we need this for measuring the runout

    • there is a magnet

    • it is very precise

    • we use here a tenth milimeter

    • what we want is a thousands indicator

    • however, we don thave that

    • runout: milling bit will runout. due to spindle being not round. mill being slightly bent. several reasons for the tool not running concentric.

Alignment

- alignment: we shoud measure if it is running the righ tdistance in x and y. we would need a ruler that is 2m50 long. ikea paper rulers
    - tape measure

  • play between … (google it)

  • cyclic ones, acyclic ones, maybe the tool is bent

  • what we are doing now is eyeballing it. actually, this is rocket science.

  • american way of doing it. with the arm.

  • german style is a column where you slide something up and down.

  • all the measurements are gonna be bullshit bc the indicator holder is somehow loose

  • measuring upside

    • zero tool
    • doing a full turn. we cannot measure any notable runout.
    • 10th of a millimeter of runout
  • measuring down

    • 100th of a mm
  • if you want to do this properly:

    • havign a degree-scale. measuring
    • measuring with pinductive sensor.
    • interesting test:
      • if you push a tool, how much does it deviate?
  • alignment

    • there are many things with alignment
    • one could check: is if you mill an L and you take a right an angle is it really 90 degrees
    • if your machine goes different distances in the two directions.
    • fix it using the steps per millimeter.
    • we dont have the measurement tools for how to measure it. we only have calipers.
    • also ferdi says he is pretty sure he is fine.
  • next thing you want to know (also alignment):

    • is my spindle perfectly perpendicular to the bed?
    • what you want to have is a flat base
    • for making sure you have a flat base, you want to mill once over your whole bed
    • if your spindle however is slightliy tilted, the surface is gonna be riffly, the pieces are gonna be crooked. (see picture)
    • the thicker your tool, the more torque you have on the spindle. you dont want that.
    • also, the thicker the tool the higher the influence of the tiltedness of the tool.
    • flattest surface you can get: marble plate
    • what you want youfor calibrating your spindle is a marble plate you can put on the bed of your cnc machine.
    • idea: attach the measuring clock parallel to the spindle.
    • you move around the spindle and if there are no deviations your spindle is perfectly
  • we coululd also:

    • put the dial indicator on a stand… (ferdi talks about multiple different types of measuring)
    • richard taking photos of it.
    • you are doing this for checking if your vice is aligned.
    • this however could take you an hour.
    • you can also use pins for aligning.
    • we can use them and rely on them while being aware that this is not micrometer precise.

Designing the Dreieck

I had multiple different ideas in mind. The most straight forward one would have been to do something similar to Playatech: furniture that is to be assembled very easily, just with press-fit joints. Another option would have been a synthesizer stand for a friend. I also thought about building a DJ table or a pavillon. However, I decided against those options. Furniture for cultural events we already have enough in our local community. A pavillon would have been too big considered the material we have been given. When considering the synthesizer stand, I already fell in love with my final idea so I saved the synth stand for later. I decided to do a big, decorative wood installation.

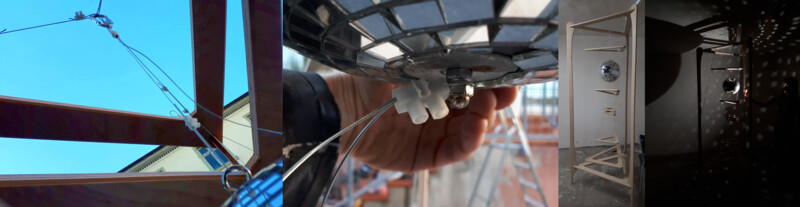

For further inspiration, I checked big origami installations, temples and sculptures from burning man, low-poly models using Blender and Fusion Slicer, veneers artworks from both a book from my peer Matthias and a previous assignment, reciprocal frame and tensegrity designs (incl. this tutorial for FreeCAD), topology optimization (which seems to be possible also using blender and FreeCAD following this YouTube channel), and pictures by M. C. Escher. Other tools I looked at but I ended up not using them were FlatFab and a Blender plugin for slicing meshes into layers.

My final idea was to make a decorative wood installation. I did not want to have something to be hung on the wall, but it should be something standing inmidst a room. Therefore, I thought of some tower-like shape. Since triangles are a nice, I imagined a prism with a triangular footprint. I liked asymmetry, so I first thought of having an irregular triangle as a footprint. In the lecture I learned about tensegrity and reciprocal frame and I wanted to incorporate at least one of these concepts in the design.

I wanted to follow this week’s suggestion to not use any fastening, but rather press-fit joints (at least most of the time). That would have resulted in an object which is easy to set up and to build down. The upper part was consisting of a skeleton of triangles to be covered with plates having an organic design.

However, I soon found that this design would have required way too much of an effort for this week. Therefore, I went on and simplified it to only contain the covers and the skeleton.

For faster development, I tried to design it using Fusion Slicer. It worked quite good for general-purpose slicing.
However, in this specific case, I wanted to have the stands joining from the inside out and I thought of the stands being oriented along the angle bisectors of the corresponding angle. I did not find how to do this in Fusion Slicer so I chose to model it manually with FreeCAD.

To calculate the necessary measures, I needed to do some math. Mostly, I made use of the sine theorem, the cosine theorem, and the angle bisector theorem.

Almost everything was parametric.
I then went on and created an assembly of the parts. There was one part for the triangular support and three different covers as well as three different vertical supports (stands).
When changing the parameters, not only the assembly fell apart, but also the single parts themselves looked not as desired. Reason for that was the solver of FreeCAD finding a solution that fulfilled all constraints, but still resulted in an undesirable state.

The design and the parameterization at that time was way too complex, so I decided to simplify the footprint to be an equilateral triangle. I stripped down the parameterization accordingly.

I started designing the covers as well using splines. The holes I created using periodic splines.

Then, I talked with ferdi about the design. The faces at side of the covers were difficult to fabricate. He said that even if they look nice in CAD, they might turn out badly in the final design. I should try to make something awesome using straight cuts as much as possible for this assignment. For that reason, I omitted the covers and thought of a possible design where the inside of the installation is not covered, but brought in the center of attention. The idea was to have smaller triangles floating in between the two bigger ones being tied with some wire.

I designed the triangles so that they fit into each other which would save a lot of space for nesting.

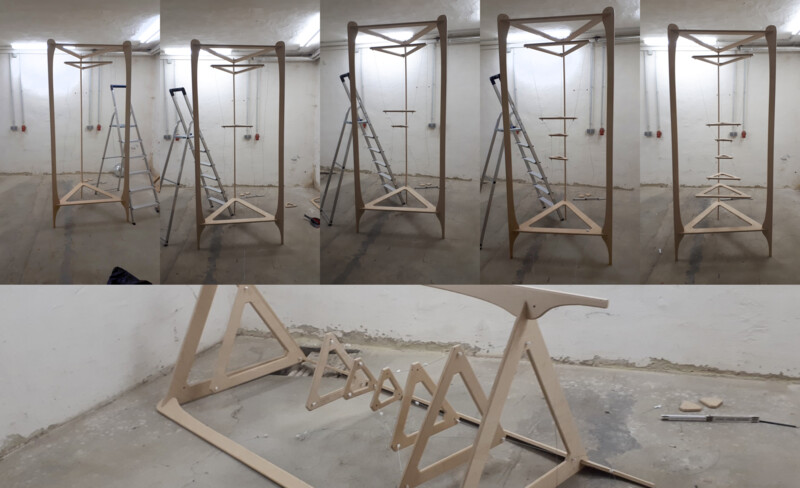

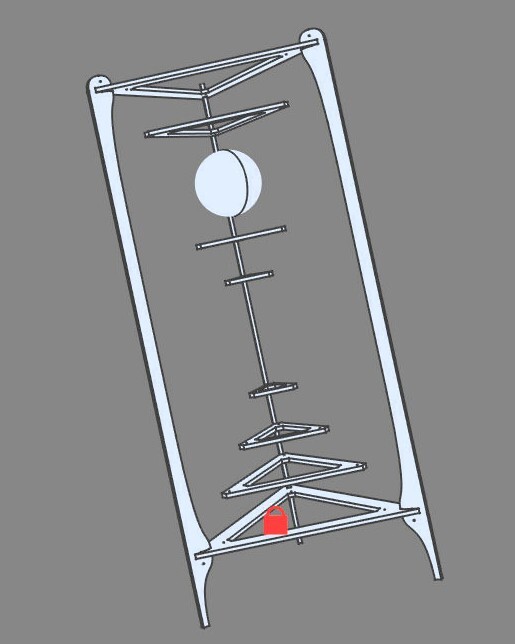

Afterwards, I refined the shape of the different parts and assembled everything.

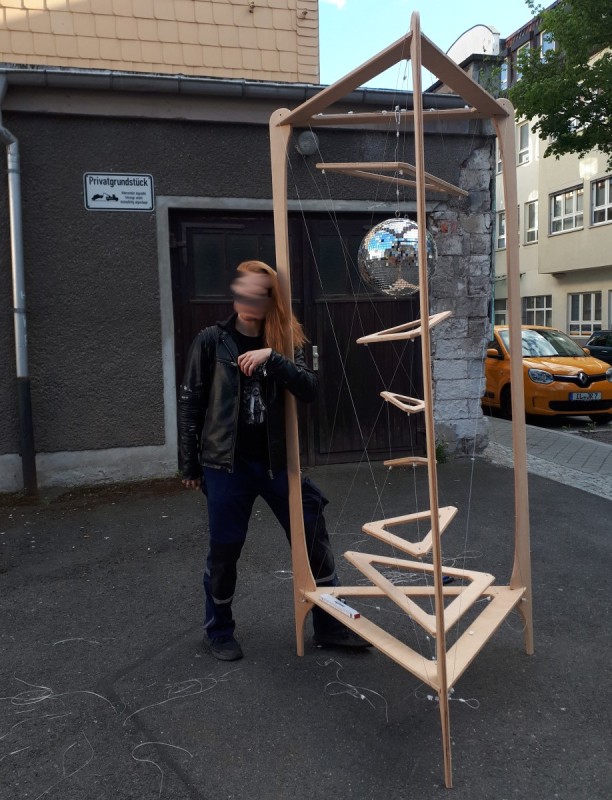

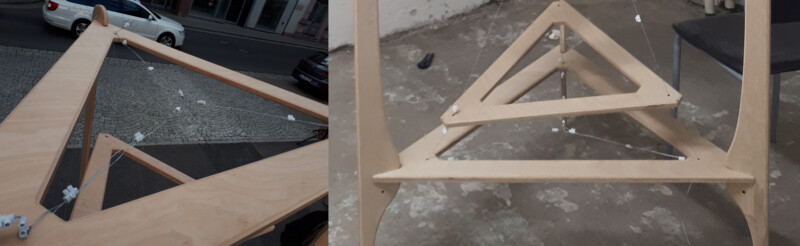

Its name will be Dreieck, the german word for triangle.

Making the Dreieck

Checking Material & Clearance

The plywood sheets were stored in the basement of the building where the Fab Lab was in. They were 18mm thick, the dimensions were 1500x2500mm. Due to the bed dimensions of the available CNC milling machine, we cut them down to be 1500x2400mm. One specific sheet was assigned to each of us.

Plywood sheets stored at the Kirchhoffbau.
Data about the plywood in case it is needed later on.

When dealing with the wood, Ferdi suggested to never trust that the wood is of constant thickness. To get an idea of how thick the joints were to be set we have been recommended to create a clearance comb as well as measuring the thickness of the wood. This time, the diameter of the tool did not make any difference, because the toolpath would be generated so that the tool will mill around the contours. The runout, however, is not compensated, but this would be as big as a few millimeters.

For measuring the thickness manually, I measured each side of the sheet four times using a caliper. Most measurements were within an interval of 17.65mm and 17.75mm. One or three measurements yieldet values as large as 18.03mm.

The comb I desiged so that it reaches from 17.75mm to 18.15mm in 0.05mm steps. Due to technical reasons regarding the CNC machine we were using, I had to generate the toolpath with Fusion360. For generating the dog bones, I used this plugin.

To generate the toolpath, I created an assembly and used the Manufacture-Workspace. The exact process is shown below.
Creating a cuboid of the dimensions of the milling stock. Note, that this was done assuming another sheet size. It was redone later on by fitting the combs of us all on one of the bigger sheets.
Creating a new design and inserting both the stock and the pieces to be manufactured. Fitting the pieces so as they would later be milled.
Changing to manufacturing mode. Hitting ‘Yes’ when asked for importing CAM data.
Creating a new setup.
Selecting the cuboid as stock solid.
Setting the work origin to the bottom left of the stock cuboid.
Selecting the object that is to be milled out.
Hitting ‘OK’.
Creating a new milling strategy: ‘2D Contour’. Keeping the default settings for feed and speed.
Selecting a milling tool.
Selecting the contour that is to be cut along from the bottom of the stock. Note that the resulting red arrows (you do not see on that picture) must not be inside the part to be milled. These red arrows indicate where the tool will be.
Using tabs.
Viewing the toolpath.
Milling the piece. An explanation on how to mill will come later on.
The finished comb for checking clearance.

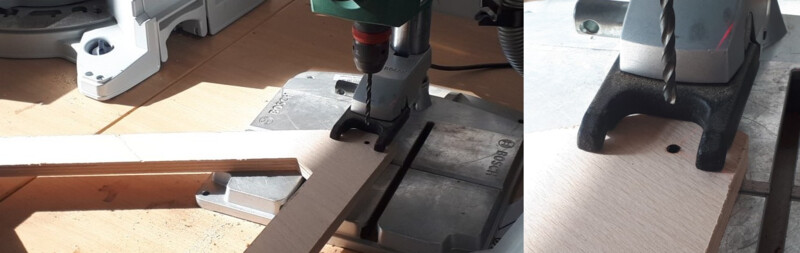

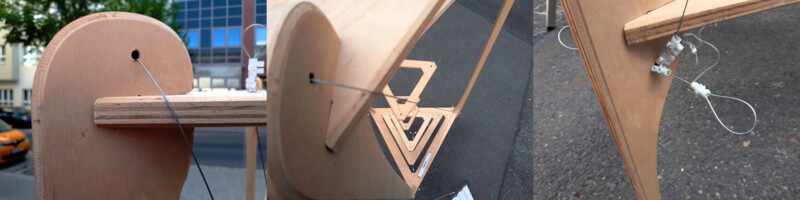

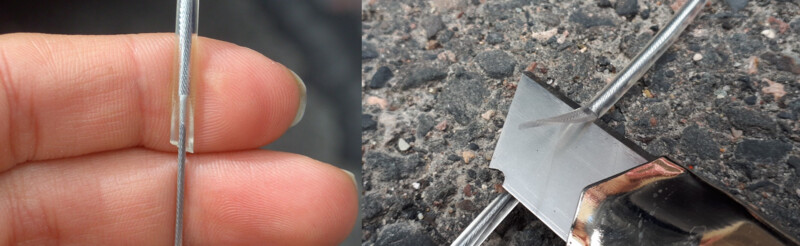

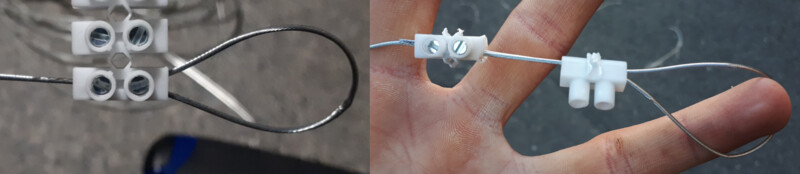

From all tests i found that 18mm is still a good slot width. It is not too tight, rather a bit too loose, but I planned to tighten that up using wires, so I added holes in the design of the installation.

Preparing Something Big for Milling

To prepare the design from FreeCAD for milling, I exported it as .step file and imported it into Fusion (‘File’ -> ‘Upload’). I added the dogbones to the joints using the aforementioned plugin. Then, I created a nesting assembly and generated the toolpath as described above. The distance from each part to the edge of the to stock was 2cm.

I learned that the gaps between parts can be maybe 1mm larger than the tool, but not larger. The reason for that are tabs. If the space between parts is too large (but not large enough to have additional stock material between them), such as it is the case with 10mm then the tabs would not be large enough to bridge the whole gap. In this case, I went with a distance of 10mm, because I did not know better. I had to manually place tabs at the opposite sides of the gap to have a “double tap” consisting of two tabs.

Milling

  • stl to svg: https://www.youtube.com/watch?v=5O9Kt09ymiI

  • cnc tooltechnik

  • krasse fräse

  • wir sind bei cnc multitoool: 9kw spindel

  • 2.5 mal 150 fräsfläche

  • keine offenen klamotten tragen

  • lange haare zum zopf gebunden

  • wenn ne kollision passieren sollte: nicht reinlaufen

  • wenn das passiert machen wir das zusammen mit dem operator

  • dann wird pausiert.

  • wenn spindel auch aus ist,

  • wenn irgendwas schiefläuft einfach pause drücken. xy bewegt sich nicht mehr, spindel geht aus. dann kann man das auch weiterlaufen lassen

  • ansonsten notaus. aber das teil ist im arsch wenn man notaus drückt. nullpnkt ist ggf im arsch.

  • wenn möglich erstmal mit puase pausieren.^:w

  • pumpe hat 7.5kw

  • nicht für die maschine gedacht.

  • operation

    • hauptschalter
    • pc einschalten
    • software starten
    • fenster was erscheint nicht schließen, sondern zur seite schieben
    • referen alle
      • referenziert alle achsen. fährt gegen alle anschäge.
      • wird gegen referenzschalter gefahren und dann ist softwareüberwachung aktiv. vorher ist das nicht aktiv.
      • dann ist der nulpunkt bekannt
      • sensoren sind induktionssensor mit schraube auf anderer seite.
    • dann werkstück null festlegen. rlinks hovern, dann kann man maschine manuell bewegen. dann kann man klicken “werkst. null” und dann wird die derzeitige koordinate als nullpunkt gesetzt.
    • wenn man an die entschalter fährt a
    • soft limit vs hard limit: hard limit mit sensoren
    • masch. null: maschine fährt zum maschinennullpunkt
    • werkst. null: fährt zum werkstück nullpuntk
    • koordinaten zeigen relative position zum nullpunkt. wenn man da auf das fadenkreuz drückt, wird die entseprechende axe genullt und man kann damit den werkstücknullpunkt festlegen (nihct wie vorher gesagt über “werkstück null”. letzteres fährt nur zum nullpunkt)
    • machine coords: zeigt absoluten koordinaten der maschine
    • mdi: eingabe gcodes
    • schrittmotor vs servomotor: servomotor. vorteil: schnellere geschwindigkeiten. wen stromauswfall weiß maschine auch noch wo sie ist.
    • schnitttiefe & vorschub: nach gehör.
    • fset: fahhrgeschwindigkeit. sset: spindelgeschwindigkeit.
    • werkzeug wechseln
      • über werkzeuge tab
      • werkzeugpositionen liegen ain firmware
      • werkzeuge können eingemessen werden.
      • m6: werkzeug aufnemhhmen. m6 t1: nimm tool 1 auf.
    • informationen zum oszillirendenden messer
    • auf icon drücken um maschine zu zum nullpunkt fahren zu lassen (ist das korrekt)
    • in 10telschritten runterfahren bis man genau auf dem bett ist.
    • wir fahren lieber in das bett rein als s päter was nachfräsen zu müssen.
    • bei mdf kann man das machen. wir fhaben hier mdf
    • nullpunkt setzen: ein bisschen reinsetzen, wenn ich den platz habe.
    • irgendwie hab ich nicht verstanden wie man die grenze korrekt setzt. ich werde dann später beim design 20 mm offset zum rand festlegen
    • wir nullen nun x, y. z wird nicht genullt
    • der werkstücknullpunkt bewegt nur x und y. (das ist a) oder so. wollte nicht fragen weil zeit.
    • achso. a ist das messer
    • datei öffnen
      • dann nimmt es sich
      • datei editieren. dann sieht man den gcode
      • zurückspulen bedeutet. wir drehen das fertig. manche codes setzen sich selbst nicht zurück. mit zurückspulen komme ich wieder an den startpunkt.
    • von hier starten: wenn fräse hängen bleibt. kann ich von dort wideer sterten. im vorfeld muss ich dann aber noch ein paar sachen beachten. limits überschr.
    • dann start drücken
    • wir hatten jetzt nen fehler. dann ist die z achse in überlast gegangen und hat abgeschaltet.
      • problem war: werkzeuglänge auf -100 eingestellt oder so
  • milling

  • 10000rpm

  • drill: 00:01:43

  • contour: 01:22:24

The interface of the milling machine control software. I did not change it to another language than German, since I did not want to mess too much with the settings of the company that use it on a daily basis.
There is the option to put a special carpet onto the bed in case the milling machine is used with a knife. I did not ask for the reason, to focus on the milling process. By checking this box, the software knows that the carpet does not lie on the bed and hence the zero point is slightly different.
The next step was to reset the machine coordinate system (homing, as explained above with the carvera).
The zero for the X-Y-plane was set manually so that the center of the milling bit was coaxial to the corner edge of the stock.
The vacuum bed was turned on before zeroing Z. To zero Z, the probe button was pressed. By that, the bit is pushed onto a probe to measure its length. By that, the machine could calculate the WCS zero for Z based on settings made when setting up the machine.
One could set the machine go to Z=0 to check if the zeroing worked (g00 z0).
One could then check how the machine moves with a Z=100, to just see if the G-code was executed correctly.
I was advised to hit the pause button whenever something went wrong. By doing this, one could have resumed the milling process without loosing any progress after fixing a possible problem.
After that, I started the milling process. It took around two hours. One problem was that I drilled holes using the cross-cut bit. This leaded to too much heat being produced. The cross-cut bit is not meant to used with drilling! The program still was continued and we cooled the bit using an air pistol for both the drilling process as well as for cutting the edge.
After the milling process was finished, I put the stock onto saw horse and sawed the parts out of the stock using a jigsaw.
At one part of the stock, the edge did not get milled completely through the stock. I sawed everything free to fix that later by grinding the edges.

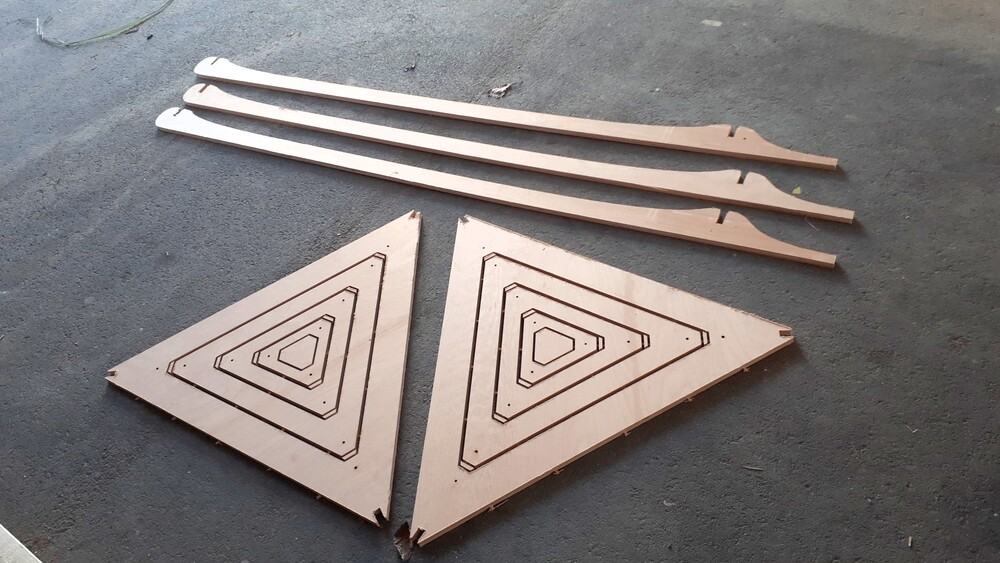

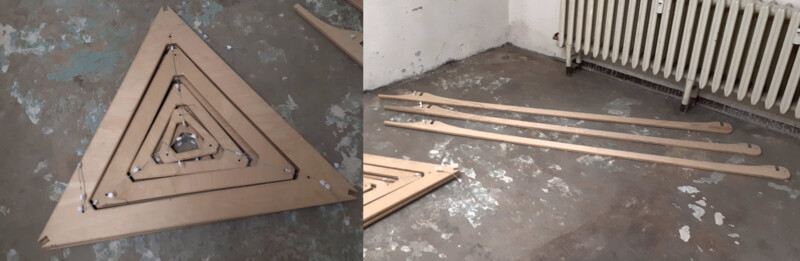

All parts set free with the triangles still being connected to each other.

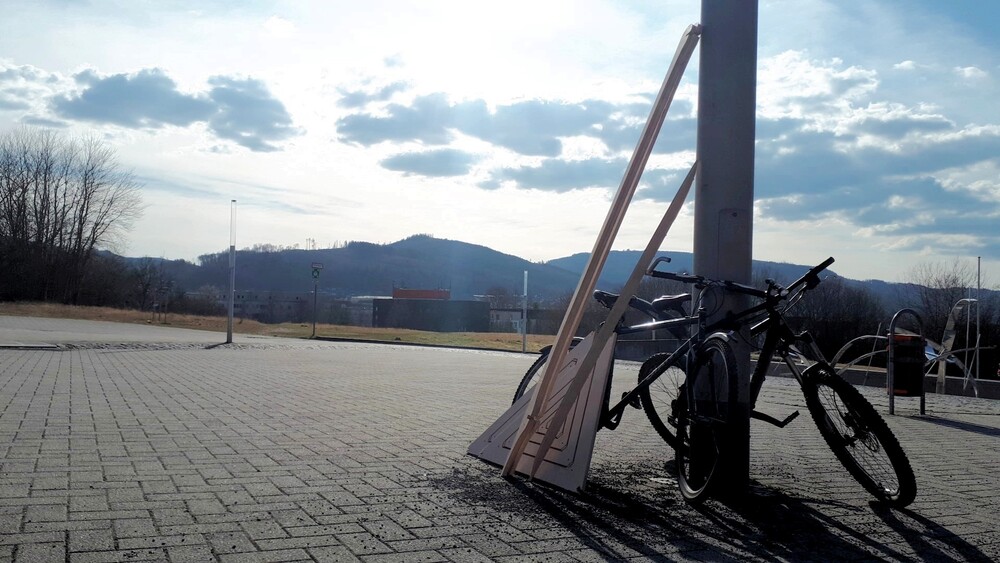

Transporting the parts to our lab with the help of Niclas <3.
‘Document as you go.’

Reflections

What I Learned

  • I learned more about CAD and parametric design, especially with the use of more parameters. I also learned how to use the FreeCAD assembly module.
  • I learned that when nesting for CNC milling the gaps between parts can be maybe 1mm larger than the tool, but not larger. The reason for that are tabs. If the space between parts is too large (but not large enough to have additional stock material between them), such as it is the case with 10mm then the tabs would not be large enough to bridge the whole gap. In this case, I went with a distance of 10mm, because I did not know better. I had to manually place tabs at the opposite sides of the gap to have a “double tap” consisting of two tabs.
  • The following I learned about using FreeCAD: When copying an object, deselect the spreadsheet to ensure the references are correct. When the assembly module buttons grey out, it meant the assembly is deactivated, and it could be activated by double-clicking it in the tree view. Use operations to multiply operations (like Linear Pattern), instead of creating unnecessarily many sketches. In assembly, select points or corners instead of edges or faces. Have multiple different spreadsheets for different components. This way, if one decides not to use a specific part, I wouldn’t clutter up one spreadsheet and also larger designs can be changed more easily.
  • cross-cut bit not meant for drilling (normal end mill might be used though.)

What Went Wrong

  • The assembly module in freecad is nice but a bit tedious to use when reparameterizing your part.
  • When reparameterizing an object, the freecad solver changed the design so that constraints still were fulfilled but it was not as indented (example: the distance from two points was set, but the order of the two points was not encoded in the design using constraints, so one point ended up to be at the wrong place after reparameterizing.)
  • First, I came up with a very complicated design where the parameterization was also rather complex. I went on and simplified it more and more until the parameterization was easier to handle.
  • I took much time for it. However, it was important for me to have a proper design.

What Went Well

  • I incorporated fabrication details into the design of the object (triangles that are inside of each other).
  • The final design is something I am happy with.

What I Would Do Differently

  • Given knowledge I would start with equilateral triangles right away.

Digitial Files

Use of Language Models

During writing this report, I used the following prompts asking ChatGPT 4o mini to

  • form bullet points to prose text.
    1Take the following bullet points and form prose text out of them. Do not add any additional information. Only use those words used in the bullet points and, additionally, those that are absolutely necessary to build grammatical sentences out of the bullet points. Formulate everything in past tense. Correct spelling mistakes:
    2
    3<insert bullet points>
