This week we learned about Computer-Controlled Machining, creating toolpaths and operating CNC router machine, and testing runout.

Requirements

Group Assignment

Complete your lab's safety training.
Test runout, alignment, fixturing, speeds, feeds, materials and toolpaths for your machine.
Document your work to the group work page and reflect on your individual page what you learned.

Individual Assignment

Make (design+mill+assemble) something big.

Softwares 💻

Fusion 360
ArtCAM
Mach3
openBuilds Control

Group Assignment

In this week we're operating the CNC router Machine and making something big! like any manufacturing technique we have to run some tests to make our design ready for the machine.

Safety

We got over the basics which are:

Never leave the room while the machine is routing.
Don't put any part of your body near to the cutting tool when it is moving.
Always use eye, hearing protection and a mask When the machine is working.
Make sure that all workpieces are securely clamped down.
Always make sure you have inserted the correct bit for the job you are doing.
If the bit is acting up or breaks, shut down the machine straight away.

Tests

We don't have a CNC Router in our lab but we have a small CNC Milling machine that has a 30*40 working area and, so we made the tests on it first and since it's the same concept we'll make the same test on the CNC Router when we have access to it. We went through the different types of endmills and which is used for which job.

Our Machine

The Other Machine

This week we accessed the CNC router on of our community has. His name is Ahmed Hussien and he own the brand called . "Wonder Box". Big Thanks to him. He has a CNC Router machine made by an Egyptian company called "ElMalky". It has dimentisons of 60*90 cm.

Runout

Runout is the inaccuracies that cause a tool to spin off the ideal axis. It typically uses dial test indicators to be measured. We didn't have it at our lab so we calculated the runout manually using multiple pieces. We measured the length from the workpiece minus the output piece and divided by two.

on China Router

We used artcam to make the CAM Toolpaths.I'm going to talk about some interesting concepts to me later.Once we calculated the runout which was between 0.04 to 0.1, we made the second test part

Second test part

On El Malky Machine

Sidetable

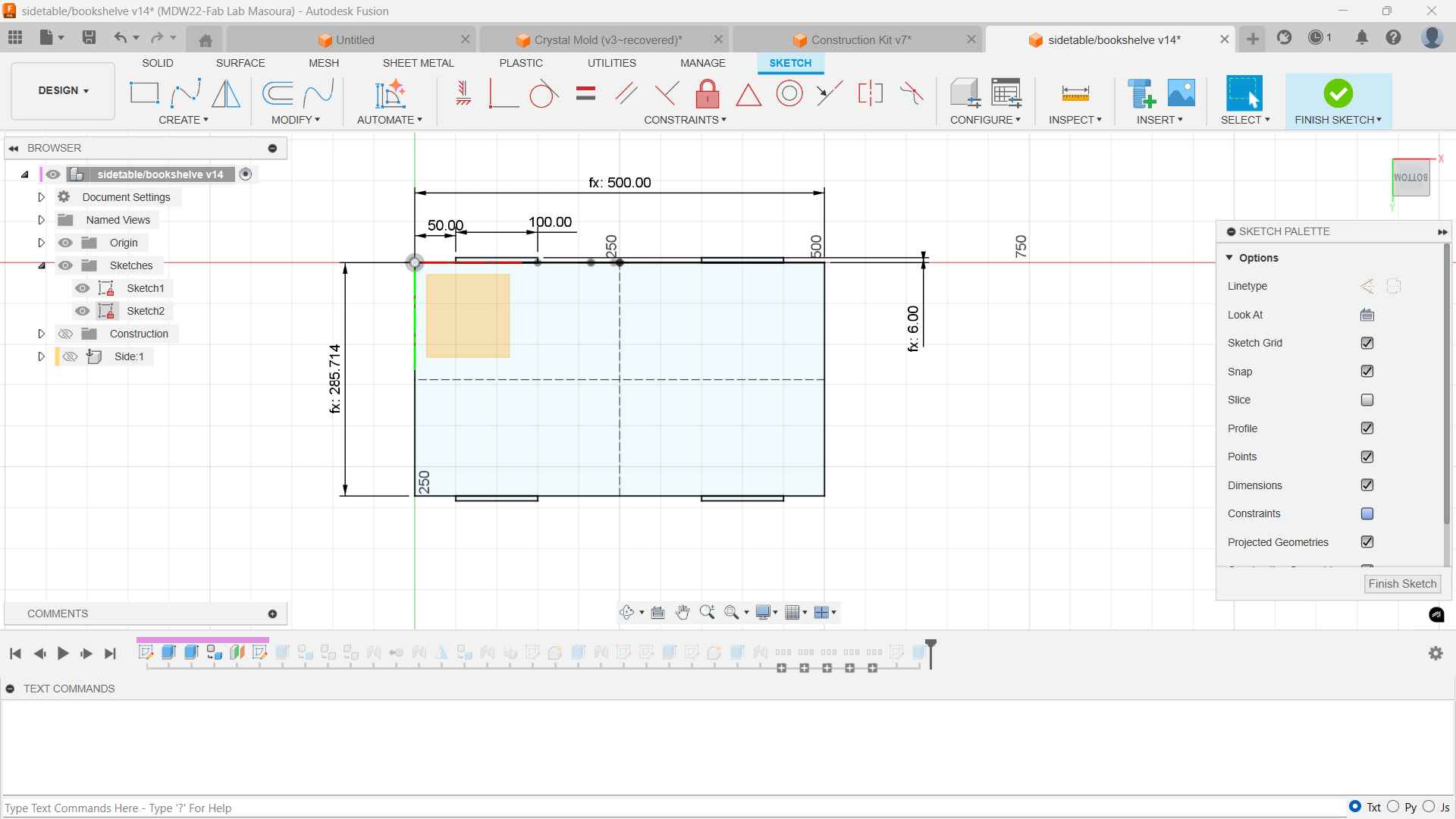

I'm not originally from Cairo but I'm a small-town girlie. I moved in here last year and I still have minimum amount of furniture and I'm an avid reader so my books are scattered all over the place. I wanted to make a piece that can both hold my laptop, headphone and books. I browesed Pintrest until I found this minimal design. It's a side table with plenty of room for everything. I made the design in Fusion 360. I used these parameters. I started to design the sides then the shelves compartments and finally the top.

To design something to be CNC, you have to put dogbones. This is a helpful video on why but basically we're cutting with a spinning round tool so sharp corners will never be sharp and result in problems while assembly, So we add dogbones. You can either draw them or use a plugin like I did. It's called.. yep like you guessed:"Dogbones". I also added a plugin called NESTER to help nest the parts automatically but It didn't work.

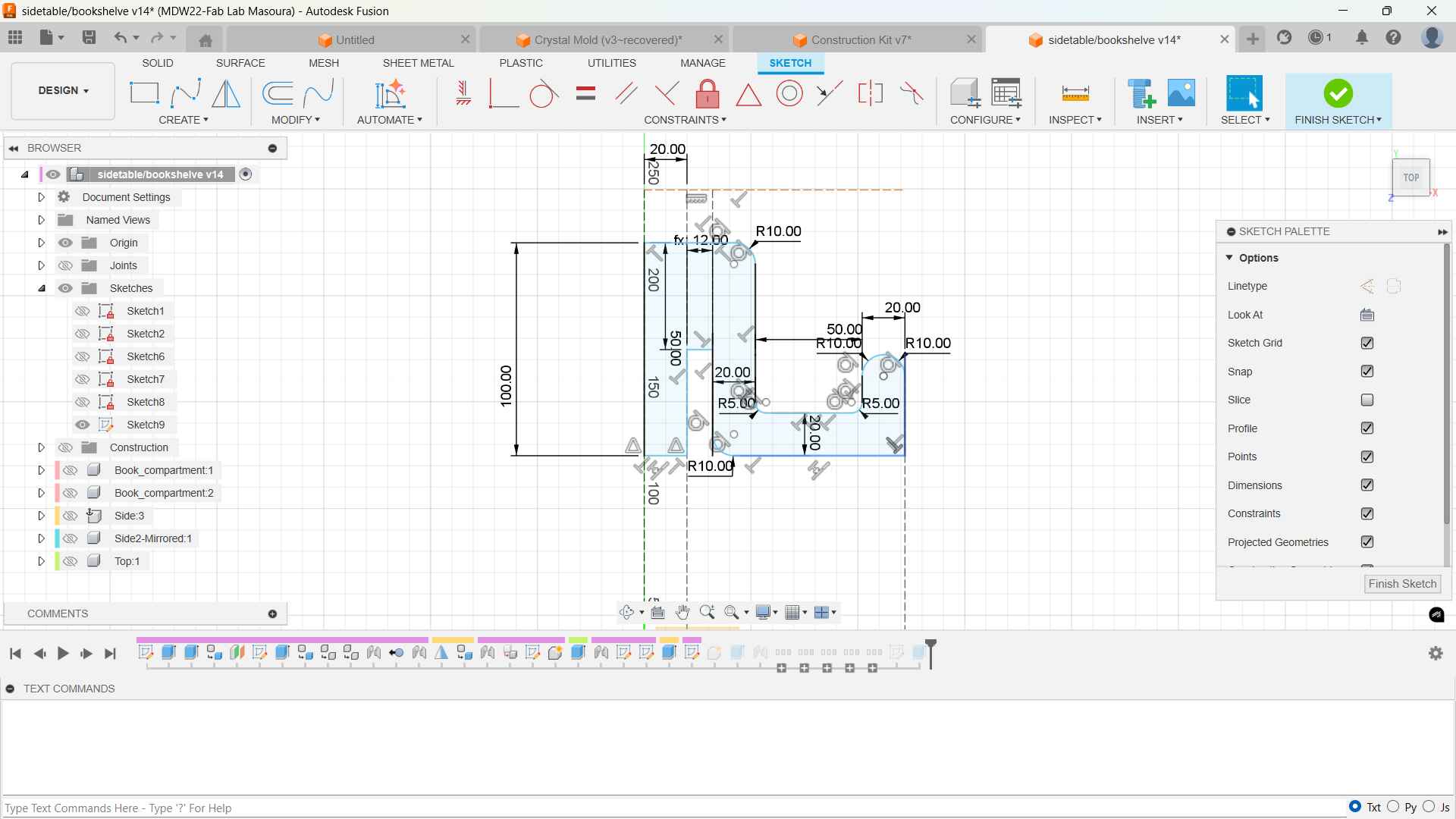

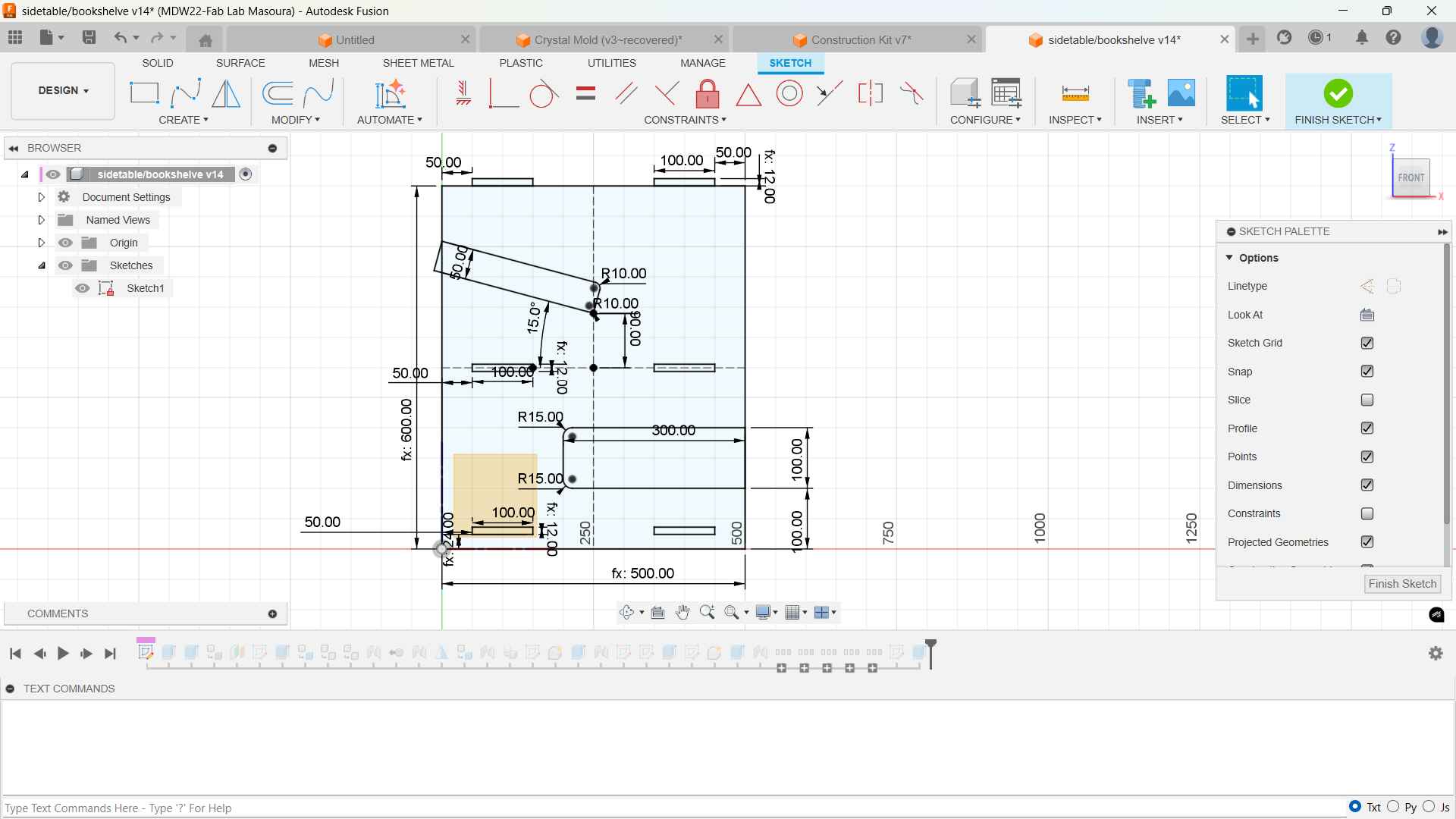

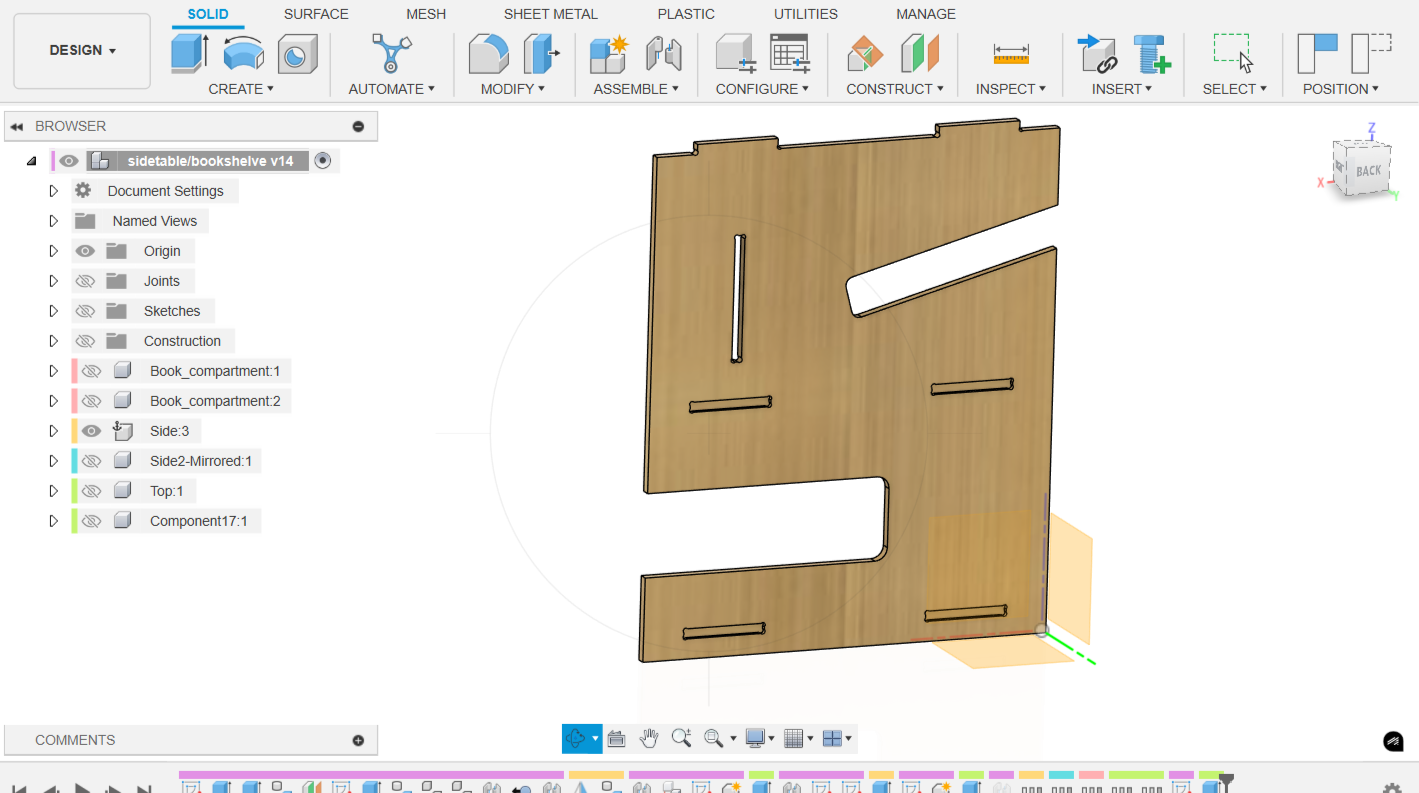

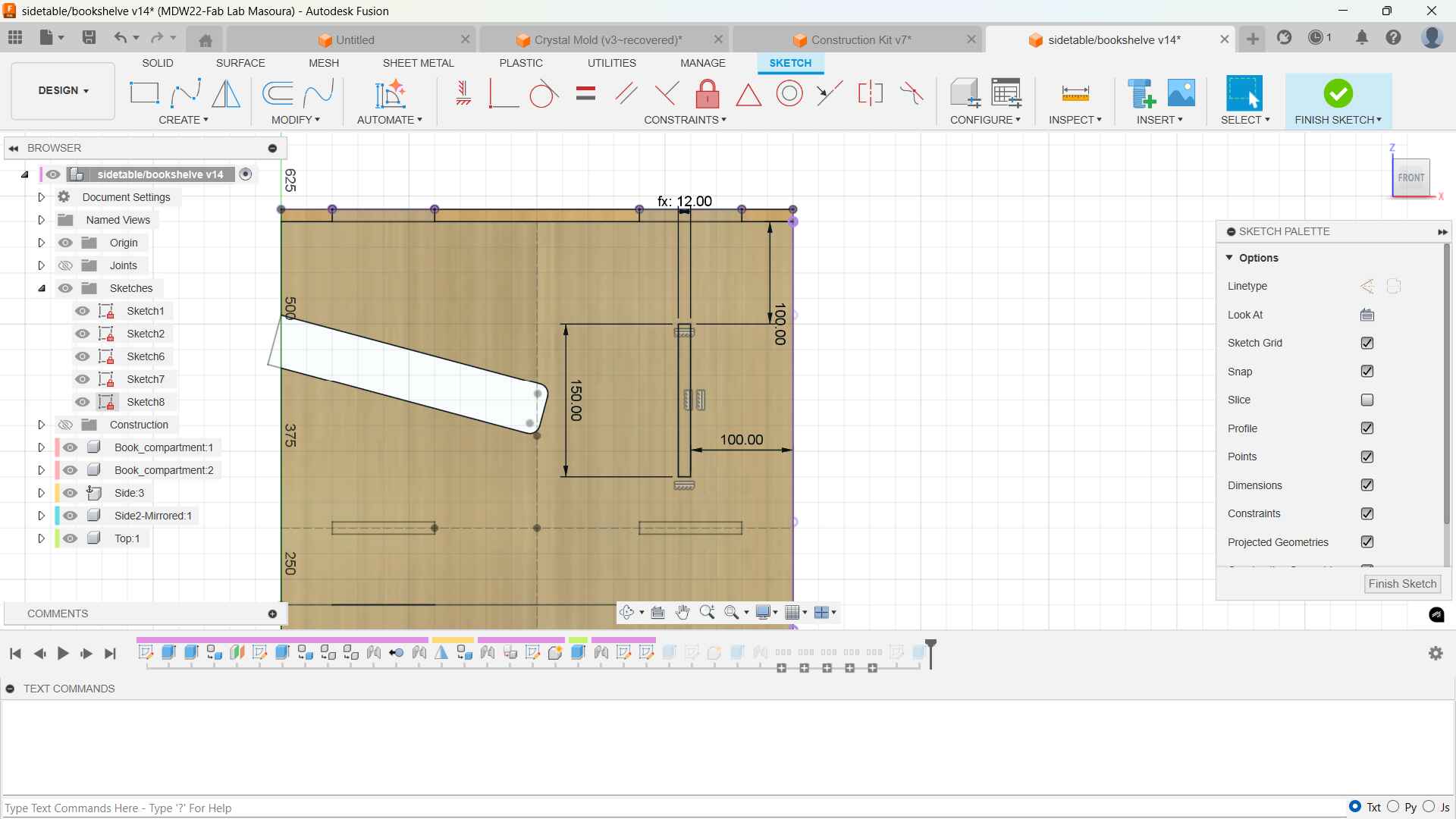

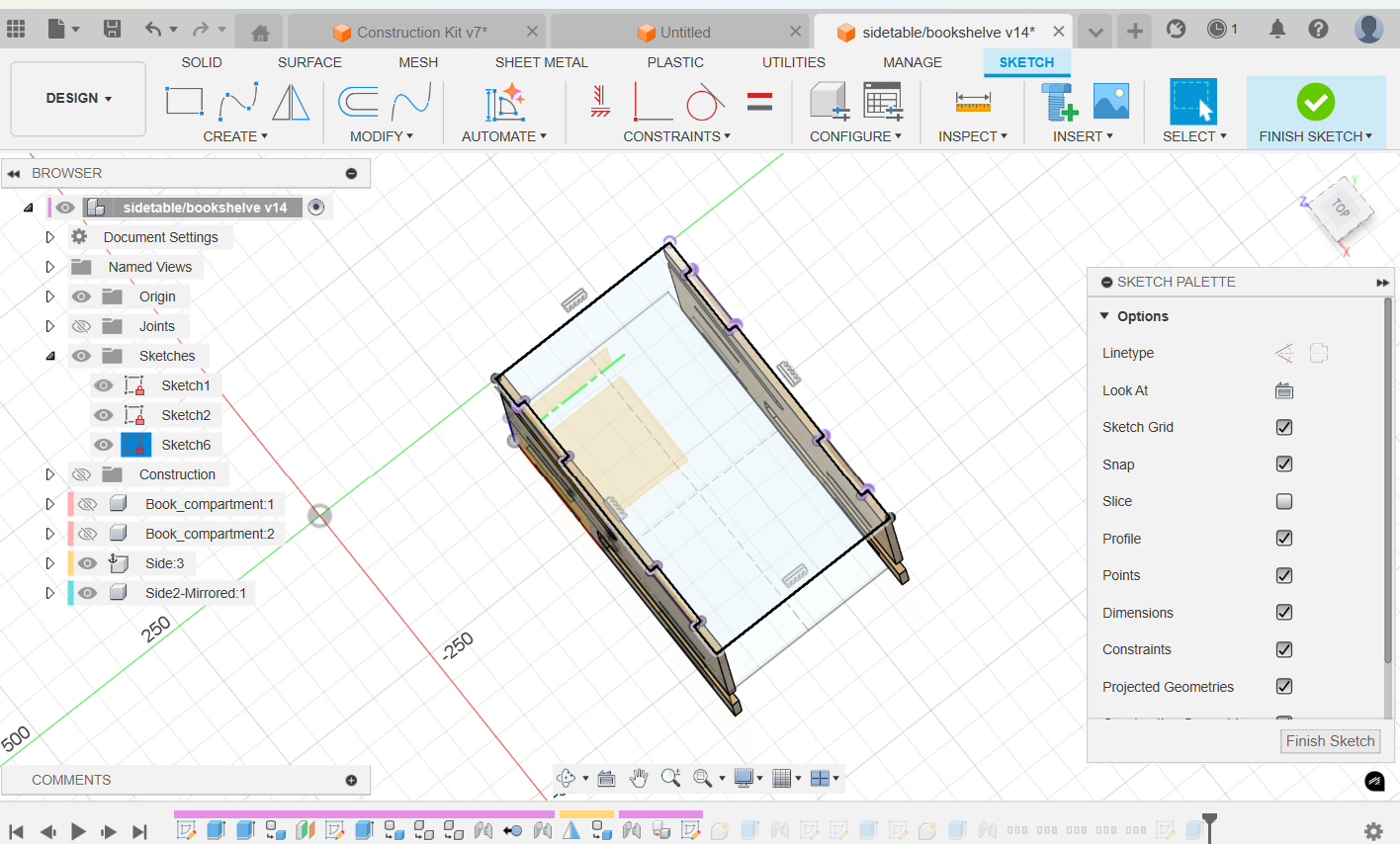

I started with making the side sketches then proceeding to extrude them then the joints but made them only half way through in the wood. At the end I added an extra slot for a headphone hanger I used the hooked sloting joint I saw in this video for this.Then proceeded with the shelves, top, and the headphone hanger.

Mock-up with the Laser Cutter

To test everything, I made a mock-up with the laser cutter by scaling the design to quarter of its size. I used 3mm plywood and it was a success. For using the laser machine please refer to this week.

Preparing Toolpaths

To start here we'll be using 6mm bit and 12mm plywood. We continud using artcam and Ahmed recommended using some parameters that will both make our design look good and make the machine work smoothly. One of the things that's really important is the plywood's fiber direction how each piece will hold itself against the other, this will help in making the part strong when assembled.

6mm bit

Parameters

Feedrate "2000" for plywood
spindle RPM of"1500"
Added ramping movement which will help elongate the endmil's life and make the machine not plunge 90deg in the plywood.

Ramping movement

And bridges which help secure the pieces to the bigger sheet to avoid any accidents of the piece detaching, we used the 3D bridges and readjusted their position to be in the top and bottom to each side of the piece. Also, we chose conventional over climb cutting.

Adding the design

Choosing our endmill

Toolpath parameters 1

Toolpath parameters 2

These parameters were applied for each design file.

Operating the Machine

We used Mach3 to run the G-code and nail gun to secure the wood. After homing and setting the zero of the z axis correct, I clicked run and I was ready to go.

I didn't face any challenges except at securing the wood phase, I would hit the nail way to close to the origin and then resecured it again but hit the nail a bit farther to make sure it doesn't hit the endmill while working.
