KiCAT

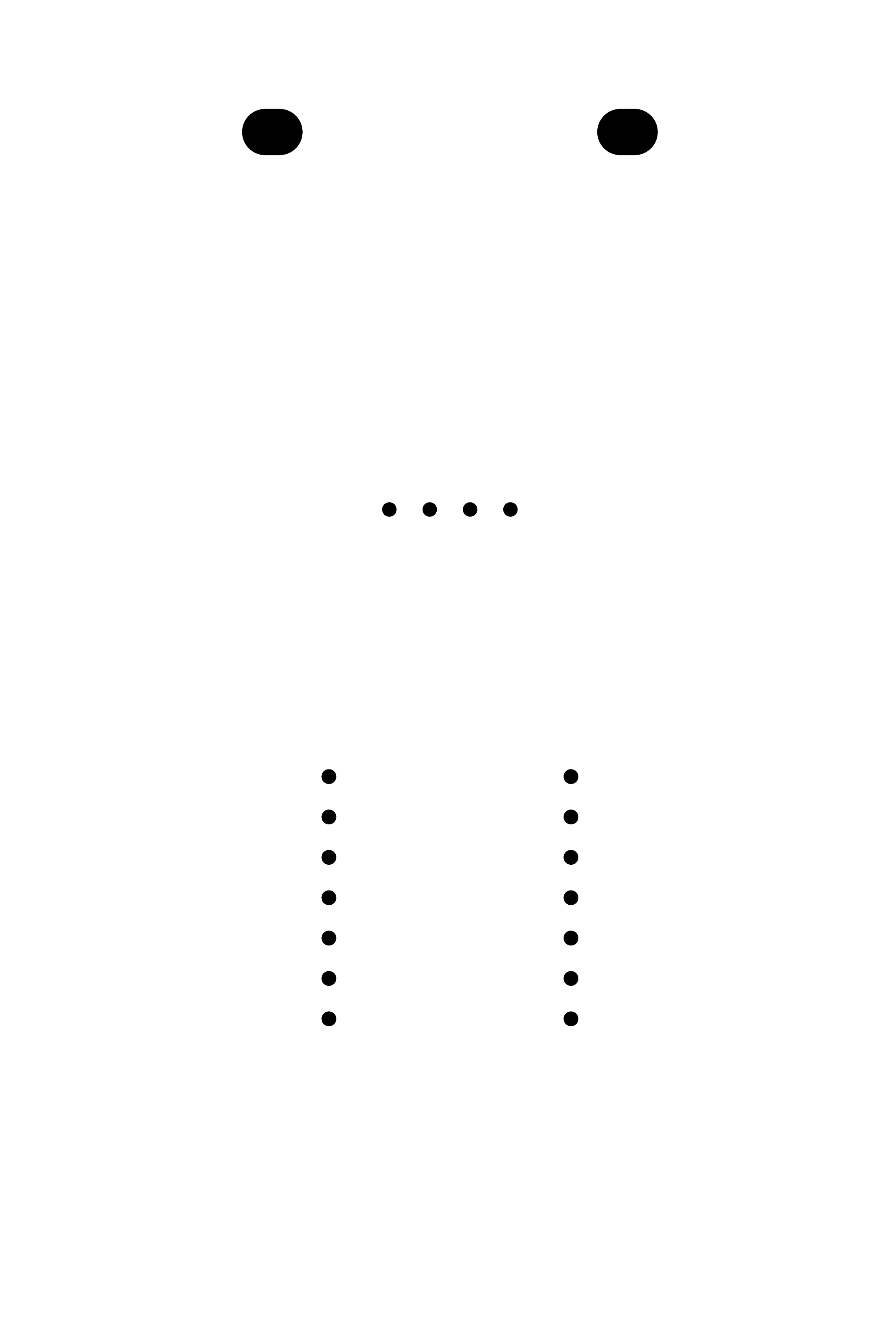

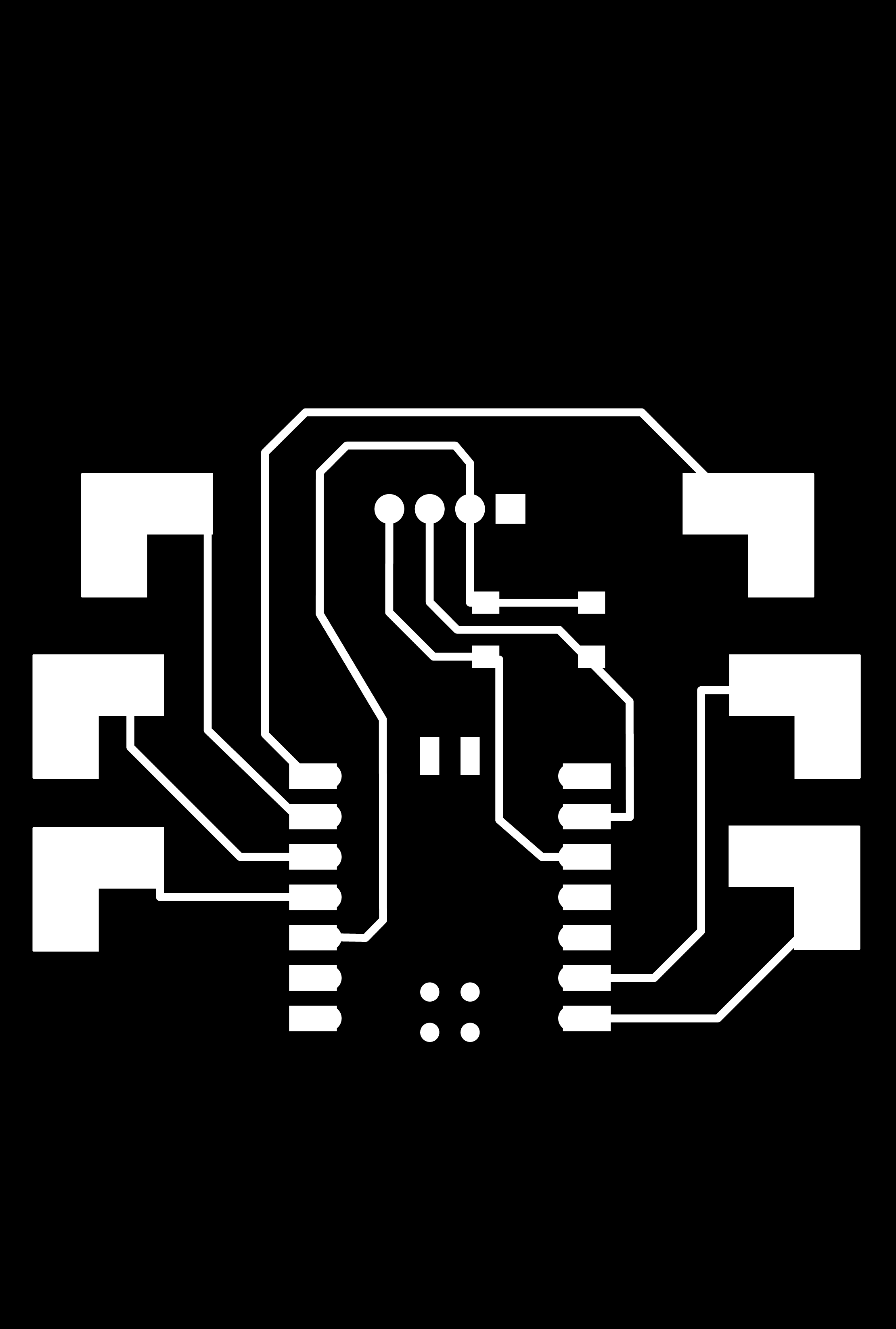

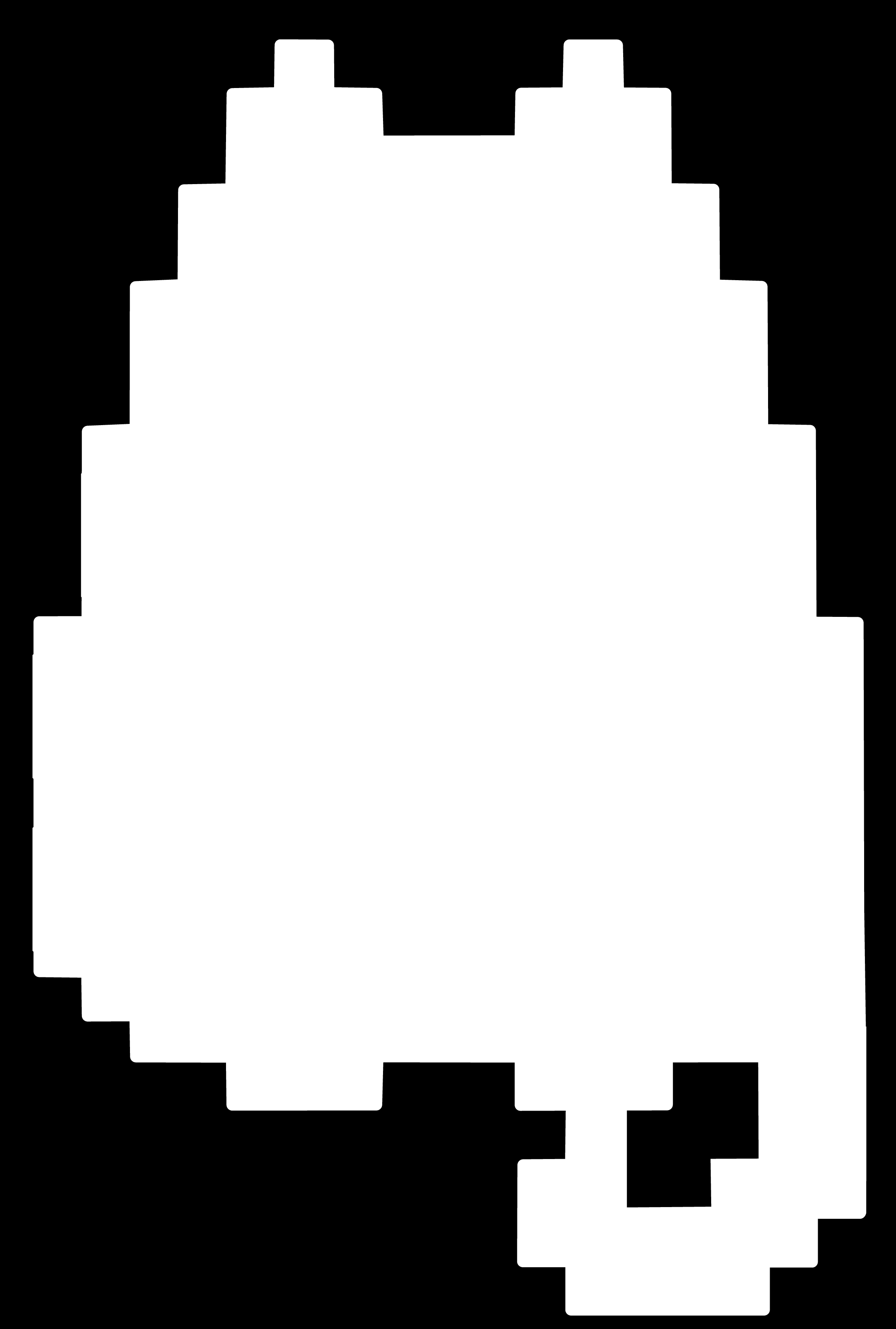

Ref	Quantity	Value / Part	Package
M1	1	Xiao-RP2040	Seeed Studio Xiao
R1,R2	2	10K Ohm	1206
J1	1	SSD1305 OLED	0.96" OLED display I2C

Programming Process

I usually use circuitpython and the adafruit circuitpython bundle for easy work with rp2040 boards. but this time I tested out micropython just to see which I would like better. I still like circuitpython for its ease of use and extensive library support.

To program the Xiao, I used the Thonny IDE which has built in support for micropython and circuitpython. I just had to select the correct board and port, and then I could write and upload code directly to the device. For Xiao-Rp2040, you have to select the "Raspberry Pi Pico" option in Thonny. you also have to save the libraries for OLED, ws2812, and steptime (python codes) to the device before running the code. Lastly, save the main code as "main.py" to the device and it should run on boot.

I had to do some changes to the code that will be different from the original version (Quentin's Qpad ). My OLED display is upside down because I wanted the milling to be shorter, so my code will have a function to rotate the display buffer before writing to the screen. I also had to change the pin numbers and some of the game physics constants to make it work better with my hardware.

Game Design

The game is a simple tamagotchi style pet simulator where you have to take care of your virtual cat by feeding it and playing with it. The cat has two main stats: hunger and boredom. You can feed the cat to increase its hunger level with pad 1, and you can play a simple jump game to increase its boredom level with pad 6. If either stat reaches 0, the cat becomes unhappy and eventually "dies". The goal is to keep the cat happy by managing its stats and playing the game.

KiCAT Tamagotchi code (micropython)


### Controls for your KiCAT:
#- **Feed - Pad 1:** Boosts hunger level.
#- **Play - Pad 6:** Boosts boredom/happiness level by playing jump game.
#- **Peek on Status- Pad 4:** Displays the current percentage levels in a small box at the top.

import utime
import urandom
from machine import Pin, I2C, freq
from ssd1306 import SSD1306_I2C
from ws2812 import WS2812
from steptime import STEPTIME
import framebuf

# ----- Hardware Setup -----
freq(250000000)
i2c = I2C(1, scl=Pin(7), sda=Pin(6), freq=400000)
oled = SSD1306_I2C(128, 64, i2c)
power = Pin(11, Pin.OUT)
power.value(1)
led = WS2812(12, 1, 0.5, 6)

# Pad Mapping
PAD_PINS = [2, 4, 3, 1, 27, 26]
for p in PAD_PINS:
    Pin(p, Pin.IN, Pin.PULL_UP)
channels = [[STEPTIME(i, pin), [1e6], [0]] for i, pin in enumerate(PAD_PINS)]

# --- Game Bitmaps ---
CAT_A = bytearray([
    0,16,64,0,56,224,0,105,160,0,201,32,1,159,160,227,
255,224,243,255,224,54,255,232,119,127,240,110,111,120,111,239,
112,126,127,248,63,255,224,15,255,192,1,129,128,1,129,128
])

CAT_B = bytearray([
   0,16,64,0,56,224,0,105,160,0,201,32,1,159,160,227,
255,224,243,255,224,54,255,232,119,127,240,110,111,120,111,239,
112,126,127,248,63,255,224,15,255,192,3,0,192,6,0,96

])

fb_a = framebuf.FrameBuffer(CAT_A, 24, 16, framebuf.MONO_HLSB)
fb_b = framebuf.FrameBuffer(CAT_B, 24, 16, framebuf.MONO_HLSB)

# --- Stats & State ---
STATE_PET, STATE_GAME = 0, 1
mode = STATE_PET
hunger_lvl, boredom_lvl = 100, 100
last_tick = utime.ticks_ms()

# --- Physics Constants ---
GRAVITY = 4        #
JUMP_VEL = -18     #
GROUND_Y = 40
cat_y, cat_v, obs_x, game_score = GROUND_Y, 0, 128, 0

def show_rotated(display):
    rotated_buffer = bytearray(1024)
    rotated_fb = framebuf.FrameBuffer(rotated_buffer, 128, 64, framebuf.MONO_VLSB)
    for y in range(64):
        for x in range(128):
            if display.pixel(x, y):
                rotated_fb.pixel(127 - x, 63 - y, 1)
    display.i2c.writeto_mem(display.addr, 0x40, rotated_buffer)

def draw_full_face(expression="neutral", blink=False):
    oled.fill(0)
    size = 14
    if expression == "critical":
        for i in range(2):
            oled.line(20+i, 25, 20+size+i, 25+size, 1)
            oled.line(20+i, 25+size, 20+size+i, 25, 1)
            oled.line(94+i, 25, 94+size+i, 25+size, 1)
            oled.line(94+i, 25+size, 94+size+i, 25, 1)
    elif expression == "sad":
        # Extra thick Worried Eyes (/  \)
        for i in range(3):
            oled.line(20, 38+i, 20+size, 32+i, 1)
            oled.line(94, 32+i, 94+size, 38+i, 1)
    elif blink:
        oled.fill_rect(20, 32, size, 2, 1)
        oled.fill_rect(94, 32, size, 2, 1)
    else:
        oled.fill_rect(20, 25, size, size, 1)
        oled.fill_rect(94, 25, size, size, 1)

    m_y = 33 if expression == "happy" else 44 if expression in ["sad", "critical"] else 38
    oled.fill_rect(57, m_y-13, size, size, 1)
    oled.fill_rect(44, m_y, size, size, 1)
    oled.fill_rect(70, m_y, size, size, 1)

while True:
    now = utime.ticks_ms()
    deltas = []
    for ch in channels:
        sm, min_val, _ = ch
        sm.put(200); sm.put(20000)
        res = 4294967296 - sm.get()
        if res < min_val[0]: min_val[0] = res
        deltas.append(res - min_val[0])

    if mode == STATE_PET:
        if utime.ticks_diff(now, last_tick) > 10000:
            hunger_lvl, boredom_lvl = max(0, hunger_lvl - 2), max(0, boredom_lvl - 3)
            last_tick = now

        if deltas[0] > 15000: hunger_lvl = min(100, hunger_lvl + 15); utime.sleep_ms(200)

        if deltas[5] > 15000:
            mode = STATE_GAME
            cat_y, cat_v, obs_x, game_score = GROUND_Y, 0, 128, 0
            utime.sleep_ms(300)

        mood = "critical" if (hunger_lvl <= 0 or boredom_lvl <= 0) else "sad" if (hunger_lvl < 30 or boredom_lvl < 30) else "happy"
        draw_full_face(mood, blink=(now // 2000 % 3 == 0))

        if deltas[3] > 15000:
            oled.fill_rect(10, 0, 108, 20, 0); oled.rect(10, 0, 108, 20, 1)
            oled.text("H:{}% B:{}%".format(hunger_lvl, boredom_lvl), 18, 6)

    elif mode == STATE_GAME:
        oled.fill(0); oled.line(0, 56, 128, 56, 1)

        if deltas[5] > 10000 and cat_y >= GROUND_Y: cat_v = JUMP_VEL
        cat_v += GRAVITY
        cat_y += cat_v
        if cat_y > GROUND_Y: cat_y = GROUND_Y; cat_v = 0

        obs_x -= 8 #
        if obs_x < -16: obs_x = 128; game_score += 1

        # Animation:
        active_fb = fb_a if (cat_y < GROUND_Y or (now // 100 % 2 == 0)) else fb_b
        oled.blit(active_fb, 20, int(cat_y))

        oled.fill_rect(obs_x, 48, 8, 8, 1)
        oled.text("Win: {}/5".format(game_score), 35, 0)

        if obs_x < 52 and obs_x > 10 and cat_y > 32:
            led.pixels_fill((255, 0, 0)); led.pixels_show(); utime.sleep_ms(500); mode = STATE_PET
        if game_score >= 5:
            boredom_lvl = min(100, boredom_lvl + 30); mode = STATE_PET

    show_rotated(oled)
    utime.sleep_ms(5)
