Mechanical and Machine Design

Required Slide and Video

As part of the Mechanical and Machine Design assignment, we prepared a presentation slide and a demonstration video to communicate the final machine concept, the assignments used during the process, the team members, and the functional test of the conveyor belt system.

The slide summarizes the machine as an integrated system. It shows the conveyor belt mounted on the wooden table, the ZOI laboratory identity, the team members, and the Fab Academy assignments that contributed to the development of the project: design, laser cutting, embedded programming, 3D printing, CNC machining, input devices, output devices, and dashboard/interface development.

Presentation slide for Assignment 12: Mechanical and Machine Design. The slide presents the final conveyor belt system, team members, ZOI laboratory identity, and the Fab Academy assignments used during the development process.

Machine Demonstration Video

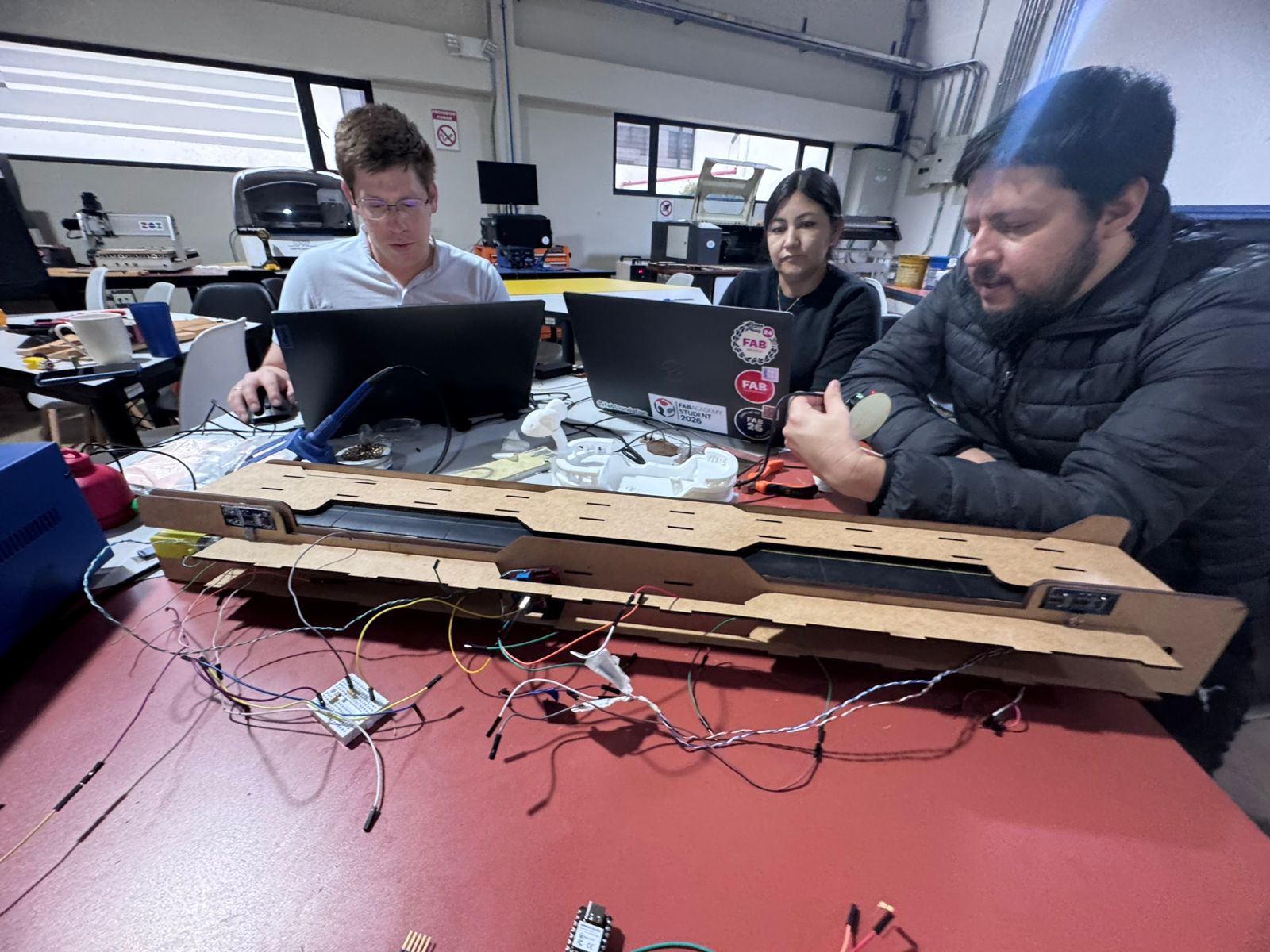

The following video shows one of the complete system tests. In this test, the conveyor belt, sensors, electronics, embedded programming, and mechanical movement are evaluated together. This video also documents my individual contribution from the programming and electronics side during the machine validation process.

Demonstration video of the conveyor belt machine test with sensors, electronics, programming, and mechanical actuation working together.

Assignment Requirements

The Mechanical and Machine Design assignment focuses on understanding how a machine can be designed, fabricated, assembled, actuated, controlled, and validated as a group project.

The conveyor belt was selected because it is a clear and practical example of an industrial machine. It includes a mechanical structure, rotating elements, a moving belt, a motorized actuation system, sensors, an embedded controller, and a basic user interaction sequence.

Project Context

This project was developed within the ZOI Ecuador node. The main assembly, system integration, calibration, and testing were carried out at START Labs of Universidad Politécnica Salesiana, Quito campus.

Jenny Rojas and Rodrigo Guamán, from Universidad de Cuenca, also designed and fabricated part of the components at the Industrial FABLAB UCUENCA. This collaborative workflow allowed the team to combine the resources of different laboratories and integrate mechanical fabrication, electronics, programming, and testing in a single machine.

Roberto Gallo, Fab Academy instructor for ZOI Ecuador, supervised the assembly, operation tests, calibration process, and final validation of the project.

Team Members and Contributions

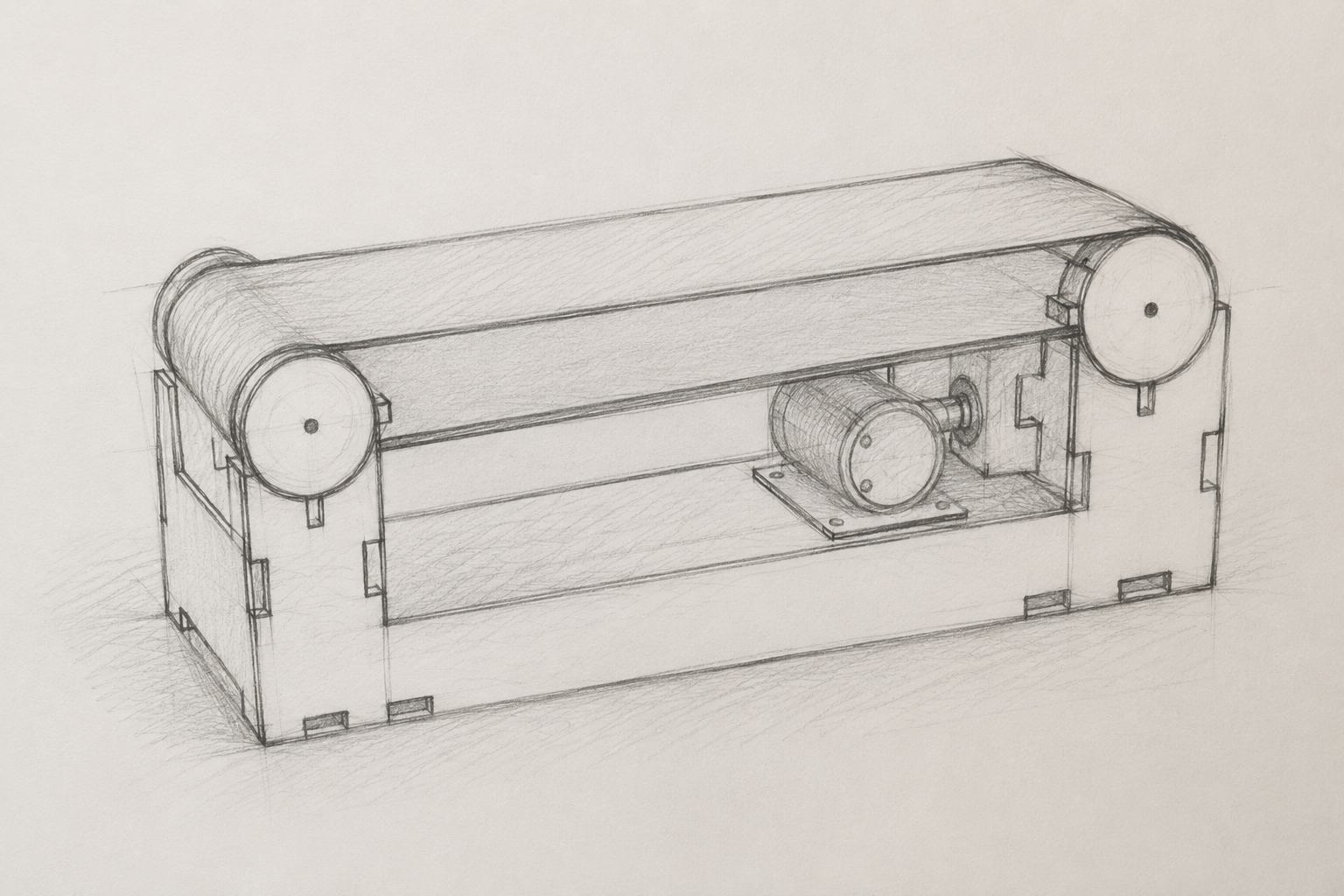

Machine Concept

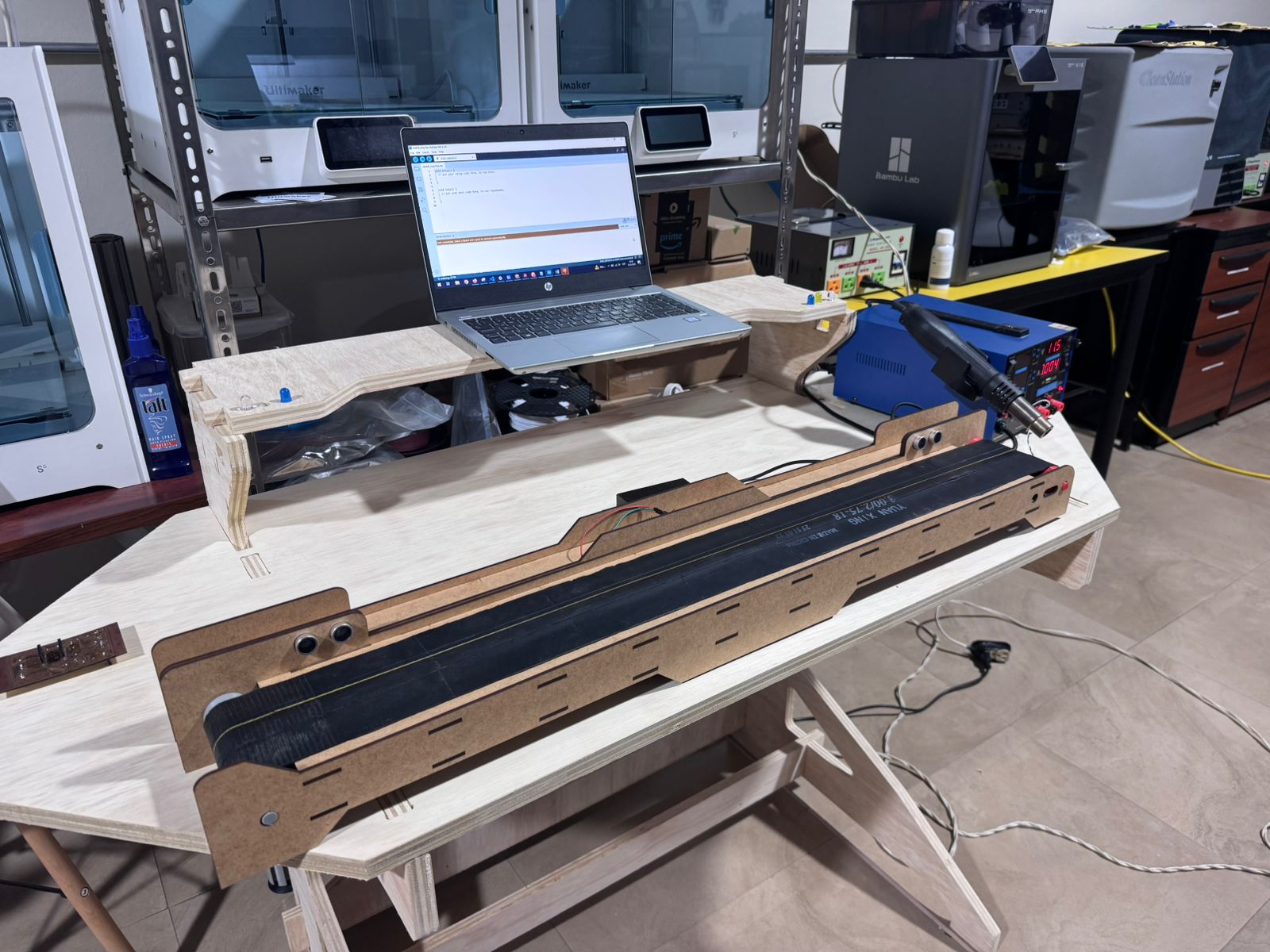

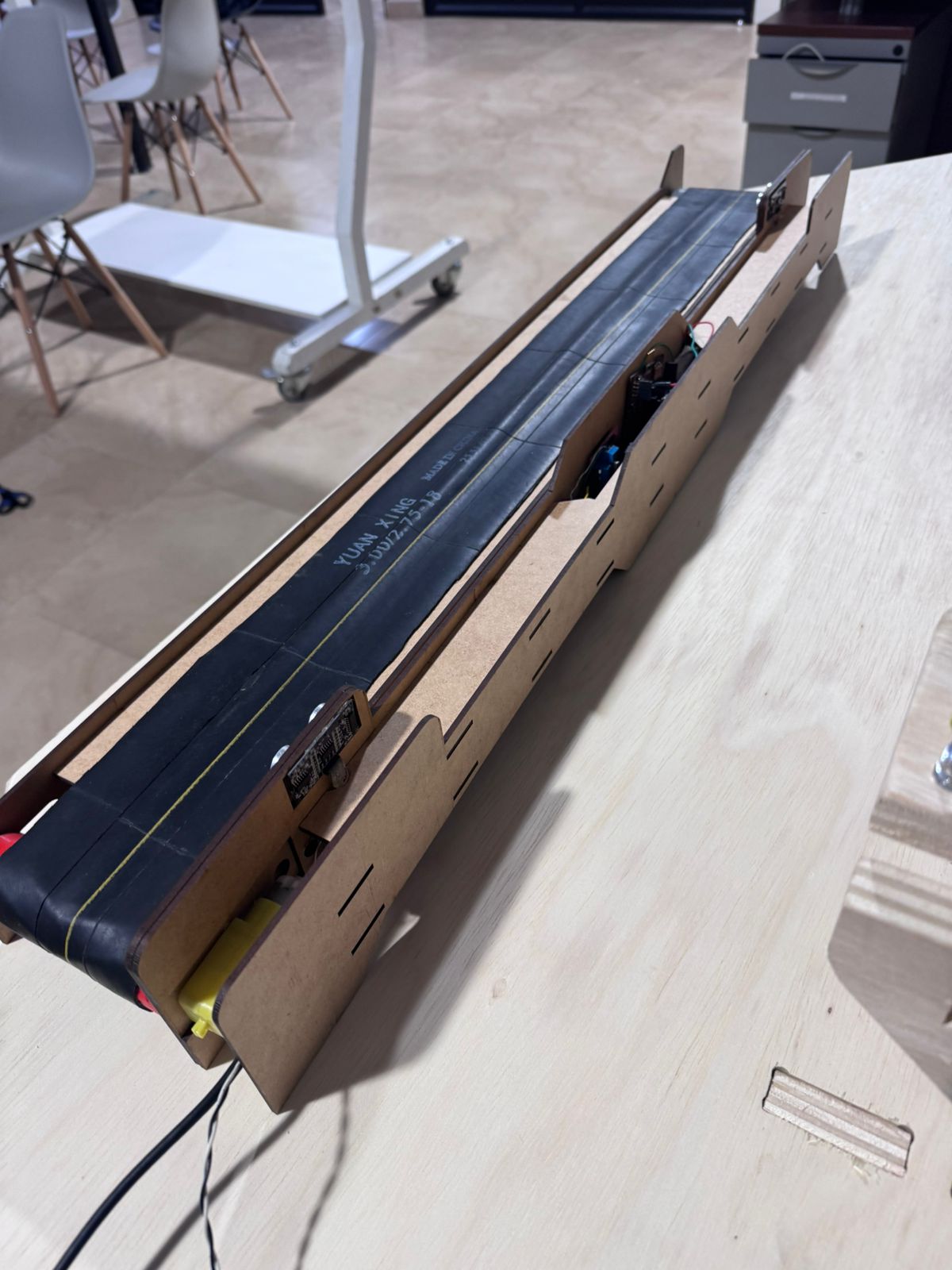

The project consists of an automated conveyor belt. The machine transports an object from an initial point to a final point using a motorized belt. The object is detected by ultrasonic sensors, and the motor is controlled automatically by an embedded system.

The concept is related to industrial automation, logistics systems, assembly lines, and Industry 4.0. Although the prototype is small, it demonstrates important machine design principles such as motion, actuation, sensing, control, safety, and user interaction.

Functional Description

The operation of the machine follows a simple but complete automation sequence. The first sensor is positioned at the beginning of the belt and detects the presence of an object. Once the object is detected, the microcontroller activates the motor driver and the conveyor belt starts moving. The second sensor is located at the end of the belt. When the object reaches this point, the motor stops.

Bill of Materials

The Bill of Materials, or BOM, lists the main components and materials used to build the conveyor belt machine. For this assignment, the BOM includes electronic components, fabrication materials, mechanical parts, and assembly materials.

The electronic components were used to sense the position of the object, control the motor, protect the microcontroller inputs, and automate the conveyor belt. The physical materials were used to fabricate the conveyor structure, the table, the belt, the rollers, and the assembly system.

Mechanical Design

The mechanical design was developed in Fusion 360. The objective was to create a modular conveyor belt structure that could be digitally fabricated and assembled manually. MDF was selected as the main structural material because it is accessible, easy to laser cut, and suitable for prototyping.

The structure was designed using a press-fit system. This means that the parts are joined by mechanical interference between slots and tabs, without the need for glue or screws. This design strategy required careful attention to material thickness, kerf compensation, tolerance adjustment, and joint stability.

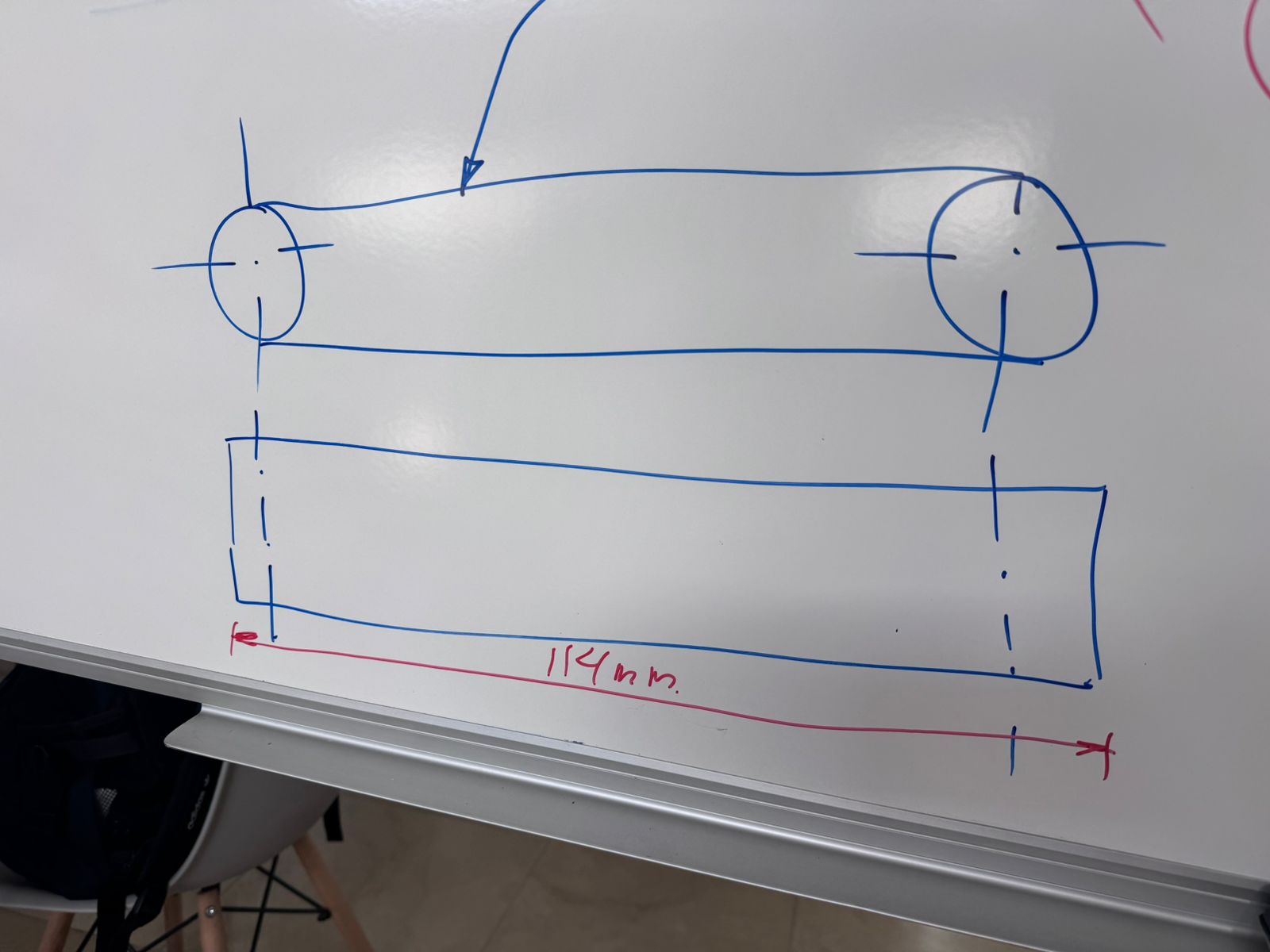

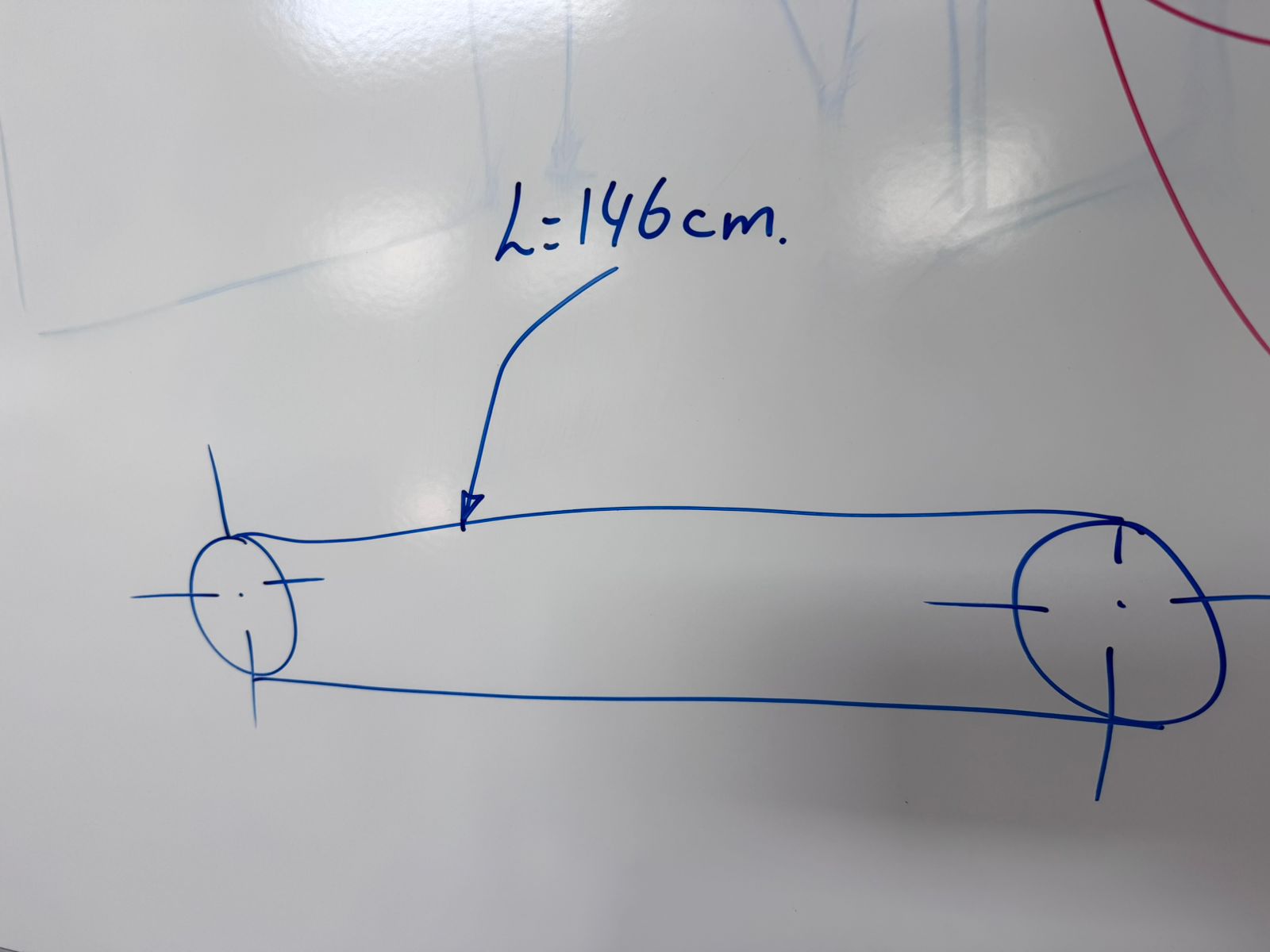

The roller system was designed to support the belt and allow continuous motion. Alignment was an important factor because even small deviations could increase friction, reduce belt stability, or affect the performance of the motor. During assembly, the rollers were adjusted manually to improve belt movement.

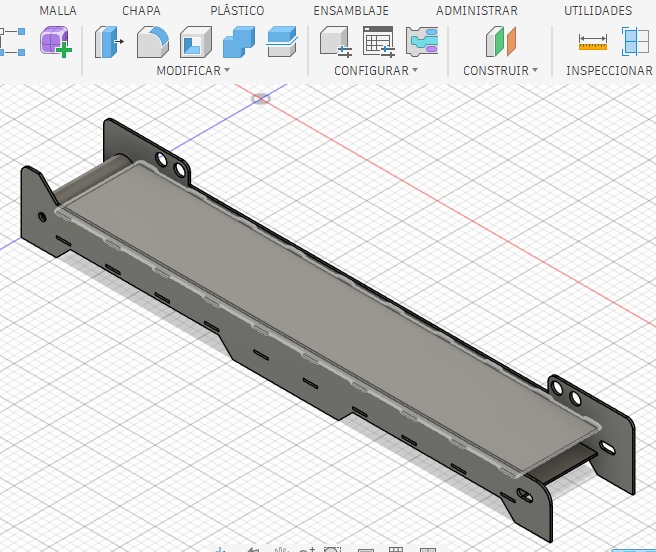

Fusion 360 design of the mechanical structure.

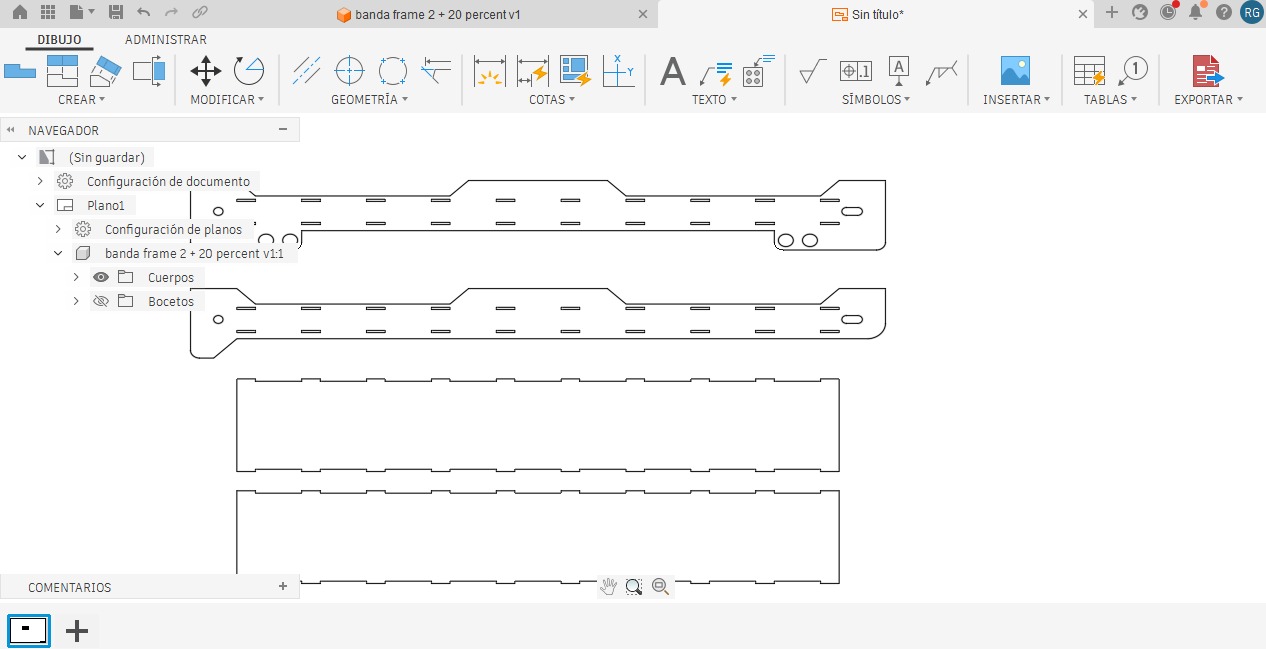

MDF structure fabricated using laser cutting.

Rollers designed to support and move the belt.

Digital Fabrication Process

The fabrication process combined laser cutting, manual assembly, PCB production, soldering, and system integration. The MDF pieces were cut according to the CAD files and later assembled manually. The PCB was fabricated using a fiber laser machine at Industrial FABLAB UCUENCA.

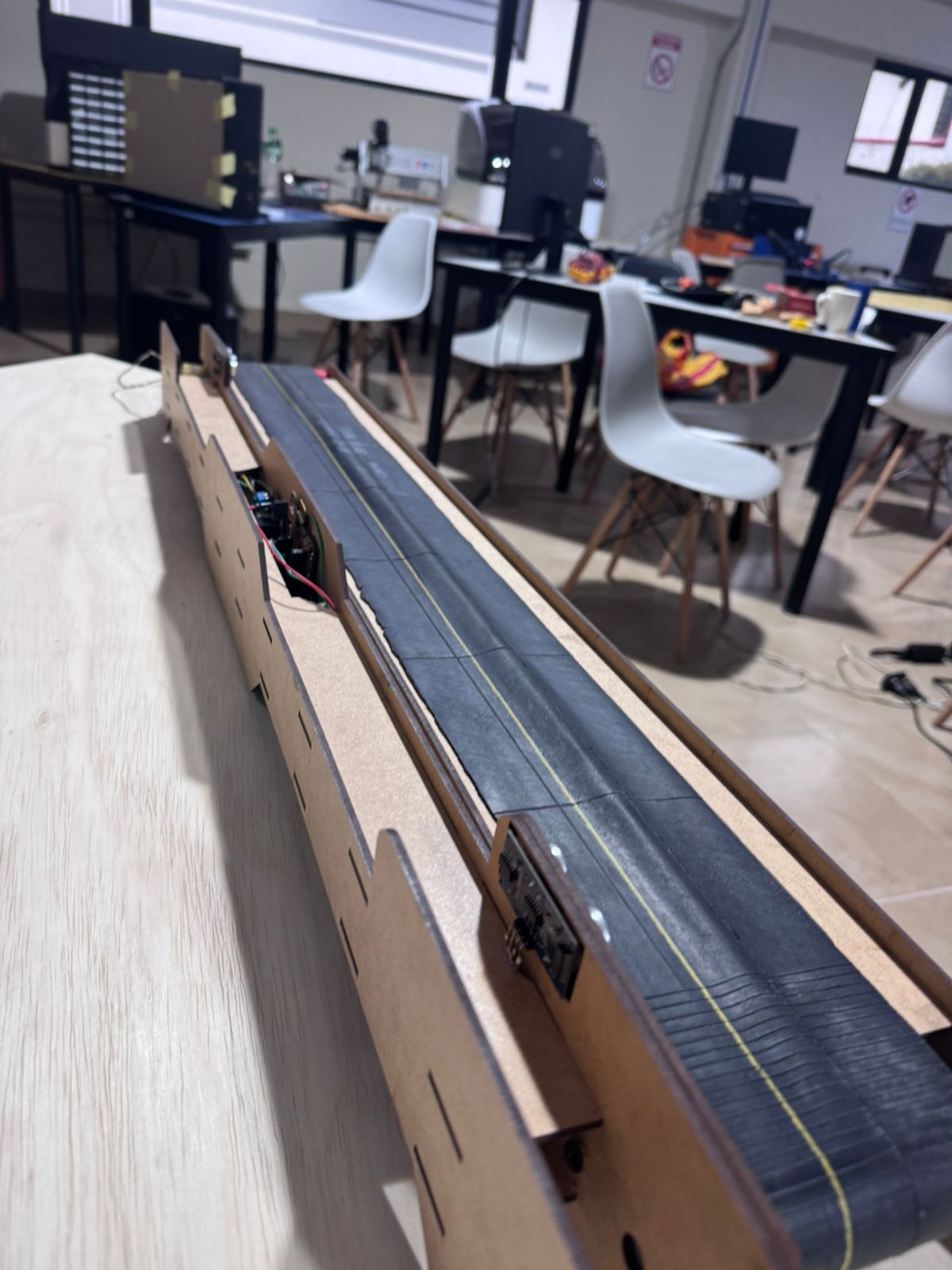

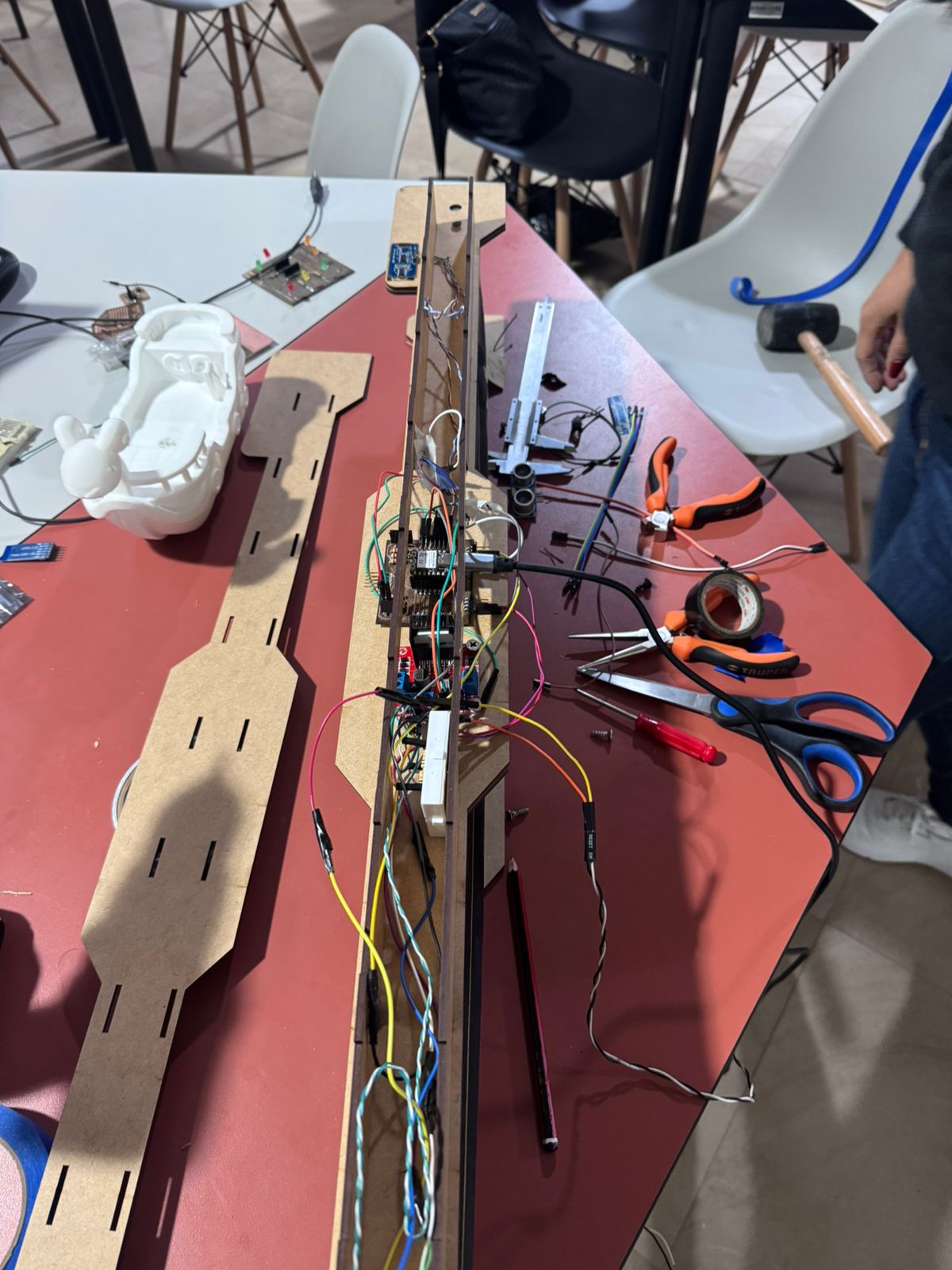

After fabrication, several manual adjustments were required. These included checking the fit of the MDF pieces, verifying roller alignment, testing the belt movement, organizing the cables, and validating the electronic connections.

Electronics Design

The electronic system was designed around the XIAO ESP32-C3 microcontroller. This board was selected because it is compact, programmable through Arduino IDE, and suitable for embedded automation projects. The microcontroller reads the ultrasonic sensors and controls the motor through the L298N driver.

The motor used in the machine is a 12V DC motor. Since the microcontroller cannot drive the motor directly, the L298N motor driver was used as an intermediate power stage. The ESP32-C3 sends control signals to the driver, and the driver provides the required current and voltage to the motor.

Two HC-SR04 ultrasonic sensors were used. One sensor is positioned at the beginning of the belt and the other at the end. These sensors measure distance and allow the machine to know when to start and when to stop the motor.

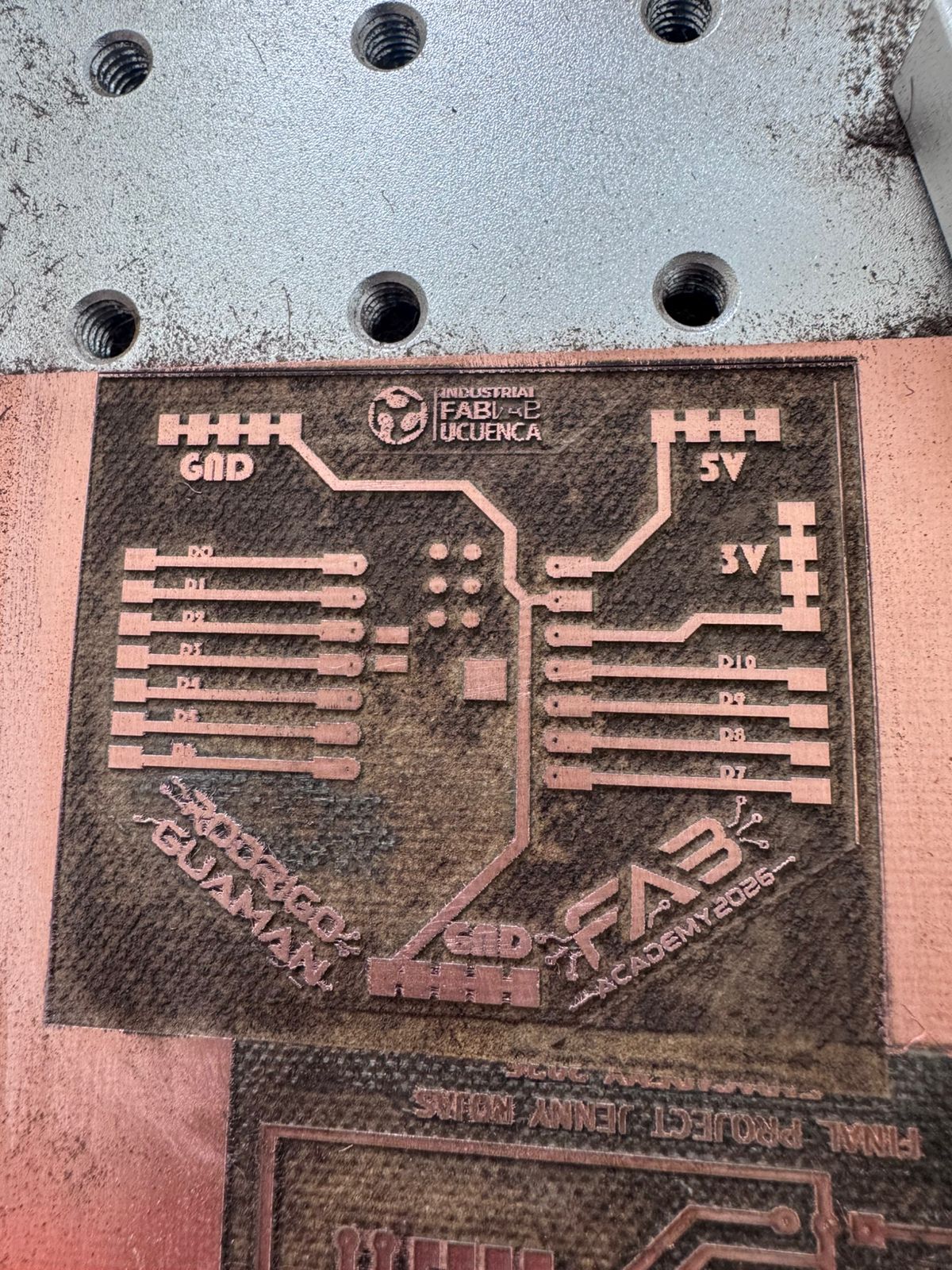

PCB fabrication process.

PCB.

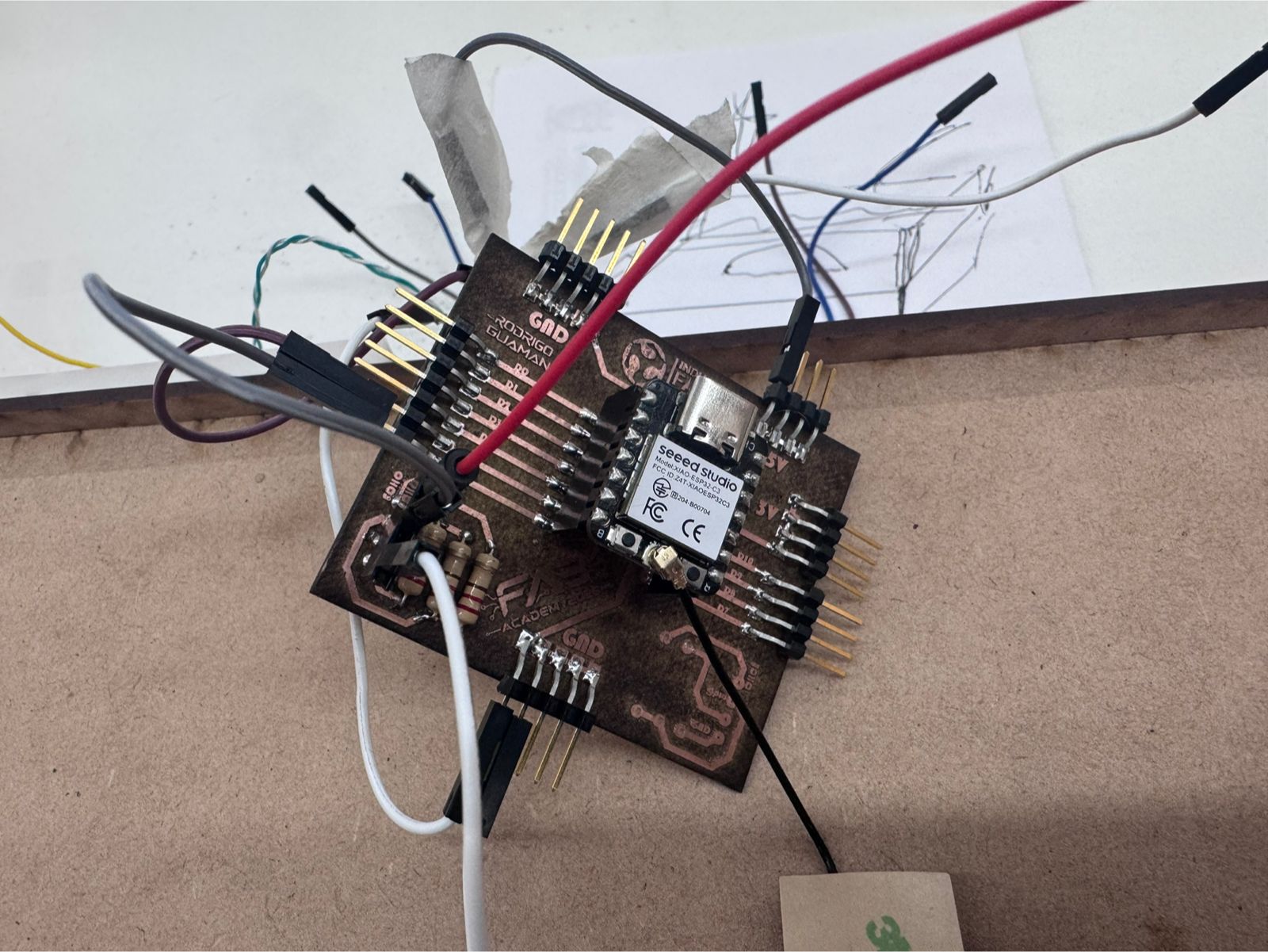

Electronic integration of the control system.

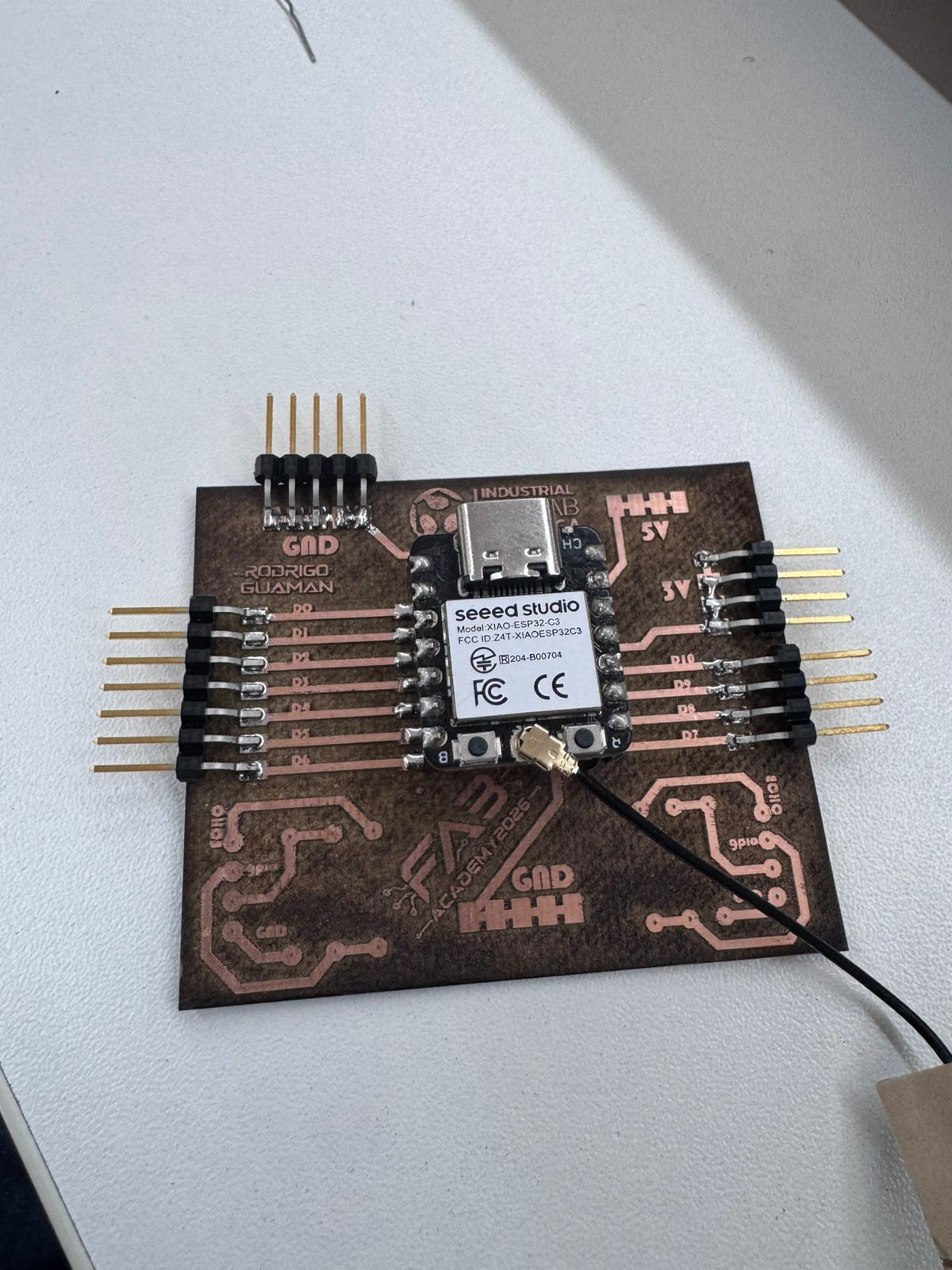

Soldering of the electronic components.

Voltage Divider Explanation

The voltage divider is an important protection circuit in this project. The HC-SR04 ultrasonic sensor normally uses 5V logic. Its Echo pin sends a pulse that can reach 5V. However, the XIAO ESP32-C3 GPIO pins are designed for 3.3V logic and are not intended to receive 5V signals.

To solve this issue, a voltage divider was connected between the Echo pin of each HC-SR04 sensor and the input pin of the XIAO ESP32-C3. This simple circuit uses two resistors to reduce the voltage from 5V to approximately 3.3V, allowing the microcontroller to read the signal safely.

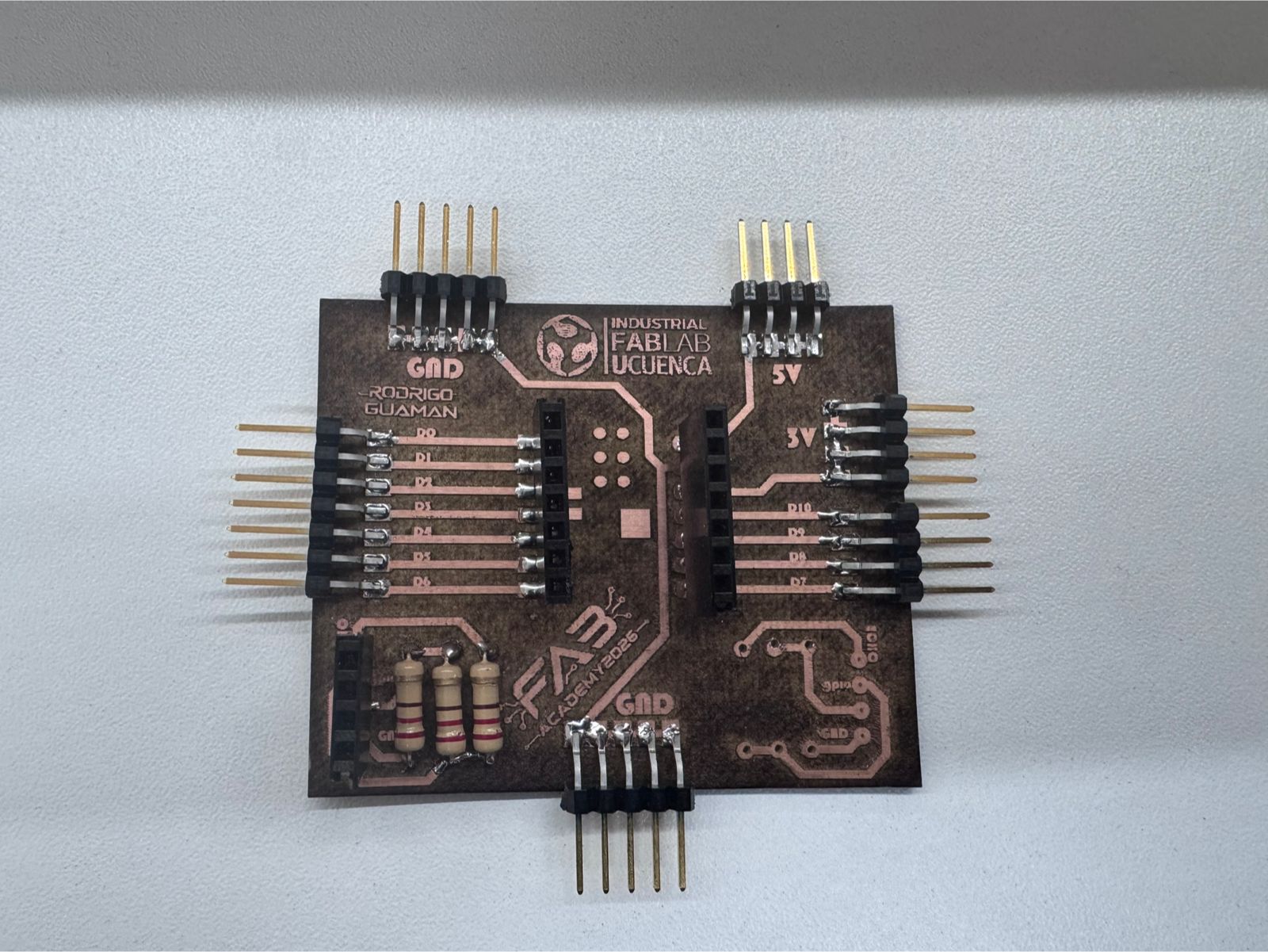

PCB.

PCB.

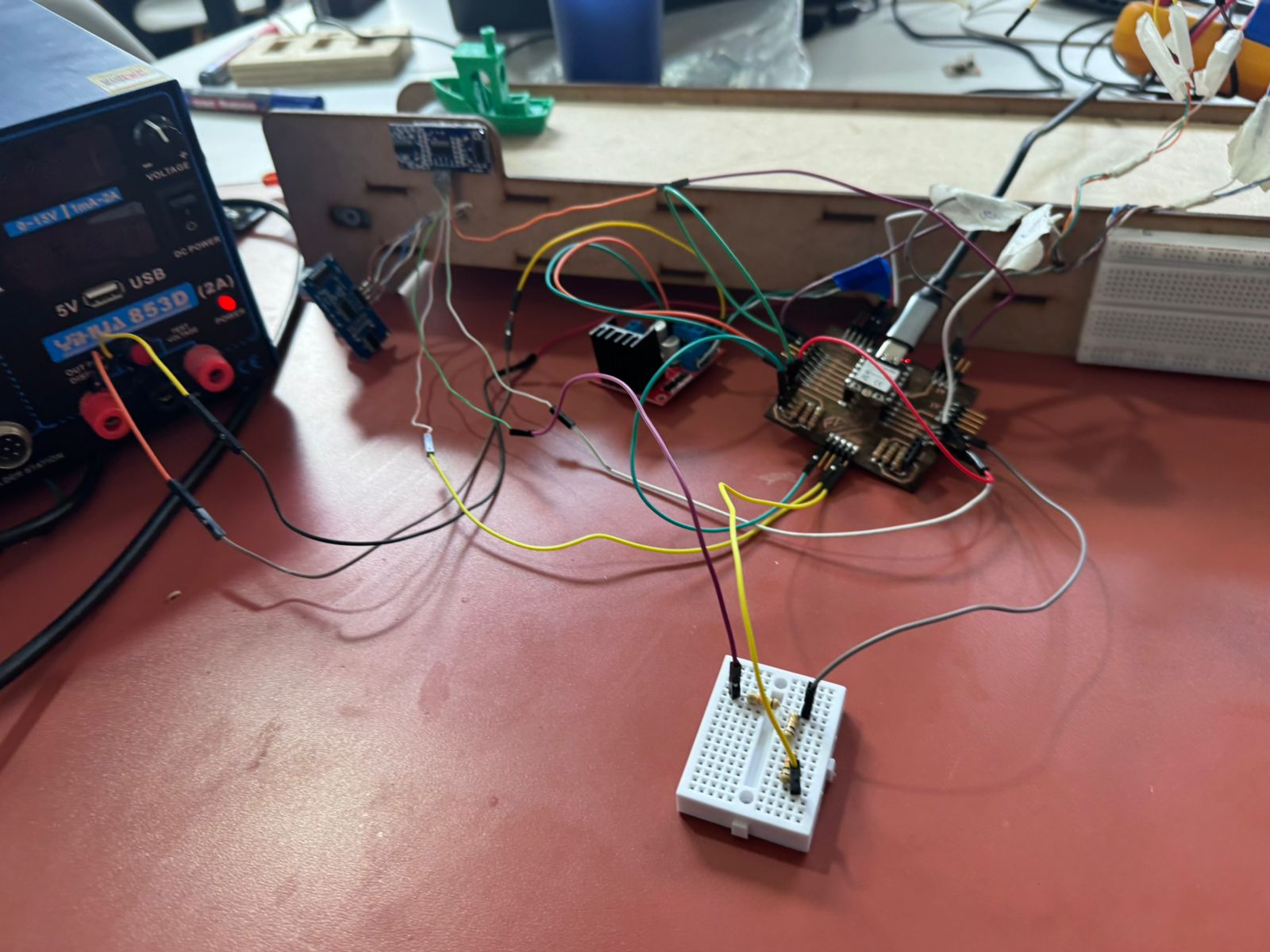

Electronic integration of the control system.

Embedded Programming

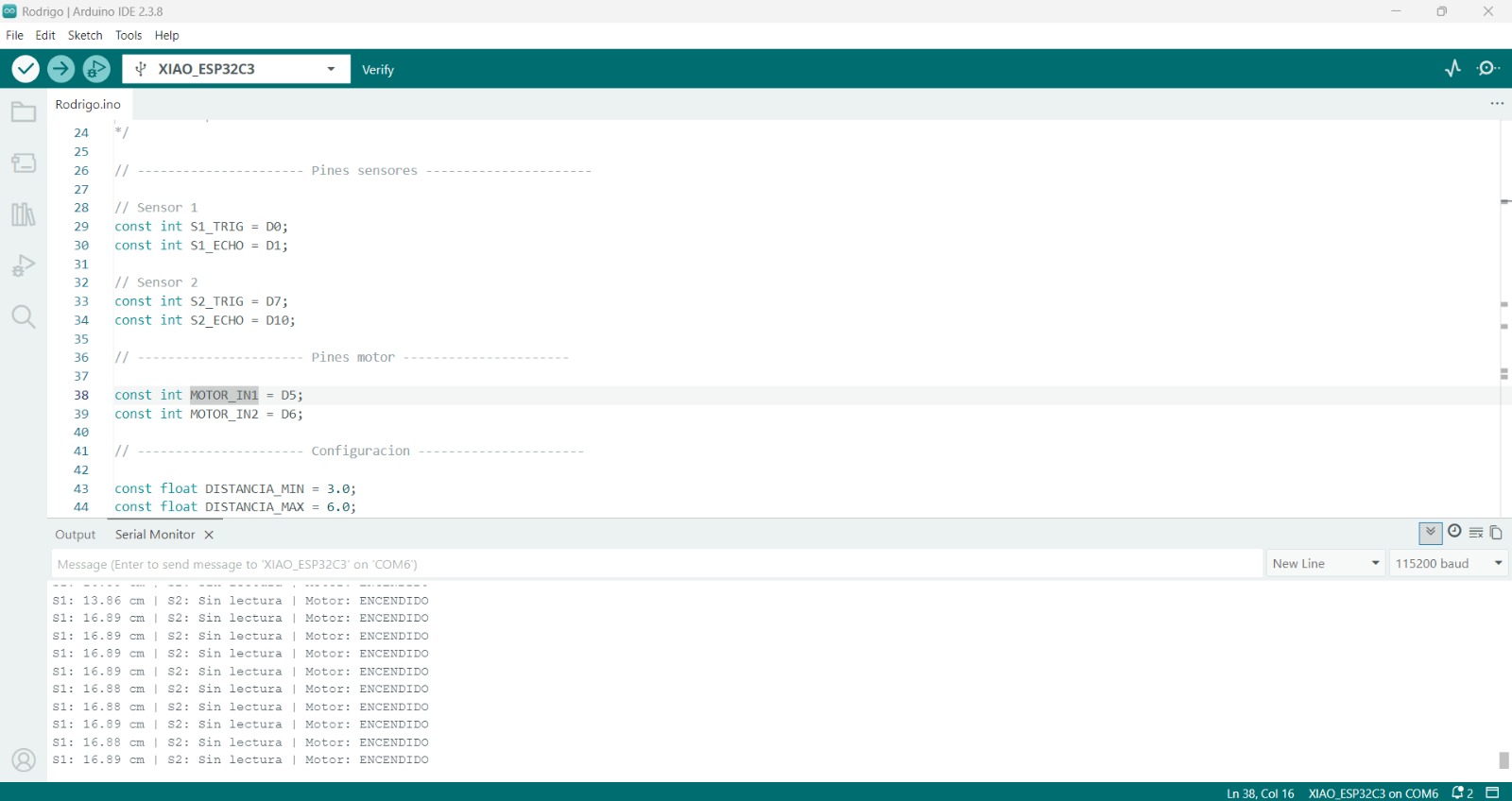

The XIAO ESP32-C3 was programmed using Arduino IDE. The program reads the distance values from two HC-SR04 ultrasonic sensors and controls the 12V DC motor through the L298N motor driver. The logic is based on a start condition and a stop condition.

When the first sensor detects an object at a distance below the defined threshold, the motor turns on. When the second sensor detects the object at the end of the conveyor belt, the motor turns off. This sequence allows the system to work as an automated conveyor belt.

Arduino IDE Reference Code

// Fab Academy 2026 - Week 12
// Mechanical and Machine Design
// Automated Conveyor Belt Machine
// Board: XIAO ESP32-C3
// Components: 2 HC-SR04 sensors, L298N driver, 12V DC motor
/*
  Conveyor belt system
  XIAO ESP32-C3

  Sensor S1:
  TRIG -> D0
  ECHO -> D1

  Sensor S2:
  TRIG -> D7
  ECHO -> D8

  Motor:
  IN1 -> D5
  IN2 -> D6
  EN1 -> VCC / HIGH

  Logic:
  - Motor starts OFF.
  - S1 detects an object between 3 cm and 6 cm: motor turns ON.
  - Motor remains ON even if S1 stops detecting.
  - S2 detects an object between 3 cm and 6 cm: motor turns OFF.
  - Repetitive cycle.
*/

// ---------------------- Sensor pins ----------------------

// Sensor 1
const int S1_TRIG = D0;
const int S1_ECHO = D1;

// Sensor 2
const int S2_TRIG = D2;
const int S2_ECHO = D3;

// ---------------------- Motor pins ----------------------

const int MOTOR_IN1 = D5;
const int MOTOR_IN2 = D6;

// ---------------------- Configuration ----------------------

const float DISTANCIA_MIN = 3.0;
const float DISTANCIA_MAX = 6.0;

bool motorActivo = false;

unsigned long tiempoArranqueMotor = 0;
const unsigned long TIEMPO_MINIMO_MOTOR = 500; // ms

// ---------------------- Measure distance ----------------------

float medirDistanciaCM(int trigPin, int echoPin) {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(3);

  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  long duracion = pulseIn(echoPin, HIGH, 30000);

  if (duracion == 0) {
    return -1;
  }

  float distancia = duracion * 0.0343 / 2.0;
  return distancia;
}

// ---------------------- Detect object ----------------------

bool objetoDetectado(float distancia) {
  if (distancia < 0) {
    return false;
  }

  return distancia >= DISTANCIA_MIN && distancia <= DISTANCIA_MAX;
}

// ---------------------- Motor control ----------------------

void encenderMotor() {
  digitalWrite(MOTOR_IN1, HIGH);
  digitalWrite(MOTOR_IN2, LOW);

  motorActivo = true;
  tiempoArranqueMotor = millis();

  Serial.println("S1 detected an object. Motor ON.");
}

void apagarMotor() {
  digitalWrite(MOTOR_IN1, LOW);
  digitalWrite(MOTOR_IN2, LOW);

  motorActivo = false;

  Serial.println("S2 detected an object. Motor OFF.");
}

// ---------------------- Setup ----------------------

void setup() {
  Serial.begin(115200);
  delay(3000);

  pinMode(S1_TRIG, OUTPUT);
  pinMode(S1_ECHO, INPUT);

  pinMode(S2_TRIG, OUTPUT);
  pinMode(S2_ECHO, INPUT);

  pinMode(MOTOR_IN1, OUTPUT);
  pinMode(MOTOR_IN2, OUTPUT);

  digitalWrite(MOTOR_IN1, LOW);
  digitalWrite(MOTOR_IN2, LOW);

  Serial.println();
  Serial.println("======================================");
  Serial.println("Conveyor belt system");
  Serial.println("XIAO ESP32-C3 started correctly");
  Serial.println("S1 TRIG: D0 | S1 ECHO: D1");
  Serial.println("S2 TRIG: D7 | S2 ECHO: D8");
  Serial.println("Motor IN1: D5 | Motor IN2: D6");
  Serial.println("Driver EN1 must be connected to VCC/HIGH");
  Serial.println("Motor starts OFF");
  Serial.println("======================================");
}

// ---------------------- Main loop ----------------------

void loop() {
  float distanciaS1 = medirDistanciaCM(S1_TRIG, S1_ECHO);
  delay(50);

  float distanciaS2 = medirDistanciaCM(S2_TRIG, S2_ECHO);
  delay(50);

  bool detectaS1 = objetoDetectado(distanciaS1);
  bool detectaS2 = objetoDetectado(distanciaS2);

  Serial.print("S1: ");
  if (distanciaS1 < 0) {
    Serial.print("No reading");
  } else {
    Serial.print(distanciaS1);
    Serial.print(" cm");
  }

  Serial.print(" | S2: ");
  if (distanciaS2 < 0) {
    Serial.print("No reading");
  } else {
    Serial.print(distanciaS2);
    Serial.print(" cm");
  }

  Serial.print(" | Motor: ");
  Serial.println(motorActivo ? "ON" : "OFF");

  // If the motor is OFF and S1 detects an object, it starts
  if (!motorActivo && detectaS1) {
    encenderMotor();
  }

  // If the motor is ON and S2 detects an object, it stops
  if (motorActivo && detectaS2) {
    if (millis() - tiempoArranqueMotor >= TIEMPO_MINIMO_MOTOR) {
      apagarMotor();

      delay(800);
      Serial.println("Ready to receive another object at S1...");
    }
  }

  delay(100);

}

Code Explanation: Conveyor Belt Automation

This code controls the automated conveyor belt using a XIAO ESP32-C3, two HC-SR04 ultrasonic sensors, and a DC motor connected through a motor driver. The main purpose of the program is to create an automatic transport cycle: the belt starts when an object is detected at the beginning and stops when the object reaches the end of the conveyor.

General Operation Logic

The conveyor belt starts with the motor turned off. Sensor S1 is located at the beginning of the belt and is responsible for detecting when an object is placed on the machine. When S1 detects an object between 3 cm and 6 cm, the microcontroller activates the motor. The motor continues running even if the object moves away from S1. This is important because once the object enters the belt, the system must continue transporting it.

Sensor S2 is located at the end of the belt. When the object reaches this final position and S2 detects it between 3 cm and 6 cm, the microcontroller stops the motor. This prevents the object from falling from the conveyor and completes the automation cycle. After that, the system remains ready to detect a new object again at S1.

Pin Configuration

The first part of the code defines the pins used by the sensors and the motor. Sensor S1 uses one pin to send the ultrasonic pulse and another pin to receive the reflected signal. Sensor S2 works in the same way. The motor is controlled using two digital pins connected to the motor driver inputs.

const int S1_TRIG = D0;
const int S1_ECHO = D1;

const int S2_TRIG = D2;
const int S2_ECHO = D3;

const int MOTOR_IN1 = D5;
const int MOTOR_IN2 = D6;

In this configuration, S1 is connected to pins D0 and D1, while S2 is connected to D2 and D3. The motor driver receives control signals from pins D5 and D6. When MOTOR_IN1 is HIGH and MOTOR_IN2 is LOW, the motor rotates in one direction and moves the conveyor belt forward. When both pins are LOW, the motor stops.

Important correction: In the initial comment, S2 is described as using D7 and D8, but in the real code S2 is configured as D2 and D3. The documentation and wiring should match the actual code to avoid connection errors.

Distance Range Configuration

const float DISTANCIA_MIN = 3.0;
const float DISTANCIA_MAX = 6.0;

These two constants define the detection range. The system only considers that an object is detected when the measured distance is between 3 cm and 6 cm. This avoids false detections caused by objects that are too far away or by unstable readings from the ultrasonic sensors.

Motor State Variable

bool motorActivo = false;

This variable stores the current state of the motor. If motorActivo is false, the motor is off. If it is true, the motor is running. This is important because the system needs to remember that the motor must continue running after the object leaves S1.

Minimum Motor Time

unsigned long tiempoArranqueMotor = 0;
const unsigned long TIEMPO_MINIMO_MOTOR = 500;

This section creates a small protection time. Once the motor turns on, it must remain active for at least 500 milliseconds before it can be stopped by S2. This prevents the motor from turning off immediately due to noise, unstable readings, or accidental detection.

Distance Measurement Function

float medirDistanciaCM(int trigPin, int echoPin) {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(3);

  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  long duracion = pulseIn(echoPin, HIGH, 30000);

  if (duracion == 0) {
    return -1;
  }

  float distancia = duracion * 0.0343 / 2.0;
  return distancia;
}

This function measures the distance using an HC-SR04 ultrasonic sensor. First, the trigger pin sends a short ultrasonic pulse. Then, the Echo pin receives the reflected signal. The function measures how long the signal takes to return. Using the speed of sound, the program converts that time into distance in centimeters.

If no echo is received, the function returns -1. This means that the sensor did not obtain a valid reading. This helps the program ignore incorrect values.

Object Detection Function

bool objetoDetectado(float distancia) {
  if (distancia < 0) {
    return false;
  }

  return distancia >= DISTANCIA_MIN && distancia <= DISTANCIA_MAX;
}

This function checks whether the distance measured by the sensor is valid and within the detection range. If the distance is negative, it means there was no valid reading. If the distance is between 3 cm and 6 cm, the function returns true, meaning that an object has been detected.

Motor ON Function

void encenderMotor() {
  digitalWrite(MOTOR_IN1, HIGH);
  digitalWrite(MOTOR_IN2, LOW);

  motorActivo = true;
  tiempoArranqueMotor = millis();

  Serial.println("S1 detecto objeto. Motor ENCENDIDO.");
}

This function turns the motor on. It sends a HIGH signal to MOTOR_IN1 and a LOW signal to MOTOR_IN2, causing the motor to rotate in one direction. It also changes motorActivo to true and records the time when the motor started using millis().

Motor OFF Function

void apagarMotor() {
  digitalWrite(MOTOR_IN1, LOW);
  digitalWrite(MOTOR_IN2, LOW);

  motorActivo = false;

  Serial.println("S2 detecto objeto. Motor APAGADO.");
}

This function stops the motor by setting both motor driver inputs to LOW. It also updates the motor state variable to false. In the conveyor belt, this happens when the object reaches the final sensor S2.

Setup Function

The setup() function runs once when the ESP32-C3 starts. It initializes serial communication, configures the sensor and motor pins, and ensures that the motor starts turned off.

pinMode(S1_TRIG, OUTPUT);
pinMode(S1_ECHO, INPUT);

pinMode(S2_TRIG, OUTPUT);
pinMode(S2_ECHO, INPUT);

pinMode(MOTOR_IN1, OUTPUT);
pinMode(MOTOR_IN2, OUTPUT);

digitalWrite(MOTOR_IN1, LOW);
digitalWrite(MOTOR_IN2, LOW);

This is important for safety because the conveyor belt should not start moving unexpectedly when the system is powered on.

Main Loop

The loop() function runs continuously. In each cycle, the program measures the distance from S1 and S2, checks whether each sensor detects an object, prints the values in the Serial Monitor, and then decides whether to turn the motor on or off.

if (!motorActivo && detectaS1) {
  encenderMotor();
}

This condition means: if the motor is off and S1 detects an object, turn the motor on. This starts the conveyor movement.

if (motorActivo && detectaS2) {
  if (millis() - tiempoArranqueMotor >= TIEMPO_MINIMO_MOTOR) {
    apagarMotor();

    delay(800);
    Serial.println("Listo para recibir otro objeto en S1...");
  }
}

This condition means: if the motor is running and S2 detects the object, stop the motor. However, the code first checks that the motor has been running for at least 500 milliseconds. After stopping, the program waits 800 milliseconds and then becomes ready for another cycle.

What the Code Achieves in the Conveyor Belt

Machine Stage	Code Action	Physical Result
Idle state	Motor starts as OFF	The belt remains stopped and waits for an object.
Object placed at the beginning	S1 detects distance between 3 cm and 6 cm	The motor turns on and the belt starts moving.
Object moves along the belt	The motor remains active even if S1 no longer detects the object	The object is transported toward the final position.
Object reaches the end	S2 detects distance between 3 cm and 6 cm	The motor stops automatically.
System reset	The motor state returns to OFF	The machine is ready for the next object.

Technical Summary

In summary, this code transforms the conveyor belt into an automated machine. The first ultrasonic sensor works as the start trigger, the second ultrasonic sensor works as the stop trigger, and the motor driver controls the movement of the belt. The use of a motor state variable allows the conveyor to continue moving even after the first sensor stops detecting the object. This creates a complete and repetitive automation cycle suitable for the Mechanical and Machine Design assignment.

Automation Logic

The automation logic can be understood as a simple state machine. The system starts in an idle state. When the first sensor detects an object, the system changes to the moving state and activates the motor. When the final sensor detects the object, the system stops the motor and returns to the idle state.

Bill of Materials

Machines, Software and Technologies Used

Assembly Process

The assembly process was carried out in several stages. Each stage was important to ensure that the machine worked mechanically and electronically before testing the complete automation sequence.

1. Design of mechanical parts: The conveyor belt structure and rollers were designed in Fusion 360.
2. Laser cutting of MDF structure: The CAD files were prepared and cut using a laser cutter.
3. Roller preparation: The rollers were designed, fabricated, and adjusted for belt movement.
4. Manual assembly: The MDF structure was assembled using the press-fit system.
5. PCB fabrication: The PCB was fabricated using a fiber laser machine at Industrial FABLAB UCUENCA.
6. Soldering: The electronic components and connectors were soldered.
7. Sensor installation: Two HC-SR04 sensors were installed at the beginning and end of the belt.
8. Motor installation: The 12V DC motor was installed and mechanically connected to the belt system.
9. Wiring: The sensors, motor driver, microcontroller, and power supply were connected.
10. Case installation: A protective case was added to organize and protect the wiring.
11. Programming: The automation code was uploaded to the XIAO ESP32-C3 using Arduino IDE.
12. Testing: The complete sequence was tested and validated under instructor supervision.

User Interface and Aesthetic Integration

The user interface of the conveyor belt machine is based on physical interaction. The user places an object at the beginning of the conveyor belt, and the machine automatically starts the transportation sequence. No complex screen interface is required because the interaction is direct and intuitive.

A protective case was added to improve the organization of the cables and the visual presentation of the electronic system. This case also contributes to safety because it reduces exposed wiring and helps protect the components during testing and operation.

The aesthetic integration of the machine was important because the final prototype needed to show not only functionality, but also clarity, order, and care in the assembly process.

Before the aesthetic improvement to hide and organize the wiring.

Final result after the aesthetic improvement and cable organization.

Final mechanism operation and automated conveyor belt demonstration.

Problems Encountered and Solutions

During the development of the conveyor belt machine, several technical and mechanical challenges appeared throughout the fabrication, assembly, electronics integration, and automation stages. These issues became valuable learning opportunities that improved the final machine performance and reinforced important concepts related to digital fabrication, embedded systems, automation, and mechanical design.

Final Result

The final result was a fully functional automated conveyor belt machine capable of detecting objects, activating motion automatically, transporting elements, and stopping safely at the final position. The project successfully integrated mechanical design, laser cutting, embedded programming, sensor systems, electronics fabrication, automation logic, and collaborative development.

The machine demonstrated how digital fabrication tools and embedded technologies can be combined to create intelligent systems inspired by industrial automation and Industry 4.0 principles. The project also highlighted the importance of teamwork, iterative prototyping, calibration, and interdisciplinary integration.

Machine Demonstration Video

Group Reflection

This project represented an important collaborative experience that combined digital fabrication, mechanical engineering, electronics, embedded programming, and automation concepts within the Fab Academy framework.

One of the most valuable aspects of the assignment was the integration between different laboratories and institutions. The collaboration between START Labs UPS Quito and Industrial FABLAB UCUENCA allowed the team to combine fabrication technologies, technical knowledge, and interdisciplinary skills.

From the mechanical perspective, the project reinforced concepts related to modular design, press-fit structures, roller alignment, tolerances, and motion transmission systems.

From the electronics and programming perspective, the project showed the importance of checking voltages, validating PCB continuity, correcting wiring problems, testing sensors individually, and programming the automation sequence before integrating the complete machine.

The project also demonstrated principles related to Industry 4.0, automation, and intelligent manufacturing systems through the development of an automated conveyor belt prototype.
