Week 4 — Embedded Programming

Documentation covering embedded toolchains, Datasheets.

Instructor

Neil

Focus

Protocols + Toolchains

Target Boards

ESP32-C3

Learning Objectives

  • Implement programming protocols.

📋 Assignments

Individual Assignment

  • Browse the datasheet for a microcontroller

    Identify key specs and constraints relevant to my final project.

  • Write and test an embedded program

    Use a microcontroller to interact with local inputs/outputs and communicate using wired or wireless connections.

Group Assignment

  • Compare toolchains and workflows

    Demonstrate toolchains for different embedded architectures.

  • Document to Group's individual Page

    Publish Group's work and summarize learnings

🛠️ Tools & Materials

Category Items
Software TinkerCAD circuit simulation, Wokwi ESP32 Simulator
Hardware Tools Digital Multimeter

👥 Group Assignment

The objective of the Group Assignment is to understand and compare different toolchains for different microcontrollers. I chose the ESP32-C3, and my partner chose the Raspberry PI3.

What I compared: IDE options, compile/upload workflow, debugging approach, and how code becomes a binary for the target chip.

Next: Add screenshots of each toolchain setup (IDE, board selection, serial monitor, upload success).

What is a Toolchain in an Embedded System?

An embedded system toolchain is a set of software tools—typically a compiler, assembler, linker, and debugger—that converts source code into machine code for a specific target processor.

Key Components

  • Compiler — Translates high-level code into machine code for the MCU Architecture
  • Assembler — Converts Assembly code into machine-readable object code.
  • Linker — Combines Object files, Libraries into one executable binary.
  • Debugger — Helps inspect variables, memory, registers, and step through code to find any bugs or different behavioral than expected!

Toolchain Workflow

Compiler → Assembler → Linker → (Binary) → Flash = Upload to Microcontroller Board.

ESP32-C3 Processing Modes & IDE Choices

By using Arduino IDE and correct libraries we can program and run programs on the ESP32-C3 chip.

Common IDE Options

  • Arduino IDE — ESP32-C3 Libraries

🧪 Process & Workflow (Individual Assignment)

Part 1 — Examine the Datasheet for the board.

Some of the final project elements require Bluetooth, I have chosen to use this board to communicate to another ESP32-C3 board to transmit/receive the data.

I reviewed the Datasheet to understand how these components interact and what limitations I need to consider.

Datasheets

Note: Datasheets are very detailed, so I only focused on the sections that affect power, pins, communication, and constraints.

A. Power Requirements (What I Focused On)

ESP32-S3

  • Operating Voltage: 3.0V to 3.6V → I need a stable 3.3V regulator.
  • Current Spikes: during RF (Bluetooth) transmission, current can spike up to ~355mA → power supply should be rated at least 500mA for safety margin.

Humidity Sensor (DHT11/22)

Draws about 2.5mA to 3mA

MPU-6050

Draws about 3.5 mA to 5.2 mA during active operations.
Key Power Consumption Details:

  • Active Mode: : ~3.9 mA to 5.1 mA (with LED)
  • Sleep Mode: : ~1.4 mA to 33 µA (highly dependent on if the power LED is removed)
  • Operating Voltage: : The module usually operates on 5V, but the IC runs on 3.3V
  • Optimizing Power: : Removing the onboard power LED can significantly reduce power consumption, often dropping it to under 1 mA

Compass Sensor (HMC5883L)

Draws about 2.16V to 3.6V.

OLED Display

Draws about 20mA–25mA when fully illuminated.

B. Pinout

Pinout defines the physical pin locations and their fixed capabilities, while

  • Pinout: physical pins + constraints (power pins, ground pins, dedicated pins)

Next Steps:

  • I have added a picture of my breadboard design of the final project and continue to work on it.

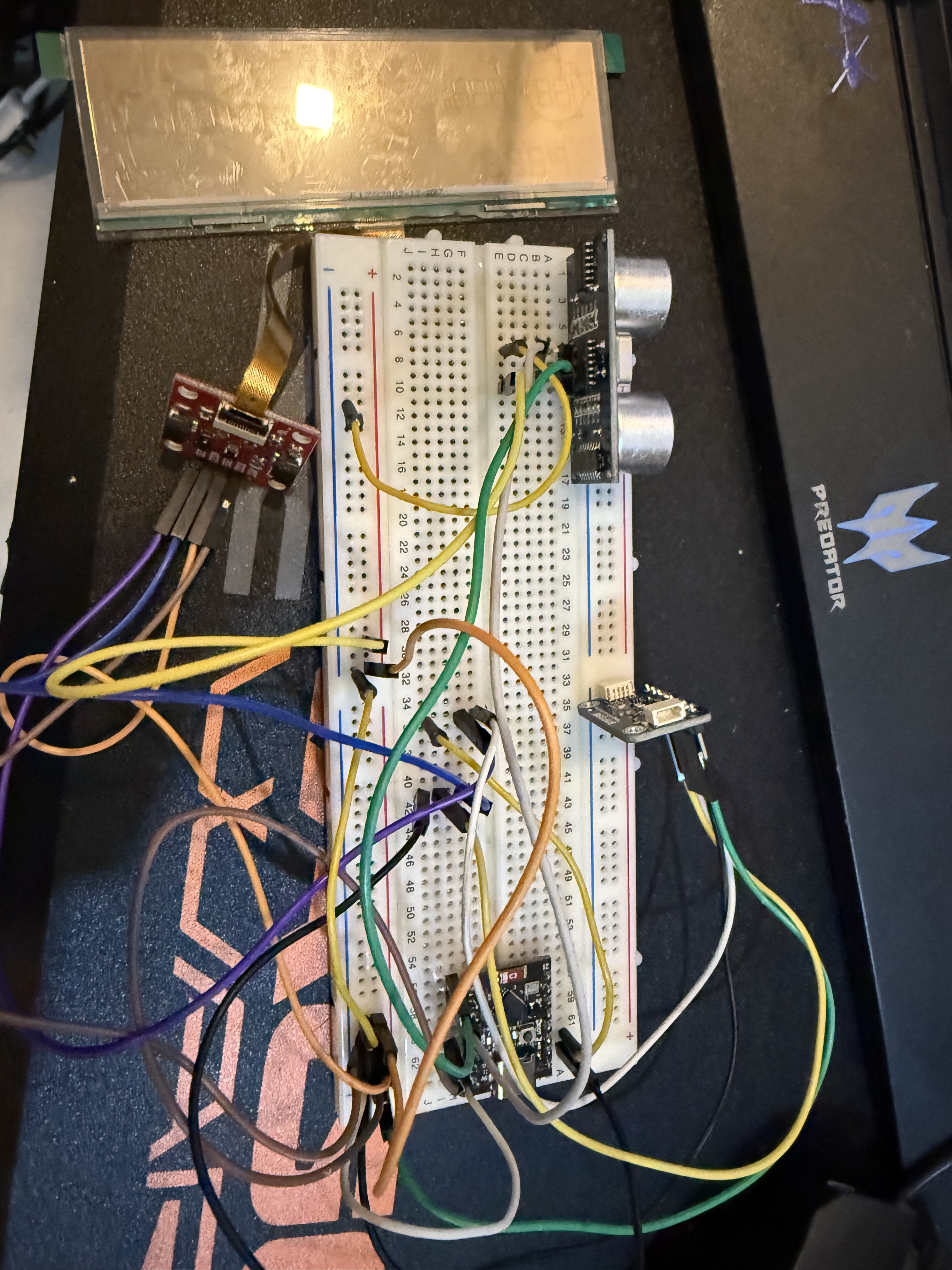

final project design
Breadboard view design

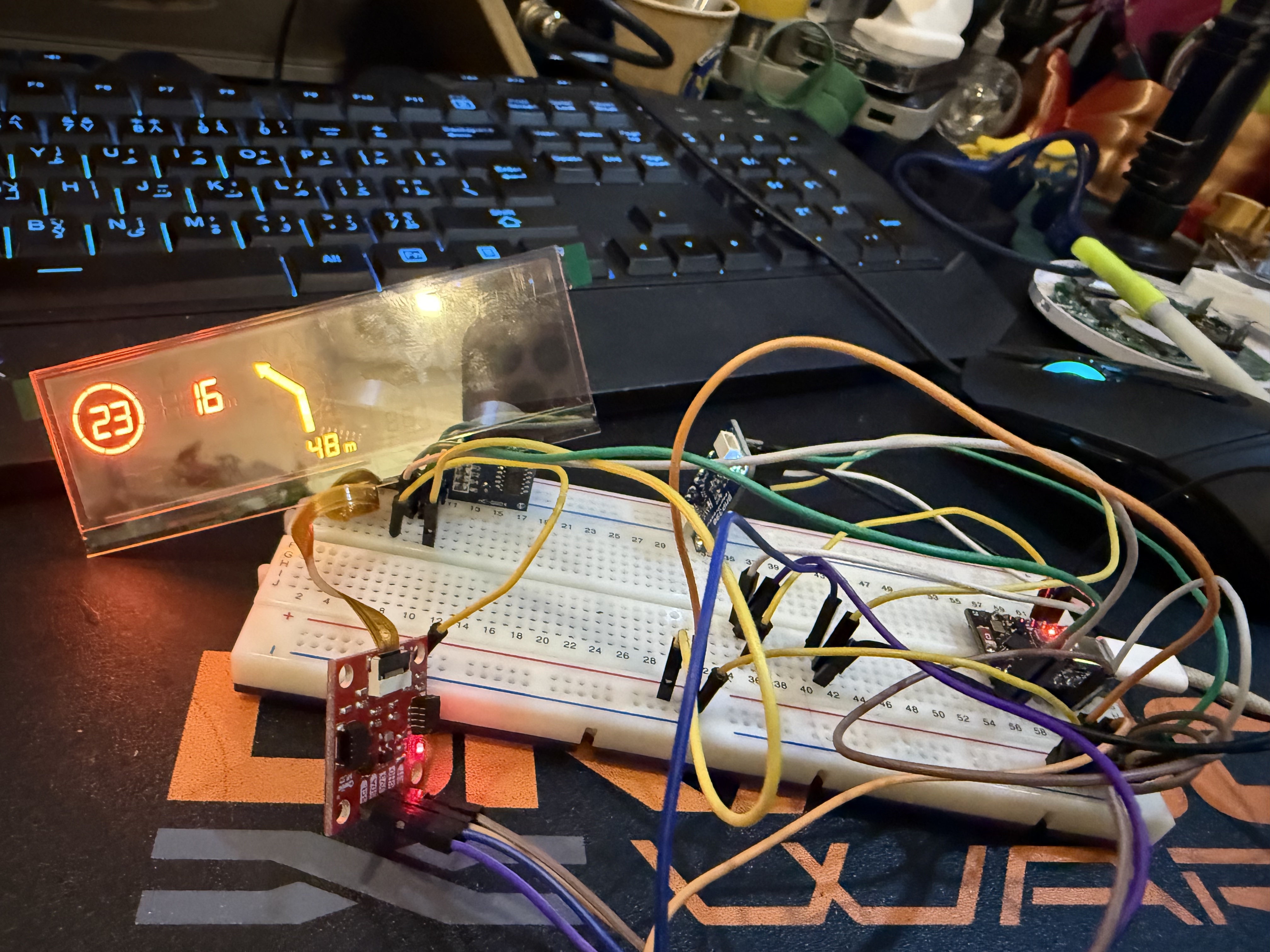

Actual Working of project
Separate files prepared for traces and board outline.
