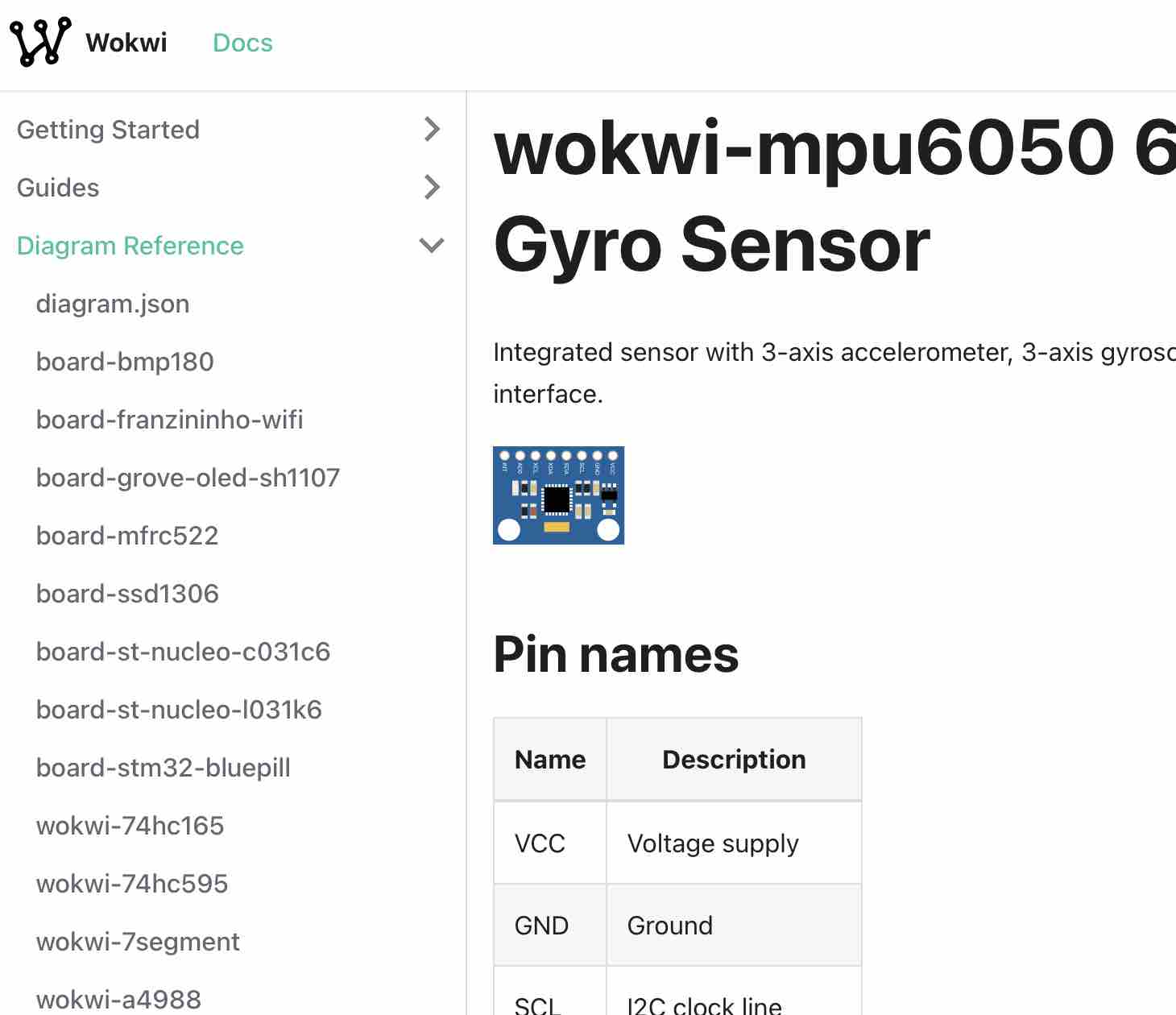

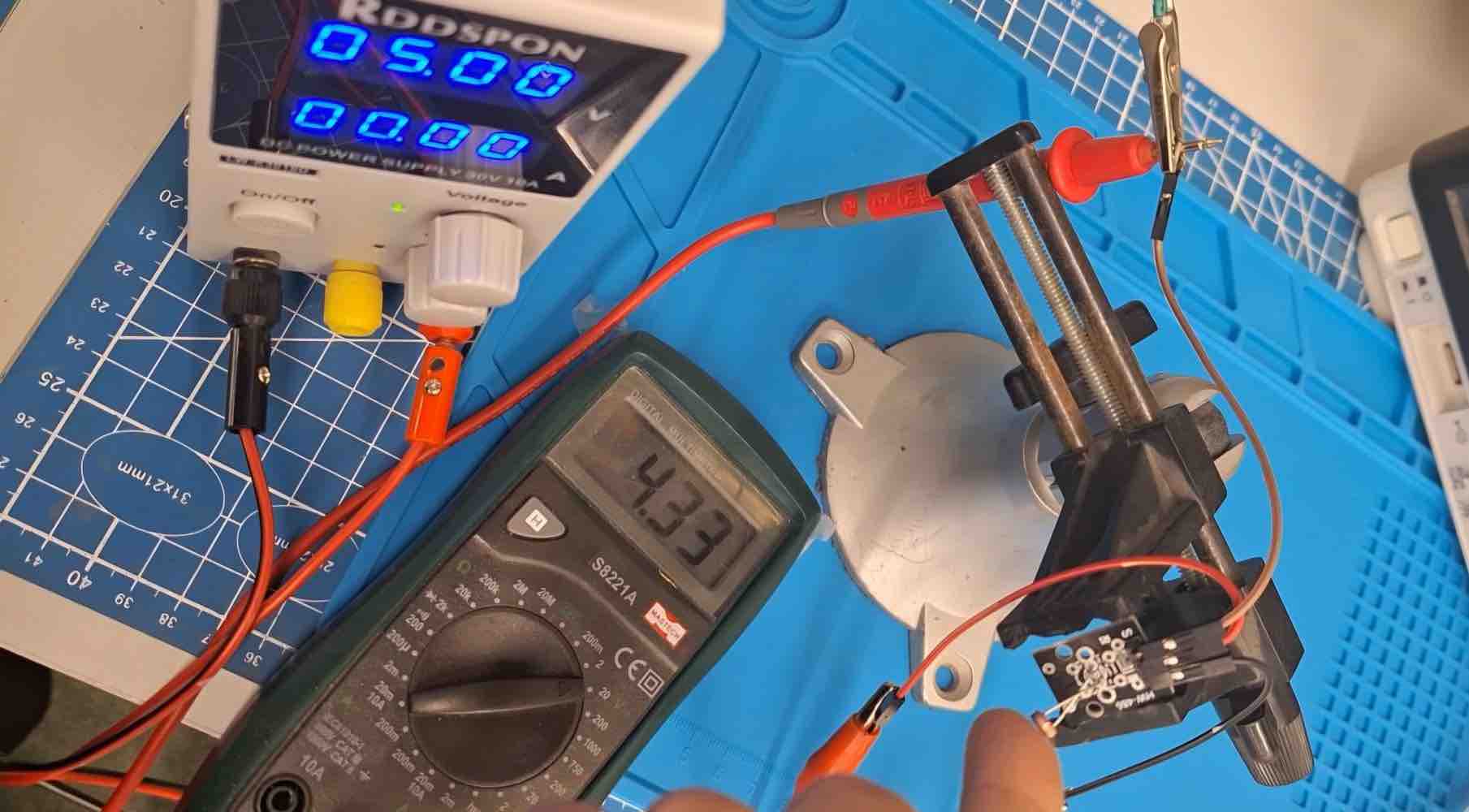

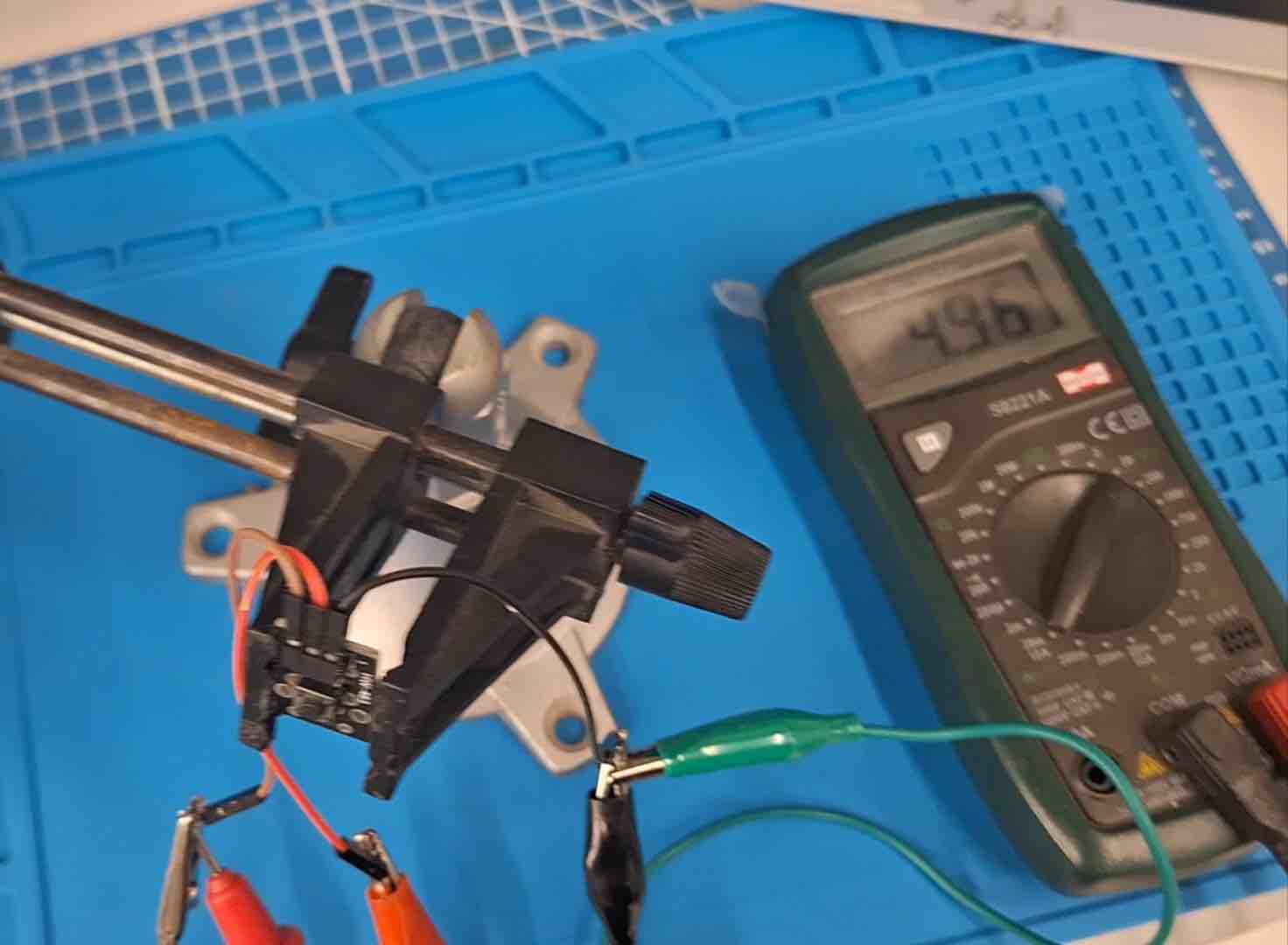

01 | I used MPU 6050 GY-512 which is also part of my final project. I leaned all the information I needed from from Wokwi and strated virtual simulation as I was a way from the lab and wanted to utilise my time to strat this assignemnet.

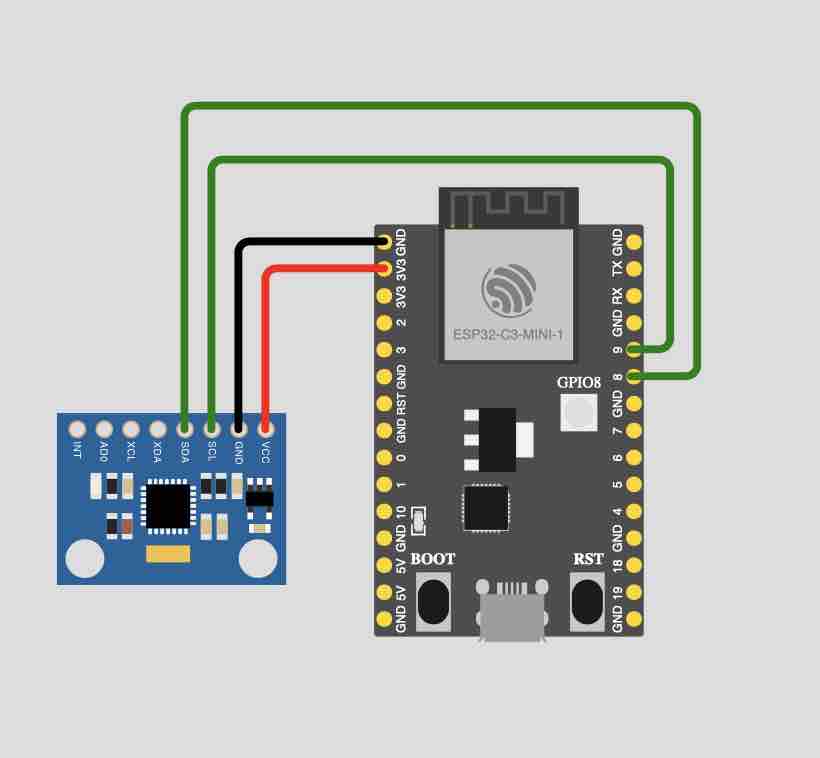

02| I build the curcit connecting the MPU to the ES32 C3

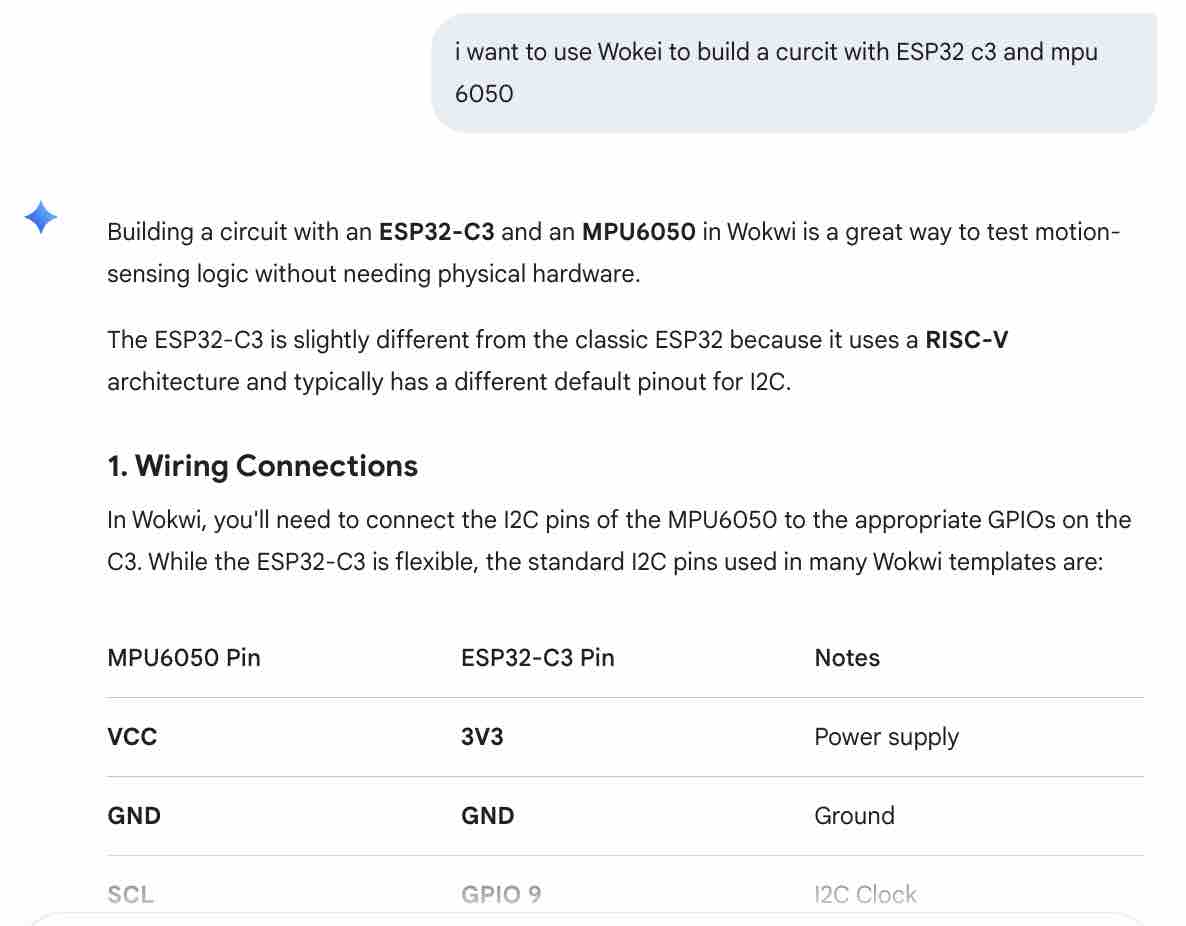

03| from Gemeni Ai I got some guidline on the process to continue

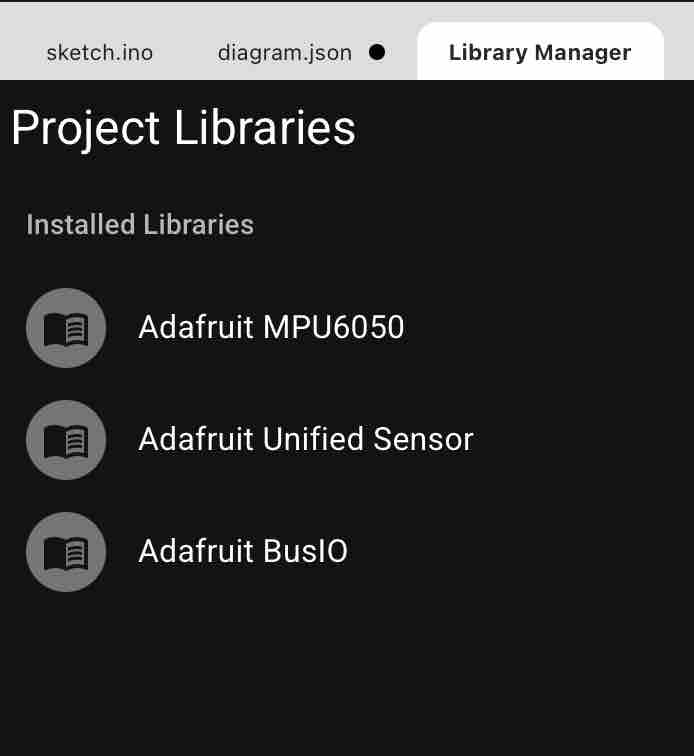

04| I added these libraries

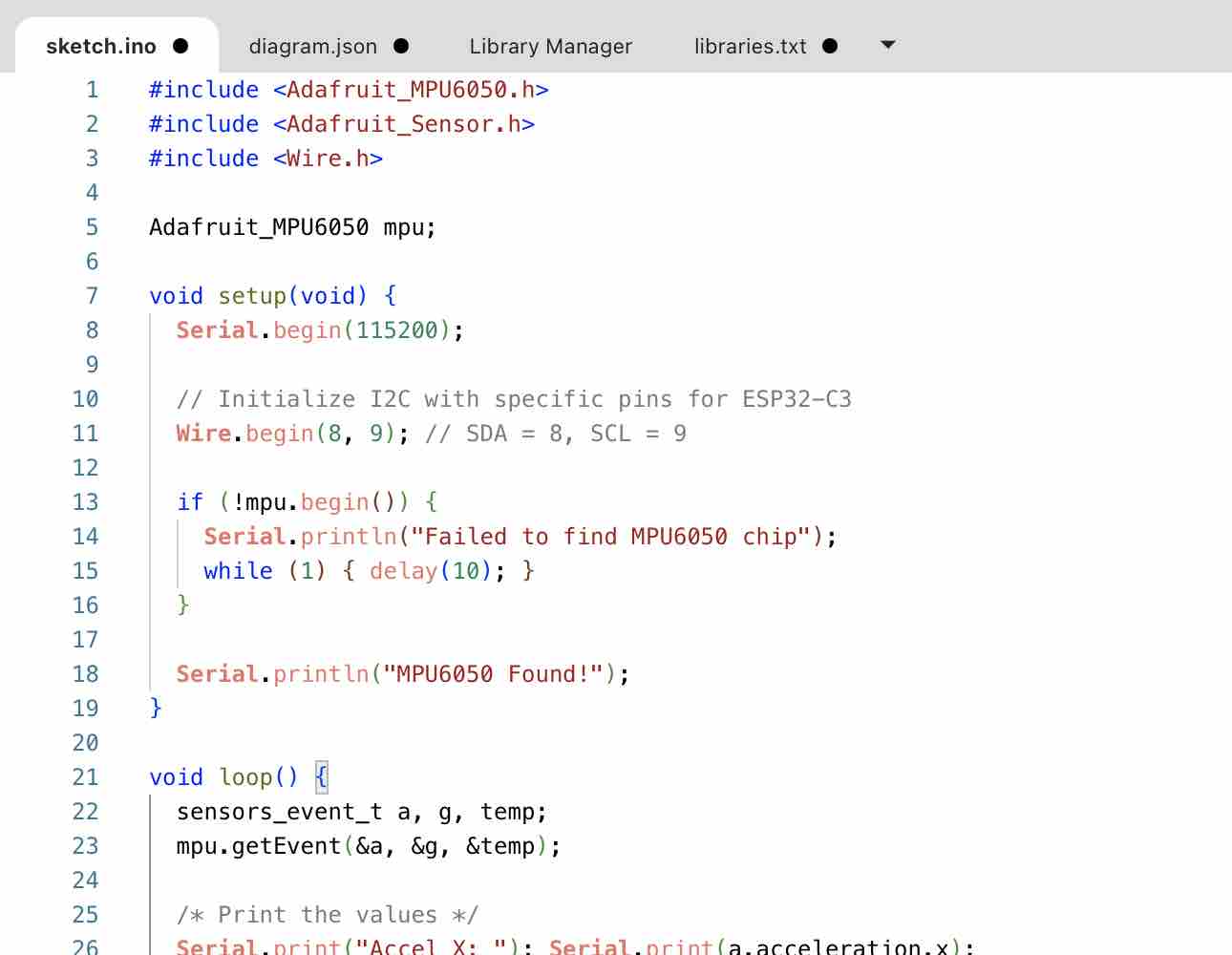

05| and I included this code

#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>

Adafruit_MPU6050 mpu;

void setup(void) {
  Serial.begin(115200);

  // Define I2C pins for ESP32-C3 (SDA=8, SCL=9)
  Wire.setPins(8, 9);

  if (!mpu.begin()) {
    Serial.println("Failed to find MPU6050 chip");
    while (1) { delay(10); }
  }

  Serial.println("MPU6050 Found!");

  // Set sensor ranges (optional)
  mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
  mpu.setGyroRange(MPU6050_RANGE_500_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

  delay(100);
}

void loop() {
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp);

  /* Print out the values */
  Serial.print("Accel X: "); Serial.print(a.acceleration.x);
  Serial.print(", Y: "); Serial.print(a.acceleration.y);
  Serial.print(", Z: "); Serial.print(a.acceleration.z);
  Serial.println(" m/s^2");

  delay(500);
}

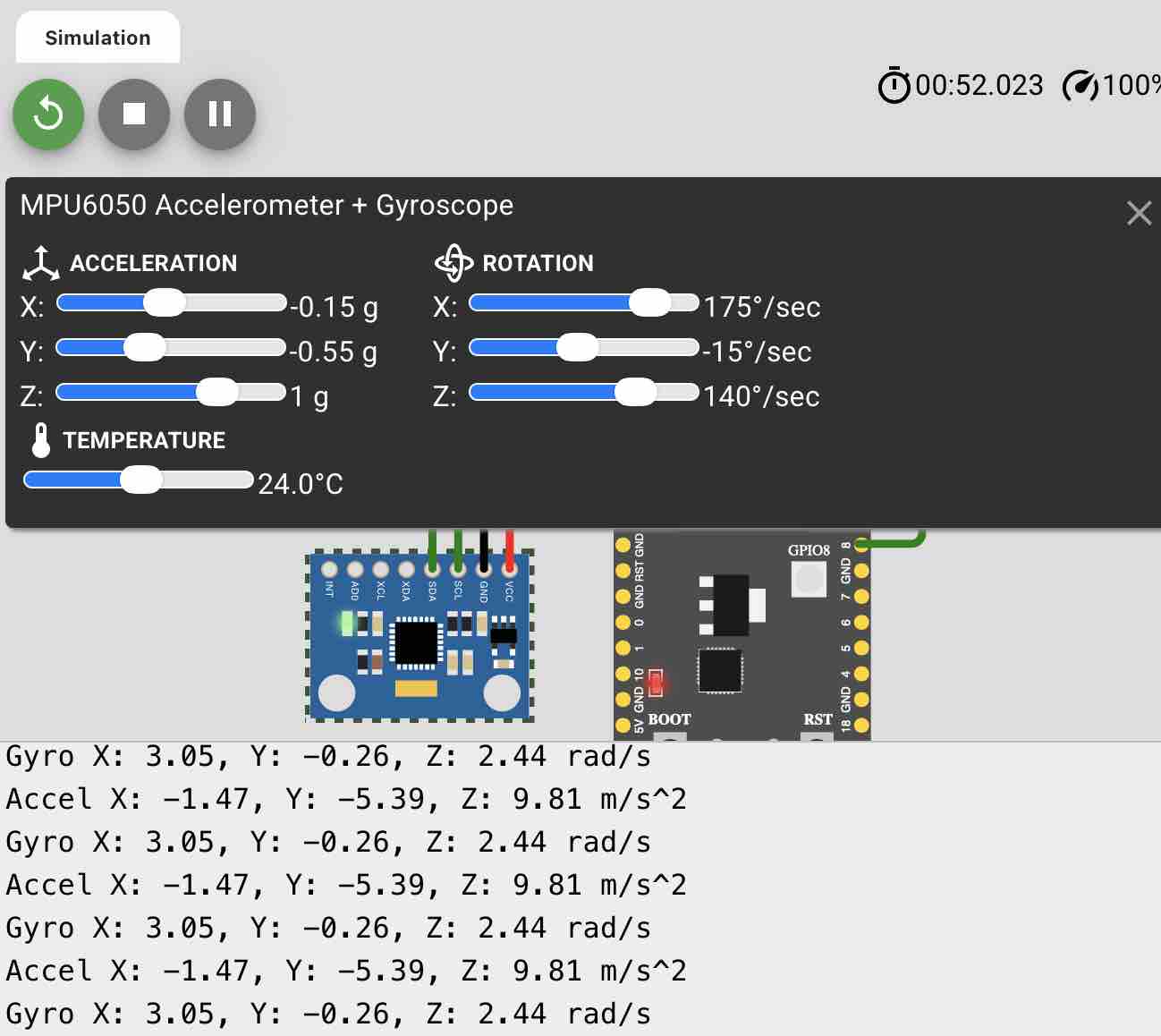

06| I strated teh simulation and strated to see the readings and changed the value

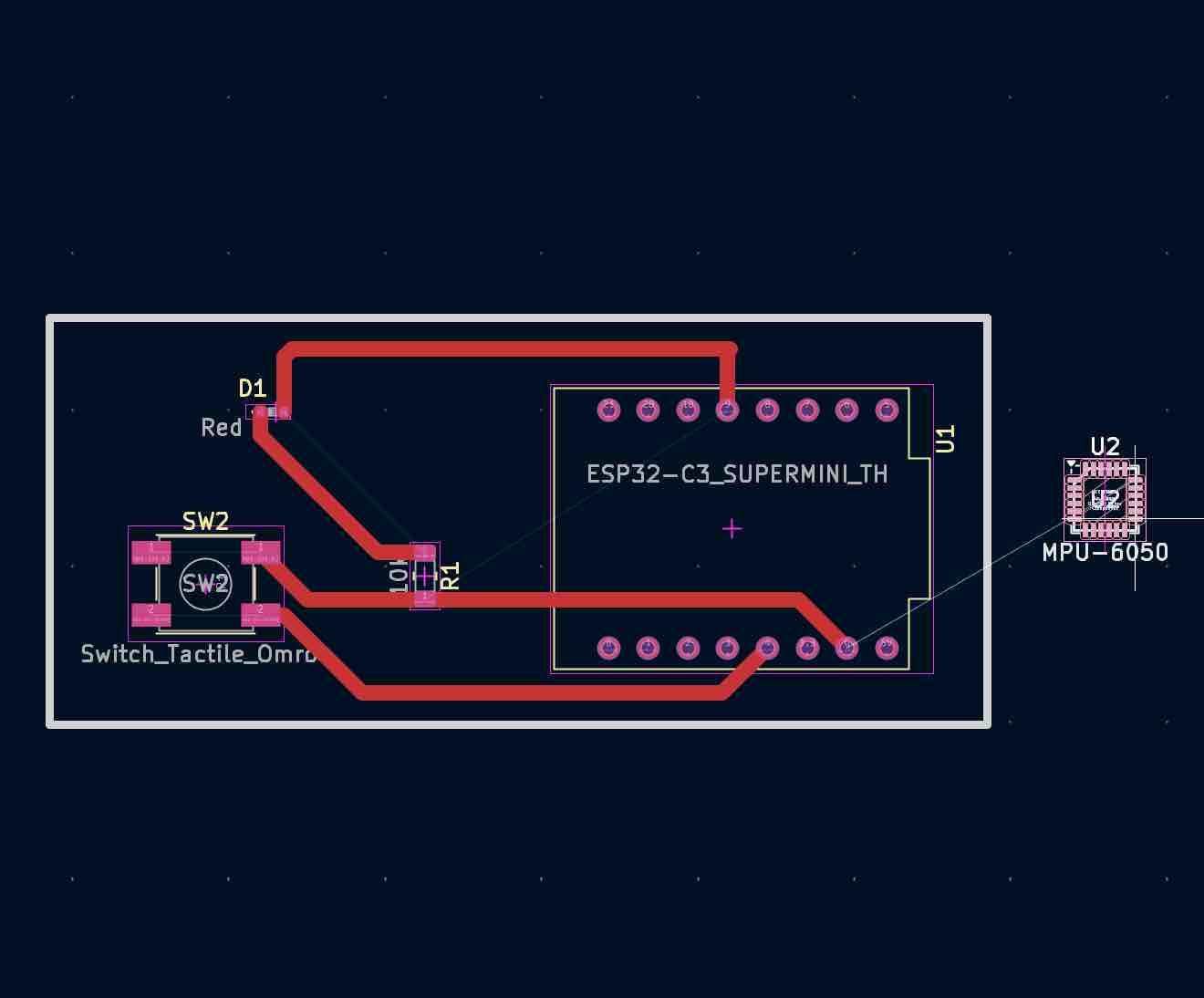

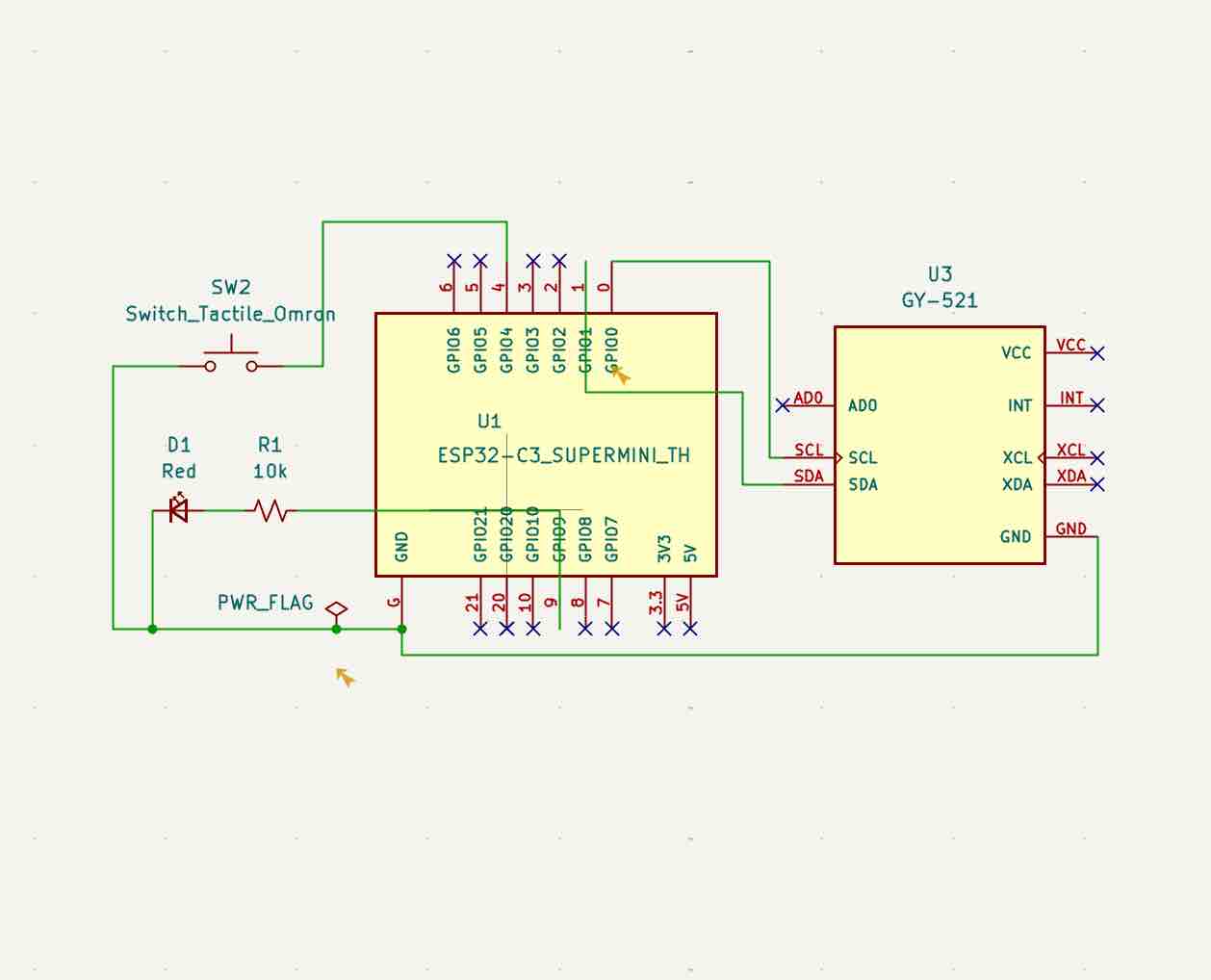

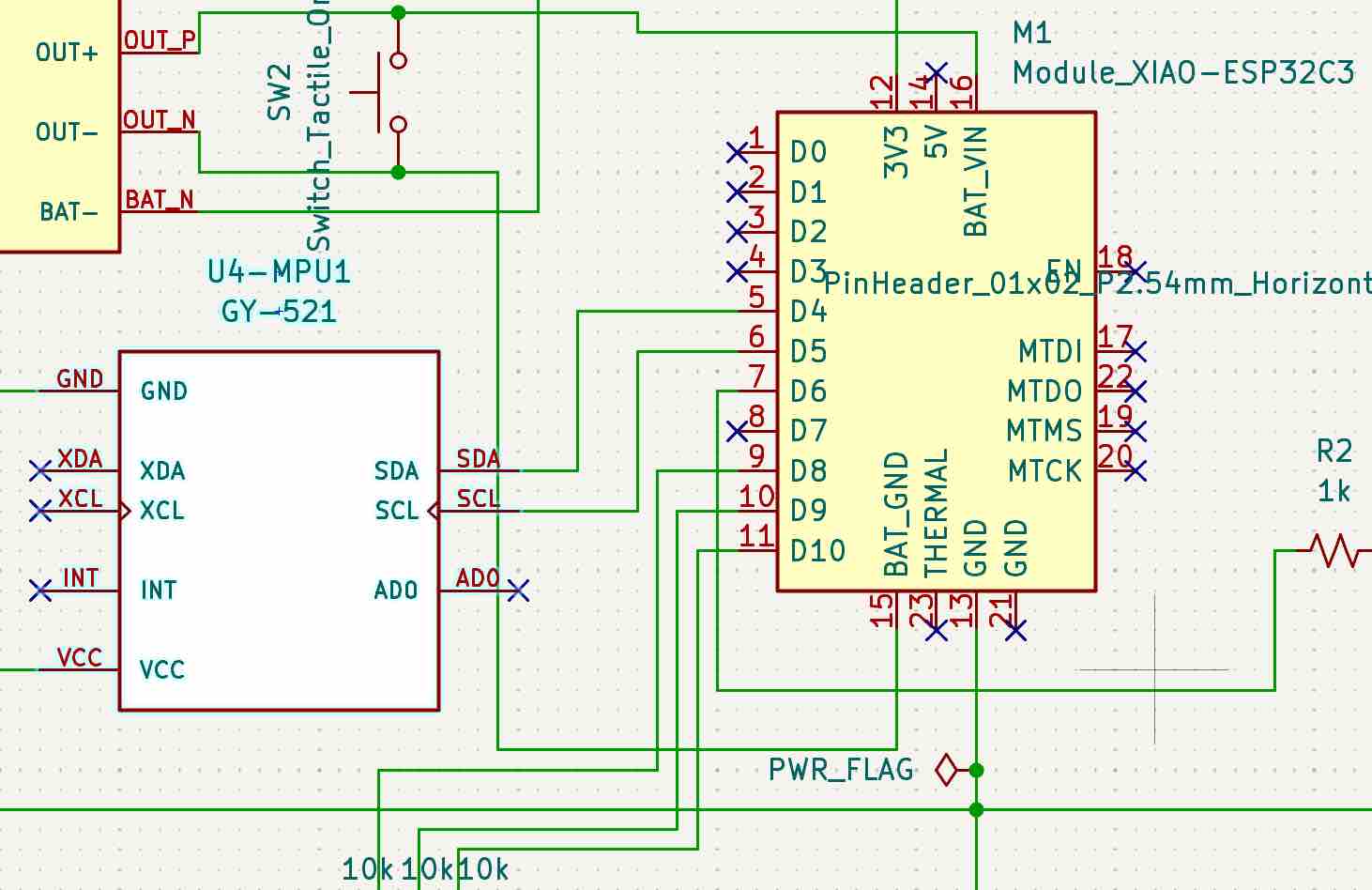

07| Then I opened my Kicad file on Schematics Editor and to added the GY-512 as a sinsor and made the connection folowing theis workflow: Look for part → not available → search on SnaPeda → download Symbole&footprint → opne Kicad → Import the library → add the new part → connected pins → mark other pins as "no connect" → run ERC

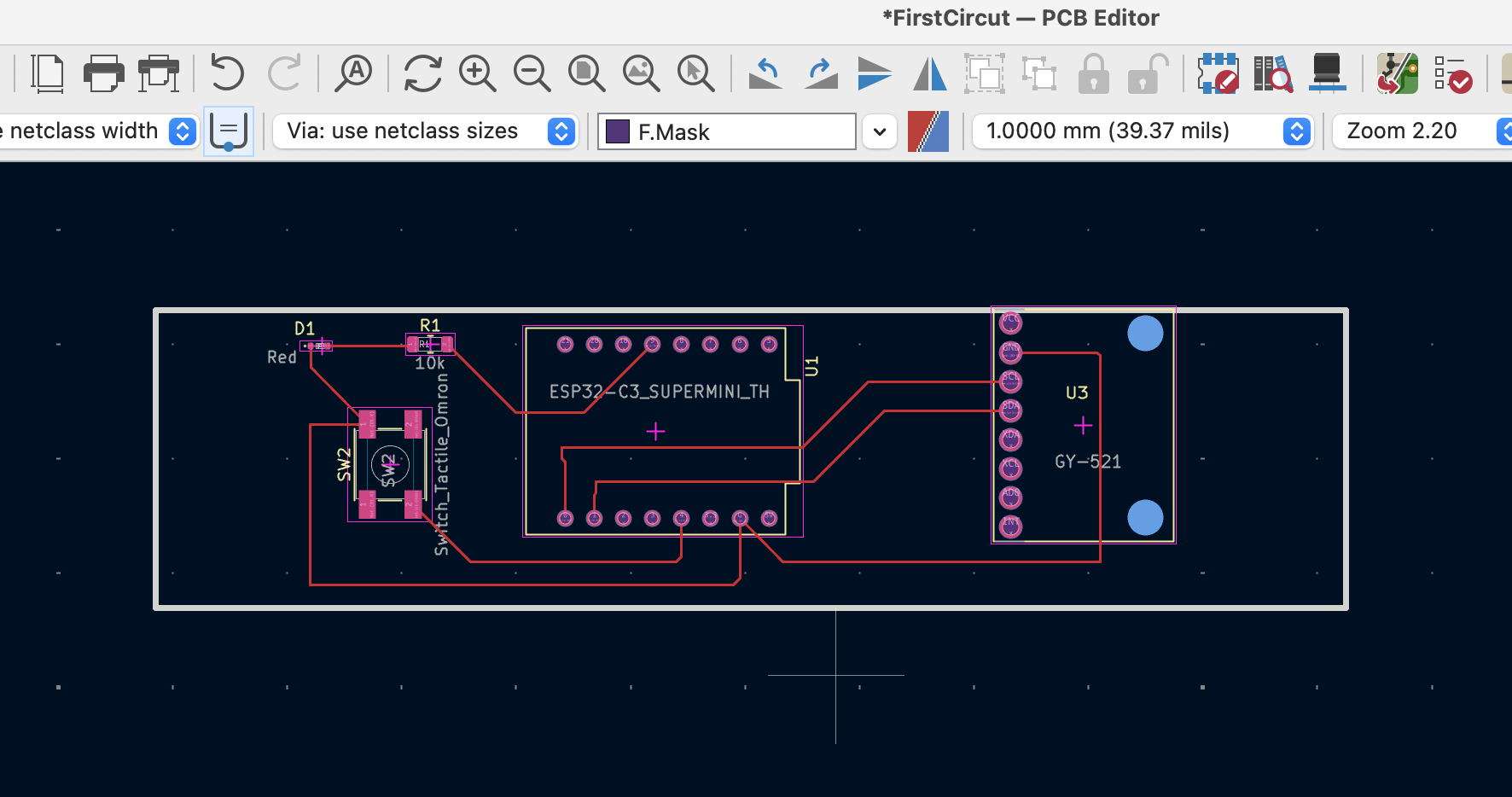

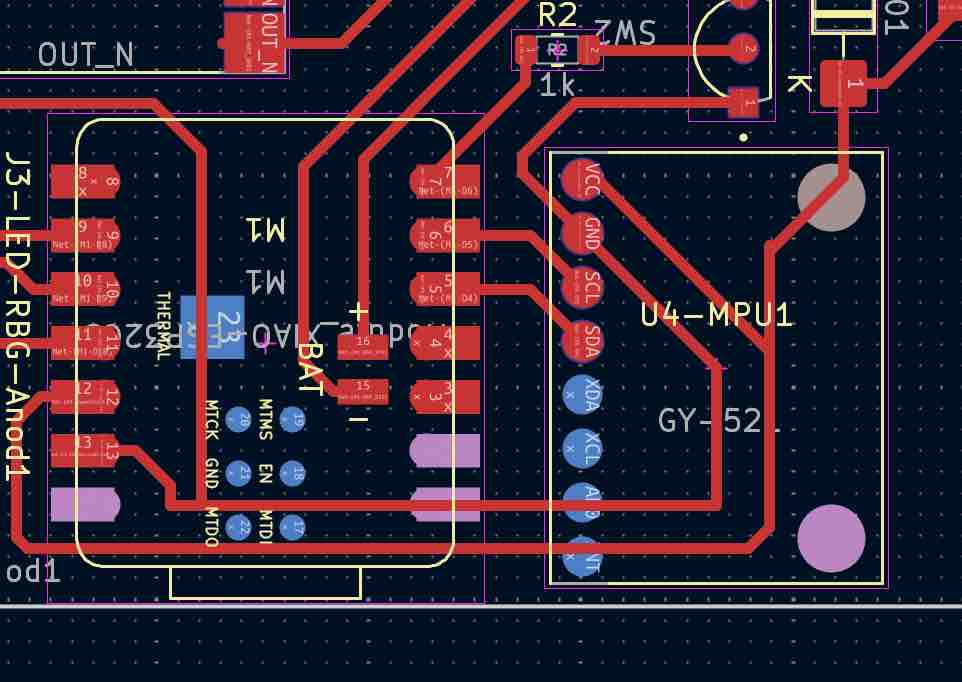

08| Then I updated the PCB Editor and placed the new input sensor

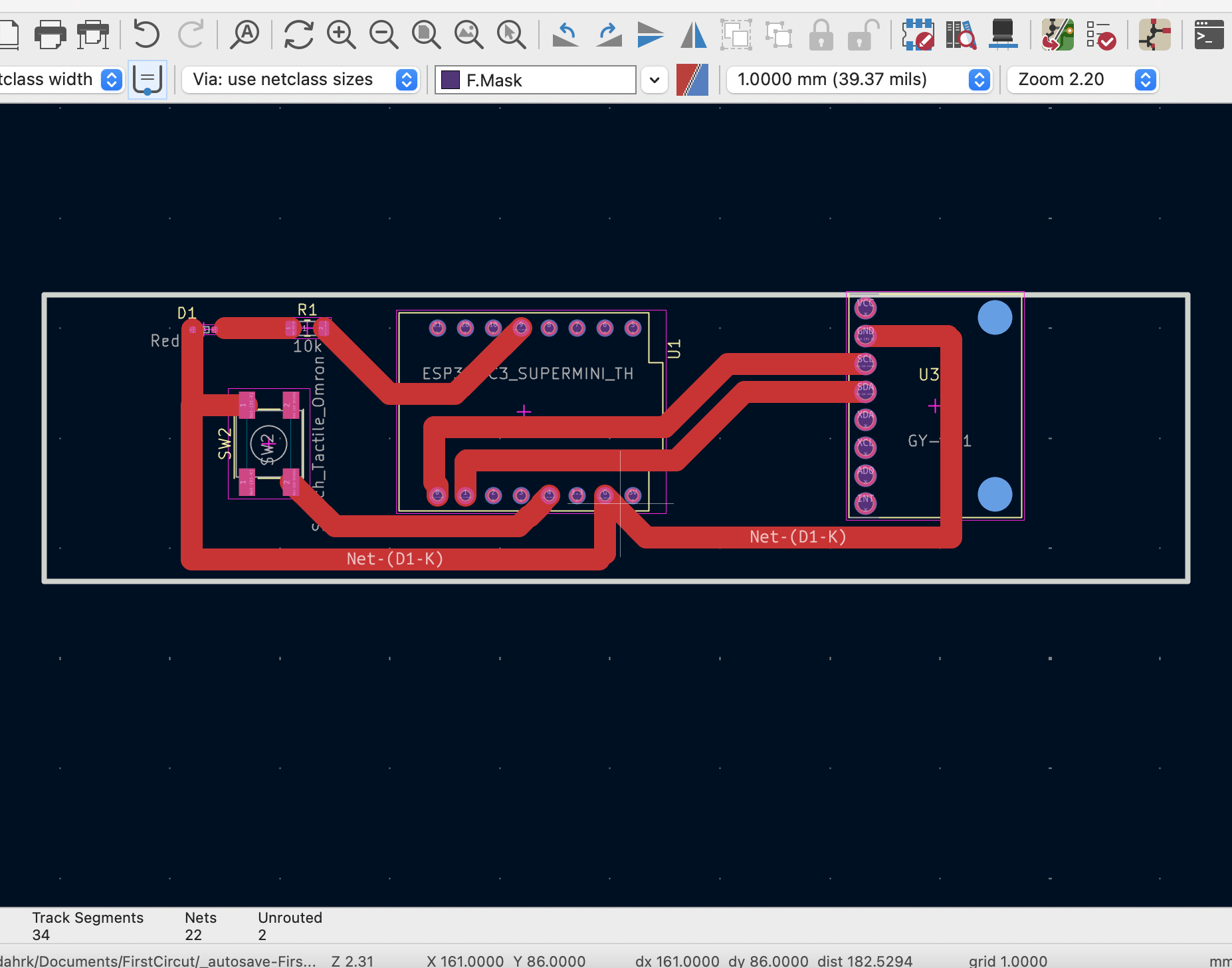

09| I tried to place it next to the microcontroller so that my full design fits on a 30mm copper tap which I have access to cut for the curcit.

10| for a better cutting results, I made the routs 2mm wide and made sure their is enough space between them to avoid short curcits

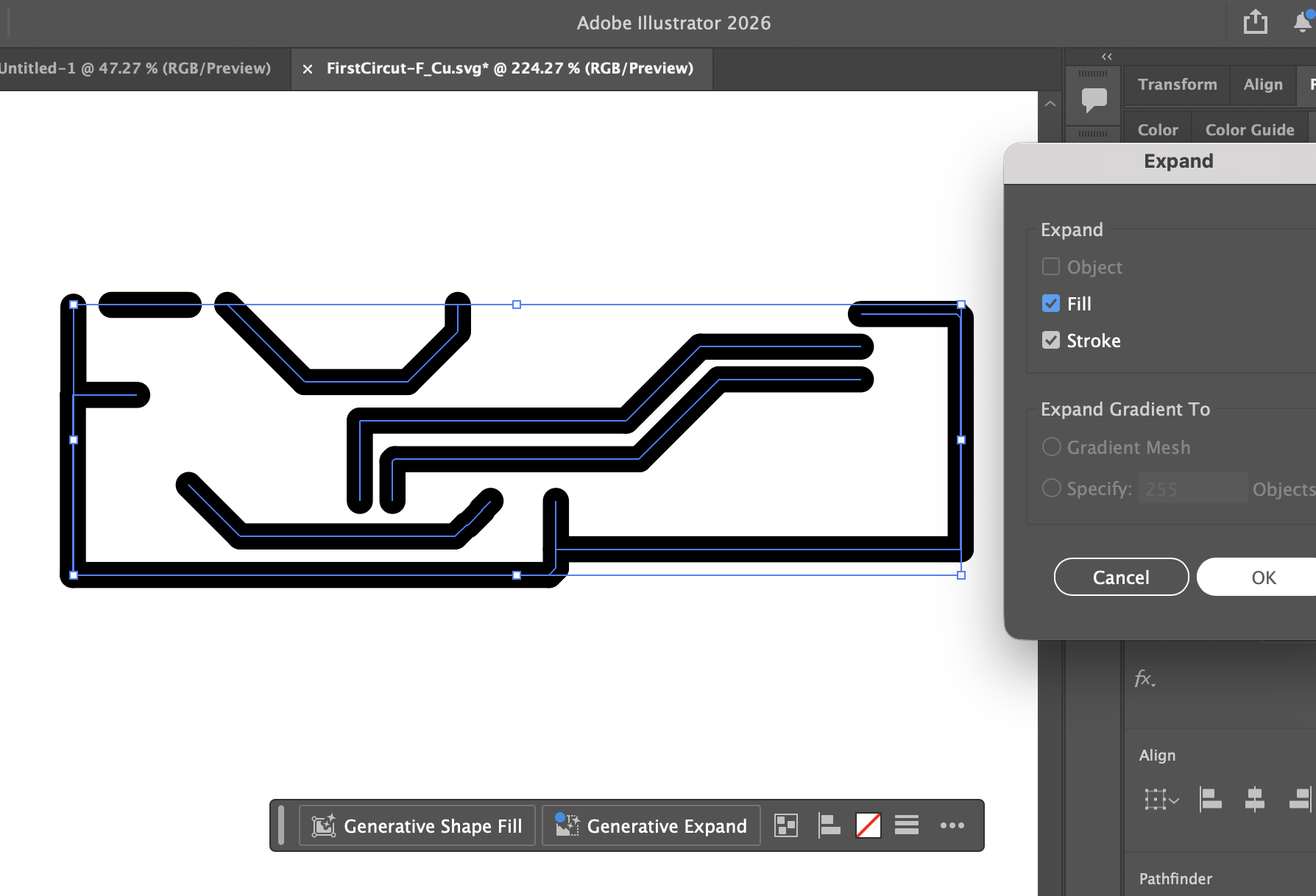

11| From Kicad, I ploted the PCD as SVG → imported it to Adobe Illustrator → trasformed it to shape → select all shapes → create a union → export as SVG → imported to Cutting Studio → cut the curcit on copper tap.

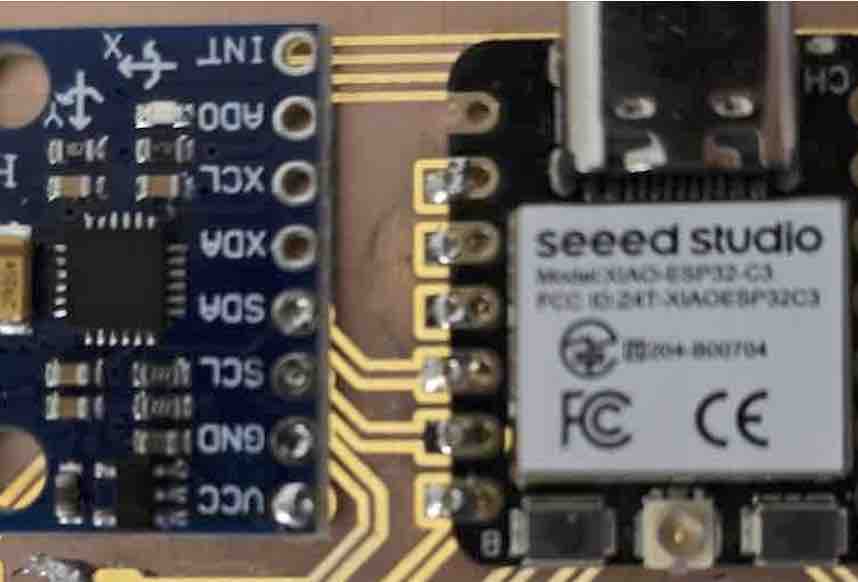

12| This is how the curcit looks after cutting

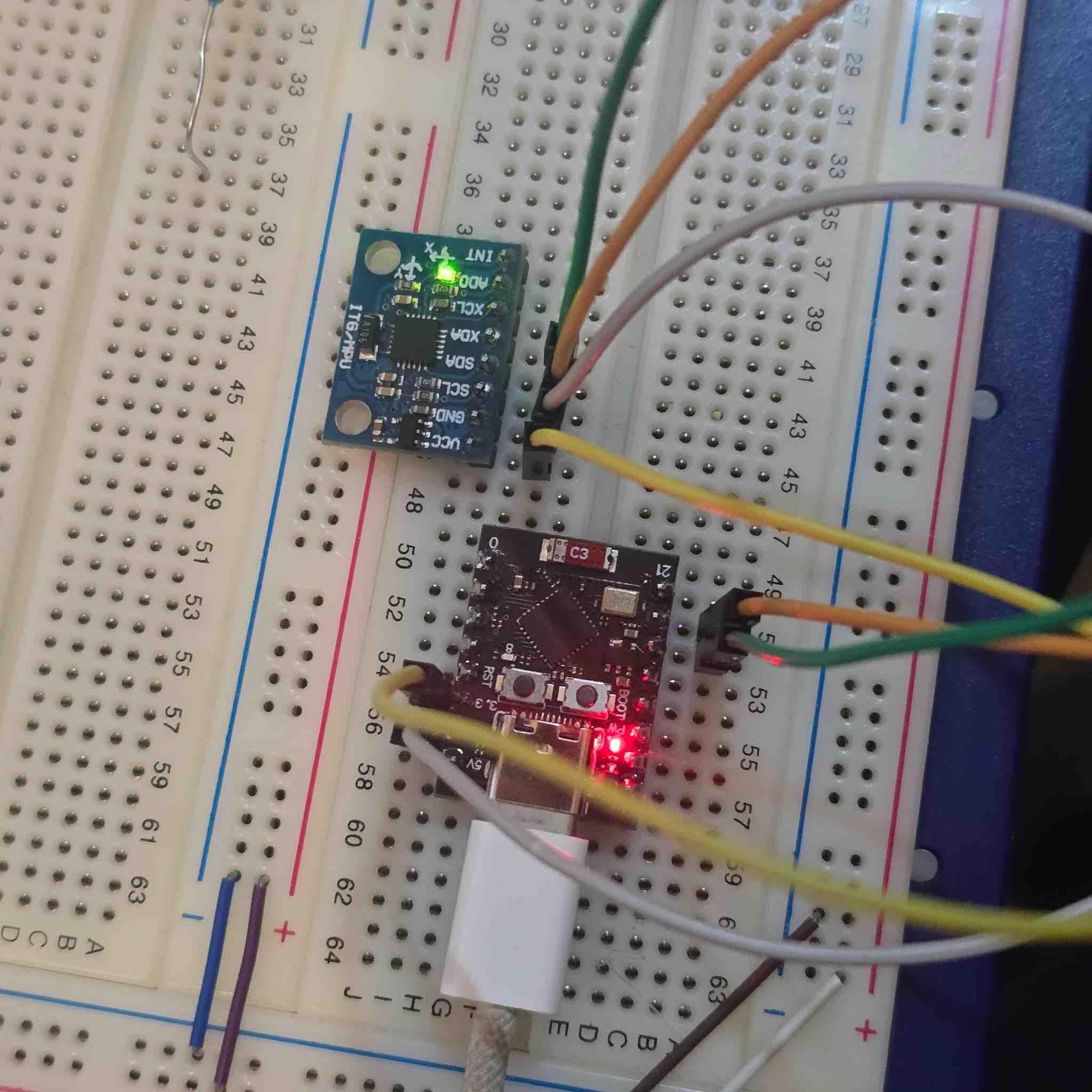

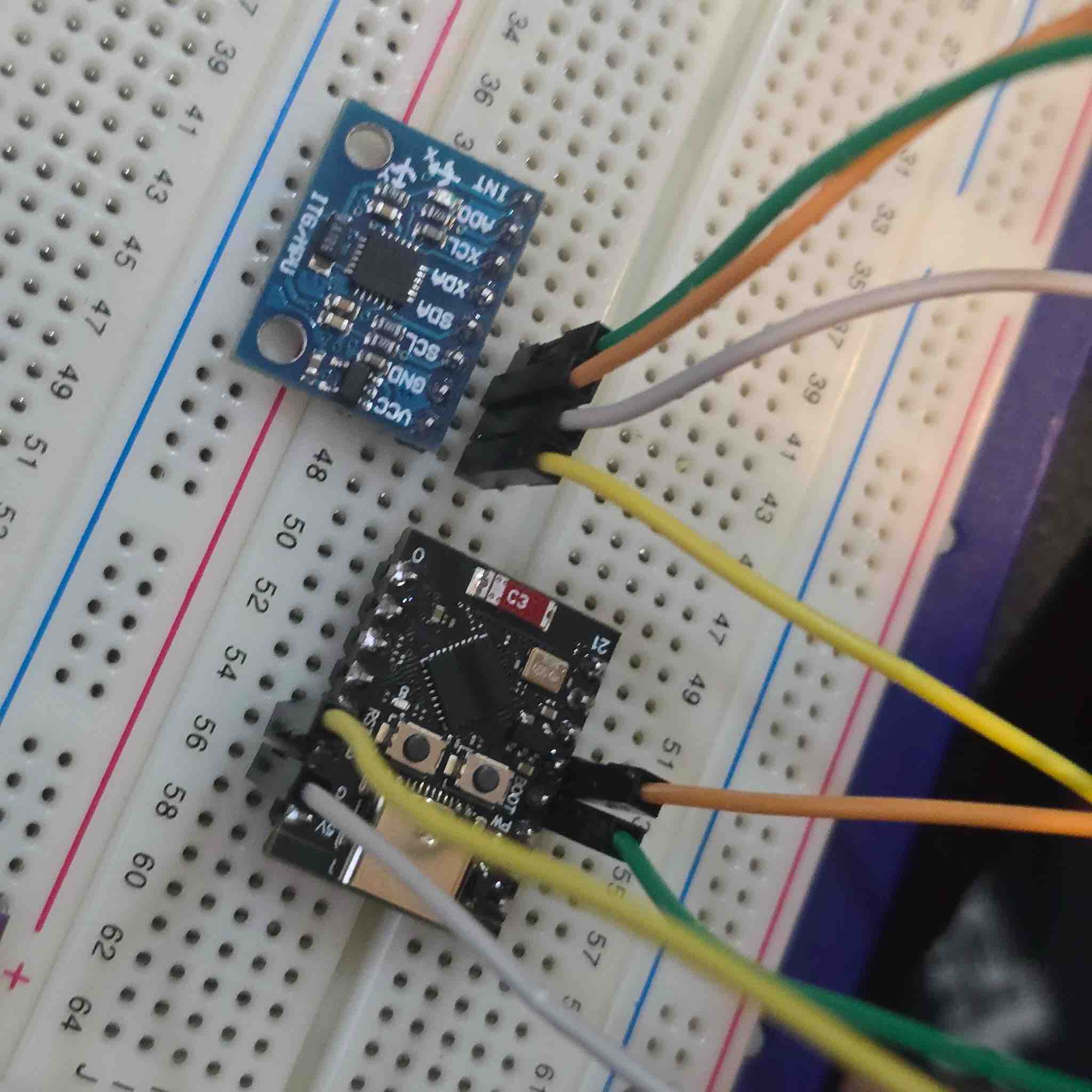

13| here, I connected the MPU to the ESP32 using breadboard

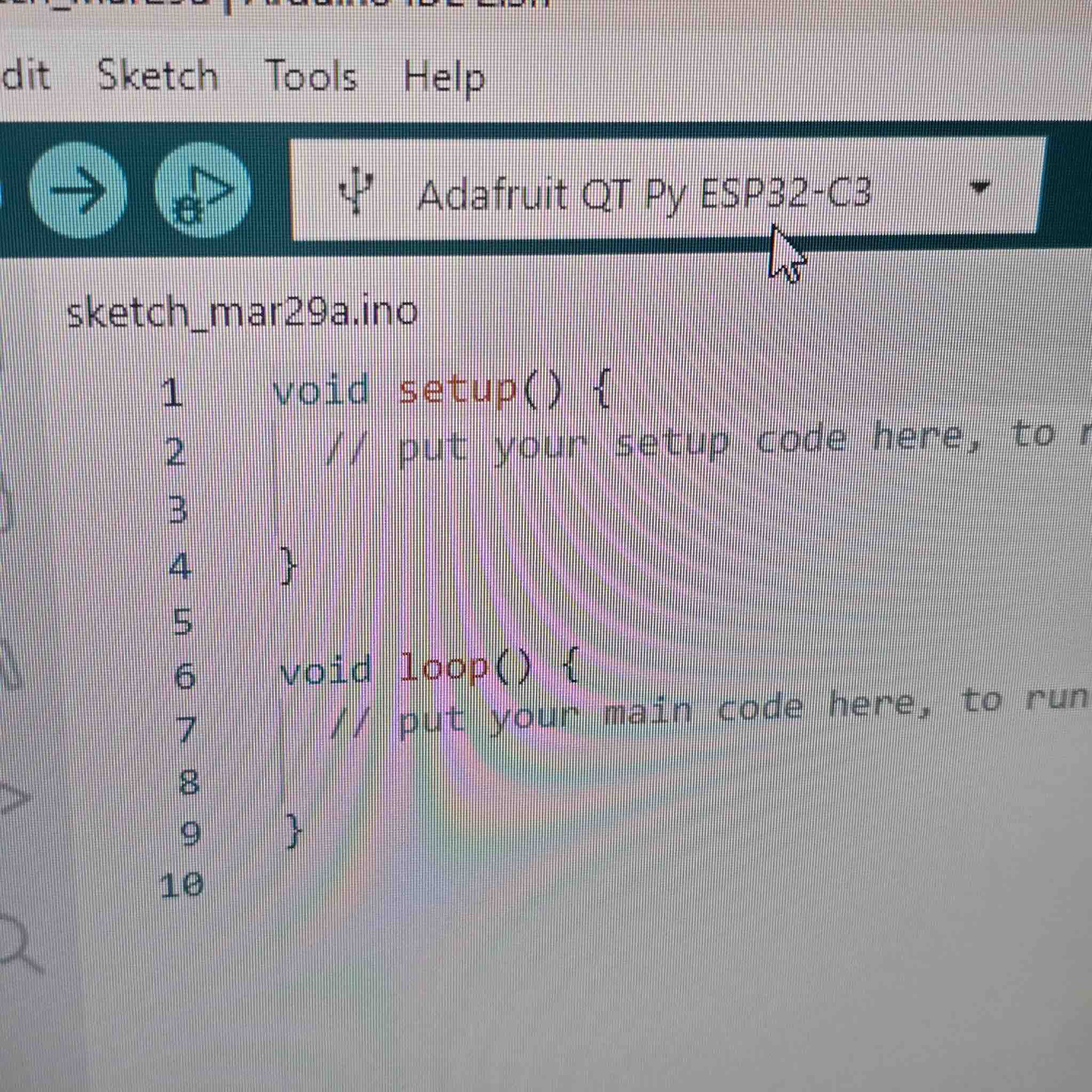

12| I use arduion IED to program the ESP32 C3 and I made sure I have the library selected

13| I added this code wchih was used in the. simulation in step 5

#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>

Adafruit_MPU6050 mpu;

void setup(void) {
  Serial.begin(115200);

  // Define I2C pins for ESP32-C3 (SDA=8, SCL=9)
  Wire.setPins(8, 9);

  if (!mpu.begin()) {
    Serial.println("Failed to find MPU6050 chip");
    while (1) { delay(10); }
  }

  Serial.println("MPU6050 Found!");

  // Set sensor ranges (optional)
  mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
  mpu.setGyroRange(MPU6050_RANGE_500_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

  delay(100);
}

void loop() {
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp);

  /* Print out the values */
  Serial.print("Accel X: "); Serial.print(a.acceleration.x);
  Serial.print(", Y: "); Serial.print(a.acceleration.y);
  Serial.print(", Z: "); Serial.print(a.acceleration.z);
  Serial.println(" m/s^2");

  delay(500);
}

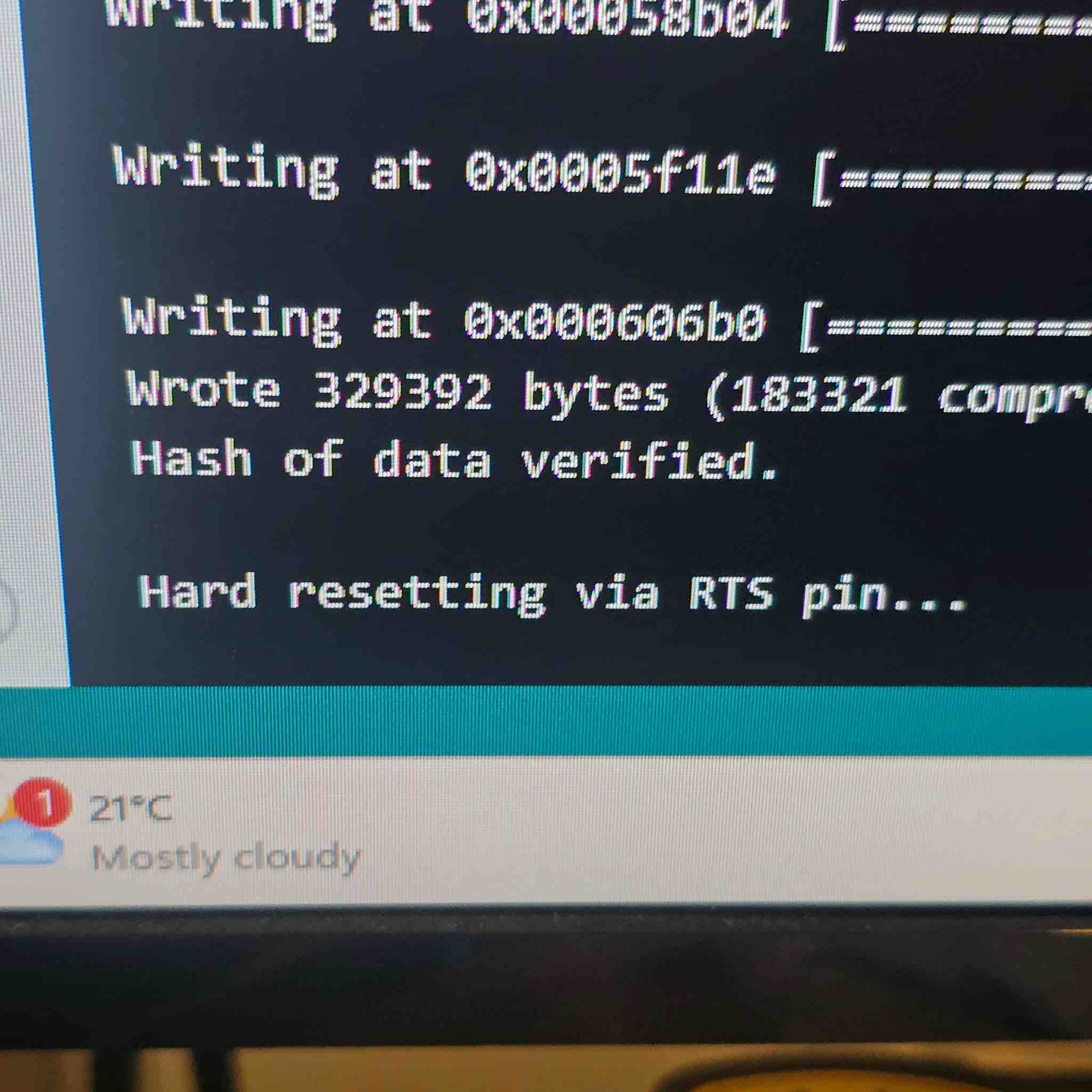

14| I connected the USB to the ESP to start download the program

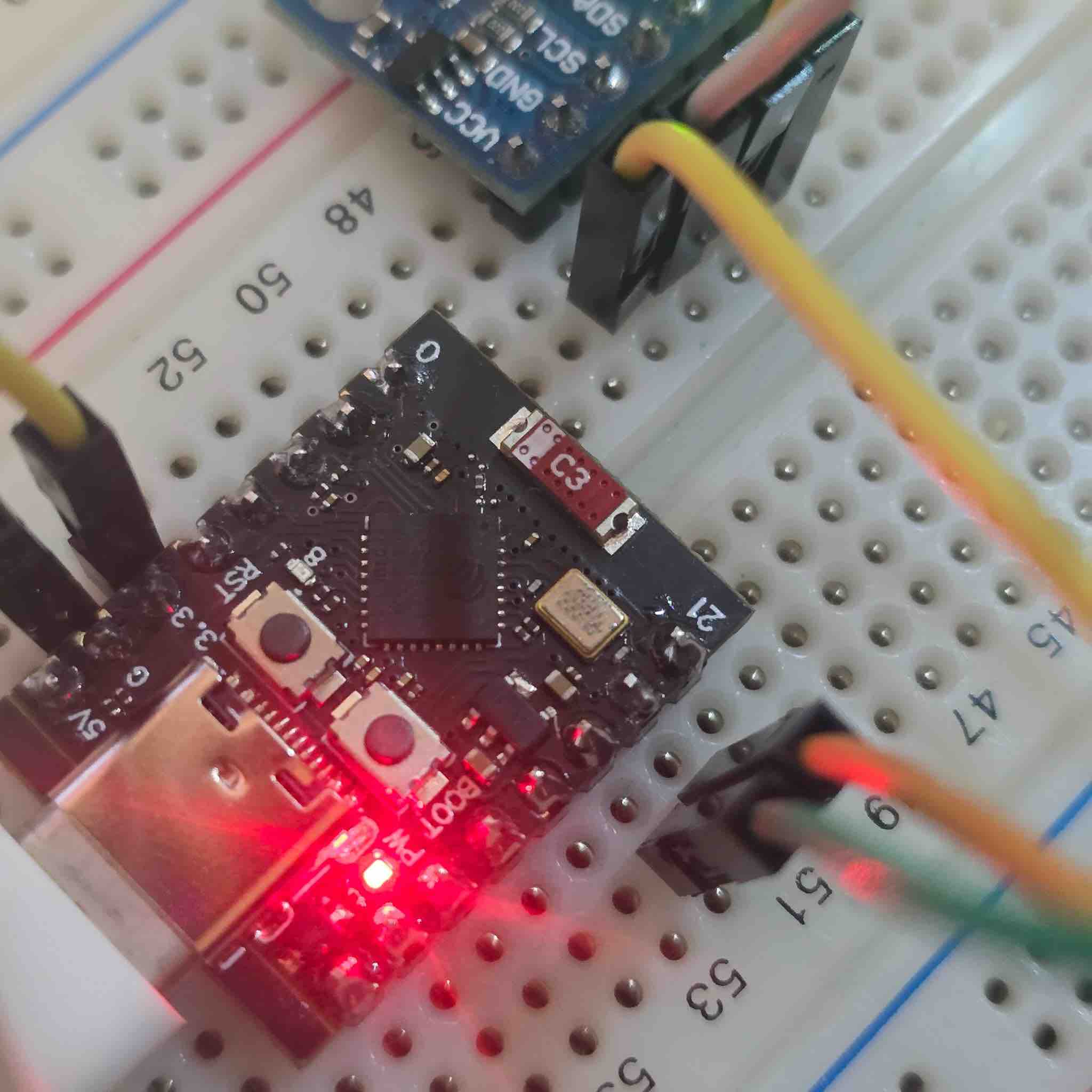

15| I had to rest the microcontroller by pressing the button

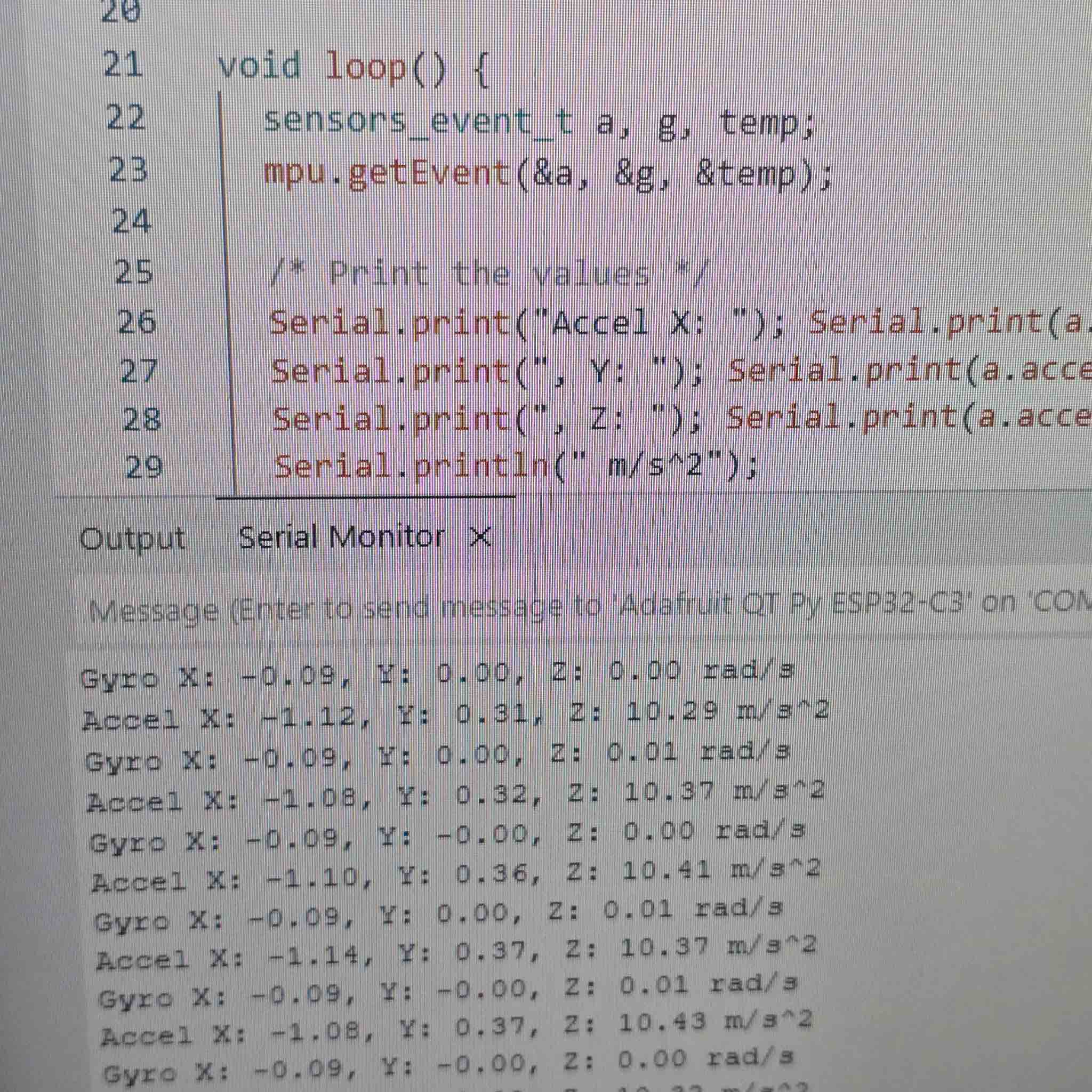

16| This is the button I pressed, and after few minutes I got the following reading on the IDE

17| the readings of x,y, z axies as well as the acceleration of change, to make a better visual, I needed to plot these values to a chart

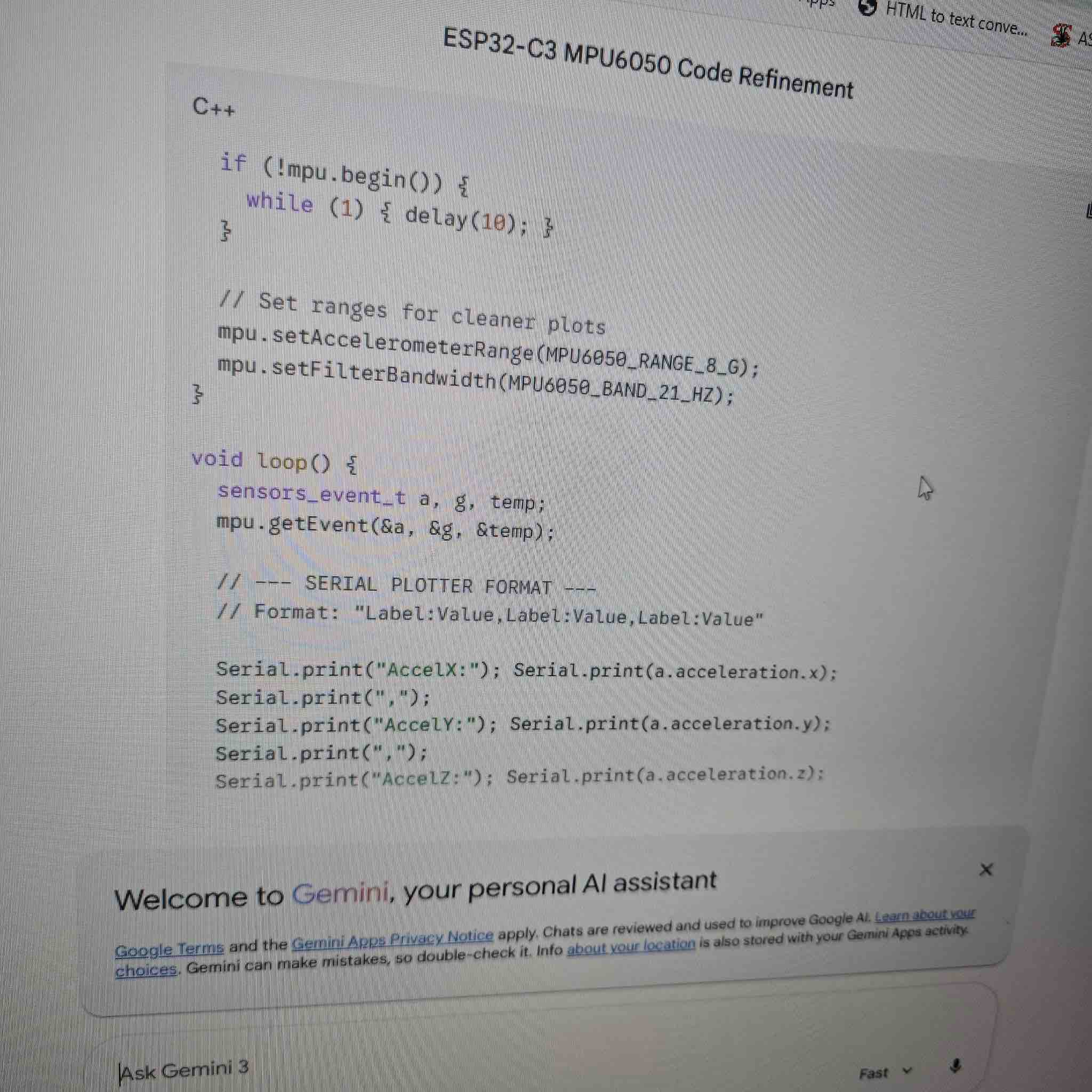

18| For that , I had to add plotting command to my code and I used Gemeni to redefine the code to this code

// --- SERIAL PLOTTER FORMAT ---
// Format: "Label:Value,Label:Value,Label:Value"

  Serial.print("AccelX:"); Serial.print(a.acceleration.x);
  Serial.print(",");
  Serial.print("AccelY:"); Serial.print(a.acceleration.y);
  Serial.print(",");
  Serial.print("AccelZ:"); Serial.print(a.acceleration.z);

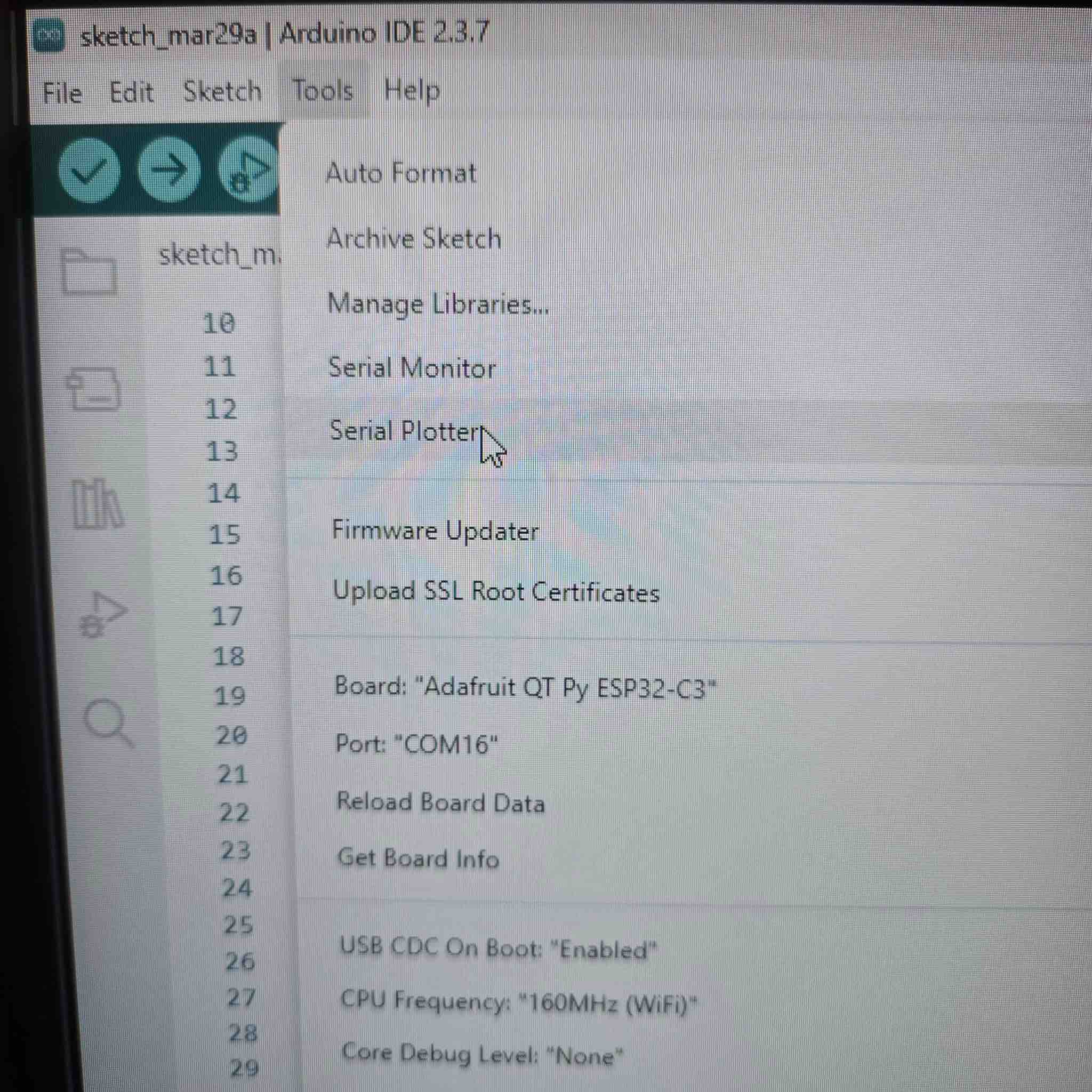

19| After redownloading the new program to the microcontroller, I when to Tool → Serial Plotter

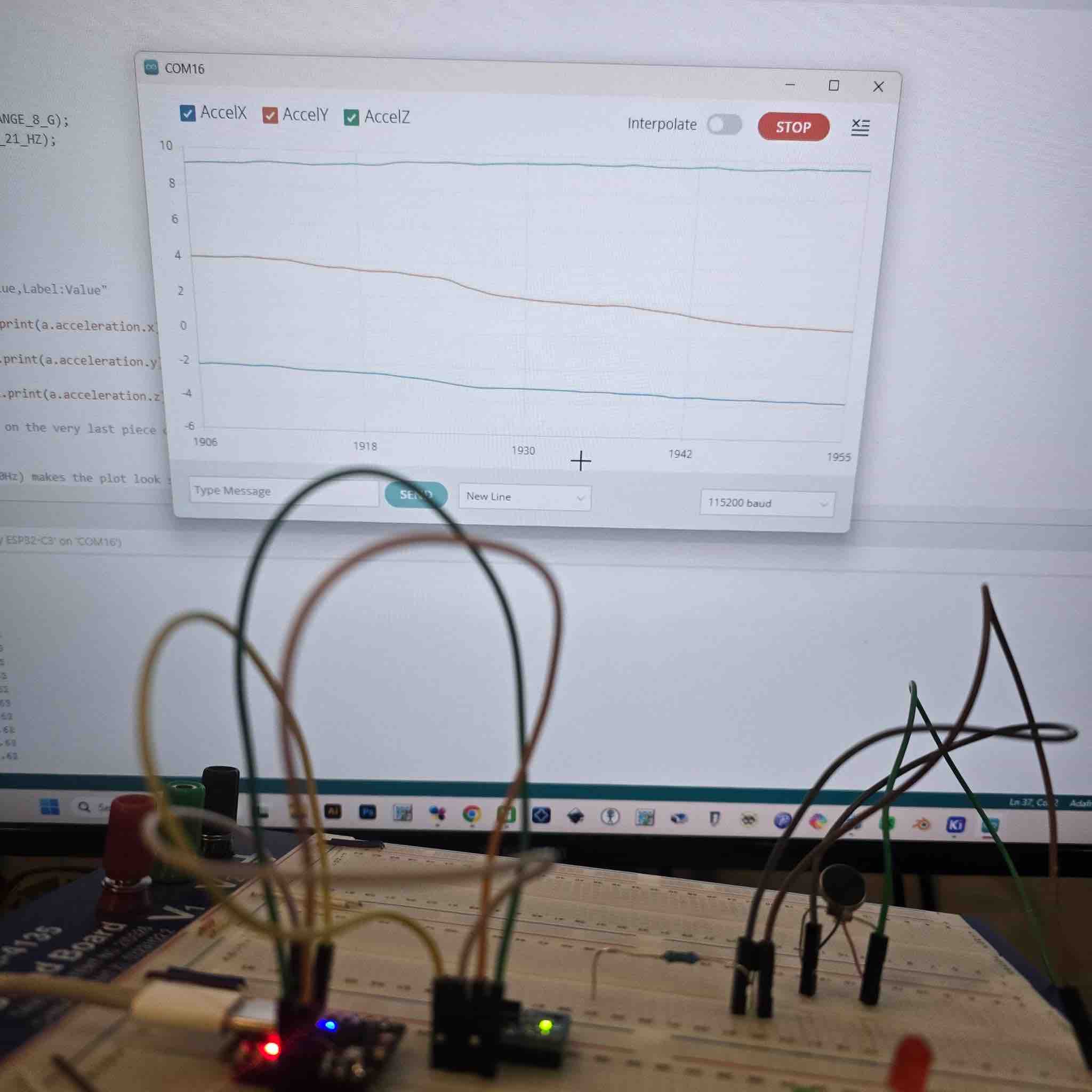

20| and I strated to get the readings from the sensor in the graph
