SELECT PLAN MODULE:
What will it do?
This project consists of an advanced, low-latency electronic conversion kit designed to upgrade a standard skateboard into a high-performance motorized vehicle. The system allows an operator to wirelessly pilot a heavy-duty 5060 brushless motor (140 KV) using a custom handheld remote control. The hand controller monitors throttle positioning and transmits input parameters via RF data packets directly to a powertrain receiver node fastened securely beneath the vehicle chassis.
Who's done what beforehand?
Commercial electric skateboard conversion kits exist on the market (such as Mellow Drive or Unlimited x Loaded), and DIY electric skateboarding communities widely implement open-source VESC speed controllers. However, this implementation creates an integrated closed ecosystem built on cost-effective XIAO ESP32-C6 RISC-V microcontrollers utilizing localized peer-to-peer ESP-NOW protocols rather than standard, congested Bluetooth connections, making custom telemetry and control layers entirely modular.
What sources will you use?
Technical Datasheets: In-depth analysis of the Seeed Studio XIAO ESP32-C6 pinouts, ESP-NOW protocol communication boundaries, the AMS1117 3.3V low-dropout regulator, and the hardware UART configuration requirements for VESC data structures.
Software Repositories: VESC UART open-source C++ libraries, Arduino IDE core frameworks, and Adafruit I2C OLED display libraries for hardware rendering interfaces.
What will you design?
- Mechanical Shells: 3D CAD modeling of the handheld ergonomic remote enclosure with precise component tolerances.

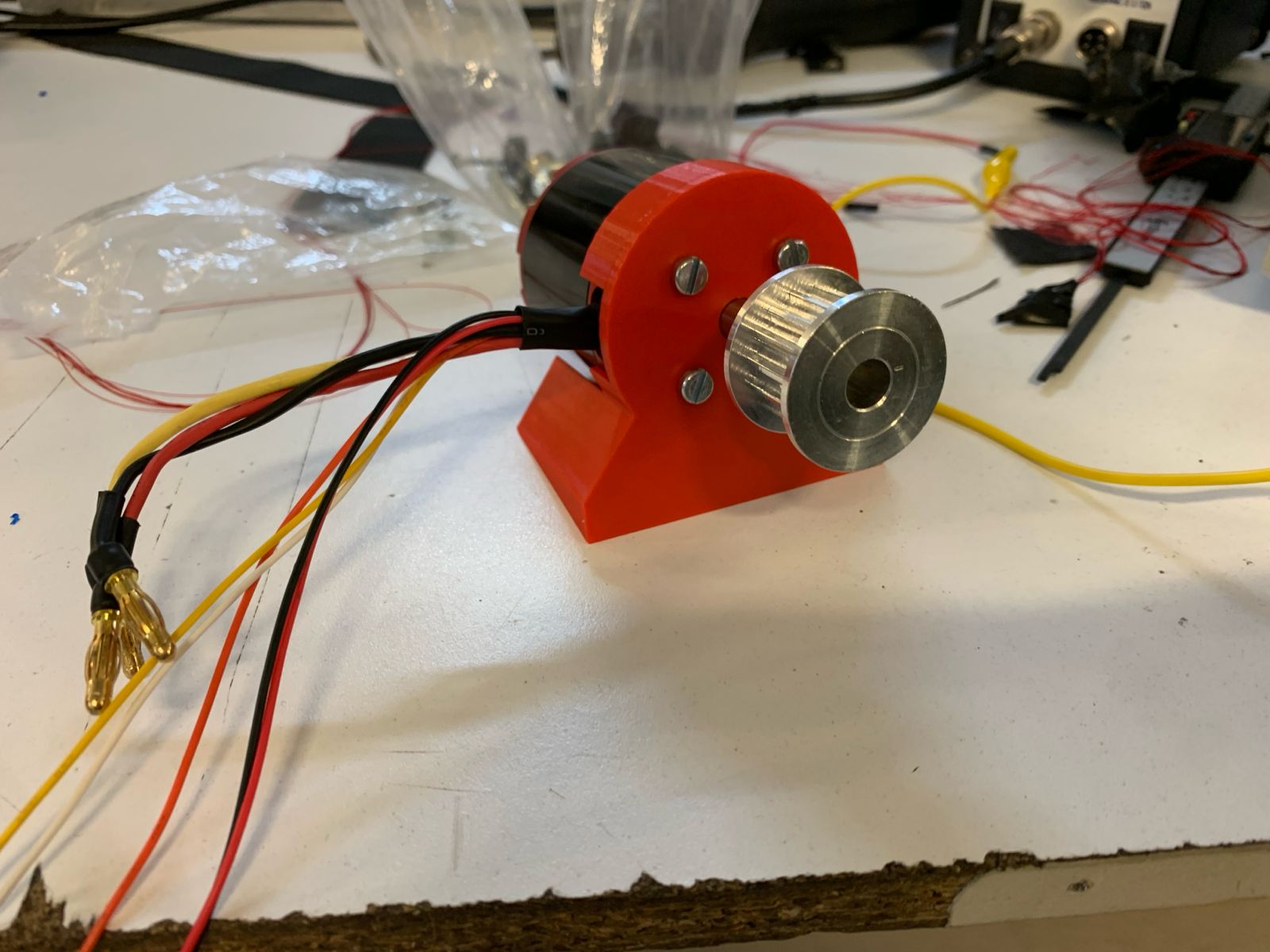

- Structural Powertrain: Custom wooden/MDF protective vehicle enclosure box and rigid structural timber motor mounting plates to align the belt transmission.
- Electronics: Routing and design of two independent PCBs: a transmitter motherboard and a receiver node module.
What parts and systems will be made?

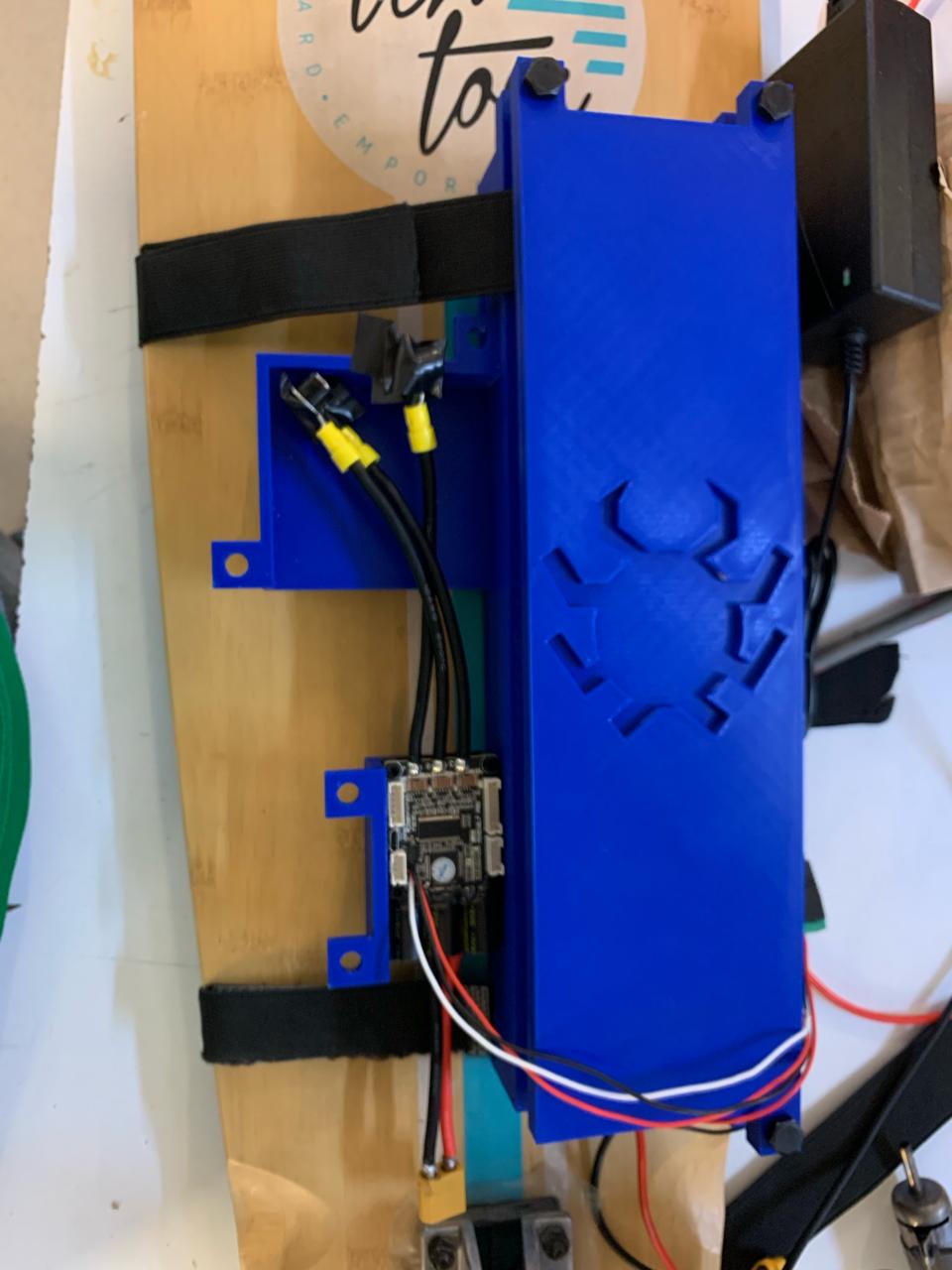

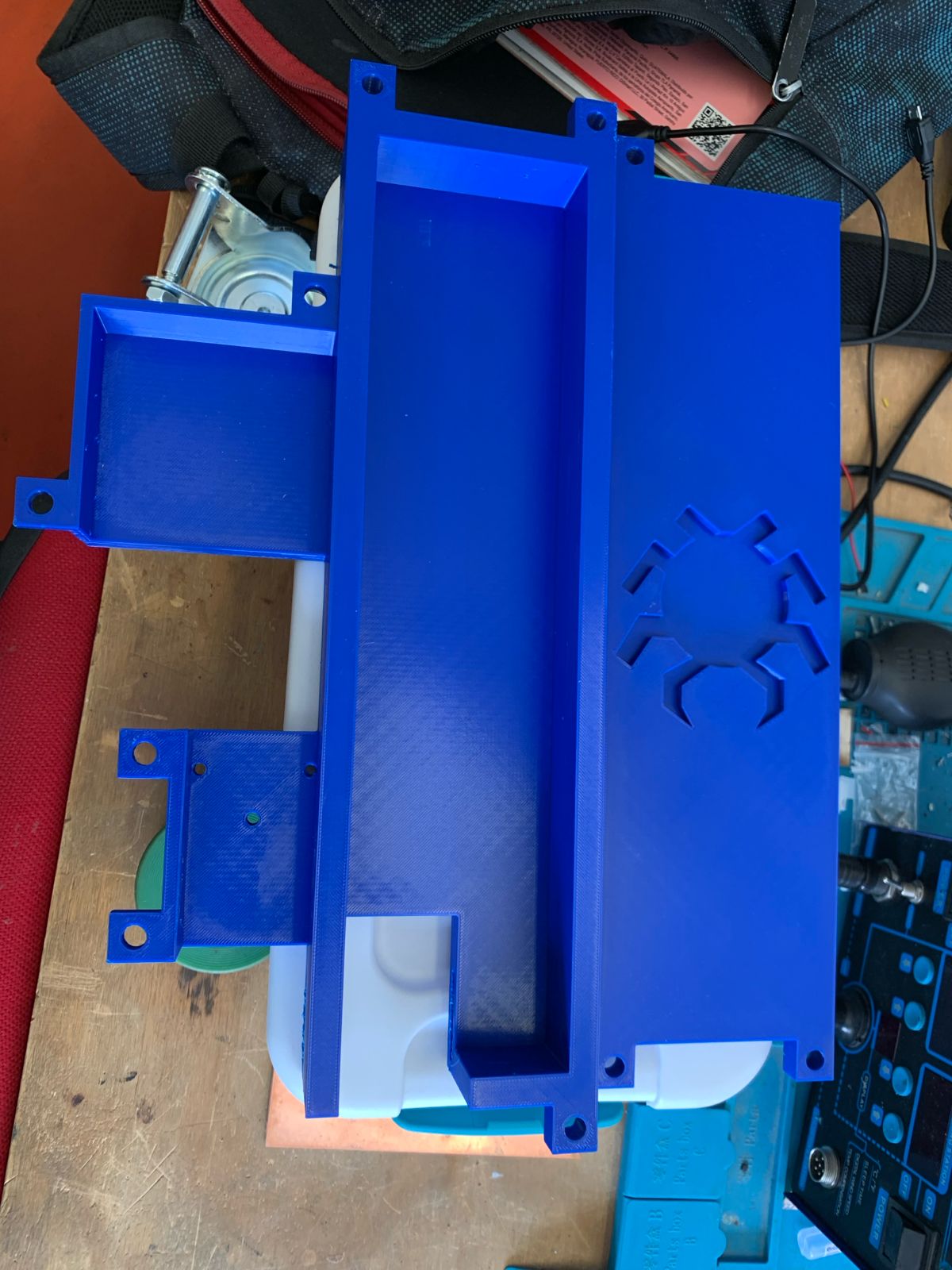

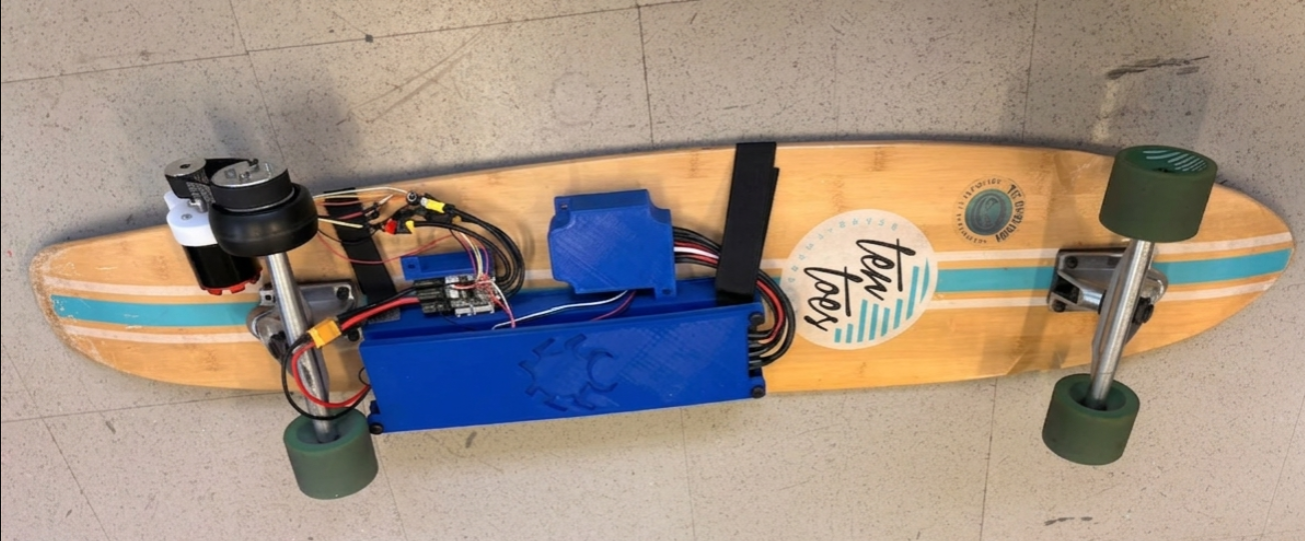

Structural System: 3D printed PLA handheld transmitter housing and a rugged CNC-machined or laser-cut large wood/MDF enclosure to protect the battery and speed controller under the deck, attached securely using a high-tensile overlapping Velcro strap system.

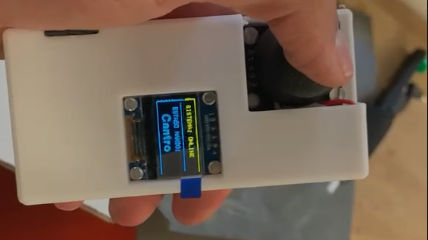

Electronic System: Fabrication and population of the handheld transmitter board (integrating the XIAO, joystick, and OLED screen with 10µF filtering capacitors and an AMS1117 3.3V regulator), alongside a standalone receiver board that bridges wireless data straight to the VESC mini controller over wire links.

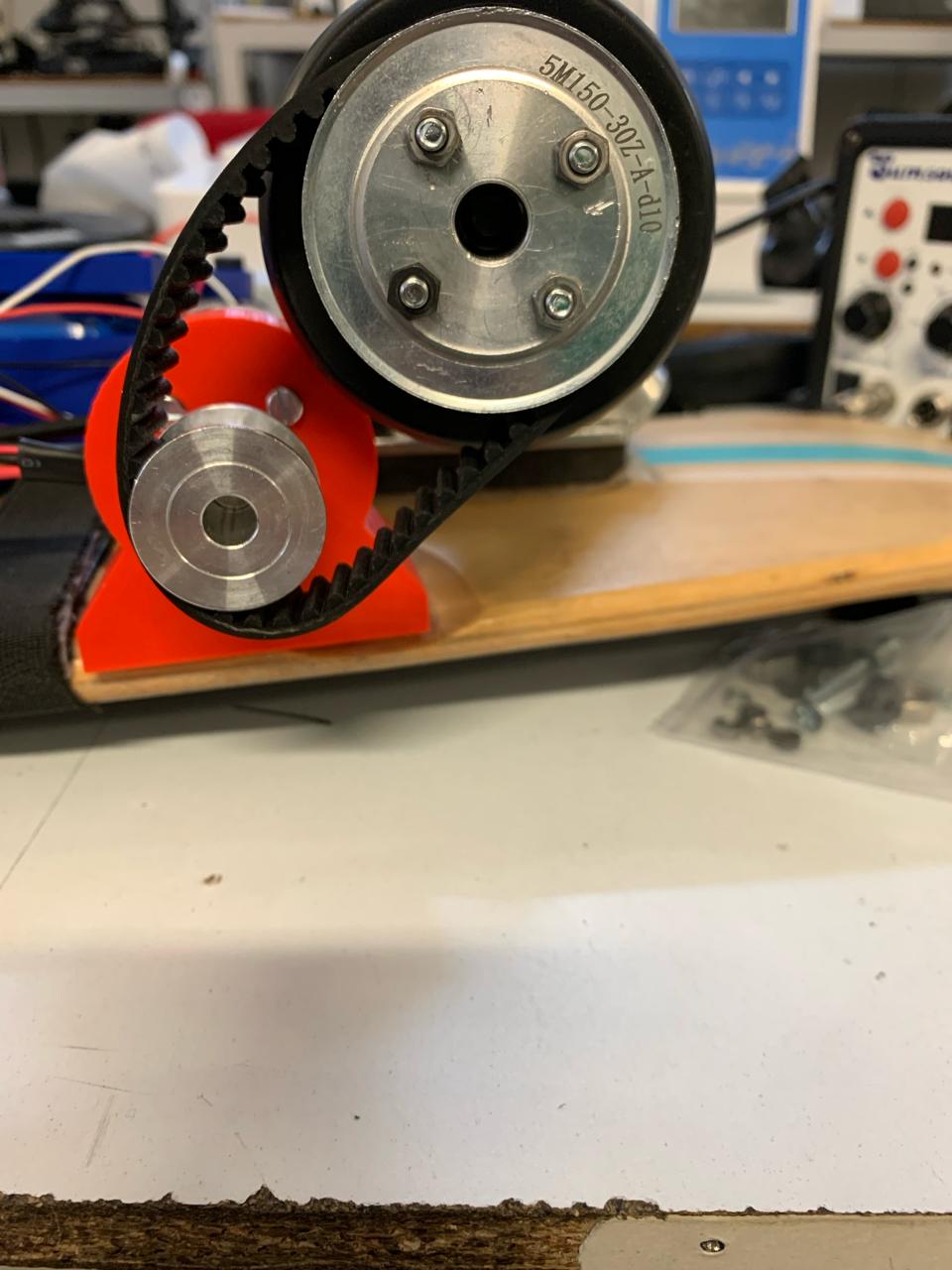

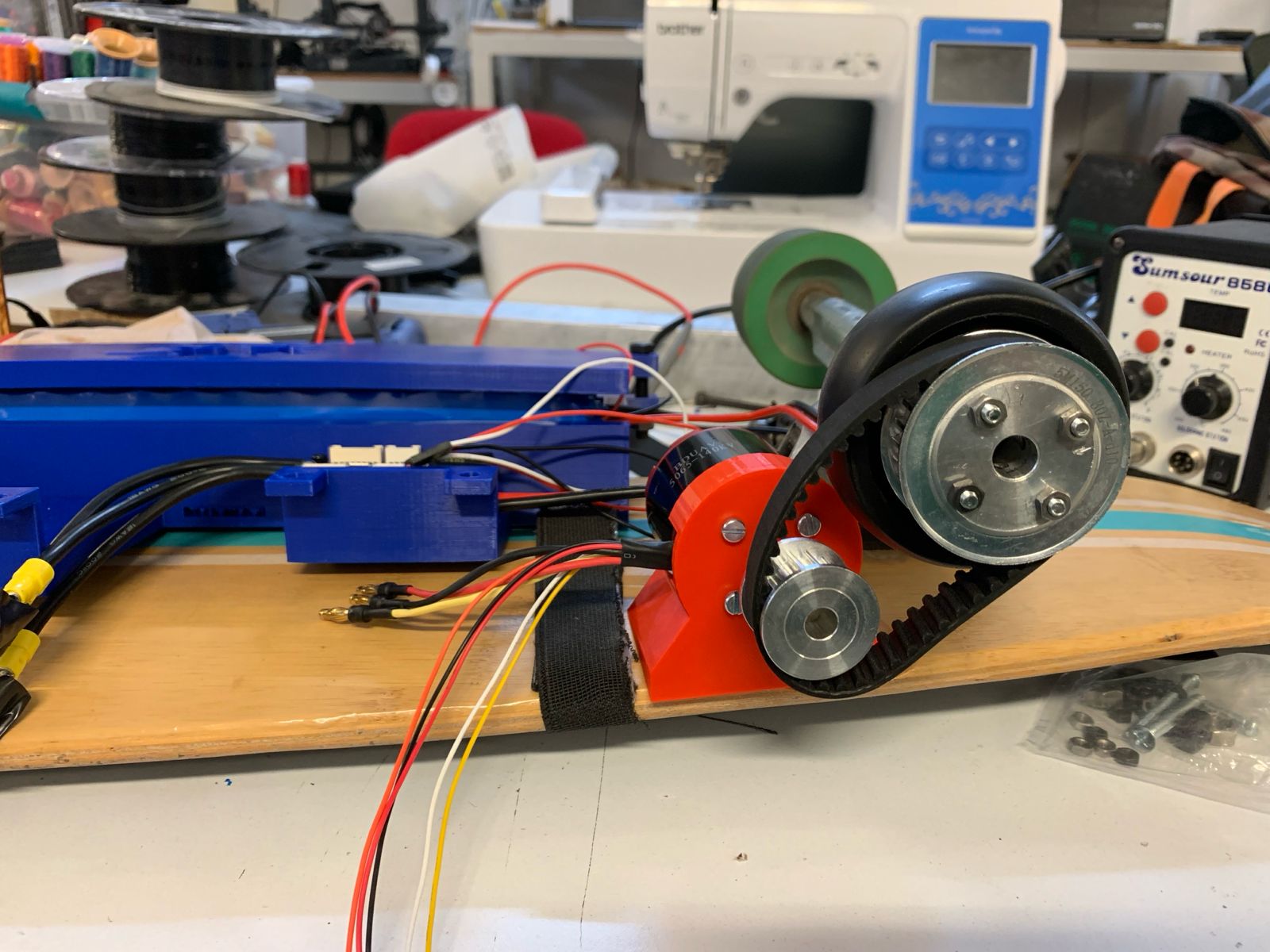

Transmission System: Assembly of a custom 2:1 ratio timing gear reduction drive using a 15-tooth motor pulley and a 30-tooth wheel hub pulley connected by a 250mm long, 15mm thick HTD5M timing belt.
What processes will be used?
The realization of this masterpiece integrates: 2D and 3D CAD modeling, PCB trace milling and structural soldering, Additive Manufacturing (3D filament printing for remote ergonomics), Subtractive Manufacturing (timber and MDF milling for rugged enclosures and plates), and Embedded C++ firmware optimization for real-time serial stream processing.
[ ARCHIVE: PROJECT_COST_MATRIX ]
| Classification | Item Description | Qty | Est. Unit Cost (USD) | Procurement / Sourcing Source |
|---|---|---|---|---|
| Electronics (TX) | Seeed Studio XIAO ESP32-C6 Microcontroller | 1 | $5.20 | DigiKey / Seeed Studio |
| Electronics (TX) | Analog 2-Axis Thumb Joystick Module | 1 | $1.85 | STEREN |
| Electronics (TX) | 128x64 pixels I2C OLED Display Panel | 1 | $5.78 | Local Electroinics Store |
| Electronics (TX) | 3.7V 400mAh LiPo Rechargeable Pouch Cell | 1 | $1.74 | Steren |
| Electronics (TX) | LiPo Battery USB-C Charger Controller Module | 1 | $1.16 | AliExpress / Local Store |
| Electronics (TX) | AMS1117 3.3V Low-Dropout Voltage Regulator | 1 | $0.50 | DigiKey / Electronics Component Hub |
| Electronics (TX) | 10µF 1206 SMD Ceramic Capacitors (Decoupling) | 2 | $0.15 | Mouser / DigiKey |
| Electronics (RX) | Seeed Studio XIAO ESP32-C6 (Receiver Core) | 1 | $5.20 | DigiKey / Seeed Studio |
| Powertrain | VESC 3.7 Mini Pro Speed Controller (UART Enabled) | 1 | $86.00 | Flipsky / Aliexpress |
| Powertrain | 5060 Brushless Outrunner Motor (140 KV Rating) | 1 | $46.27 | AliExpress / Hobby Hardware |
| Powertrain | 36V High-Capacity Lithium-Ion Main Battery Pack | 1 | $34.00 | Specialized Battery Sourcing / Aliexpress |
| Transmission | HTD5M Synchronous Belt (250mm Loop, 15mm Width) | 1 | $23.14 | Mercado Libre |
| Transmission | HTD5M 15-Tooth Drive Pulley Gear (Motor Bore) | 1 | $17.35 | Mercado Libre |
| Transmission | HTD5M 30-Tooth Driven Pulley Gear (Wheel Hub) | 1 | $17.35 | Amazon |
| Mechanical | PLA Filament Stock (Transmitter Enclosure Shell) | -- | $4.00 | InovaMarket / Local Stock |
| Mechanical | Solid MDF / Structural Timber Stock (Enclosure/Mounts) | -- | $10.00 | Local Timber Yard |
| Mechanical | Heavy-Duty Overlapping Velcro Mounting Straps | 2 | $3.00 | Hardware Store |
What questions need to be answered?
1. RF Reliability: Will the peer-to-peer ESP-NOW radio data packet communication remain immune to electromagnetic interference generated right next to a high-current 36V brushless motor assembly?
2. Mechanical Endurance: Will the custom structural timber mounting brackets successfully withstand the intense mechanical vibration and shear stresses produced by high torque gear loads over a rugged road surface?
3. Thermal Constraints: Will the large, tightly closed wooden/MDF enclosure cause the VESC mini controller to overheat under heavy acceleration cycles without active heatsink airflow?
[ SYSTEM EVALUATION METRICS ]
Wireless Communication Success
The system latency must remain consistently below 15ms. Moving the analog joystick must instantly actuate the VESC throttle ramp, with zero signal dropout or packet collisions across localized radio operation spaces.
Mechanical Rigidity & Drive Integrity
The structural timber motor plates must prevent structural deflection or shifting under load, maintaining precise alignment and holding proper belt tension across the HTD5M pulleys without slipping teeth.
Electronic Protection & Cohesion
The decoupling capacitors must smooth power spikes completely. The custom protective MDF enclosure, clamped securely via the over-deck Velcro quick-release straps, must shield the 36V hardware array against shock and debris.
