Objective

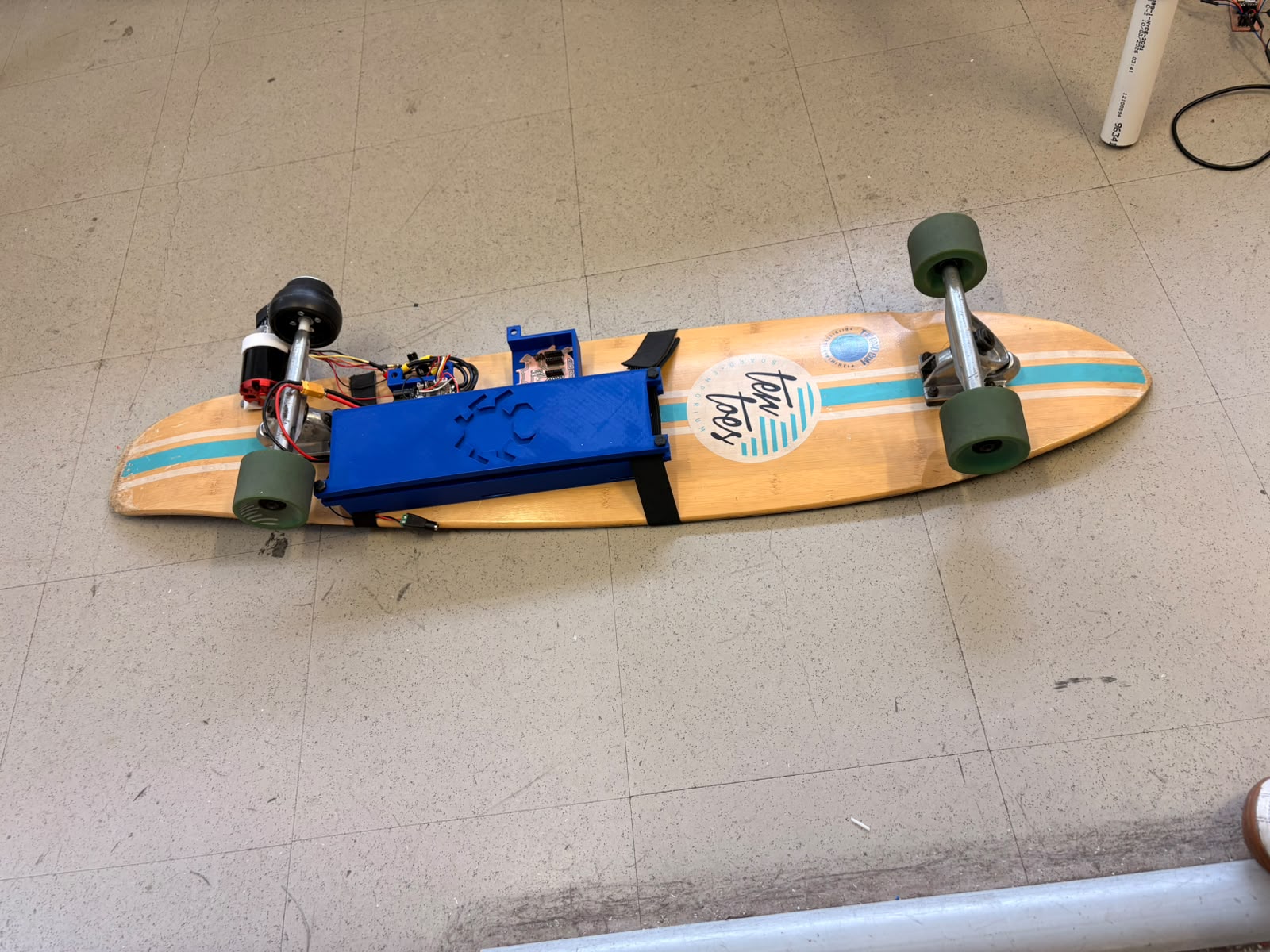

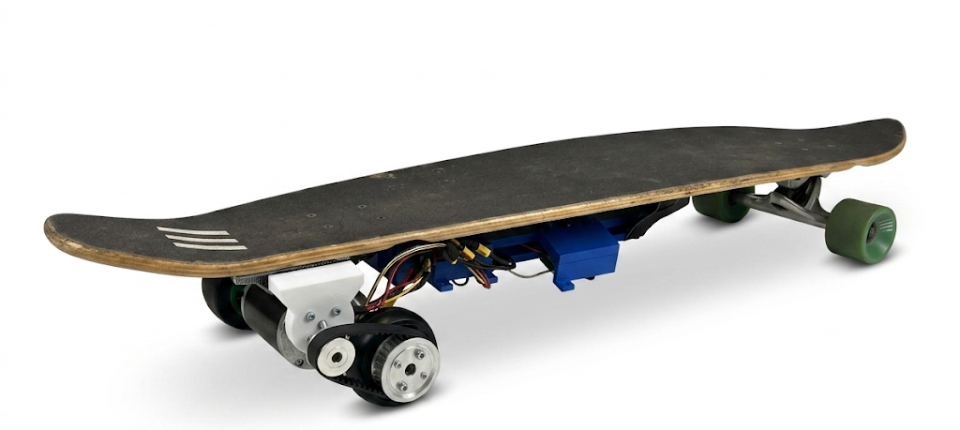

The goal of my project was to create an electric drive system adaptable to a skateboard, allowing me to control its speed via remote and move around without relying on external force; the aim was to make this kit as inexpensive as possible so that it offered an advantage over buying a ready-made electric skateboard.
[ DATA_STREAM: PROJECT_INSPIRATION ]

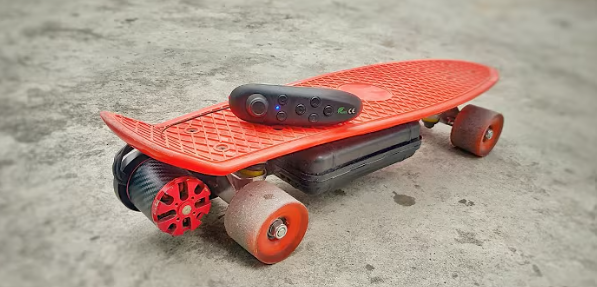

> Reference project: Mechanism analysis and interface response.

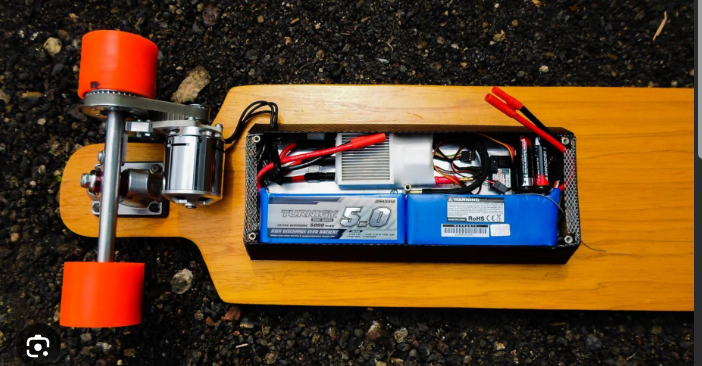

WHY THIS PROJECT?
The inspiration for this interface comes from the need to bridge complex control systems with intuitive human-machine interaction. Observing how [Insert Reference Concept] handles real-time feedback, I decided to implement a streamlined version that optimizes power control and data visualization.
This design specifically focuses on:
• Minimalist visual feedback.
• Real-time serial communication.
• Ergonomic input mapping.
[ ARCHIVE: BILL OF MATERIALS ]
| Component | Qty | Unit Cost (USD) | Source |
|---|---|---|---|

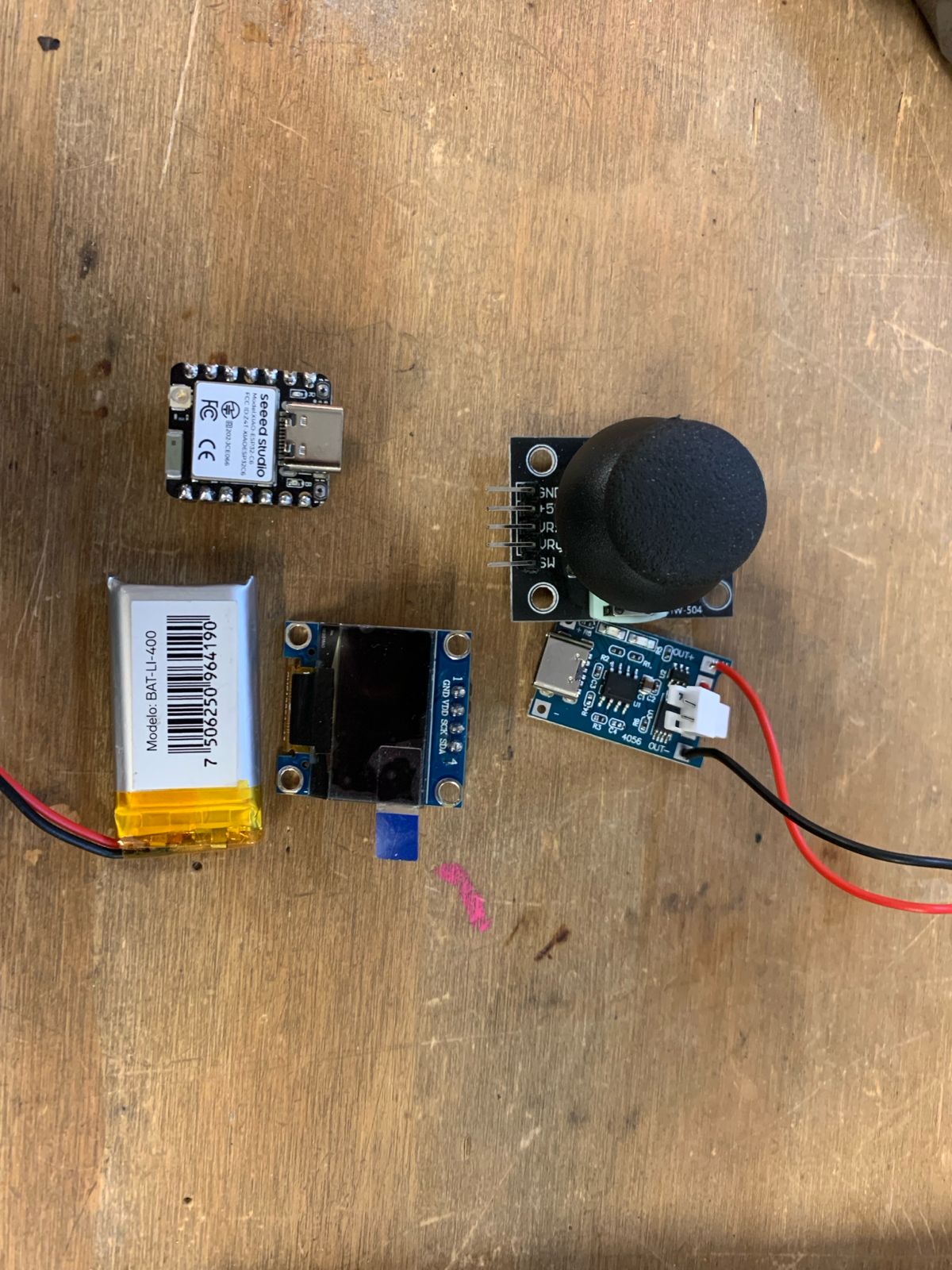

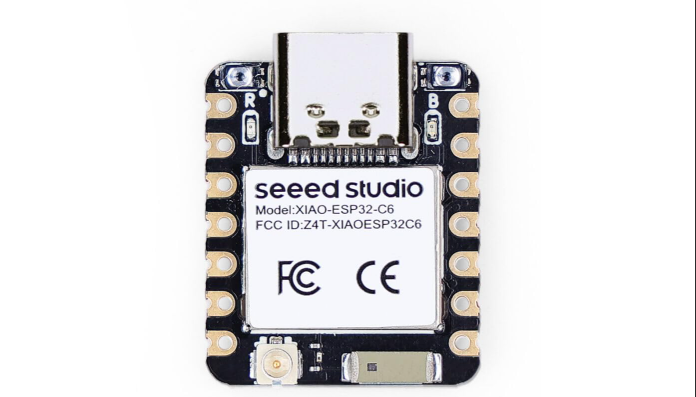

| Seeed Studio XIAO ESP32-C6 | 2 | $5.20 | DigiKey |

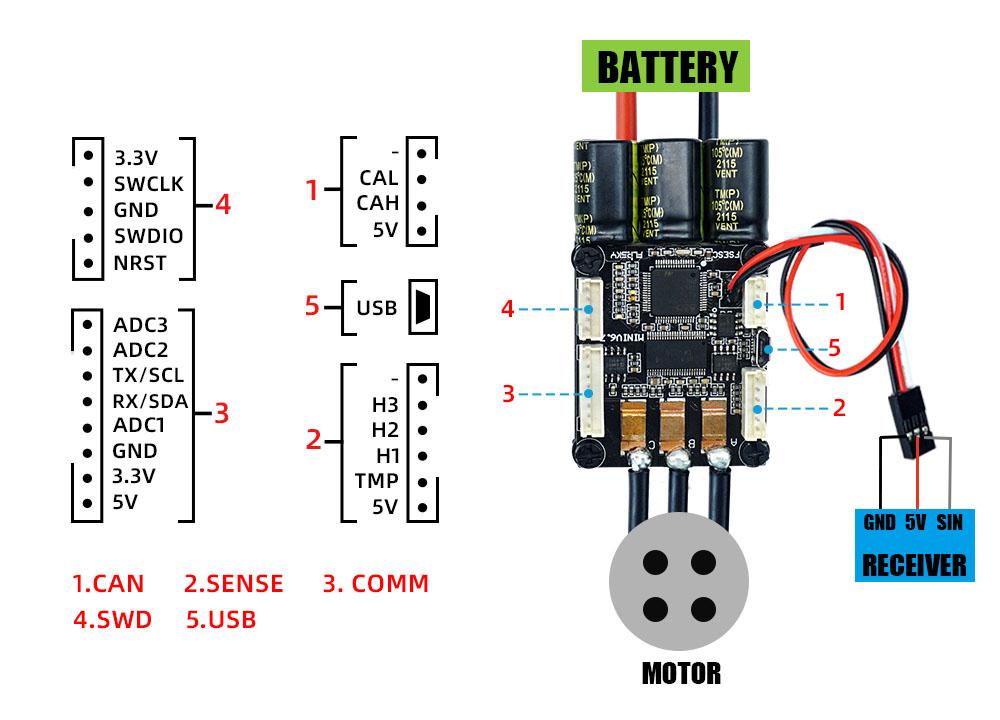

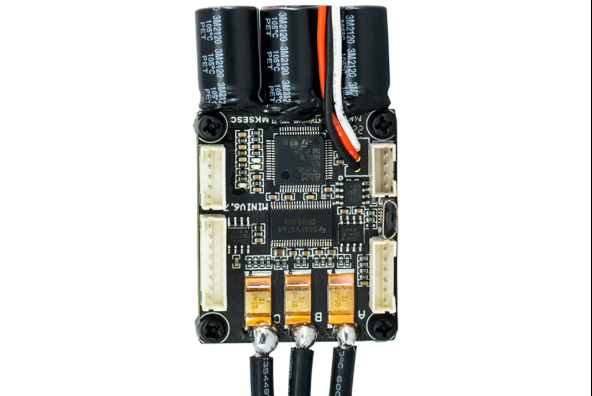

| VESC 3.7 Mini Pro | 1 | $86.00 | Flipsky |

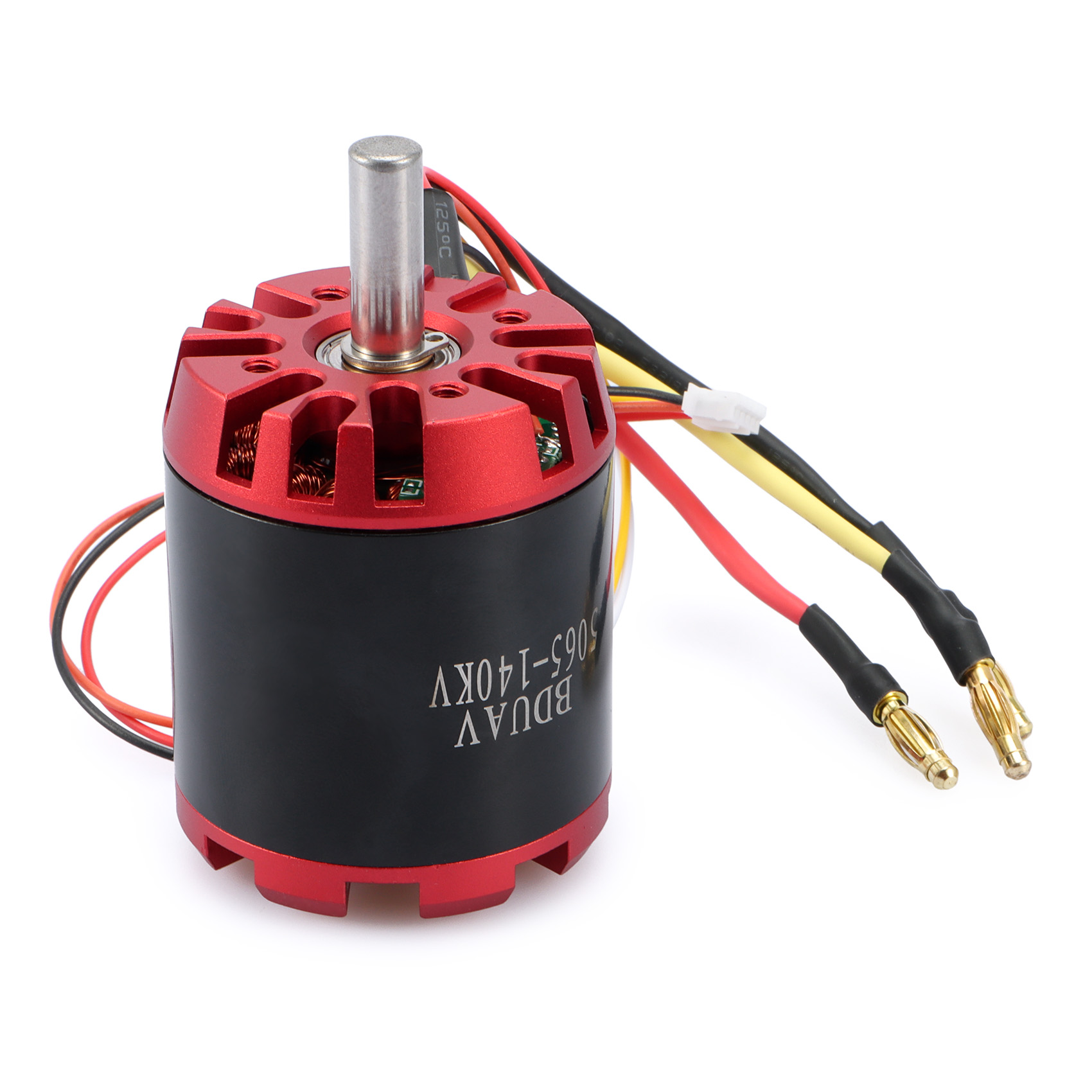

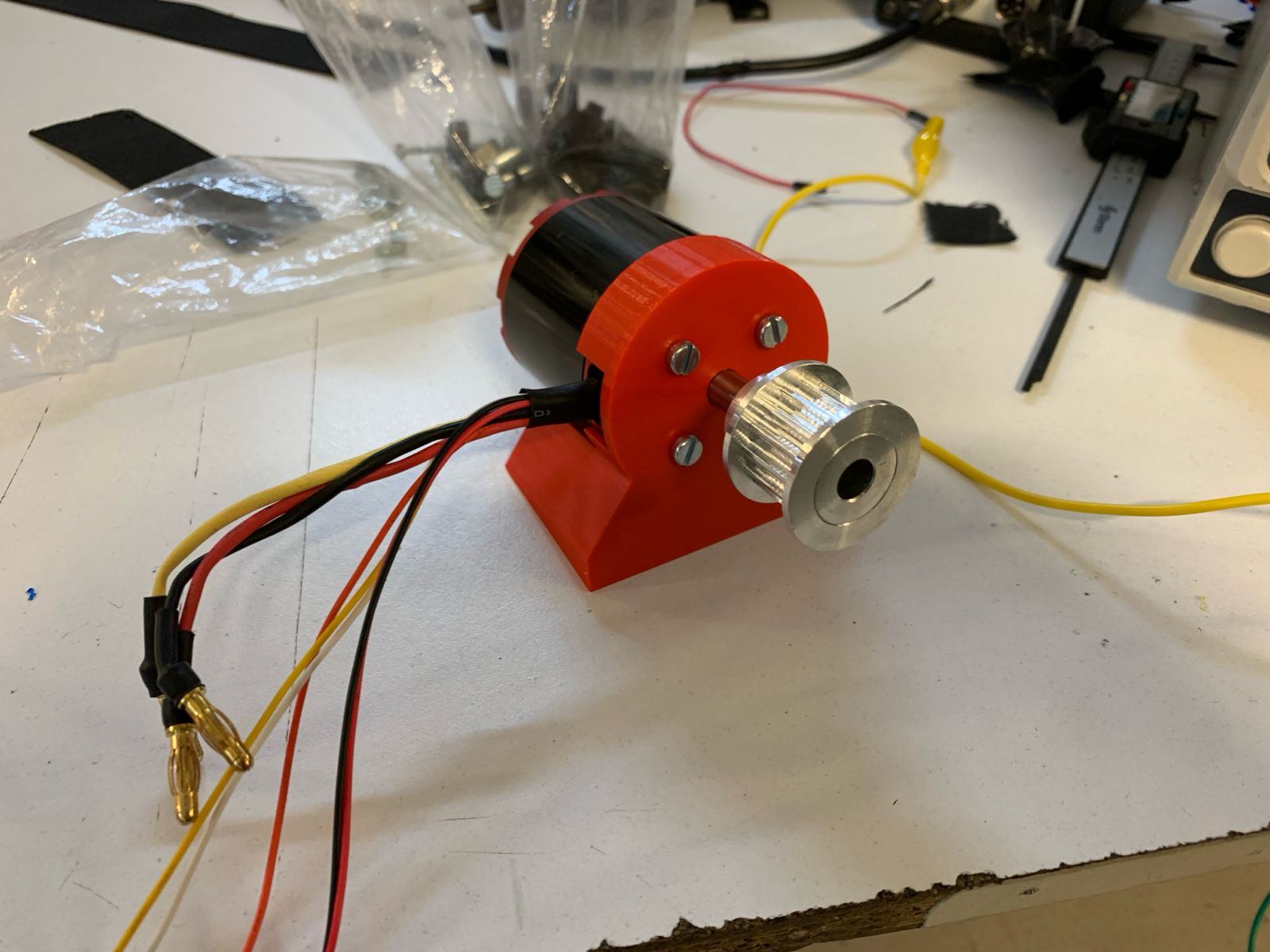

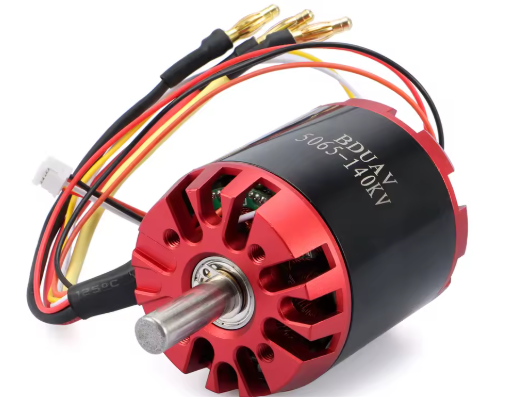

| 5060 Brushless Motor | 1 | $46.27 | AliExpress |

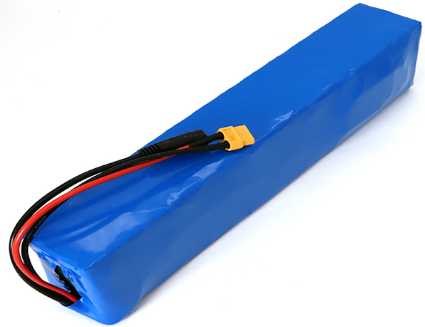

| 36V Li-Ion Battery Pack | 1 | $34.00 | Specialized Sourcing |

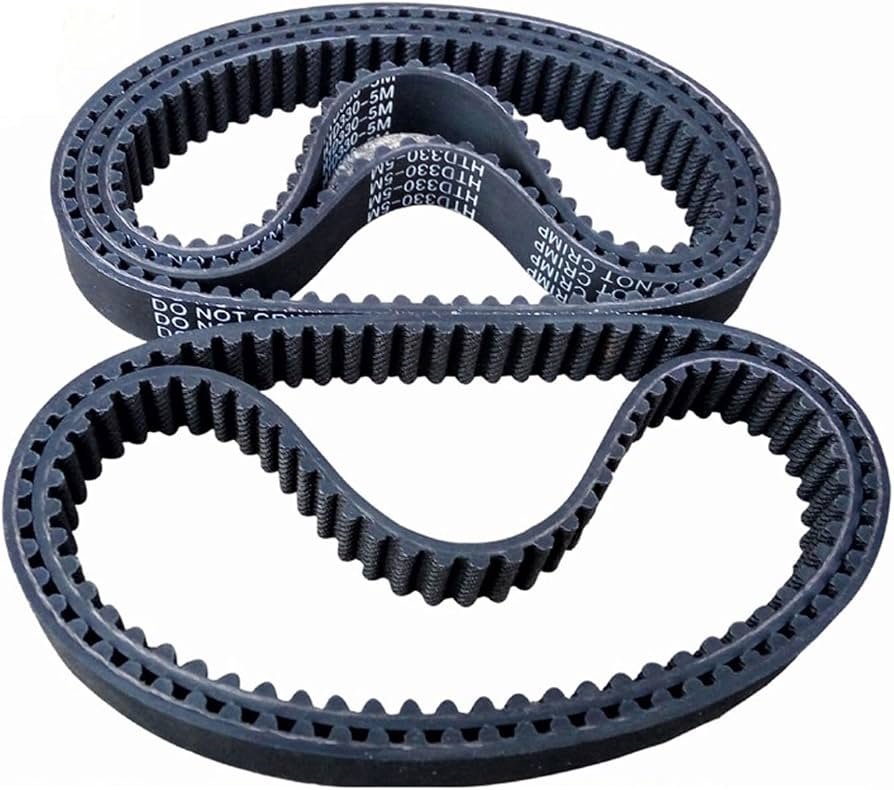

| HTD5M Belt Set | 1 | $11.46 | Mercado Libre |

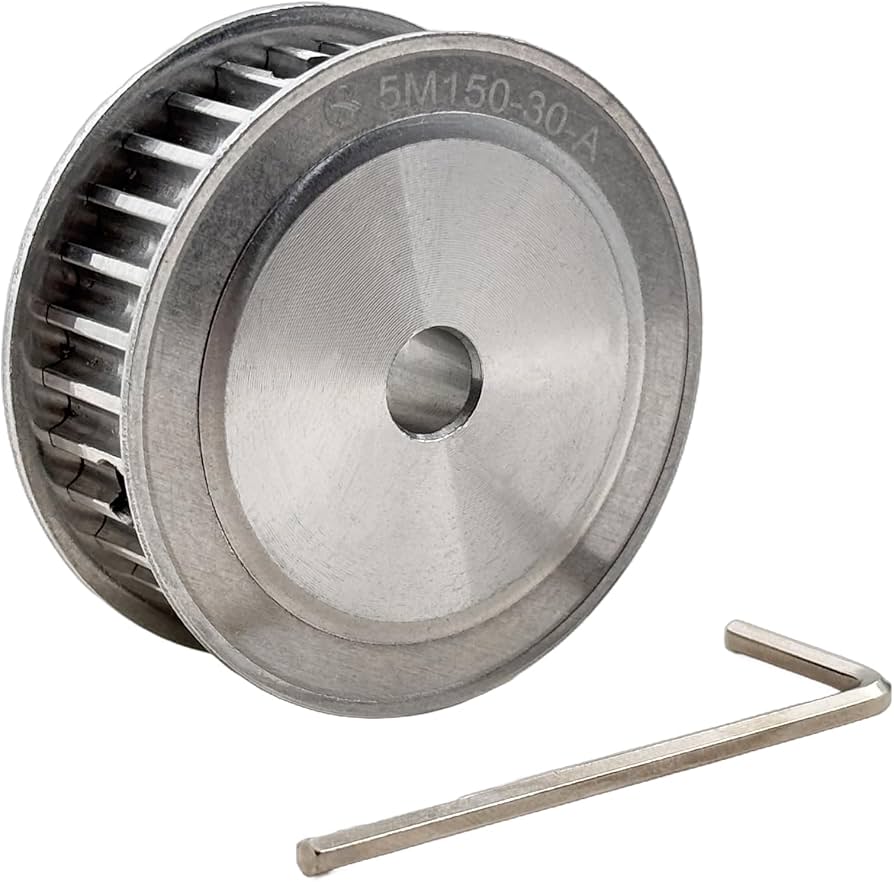

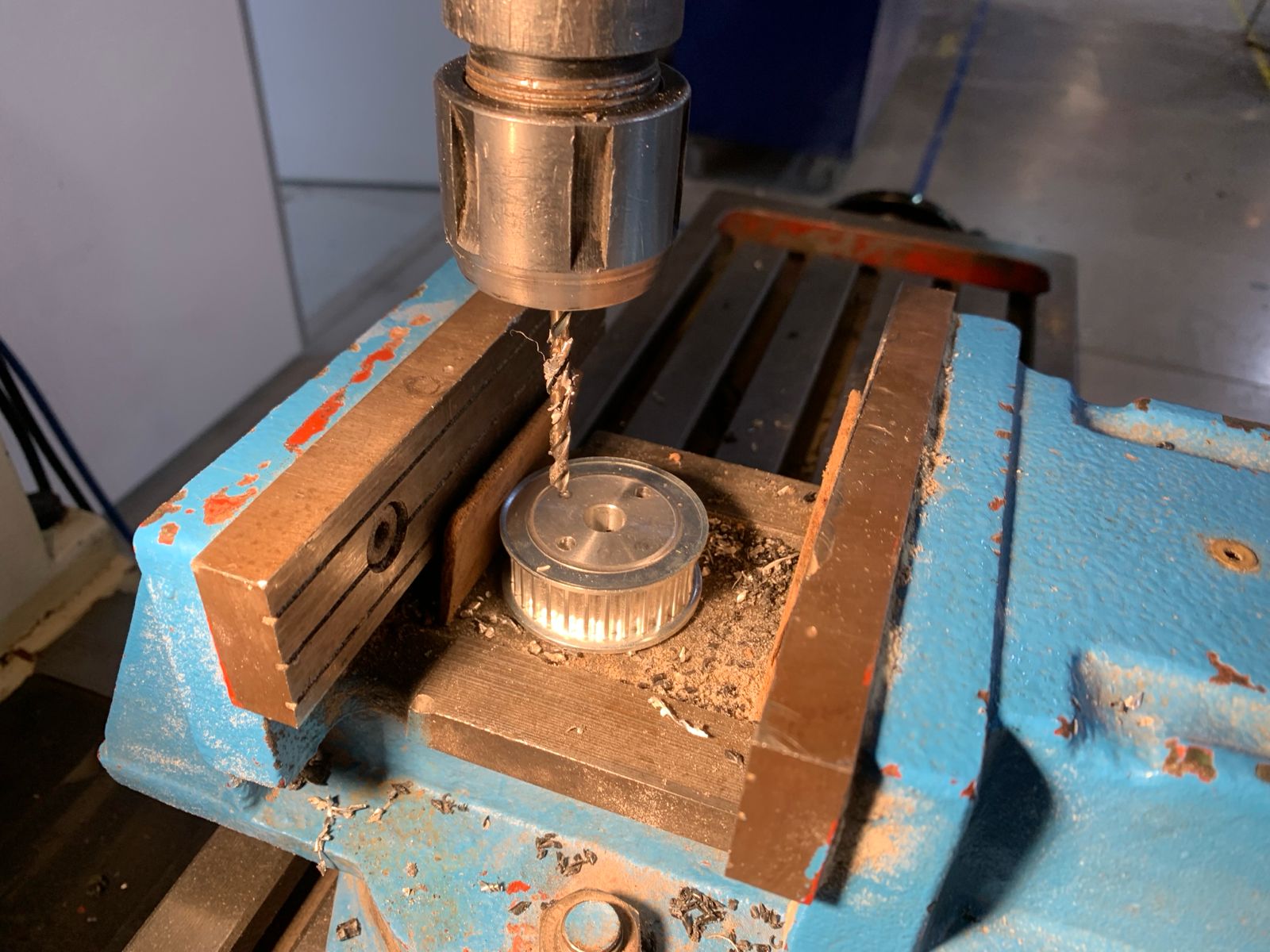

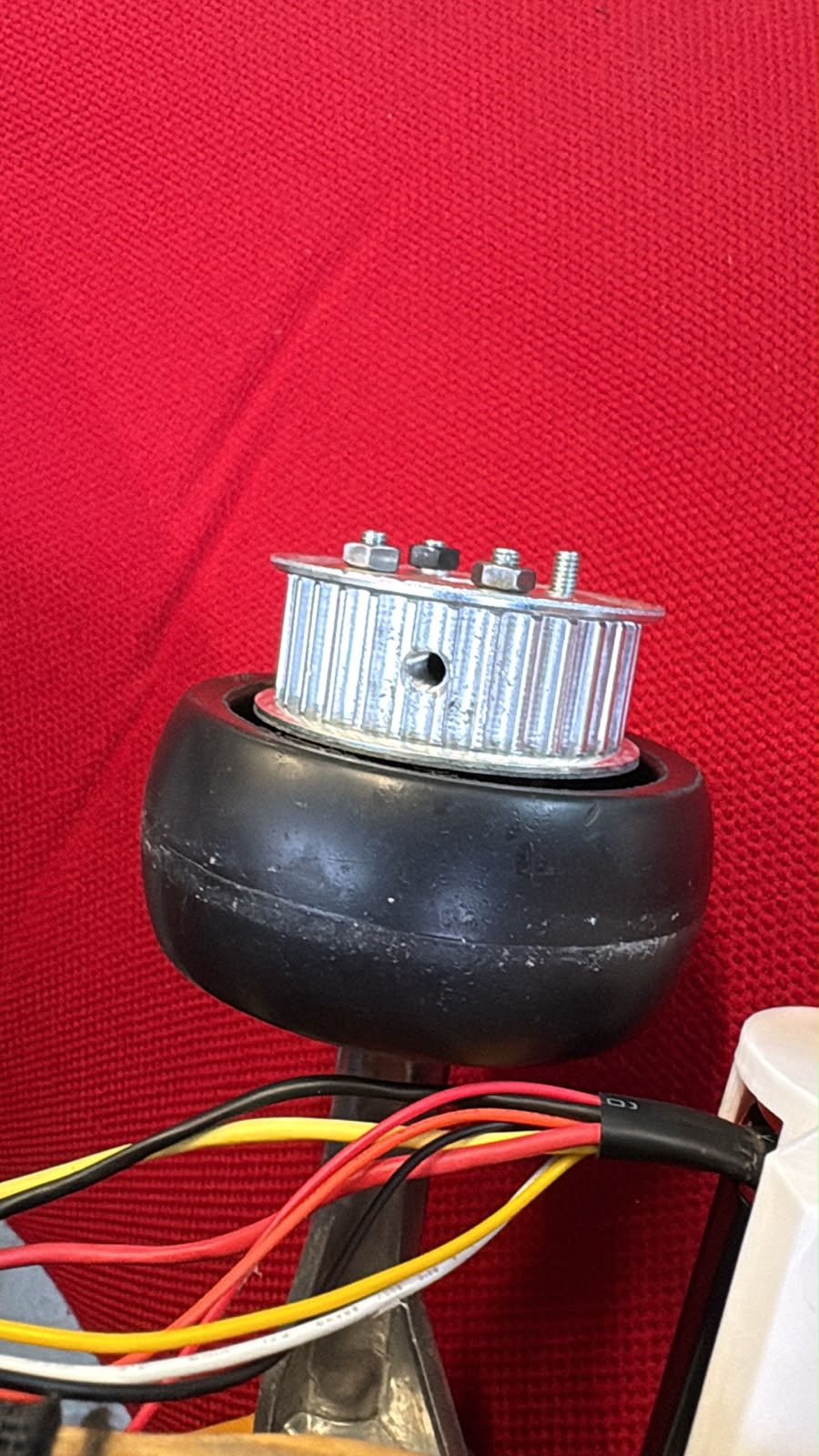

| HTD5M Pulley Set 30 teeth | 1 | $20.06 | Mercado Libre |

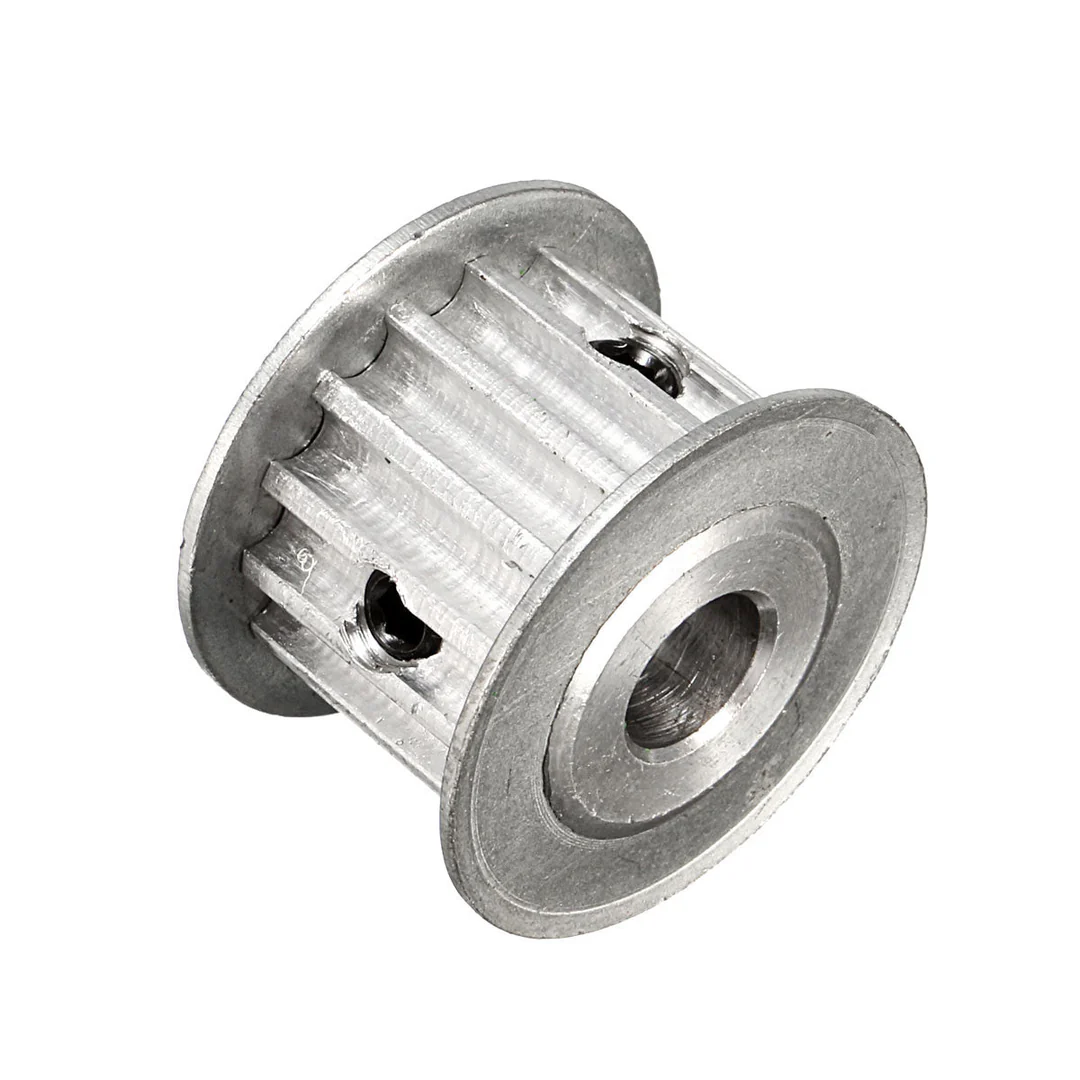

| HTD5M Pulley Set 15 teeth | 1 | $20.06 | Mercado Libre |
[ MARKET COMPARISON: DIY VS RETAIL ]
| DIY Custom Skateboard (Total) | $229.05 USD |
| Commercial Electric Skateboard (Average) | $450.00 - $600.00 USD |
| Estimated Savings | ~$270.00 - $420.00 USD |
