Week 3: Computer-Controlled Cutting

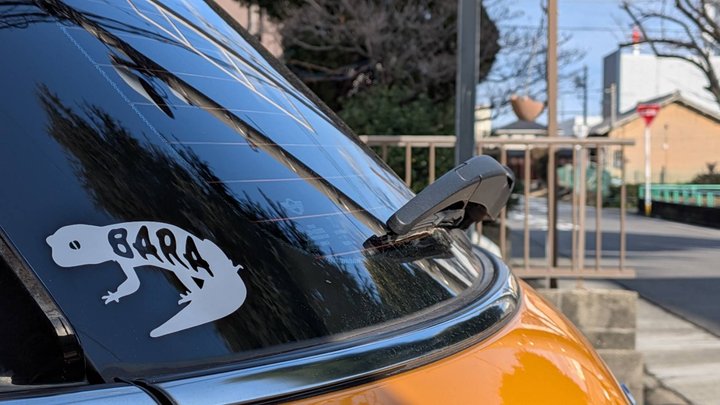

Week 3 Hero Image - Vinyl cutting application complete

Assignment Overview

This week focuses on exploring computer-controlled cutting technologies, including laser cutters and vinyl cutters. I learned parametric design, kerf compensation, and precision cutting techniques.

Date: February 5-11, 2026 Status: ✅ Completed


📋 Assignment Requirements

Group Assignment

Characterize your laser cutter's focus, power, speed, rate, kerf, and joint clearance

  • Completed laser cutter characterization
  • Measured kerf width: 0.1mm
  • Material thickness: 4mm MDF board
  • Documented optimal settings

Document your work to the group work page and reflect on your individual page what you learned

  • Group work completed
  • Individual reflections documented below

Individual Assignment

Design, make, and document a parametric press-fit construction kit

  • Created parametric design in Fusion 360
  • Designed press-fit joints with kerf compensation
  • Successfully assembled modular kit

Account for the laser cutter kerf

  • Measured kerf: 0.1mm
  • Implemented parametric kerf compensation
  • Verified joint fit through testing

Cut something on the vinyl cutter

  • Designed Gecko mascot sticker in Inkscape
  • Cut and applied decorative vinyl
  • Documented complete process

Learning Objectives

  • ✅ Demonstrate workflows used in laser and vinyl cutting
  • ✅ Identify and explain considerations for cutting materials
  • ✅ Develop and realize different types of joints
  • ✅ Document kerf for laser cutter used

🎯 What I Made This Week

Laser Cutting Project

Parametric Press-Fit Construction Kit - Modular components with calculated joint clearances - Press-fit assembly without glue - Kerf compensation: 0.1mm - Material: 4mm MDF board

Vinyl Cutting Project

Gecko Mascot Sticker - Custom design with text effects - Applied to vehicle surface - Demonstrates vinyl cutting workflow


🛠️ Tools and Materials

Laser Cutter

Machine Used: - Laser cutter (model documented in group work) - Material: 4mm MDF board - Software: Laser cutter control software

Key Settings: - Power and speed: Documented in group characterization - Kerf width: 0.1mm - Joint clearance: 0.1mm

Vinyl Cutter

Machine Used: - Brother cutting plotter - Adhesive vinyl sheet - Transfer tape for application

Software: - Inkscape for design - Brother cutting plotter software


📐 Parametric Design Process

1. Fusion 360 Design

I designed a parametric press-fit construction kit in Fusion 360 with the following features:

Key Parameters: - Material thickness: 4mm (variable) - Kerf width: 0.15mm (variable) - Joint clearance: Calculated from kerf measurement

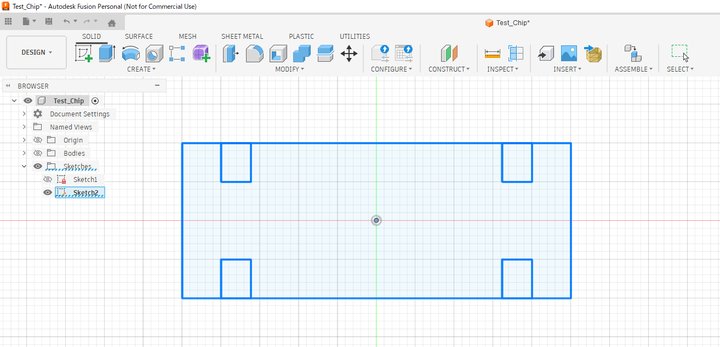

Fusion 360 parametric design

Designed parts in Fusion 360 with joints for assembly

Parametric Variables:

The design uses variables to make it adaptable to different materials and laser cutters:

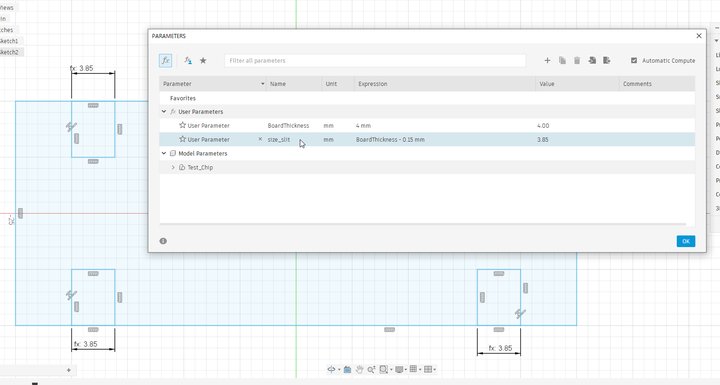

Parameter settings

Parametric variables for dynamic kerf compensation (0.15mm)

2. Kerf Testing and Measurement

What is Kerf?

Kerf is the width of material removed by the laser during cutting. Understanding kerf is crucial for creating precise press-fit joints.

Group Work: Kerf Characterization

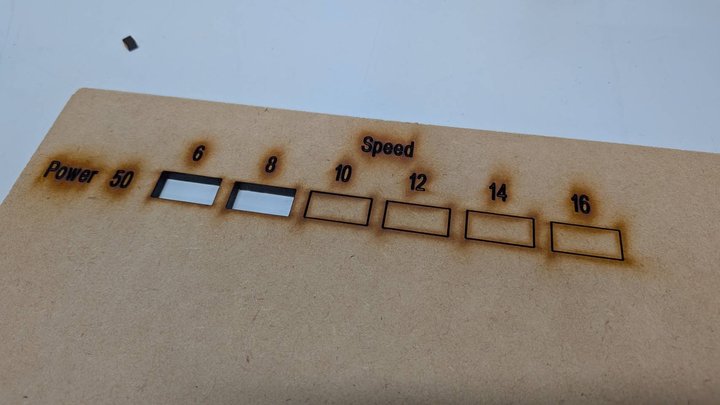

Laser cutter settings check

Checking laser cutter power and speed settings (Group work)

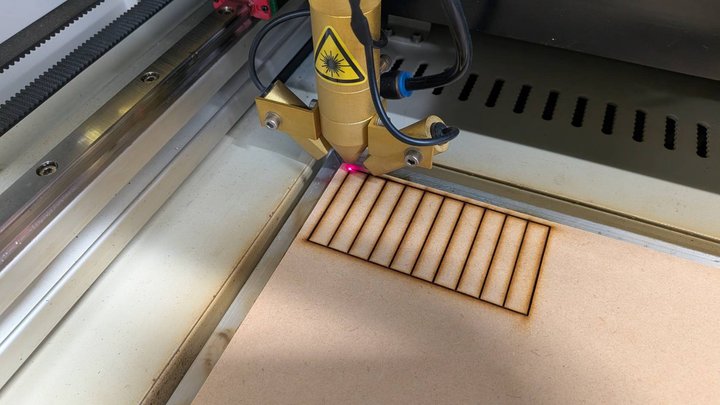

Test pattern cutting

Cutting test chip to verify kerf width

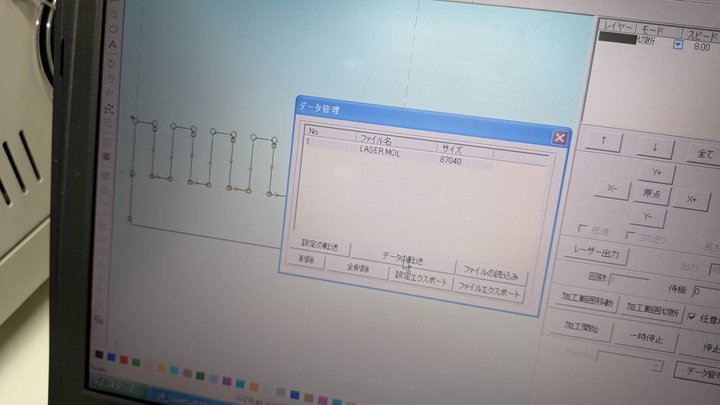

Kerf measurement setup

Verifying laser cutter kerf width to determine optimal cutting width

Measurement Results:

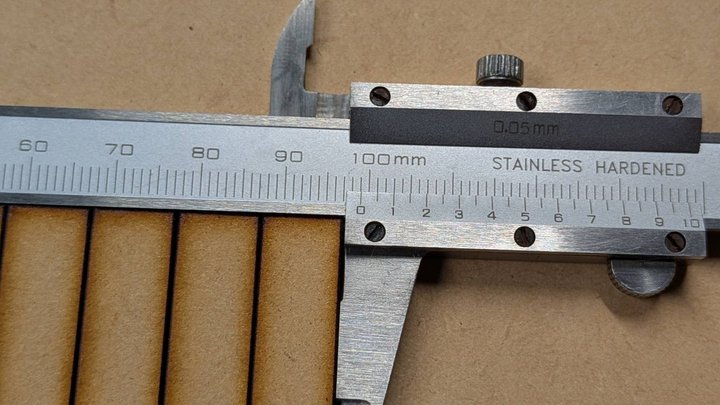

Kerf measurement result

Confirmed that the cutting width is 0.1mm

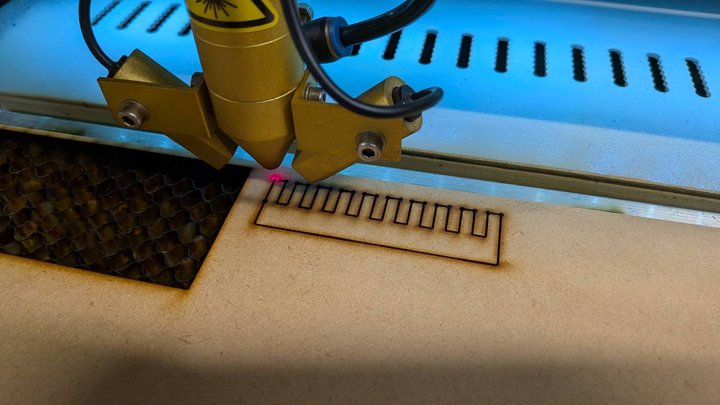

Kerf test cutting

Cutting kerf verification test chip

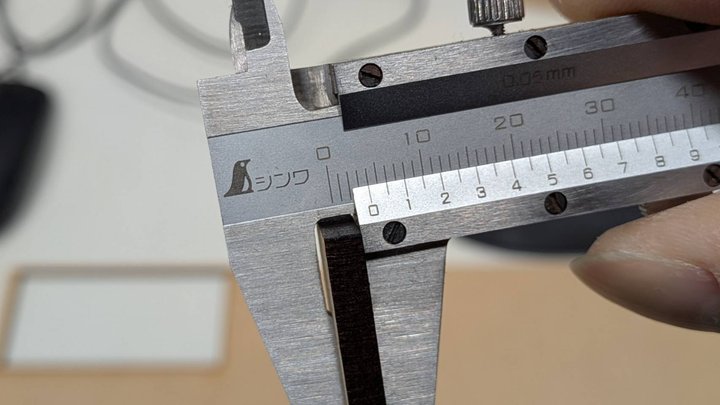

Material thickness

Target material board thickness is 4mm

Final clearance

Confirmed that the optimal joint clearance should be set to 0.15mm

Key Findings: - Measured kerf width: 0.1mm (cutting width) - Optimal joint clearance: 0.15mm - Material thickness: 4mm MDF

3. Joint Design Strategy

Based on the kerf measurements, I designed press-fit joints with: - Calculated clearance of 0.1mm - Parametric dimensions for easy adjustment - Modular components for various configurations


🔥 Laser Cutting Process

Safety Preparations

Pre-Cutting Preparation:

Vacuum filter system

Water filter system for exhaust gases using vacuum cleaner

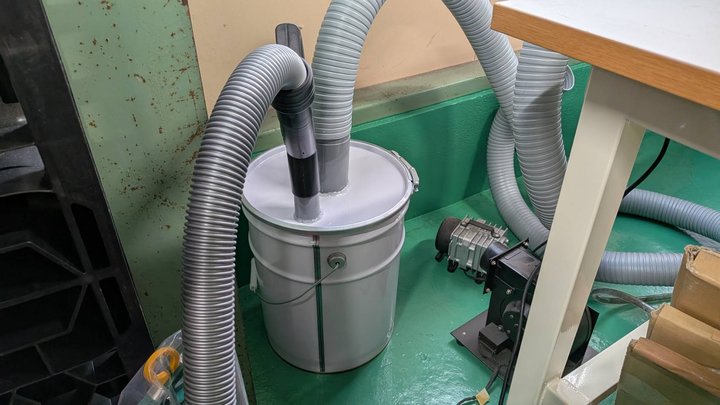

Filter system detail

Detail of the exhaust gas water filter cleaner

Before starting laser cutting, I created a water filter cleaner for exhaust gases using a vacuum cleaner and a petroleum can to improve air quality during the cutting process.

Cutting Execution

Step 1: Load Design File

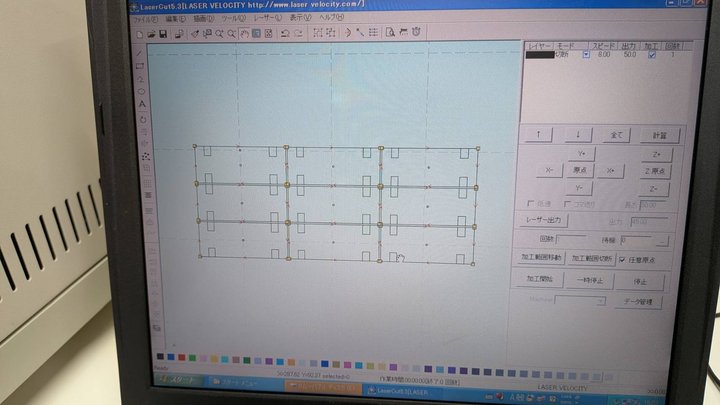

Load design file

Imported design file into laser cutter software

Step 2: Cutting Process

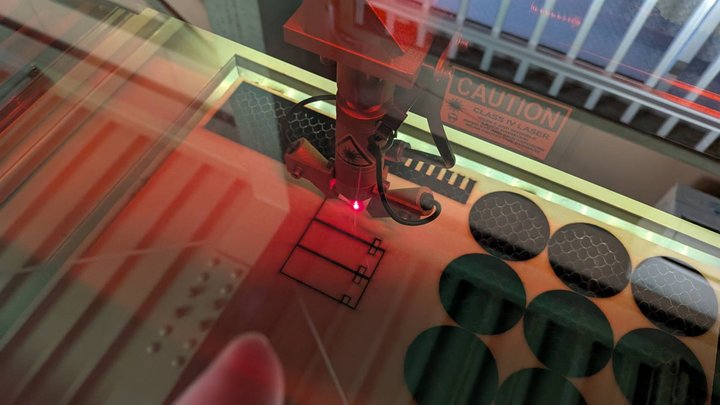

Cutting in progress

Laser cutting in progress

Cutting process - operator view

Me cutting MDF board with the laser cutter (photo by friend)

Step 3: Cutting Complete

Cutting complete

Laser cutting work completed

Step 4: Remove Excess Material

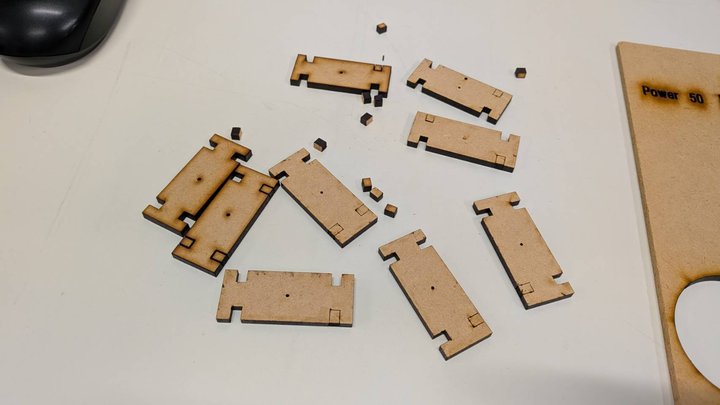

Remove excess parts

Removing excess material after cutting is complete

Assembly Results

Final Assembly:

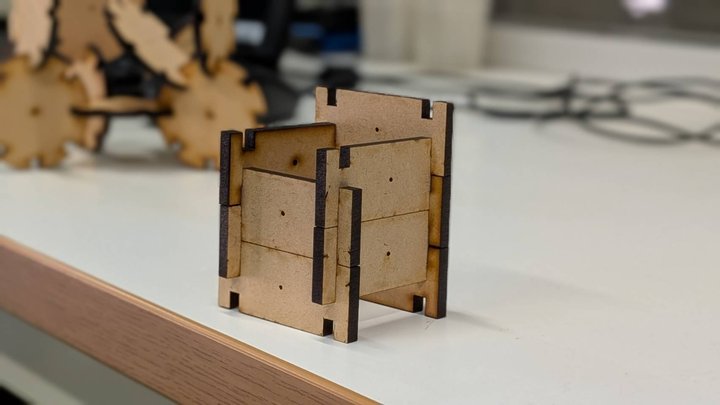

Assembly complete

Completed assembly - gaps fit perfectly as calculated!

The press-fit joints worked perfectly! The calculated clearance of 0.1mm resulted in tight, precise fits without glue.

Collaborative Work:

Collaborative assembly

Created a bike by combining parts cut by friends. Cool, right?

Working with other participants, we combined our laser-cut parts to create more complex assemblies, demonstrating the modularity of parametric design.


🎨 Vinyl Cutting Process

Design Creation in Inkscape

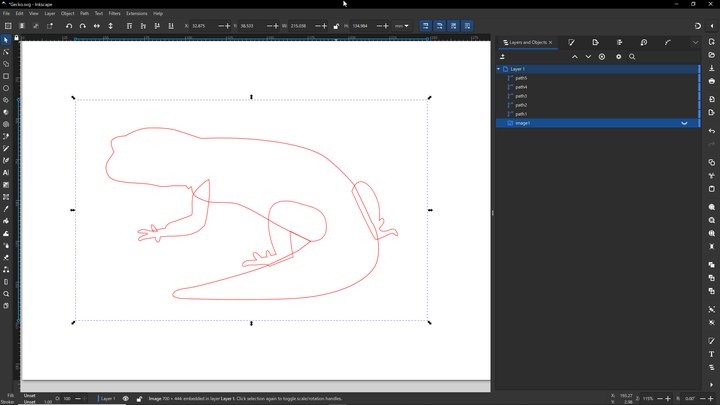

Step 1: Initial Design

Inkscape initial design

Creating design for vinyl cutting in Inkscape

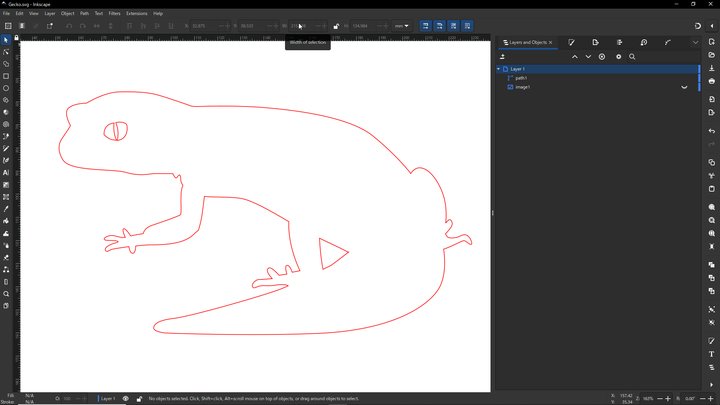

Step 2: Gecko Design

Gecko design complete

Basic Gecko design completed

I designed a Gecko mascot as the main element of the vinyl sticker.

Text Effects

Step 3: Add Text

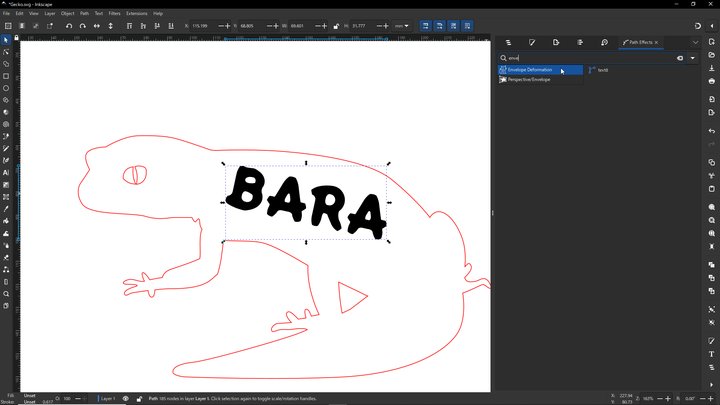

Add text

Placed plain text on the design

Step 4-6: Text Transformation

Effect setup 1

Setting up effects to transform text to match the design - Step 1

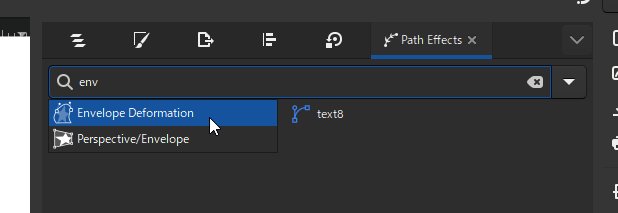

Effect setup 2 - Envelope

Setting up effects - Step 2: Configuring envelope deformation

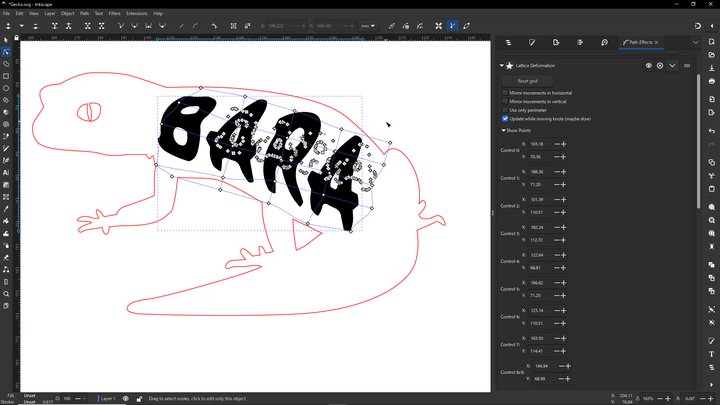

Effect setup 3 - Lattice

Setting up effects - Step 3: Deformation using lattice

I used Inkscape's envelope and lattice effects to transform the text to match the gecko design's curves.

Step 7: Final Design

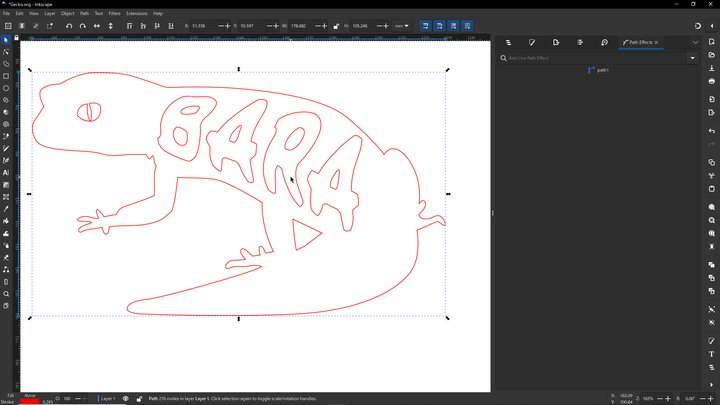

Design complete

Vinyl cutting design completed

Cutting Process

Step 8: Load Design to Plotter

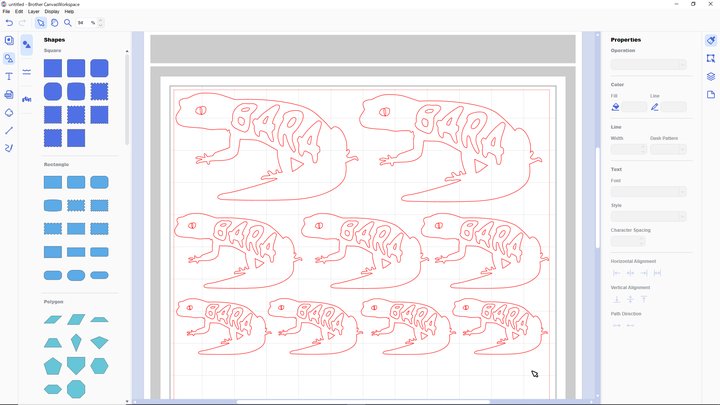

Load to plotter

Loading vinyl cutting data (SVG) into the cutting plotter

Step 9: Machine Setup

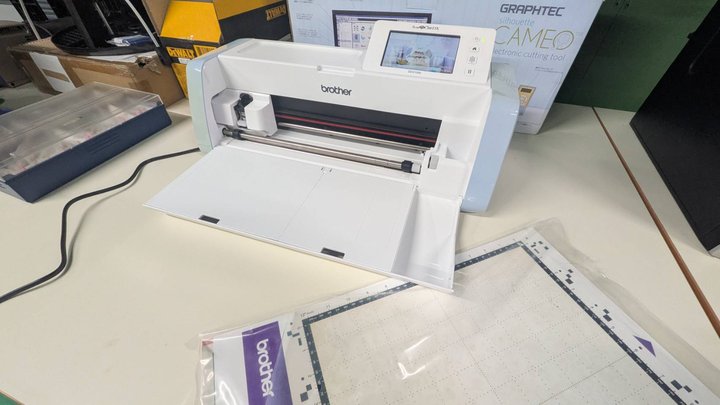

Brother cutting plotter

Brother cutting plotter used for this project

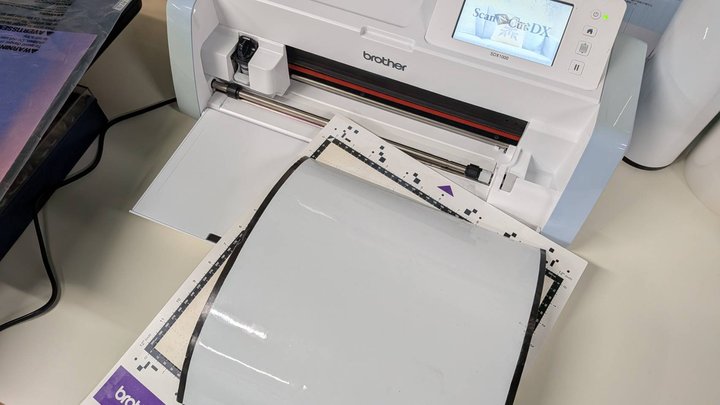

Step 10: Load Vinyl Sheet

Load vinyl

Setting the vinyl sheet into the plotter

Step 11: Import Data

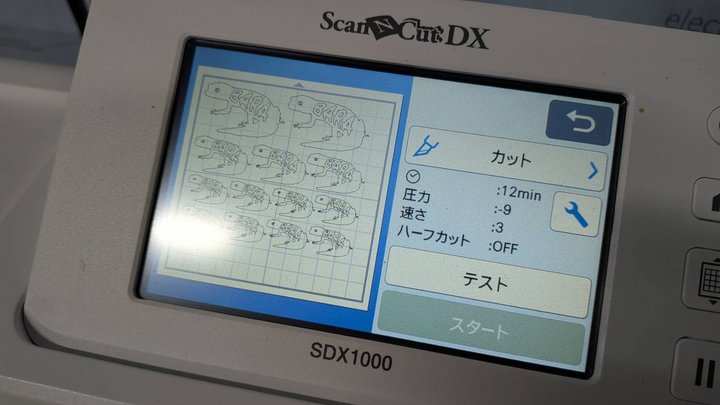

Import data

Importing data into the cutting plotter

Step 12: Software Settings

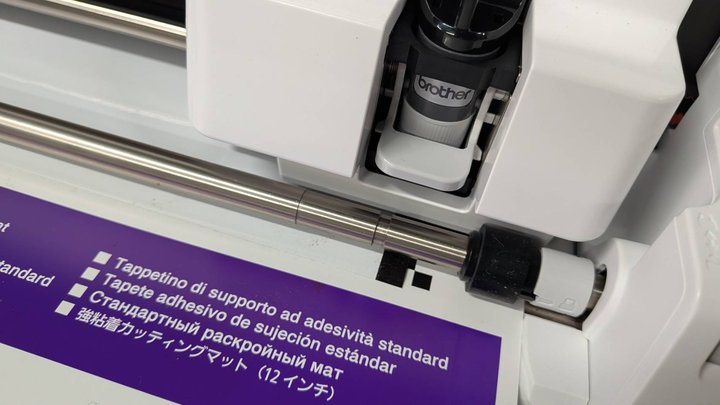

Software blade depth

Blade depth adjusted through software (no physical mechanism on holder)

The Brother cutting plotter uses software-based blade depth adjustment rather than physical adjustment on the blade holder.

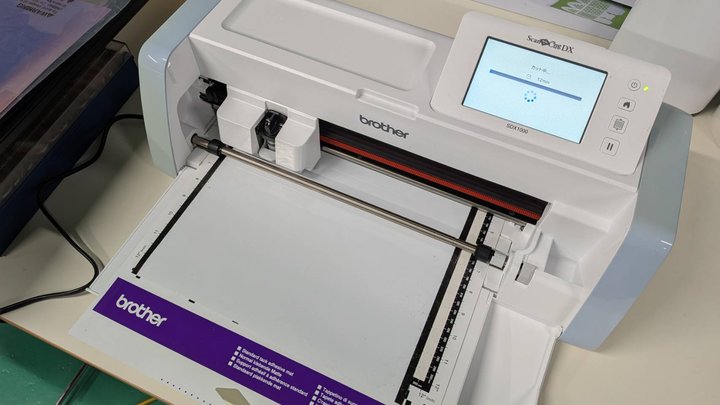

Step 13: Cutting

Cutting in progress

Cutting in progress

Troubleshooting Blade Depth

Problem: Initial Cut Too Deep

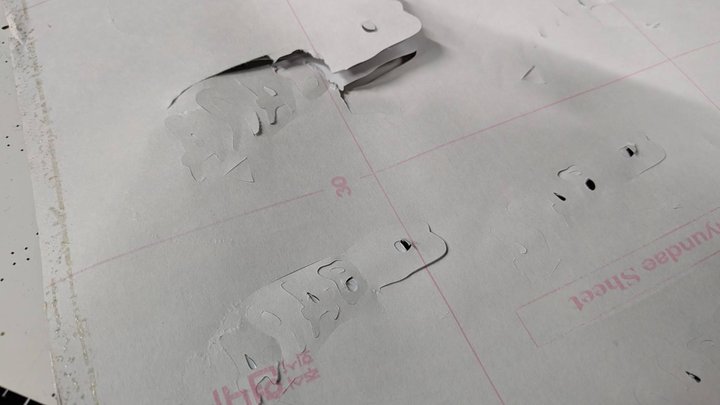

Cut too deep

Initial settings cut too deep through backing sheet - adjusting settings

The initial blade depth setting was too deep, cutting through the backing sheet. I needed to adjust the settings.

Solution: Adjust Settings

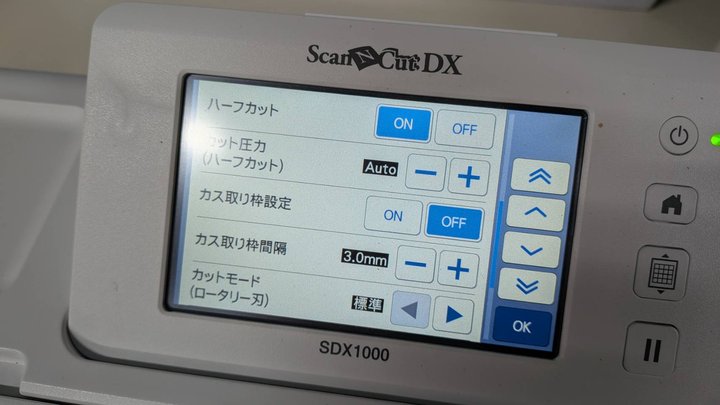

Set half-cut

Configuring cut settings to half-cut mode for sticker application

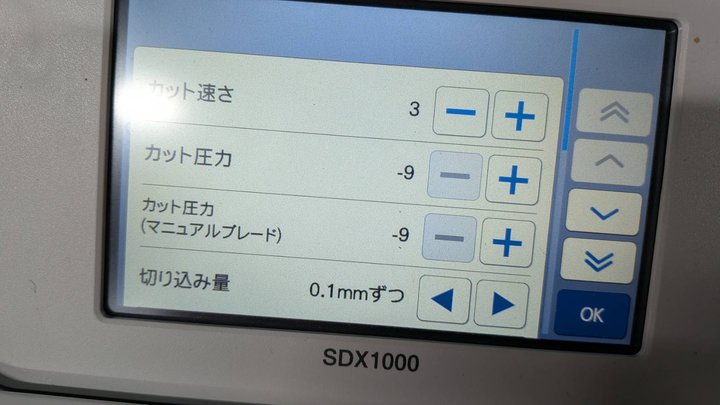

Adjust cutting parameters

Adjusting cutting speed, pressure, and depth in the settings

I adjusted the cutting settings to half-cut mode for stickers, and fine-tuned the speed, pressure, and depth.

Post-Processing

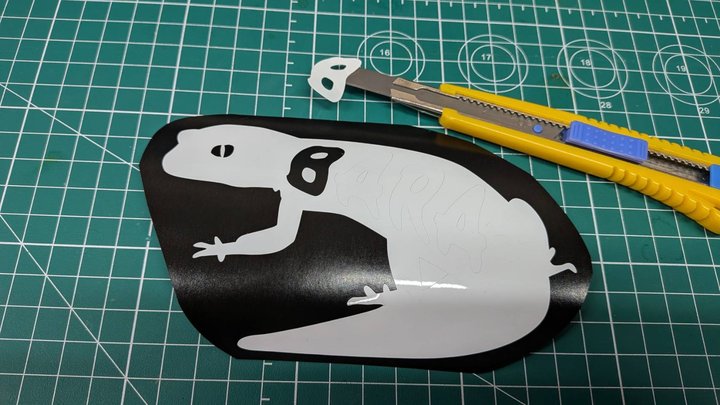

Step 17: Weeding

Weeding process

Removing excess vinyl from the properly cut sheet

Weeding is the process of removing excess vinyl, leaving only the design.

Step 18: Apply Transfer Tape

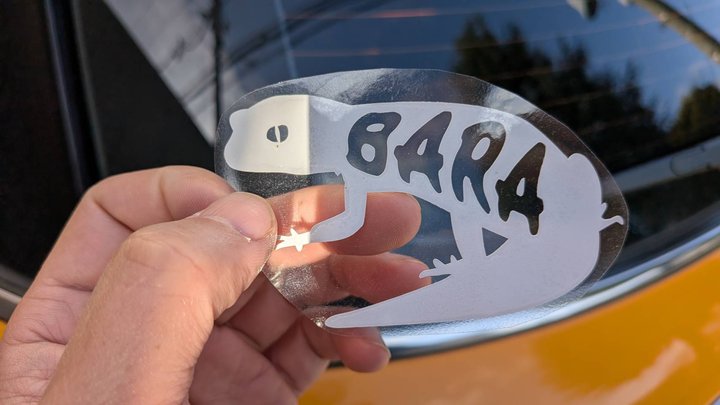

Apply transfer tape

Applying transfer sheet to prepare for application

Step 19: Final Application

Applied to vehicle

Application complete. The car looks awesome now!

The Gecko mascot sticker was successfully applied to the vehicle surface. The result looks great!


📦 Design Files

All design files are included in the repository.

Laser Cutting Files

  • 📥 Fusion 360 Source File - Parametric press-fit test design (294KB)
  • 📥 DXF Export - For laser cutting (24KB)
  • Parameters:
  • Material thickness: 4mm
  • Kerf compensation: 0.1mm
  • Joint clearance: 0.15mm
  • Parametric variables for easy adjustment

Vinyl Cutting Files

  • 📥 Gecko Mascot Design (SVG) - Vector file for vinyl cutting (21KB)
  • 📥 Brother Plotter Project - Complete cutting plotter project (2.0MB)
  • Design features:
  • Gecko mascot with custom text
  • Text effects: Envelope and Lattice deformation
  • Optimized for weeding
  • Ready for Brother cutting plotter

🔗 Connection to Final Project

How This Week's Work Supports My Smart Reptile Habitat System

Laser Cutting Skills: - Parametric design for adaptable enclosure components - Press-fit joints for tool-free assembly - Kerf compensation for precise mechanical fits - Platform and mounting brackets for sensors

Vinyl Cutting Skills: - Custom labels for control panel - Warning and instruction labels - Gecko mascot branding - Professional finishing touches

Key Takeaways: 1. Parametric design allows easy adaptation to different materials 2. Kerf measurement is critical for tight-fitting joints 3. Testing and iteration are essential for successful results 4. Computer-controlled cutting enables precise, repeatable results


🔧 Problems and Solutions

Problem 1: Vinyl Cut Too Deep

What Happened: The initial vinyl cutting settings cut through the backing sheet, making it impossible to weed and transfer the design properly.

Cut too deep issue

Why It Happened: - Default settings were too aggressive for thin vinyl material - Brother plotter uses software blade depth control - No physical adjustment available on blade holder

How I Solved It: 1. Switched to half-cut mode for sticker application 2. Adjusted cutting speed, pressure, and depth in software 3. Tested on scrap material before final cut

Adjusted settings

Settings adjusted to half-cut mode

What I Learned: - Always test cut on scrap material first - Software-controlled blade depth requires careful calibration - Half-cut mode is essential for sticker applications - Cutting parameters must match material thickness

Problem 2: Understanding Kerf Compensation

What Happened: Initially unclear how to properly account for kerf in parametric design.

Why It Happened: - Kerf affects both outer and inner dimensions differently - Need to understand which dimensions to adjust - Parametric variables needed for flexibility

How I Solved It: 1. Conducted group kerf characterization tests 2. Measured actual kerf width: 0.1mm 3. Created parametric variables in Fusion 360 4. Applied compensation dynamically based on material thickness

Parametric variables

Parametric variables for dynamic kerf compensation

What I Learned: - Kerf compensation is not just adding/subtracting dimensions - Parametric design makes testing different materials easy - Group collaboration helps understand machine characteristics - Documentation of settings is crucial for repeatability


⏱️ Time Management

Activity Time Spent Notes
Group characterization 2 hours Laser cutter testing and kerf measurement
Parametric design (Fusion 360) 3 hours Design with variables for kerf compensation
Kerf testing 1 hour Test cuts and measurements
Press-fit kit fabrication 2 hours Laser cutting and assembly
Vinyl design (Inkscape) 2 hours Gecko mascot with text effects
Vinyl cutting 1.5 hours Including troubleshooting blade depth
Documentation 2.5 hours Photography and writing
Total 14 hours Spread over the week

💭 Reflection

What Went Well

  1. Parametric Design Success: Using variables for material thickness and kerf made the design highly adaptable
  2. Perfect Joint Fit: The calculated 0.1mm clearance resulted in tight, precise press-fit joints
  3. Group Collaboration: Working with others to characterize the laser cutter and combine parts
  4. Problem Solving: Successfully troubleshot vinyl cutting depth issue through systematic adjustment
  5. Creative Design: The Gecko mascot design with text effects turned out great

What I'd Do Differently

  1. More Test Cuts: Would do more test cuts before final pieces to verify settings
  2. Material Variety: Would test with different materials (acrylic, plywood) to compare kerf
  3. Joint Variations: Would design and test more joint types (box joints, snap fits)
  4. Documentation: Would take more process photos during design phase in Fusion 360
  5. File Organization: Would better organize SVG layers in Inkscape for easier editing

Lessons Learned

  1. Kerf is Critical: Precise kerf measurement makes the difference between loose and perfect fits
  2. Parametric Design Pays Off: Variables save time when testing or adapting designs
  3. Test First: Always test settings on scrap material before final cuts
  4. Software Control: Modern machines use software for fine adjustments (Brother plotter blade depth)
  5. Collaboration Value: Group characterization work benefits everyone and creates community knowledge

For Next Week - Electronics Production

The parametric design skills learned this week will be valuable for: - Designing precise PCB mounting brackets - Creating enclosures for electronics with exact tolerances - Understanding the importance of precision in manufacturing


📚 References

Laser Cutting

Parametric Design

Vinyl Cutting

  • Inkscape: Path Effects
  • Envelope and Lattice deformation techniques
  • Brother cutting plotter manual
  • Weeding and transfer techniques

Status: ✅ Completed - Last updated: February 11, 2026

Assignment successfully completed with all requirements met.
