Week06

Week 6 Group assignment:

• Use the test equipment in your lab to observe the operation of a microcontroller circuit board (as a minimum, you should demonstrate the use of a logic analyzer)
• Document your work on the group work page and reflect what you learned on your individual page

Using test equip

We have Saleae Logic 8 Pro in Lab. So we tried to use logic analyser.

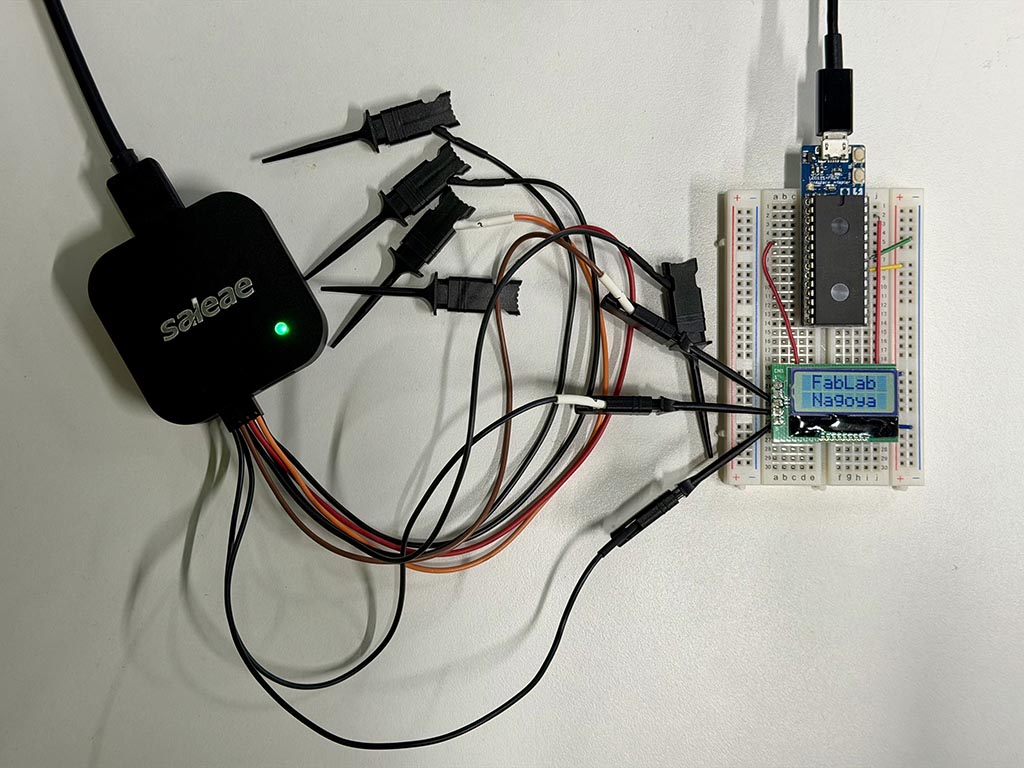

I connected Channel 0 to SDA line, Channel 1 to SCL line. Also connected Saleae logic and PC using USB cable. And launched Saleae Logic 2 app.

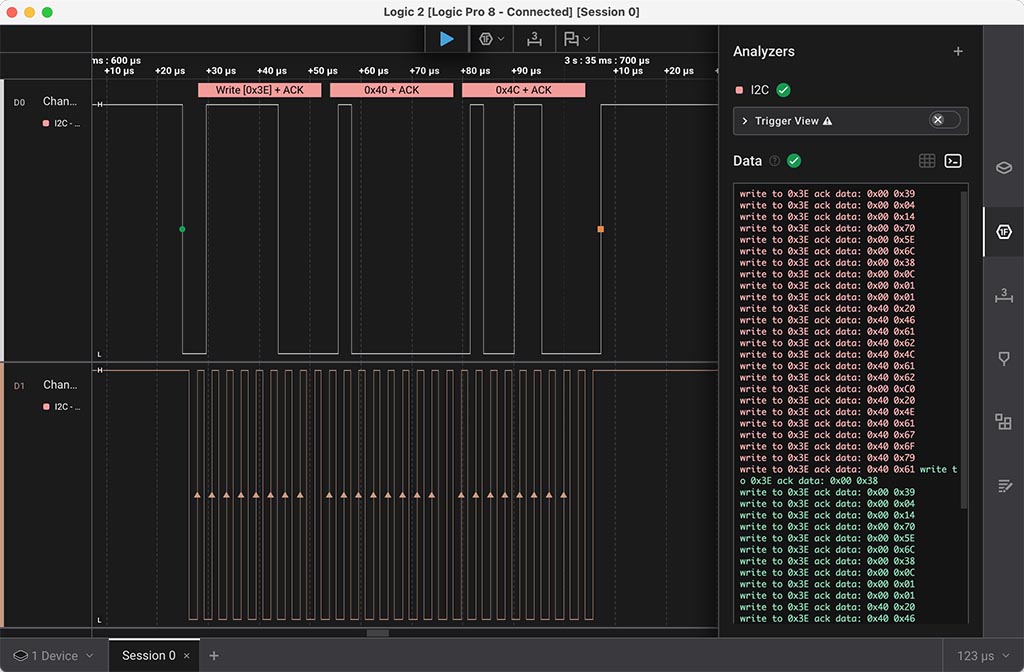

And I clicked start capturing button on app, and turned on the microcontrolled, so that we can capture I2C communication.
