6. Electronics design¶
Group Assignment¶
- use the test equipment in your lab to observe the operation of an embedded microcontroller
Overview¶
We analyzed the QPAD-based Fabdino game we assembled in Week 4 using a digital oscilloscope. We observed the I2C signals (SCL and SDA) and discovered that the pull-up resistance and I2C frequency were not well matched. By adjusting the software settings, we obtained cleaner waveforms.
The QPAD hardware reference: QPAD-XIAO repository

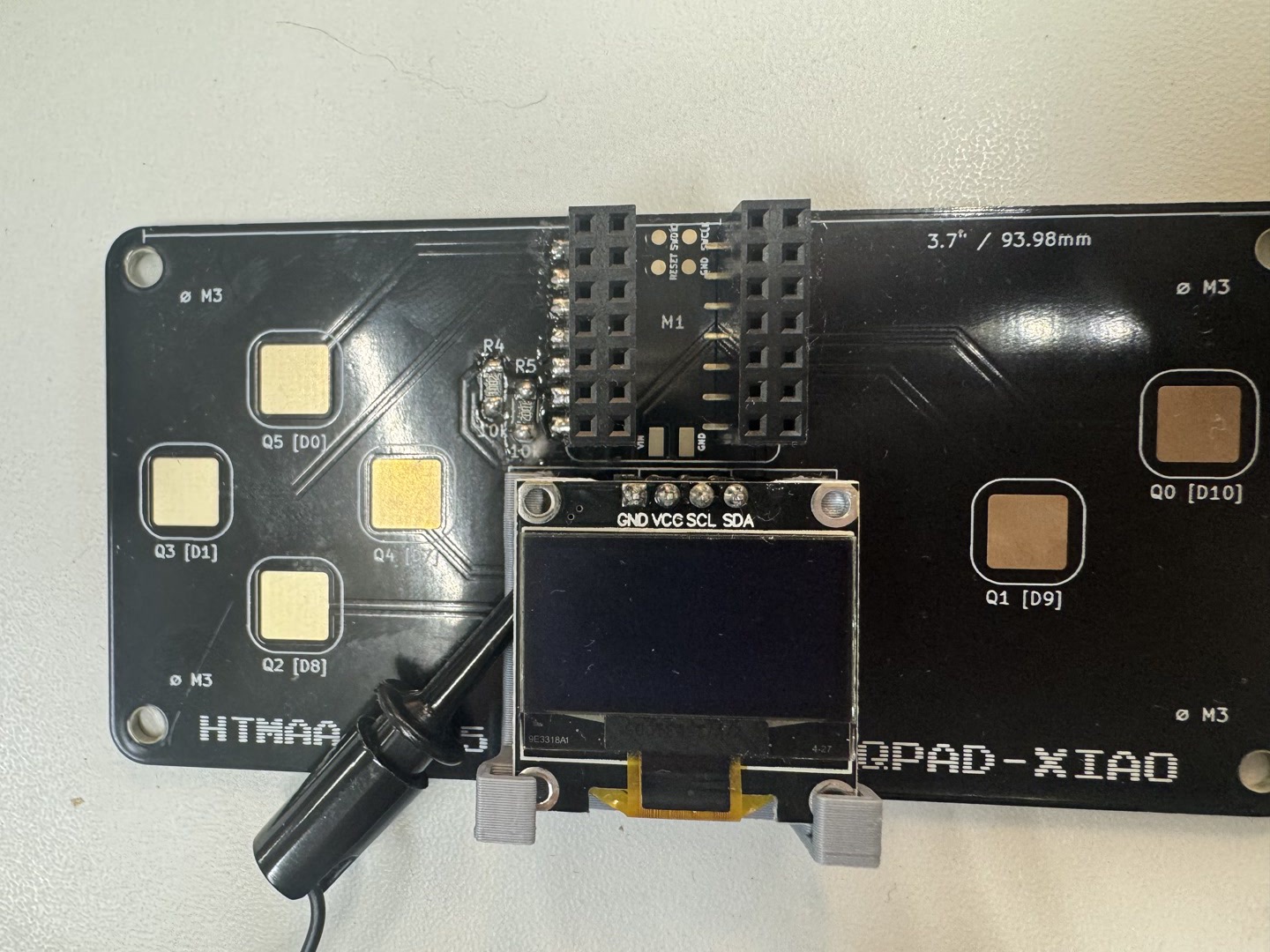

Photo 1: The QPAD board we used for measurement
1. Setup — Connecting the Oscilloscope Probes¶
We connected the oscilloscope probes to the SCL and SDA pins of the QPAD board. Clipping the probes onto the small pins was quite tricky.

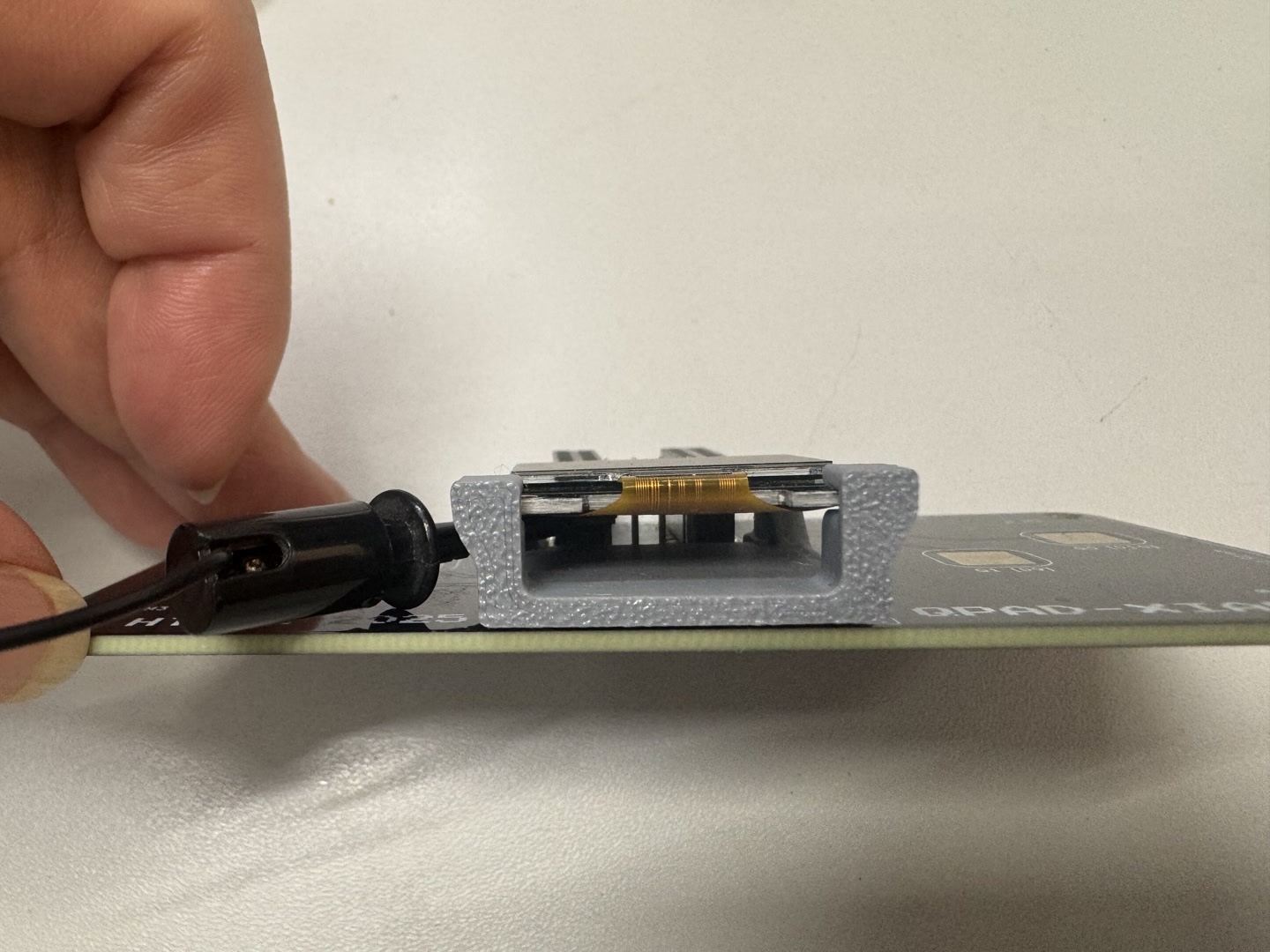

Photo 2: Connecting the oscilloscope probes to the QPAD pins

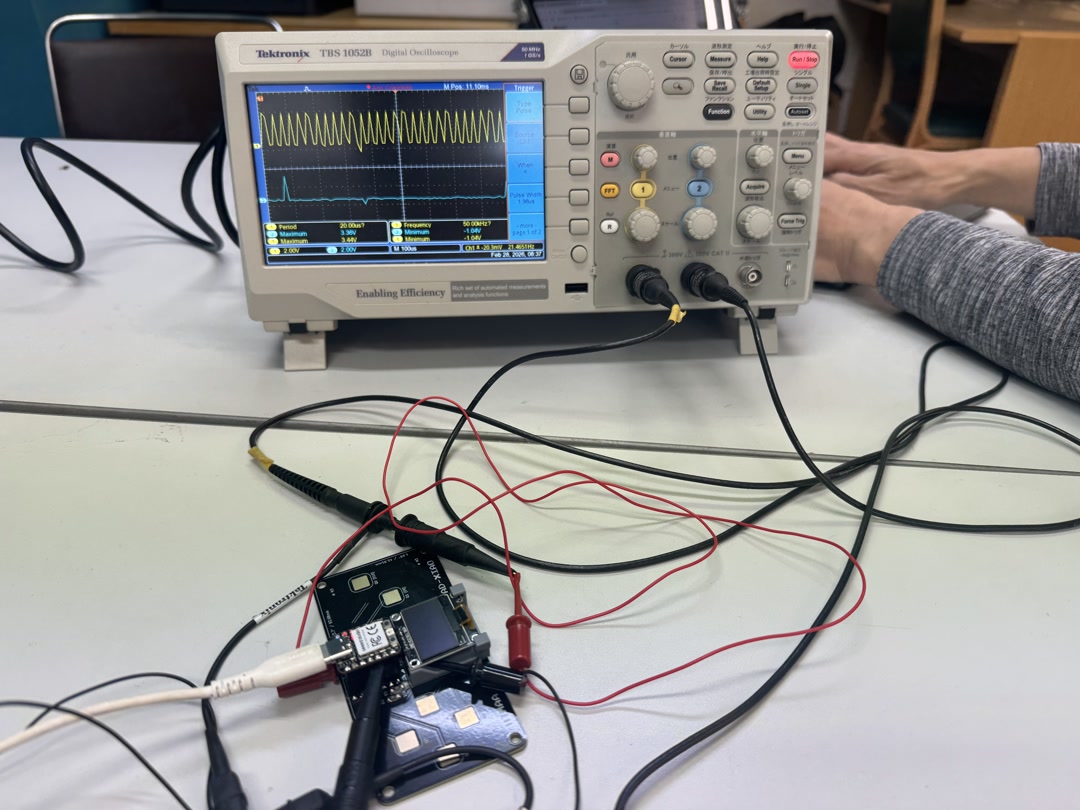

Photo 4: Full measurement setup — oscilloscope with probes connected to the QPAD
2. Observing SCL and SDA Simultaneously¶
The oscilloscope can display two channels at the same time — yellow and cyan. We observed the waveforms of the QPAD’s SCL and SDA signals.
Video: SCL (yellow) and SDA (cyan) observed simultaneously on the oscilloscope- SCL is simply a clock signal. It is pulled up by default (stays HIGH), and rapidly toggles ON and OFF when the clock is running. The period was approximately 5 ms.
- SDA is also pulled up, and changes state while SCL is active. However, unlike SCL, the SDA waveform is not uniform — this is expected since SDA carries actual data.
3. Using the Trigger¶
We set the trigger to Rising edge to freeze the waveform and make it easier to observe.
Photo 5: Oscilloscope screen with trigger set — observing the frozen waveform
The SCL signal looked somewhat different from what we had expected. Even though SCL is a regular clock, it did not look as uniform as we thought — the transitions were somewhat scattered.
4. Triangular Waveform — Pull-up Resistor Too Large?¶
When the waveform looked triangular (rounded edges instead of sharp square waves), we suspected that the 10 kΩ pull-up resistor was too large. A large pull-up resistance causes the signal to rise slowly, rounding the edges of what should be a sharp square wave.
Photo 6: Triangular/rounded waveform indicating the pull-up resistor may be too large
To improve the waveform without changing hardware, we reduced the I2C frequency to 1/4 of the original:
i2c = I2C(1, scl=Pin(7), sda=Pin(6), freq=100000)
After this change, the waveform improved, becoming a little bit closer to a proper square wave shape (not perfectly there yet, though).

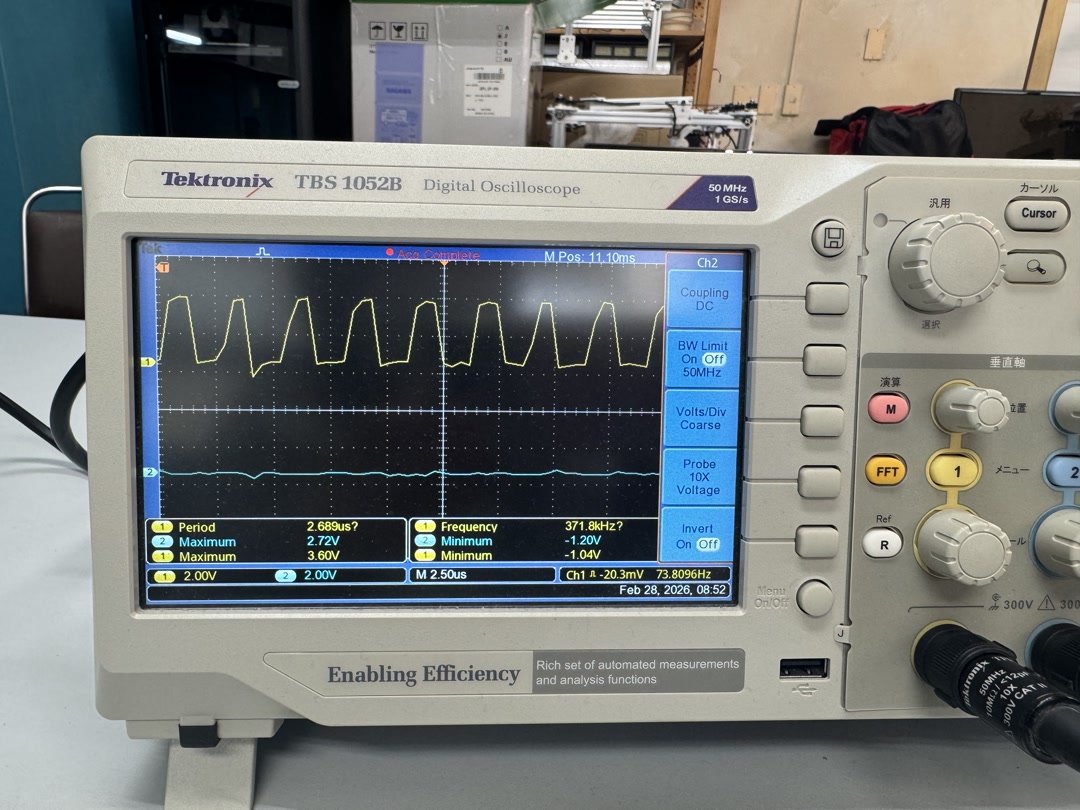

Photo 7: Cleaner square wave after reducing the I2C frequency
5. What We Learned from the Oscilloscope¶
Using the oscilloscope, we could verify:
- Whether the pull-up resistance is well matched to the I2C bus — if the edges are too rounded (triangular), the resistance is too high for that frequency.
- Whether the program’s I2C frequency is compatible with the hardware specifications — a mismatch results in distorted waveforms.
We also set the probe attenuation to 10× for more accurate measurements.
6. Pull-up Resistors Inside the OLED Module¶
We discovered that the OLED module already has internal pull-up resistors. This means there is no need to add external pull-up resistors to the I2C lines.
However, when external pull-up resistors are also present, the internal and external resistors are connected in parallel, which lowers the effective resistance:
- External pull-up: 4.7 kΩ
- Internal pull-up (OLED): assumed similar value
- Parallel combination: effectively ~3.3 kΩ
This means the total pull-up resistance is slightly lower than intended, which is actually better for higher I2C frequencies — but it is worth being aware of.
