Overview

This week, I'll be using xTool F1 Ultra to cut and engrave metal.

Resources

1. I used xTool Studio.
2. I used Cuttle.

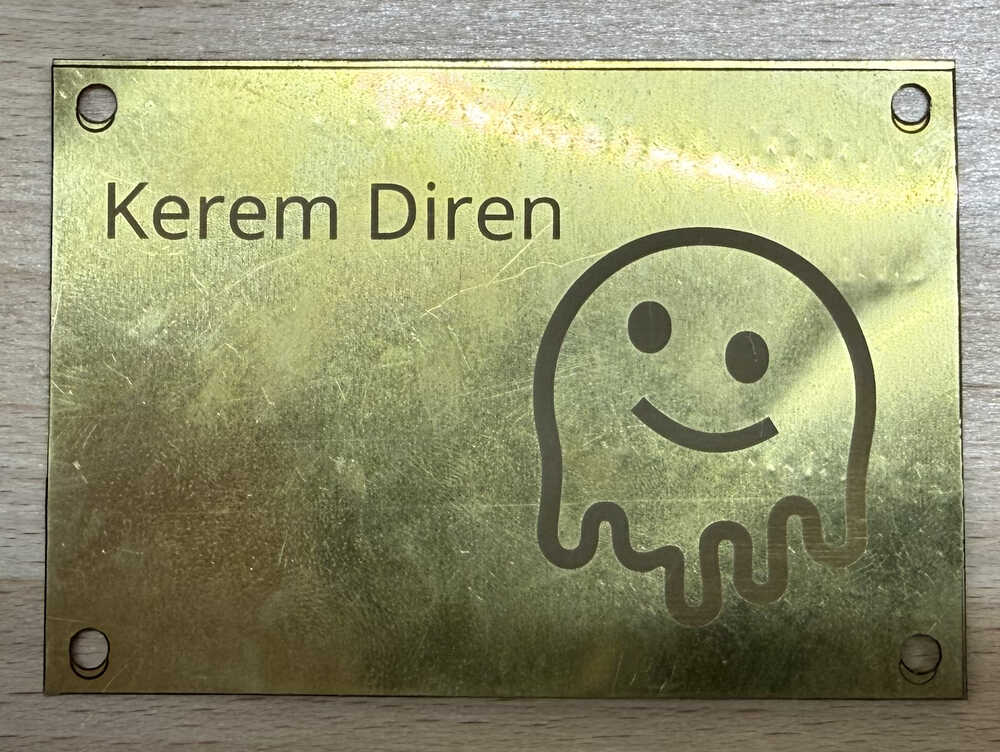

Final Version

Designing

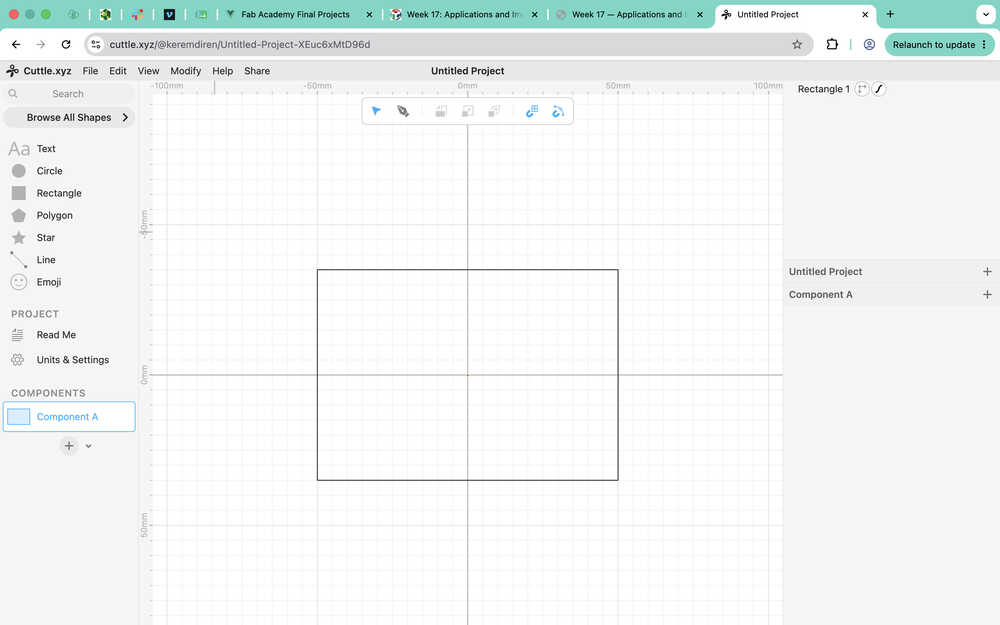

I started with creating this rectangle. I want to make a plate and engrave stuff on it. I'll also make screw holes.

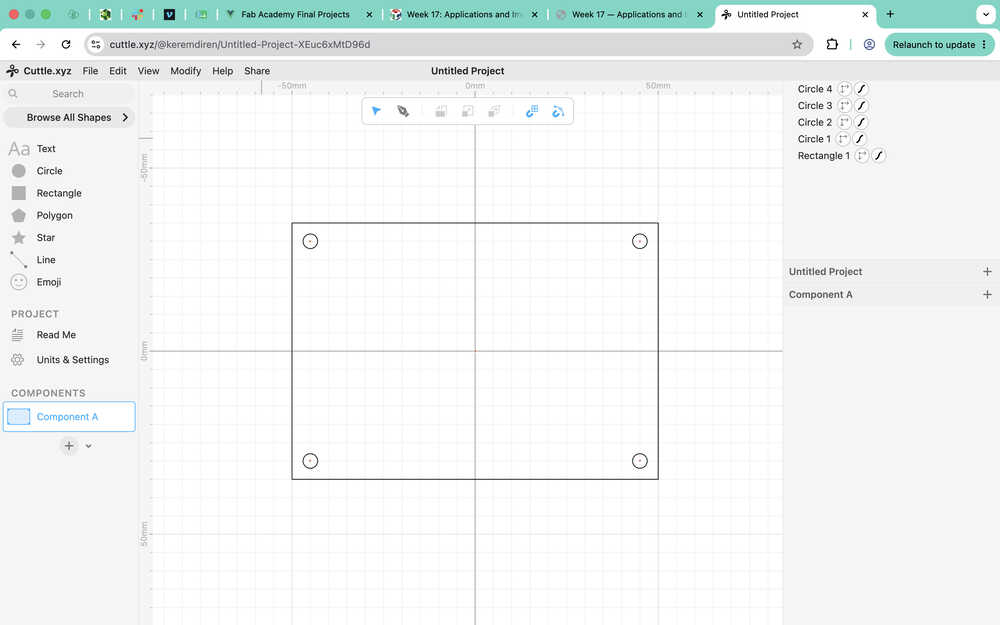

I made some 4mm screw holes.

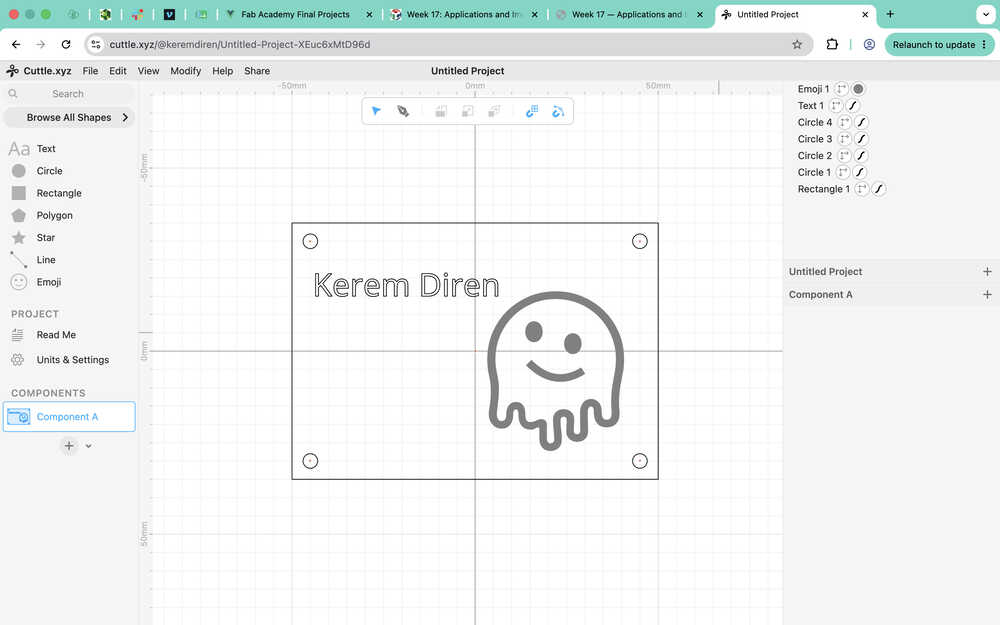

I wrote "Kerem Diren" here and made a face.

Micromachining

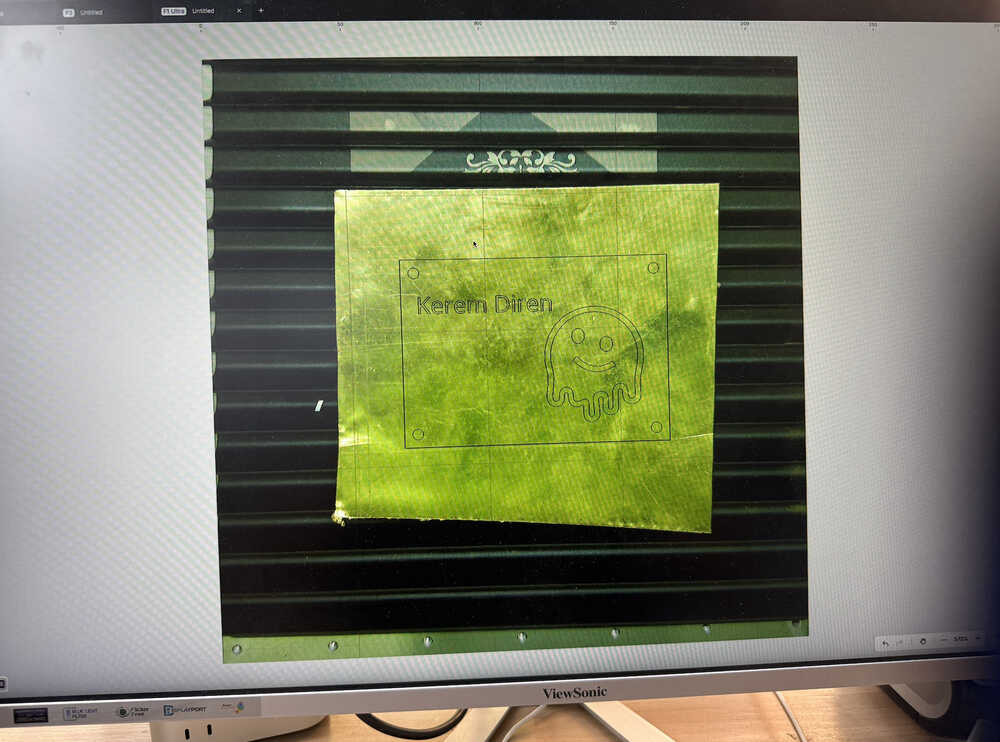

I opened the thing I designed in xTool Studio.

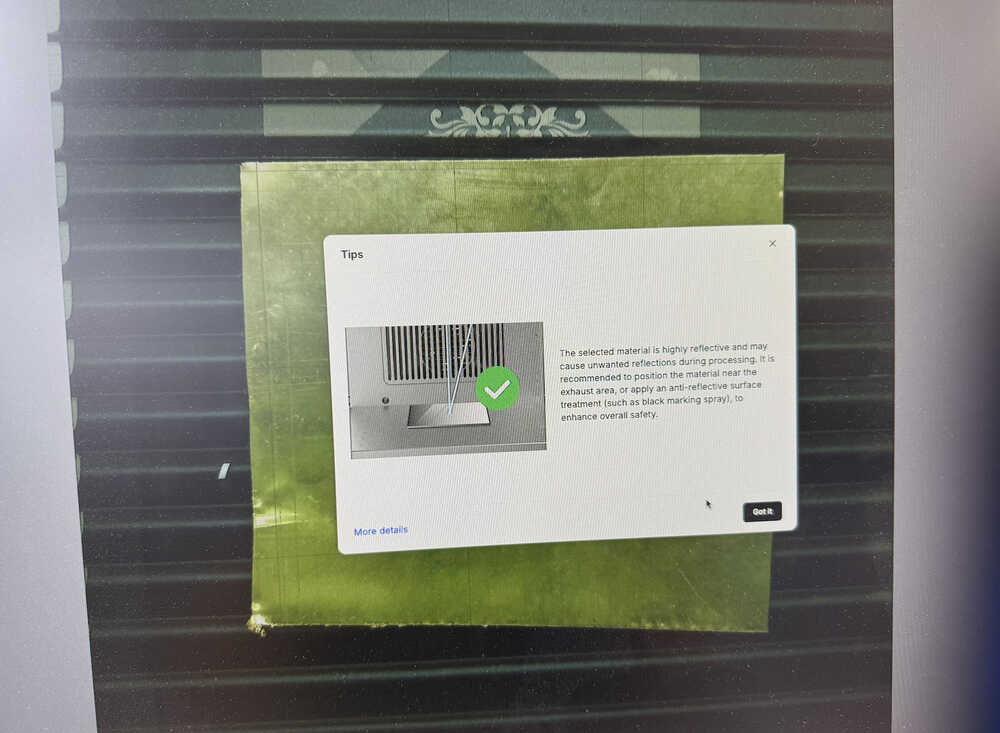

While selecting "Brass Sheet" as my material, I got a warning.

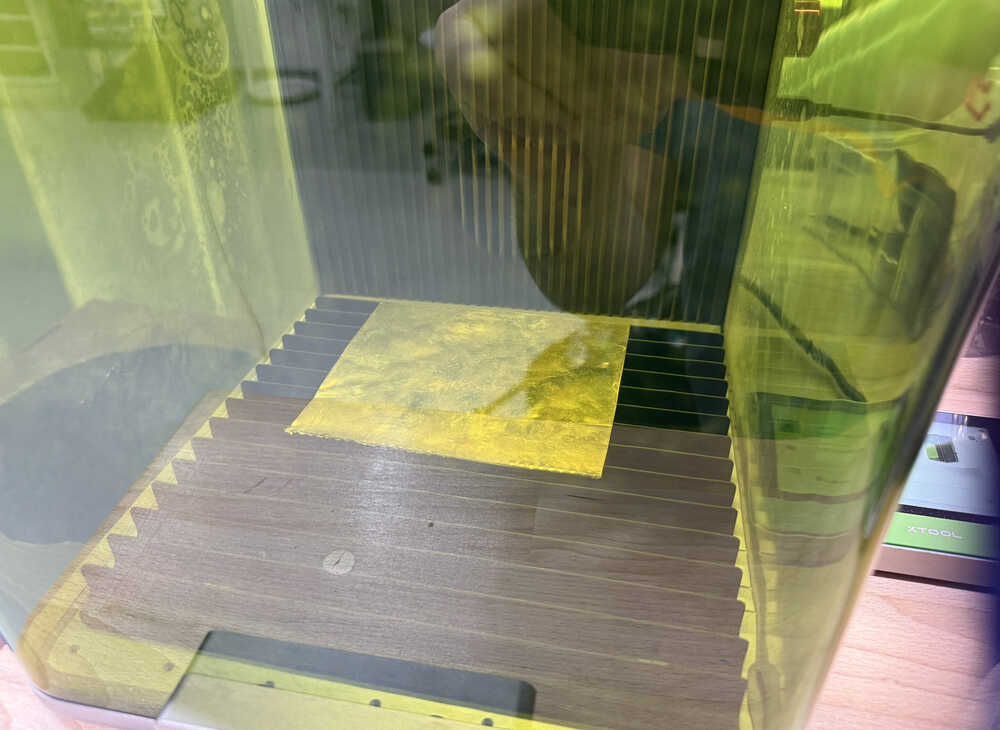

I placed the material as such.

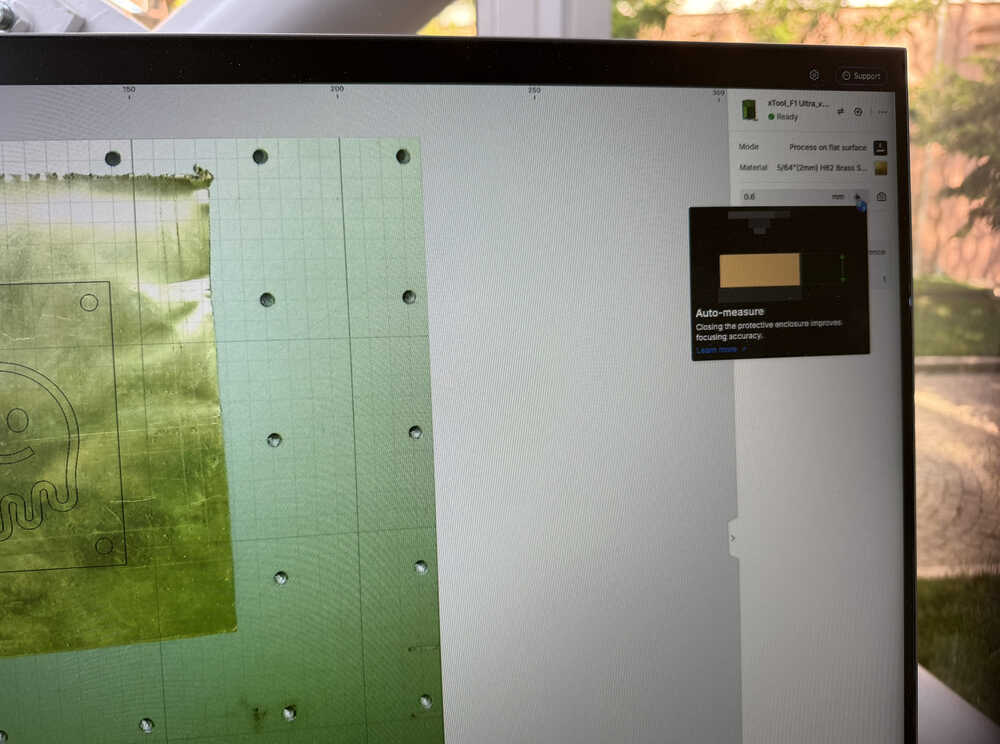

I used the ruler next to the thickness setting button to auto-measure.

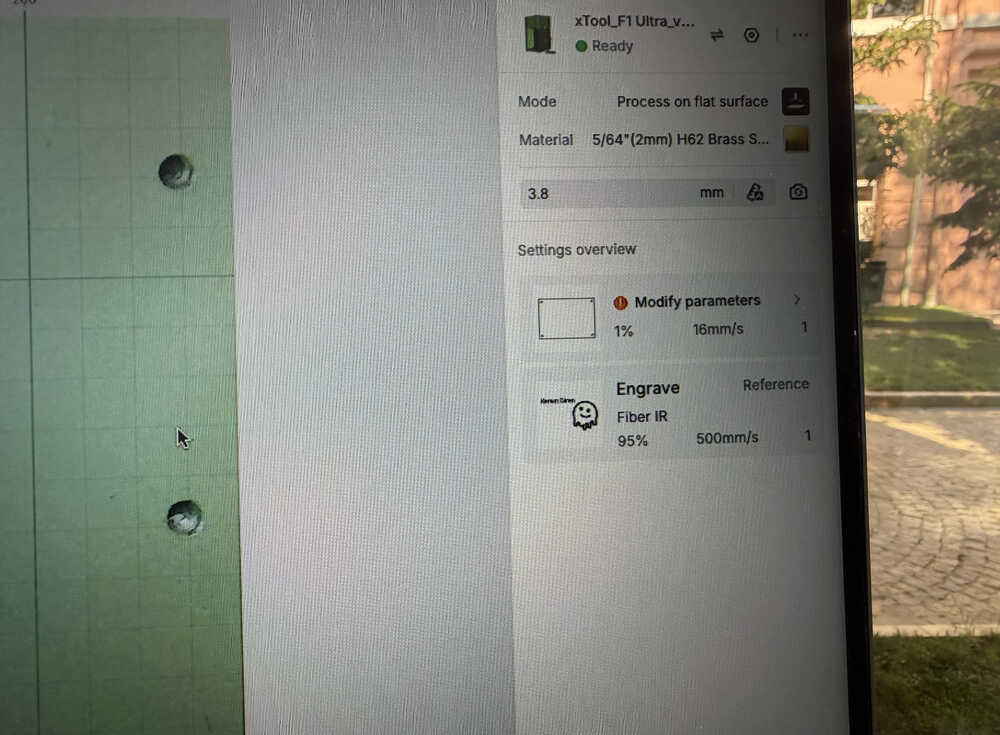

The auto measure was wrong since I tried measuring it later and it turned out that the thing had a thickness of 0.6mm.

I separated the parts I'll cut and the parts I'll engrave.

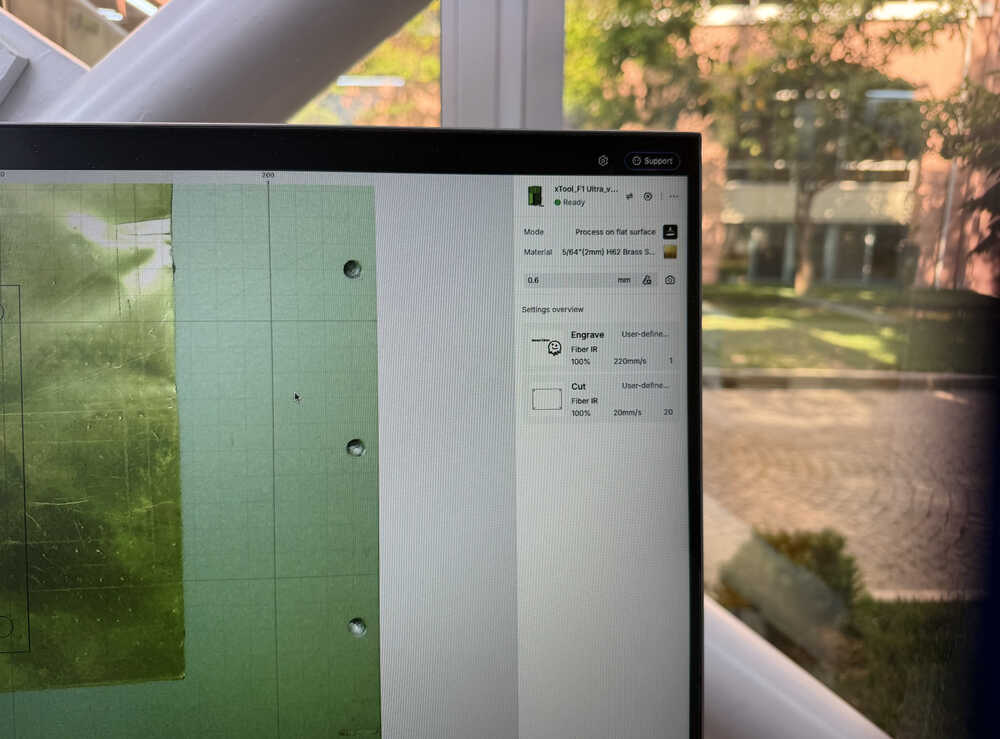

The following are my settings for cutting and engraving.

I got these setting from ChatGPT.

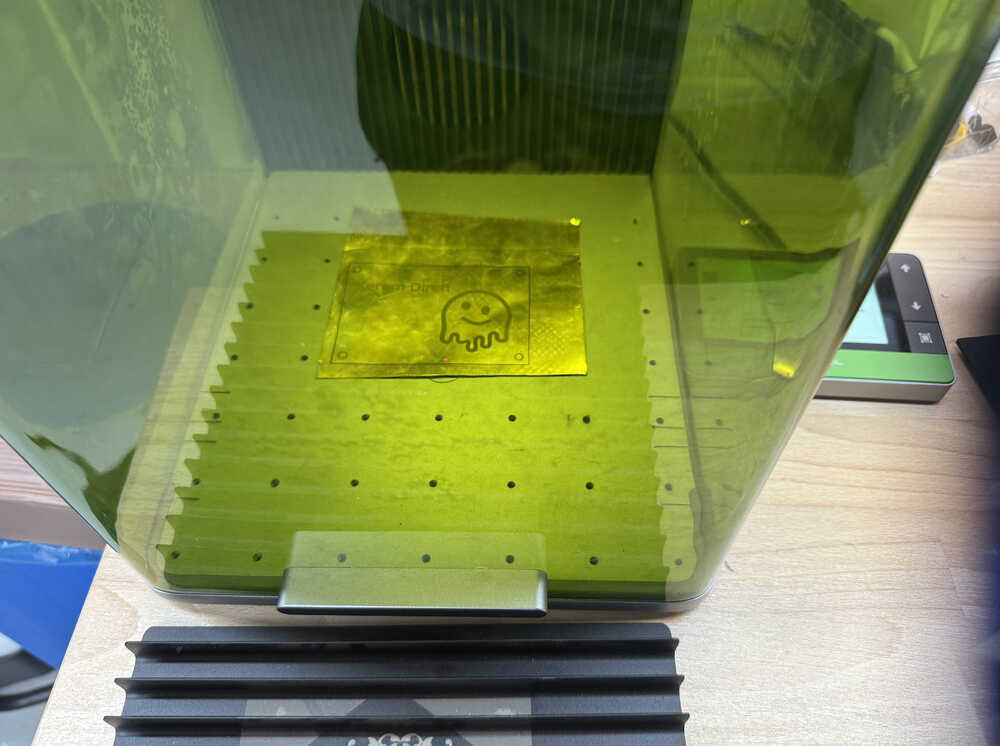

I started the machine (after turning on the air filter).

Video:

The machine couldn't cut, so I started the cutting part again.

After about 9 more repeats (which made up a total of 200 times going over, including the first repeat), the brass sheet was finally cut. I mean, some parts were still not fully cut, but because they were thin, I was able to literally tear those parts.

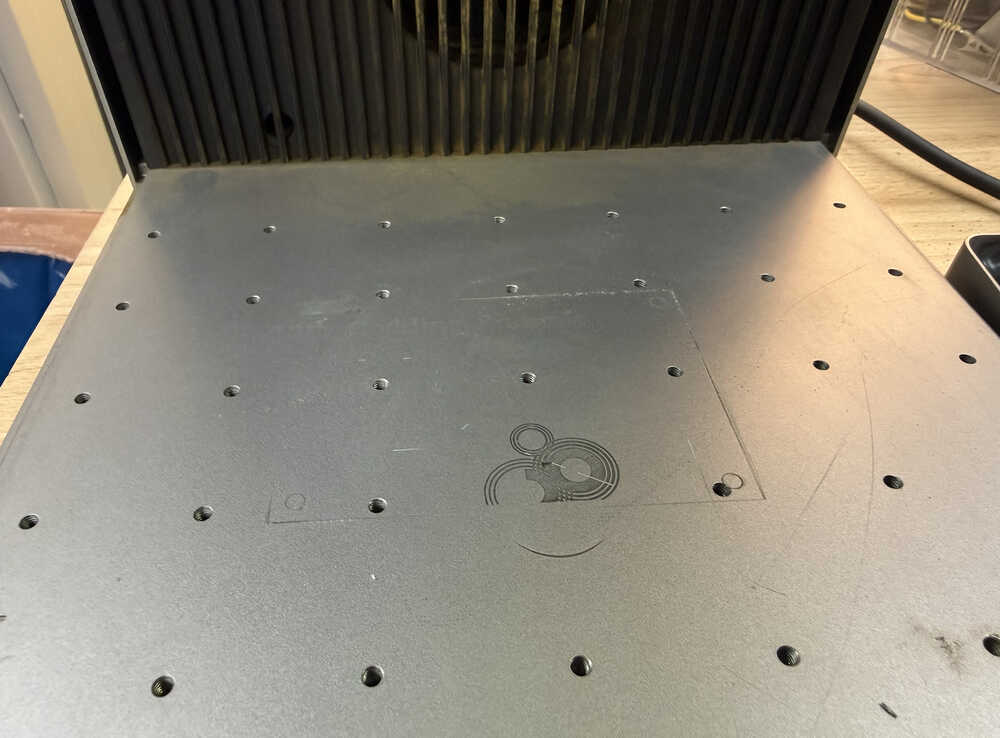

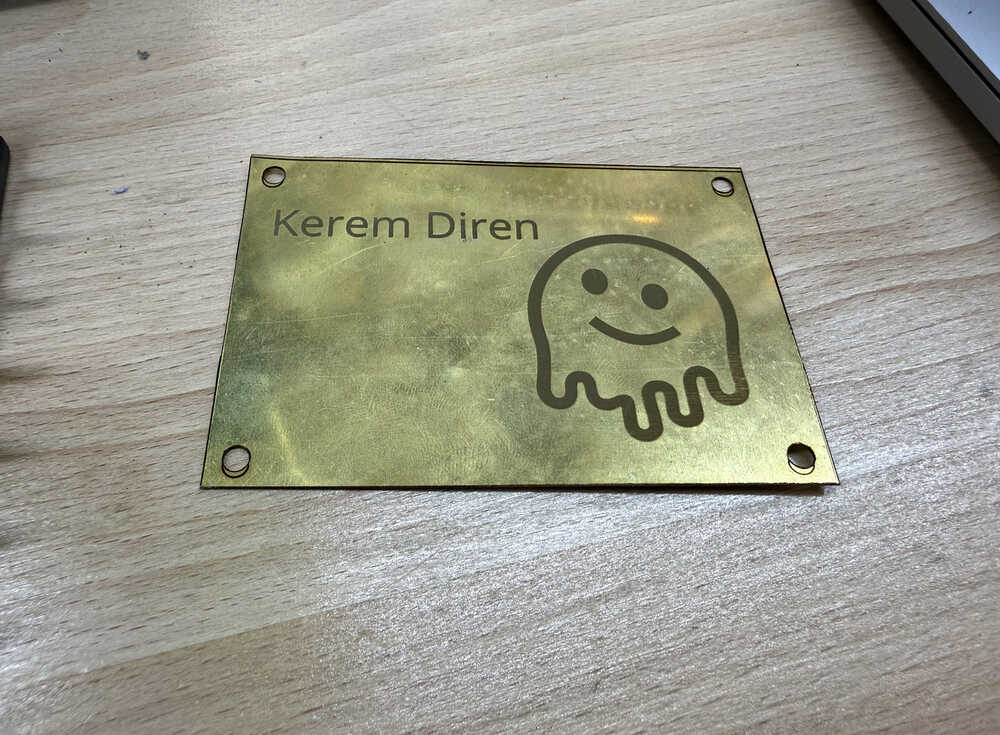

The damage I've caused:
