5. 3D Scanning and Printing¶

This week I worked on 3D printing for the first time even though I was worried that I might damage the 3D printer. I have had these machines for a while but I will use it with the demo models that was saved in the printer storage. So first of all I needed to learn about my 3D printers before getting to work with them.

I have a BambuLab X1 Carbon, Dremel 3D45, and BambuLab P1S. The first two are the only ones that are working properly.

These are the specifications based on the information provided on their websites:

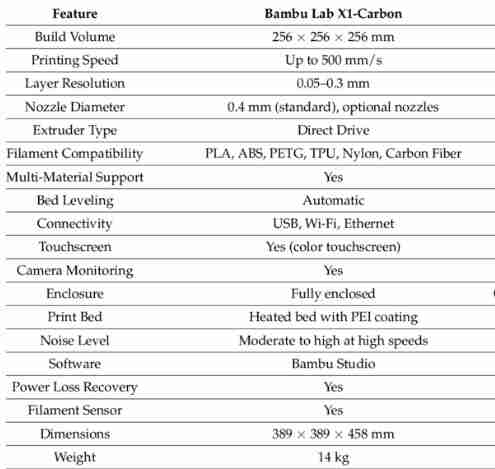

3D Printers Specifications¶

BambuLab X1 Carbon	Specification
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Dimensions	389389457 mm3
Max Speed of Tool Head	500 mm/s
Max Acceleration of Tool Head	20 m/s2
Build Volume	256256256 mm3
Max Cutting Depth	8-9mm
Supported Filament	PLA, PETG, TPU, ABS, ASA, PET, PA, PC, Carbon/Glass Fiber Reinforced Polymer
Bambu Micro Lidar	Yes
Chamber Monitoring Camera	1920 x 1080 Included
Door Sensor	Yes
Filament Run Out Sensor	Yes
Filament Odometry	Optional with AMS
Power Loss Recover	Yes
Max Build Plate Temperature	110 @220 V, 120 @110 V
Max Hot End Flow	32 mm3/s @ABS (Model: 150 x 150 mm single wall Material: Bambu ABS; Temperature: 280

alt text

3D Printers Testing¶

Connecting to the network using IP Address to my Dremel 3D45

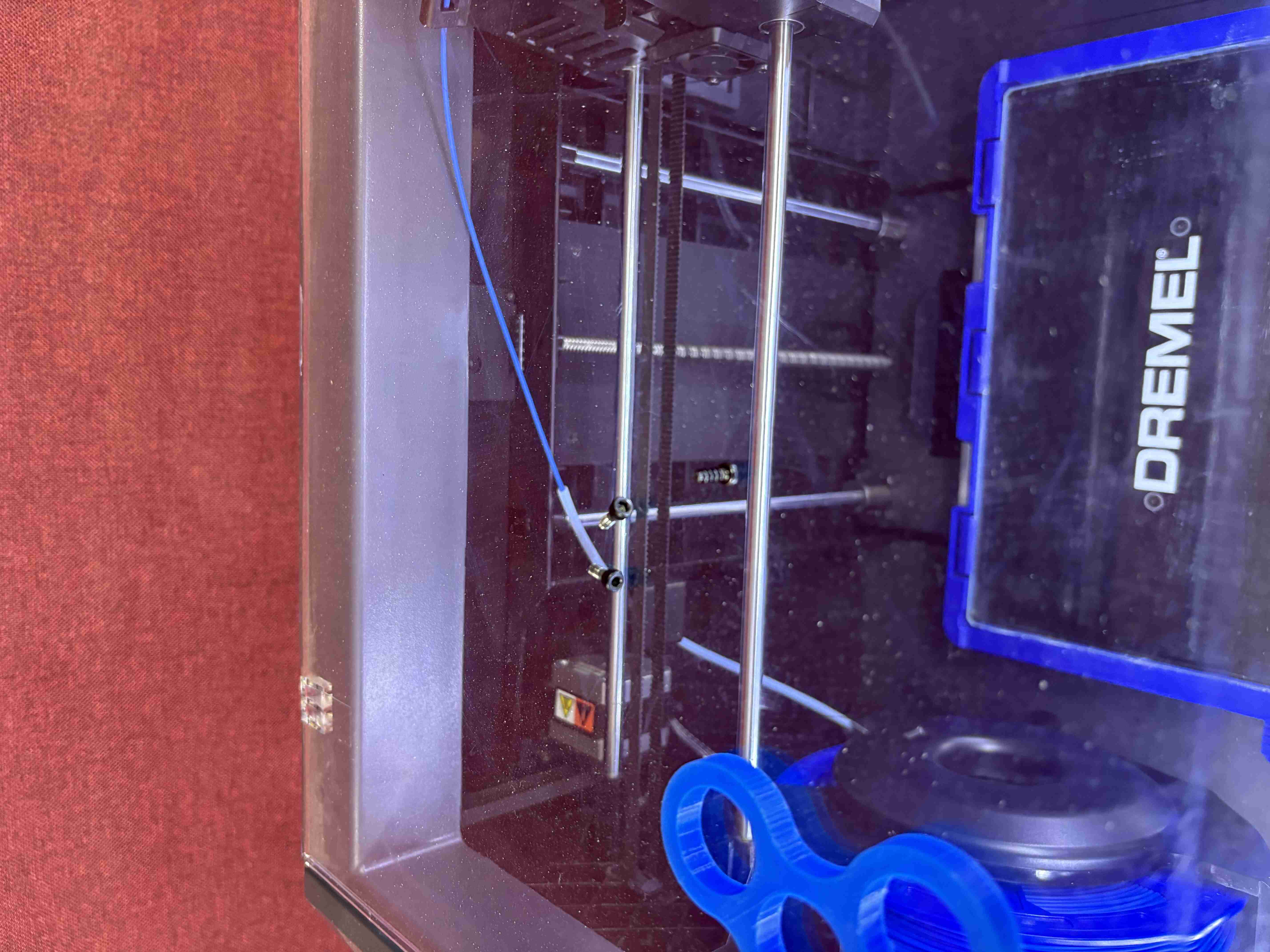

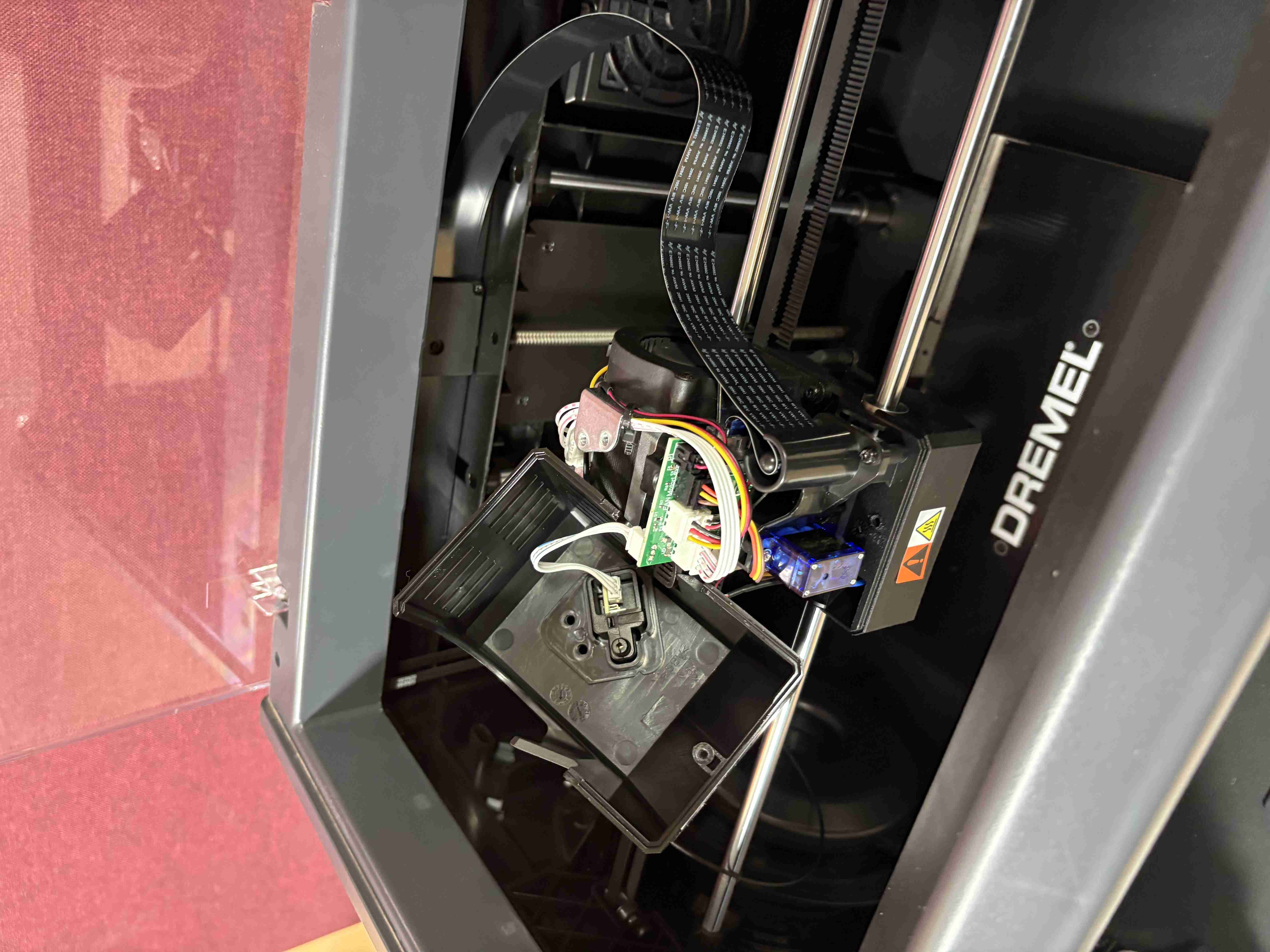

3D Printers being tested

Bambu Lab & Dremel 3D45 Printers testing:¶

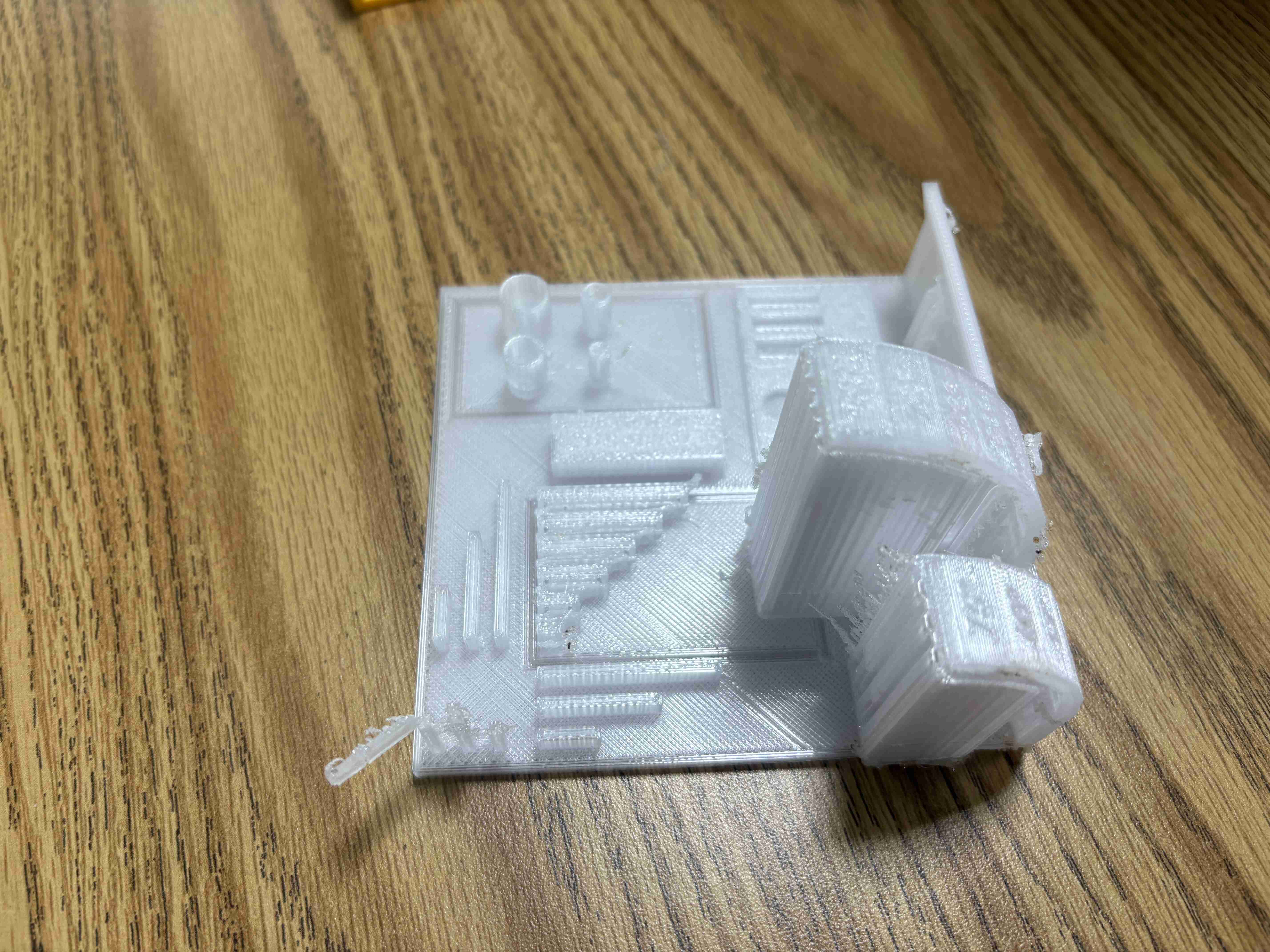

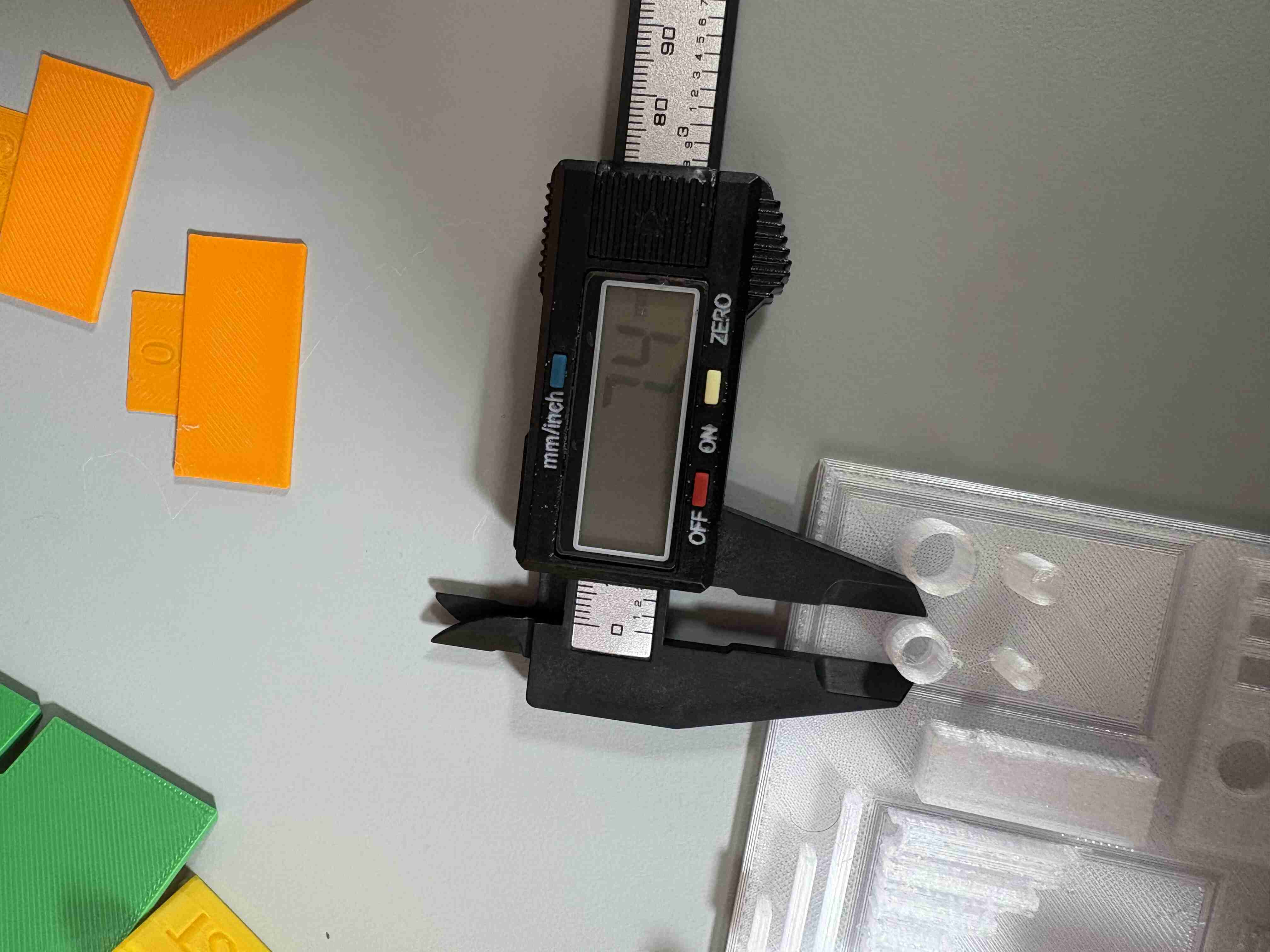

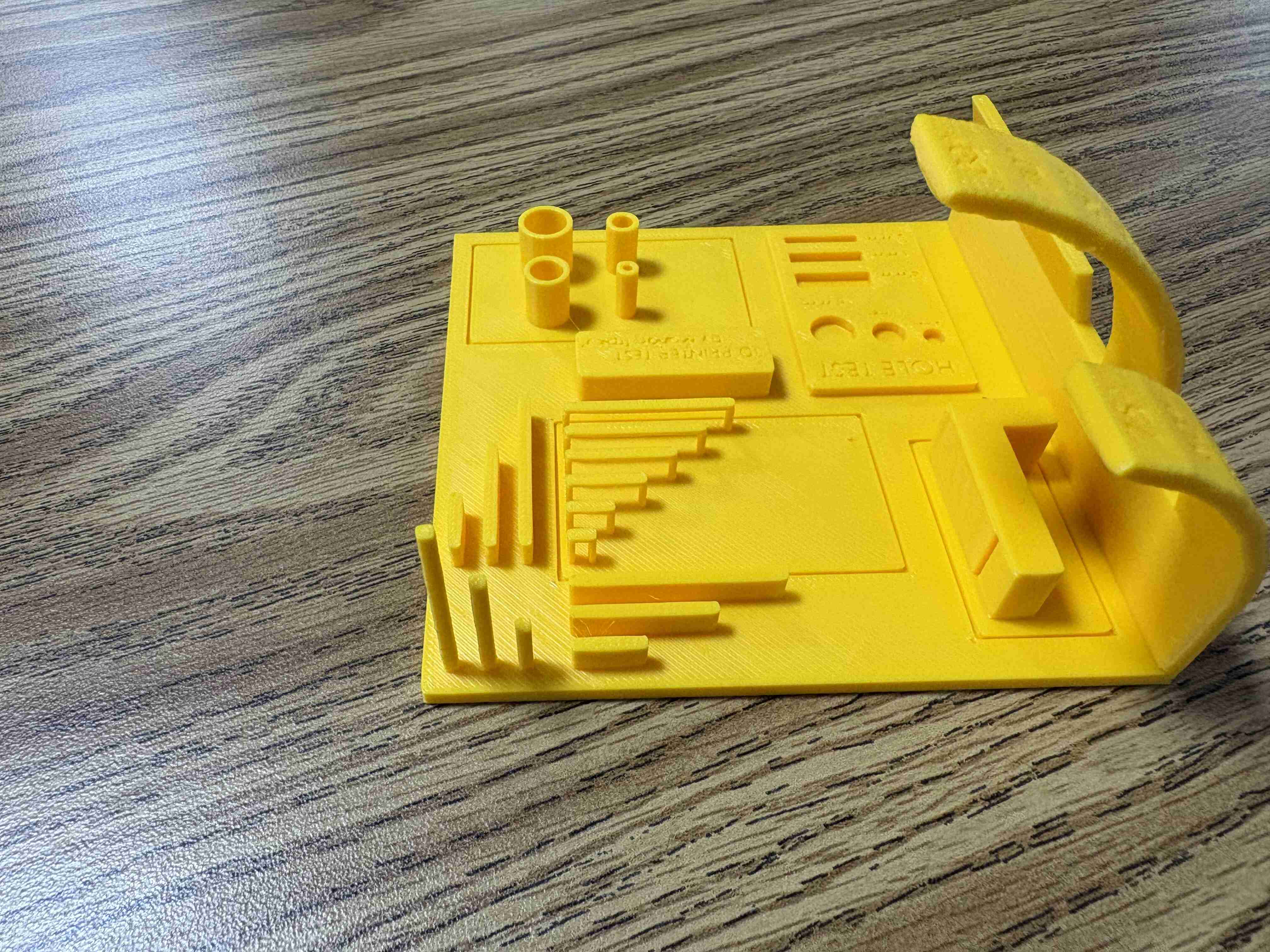

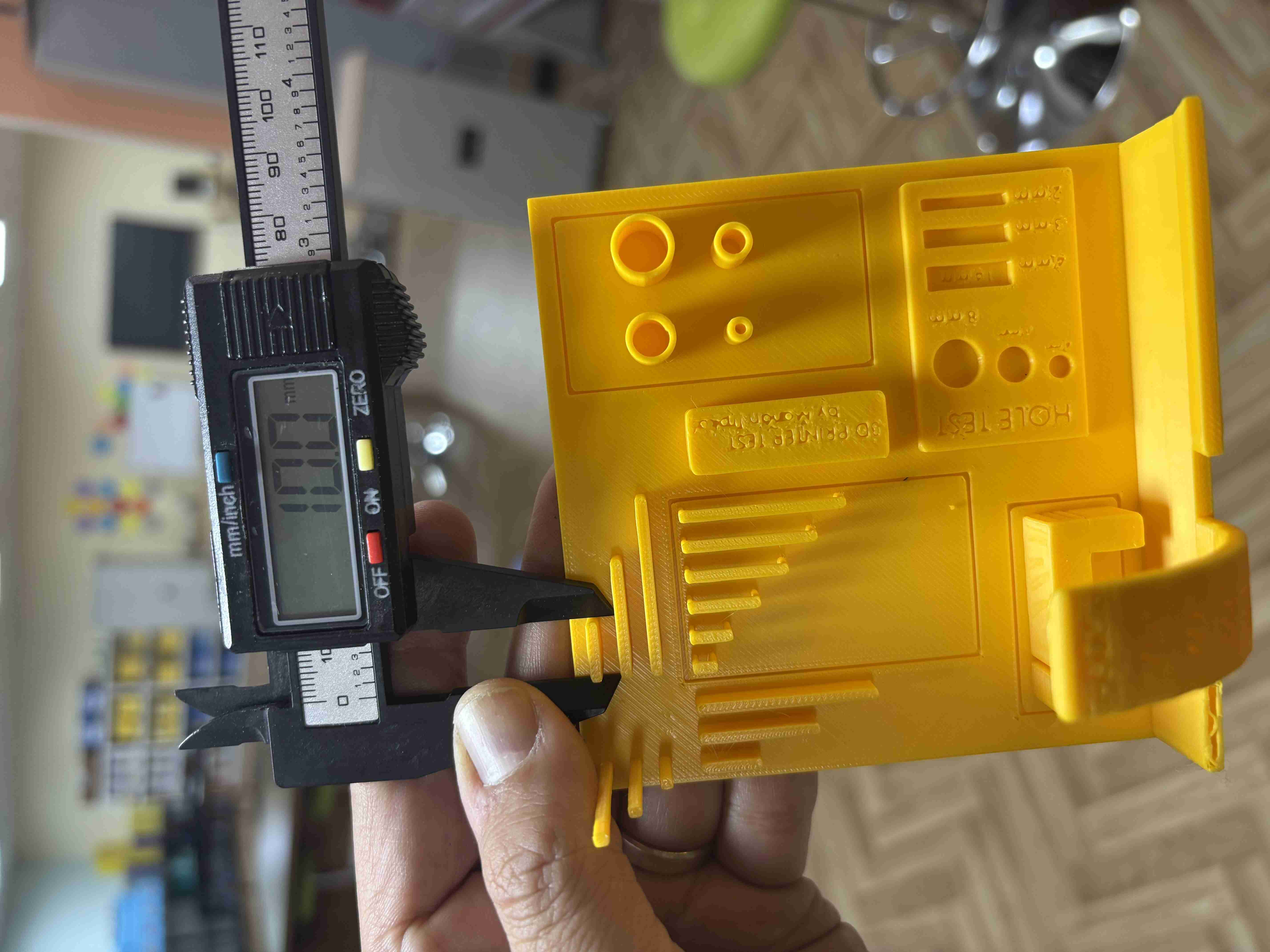

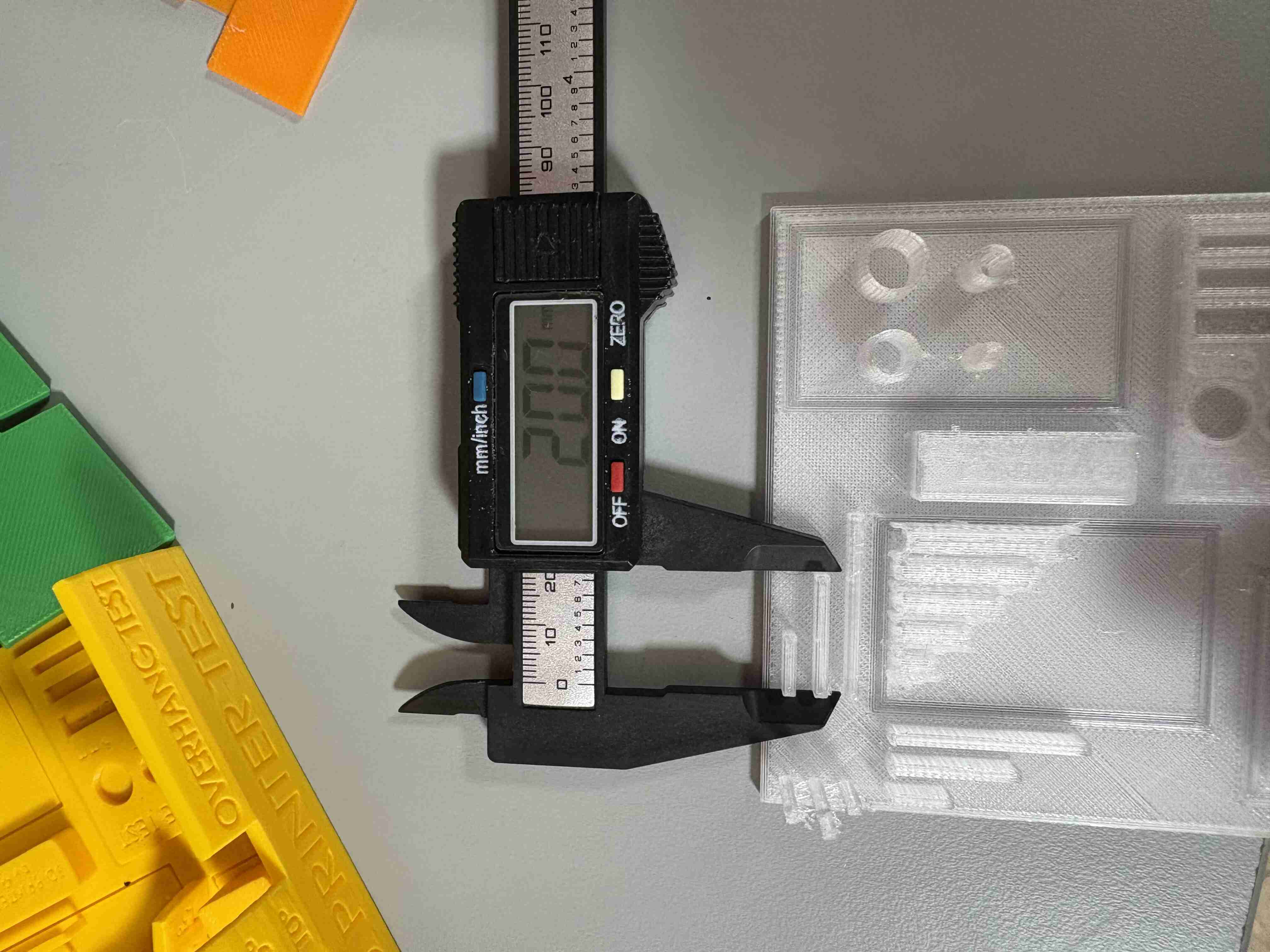

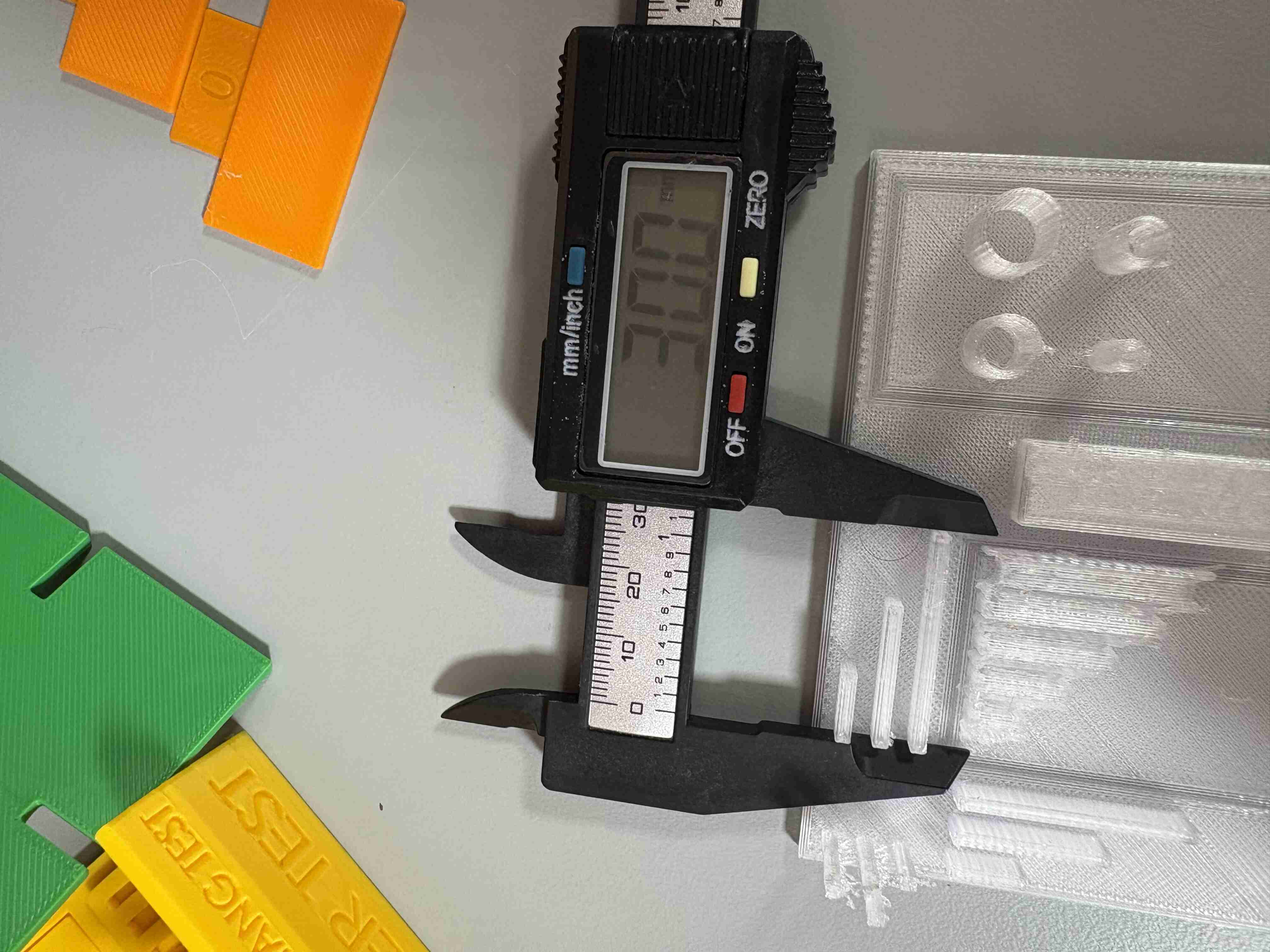

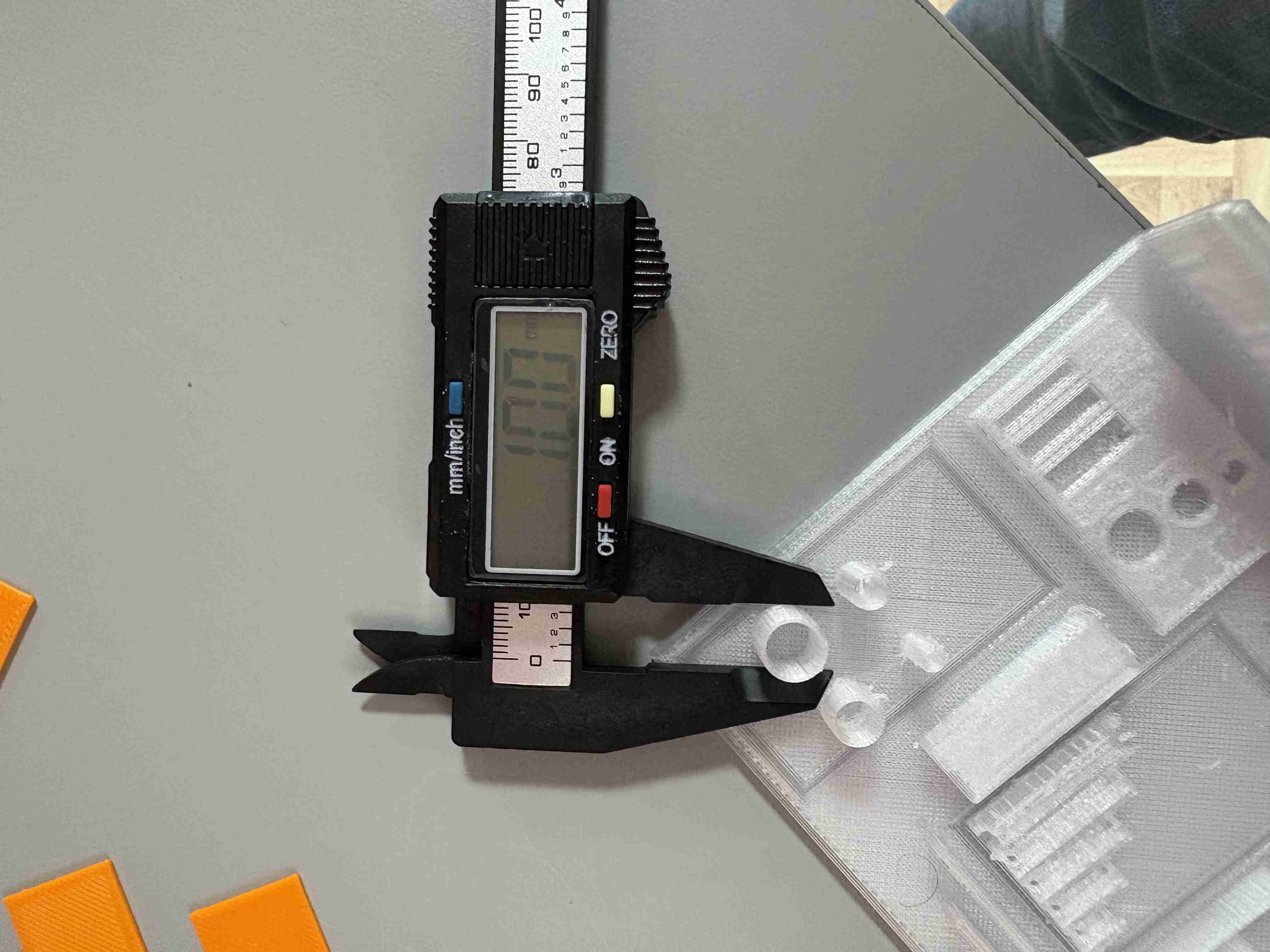

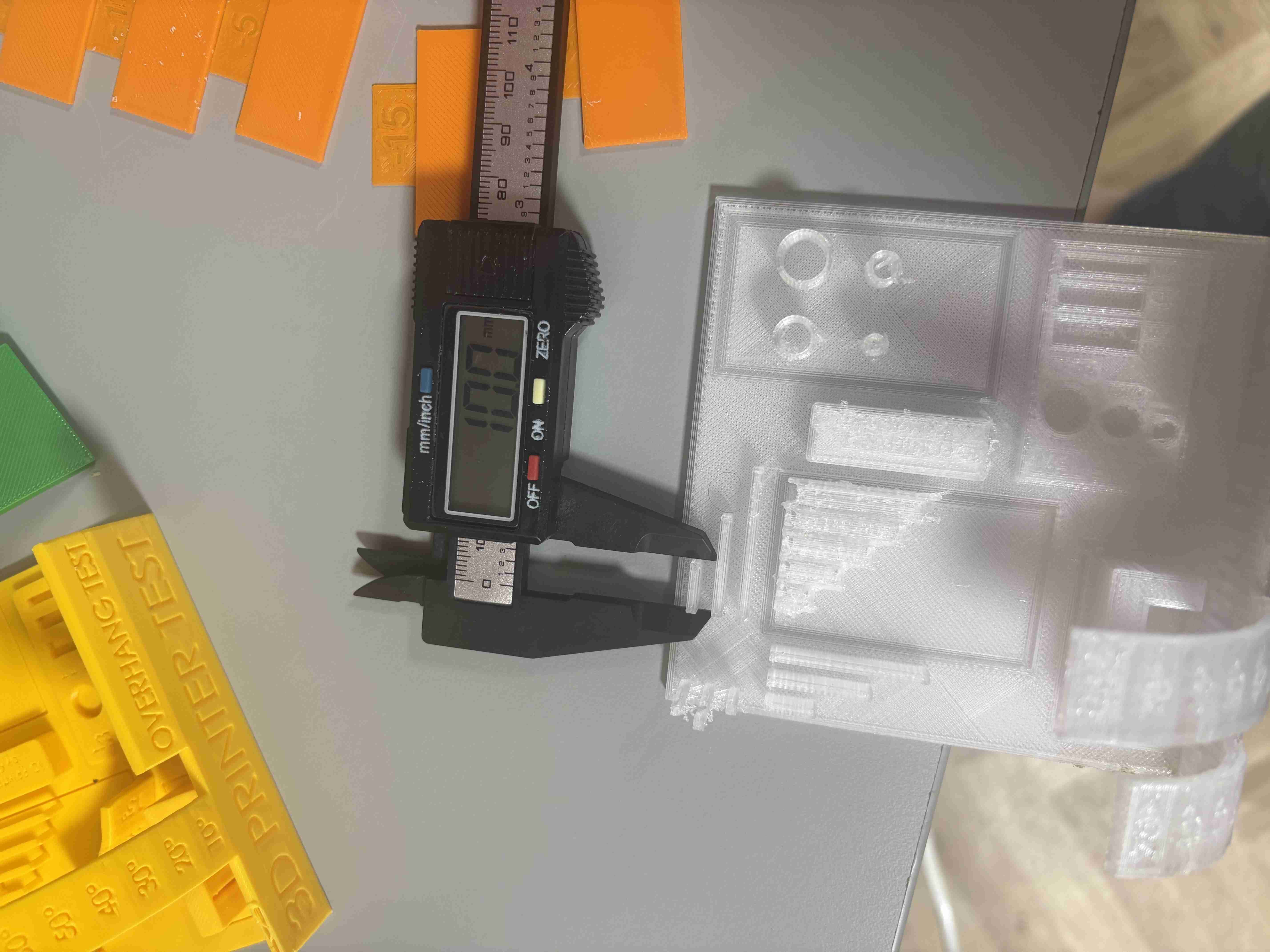

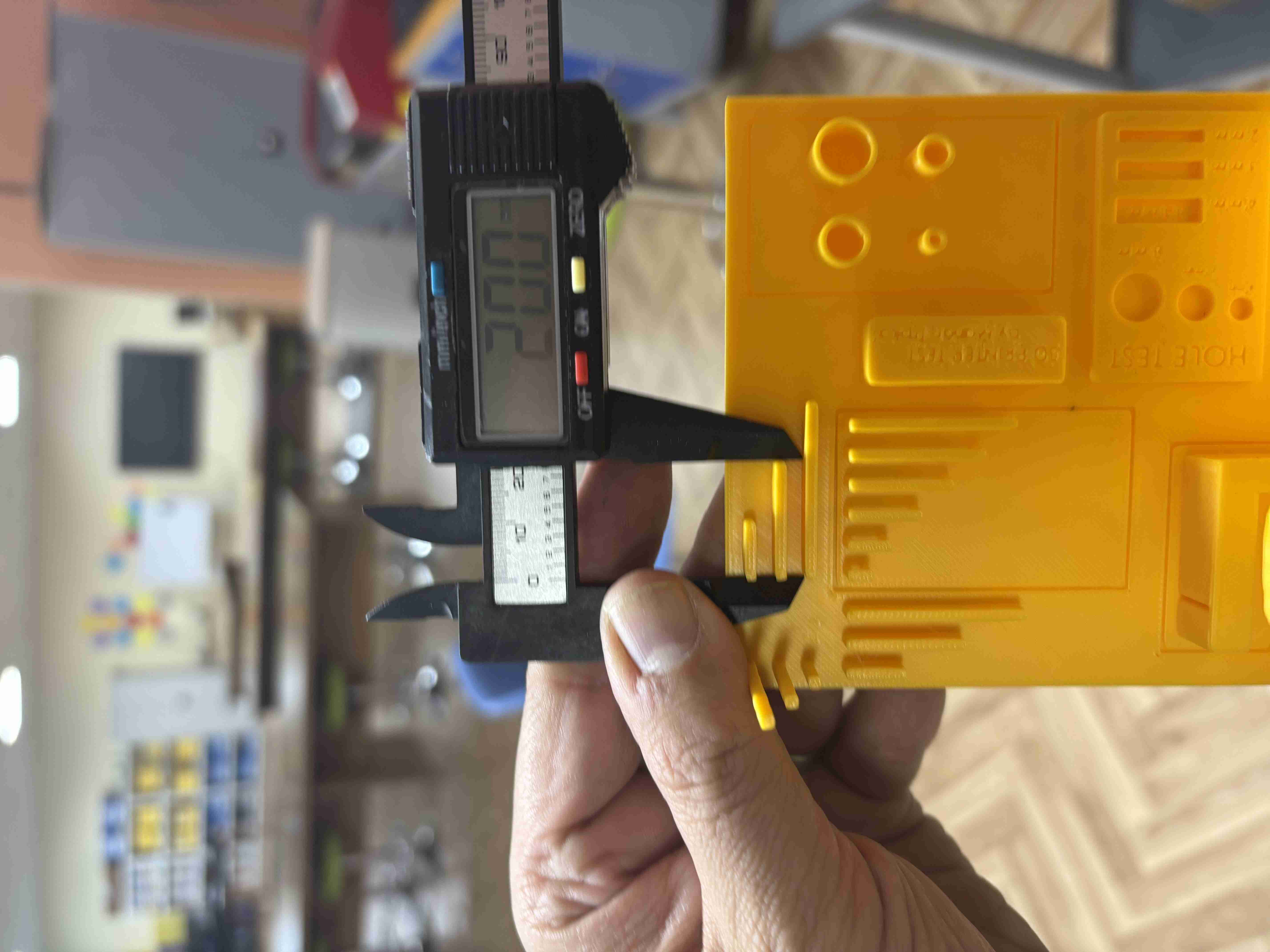

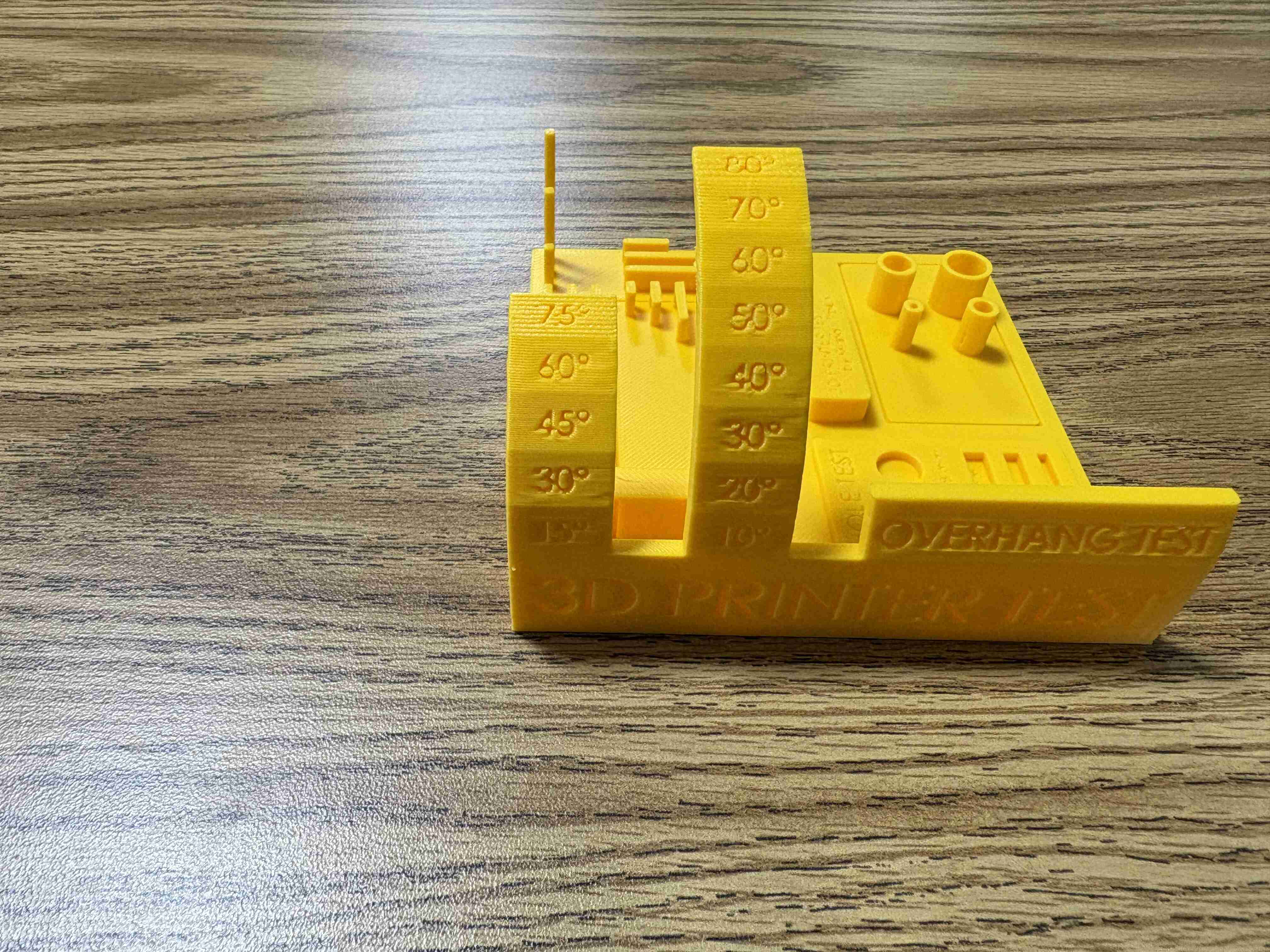

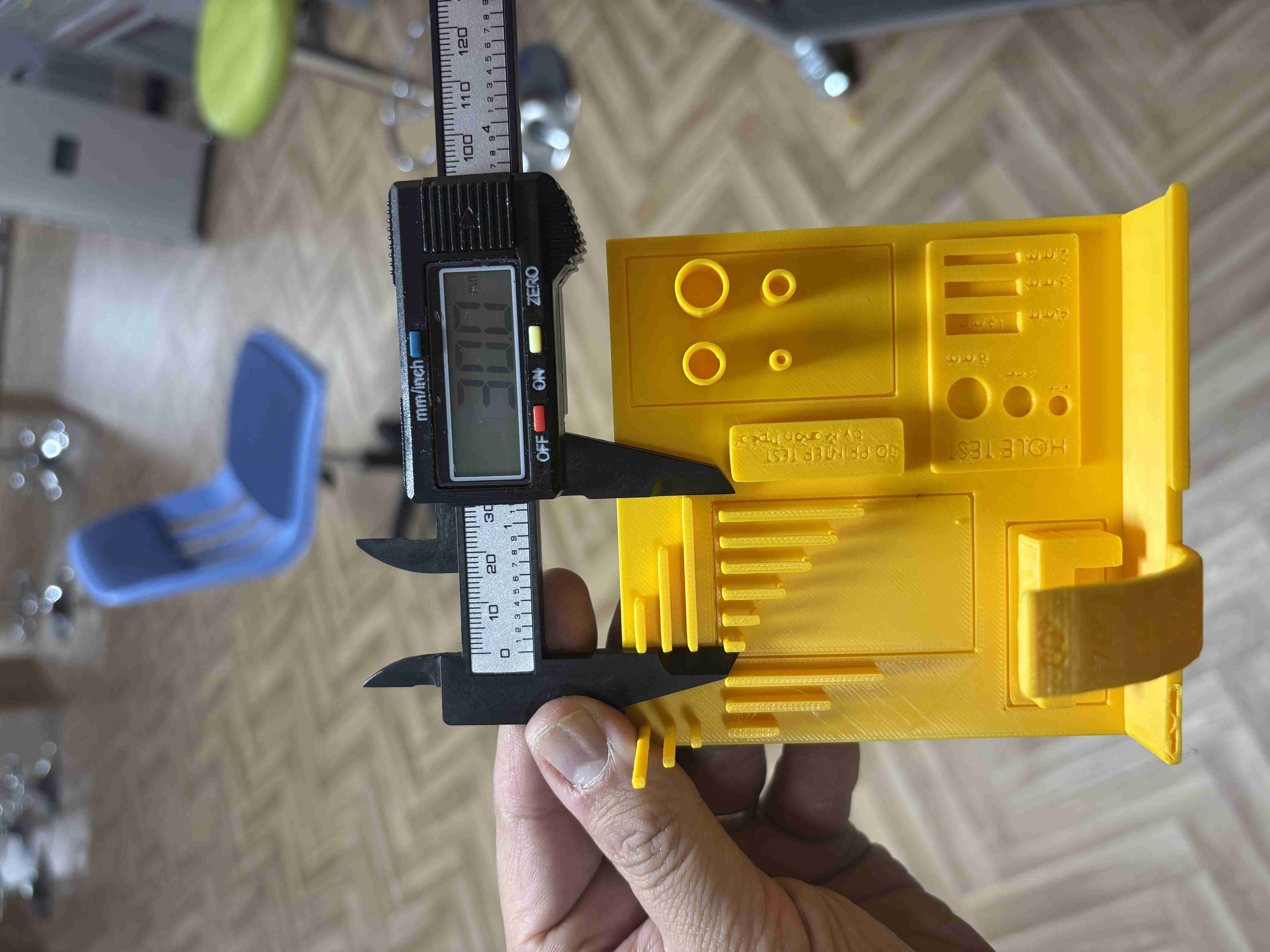

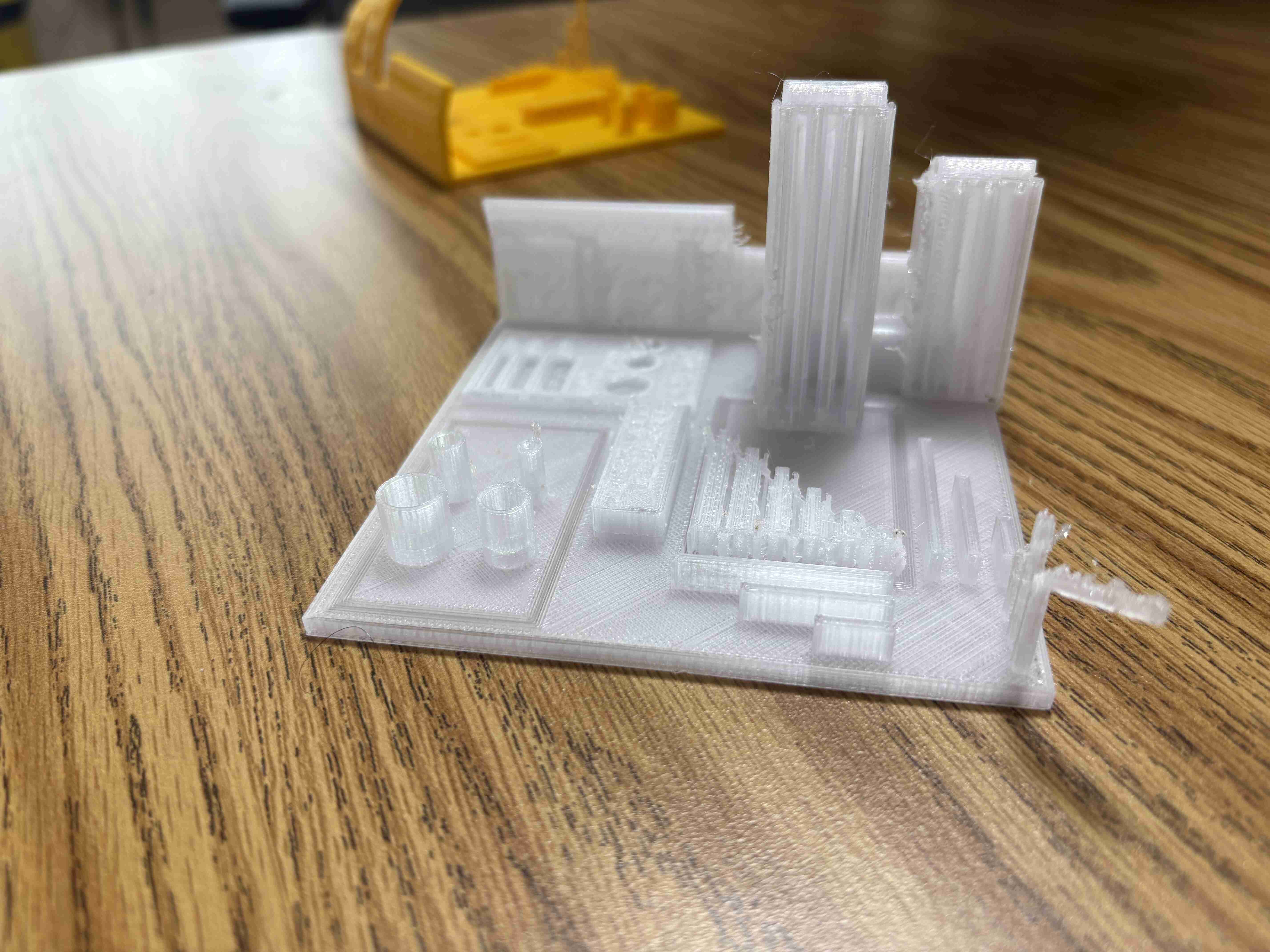

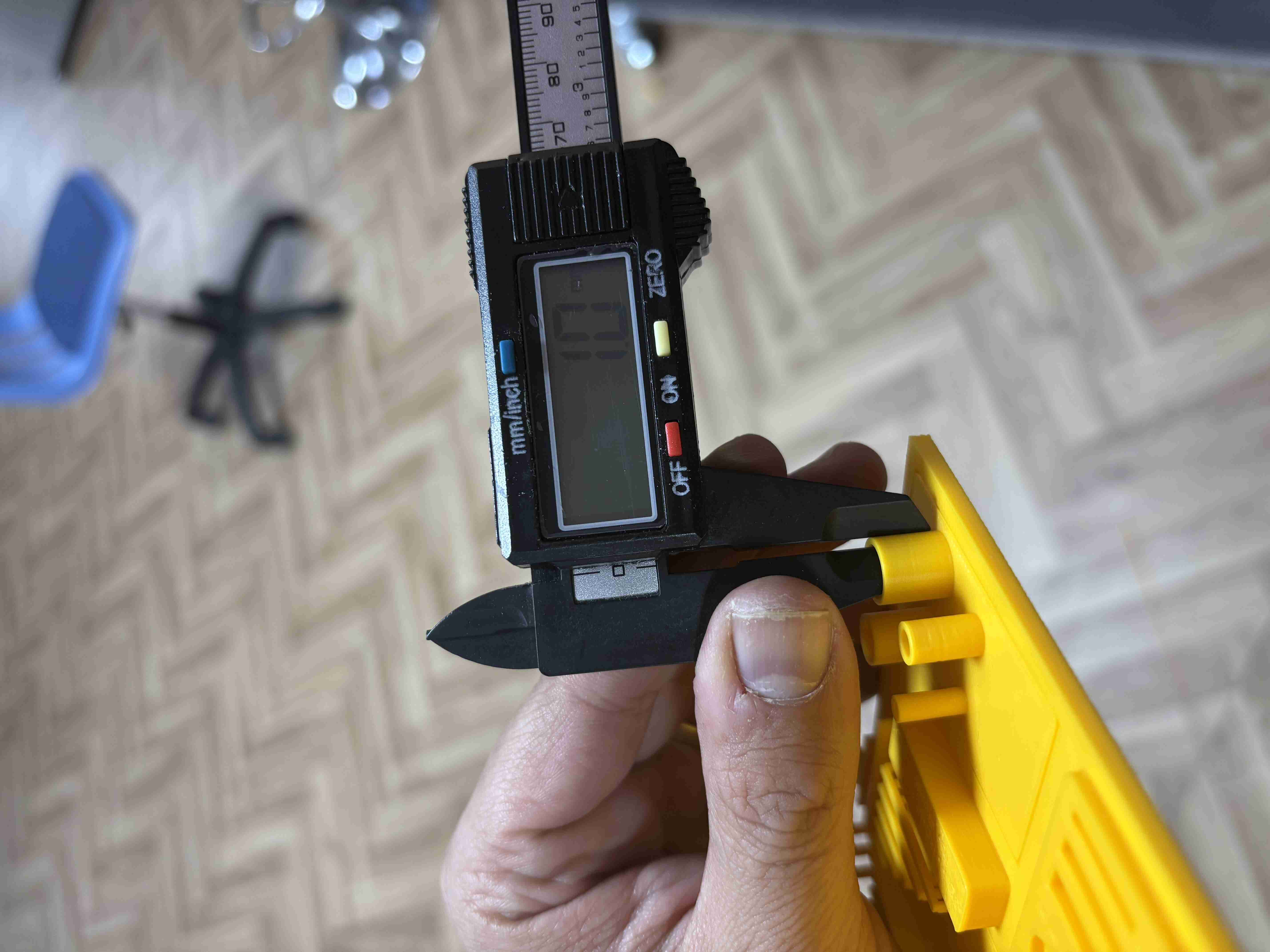

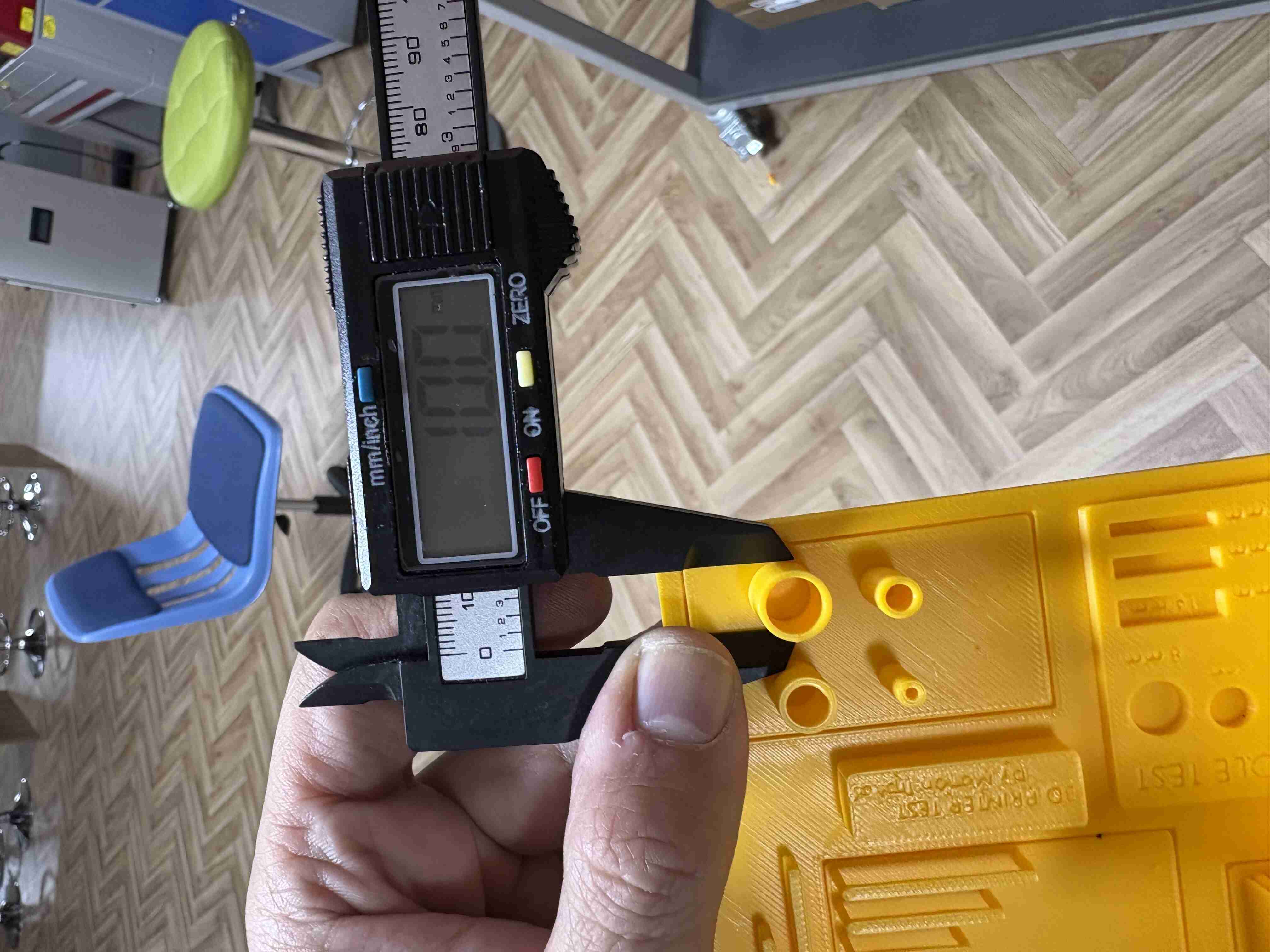

All in one test

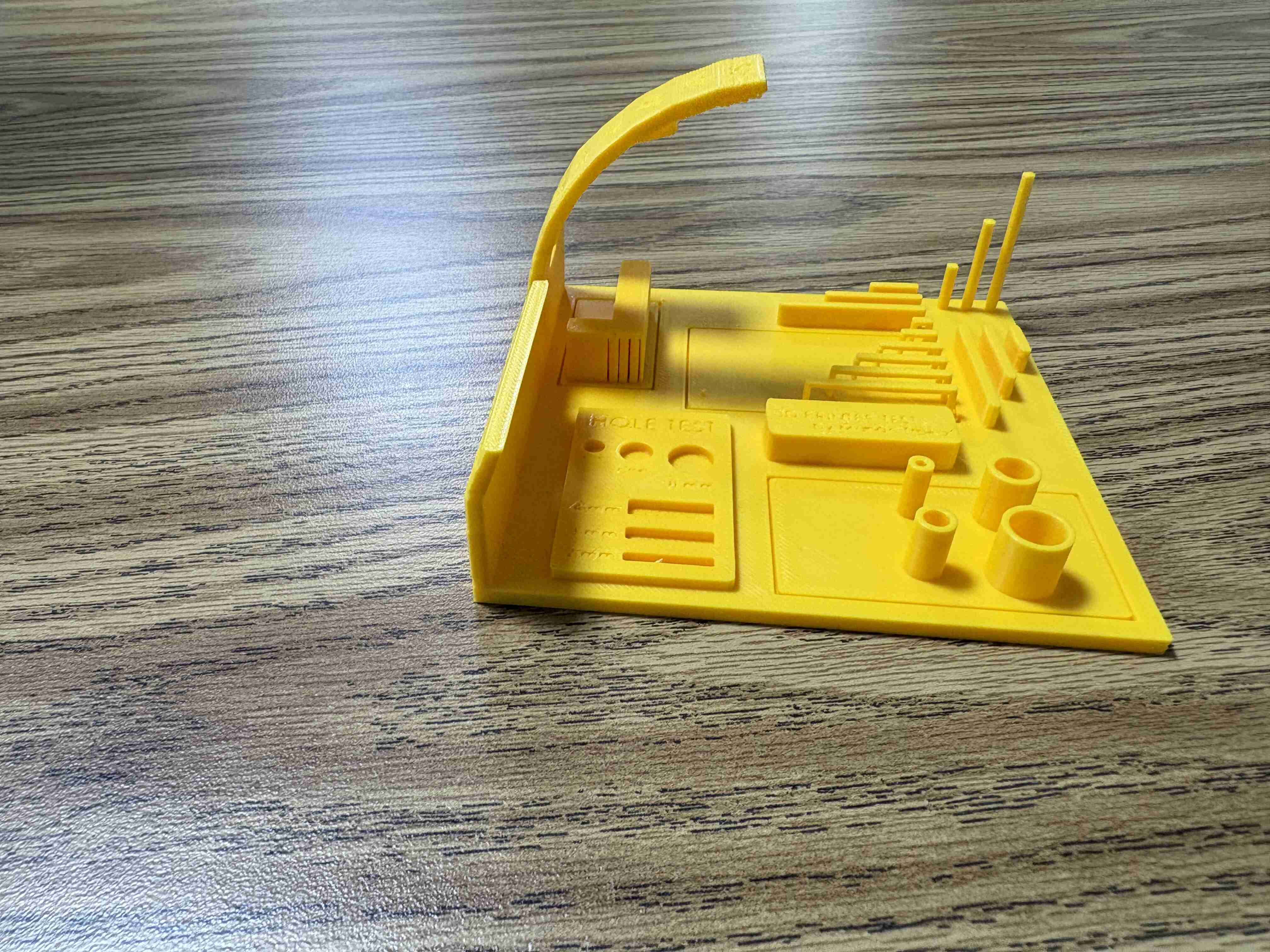

All in one Test¶

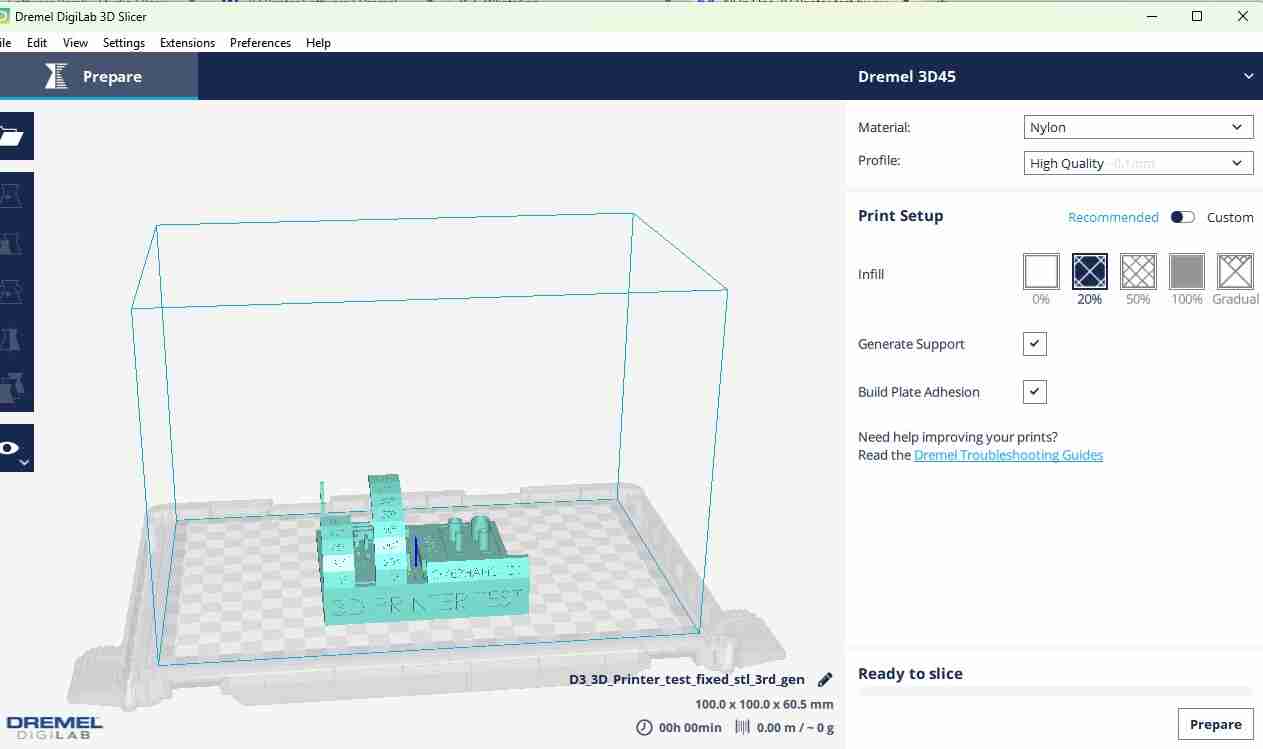

Then I did the all in onee test for my Dremel 3D45, I downloaded a file through this link

alt text

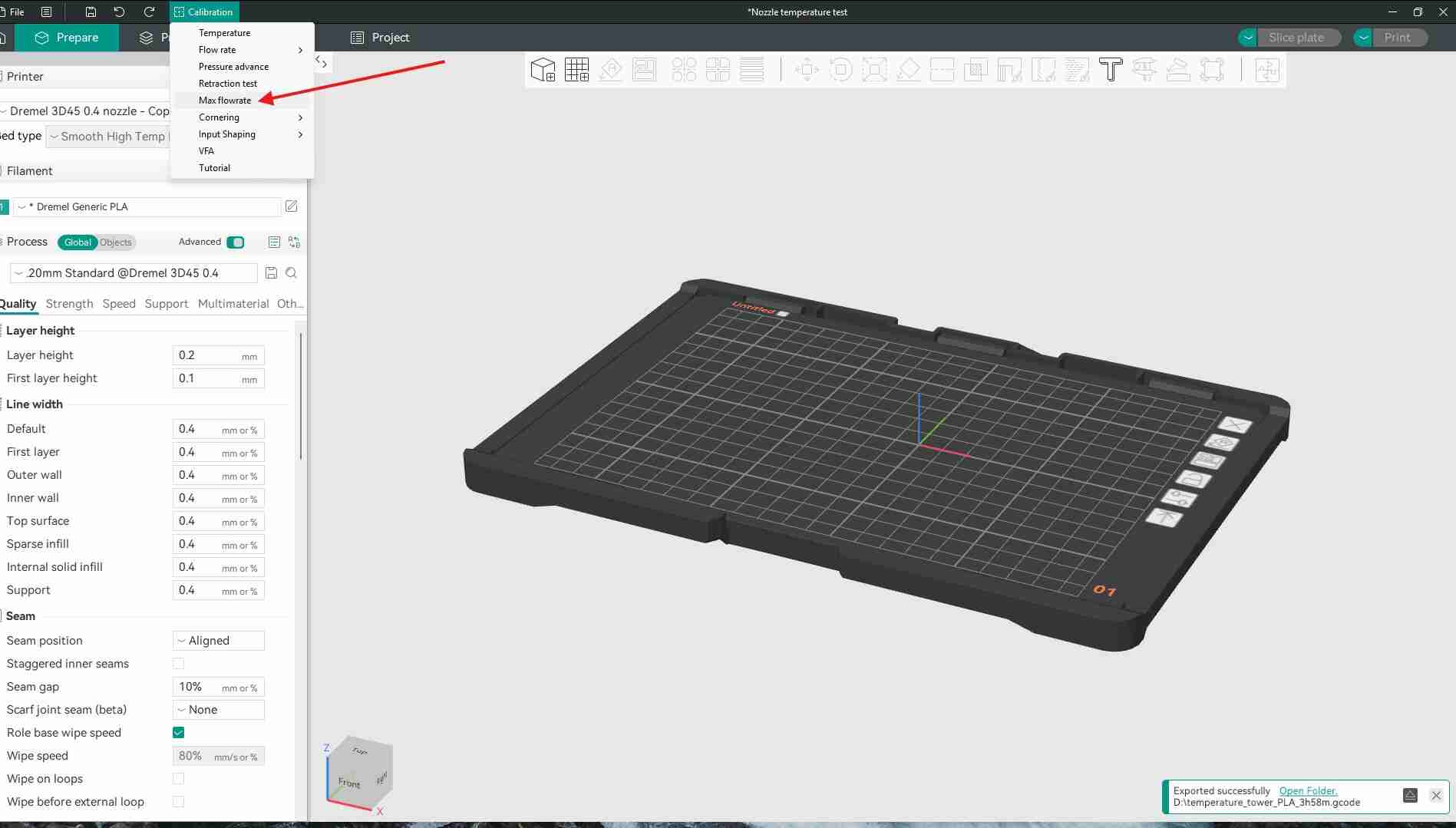

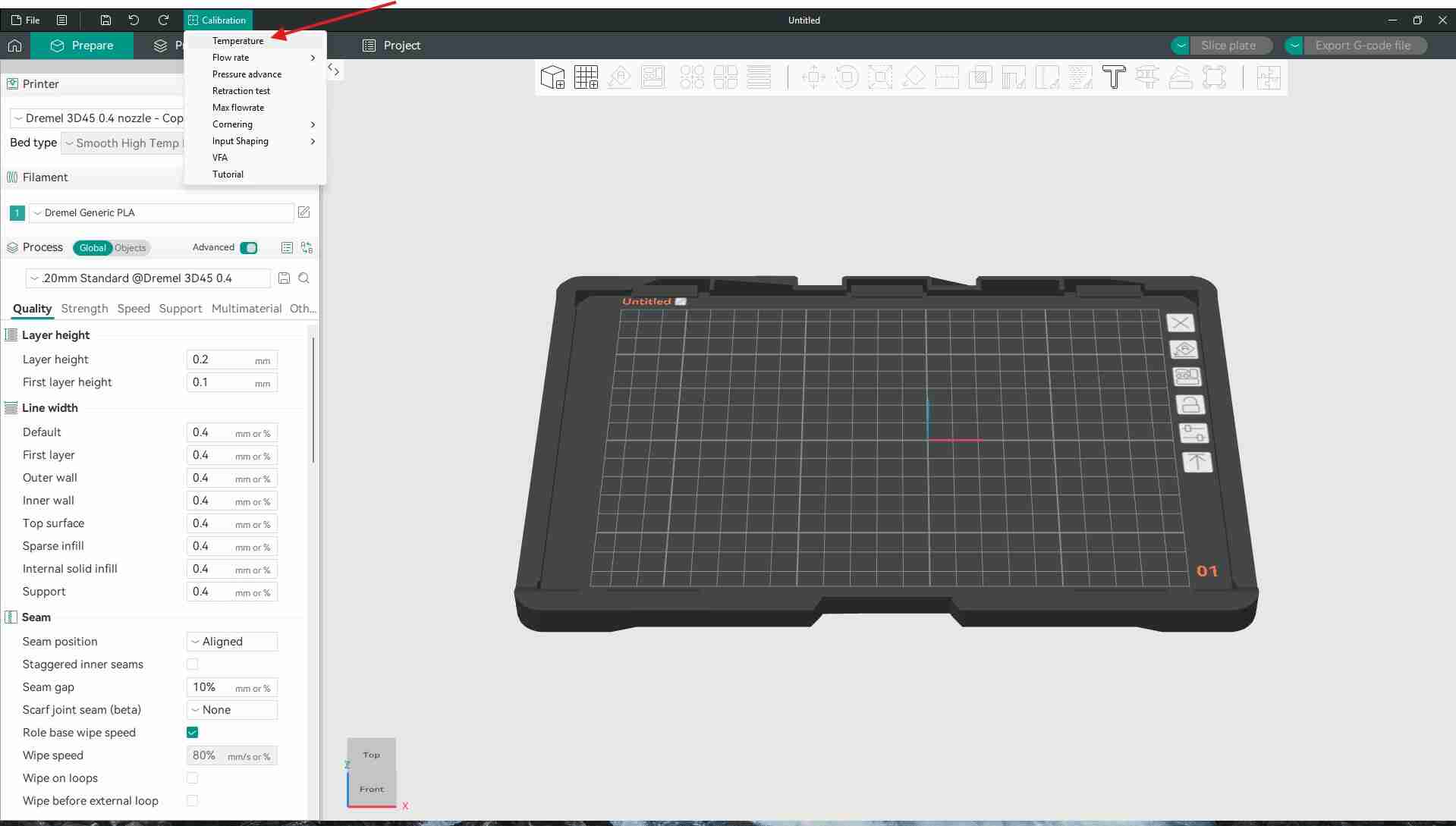

Then I used Orca Slicer to do the temperature test

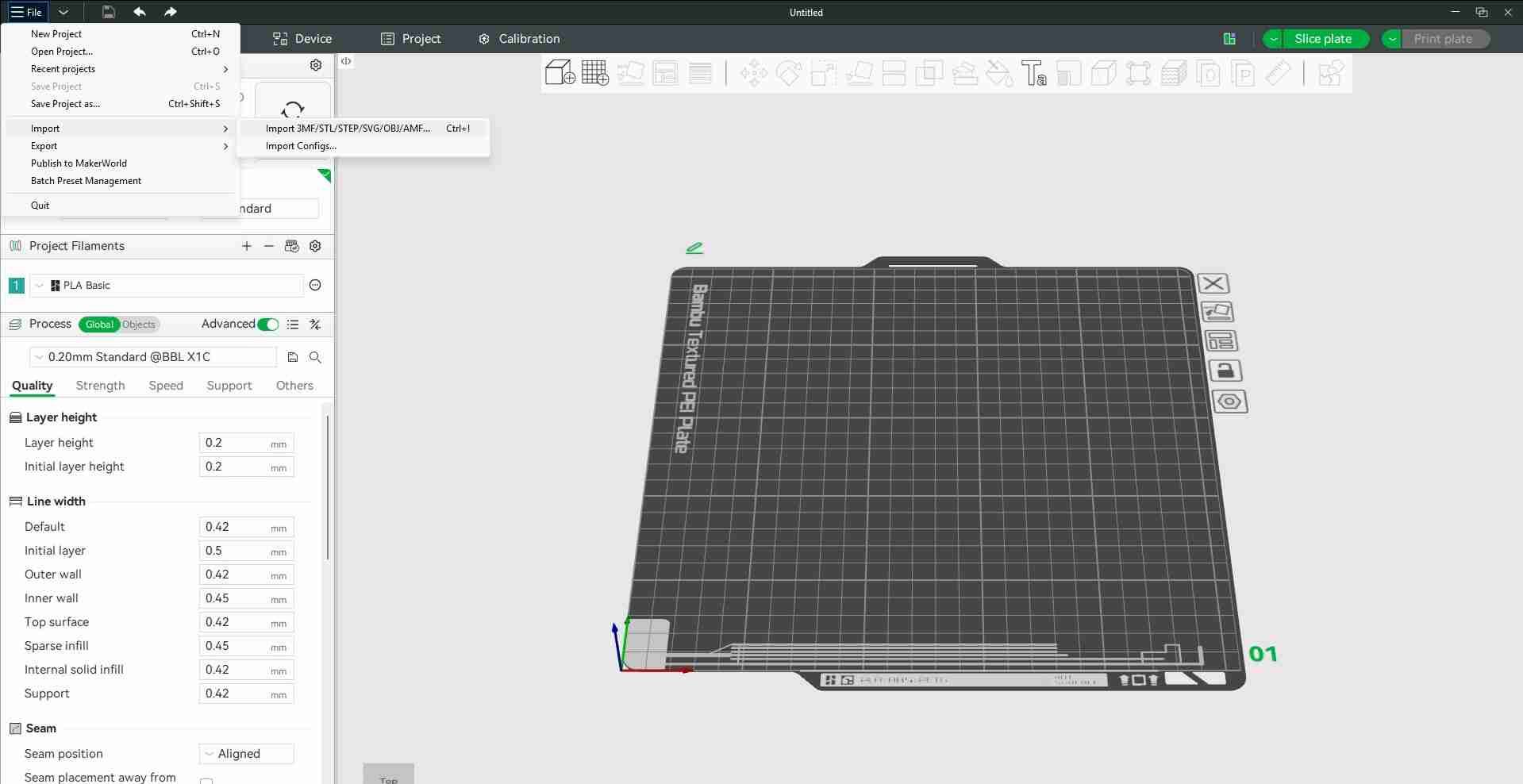

To be able to do the test on Bambu Lab I had to take the stl file to Bambu Studio so I can connect to the 3D printer without having to log out and log back in every 20 minutes.

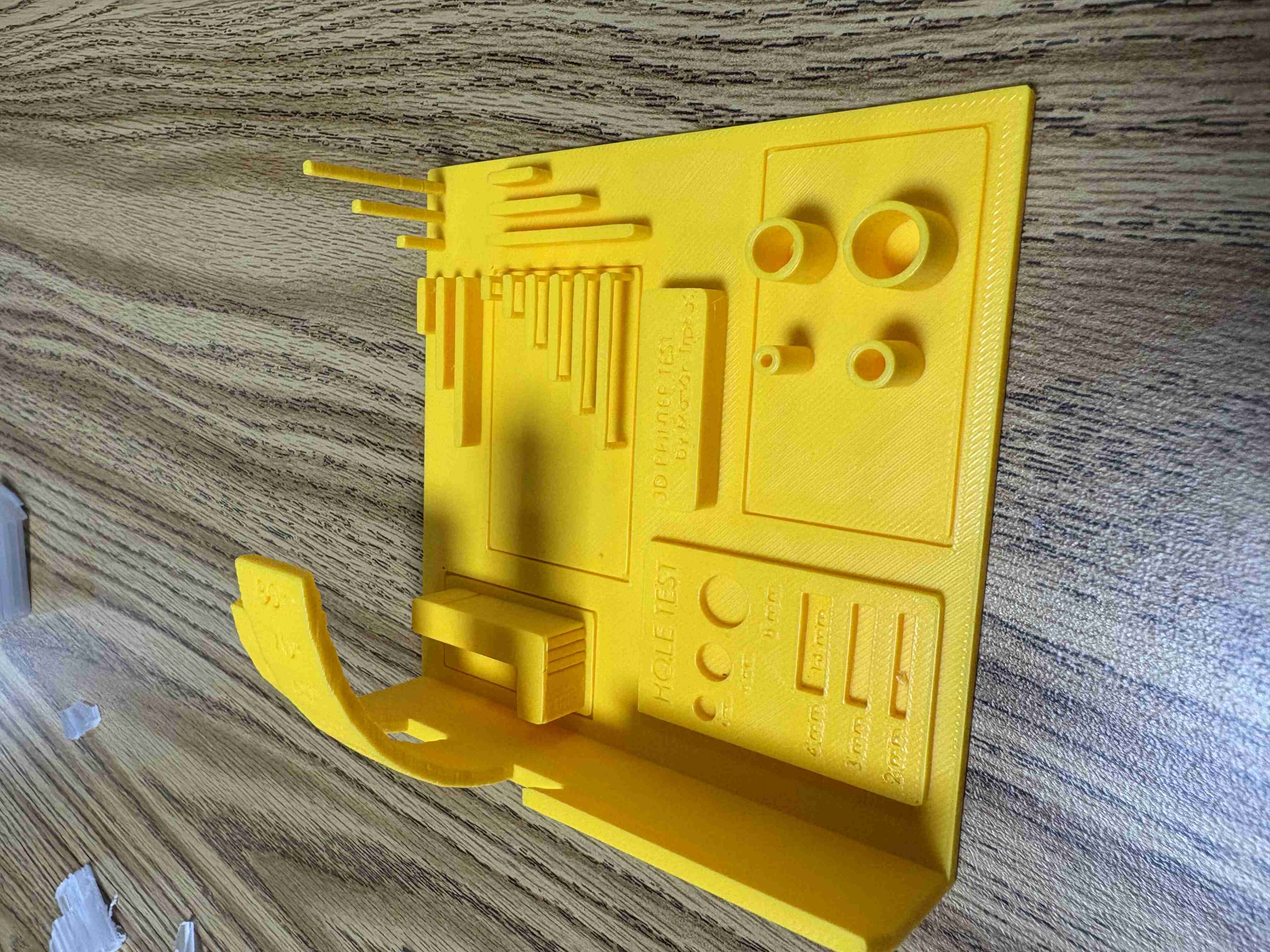

Bambu Lab X1 Carbon

alt text

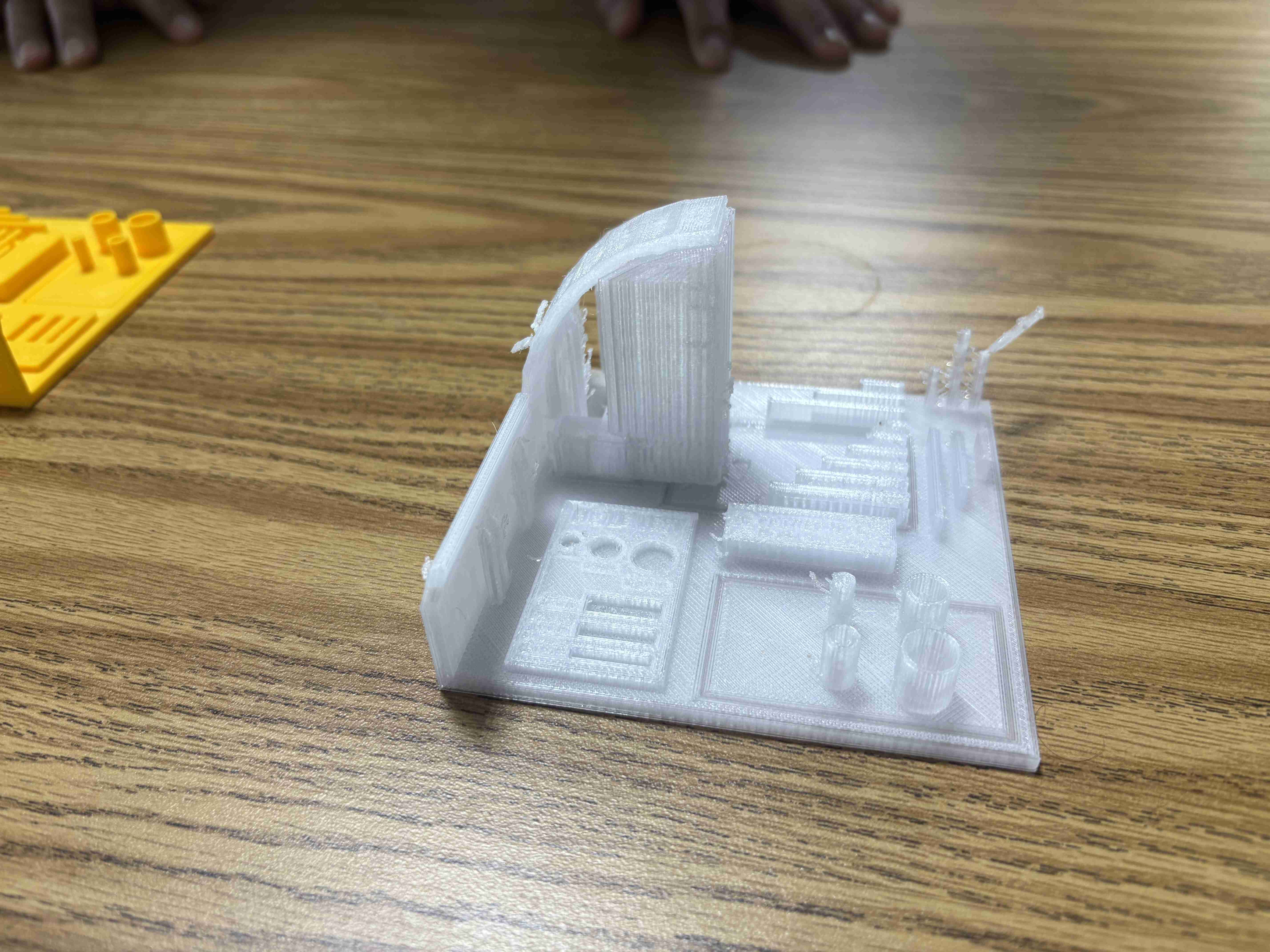

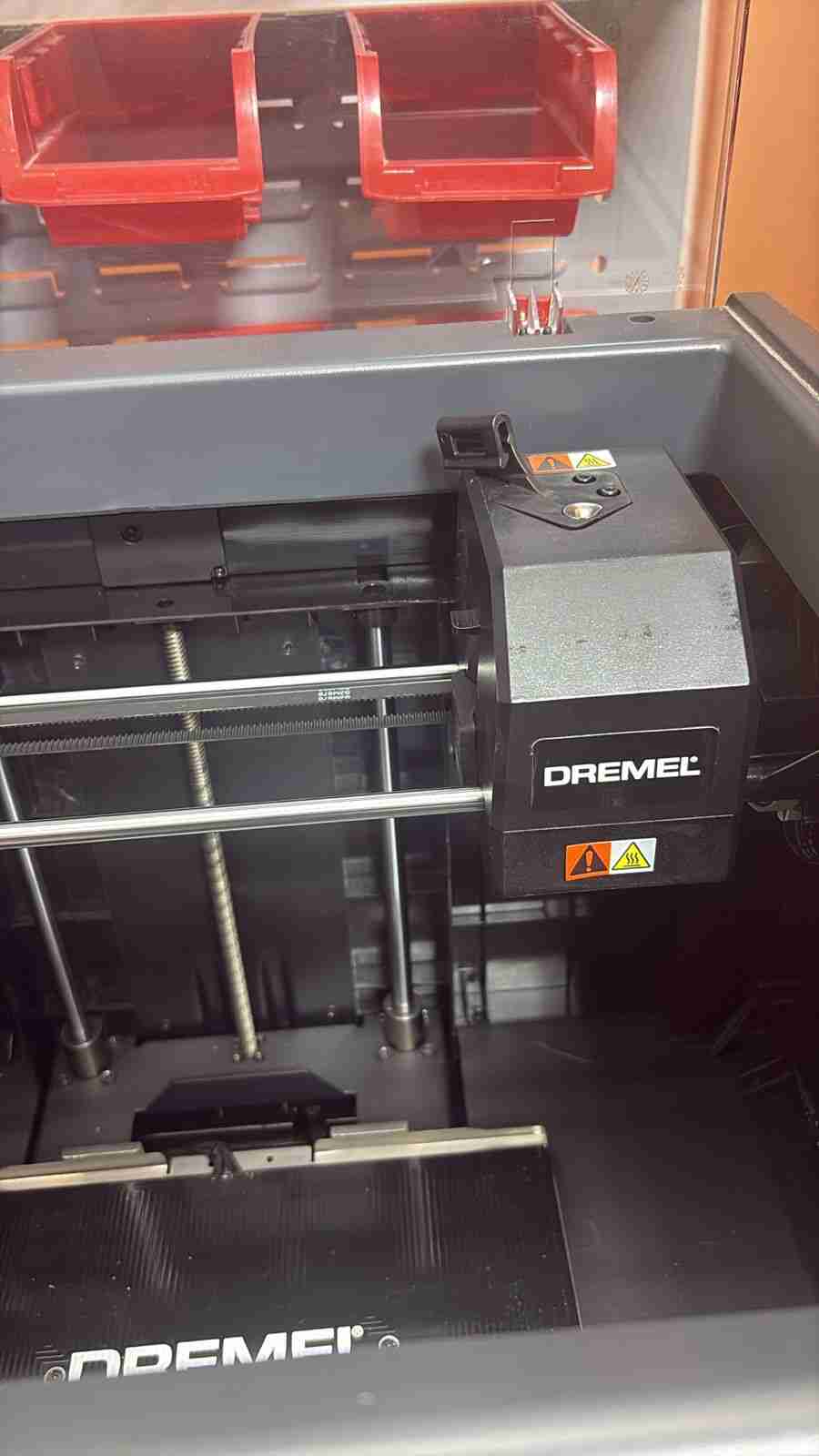

Dremel 3D45

alt text

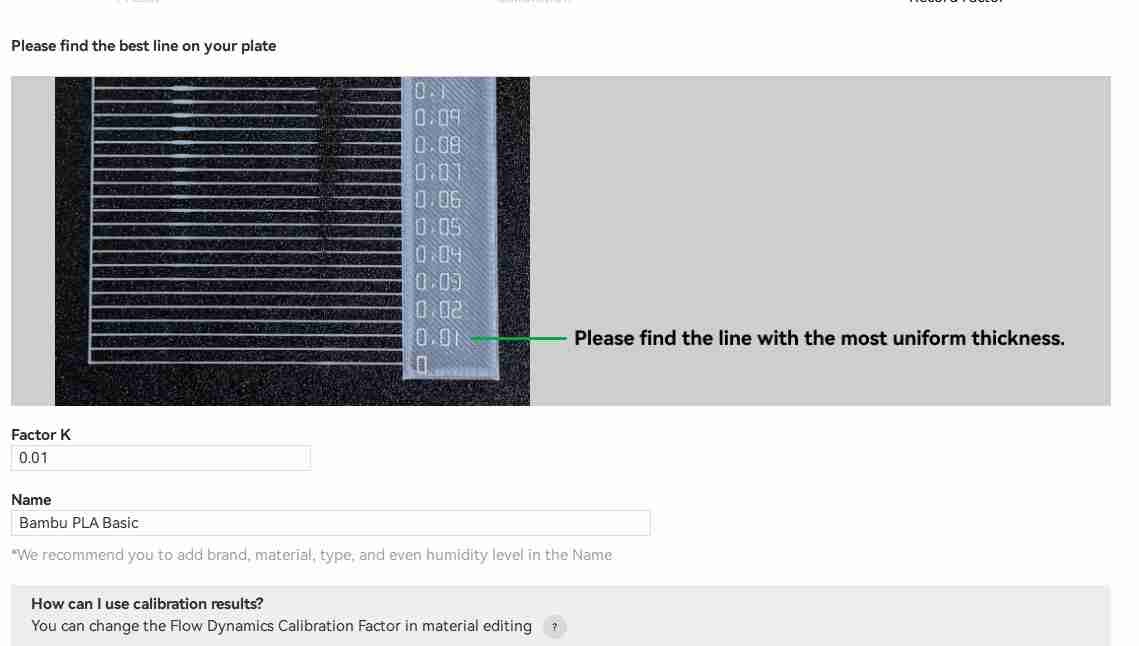

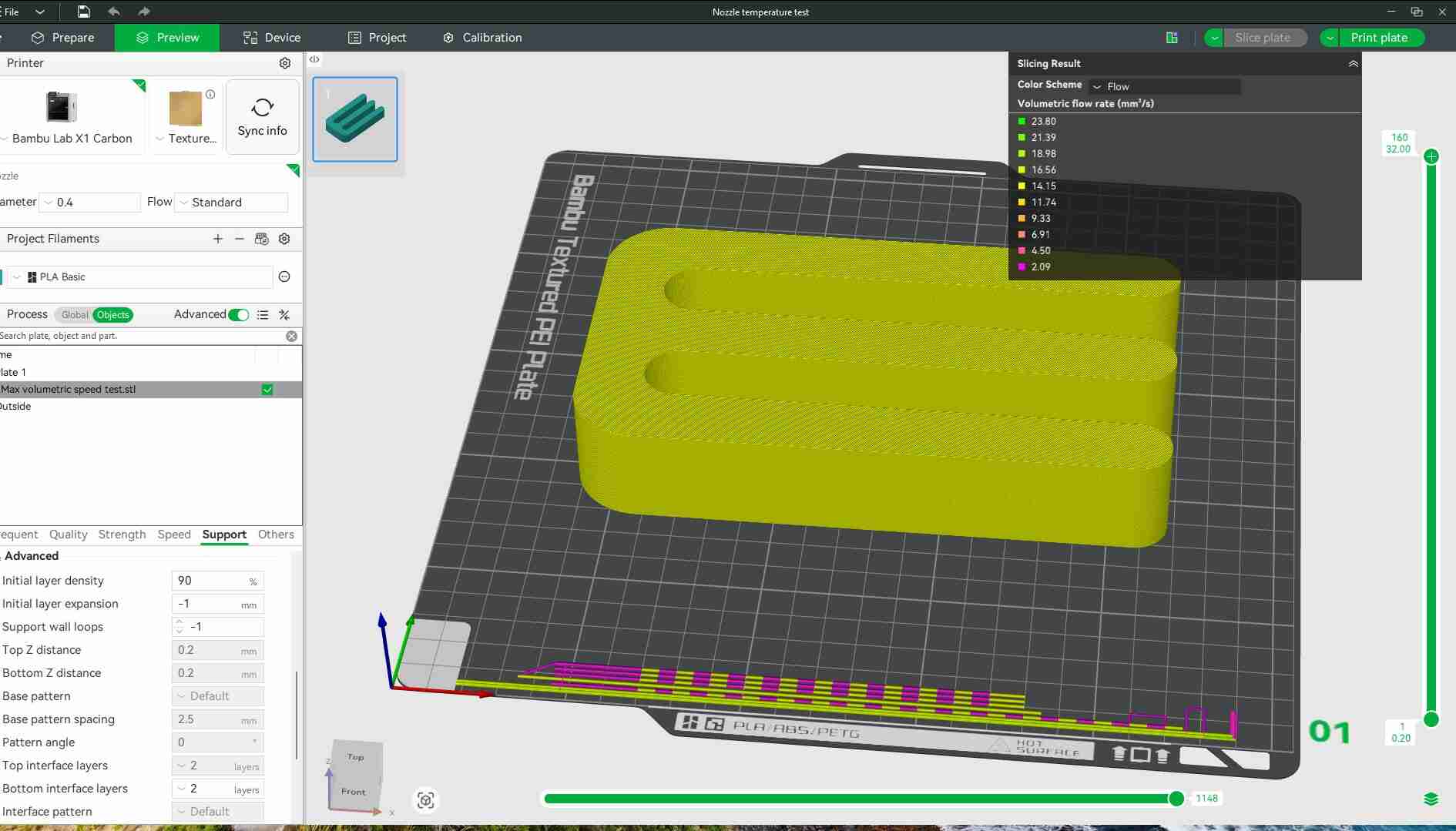

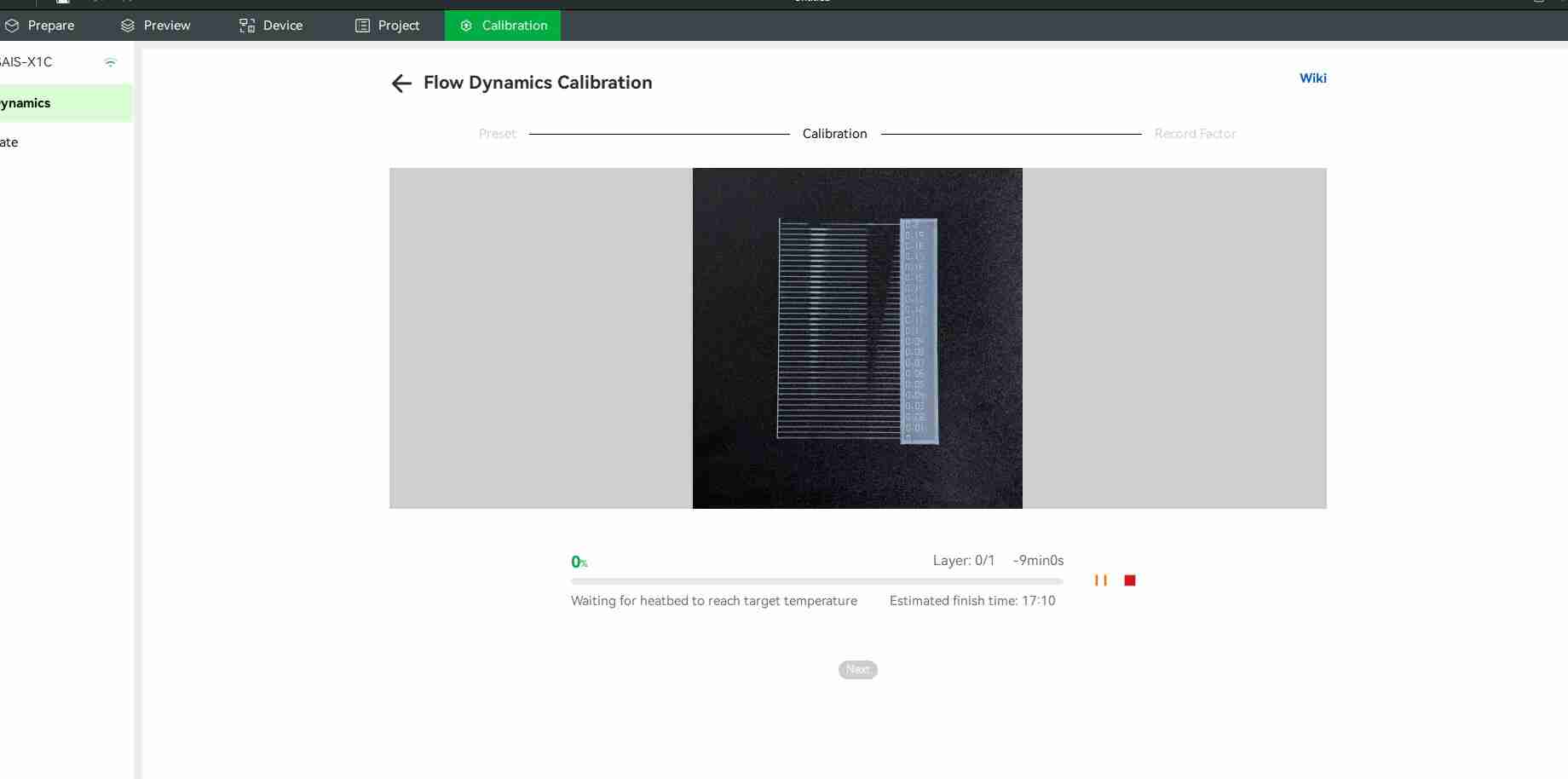

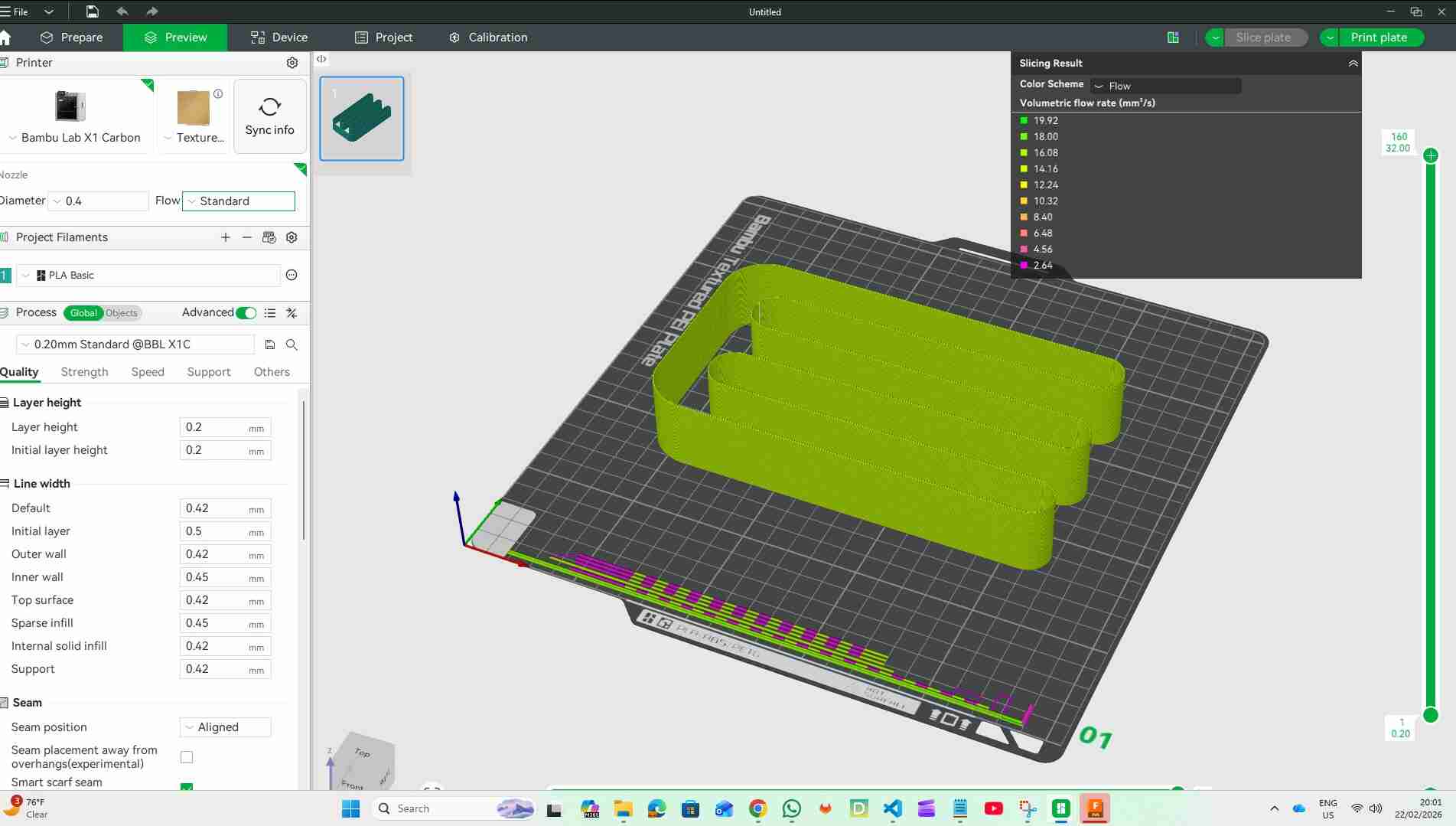

Flow Dynamic Test using Bambu Studio ¶

alt text

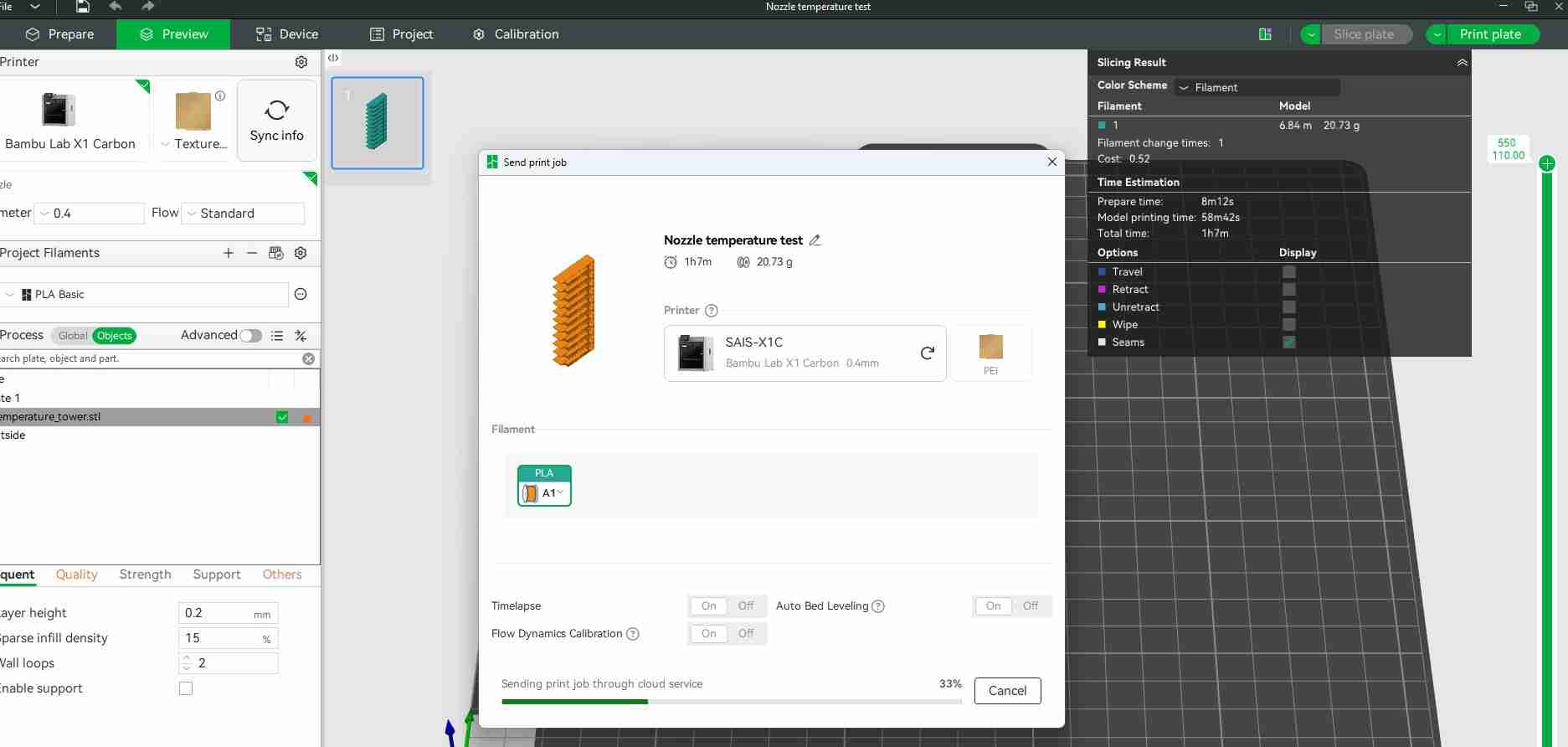

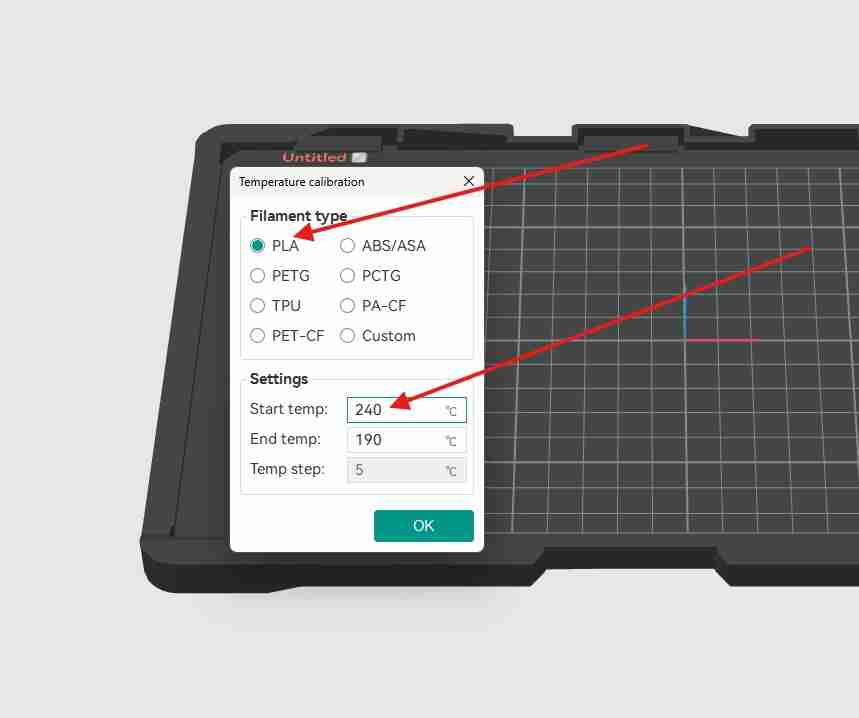

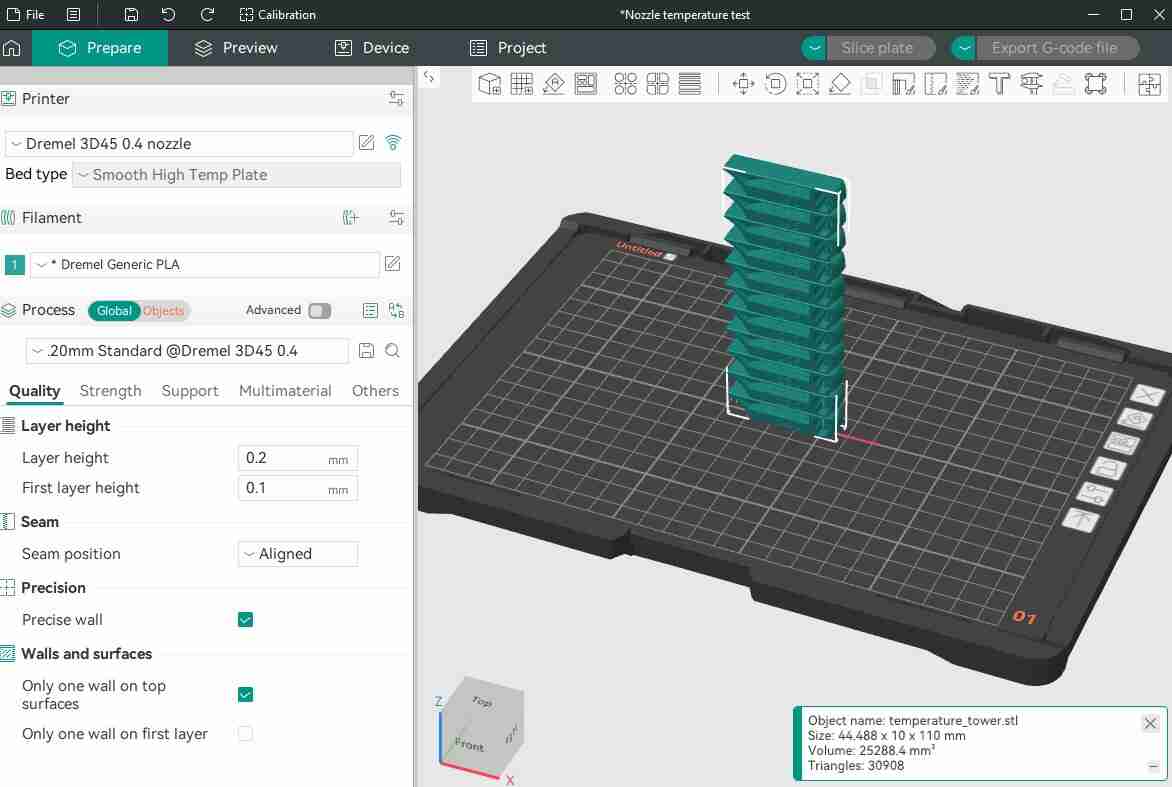

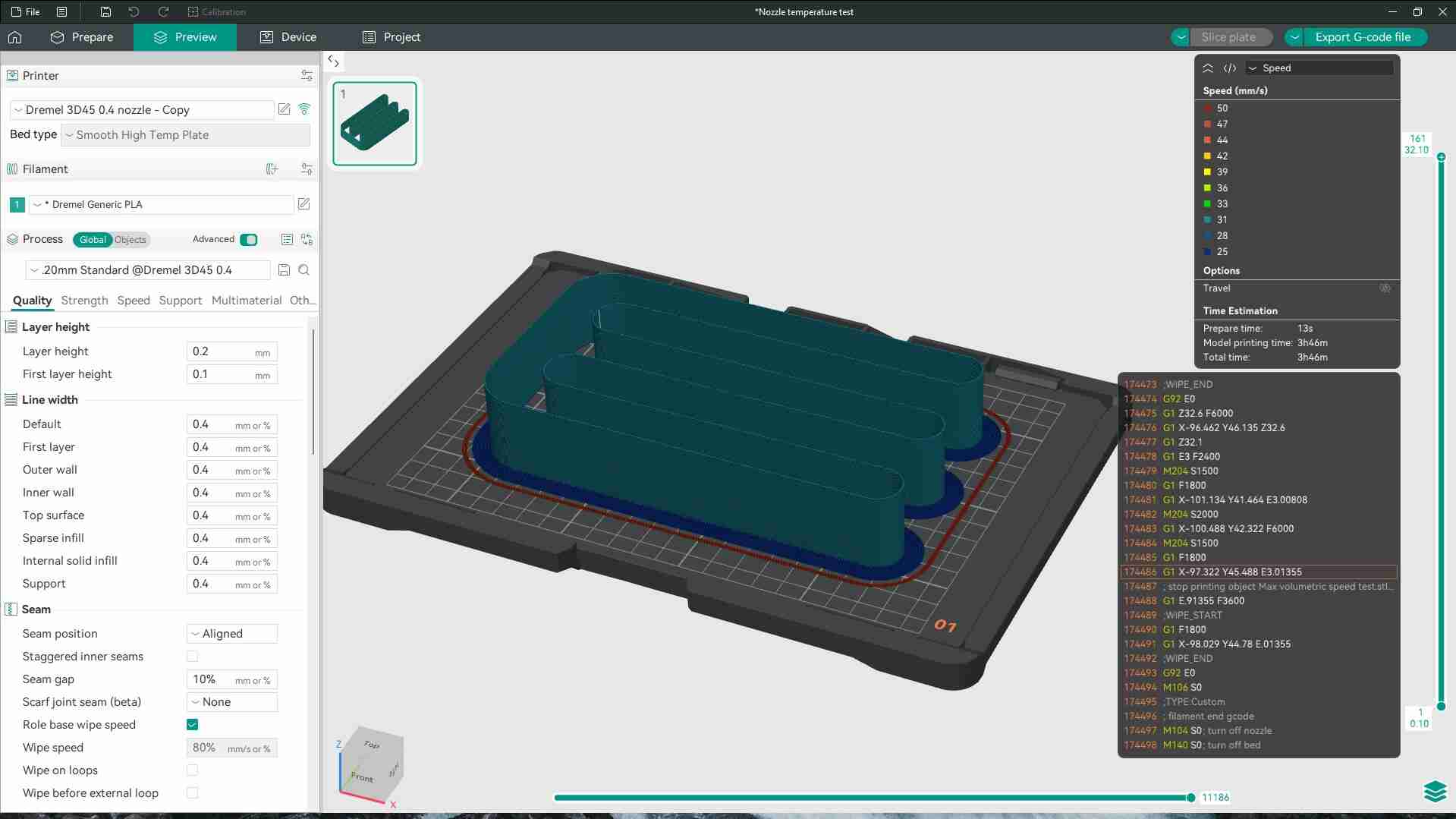

Temperature Test¶

v

alt text

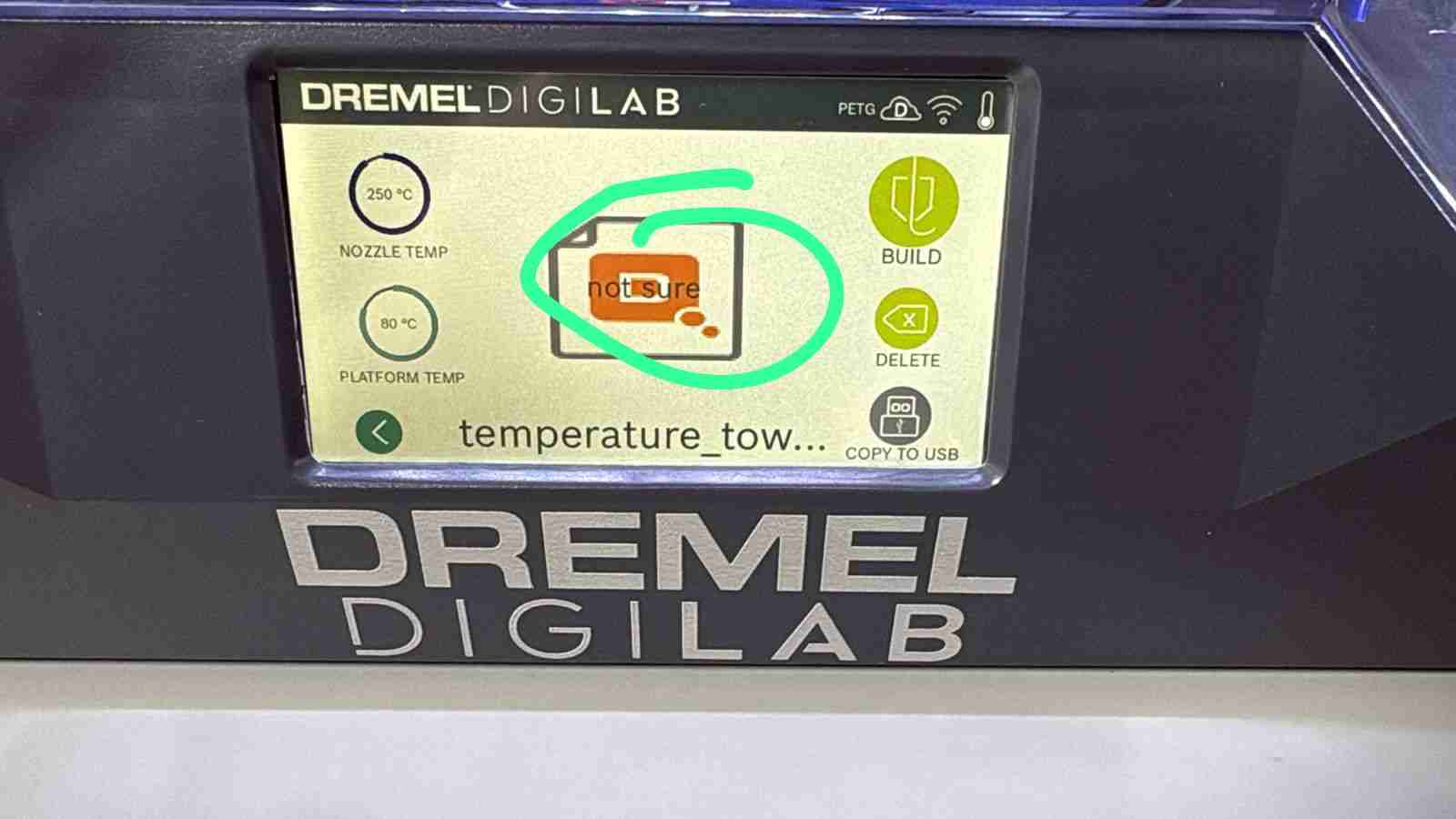

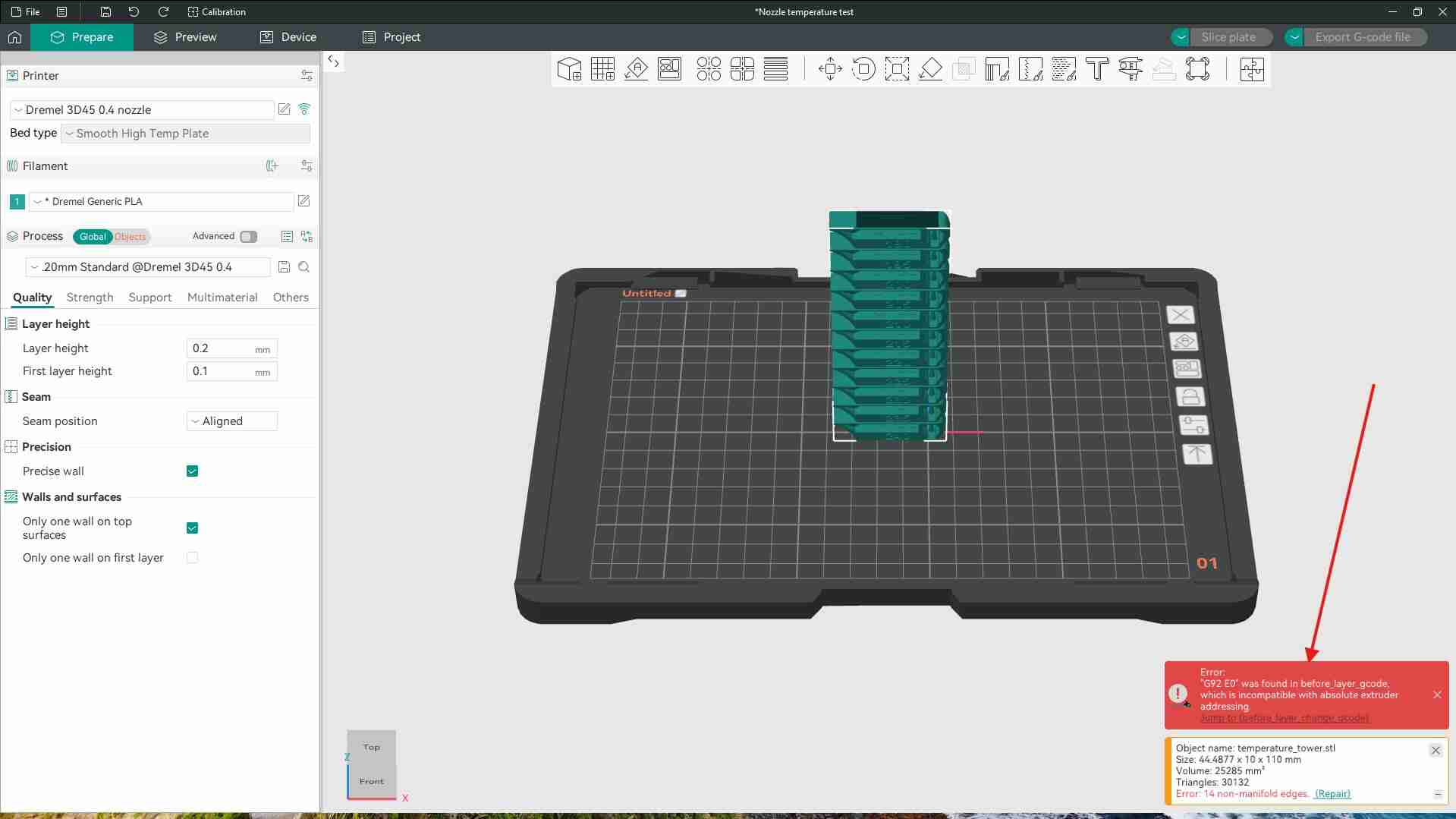

When I started slicing I got this error alt text

alt text

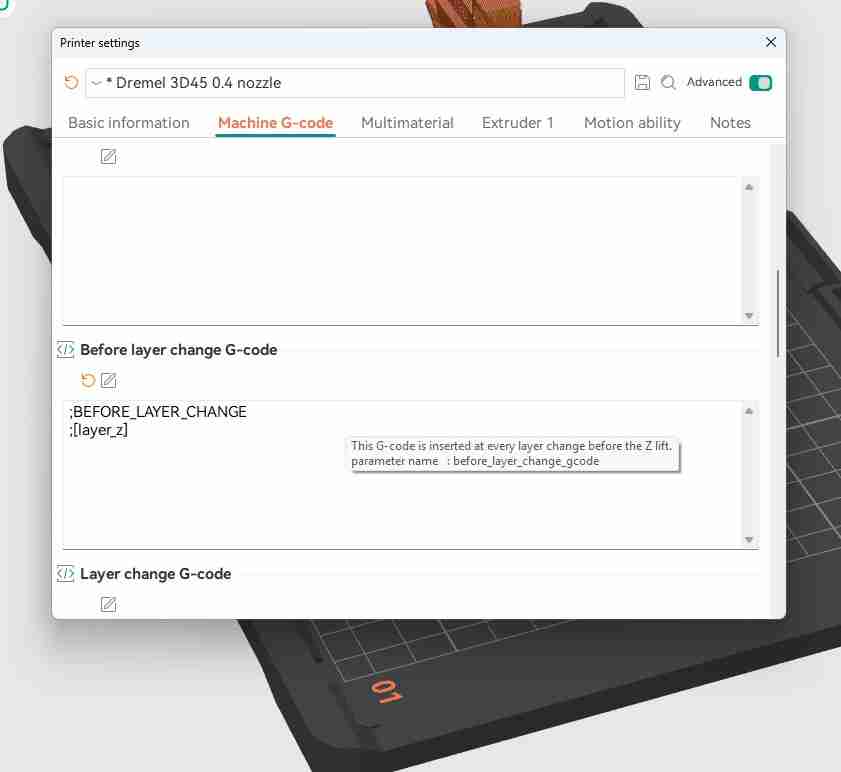

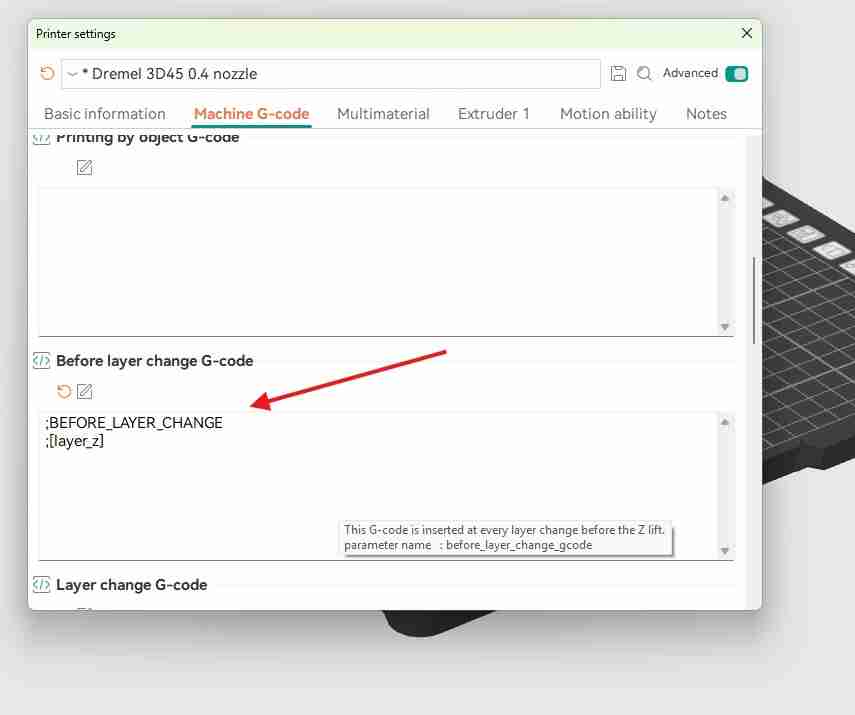

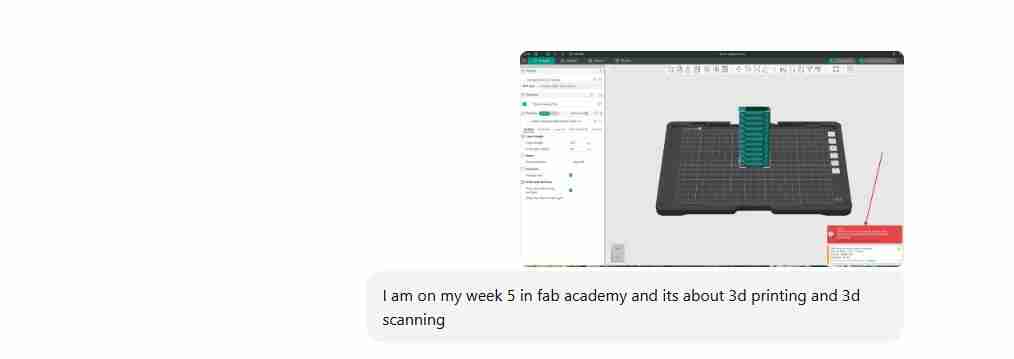

So I went to chatgpt and I uploaded the image above and it suggested that I do the following:

alt text

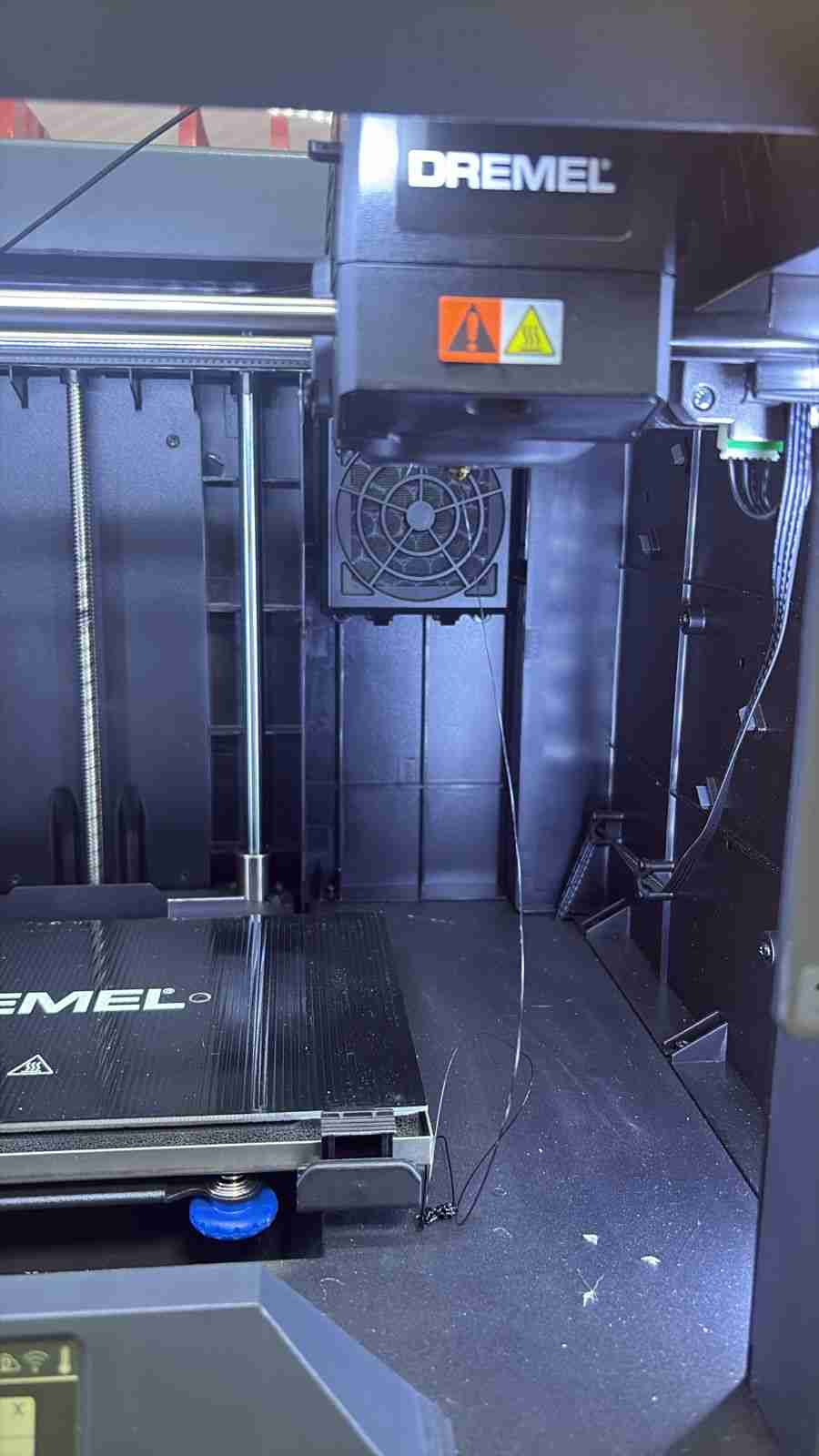

Dremel

alt text

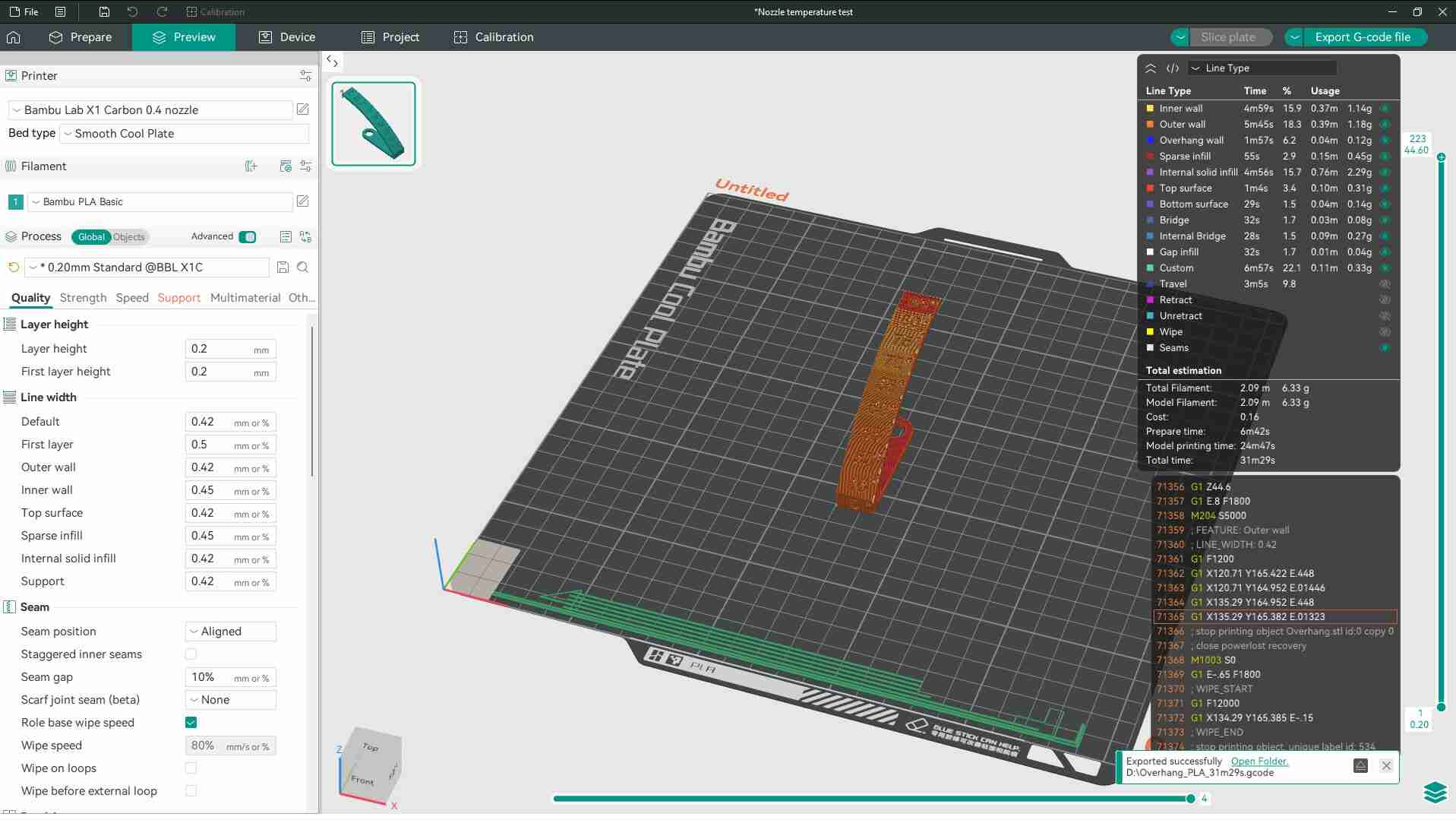

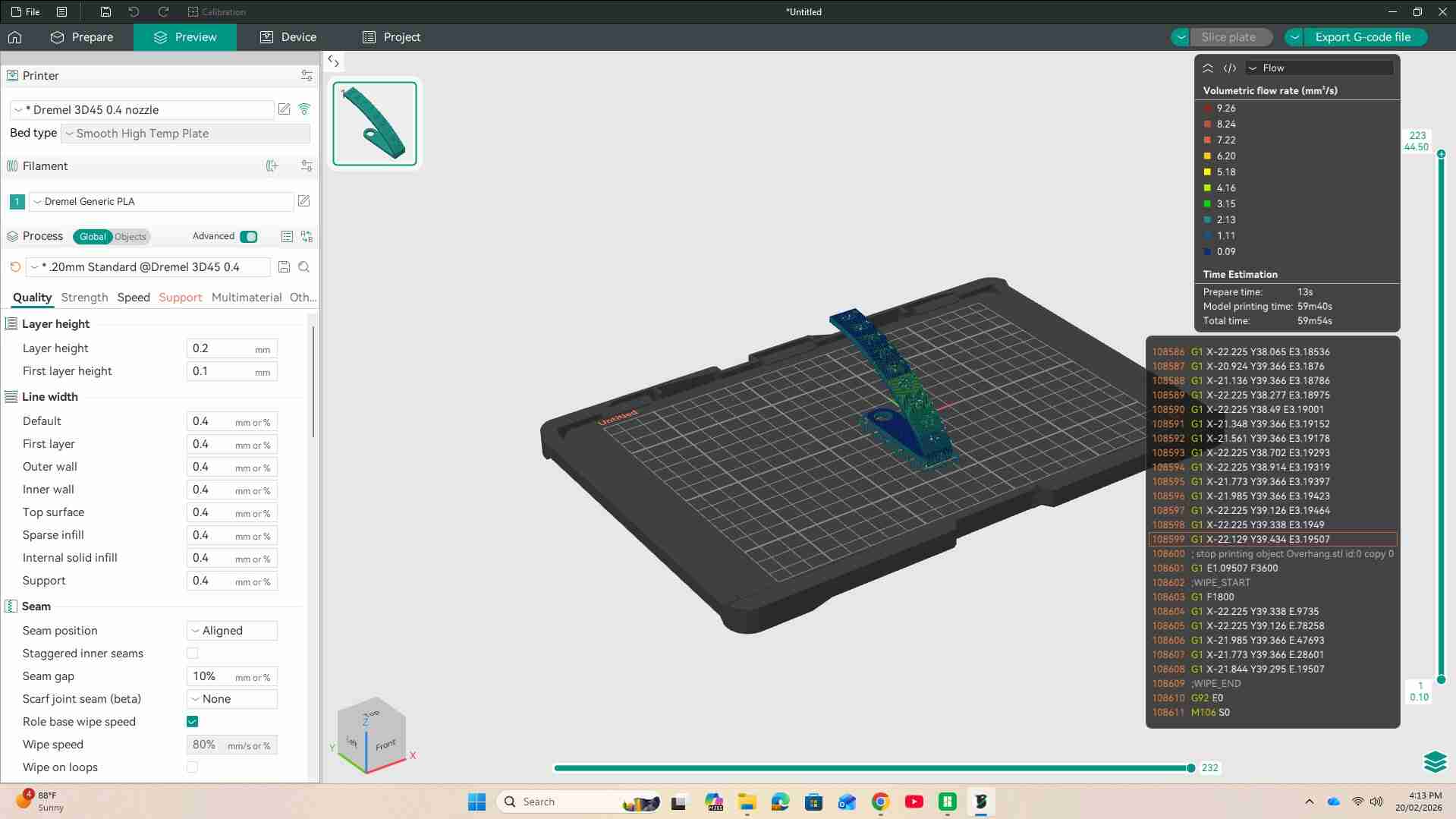

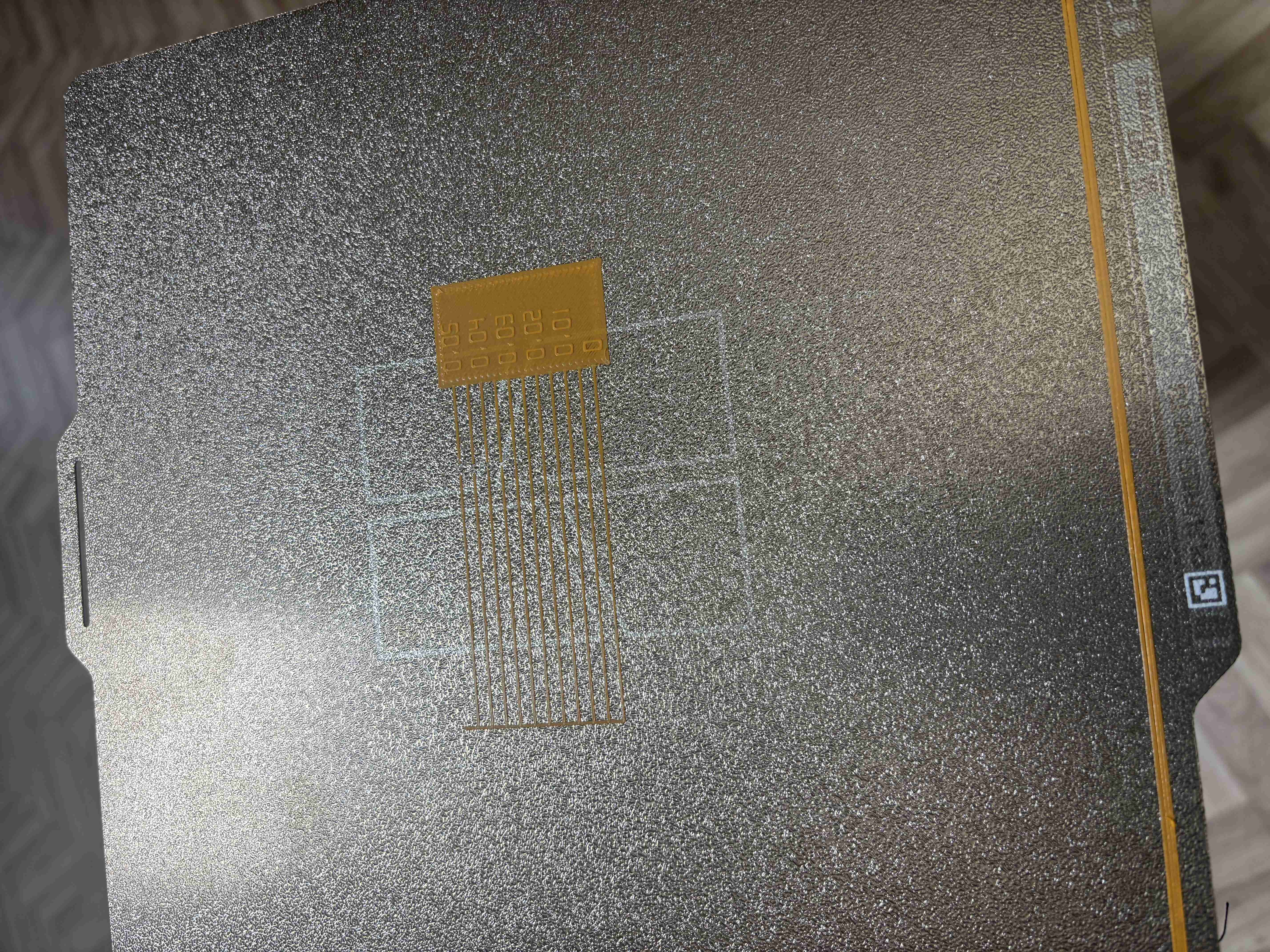

Hanging Test¶

alt text

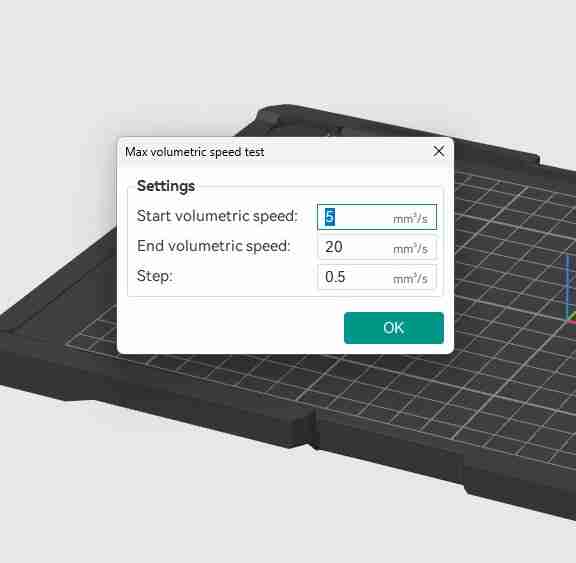

Speed Test¶

I downloaded the file for the speed test as I tried the built in file on Orca but it didn’t work well for the Dremel.

alt text

Dremel

alt text

Bambu Lab

alt text

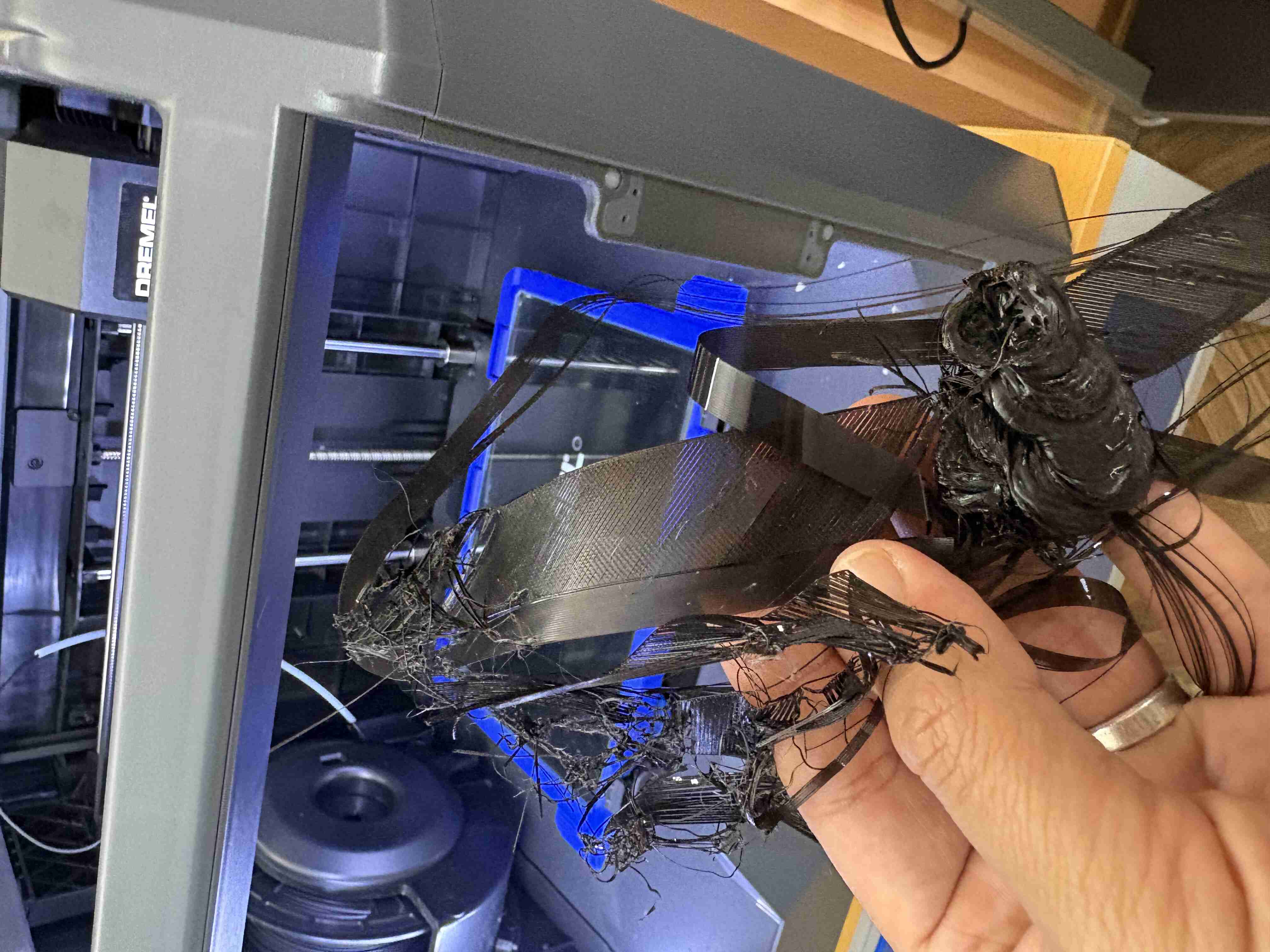

This was the first time I made the test and it was a mistake

alt text

Individual Assignment¶

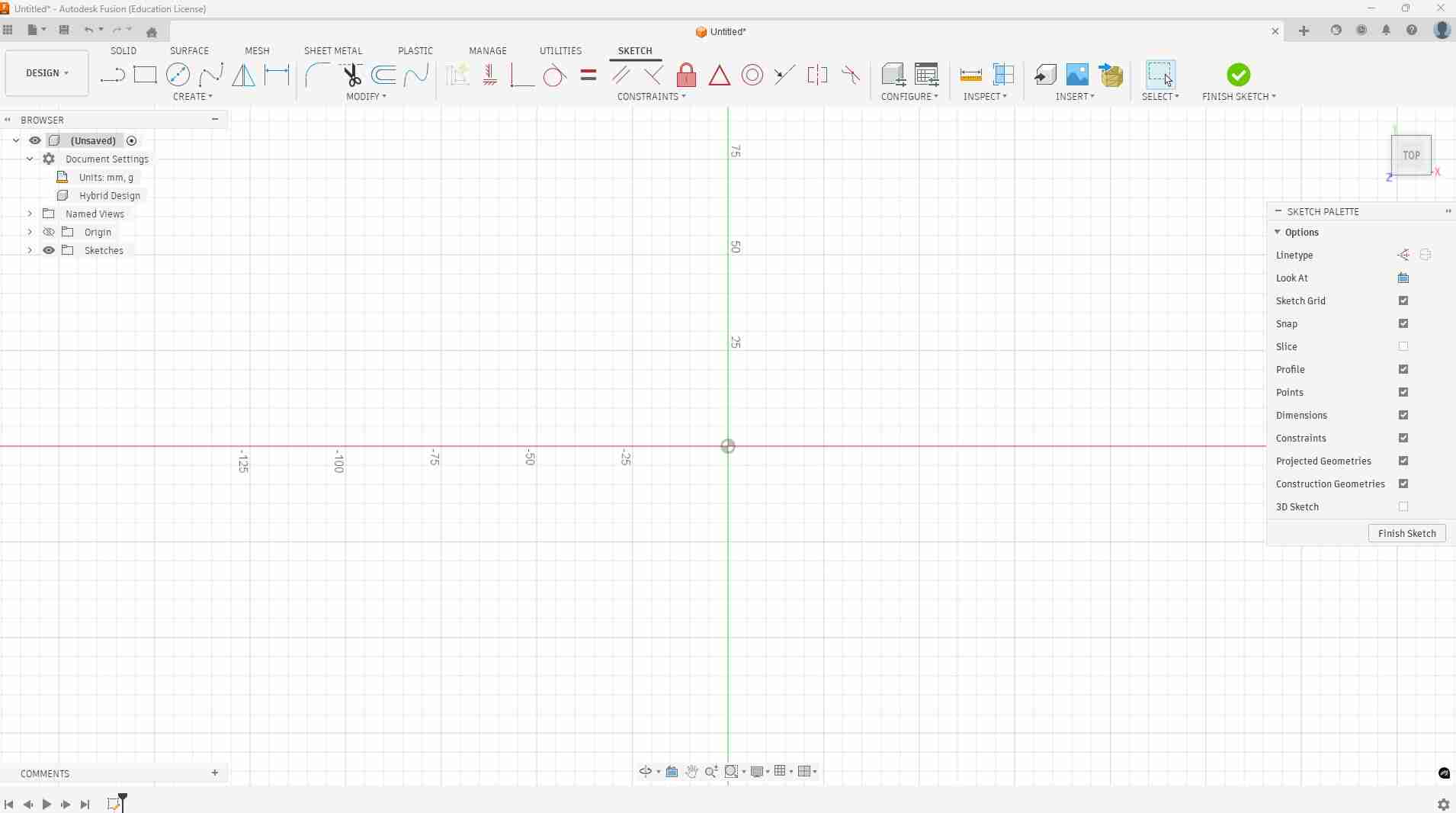

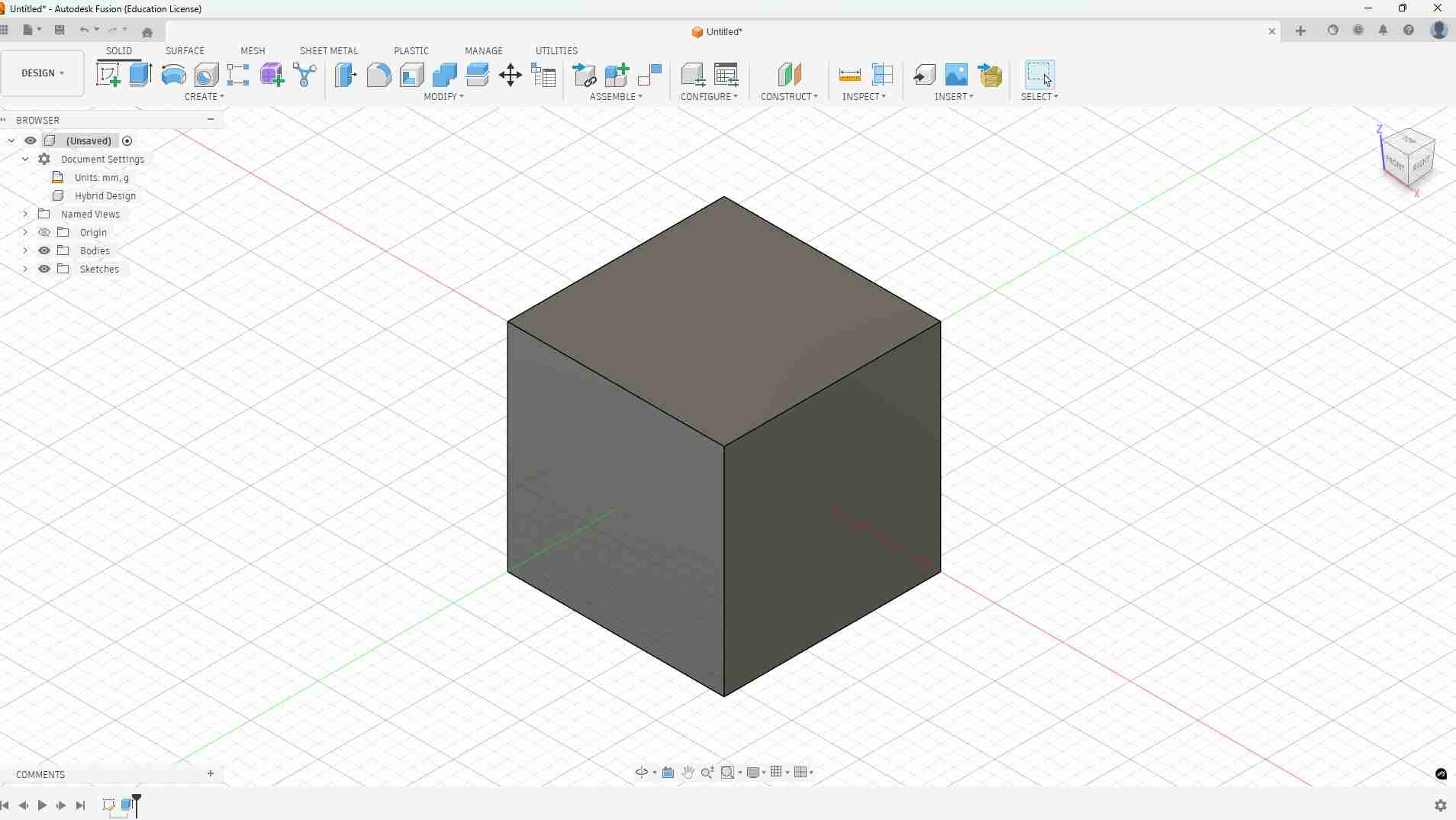

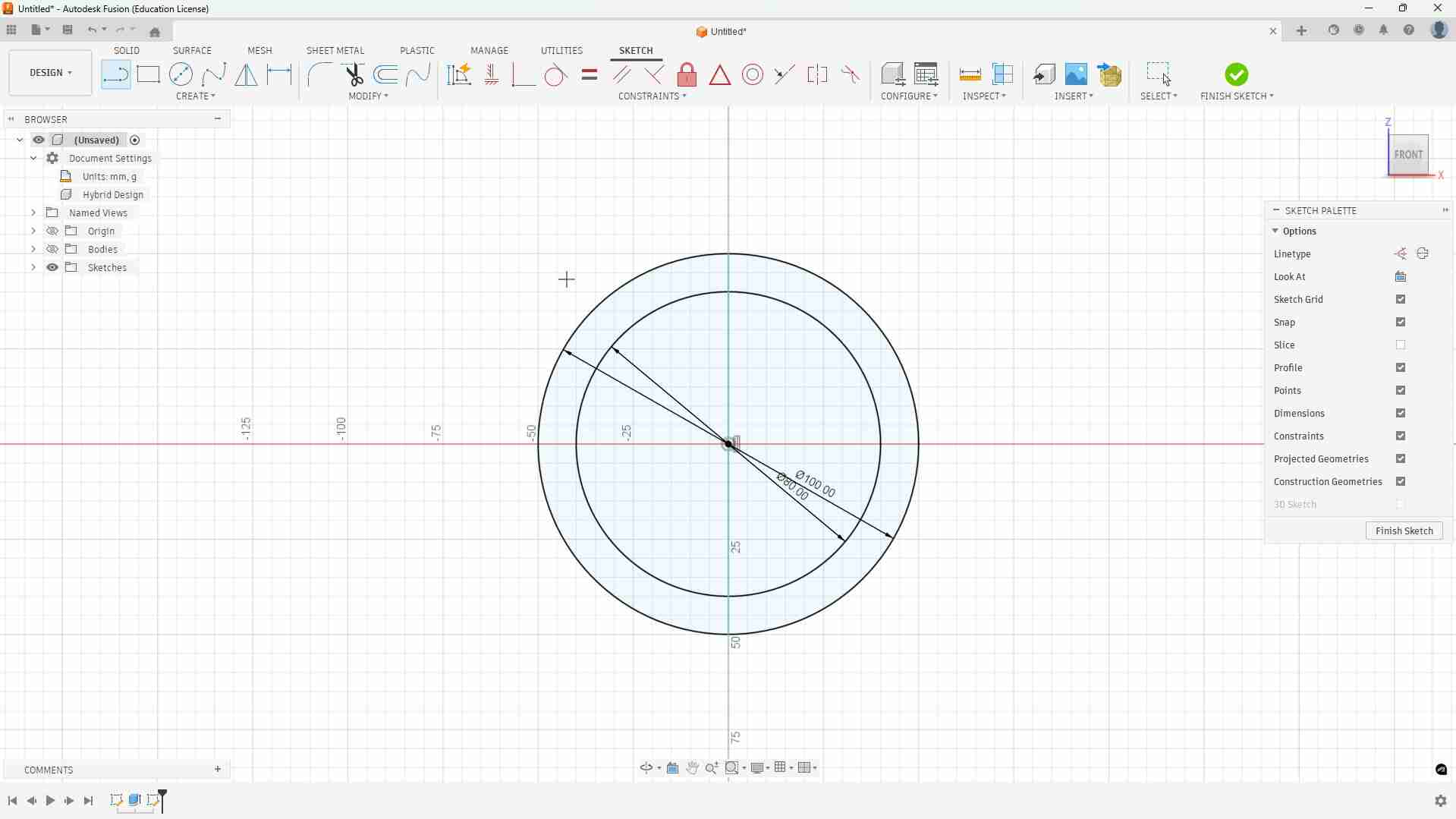

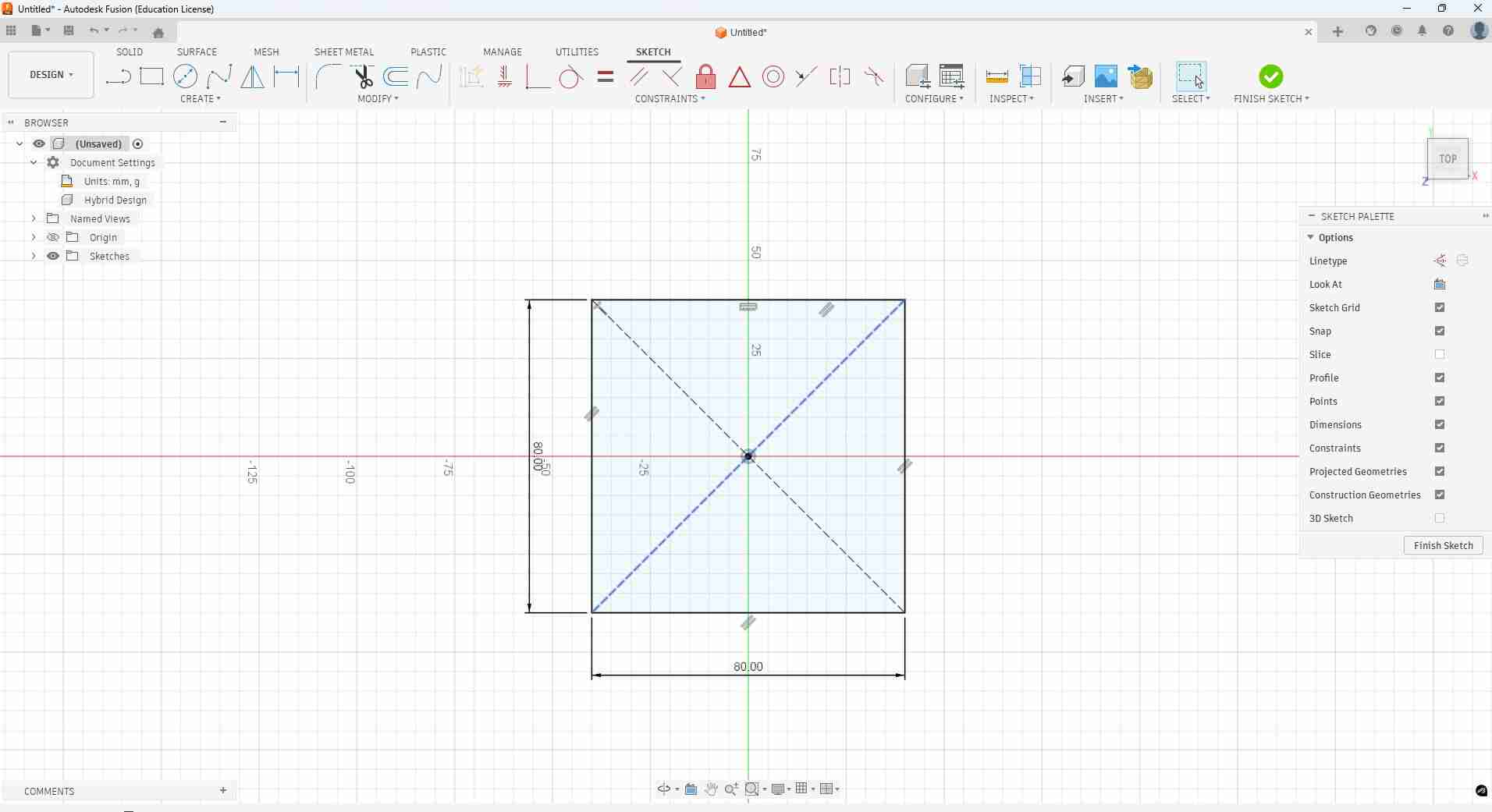

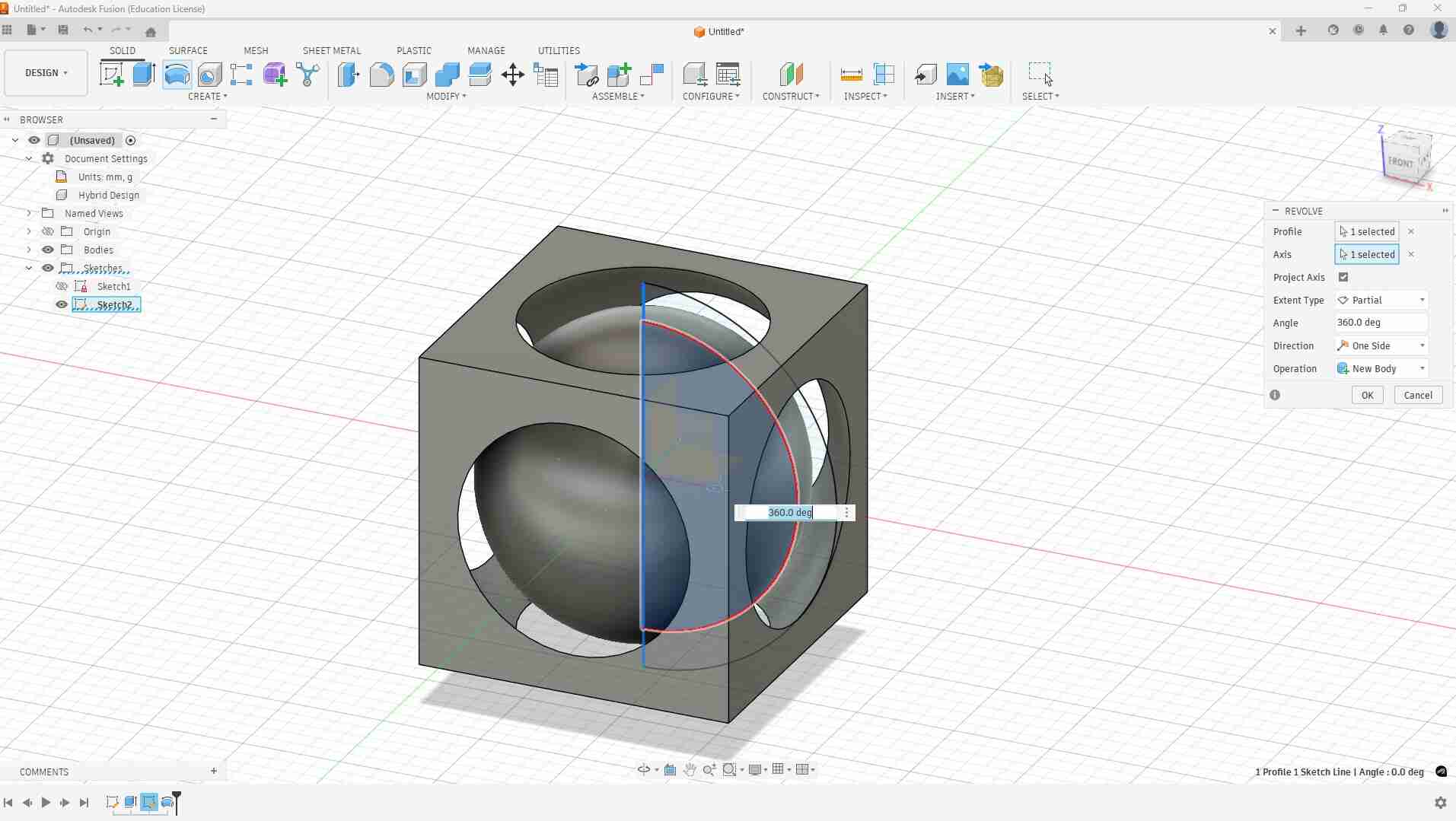

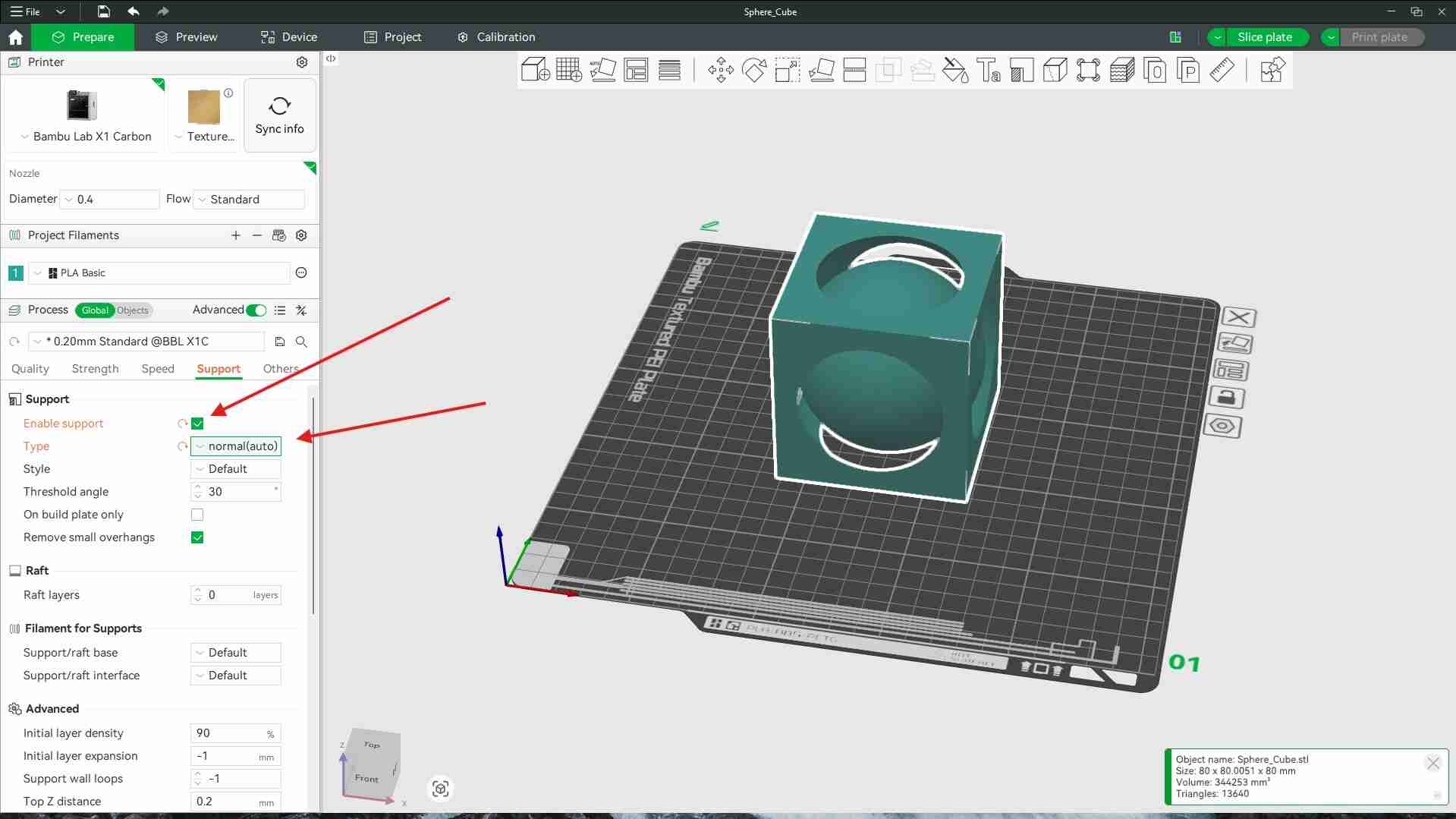

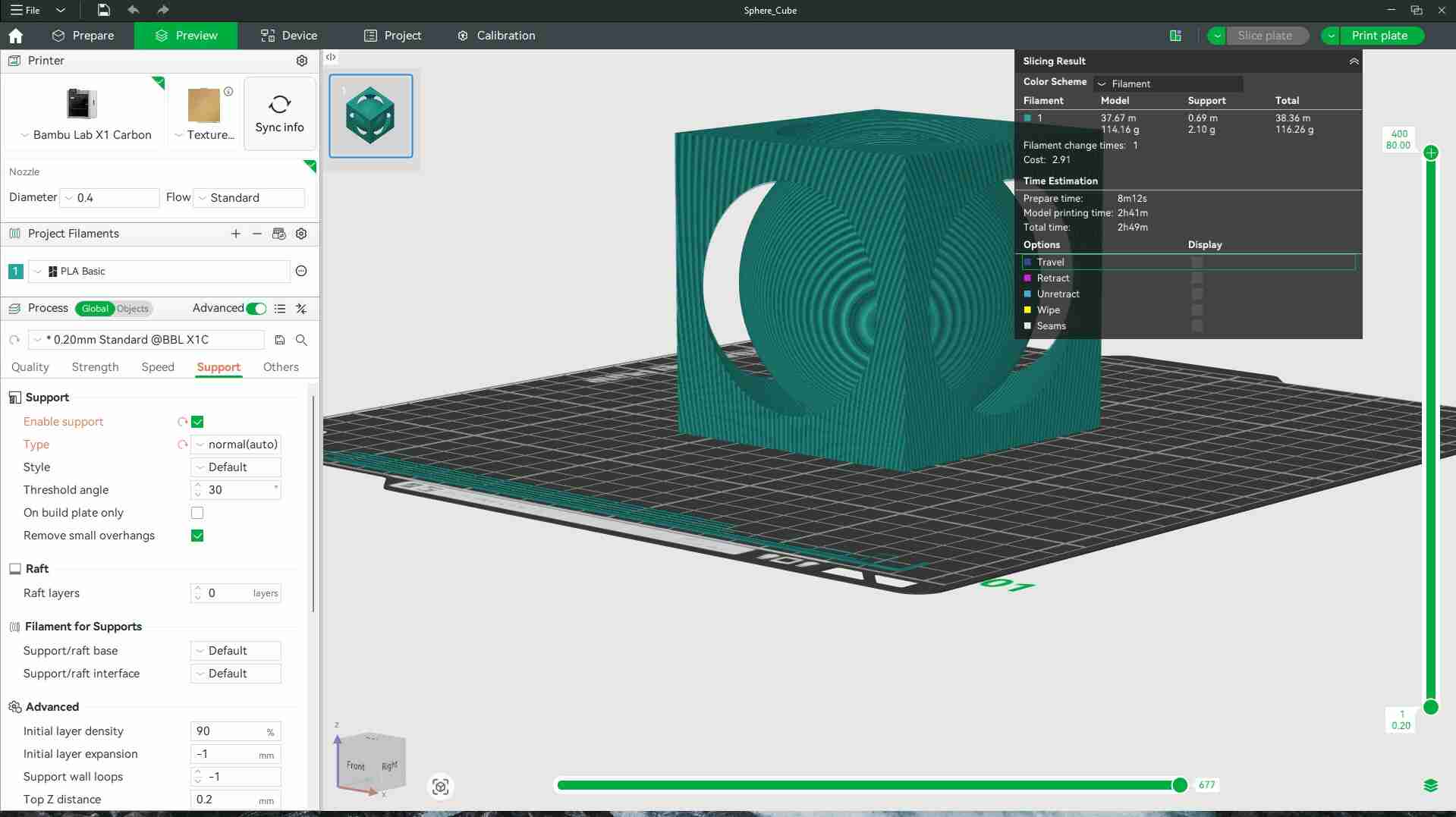

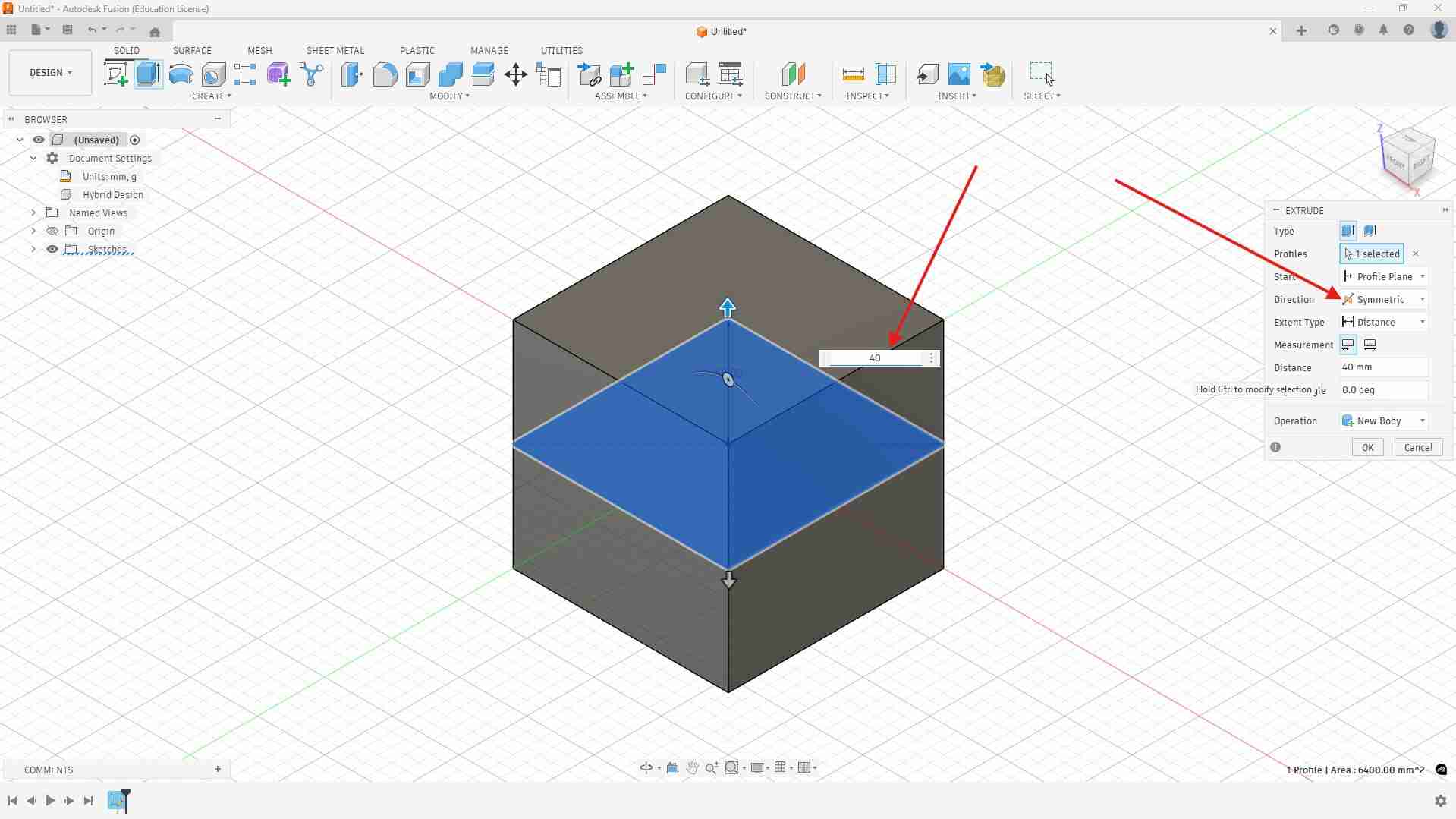

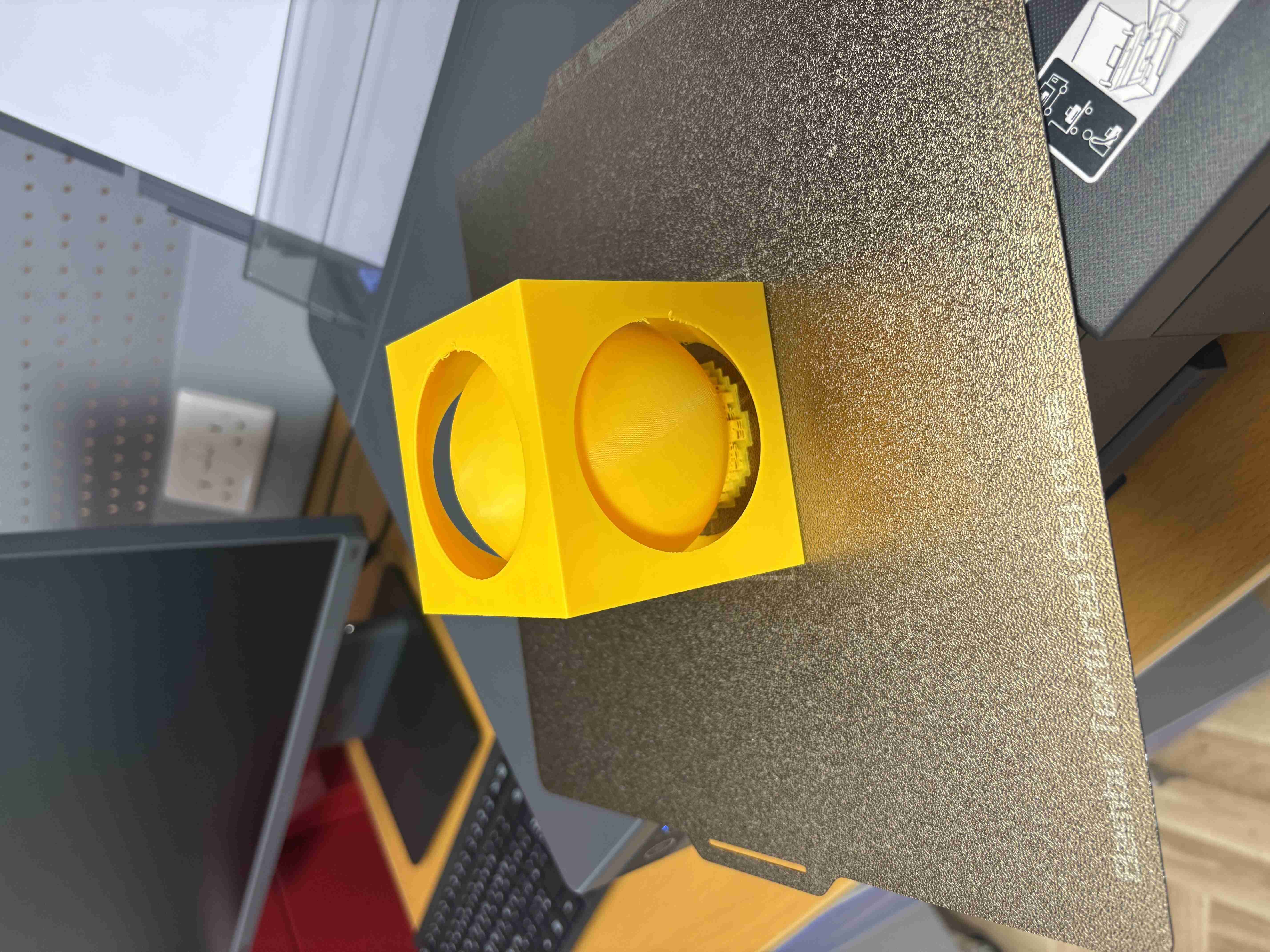

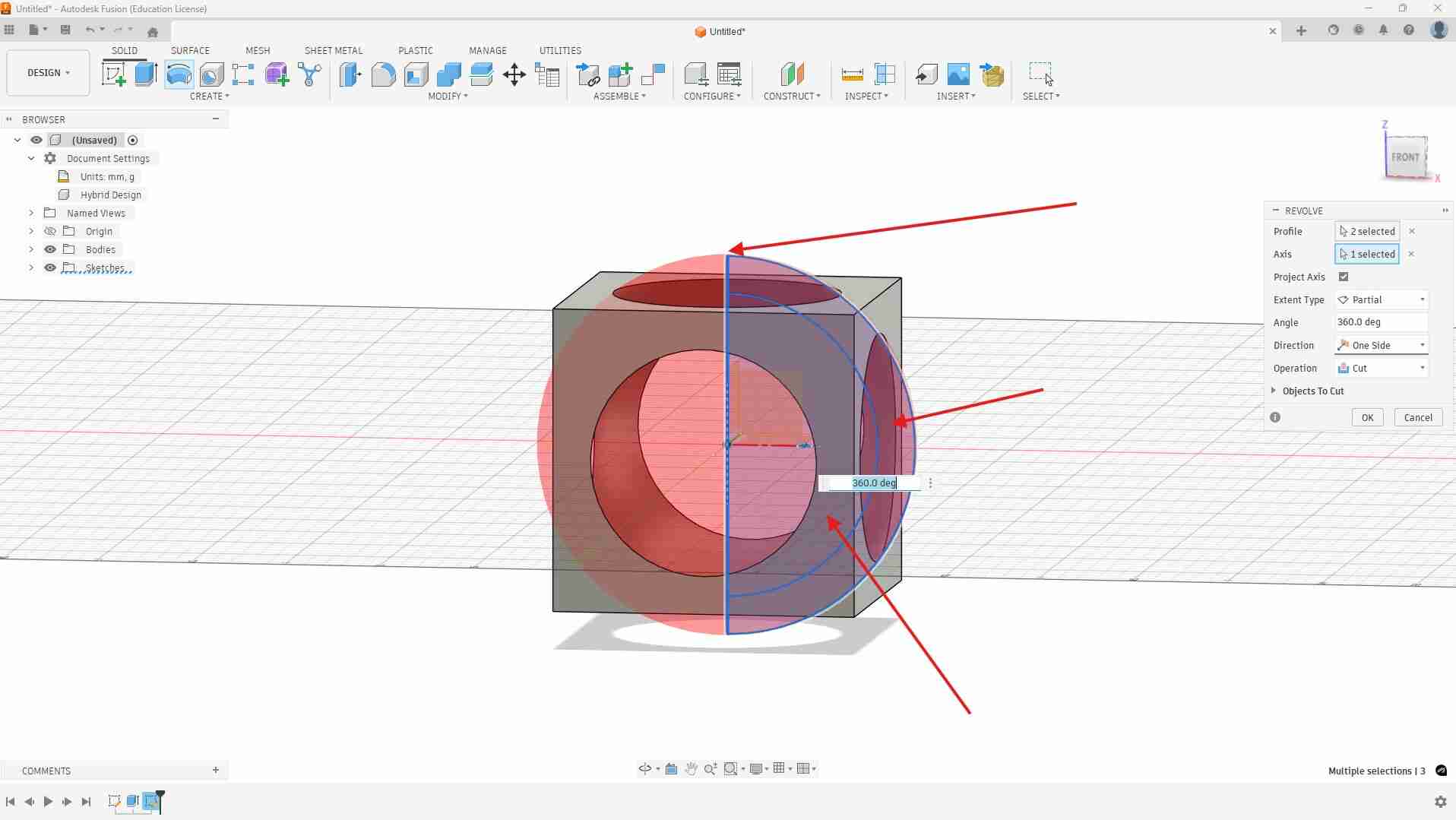

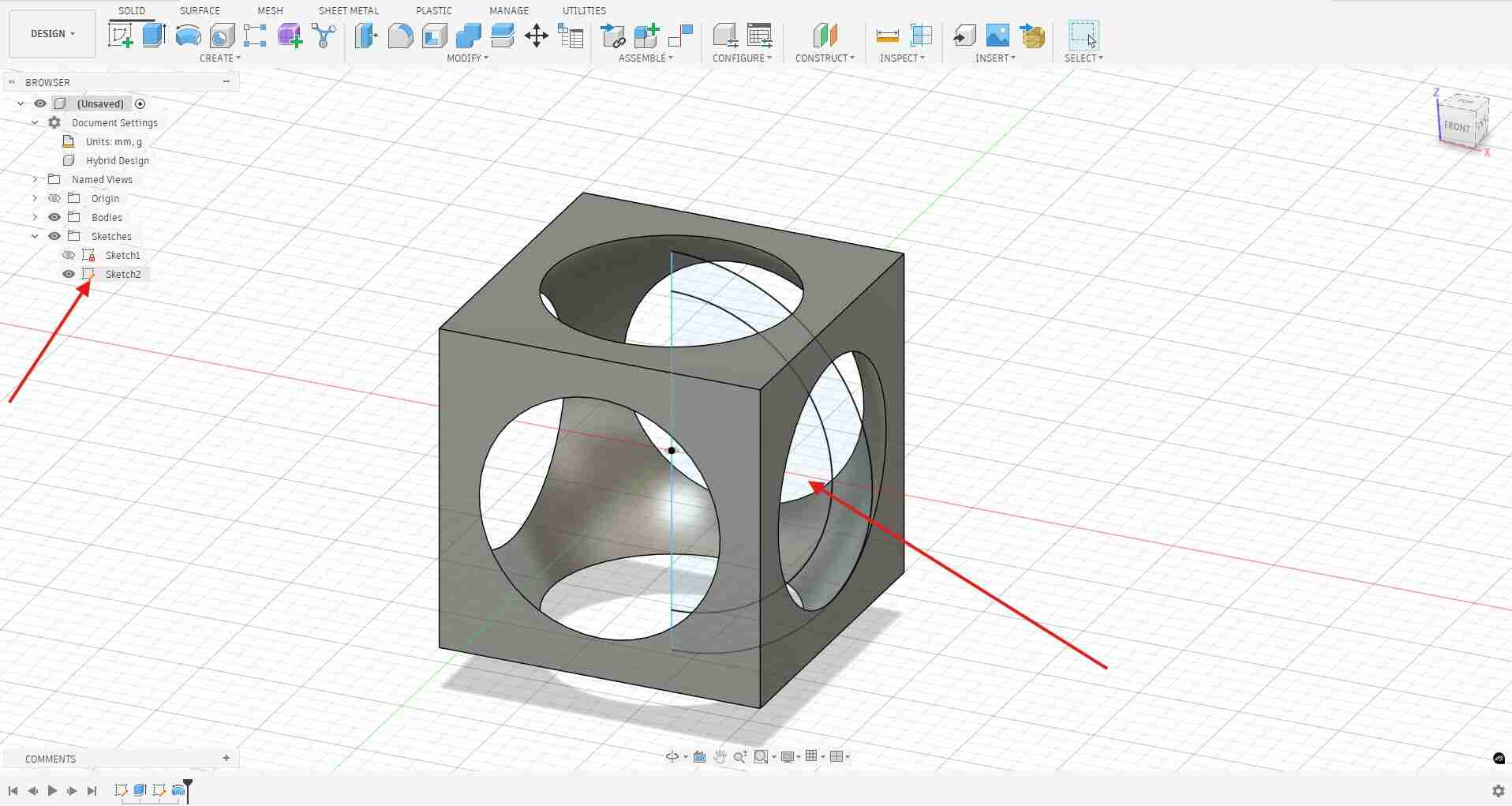

I designed a sphere inside a cube as this was something new for me to learn especially about using the revolve attribute as I have never used it before.

I followed a tutorial on youtube alt text
