Individual assignment: 3D scan an object#

We decided to use the 3D scanner to scan this tree stump that was outside the lab.

We decided to use the 3D scanner to scan this tree stump that was outside the lab

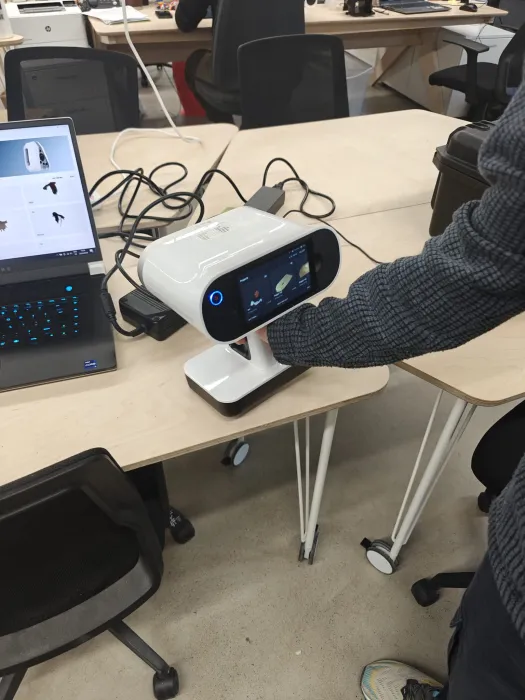

This was our 3D scanner which was portable and could do a lot of onboard processing.

This was our 3D scanner which was portable and could do a lot of onboard processing

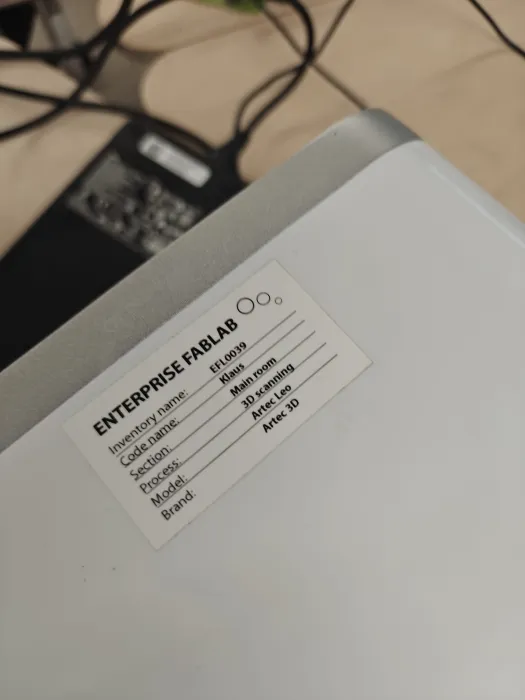

This is a model named 3D scanner. It’s an Artec 3D scanner and the model name is Artec Leo.

This is an Artec 3D scanner, model name Artec Leo

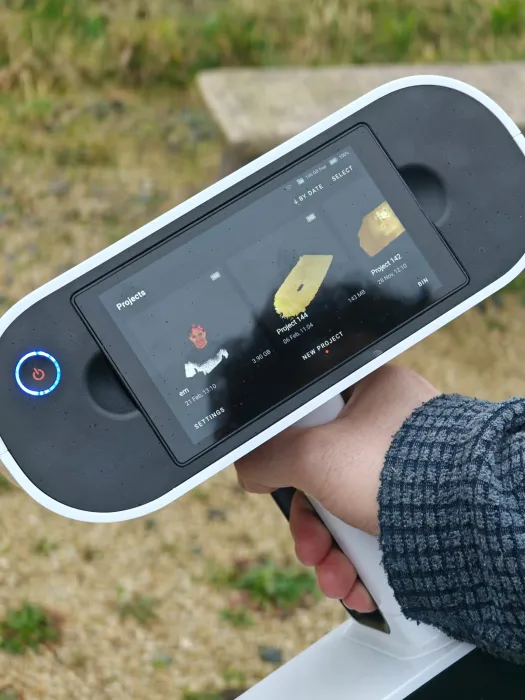

We go outside and click new project on the 3D scanner.

We go outside and click new project on the 3D scanner

We had to adjust the range on the 3D scanner and we set it to about one meter.

We had to adjust the range on the 3D scanner and we set it to about one meter

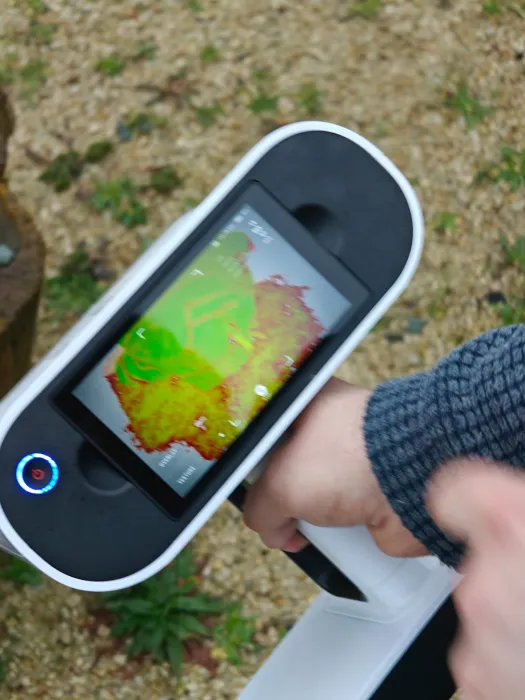

While scanning, you can see the green patches in the image on the display show that that area has been captured, while the red patches show that the area could not be captured as well, so we have to get more green overall.

While scanning, green patches show captured areas and red patches show areas that need more scanning

Given this is an expensive higher end scanner, it seems to render a really good view of the scan on the scanner display itself.

The scanner renders a really good view of the scan on its display

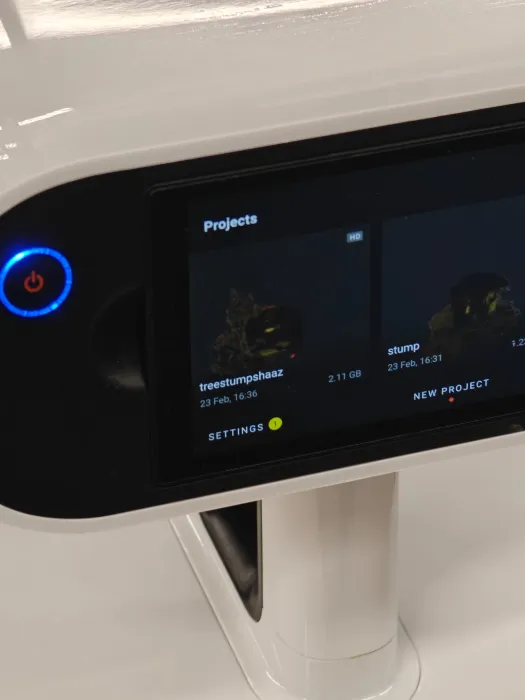

I saved the scan on the scanner and then now we have to import it into the Artec software for post processing.

Saved the scan on the scanner, now we need to import it into the Artec software for post processing

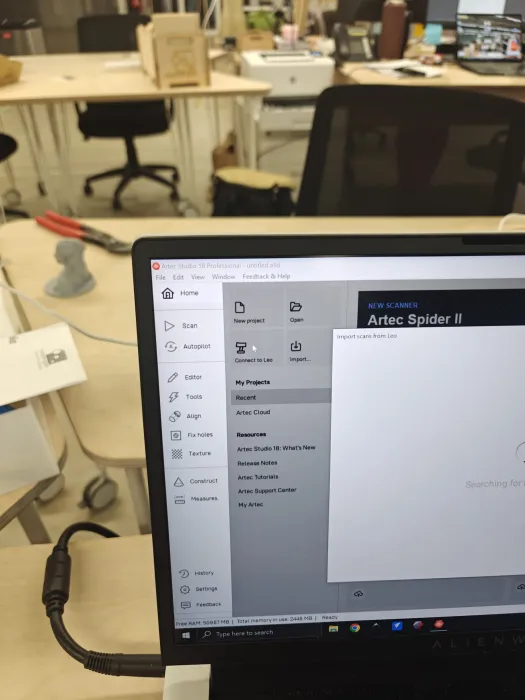

In Artec Studio software, we click connect to Leo.

In Artec Studio software, we click connect to Leo

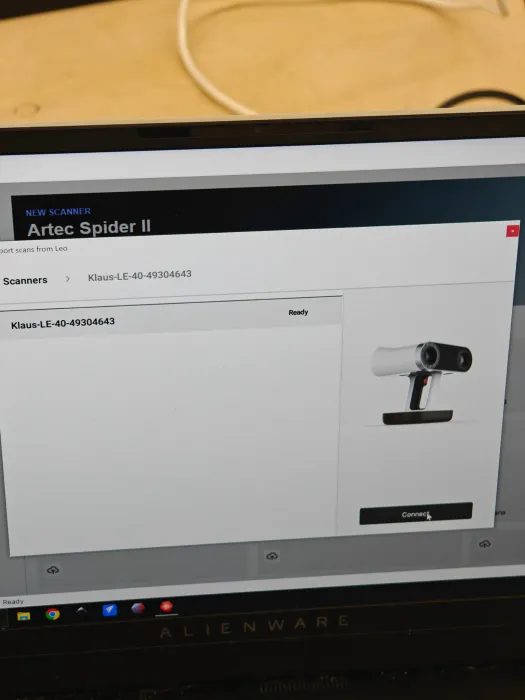

Then we select our particular Leo which is connected to the same network.

Then we select our particular Leo which is connected to the same network

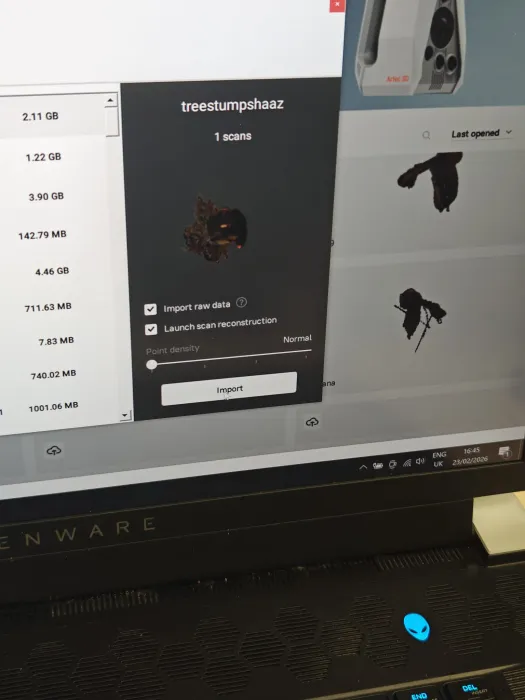

Then we select my file.

Then we select my file

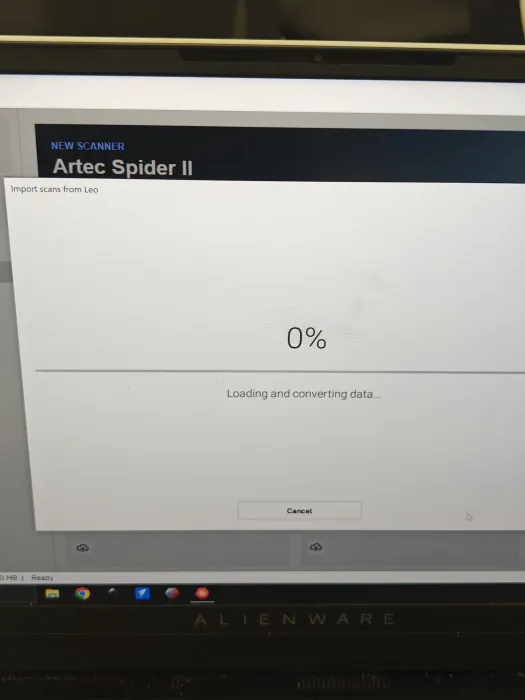

It was about a 2 gigabyte file so it took a while to load.

It was about a 2 gigabyte file so it took a while to load

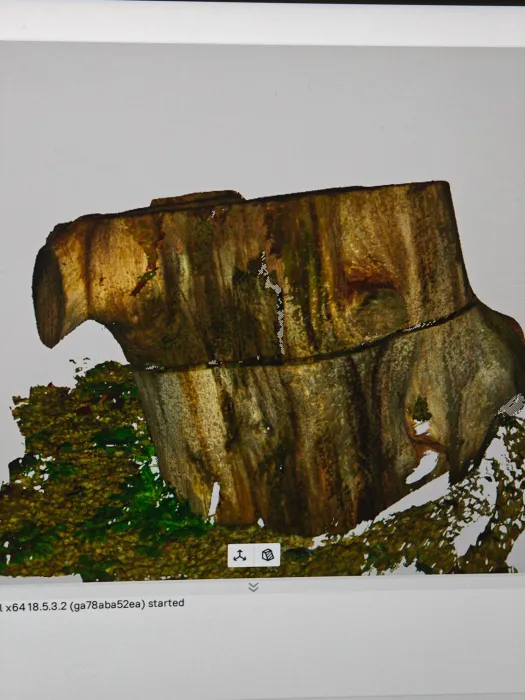

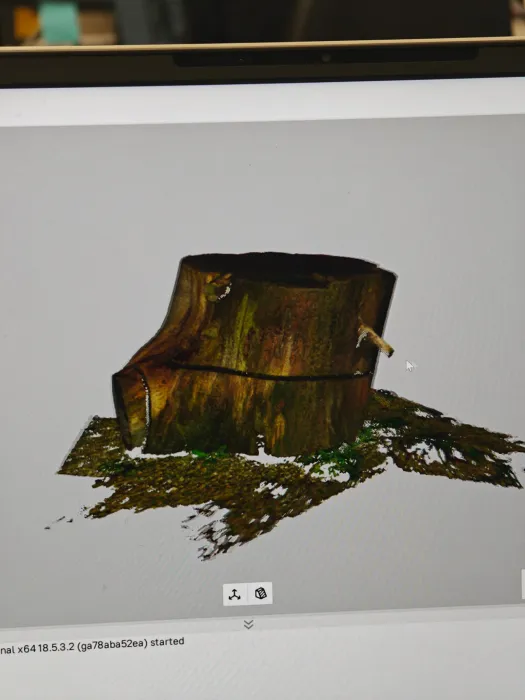

Here is a rendered version of the scan in the software.

Here is a rendered version of the scan in the software

The colors, texture and level of detail is wonderful.

The colors, texture and level of detail is wonderful

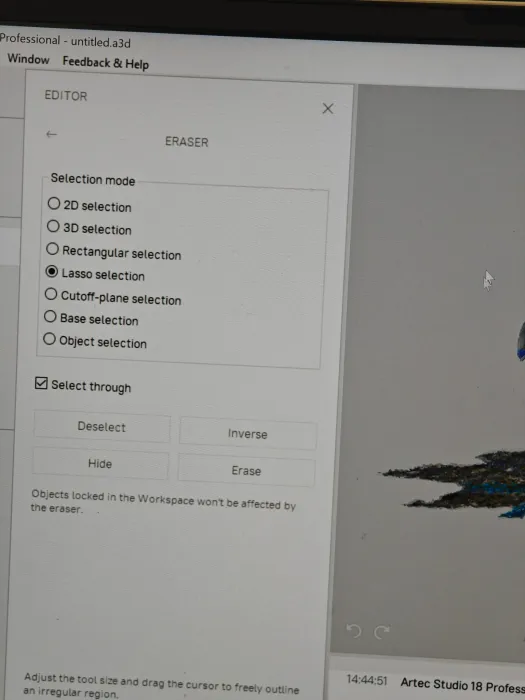

Now to cut off the extra bits of land that we don’t need, we tried the lasso selection tool.

We tried the lasso selection tool to cut off the extra bits

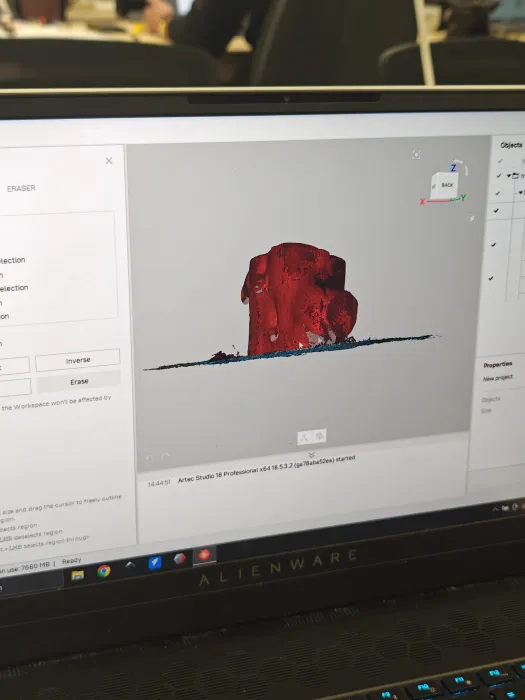

We selected the base with the lasso and erased it.

We selected the base with the lasso and erased it

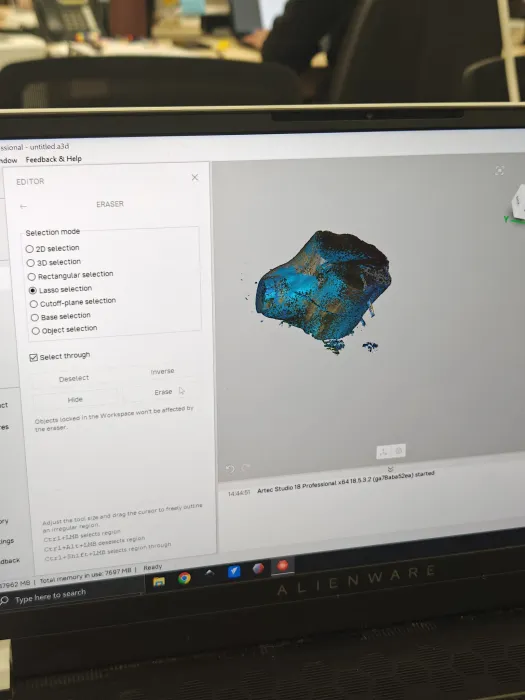

Then we got this.

Result after erasing the base

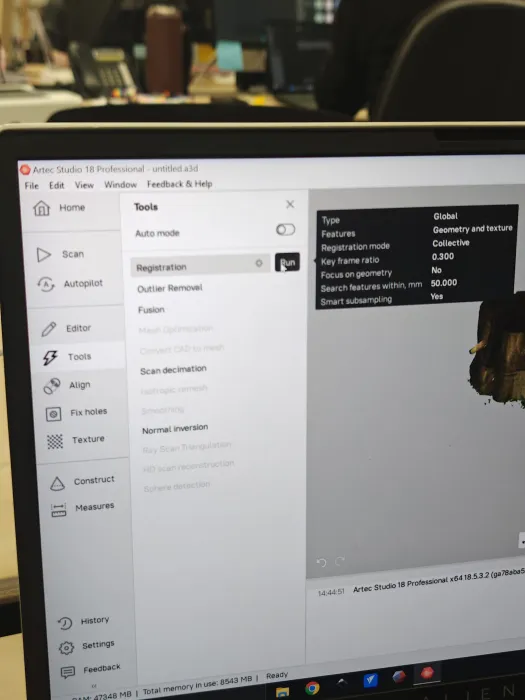

Now for post processing, we first have to run registration in the tool section to be able to do post processing on it.

Running registration in the tool section for post processing

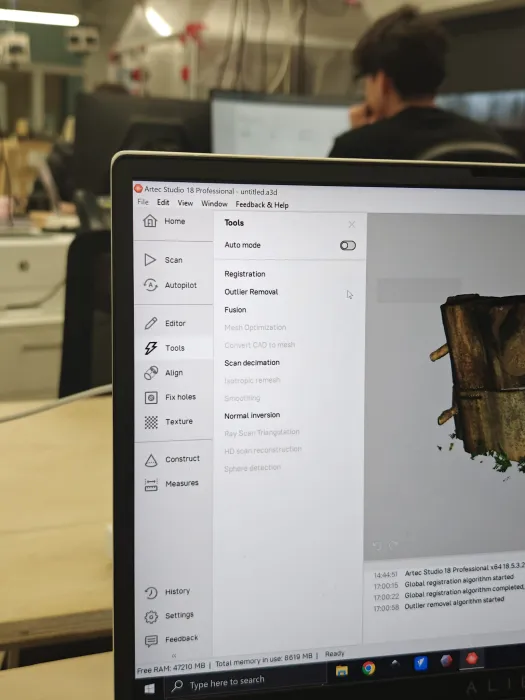

We tried some outlier removal to remove the extra bits, but it didn’t really seem to help.

We tried outlier removal to remove extra bits, but it didn’t really help

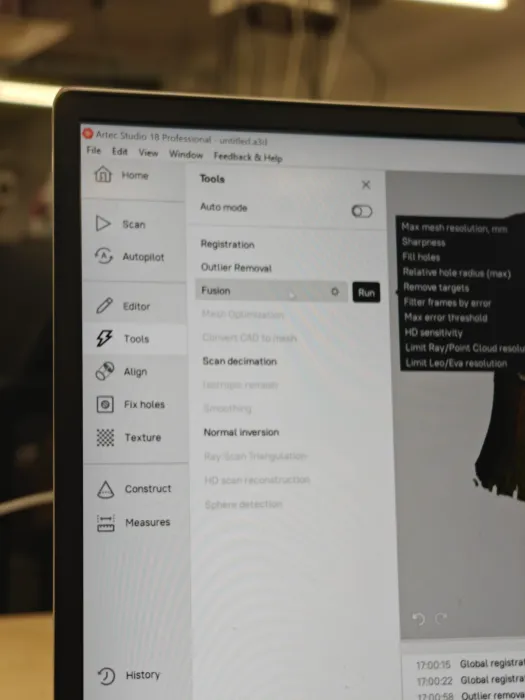

Then we run the Fusion tool to convert the point cloud into a mesh that makes it easier to edit and then later print as well.

Running the Fusion tool to convert the point cloud into a mesh

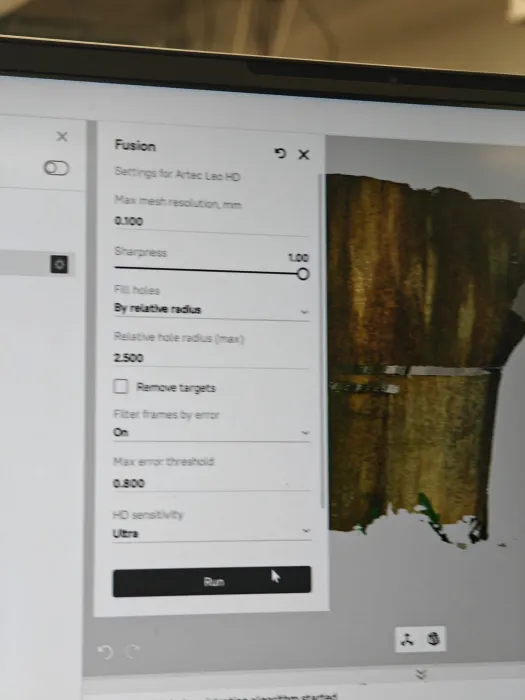

We set the mesh resolution to 0.1mm.

We set the mesh resolution to 0.1mm

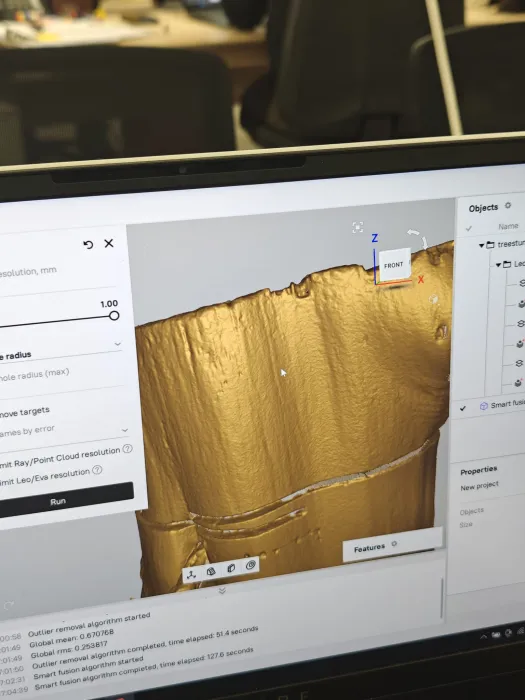

This is what we got. As you can see, there are some holes in here that we need to fill. Otherwise it’s not watertight and not printable.

The mesh has some holes that need to be filled to make it watertight and printable

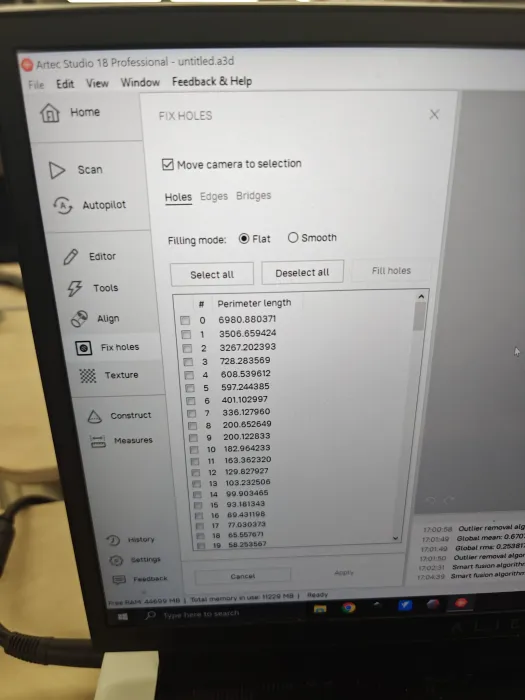

So we used the fill holes operation, but this took forever, and since I did not have time in the lab, I had to cancel this.

We used the fill holes operation but it took too long and had to be cancelled

Then to reduce the file size, we ran the isotropic remesh.

Running isotropic remesh to reduce file size

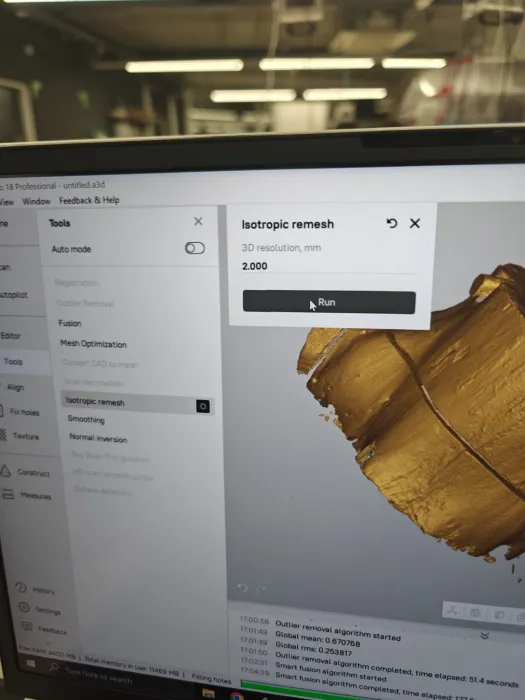

Used a resolution of about 2mm for the isotropic remesh just for experimental purposes.

Used a resolution of about 2mm for the isotropic remesh

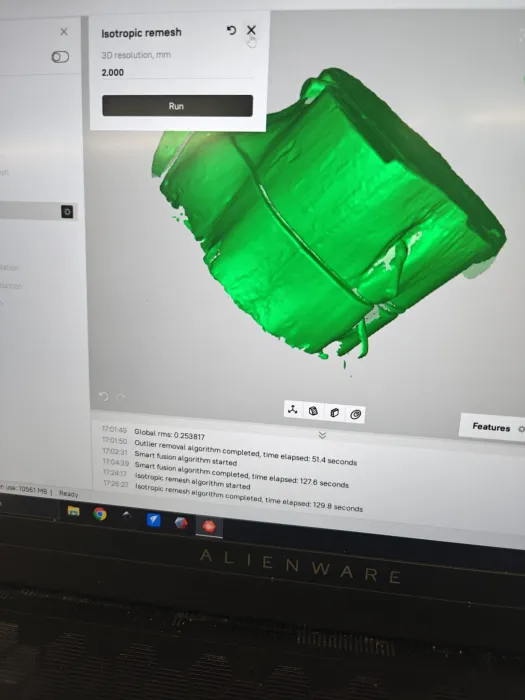

This is what I got at the end of it. It’s a much smaller file.

The final result after isotropic remesh, a much smaller file

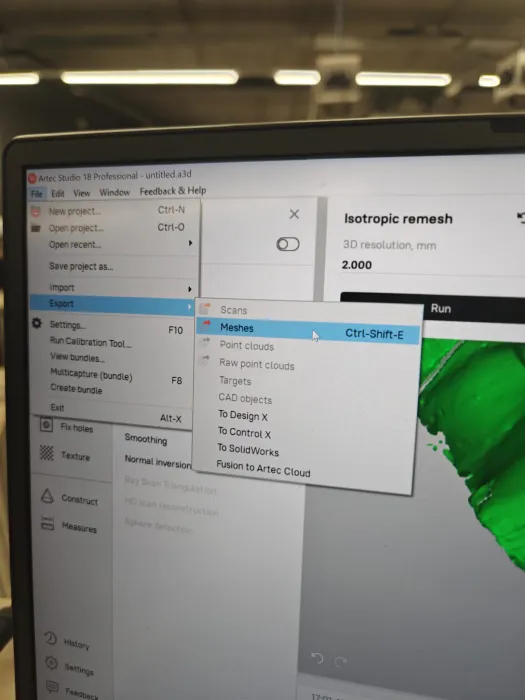

Then I exported it as a mesh.

Exporting it as a mesh

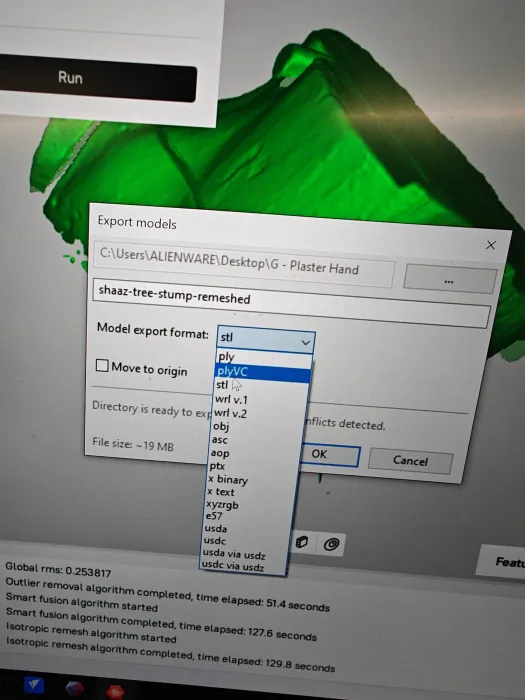

And I exported it to an STL file.

Exported to an STL file
