week 5. Individual: 3D Print an Object
Table of Contents
Individual assignment: Design, document, and 3D print an object#
Step 1: Create a box in Rhino#

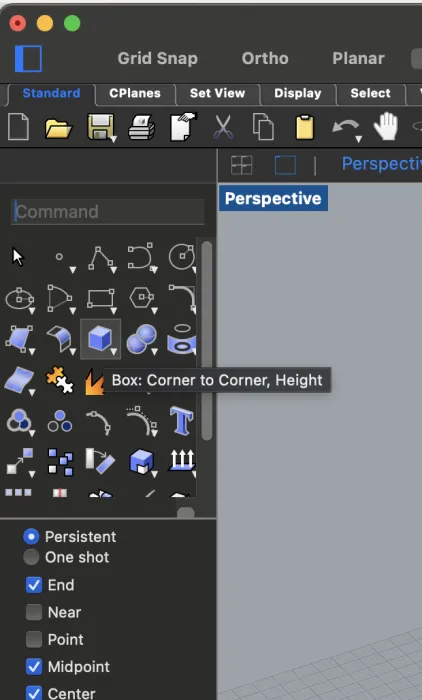

From the Rhino menu, select the box object and define the center as 0,0,0 and select a side of 10 and a height of 10.

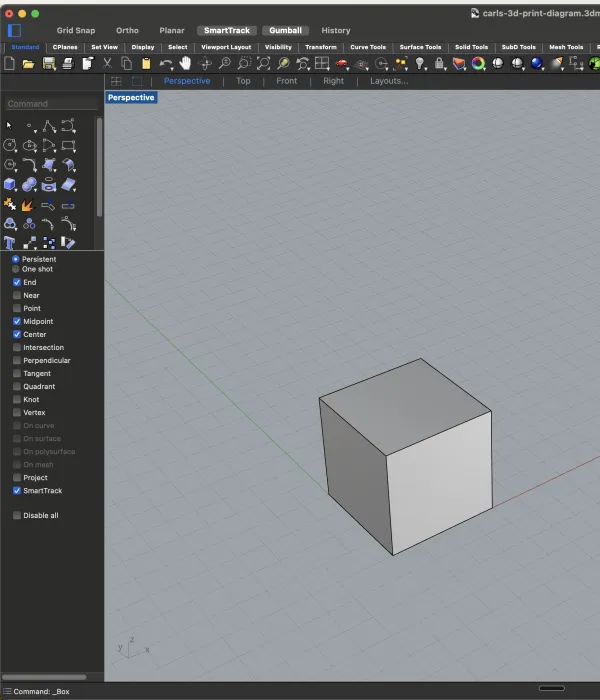

Here is an image of the box once we created it.

Step 2: Apply multi-pipe#

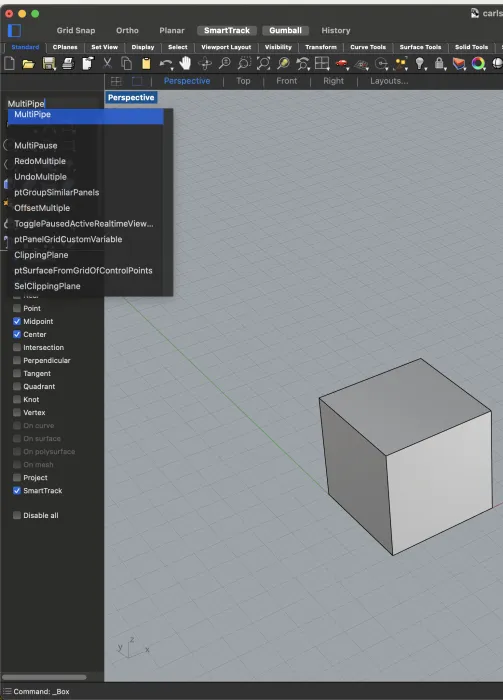

Now from the Rhino command menu, we select multi-pipe.

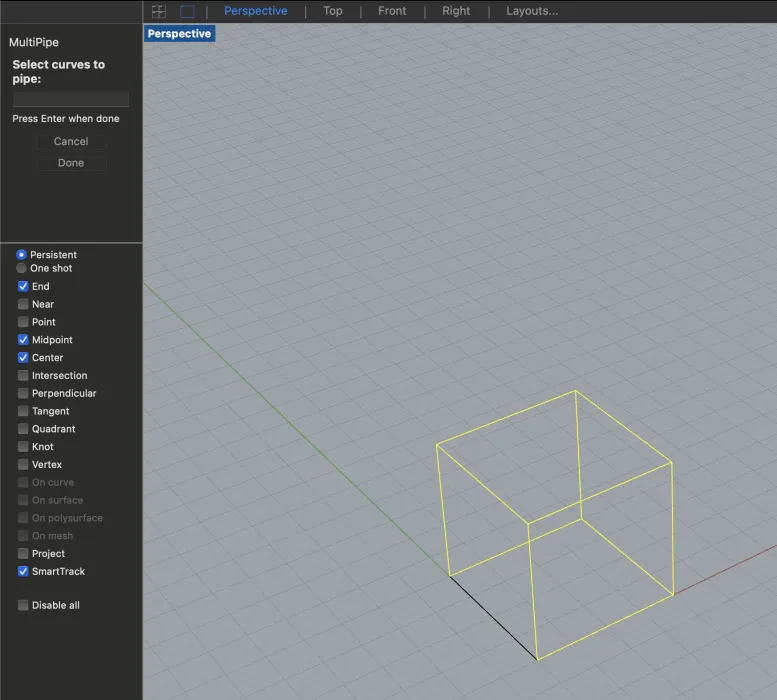

Rhino will then ask you to select the sides of the object that you need to multi-pipe, so switch to wireframe view and select all the edges of the cube.

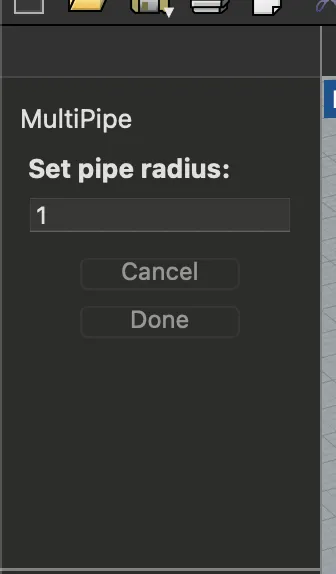

We set the pipe radius to one.

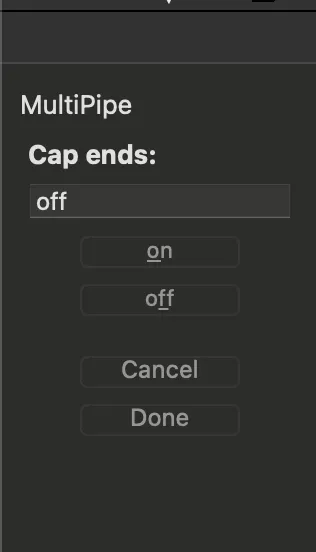

Cap ends is off.

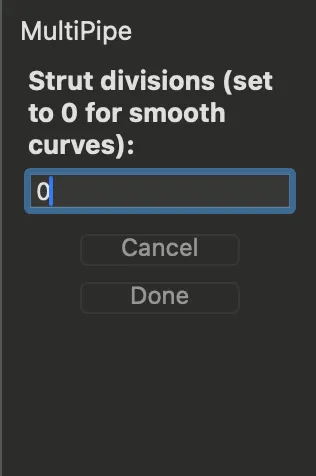

Set the strut divisions to one.

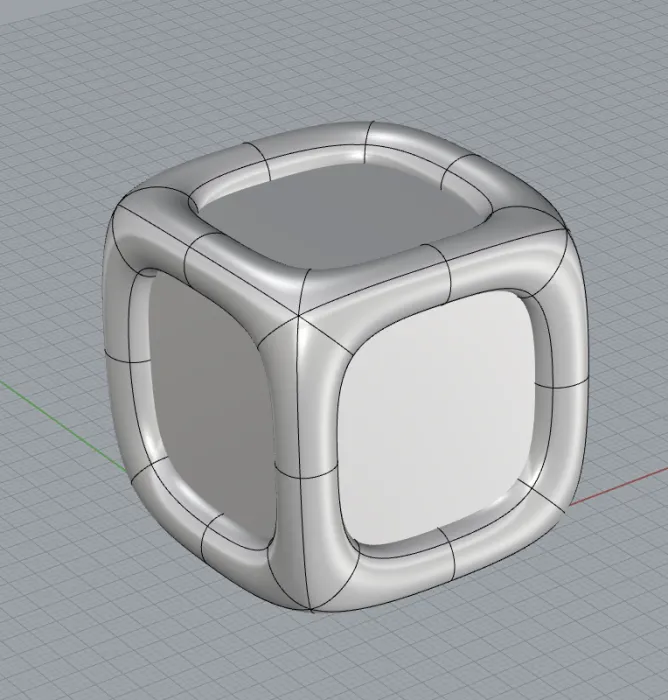

And when you press enter you will see a second shape around the cube, wrapping the edges.

Step 3: Clean up the model#

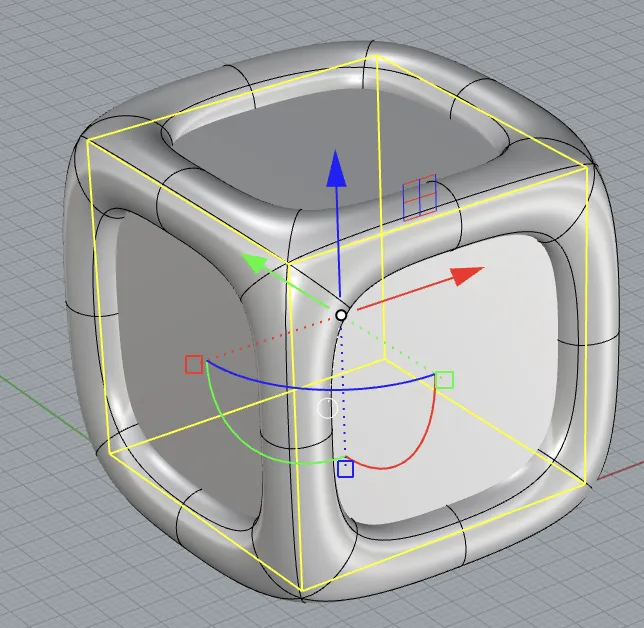

Then select the cube inside and press delete.

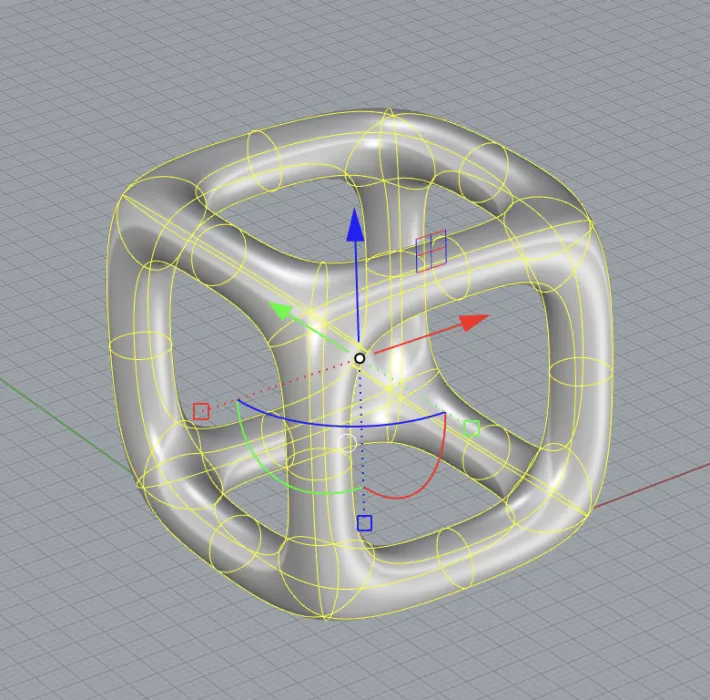

Now we have just a multi-piped cube that we want.

Step 4: Create interlocking copies#

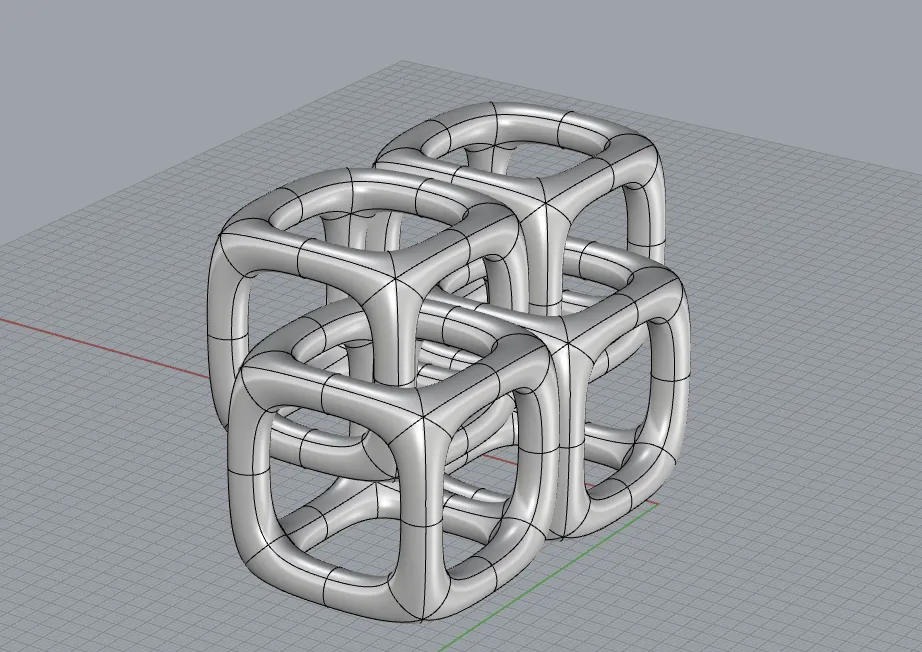

Click our multi-pipe cube and use Ctrl+C and Ctrl+V to copy-paste it four times.

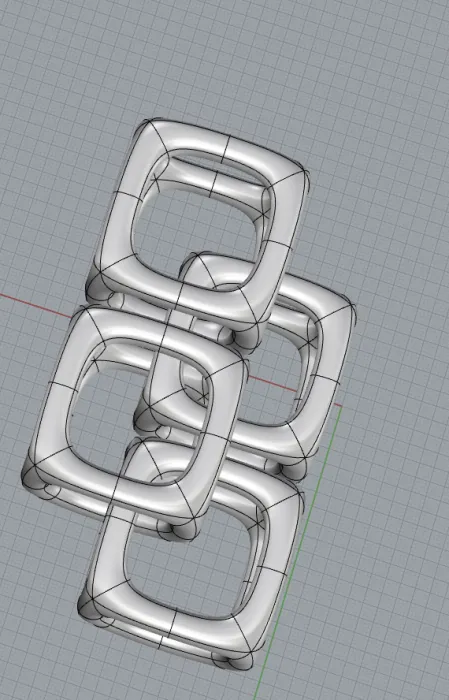

To make them interlocking, we move the objects so that they don’t touch each other.

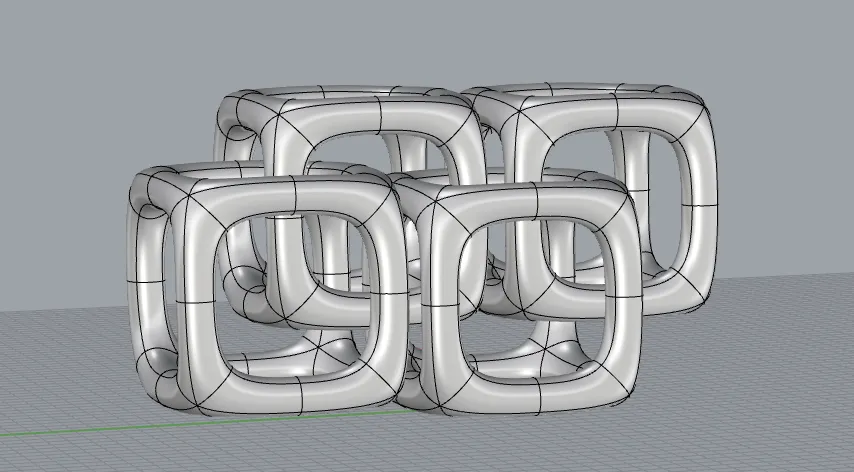

I had to raise them like this so that they won’t touch, but Carl mentioned that the raised cubes will be weaker, so I want to make the diagonal so they are all the same.

Step 5: Rotate the cubes#

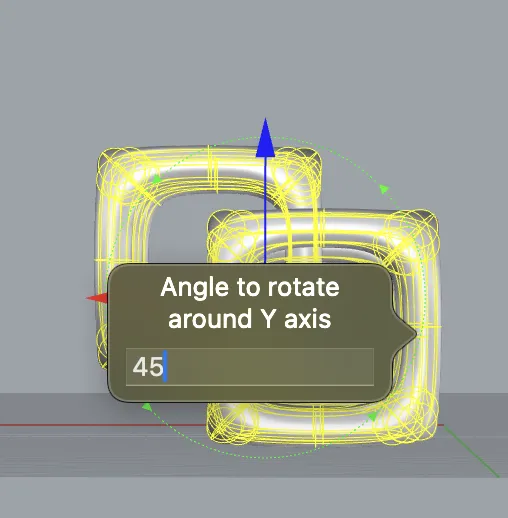

Since I have the gumball enabled, I click the rotating line and type in how much I want to rotate along the Y-axis, which is 45 degrees.

Step 6: Fix units and alignment#

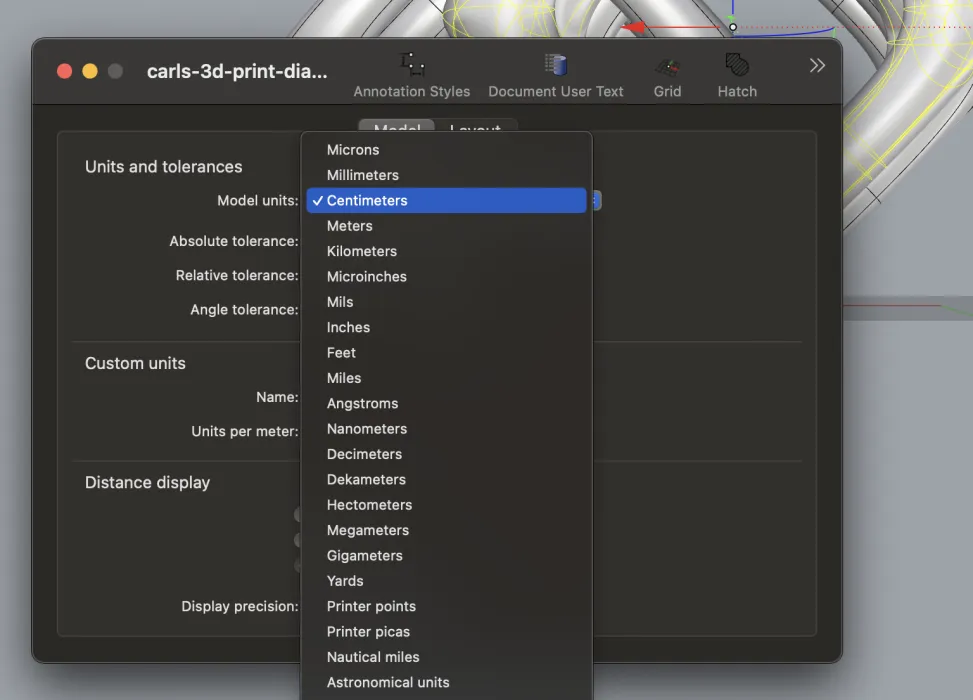

At this point, I had to go and update the units on the document from inches to cm.

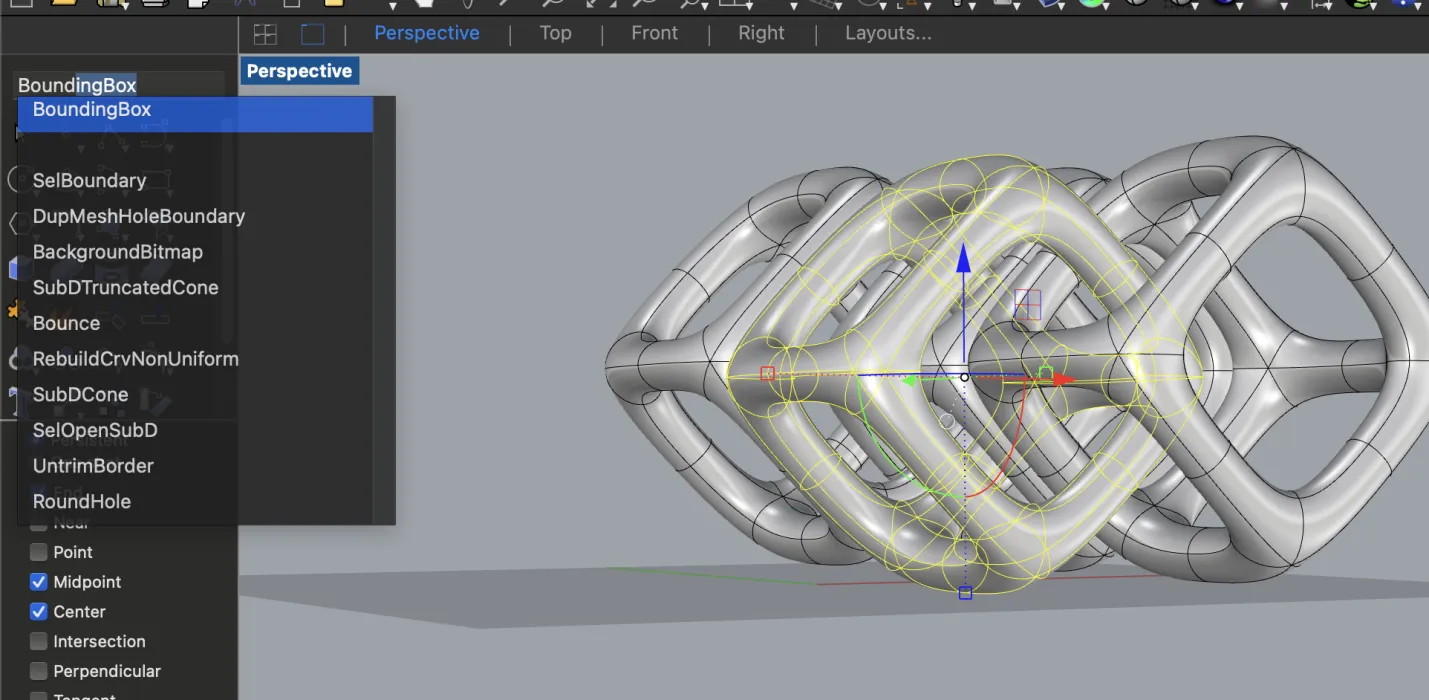

Then I noticed that some cubes were not touching the base plane, so I select each cube and use the BoundingBox command to see how much I need to shift it.

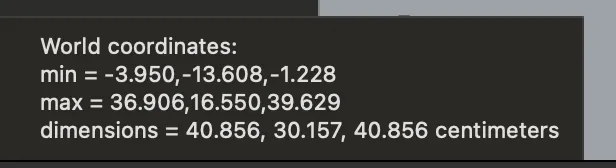

As you can see here in the min, the Z axis is roughly -1.228 below the Z point 0.

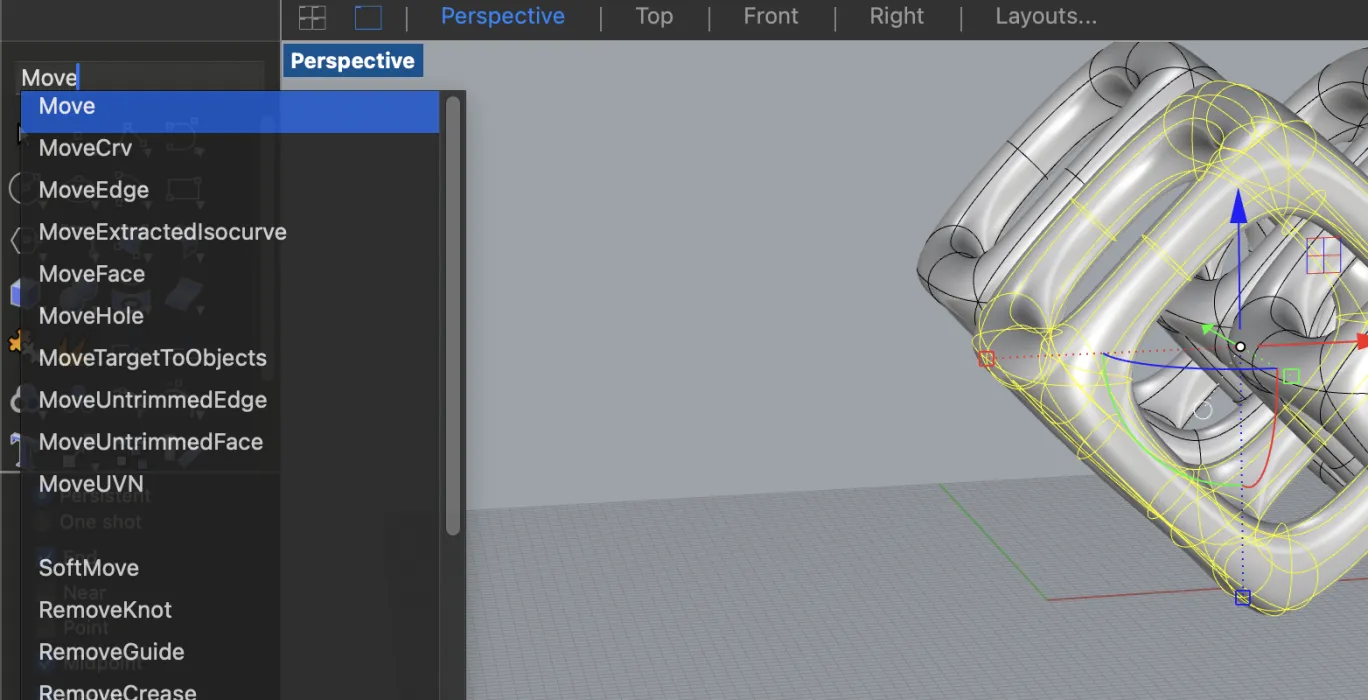

Then I select the cube and use the Move command.

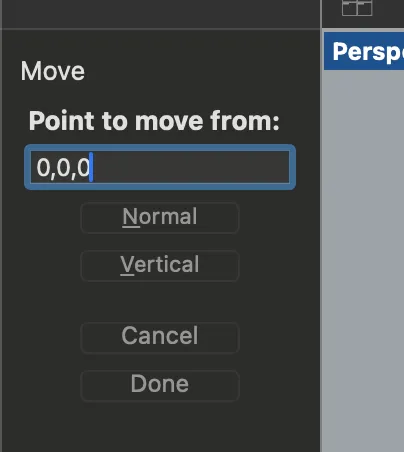

I specify the start point as 0,0,0 (the origin).

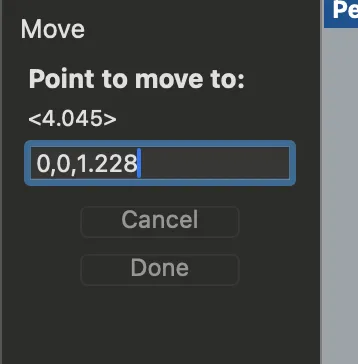

And I shift it 1.228 along the Z axis by typing 0,0,1.228.

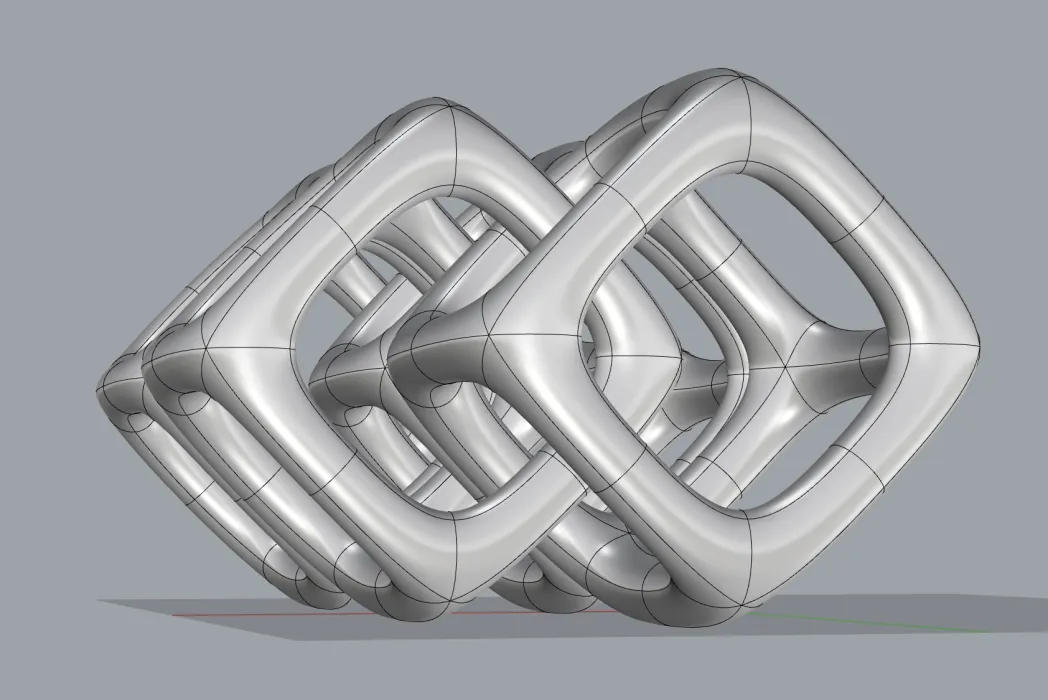

Now they are all even and the small square shows that they are all touching the base z-plane.

Step 7: Export and prepare for printing#

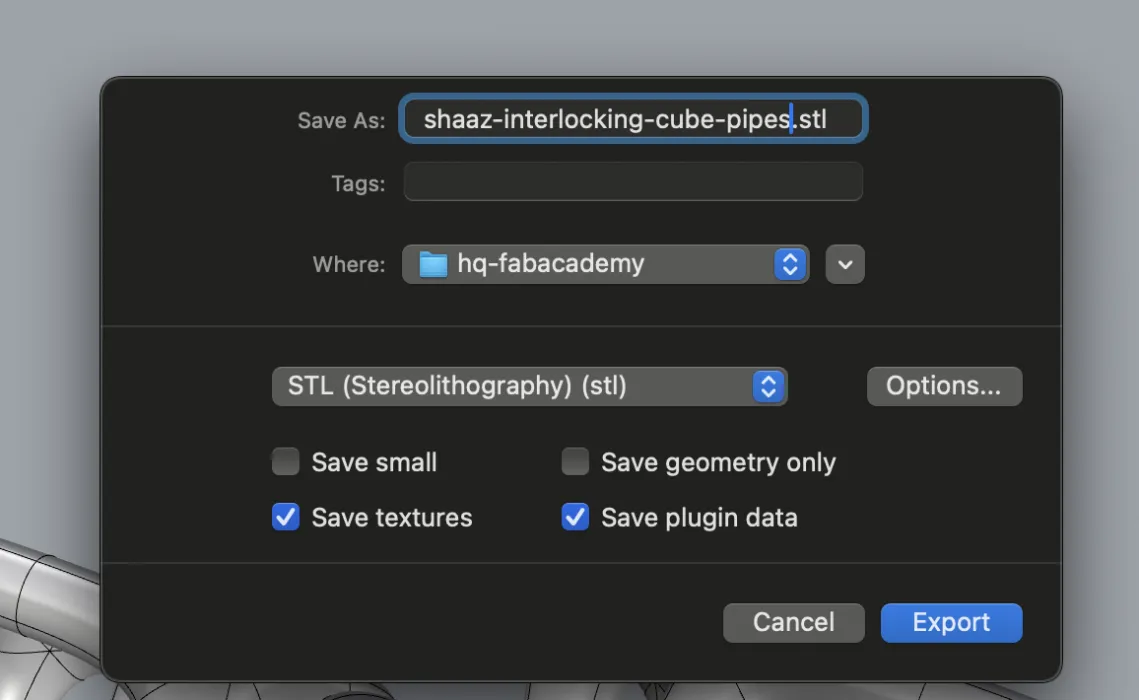

Export it as an STL file.

Import it into Bambu Studio and set the tolerance to 0.5 mm.

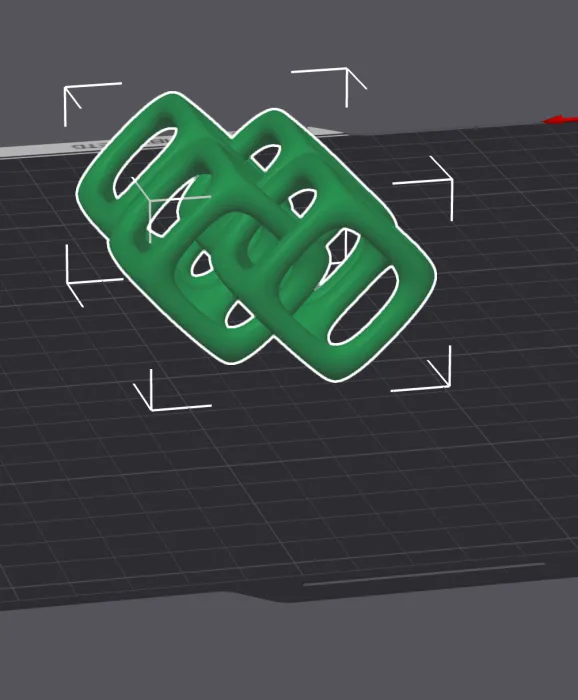

Here’s the imported STL model on the base plate. On the left menu, select Enable Supports and click Slice All.

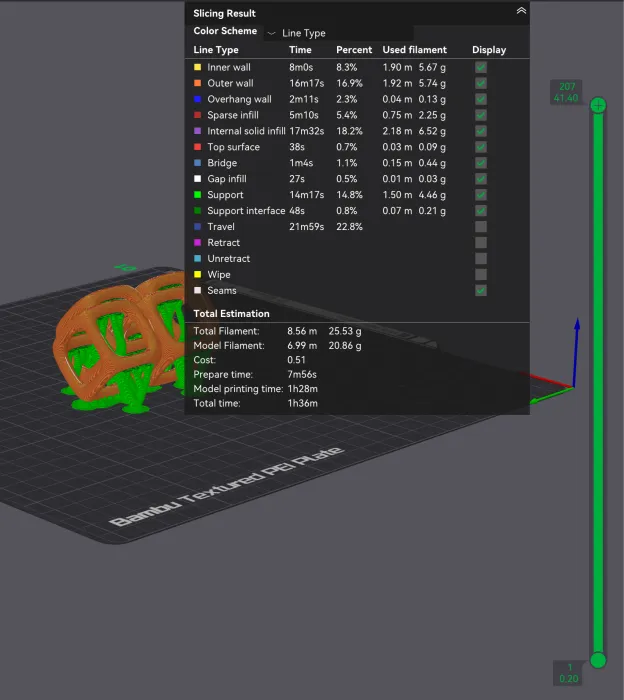

The sliced file with supports looks alright, so now let’s export it to 3MF format so we can copy-paste it into Bambu and print it.

Step 8: Printing results#

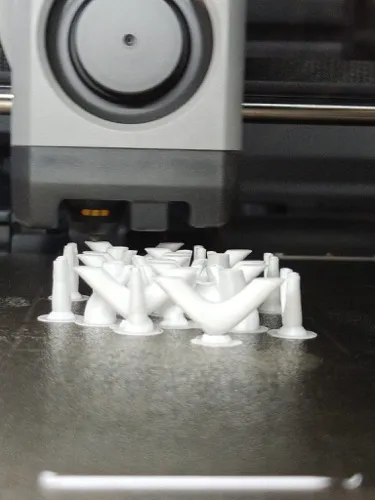

Here is a picture of the interlocking cubes mid printing, things look okay.

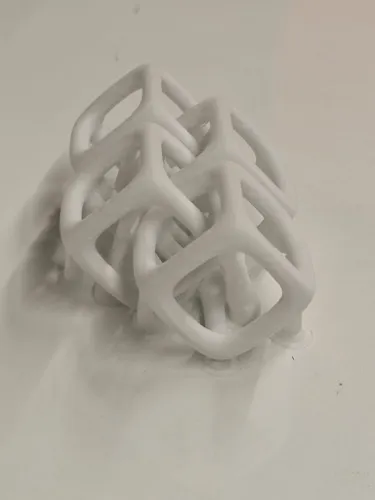

Here is a picture after printing was done, now I have to remove the supports by hand.

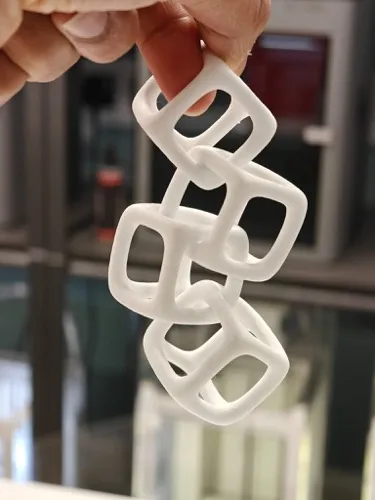

They turned out quite nice eventually.
