Week 02: Onshape

I am attempting to draw out my table in Onshape hoping it to be more user friendly to me.

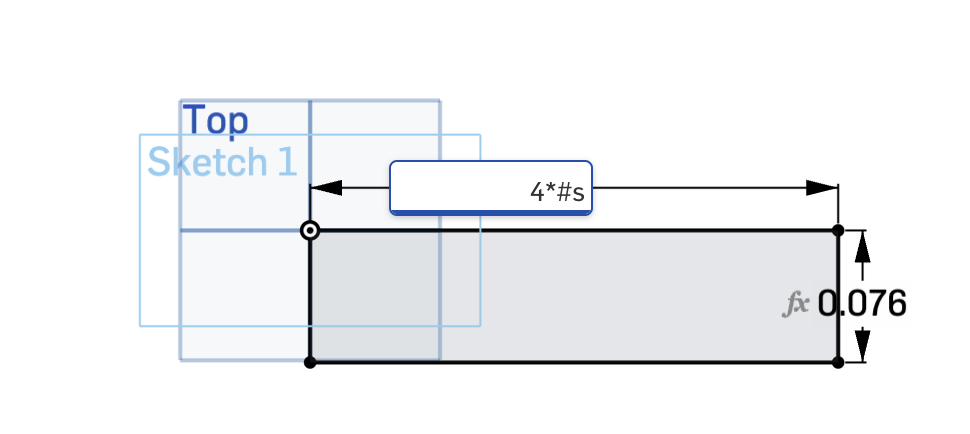

I was happy to be able to define dimensions by variable.

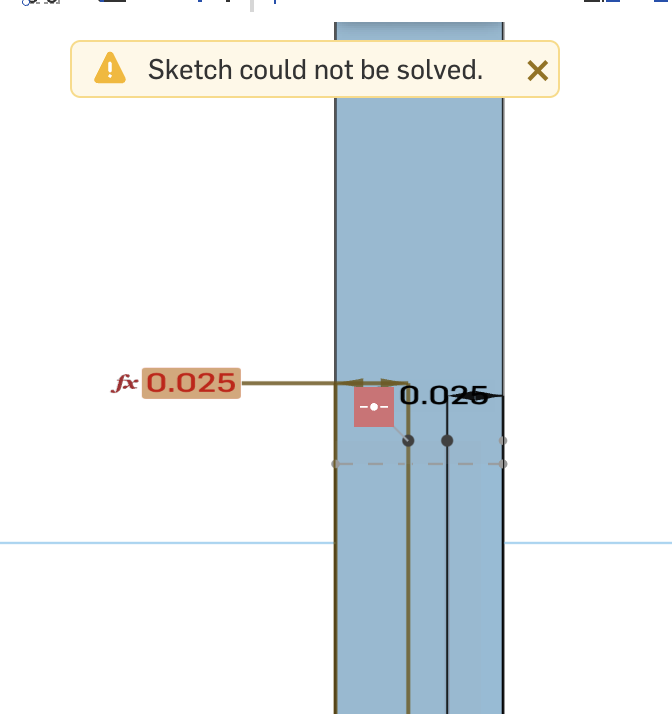

I did have problems constraining my dimensions. I don't know why the program kept changing my thickness.

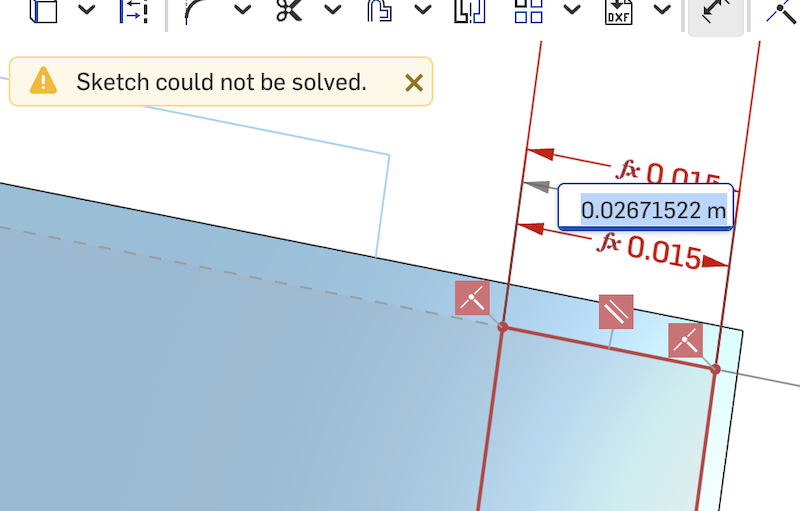

I tried to make 2 lines that were equidistant from each other and the edges of the side to distribute holes down for shelf pegs. However, I couldn't figure out how to constrain the measurement from edge to line. At this point I gave up and decided to try Fusion360 again.

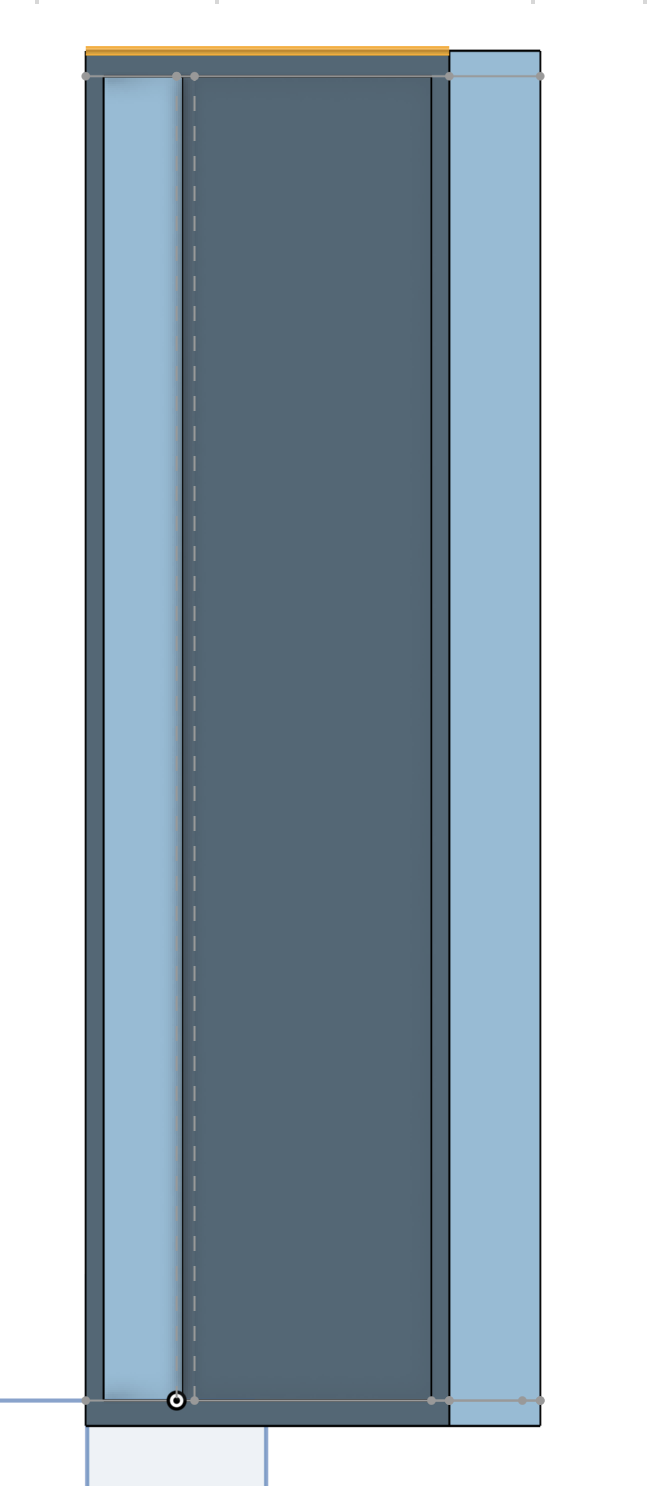

I was able to get the box of one of my shelving systems made, but I want it to be in the pieces I will be in separate bodies joined together as I will be making it.

Here is a link to my onshape cabinet design.
