Week 06¶
06
Electronics Design
March 2026
What I Did¶
Learned KiCad. Made a simple LED circuit first, then designed a board with an ATtiny.

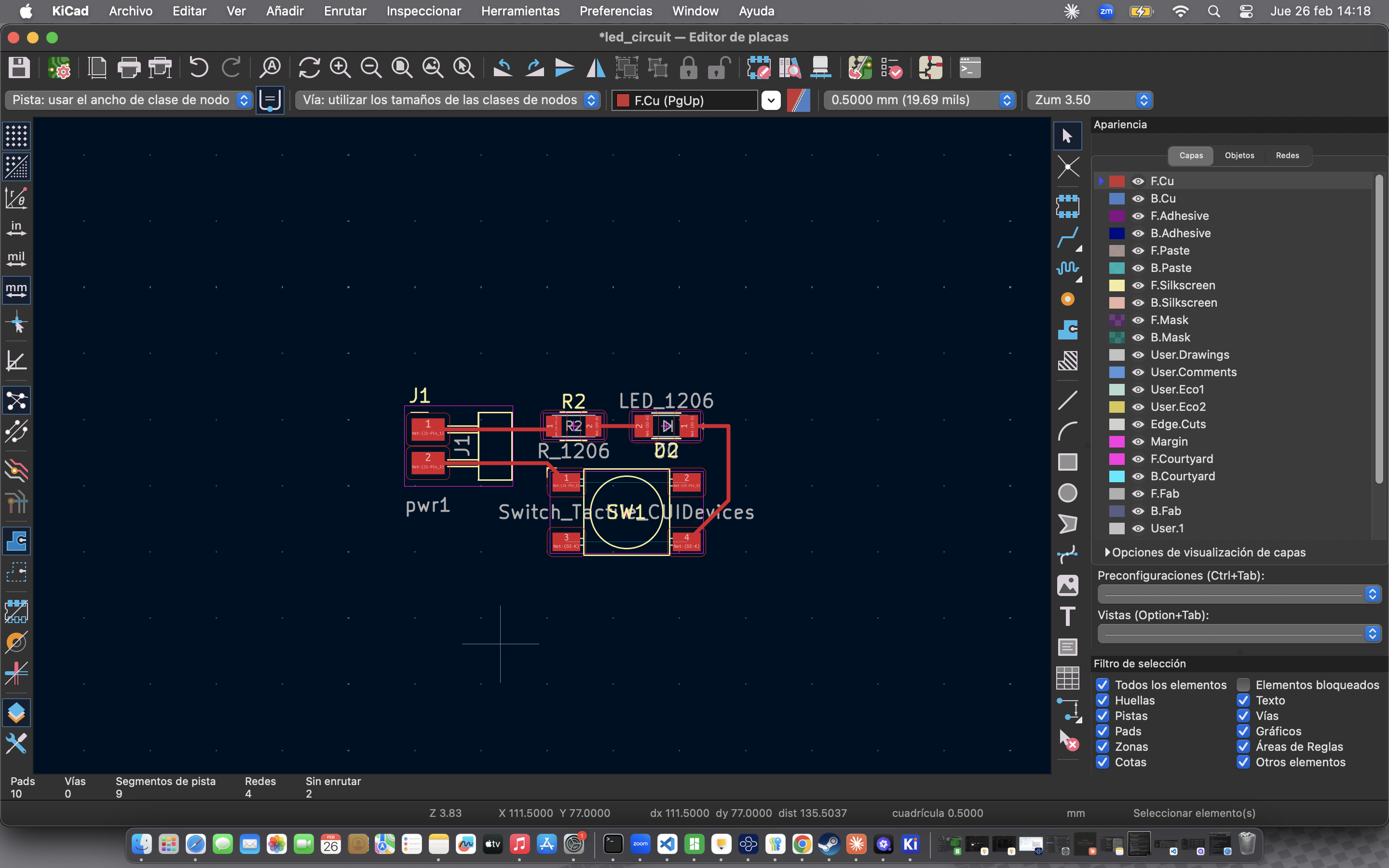

LED Circuit¶
First project in KiCad, simple LED circuit with a button, resistor and LED. Did the schematic, assigned footprints, then laid it out in the PCB editor.

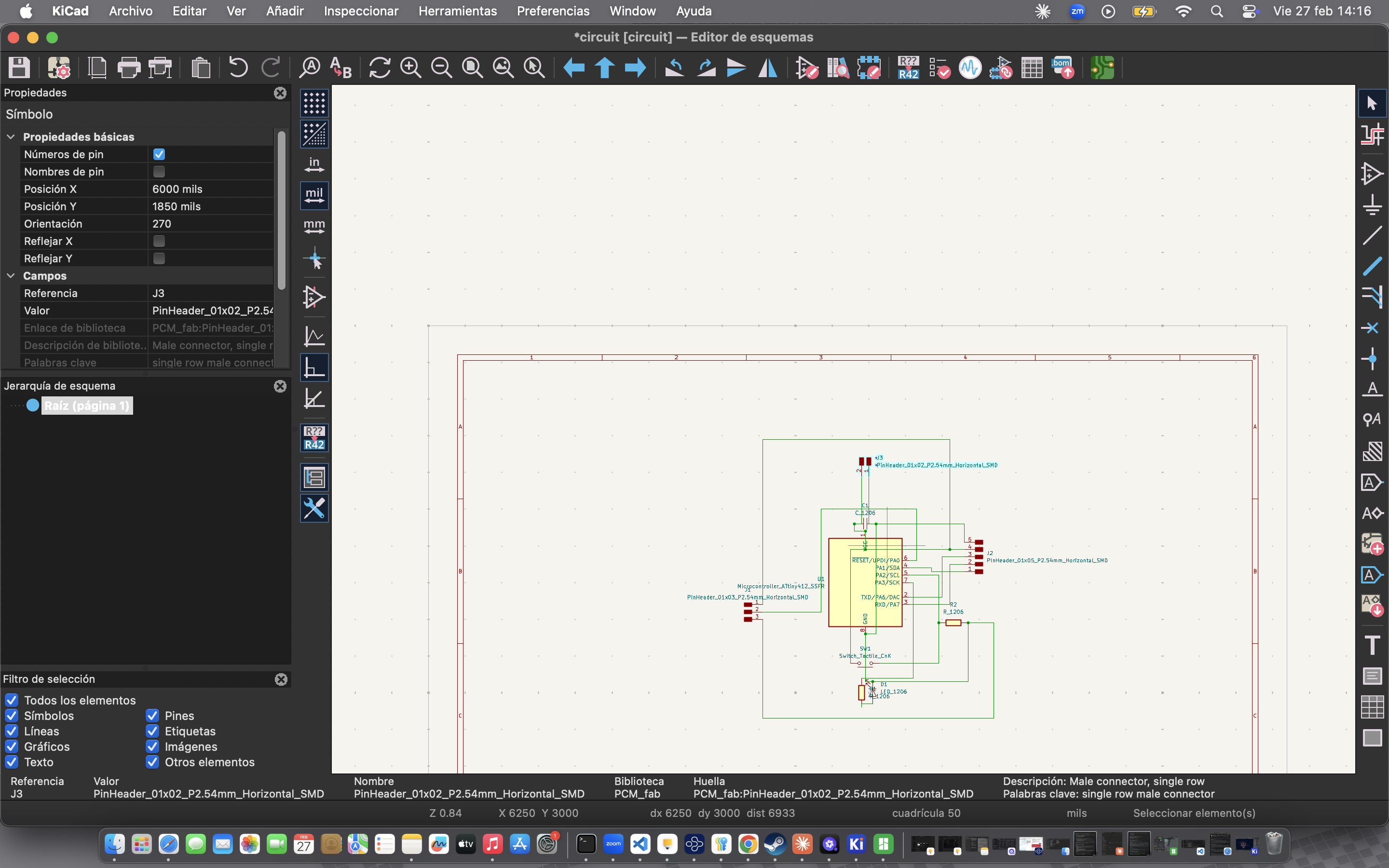

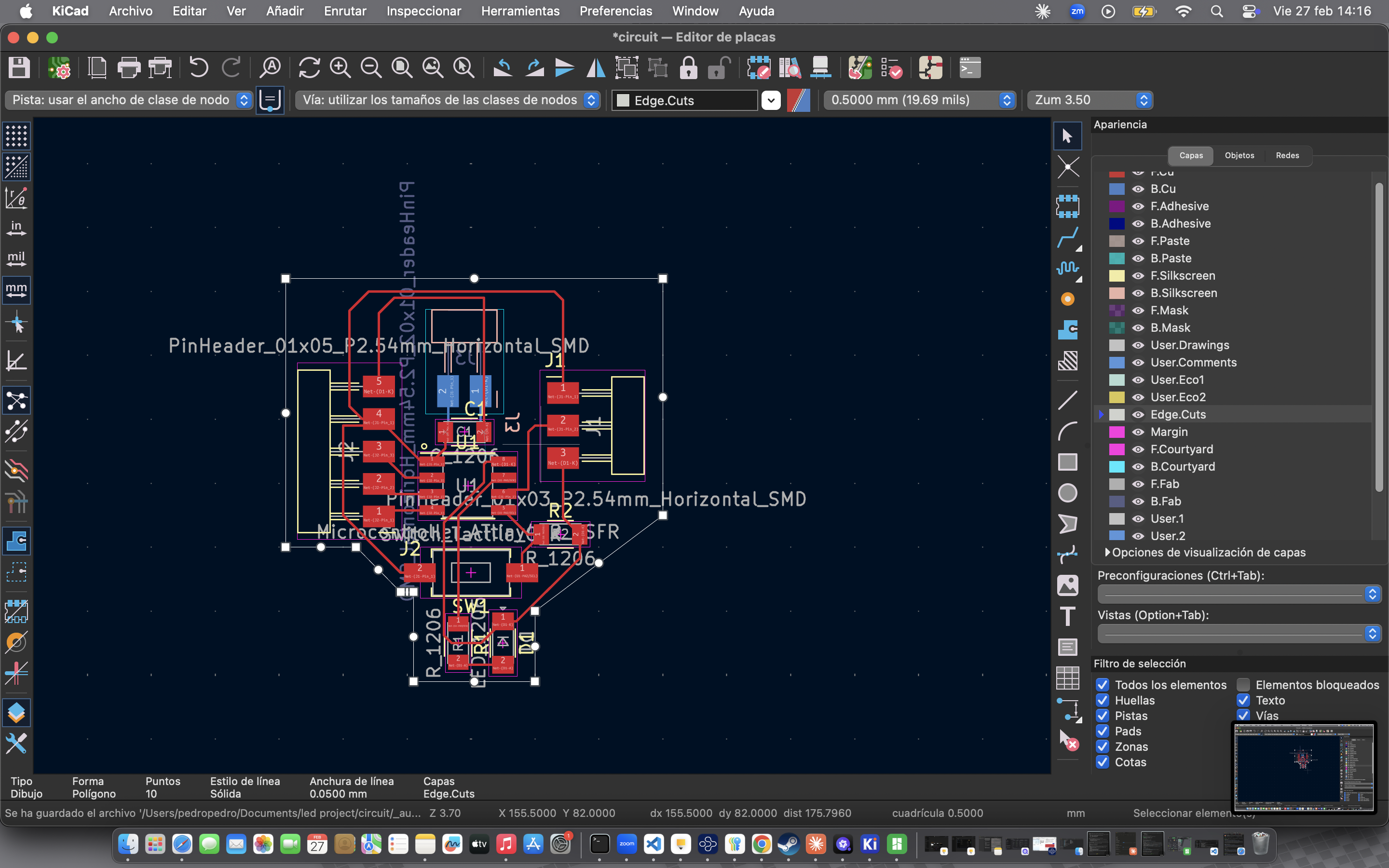

ATtiny Circuit¶
More complex board with an ATtiny, pin headers, resistors, LED and a button. Schematic first then PCB layout with SMD components, drew the board outline with Edge.Cuts.
