Week 12. Group / Molding and Casting

This is group assignment page for West harima student:

Student

group assignment

  • review the safety data sheets for each of your molding and casting materials,then make and compare test casts with each of them
  • compare mold making processes

Materials

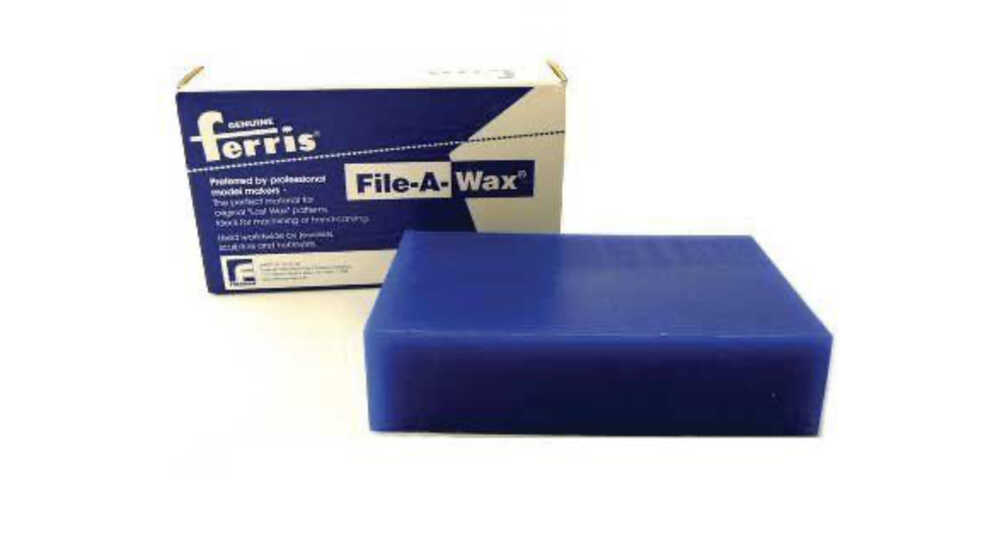

Modeling Wax

alt text

Ferris File-A-Wax datasheet

According to safety data sheets (SDS), important to be careful below.

  • Molten product can cause serious burns. Avoid contact with molten material.
  • Wear appropriate personal protective equipment. Avoid contact with skin and eyes.
    • Eye/Face: Wear safety goggles.
    • Hands: Wear thermally resistant gloves and long sleeves if handling molten product.
    • Skin/Body: Prevent skin contact, wear long sleeves and/or coveralls.
  • Do not walk through spilled material. Do not breath dust or fumes.
  • Avoid release to the environment.
  • Avoid dust formation. Use clean non-sparking tools to collect material into suitable container for disposal.
  • Wash thoroughly with soap and water after handling.
  • Use only in a well-ventilated area and avoid breathing fumes and dust (dust is unlikely).

Resing Cast

alt text

More hazadous and toxic compared with other materials. Take care to avoid eye contact or contact with skin. Avoid using in a place with poor ventilation or possibiity of inhaling vapors.

  • Safety precautions
    • Keep away from sources of ignition such as heat/sparks/open flames/hot objects.
    • Ground/earth the container.
    • Use explosion-proof electrical equipment.
    • Avoid inhalation of dust, fumes, gases, mists, vapors, and sprays
    • Use only outdoors or in a well-ventilated area
    • Wear protective gloves/protective clothing/eye protection/face protection, etc.
    • Avoid release to the environment

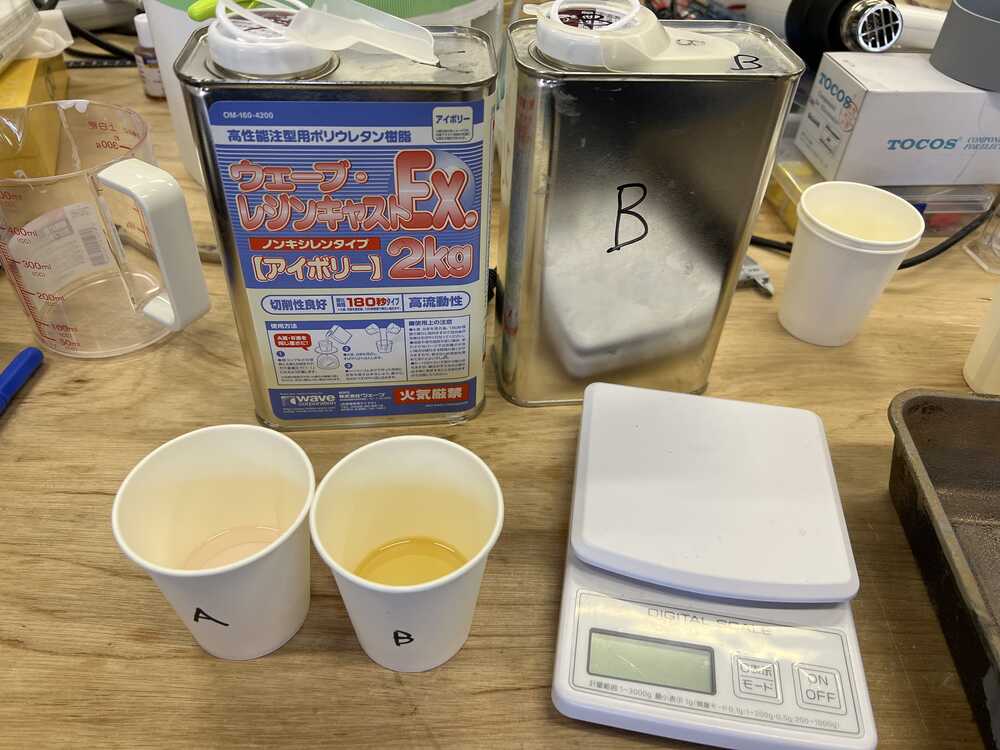

Test Cast by Wave Resin Cast EX

After ensuring adequate ventilation, put on goggles and a protective mask and begin the test.

nts of Wave Resin Cast EX Liquid A and Liquid B were measured on a scale and poured into a paper cup. We mixed them thoroughly and poured them into the test vessel.

alt text alt text

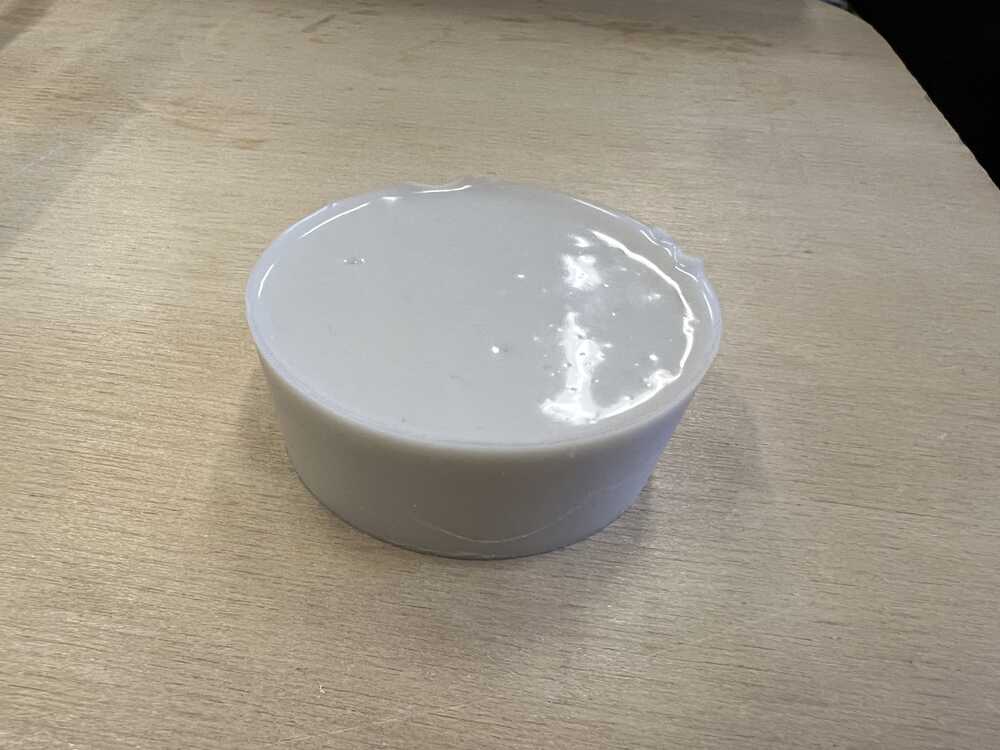

It got very hot during and after solidification.

Silicon

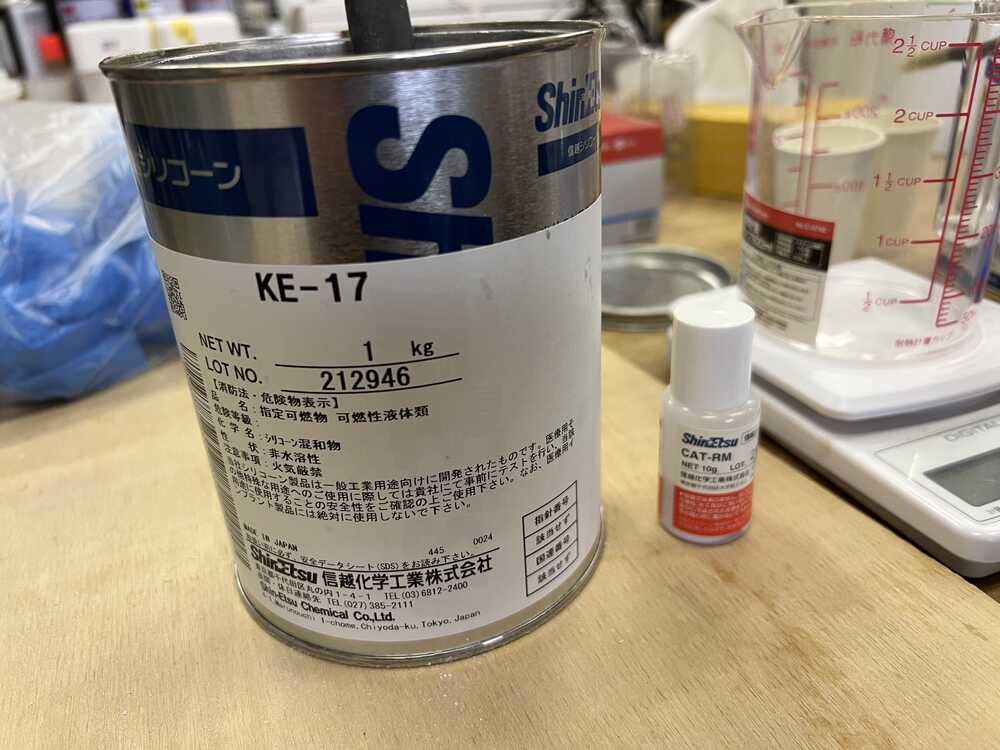

  • I used a product by Shinetsu Silicone a Japanese chemical company.
  • KE-17 is over 30 years long selling item.

alt text

  • Especially CAT-RM is more hazardous, so we need to prepare safety measure for CAT-RM and it meets KE-17 as well.
  • I must avoid touch, breath-in. Wear gloves, masks, clothing for this work. Even if the clothe touched this liquid, it must be well washed.

  • I put on gloves and masks while working on this. And also the room should be well ventilated.

  • datasheet

Release agent

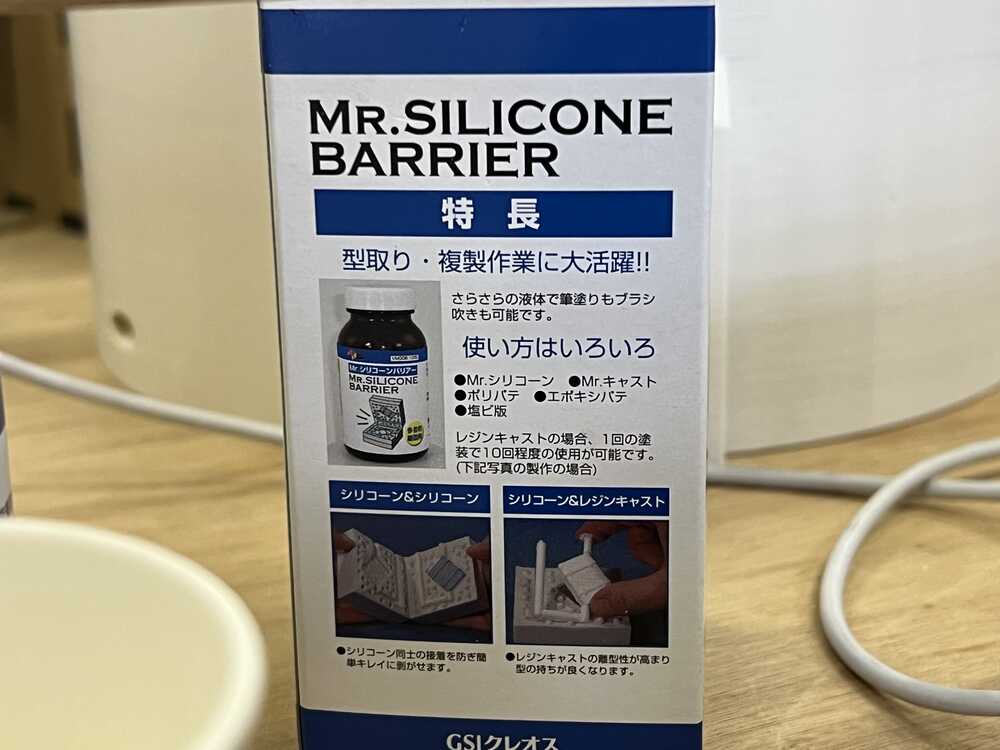

I used Mr. Silicone Barrier.

alt text

  • This prevents silicone from sticking to each other and improves resin casts.
  • Below caution is written on the box.
  • Keep out of reach of children, avoid swallowing or eating accidentally.
  • Contains organic solvents, ensuring ventilation while painting or drying.
  • Be careful not to see people or objects when spraying paint.
  • Wear a mask or gloves to avoid touching the skin as much as possible during handling.
  • When it gets on the skin, wash it with soapy water.
  • When it gets in your eyes, rinse with water.
  • When you feel sick, keep calm in the clean air place.
  • Consult a doctor immediately when there is pain or appearance change.

alt text

Impressions

  • The gas mask was very painful.
  • I don’t want to wear it anymore because after I took the mask off it had a mold on my face!
