Wildcard Week

Individual Assignments

  • Design and produce something with a digital process (incorporating computer-aided design and manufacturing) not covered in another assignment, documenting the requirements that your assignment meets, and including everything necessary to reproduce it. Possibilities include (but are not limited to):

Have you answered these questions?

  • Documented the workflow(s) and process(es) you used
  • Explained how your process is not covered on other assignments
  • Described problems encountered (if any) and how you fixed them
  • Included original design files and source code
  • Included ‘hero shot’ of the result

PC working environment?

  • PC: MacBook Pro(16-inch,2019)
  • OS: Sonoma 14.7.2
  • Terminal: zsh

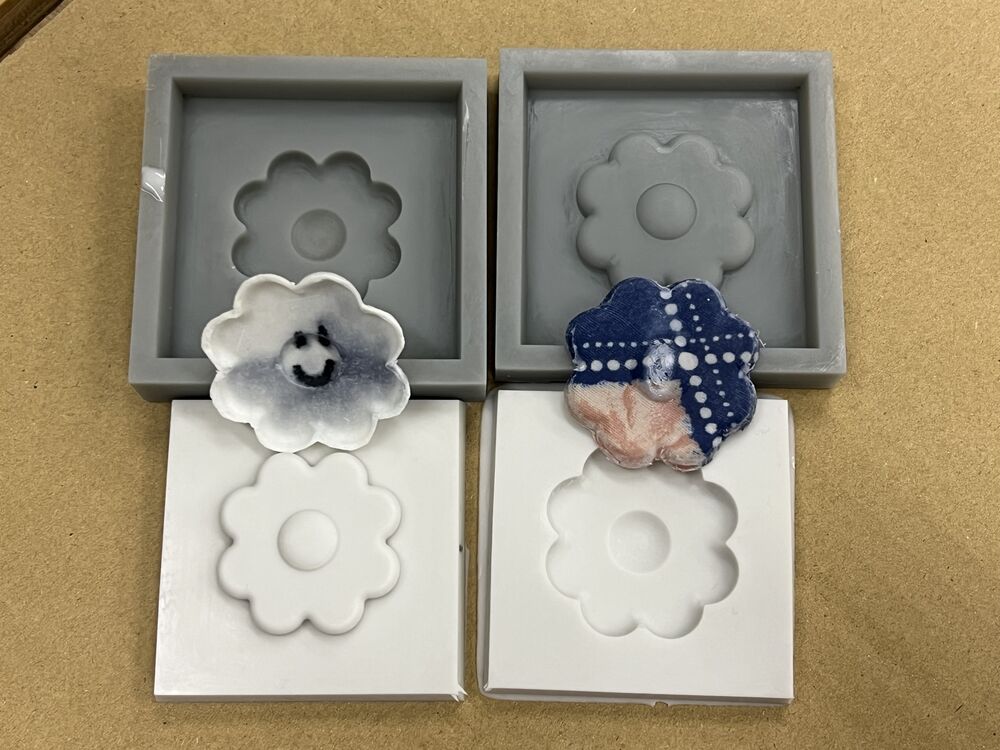

hero shot

There were several options, and I decided to try one of them: composites.
I decided to try to create one object using two types.

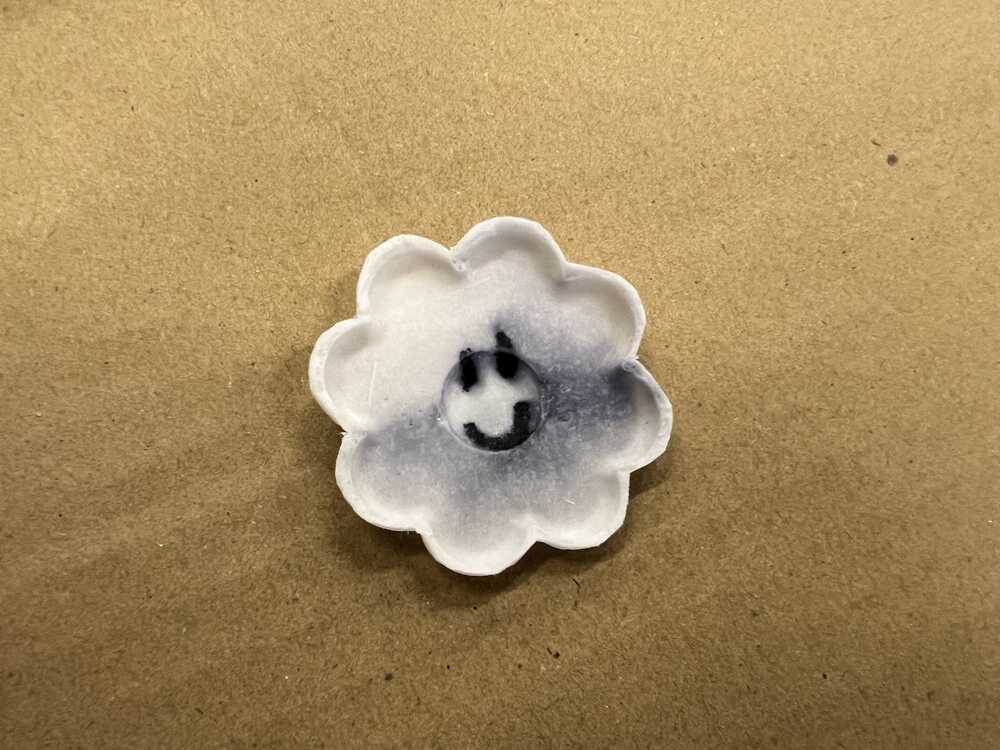

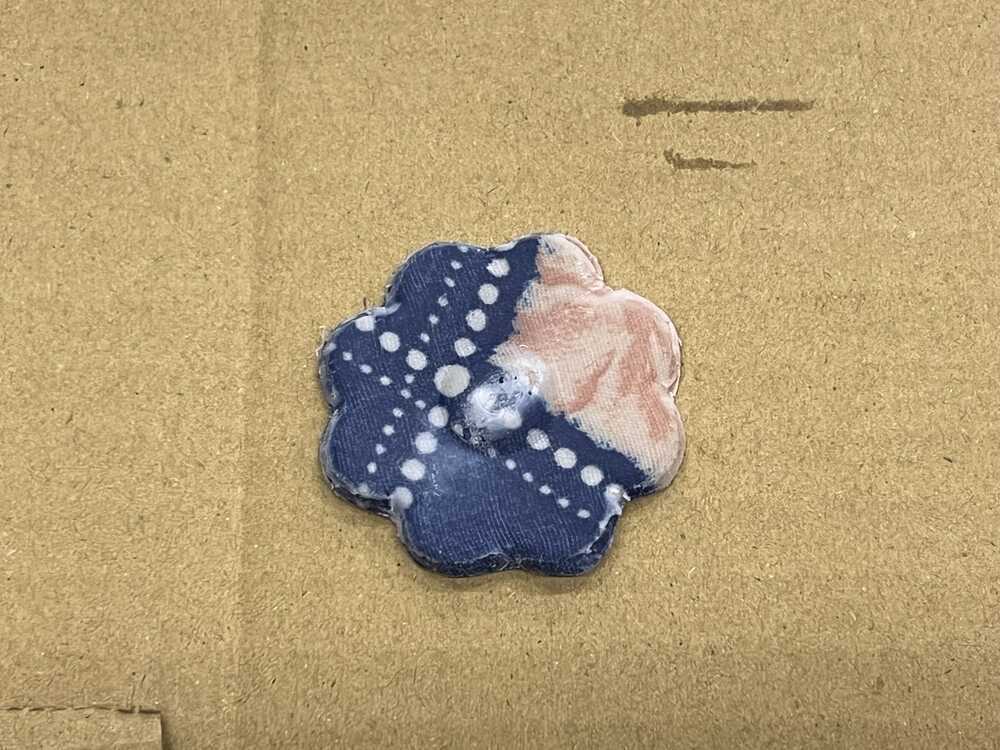

This is the result of try2.

alt text

Composites

What is Composites

Compositing is the process of combining and compositing multiple materials or elements, or the result of doing so.

Try1

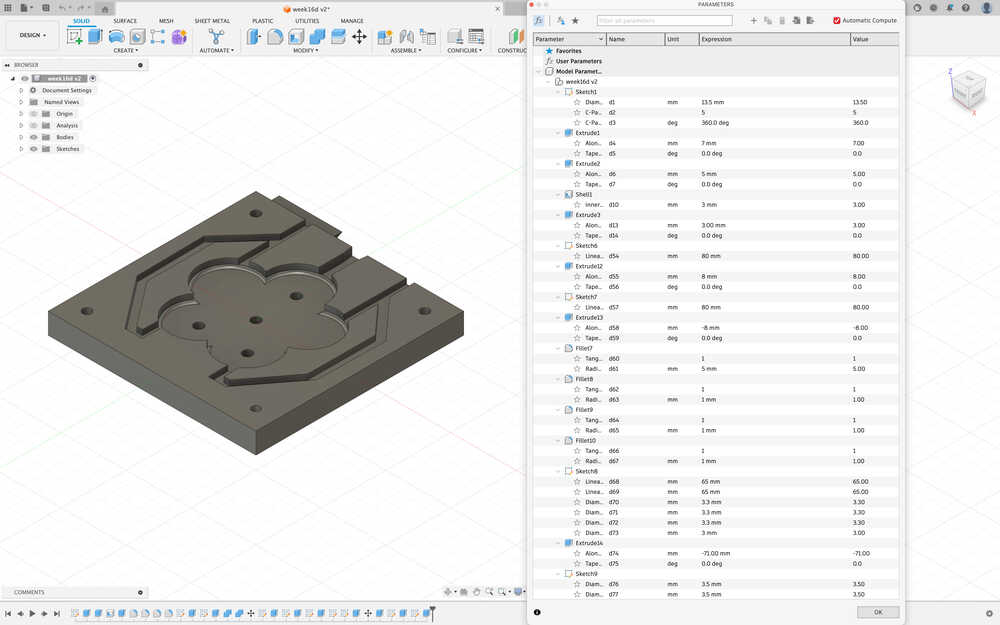

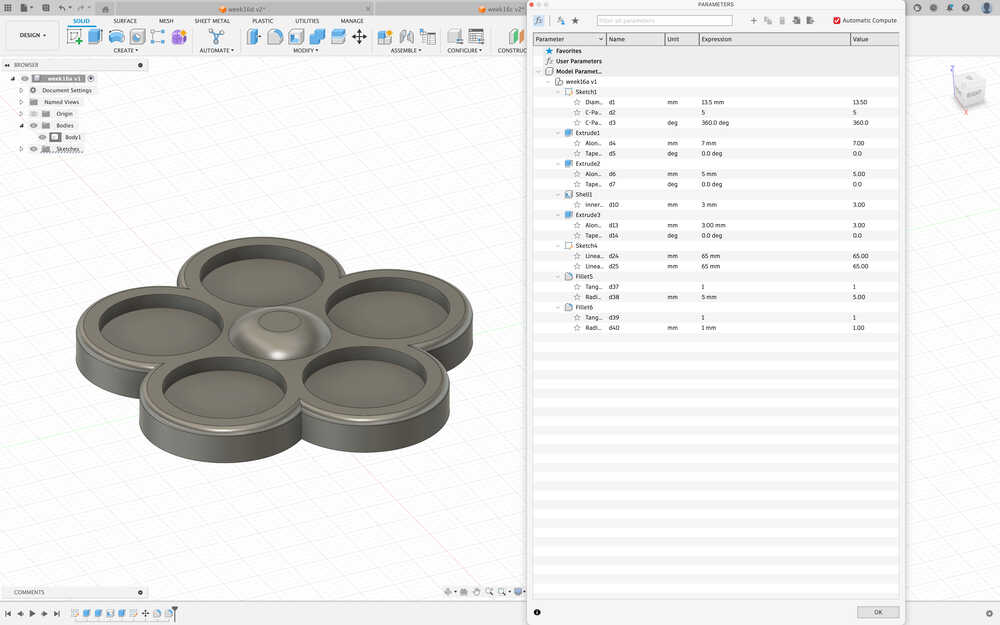

Design(Fusion360)

  • complete image alt text

  • the front alt text

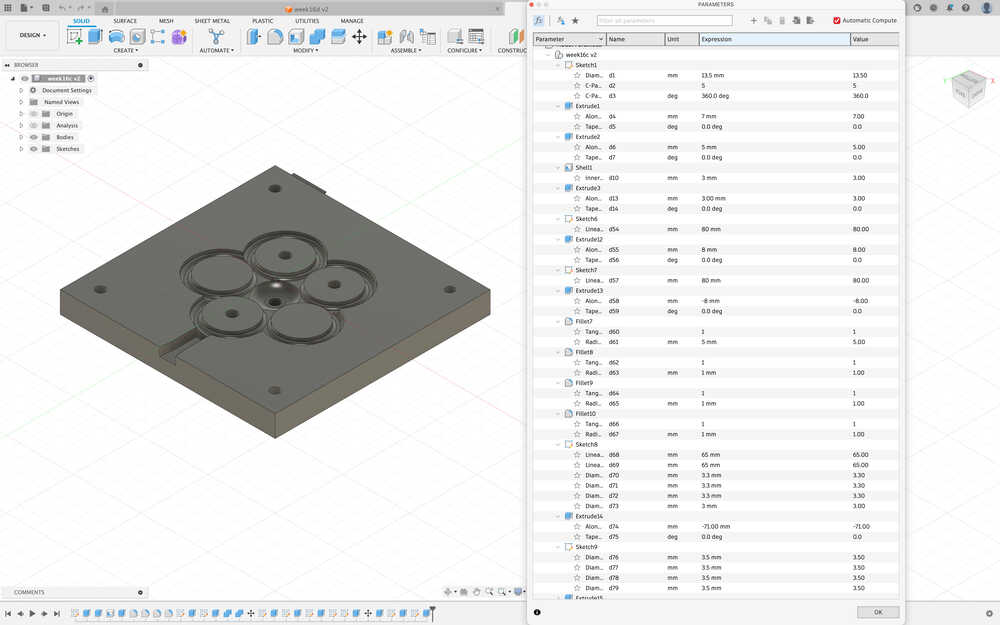

  • the reverse alt text

3D printing (SLA)

I used 3D printing (SLA) this time to output the 3D model.

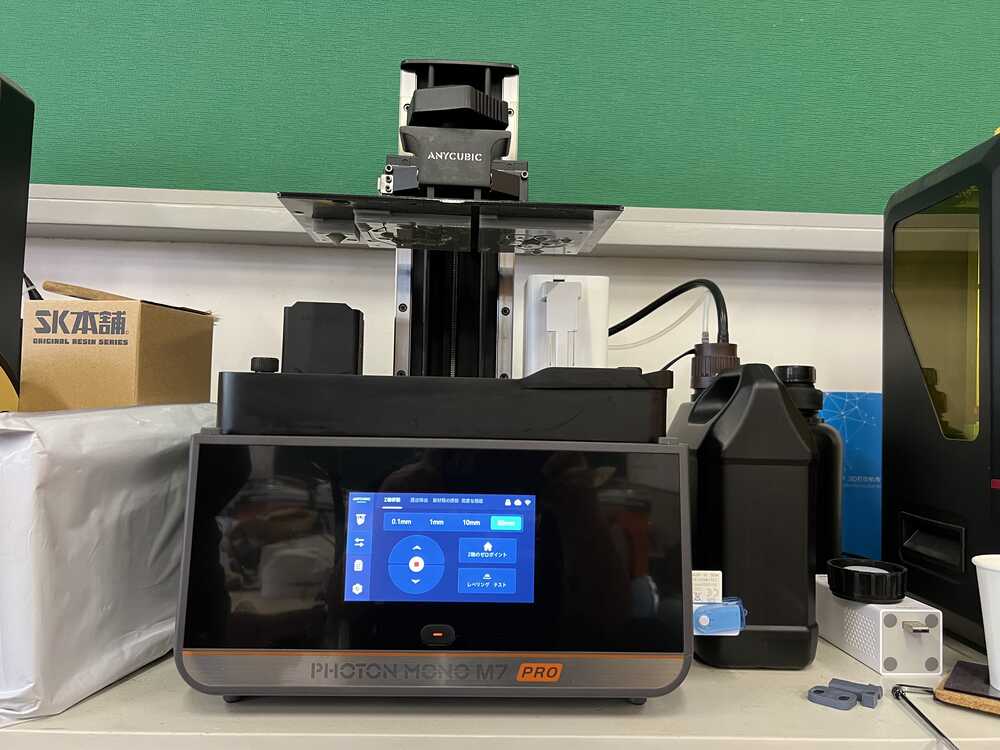

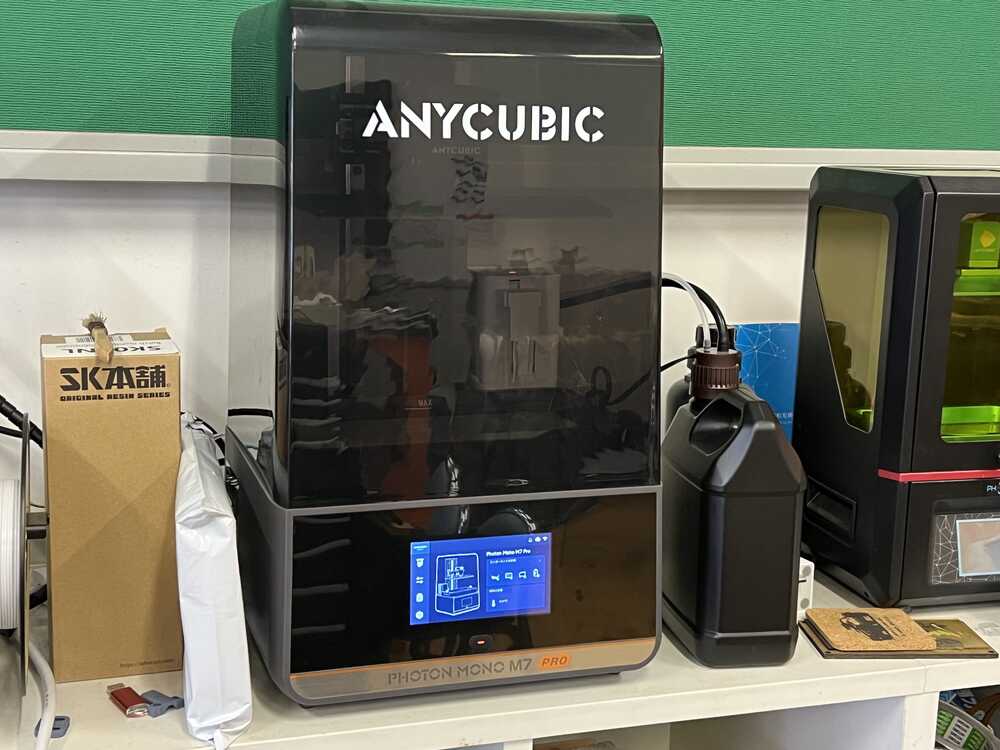

Anycubic : Photo Mono M7 Pro

alt text alt text

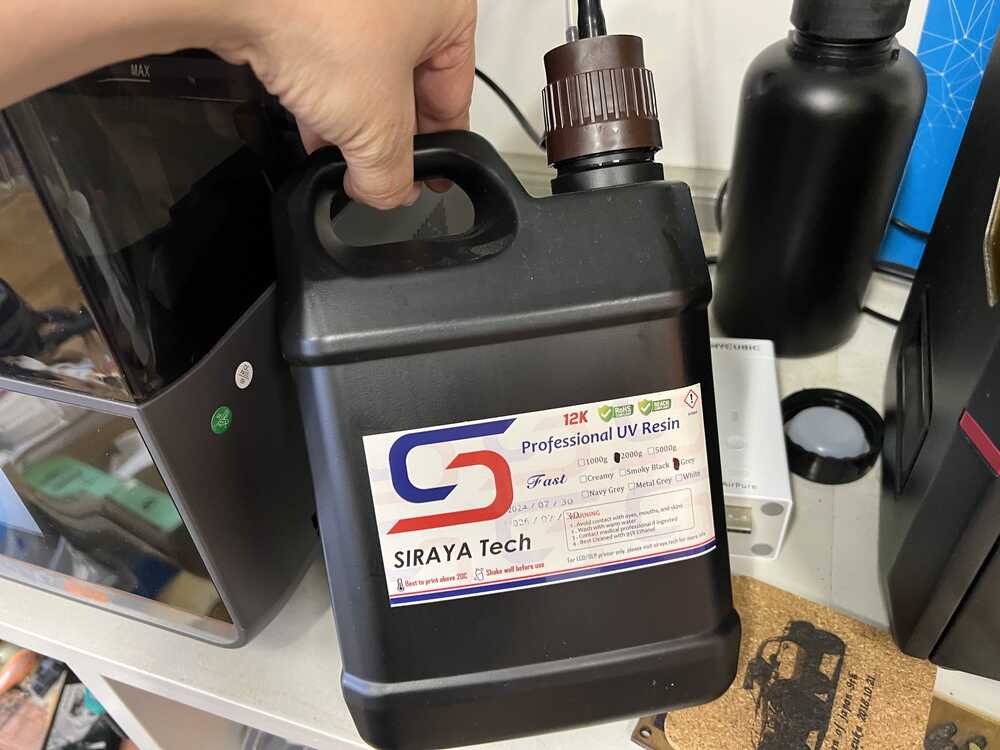

  • resin

alt text

Resin is used in this process. Careful handling is required.

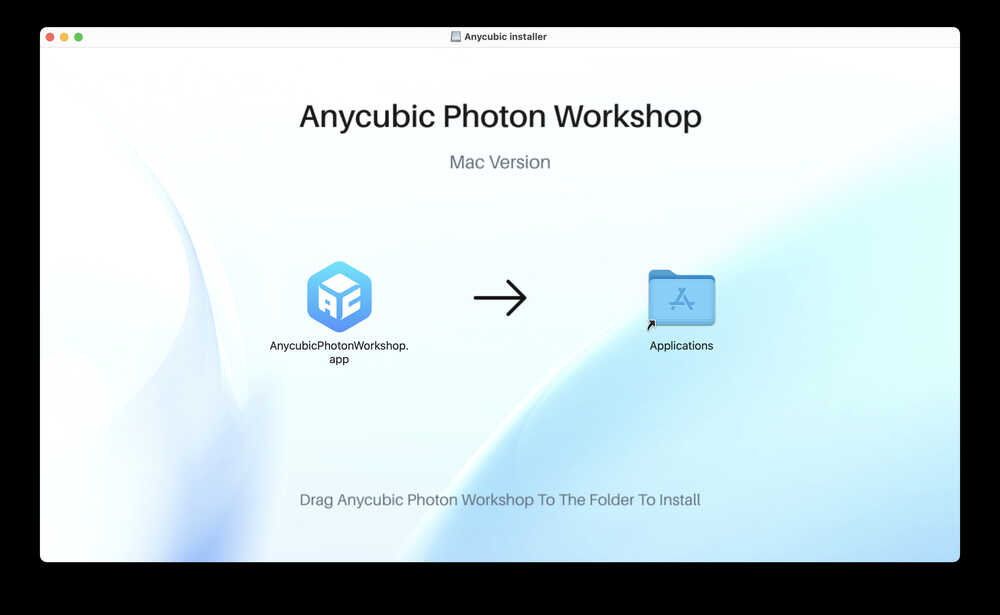

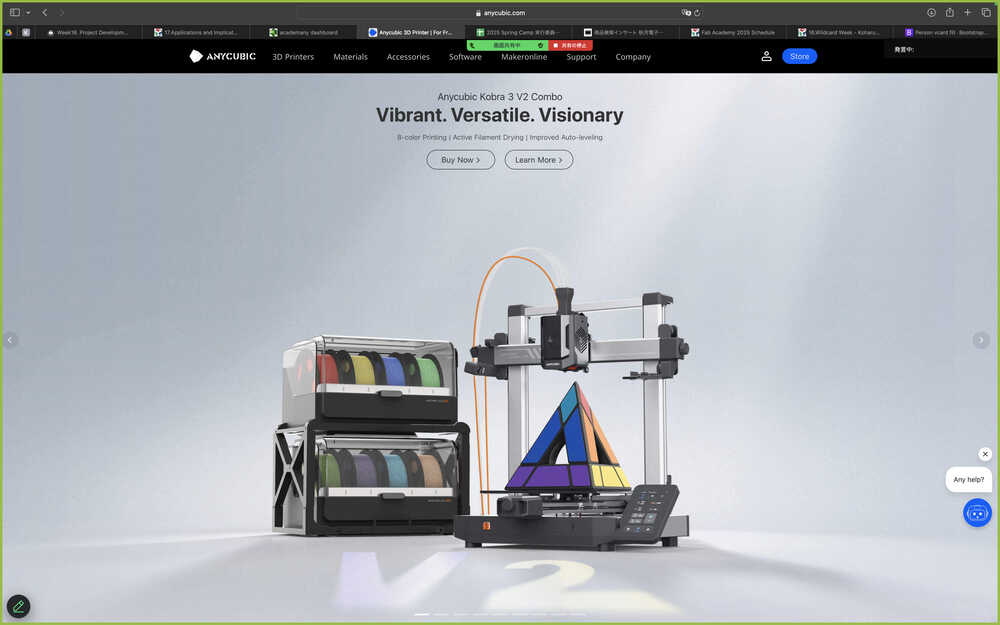

Anycubic Photo Workshop

alt text

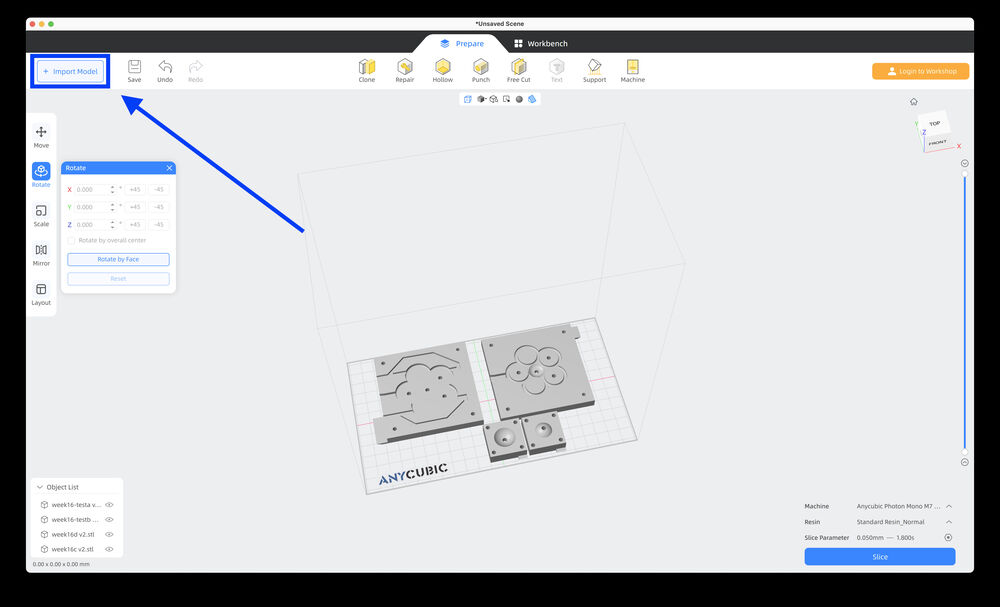

  • import model

File Format : STL

alt text

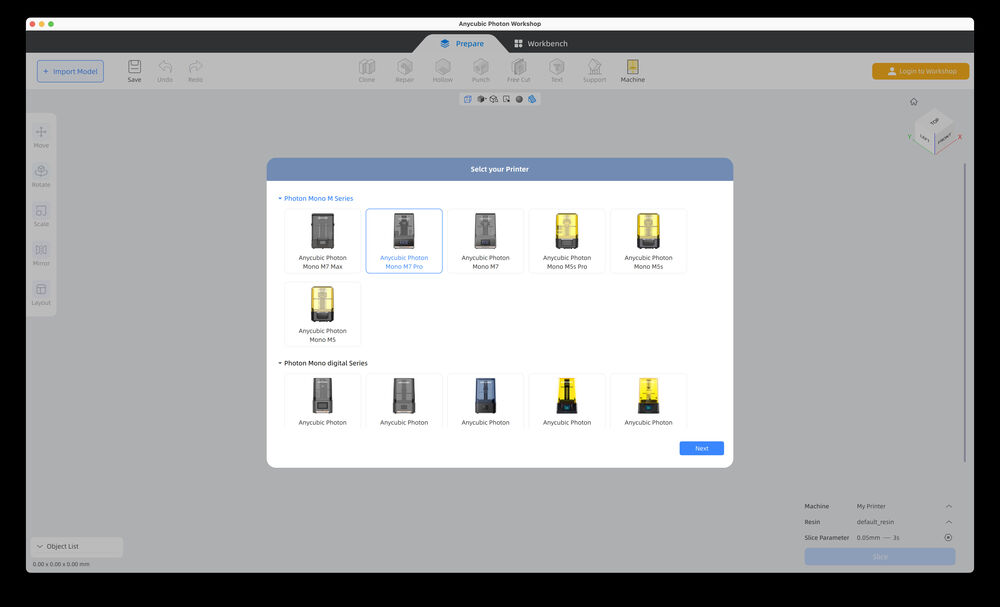

  • select printer

I selected Mono M7 Pro. alt text

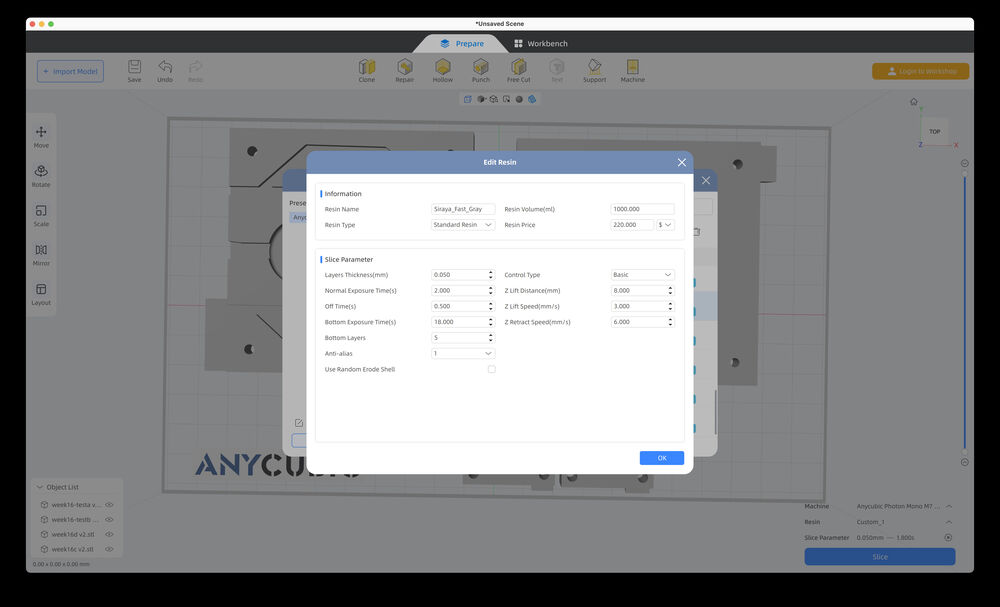

  • select resin

I selected Siraya_Fast_Gray alt text

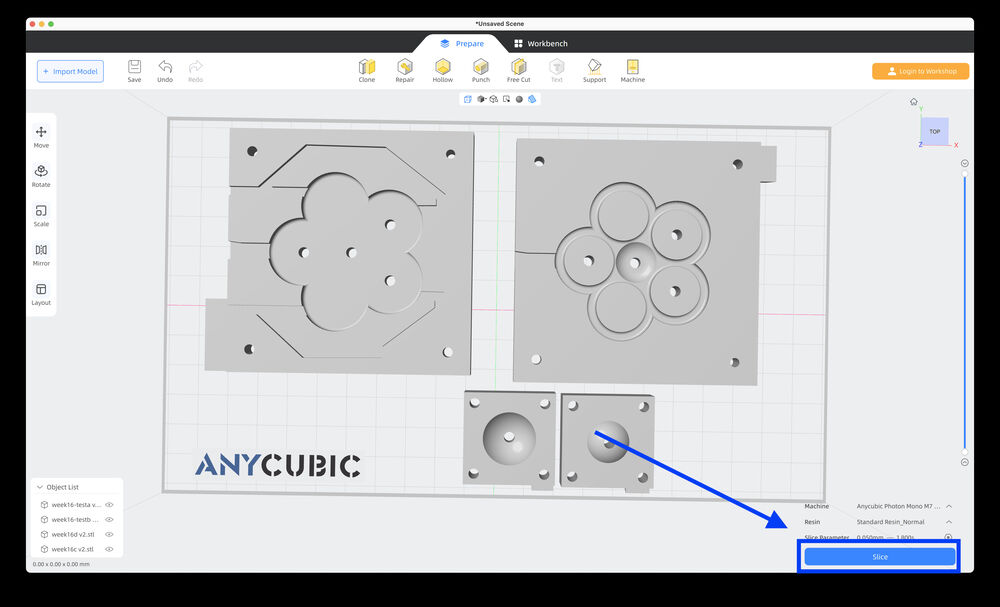

  • slice

alt text

  • Save slice File

alt text

Printing

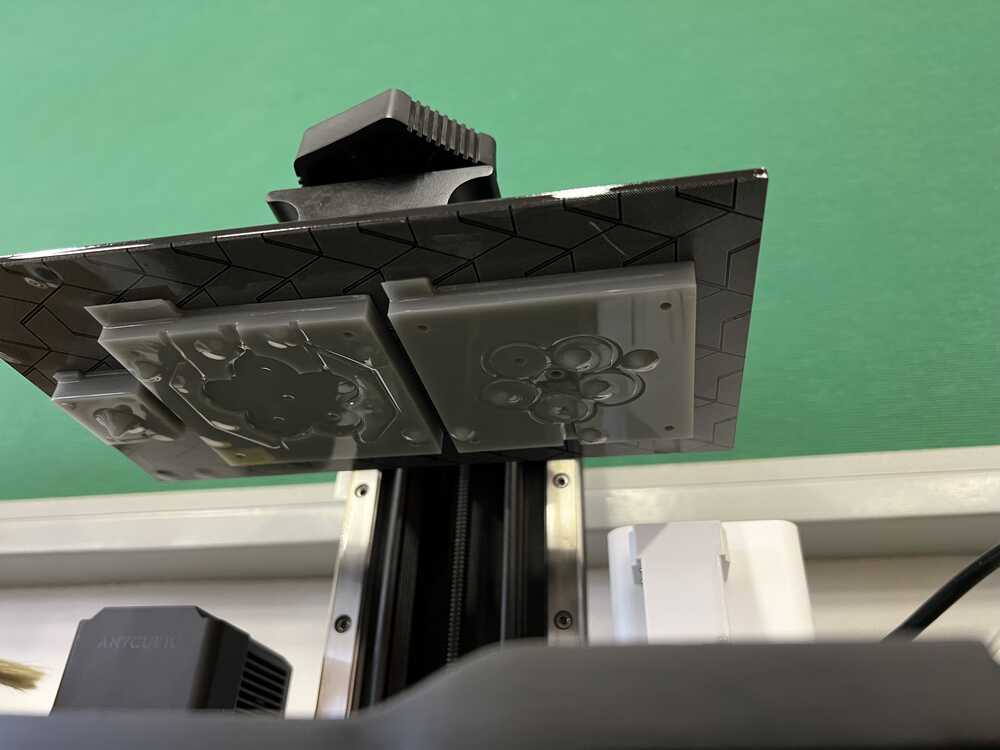

  • output alt text alt text

The output is thus hanging from the board.

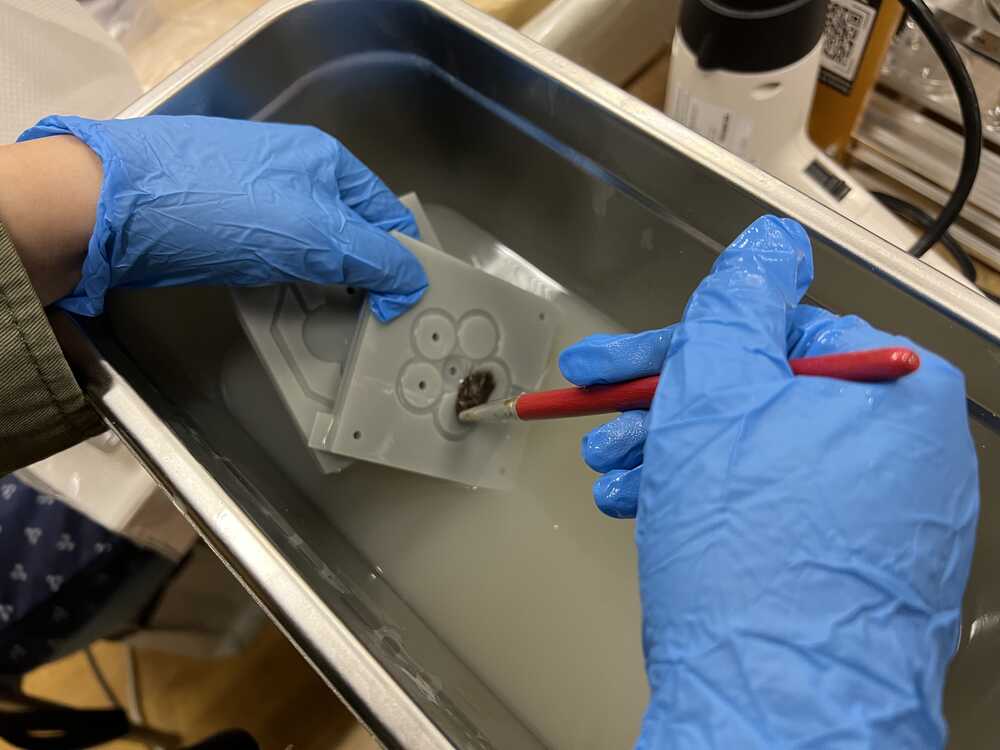

  • Clean off the resin.

If it is not washed thoroughly at this time, it will be sticky when it dries. In my case, I washed for about 5 minutes. alt text

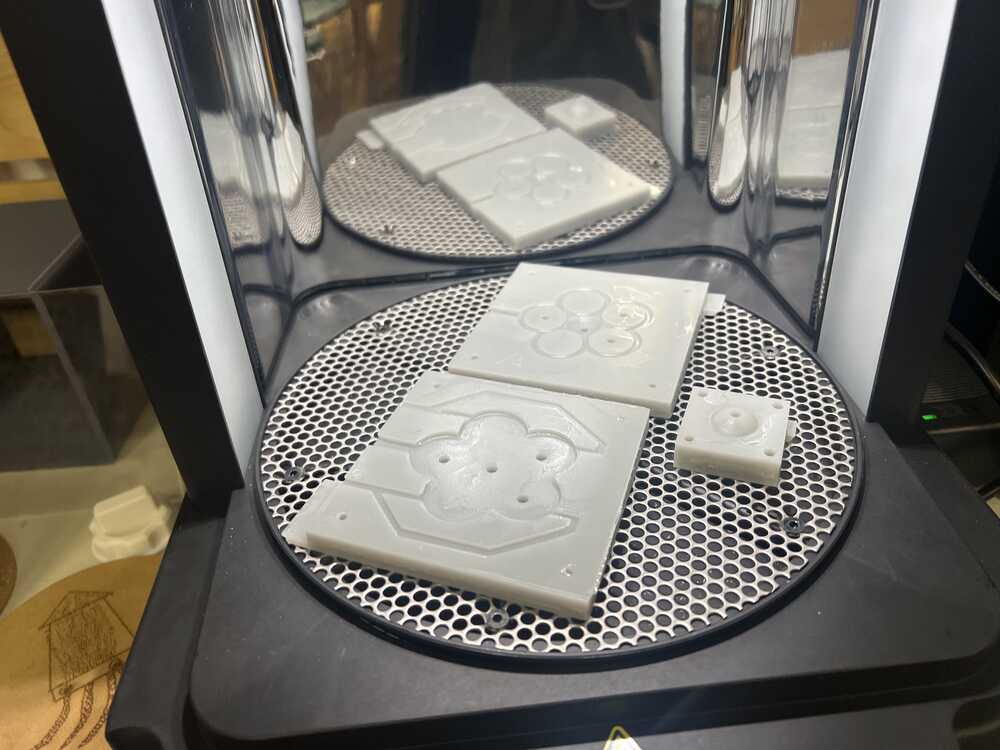

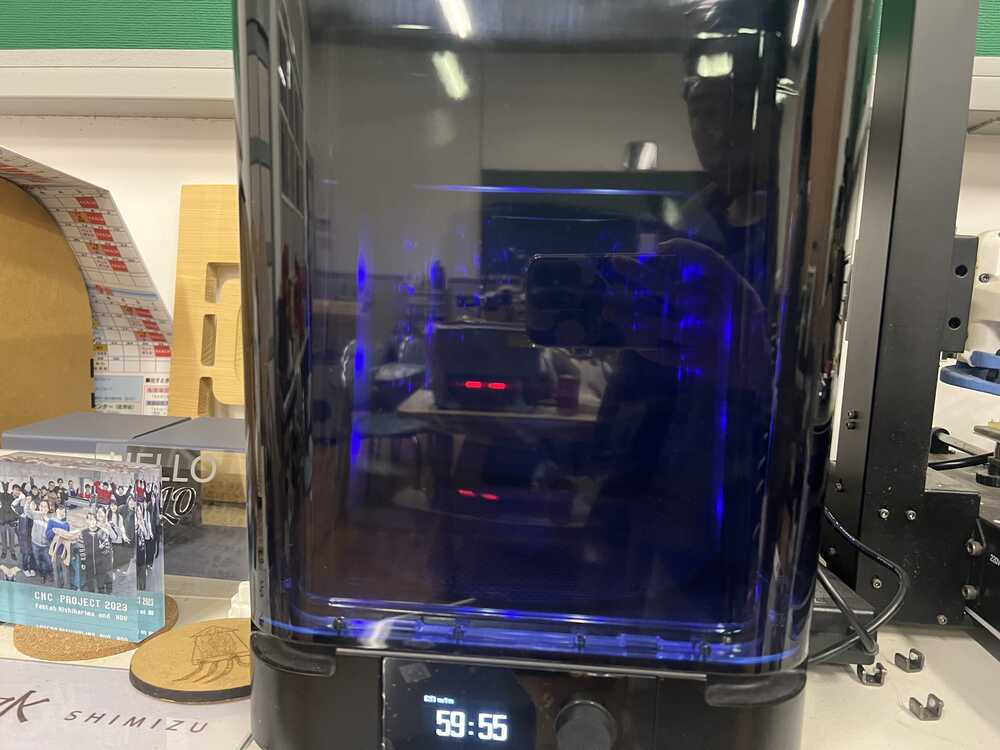

  • After washing and drying, use Form Cure to cure.

alt text

At this time I used the following settings

Setup Location The settings I made
Temperature 0℃
Time 1h

At this time I used it for one hour, but even 30 minutes seems sufficient.

alt text

  • completion

preparation

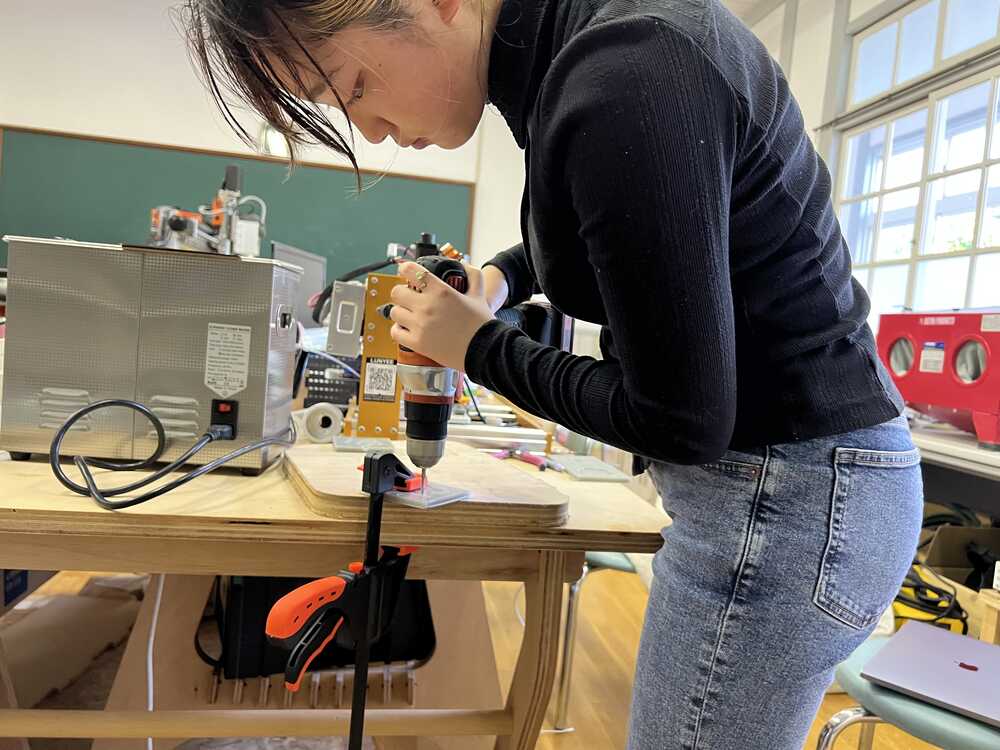

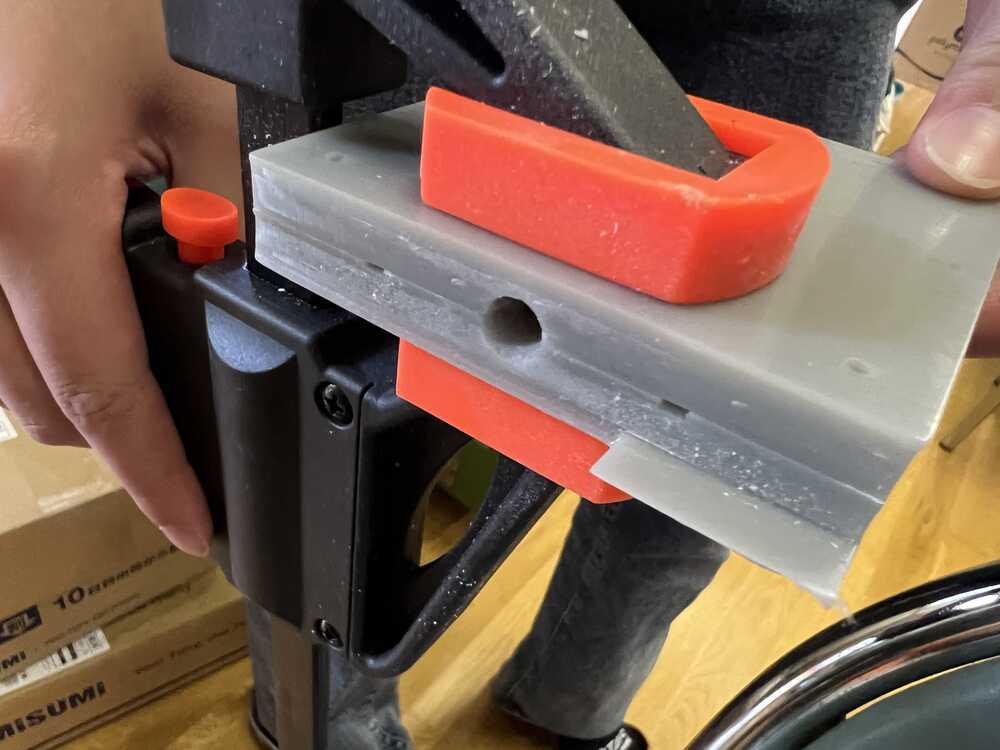

  • The original hole was a little small, so we drilled it out.

alt text

This time I had to drill a hole to insert the syringe, but it was quite small ...
Drills were also used here.

alt text

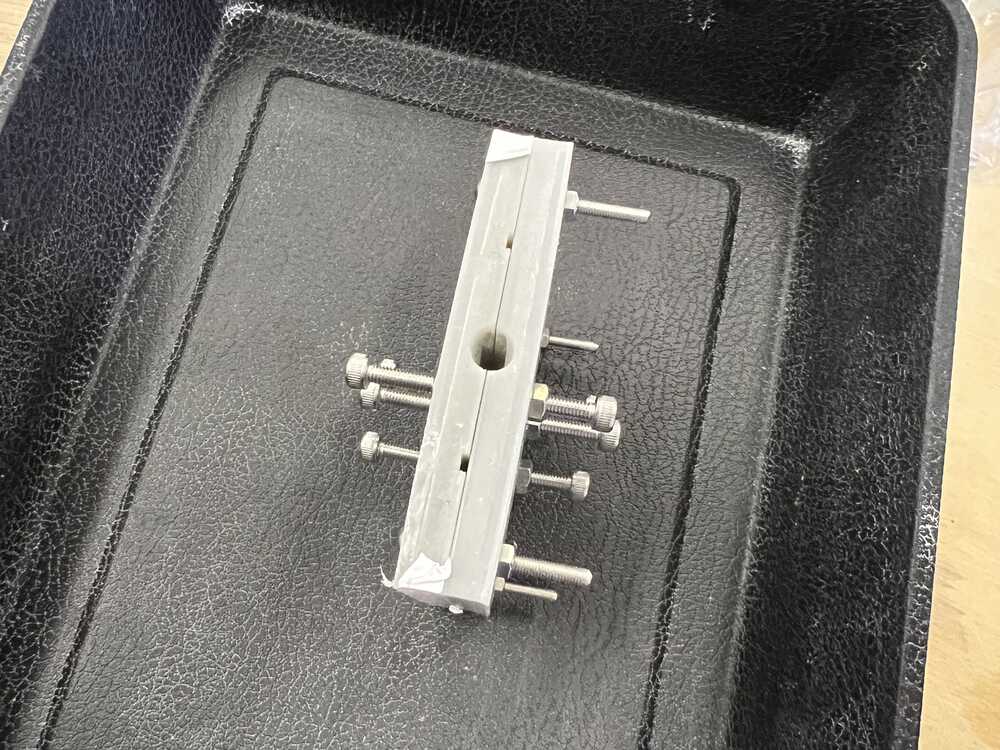

  • Once the holes are drilled, screws for pushing out and fixing are installed.

The screw to push it out should be stopped just short of the inside surface.

alt text

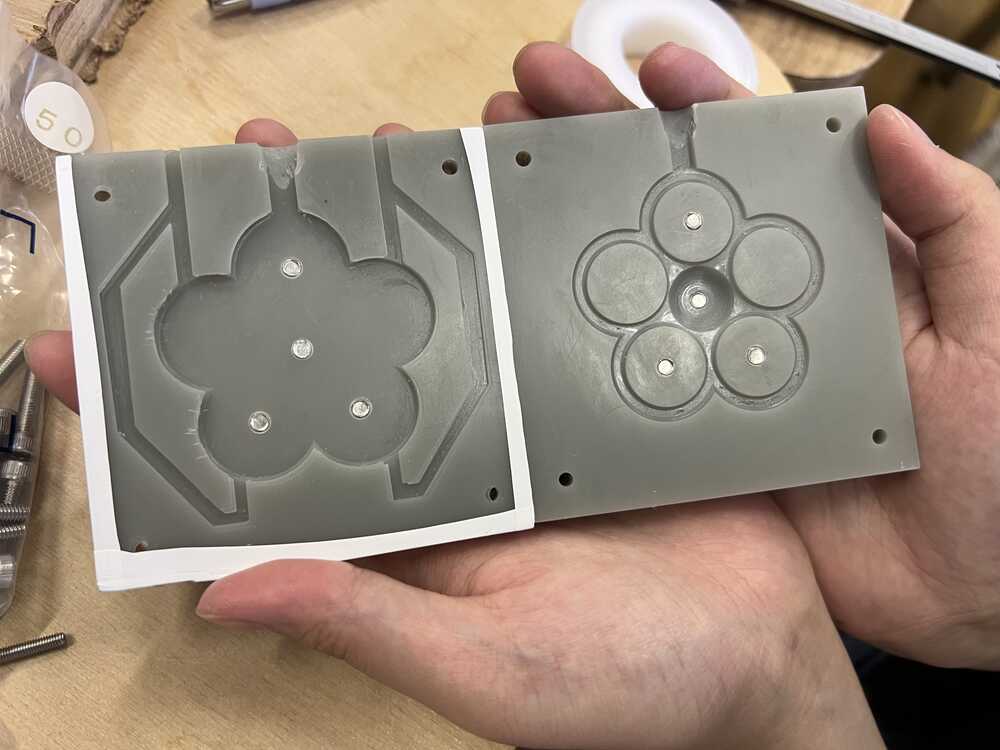

Before fastening the entire piece, waterproof tape is applied to the edges to prevent the resin from overflowing.

alt text

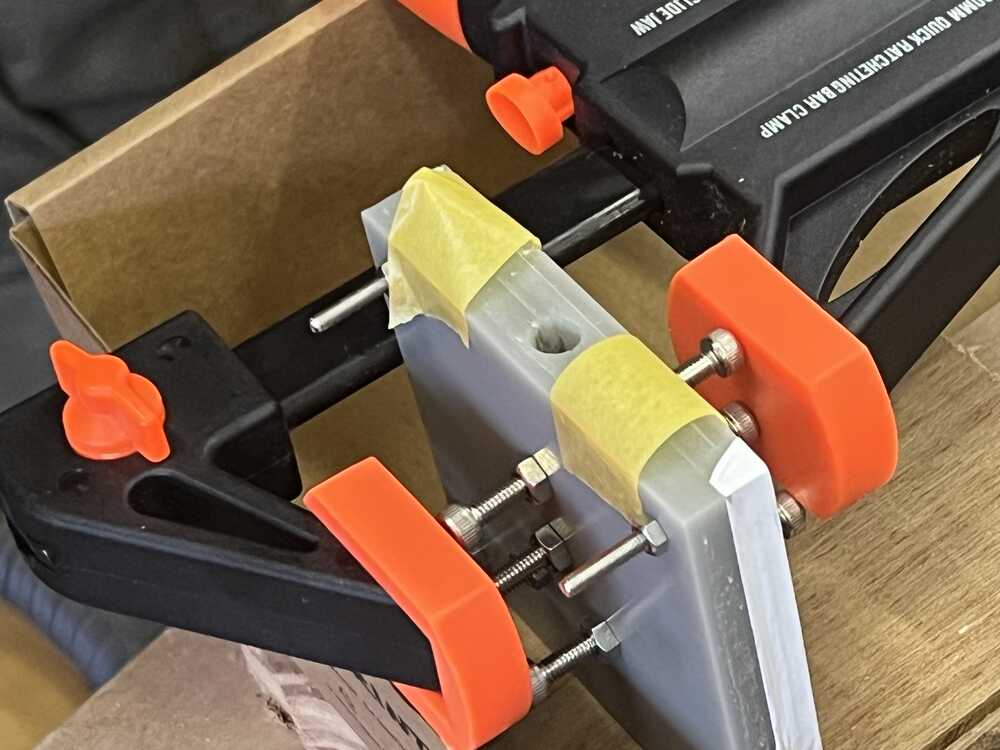

Once the tape is applied, fasten it firmly in place.

alt text

  • I covered it with masking tape to prevent the resin from popping out of the air holes.

alt text

Resin

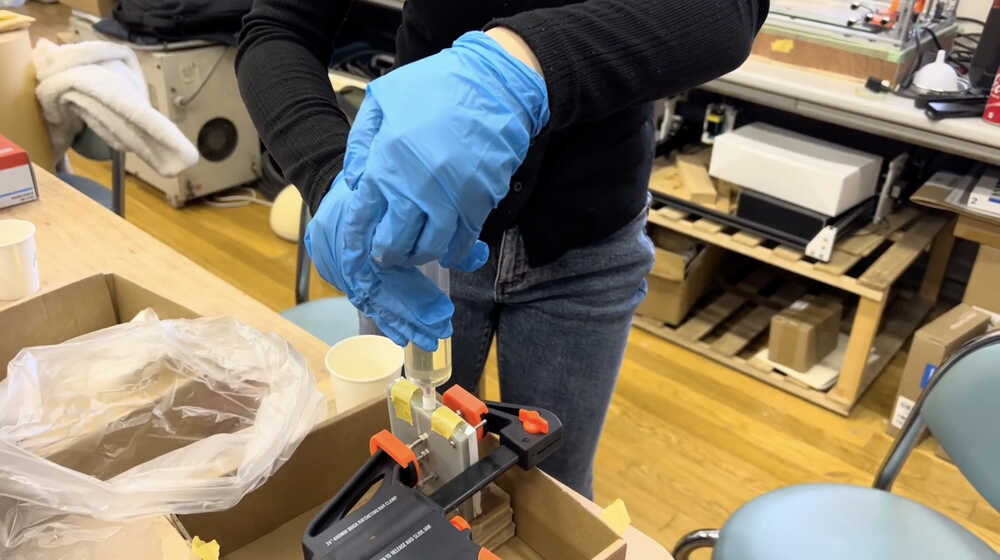

  • The resin is poured in with a syringe.

The handling of resins has already been described in week13, so please refer to that document.

material
- Polyurethane Resins liquid A and liquid B

alt text

I left it a little longer this time, about 10 minutes, because I could not see inside and could not tell if it had hardened or not.

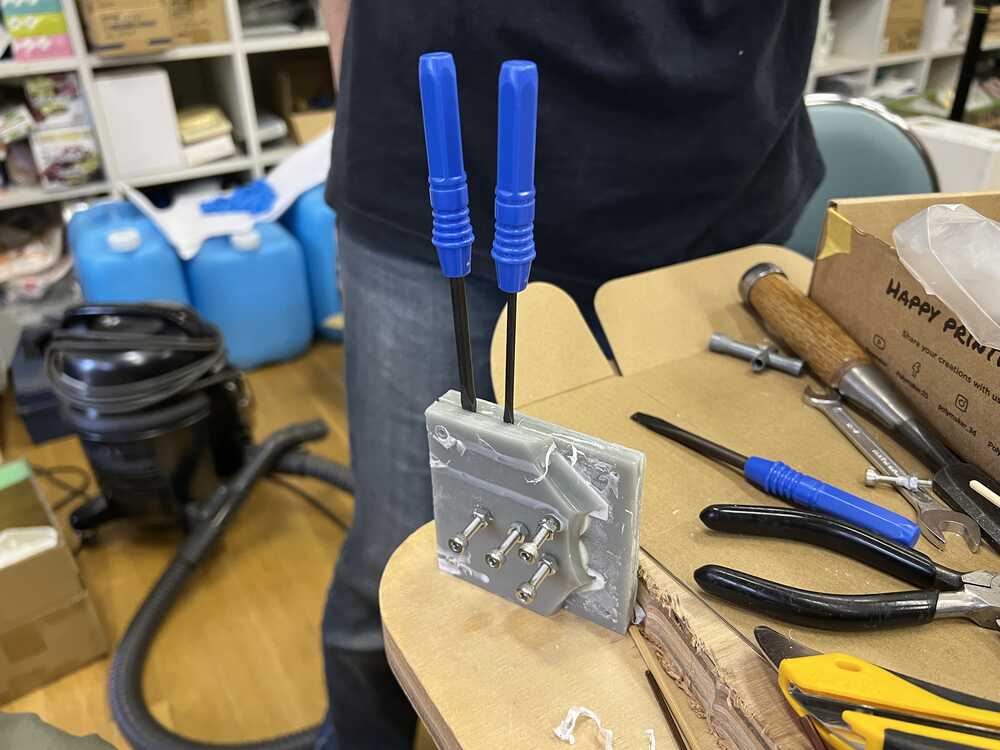

  • The mold is removed.

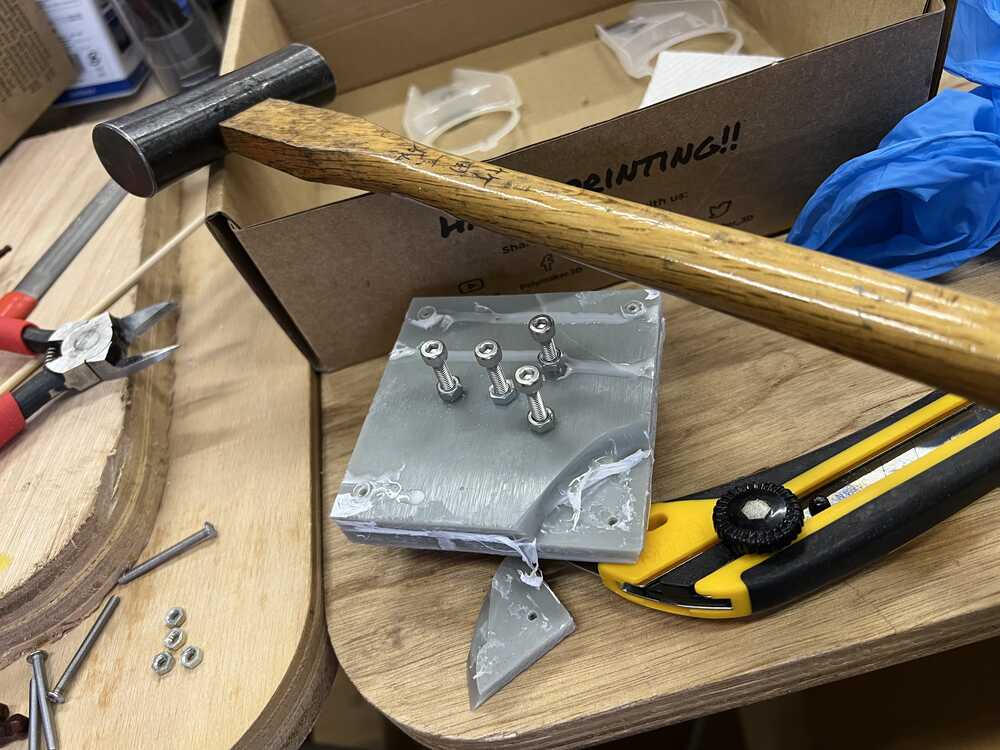

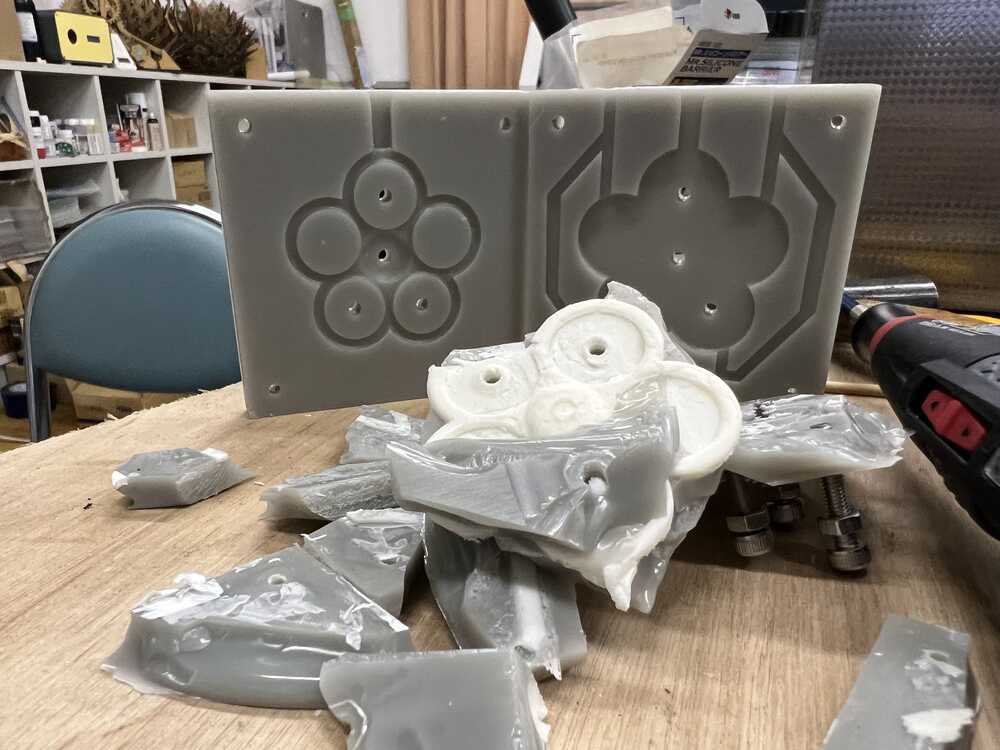

At first, we planned to remove it with a screw to push it out, but since it was difficult to remove, we decided to break it open.

alt text alt text

It is like mining for gems. |o|

I persisted until the end, but this is what happened. I think the cause was the lack of thickness in the object and the fact that I matched a hard object with a hard one. But I was curious if matching a hard object to a hard object really won't remove it...!!! Sorry 🙏.

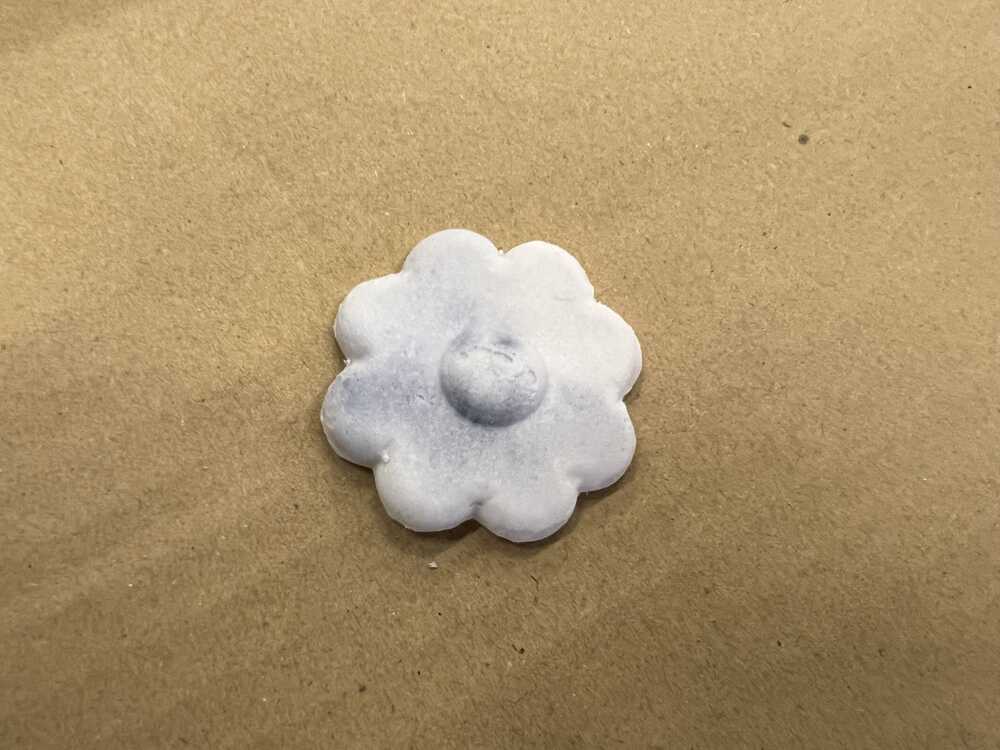

alt text

Try2

Since try1 failed and we determined that a second try was unlikely to succeed, we decided to make a new try.
I did something similar with week14, but I did not soak the resin into the material to make it stronger, so I tried it.

Design(Fusion360)

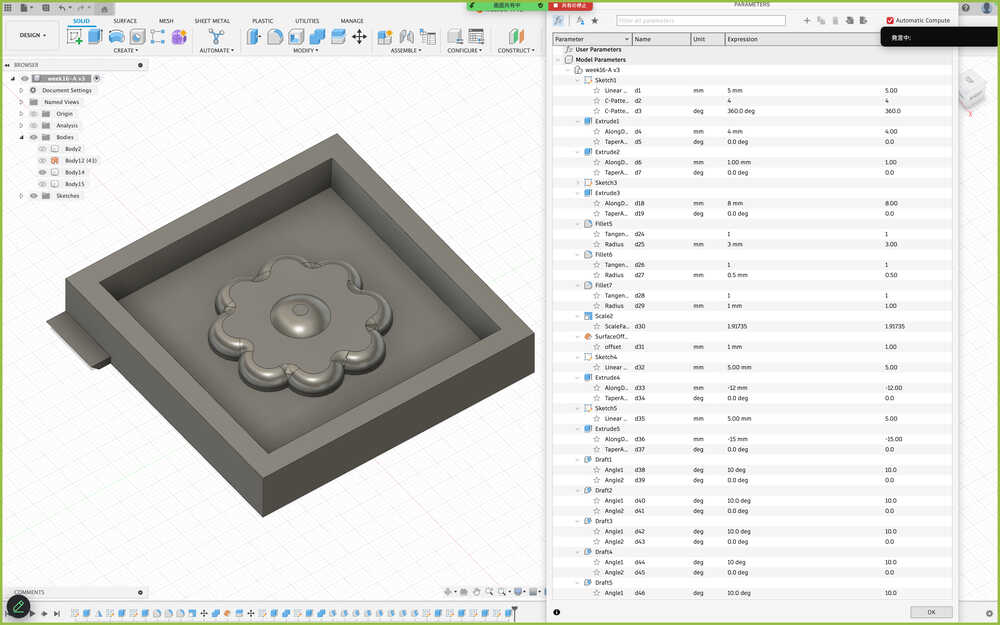

  • Male mold alt text

  • Female mold alt text

printing

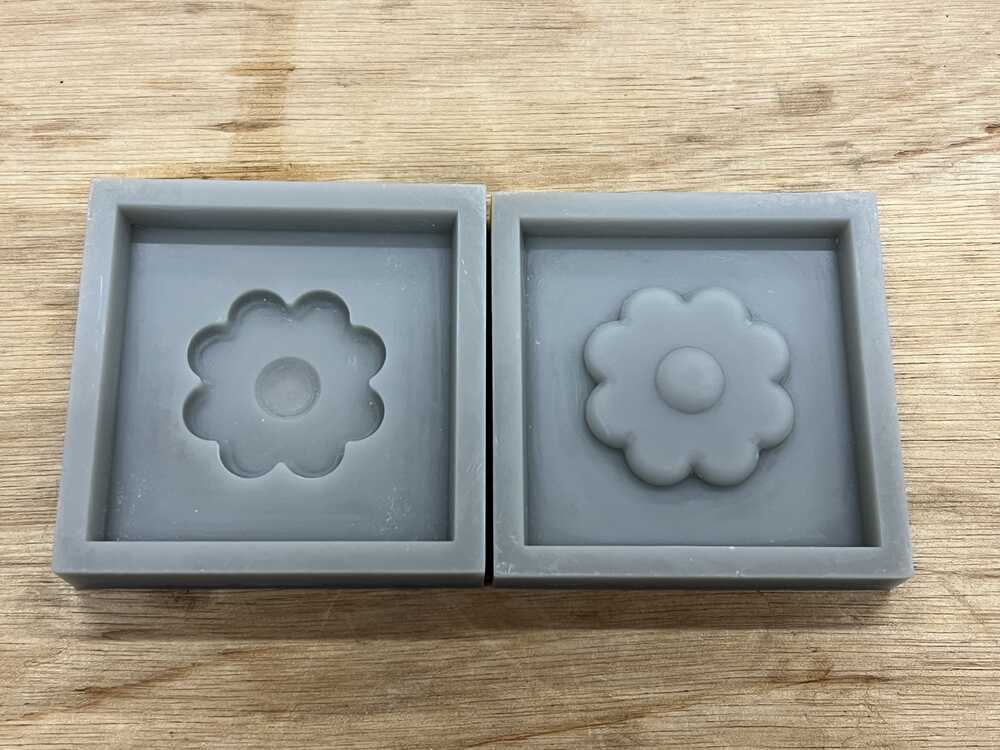

  • Output and cure as in try 1.

alt text

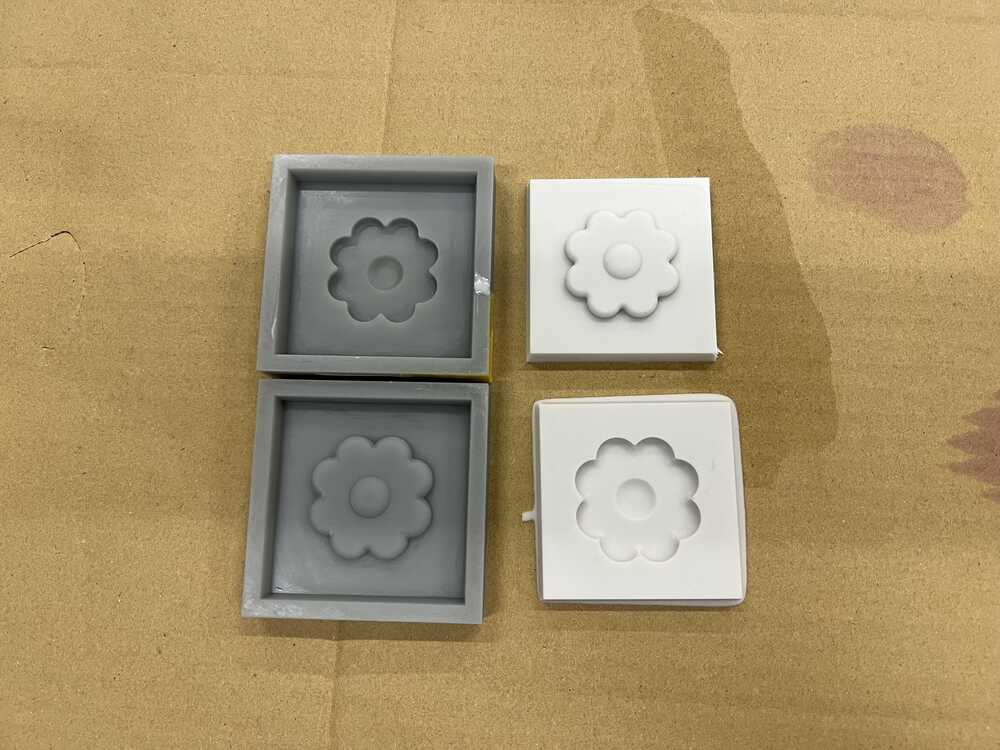

  • Apply a stripper, pour silicone, and wait one day.

The handling of silicon has already been described in week13, so please refer to that.

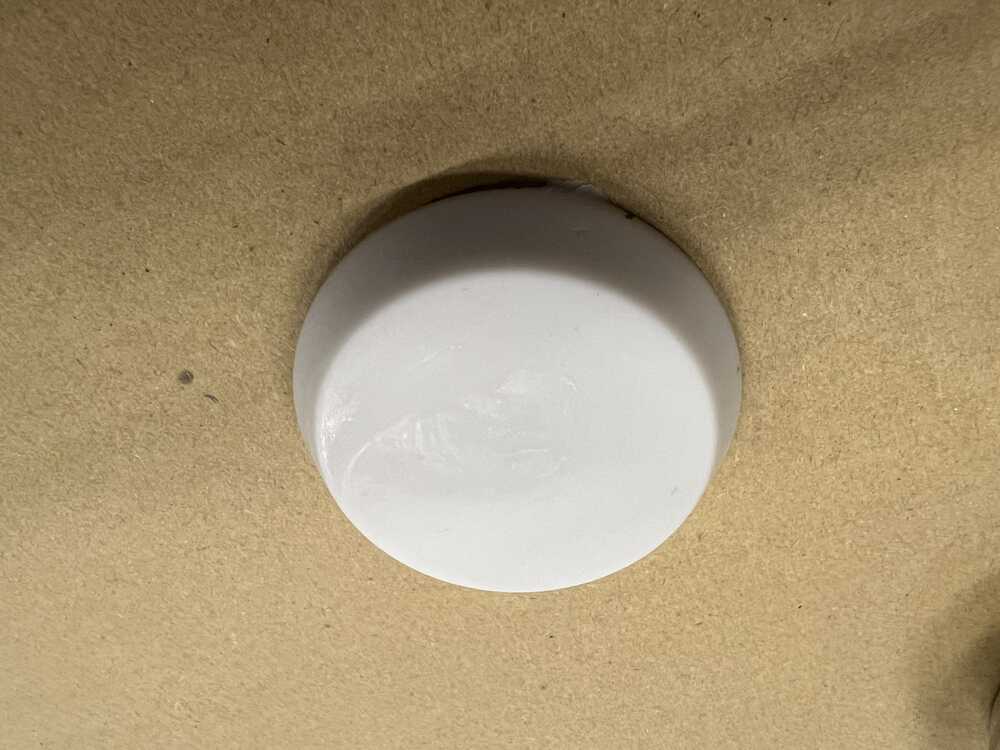

In fact, at this time I had forgotten to apply the stripper. So as a test coupon, I painted a small bowl and poured silicone into it. But the result hand chi was easily taken cleanly in both cases. I think it is because it is less thick.

alt text alt text

COTTON

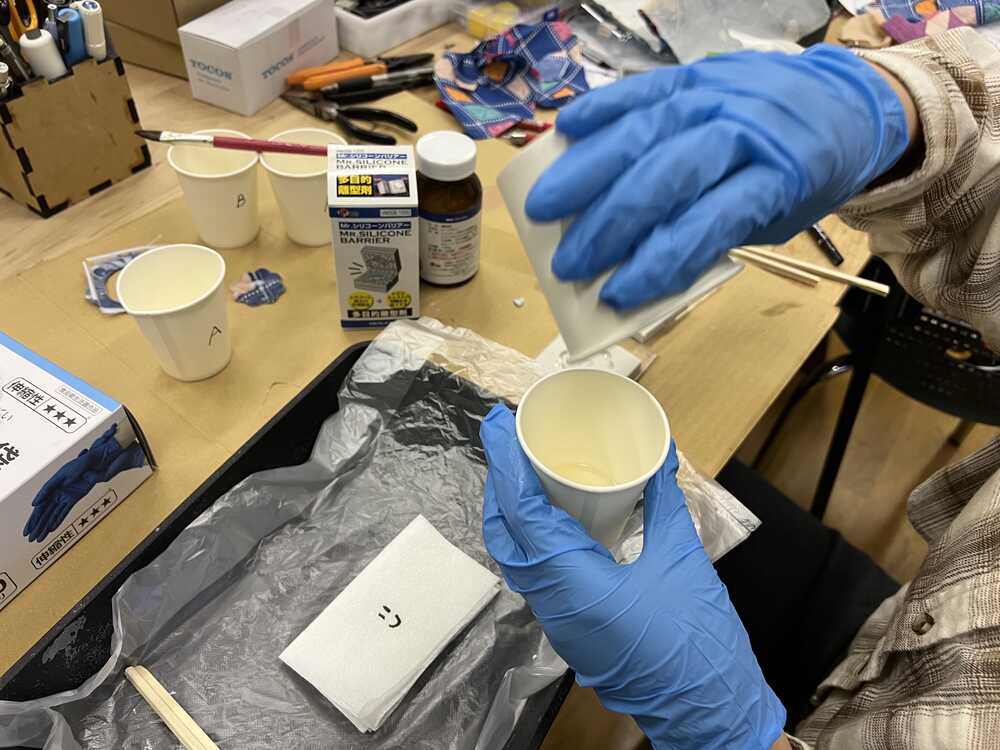

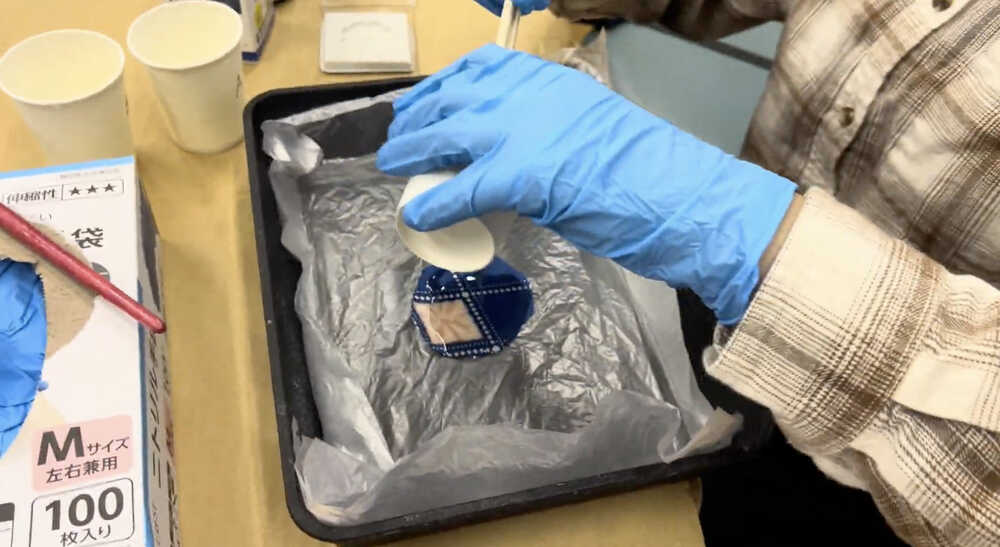

  • Apply a release agent to the silicone and soak the resin into the cloth. (I used cotton material at this time.)

alt text

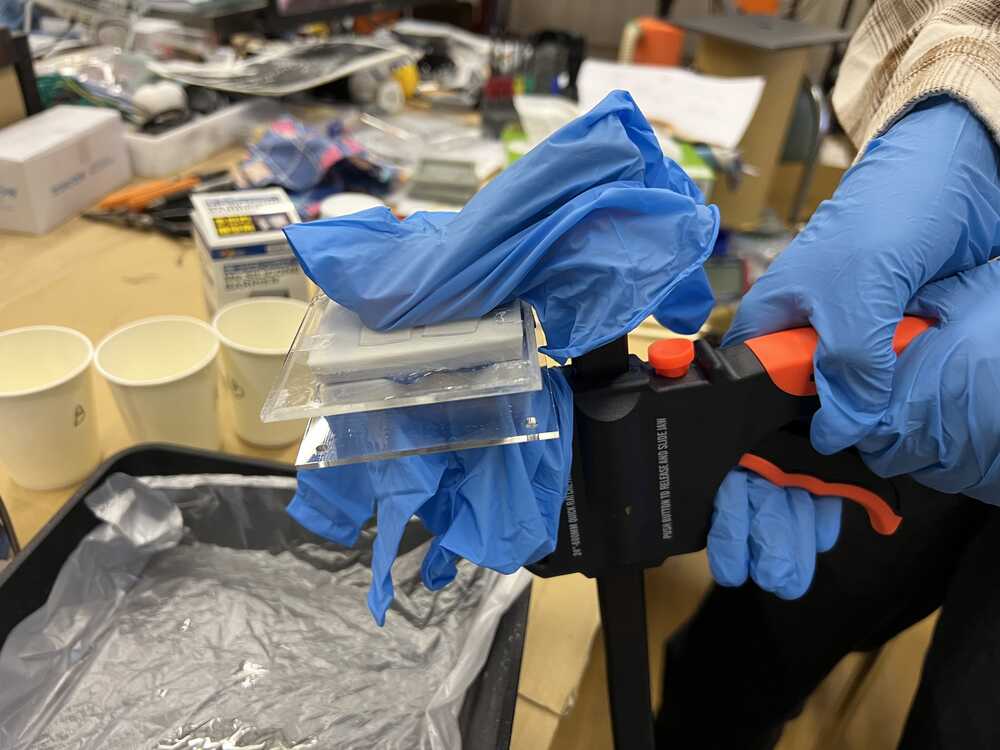

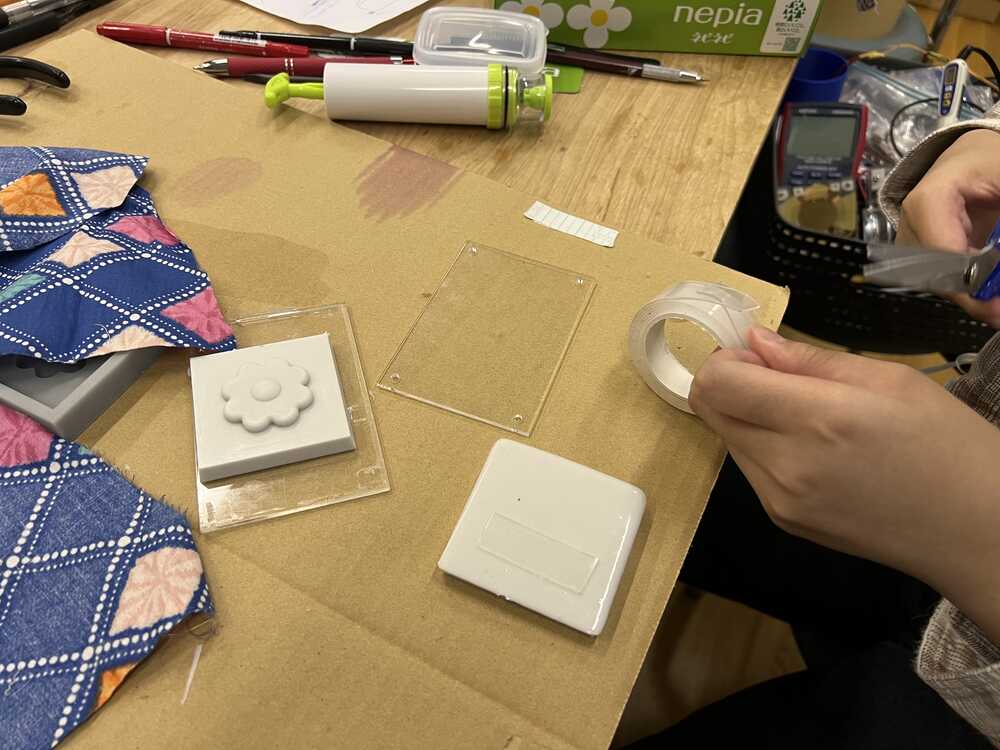

Since we found it difficult to hold it down by hand, we decided to affix an acrylic board to fix it in place.

alt text alt text

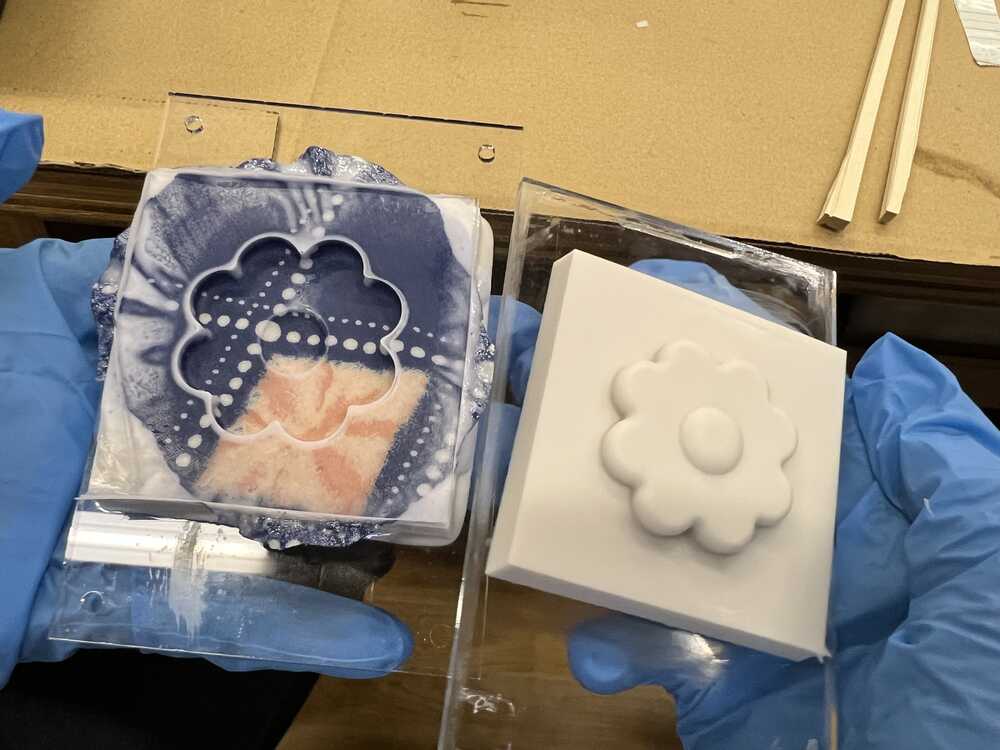

  • Remove after 5-7 minutes.

alt text

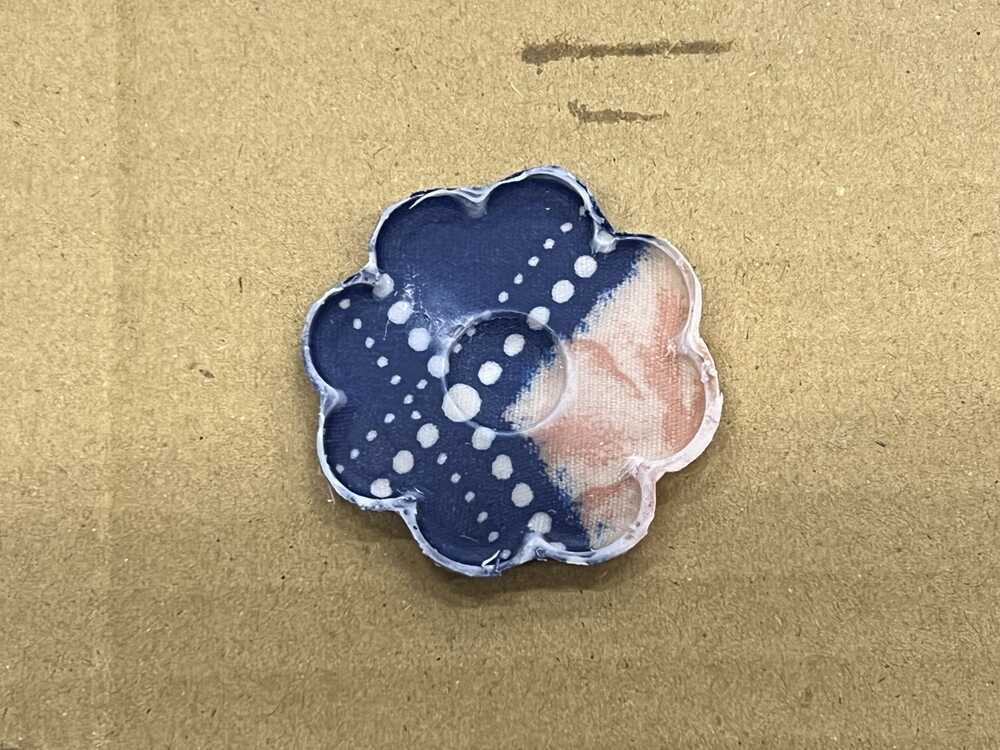

  • Shape it with a cutter to complete the process.

alt text alt text alt text

Kimwipe

We decided to try Kimwipe as well.

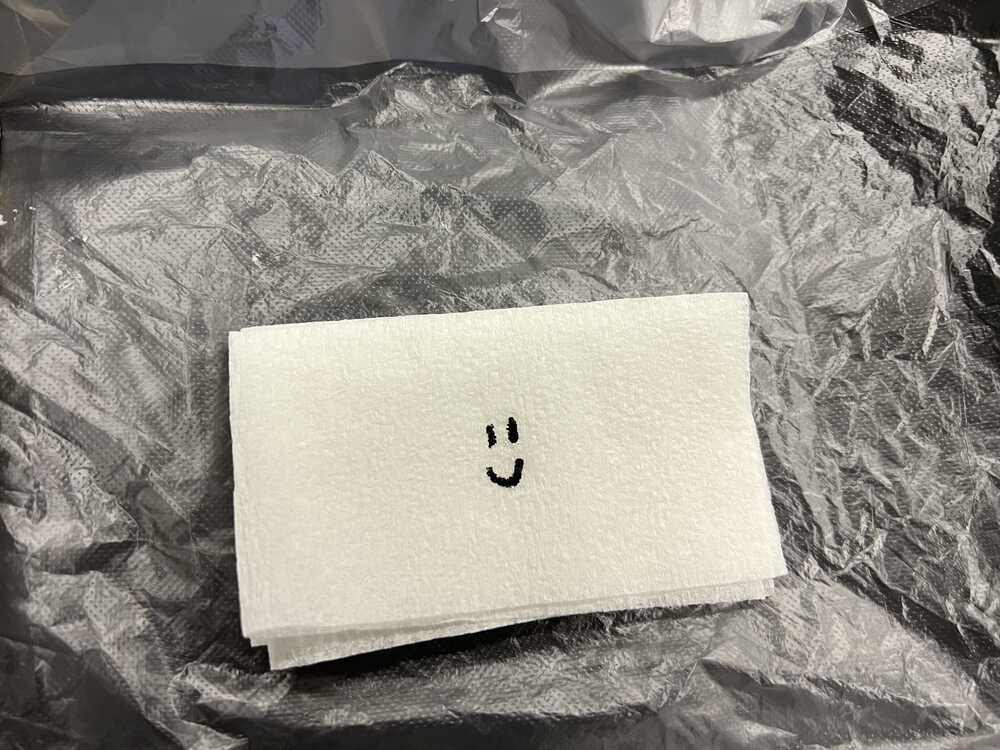

  • I scribbled on it.

alt text

  • Produce in the same way as before.

alt text

I tried two sheets folded in quarters and stacked on top of each other.

  • completion

alt text alt text

Result

raw materials impressions
cotton This time I used one piece of cotton. It is stiffer than the original material, but I don't think it is that hard.
Kim wipes (paper) It was harder than the original material, but felt softer on the inside, perhaps because the layers (8 pieces) were soaked with resin while still stacked, leaving a space between them, and the resin did not soak in until the end.

Design Files

impressions

  • I knew I should not try something hard on something solid.
  • I thought it was interesting to combine materials with different properties to make them stronger.
