Mechanical Design
Group assignments
- design a machine that includes mechanism+actuation+automation+application
- build the mechanical parts and operate it manually
- document the group project and your individual contribution
My group assignments
Have you answered these questions?
- Documented the machine building process to the group page
- Documented your individual contribution to this project on your own website
- Linked to the group page from your individual page as well as from group page to your individual pages
- Shown how your team planned, allocated tasks and executed the project (Group page)
- Described problems and how the team solved them (Group page)
- Listed possible improvements for this project (Group page)
- Included your design files (Group page)
- You need to present your machine globally and/or include a 1 min video (1920x1080 HTML5 MP4) + slide (1920x1080 PNG) (Group page)
PC working environment
- PC: MacBook Pro(16-inch,2019)
- OS: Sonoma 14.7.2
- Terminal: zsh
My Contribution
Originally, I was going to work on the assignment with Tomohiro Inoue of Kitakagaya, but our schedules suddenly became incompatible, so this discussion was cancelled. So this time I decided to work with a local instructor to advance the assignment.
| person in charge | Task/Part |
|---|---|
| myself | Slide Rail Mechanical Design and production |
| instructor | Electronics Design and Production |
| group works | electrical wiring |
Slide Rail Mechanism (Koharu part)
1.BOM
| Product name | Number of units purchased | Price | links |
|---|---|---|---|
| NEMA17 Stepper Motor | 2 | 2,400 (yen) | Amazon |
| GT2 Timing Belt | 1 | 1,820 (yen) | Amazon |
| Electronic Switch Control Board DC 5V-36V | 1 | 699 (yen) | Amazon |
| Wheelp V Wheel Plate Mini | 1 | 1,579 (yen) | Amazon |
| Tamiya 54393 Type380 Sport-Tuned Motor | 2 | 627 (yen) | Amazon |
| Switching Power Supply 12V30A | 1 | 2,980 (yen) | Amazon |
| Aluminum frame 5 series 20x20 - 1200 | 1 | 1,060 (yen) | Misumi |
2.Design and Assembly
2.0 frame

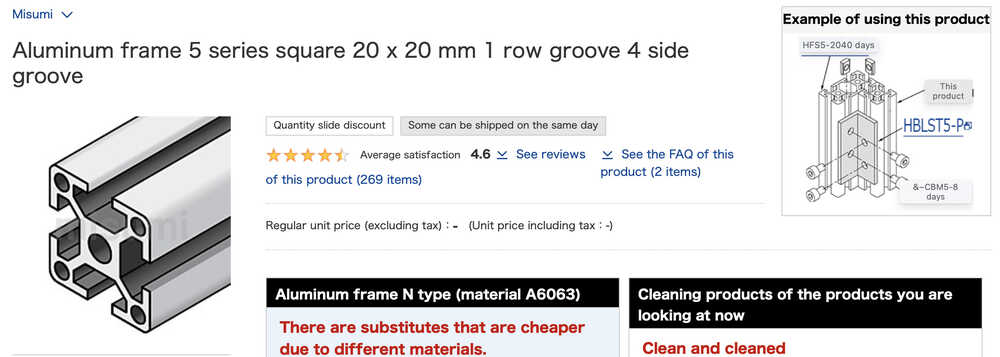

I purchased an aluminum frame from Misumi.

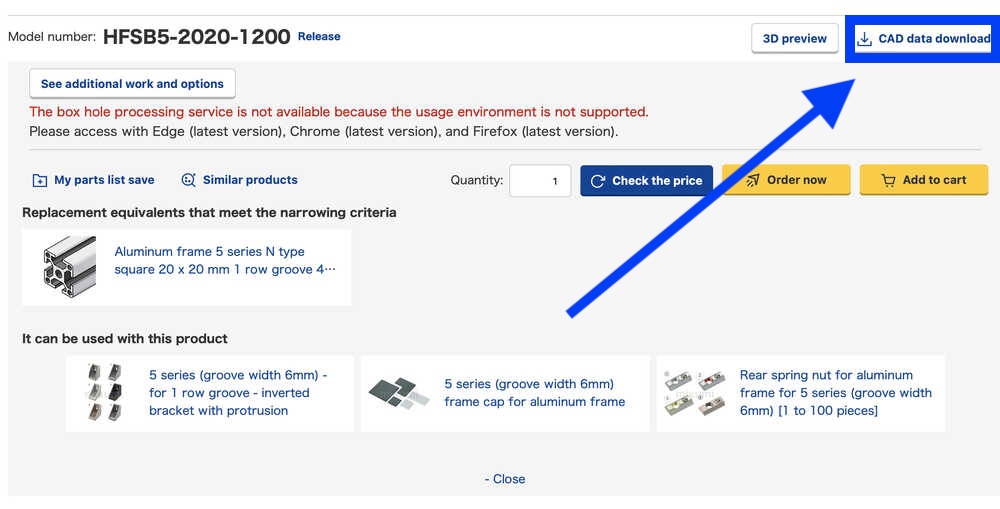

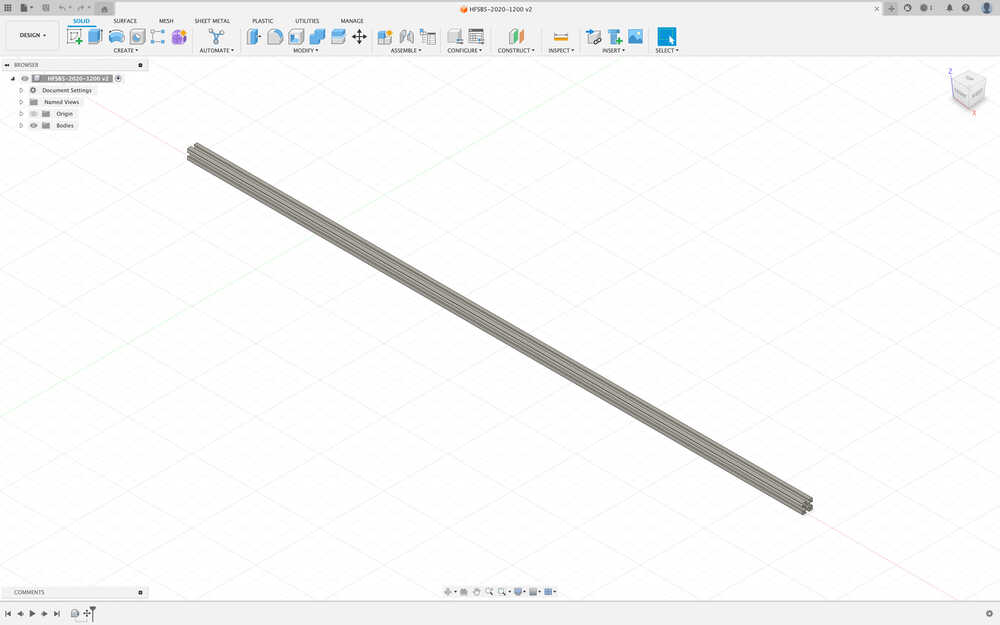

I inserted this into Fusion360 with 3D data.
Download ↓
- Fusion360
2.1 Stepping Motor

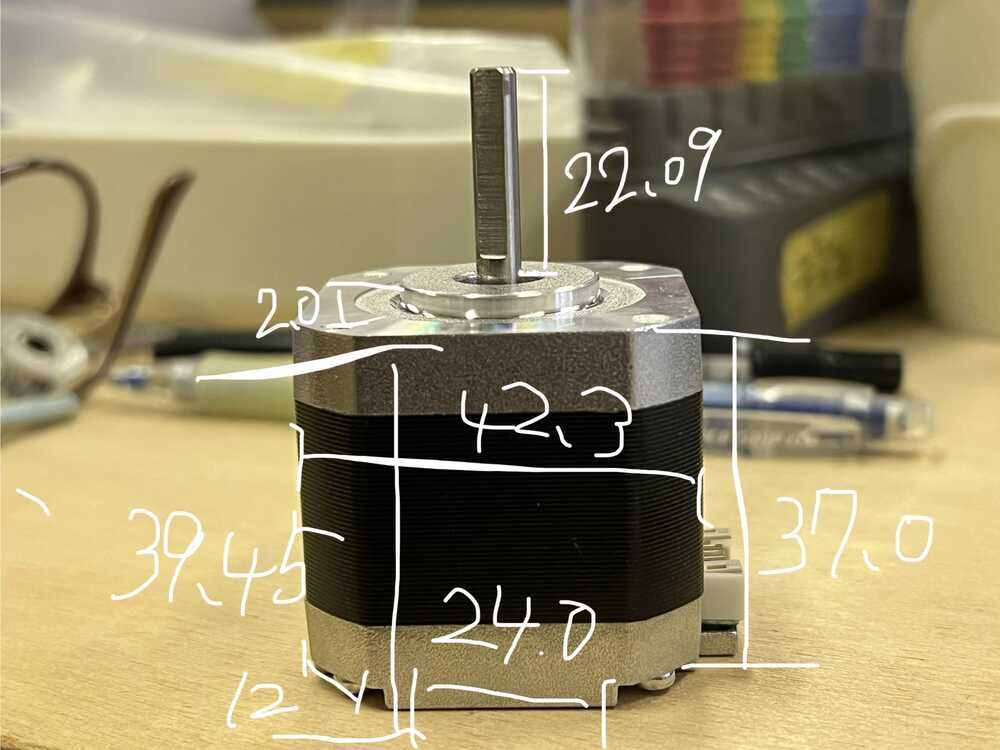

First, measure the parts to be used. This process is very important for design.

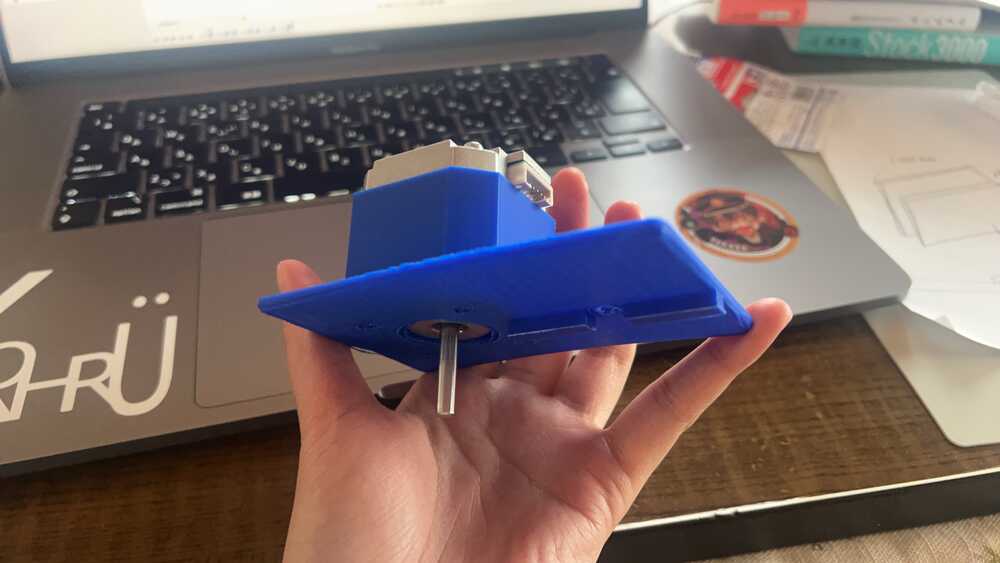

I designed the parts to attach the motor to the frame in Fusion360.

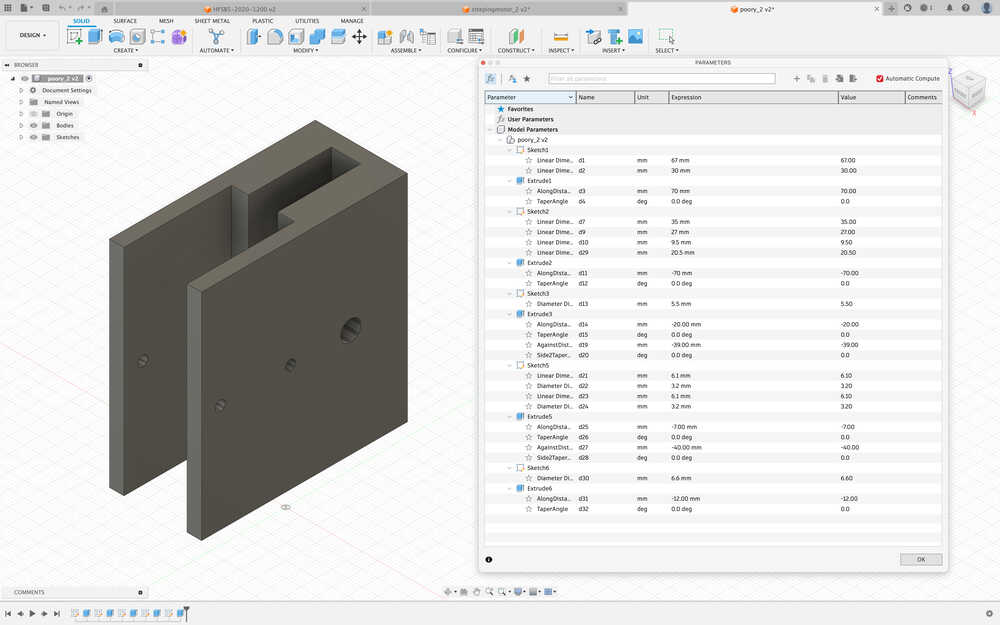

- try1
It worked, but I had to come up with another design because the motor heats up and could unravel the PLA.
- try2

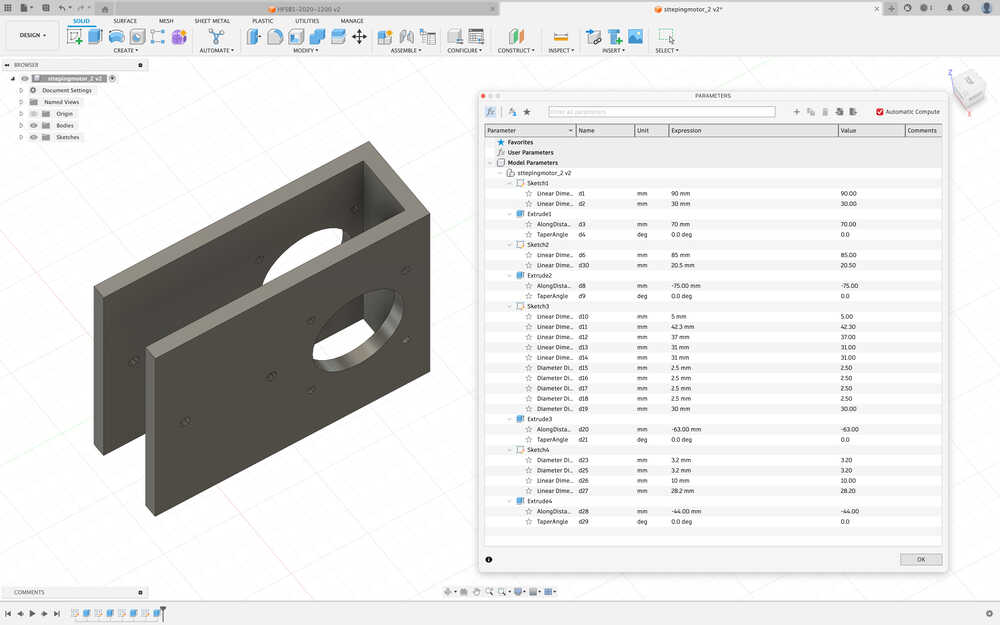

This time I think I have created a simple yet good design!

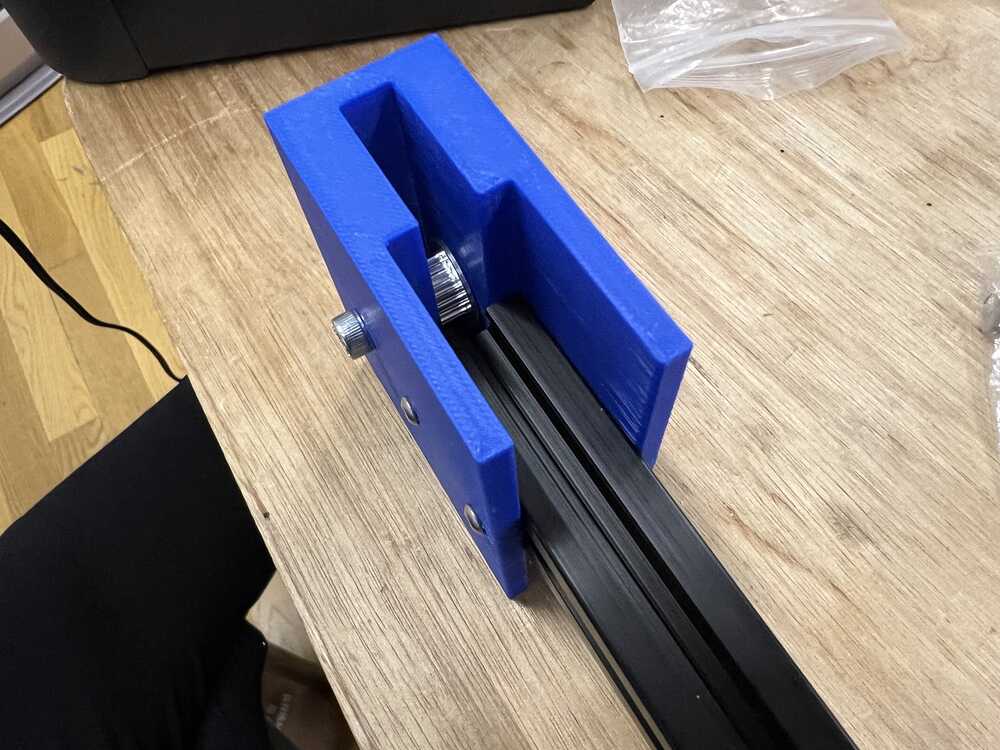

2.2 Pulley (side without motor)
I think we have designed this one well.
2.3 assembly
The design is output and attached to the frame.
Install using TM3 T-nuts. Install the other side in the same manner.

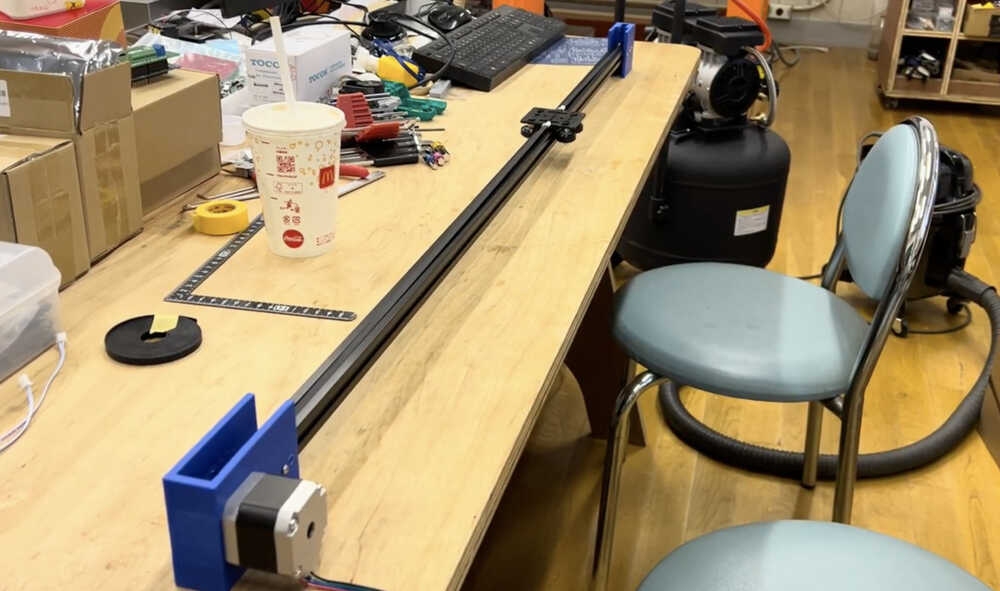

Finally, the belt and wheels are attached to complete the process.
3.Plate

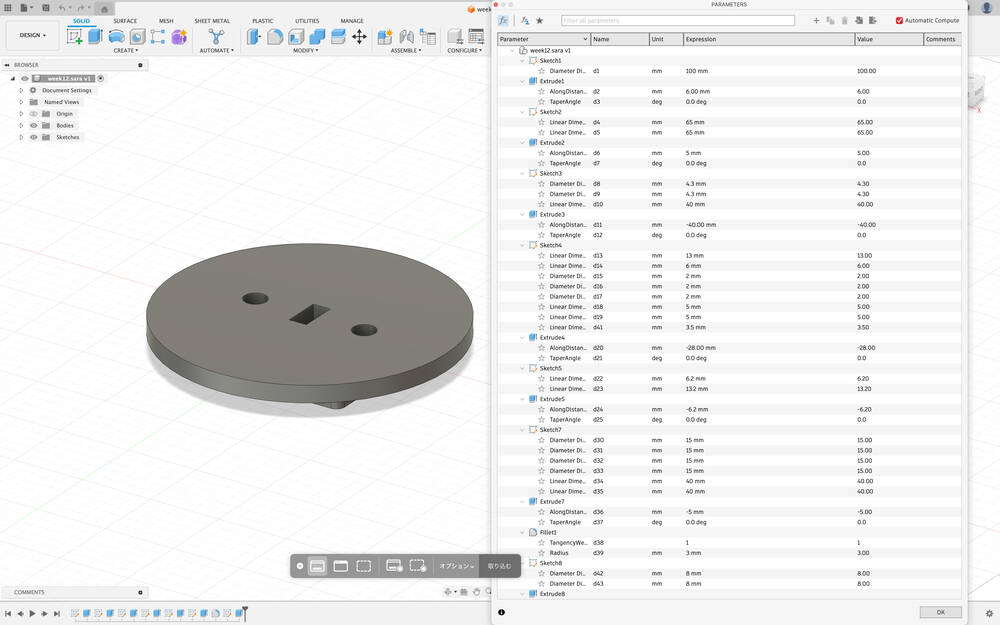

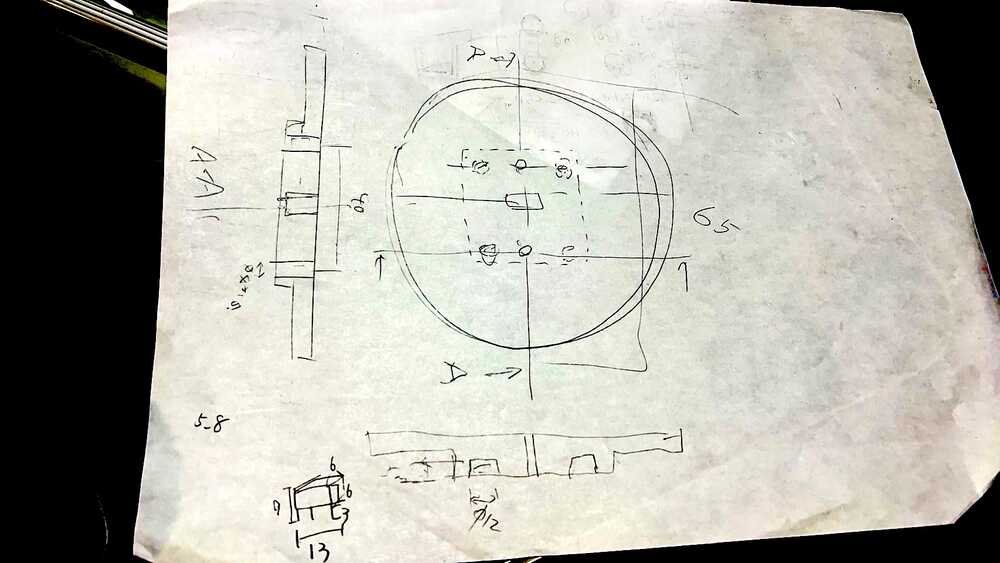

- disin(Fusion360)

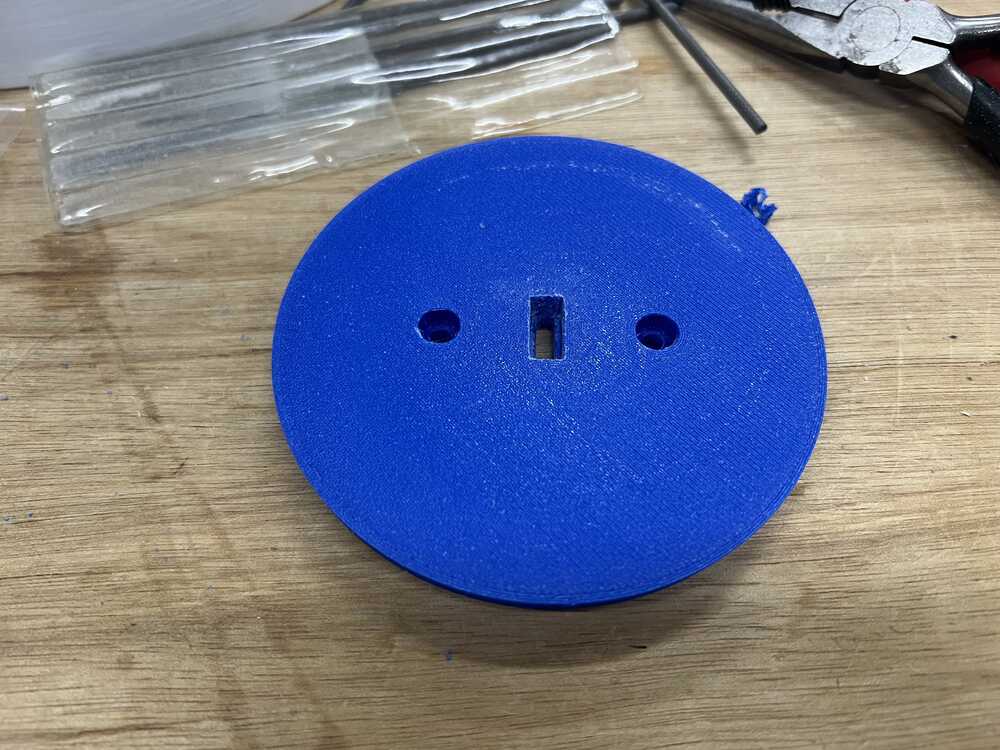

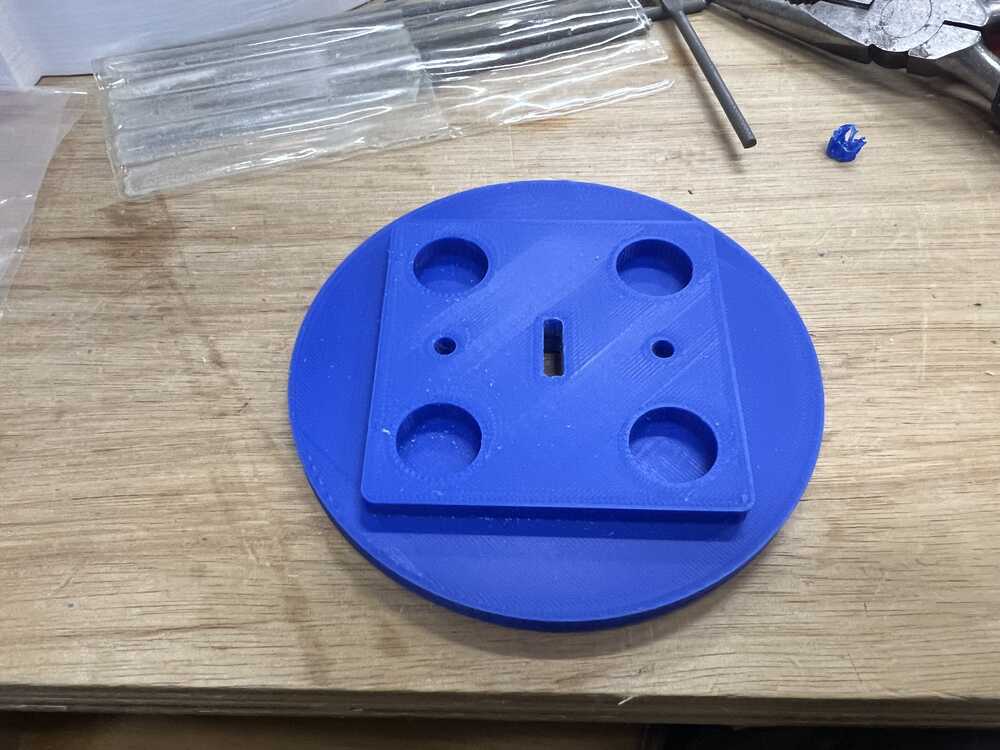

I made a plate to put the plates on. Designed to allow for the installation of limit switches.
- 3D printing
Finish by filing the limit switch so that it can be easily turned on.
