3. Computer-Controlled Cutting

Hero Shot


I chose this photo as my hero shot because it captures a critical moment when the laser cutter stopped working, and we had to troubleshoot the issue. We used tools to disassemble and inspect the machine, allowing us to understand its internal components and design. This hands-on experience not only helped us fix the problem but also provided valuable insights into how the machine operates. I found it fascinating to see the engineering behind the laser cutter, and this moment highlighted the importance of problem-solving, teamwork, and technical learning in the lab.

Summary

By following these safety protocols, you can ensure a safe working environment while using the Trotec speedy 400 laser cutter. Knowing emergency procedures, fire safety measures, and machine limitations is crucial for avoiding accidents and ensuring smooth operation. πŸš€

Work Process Detail(*group assignment*)

Laser Cutter Safety Guide – Trotec speedy400

Understanding and following safety protocols is essential when using the Trotec speedy400 laser cutter.


1. Awareness of Safety Warnings and Emergency Exits

  • The front desk PC displays multiple warnings about the potential dangers of using the laser cutter.
  • Signs indicate emergency exit locations in case of fire or other hazards.
  • Always read and follow posted safety instructions before operating the machine.



2. Understanding Emergency Stop and Safety Features

  • The laser cutter has an emergency stop button that immediately halts operation in case of an emergency.
  • Ensure you know the exact location of this emergency stop switch before starting a cutting session.

3. Understanding the CO2 Laser Power and Wavelength

  • The Trotex speedy 400 uses a CO2 laser, which operates at a specific wavelength and power level.
  • The laser is capable of cutting and engraving materials, but improper use can cause fires or burns.
  • Certain materials should never be cut, as they release toxic fumes or may ignite easily.



4. Fire Hazard Awareness

  • Laser cutters can ignite materials, so it’s important to be prepared for potential fire risks.
  • Before operating the machine, locate:
    • The fire extinguisher (ensure you know how to use it).
    • The fire suppression water system (typically a ceiling-mounted system activated by pressing a button).
    • The emergency shower (useful in case of burns or exposure to hazardous materials).







5. Preparing for Safe Laser Cutting

  • Always check the material guidelines to ensure that it is safe to cut.
  • Do not leave the laser cutter unattended while in operation.
  • Ensure proper ventilation to prevent smoke buildup.

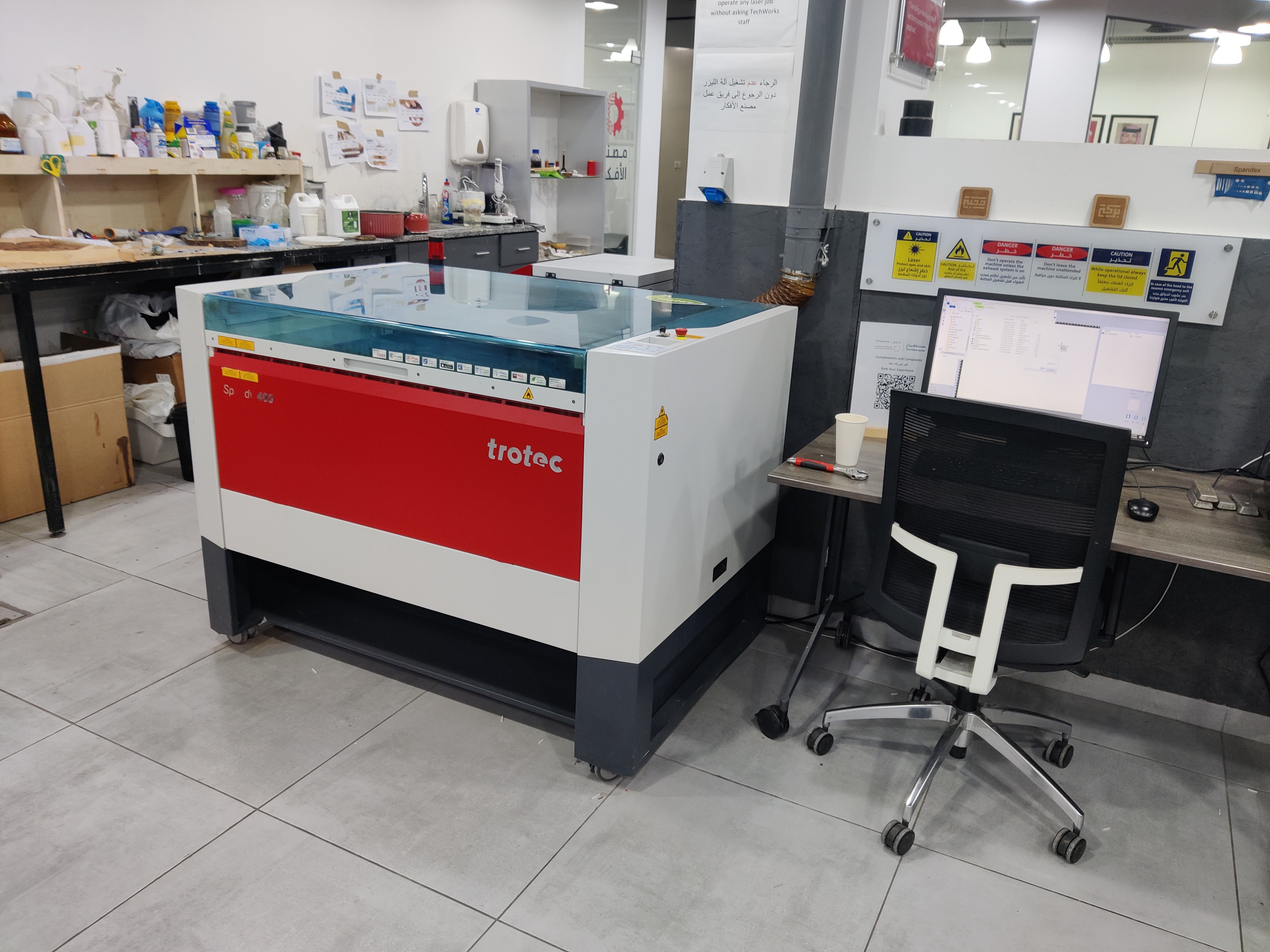

6. Machine and Software Setup

  • Researched calibration from Trotec YouTube Channel.
  • Used JobControl software with 16 color settings (RGB-based) to control:
  • Power
  • Speed
  • Frequency
  • Passes
  • Offset

1.jpg Videos


7. Material Selection and Measurement

  • Tested materials:
  • MDF
  • Balsa wood
  • Acrylic
  • Cardboard
  • Paper
  • Measured thickness with a caliper. 2.jpg 3.jpg

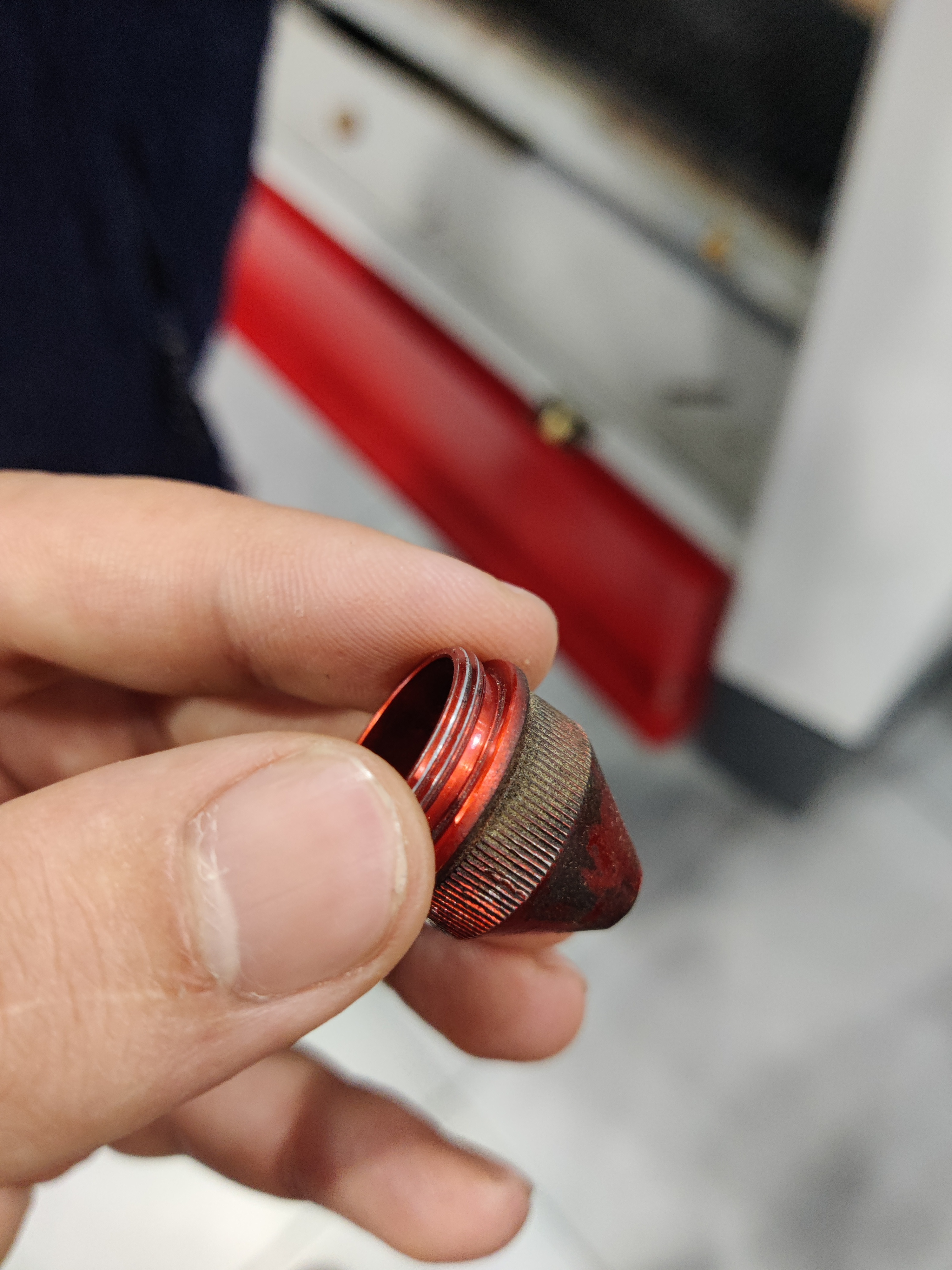

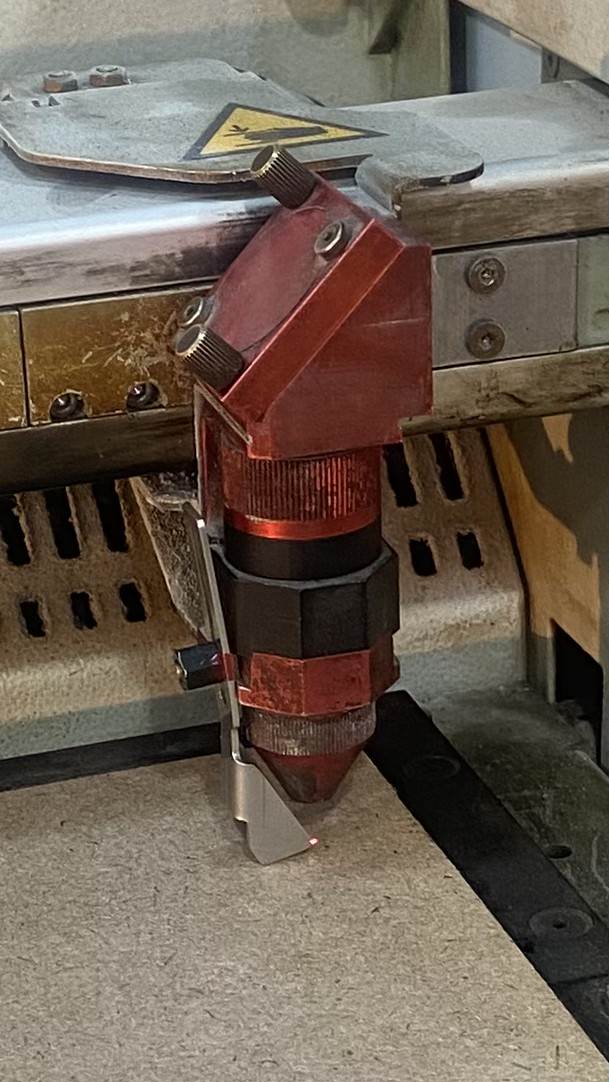

8. Lens and Laser Calibration

  • Machine uses a 2-inch lens.
  • Calibrated lens focus for accurate cutting.
  • Used the red laser marker for precise positioning. 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg

9. Setting Cutting Parameters

  • Imported designs into JobControl.
  • Tested and adjusted power, speed, and offset for best results.
  • Found optimal settings for 5mm MDF and 3mm acrylic. 9.jpg 10.jpg 11.jpg 12.jpg 13.jpg 14.jpg 15.jpg 16.jpg

10. Joint Fitment Testing (Parametric Design)

  • Designed a test piece in Fusion 360.
  • Initial kerf offset: 0.05 mm, later refined to 0.1 mm for snug fit. 17.jpg 18.jpg

20.jpg 21.jpg 22.jpg


11. Kerf Measurement for Precision

  • Cut 13 squares (15x15 mm each).
  • Measured kerf from material loss: about 0.07 mm per side.
  • Adjusted final settings based on results. 23.jpg 24.jpg 25.jpg 26.jpg 26.jpg

Learning Outcome

I learned that responsibility and safety are essential when operating any machine, not just CNC or laser cutters. It is crucial to always read the manuals, follow instructions, and understand the risks before use. Acting irresponsibly can lead to serious injuries, not only for yourself but also for others in the workspace. Understanding emergency procedures, fire safety measures, and machine limitations ensures a safer and more efficient working environment.

Digital Files

https://www.troteclaser.com/en/resources/faqs/how-safe-is-a-laser-engraver
