Week 17

* Propose a final project masterpiece that integrates the range of units covered.
* Your project should incorporate:
  1) 2D and 3D design.
  2) Additive and subtractive fabrication processes.
  3) Electronics design and production.
  4) Embedded microcontroller interfacing and programming.
  5) System integration and packaging.
Where possible, you should make rather than buy the parts of your project. Projects can be separate or joint, but need to show individual mastery of the skills, and be independently operable.
See Final Project Requirements for a complete list of requirements you must fulfil.
The answers to the questions in the checklist will allow you to create your BOM (Bill Of Materials).

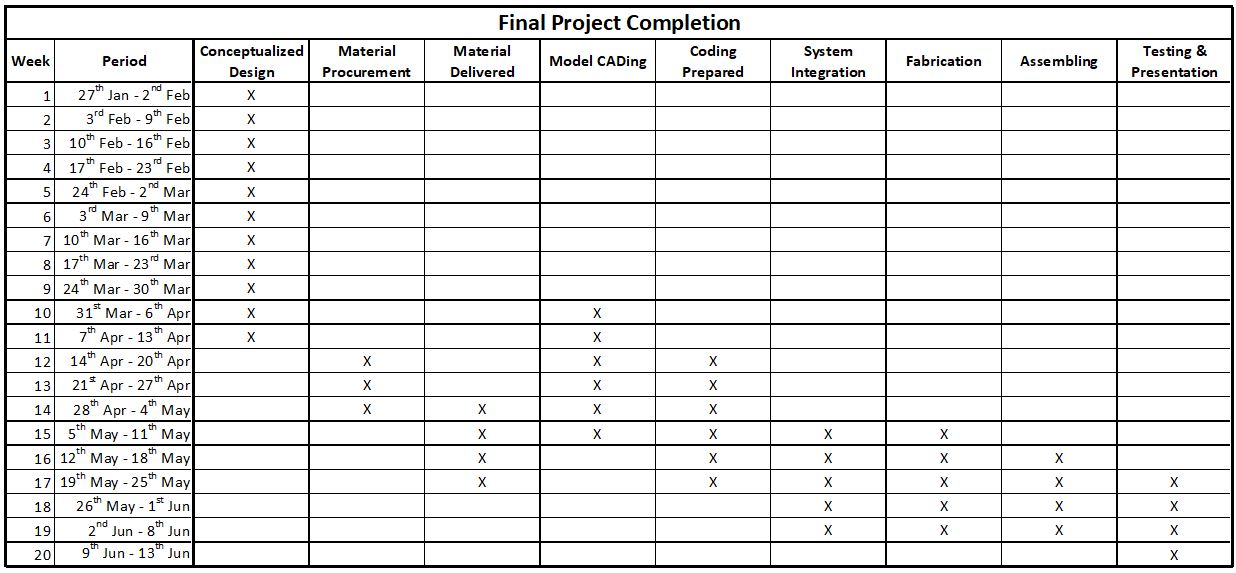

* Complete your final project tracking your progress.

Instead of listing out the QUESTIONAIRE, it would be better to directly answer the list of question based on the checklist given.

What will it do?

Since I’ve always had a deep love for music, it was clear from the beginning that my final project would be music-related. Creating a music box has been a childhood dream of mine, and this project is my opportunity to finally bring that idea to life. The design I chose is based on the available resources and the skills I’ve gained so far.

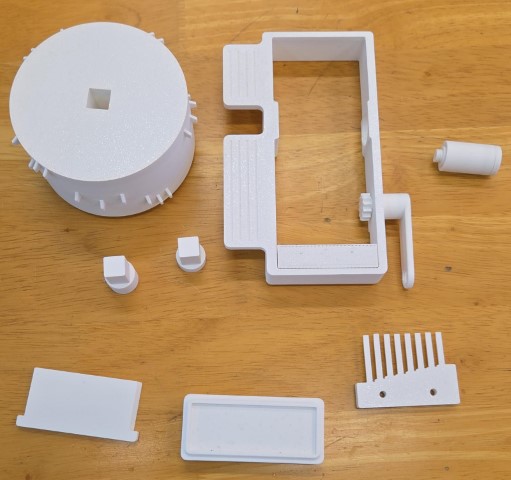

Below is a photo of the very first prototype I built using a 3D printer and an open-source file from MakerWorld. It plays the "Happy Birthday" song using a simple mechanical crank system:

Building upon that prototype, I decided to enhance the system using a servo or stepper motor to drive the crank automatically. Then, a fun and slightly ambitious idea came to mind — why not include multiple photos that rotate or flip while the music is playing?

Who has done what beforehand?

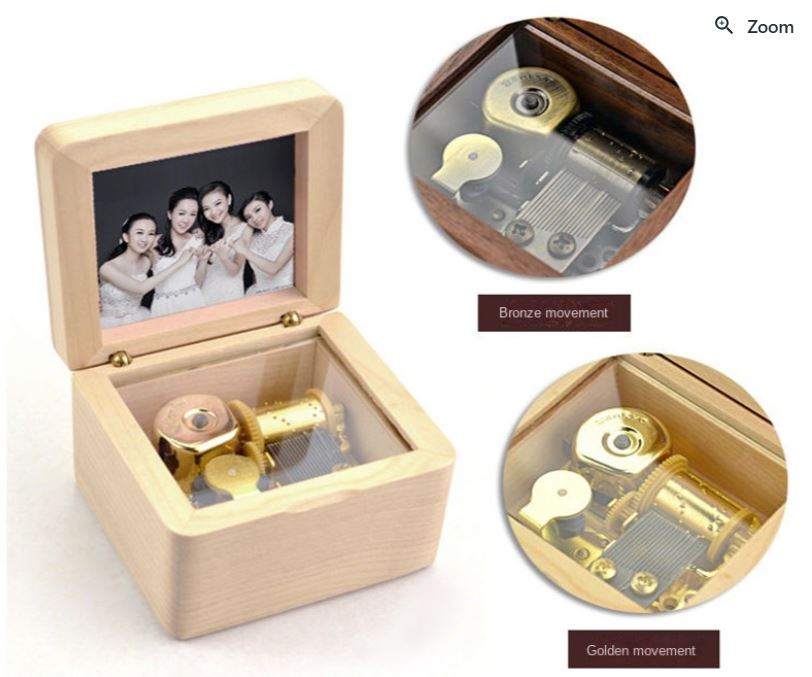

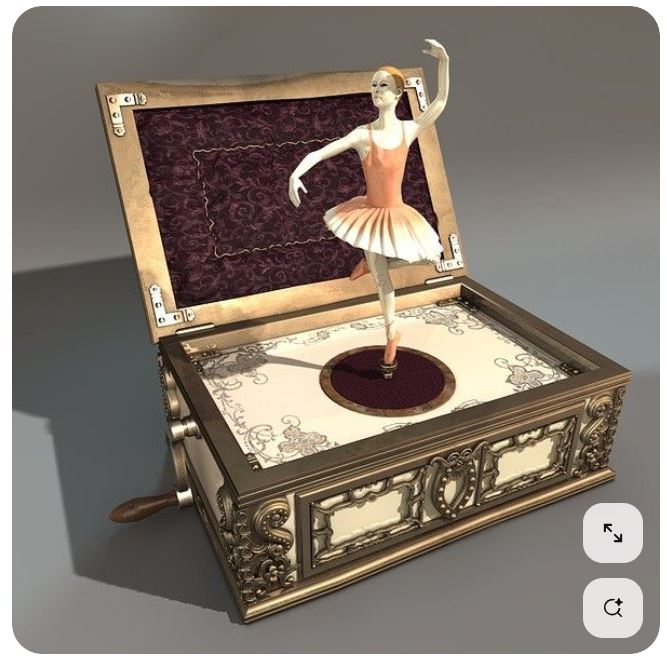

Most commercially available music boxes are manual crank-operated and may include a spinning figurine or a single photo slot. Some examples include wooden music boxes that feature photo inserts or classic ballerina boxes that spin to music.

(Source from: Music box with photos wooden music box Sky City mu... – Grandado and Ballerina Music Box 3d Model)

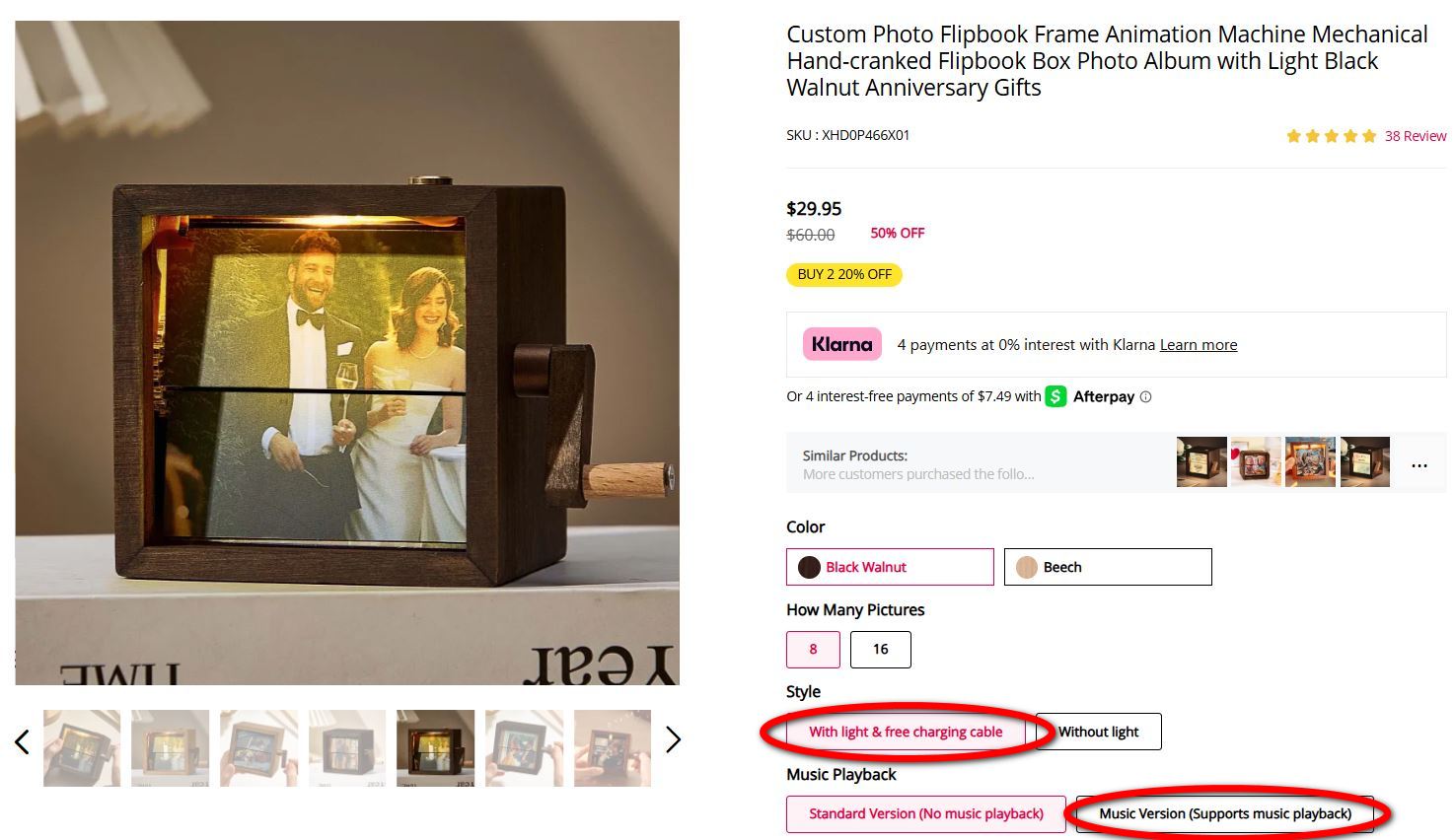

Recently, I came across an inspiring design by Soufeel Jewelry Inc. on Instagram. Their version uses a split-flap mechanism to flip through printed photos with a manual crank. Some models also include optional music playback while rotating the images.

These references gave me a clearer vision and direction for improving and customizing my own musical box concept.

What will you design?

Inspired by the split-flap mechanism, I plan to create an 8-panel photo display that rotates using a stepper motor. To complement the visuals, I will integrate two rows of NeoPixel LEDs:
    • The top row will provide bright, white light to illuminate each photo.
    • The bottom row will feature a dim, rainbow animation to enhance the overall ambient lighting.
For the audio system, I’ll use a microSD-based MP3 player module, allowing users to play personalized music tracks.

What materials and components will be used?

Refer to Week 15 Individual Assignment Section 2: Bill of Materials (BOM) for a detailed list of parts.

Where will they come from?

All components and materials are listed in Week 15 Individual Assignment Section 2: Bill of Materials (BOM), which includes their sources.

How much will they cost?

Estimated costs and individual component prices are included in Week 15 Individual Assignment Section 2: Bill of Materials (BOM).

What parts and systems will be made?

1. Mechanical System
    • Casing/Enclosure: Designed using 3D printing or laser cutting.
    • Photo Display: Dynamic split-flap mechanism to flip through photos.
    • Structural Mounts: Brackets and holders for electronics and mechanical parts.
2. Electronics and Control
    • Microcontroller: Seeed XIAO ESP32C3.
    • Power Supply: Li-ion battery with charging circuit or USB power.
3. Audio System
    • DFPlayer Mini MP3 module with microSD card.
    • 8Ω speaker and optional audio amplifier.
4. Lighting System
    • NeoPixel LED strips: Static white for photo lighting; animated rainbow for ambient effect.
5. Photo Mechanism: Stepper motor-based split-flap for switching photos.
6. Input System: Pushbuttons for toggling photo movement, music playback, and lights.
7. Software / Firmware: Arduino IDE code to handle input, lighting effects, motor control, and audio playback.

What processes will be used?

1) 3D Printing – Used for the enclosure, split-flap system, and mounting parts (Bambu Lab X1 Carbon).
2) CNC Machining – For PCB milling and other precise mechanical parts (Stepcraft).
3) Laser Cutting – Used on acrylic sheets for body panels.
4) Sticker Printing – To print custom photo panels (Roland Versaworks 540i).
5) Mold Casting – For making soft pushbutton membranes.
6) Electronics Production – Custom PCB using the SEEED XIAO RP2040 microcontroller and custom circuit designs.

What questions need to be answered?

1) What triggers the system?
Ans: Will the music and lights start automatically (via sensor) or manually using a pushbutton?
2) How are the photos displayed?
Ans: Will the images be backlit or front-lit? Will the system rotate or flip through images one at a time?
3) What audio system will be used?
Ans: Will it be a serial MP3 player, a buzzer, or a speaker system? How is the sound quality?
4) How is the system powered?
Ans: Will it use USB or battery power, and how is power consumption managed?

How will it be evaluated?

The system must meet three core functions:
    1) Rotate split-flap panels to display different photos.
    2) Illuminate with NeoPixels: top row for visibility, bottom row for ambiance.
    3) Play custom music from a microSD card.
Each of these should work independently and together, controlled by physical pushbuttons.

What tasks have been completed?

• ✅ Designed and built the split-flap system, including photo layout and motor control code.
• ✅ Assembled and wired the LED lighting system, complete with routing and trunking layout.
• ✅ Built the bracket and housing for the sound system, including the speaker mount and wiring.
• ✅ Created and printed two negative-hard molds for pushbutton cap casting.

What tasks remain?

• The custom PCB design and production (core controller) is still pending.
• Final audio code integration hasn’t been started yet.
• The pushbutton cap casting needs time to cure and finalize.
• The main body enclosure hasn’t been fully designed, as spacing and layout depend on final placements of all subsystems.

Prepare drafts of my final project Summary Slide (presentation.png, 1920x1080) and Video Clip (presentation.mp4, 1080p HTML5, less than ONE minute, and smaller than 25 MB), put them in your root directory, and check that they are linked in the final presentation schedule.
