15. System Integration¶
- Group assignment
- [ ]- There is no group assignment this week
- Induvidual assignment
- Designe and document the system intergration for your final project.
- Imlimented methods of packaging?
- designe your final project to look lika a finished product?
- document system intergration of youtr final project?
- linked to your system intergration from ypour final project page?
Research¶
Well, I was a little unsure how to do this assignment, so most of my research was to look at other Fab Academy students’ sites to see what they did. I just went and looked at randomly chosen sites and observed what students did during this week.
The final project¶
what is it and what it´s pourpose?¶
My final project was supposed to be a chair, but in the design, it turned out to be more like a table than a chair. That doesn’t really matter because the idea was to create some kind of furniture from the beginning, so I will just call it a table from now on. I decided to make a small table that will interact with movements. It has a motion sensor and an LED strip; if you get too close to the table, it will turn on a light, and if you get closer, it will change color in two or three phases. It will be a safety feature in dark rooms., people will not walk on it, it can also serve as an night light.
System diagram.¶

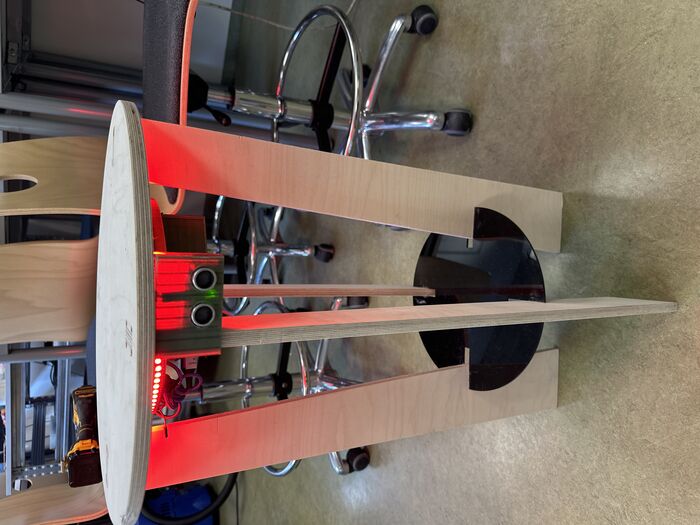

I have already make the table it self , i did cut that out in the shopbot machine and the i made little plate fram dark plexi in the laser cutter to support the feet and for decoration, under the main plate i am going to get all the electronic and the LED stribe. The lED i am going to use is RGB and works on 5V DC this will all been powerd up with a powerbank.
The LED will be controled with ESP32C3 micro controler
| Requerment/Learning outcome | How itis coverd in the project |
|---|---|
| 2D and 3D Design | 3d case for the electronics |
| Additive and Subtractive Fabrication | 3D printing and CNC milling PCB board |
| Electronics Design | Making the PCB board in Kicad with motion sensor and output for LED |
| Electronics Production | Using CNC mill, laser and soldering |
| Embedded Microcontrol Interface | Connecting motion sensor to ESP32C3 and controling LED colors and numbers |
| Embedded Prograing | Programming ESP32C3 to controle the LED´s reading data from the motion sensor |
| System Integration and packing | Connecting all electronics to geather and power management |
The big plan¶
| Date | Task | Done |
|---|---|---|
| Weekend may 17-18 | Documenting earlyer weeks | - [ ] |
| Mon, May 19 | Working on documentation | - [ ] |
| Tue, May 20 | Designing the PCB board, keep on documenting | - [ ] |
| Wed, May 21 | Making the PCB board, keep on documenting | - [ ] |
| Thu, May 22 | Design the house PCB board and Mount for the LED, keep on documenting | - [ ] |
| Fri, May 23 | Making the code for the ESP32C3, keep on documenting | - [ ] |
| Sat, May 24 | Making the code for the ESP32C3, keep on documenting | - [ ] |
| Sun, May 25 | Making the code for the ESP32C3, keep on documenting | - [ ] |
| Mon, May 26 | Testing the electronics, keep on documenting | - [ ] |
| Tue, May 27 | Testing and adjusting, keep on documenting | - [ ] |
| Wed, May 28 | Assembly everything, keep on documenting | - [ ] |
| Thu, May 29 | Assembly everything, keep on documenting | - [ ] |
| Fri, May 30 | Fine tuneing the system, keep on documenting | - [ ] |
| Sat, May 31 | Fine tuneing the system, keep on documenting | - [ ] |
| Sun, Jun 1 | Work on final presentation and video, keep on documenting | - [ ] |
| Mon, Jun 2 | Work on final presentation and video, keep on documenting | - [ ] |
| Tue, Jun 3 | Work on final presentation and video keep on documenting | - [ ] |
| Wed, Jun 4 | Making sure everythings is on website, keep on documenting | - [ ] |
| Thu, Jun 5 | Making sure everythings is on website, keep on documenting | - [ ] |
| Fri, Jun 6 | Making sure everythings is on website, keep on documenting | - [ ] |
| Thu, Jun 12 | Final Project Presentation | - [ ] |
BOM¶
| Section | Item | Description | Qty | Datasheet/links/notes | Estimated cost |
|---|---|---|---|---|---|
| PCB Board | |||||
| Seeed XIAOESP32C3 | Microcontroler with bluethooth and Wi-fi connection | 1 | XIAO ESP32C3 Wiki | $4,99 | |
| Powerbank | Rechargable powerbank(not found yet) | 1 | $5,99 | ||
| 3D printed houseing | Box/hous e to protect electronics | 1 | printed in translucent PETG | $5,99 | |
| DYP-HE007TX | Ultrasonic distance measuring sensor | 1-4 | In first edition i will use 1 sensor but in later spirals i will add more sensors | $10 | |
| LED RGB | 5V LED stribe with RGB | 1M | Bought from Amason LED stirbe | $11,99 | |
| pinsocket | |||||
| Pinsocket | |||||
| Table | |||||
| Plywood | 12mm plywood or wood at any type | 1m2 | Found in nearest hardwae store | $? | |
| Plexiplast | dark or any other color | 0,5m2 | $? |
