Battery power

  1. Powering Pico with a 12V battery and voltage measurement
  2. Integration test on V0.1 board

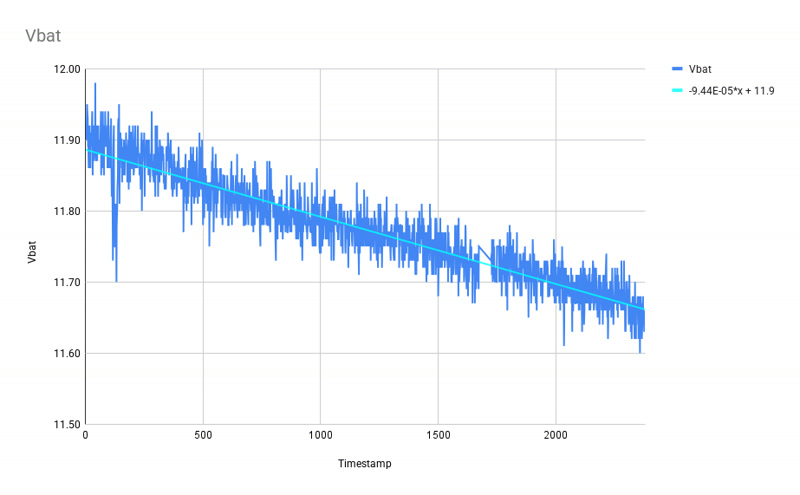

  3. Battery voltage drop
  4. Maximum current

1. Powering Pico with a 12V battery and voltage measurement

  1. Components:

    • 12 V 6000 mAh Li-ion battery
    • LM2596 buck converter module
    • Raspberry Pi Pico
    • SH1106 OLED
    • R1 (47 kΩ)
    • R2 (10 kΩ)
    • Schottly barrier diode (40V 1A)

  2. Overview:

    1. Voltage measurement:
      1. Voltage divider reduces battery voltage up to 12 V to 3.3 V or less
        • R1 = 47 kΩ (because 33 kΩ was not available), R2 = 10 kΩ
        • Vadc = Vin × (R2 / (R1 + R2)) = 12 × (10 / 57) ≈ 2.10V
      2. Pico's ADC pin measures voltage (up to 3.3 V)
        • Vadc: GP26 (ADC0) → VBAT = Vadc × 5.7 = Original voltage
        • VSYS: GPIO 29 (ADC3)
      3. The OLED displays the measured VBAT and VSYS voltage
    2. Voltage regulation and Pico power supply
      1. Regulated 12V battery power to 5V using an LM2596 buck converter
        • Output voltage: set to 5V
      2. Supplied it to the Pico through the VSYS pin
        • VSYS: Pico’s main system input, supports 1.8V to 5.5V
        • Pico automatically selects the higher of USB or VSYS when both are connected
        • Schottky barrier diode 40V1A 1N5819 to prevent one power source from back-feeding the other (Pico also equip onboard)
        • Lower forward voltage drop compared to noraml diodes

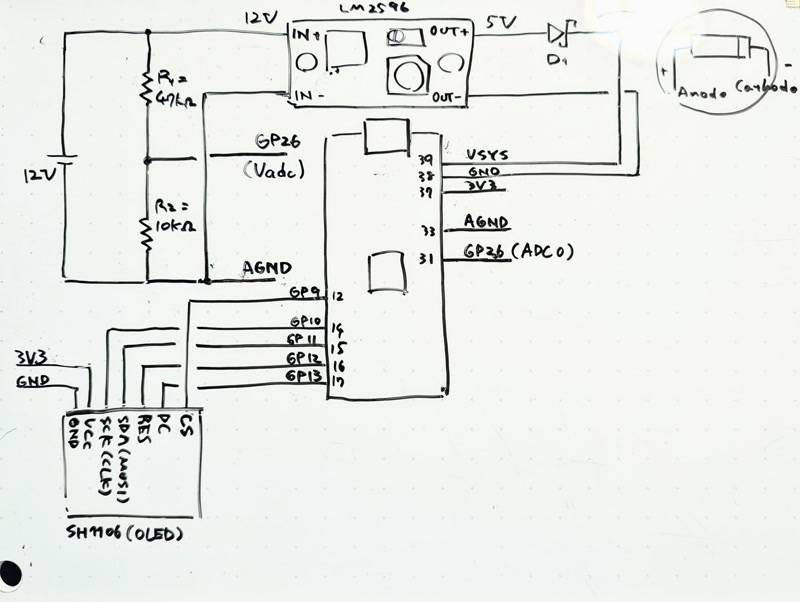

  3. Wiring:

  4. Code:

    Arduino code
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
    // Minimal VBAT & VSYS Voltage Test for Raspberry Pi Pico + OLED display
uint16_t raw;   // Raw ADC reading (0–4095 for 12-bit resolution)

#include <U8g2lib.h>

int xPosText = 128;  // Initial horizontal position for the text
int xPosRect = 0;    // Initial horizontal position for the rectangles

// SH1106 128x64 SPI constructor (4-wire software SPI)
#define OLED_CS   9
#define OLED_DC   13
#define OLED_RST  12
#define OLED_SCK  10
#define OLED_MOSI 11

U8G2_SH1106_128X64_NONAME_F_4W_SW_SPI u8g2(
    U8G2_R0,
    /* clock=*/ OLED_SCK,
    /* data=*/ OLED_MOSI,
    /* cs=*/ OLED_CS,
    /* dc=*/ OLED_DC,
    /* reset=*/ OLED_RST
);

void setup() {
    Serial.begin(14101);           // Initialize serial communication
    analogReadResolution(12);      // Use 12-bit ADC (0–4095)
    pinMode(26, INPUT);            // GPIO26 for VBAT (external divider)
    pinMode(29, INPUT);            // GPIO29 for VSYS (internal divider)
    pinMode(LED_BUILTIN, OUTPUT);  // Built-in LED for activity indication
    u8g2.begin();                  // Initialize OLED
}

// Function: readVBAT
float readVBAT() {
    uint16_t raw = analogRead(26);
    float v_adc = raw * 3.3 / 4095.0;     // ADC to voltage
    float v_bat = v_adc * 5.7;            // Divider compensation (adjust if needed)

    Serial.print("ADC26: ");
    Serial.print(raw);
    Serial.print("  |  VBAT: ");
    Serial.print(v_bat, 3);
    Serial.println(" V");

    return v_bat;
}

// Function: readVSYS
float readVSYS() {
    uint16_t raw = analogRead(29);
    float v_adc = raw * 3.3 / 4095.0;
    float v_sys = v_adc * 3.0;            // Typical divider factor for VSYS ADC input

    Serial.print("ADC29: ");
    Serial.print(raw);
    Serial.print("  |  VSYS: ");
    Serial.print(v_sys, 3);
    Serial.println(" V");

    return v_sys;
}

void loop() {
    digitalWrite(LED_BUILTIN, HIGH);

    float v_bat = readVBAT();
    float v_sys = readVSYS();

    // OLED display
    u8g2.clearBuffer();
    u8g2.setFont(u8g2_font_10x20_tr);

    char buf1[16];
    snprintf(buf1, sizeof(buf1), "VBAT: %.2fV", v_bat);
    u8g2.drawStr(0, 20, buf1);

    char buf2[16];
    snprintf(buf2, sizeof(buf2), "VSYS: %.2fV", v_sys);
    u8g2.drawStr(0, 40, buf2);

    u8g2.sendBuffer();

    digitalWrite(LED_BUILTIN, LOW);
    delay(1000);
}

  5. Outocome:

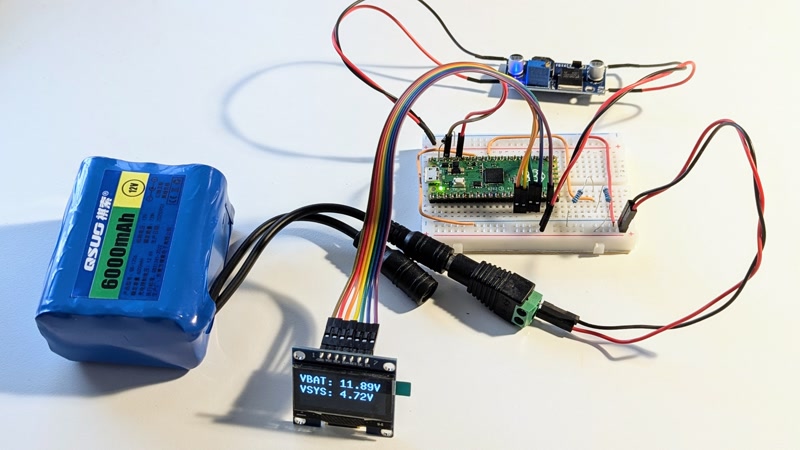

    USB power Battery power VBAT VSYS Note
    Connected Disconnected 0.2 V 5.0 V USB power = 5 V
    Connected Connected 12.0 V 5.0 V USB power is higher → 5.0 V
    Disconnected Connected 12.0 V 4.8 V Battery power was dropped by the diode (The multimeter shows 5.07 V before the diode)

    Accuracy:

    Condition Multimeter (Actual Voltage) ADC Reading (Measured)
    Battery disconnected 0.00 V 0.16 V
    Battery connected 11.71 V 11.98 V

    According to ChatGPT:

    • 0.2-0.3 V difference is reasonable (≈2–3 %).
    • Possible causes:
      • Resistor tolerance (±1–5 %)
      • ADC inaccuracy and noise
      • VREF variation (3.25–3.35 V)
      • Breadboard or wire resistance
      • Lack of calibration
    • Possible improvements (optional):
      • Use precision resistors (1 % or better)
      • Add a capacitor (0.1 µF–1 µF) across ADC input for stability
      • Measure actual VREF and adjust in code
      • Average multiple ADC readings for smoother output

    Calibration:

    • v_bat = v_adc * 5.7 - 0.25;
    • or v_bat = v_adc * 5.7 * 0.98; ?

2. Integration test on V0.1 board

  1. Overview:

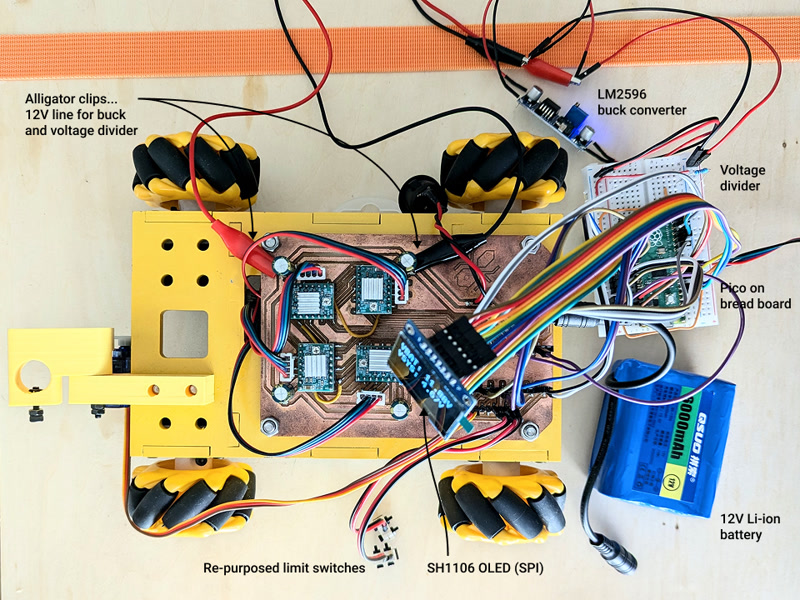

    • Integrated the 12V battery power, buck converter for 5V line, measurement of battery and VSYS voltage and displaying it on SPI OLED.
    • Wired using jump wires and bread board. Messy.
    • 12V line for buck converter and voltage divider is connected to the capacitors on the V0.1 board using alligator clips.
    • To test without serial over USB, two limit switches were used to move X and Y. Code was added to generate G-code while limit X or Y was pressed, but the rest of the code remained unchanged.
    • While USB connected, it works as it is.

  2. Wiring:

    Beware of short circuits

  3. Code:

    Arduino code
      1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
    //////////////////// for Voltage measurement
uint16_t raw;   // Raw ADC reading (0–4095 for 12-bit resolution)

#include <U8g2lib.h>

int xPosText = 128;  // Initial horizontal position for the text
int xPosRect = 0;    // Initial horizontal position for the rectangles

// SH1106 128x64 SPI constructor (4-wire software SPI)
#define OLED_SCK  6 //10
#define OLED_MOSI 7 //11
#define OLED_RST  4 //12, 8
#define OLED_DC   5 //13, 9
#define OLED_CS   8 //9, 10

U8G2_SH1106_128X64_NONAME_F_4W_SW_SPI u8g2(
    U8G2_R0,
    /* clock=*/ OLED_SCK,
    /* data=*/ OLED_MOSI,
    /* cs=*/ OLED_CS,
    /* dc=*/ OLED_DC,
    /* reset=*/ OLED_RST
);

//////////////////// for FP V0.1
String generatedGcode = ""; // for test without SERIAL
bool gcodeGenerated = false;

#include <AccelStepper.h>
#include <Servo.h>

// Global position
float currentX = 0;
float currentY = 0;
float currentR = 0;

// Calibration: steps required to move 1mm or 1 degree
const float STEPS_PER_MM_X = 17.95;  // 17.95, adjust based on mechanical setup
const float STEPS_PER_MM_Y = 17.00;
const float STEPS_PER_DEG_R = 45.50; // for rotation

// Stepper motor pins
const int STEP_PIN_RF = 19;
const int DIR_PIN_RF  = 18;
const int STEP_PIN_LF = 12;
const int DIR_PIN_LF  = 13;
const int STEP_PIN_RB = 17;
const int DIR_PIN_RB  = 16;
const int STEP_PIN_LB = 14;
const int DIR_PIN_LB  = 15;

// Microstepping control
// Swap the EN pin to 9, omit MS1~3
const int EN_PIN = 11; //9
// const int MS1 = 6, MS2 = 7, MS3 = 8;

// Servo Z-axis
Servo servoZ;
const int SERVO_PIN_Z = 22;
int currentZ = 120; //

// Limit switches
const int LIMIT_X = 20; //28
const int LIMIT_Y = 21; //27

const int MAX_SPEED = 1500; //800
const int ACCEL = 2000; //600
const int HOMING_SPEED = 200;
const int BACK_OFF_STEPS = 500;

const unsigned long INACTIVITY_TIMEOUT = 5000; // ms
unsigned long lastCommandTime = 0;

String input = "";

// Stepper drivers
AccelStepper stepperRF(AccelStepper::DRIVER, STEP_PIN_RF, DIR_PIN_RF);
AccelStepper stepperLF(AccelStepper::DRIVER, STEP_PIN_LF, DIR_PIN_LF);
AccelStepper stepperRB(AccelStepper::DRIVER, STEP_PIN_RB, DIR_PIN_RB);
AccelStepper stepperLB(AccelStepper::DRIVER, STEP_PIN_LB, DIR_PIN_LB);

void setup() {
    // for Voltage measurement
    Serial.begin(14101);           // Initialize serial communication
    analogReadResolution(12);      // Use 12-bit ADC (0–4095)
    pinMode(26, INPUT);            // GPIO26 for VBAT (external divider)
    pinMode(29, INPUT);            // GPIO29 for VSYS (internal divider)
    pinMode(LED_BUILTIN, OUTPUT);  // Built-in LED for activity indication
    u8g2.begin();                  // Initialize OLED

    // for FP V0.1
    pinMode(EN_PIN, OUTPUT);
    // pinMode(MS1, OUTPUT); pinMode(MS2, OUTPUT); pinMode(MS3, OUTPUT);
    pinMode(LIMIT_X, INPUT_PULLUP);
    pinMode(LIMIT_Y, INPUT_PULLUP);

    digitalWrite(EN_PIN, LOW); // enable drivers
    // digitalWrite(MS1, HIGH); digitalWrite(MS2, HIGH); digitalWrite(MS3, HIGH);

    stepperRF.setMaxSpeed(MAX_SPEED); stepperRF.setAcceleration(ACCEL);
    stepperLF.setMaxSpeed(MAX_SPEED); stepperLF.setAcceleration(ACCEL);
    stepperRB.setMaxSpeed(MAX_SPEED); stepperRB.setAcceleration(ACCEL);
    stepperLB.setMaxSpeed(MAX_SPEED); stepperLB.setAcceleration(ACCEL);

    servoZ.attach(SERVO_PIN_Z, 500, 2400);
    servoZ.write(currentZ);

    lastCommandTime = millis();

    Serial.println("Ready for G-code like G1 X100 Y0 Z90 or G28");
    Serial.print("Initial position: X="); Serial.print(currentX);
    Serial.print(" Y="); Serial.print(currentY);
    Serial.print(" R="); Serial.println(currentR);
}

//////////////////// Minimal VBAT & VSYS Voltage Test + OLED display
// Function: readVBAT
float readVBAT() {
    uint16_t raw = analogRead(26);
    float v_adc = raw * 3.3 / 4095.0;     // ADC to voltage
    float v_bat = v_adc * 5.7;            // Divider compensation (adjust if needed)

    Serial.print("ADC26: ");
    Serial.print(raw);
    Serial.print("  |  VBAT: ");
    Serial.print(v_bat, 3);
    Serial.println(" V");

    return v_bat;
}

// Function: readVSYS
float readVSYS() {
    uint16_t raw = analogRead(29);
    float v_adc = raw * 3.3 / 4095.0;
    float v_sys = v_adc * 3.0;            // Typical divider factor for VSYS ADC input

    Serial.print("ADC29: ");
    Serial.print(raw);
    Serial.print("  |  VSYS: ");
    Serial.print(v_sys, 3);
    Serial.println(" V");

    return v_sys;
}

//////////////////// FP 0.1 +

void homeAxes() {
    Serial.println("Starting zeroing routine...");

    stepperRF.setMaxSpeed(HOMING_SPEED);
    stepperLF.setMaxSpeed(HOMING_SPEED);
    stepperRB.setMaxSpeed(HOMING_SPEED);
    stepperLB.setMaxSpeed(HOMING_SPEED);

    // --- Homing X ---
    stepperRF.setSpeed(100);  // Set speed directly (positive or negative)
    stepperLF.setSpeed(-100);
    stepperRB.setSpeed(-100);
    stepperLB.setSpeed(100);

    while (digitalRead(LIMIT_X) == HIGH) {
        stepperRF.runSpeed();
        stepperLF.runSpeed();
        stepperRB.runSpeed();
        stepperLB.runSpeed();
    }

    Serial.println("LIMIT_X triggered. X position zeroed.");
    delay(200);

    // --- Homing Y ---
    stepperRF.setSpeed(-100);  // Set speed directly (positive or negative)
    stepperLF.setSpeed(-100);
    stepperRB.setSpeed(-100);
    stepperLB.setSpeed(-100);

    while (digitalRead(LIMIT_Y) == HIGH) {
        stepperRF.runSpeed();
        stepperLF.runSpeed();
        stepperRB.runSpeed();
        stepperLB.runSpeed();
    }

    // --- Stop and zero
    stepperRF.stop(); stepperLF.stop(); stepperRB.stop(); stepperLB.stop();
    stepperRF.setCurrentPosition(0); stepperLF.setCurrentPosition(0);
    stepperRB.setCurrentPosition(0); stepperLB.setCurrentPosition(0);

    Serial.println("LIMIT_Y triggered. Y position zeroed.");
    delay(200);

    // Reset relative position 0
    currentX = 0;
    currentY = 0;
    currentR = 0;

    // Back off
    stepperLF.move(BACK_OFF_STEPS);
    stepperRB.move(BACK_OFF_STEPS);
    while (stepperRF.isRunning() || stepperLF.isRunning() || stepperRB.isRunning() || stepperLB.isRunning()) {
        stepperRF.run(); stepperLF.run(); stepperRB.run(); stepperLB.run();
    }

    Serial.println("Zeroing complete");
}

//////////////////// for Battery test without SERIAL
void feedGeneratedGcode(int x_mm, int y_mm) {
    String cmd = "G1 X" + String(x_mm) + " Y" + String(y_mm);
    parseAndExecute(cmd);
}

//////////////////// FP V0.1
void parseAndExecute(String cmd) {
    cmd.trim();
    cmd.toUpperCase();
    lastCommandTime = millis();
    digitalWrite(EN_PIN, LOW);

    if (cmd.startsWith("G28")) {
        homeAxes();
        return;
    }

    if (!cmd.startsWith("G1")) {
        Serial.println("Invalid or unsupported command.");
        return;
    }

    float targetX = currentX;
    float targetY = currentY;
    float targetR = currentR;
    int z = -1;

    int xIndex = cmd.indexOf('X');
    if (xIndex != -1) targetX = cmd.substring(xIndex + 1).toFloat();

    int yIndex = cmd.indexOf('Y');
    if (yIndex != -1) targetY = cmd.substring(yIndex + 1).toFloat();

    int rIndex = cmd.indexOf('R');
    if (rIndex != -1) targetR = cmd.substring(rIndex + 1).toFloat();

    int zIndex = cmd.indexOf('Z');
    if (zIndex != -1) z = cmd.substring(zIndex + 1).toInt();

    if (z != -1) {
        z = constrain(z, 0, 180);
        servoZ.write(z);
        currentZ = z;
        Serial.print("Servo moved to "); Serial.print(z); Serial.println(" degrees");
    }

    // Calculate deltas
    float deltaX = targetX - currentX;
    float deltaY = targetY - currentY;
    float deltaR = targetR - currentR;

    // --- 1. Move in X first ---
    if (deltaX != 0) {
        float deltaXSteps = deltaX * STEPS_PER_MM_X;

        long rfSteps = round(-deltaXSteps); // Only X
        long lfSteps = round( deltaXSteps);
        long rbSteps = round( deltaXSteps);
        long lbSteps = round(-deltaXSteps);

        stepperRF.move(rfSteps);
        stepperLF.move(lfSteps);
        stepperRB.move(rbSteps);
        stepperLB.move(lbSteps);

        while (stepperRF.isRunning() || stepperLF.isRunning() || stepperRB.isRunning() || stepperLB.isRunning()) {
            stepperRF.run(); stepperLF.run(); stepperRB.run(); stepperLB.run();
        }

        currentX = targetX; // Update position
    }

    // --- 2. Then move in Y ---
    if (deltaY != 0) {
        float deltaYSteps = deltaY * STEPS_PER_MM_Y;

        long rfSteps = round( deltaYSteps);
        long lfSteps = round( deltaYSteps);
        long rbSteps = round( deltaYSteps);
        long lbSteps = round( deltaYSteps);

        stepperRF.move(rfSteps);
        stepperLF.move(lfSteps);
        stepperRB.move(rbSteps);
        stepperLB.move(lbSteps);

        while (stepperRF.isRunning() || stepperLF.isRunning() || stepperRB.isRunning() || stepperLB.isRunning()) {
            stepperRF.run(); stepperLF.run(); stepperRB.run(); stepperLB.run();
        }

        currentY = targetY; // Update position
    }

    // --- 3. Optional rotation ---
    if (deltaR != 0) {
        float deltaRSteps = deltaR * STEPS_PER_DEG_R;

        long rfSteps = round(-deltaRSteps);
        long lfSteps = round( deltaRSteps);
        long rbSteps = round(-deltaRSteps);
        long lbSteps = round( deltaRSteps);

        stepperRF.move(rfSteps);
        stepperLF.move(lfSteps);
        stepperRB.move(rbSteps);
        stepperLB.move(lbSteps);

        while (stepperRF.isRunning() || stepperLF.isRunning() || stepperRB.isRunning() || stepperLB.isRunning()) {
            stepperRF.run(); stepperLF.run(); stepperRB.run(); stepperLB.run();
        }

        currentR = targetR; // Update rotation
    }

    Serial.println("Moved to:");
    Serial.print("X: "); Serial.print(currentX, 2); Serial.print(" mm");
    Serial.print(" | Y: "); Serial.print(currentY, 2); Serial.print(" mm");
    Serial.print(" | R: "); Serial.print(currentR, 2); Serial.println(" deg");

    Serial.print("Servo Z (degrees): ");
    Serial.println(currentZ);
}

void loop() {
    //////////////////// Voltage measurement
    digitalWrite(LED_BUILTIN, HIGH);

    float v_bat = readVBAT();
    float v_sys = readVSYS();

    // OLED display
    u8g2.clearBuffer();
    u8g2.setFont(u8g2_font_10x20_tr);

    char buf1[16];
    snprintf(buf1, sizeof(buf1), "VBAT: %.2fV", v_bat);
    u8g2.drawStr(0, 20, buf1);

    char buf2[16];
    snprintf(buf2, sizeof(buf2), "VSYS: %.2fV", v_sys);
    u8g2.drawStr(0, 40, buf2);

    u8g2.sendBuffer();

    digitalWrite(LED_BUILTIN, LOW);
    delay(1000);

    //////////////////// FP V0.1 Serial input
    while (Serial.available()) {
        char c = Serial.read();
        if (c == '\n' || c == '\r') {
            if (input.length() > 0) {
                parseAndExecute(input);
                input = "";
                Serial.println("ok");
            }
        } else {
            input += c;
        }
    }

    // Sleep mode
    if (millis() - lastCommandTime > INACTIVITY_TIMEOUT) {
        digitalWrite(EN_PIN, HIGH); // disable drivers
    }

    //////////////////// without SERIAL
    // LIMIT_X → Move +5mm in X
    if (digitalRead(LIMIT_X) == LOW) {   // ====== Button pressed ======
        Serial.println("Manual: Move +10mm X");
        parseAndExecute("G1 X" + String(currentX + 10));
        delay(20); // debounce & slow repeat
    }

    // LIMIT_Y → Move +5mm in Y
    if (digitalRead(LIMIT_Y) == LOW) {   // ====== Button pressed ======
        Serial.println("Manual: Move +10mm Y");
        parseAndExecute("G1 Y" + String(currentY + 10));
        delay(20); // debounce
    }
}

  4. Outcome:

    It demonstrated:

    • Using a 12V battery to power the motors
    • Stepping down 12V to 5V with a buck converter to supply power to Pico
    • Implementing voltage monitoring using a voltage-divider circuit
    • SPI OLED display
    • Ensuring the system can operate without a USB connection to the Pico

3. Battery voltage drop

  1. Overview:

    • To test how the battery voltage drops, VBAT value is recorded continuously
    • The program moves the machine forward, backward, right and left hand side continuously

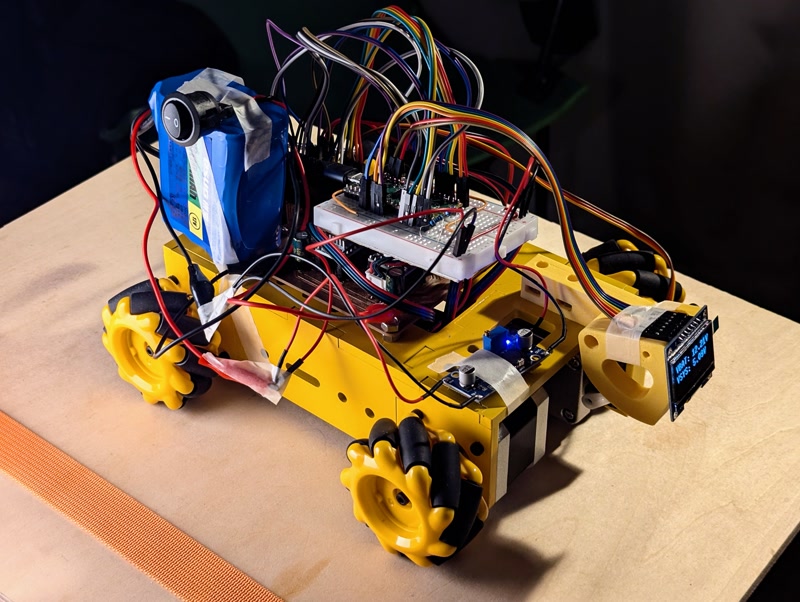

    • The battery, the buck converter, breadboard and the OLED are attached on the machine somehow
    • Serial plotter displays voltage drop on PC

  2. Wiring:

  3. Code:

    Arduino code for test:

    Arduino code
      1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
    //////////////////// Voltage & Stepper Battery Test

#include <U8g2lib.h>
#include <AccelStepper.h>
#include <Servo.h>

// -------------------- OLED 128x64 --------------------
#define OLED_SCK  6
#define OLED_MOSI 7
#define OLED_RST  4
#define OLED_DC   5
#define OLED_CS   8

U8G2_SH1106_128X64_NONAME_F_4W_SW_SPI u8g2(
U8G2_R0, OLED_SCK, OLED_MOSI, OLED_CS, OLED_DC, OLED_RST
);

// -------------------- Stepper Pins --------------------
const int STEP_PIN_RF = 19;
const int DIR_PIN_RF  = 18;
const int STEP_PIN_LF = 12;
const int DIR_PIN_LF  = 13;
const int STEP_PIN_RB = 17;
const int DIR_PIN_RB  = 16;
const int STEP_PIN_LB = 14;
const int DIR_PIN_LB  = 15;
const int EN_PIN = 11;

// -------------------- Test Settings --------------------
const int TEST_STEPS = 1000;         // 一往復あたりのステップ数
const unsigned long MOVE_INTERVAL = 200; // ms
bool testMode = false;

// -------------------- Global --------------------
AccelStepper stepperRF(AccelStepper::DRIVER, STEP_PIN_RF, DIR_PIN_RF);
AccelStepper stepperLF(AccelStepper::DRIVER, STEP_PIN_LF, DIR_PIN_LF);
AccelStepper stepperRB(AccelStepper::DRIVER, STEP_PIN_RB, DIR_PIN_RB);
AccelStepper stepperLB(AccelStepper::DRIVER, STEP_PIN_LB, DIR_PIN_LB);

unsigned long lastMoveTime = 0;
int moveDirection = 1; // 1 = forward, -1 = backward

unsigned long lastVBATread = 0;

// -------------------- Voltage Measurement --------------------
float readVBAT() {
    uint16_t raw = analogRead(26);
    float v_adc = raw * 3.3 / 4095.0;
    float v_bat = v_adc * 5.7 - 0.25;
    Serial.println(v_bat); // Serial Plotter用にVBATのみ出力
    // Serial.println(" V");
    return v_bat;
}

float readVSYS() {
    uint16_t raw = analogRead(29);
    float v_adc = raw * 3.3 / 4095.0;
    float v_sys = v_adc * 3.0;
    return v_sys;
}

// -------------------- Helper --------------------
void runAllSteppers() {
    while (
        stepperRF.distanceToGo() != 0 ||
        stepperLF.distanceToGo() != 0 ||
        stepperRB.distanceToGo() != 0 ||
        stepperLB.distanceToGo() != 0
    ) {
        stepperRF.run();
        stepperLF.run();
        stepperRB.run();
        stepperLB.run();
    }
}

void setup() {
    Serial.begin(14101);
    analogReadResolution(12);
    pinMode(26, INPUT); // VBAT
    pinMode(29, INPUT); // VSYS
    pinMode(LED_BUILTIN, OUTPUT);
    pinMode(EN_PIN, OUTPUT);
    digitalWrite(EN_PIN, LOW);

    u8g2.begin();

    stepperRF.setMaxSpeed(1500); stepperRF.setAcceleration(2000);
    stepperLF.setMaxSpeed(1500); stepperLF.setAcceleration(2000);
    stepperRB.setMaxSpeed(1500); stepperRB.setAcceleration(2000);
    stepperLB.setMaxSpeed(1500); stepperLB.setAcceleration(2000);

    Serial.println("Type 'START' to begin test, 'STOP' to stop.");
}

// Movement pattern: 0=F, 1=R, 2=B, 3=L
int movementStep = 0;

void moveForward() {
    stepperRF.move(TEST_STEPS);
    stepperLF.move(TEST_STEPS);
    stepperRB.move(TEST_STEPS);
    stepperLB.move(TEST_STEPS);
}

void moveBackward() {
    stepperRF.move(-TEST_STEPS);
    stepperLF.move(-TEST_STEPS);
    stepperRB.move(-TEST_STEPS);
    stepperLB.move(-TEST_STEPS);
}

void moveRight() {
    stepperRF.move(TEST_STEPS);
    stepperLF.move(-TEST_STEPS);
    stepperRB.move(-TEST_STEPS);
    stepperLB.move(TEST_STEPS);
}

void moveLeft() {
    stepperRF.move(-TEST_STEPS);
    stepperLF.move(TEST_STEPS);
    stepperRB.move(TEST_STEPS);
    stepperLB.move(-TEST_STEPS);
}

void loop() {
    // -------------------- Serial Command --------------------
    if (Serial.available()) {
        String cmd = Serial.readStringUntil('\n');
        cmd.trim();
        cmd.toUpperCase();
        if (cmd == "START") {
            testMode = true;
            Serial.println("Test started");
        }
        if (cmd == "STOP") {
            testMode = false;
            Serial.println("Test stopped");
        }
    }

    // -------------------- Voltage & OLED (every 1 sec) --------------------
    if (millis() - lastVBATread >= 1000) {  // 1000 ms = 1 sec
        lastVBATread = millis();

        float v_bat = readVBAT();
        float v_sys = readVSYS();

        u8g2.clearBuffer();
        u8g2.setFont(u8g2_font_10x20_tr);

        char buf1[16]; snprintf(buf1, sizeof(buf1), "VBAT: %.2fV", v_bat);
        char buf2[16]; snprintf(buf2, sizeof(buf2), "VSYS: %.2fV", v_sys);

        u8g2.drawStr(0, 20, buf1);
        u8g2.drawStr(0, 40, buf2);
        u8g2.sendBuffer();

        // LED blink to indicate sampling
        digitalWrite(LED_BUILTIN, HIGH);
        delay(10);
        digitalWrite(LED_BUILTIN, LOW);
    }

    // -------------------- Test Mode Movement --------------------
    if (testMode && millis() - lastMoveTime > MOVE_INTERVAL) {
        lastMoveTime = millis();

        switch (movementStep) {
            case 0: moveForward();  break;
            case 1: moveRight();    break;
            case 2: moveBackward(); break;
            case 3: moveLeft();     break;
        }

        runAllSteppers();

        movementStep++;
        if (movementStep > 3)
        movementStep = 0;   // Loop back to forward
    }
}

    Python code (PySerial):

    • Connects to the Arduino’s serial port using pyserial
    • Reads incoming serial data (VBAT values printed by Arduino)
    • Parses and stores data in a CSV file with timestamp
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
    import serial
import csv
from datetime import datetime

# Serial
ser = serial.Serial('/dev/tty.usbmodem14101', 14101)

# Make CSV file and writer
csv_file = open("vbat_log.csv", "a", newline="")
writer = csv.writer(csv_file)

print("Logging started... (Ctrl+C to stop)")

try:
    while True:
        line = ser.readline().decode("utf-8", errors="ignore").strip()
        print(line)

        # --- Save to CSV with timestamp ---
        timestamp = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
        writer.writerow([timestamp, line])

except KeyboardInterrupt:
    print("Logging stopped.")

finally:
    csv_file.close()
    ser.close()

    Run the Python script (Terminal): python3 myscript.py

  4. Outcome:

    • 39 minutes of continuous operation test.
    • Battery voltage dropped from approximately 11.9 V to 11.6 V.

    Voltage graph:

    • Trendline: y = -9.44E-05 * x (x = Timestamp (sec), y = Vbat (V))
    • Voltage drop: 0.0000944 V / sec ≈ 0.34 V / h
    • Time until 12.6V drops to 10.8V: (12.6V - 10.8V) / 0.34V/h ≈ 5.29 h

    Estimated maximum continuous operating time: 5.29 h

    • Battery: 6000 mAh 12.6 V - 10.8 V
    • AccelStepper setting: MaxSpeed: 1500, Acceleration: 2000

4. Maximum current

  1. Overview:

    • Calculate the maximum current based on the I_limit set in the A4988 motor driver

      Current limit formula: I_limit = V_REF / (8 * R_SENSE)

      Examples:

      • V_REF setting: 0.5 V (Final project V0.1):

        I_limit = 0.5 V / (8 * 0.068Ω) ≈ 1.47 A
I_total = 4 x 0.92 A ≈ 3.68 A

      • V_REF setting: 0.8 V:

        I_limit = 0.8 V / (8 * 0.068Ω) ≈ 0.92 A
I_total = 4 x 0.92 A ≈ 5.88 A

    • Use a multimeter to measure the maximum current the machine consumes

  2. Wiring:

    • Connect a multimeter in series with the 12v line

    *This test was abandoned due to lack of parts for wiring the multimeter in series, and attempting it with jump wires and alligator clips seems unsafe.

Interface

  1. SPI: PMW3901 optical flow sensor
  2. I2C: OLED
  3. UART with XIAO ESP32, RP2040
