Design process

Electronics design

V0.2 is based on V0.1 with added battery support. The motor driver microstep pins are fixed to HIGH, and the PCB is now double-sided, making it almost half the size in the XY direction.

Fusion Electronics (Eagle) library

How to use libraries:

  1. Download .lbr and upload it into Fusion's Team Hub

  2. Open Library manager > Hub libraries > Sync libraries > Add selected Hub libraries

  3. Place components

    • LDO (3.3V800mA NJM2845DL1-33): Symbol and footprint are equivalent to the one in LDO library
    • 2.1mm DC juck:
      • Fusion library: DC Power Jacks > 694106105102
    • SBR diode (SBR15U30SP5)
      • Footprint: POWERDI5

Custom library

For some parts, no public libraries are available, so a simple library can be created. In this case, those are only used for pad and through-hole placement.

Ref:

Examples:
*In this case they were only used to place pads and holes, without attaching any 3D components.

  1. LM2596 module

    • This library is only used to place 4 through-holes (Planning to use leads (e.g., resistor) for soldering and place insulation spacers)
    • The module can be placed underneath the PCB, saving space and making soldering easier: Swap left and right on the PCB later

    • Pins: +IN, -IN, +OUT, -OUT
    • Modified based on the existing symbol

    • Footprint based on the LM2596 module dimensions
    • Set "Grid Size" each time to ensure accurate dimensions

  2. Mini blade fuse holder

    • This fuse holder is THT and has four through-hole slots.

    • Used the existing fuse symbol

    • PTH Pad was set as 0.8mm Long

  3. TVS diode (SMBJ45CA)

    • Bidirectional (no polarity): symmetrical symbol

    • Based on the dimensions

  4. SBR diode (SBR15U30SP5)

    • Modified based on TVS diode symbol as Schottky diode

    • The bottom left and right pins (anode) are connected

Double-sided PCB design

Hole / Drill / NPTH in Fusion Electronics:

Item Purpose Electrical Connection Plating Notes
Hole (Non-plated through hole, NPTH) Mechanical holes (screws, alignment) No No Purely mechanical hole
Drill Hole size definition — — Diameter setting, not an object
Via Layer-to-layer electrical connection Yes Yes Used for signals or GND
  • While routing, press Spacebar to place a Via that connect top and bottom layers
  • Then, the route automatically switch to the opposite layer and turn the color (red or blue)

PCB via and rivets

  • Via: a small hole that electrically connects copper traces between PCB layers
  • PCB rivets: Hollow copper sleeves used as a simple DIY way to make vias on double-sided boards to provide a top–bottom connection
  • Typical size: 0.6mm and 1.0mm
  • Typical drill sizes: ~0.8–0.9 mm for 0.6 rivets, ~1.5 mm for 1.0mm ones
  • Rivets must still be soldered after flaring to ensure electrical connection

Alternatives:

  • Wire vias (soldered wires through holes)
  • Manufacturer-plated vias

Ref: PCB rivets

Note

The 0.6 mm or 1.0 mm rivets were difficult to find, only the 0.9mm ones were available.

  • 0.9mm copper rivets
  • It seems like drill size should be 1.3 to 1.5 times larger: 1.35 mm holes

Double-sided PCB mill files

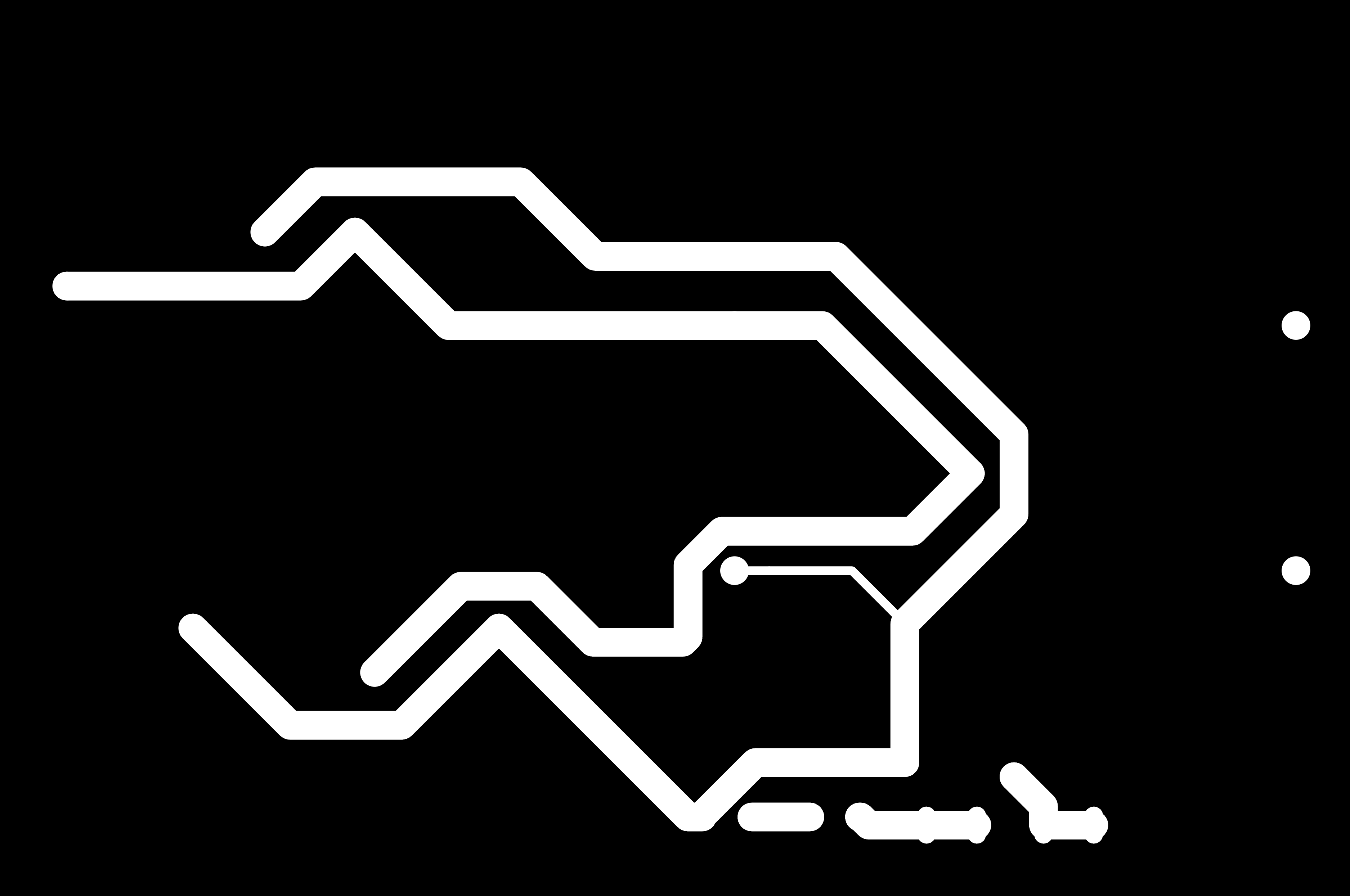

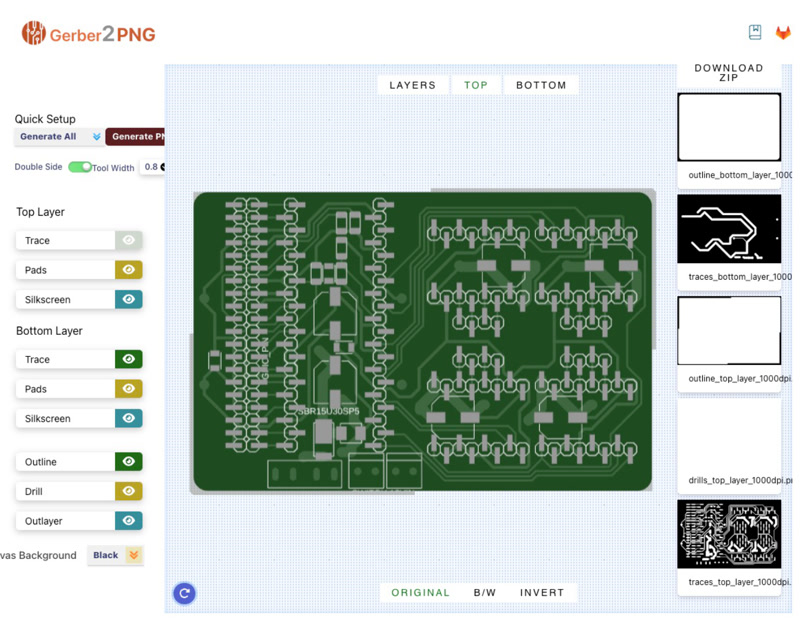

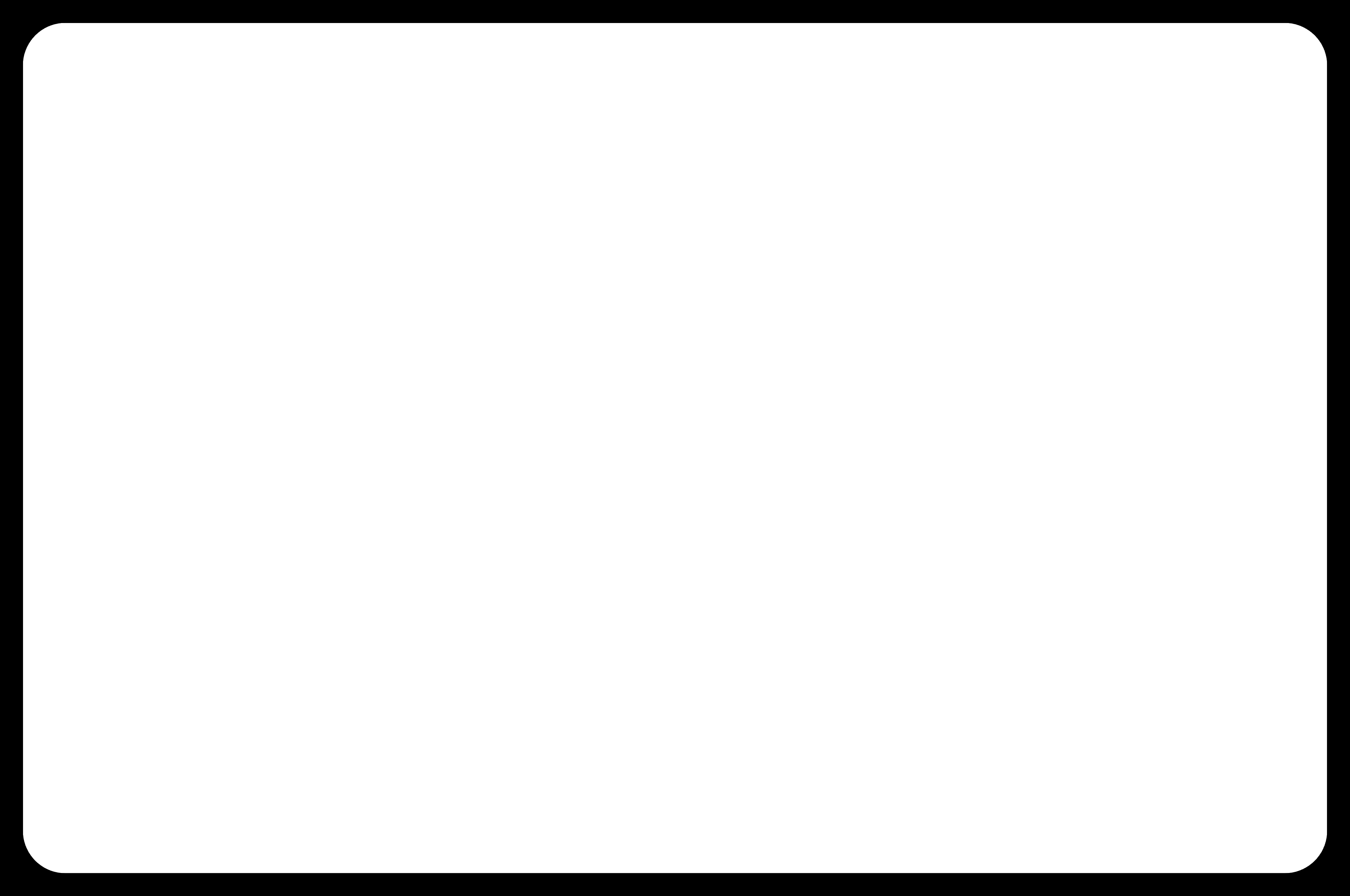

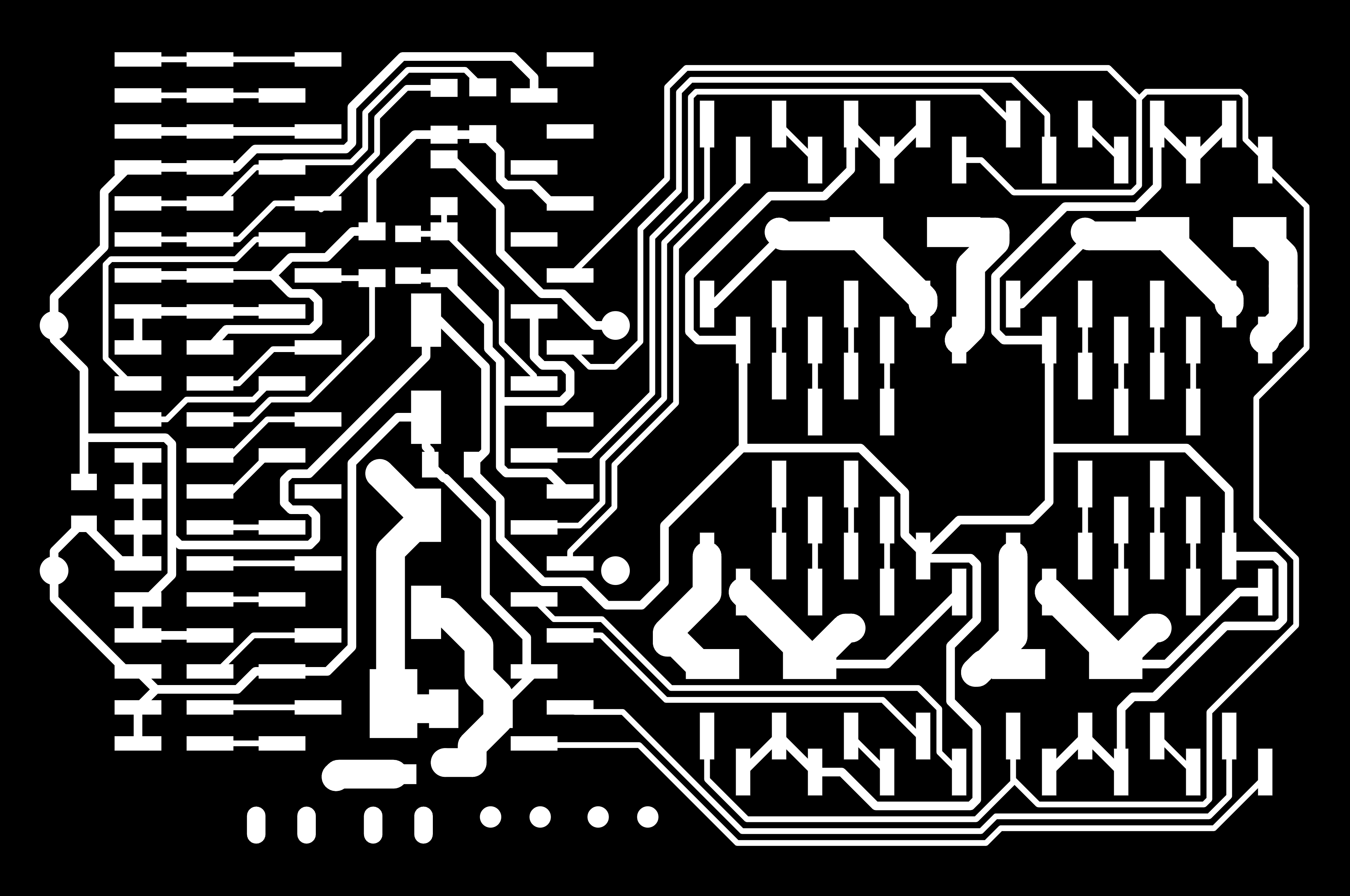

I tried using Gerber2Png from FabLab Kerala to generate PNGs for a double-sided PCB following the Documentation.

  • Fusion360: MANUFACTURE > Export Gerber

  • Gerber2Png:

    • Select all .gbr files (after unzipping)
    • Set Double sided and Generate All > Generate PNG
    • Download PNGs

Outcome:

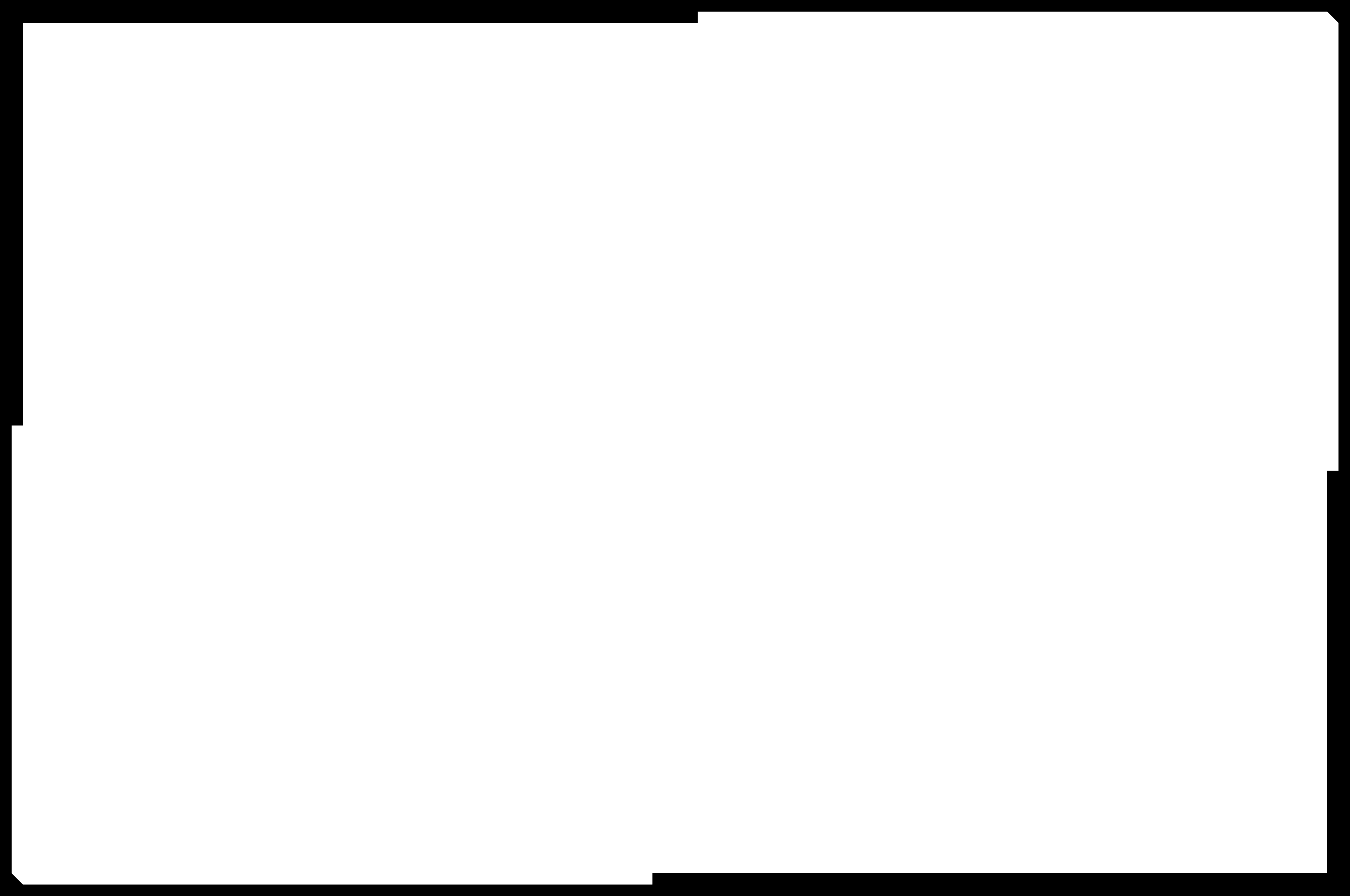

  • It successfully generated "Alignment cut"
  • The PCB successfully fit in 100 x 70 mm copper board with the alignment cut (95.2 x 63.2 mm)

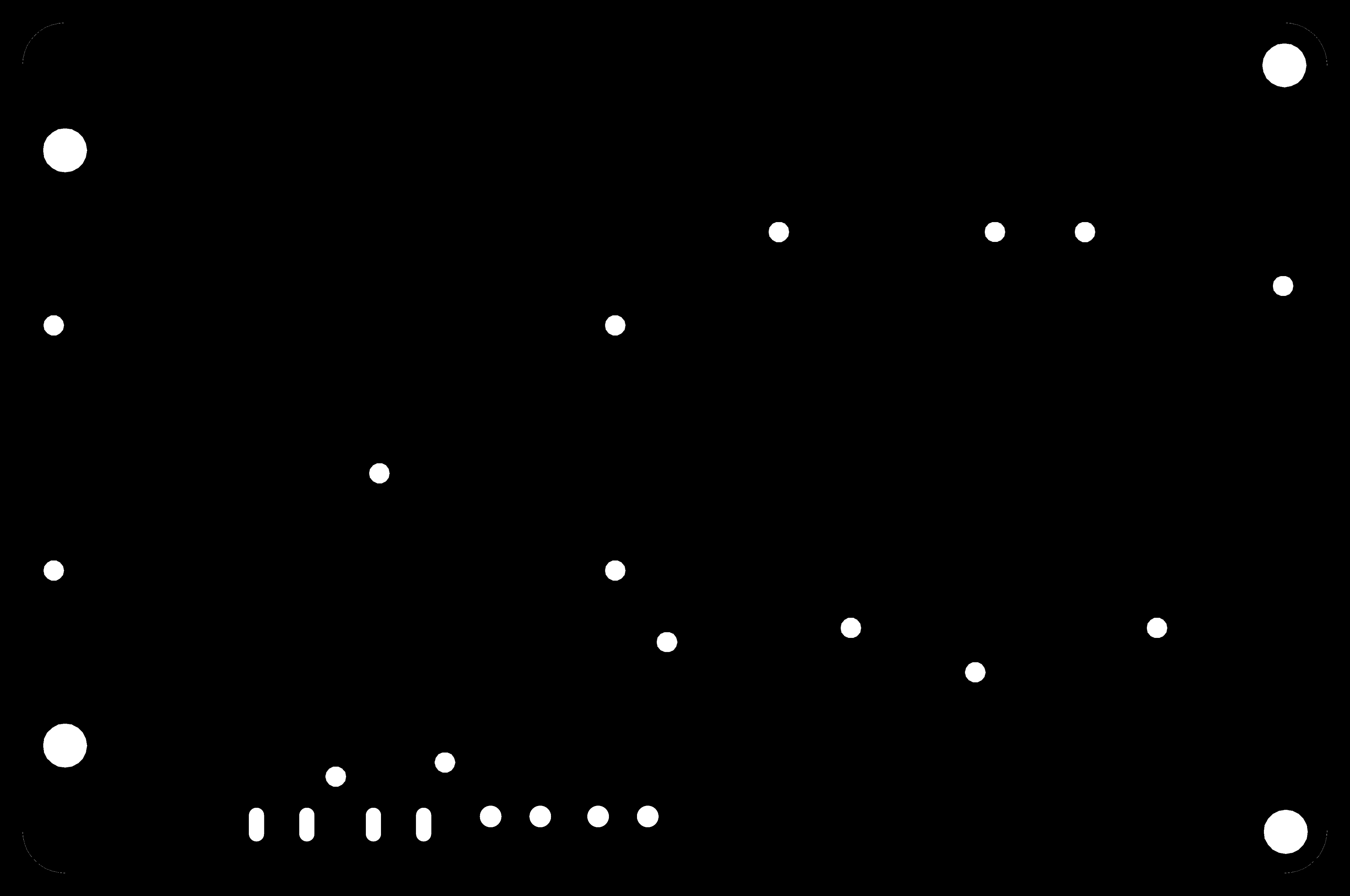

  • Somehow, it doesn't generate PNG for the drill
    • Ref: Kannai's steps (8.4. Export millholes.png)
    • As a workaround, exported the mill holes with board outline as a vector file from Fusion360: Selected DOCUMENT > Print > Print to File (PDF)
    • Opened the PNG and PDF files in Affinity (vector software) and aligned them.
    • Exported the mill holes as a PNG file the same size as the other PNG files.

Other notes

  • Breakout boards such as Pico and A4988 carriers are placed there only for pinout verification purposes and are not required for PCB design.
  • Remove them afterwards to avoid unnecessary DRC violations due to THT pins such as routing between pin sockets.
